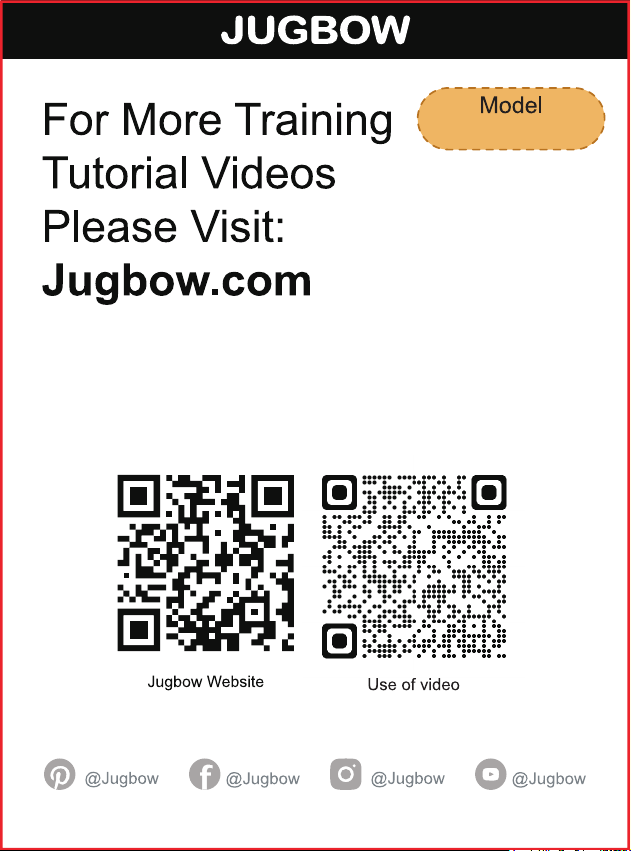

Scan the QR code to follow more
operation details:
DT-683
Hand Strap

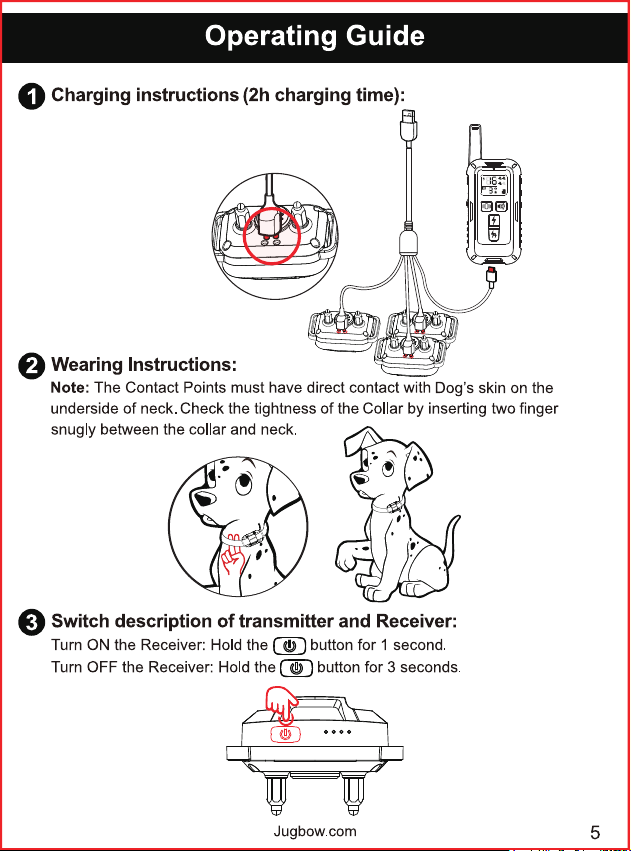

The charging indicator light stays on when the
device is fully charged.
Vibration command : Press the vibration key, the receiver vibrates once.
Press vibration +/- button to adjust the 1-3 levels.
Long press the vibration button to vibrate continuously, after 10 seconds it will
stop vibration automatically and repeat the command when you press again.

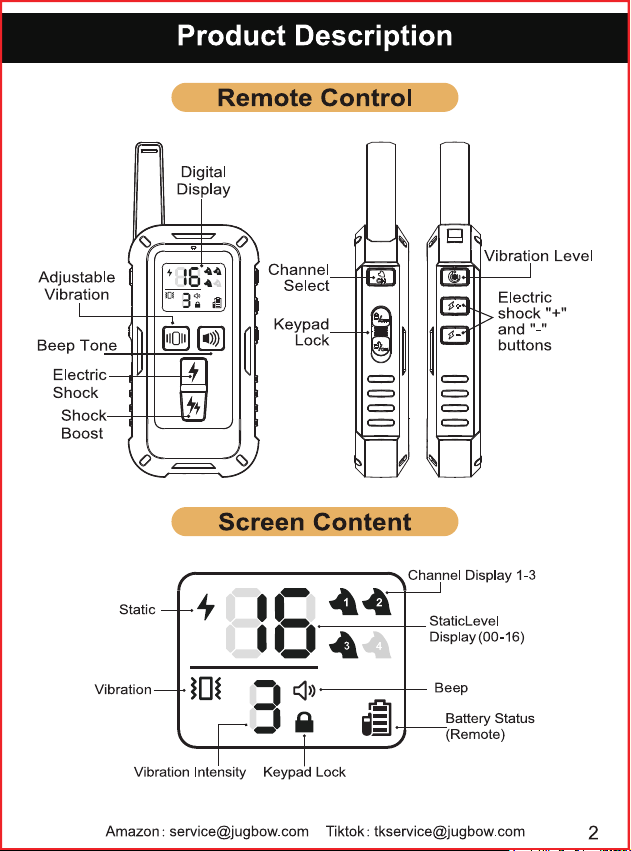

Power key description:
Explanation of Beep commands :
Beep command: Delivers a beep tone with non-adjustable volume to the collar.
Long press the beep button to beep continuously, affter 10 seconds, it will stop
beeping automatically and repeat the command when you press again.
Static button: Delivers currently selected level Staticstimulation to the collar.
Static + button:That is 10% higher than the currently selected level.
Static Intensity adjustment:After press the static button, adjust the static level
press button +/- to adjustable levels 00-16.
Press and hold the shock button shock continuously for up to 10 seconds,
the device will automatically stop for 5 seconds before it can be used again.
The default setting is black channel 1, orange channel 2, and blue channel 3.
Channel description:
1-3 Speed Vibration adjustable and 00-16 shock adjustable
The black collar pairing channel 1, other colors collar pairing channel 2 and channel 3.
NOTE: The receiver will only work on the corresponding matching channel.
Yes, three receivers have been paired at the factory. You only need to
switch to different channels to train different dogs. The black collar pairing
channel 1, orange collar pairing channel 2, blue collar pairing channel 3.
Yes, it can be adjusted. There are 1-3 levels of vibration to choose from.
