Model: TCP1060, TCP1072,
TCP1084
3 POINT CULTIPACKER
TABLE OF CONTENTS
TABLE OF CONTENTS 1
INTRODUCTION 2
OPERATOR RESPONSIBILITIES
7
PRE-OPERATION INSPECTION
7
START-UP AND FIELD OPERATION
7
OPERATING TIPS
7
MAINTENANCE SCHEDULE
9
LUBRICATION POINTS
9
HARDWARE RETENTION AND REPLACEMENT
9
SCRAPER BAR ASSEMBLY
3
5
5
DELIVERY CHECKLIST
TRACTOR REQUIREMENTS AND COMPATIBILITY
6
6
TRACTOR HOOK-UP
6
SAFETY ALERT SYMBOL AND SIGNAL WORDS
3
GENERAL SAFETY RULES
3
EQUIPMENT SAFETY GUIDELINES
4
OPERATIONAL SAFETY
4
MAINTENANCE SAFETY
4
SAFETY INFORMATION
ASSEMBLY INSTRUCTIONS
7
OPERATION
TRANSPORT
8
STORAGE
8
8
TRANSPORT AND STORAGE
9
MAINTENANCE AND LUBRICATION
10
TROUBLESHOOTING
10
TORQUE GUIDELINES
12

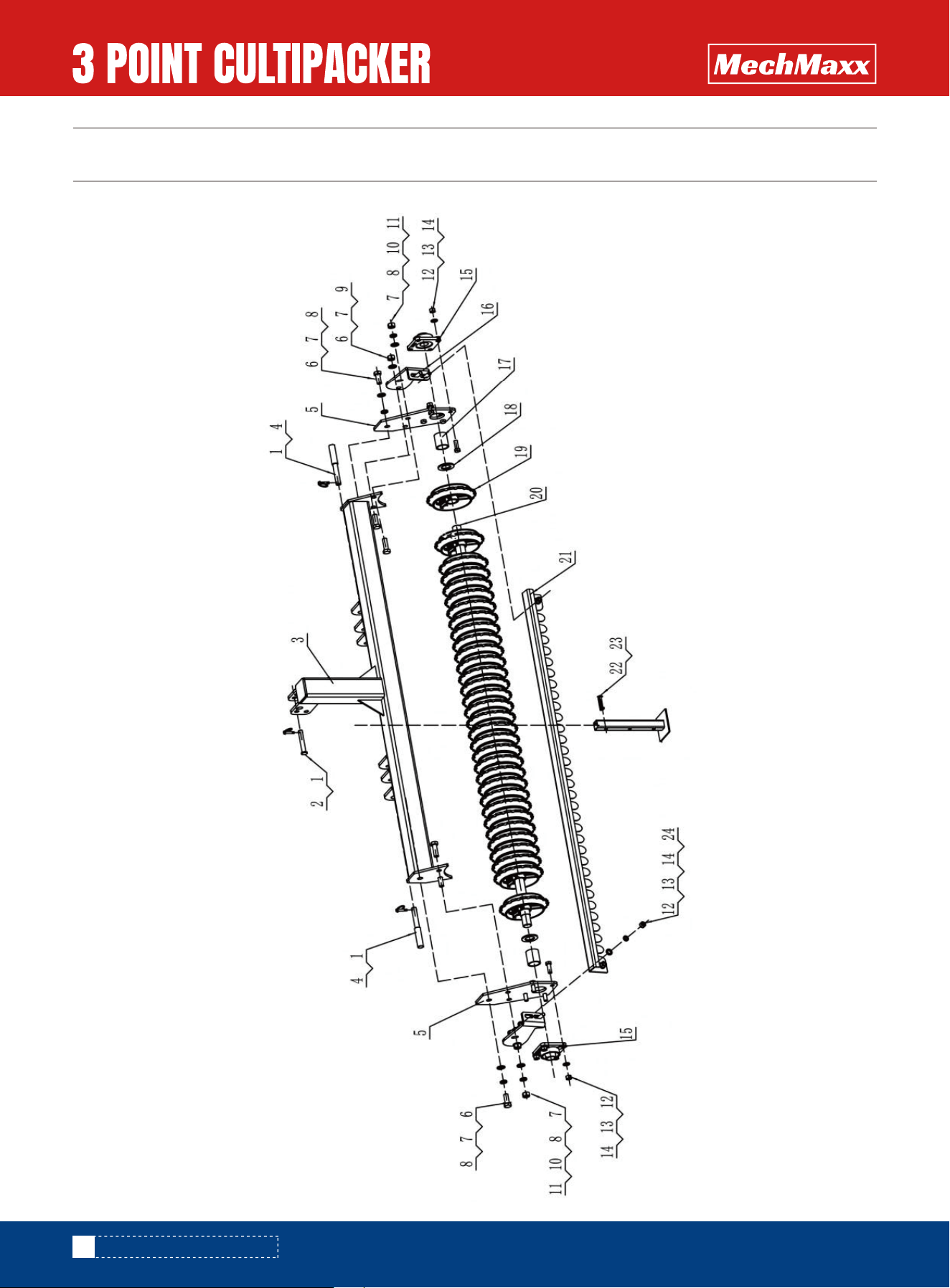

SOIL PULVERIZER PARTS ASSEMBLY
(TSP60, TSP72, TSP84)
13
PARTS LIST (TSP60, TSP72, TSP84)
1
www.mechmaxx.com
TABLE OF CONTENTS
INTRODUCTION
2
www.mechmaxx.com
This manual provides safety, assembly, operation, adjustment, maintenance, and storage information for a 3-point hitch
cultipacker. Read and understand this manual before attempting to assemble, transport, operate, or service this imple-
ment. Keep this manual with the machine at all times.
The 3 Point Cultipacker is a ground-engaging implement designed to firm and level soil surfaces after tillage or seeding
operations. It is used to press seed into the soil, break remaining small clods, and create a smooth, firm seedbed to
promote consistent seed-to-soil contact. The implement is equipped with heavy-duty ductile iron packer rollers to provide
uniform ground pressure and long service life. A full-width scraper bar is standard equipment to help minimize soil buildup
on the roller surface during operation.
• Final seedbed firming after primary tillage
• Firming soil after broadcast seeding or drilling to improve seed-to-soil contact
• Breaking remaining small soil clods and pressing loose stones into the soil surface
• Leveling and smoothing cultivated fields, pastures, lawns, food plots, and landscaped areas
• Preparing soil surfaces prior to planting grass seed, small grains, or similar crops
Common applications include:
• Primary tillage, deep ripping, or any operation requiring significant soil penetration
• Operating in areas containing large rocks, stumps, roots, or other immovable objects
• Breaking, removing, or leveling concrete, asphalt, blacktop, or compacted road surfaces
• High-speed operation over rough or uneven terrain that may cause loss of control or equipment damage
• Using the implement as a transport roller or applying excessive downforce beyond normal operating conditions
Not recommended for:
INTRODUCTION
3
www.mechmaxx.com
SAFETY INFORMATION
SAFETY INFORMATION
A safety alert symbol is used to identify safety messages. When you see a safety message, be alert to the possibility of
injury. Follow recommended precautions and safe operating practices.
1. Select an area for assembly that is clean and free of any debris which might cause persons working on the assembly
to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack, tackle, fork trucks, or other mechanical devices.
3. Preview the assembly instructions in your operator’s manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the assembly to be blocked. Also ensure that the blocking material is
on a clean, dry surface.
5. Never put hands, or any part of the body, under blocked-up assemblies if at all possible.
6. After completing assembly, thoroughly inspect the machine to be sure that all nuts, bolts, hydraulic fittings, or any
other fastened assemblies have been thoroughly tightened.
7. Before operating the machine, thoroughly read the operation section of your operator’s manual.
8. Before operating, read the machine section of your operator’s manual to be sure that any parts requiring lubrication are
properly lubricated to avoid any possible damage.
9. Before operating the equipment — if you have any questions regarding the proper assembly or operation, contact your
dealer or representative.

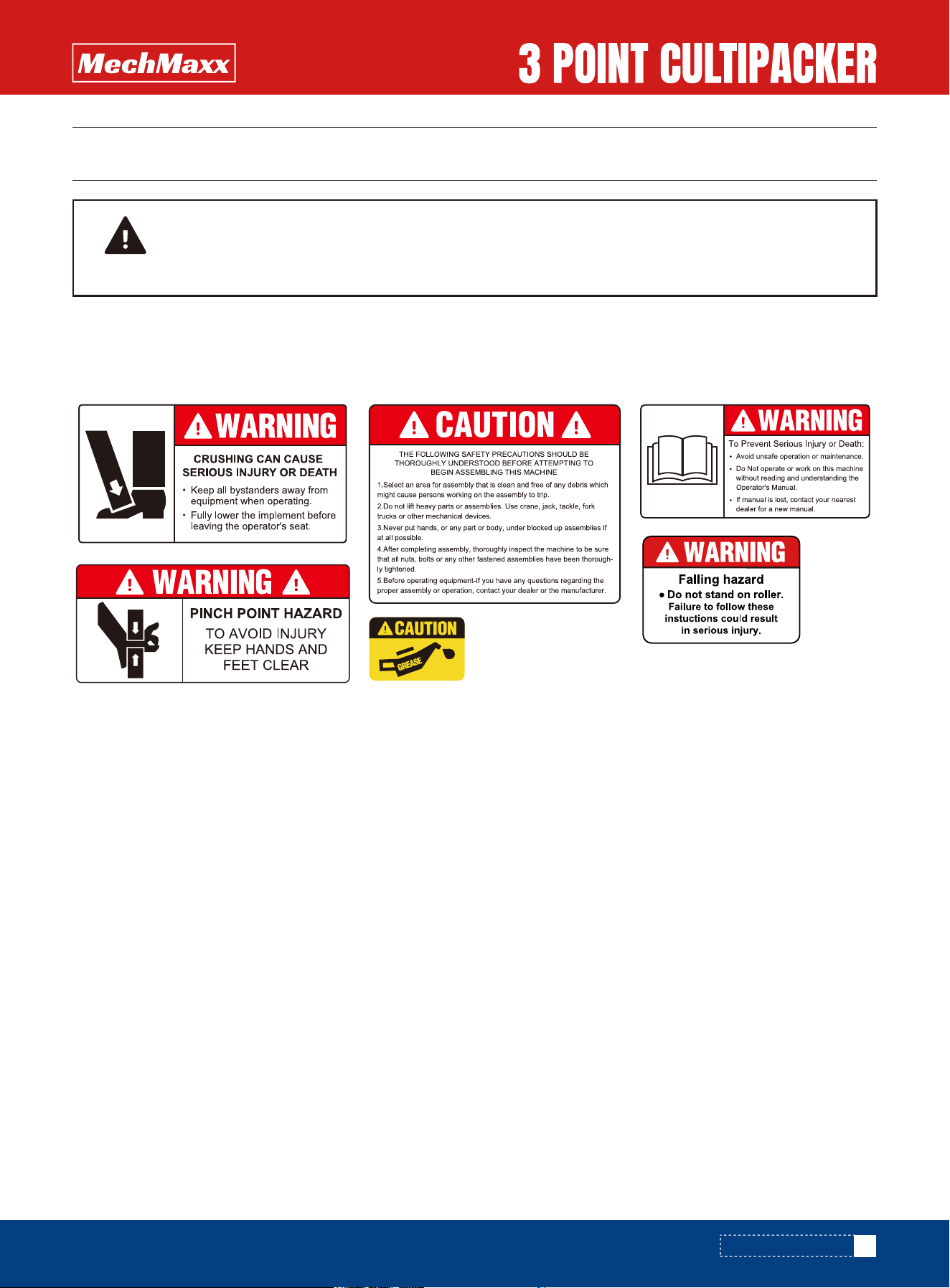

SAFETY ALERT SYMBOL AND SIGNAL WORDS
GENERAL SAFETY RULES
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING
TO BEGIN ASSEMBLING THIS MACHINE
CAUTION
4
www.mechmaxx.com
SAFETY INFORMATION
1. Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment.
Consult your doctor about operating this machine while taking prescription medications.
2. Review the safety instructions with all users annually.
3. This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a responsible
adult familiar with your machinery and trained in this equipment’s operations. Do not allow persons to operate or assem-
ble this unit until they have read this manual and have developed a thorough understanding of the safety precautions and
of how it works.
4. Never exceed the limits of a piece of machinery.
5. Do not modify the equipment in any way. Unauthorized modification may impair the function and could affect the life of
the equipment.
EQUIPMENT SAFETY GUIDELINES
1. The use of this equipment is subject to certain hazards which cannot be protected against by mechanical means or
product design. All operators of this equipment must read and understand this entire manual, paying particular attention
to the operating procedures prior to use. If there is something in this manual you do not understand, ask your supervisor
or your dealer to explain it to you.
2. Personal protection equipment, including hard hat, safety glasses, safety shoes, and gloves, is recommended during
assembly.
3. Never permit any person to ride or board the implement at any time.
4. A heavy load can cause instability in driving a tractor. Make sure the front or rear of the tractor is properly counter-bal-
anced with weights. Always drive slowly — especially around turns. An unstable tractor could steer badly and possibly tip
over, causing injury or death.
5. Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders at a safe distance.
6. Do not operate close to ditches or creeks. Slow down when operating over rough ground.
7. Keep hands, feet, and clothing away from moving parts and pinch points.
8. Be careful to avoid catching the implement on stumps or other immovable objects.
OPERATIONAL SAFETY
1. Keep all persons away from the operator control area while performing adjustments, service, or maintenance.
2. Periodically tighten all bolts, nuts, and screws and check that all cotter pins are properly installed to ensure the unit
is in a safe condition.
3. Never use your hands to locate a hydraulic leak on attachments. Use a small piece of cardboard or wood.
4. Never replace hex bolts with less than grade five bolts unless otherwise specified. Refer to the bolt torque chart for
head identification markings.
MAINTENANCE SAFETY
ALWAYS OBEY ALL SAFETY RULES!
ALWAYS BE CAREFUL!
5
www.mechmaxx.com
1. Remove all scraper bar components from the crate.
2. Position the scraper bar connection plates and scraper bar on the main frame and secure them using the provided bolts
and nuts.
Note: The bolts used to attach the scraper bar components are shipped pre-installed in the corresponding holes of
the kit.
3. Install all supplied hitch pins onto the implement.
4. Tighten all hardware to the specified torque values.
ASSEMBLY

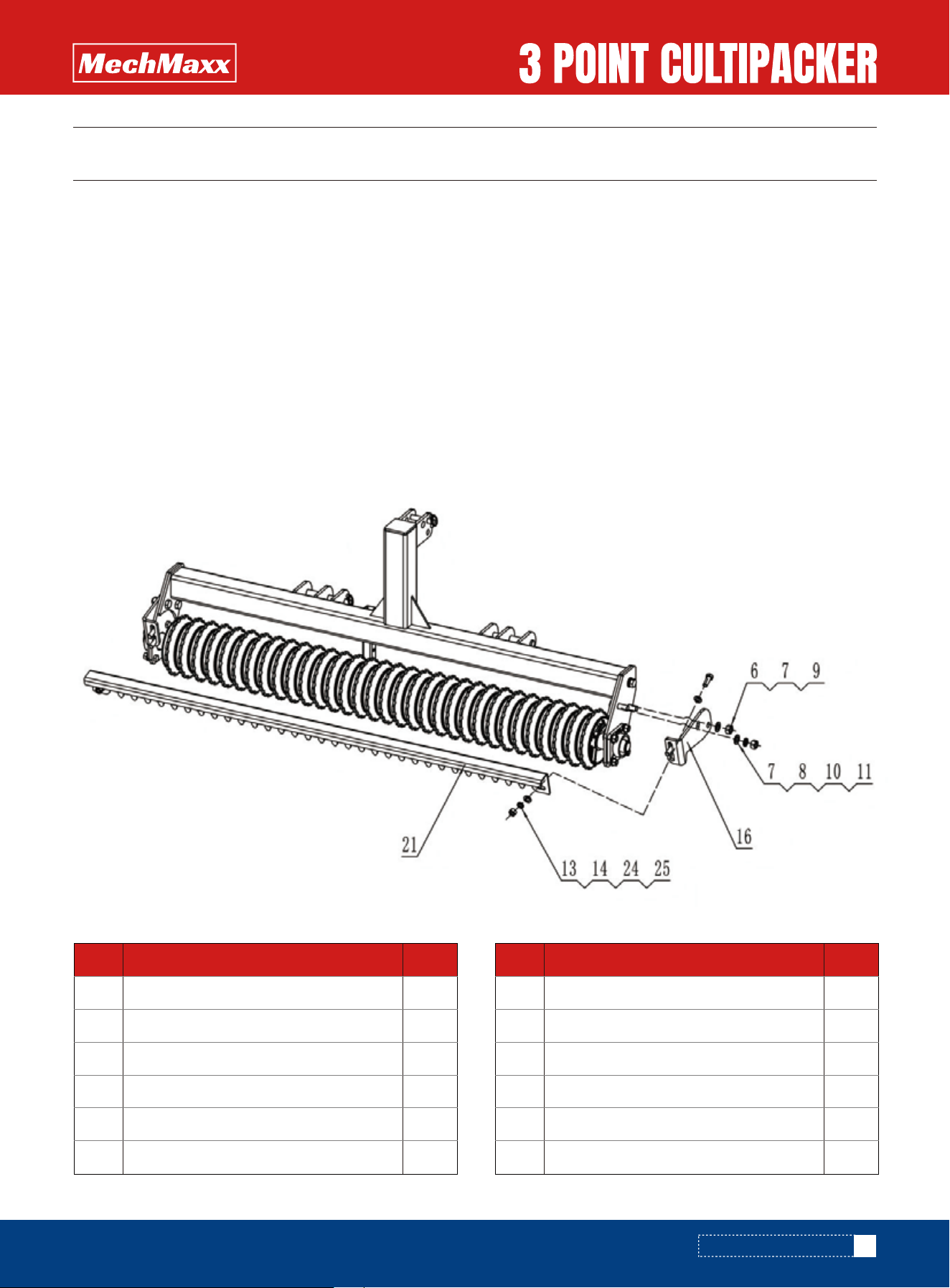

FIG. 1
1. Scraper Bar Assembly (Refer to Figure 1)
Assembly procedures vary by model. If assembly is required, use appropriate lifting equipment and follow safe handling
practices. Loosely assemble components first, align parts, and then tighten hardware to final torque.
2
4
2
2
2
2
No. DESCRIPTION Qty
6
7
8
9
10
11
Bolt M20*55
Flat washer φ20
Spring washer φ20
Lock Nut M20
Nut M20
Bolt M20*60
8
4
2
1
4
4
No. DESCRIPTION Qty
13
14
16
21
24
25
Flat washer φ16
Bolt M16*45
Scraper Bar Connection Plate
Scraper Bar
Spring washer φ16
Nut M16
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
6
www.mechmaxx.com
Use the following checklist prior to delivery or prior to first use:
• All components are included.
• Grease fittings checked and lubricated as needed.
• Safety guards in place.
• All hardware tight.
Ensure the tractor and implement are properly matched before use.
• 3-point hitch category must match the implement (Category 1 or Category 2).
• Tractor horsepower must be within the implement’s rating.
• Tractor must be adequately ballasted to maintain steering control and stability.
• Tire track width and 3-point geometry must provide clearance for turns and transport.
• Use ROPS and seat belt as recommended by tractor manufacturer.
Follow this sequence for safe and correct attachment:
• Back tractor to implement and align lower lift arms with hitch points.
• Set parking brake, shut off engine, remove key, and dismount.
• Attach lower lift arms using correct hitch pins; secure with retaining clips/lynch pins.
• Attach the top link to the implement A-frame/top mast using the top hitch pin; secure with retaining clip.
• Adjust sway/limit chains or stabilizers to reduce side-to-side movement.
• Slowly raise the implement a few inches and check for interference with tires, drawbar, or other tractor components.
• Level implement side-to-side using the tractor’s leveling box/turnbuckle.
• Adjust top link to set desired implement pitch so rollers contact the ground evenly.
• Bolts torqued correctly.
• Attached unit to tractor.
• Field adjusted.
• Test run.
DELIVERY CHECKLIST
TRACTOR REQUIREMENTS AND COMPATIBILITY
TRACTOR HOOK-UP
ASSEMBLY INSTRUCTIONS
7
www.mechmaxx.com
The operator must be trained and competent to operate the tractor and implement. Keep all bystanders at a safe
distance. Never allow riders on the tractor or implement.
OPERATOR RESPONSIBILITIES
Before each use, perform a complete inspection and service check to ensure the tractor and cultipacker are in safe work-
ing condition. Do not operate if any condition affecting safe operation is found.
Cultipacker inspection items
• All safety decals present and legible
• Hitch pins properly installed and retained
• No cracks in hitch and frame; weldments intact
• All frame bolts in place and tightened to specification
• Roller rotates freely; no binding or abnormal noise
• Bearings lubricated and retained
• Scraper Bar securely fastened and properly aligned
• Roller surface clear of mud, vegetation, and debris
PRE-OPERATION INSPECTION
Recommended operating sequence:
• Clear the area of obstacles and foreign objects before starting work.
• Lower the implement slowly to the ground before beginning forward motion.
• Begin at a low ground speed; increase speed only as conditions allow and the desired finish is achieved.
• Use straight passes with slight overlap to avoid ridges.
• Avoid sharp turns while the roller is fully engaged on the ground; lift slightly before turning.
START-UP AND FIELD OPERATION
• Dry to moderately moist soil generally produces the best finish. Overly wet soil may stick to the roller and scraper.
• Multiple light passes are generally preferable to one aggressive pass in compacted soil.
• If the roller slips or rides on top of loose soil, reduce speed and make additional passes.
• If soil buildup occurs, stop in a safe area, shut off the tractor, and clean the roller and Scraper Bar as needed.
OPERATING TIPS
OPERATION
OPERATION
8
www.mechmaxx.com
Follow these guidelines when transporting the tractor and implement:
• Raise the implement to a safe transport height and ensure adequate ground clearance.
• Reduce speed and use extra caution on turns, slopes, and rough ground.
• Do not allow anyone to ride on the implement.
• Comply with all federal, state, and local roadway requirements; use lighting and marking as required.
TRANSPORT
• Clean the implement thoroughly and remove mud, vegetation, and debris.
• Inspect for worn or damaged parts and repair before storage.
• Lubricate all grease points prior to storage.
• Lower the implement to the ground on a firm, level surface; block securely if needed.
• Protect exposed metal surfaces with rust preventive if stored outdoors or for extended periods.
• Store away from human activity and keep children away from the stored implement.
STORAGE
TRANSPORT AND STORAGE
TRANSPORT AND STORAGE
9
www.mechmaxx.com
Before each use:
• Inspect for loose fasteners, cracked welds, and missing hardware.
• Inspect the roller for damage and debris buildup; clean as needed.
• Inspect Scraper Bar (scraper) for wear and proper adjustment/clearance.
After first 10 hours of use and every 10 hours thereafter:
• Lubricate roller bearings (both ends) with multi-purpose grease (as required).
• Re-check fastener tightness and re-torque critical hardware.
• Inspect bearings for noise, heat, or looseness; replace if needed.
MAINTENANCE SCHEDULE (MINIMUM RECOMMENDATIONS)
Lubricate all grease fittings at recommended intervals. Use a high-quality multi-purpose grease compatible with your
operating environment.
Insert lubrication illustration (grease points).

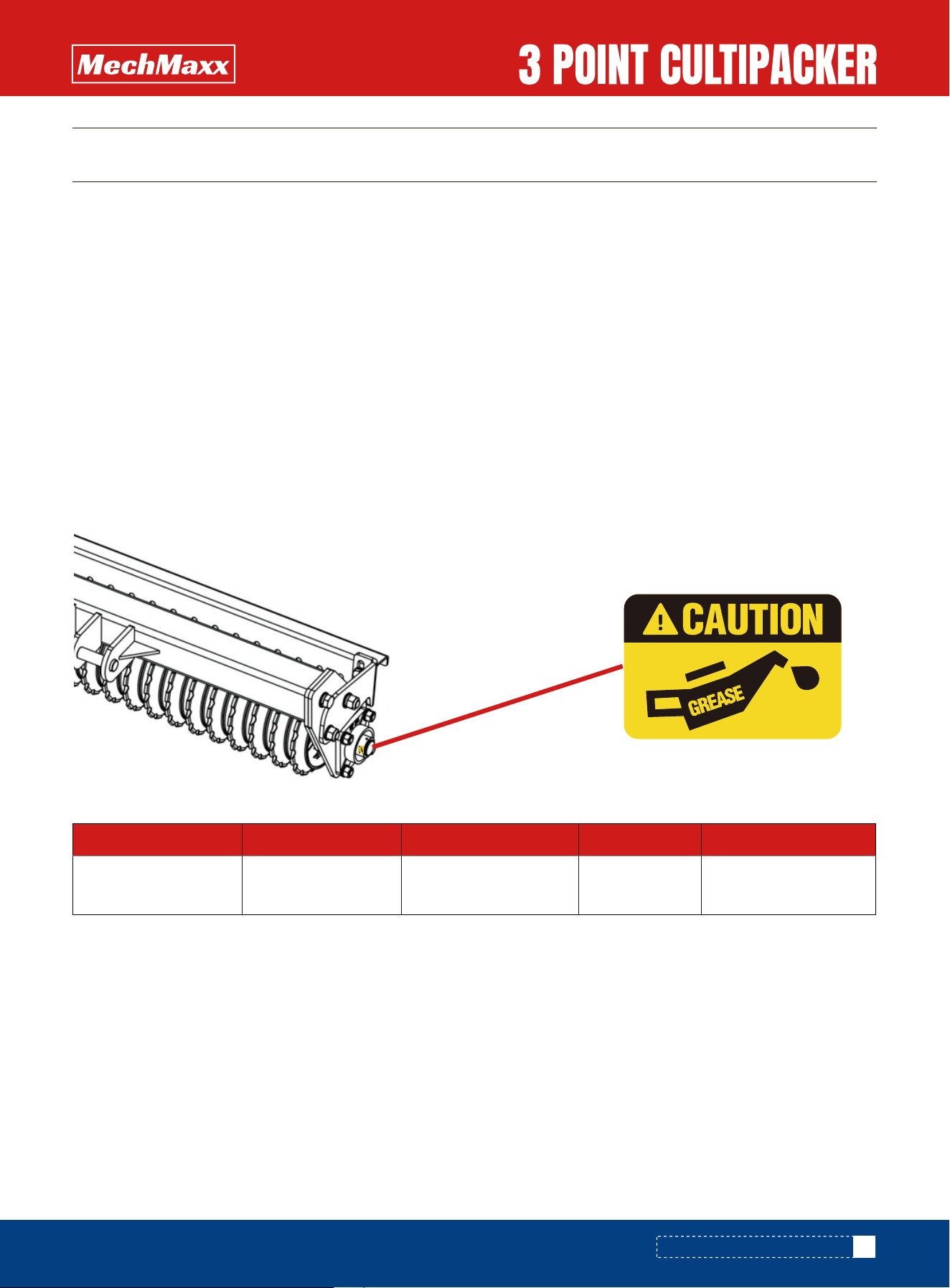

LUBRICATION POINTS
Periodically tighten all bolts, nuts, and screws. Replace damaged fasteners with equivalent grade hardware. Use new
cotter pins/retainers after removal.
HARDWARE RETENTION AND REPLACEMENT
MAINTENANCE AND LUBRICATION
MAINTENANCE AND LUBRICATION
Location Interval Lubricant Quantity Notes
Rear roller
bearing (each end)
10 hours Multi-purpose
grease
As required Wipe fitting
clean before greasing
Use the table below to diagnose common operating issues.
The tables shown below give the correct torque values for various bolts and cap screws. Tighten all bolts to the torques
specified unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace
hardware with the same length and grade of bolt.
Problem Likely Cause Corrective Action
Roller(s) bouncing or not staying
on ground
Ground speed too high; uneven
terrain; improper top link setting
Reduce speed, lift slightly before turns,
level implement, and adjust top
link/pitch.
Excessive soil buildup on roller Soil too wet; Scraper Bar not
adjusted; debris accumulation
Operate in suitable soil moisture, adjust
scraper clearance, and clean
roller/scraper as needed.
Uneven finish (ridges/low spots) Implement not level; overlap
inconsistent; operating speed
inconsistent
Level implement side-to-side and
maintain consistent overlap and speed.
Excessive vibration/noise from
roller area
Bearing dry/damaged; debris wrapped
on roller; loose fasteners
Clean roller, lubricate bearings, tighten
hardware, and replace bearings if noise
persists
Scraper (Scraper Bar)
wear or bending
Operating in rocky conditions; impact
with obstacles; incorrect clearance
Avoid impacts, inspect for damage,
correct clearance, and replace worn
components.
10
www.mechmaxx.com
TROUBLESHOOTING
TROUBLESHOOTING
TORQUE GUIDELINES
11
www.mechmaxx.com
TORQUE GUIDELINES
Torque figures indicated above are valid for non-greased or non-oiled threads and heads otherwise specified. Therefore, do
not grease or oil bolts or cap screws unless otherwise specified in this manual. When using locking elements, increase
torque values by 5%
Torque tolerance +0%,-15% of torquing values. Unless otherwise specified use torque values listed above.
1
in-tpi = nominal thread diameter in inches-threads per
inch
2
N.m= newton-meters
3
ft-lb= foot pounds
4
mm x pitch = nominal thread diameter in millimeters x
thread pitch
TORQUE VALUES CHART FOR COMMON BOLT SIZES
Grade 2 Grade 5
Bolt Head Identification Bolt Head Identification
Grade 8 Class 5.8 Class 8.8 Class 10.9
Bolt Size
(Inches)
in-tpi
1
Bolt Size
(Inches)
mm x pitch
4
N.m
2
ft-lb
3
ft-lb
N.m
ft-lb
N.m
ft-lb
N.m
ft-lb
N.m
ft-lb
1/4"-20
1/4"-28
5/16"-18
5/16"-24
3/8" -16
3/8" -24
7/16" -14
7/16"-20
1/2" -13
1/2" -20
9/16"-12
9/16"-18
5/8" - 11
5/8" -18
3/4" -10
3/4" -16
7/8" -9
7/8" -14
1"-8
1"-12
1-1/8"-7
1-1/8" -12
1-1/4"-7
1-1/4" -12
1-3/8"-6
1-3/8" -12
1-1/2" -6
1-1/2" -12
M5X0.8
M6X1
M8X 1.25
M8X1
M10X 1.5
M10X0.75
M12X 1.75
M12X 1.5
M12X1
M14 X2
M14 X 1.5
M16X2
M16X 1.5
M18 X 2.5
M18 X 1.5
M20 X 2.5
M20 X 1.5
M24X3
M24 X2
M30 X 3.5
M30×2
M36 X3.5
M36X2
4
7
17
18
33
39
58
60
90
92
99
145
155
195
220
280
310
480
525
960
1060
1730
1880
3
5
12
13
25
29
42
44
66
68
73
105
115
145
165
205
230
355
390
705
785
1270
1380
6
11
26
28
52
61
91
95
105
145
155
225
240
310
350
440
650
760
830
1510
1680
2650
2960
5
8
19
21
39
45
67
70
77
105
115
165
180
230
260
325
480
560
610
1120
1240
1950
2190
9
15
36
39
72
85
125
130
145
200
215
315
335
405
485
610
900
1050
1150
2100
2320
3660
4100
7
11
27
29
53
62
93
97
105
150
160
230
245
300
355
450
665
780
845
1550
1710
2700
3220
7.4
8.5
15
17
27
31
43
49
66
75
95
105
130
150
235
260
225
250
340
370
480
540
680
750
890
1010
1180
1330
5.6
6
11
13
20
22
32
36
49
55
70
79
97
110
170
190
165
185
250
275
355
395
500
555
655
745
870
980
11
13
24
26
42
47
67
75
105
115
150
165
205
230
360
405
585
640
875
955
1080
1210
1520
1680
1990
2270
2640
2970
8
10
17
19
31
35
49
55
76
85
110
120
150
170
265
295
430
475
645
705
795
890
1120
1240
1470
1670
1950
2190
16
18
33
37
59
67
95
105
145
165
210
235
285
325
510
570
820
905
1230
1350
1750
1960
2460
2730
3230
3680
4290
4820
12
14
25
27
44
49
70
78
105
120
155
170
210
240
375
420
605
670
910
995
1290
1440
1820
2010
2380
2710
3160
3560
8.85.8 10.9
12
www.mechmaxx.com
CULTIPACKER PARTS ASSEMBLY
CULTIPACKER PARTS ASSEMBLY
13
www.mechmaxx.com
PARTS LIST
PARTS LIST
3
1
2
2
2
4
6
4
2
2
2
12
16
12
2
2
2
2
26/32/37
1
1
1
1
4
No. DESCRIPTION Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
O Pin
Pinφ19
Frame
Pinφ22
Connection
Bolt M20*55
Flat washer φ20
Spring washer φ20
Lock Nut M20
Nut M20
Bolt M20*60
Lock Nut M16
Flat washer φ16
Bolt M16*45
UCF 208
Scraper Bar Connection Plate
Spacer 1
Spacer 2
Rake
Alex
Scraper Bar
Lock Pin
Stand
Spring washer φ16
