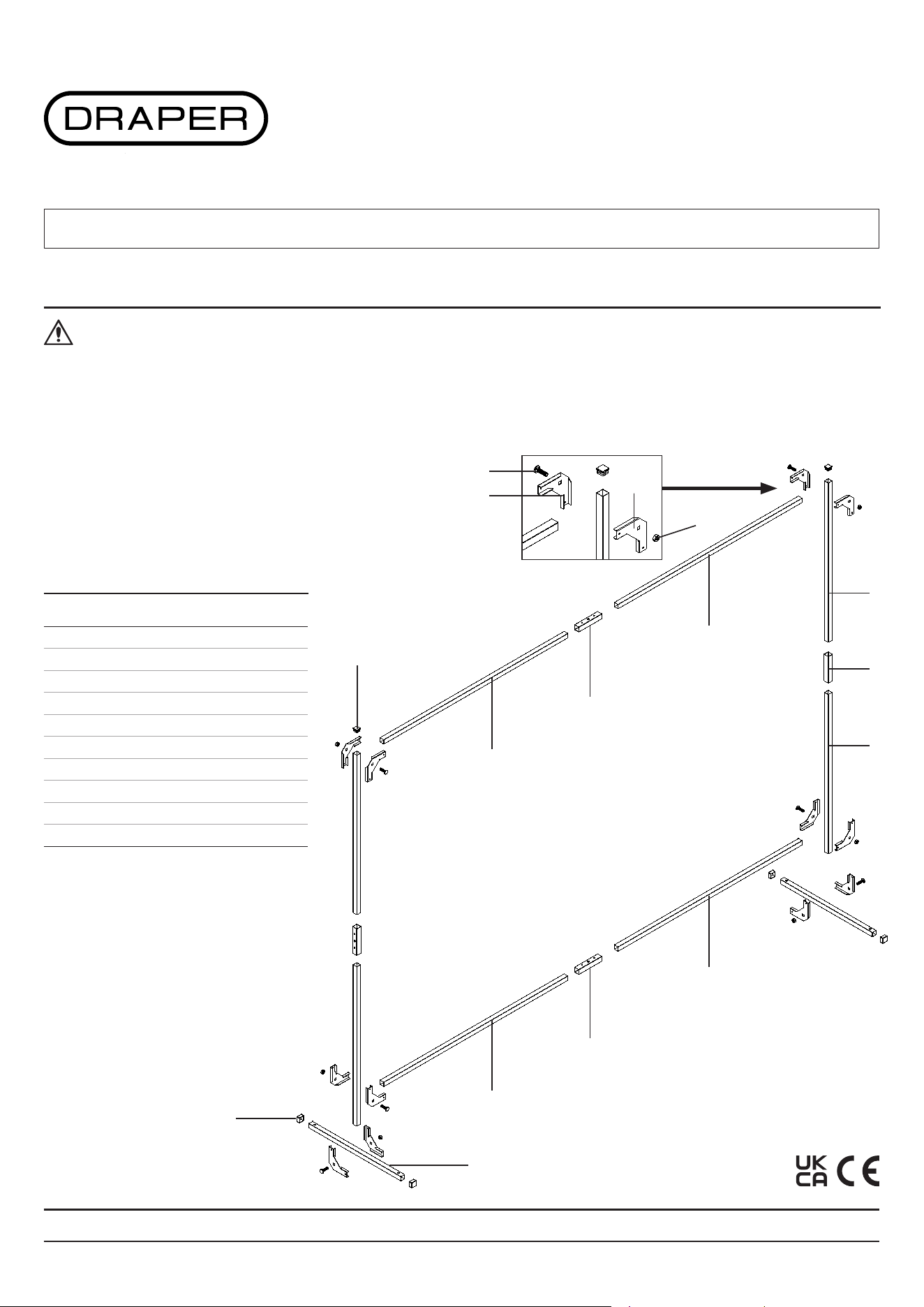

WELDING CURTAIN WITH
METAL FRAME
28406 – INSTRUCTIONS FOR USE
EN
2. Parts List
Part Quantity
A Beam posts 4
B Side posts 4
C Platforms 2
D Corner brackets 6
E End caps 2
F Platform caps 4
G Splicers 4
H Nylon curtain ties 19
I Nuts 6
J Bolts 6
1. Health & Safety Information
WARNING!
• This welding curtain frame is designed to be used to suspend a welding
curtain attached using curtain rings.
• The frame must be assembled as shown in the illustration.
• Place on a at level surface.
• Ensure that the frame and curtain are assembled correctly before use.
• DO NOT position the frame where it will cause an obstruction and maintain
safe working practices.
• DO NOT leave anything on or up against the assemble frame and curtain.
• DO NOT use if the curtain is damaged in any way.
Original Instructions
Version 1 – November 2025
3. Bracket Assembly Instructions
1. Pre-t the nuts and bolts to the brackets (D). DO NOT tighten.
2. Slip the brackets over the end of the posts (A) and (B).
3. Ensure the brackets are correctly position and hand tighten bolts.
4. Once the frame is assembled, tighten all the bolts with a spanner.
Please visit drapertools.com/manuals for the latest version of this manual and the associated parts list, if applicable.
Draper Tools Europe B.V. Oude Graaf 8, 6002 NL, Weert, Netherlands.
(F)
(J)
(D)
(A)
(A)
(A)
(G)
(G)
(A)
(E)
(D)
(B)
(B)
(I)
(G)
(C)
• Dimensions when assembled –
Height 183cm (6ft) X Width 183cm (6ft).
BS EN 25980: 2014
