Liebherr ICS5100 data-next-head> Integrable fridge-freezer User Manual

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 General safety instructions.......................... 3

2 The appliance at a glance............................. 5

2.1 Delivered contents.............................................. 5

2.2 Overview of appliances and equipment.......... 5

2.3 SmartDevice......................................................... 6

2.4 Range of appliance use...................................... 6

2.5 Conformity............................................................ 6

2.6 Spare parts........................................................... 6

3 Functionality of the Touch display............... 6

3.1 Navigation and symbol explanation................ 6

3.2 Menus.................................................................... 7

3.3 Sleep mode.......................................................... 8

4 Start-up......................................................... 8

4.1 Switching on appliance (first use)................... 8

4.2 Starting the IceMaker for the first time*........ 8

5 Storage.......................................................... 9

5.1 Information regarding storage.......................... 9

5.2 Fridge compartment........................................... 9

5.3 EasyFresh............................................................ 9

5.4 Freezer compartment......................................... 9

5.5 Storage times...................................................... 10

6 Energy saving................................................ 10

7 Use................................................................. 11

7.1 Controls and displays......................................... 11

7.1.1 Status display................................................... 11

7.1.2 Display symbols................................................11

7.2 Appliance functions............................................ 11

7.2.1 Notes on the appliance functions................. 11

Switching appliance off and on.................... 11

Switching temperature zone off and on..... 12

WiFi....................................................................12

Temperature.....................................................13

Temperature unit.............................................14

SuperCool.........................................................14

PowerCool ....................................................... 15

SuperFrost........................................................15

Start defrost cycle.......................................... 16

PartyMode ....................................................... 16

HolidayMode.....................................................17

SabbathMode...................................................17

E-Saver ............................................................ 18

IceMaker *........................................................ 18

IceMaker water inflow*..................................19

MaxIce*.............................................................19

TubeClean *..................................................... 20

CleaningMode................................................. 20

Display Brightness..........................................21

Door alarm........................................................21

Input lock......................................................... 22

Appliance information....................................22

Software...........................................................22

Reminder.......................................................... 22

Demo mode......................................................23

Resetting to factory settings........................24

7.3 Messages.............................................................. 24

7.3.1 Overview of warnings..................................... 24

7.3.2 Ending warnings.............................................. 25

7.3.3 Overview of reminders....................................25

7.3.4 Ending reminders.............................................26

8 Equipment...................................................... 26

8.1 Door racks............................................................ 26

8.2 Shelves................................................................. 27

8.3 Space for baking tray......................................... 28

8.4 Drawers................................................................. 28

8.5 Lid for EasyFresh-safe........................................ 29

8.6 Glass shelves....................................................... 30

8.7 IceMaker*............................................................. 30

8.8 VarioSpace........................................................... 31

8.9 Bottle rack............................................................ 31

8.10 Flexible ice compartment divider*................... 31

9 Maintenance.................................................. 32

9.1 FreshAir carbon filter.......................................... 32

9.2 Disassembling / assembling pull-out

systems................................................................. 32

9.3 Lid for EasyFresh-safe........................................ 33

9.4 Defrosting the appliance................................... 33

9.5 Cleaning the appliance...................................... 33

10 Customer support......................................... 34

2 * Depending on model and options

10.1 Technical specifications.................................... 34

10.2 Operating noises................................................. 35

10.3 Technical faults................................................... 35

10.4 Customer Service................................................ 37

10.5 Rating plate.......................................................... 37

11 Decommissioning.......................................... 37

12 Disposal......................................................... 38

12.1 Preparing the appliance for disposal............... 38

12.2 Disposing of the appliance in an

environmentally friendly manner..................... 38

Congratulations on the purchase of your new appli‐

ance. With this purchase, you have chosen all the

advantages of the latest refrigeration technology, guar‐

anteeing you a high-quality appliance with a long life

span and high operating safety.

The equipment of your appliance gives you the highest

level of day-to-day ease of operation.

Together we are making an active contribution to the

conservation of our environment by purchasing this

appliance which is manufactured in an environmentally

friendly process with the use of recyclable materials.

We hope you enjoy your new appliance.

The manufacturer is constantly working to improve all

types and models. Therefore, please be aware that we

reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol

Explanation

Read instructions

Please read the information in these

instructions carefully to understand all of

the benefits of your new appliance.

Additional information online

The digital manual with supplemental

information can be found online by scan‐

ning the QR code on the front page of this

manual or by entering the service number

at home.liebherr.com/fridge-manuals.

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of

models, so there may be differences.

Sections that apply to certain models only

are indicated by an asterisk (*).

Instructions and results

Instructions are marked with a

Results are marked with a

Symbol Explanation

Videos

Videos about the appliances are available

on the YouTube channel of Liebherr-Hausg‐

eräte.

Open-source licenses:

The appliance includes software components that

make use of open-source licenses. You can find

information on the open-source licenses to be used

here: home.liebherr.com/open-source-licenses

These operating instructions apply to:

51..PC / IMPC /IM

ICS 51..

1 General safety instructions

Please keep these operating instructions in a safe

place so you can refer back to them at any time.

If you pass the appliance on, please hand these oper‐

ating instructions to the new owner.

Read and follow these instructions. They contain

safety information which is important for safe and

problem-free installation and operation. Always read

and follow the safety information.

Dangers for the user:

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety. Children should

be supervised to ensure that they do not play with

the appliance. Cleaning and user maintenance must

not be performed by children unless they are super‐

vised. Children between the ages of 3 and 8 may

load and unload the appliance. Children under the

age of 3 must be kept away from the appliance

unless they are constantly supervised.

IMPORTANT: The power plug must be easily acces‐

sible so that the appliance can be disconnected

from the mains quickly in an emergency. It must not

be behind the back of the appliance.

The socket must be easily accessible so that the

appliance can be disconnected quickly from the

electricity in an emergency. It must not be located in

the area behind the appliance.

Always hold the appliance at the plug when discon‐

necting it from the household power. Do not pull on

the cable.

Disconnect the power plug or fuse if there is a

malfunction.

Do not damage the power cable. Do not operate the

appliance with a faulty power cable. If the supply

cord is damaged, it must be replaced by the manu‐

facturer, its service agent or similarly qualified

General safety instructions

* Depending on model and options 3

persons in order to avoid a hazard. For Plug and Play

connections, the change may be carried out by the

customer.

Repairs and work on the appliance may only be

carried out by Customer Service or other specifically

trained qualified personnel.

Only install, connect and dispose of the appliance in

accordance with the instructions.

Only operate the appliance after it has been

installed.

The manufacturer is not liable for damage arising

from a defective fixed water connection.*

Risk of fire:

The refrigerant contained within the appliance

(specifications on the identification plate) is environ‐

mentally friendly, but flammable. Leaking refrigerant

can ignite.

•

WARNING: Do not damage the refrigerant circuit.

•

Do not handle ignition sources inside the appli‐

ance.

•

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance,

unless they are of the type recommended by the

manufacturer (e.g. steam cleaning appliances,

heating appliances, ice cream makers).

•

If refrigerant leaks: Remove naked flames or igni‐

tion sources located near the area of the leak.

Ventilate the room well. Contact Customer

Service.

Do not operate the appliance near explosive gases.

Do not store or use gasoline or other flammable

gases and liquids near the appliance.

Do not store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

You can recognize such spray cans by the printed list

of contents or by a flame symbol. Any leaking gases

can be ignited by electrical components.

Alcoholic beverages or other containers holding

alcohol must always be tightly sealed for storage

purposes. Any leaking alcohol can be ignited by elec‐

trical components.

Risk of falling or toppling over:

WARNING: To avoid a hazard due to instability of the

appliance, it must be fixed in accordance with the

instructions.

Do not stand on the base, drawers, doors etc. or use

them as improper supports. This applies in particular

to children.

Danger of poisoning:

Do not consume spoiled food.

WARNING: Connect to potable water supply only.*

Do not use any old or already premounted water

supply lines.*

Danger of frostbite, feeling of numbness and pain:

Avoid prolonged skin contact with cold surfaces or

chilled/frozen food or take protective measures, e.g.

wear gloves.

Risk of injury and damage:

Hot steam may cause injuries. Do not use any elec‐

trical heating or steam cleaning equipment, naked

flames or defrosting sprays for defrosting measures.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other

than those recommended by the manufacturer.

Do not remove ice using sharp objects.

WARNING: Keep clear of obstruction all ventilation

openings in the appliance enclosure or in the struc‐

ture for building-in.

WARNING: Risk of child entrapment. Before you

throw away your old refrigerator or freezer:

•

Take off the doors.

•

Leave the shelves in place so that children may

not easily climb inside.

Risk of crushing:

Do not hold onto the hinge when opening and

closing the door. Fingers may become trapped.

California Proposition 65

WARNING: This product can expose you to chemi‐

cals including Diisononyl Phthalate (DINP), which is

known to the State of California to cause cancer,

and Di-isodecyl Phthalate (DIDP), which is known to

the State of California to cause birth defects or

other reproductive harm. For more information, go to

www.P65Warnings.ca.gov

Symbols on the device:

The symbol may be located on the

compressor. It refers to the oil in the

compressor and refers to the following

danger: Can be fatal if swallowed or

inhaled. This notice only applies for

recycling. There is no danger during

normal operation.

WARNING: Risk of fire / flammable

materials. The symbol is located on the

compressor and indicates the danger

from flammable materials. Do not

remove the label.

This label or a similar one may be

located on the rear of the appliance.

This label indicates that there are

vacuum insulation panels (VIP) or perlite

panels in the door and/or housing. This

notice only applies for recycling. Do not

remove the label.

Observe the warning messages and other detailed

information in the other sections:

DANGER

Indicates an immediately

hazardous situation, which if

not avoided, will result in death

or serious injury.

General safety instructions

4 * Depending on model and options

WARNING Indicates a hazardous situa‐

tion, which if not avoided,

could result in death or serious

injury.

CAUTION Indicates a hazardous situa‐

tion, which if not avoided,

could result in minor or

moderate injury.

NOTICE Indicates a hazardous situa‐

tion, which if not avoided,

could result in damage to prop‐

erty.

Note Indicates useful advice and

tips.

2 The appliance at a glance

2.1 Delivered contents

Check all parts for transport damage. If you have any

complaints, please contact the retailer or customer

service. (see 10.4 Customer Service)

Delivery contains the following parts:

Integrated appliance

Equipment (depending on your model)

Installation parts (depending on your model)

User Guide

Installation Guide

Warranty documents

2.2 Overview of appliances and equip‐

ment

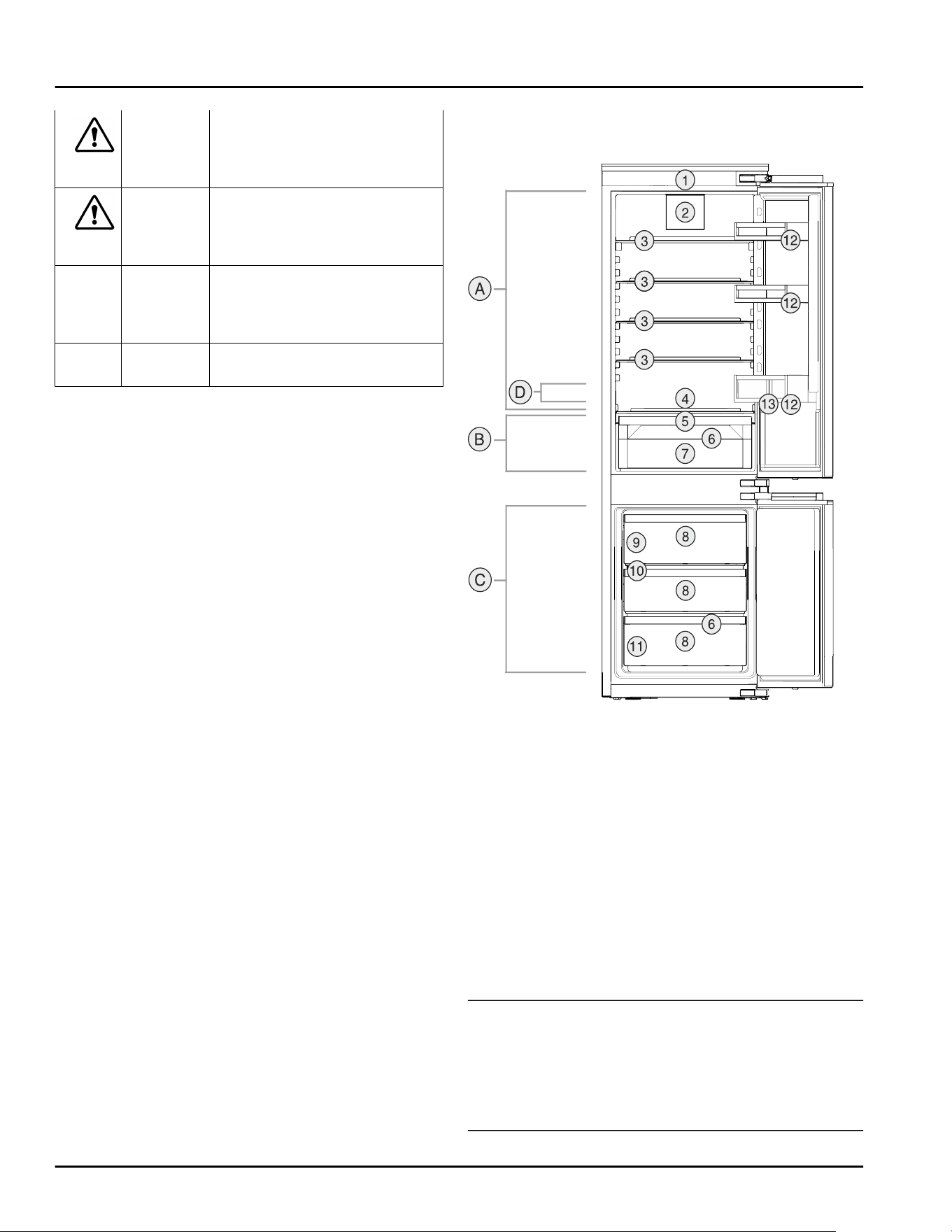

Fig. 1 Example illustration

Temperature range

(A)

Fridge compartment (C) Freezer compartment

(B) EasyFresh (D) Coldest zone

Equipment

(1)

Controls (8) Freezer drawer

(2) Fan with FreshAir

activated charcoal

filter

(9) IceMaker*

(3) Storage shelf (10)VarioSpace

(4) Space for baking

tray

(11) Nameplate

(5) Cover for EasyFresh-

Safe

(12) Door racks

(6) Drain hole (13) Bottle holder

(7) EasyFresh-Safe

Note

► The shelves, drawers, and baskets are arranged for

optimal energy efficiency in the factory configura‐

tion. However, changes to the arrangement within

the given insertion options – for example the

arrangement of shelves in the fridge compartment –

have no effect on energy consumption.

The appliance at a glance

* Depending on model and options 5

2.3 SmartDevice

SmartDevice is the networking solution for your fridge-

freezer.

If your appliance is SmartDevice-enabled or compat‐

ible, you can quickly and easily connect your appliance

to your WiFi. With the SmartDevice app, you can

operate your appliance from a mobile device. Addi‐

tional functions and setting options are available in the

SmartDevice app.

SmartDevice-

compatible

appliance:

Your appliance is compatible for

use with the SmartDeviceBox. You

must first purchase and install the

SmartDeviceBox. In order to

connect your appliance to the WiFi,

you need to download the Smart‐

Device app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

The SmartDeviceBox is available from the Liebherr

Service Center. The address for your respective

country can be found on the back of the instructions.

Downloading the

SmartDevice

app:

After you have installed and

configured the SmartDevice app,

you can connect your appliance to

your WLAN using your SmartDevice

app the WLAN device function

(seeWiFi) .

2.4 Range of appliance use

Normal use

This appliance is intended to be used in household and

similar applications such as,

staff kitchen areas in shops, offices and other

working environments;

farm houses and by clients in hotels, motels and

other residential type environments;

bed and breakfast type environments;

catering and similar non-retail applications.

All other types of uses are not permitted.

Foreseeable misuse

The following uses are specifically prohibited:

Storage and cooling of medication, blood plasma,

laboratory preparations or similar substances and

products in accordance with the CMDCAS and FDA

510(k)

Use outdoors

Use in moist areas exposed to the rain

Use in outdoor areas with very high humidity*

Use in areas at risk of explosion

Incorrect appliance use can cause damage to the

stored products or cause them to spoil.

Climate ratings

The appliance is set to operate within specific ambient

temperature limits according to its climate rating The

climate rating for your appliance is printed on the

rating plate

Note

► To guarantee trouble-free operation, comply with the

indicated ambient temperatures.

Climate

rating

for ambient temperatures from

SN 10°C(50°F) to 32°C(90°F)

N 16°C(61°F) to 32°C(90°F)

ST 16°C(61°F) to 38°C(100°F)

T 16°C(61°F) to 43°C(109°F)

SN-ST 10°C(50°F) to 38°C(100°F)

SN-T 10°C(50°F) to 43°C(109°F)

2.5 Conformity

The refrigerant circuit has been tested for leaks. When

installed, the appliance complies with the applicable

safety regulations and with the corresponding direc‐

tives.

2.6 Spare parts

Spare parts for functional and storable parts of the

equipment are available for 15 years.

3 Functionality of the Touch

display

You operate your appliance using the Touch display.

You select appliance functions in the Touch display

(hereafter referred to as display) by tapping them. If

you do not perform any action on the display for

10 seconds, the display either jumps back to the

higher-level menu or directly to the status display.

3.1 Navigation and symbol explana‐

tion

In the illustrations, different symbols are used to navi‐

gate the display. The following table describes these

symbols.

Functionality of the Touch display

6 * Depending on model and options

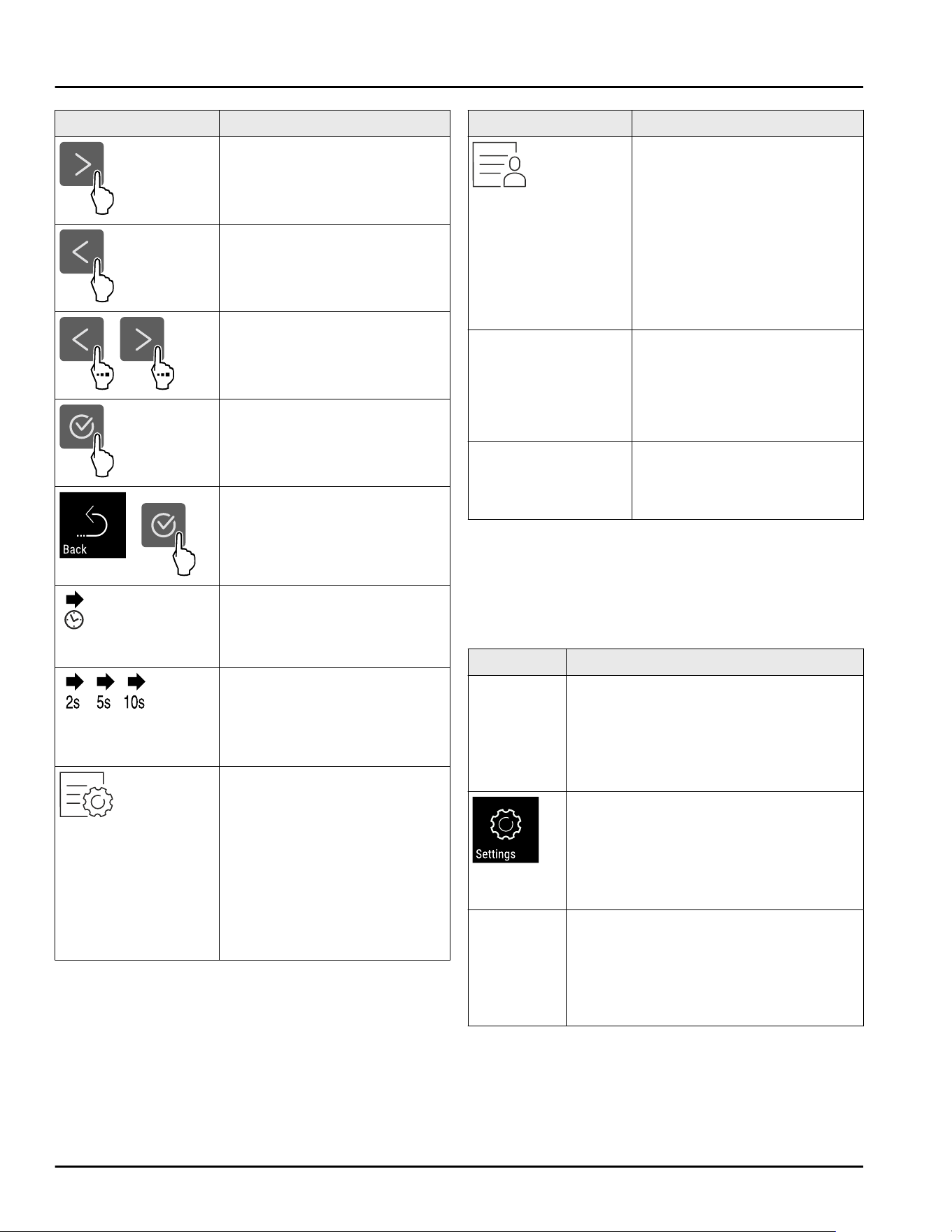

Symbol Description

Press the Next navigation

arrow:

Navigates to the next option in

the menu.

Press the Back navigation

arrow:

Jumps back one option in the

menu.

Press the navigation arrow

several times in succession:

Navigates in the menu to the

desired function.

Press the Confirm symbol:

Activates/deactivates func‐

tion.

Opens submenu.

Press the Confirm symbol

together with the back icon:

Jumps back one menu level.

Arrow with clock:

It takes more than 10 seconds

for the following message to

appear in the display.

Arrow with a time indication:

It takes the specified amount

of time until the following

message appears in the

display.

“Open Settings menu”

symbol:

Navigates to the Settings

menu and opens the settings

menu.

If necessary: Navigate to the

desired function in the

Settings menu.

(see 3.2.1 Opening the Settings

menu)

Symbol Description

“Open Advanced menu”

symbol:

Navigates to the Advanced

menu and opens the advanced

menu.

If necessary: Navigate to the

desired function in the

Advanced menu.

(see 3.2.2 Opening the

Advanced menu)

No action for

10seconds

If you do not perform any

action on the display for

10 seconds, the display either

jumps back to the higher-level

menu or directly to the status

display.

Opening door and

closing it again

If you open the door and

immediately close it again, the

display jumps directly back to

the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions can be found in various

menus.

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings

The Settings menu contains additional

appliance functions for setting up your

appliance.

(see 3.2.1 Opening the Settings menu)

Advanced

The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced

menu is protected by the numerical

code 151.

(see 3.2.2 Opening the Advanced menu)

Functionality of the Touch display

* Depending on model and options 7

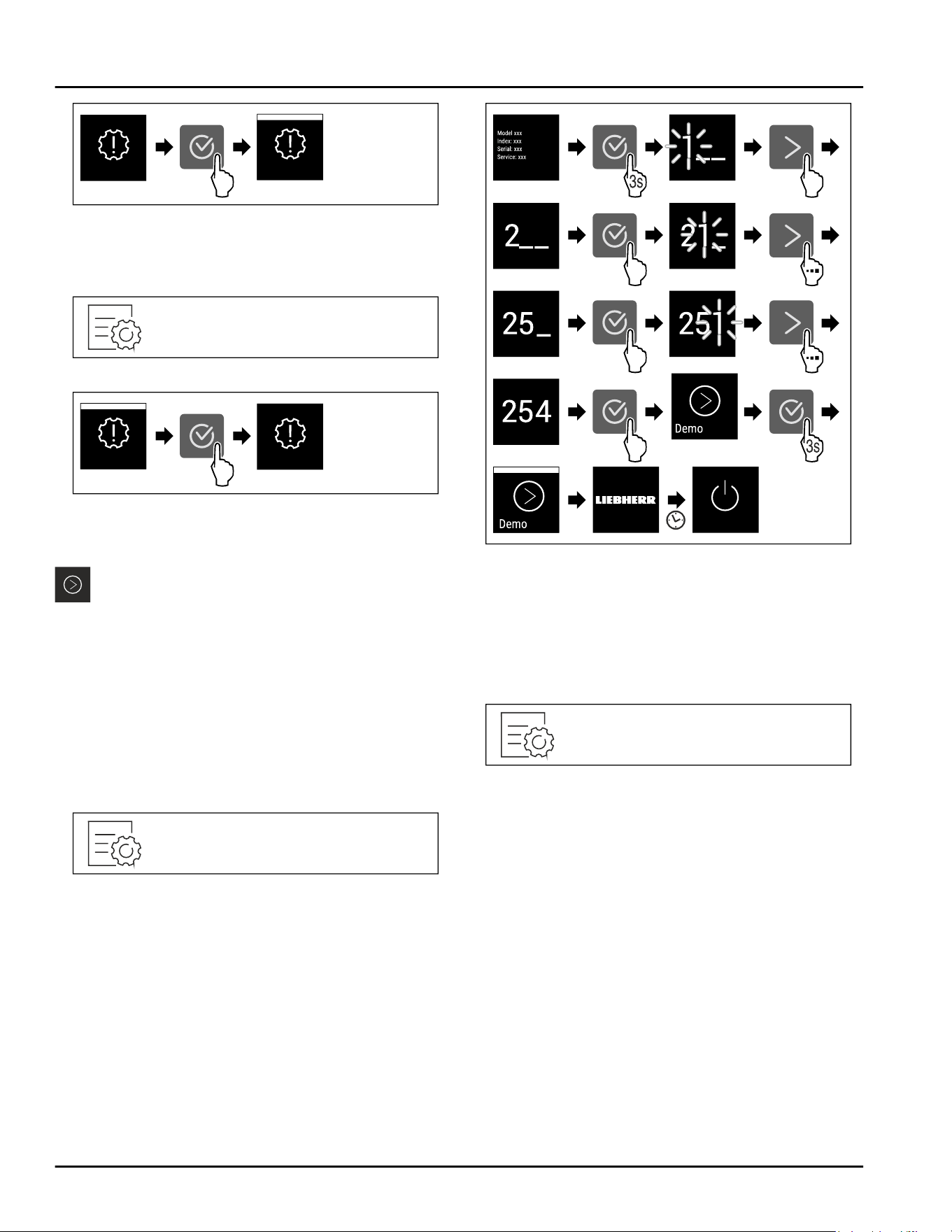

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

3.2.2 Opening the Advanced menu

Fig.3

Fig. 4 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ Expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display

brightness is dimmed.

3.3.1 Ending sleep mode

► Press any navigation key.

▷ Sleep mode is ended.

4 Start-up

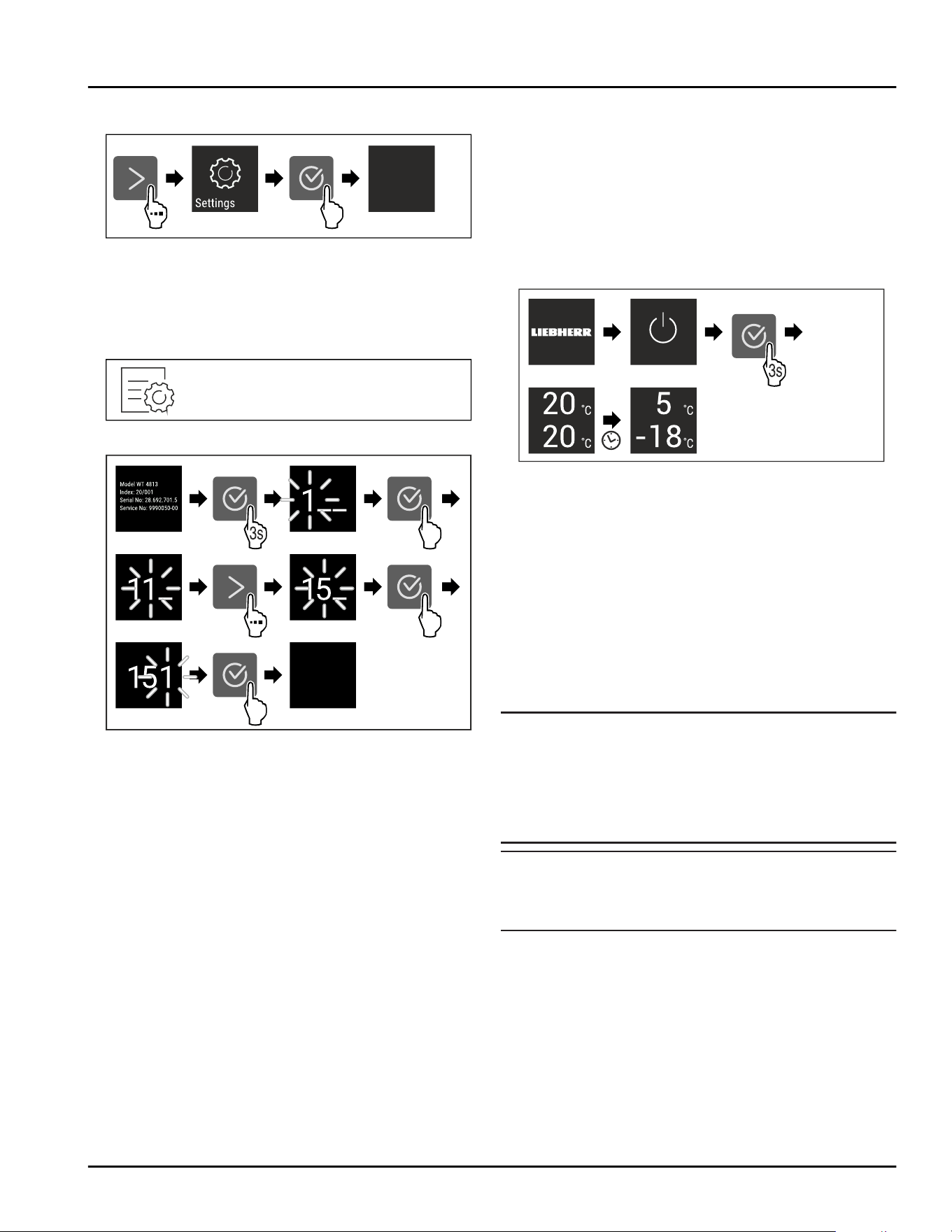

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films

and transport locks are removed from inside and on

the appliance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the Touch

display. (see3 Functionality of the Touch display)

Switch on the appliance using the Touch display.

► If the display is in sleep mode: Press the Confirm

symbol.

► Carry out action steps according to the illustration.

Fig. 5 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the

factory.

▷ The appliance starts in demo mode (status display

with DEMO appears): If the appliance starts in demo

mode, you can deactivate demo mode within the

next 5 minutes. (seeDemo mode)

More information:

Start the IceMaker for the first time.

(see4.2 Starting the IceMaker for the first time*) *

Start the SmartDevice for the first time.

(see 2.3 SmartDevice) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the

set temperature is reached.

► Store frozen foods at -18°C(-0°F) or colder.

► Observe the notes on storing food. (see 5.1 Informa‐

tion regarding storage)

Note

Accessories can be purchased from the Liebherr

Service Center. The address for your respective country

can be found on the back of the instructions.

4.2 Starting the IceMaker for the first

time*

If your appliance is equipped with IceMaker, you must

clean the IceMaker before using it for the first time.

Make sure that the following requirements are fulfilled:

❑

The water supply has been connected. See Installa‐

tion Guide or mounting instructions.*

❑

The appliance is properly installed and connected.

Start-up

8 * Depending on model and options

► Clean the IceMaker. (see 9.5.4 Cleaning the

IceMaker*) *

5 Storage

5.1 Information regarding storage

WARNING

Risk of fire from electrical appliances!

If you use electrical devices in the food area of your

appliance, they may case a fire.

► Do not use electrical devices in the food area of the

appliance if they have not been recommended by the

manufacturer.

Note

Insufficient ventilation results in an increase in energy

consumption and reduction of the refrigerating

performance

► Always keep the air slots unobstructed.

Observe the following specifications for storage:

In the freezer compartment: Package food properly.

Package or cover foods that readily take on or give

off odors or taste in closed containers.

Package raw meat or fish in clean, closed

containers. This will prevent meat or fish from

touching or dripping onto other food.

Keep liquids in closed containers.

Leave space between goods to ensure good air

circulation.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on

the packaging.

Note

Failure to follow these guidelines can lead to food‐

stuffs spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different

temperature zones. You will find the different tempera‐

ture zones in the appliance and equipment overview.

(see2.2 Overview of appliances and equipment)

5.2.1 Arranging your food properly

► Upper area and door: Store butter, cheese, canned

food and tubes.

► Coldest temperature zone: Store perishable foods

such as pre-cooked meals, meat and lunch meats.

► Bottom shelf: Store raw meat or fish.

5.3 EasyFresh

EasyFresh is great for non-packaged foods, such as

fruit and vegetables.

The humidity in the compartment depends on the

moisture content of the refrigerated goods and the

frequency with which it is opened. You can control the

humidity. (see 8.5 Lid for EasyFresh-safe)

5.3.1 Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

5.4 Freezer compartment

Here, a dry, frosty storage climate is created at

-18 °C (-0 °F). The frosty storage climate is suitable for

storing frozen food for several months, for making ice

cubes or freezing fresh food.

5.4.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can freeze

within 24 hours is specified on the type plate

(see 10.5 Rating plate) under “Freezing capacity ... kg/

24h.”

To ensure that food quickly freezes through, adhere to

the following quantities per package:

Fruit and vegetables up to 1 kg(2.20lb)

Meat up to 2.5 kg(5.51lb)

Freezing food using SuperFrost

Depending on the amount of food to be frozen, you can

activate SuperFrost before freezing to reach lower

freezing temperatures. (see SuperFrost)

► Activate SuperFrost if the amount of food you have

to freeze is more than approx. 2 kg(4.41lb).

The time at which you activate SuperFrost depends on

the amount of food you have to freeze:

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Small amount

of food to

freeze

Activate SuperFrost about 6 hours

before freezing.

As soon as the appliance automati‐

cally deactivates SuperFrost you can

begin rearranging your food items.

Maximum

amount of food

to freeze

Activate SuperFrost about 24 hours

before freezing.

As soon as the appliance automati‐

cally deactivates SuperFrost you can

begin rearranging your food items.

Storage

* Depending on model and options 9

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during

freezing. This applies in particular to carbonated bever‐

ages.

► Only freeze bottles and cans with beverages if you

have activated the BottleTimer function in the

SmartDevice app.

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear

wall.

Maximum

amount of food

to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear

wall.

5.4.2 Defrosting food

WARNING

Danger of food poisoning!

► Do not re-freeze defrosted food.

► Use defrosted foodstuff as quickly as possible.

You can defrost food in several ways:

In the fridge compartment

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

5.5 Storage times

The storage times given are guidelines

Food with a “use by” date must still be consumed by

the date indicated on the package

5.5.1 Fridge

The best-before date stated on the packaging applies.

5.5.2 Freezer

Guidelines for storage periods for various foods

Ice cream at

-18 °C

(-0°F)

2 to 6 months

Guidelines for storage periods for various foods

Sausage, ham at

-18 °C

(-0°F)

2 to 3 months

Bread, bakery prod‐

ucts

-18 °C

(-0°F)

2 to 6 months

Game, pork at

-18 °C

(-0°F)

6 to 9 months

Fish, fatty at

-18 °C

(-0°F)

2 to 6 months

Fish, lean at

-18 °C

(-0°F)

6 to 8 months

Cheese at

-18 °C

(-0°F)

2 to 6 months

Poultry, beef at

-18 °C

(-0°F)

6 to 12 months

Vegetables, fruit at

-18 °C

(-0°F)

6 to 12 months

6 Energy saving

Always ensure good ventilation. Keep clear of

obstruction all ventilation openings in the appliance

enclosure or in the structure for building-in.

Never block air slits in the fan.

Do no install the appliance in an area with direct

sunlight, next to a heating unit or similar.

If you install the appliance directly next to an oven,

its energy consumption may increase slightly. This

depends on the service life and how often the oven

is used.

Energy consumption depends on installation condi‐

tions such as the ambient temperature

(see2.4 Range of appliance use) . A warmer ambient

temperature can increase the energy consumption.

Avoid opening the appliance door for any longer then

necessary

The lower the temperature is set the higher the

energy consumption.

Sort your food items: home.liebherr.com/food.

All food stored in the appliance should be well

wrapped and covered. This prevents frost buildup.

Only take food out for as long as necessary so that it

does not get too warm.

Insertion of warm foods: first let the food cool down

to room temperature.

Energy saving

10 * Depending on model and options

Defrost frozen food in the fridge

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

7 Use

7.1 Controls and displays

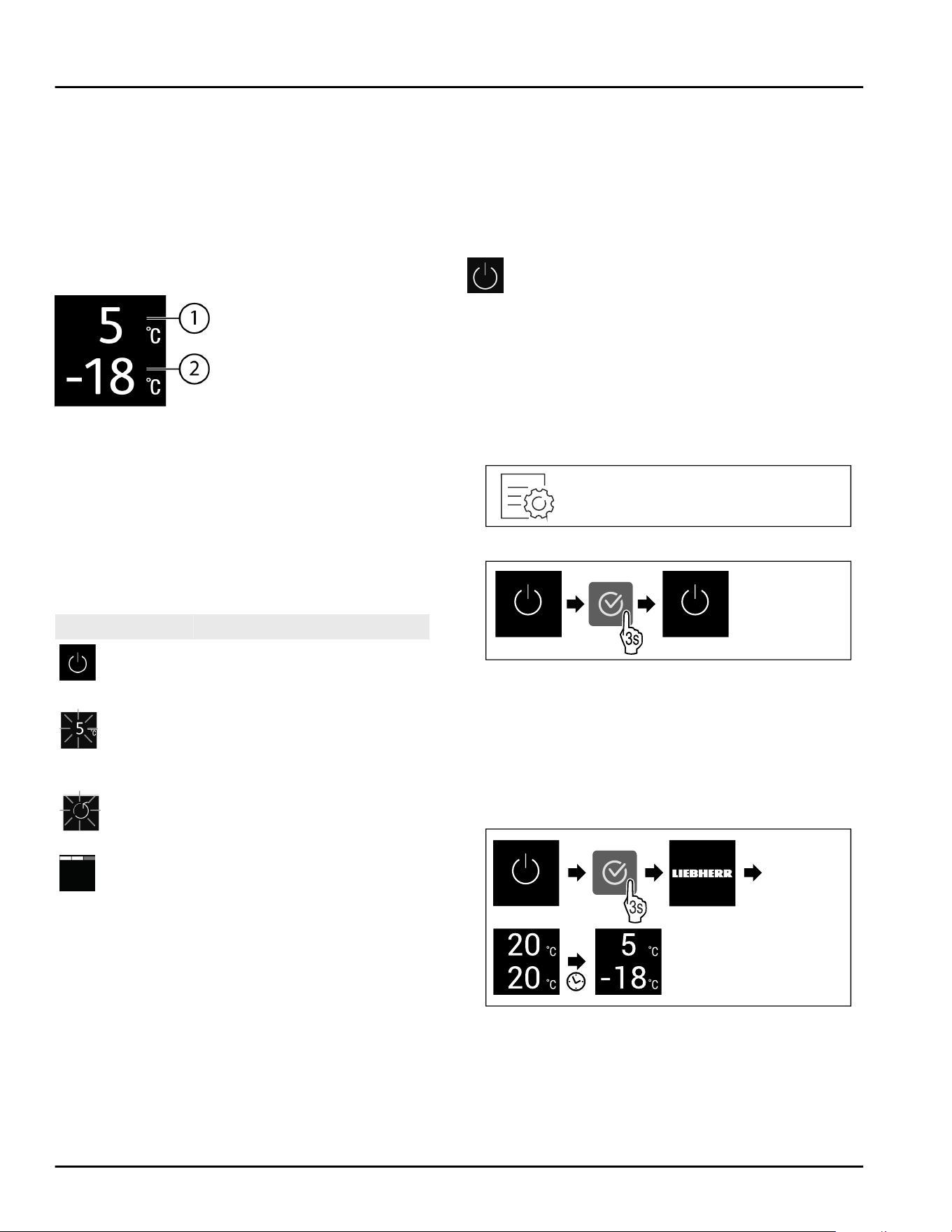

7.1.1 Status display

Fig.6

(1)

Fridge compartment

temperature display

(2) Freezer compartment

temperature display

The Status display shows the set temperatures and is

the home display. From there, you can navigate to the

options and settings.

7.1.2 Display symbols

The display symbols provide information about the

current appliance status.

Symbol

Appliance status

Standby

The appliance or temperature

zone is turned off.

Flashing number

Appliance is working. Tempera‐

ture flashes, until the set value

is reached.

Flashing symbol

Appliance is working. Setting is

made.

Bar grows steadily

Function is activated.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that

your appliance is fully functional.

Before you alter, activate or deactivate the appliance

functions, make sure that the following requirements

are met:

❑

You have read and understood the descriptions of

how the display works. (see 3 Functionality of the

Touch display)

❑

You have familiarized yourself with the operating

and display elements of your appliance.

Switching appliance off and on

This function switches the entire appliance on and off.

Switching off the appliance

If you switch off the appliance, the settings that were

made before remain stored.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Decommissioning)

have been completed.

Fig.7

Fig.8

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ Standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Press any navigation key.

Fig. 9 Example illustration

► Carry out action steps according to the illustration.

If the appliance starts in demo mode:

► Deactivate demo mode. (see Deactivating demo

mode)

▷ Appliance is switched on.

▷ Previously made settings are re-established.

▷ The appliance cools to the set target temperature.

Use

* Depending on model and options 11

Switching temperature zone off and on

You can switch temperature zones of the appliance off

independently.

Application:

Cleaning

Defrosting

Switching the fridge compartment off

Make sure that the following requirements are fulfilled:

❑

Refrigerator compartment has been emptied.

Fig. 10 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched off.

Switching the fridge compartment on

Fig. 11 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched on.

▷ The appliance cools to the last set temperature.

WiFi

Use this function to connect your appliance to WiFi.

You can then operate it via the SmartDevice app on a

mobile device. You can also use this function to

disconnect or reset the WiFi connection.

To connect your device to WiFi, you need the SmartDe‐

viceBox.

More information on the SmartDevice:

(see 2.3 Smart‐

Device)

Note

The SmartDevice function is not available in the

following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have purchased and inserted a SmartDeviceBox.

(see 2.3 SmartDevice)

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

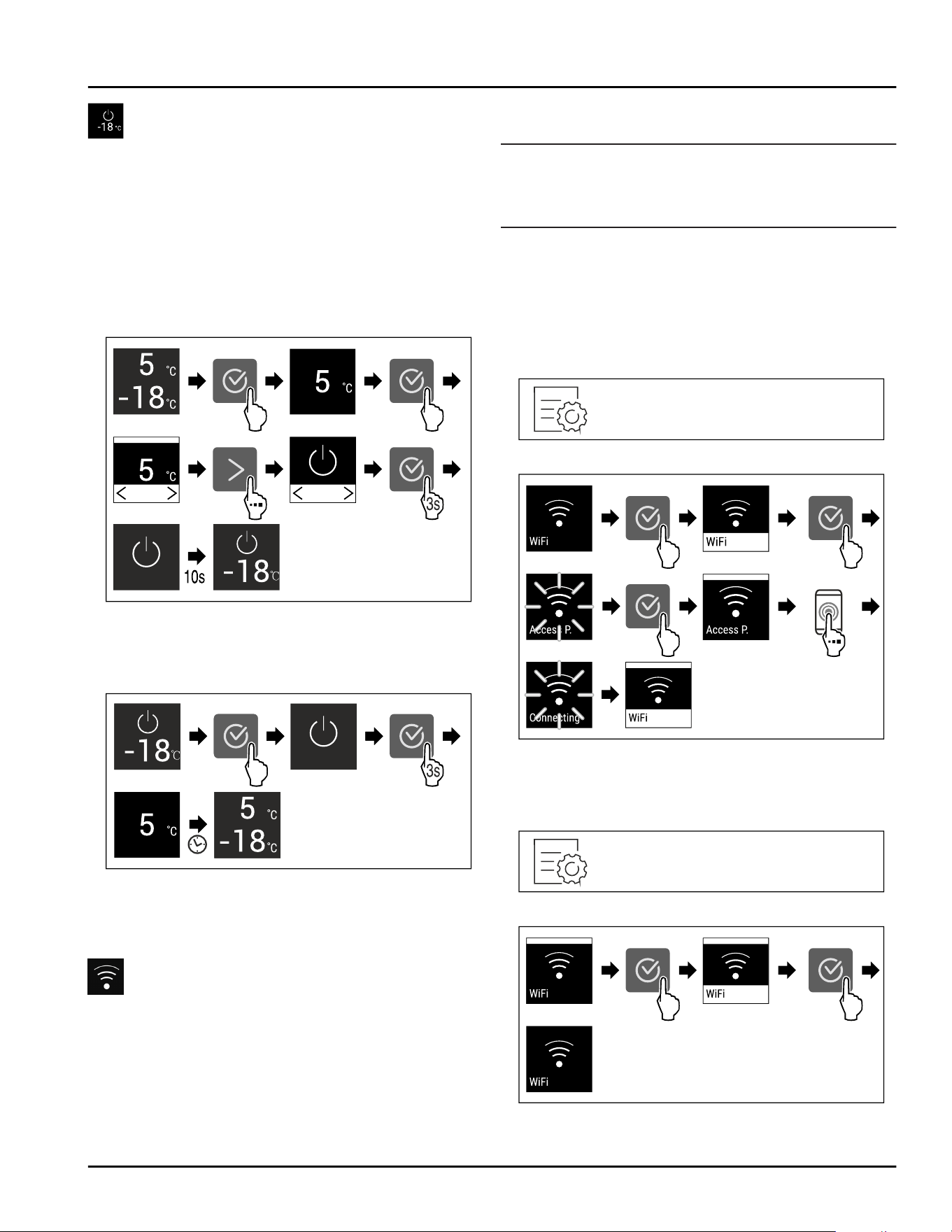

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

Use

12 * Depending on model and options

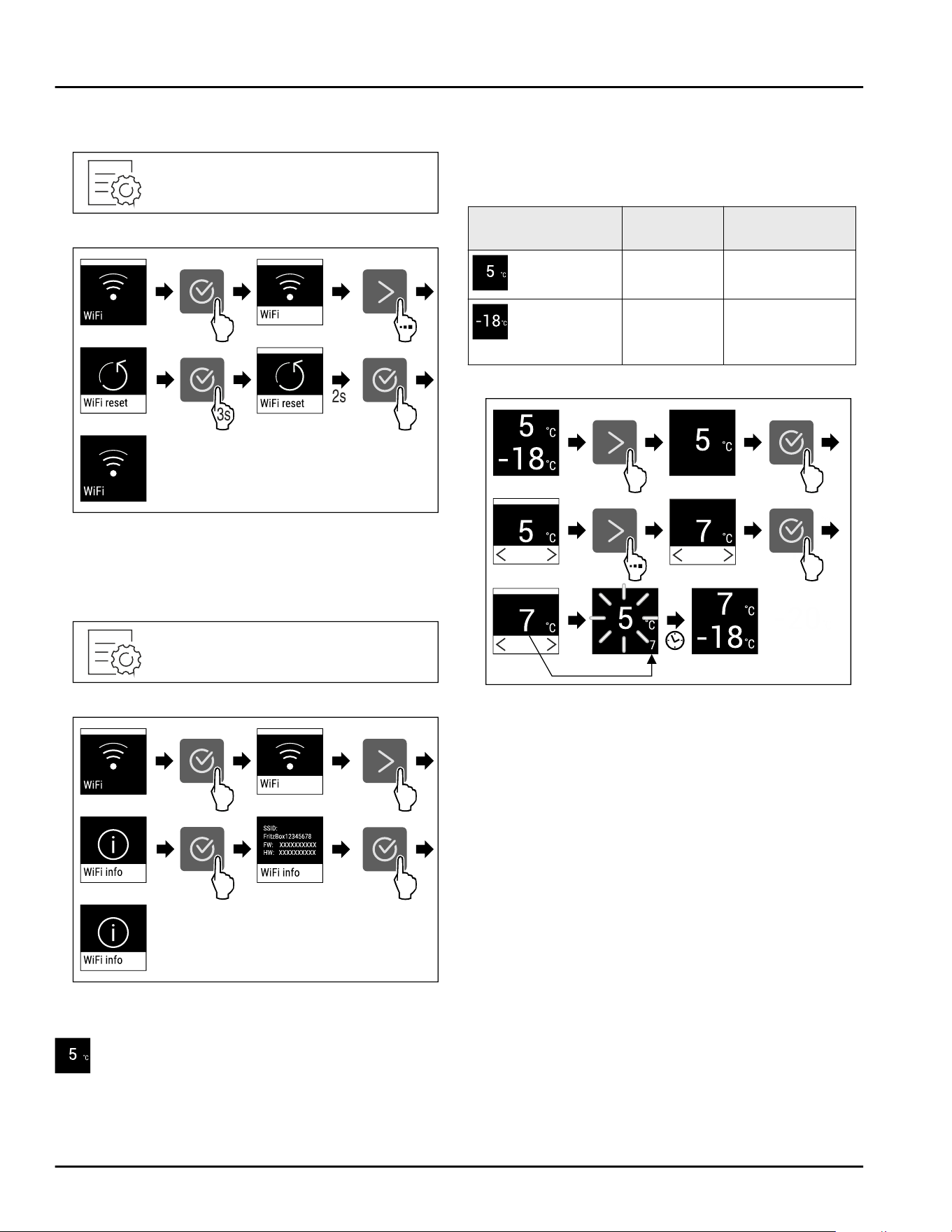

▷ There is no connection.

Resetting the WiFi connection

Fig. 16

Fig.17

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 18

Fig. 19

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

How often the door is opened

How long the door is open

The room temperature of the installation site

Type, temperature and amount of food

Temperature zone Factory-set

temperature

Recommended

setting

Fridge section

5°C(41°F) 4°C(39°F)

Freezer

section

-18 °C

(-0°F)

-18°C(-0°F)

Setting the temperature in the fridge section

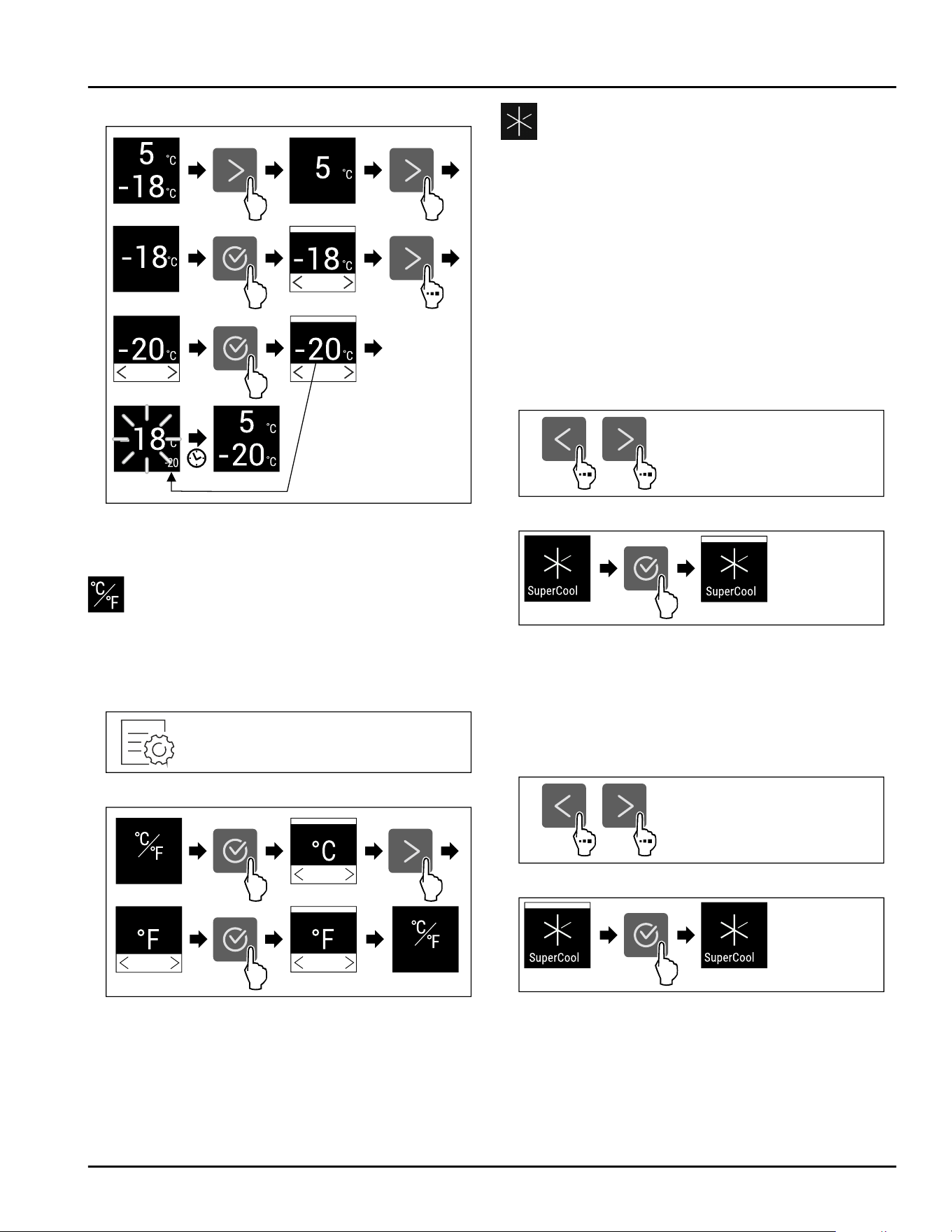

Fig. 20 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Use

* Depending on model and options 13

Setting the temperature in the freezer section

Fig. 21 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Temperature unit

Use this function to set the temperature unit. You can

set the temperature unit in either degrees Celsius or

degrees Fahrenheit.

Setting the temperature unit

Fig.22

Fig. 23 Example illustration: Switching between

degrees Celsius or degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ Temperature unit is set.

SuperCool

This function activates or deactivates SuperCool. If you

activate SuperCool the appliance increases the cooling

capacity. This allows you to achieve lower cooling

temperatures. You can activate SuperCool if you want

to quickly cool large volumes of food.

If the function is active, the appliance operates at a

higher output. As a result, the operating noise of the

appliance may be temporarily louder, while energy

consumption increases.

Activating SuperCool

Time for activating the function:

If you want to store fresh food in the fridge section:

Activate the function when storing food.

Fig. 24

Fig.25

► Carry out action steps according to the illustration.

▷ SuperCool is activated.

Deactivating SuperCool

SuperCool is automatically deactivated after 18 hours.

However, you can also manually deactivate SuperCool

at any time:

Fig. 26

Fig.27

► Carry out action steps according to the illustration.

▷ SuperCool is deactivated.

▷ Appliance continues to run in normal operation.

▷ The appliance first cools to the set temperature.

Use

14 * Depending on model and options

PowerCool

This function activates or deactivates PowerCool.

PowerCool ensures optimum temperature layers to

keep your food cool.

This function relates to the fridge compartment.

Application:

At high room temperature (starting at

approx.35°C(95°F))

At high humidity, e. g. on summer days

While storing moist product to prevent condensation

in the interior

Note

The fan can run even if the function is deactivated. It

ensures optimum temperature distribution in the appli‐

ance.

If the function is active, the appliance operates at a

higher output. As a result, the operating noise of the

appliance may be temporarily louder, while energy

consumption increases.

Activating PowerCool

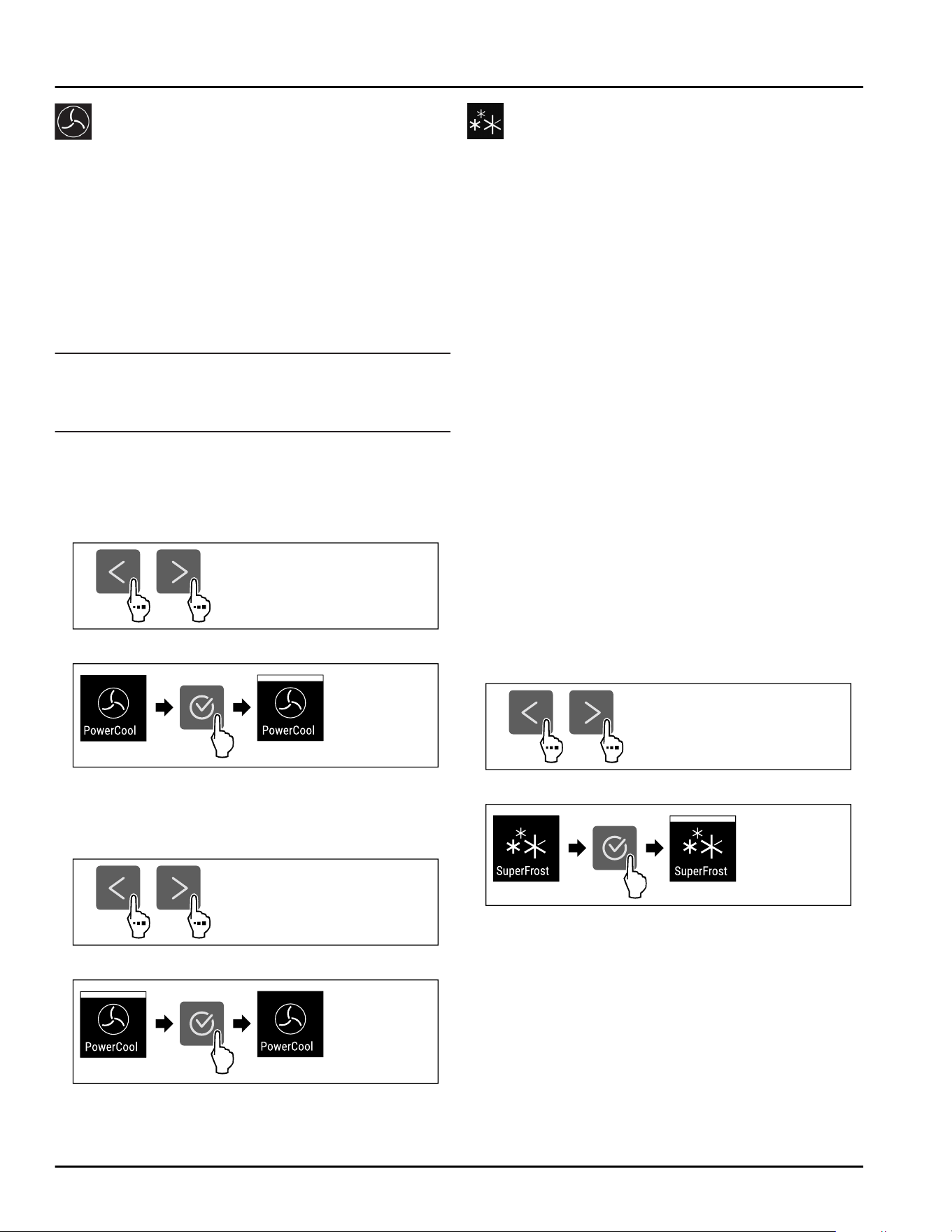

Fig.28

Fig.29

► Carry out action steps according to the illustration.

▷ PowerCool is activated.

Deactivating PowerCool

Fig.30

Fig.31

► Carry out action steps according to the illustration.

▷ PowerCool is deactivated.

SuperFrost

This function activates or deactivates SuperFrost. Acti‐

vating SuperFrost the appliance increases the freezing

capacity. This allows you to achieve lower freezer

temperatures.

Application:

Quickly freezing fresh food through to the core.

This ensures that the nutrition value, look, and taste

of the food is preserved.

Increasing cold reserves in stored frozen food before

defrosting the appliance.

If the function is active, the appliance operates at a

higher output. As a result, the operating noise of the

appliance may be temporarily louder, while energy

consumption increases.

If the door is open for too long, e. g., because you are

storing food, the appliance checks automatically

whether the actual temperature in the appliance

matches the appliance’s set temperature. If the differ‐

ence exceeds a defined value, the appliance cooling

power is increased automatically. As a result, the

temperature shown on the display may be higher than

the actual temperature inside the appliance. This is

normal and your appliance is working correctly.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

❑

The freezing volume and time for SuperFrost activa‐

tion are taken into account. (see Freezing food using

SuperFrost)

Fig.32

Fig.33

► Carry out action steps according to the illustration.

▷ SuperFrost is activated.

Deactivating SuperFrost

SuperFrost is automatically deactivated after

56 to 72 hours depending on the volume of the stored

food. However, you can also manually deactivate

SuperFrost at any time:

Use

* Depending on model and options 15

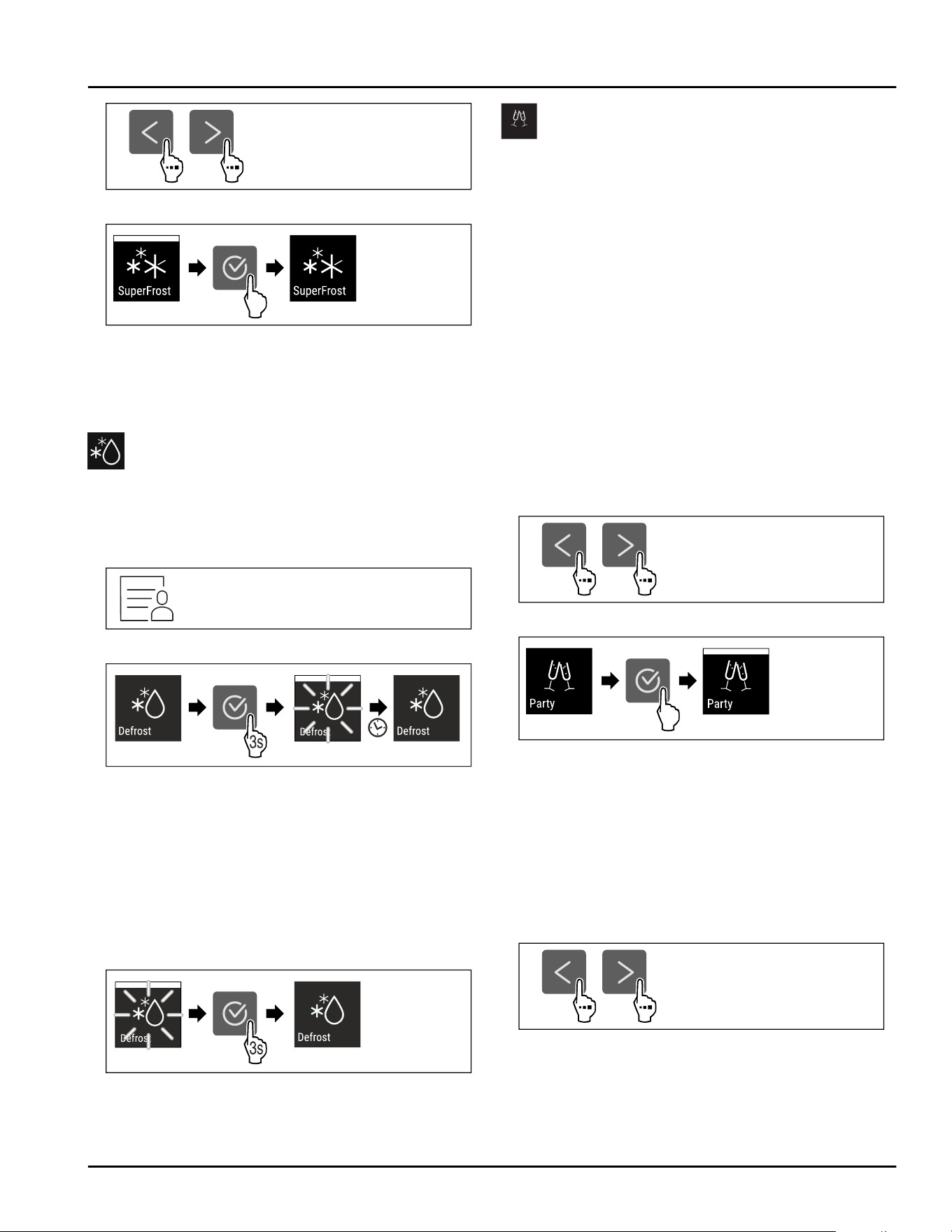

Fig.34

Fig.35

► Carry out action steps according to the illustration.

▷ SuperFrost is deactivated.

▷ Appliance continues to run in normal operation.

▷ The appliance first cools to the set temperature.

Start defrost cycle

Use this function to start the automatic defrost cycle

manually if the defrost cycle does not start automati‐

cally in case of an error.

Starting the defrost cycle

Fig.36

Fig.37

► Carry out action steps according to the illustration.

▷ Defrost cycle has started: Symbol flashes until the

defrost cycle is automatically completed.

▷ When the defrost cycle is completed: Appliance

continues to run in normal operation.

Canceling the defrost cycle

The defrost cycle is automatically completed. However,

you can also cancel the defrost cycle at any time

during the defrosting:

Fig.38

► Carry out action steps according to the illustration.

▷ Defrost cycle is canceled.

▷ Appliance continues to run in normal operation.

PartyMode

This function activates and deactivates PartyMode.

PartyMode activates different functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

SuperFrost (see SuperFrost)

IceMaker (see IceMaker *) and MaxIce

(see MaxIce*) *

You can set all listed functions individually and flexibly.

By deactivating PartyMode all changes are discarded.

If the function is active, the appliance operates at a

higher output. As a result, the operating noise of the

appliance may be temporarily louder, while energy

consumption increases.

Activating PartyMode

Make sure that the following requirements are fulfilled:

❑

IceMaker has been started for the first time.

(see4.2 Starting the IceMaker for the first time*) *

Fig. 39

Fig.40

► Carry out action steps according to the illustration.

▷ PartyMode and the corresponding functions are acti‐

vated.

▷ The current temperature flashes until the target

temperature is reached.

Deactivating PartyMode

PartyMode is automatically deactivated after 24 hours.

However, you can also manually deactivate PartyMode

at any time:

Fig. 41

Use

16 * Depending on model and options

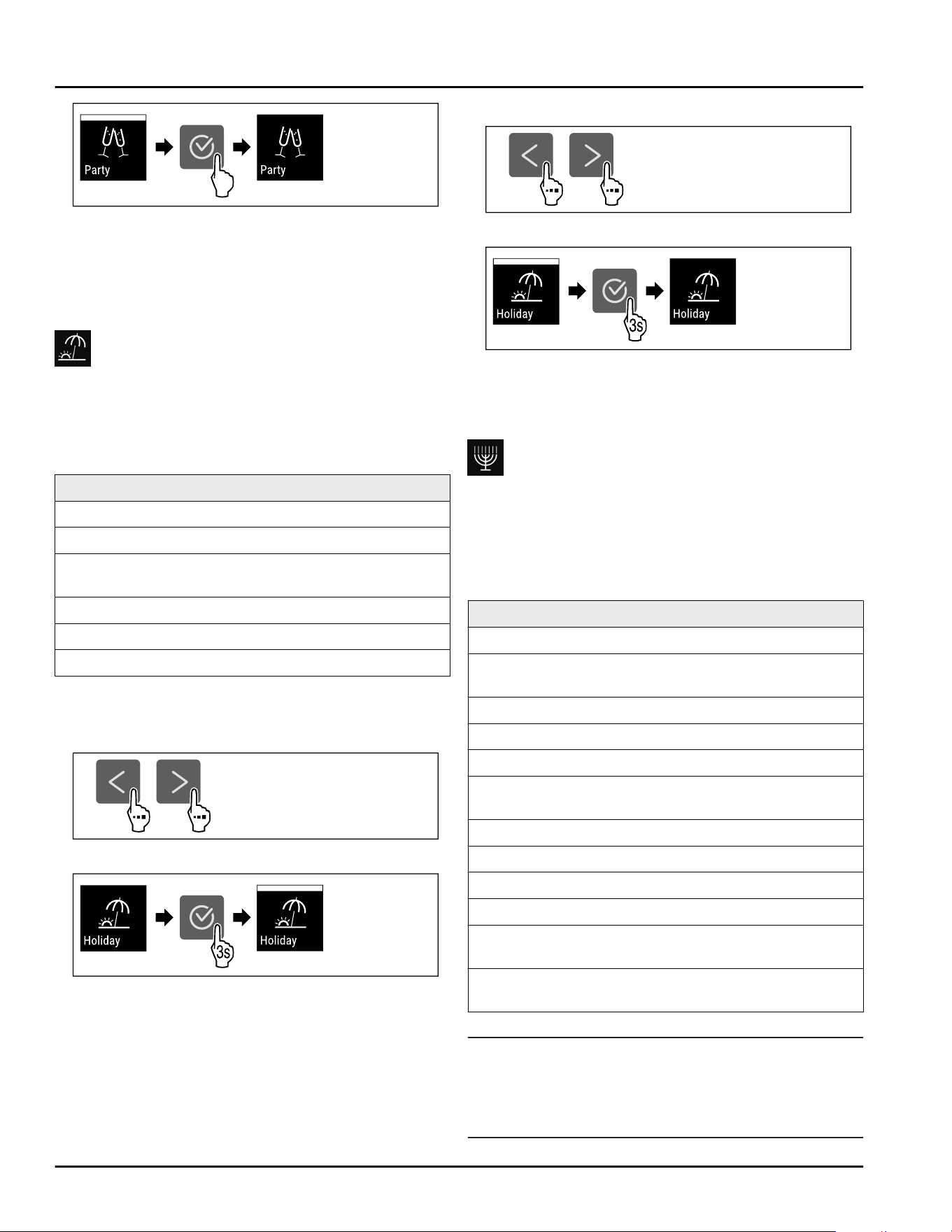

Fig. 42

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance first cools to the set temperature: The

current temperature flashes until the target temper‐

ature is reached.

HolidayMode

Use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode the fridge section is

set to 15 °C (59 °F). This helps you save energy if you

are away for a longer period of time and avoid bad

smells and mold formation.

Appliance status with active HolidayMode

Fridge section cools to 15°C(59°F).

EasyFresh cools down to 15°C(59°F).

The set temperature is maintained in the freezer

section.

PartyMode is deactivated.

SuperCool is deactivated.

PowerCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty EasyFresh completely.

Fig.43

Fig.44

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display shows the HolidayMode symbol.

Deactivating HolidayMode

Fig.45

Fig.46

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance first cools to the set temperature.

SabbathMode

This function activates and deactivates SabbathMode.

If you activate this function, some electronic functions

are switched off. Your appliance thereby meets the reli‐

gious requirements of Jewish holidays such as the

Sabbath and complies with STAR-K Kosher certifica‐

tion.

Appliance status with active SabbathMode

The status display continuously shows SabbathMode.

All functions in the display except the Deactivating

SabbathMode function are disabled.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Memories are not listed. The set time interval is

stopped.

Memories and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The IceMaker is out of order.*

The defrost cycle operates only for the specified time

without taking into account the appliance usage.

After a power failure, the device returns to

SabbathMode.

Appliance status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Use

* Depending on model and options 17

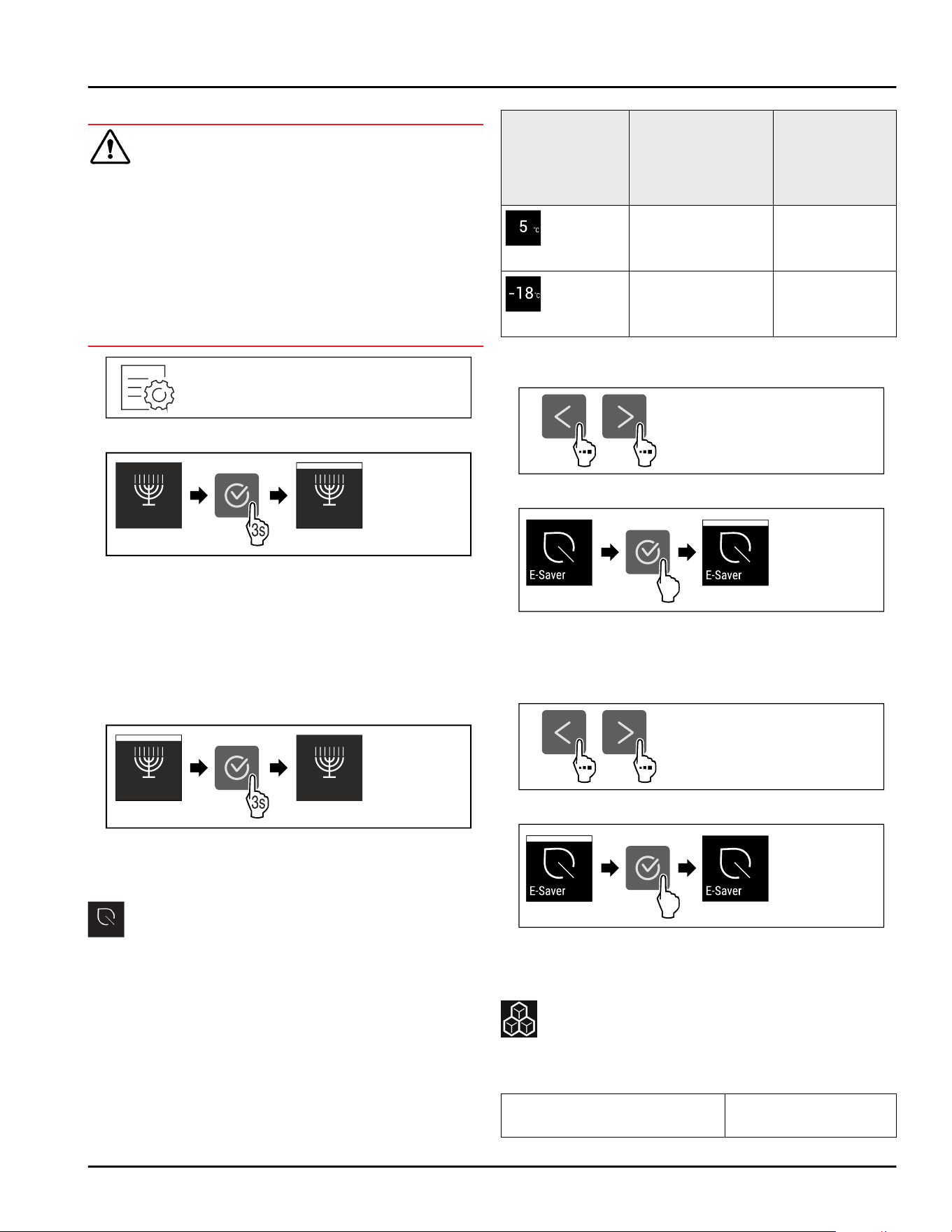

Activating SabbathMode

WARNING

Danger of poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display

about the power failure. Once the power is restored,

the appliance continues to operate in SabbathMode.

The power failure may mean that food spoils and the

consumption of this food could lead to food poisoning.

After a power failure:

► Do not consume food that has been frozen and

thawed.

Fig. 47

Fig.48

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ Status display continuously shows SabbathMode.

Deactivating SabbathMode

SabbathMode is automatically deactivated after

80 hours. However, you can also manually deactivate

SabbathMode at any time:

Fig. 49

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

E-Saver

Use this function to activate or deactivate energy

saving mode. If you activate energy saving mode,

energy consumption drops and the temperature in the

appliance increases. Food remains fresh, but shelf life

is reduced.

Temperature

zone

Recommended

setting

(see Setting the

temperature in the

fridge section)

Temperature

while E-Saver is

active

Fridge

section

4°C(39°F) 7°C(45°F)

Freezer

section

-18°C(-0°F) -16°C(3°F)

Temperatures

Activating E-Saver

Fig.50

Fig.51

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating E-Saver

Fig.52

Fig.53

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

IceMaker *

You can activate or deactivate ice cube production with

this function.

More information on the

number of ice cubes:

(see 10.1 Technical

specifications)

Use

18 * Depending on model and options

More information on

increasing the number of ice

cubes:

(see MaxIce*)

More information on the

IceMaker water inflow:*

(see IceMaker water

inflow*) *

More information on cleaning

the lines of the IceMaker:

(see TubeClean *)

If the function is active, the appliance operates at a

higher output. As a result, the operating noise of the

appliance may be temporarily louder, while energy

consumption increases.

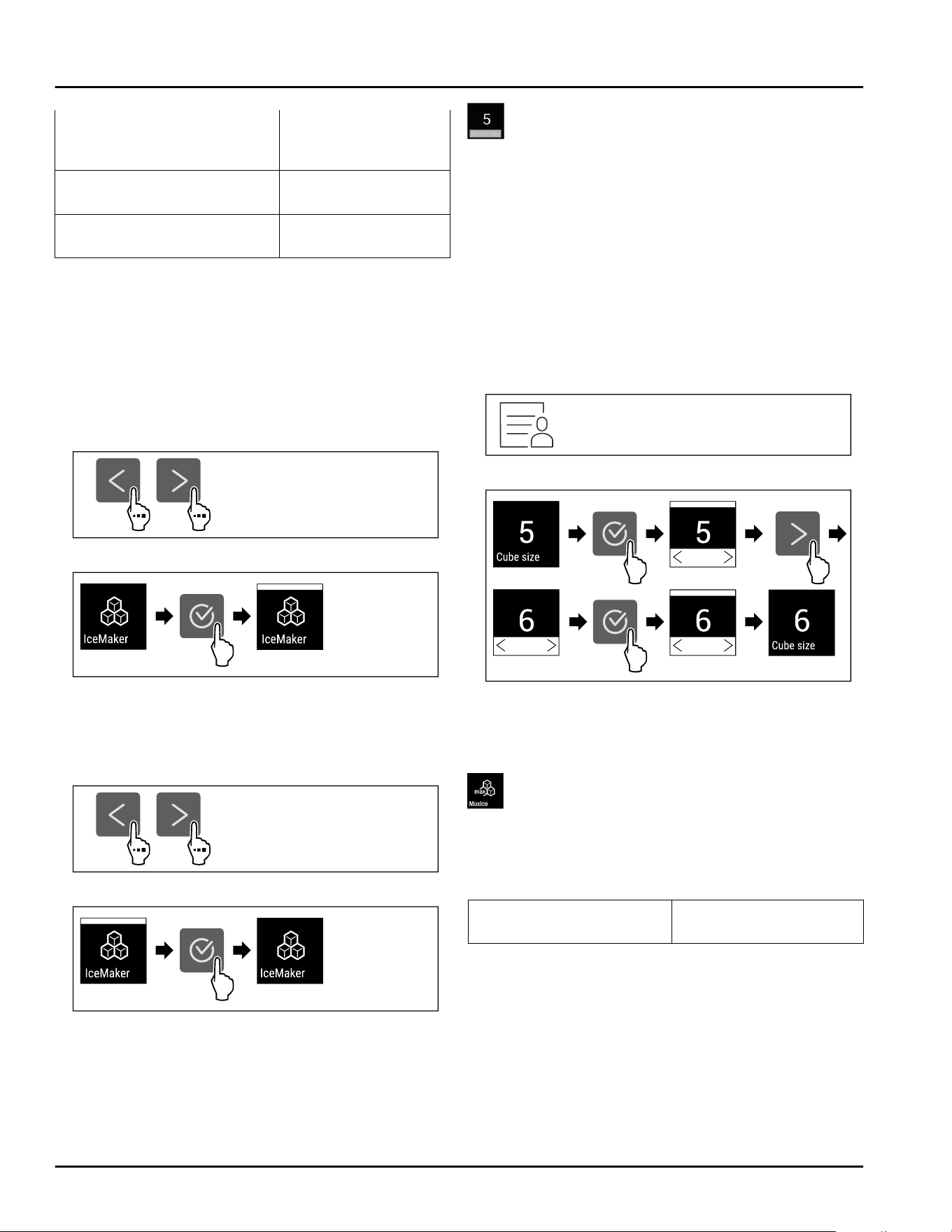

Activating IceMaker

Make sure that the following requirements are fulfilled:

❑

The water supply is established at the fixed water

connection. See Assembly Manual.*

❑

IceMaker is put into operation. (see 8.7 IceMaker*)

Fig.54

Fig.55

► Carry out action steps according to the illustration.

▷ IceMaker is activated. It can take up to 24 hours for

the IceMaker to produce the first ice cubes.

Deactivating IceMaker

Fig.56

Fig.57

► Carry out action steps according to the illustration.

▷ IceMaker is deactivated.

▷ If ice cubes are currently being made, the system

completes the process.

▷ The IceMaker goes off automatically.

IceMaker water inflow*

Set the water inflow with this function. The water

inflow regulates the water inflow volume. You can

adjust the water inflow if it does not match the water

pressure and the size of the ice cubes dispensed.

Upon delivery, the water inflow is set to value 4. You

can select a value of between 1 (smallest inflow

volume) and 8 (largest inflow volume).

Setting the water inflow

Make sure that the following requirements are fulfilled:

❑

IceMaker has been started for the first time.

(see4.2 Starting the IceMaker for the first time*) *

❑

IceMaker is activated. (see IceMaker *) *

Fig.58

Fig. 59 Example illustration: Switching from value 5 to

value6.

► Carry out action steps according to the illustration.

▷ Water inflow is set.

MaxIce*

Use this function to increase the amount of ice cubes

of the IceMaker. MaxIce is automatically deactivated

after 48 hours. However, you can also manually deacti‐

vate MaxIce at any time: (see Deactivating MaxIce) .

More information on the

number of ice cubes:

(see 10.1 Technical speci‐

fications)

Activating MaxIce

If you activate MaxIce and have not previously acti‐

vated the IceMaker (see IceMaker *) function, then by

pressing MaxIce you can also automatically activate

the IceMaker function.

If you have not yet activated the IceMaker function,

make sure that the following requirements are met:

❑

The water supply is established at the fixed water

connection. See Assembly Manual.*

❑

IceMaker is put into operation. (see 8.7 IceMaker*)

Use

* Depending on model and options 19

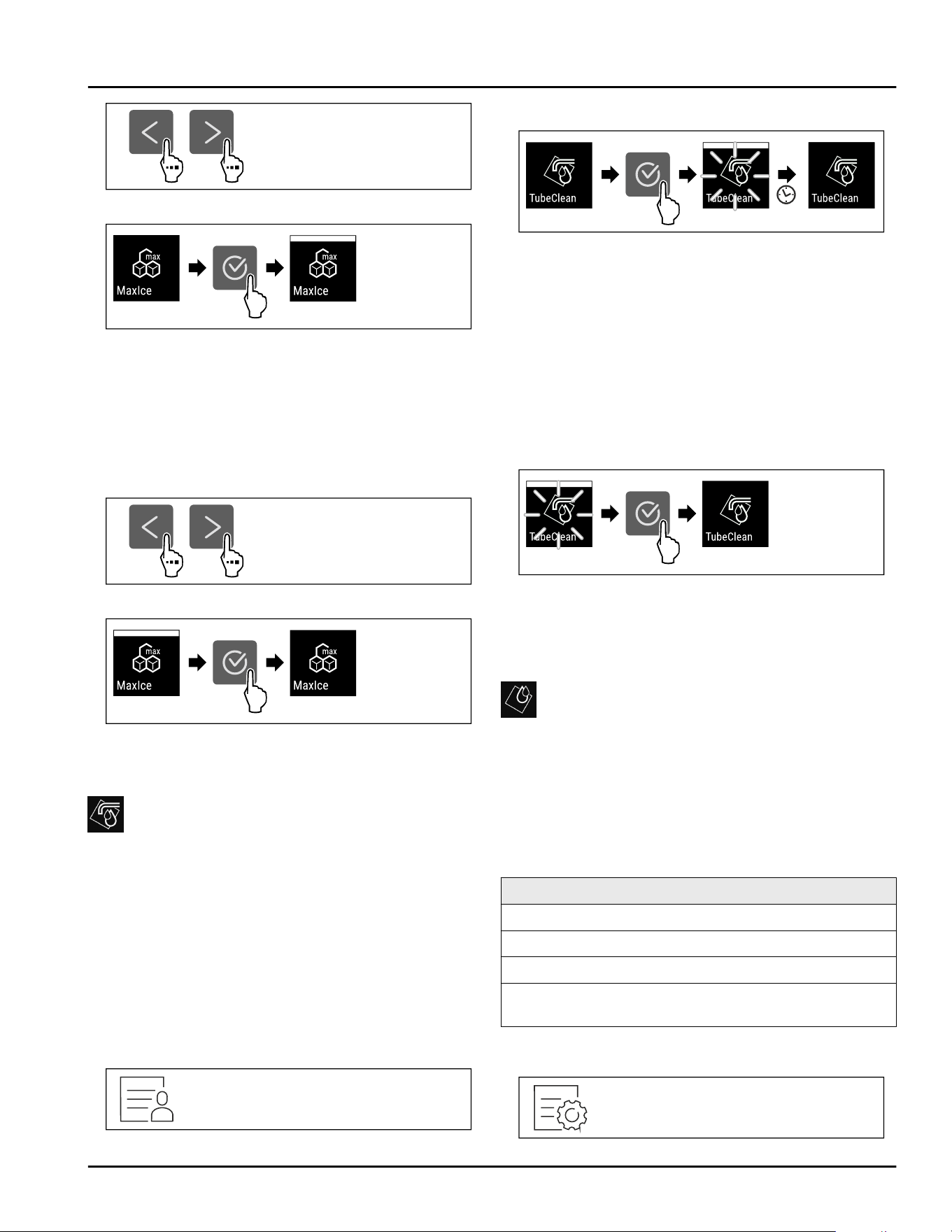

Fig.60

Fig.61

► Carry out action steps according to the illustration.

▷ MaxIce is activated.

▷ If you have not activated the IceMaker function

before: IceMaker is activated.

Deactivating MaxIce

If you deactivate MaxIce, then the IceMaker function is

still activated.

Fig. 62

Fig.63

► Carry out action steps according to the illustration.

▷ MaxIce is deactivated.

TubeClean *

This function activates or deactivates TubeClean. Acti‐

vating TubeClean cleans the IceMaker lines.

Activating TubeClean

Make sure that the following requirements are fulfilled:

❑

IceMaker cleaning is prepared. (see 9.5.4 Cleaning

the IceMaker*)

❑

Empty container with a capacity of 1.5 l (1.59 qt) and

with a maximum height of 10 cm (3 15/16 in) is

ready.

► Place the container into the drawer below the

IceMaker.

Fig.64

Fig.65

► Carry out action steps according to the illustration.

▷ TubeClean is activated.

▷ Cleaning process has started: Symbol flashes until

the cleaning process is automatically completed

after 60 minutes.

▷ When the cleaning process is completed: Appliance

continues to run in normal operation.

Deactivating TubeClean

TubeClean is automatically completed after

60 minutes. However, you can also deactivate Tube‐

Clean at any time during the cleaning process:

Fig.66

► Carry out action steps according to the illustration.

▷ TubeClean is deactivated: Cleaning process is

canceled.

▷ Appliance continues to run in normal operation.

CleaningMode

This function activates and deactivates CleaningMode.

CleaningMode enables you to comfortably clean the

appliance.

This setting relates to the fridge compartment.

Application:

Clean the fridge compartment. (see 9.5 Cleaning the

appliance)

Appliance status with active CleaningMode

The status display continuously shows CleaningMode.

The fridge section is switched off.

The interior lighting is activated.

Reminders and warnings are not displayed. No signal

tone is sounded.

Appliance status

Activating CleaningMode

Use

20 * Depending on model and options

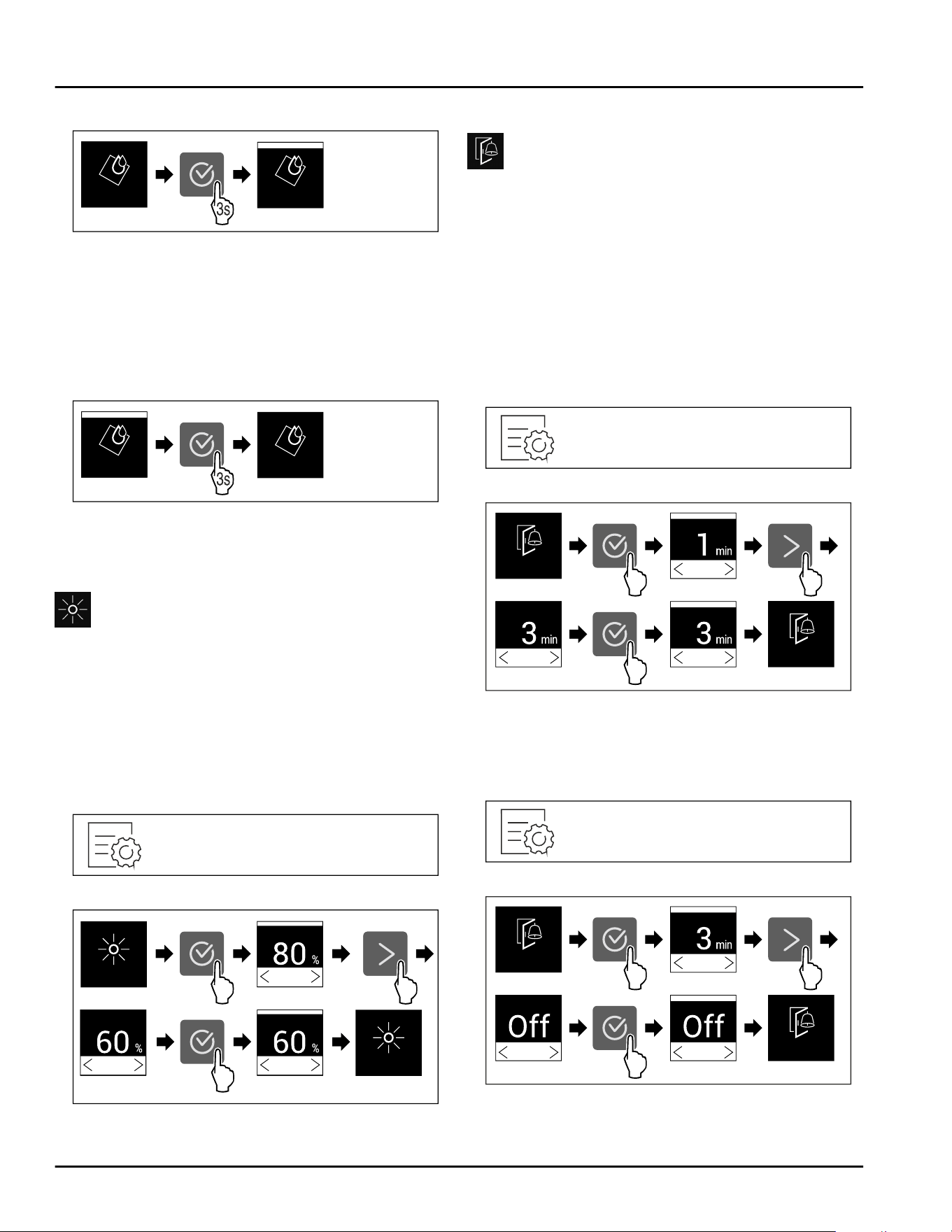

Fig. 67

Fig.68

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ Status display continuously shows CleaningMode.

Deactivating CleaningMode

CleaningMode is automatically deactivated after

60 minutes. However, you can also manually deactivate

CleaningMode at any time:

Fig. 69

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance first cools to the set temperature.

Display Brightness

Use this function to set the brightness of the display

gradually.

You can set the following brightness levels:

40%

60%

80%

100% (default setting)

Setting the brightness

Fig.70

Fig. 71 Example illustration: Switching from 80 % to 60%.

► Carry out action steps according to the illustration.

▷

Brightness is set.

Door alarm

Use this function to activate or deactivate the door

alarm. The door alarm sounds if the door is open for

too long. The door alarm is activated upon delivery. You

can set how long to door can remain open until the

door alarm sounds.

You can set the following values:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.72

Fig. 73 Example illustration: Changing the door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ Door alarm is set.

Deactivating door alarm

Fig.75

Fig. 76

► Carry out action steps according to the illustration.

▷ Door alarm is deactivated.

Use

* Depending on model and options 21

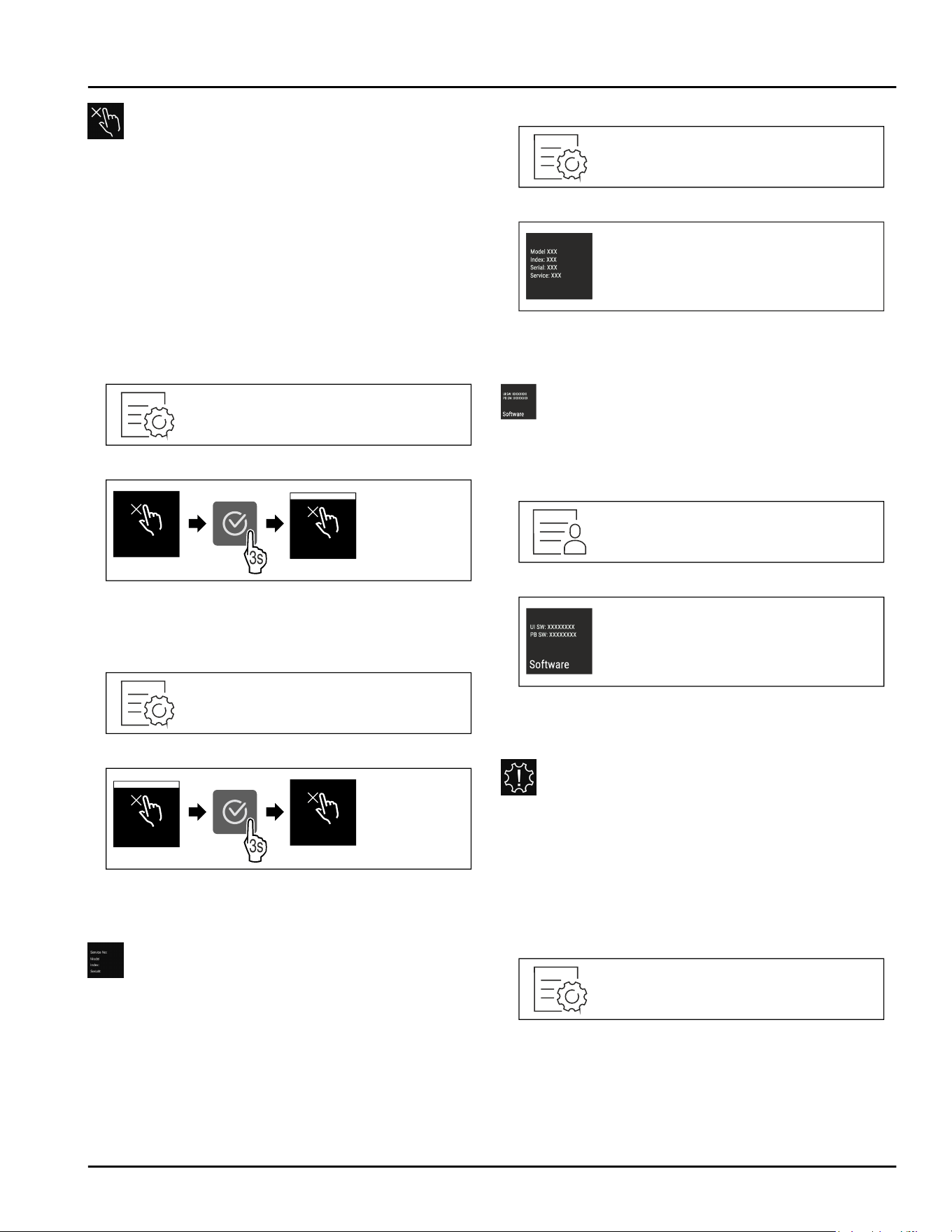

Input lock

This function activates and deactivates the input lock.

The input lock prevents the appliance from being oper‐

ated accidentally, e. g. by children.

Application:

Prevent unintentional changes of functions.

Prevent switching off of the appliance.

Prevent unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navi‐

gate in the menus, however you cannot select or

modify other functions.

Fig.77

Displ. Lock

Fig.78

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.79

Displ. Lock

Fig.80

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Appliance information

Use this function to display the model name, index,

serial number and service number of your appliance.

You will need the appliance information when you

contact customer service. (see 10.4 Customer Service)

You also use this function to open the expanded menu.

(see3 Functionality of the Touch display)

Display appliance information

Fig.81

Fig.82

► Carry out action steps according to the illustration.

▷ Display shows the appliance information.

Software

Use this function to display the software version of

your appliance.

Display software version

Fig.83

Fig.84

► Carry out action steps according to the illustration.

▷ Display indicates the software version.

Reminder

Use this function to activate or deactivate reminder.

This function is activated upon delivery.

The following reminders will then appear if the func‐

tion is activated:

Replace the FreshAir activated charcoal filter

(see Replace FreshAir activated charcoal filter)

Activating reminder

Fig.85

Use

22 * Depending on model and options

Fig.86

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating reminder

Fig. 87

Fig.88

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want

to demonstrate appliance features. If you activate

demo mode, all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in

the status display, then demo mode is already acti‐

vated.

If you activate and then deactivate demo mode, the

appliance will be reset to factory defaults. (see Reset‐

ting to factory settings)

Activating demo mode

Fig.89

Fig.90

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see4.1 Switching on appli‐

ance (first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig. 91

Use

* Depending on model and options 23

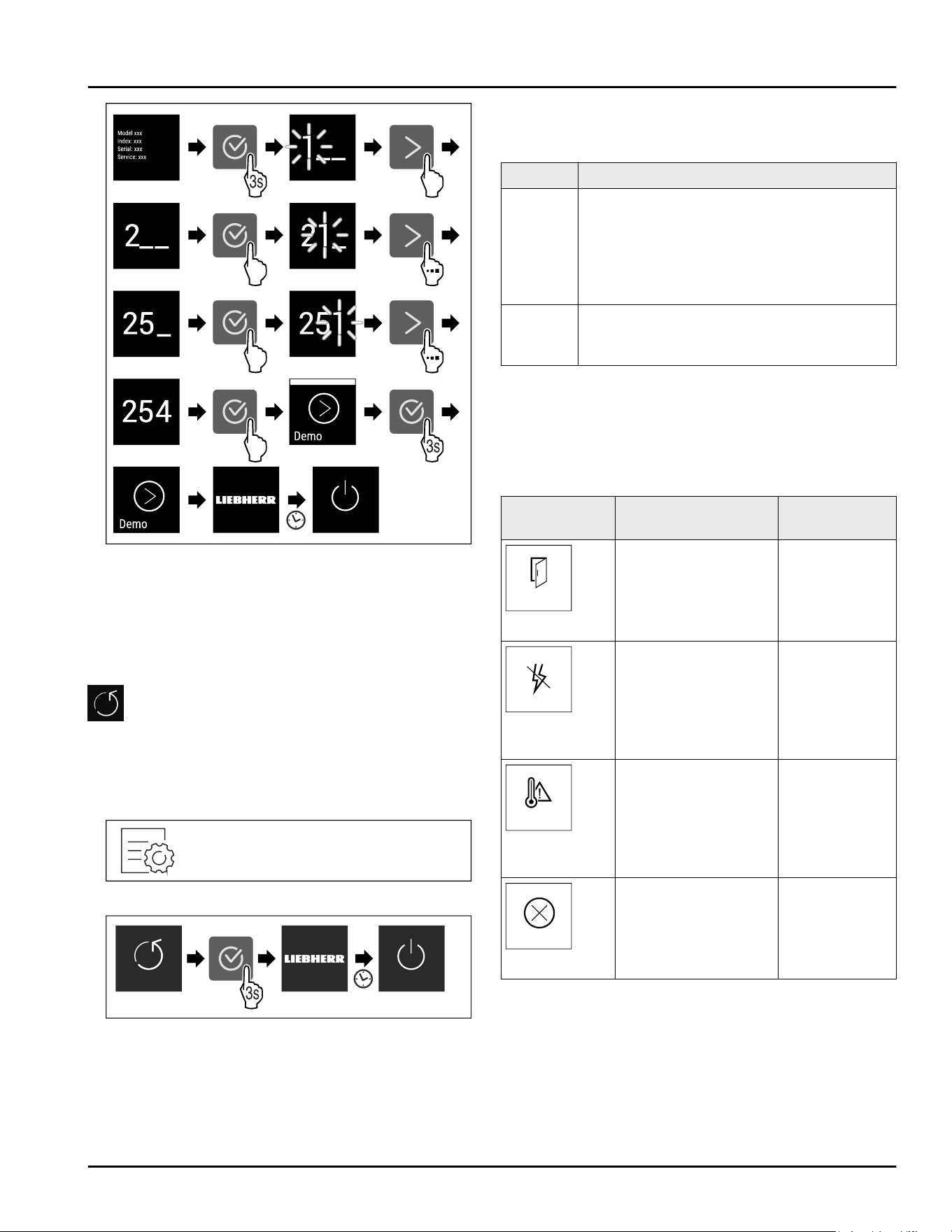

Fig.92

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see4.1 Switching on appli‐

ance (first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory

settings. All settings you have made so far are reset to

their original settings.

Performing a reset

Fig. 93

Fig. 94

► Carry out action steps according to the illustration.

▷ Appliance is reset.

▷ Appliance is switched off.

► Restart the appliance. (see 4.1 Switching on appli‐

ance (first use))

7.3 Messages

There are two categories of messages:

Category Meaning

Warning Warnings are displayed if there is a door

alarm or a malfunction.

You can easily end warnings yourself. For

any major malfunction, you must contact

Customer Service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general

processes. You can perform these

processes and end the message doing so.

7.3.1 Overview of warnings

The appliance’s behavior in the event of a warning:

Warning appears in the display.

Alarm sounds in increasing volume.

For some warnings the interior lighting pulses.

Message

Cause Ending the

message

Door alarm

The message

appears if the door is

open for too long.

Carry out

action steps.

(see Door

alarm)

Power failure

alarm

The message

appears if the

freezing temperature

increases due to a

power outage.

Carry out

action steps.

(see Power

failure alarm)

Temperature

alarm

The message

appears if the

freezing temperature

does not correspond

to the set tempera‐

ture.

Carry out

action steps.

(see Tempera‐

ture alarm)

Error

This message

appears if there is an

appliance error. An

appliance module

indicates an error.

Carry out

action steps.

(see Error)

Use

24 * Depending on model and options

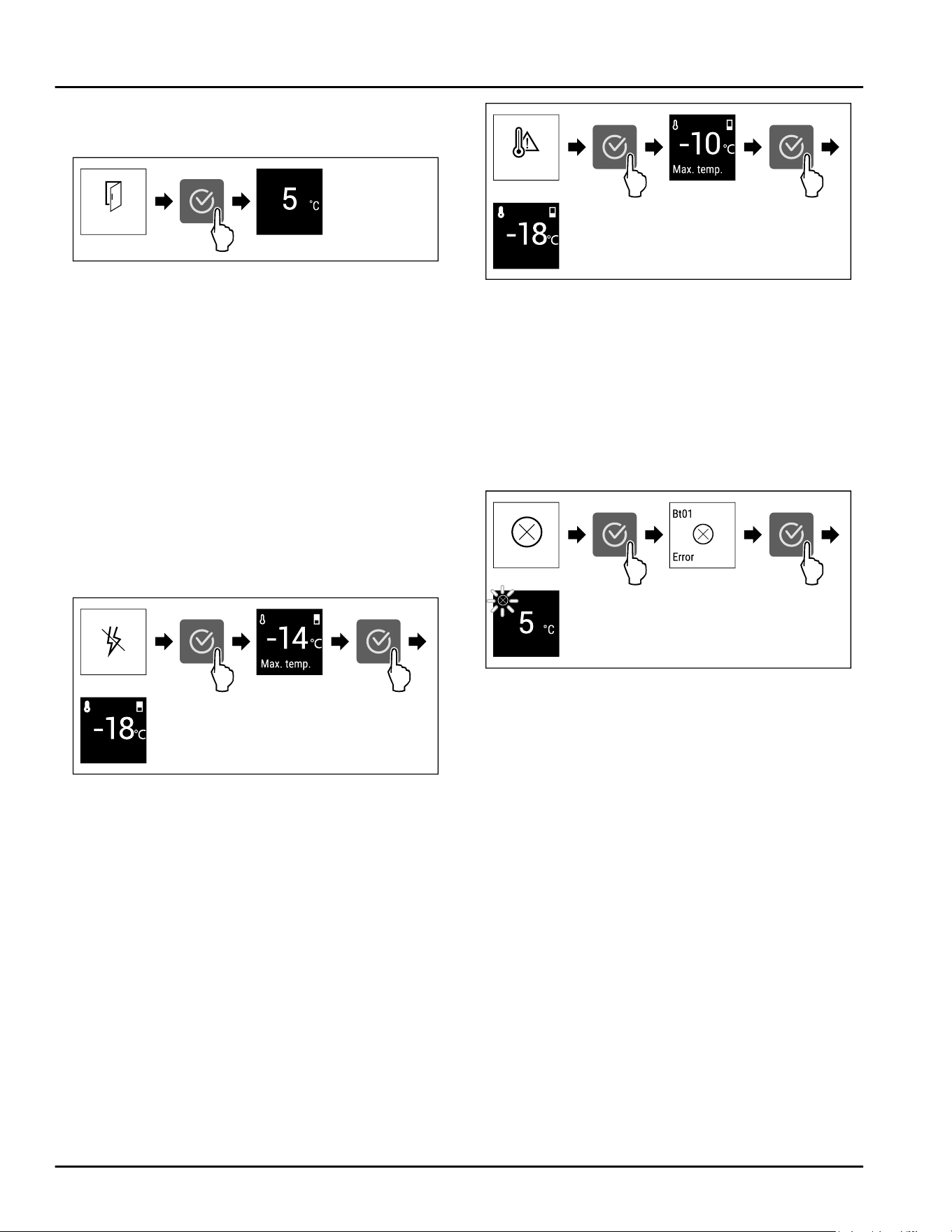

7.3.2 Ending warnings

Door alarm

Fig. 95 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ Display skips to status display.

▷ The appliance cools more intensely, so the tempera‐

ture shown on the display may be higher than the

actual temperature inside the appliance.

▷ Appliance noises may be louder.

You can set how long to door may remain open until

the door alarm sounds. (see Setting the door alarm)

Power failure alarm

Once the power failure has ended, the appliance auto‐

matically cools to the target temperature set earlier

without you having to confirm the message. But you

must confirm it in order for the message to disappear

on the display.

Fig. 96 Example illustration

► Press the Confirm symbol.

▷ The warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9 °C (16 °F):

Food can still be eaten.

If the freezing temperature exceeded -9°C(16°F):

► Check the food.

► Press the Confirm symbol.

▷ Display skips to status display: The current tempera‐

ture and target temperature are displayed.

Temperature alarm

Causes for the temperature differences may be:

You have put in warm, fresh food.

Too much warm room air has flowed in during the

rearrangement and removal of food.

The power has been out for a longer period of time.

The appliance is defective.

► Remedy the cause.

▷ The appliance cools to the target temperature set

earlier:

Fig. 97 Example illustration

► Press the Confirm symbol.

▷ The warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9 °C (16 °F):

Food can still be eaten.

If the freezing temperature exceeded -9°C(16°F):

► Check the food.

► Press the Confirm symbol.

▷ Display skips to status display: The current tempera‐

ture and target temperature are displayed.

Error

Fig. 98 Example illustration

► Press the Confirm symbol.

▷ Error code is displayed.

► Make a note of the error code.

► Press the Confirm symbol.

▷ Display skips to status display.

► Contact Customer Service. (see 10.4 Customer

Service)

7.3.3 Overview of reminders

The appliance’s behavior in the event of a reminders:

Reminder appears in the display.

Alarm tone sounds.

For some reminders the interior lighting pulses.

You can deactivate the following reminders (see Deac‐

tivating reminder) :

Replace FreshAir activated charcoal filter

Use

* Depending on model and options 25

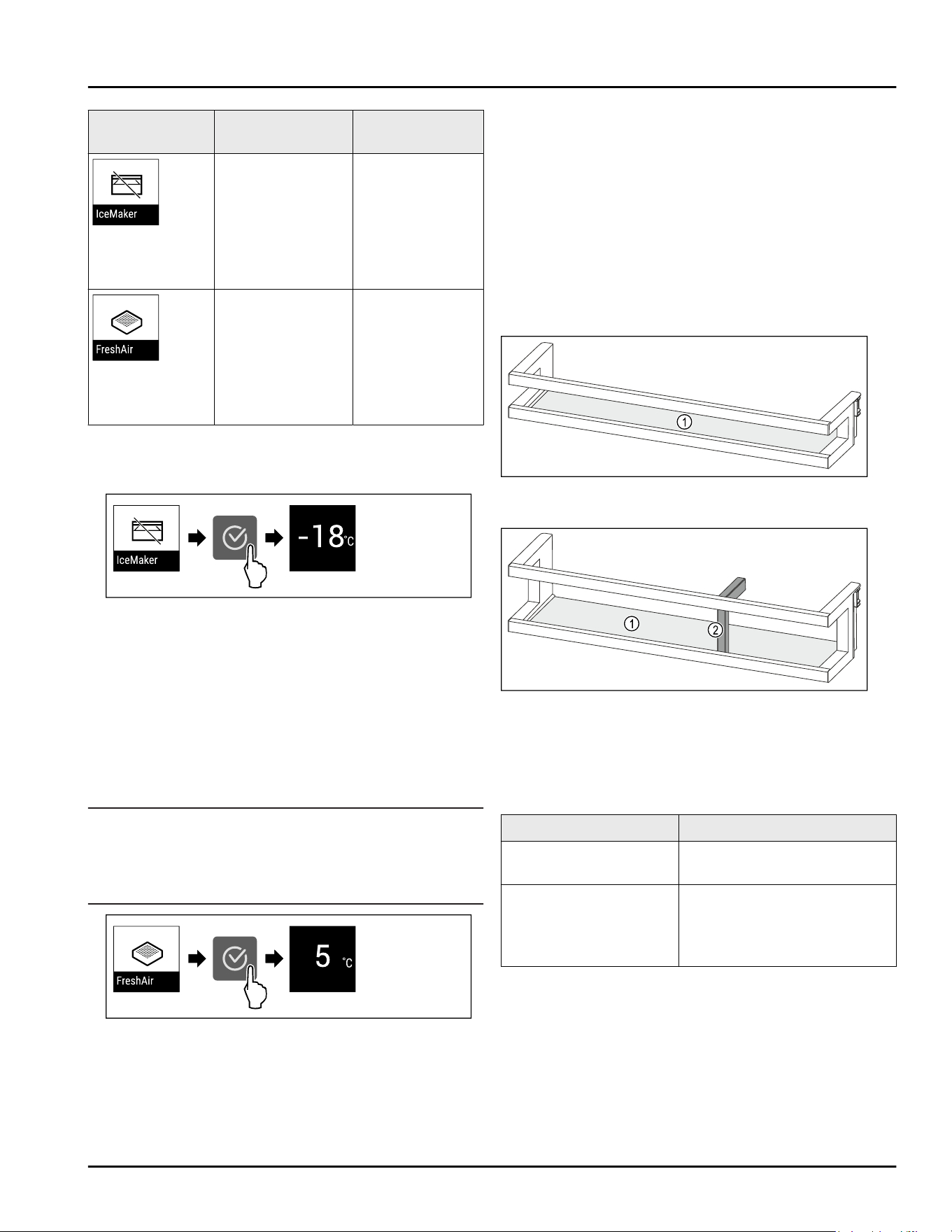

Message Cause Ending the

message

Push in the

IceMaker

drawer*

This message

appears if the

IceMaker is

active, but the

IceMaker drawer

is open.*

Carry out action

steps. (see Push

in the IceMaker

drawer*) *

Replace Fres‐

hAir activated

charcoal filter

This message

appears if you

have to replace

the FreshAir acti‐

vated charcoal

filter.

Carry out action

steps.

(see Replace

FreshAir acti‐

vated charcoal

filter)

7.3.4 Ending reminders

Push in the IceMaker drawer*

Fig. 99 Example illustration

► Press the Confirm symbol.

► Push in the IceMaker drawer.

-or-

► Deactivate IceMaker. (see IceMaker *)

▷ If the IceMaker drawer is pushed in and IceMaker is

active: IceMaker is producing ice cubes.

Replace FreshAir activated charcoal filter

Liebherr recommends: Replace the FreshAir activated

charcoal filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr Service Center. The address for your

respective country can be found on the back of the

instructions.

Fig. 100 Example illustration

► Press the Confirm symbol.

► Replace activated charcoal filter. (see 9.1 FreshAir

carbon filter)

▷ The activated charcoal filter ensures optimum air

quality in the refrigerator.

▷ Reminder appears again after 6 months.

If you no longer want to keep this reminder, you can

deactivate the reminder. (see Deactivating reminder)

8 Equipment

8.1 Door racks

Door racks are suitable for storing beverages and food.

You can move door racks for use as individually needed

and disassemble them for cleaning. However, Liebherr

recommends using the door racks in the position they

are in when delivered from the plant.

Fig. 101 Example illustration of the door racks

(1)

Shelf

Fig. 102 Example illustration of the door racks with bottle

holder

(1)

Shelf (2) Bottle holder

The following table shows examples of what you can

store in each door rack. Here, make sure that you do

not exceed the maximum loading weight for the door.

Door racks

Food

Door racks (see

Fig. 101)

Butter, cheese, canned food,

tubes

Door racks with bottle

holder (see Fig. 102)

Bottles

Use the movable bottle

holder to secure the bottles

in the door rack.

Equipment

26 * Depending on model and options

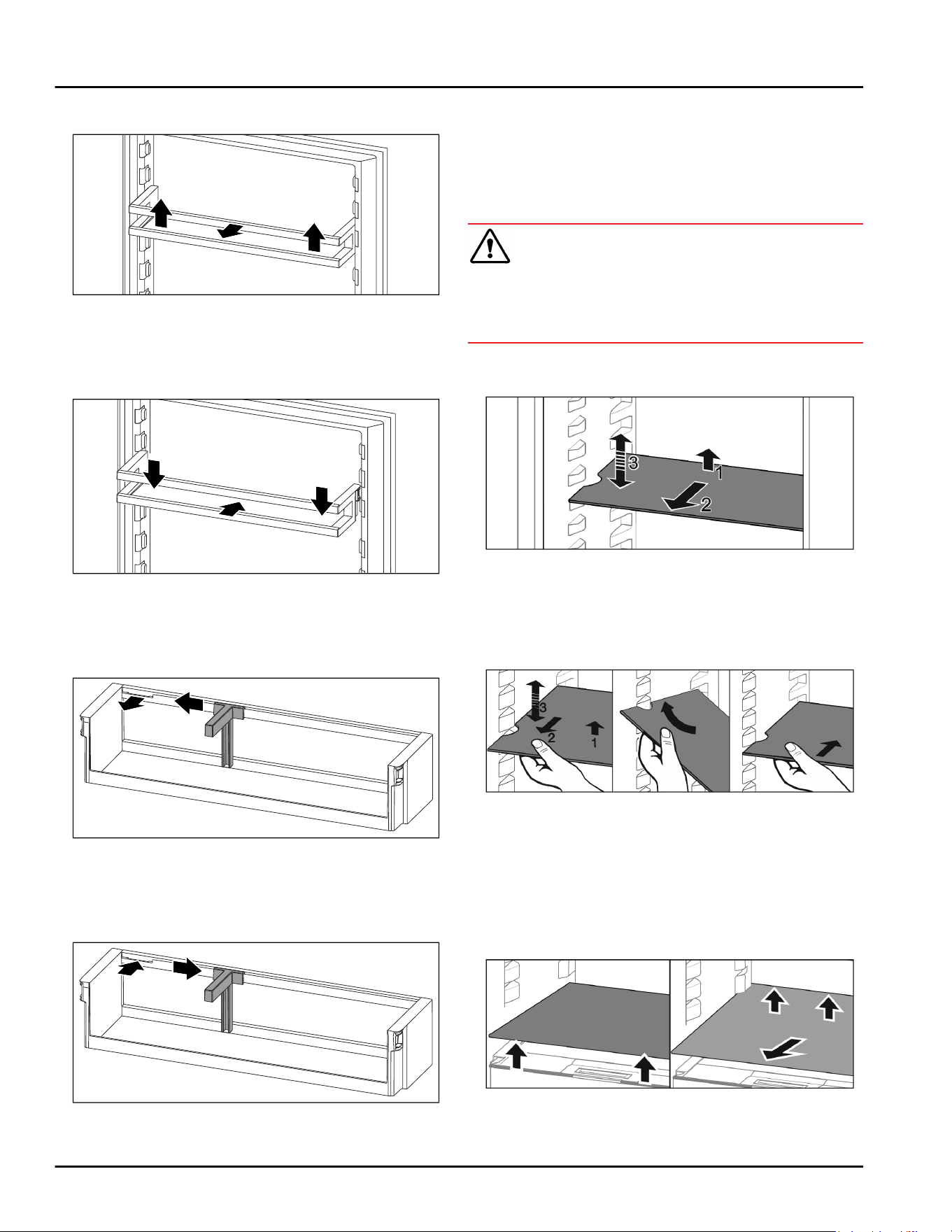

8.1.1 Removing the door rack

Fig. 103 Example illustration

► Move the door rack up.

► Move the door rack to the front.

8.1.2 Inserting the door rack

Fig. 104 Example illustration

► Insert the door rack.

► Press the door rack down.

8.1.3 Removing the bottle holder

Fig. 105

► Push the bottle holder to the side up to the recess.

► Remove the bottle holder from the front.

8.1.4 Inserting the bottle holder

Fig. 106

► Insert the bottle holder into the recess.

►

Push the bottle holder to the side into the desired

position.

8.2 Shelves

8.2.1 Moving/removing shelves

CAUTION

Broken shelves!

Danger of cuts.

► Only remove storage shelves when there is nothing

on them

Extension stops secure the shelves against being acci‐

dentally pulled out

Fig. 107

► Lift the shelf and pull to the front.

▷ Side recess to shelf position.

► Reposition the shelf: Lift up or lower to the desired

height and insert.

-or-

Fig. 108

► Take out the shelf completely: Pull out to the front.

► Easier removal: Set the shelf at an angle.

► Reinsert the shelf: Push it in to its stop limit.

▷ Pull-out stoppers are pointing down.

▷ Pull-out stoppers are behind the front shelf.

You can also remove the shelf above the EasyFresh

compartments.

Fig. 109

To remove shelf

► Lift the shelf at the front and back.*

Equipment

* Depending on model and options 27

► Remove from the front.

Do not place any goods on the drawer cover below!

Slide the shelf in:

► Place the shelf at an angle, with the back tilted

downwards.

▷ Pull-out stoppers are pointing down.

► Slide the shelf into place.

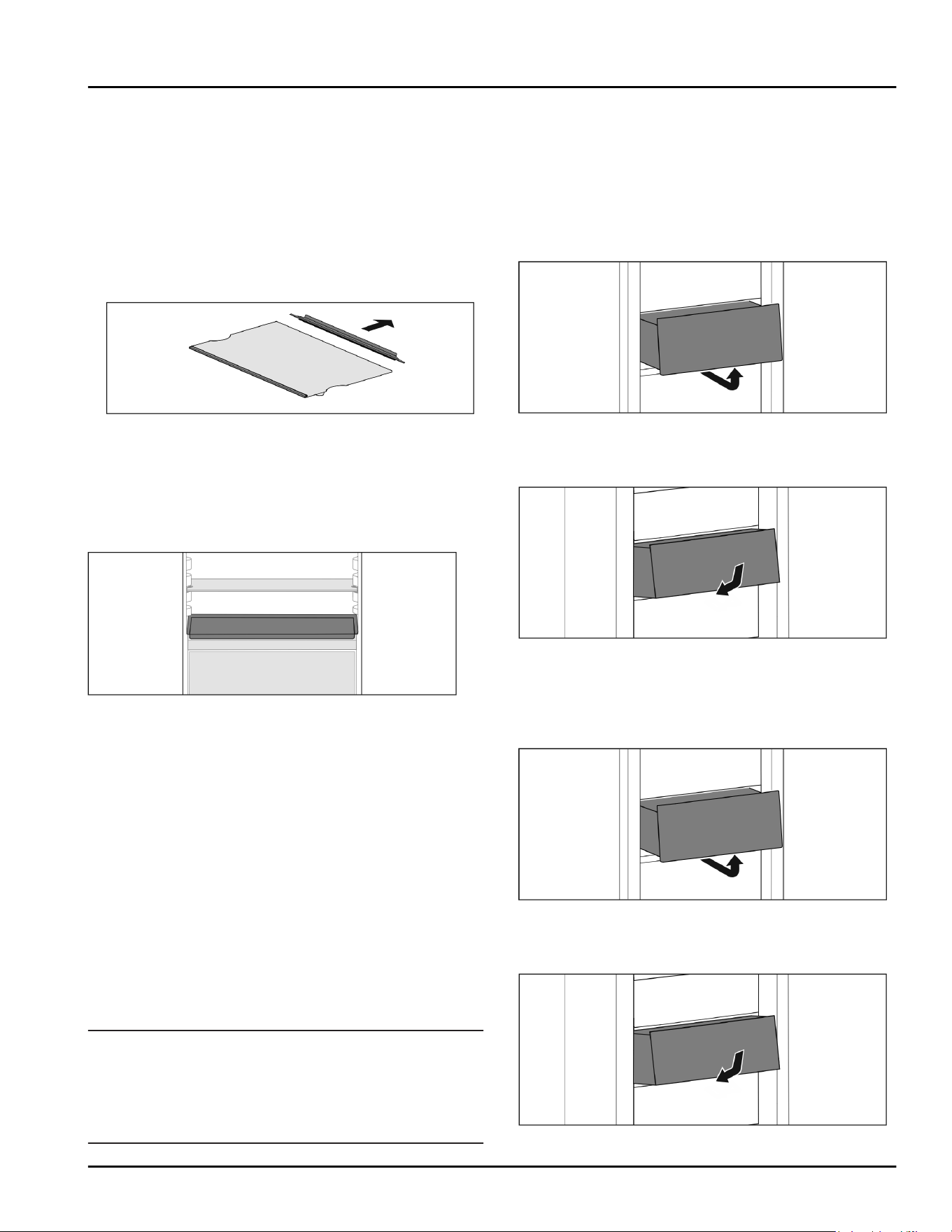

8.2.2 Dismantling shelves

The shelves can be dismantled for cleaning.

Fig. 110

► Disassemble the shelf.

8.3 Space for baking tray

There is space for a baking tray Fig. 1 (4) above the

drawers.

Fig.111

Make sure that the following requirements are fulfilled

❑

Max. baking tray dimensions are adhered to

(see 10.1 Technical specifications) .

❑

Baking tray has cooled to room temperature.

❑

The bottom door stopper is set at least one position

up.

When door 90° is open:

► Slide the baking tray onto the lower side runs.

8.4 Drawers

You can remove the drawers for cleaning.

You can remove the drawers to use VarioSpace.

The way to remove/insert the drawers varies

depending on the pull-out system. Your appliance can

contain a variety of pull-out systems.

Note

Insufficient ventilation results in an increase in energy

consumption and reduction of the refrigerating

performance.

► Leave the bottom drawer in appliance!

► Never obstruct the vents on the interior rear wall!

8.4.1 Drawer on appliance base or glass

shelf

The drawer runs directly on the appliance base or on a

glass shelf. There are no rails.

When you remove the drawers, you can use the glass

shelves below them as storage shelves.

Removing drawer

Fig.112

► Remove drawer as shown in the diagram.

Inserting drawer

Fig.113

► Insert drawer as shown in the diagram.

8.4.2 Drawer on glide rails

Removing drawer

Fig. 114

► Remove drawer as shown in the diagram.

Inserting drawer

Fig. 115

Equipment

28 * Depending on model and options

► Insert drawer as shown in the diagram.

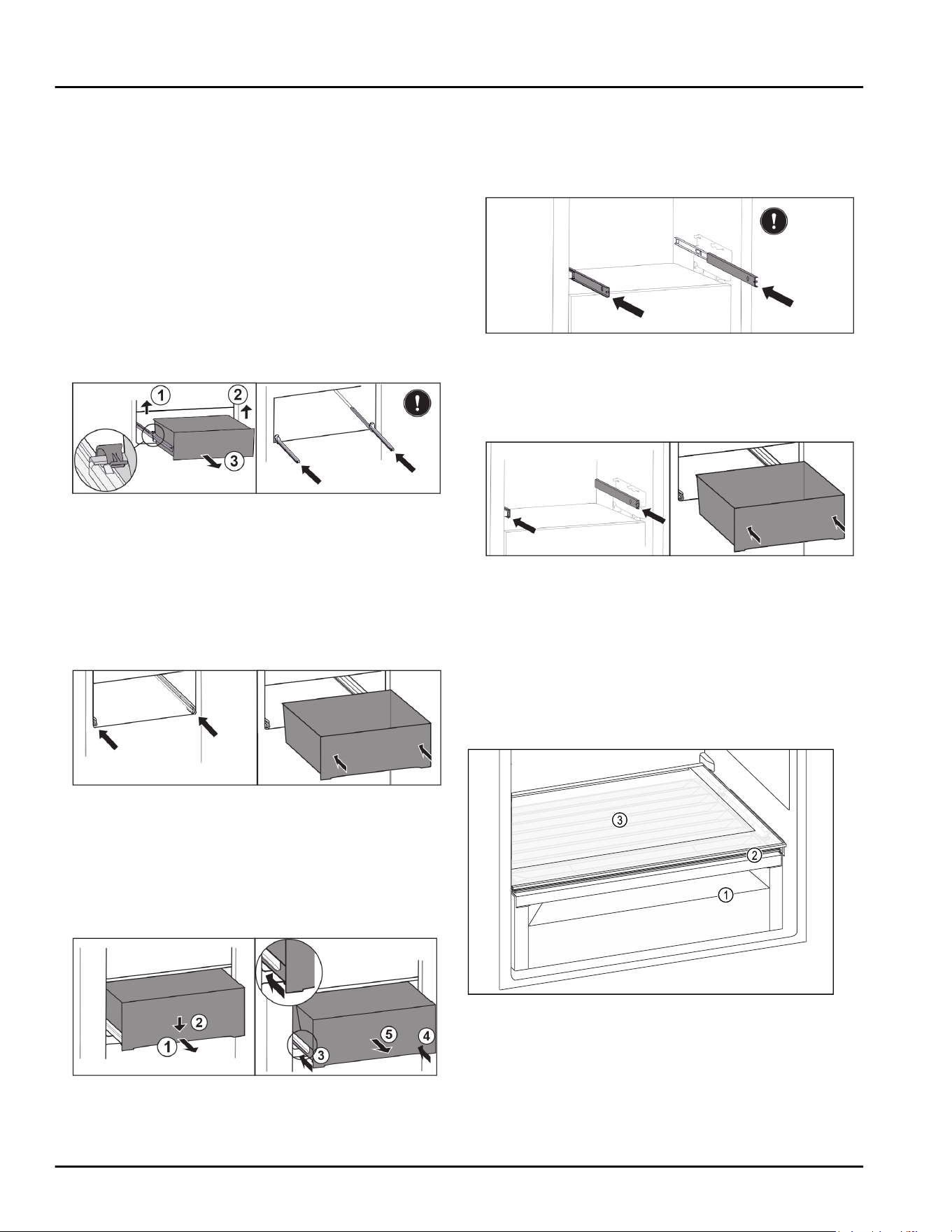

8.4.3 Drawer on telescopic rails

The drawer runs on full-extension rails (telescopic

rails). There are full-extension telescopic rails and tele‐

scopic rails with partial pull-out. Drawers which are full

extension can be pulled out fully from the appliance.

Drawers with partial pull-out cannot be pulled out fully

from the appliance. The system in your appliance

depends on the type of appliance.

Full extension*

If you have full-extension rails, there is a clamp located

at the back on the left and right of the rail.

Removing drawer

Fig. 116

► Pull out drawer as far as it will go.

► Lift left clamp and simultaneously pull drawer

forwards on the left. Fig. 116(1)

► Lift right clamp and simultaneously pull drawer

forwards on the right. Fig. 116(2)

► Remove drawer to the front. Fig. 116(3)

► Slide rails in.

Inserting drawer

Fig.117

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment*

Removing drawer

Fig. 118

► Pull out the drawer halfway. Fig. 118(1)

► Press down the drawer on the front. Fig. 118(2)

►

Push in the left rail approximately 2 cm (13/16 in).

Fig. 118(3)

► Push in the right rail approximately 2 cm (13/16 in).

Fig. 118(4)

► Remove drawer to the front. Fig. 118(5)

Fig. 119

If the rails are not yet fully pushed in after removing

the drawer:

► Push the rails in completely.

Inserting drawer

Fig.120

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

8.5 Lid for EasyFresh-safe

The lid ensures constant levels of humidity.

The lid is located directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 121 Example illustration of the lid for EasyFresh-safe

(1)

EasyFresh-safe (3) Shelf

(2) Lid for EasyFresh-

safe

Equipment

* Depending on model and options 29

8.5.1 Reducing humidity in the drawer

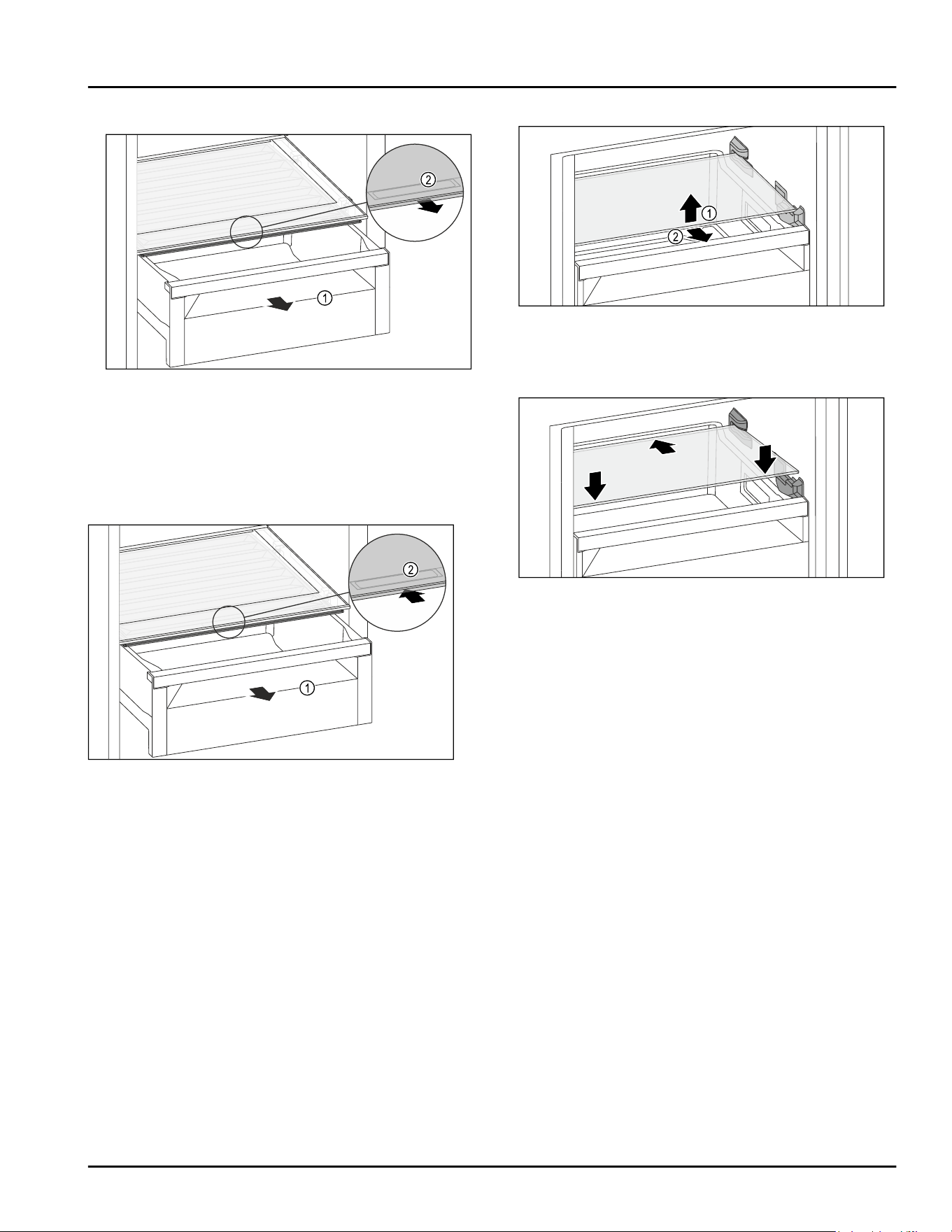

Fig.122

► Pull out the drawer Fig.122(1).

► Grip the handle recess Fig. 122 (2) on the lid while

pulling the lid forward at the same time.

▷ When the drawer is closed, there is a small gap

between the lid and the drawer.

8.5.2 Increasing humidity in the drawer

Fig.123

► Pull out the drawer Fig.123(1).

► Grip the handle recess Fig. 123 (2) on the lid while

pulling the lid backward at the same time.

▷ When the drawer is closed, the lid closes tightly with

the drawer.

8.6 Glass shelves

You can remove the glass shelf under the drawers for

cleaning.

You can remove the glass shelf under the drawers to

use VarioSpace.

8.6.1 Removing / inserting the glass shelf

Make sure that the following requirements are fulfilled:

❑

Glass shelf under the drawer: Drawer has been

removed. (see8.4 Drawers)

Removing glass shelf

Fig. 124 Example illustration of the glass shelf

► Lift the front of the glass shelf.

► Remove the glass shelf from the front.

Inserting the glass shelf

Fig. 125 Example illustration of the glass shelf

► Set down the glass shelf diagonally behind the stop‐

pers.

► Lower glass shelf.

► Slide in glass shelf to the back.

8.7 IceMaker*

The IceMaker is used exclusively for the production of

ice cubes in household quantities.

Make sure that the following conditions are fulfilled

IceMaker is cleaned. (see9 Maintenance)

IceMaker drawer is cleaned.

IceMaker drawer is fully inserted.

8.7.1 Producing ice cubes

The production capacity depends on the freezer

temperature The lower the temperature, the more ice

cubes can be produced in a certain period

Once IceMaker is switched on for the first time, it can

take up to 24 hours to produce the first ice cubes.

► Activate the IceMaker function.

► Making many ice cubes: Activate the MaxIce func‐

tion.

► To make a large quantity of ice cubes: Move or

remove the separators in the IceMaker drawer.*

► Distribute ice cubes evenly in the drawer to increase

its capacity.

► Close the drawer: The IceMaker starts making ice

again.

Equipment

30 * Depending on model and options

Note

When a certain level is reached in the IceMaker drawer,

it stops making ice cubes. The IceMaker does not fill

the drawer to the very top.

8.7.2 Using the drawer with the IceMaker

deactivated

If you deactivate the IceMaker, then you can use the

entire IceMaker drawer as a freezer drawer.

► Deactivate IceMaker. (see Deactivating IceMaker )

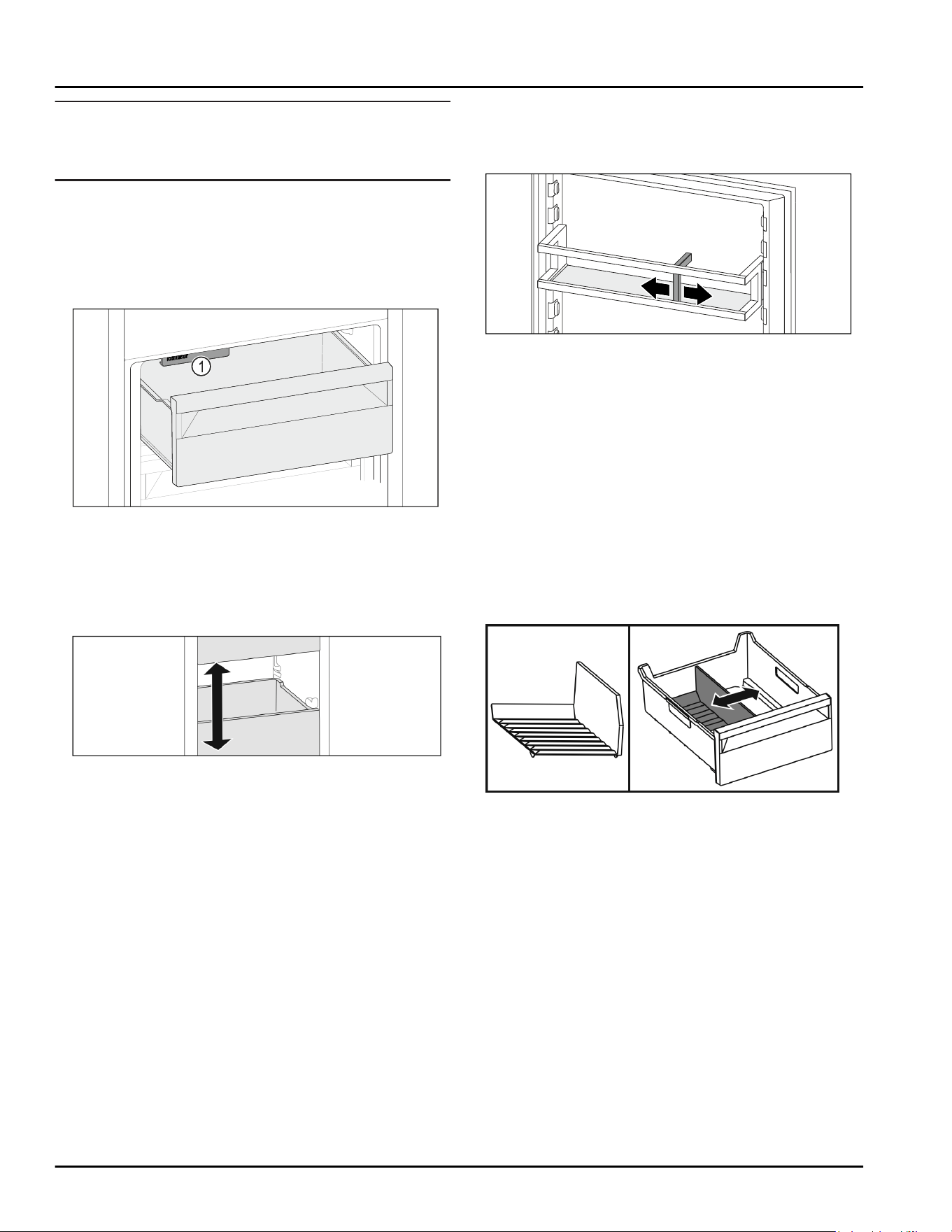

Fig. 126

► Place food in drawer.

If you put food in the left side of the drawer:

► Pay attention to the IceMaker Fig. 126(1).

8.8 VarioSpace

Fig.127

You can remove drawers and glass panels from your

appliance. This provides more room for large food

items such as poultry, joints of meat, large game and

bulky baked goods. You can then freeze these items

whole for later preparation.

► Note the load limits on the drawers and glass panels

(see 10.1 Technical specifications) .

8.9 Bottle rack

8.9.1 Using the bottle rack

Fig.128

► Slide the bottle rack at the edges.

▷ Stops bottles from tipping over.

8.10 Flexible ice compartment

divider*

The IceMaker’s ice cube drawer has a flexible ice

compartment divider. This allows you to store larger

quantities of ice cubes or additional food items as

needed. You can move or remove the ice compartment

divider.

8.10.1 Moving the flexible ice compartment

divider

Fig. 129 Example illustration of the ice compartment divider

► Move the ice compartment divider to the desired

position.

8.10.2 Removing the flexible ice compart‐

ment divider

Make sure that the following requirements are fulfilled:

❑

Ice cube drawer is removed. (see8.4 Drawers)

Equipment

* Depending on model and options 31

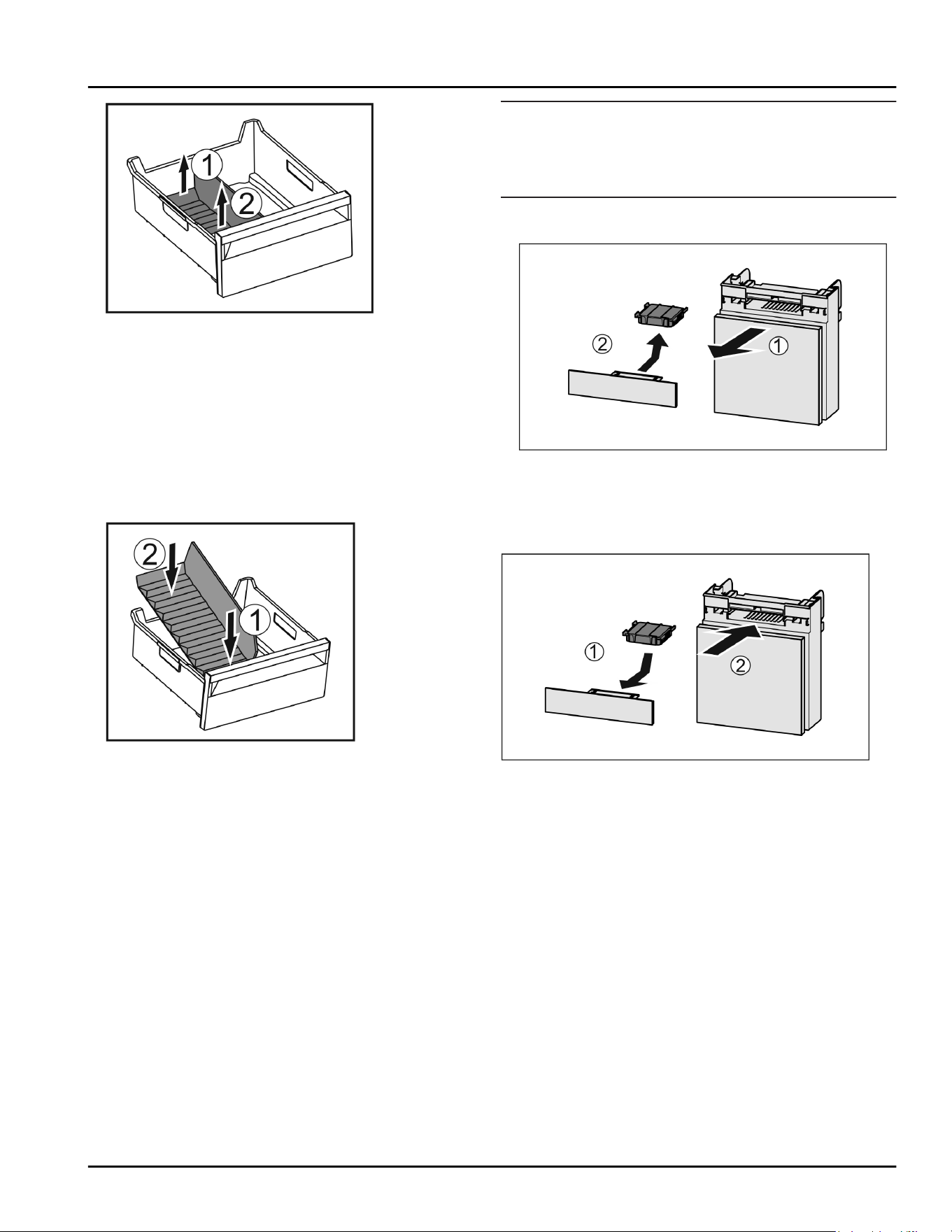

Fig.130

► Lift the rear part of the ice compartment divider.

Fig.130(1)

► Remove the ice compartment divider upwards.

Fig.130(2)

8.10.3 Putting in the flexible ice compart‐

ment divider

Make sure that the following requirements are fulfilled:

❑

Ice cube drawer is removed. (see8.4 Drawers)

Fig.131

► Insert the front part of the ice compartment divider.

Fig.131(1)

► Lower the rear part of the ice compartment divider

to the drawer bottom. Fig.131(2)

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is located in the compart‐

ment above the fan.

It guarantees the best air quality.

❑

Change the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

You can dispose of the carbon filter with the regular

household waste.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr Service Center. The address for your

respective country can be found on the back of the

instructions.

9.1.1 Removing the FreshAir carbon filter

Fig.132

► Pull out the compartment Fig.132(1).

► Remove the carbon filter Fig.132(2).

9.1.2 Inserting the FreshAir carbon filter

Fig.133

► Insert the carbon filter as shown in the diagram

Fig.133(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig.133(2).

▷ The carbon filter is now ready for use.

9.2 Disassembling / assembling pull-

out systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-

out systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Maintenance

32 * Depending on model and options

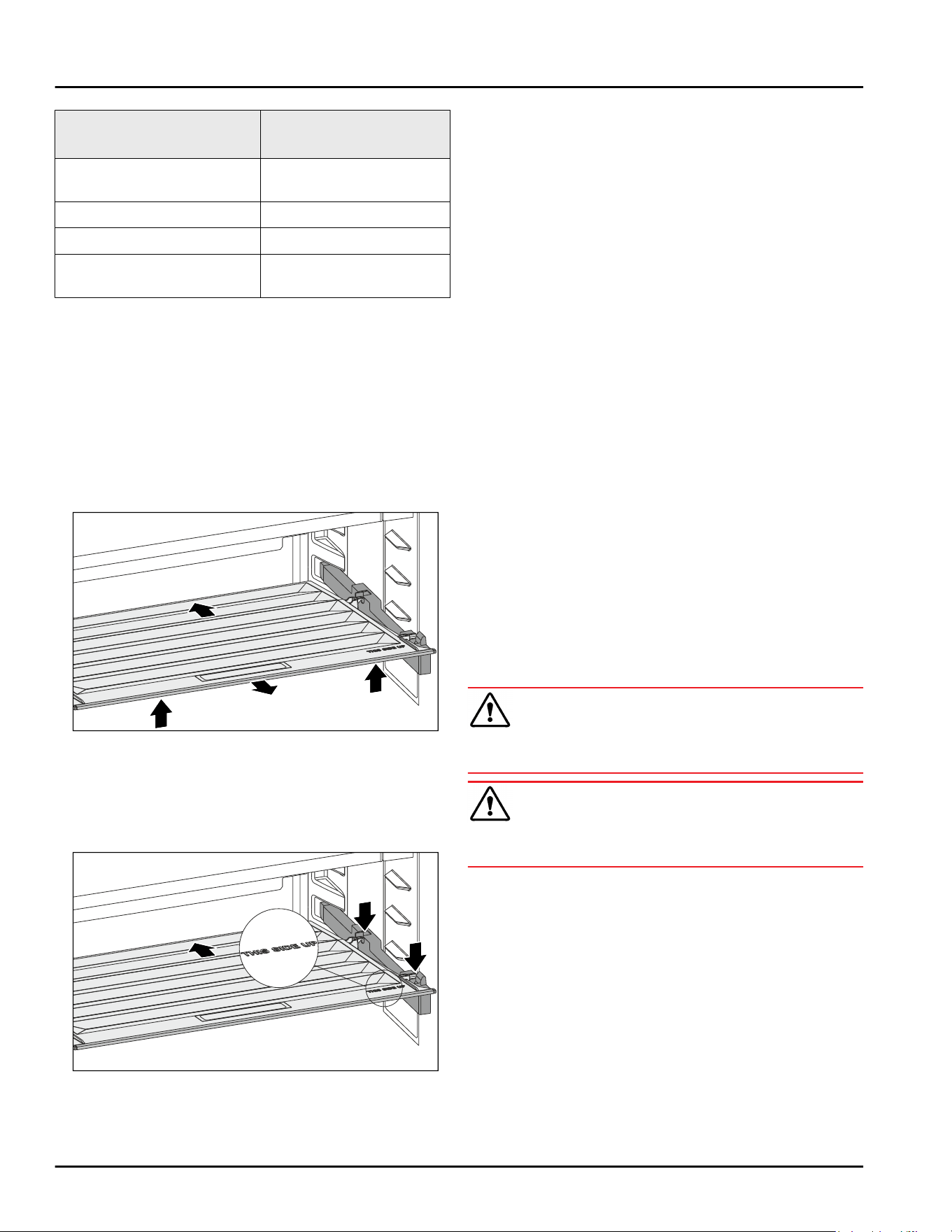

Pull-out system can be disassembled/

cannot be disassembled

Drawer on appliance base

or glass shelf

cannot be disassembled

Drawer on glide rails cannot be disassembled

Full extension* cannot be disassembled*

Partial extension fridge

section*

cannot be disassembled*

9.3 Lid for EasyFresh-safe

You can remove the lid for cleaning.

9.3.1 Removing the lid

Make sure that the following requirements are fulfilled:

❑

The shelf directly above the drawer has been

removed. (see8.2 Shelves)

❑

The drawer directly below the lid has been removed.

(see8.4 Drawers)

Fig.134

► Push the lid backward.

► Lift up the lid forward.

► Remove the front lid by lifting it up at an angle.

9.3.2 Inserting the lid

Fig.135

If the lettering THIS SIDE UP is on top:

► Insert the rear bracket retainers in the corresponding

rear openings.

►

Push the lid backward.

► Lower the lid at the front and latch the front bracket

retainers in the openings.

► Bring the lid to the desired position.

9.4 Defrosting the appliance

9.4.1 Defrosting the refrigerator compart‐

ment

Defrosting is performed automatically. The water from

the thawing process runs out via the drain opening and

is evaporated.

Water droplets or a thin layer of frost or ice can form

on the rear wall; this is a completely normal part of the

appliance’s function. You do not have to remove them.

A frost or ice layer may form briefly due to the energy-

optimized control of the appliance.

► Clean the drain hole regularly. (see 9.5 Cleaning the

appliance)

9.4.2 Defrosting the freezer compartment

with NoFrost

Defrosting is performed automatically by the NoFrost

system. The moisture condenses on the evaporator and

is periodically defrosted and evaporated.

The appliance does not need to be defrosted.

9.5 Cleaning the appliance

9.5.1 Preparation

WARNING

Danger of electric shock.

► Unplug refrigerator or disconnect power.

WARNING

Danger of fire

► Do not damage the refrigerant circuit.

► Empty appliance.

► Pull out the power plug.

-or-

► Activate CleaningMode. (seeCleaningMode)

Maintenance

* Depending on model and options 33

9.5.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-

purpose cleaners.

► Do not use steel wool or sponges that scour or

scratch.

► Do not use caustic or abrasive cleaning materials or

those containing sand, chloride, or acids.

► Plastic surfaces: clean by hand with a soft clean

cloth, lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean

cloth, lukewarm water and a little detergent.

► Drain hole: remove any deposits with a thin item

such as a cotton bud.

9.5.3 Cleaning the equipment

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-

purpose cleaners.

► Do not use steel wool or sponges that scour or

scratch.

► Do not use caustic or abrasive cleaning materials or

those containing sand, chloride, or acids.

Clean with a soft, clean cloth, lukewarm water and a

little washing up liquid:

- Door racks

- Shelf

- Lid for EasyFresh-safe

- Drawer

Please note: Do not remove the magnet on the

drawer. The magnet ensures that the IceMaker func‐

tions.*

- Flexible ice compartment divider in the ice cube tray

of the IceMakers*

Clean with a damp cloth:

- Retracting rails

Please note: the grease in the tracks is there for

lubrication purposes and must not be removed!

Clean in the dishwasher up to 60°C(140°F):

- Bottle rack

- Ice cube scoop*

► Disassemble the equipment: see the relevant

section.

► Clean the equipment.

9.5.4 Cleaning the IceMaker*

There are various options for cleaning the IceMaker.

We recommend cleaning in the following situations:

❑

Initial commissioning

❑

With water connection:*

If out of use for longer than 5 days.*

Make sure that the following requirements are met:

❑

IceMaker drawer is emptied.

❑

IceMaker drawer is fully inserted.

❑

The IceMaker has been activated.

On first use or if not used for prolonged periods

Clean the IceMaker with TubeClean.

► Put an empty 1.5 l (1.59 qt) vessel (max. height

10cm(3 15/16in)) in the drawer under the IceMaker.

► Activate the TubeClean function.

▷ The rinse process is prepared (max. 60 min.): The

symbol flashes.

▷ Water pipes are rinsed: Symbol flashes.

▷ Rinsing process is complete: Function turns off auto‐

matically.

► Take out the IceMaker drawer and remove the

container.

► Clean the IceMaker drawer with warm water and a

little detergent.

► Push in the IceMaker drawer.

▷ Ice cube production starts automatically.

Without water filter

► Dispose of any ice cubes that are produced within 24

hours of the first ice cube production.

When cleaning is required

Clean the IceMaker manually.

► Remove the IceMaker drawer and clean with warm

water and a little detergent.

► Push in the IceMaker drawer.

▷ Ice cube production starts automatically.

9.5.5 After cleaning

► Wipe dry the appliance and items of equipment

► Connect and switch on the appliance.

► Activate SuperFrost (see 7.2Appliance functions) .

When the temperature is sufficiently cold

► Place the food inside.

► Repeat cleaning regularly.

10 Customer support

10.1 Technical specifications

Temperature zone

Cool: 2°C(34°F) to 9°C(46°F)

Freezing -26°C(-15°F) to -15°C(5°F)

Maximum amount of food to freeze / 24 hours

Freezer See type plate under “freezer

capacity …/ 24 h”

Customer support

34 * Depending on model and options

Max. door capacity

Number of

drawers, freezer

Top door Bottom door

3 drawers 12 kg(26.46lb) --

Max. equipment capacity

Equipment Appliance

width

550 mm

(21 5/8in)

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

600 mm

(23 1/2in)

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

700 mm

(27 9/16in)

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Drawer on glass

shelf

(see 8.4.1 Drawer

on appliance

base or glass

shelf)

12 kg

(26.46lb)

15 kg

(33.07lb)

Max. size baking tray

Width 466mm(18 3/8in)

Depth 386mm(15 3/16in)

Height 50mm(1 15/16in)

Ice cube production with IceMaker*

Ice cube produc‐

tion / 24 hours

At a temperature of -18°C(-0°F):

1.2 kg(2.65lb) of ice cubes

Maximum ice

cube produc‐

tion / 24 hours

When the MaxIce function is

active: 1.5 kg(3.31lb) of ice cubes

10.2 Operating noises

The appliance makes noises while in operation.

At less cooling output the appliance saves energy

but takes longer to cool items. The volume is lower.

At a higher cooling output the food cools more

quickly. The volume is higher.

Examples:

•

Activated functions (see 7.2Appliance functions)

•

Running fan

•

Freshly sorted food

•

High ambient temperature

•

Door opened for long periods

Noise Possible cause Type of noise

Bubbling and

splashing

Coolant is

flowing into the

cooling circuit.

Normal noise

Spitting and

hissing

Coolant is

spraying into the

cooling circuit.

Normal noise

Humming The appliance

cools. The

volume depends

on the cooling

output.

Normal noise

Whirring and

murmuring

The fan is

running.

Normal oper‐

ating noise

Clicking Components are

being switched

on and off.

Normal

switching noise

Rattling or

humming

Valves are

active.

Normal

switching noise

Noise Possible

cause

Type of

noise

How to

resolve

Vibration Unsuitable

installation

Error noise Check

installation.

Set up the

appliance.

Clattering Equipment,

Objects

inside the

appliance

Error noise Secure

equipment

parts.

Leave a gap

between

items.

10.3 Technical faults

Your appliance is designed and manufactured for reli‐

able operation and a long service life. If a malfunction

nonetheless occurs during operation, please check

whether the malfunction is due to an operating error. In

this case, you will have to be charged for the costs

incurred, even during the warranty period.

You may be able to rectify the following faults yourself.

10.3.1 Appliance function

Defect

Cause Remedy

The appliance is not switched on. ► Switch on the appliance.

Customer support

* Depending on model and options 35

Defect Cause Remedy

The appliance

does not work.

The power plug is not properly

inserted in the wall socket.

► Check the power plug.

The powerfuse in the wall socket

is not OK.

► Check the fuse.

Power failure. ► Keep the appliance closed.

► Protect food: Place cold storage batteries on the

food or use another freezer appliance if the power

failure lasts longer.

► Do not re-freeze defrosted food.

The IEC socket is not correctly

plugged into the appliance.

► Check the IEC socket.

The temperature

is not cold

enough

This means that the door of the

appliance is not closed properly

► Close the appliance door

Insufficient ventilation ► Clear and clean the ventilation grille.

The ambient temperature is too

high

► Problem solution: (see2.4 Range of appliance use)

The appliance was opened too

frequently or for too long

► Wait to see if the required temperature corrects

itself. If not, contact Customer Service.

(see 10.4 Customer Service)

Too much fresh food was placed

inside without SuperFrost.

► Solution: (see SuperFrost)

The temperature is incorrectly set ► Set to a colder temperature and check after 24

hours.

The appliance is too near to a heat

source (stove, heater etc).

► Change location of appliance or the heat source.

The appliance was not properly

installed in the recess.

► Make sure the appliance was installed correctly

and the door closes properly.

The temperature

shown on the

display is higher

than the actual

temperature

inside the appli‐

ance.

The appliance door was open too

long, which automatically trig‐

gered the door alarm. The appli‐

ance cools more intensively as a

result.

► Close the appliance door.

The door seal is

defective or

should be

replaced for

other reasons.

The door seal is interchangeable.

You can replace it without the use

of any special tools.

► Contact Customer Service. (see 10.4 Customer

Service)

The appliance is

iced up or

condensation is

building.

The door seal may have slipped

out of its groove.

► Check the door seal is well placed in the groove.

Customer support

36 * Depending on model and options

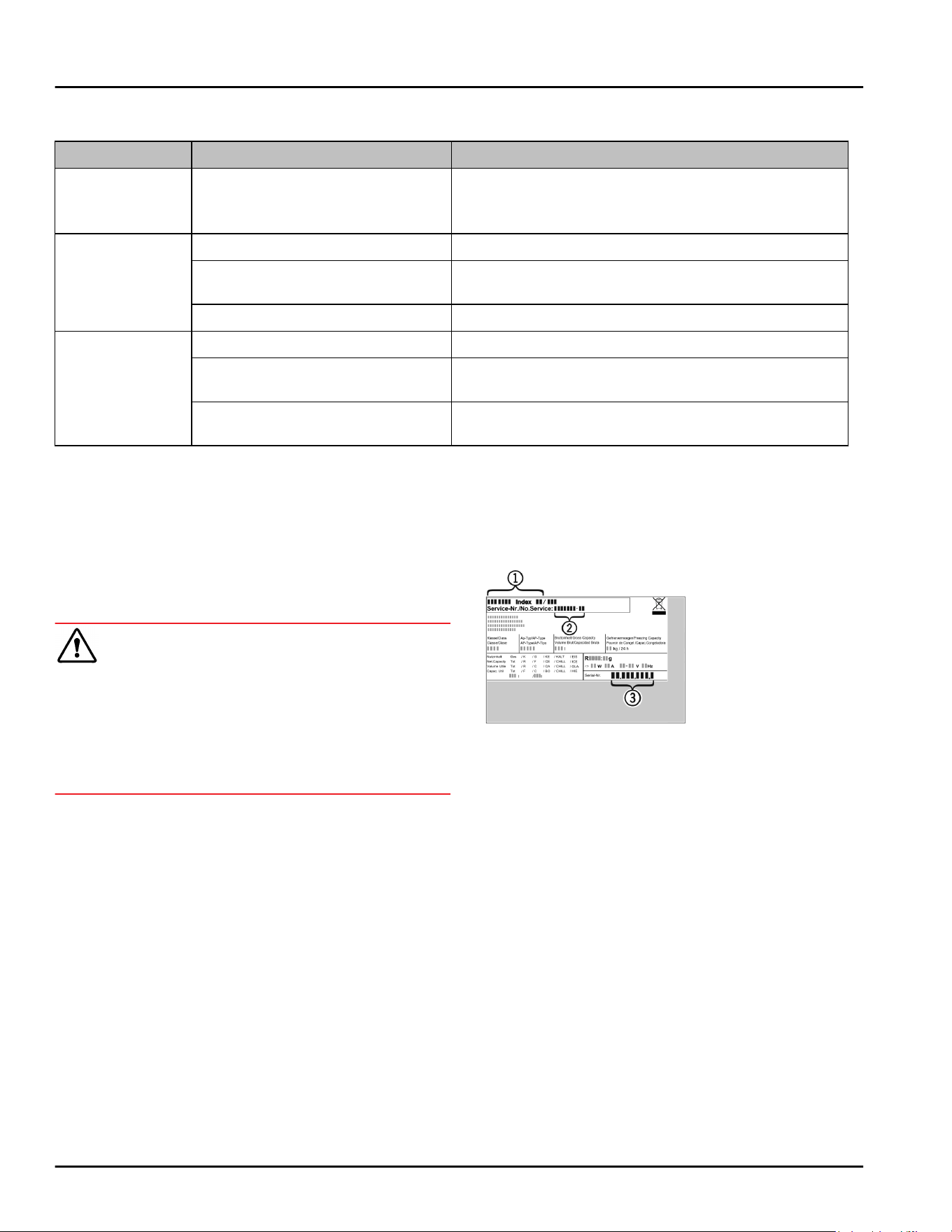

10.3.2 Equipment

Defect Cause Remedy

The IceMaker

cannot be

switched on.*

The appliance and therefore the

IceMaker are not connected.

► Connect the appliance (see Installation Guide).

The IceMaker is

not making any

ice cubes.*

The IceMaker is not switched on. ► Activate the IceMaker.

The drawer of the IceMaker is not

properly closed

► Close the drawer properly

The water connection is not open ► Open the water connection*

The interior light

does not turn on.

The appliance is not switched on. ► Switch on the appliance.

The door was open for more than

15 minutes.

► If the door is open, the interior lighting switches

off automatically after about 15 minutes.

The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer

Service)

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer support) . If you cannot rectify the

problem, contact Customer Service.

You can find the address in the enclosed brochure

“Liebherr-Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► A damaged power cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service

or a similarly qualified person.

► For appliances with plug and play connection cables,

the change can be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is

available:

❑

Appliance name (model and index)

❑

Service no. (service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Appliance information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Rating plate)

► Take note of the appliance information.

► Notify customer service: Report errors and the appli‐

ance information.

▷ This will help us give you fast and accurate support.

► Follow further instructions from Customer Service.

10.5 Rating plate

The nameplate is located behind the drawers on the

inside of the appliance.

Fig.136

(1)

Appliance name (3) Serial no.

(2) Service no.

► Information from the nameplate.

11 Decommissioning

► Empty appliance.

► Deactivate IceMaker. (see Deactivating IceMaker ) *

► Switch off appliance. (see Switching appliance off

and on)

► Pull the power plug from the outlet.

► If necessary, remove the IEC socket: Pull the IEC

socket out of the appliance plug while turning it to

the left and right at the same time.

► Clean appliance. (see 9.5Cleaning the appliance)

► Leave the door open to prevent unpleasant odors.

Decommissioning

* Depending on model and options 37

12 Disposal

12.1 Preparing the appliance for

disposal

WARNING

Risk of child entrapment!

Before you throw away your old refrigerator or freezer:

► Take off the doors.

► Leave the shelves in place so that children may not

easily climb inside.

Liebherr uses batteries in some of its appli‐

ances. You should remove these before

disposal of the old appliance for environ‐

mental reasons. If your appliance contains

batteries, a corresponding notice is

attached to the appliance.

Lamps If you can remove the lamps yourself

without destroying them, also remove these

before disposal.

► Take the appliance out of operation.

► If possible: Remove lamps without destroying them.

12.2 Disposing of the appliance in an

environmentally friendly manner

The appliance still contains

valuable materials and must

be collected separately from

unsorted municipal waste so

it can be recycled.

Dispose of batteries sepa‐

rately from the old appliance.

Certain batteries should NOT

go in household garbage or

recycling bins. Waste

batteries can always be recy‐

cled or taken to household

hazardous waste collection

points. To prevent fires from

lithium-ion batteries, tape

battery terminals and/or

place batteries in separate

plastic bags and never put

these batteries in household

garbage or recycling bins.

Lamps

Dispose of removed lamps via

the respective collection

systems.

For USA: Check the Responsible Appli‐

ance Disposal (RAD) program

to find a RAD partner near

you.

For Canada: Follow your local guidance

about recycling and disposal

capabilities near you.

WARNING

Leaking refrigerant and oil!

Fire. The refrigerant contained within the appliance is

environmentally friendly, but flammable. The oil

contained within the appliance is flammable. Escaping

refrigerant and oil can ignite if they are of high enough

concentration and are exposed to an external heat

source.

► Do not damage the pipelines of the coolant circuit

and the compressor.

► Observe the notes on appliance transport.

► Transport the appliance away without damaging it.

► Dispose of batteries, lamps, and the appliance

according to the above specifications.

Disposal

38 * Depending on model and options

Disposal

* Depending on model and options 39

home.liebherr.com/fridge-manuals

Built-in combined fridge-freezer

Issue date: 20251110

Part number index: 7088431-00

For Service in the U.S.: Liebherr Service Center

Toll Free: 1-866-LIEBHER or 1-866-543-2437

Service-appliances.us@liebherr.com

PlusOne Solutions, Inc.

3501 Quadrangle Blvd, Suite 120

Orlando, FL 32817

For Service in Canada: Liebherr Service Center

Toll Free: 1-888-LIEBHER or 1-888-543-2437

www.euro-parts.ca

EURO-PARTS CANADA

39822 Belgrave Road, Belgrave, Ontario, N0G 1E0

Phone: (519) 357-3320 | Fax: (519) 357-1326

Liebherr ICS5100 data-next-head> Integrable fridge-freezer

Product's Documents

Operating instructions

Specifications

Liebherr ICS5100 Questions and Answers
