Operator’s Manual
www. mechmaxx.com
WARRANTY
ELECTRIC
LIFT TABLE
ELT33P
ELT66P
1
www. mechmaxx.com
TABLE OF CONTENTS
TABLE OF CONTENTS
4Electro circuit theory chart
4Hydraulic theory chart
5Attention item
5The named way of fixed lift table model
5Common troubleshooting
6ELECTRIC LIFT TABLE ASSEMBLY
9PACKING LIST
maintenance
3
Install and adjustment
3
Product usage and performance feature 3
Label 3
Summary 3
SAFETY PRECAUTIONS 3
PRODUCT PARAMETER 2
ELECTRIC
LIFT TABLE
2
www. mechmaxx.com
PRODUCT PARAMETER
PRODUCT PARAMETER
Load Capacity (lbs)
Model
3306.9
6613.9
ELT33P ELT66P
Lowest Height (insh) 3.3 4.1
Max. Height H (insh)
33.9 34.3
Table Dimensions A×B (insh)
108.3×31.5 112.2×39.4
Motor Power (kw)
Work Voltage
1.1 1.5
110V/600Hz 110V/600Hz
Control Current DC24 DC24
ELECTRIC
LIFT TABLE
3
www. mechmaxx.com
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
ELECTRIC
LIFT TABLE
SUMMARY

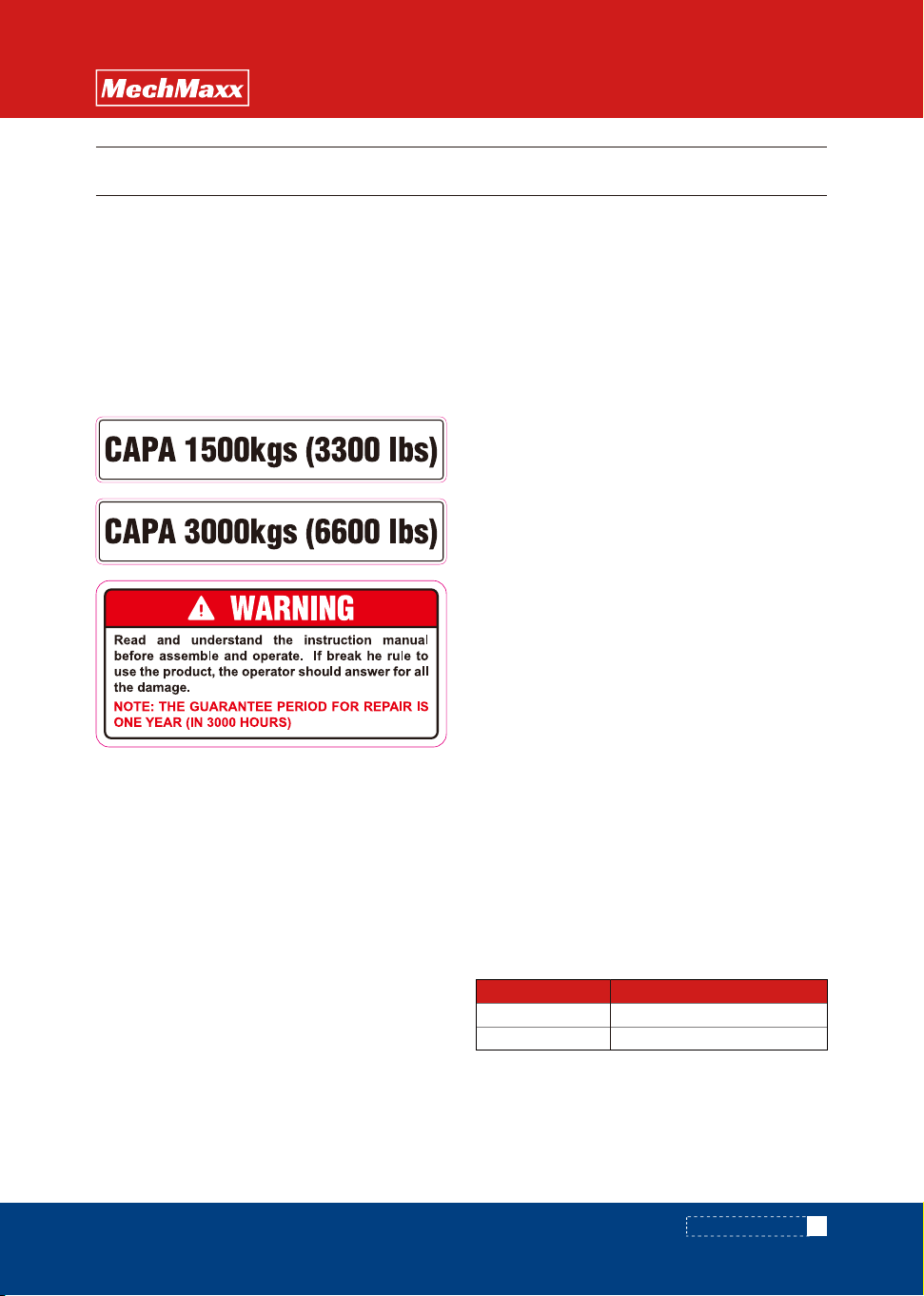

LABEL
PRODUCT USAGE AND
PERFORMANCE FEATURE
Yuyao City Jinsheng Machinery Limited company is
long-term commitment to electric lift table products R
& D, production, business management.Our company
has already passed IS9001 quality system and product
CE certification, the company has strong technical
force and first-class product testing equipment, is a
professional manufacturer of lift table.
ET series of electric hydraulic lifting table, is a fixed
type, it can use the manual handling car tools, product
from the high position to the ground or the ground plane
of the product is lifted to a certain height. Is the
production line, assembly line ideal equipment . It is
important to improve the production efficiency, reduce
the labor intensity of workers, to ensure the production
of safe work plays an effective role.
The machine uses high quality high strength steel
production, under the working platform is installed with
aluminum alloy safety frame , has effective anti pinch
function, has an electrical limit switch device and cylin-
der mechanical limiting device, the design scheme of
double insurance to guarantee the safety of lifting.at
the same time hydraulic cylinder design has explo-
sion-proof valve preventing blowout to cause work
station rapid decline .
INSTALL AND ADJUSTMENT
MAINTENANCE
1. This product has the basic assembly before shipping.
Prohibite to use if it has damage at the shipment, and it
should immediately contact the dealer. In the inspection
situation, installed handle,then use.
① Check whether electrical parts have loose or broken
situations.
② Check oil pipe in the hydraulic system whether it is
connected closely, and check the oil whether meets the
specified requirements.
2. Testing life table
① Press the control switch lifting button, to observe
electric lift table whether steady rise .
② Press down button, observation electric lift table
lowering situation.
a) Periodic preventive maintenance can reduce the wear
of products, so that products can normally operate for a
long time.
b) lifting product to the highest point, check the hydrau-
lic oil is sufficient, if not, add YA-N46 oil or similar
hydraulic oil.
c)Product input voltage must be connected with the
lock control cabinet.
d)Hydraulic oil
1)Add the hydraulic oil
If the fork can not rise to the highest position, you
should add the hydraulic oil to recovery the liquid height
to lubrication hole less than 2cm, and when adding the
hydraulic oil ,the fork must be located in the lowest
position;
2)Replace hydraulic oil
The hydraulic oil in hydraulic system to drain, then
according to the iterm1 ) method to add the hydraulic
oil;
3) According following record to select different type of
hydraulic oil
Temperature
-5 degree~+45 degree
-15 degree~+-5 degree
Hydraulic oil
L-HM68 hydraulic（same as ISOVG68）
L-HM46 hydraulic（same as ISOVG46）
4
www. mechmaxx.com
SAFETY PRECAUTIONS
ELECTRIC
LIFT TABLE

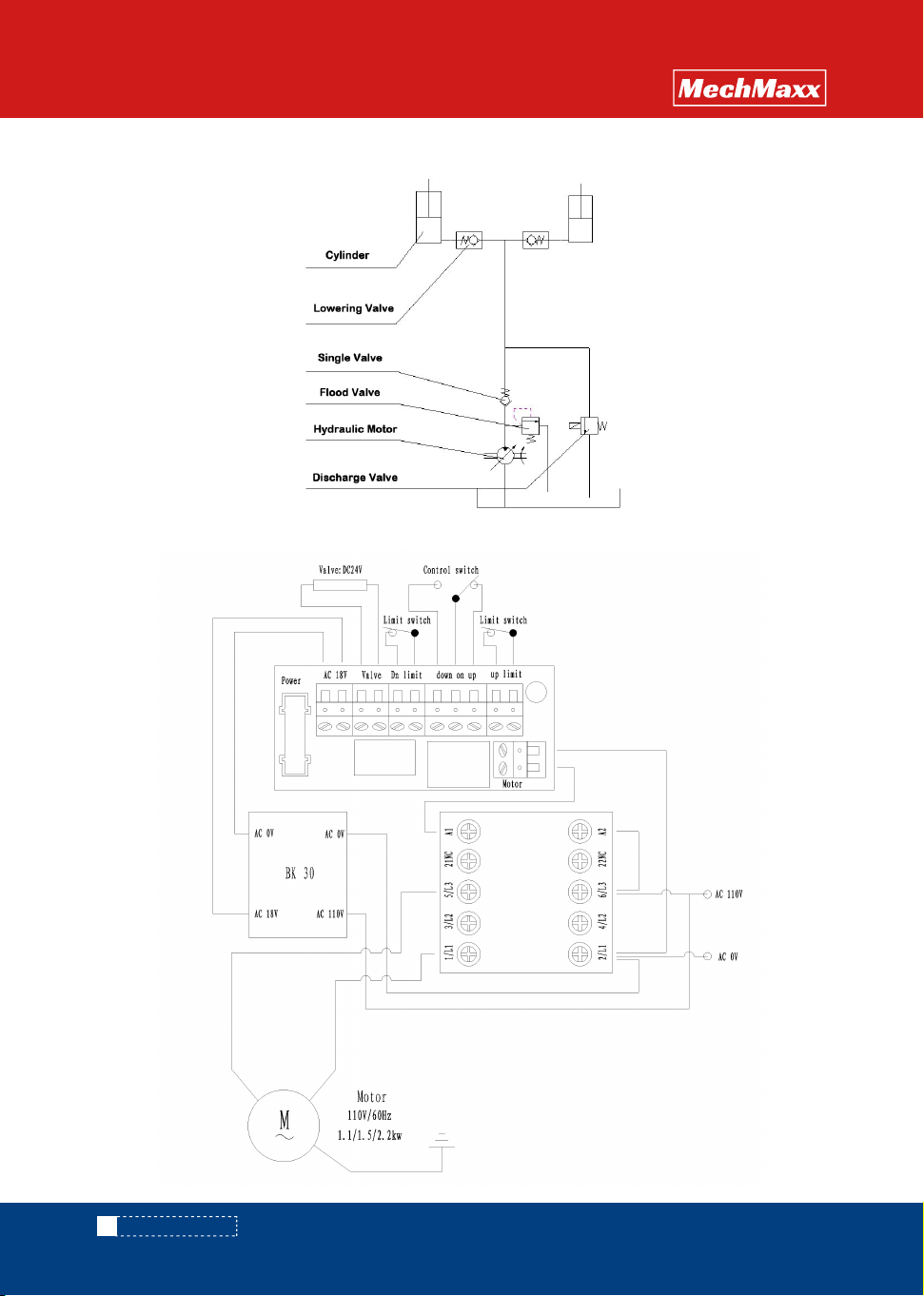

ELECTRO CIRCUIT THEORY CHART
HYDRAULIC THEORY CHART
5
www. mechmaxx.com
SAFETY PRECAUTIONS
ELECTRIC
LIFT TABLE
ActionReasonSpecialistNumber
Check and repair switch
Add oil
Replace seal parts
1. Switch failure
2. Oil is not enough
3. Seal parts wear
Table cannot lift1
2
3
Check and repair motor
Check Terminal and plug
1. Motor burnout
2. Terminal and plug loose
Check and repair switch
Check and repair oil circuit
1. Switch failure
2. Oil blocking
Lift table can not lower
Motor not work
ATTENTION ITEM
COMMON TROUBLESHOOTING
a) Assembly and operation must be carefully read and
understand the operating instructions.
b) Lift table cannot overload, load should be controlled
at rated load.
c) Lift table in carrying situation,can not put hand or
foot below table.
d) When the table is lowering, cannot put feet on the
wheel brake pedal.
e) Load cannot focus placed on the one place of table,
and must be placed on the table not less than 80% of
the surface area.
f) When the work table is provided with heavy objects,
and at the high postion ,it can not carry the lift table.
g) In order to security , do not use lift table on slope.
h) Do not allow to install instability or loose packing's
load.
i) It should be checked every day before operation,
discover machine faults and electrical damage should
be repaired in time.
THE NAMED WAY OF
FIXED LIFT TABLE MODEL
① Fixed electric
② Lift table type
③ Capacity
④ Number
⑤ Special

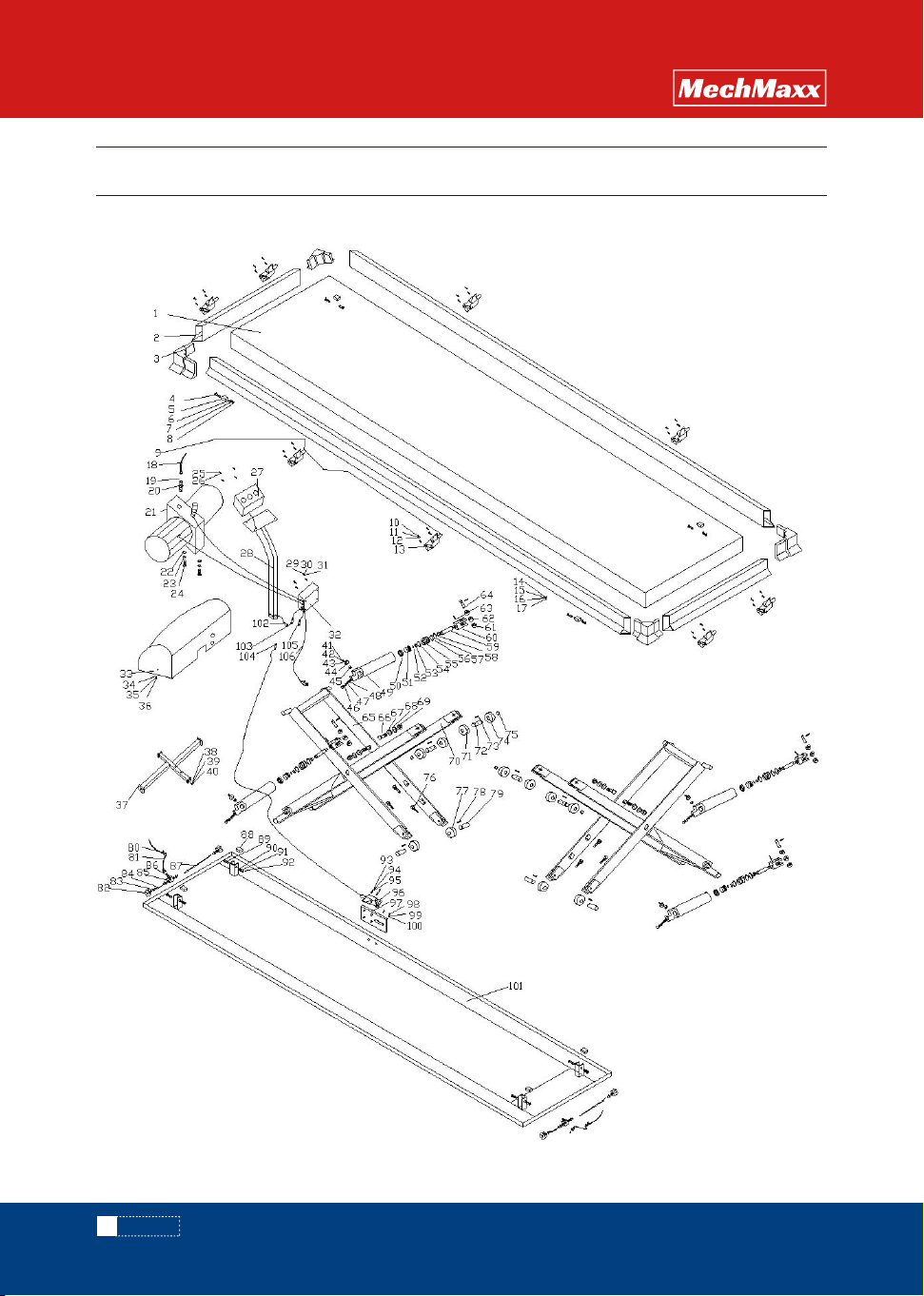

ELECTRIC LIFT TABLE ASSEMBLY
6
www. mechmaxx.com
ASSEMBLY
ELECTRIC
LIFT TABLE
(23 1Cylinder
7
www. mechmaxx.com
ASSEMBLY
ELECTRIC
LIFT TABLE
QTYQTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
3
3
3
1
2
2
2
4
4
4
2
4
4
8
4
4
4
4
4
4
4
4
4
4
4
4
4
8
4
Table
Safety cover
Corner
Hex cap bolt
Nylon washer
Flat washer
Spring washer
Nut
Wire
Semicircle bolt
Flat washer
Spring washer
Switch (1)
Big washer
Flat washer
Spring Washer
Hex Cap Bolt
Long oil pipe
O-ring
Pipe tie-in
Motor
Flat washer
Spring Washer
Hex Cap Bolt
Semicircle bolt
Spring washer
Switch (2)
Switch holder
Semicircle bolt
30
8
Flat washer
31
32
33
4
2
4
1
4
4
4
4
4
4
4
2
24
24
24
6
4
6
6
6
2
1
1
1
2
2
2
2
2
1
1
2
2
2
1
1
Spring washer
Control box
Electrical cover
PART DESCRIPTION PART DESCRIPTIONPART NO. PART NO.
Flat washer
Spring washer
Semicircle screw
Motor holder
Flat washer
Spring washer
Hex cap bolt
Hex cap bolt
Spring washer
Flat washer
Big washer
Bearing
Oil pipe tie-in
Washer assembly
Safety valve
Cylinder
Oil seal
Lift Piston
Steel C-ring
O-ring
O-ring
Top nut
Steel ring
Lock ring
Dust cover
Lift piston rod
Up holder
Side wheel
Middle wheel
Spring pin
65
66
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64 Up pin
Link assembly
Side connect pin
8
www. mechmaxx.com
ASSEMBLY
ELECTRIC
LIFT TABLE
QTYQTY
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
2
1
1
1
1
1
1
Big flat washer
Nylon washer
Set screw
Link assembly
Rolling wheel
Bearing
Spring pin
Rolling wheel
Lock pin
Screw
Rolling wheel
Spring pin
Bearing
Fast cylinder tie-in
Short oil pipe
Oil pipe tie-in
Pipe tie-in
Steel oil pipe
Oil tie-in
O-ring
Long steel oil pipe
Nylon washer
Hex cap bolt
Flat washer
Spring washer
Hex cap nut
Semicircle screw
Spring washer
Flat washer
96 Switch
97
98
99
4
4
4
2
4
4
8
4
4
4
4
4
4
1
2
4
8
2
2
2
2
4
4
4
4
4
4
4
4
1
1
2
2
Inner install board
Hex cap bolt
Spring washer
PART DESCRIPTION PART DESCRIPTIONPART NO. PART NO.
Flat washer
Frame seat
Plug-in1
Plug-in2
Plug-in1
Plug-in2
Plug wire
100
101
102
103
104
105
106
9
www. mechmaxx.com
PACKING LIST
Ultra-low motor lift table
Table
11
UnitModelNumber Description Quantity
Fly ring Pieces 32
Manual
CopyEnglish 13
Hydraulic control box
Set 14
ELECTRIC
LIFT TABLE
PACKING LIST
