1/2" Natural Gas (NG) Quick
Connect Hose Kit (20 FT)
Owner’s Manual
P/N: 32082-00000-00
Model:
Serial:
Date Purchased:
SAVE THIS MANUAL FOR FUTURE REFERENCE
DO NOT RETURN
TO STORE!
CALL US FIRST
855-888-3598
FOR SUPPORT
Model# H1002 REV00
TABLE OF CONTENTS
Introduction....................................................................................................................1
Read This Manual Thoroughly...............................................................................................1
Safety........................................................................................................................................1
Definitions And Symbols.......................................................................................................1
How To Connect NG Generator To NG Source...................................................................4
Operating Instructions....................................................................................................5
Parts Included In This Kit................................................................................................3
INTRODUCTION
SAFETY
Read This Manual Thoroughly
The manufacturer cannot possibly anticipate every possible circumstance that might involve a hazard. The
warnings in this manual and the tags and decals affixed to the unit are therefore not all-inclusive. If you use a
procedure, work method or operating technique that the manufacturer does not specifically recommend you
must satisfy yourself that it is safe for you and others. You must also make sure that the procedure work
method or operating technique that you choose does not render the generator unsafe.
If any section of this manual is not understood,
contact customer Service at 855-888-3598, or
www.a-ipower.com for starting, operating and
servicing procedures. The owner is responsible for
proper maintenance and safe use of the unit.
SAVE THESE INSTRUCTIONS for future reference.
This manual contains important instructions that
must be followed during placement, operation and
maintenance of the unit and its components. Always
supply this manual to any individual that will use this
unit.
The information in this manual is accurate based on
products produced at the time of publication. The
manufacturer reserves the right to make technical
updates, corrections and product revisions at any
time without notice.
1
Definitions And Symbols
DANGER
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
WARNING
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
NOTICE
Indicates information
considered important,
but not hazard-related
(e.g.,messages relating
to property damage).
CAUTION
Indicates a hazard
which, if not avoided,
could result in minor
or moderate injury.
WARNING
Read and understand manual completely
before using product. Failure to
completely understand manual and
product couldresult in death or serious
injury.
WARNING
Operating, servicing, and maintaining this equipment
can expose you to chemicals including engine
exhaust, carbon monoxide, phthalates, and lead,
which are known to the State of California to cause
cancer and birth defects orother reproductive harm.
To minimize exposure, avoid breathing exhaust, and
wear gloves or wash your hands frequently when
servicing this equipment. For more information go to
www.P65warnings.ca.gov.
The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important
information. Make sure that the meanings of this safety information is known to all who operate, perform
maintenance on, or are nearthe generator.
This safety alert symbol appears with most safety statements. It means attention,become alert, your
safety is involved! Please read and abide by the message that follows the safety alerts symbol.
WARNING
SAFETY
2
1. To reduce the risk of injury, user must read and understand the operator's manual for their Natural Gas
(NG) generator and this manual. Ensure combability and fit before using any accessory. Do not use an
accessory if a port is damaged or missing. If you are not comfortable performing any of the functions
described in this manual, take your unit to an authorized service center.
2. This product is intended only for use outdoors with portable Natural Gas (NG) generator that may be
moved for convenience of operation. Connected hose assembly shall be of adequate length and capacity
for the intended application.
3. Connection to outdoor gas piping must be done by a certified plumber.
4. Installation must be made in accordance with any local codes or regulations, or in the absence of local
codes or regulations, in accordance with the National Fuel Gas Code (NFPA 54/ANSIZ223.1).
5. The hose and fittings should be visually inspected periodically to determine that they have not been
damaged and are suitable for continued use.
6. The hose and fittings are designed for movement after installation, but must not be kinked, twisted or
torqued.
7. Protect hose and fittings from dust, dirt, and damage when not in use. Insert plastic plug in the socket
and the cap over the hose end plug whenever the hose is removed from socket.
8. Only use the provided quick connect adapter with provided hose assembly.
9. lf your home has no outside Natural Gas (NG) piping, a connection must be installed by a certified
plumber in accordance with any local codes or regulations, or in the absence of local codes or
regulations, in accordance with the National Fuel Gas Code.
10. Remember that whichever fuel delivery system or type of vapor fuel used, the fuel pressure at the
demand regulator installed on the engine generator must be between 0.25 and 0.40 PSI. (7-11inches of
water column or 4 and 6 oz. of water column). Any lower pressure and the unit will starve for fuel under
load. lf the hose and quick connect adapter are properly connected and still not getting gas, delivery
pressure needs to be verified. For pressure greater than 0.5 PSl, make sure that an in-line regulator is
present. This additional regulator is NOT provided with this kit. Another concern would be rating if hose
and quick connect adapter. Both the hose and the quick connect adapter are only rated to 0.5 PSl.
11. The hose assembly, fittings, valves and adapters must be inspected and tested (leak test) before each
use for leaks or sign of damages.
1 - 20 FT Hose
2- 1/2" Flare Female
3 - Quick Connect Male (Plug)
4 - Cap
5 - Cap
6 - Quick Connect Female (Socket)
7 - 1/2" NPT Female
8 - SAE 3/8" Flare Female
9 - SAE 1/2" Flare Male
1
2 4 3 6 9
5 7 8
3

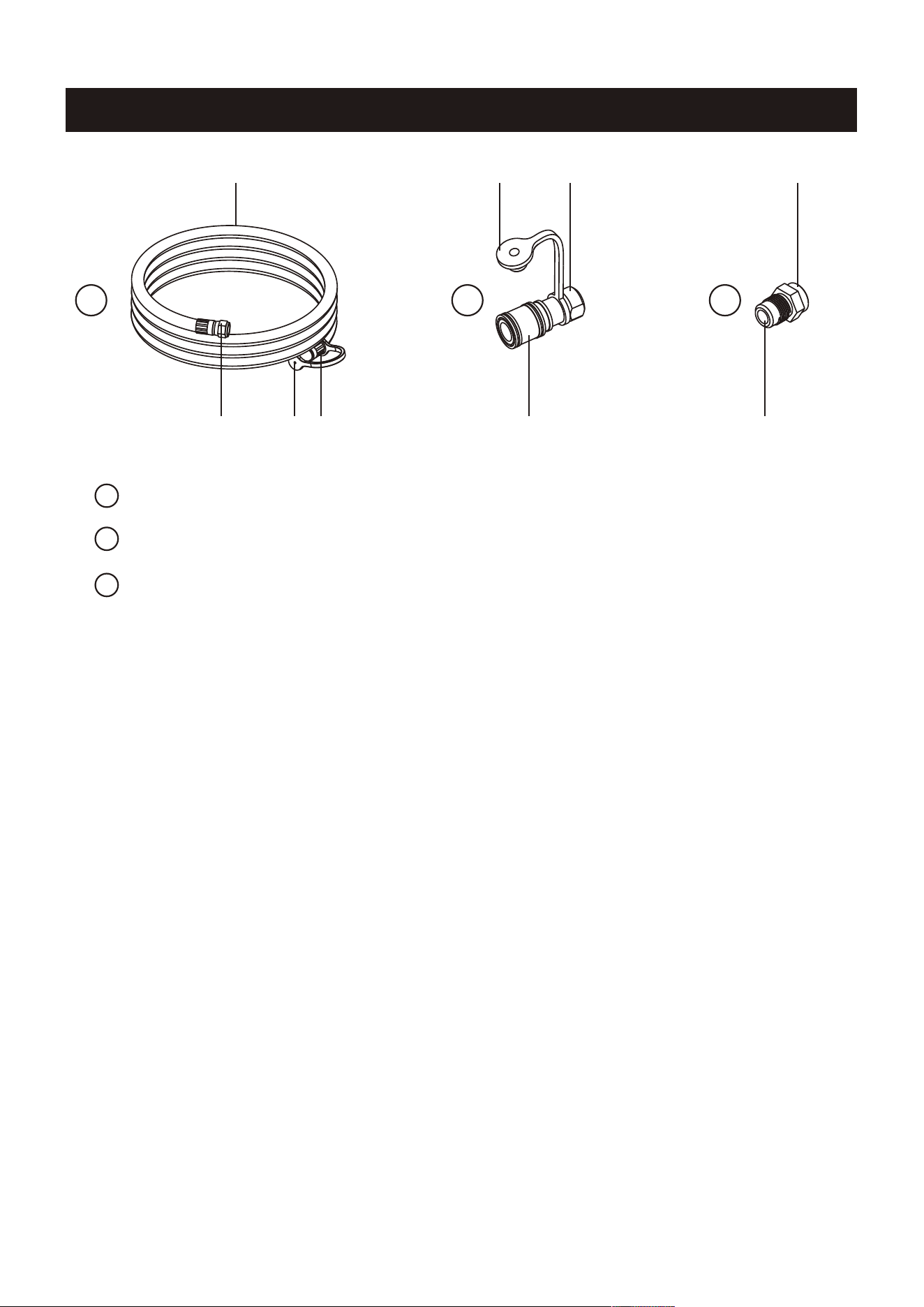

PARTS INCLUDED IN THIS KIT
A
A
B
C
B C
20FT Natural Gas (NG) Hose with Brass Fittings
Quick Connect Adapter
3/8" to 1/2" Adapter
6
1 - 20 FT Hose
2 - 1/2" Flare Female
3 - Quick Connect Male (Plug)
4 - Cap
5 - Cap
6 - Quick Connect Female (Socket)
7 - 1/2" NPT Female
8 - SAE 3/8" Flare Female
9 - SAE 1/2" Flare Male
10 - 3/8" Flare Male Located on
Generator (LPG/NG Inlet)
11 - 1/2" NPT Male
12 - Pipe Nipple
13 - NG Shut Off Valve
14 - House NG Piping
10 2
1 3
5
11 12
13
8 9
4
6 7 14
C
A
B

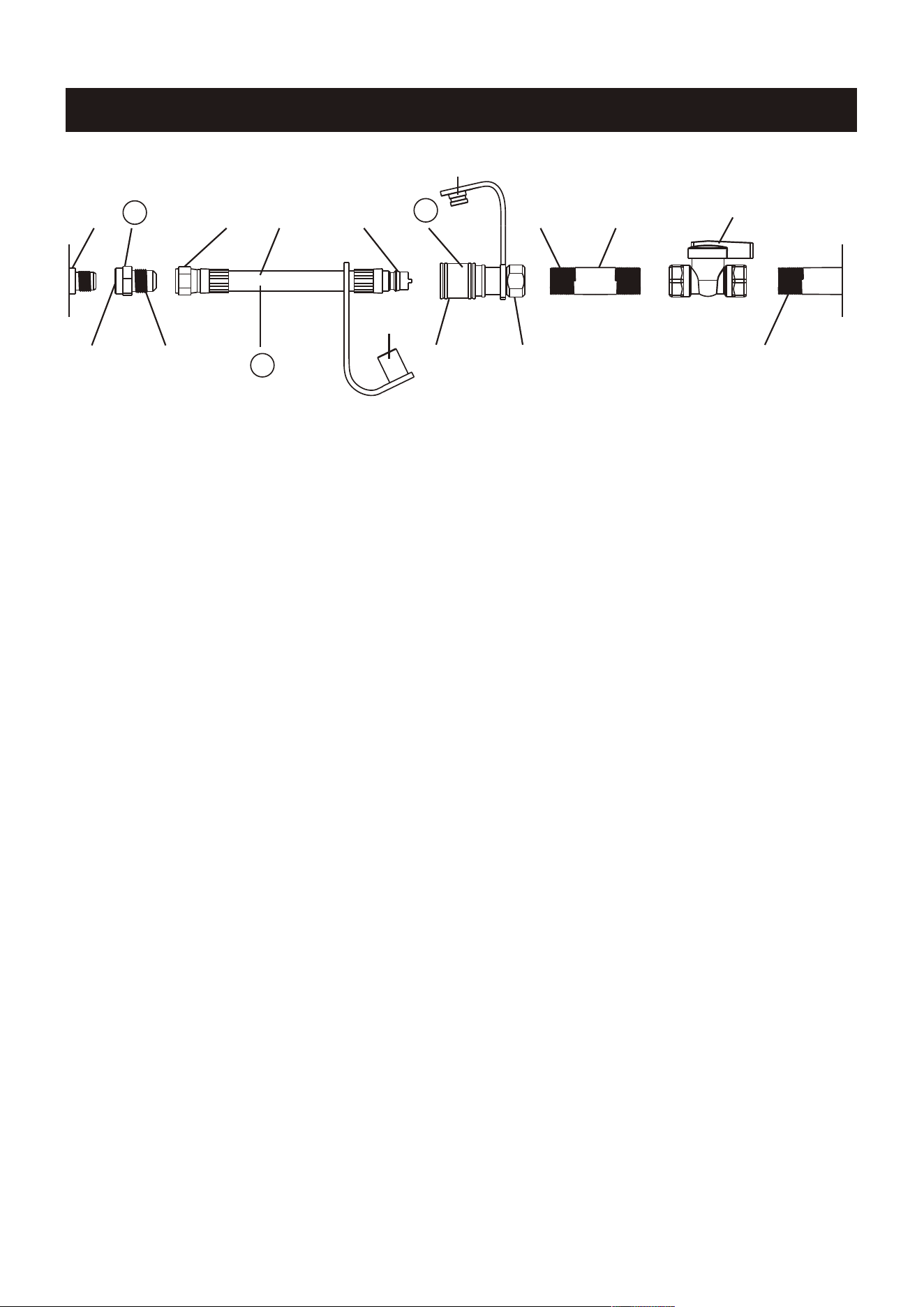

HOW TO CONNECT NG GENERATOR TO NG SOURCE
4
OPERATING INSTRUCTIONS
Natural Gas (NG) is highly flammable and explosive.
Fire or explosion can cause sever burns or death or
property damage.
DO NOT use open flame to test for gas leaks.
DO NOT perform leak test near any potential source
of ignition.
DO NOT smoke while performing leak test.
5
WARNING
The male outlet of the house piping must
be 1/2" NPT Male. If not ,additional
fittings will be needed to complete the
installation. The additional fittings are not
included.

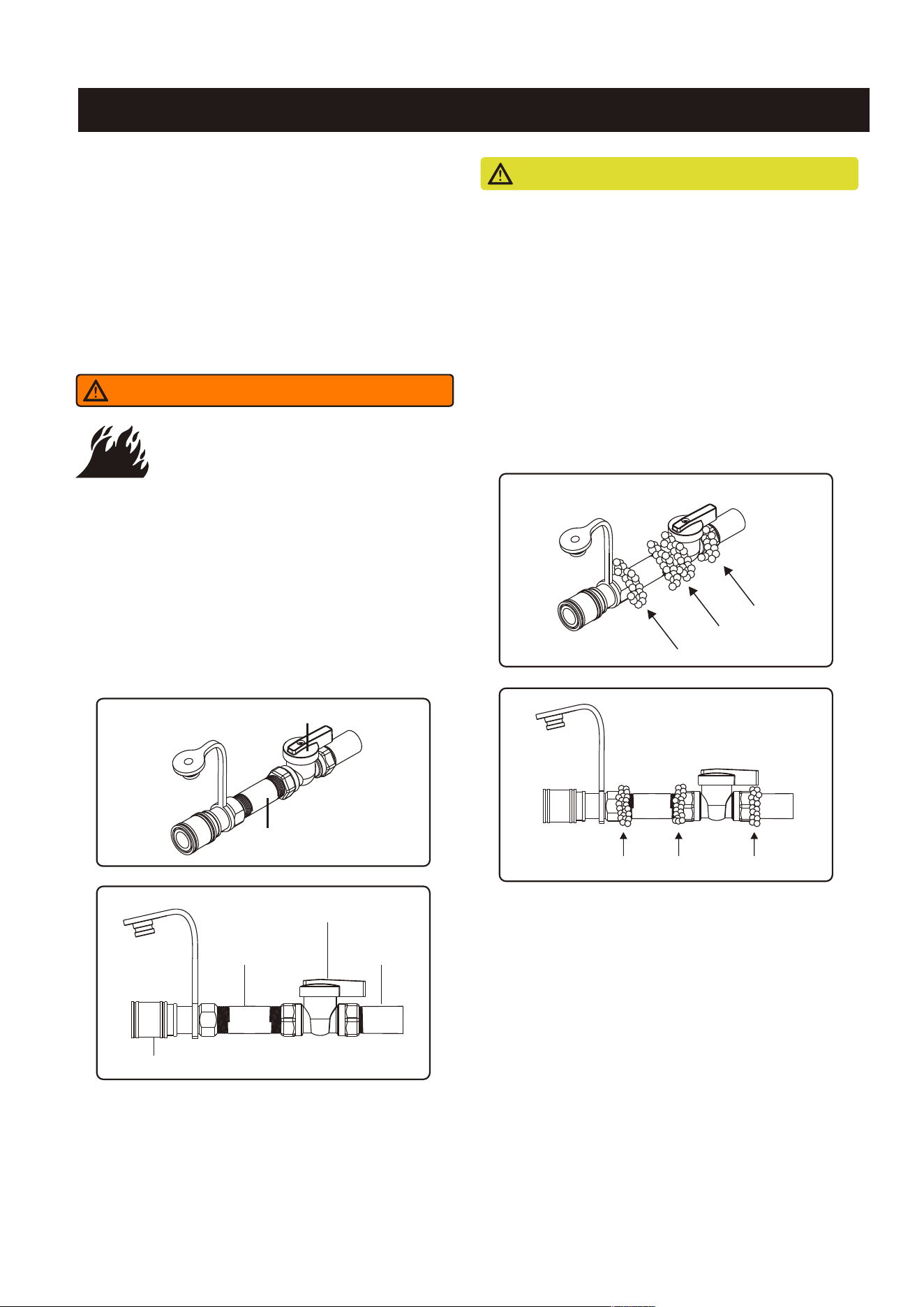

Follow below instruction for leak test:
1. Connect the Quick Connect Adapter (Adapter) to
House Natural Gas (NG) Piping. Make sure there is
NG Shut Off Valve (Valve) is present. Make sure the
Quick Connect Hose Assembly (Hose) is NOT
connected to the Adapter before proceeding.
NG Shut Off Valve
Pipe Nipple
House NG Piping
Quick Connect Adapter
CAUTION
The thread size and type of the fittings and connec-
tions should be compatible with each other. Note
that using incompatible fittings will alter the gas
follow, which may be a safety concern. Use gas
resistant pipe sealant(dope) and gas PTFE thread
seal tape for sealing.
3. Check all the connections and joints with
ammonia free soapy water solution or leak
detection solution. Bubbles that appear to grow in
size are the indication of a gas leak.
2. Turn on gas supply.
4. If there is a leak, turn off the gas and then tighten
fittings until bubbles do not appear at the joints.
Use gas resistant pipe sealant (dope) and gas
PTFE thread seal tape if it is needed.
If you cannot stop the gas leak, turn off the gas
supply and have a qualified gas service technician
perform a repair. DO NOT attempt to use the Hose
until all gas leaks have been repaired.

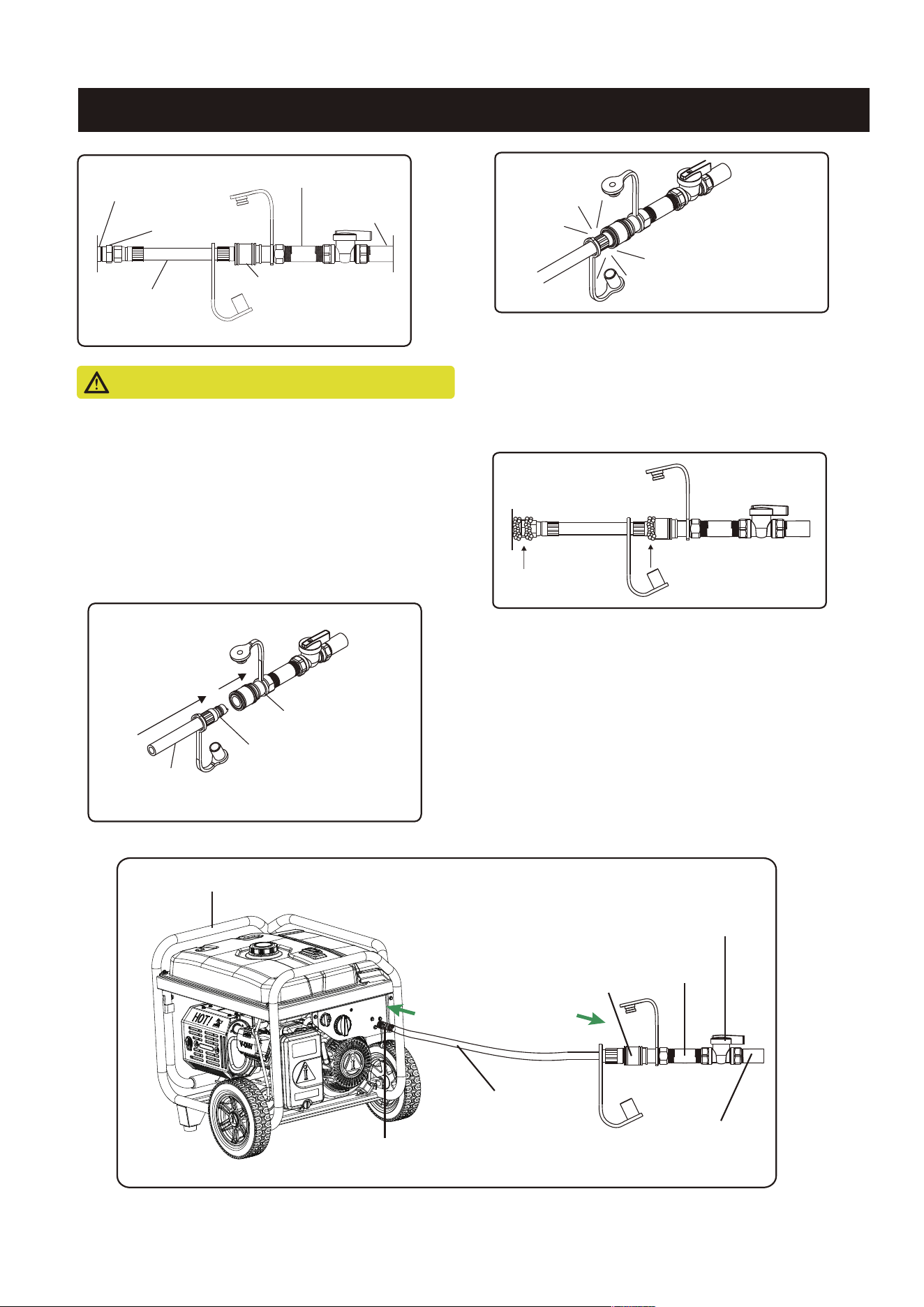

5. Connect the 3/8" to 1/2" Adapter to Generator,
then connect the Hose to both Generator and
Quick Connect Adapter. Make sure the Generator
is turned OFF before connecting the Hose to the
Generator.
NG Shut Off Valve
Pipe Nipple
OPERATING INSTRUCTIONS
6
CAUTION
To connect the Hose to the Quick Connect Adapter,
pull back on the sleeve portion of the Adapter
and insert the male connector of the Hose into the
socket (female) part of the Adapter. Release the
sleeve and continue pushing the Hose into the
socket until the sleeve snaps into the locked posi-
tion. Connect other side of the Hose to the NG inlet
connector located on the Generator.
6. Turn on gas supply.
7. Check all the connections and joints with
ammonia free soapy water solution or leak
detection solution. Bubbles that appear to grow in
size are the indication of a gas leak.
NG Inlet located
on the Generator
3/8" to 1/2" Adapter
Hose
Quick Connect Adapter
Pipe Nipple
House NG
Piping
Pull Back
the Sleeve
Quick Connect
Adapter
Hose
Male Connector (Plug)
Release the sleeve and make sure
the sleeve snaps into the locked
position.
8. If there is a leak, turn off the gas and then tighten
fittings until bubble do not appear at the
joints. Use gas PTFE thread seal tape for sealing, if
it is needed. If you cannot stop the gas leak,
turn off the gas supply and have a qualified gas
service technician perform a repair.
DO NOT attempt to use the kit until all gas leaks
have been repaired.
9. Rinse off the leak test solution with clean water
after performing the leak test.
Generator
3/8" to 1/2" Adapter
NG Quick Connect
Hose Assembly
Quick Connect
Adapter
NG Shut
Off Valve
Pipe Nipple
House NG
Piping
