USER MANUAL
AC-EX70-UHD-BKT
70m (40m 4K) HDBaseT Extender w/ 4K60 4:2:0 support. Bi-Directional PoE,
IR and RS232.
AC-EX70-UHD-BKT
Page 1
AvproEdge presents the quick deployment 4K HDBaseT Extender Set. This
set is capable of delivering 4K signals over CAT cable up to 40 meters (131
ft) and Full HD signals up to 70 meters (230 ft). The AC-EX70-UHD-BKT
features field critical features including, Bi-Directional PoH (Power Over
HDBaseT), Bi-Directional RS232 for control.
Product Overview
Model Numbers:
AC-EX70-UHD-BT ~ HDBaseT Transmitter w/IR and RS-232
AC-EX70-UHD-BR ~ HDBaseT Receiver w/ IR and RS-232
• HDMI 2.0
• 4K30 4:2:0
• HDCP 2.2 & Earlier
• CEC Pass Through
• 70M (230ft) on 1080P (Cat6a)
• Up to 40m (131ft) on 4K (Cat6a)
• 12V PoH (Power Over HDBaseT, only one Power Supply Needed)
• 3-20V protection circuit built in for safe IR transport
• Bi Directional RS232 Transport
• LED Status, Link, Power indication lights
• Use single UTP/STP LAN cable (CAT-6A) with substitute HDMI cable to
achieve long distance transmission.
• Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1, Dolby Digital,
DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos on HDMI
Features
Whats in the box
• AC-EX70-UHD-BT (Transmitter)
• AC-EX70-UHD-BR (Receiver)
• 12V Power Supply (One supplied)
• 1 x IR Tx Unit
• 1 x IR Rx Unit
• 2x 3 Pin Terminal blocks for RS232 Ports
• Mounting Ear
AC-EX70-UHD-BKT
Page 2

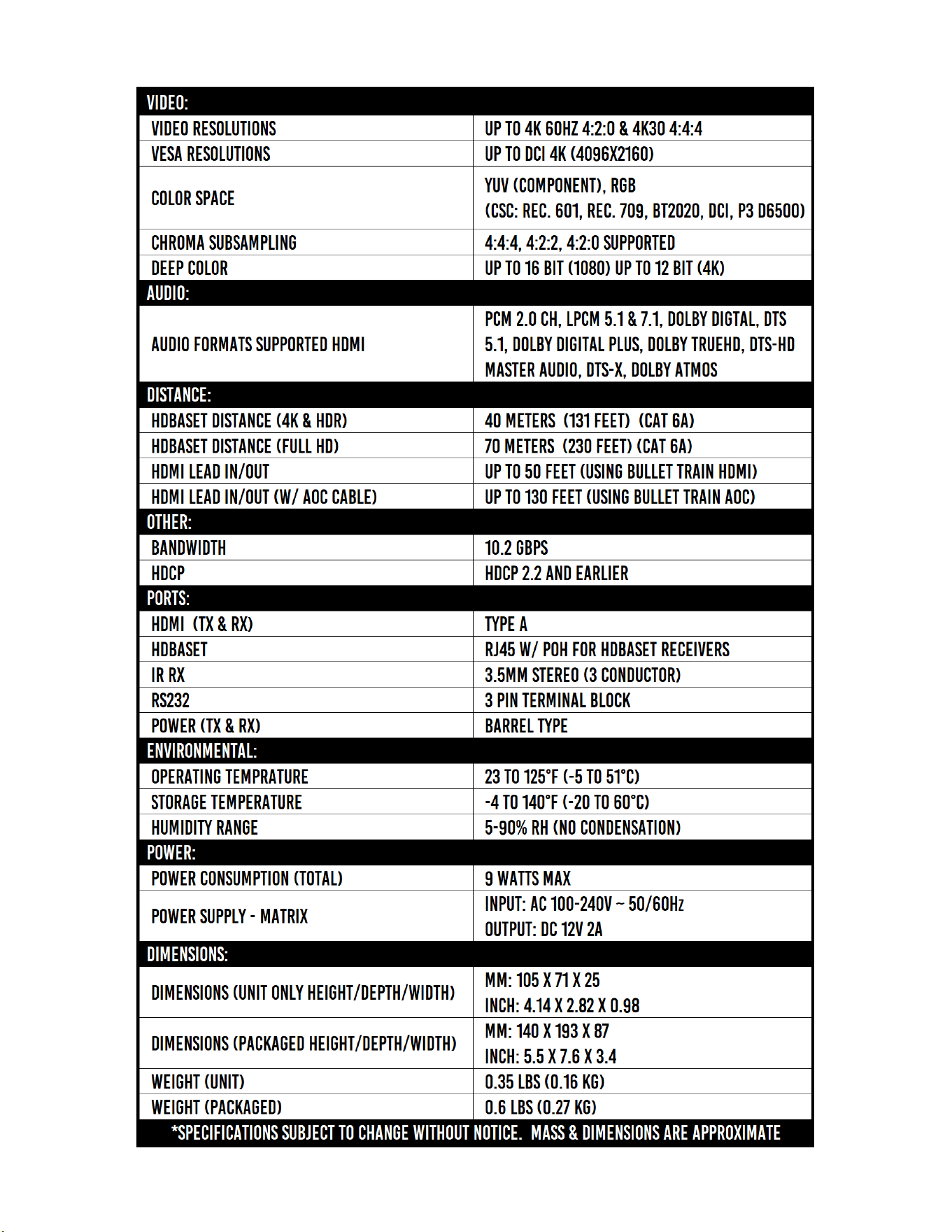

AC-EX70-UHD-BKT
Page 3
AC-EX70-UHD-BKT
Page 4
■ The Transmitter
Back
Front
HDBaseT
Program - SHOULD BE STANDARD WHEN USING
RS232
Power Light
Indicator Troubleshooting
Lights on the Transmitter:
POWER - On the front by power supply input: (Red) This is an indicator that the power is connected. There are
only two states for light:
• Light Is On = Power supply is connected and functioning
• Light Is Off = Power supply is not connected or there is no power present. (In order to have power: check the
power supply, USP, Outlet, etc...)
ACT (HDMI Status)- On front by HDMI Port: (Blue) This indicator shows that the HDMI source is connected. The states are:
• Light Is On (Flashing) = Sync w/ HDMI source & display is correct and solid
If the BLUE HDMI STATUS (ACT) LIGHT is flashing AND YOU DO NOT have picture, check the following:
1. The source. Plug it directly into the display to be sure it's functioning properly
2. Change the resolution of the source device to 1080P or 4K 60Hz 4:2:0
3. Swap HDMI cables between Source and Transmitter
4. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths (try 2 meters or longer)
5. Contact AVProEdge if these suggestions do not work
LINK - On the back next to th RJ45 (HDBT) Port: (Blue) This indicator shows that the AV HDBT link between the Tx and Rx
is in tact. This light should ALWAYS be solid. If this light is flashing or not present attempt following:
1. Check the length. The maximum distances are 40m (131ft) on 4K and 70m (230ft) on 1080P.
2. Remove any coils of cable and make sure that there is not excess cabling.
3. Bypass all patch panels and punch-down blocks.
4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. A
continuity tester is not sufficient enough to determine if a cable will be capable of transmitting a HDBaseT signal.
5. Contact AvproEdge if these suggestions do not work.
AC-EX70-UHD-BKT
Page 5
■ The Receiver
Indicator Troubleshooting
Lights on the
Receiver:
POWER - On the front by power supply input: (Red) This is an indicator that the power is connected. There are only
two states for light:
• Light Is On = Power supply is connected and functioning
• Light Is Off = Power supply is not connected or there is no power present. (In order to have power: check the power
supply, USP, Outlet, etc...)
ACT (HDMI Status)- On front by HDMI Port: (Blue) This indicator shows that the HDMI source is connected.
• Light Is On (Flashing) = Sync w/ HDMI source display is correct and solid
If the BLUE HDMI STATUS (ACT) LIGHT is flashing AND YOU DO NOT have picture, check the following:
1. The source. Plug it directly into the display to be sure it's functioning properly
2. Change the resolution of the source device to 1080P or 4K 60Hz 4:2:0
3. Swap HDMI cables between Source and Transmitter
4. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths (try 2 meters or longer)
5. Contact AVProEdge if these suggestions do not work
LINK - On the back next to th RJ45 (HDBT) Port: (Blue) This indicator shows that the AV HDBT link between the Tx and
Rx is in tact. This light should ALWAYS be solid. If this light is flashing or not present attempt following:
1. Check the length. The maximum distances are 40m (131ft) on 4K and 70m (230ft) on 1080P.
2. Remove any coils of cable and make sure that there is not excess cabling.
3. Bypass all patch panels and punch-down blocks.
4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off.
A continuity tester is not sufficient enough to determine if a cable will be capable of transmitting a HDBaseT signal.
5. Contact AvproEdge if these suggestions do not work.
Back
Front
HDBaseT
Program - SHOULD BE STANDARD WHEN USING
RS232
Power Light
AC-EX70-UHD-BKT
Page 6
■ RS-232 Configuration
RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly
used to route control signals in the following way:
1. Control System --> Display/Projector (ie, Power On/Off)
2. Display/Projector --> Control System (ie, Display Status, Volume Status etc...)
3. When ultra long-range serial communication is needed (think concerts, live events). Use the extender.

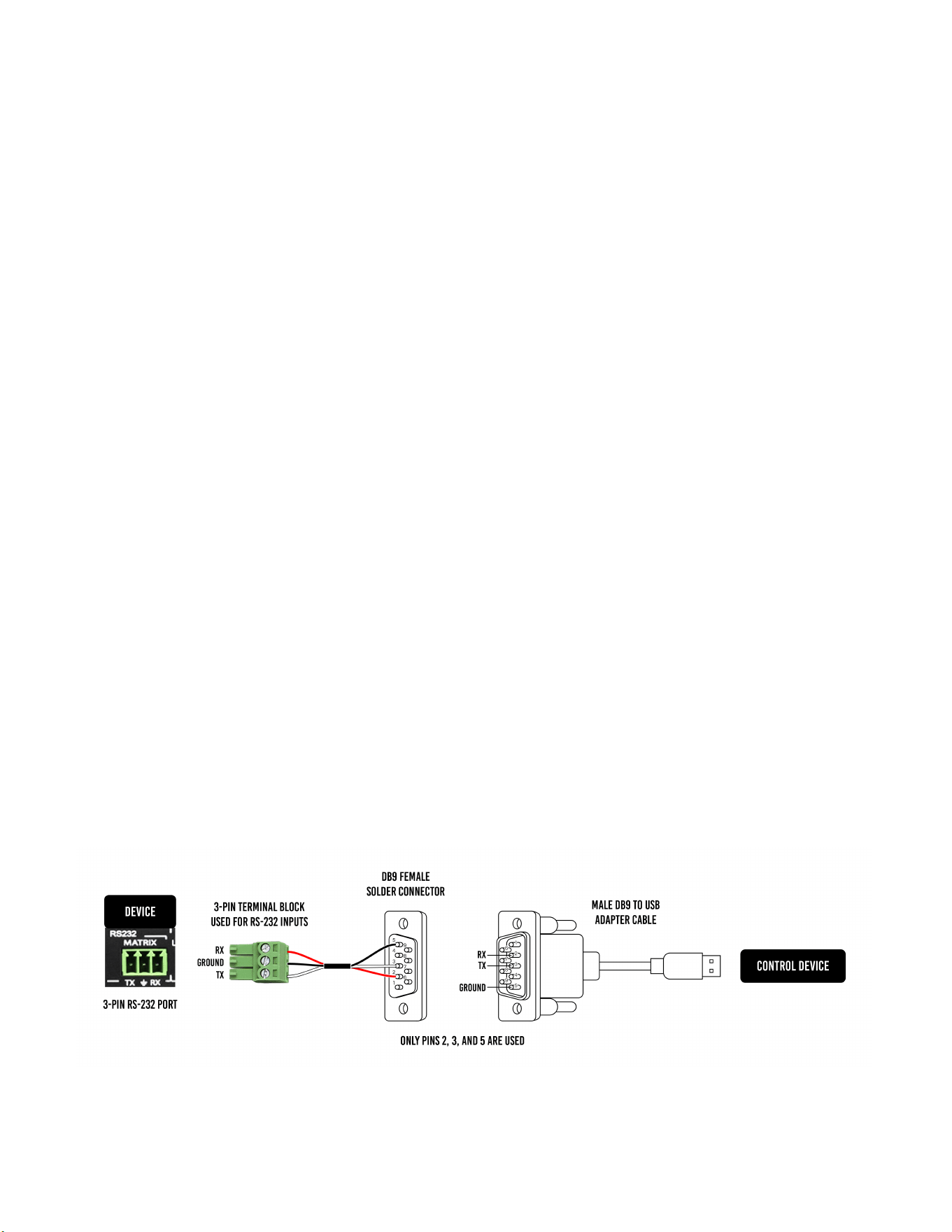

The unit comes with 3 pin connectors to allow
for any wire an integrator would like. The pin
out configuration Left=TX,
Center=Ground, Right=RX and looks like this:
This is how the cable should look. If using the
AC-CABLE-3.5-DB9F (Female) or AC-CABLE-3.5-
DB9M
(Male), the colors will be the same. With any
other cable, please follow Tx, G, Rx as shown
below. See RS-232 cable preparation diagram
below
AC-EX70-UHD-BKT
Page 7
AC-EX70-UHD-BKT
Page 8
■

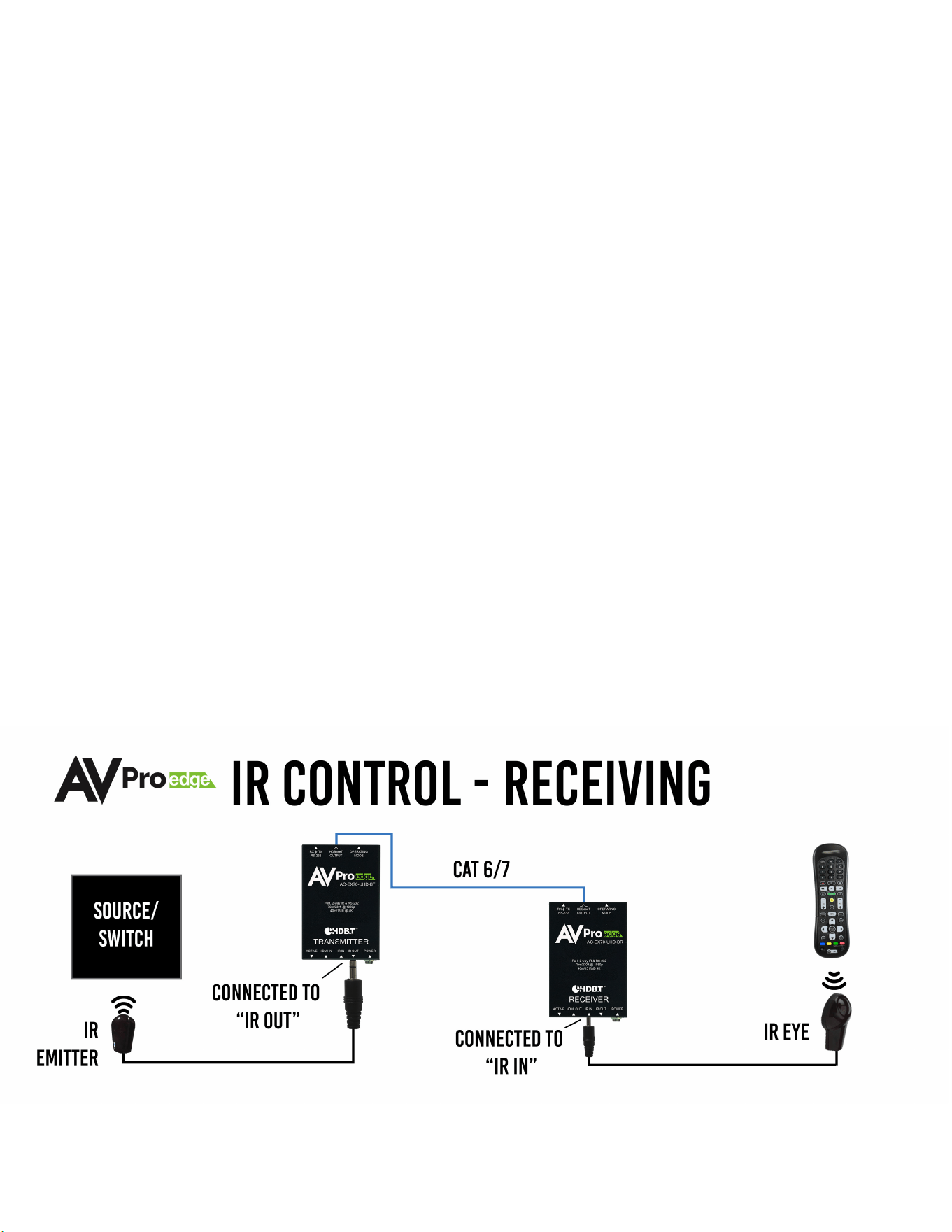

IR Configuration
IR can be used in two ways:
1. From Rack (Using IR-EYE): Plug an IR-Receiver Eye into the "IR IN" of the AC-EX70-UHD-BT Transmitter in
order to pass infrared signals generated from a device or IR Remote.
2. From Remote End: Use an IR-Receiver Eye on the AC-EX70-UHD-BR Receiver (IR In Port) in order to send IR
signals BACK to the rack and out of the TRANSMITTER IR Out Port with an emitter.
*NOTE: For best results, only use the provided IR EYE's and Emitters
AC-EX70-UHD-BKT
Page 9
■ IR Connections to AC-EX70-UHD-BT (Transmitter)
■ IR Connections to AC-EX70-UHD-BR (Receiver)
IR INPUT
(RECEIVER EYE)
IR OUTPUT (IR
EMITTER)
IR INPUT
(RECEIVER EYE)
IR OUTPUT (IR
EMITTER)
*NOTE: For best results, only use the provided IR EYE's and Emitters
AC-EX70-UHD-BKT
Page 10
■
Troubleshooting
• Verify Power - Pg. 5 & 6
• Verify Connections - Check that all cables are properly connected
o TX Indicator Troubleshooting Lights - Pg. 5
o RX Indicator Troubleshooting Lights - Pg.6
• IR Issues - Verify correct connections - P. 9-10
o Visibly flashing Emitters may not function properly, try the IR Cables that come in the box if you are
experiencing issues
• Still having issues, contact us
o Support Direct - +1-605-977-3477
AC-EX70-UHD-BKT
Page 11
• U
s
e t
he
p
owe
r supplies provided. If an alternate supply
is r
eq
uired, check voltage, polarity and
that
it has
suff
icient power to supply the device it is connected
to.
• Do not
operate t
hese
p
r
oducts outside the
s
pec
ified temperature and humidity range given in the ab
ove
sp
eci
fi
c
ations.
• En
s
u
r
e there is adequate ventilation to
allow t
his product to operate efficiently.
• Repair of the equipment should only be carried out by qualified professionals as these products contain
sensitive components that may be
damaged by any mistreatment.
• Only use this
product in a dry
environment. Do not all
ow any liquids
or harmful
chemicals to come i
nto contact
with these products.
• Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
Maintenance
To ensure reliable operation of this product as well as protecting the safety of any person using or handling
this device while powered, please observe the following instructions.
• Th
e D
C power supply cord or
AC
adaptor
has
been d
amage
d
• Ob
je
c
ts or
liquids have gotten into the unit
• The unit has been exposed to rain
• The unit does not operate normally or exhibits a marked change in performance
• The unit has been dropped or the housing damaged
Damage Requiring Service
The unit should be serviced by qualified service personnel if:
AC-EX70-UHD-BKT
Page 12
Support
Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual
before contacting Technical Support. When calling, the following information should be provided:
• Product name and model number
• Product serial number
• Details of the issue and any conditions under which the issue is occurring
Warranty
If your product does not work properly because of a defect in materials or
workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/
Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a)
repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor. During the “Labor” Limited Warranty period there will be no charge
for labor. During the “Parts” warranty period, there will be no charge for parts. You must mail-in your product during
the warranty period. This Limited Warranty is extended only to the original purchaser and only covers product
purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.
This warranty extends to products purchased directly from AVPro or an authorized dealer. AVPro is not liable to honor
this warranty if the product has been used in any application other than that for which it was intended, has been
subjected to misuse, accidental damage, modification or improper installation procedures, unauthorized repairs or is
outside of the warranty period. Please direct any questions or issues you may have to your local dealer before
contacting AVPro.
AC-EX70-UHD-BKT
Page 13
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
AC-EX70-UHD-BKT
Page 14
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
AC-EX70-UHD-BKT
Page 15
AVProEdge
2222 E 52nd St N ~ Sioux Falls, SD 57104
1-877-886-5112 ~ 605-274-6055
Thank you for choosing AVProEdge!
Please contact us with any questions, we are happily at
your service!
AC-EX70-UHD-BKT
Page 16
