EN
Original Instructions
Version 1 - November 2025
30267

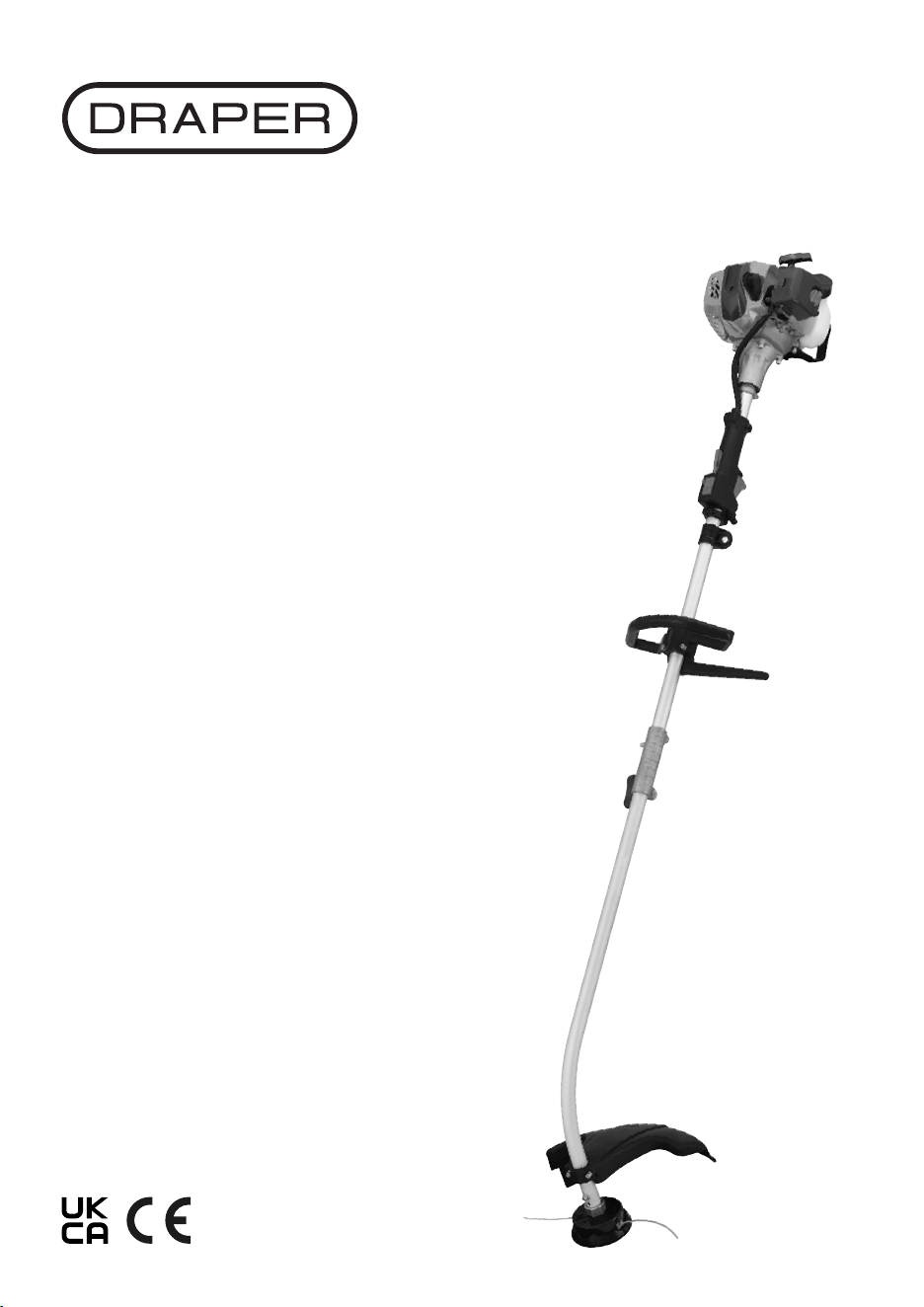

26CC PETROL
GRASS
TRIMMER
1.1 Product Reference
User Manual for: 26CC Petrol Grass Trimmer
Stock No: 30267
Part No: DTP01
1.2 Revisions
Version 1: November 2025
First release
As our manuals are continually updated, always ensure
that the latest version is used.
Please visit drapertools.com/manuals for the latest
version of this manual and the associated parts list, if
applicable.
1.3 Understanding the Safety Content of
This Manual
WARNING! – Situations or actions that may result
in personal injury or death.
CAUTION! – Situations or actions that may result
in damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
1. Preface
– 2 –
These are the original product instructions. Read the
instruction manual in full and retain for future
reference.
Please visit drapertools.com/manuals for the latest
version of this manual and the associated parts list,
if applicable.
2. Contents
– 3 –
EN
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content of This
Manual 2
1.4 Copyright © Notice 2
2. Contents 3
3. Product Introduction 4
3.1 Intended Use 4
3.2 Specication 4
4. Health and Safety Information 5-6
4.1 General Health and Safety Precautions 5
4.2 Additional Health and Safety Instructions
for Grass Trimmers 5
4.3 Transportation, Handling and Storage 6
4.4 Health & Safety Information regarding the
use of Fuels 6
4.5 Residual Risk 6
5. Identication and Unpacking 7-8

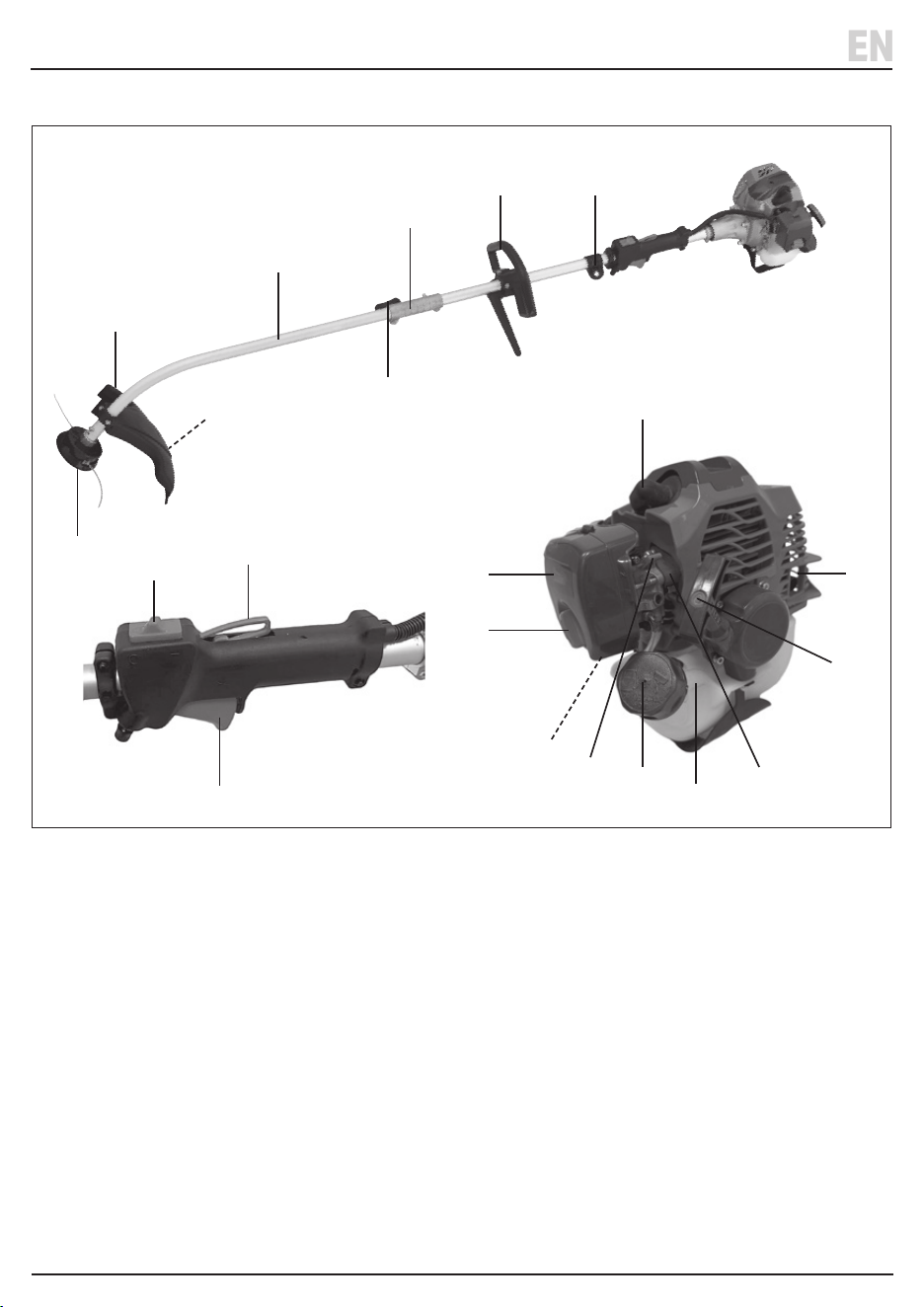

5.1 Product Overview 7

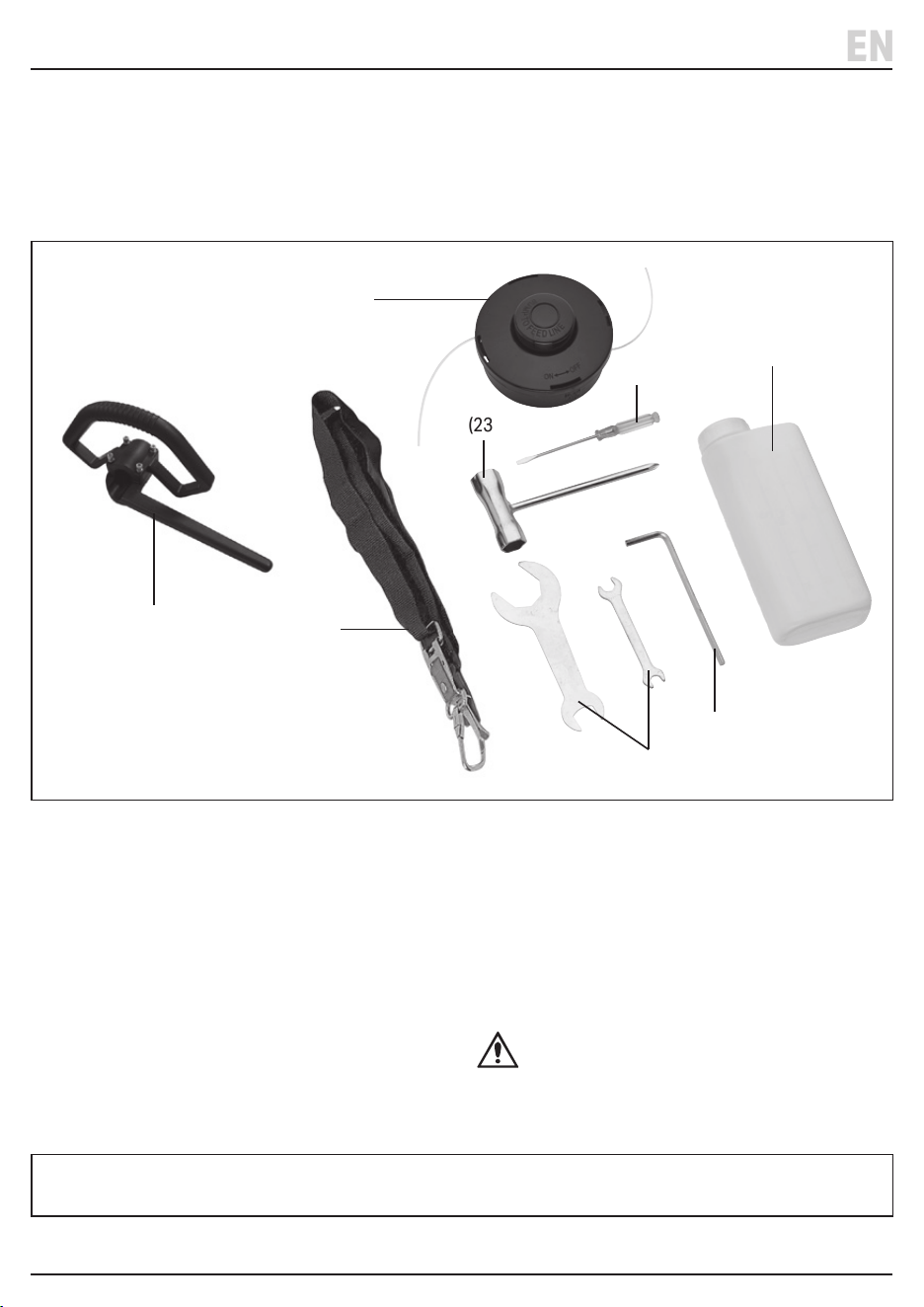

5.2 What’s in the Box? 8
5.3 Packaging 8
6. Preparation Instructions 9-10

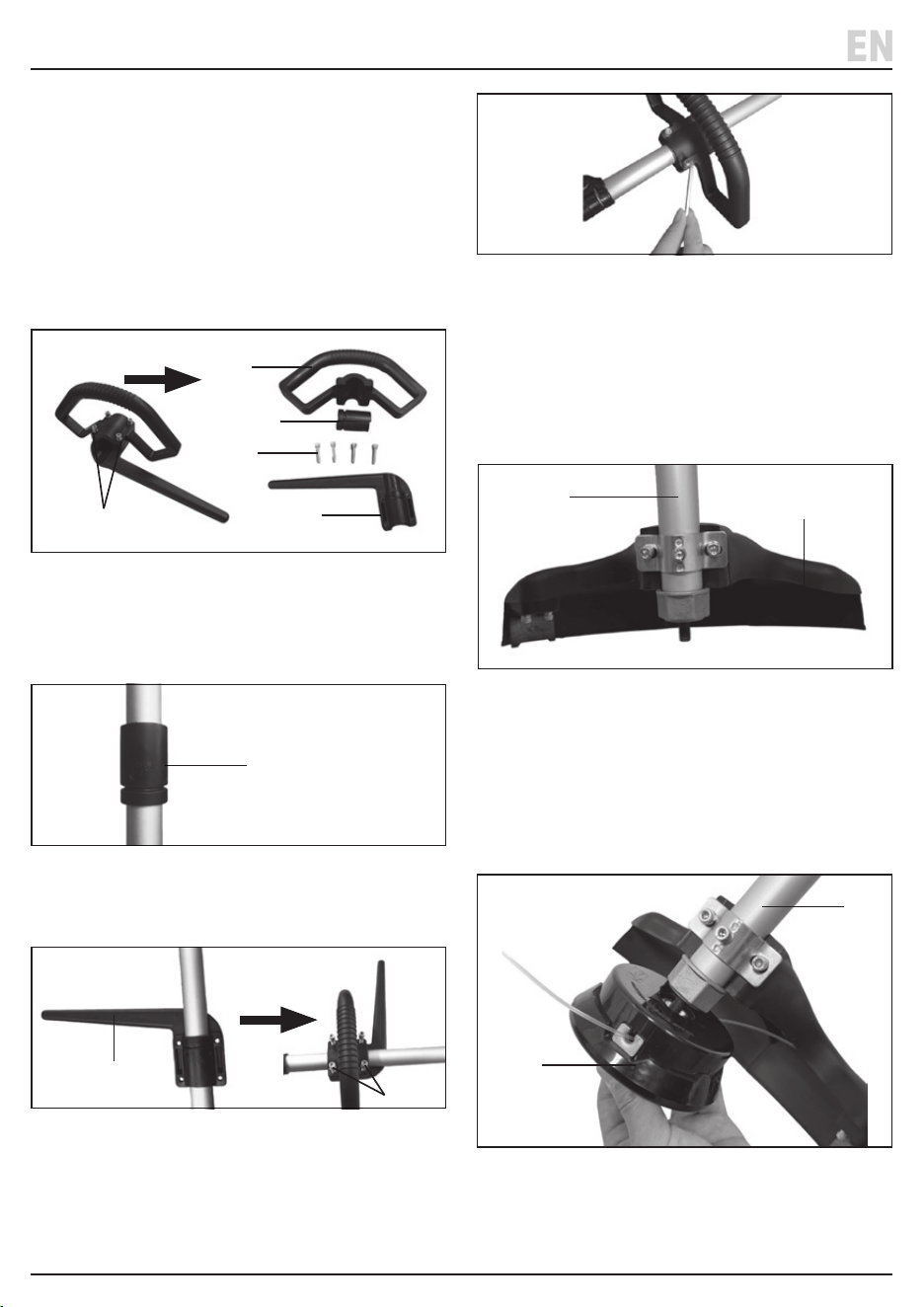

6.1 Fitting the Front Handle 9
6.2 Fitting the Grass Trimmer Guard 9
6.3 Fitting the Spool Assembly 9
6.4 Connecting and Changing the
Attachments 10

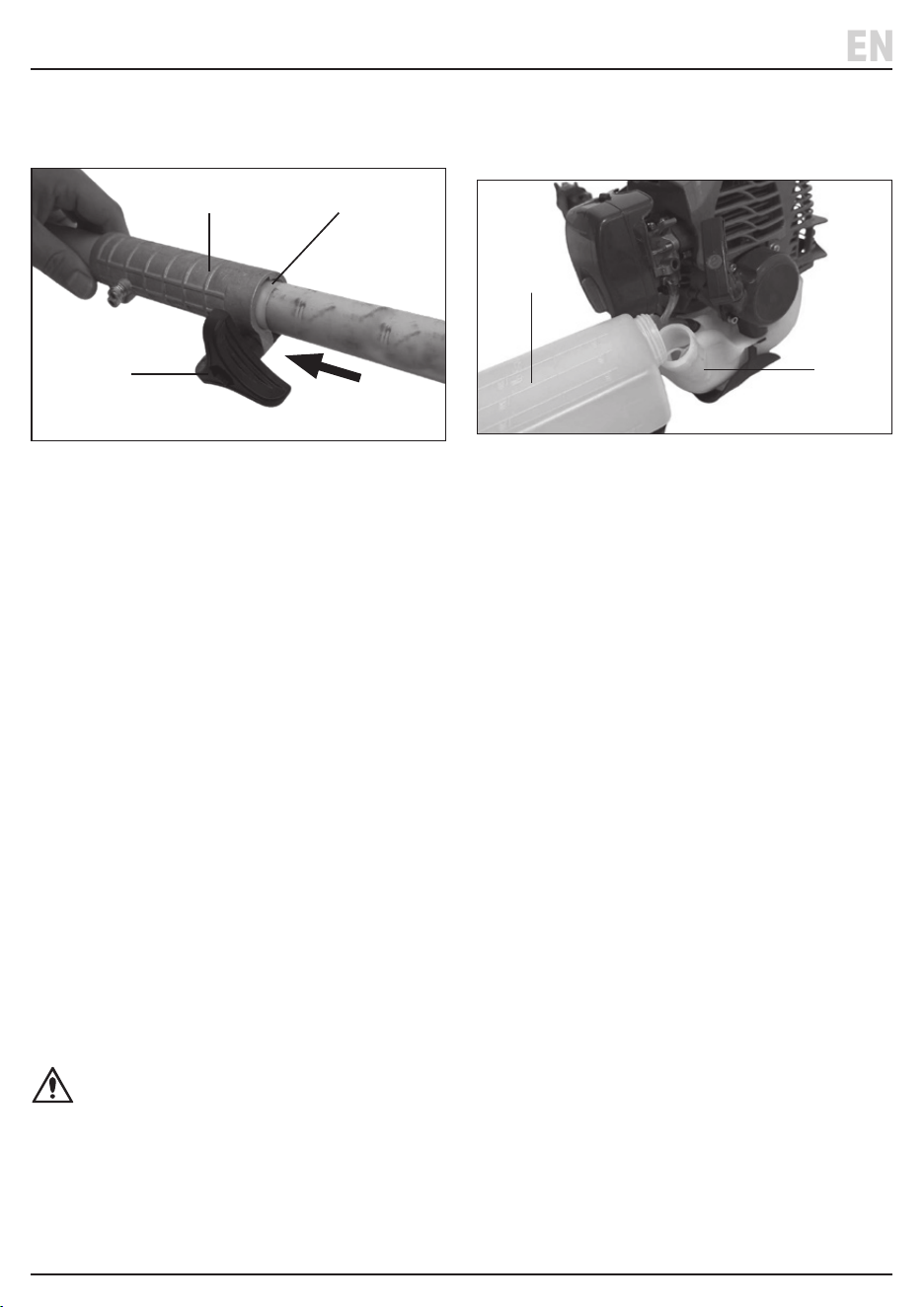

6.5 Fuelling the Trimmer 10
7. Setting up the Trimmer 11

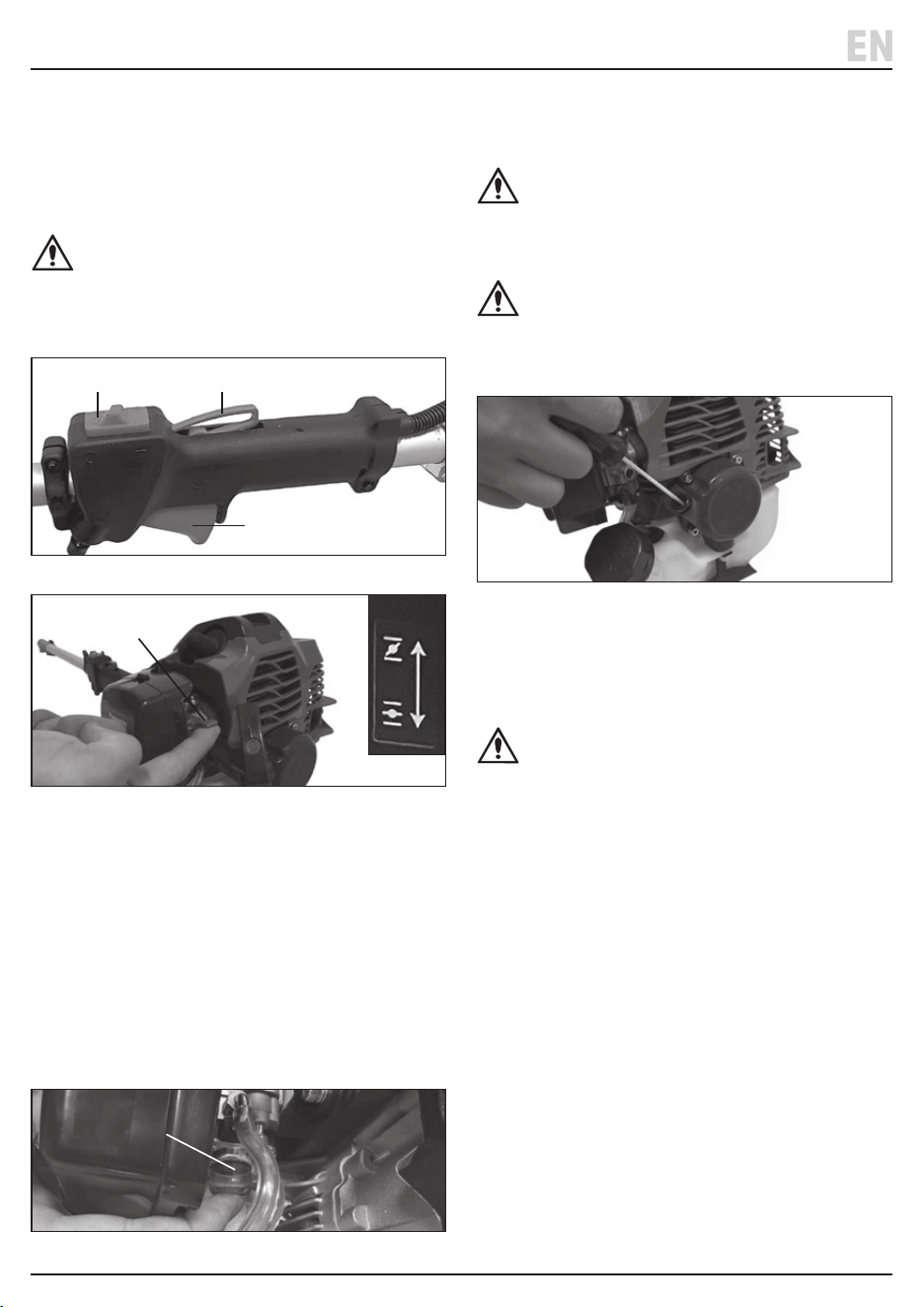

7.1 Starting the Engine 11
8. Operating Instructions 12

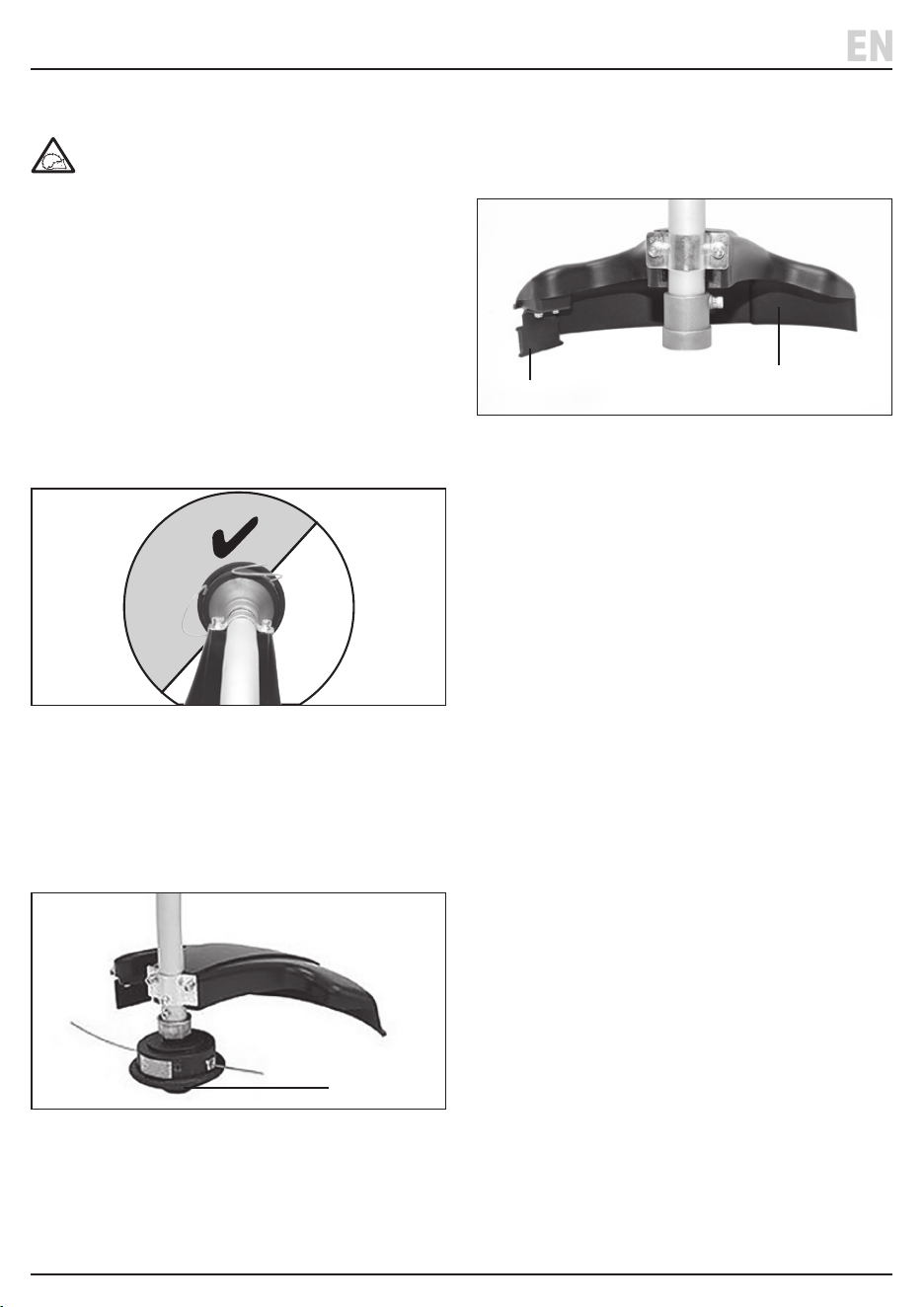

8.1 Operating the Grass Trimmer 12
9. Maintenance and Troubleshooting 13-16
9.1 General Maintenance 13

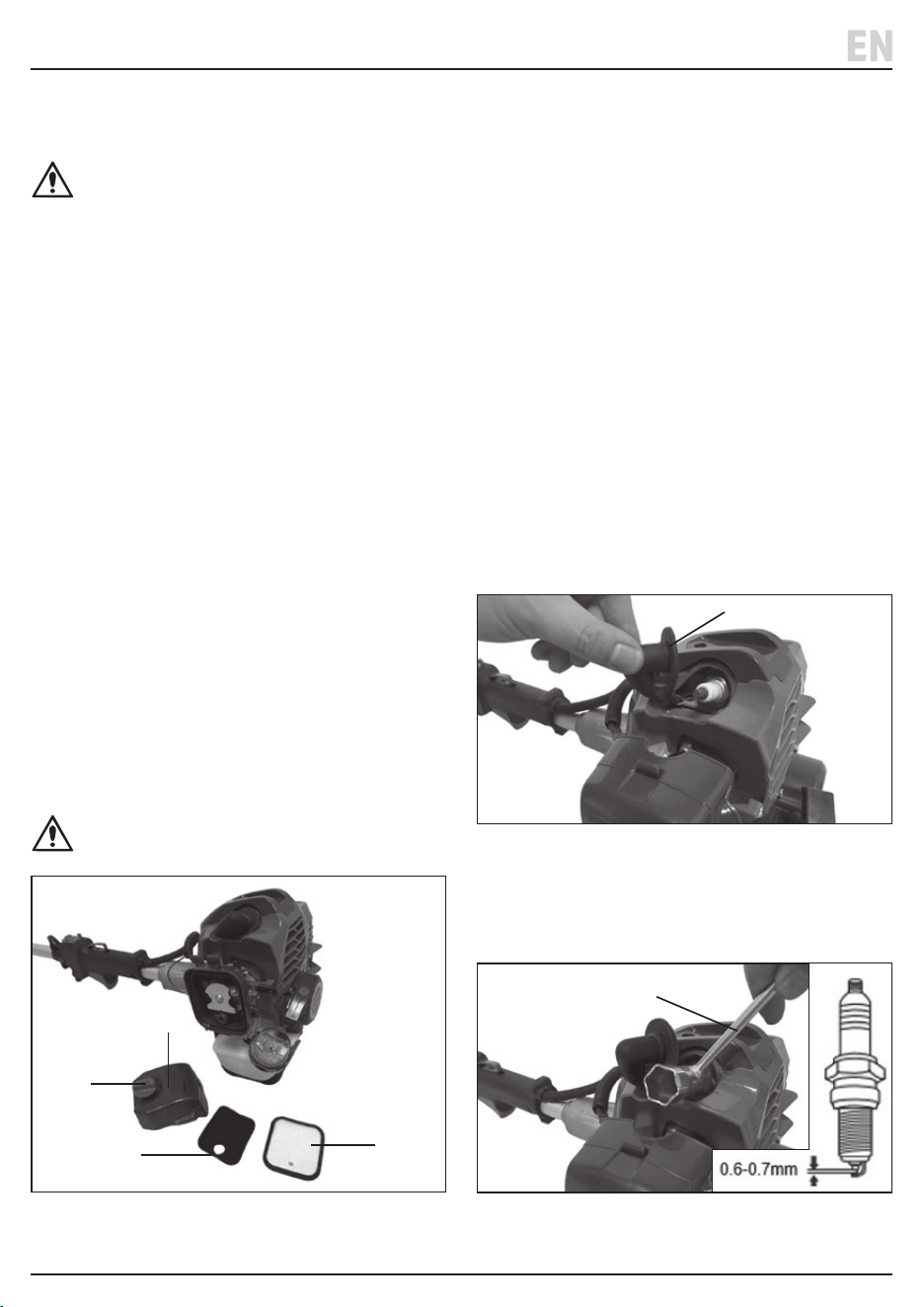

9.2 Cleaning the Air Filter 13
9.3 Spark Plug Maintenance 13
9.4 Engine Idle Speed Adjustment 14
9.5 Draining the Fuel/Oil Mix 14
9.6 Cleaning the Fuel Filter 15

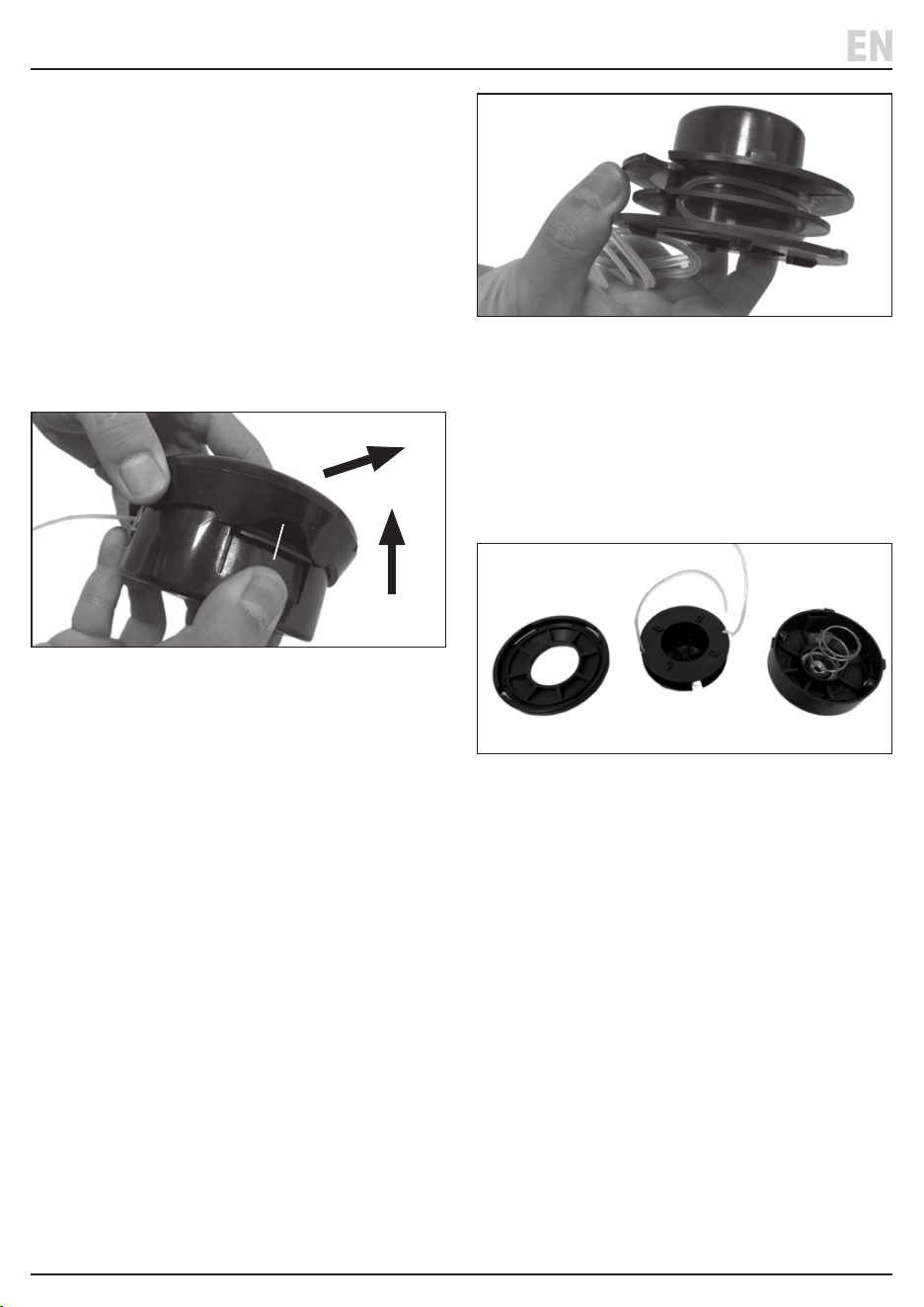

9.7 Spool Line Replacement 15
9.8 Troubleshooting 16
10. Spares, Returns and Disposal 17
11. Warranty 17

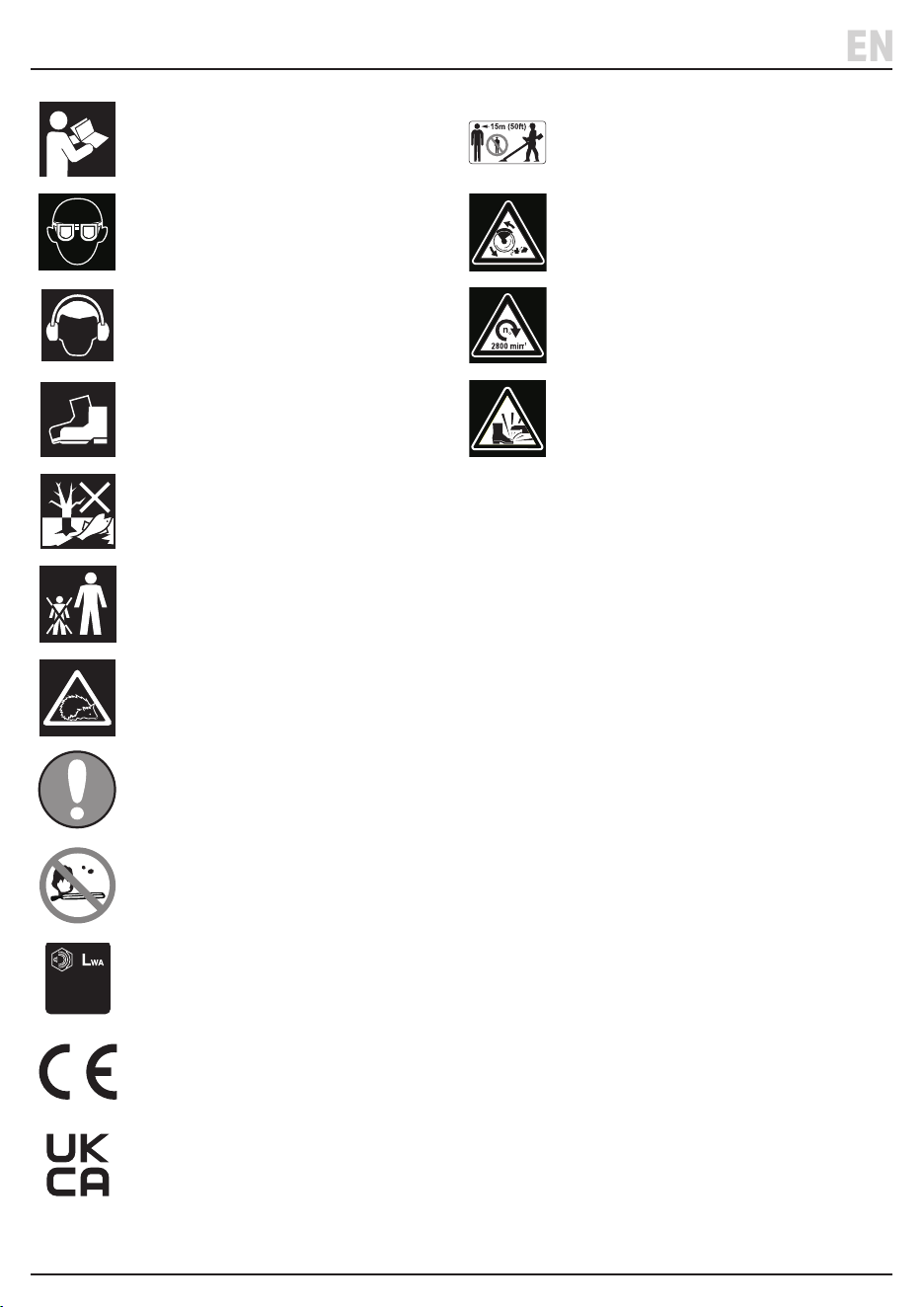

12. Explanation of Symbols 18
3. Product Introduction
3.1 Intended Use
This handheld petrol trimmer is designed for cutting grass
in hard-to-reach areas and ideal for cutting around garden
furniture or tidying up around borders.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Read this manual in full before attempting to assemble,
operate or maintain the product, and retain it for later use.
Important: The declared vibration total values and noise
emissions values have been measured in accordance
with a standard test method and may be used for
comparing one tool with another. These values may also
be used in a preliminary assessment of exposure.
*Draper Tools recommends using an additive or stabiliser
with E10 petrol so the fuel can be safely stored in the fuel
tank for longer.
3.2 Specication
Stock No. 30267
Part No. DTP01
Engine:
Type: 2 Stroke air cooled single cylinder
Power output: 0.75kW
Displacement/capacity: 25.4CC
Max. speed (no load): 11,000rpm
Idle speed: 3,000rpm +/-300rpm
Fuel:
Tank capacity: 550ml
Petrol/Oil Mix type: *E10 Petrol (95 RON) /2 stroke oil (JASO FC minimum)
Ratio: 40:1
Fuel consumption at max: 350g/hour
Noise emissions:
Sound pressure level: 92dB (A)
Sound power level: 105.7dB (A)
Uncertainty (K): 3db (A)
Guaranteed sound power level: 110dB (A)
Vibration level: 6.97m/s
2
Uncertainty (K): 1.5m/s
2
Grass trimmer attachment:
Cutting speed: 7,500rpm
Nylon line cutting width: 430mm
Nylon line diameter: 2mm
Nylon line length: 3M
Spool type: Tap’n’go
Net weight: 5kg
EN
WARNING! The vibration and noise emissions
during actual use of the product can dier from
the declared values depending on the type of
work and the area upon which it is used. Before
each use, estimate the likely exposure resulting
from the actual conditions of use. Take into
account all parts of the operation cycle in order
to identify any safety measures required to
protect the operator.
– 4 –
4. Health and Safety Information
EN
– 5 –
Save all warnings and instructions for future reference.
4.1 General Health and Safety Precautions
• The tool must only be used by competent persons who
have received appropriate training.
• NEVER allow children to use this product.
• Keep children, animals and bystanders away while
operating this tool.
• Local regulations may restrict the age of the operator.
• Stay alert, watch what you are doing and use common
sense when operating this product.
• DO NOT use this product while you are tired, or under
the inuence of drugs, alcohol or medication.
• Dress properly! DO NOT wear loose clothing or
jewellery, which can be caught in moving parts.
• Prevent unintentional starting. ALWAYS ensure the
engine is switched o before picking up or carrying
the tool.
• DO NOT overreach and keep proper footing and
balance at all times.
• Before every use, inspect the product and all
accessories for broken, cracked and loose parts.
DO NOT use this product if it is damaged in any
way. Contact Draper Tools to discuss repair and
replacement options.
• DO NOT allow familiarity or experience with this
product to allow you to become complacent; always
remain alert and adhere to the safety instructions
listed in this manual.
Service
• Have the tool serviced ONLY by authorised and
suitably qualied personnel, using only identical
replacement parts.
4.2 Additional Health and Safety
Instructions for Grass Trimmers
• Clear the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in
the cutting line.
• Keep all parts of your body away from the moving parts.
• NEVER attempt to modify or operate a modied tool.
Fully assemble and t all relevant guards before
operating the tool.
• DO NOT operate the tool without being completely
familiar with the safety features and how to operate
them.
• NEVER operate the tool if the stop switch is faulty or
not functioning.
• Prior to each use, inspect the tool for signs of damage.
Ensure that the safety features are present and
functioning and that all visible nuts, bolts and screws
remain tight. Vibrations during use can cause them
to loosen over time.
• NEVER operate this tool with defective or missing guards.
WARNING! Use of this product can pose a danger
to wildlife. Before using this tool, check the area,
particularly long grass and under bushes for
signs of wildlife: if necessary relocate.
NOTE: Not all animals will be deterred by the noise of the
product alone.
• Check the attachment is correctly tted to the tool
before attempting to start the engine.
• NEVER leave the tool running when not in use or leave
it unattended during use.
WARNING! During operate the engine gets very
hot. DO NOT touch it, especially the exhaust.
• ALWAYS Stop the engine before:
− Cleaning or when clearing a blockage.
− Checking or carrying out any maintenance on
the trimmer.
• To reduce re hazards, keep the engine free of debris,
leaves and excessive lubricant.
• ALWAYS ensure that all handles and guards are tted
when using the trimmer.
• ALWAYS use two hands to operate the trimmer.
WARNING! THIS GRASS TRIMMER CAN CAUSE
SERIOUS INJURIES. Read the instructions
carefully for the correct handling, preparation,
maintenance and starting/ stopping of the tool.
Become familiar with all the controls and proper
use of the trimmer.
– 6 –
4. Health and Safety Information
EN
• ALWAYS be aware of your surroundings and stay alert
for possible hazards of which you might not be aware
of due to the noise of the trimmer.
• ALWAYS wear appropriate PPE (Personal Protective
Equipment). ALWAYS wear suitable eye/face
protection. Use of sturdy gloves, non-skid footwear,
safety helmet, ear protection and safety glasses are
recommended to prevent personal injuries.
• If the cutting mechanism strikes any foreign object or
the trimmer starts making any unusual noises or
vibrations. Shut o the power and allow the trimmer
to stop. Disconnect the spark plug wire from the spark
plug and take the following steps:
− Inspect for damage.
− Check for and tighten any loose parts.
− Replace or repair any damaged parts with
equivalent specication parts.
4.3 Transportation, Handling and Storage
• Switch o the engine when you are crossing roads or
gravel paths.
• ALWAYS clean and maintain before storing, pay special
attention to the guards and cutting attachments.
• Before transporting the unit in a vehicle stop the
engine and allow it to cool. Empty the fuel tank and
securely locate the unit.
• When removing the tool from a vehicle or from
storage, be careful not to drop the engine on the
ground as this may severely damage the fuel tank.
• Never drag the tool across the ground, or throw it to
the ground this is highly dangerous and will damage
the fuel tank, causing the fuel to leak, possibly
causing re.
4.4 Health & Safety Information regarding
the use of Fuels
WARNING! During use, parts of this product
become hot enough to ignite some materials.
• DO NOT touch the engine or exhaust during or
immediately after use and allow it to cool before
refuelling.
• NEVER remove the fuel cap while the engine is
running or immediately after use.
− Take care when opening the fuel cap after use as
hot vapour may be released from the opening.
• NEVER place objects on the engine while it is in use
and keep all air vents clear of dust, dirt and other
obstructions.
• Faulty exhausts must be replaced.
• NEVER store the machine with fuel in the tank inside
any structure where petrol fumes could reach an open
ame or spark.
• To reduce the risk of re, keep the engine, exhaust
and petrol storage area free from vegetation and
excessive grease.
WARNING! Petrol is highly ammable:
• Store fuel in containers specically designed for this
purpose.
− NEVER use this product in environments where
there is a risk of explosion.
− NEVER smoke in the vicinity of the machine.
− Refuel outdoors only and do not smoke while
refuelling.
− Add fuel before starting the engine; never remove
the cap of the fuel tank or add petrol while the
engine is running or when the engine is hot.
− NEVER start the engine if you can smell petrol
vapour in the air.
− If petrol is spilled, DO NOT attempt to start the
engine but move the machine away from the area
of spillage and avoid creating any source of
ignition until petrol vapours have dissipated.
− Replace all fuel tank and container caps securely.
WARNING! Fuels are toxic, they contain
substances that have an immediate toxic eect
and may cause permanent damage to your health.
− DO NOT inhale fuel fumes.
− NEVER start the engine in a closed or poorly
ventilated area.
Important: E10 petrol is hygroscopic and attracts
moisture, which may damage the fuel system if stored in
the product for more than four weeks. E10 petrol should be
used within 30 days of purchase. It is recommended to use
an additive or stabiliser with E10 petrol to extend the
period that it can be safely stored in the fuel tank. ALWAYS
read the label of any additive or stabiliser applied.
4.5 Residual Risk
The safety instructions in this manual cannot account for all
possible conditions and situations that may occur. Exercise
common sense and caution when using this product and
protect against any additional conceivable risks.
– 7 –
5. Identication and Unpacking
5.1 Product Overview
(1) Air lter cover
(2) Air lter cover lock
(3) Fuel primer bulb (under air lter)
(4) Choke lever
(5) Fuel tank cap
(6) Fuel tank
(7) Carburettor
(8) Recoil starter handle
(9) Exhaust
(10) Spark plug cover (H.T lead)
(11) Throttle lever
(12) Throttle safety release lever
(13) Engine Start/Stop switch
(14) Harness hook
(15) Front handle assembly
(16) Split shaft connector
(17) Shaft connector locking knob
(18) Attachment shaft
(19) Attachment guard
(20) Cutting lament trimming blade
(21) Spool Assembly
EN
(19)
(10)
(1)
(2)
(5)
(4)
(3)
(7)
(6)
(8)
(9)
(15)
(18)
(16)
(14)
(17)
(20)
(21)
(11)
(13)
(12)
5. Identication and Unpacking
5.2 What’s in the Box?
Carefully remove the product from the packaging and
examine it for any signs of damage that may have occurred
during shipment.
If any part is damaged or missing, do not attempt to use
the product. Please contact the Draper Helpline; contact
details can be found at the back of this manual.
5.3 Packaging
Keep the product packaging for the duration of the
warranty period in case the product needs to be returned
for repair.
WARNING! Keep packaging materials out of
reach of children. Dispose of packaging
correctly and responsibly and in accordance
with local regulations.
(15) Front handle assembly
(21) Spool assembly
(22) Shoulder strap (with quick release)
(23) Spark plug spanner
(24) Plain slot screwdriver (No.2/3.5mm)
(25) Mixing bottle
(26) 4mm Hex key
(27) 2 X Open end spanners (8 & 10mm /17 & 30mm)
– 8 –
Please visit drapertools.com for our full range of accessories and consumables.
EN
(21)
(26)
(27)
(24)
(23)
(25)
(15)
(22)
– 9 –
6. Preparation Instructions
EN
Important: Before preparing or adjusting this product,
read and understand all the safety instructions listed in
this manual.
6.1 Fitting Front Handle (Fig.1 - Fig.4)
(15.1) Handle
(15.2) Shock absorber clip
(15.3) Handle guide bar
(15.4) 4 X 4mm Hex screws
1. Loosen the four hex screws (15.4) from the handle
(15.1) assembly but do not remove completely. Then
separate the guide rail (15.3) from the handle.
2. Clip the shock absorber (15.2) onto the top shaft-
position at a suitable height.
3. Fit the guide rail bar (15.3) over the shock absorber
and then attach the handle (15.1).
4. Insert the screws (15.4) and hand tighten halfway.
5. Then tighten the screws using the 4mm hex key
supplied.
6.2 Fitting the Grass Trimmer Guard (Fig.5)
The cutting guard (19) must be tted correctly before
using this tool.
• Align the cutting guard (19) with the shaft attachment (18).
• Then attach the bracket to the guard with the hex
bolts supplied, nger tighten.
• Use the 4mm hex key (26) supplied and tighten the bolts.
6.3 Fitting the Spool Assembly (Fig.6)
• Screw the spool (21) directly onto the trimmer shaft
(18) clockwise by hand.
Fig.2
Fig.4
Fig.3
Fig.5
(19)
(18)
(15.2)
Fig.6
(21)
(18)
Fig.1
(15.4)
(15.1)
(15.4)
(15.2)
(15.3)
(15.3)
(15.4)
(15.1)
– 10 –
6. Assembly Instructions
EN
6.4 Connecting and Changing the
Attachments (Fig.7)
• Before starting the engine, the required attachment
must be correctly tted to the shaft connector (16).
1. Ensure the handle locking knob (17) is loose by turning
anticlockwise a few turns.
2. The required attachment shaft connection point (18.1)
must be correctly tted to the shaft connector (16).
3. Align the pin on the lower shaft connector (18.1) with
the groove in the top shaft connection point (16). Insert
the lower shaft in until the pin sits securely in the notch.
4. Tighten the handle locking knob to secure.
To Disconnect Attachment
To remove the attachment – loosen the handle locking
knob (17), then separate the top and bottom shafts.
6.5 Fuelling the Trimmer (Fig.8)
• This tool is powered by an engine which must be lled
with unleaded fuel mixed with two-stroke oil. Incorrect
mixing of the oil and fuel can result in running
problems or engine failure. Products returned under
warranty that have failed due to a lack of lubricant will
be considered a chargeable repair.
CAUTION! This machine is shipped WITHOUT
fuel. Check the fuel level before EVERY use and
top up as appropriate. NEVER attempt to run the
engine on an empty fuel tank.
Important: This product must be used with high-quality
unleaded fuel ONLY. ALWAYS use automotive petrol and
oil suitable for two-stroke engines.
• Fuel quality degrades rapidly. Avoid storing the fuel
and only mix as required. Using fuel that has
degraded will cause starting/running problems.
1. Open the fuel cap (5).
2. Combine the unleaded fuel and two-stroke oil to create
a 40:1 mixture using the bottle (25) supplied. Example:
Add 25ml of 2-stroke oil into 1 litre of unleaded fuel.
Shake well to produce a 40:1 mix.
3. Carefully pour the mixture into the fuel tank (6) – taking
care not to spill any of the mix. Keep a cloth to hand to
clean away any residues or spilt fuel.
4. Replace the fuel cap ensuring it is seated correctly
before tightening. If the threads become crossed it will
damage the tank and may result in fuel leaking out
during use.
Fig.7
(17)
(16) (18.1)
Fig.8
(25)
(6)
– 11 –
Important: Before operating this product, read and
understand all the safety instructions listed in this
manual. Ensure that the product is fully assembled and
correctly prepared for use.
7.1 Starting the Engine (Fig.9 – Fig.12)
WARNING! In an emergency slide the engine
stop switch (13) forward to the ‘Stop’ position to
kill the engine.
1. Move the engine start/stop switch (13) back to the
‘Start’ position.
2. Move the choke (4) up to the correct position.
Cold Start
• Move the choke lever (4) up to the ‘OFF’ position.
• Close the choke to restrict the amount of air entering
the engine.
Warm Start
• Move the choke lever (4) down to the ‘ON’ position.
• Open the choke to increase the amount of air
entering the engine.
3. Prime the engine with fuel by pressing the fuel primer
bulb (3) three or four times. The primer and fuel line
from the tank should then have fuel present.
Over priming will cause the engine to ood and
stop the engine from starting.
4. Grip the neck of the motor unit and hold the motor
rmly on the ground.
DO NOT stand or apply any pressure to the
output shaft.
5. Crouch over the machine while maintaining a rm
footing.
6. Hold the recoil starter handle (8) and make two to three
short, sharp pulls of the starter or until the engine
starts. If the engine does not start by the fth pull,
move the choke setting.
WARNING! DO NOT pull the starter rope out
fully as it may break. DO NOT release the starter
rope and allow it to recoil unaided.
7. When the engine starts grip the front handle (15).
Then press the throttle safety release lever (12) and the
throttle trigger (11) at the same time.
8. Slowly release the throttle trigger (11) to increase the
engine speed.
9. Once the engine has been running for a few minutes
open the choke fully.
The engine has an initial period in which the internal
components bed themselves in. During the rst ve to
six tank lls, to avoid damaging the engine DO NOT
running the engine at very high revs.
To stop the Engine
• Release the trigger and move the ‘Stop’ switch
forward to stop the engine.
Fig.11
(3)
Fig.9
(11)
(13) (12)
Fig.10
(4)
ON
OFF
7. Setting up the Trimmer
EN
Fig.12
(8)
– 12 –
8. Operating Instructions
8.1 Operating the Grass Trimmer (Fig.13-Fig.15)
WARNING! Use of this product can pose a danger
to wildlife. Before using this tool, check the area,
particularly long grass and under bushes for
signs of wildlife: if necessary relocate.
ALWAYS use with the shoulder strap (22) attached and
adjusted to a suitable height.
• This trimmer is only suitable for cutting grass. NEVER
use for cutting any other hard plants.
• Important: To prolong the life of the nylon line avoid
contact with trees, stones, walls, fences and other
hard surfaces.
1. Begin cutting at full throttle, hovering the spool
assembly just o the ground while making arc shaped
sweeping actions through the vegetation.
2. Keep the nylon line level with the ground to avoid
scalping the ground surface.
3. When the nylon line is running at speed take care to
avoid plastic items such as garden furniture, owerpots
and other similar items to avoid damage.
• When cutting vegetation, the cutting distance from
the spool head will decrease when the line length is
deteriorating. Before the line disappears inside the
spool housing, strike the cutting head (21.1) while it is
running at speed onto a piece of suitable ground. This
will release a set amount of line from the head.
• Any excess line is automatically trimmed as it strikes
the trimming blade (20) on the underneath of the
guard (19). If the line breaks and disappears inside the
spool housing it will need to be rewound – refer to
Section 9.7.
EN
Fig.15
Fig. 14
(21.1)
Fig. 13
(20)
(19)
Fig.17
Fig.18
– 13 –
9. Maintenance and Troubleshooting
EN
Important: Maintenance and repairs should be carried
out ONLY by authorised and suitably qualied personnel.
WARNING! ALWAYS turn o the engine, allow it
to cool and disconnect the spark plug before
maintaining or storing this product. If the
engine must be run for testing, ensure that this
is carried out in a well-ventilated environment
that allows carbon monoxide from the exhaust
to dissipate quickly.
9.1 General Maintenance
• Regularly inspect the conditions of the trimmer:
− Check all nuts, screws and bolts are correctly
tightened for safe operation.
− Check condition of spool assembly.
• Clean after every use – wipe over with a damp cloth.
• Important: DO NOT use solvents as this may damage
any plastic or uninsulated parts.
• Use ONLY spare parts recommended by Draper Tools.
• Store the tool in a dry and dust-free environment, out
of reach of children.
• Store the tool at temperature between 0–45°C.
• DO NOT store near ammable materials.
9.2 Cleaning the Air Filter (Fig.16)
• A dirty clogged air lter will restrict the air ow and
cause the engine to run rough. It will also increase fuel
consumption and may result in starting issues.
ATTENTION! ALWAYS stop the engine before
removing the air lter.
1. Set the choke lever (4) to the closed position to prevent
any debris entering the carburettor inlet.
2. Turn the air lter cover lock (2) anticlockwise to release
the air lter cover (1).
3. To remove the cover - lift away the bottom rst, then lift
free from the tab at the top.
4. Remove and wash the foam lter (1.1) and cloth lter
pad (1.2) in warm soapy water. DO NOT use solvents.
5. Ensure the lters are 100% dry before retting.
6. Ret the lter cover and insert the lock and secure.
• Replace the lter if it appears worn or damaged.
9.3 Spark Plug Maintenance (Fig.17-Fig.18)
• Over time the spark plug can become contaminated.
This can adversely aect the running condition of parts
such as the throttle over a prolonged period of time or
too much oil in the fuel mix. This contamination can
cause the engine to run rough, reduce the fuel
consumption and create starting issues.
1. Remove the lead cover (10) from the back of the
spark plug. To avoid damaging the H.T lead do not use
any tools.
Fig.16
(1.1)
(2)
(1)
(1.2)
(10)
(23)
– 14 –
9. Maintenance and Troubleshooting
EN
2. Use the spark plug spanner supplied (23) to remove the
spark plug (10.1) by turning anticlockwise.
3. Clean the spark plug and check the electrode gap
(maintain a gap of 0.6 – 0.7mm).
ATTENTION! The spark plug should be replaced
annually during a service or after 60 hours of use.
Replace with an alternative compatible resistor
type spark plug with the same heat range.
4. Ensure the spark plug thread is correctly seated before
screwing it clockwise to t.
5. Tighten the spark plug with the spanner supplied
before replacing the H.T lead cover.
• The H.T lead cap rubber surround should be tucked
inside the plastic housing to ensure a good
connection with the spark plug.

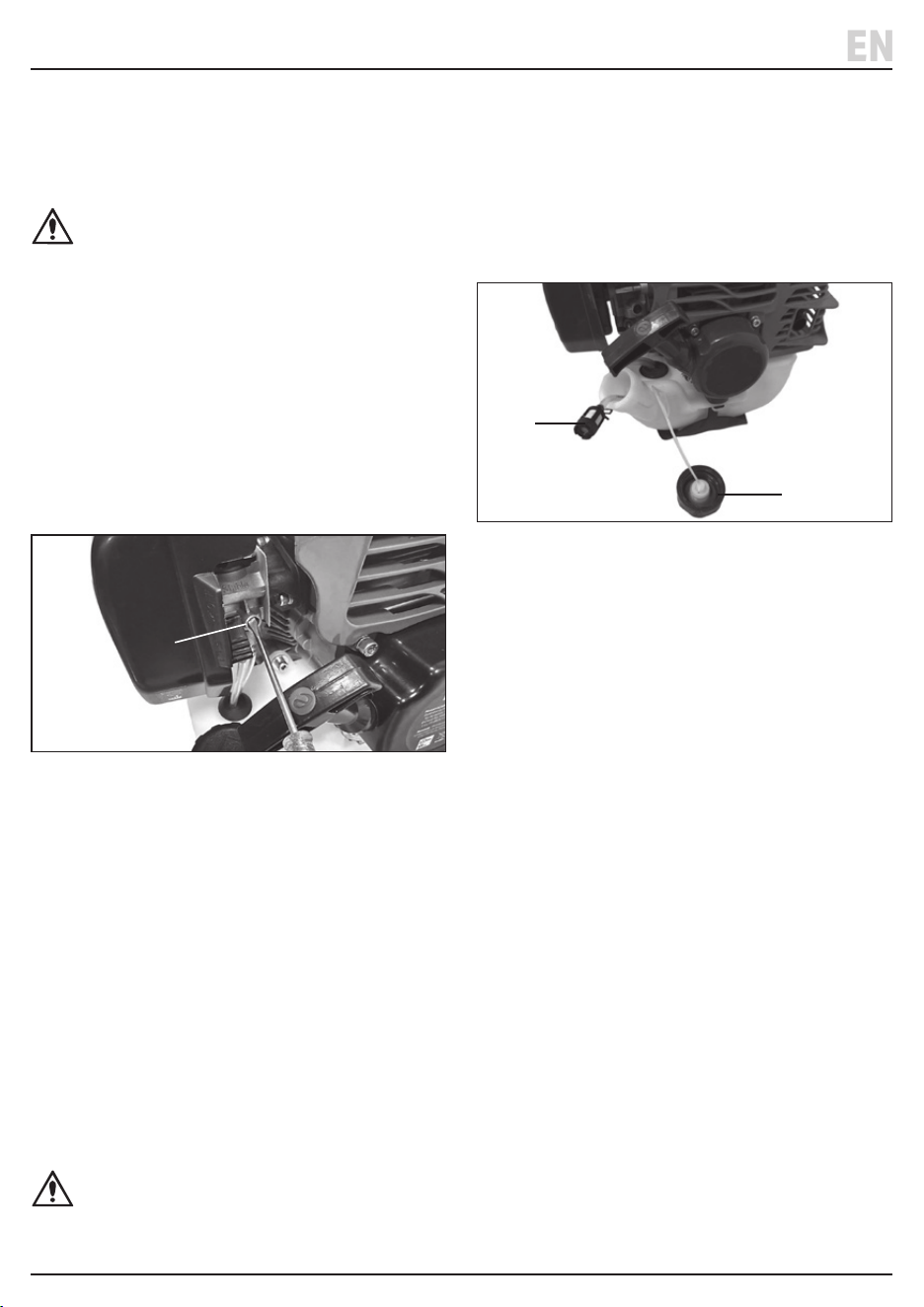

9.4 Engine Idle Speed Adjustment (Fig.19)
The attachments must not operate/rotate with the engine
running at idle. Adjust as necessary.
• Run the engine until warm.
• Then turn the carburettor screw (7.1) anticlockwise to
decrease the engine idle speed and clockwise to increase.
9.5 Draining the Fuel/Oil Mix
Important: Read all the Health and Safety guidance for
the use of fuel before lling or draining this product.
1. Ensure that the ‘Start/Stop’ switch (13) is in the ‘Stop’
position and the spark plug cover (10) is disconnected.
2. Remove the fuel tank cap (5) slowly and tip the engine
unit backwards to allow the fuel/oil mix to drain into a
suitable container.
WARNING! If the tool has been recently used,
hot steam may vent from the fuel tank outlet.
Take care when removing the fuel cap.
3. Ret the fuel tank cap securely and wipe up any
spillages. Then reconnect the spark plug cover.
9.6 Cleaning the Fuel Filter (Fig.20)
To ensure the fuel supply remains clean the fuel lter
must be checked and cleaned regularly. The fuel lter is
attached to the pick-up tube inside the fuel tank.
1. Drain the fuel tank (6) completely.
2. Remove the fuel tank cap (5) from the fuel tank.
3. Tilt the engine so that the fuel tank opening is at the
lowest point. Then shake the tank to allow the fuel lter
(6.1) to be reached.
4. Gently pull the lter clear of the tank.
5. Hold the pick-up line, then squeeze the hose clip and
move it away from the lter.
6. While holding the fuel line, pull the clogged lter o
and insert a clean lter.
7. Reposition the hose clip so that it grips the fuel line
onto the lter.
8. Push the lter back into the tank.
Fig.19
(7.1)
Fig.20
(6.1)
(5)
– 15 –
9. Maintenance and Troubleshooting
EN
9.7 Spool Line Replacement
(Fig.21 – Fig.23)
• The spool requires regular maintenance including
relling or replacing the spool.
To remove the spool assembly from the attachment shaft
1. Ensure the engine is switched o and the attachment
shaft is detached from the top shaft.
2. Remove the spool (21) by holding the shaft nut (18.1)
with the open spanner (27).
3. Then unscrew the spool (21) from the end of the shaft
by turning anticlockwise by hand.
Replacing the spool nylon line
1. Remove the spool assembly from the shaft before
replacing the line.
2. Hold the spool assembly and squeeze the tab (21.1) on
the side of the spool housing and twist anticlockwise
(direction of rotation is on the cover) to release the
spool cover.
3. Remove the empty spool insert from the assembly.
• Underneath the spool insert there is a large spring
and a washer, take care when lifting out the insert
they do not spring out.
4. To install the new spool line – nd the middle of the
replacement line and hook into the insert point shown.
5. Wind the line neatly in both channels in the indicated
direction.
6. When both the lines are wound evenly, Hook the end
through the insert notches to hold them in place.
7. Leave a short piece of nylon to feed out through the
spool housing.
8. Feed the line ends out evenly through the spool
housing.
9. Lower the spool insert down over the washer and
spring while pulling the line end tight.
10. When everything is lined up push down on the insert
and at the same time pull the line end free from the
insert. Check that the line does not become trapped.
11. Press down rmly on the insert and then replace the
spool cover and clip it back down.
Fig.22
Fig.23
Fig.21
(21.1)
– 16 –
9. Maintenance and Troubleshooting
EN
Problem Possible Cause Remedy
Engine will not start. Engine ‘Stop’ switch (13) activated. Move switch to ‘Start’ position.
Insucient or no fuel. Rell with a fresh batch of fuel/oil
mix. Refer to section 6.5.
Old/stagnant fuel. Drain fuel and rell with fresh mix.
Refer to section 6.5.
Spark plug electrode fouled or gap
set incorrectly.
Remove and service/replace spark
plug. Refer to section 9.3.
Spark plug H.T lead not correctly
connected.
Check H.T lead is pushed on rmly.
Choke set incorrectly for the
starting conditions.
Adjust choke. Refer to section 7.1.
Air lter clogged. Clean/replace air lter. Refer to
section 9.2.
Engine ooded with fuel/over
primed.
Remove the spark plug and dry the
electrode. Pull the starter handle 2 or
3 times without the spark plug tted.
Wait a minute, replace spark plug
and retry. Refer to section 9.3.
Fuel lter clogged. Clean fuel lter. Refer to section 9.6.
Engine runs ‘rough’ Choke set incorrectly. Adjust choke. Refer to section 7.1.
Requires servicing. Clean/replace air lter and
spark plug.
Carburettor out of adjustment/
Engine revs too high.
Adjust idle speed - refer to
section 9.4.
Old/stagnant fuel. Drain fuel and rell with fresh mix.
Refer to section 6.5.
Heavy blue smoke from exhaust. The fuel/oil mix is incorrect. Drain fuel tank. Rell with a fresh
batch of fuel/oil mix. Refer to
section 6.5.
9.8 Troubleshooting
For spare parts, servicing, and repair and replacement
options, please contact the Draper Tools Product
Helpline for details of your nearest authorised agent.
Draper Tools will endeavour to hold any spare parts, if
applicable, for seven years from the date that it sells the
nal matching stock item.
Any servicing or repairs carried out by unauthorised
personnel or installation of spare parts not supplied by
Draper Tools will invalidate your warranty.
Important: For safety, ALWAYS drain and clean the
product of any oil, fuel, chemicals or other substances
before returning it to Draper Tools or its authorised
agent. Store these materials in suitable containers and
dispose of them in accordance with local regulations.
Draper Tools and its agents cannot be responsible for the
disposal of these substances.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.
• DO NOT Dispose of fuel and oil separately and in
accordance with local regulations; DO NOT abandon
it in the environment.
10. Spares, Returns and Disposal
– 17 –
EN
This warranty covers parts and labour for 12 months
from date of purchase – visit drapertools.com/warranty
for more information. However, if the tools are hired out,
the warranty period is 90 days from the date of purchase.
Should the tool develop a fault within the warranty
period, return the complete tool to the place of purchase
or contact Draper Tools directly. Proof of purchase must
be provided.
This warranty does not apply to any consumable parts or
normal wear and tear.
It also does not cover any damage caused by misuse,
careless or unsafe handling, modications, or repairs
carried out by any personnel other than an authorised
Draper Tools repair agent.
Please note that this guarantee is in addition to and does
not aect your statutory rights.
Draper Tools
11. Warranty
EN
– 18 –
13. Explanation of Symbols
EN
Read the instruction manual
Should just be for safety glasses.
Wear ear defenders
Wear suitable protective footwear.
Do not abandon in the environment
Keep out of the reach of children
WARNING! Risk of danger to wildlife
Mandatory!
Do not incinerate or throw onto re
89
dB
Continuous A-weighted sound power level
European conformity
UK Conformity Assessed
During use, keep a minimum distance of
15m between the machine and third
parties.
Pay attention to objects thrown by the
machine during use.
Warning! Machine is still running on idle.
Protect feet from risk of injury
– 19 –
Notes
EN
© Published by Draper Tools Limited© Published by Draper Tools Limited
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Email: [email protected]
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
Please contact the Draper Tools Product Helpline for repair and servicing enquiries.
Draper Tools Europe B.V.
Oude Graaf 8
6002 NL
Weert
Netherlands
