User Manual

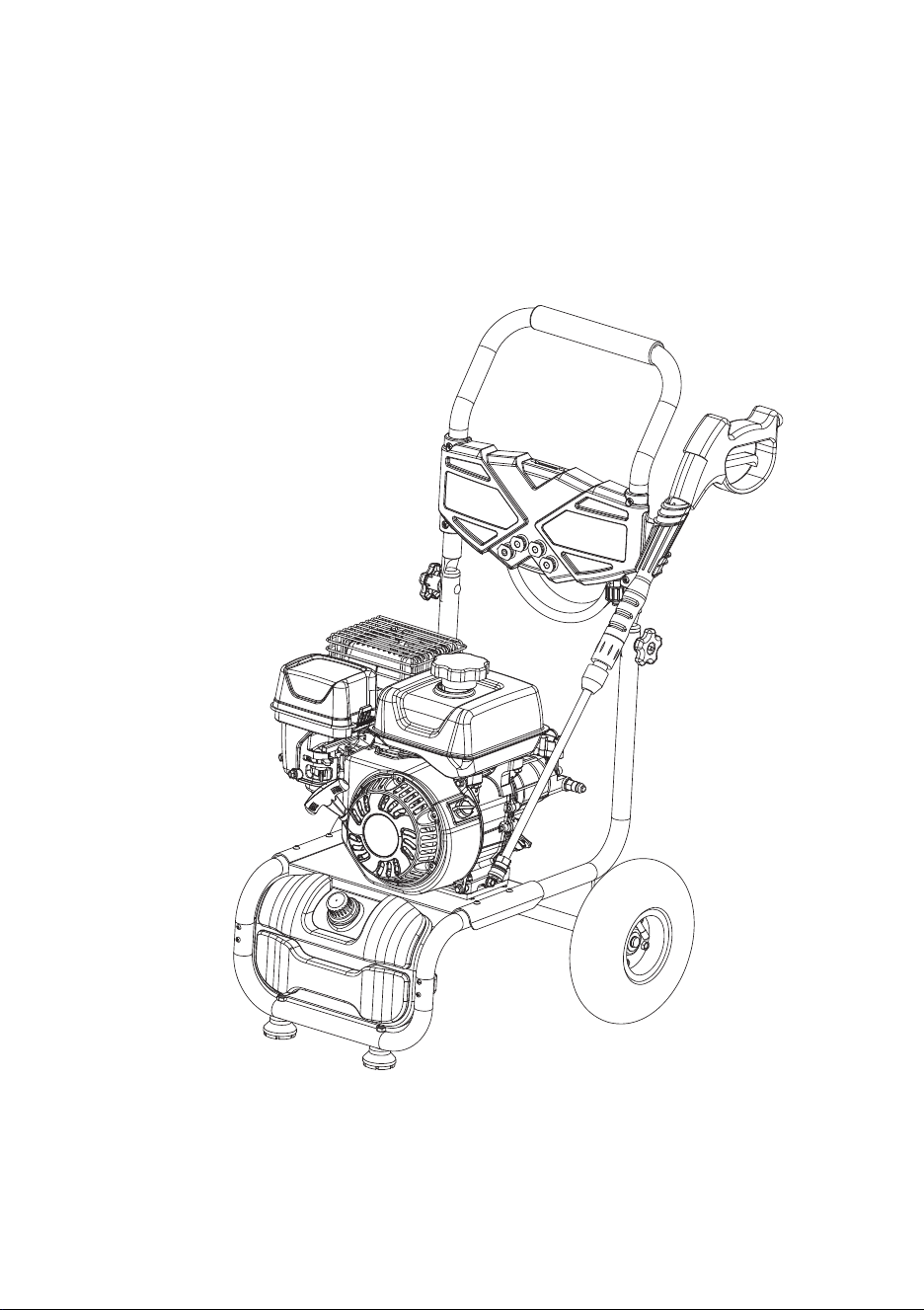

Gas Pressure Washer
Model：MTPW01
HIGH PRESSURE WASHER OPERATOR MANUAL
P
lease read and comply with these original instructions prior to
the initial operation of your appli-ance and store them for later us
e or subsequent owners.
Contents
Model Overview
Safety Instructions
Assembly Instructions
Preparation
Operating Instruction
Using the Accessories
Working with Detergents
Taking a Break
Shutting Down & Clean Up
Winterizing & Long Term
Storage
Maintenance Instructions
Cleaning Tips
Troubleshooting
EN-2
EN-3
EN-6
EN-7
EN-8
EN-9
EN-10
EN-10
EN-11
EN-11
EN-11
EN-12
EN-14
1
2
AIR CLEANER
FUELTANK
FUEL TANKCAP
MUFFLER
HAND CORD
ENGINE STWICH
OIL DIPSTICK
1. Rack
3. Pump
Thermal Relieve
Valve
2. Spray Gun
7. Engine

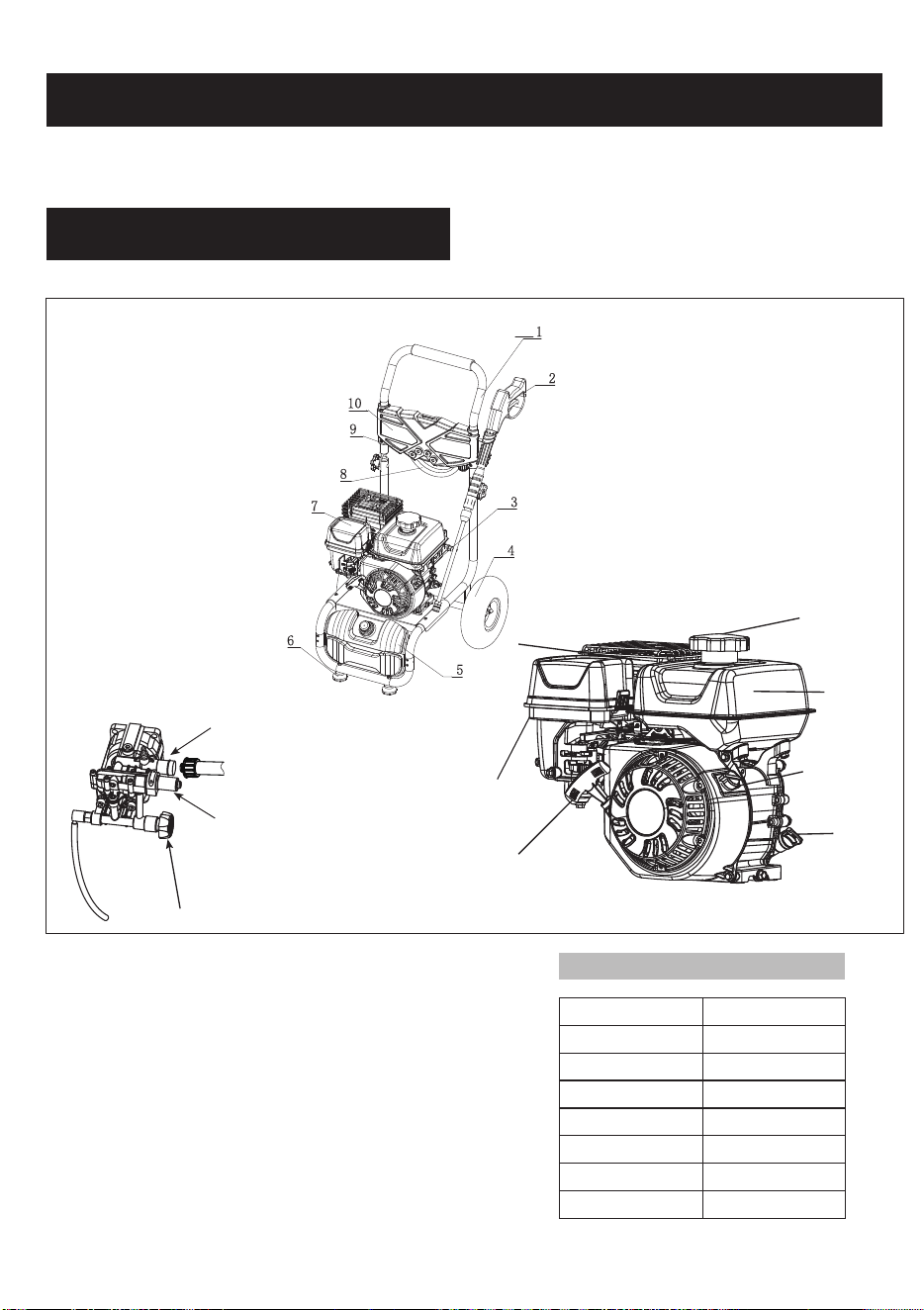

Model Overview
MTPW01
5. Detergent Tank
4. Wheels
6. Rubber Foot
8. Pressure Hose
9. Nozzles
10. Panel
Pump Inlet
Pump Outlet
Specifications
Operating Pressure
Water Volume
Engine
Fuel Type
Fuel Tank Size
Engine Oil Type
Engine Oil Capacity
Model Numbe
3500 PSI
520 l/h
Rato 209cc
R210-S
2.6L
SAE 10W-30
MTPW01
0.6L
3
Hazard Levels
Safety Instructions
Indicates “an imminently hazardous
situation which, if not avoided, will
result in death or serious injury.”
Indicates “a potentially hazardous
situation which, if not avoided, could
result in death or injury.”
Indicates “a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury or in
property damage incidents.”
When using this product, basic
p
recautions should always be
followed, including the following:
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
Read the operating instructions of
the engine manufacturer before
start-up and follow the safety
instructions carefully.
Read all instructions before using
product.
To reduce the risk of injury, close
supervision is necessary when the
product is used near children.
Know how to stop the product and
bleed pr
essures quickly. Be
thoroughly familiar with the
controls.
Stay alert - watch what you are
doing.
Do not operate when fatigued or
under the influence of alcohol or
drugs.
Keep operating area clear of all
persons.
Do not overreach or stand on
unstable support. Keep good
footing and balance at all times.
Wear safety goggles and ear
protection.
Follow the maintenance instruc-
tions specified in the manual.
T
o avoid risks, all repairs and
replacement of spare parts should
only be carried out by trained
personnel.
Tire pressure should not exceed
max. 30 psi.
Risk of injection or injury – Do not
direct discharge stream at
persons.
High pressure jets can be danger-
ous if misused. The jet must not
be directed at persons,
animals,
electrical devices, or the unit itself.
Do not spray electrical connec-
tions, el
ectrical outlets or fixtures.
Do not use acids, solvents, or any
alkaline or flammable material in
this product. These products can
cause physical injuries to the
operator and irreversible damage
to the machine.
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
▬
Water Supply
(Cold Water Only)
Gun kicks back – Hold with both hands
The trigger gun safety lock prevents
the trigger from accidentally being
engaged. This safety feature must be
engaged when replacing nozzles or
not in use.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
Operation of this equipment may
create sparks that can start fires
around dry vegetation. A spark arrestor
may be required. Operator should
contact local fire agencies for laws or
regulations.
Risk of asphyxiation – Use this product
only in a well ventilated area. Do not
operate indoors or in any confined
area.
Operate and fuel machine in a well
ventilated area, free of devices featur-
ing an open pilot or flame such as
boilers, water heaters, etc.
Risk of fire/explosion – Do not add fuel
when the machine is operating or still
hot.
Risk of fire/explosion -Operate only
where open flame or torch is permitted.
Do not spray flammable liquids.
Do not operate if fuel has been
spilled. Instead, move machine to
different location and avoid creat-
ing sparks.
This machine has hot surfaces
which can cause burns. Operate
in a safe environment and away
from children.
Do not touch hot surfaces or allow
accessories to contact hot surfac-
es.
Do not leave machine running
unattended.
Avoid tipping machine on its side.
When connecting to water supply
mains, local regulations of your
municipal water company must be
observed. In some areas connect-
ing
directly to public drinking water
supply may require a back flow
prevention device. This is to
ensure that there is no feedback
of chemicals into the water supply.
Use a water filter to avoid potential
damage from dirt in the water
supply.
Garden hose must be at least 5/8
inch diameter.
Flow rate of water supply must not
fall below 2.6 GPM(gallons per
minute)
Flow rate can be determined by
running the water for one minute
into an empty 5-gallon container.
The water supply temperature
must not exceed 122°F/50°C.
Never use the pressure washer to
4
▬
▬
draw in water contaminated with
solvents, e.g. paint thinners, gasoline,
oil, etc.
Always prevent debris from being
drawn into the unit by using a clean
water source. Use additional water
filter.
Do not operate pressure washer
without the water turned on.
Assembly Instructions

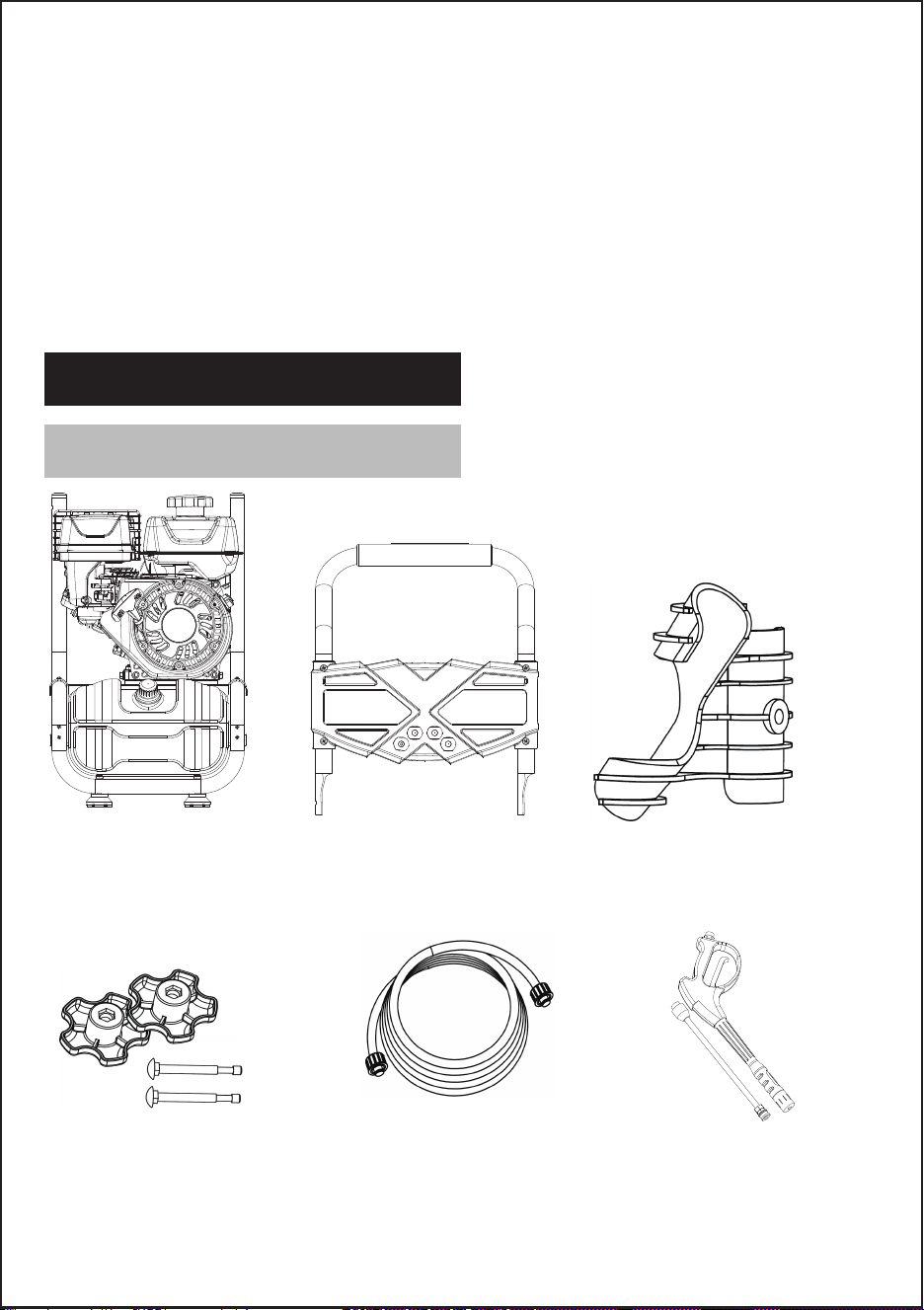

Part List
A - Main Frame
C - Gun Hook
D - Knobs & Bolts
E – Pressure Hose
B - Handle
5
F - Spray Gun & Wand
Assembling
G - Wheels
Parts not shown:
1 - Manual
2 - Nozzle Cleaner
3 - Spark Plug Wrench
4 - O-Ring Set
(2 for pressure hose, 1 for spray gun)
►
►
6
H – Flat Gasket
I – Elastic Gasket
J – Screw
K – Screw Driver
5 - Funnel For Adding Engine Oil
Wheel
►
Handle

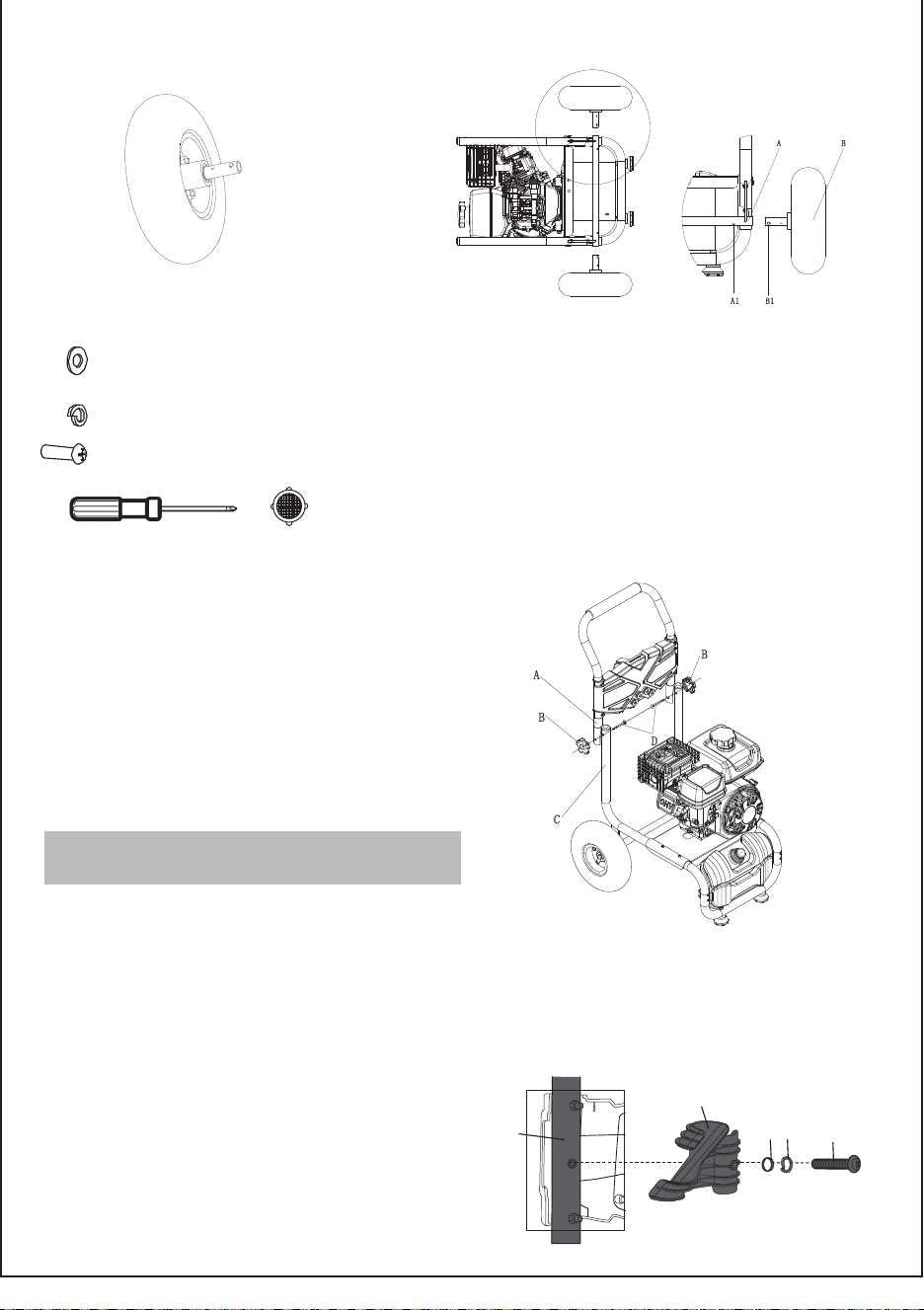

> Secure the spray gun holder (C)
onto the upper hand bar (B) with
flat gasket (H), elastic gasket (I)
and screw (J) using the provided
screwdriver (K).
Gun Holder
B
C
H I
J
L-Water Inlet Filter
> Align the mounting hole of the mounting
assembly (A) with the mounting hole of the
mounting assembly (C)
> Insert the square neck bolt (D) into the
square hole on the inside of the frame,
ensuring that the bolt (D) is properly
inserted into the square hole
>Connect the knob (B) with the square
neck bolt (D) on the other side of the frame
> Repeat on the other side
>Squeeze locking pin(B1).
>Insert the tire(B) into the axle(A).
>Make sure the locking pin(B1) is properly
fastened in the locking hole(A1).
>Repeat with the other wheel.
►
►
►

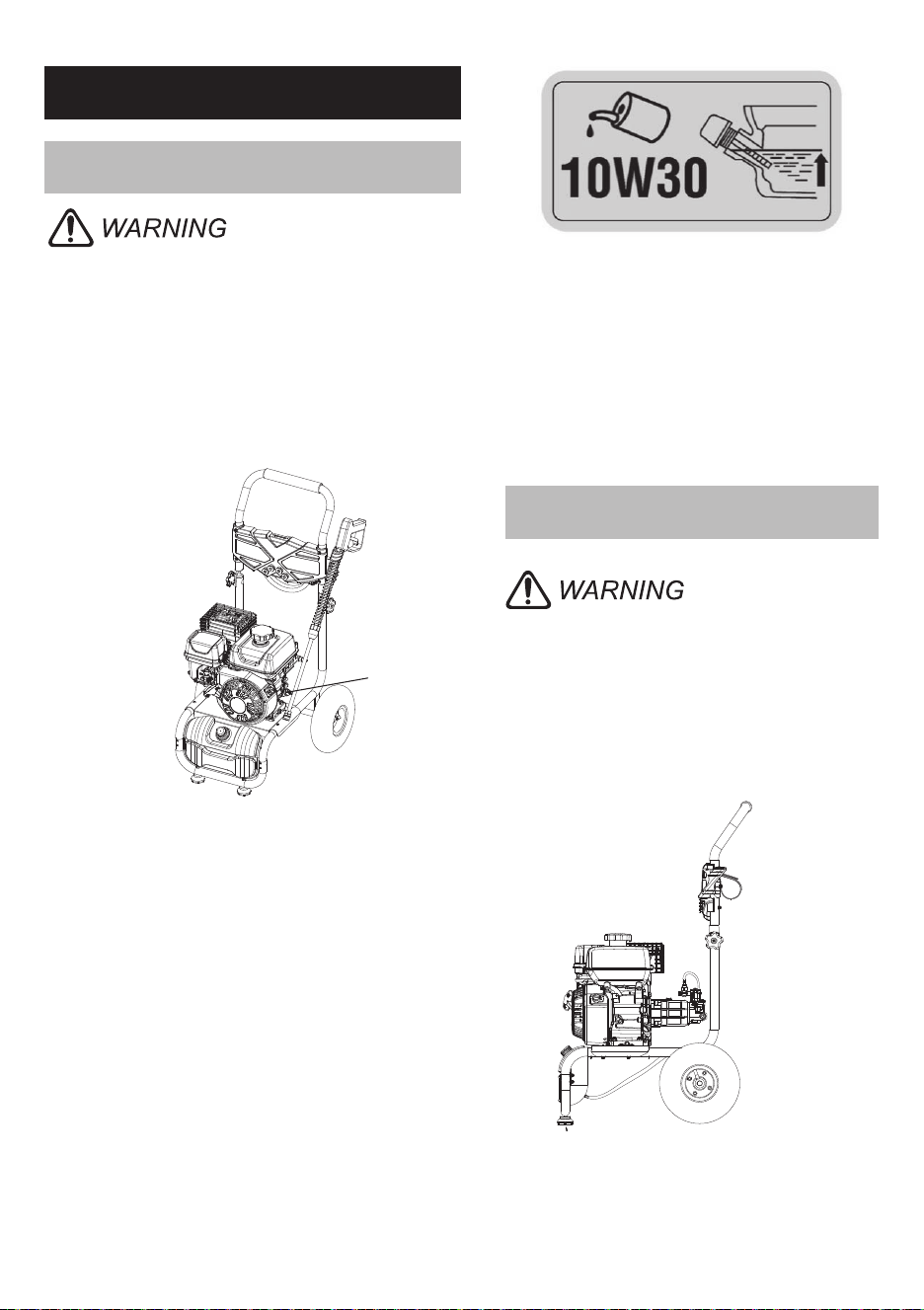

Always use SAE 10W-30 oil.
Oil crankcase capacity: 0.6L.
Reposition the oil gauge dipstick and
tighten it by turning clockwise.
Engine oil should be changed after the
first 5 hours, then every 50 hours.
Make sure there is enough fuel in the
fuel tank before operating.This is a
4-cycle engine and does not require a
gas/oil mixture. There is a separate
reservoir for gas and a separate reser-
voir for oil.
If it is necessary to add fuel, first make
sure the engine is OFF, and then
►
►
►
Preparation
Oil Level
Fuel Level
Engine shipped without oil in crank-
case. Before starting engine, fill with
oil with funnel provided..
Do not over-fill. Do not run the
engine with a high or low oil level as
this can cause engine damage.
Turn the oil gauge dipstick counter
clockwise; remove it and clean it with a
clean cloth.
Fully reinsert the oil gauge dipstick and
pull it out to check the oil level.
If the oil level is halfway up the dipstick
or below, refill with SAE
10W -30 oil through the dipstick hole
until the oil level reaches 3/4 up the
dipstick or until it reaches the bottom
lip of the dipstick hole as shown.
7
OIL DIPSTICK
►
►
►
►
►
►
Operating Instructions
Air Filter
remove the fuel cap by turning it count-
er clockwise.
When refueling, make sure the fuel
filter is in place and keep in mind all
safety precautions.
Use clean unleaded gasoline with a
minimum of 87 octane. DO NOT use
old gas. DO NOT mix oil with gasoline.
Fuel tank capacity: 2.6L

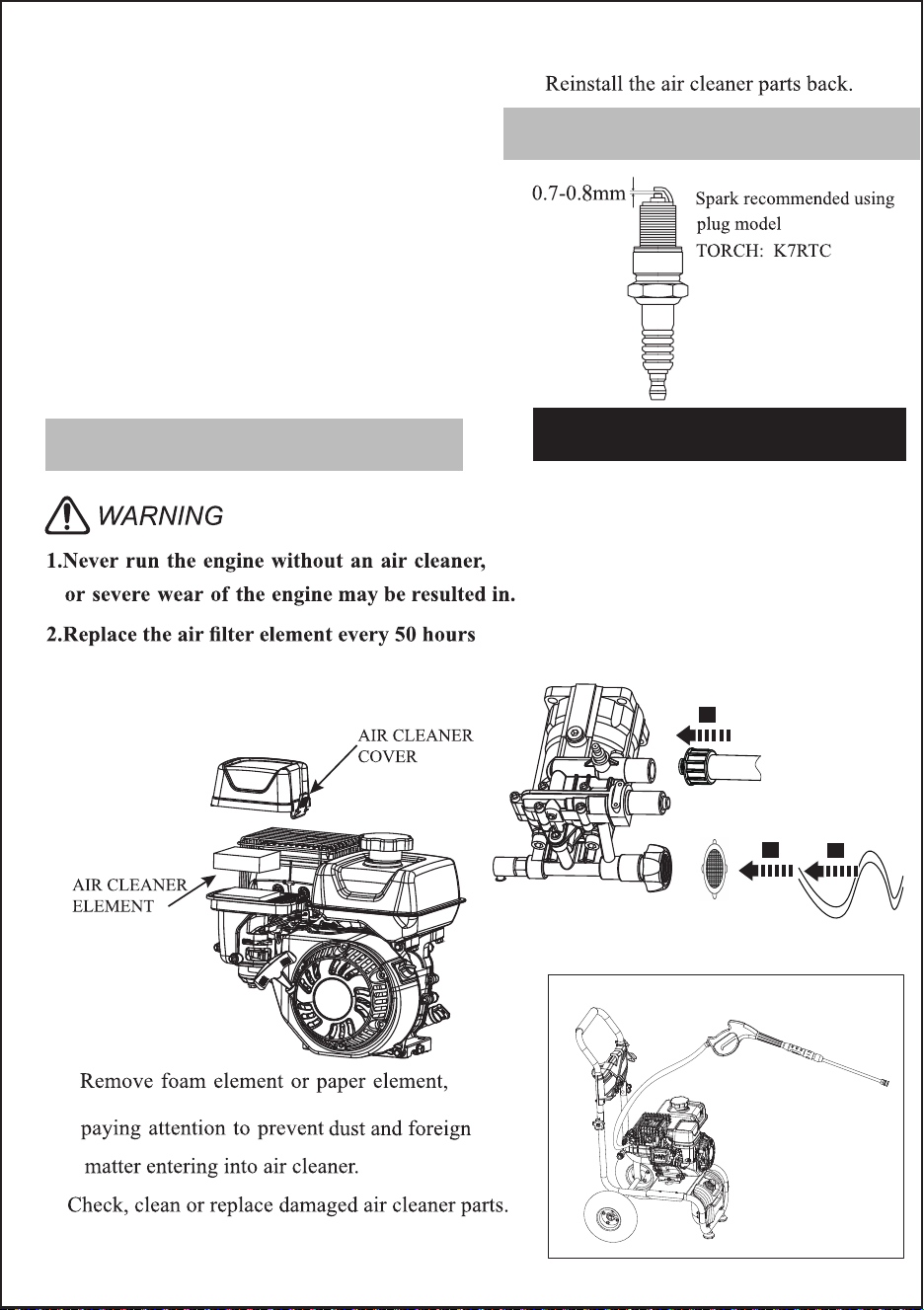

Press the two clips on the top of the air
filter cover to remove the cover.
Starting Procedure:
Connect pressure hose onto pump
outlet (step 3).
Connect spray gun and
pressure hose.
8
►
3.
Inside diameter
1.
►

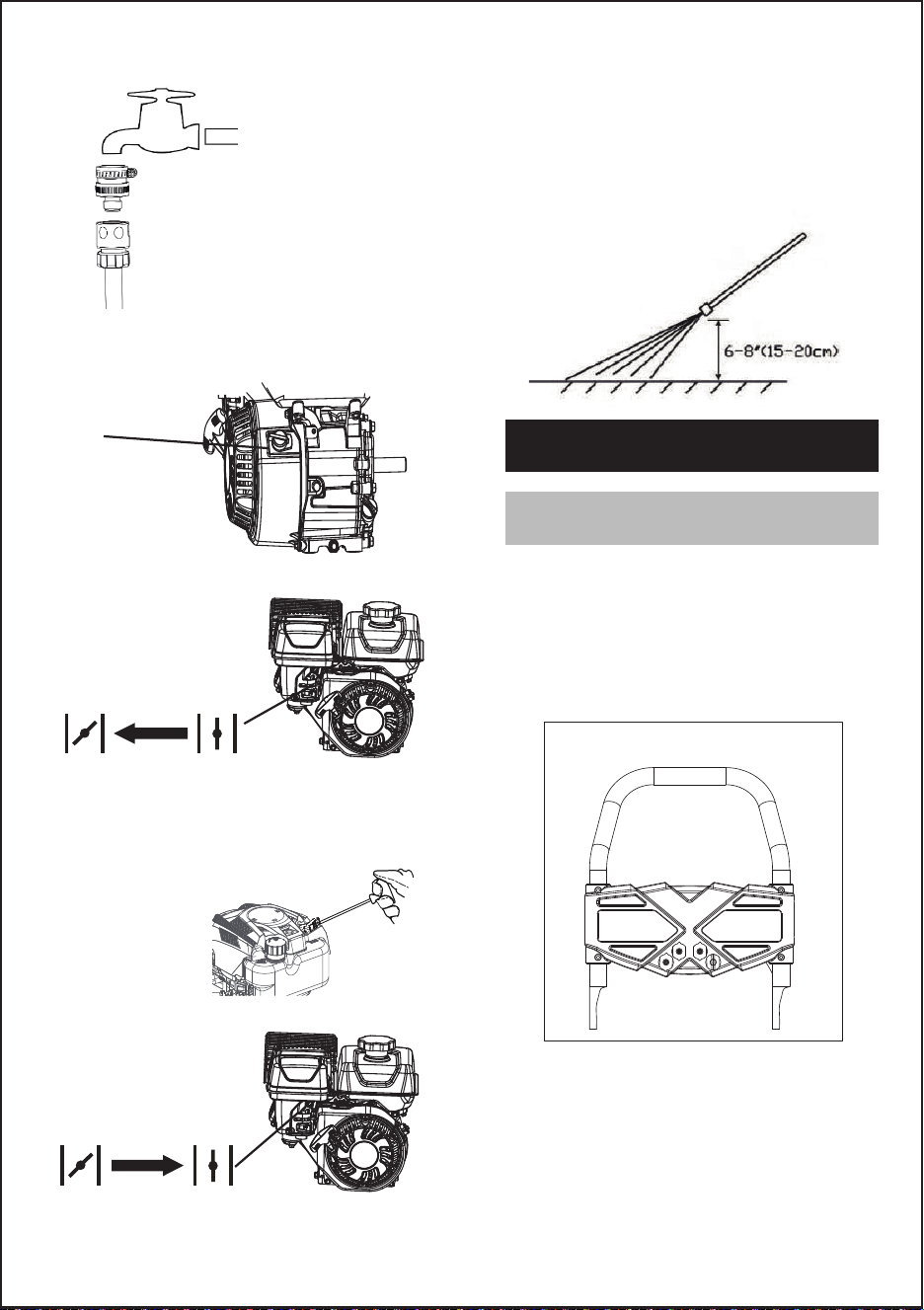

Connect garden hose onto pump
intlet (step 2).
►
Spark Plug
2.
►
Insert the water inlet filter(L) into
pump intlet (step 1).
3/4''
►
Open water source.
►
1. Make sure the oil valve is open，then turn
2.
3.
4.
5.
NOTE: If unable to start the engine, repeat
the above operation one or two times.
Cleaning Procedure:
►
Using the Accessories
Quick Connect Nozzles
Start the Engine
the engine switch to "ON"
position.
Pull the choke lever towards the
CLOSE position
Pull trigger on spray gun to release
pressure.
Locate recoil cord and pull slowly until
resistance is felt. At this point, pull
rapidly to start engine.
Pull the choke lever towards the OPEN
position
Position the tip of the wand 6-8”
(15-20 cm) away from the surface to
clean at a 45°angle.
The color-coded quick connect
nozzles provide a wide array of spray
widths from 0° to 40° and are easily
accessible when placed in the conve-
nient nozzle holder.
0° spray angle = Red nozzle
For particularly stubborn accumulation
of grime. Not recommended for soft
materials like sidings, decks, painted
surfaces, cars.
9
ON/OFF
SWITCH
CHOKE LEVER
CHOKE LEVER
►
►
►
►
►
▬
▬
▬
▬
▬
►
►
▬
▬
►
►

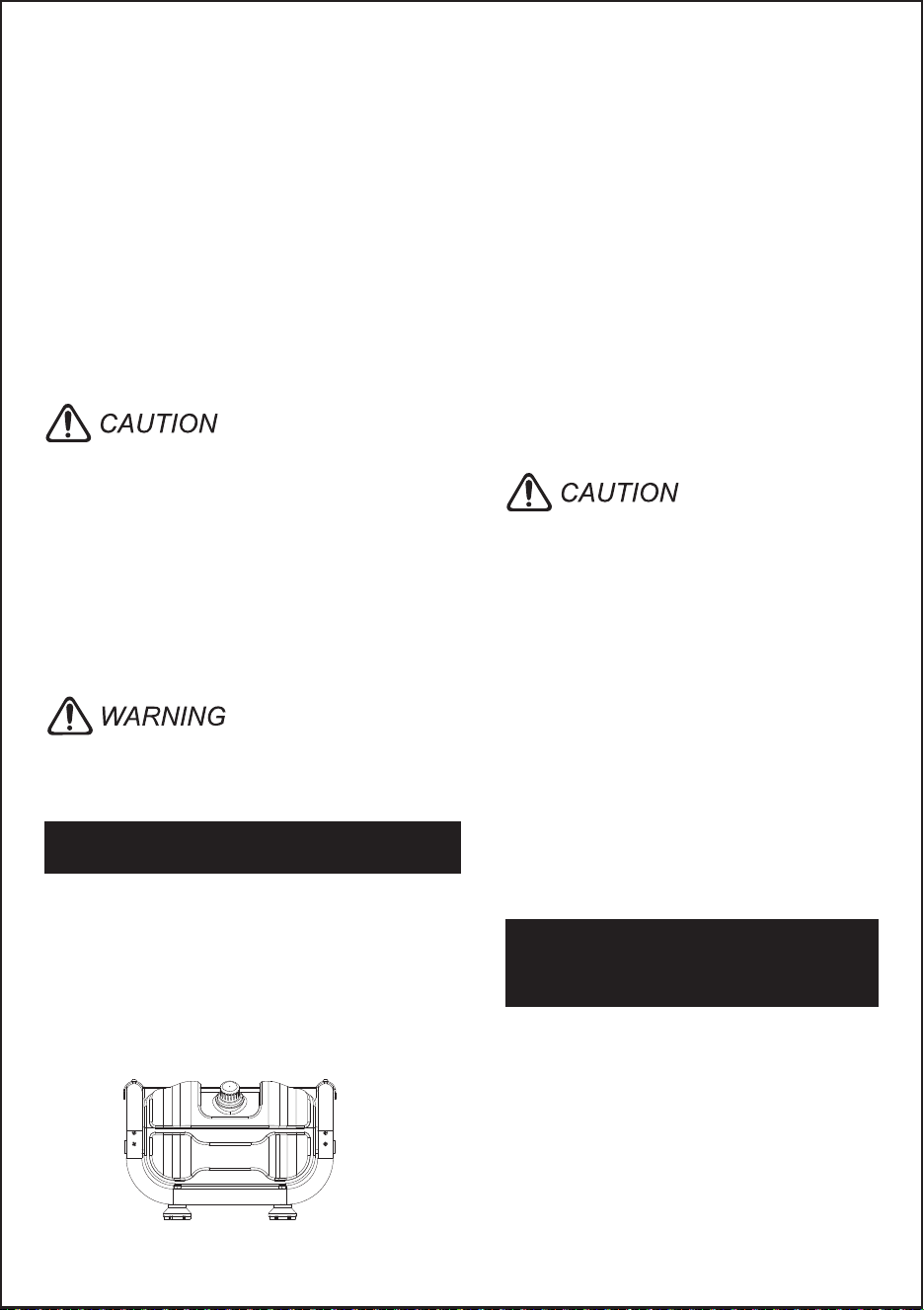

Working with Detergents
Taking a Break
five minutes or more
40° spray angle = White nozzle
For
moderate
dirt
accumulation
over
a
large surface.
Soap = Black nozzle
For
operating
with
detergents or
clean
-
ing with low pressure.
High pressure in nozzle area. Risk of
injury caused by improperly locked
nozzle.
Make sure you hear the "click" when
inserting the nozzle tip into the quick
connection.
Pull the nozzle to make sure it is
seated properly before operating your
unit.
To avoid serious injury never point
spray nozzle at yourself, other persons
or animals.
Detergents can only be applied with
the black detergent nozzle.
Install the black detergent nozzle for
detergent application at low pressure.
Fill the detergent tank with Detergent.
With the engine running, pull trigger to
operate unit.
Liquid detergent is drawn into the unit
and mixed with water.
Apply detergent to work area.
Do not allow detergent to dry on
surface.
Always flush the detergent tank with
fresh water when the cleaning job is
done, to rinse/flush any remaining
detergents from the injection system.
NOTE: For best results see Cleaning
Tips for specific information on how to
clean different surfaces.
Never use:
Bleach, chlorine products or other
corrosive chemicals.
Liquids containing solvents (i.e., paint
thinners, gasoline, oils.)
Tri-sodium phosphate products.
Ammonia products.
Acid-based products.
These chemicals will harm the unit and
will damage the surface being
cleaned.
Use of these items will void the warran-
ty.
Move the engine stop switch to the
OFF position.
Release trigger
and engage safety
lock.
10
25° spray angle = Green nozzle
For moderate dirt accumulation over
large surface.
-
Detergent Tank
►
► ►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
Shutting Down
&Clean Up
Winterizing &
Long-Term Storage
Maintenance Instructions
If detergents have been used, insert 1
gallon of fresh water into Detergent
Tank. Siphon water at low pressure for
one minute to clear the line of residual
detergent.
Move the engine stop switch to the
OFF position. Close the fuel valve.
Turn off the water source.
Press trigger to release water pres-
sure.
Release trigger and engage gun safety
lock.
Disconnect the garden hose from the
water inlet on the unit.
Disconnect the high pressure hose
from the high pressure outlet. Store
the high pressure hose in the gun
holder assembly.
It is highly recommended to use a
small amount of antifreeze before
winter storage and during the cleaning
season to protect the pump from freez-
ing and premature wear.
Turn engine switch to the OFF position
Disconnect all hoses.
Unscrew cap from Pump Guard bottle.
Remove internal seal.
Reattach cap to Pump Guard bottle
and remove black protective cap.
Screw bottle into water inlet on pres-
sure washer pump and squeeze.
With ignition OFF, pull starter rope until
fluid starts to exit.
Unscrew bottle. Store or dispose prop-
erly.
If Guard is unavailable, perform the
following:
Disconnect all water connections.
Turn on the machine for a few
seconds, until the water which
remained in the pump exits. Turn off
engine immediately.
Failure to follow the above directions
may result in damage to the pump
assembly and accessories and void
the warranty.
Do not allow high pressure hose to
become kinked.
Store machine and accessories in a
room which does not reach freezing
temperatures. DO NOT store near
furnace or other sources of heat as it
may dry out the pump seals.
Pump Inspection
You should routinely make a visual
inspection of the pressure washer’s
pump.
Pump
11
Cleaning Tips
Engine
Deck Cleaning
House Siding
Cement Patios, Brick &
Stone
Cars, Boats& Motorcycles
Carry out maintenance tasks for the
engine according to the specifications
provided in the operating instructions
provided by engine manufacturer.
With or Without Detergent
Pre-rinse deck and surrounding area
with fresh water. For best results, limit
your work area to smaller sections of
approximately 25 square feet. Allow
Deck Wash to remain on surface 1-3
minutes. Do not allow detergent to dry
on surface. Rinse at high pressure in a
long sweeping motion keeping the
spray nozzle approximately 3-6 inches
from the cleaning surface. Always
clean from top to bottom and from left
to right. When moving on to a new
section of the cleaning surface, be
sure to overlap the previous section to
eliminate stop marks and ensure a
more even cleaning result.
With or Without Detergent
Pre-rinse vehicle with fresh water. For
best results, clean one side of vehicle
at a time and always apply detergent
from bottom to top, do not allow deter-
gent to dry on surface. If needed, use
special wash brush attachment (not
included) to remove stubborn dirt.
Rinse at high pressure
in a sweeping motion keeping the
spray nozzle approximately 6-8 inches
from the cleaning surface (distance
should increase when rinsing pin-strip-
ing or other sensitive surfaces).
Always clean from top to bottom and
from left to right. For best results, wipe
surface dry with a chamois or soft dry
cloth.
With or Without Detergent
Pre-rinse cleaning surface with fresh
water.For best results, limit your work
area to sections of approximately 6
feet and always apply detergent
from bottom to top). Allow detergent to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface, if
surface appears to be drying, simply
wet down surface with fresh water. If
needed, use special wash brush
attachment (not included) to remove
stubborn dirt. Rinse at high pressure-
from top to bottom in an even
sweeping motion keeping the spray
nozzle approximately 6 inches from
the cleaning surface.
With or Without Detergent
Pre-rinse cleaning surface with fresh
water.
For best results, limit your work
area to smaller sections of approxi-
12
▬
▬
▬
▬
▬
Barbecue Grills, Outdoor
Power Equipment &
Gardening Tools
Patio & Lawn Furniture
Recommendations
Optional Accessories
mately 25 square feet. Allow Pressure
Wash or Degreaser to remain on
surface 1-3 minutes. Do not allow
detergent to dry on surface. Rinse at
high pressure in a sweeping motion
keeping the spray nozzle approximate-
ly 3-6 inches from the cleaning
surface. Always clean from top to
bottom and from left to right. For
removing extremely stubborn stains,
use a DirtBlaster® Spray Nozzle (sold
separately).
With or Without Detergent
Pre-rinse cleaning surface with fresh
water. Allow Pressure Wash to remain
on surface 1-3 minutes. Do not allow
detergent to dry on surface. Rinse at
high pressure keeping the spray
nozzle approximately 3-6 inches from
the cleaning surface. For removing
extremely stubborn dirt, it may be
necessary to move the spray nozzle
even closer to the surface for greater
dirt cutting action.
With or Without Detergent
Pre-rinse furniture and surrounding
area with fresh water. If using Pressure
Wash, apply to surface at low pres-
sure. Allow Pressure Wash to remain
on surface 1-3 minutes. Do not allow
detergent to dry on surface. If needed
use special Wash Brush Attachment
(not included) to remove stubborn dirt.
Rinse at high pressure in a sweeping
motion keeping the spray nozzle
approximately 3-6 inches from the
cleaning surface. For best results,
clean from top to bottom and from left
to right.
Before cleaning
any surface, an incon-
spicuous area should be cleaned to
test spray pattern and distance for
maximum cleaning results.
If painted surfaces are peeling or
chipping, use extreme caution as pres-
sure washer may remove the loose
paint from the surface.
When using on surfaces which might
come in contact with food, flush surfac-
es with plenty of drinking water.
Optional accessories are available to
further enhance your cleaning
capabilities. These accessories are
accurate as of the printing date of this
manual.
Extension Hose
DirtBlaster® Spray Nozzle
Universal Wash Brush Kit
13
Troubleshooting
Remove the spark plug cable to pre-
vent accidental ignition of the engine
before making any repair.
Symptom
Engine Will Not
Start
Unit Does Not
Reach High
Pressure
Output Pres-
sure Varies
High And Low
Cause
Diameter of garden
hose is too small.
Replace with a 5/8 inch or larger garden
hose.
Remove filter and rinse out in warm
water.
Remove black detergent nozzle and
attach high pressure nozzle.
Turn water on full force. Check garden
hose for kinks, leaks or blockage.
Check garden hose for kinks, leaks and
blockage.
Turn water on full force. Check garden
hose for kinks, leaks or blockage.
Water supply is
restricted.
Not enough inlet
water supply.
Water inlet filter is
clogged.
Not enough inlet
water supply.
Black detergent
nozzle is attached.
No Gasoline. Fill Gas Tank.
Slide lever out to closed position.
Turn Ignition switch on
Squeeze the trigger to release the
pressure.
Choke is not in the
correct position.
Ignition switch is
not in the correct position.
Water pressure built
up in the machine.
Solution
14
Symptom
Output
Pressure
Varies Between
High And Low
No Detergent
Garden Hose
Connection
Leaks
Loose fittings.
Missing/worn
rubber washer.
Pump is sucking air.
Detergent suction
tube not properly
connected to the
machine.
Detergent is too
thick.
Filter on detergent
suction tube is
clogged.
Damaged or
clogged detergent
suction tube.
A high pressure
nozzle is attached.
Spray nozzle is
obstructed.
Check connection.
Dilute detergent
Run warm water through filter to remove
debris.
Remove obstruction or replace detergent
suction tube.
Replace with black detergent nozzle.
Blow out or remove debris with fine
needle.
Tighten fittings.
Insert new washer.
Water inlet filter is
clogged.
Spray nozzle is
obstructed.
Calcified gun, hose
or spray wand.
Check that hoses and fittings are air
tight. Turn off machine and purge pump
by squeezing trigger gun until a steady
flow of water emerges through the
nozzle
Remove filter and rinse out in warm
water.
Blow out or remove debris with a fine
needle.
Run distilled vinegar through detergent
tank.
Cause Solution
15
High Pressure Washers
Limited 24 month warranty
Cold water gas pressure washers
This product is warranted by to be free of defects in workmanship and materials
under normal use.
Specific warranty applies to:
Spray Wand
Leaks
Pump Is Noisy
Water Leaks
From Pump
(Up To 10 Drop
Per Minute Is
Permissible)
Not enough gas or
engine oil.
Loose fittings.
Thermal protection
device is activated.
Thermal protection device will auto reset.
Do not run pump for more than 5 minutes
without spraying.
Spray wand not
properly attached.
Turn the swivel nut of the gun clockwise
until connection is tight.
Check that hoses and fittings are air
tight. Turn off machine and purge pump
by squeezing trigger gun until a steady
flow of water emerges through the
nozzle.
Check fittings.
Symptom
Cause
Solution
16
•
•
•
•
•
The warranty period is calculated from the date of purchase by the end user and covers
cost for replacement parts / equipment and warranty labor per-formed. A copy of the
original purchase receipt or gift receipt from the original retailer must also accompany
the war-ranty claim.
This warranty does not cover:
•
•
Rato 209cc engines are warranted for two (2) years on parts and labor.
Pumps and engines are warranted for two (2) years on parts and labor.
Frames, handles and detergent tanks, as well as other structural components,
carry a one (1) year parts and labor warranty.
Standard accessories and attachments are warranted for a ninety (90) day period.
Any commercial, industrial or rental use of this equipment will reduce the warranty
to ninety (90) days.
Merchandise sold as reconditioned, used, demonstration or floor models.
Merchandise purchased on eBay and other online auction web sites.
Your Service Includes
24-Month Coverage
How to Return the Product
*If your purchase was fulfilled by Amazon, please use
Amazon’s 30-day return service.
Within 24 months of purchase, we will provide timely
and effective online after-sales service.We will repair or
replace any defective product (due to manufacturing
fault) within the service period.
Contact polywood2@126.com with your order number.
We will judge whether to send accessories or a new
machine according to the damage of your product.
IMPORTANT NOTICE: We offer free returns. Please do
not return damaged products yourself, it will be very
expensive, we will provide you with a paid return label.
Shenzhen Windrider Technology Co.,Ltd
309,21 Building, Zhonghaixin Venture Industrial City, No.11,
Ganli 2nd Road, Gankeng Community, Jihua Street, Longgang
District, Shenzhen
P
E
