User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 3
2 Appliance at a glance............................................ 4
2.1 Scope of delivery.......................................................... 4
2.2 Overview of the appliance and equipment.............. 4
2.3 SmartDevice.................................................................. 4
2.4 Appliance range of use............................................... 5
2.5 Conformity..................................................................... 5
2.6 SVHC substances according to REACH regulation. 5
2.7 EPREL database........................................................... 5
2.8 Spare parts.................................................................... 5
3 Functionality of the display.................................. 5
3.1 Navigation by touchbutton and symbol
explanation................................................................... 5
3.2 Menus............................................................................. 6
4 Putting into operation........................................... 7
4 Installation conditions.......................................... 7
4.1 Location......................................................................... 7
4.2 Installing multiple appliances.................................... 7
4.3 Mains connection......................................................... 8
4.4 Installation dimensions............................................... 8
4.4 Ventilation requirements............................................ 8
4.5 Connection dimensions for the power supply........ 8
4.6 Transporting appliance............................................... 8
4.7 Unpacking the appliance............................................ 9
4.8 Mounting wall spacers................................................ 9
4.9 Setting up the appliance............................................ 9
4.10 After setting up............................................................ 9
4.11 Disposing of packaging............................................... 9

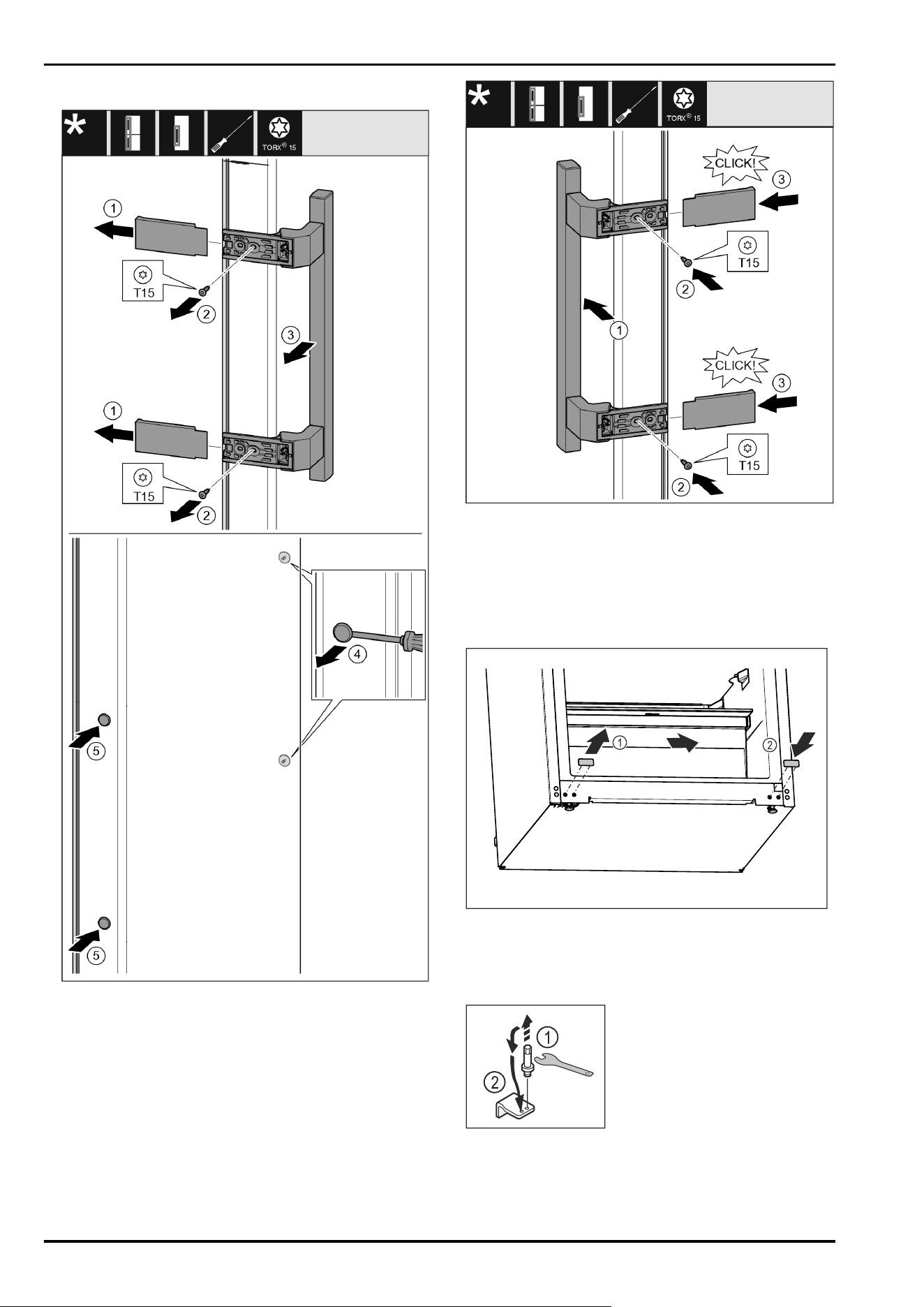

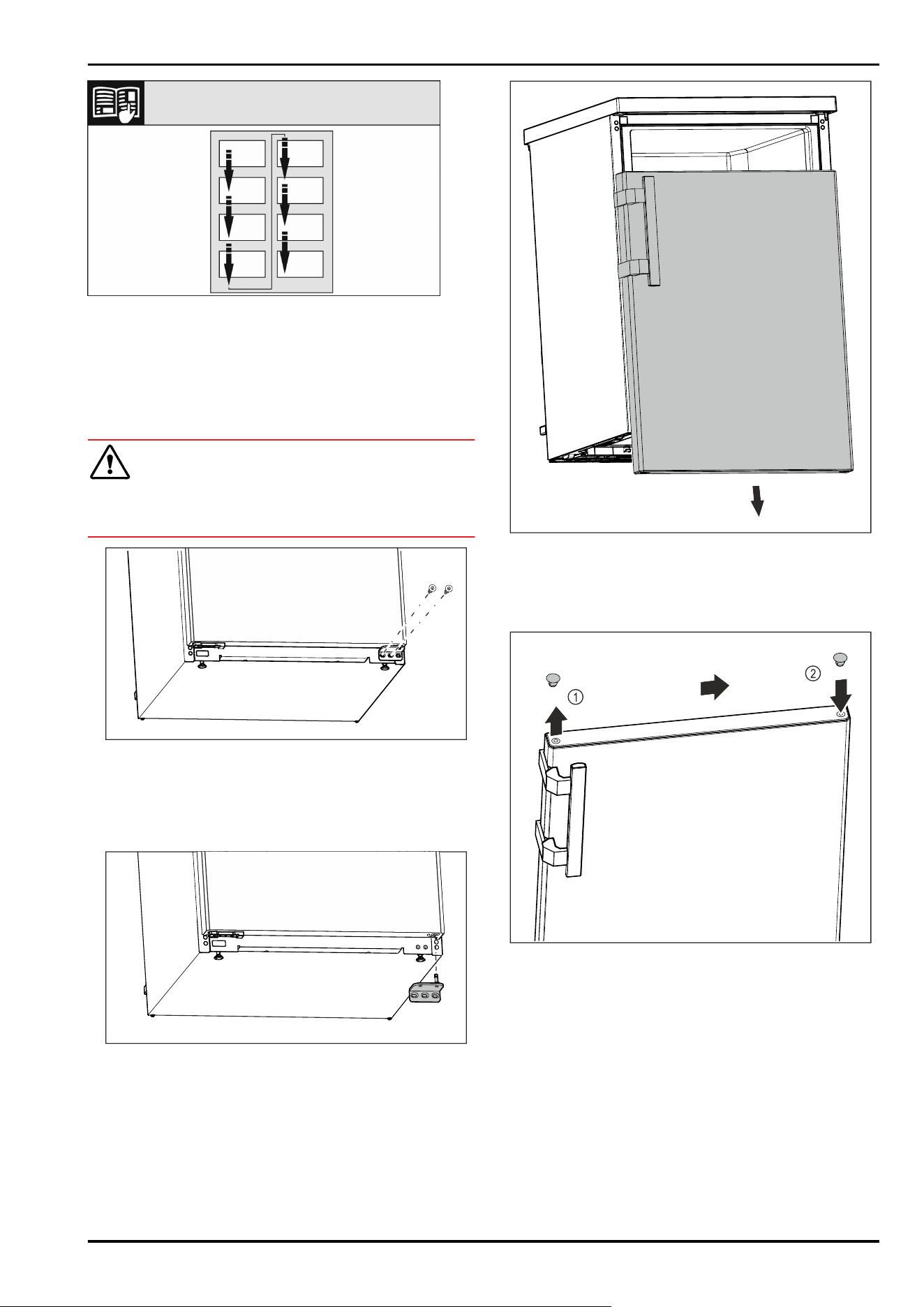

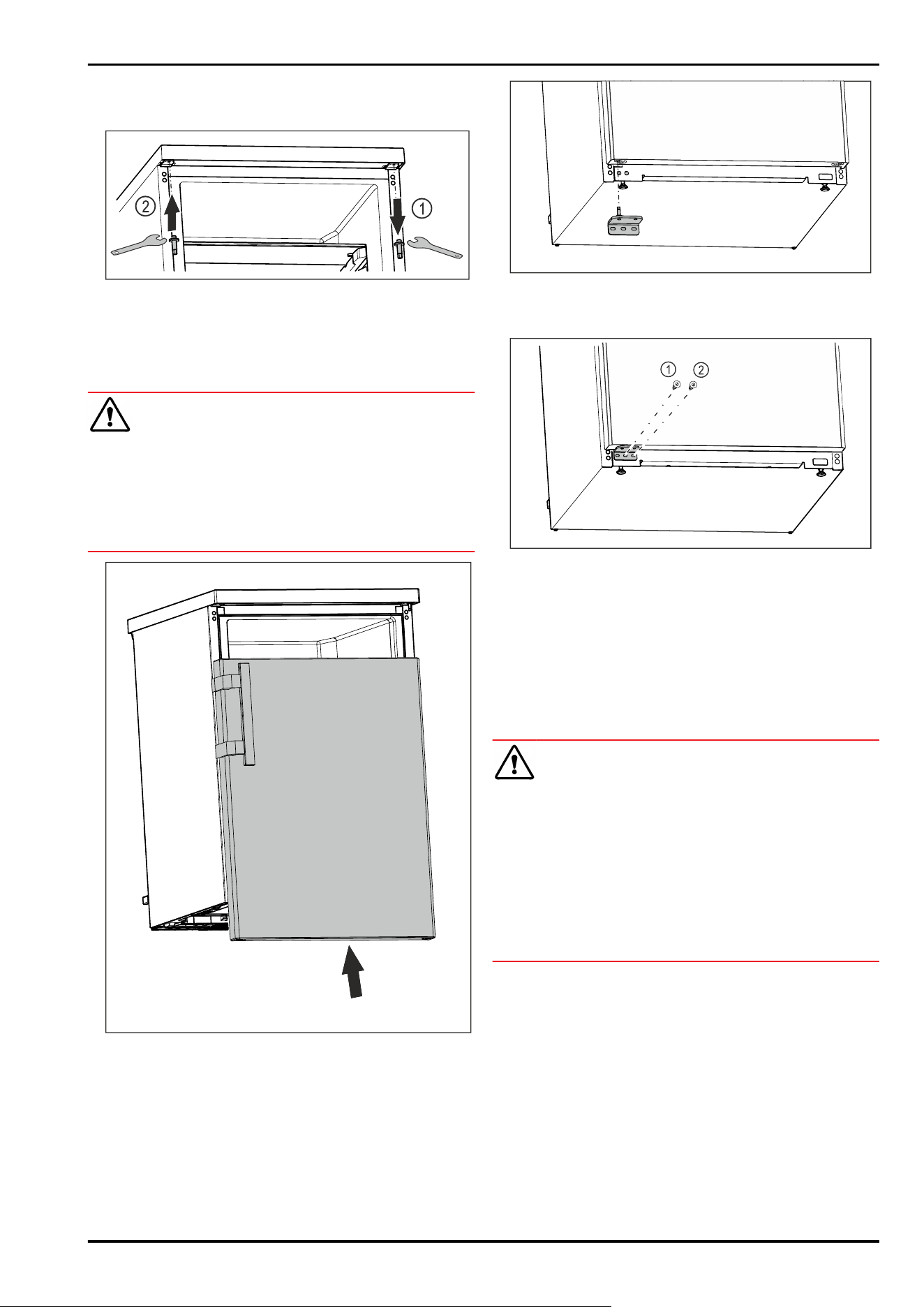

4.12 Swapping the door hinge side................................... 9
4.13 Connecting the appliance to the power supply...... 12
4.14 Switching on device (first use).................................. 13
5 Storage.................................................................. 13
5.1 Information regarding storage................................... 13
5.2 Freezer compartment.................................................. 13
5.3 Storage times............................................................... 14
6 Saving energy........................................................ 14
7 Controls................................................................. 14

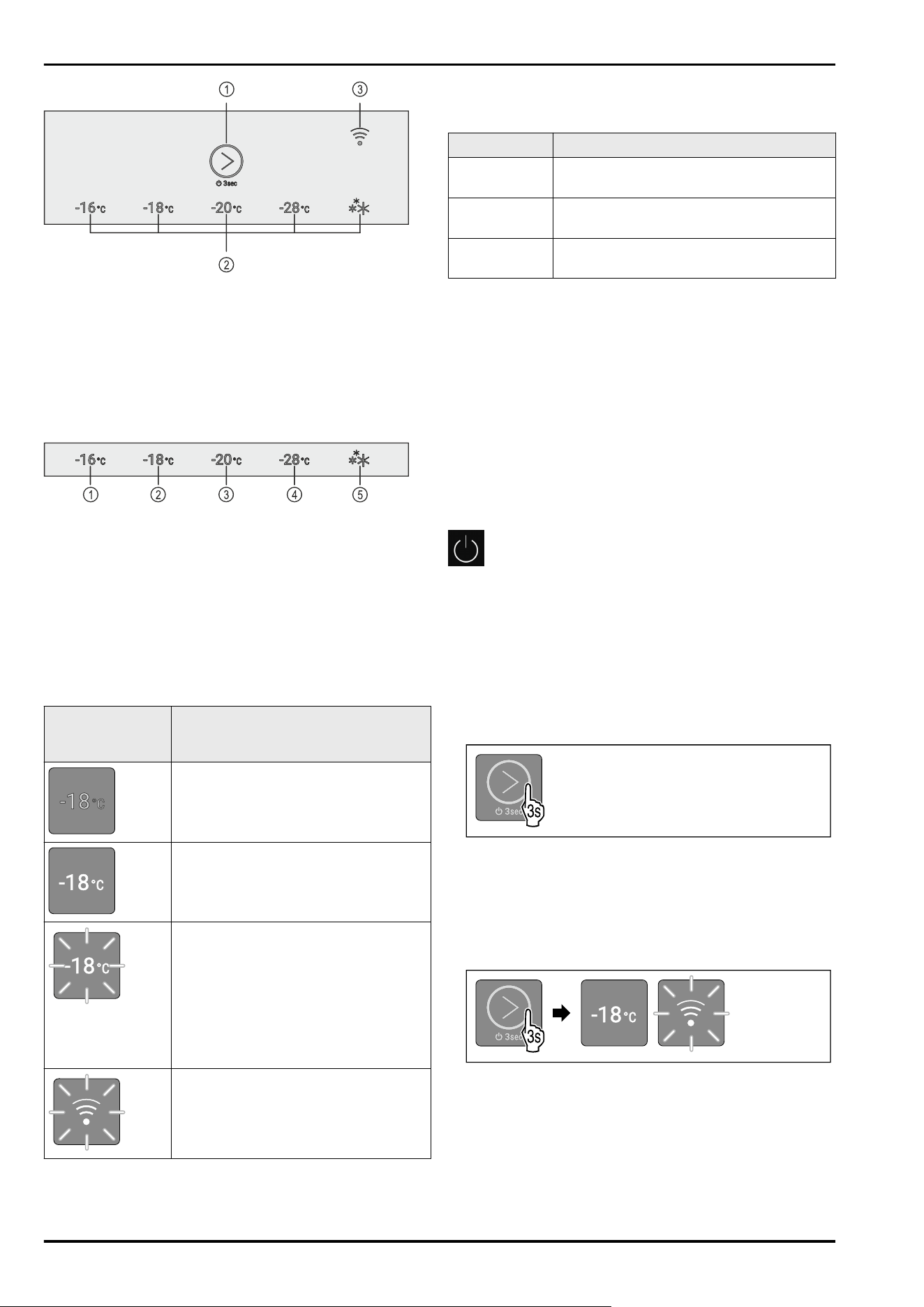

7.1 Operating controls and display elements................ 14
7.1.1 Temperature display/Status indicator.................. 15
7.1.2 LED behaviour............................................................15
7.1.3 Audible signals.......................................................... 15
7.2 Appliance functions..................................................... 15
7.2.1 Notes on the appliance functions..........................15
Switching the appliance off and on......................15
Temperature..............................................................16
SuperFrost.................................................................16
SabbathMode............................................................16
Input lock................................................................... 17
WLAN..........................................................................17
Start defrosting cycle*............................................18
Demo mode...............................................................18
Resetting to factory settings................................. 19
7.3 Messages...................................................................... 19
7.3.1 Ending messages...................................................... 19
8 Features................................................................. 20
8.1 Drawers.......................................................................... 20
8.2 Glass shelves................................................................ 20
8.3 VarioSpace.................................................................... 21
9 Maintenance.......................................................... 21
9.1 Disassembling / assembling pull-out systems...... 21
9.2 Defrosting the appliance............................................ 21
9.3 Cleaning the appliance............................................... 21
10 Customer help....................................................... 22
10.1 Technical specifications............................................. 22
10.2 Operating noises.......................................................... 22
10.3 Technical fault.............................................................. 23
10.4 Customer Service......................................................... 24
10.5 Model plate................................................................... 24
11 Shutting down....................................................... 24
12 Disposal................................................................. 24
12.1 Preparing appliance for disposal.............................. 24
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 25
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

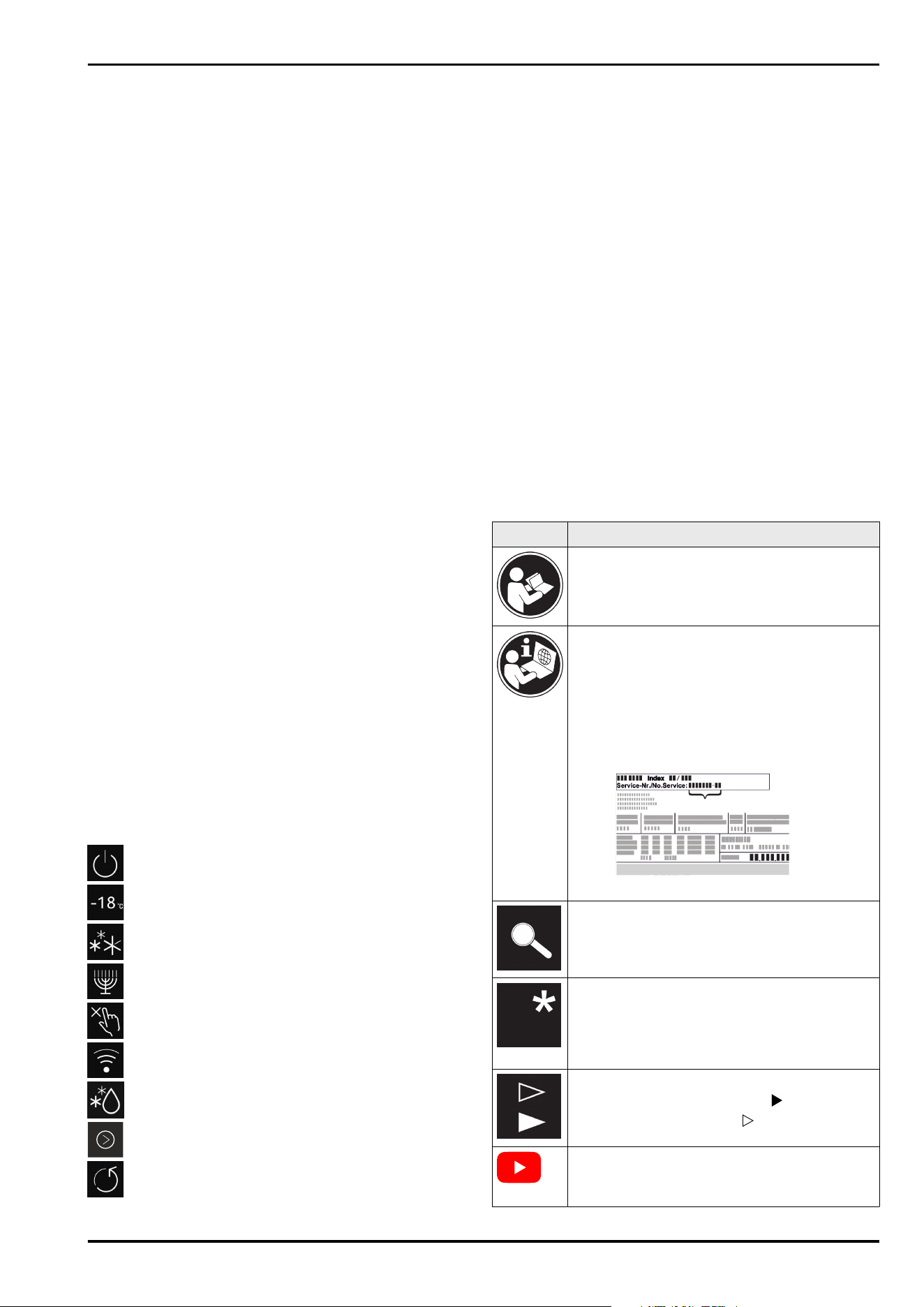

Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
2 * Depending on model and options
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
F..i 16..
FN..i 16..
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.*
1 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the next user.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards.
Children must not play with this appliance.
Cleaning and user maintenance work must
not be carried out by children without adult
supervision. Children aged between 3 and
8 are allowed to load and unload the appli‐
ance. Children below the age of 3 must be
kept away from the appliance unless they
are under continuous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
Fire hazard:
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
General safety instructions
* Depending on model and options 3
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.

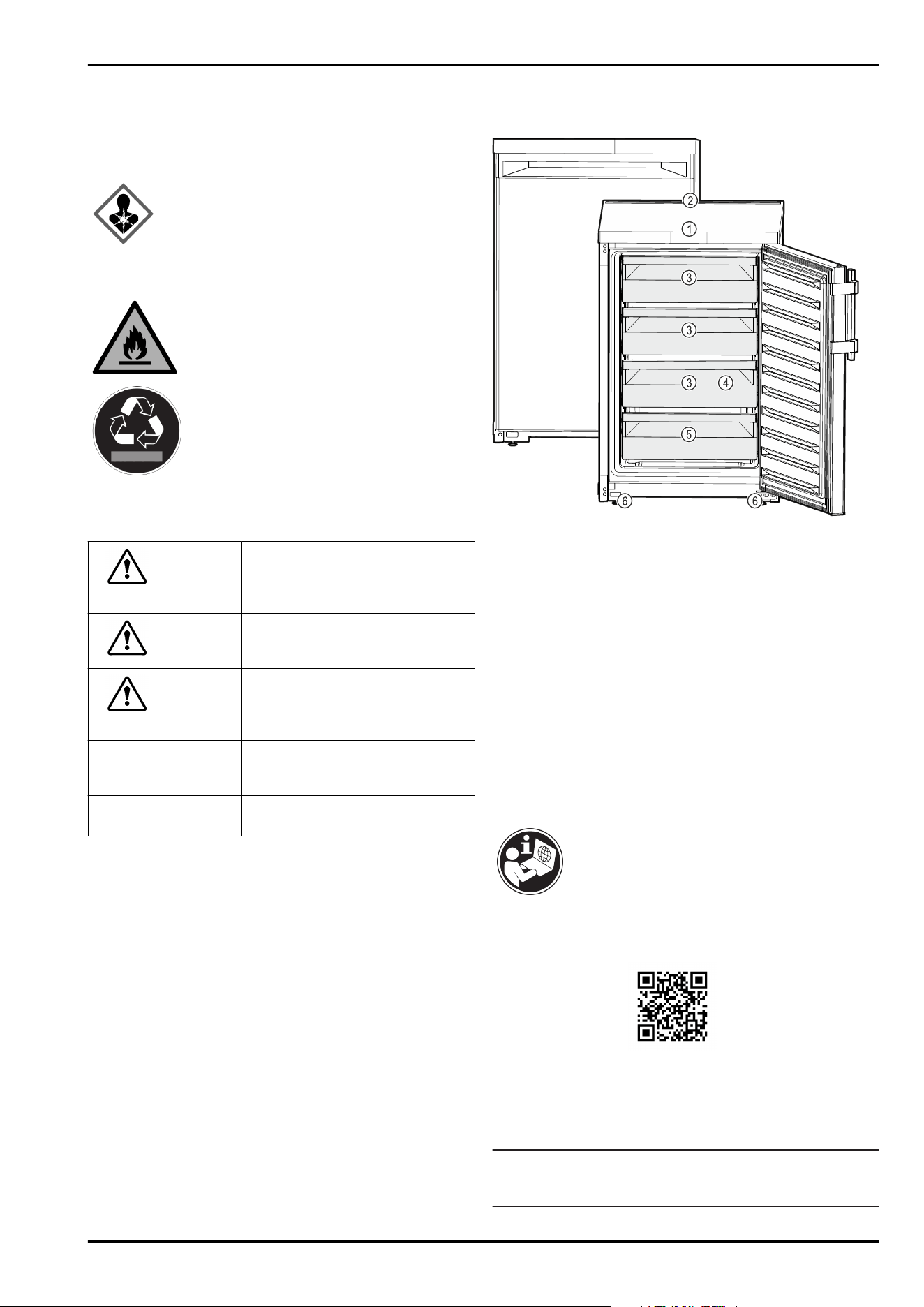

Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
Service Brochure
2.2 Overview of the appliance and
equipment
Fig. 1 Example illustration
(1)
Controls, lighting (4) Ice cube tray
(2) Ventilation slot (5) Type plate
(3) VarioSpace (6) Adjustable feet (front)
2.3 SmartDevice
SmartDevice is the networking solution for your freezer.
You can quickly and easily connect your SmartDevice-
enabled appliance to your WiFi. With the SmartDevice app,
you can operate your appliance from a mobile device. Addi‐
tional functions and setting options are available in the
SmartDevice SmartDevice app.
SmartDevice-
enabled appliance:
Your appliance is capable of being a
SmartDevice. To be able to connect
your device to WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (seeWLAN) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
Appliance at a glance
4 * Depending on model and options
2.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
►Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
The appliance is guaranteed to function prop‐
erly up to a lower ambient temperature of
-15°C.
2.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
For the EU
market:
The appliance complies with directive
2014/53/EU.
For the GB
market:
The appliance complies with Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.7 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2.8 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.

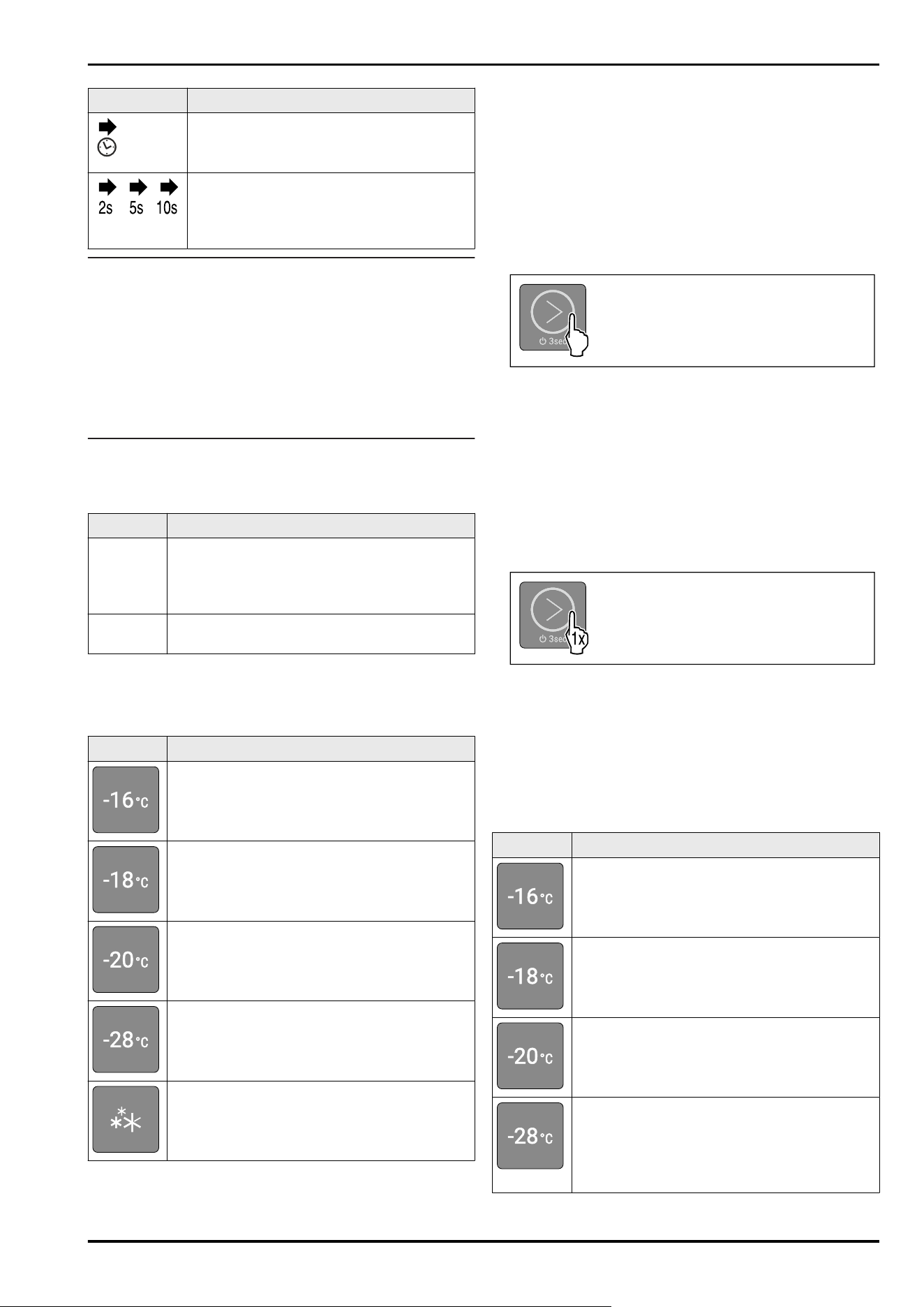

3 Functionality of the display
You operate your device with the touchbutton.
3.1 Navigation by touchbutton and
symbol explanation
In the illustrations, different symbols are used to navigate
the display by touchbutton. The following table describes
these symbols.
Symbol
Description
Touch the touchbutton with your finger
briefly:
Navigate through main menu and
submenu.
If a number is shown on the hand:
The number tells you how many times
you have to touch the touchbutton briefly
in succession to navigate to a particular
function.
Touch the touchbutton with your finger
for 3seconds:
Switch on the device.
In the main menu: Switch off the device.
In the submenu: Switch to the main menu.
Deactivate active function of the submenu.
Touch the touchbutton with your finger
for 7seconds:
In the main menu: Open the submenu.
Functionality of the display
* Depending on model and options 5
Symbol Description
Arrow with clock:
It takes more than 10 seconds for the
following message to appear in the display.
Arrow with a time indication:
It takes the specified amount of time
until the following message appears in the
display.
Note
If you touch the touchbutton for 10 seconds, then you acti‐
vate the demo mode.
► Deactivating demo mode. (see Deactivating demo mode)
If you touch the touchbutton for 15 seconds, then you open
the service menu. You can recognise the service menu by
the flashing of LED 5 and the WLAN LED. This menu is espe‐
cially for service technicians.
► Exiting the service menu: Touch the touchbutton for
3 seconds or perform no action on the display for
5 minutes.
3.2 Menus
The device functions can be found in various menus.
Menu
Description
Main menu When you switch the device on, you are auto‐
matically in the main menu.
From here, navigate to device functions and
the submenu.
Submenu The submenu contains additional device func‐
tions for setting up your device.
3.2.1 Main menu
In the main menu, it is possible to activate/deactivate the
following functions:
LED
Description
Temperature -16°C
Temperature -18°C
Temperature -20°C
Temperature -28°C
SuperFrost
Meaning of the LEDs in the main menu
3.2.1 Opening the submenu
When you switch the device on, you are automatically in the
main menu.
If you are in the submenu and want to switch to the main
menu:
► Carry out action steps (see 3.2.2Exiting the submenu) .
3.2.1 Navigating in the main menu
If you navigate in the main menu, LED 5 is followed by LED 1
again.
Fig.2
► Touch the touchbutton briefly until the LED of the desired
function lights up.
▷ Function is activated.
3.2.1 Sleep mode of the display
If you do not touch the touchbutton in the main menu for
10 seconds, the display switches to sleep mode. Sleep mode
prevents you from adjusting the temperature by accidentally
touching the touchbutton.
Ending sleep mode:
Fig.3
► Briefly touch the touchbutton.
▷ Confirmation tone sounds.
▷ Set temperature flashes once.
▷ Sleep mode is ended.
3.2.2 Submenu
In the submenu, the following functions can be acti‐
vated/deactivated:
LED
Description
Input lock
SabbathMode
Resetting to factory settings
*
Start defrosting cycle*
Meaning of the LEDs in the submenu
Functionality of the display
6 * Depending on model and options
3.2.2 Opening submenu
Fig.4
► Carry out the steps as shown in the illustration until you
hear a double confirmation tone after 7seconds.
▷ LEDs 1-5 light up: You are in the submenu.
▷ If you do not perform any action on the display for
5 seconds, the display returns to the main menu.
3.2.2 Exiting the submenu
Fig.5
► Carry out action steps according to the illustration.
-or-
► Do not touch the touchbutton for 5seconds.
▷ You are in the main menu.
3.2.2 Navigating in the submenu
If you navigate in the submenu, LED 1 follows the LED of the
last function in the submenu.
Fig.6
► Touch the touchbutton briefly until the LED of the desired
function lights up.
▷ After 5 seconds without interaction, selected function is
automatically activated.
4 Putting into operation
4 Installation conditions
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
► The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
Intended use
-
Install and use the appliance in indoor spaces only.
4.1 Location
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
-
The best place for installation is a dry and well ventilated
room.
-
If the appliance is installed in a very humid environment,
condensation can build up on the outside of the unit.
Always ensure good airlow and ventilation in the installa‐
tion location.
-
The more refrigerant there is in the appliance, the larger
the space that it is installed in must be. If the space is
too small, any leak may create a flammable mixture of
gas and air. For every 8 g of refrigerant, the installation
space must be at least 1 m
3
. Information regarding the
coolant can be found on the serial tag inside the appli‐
ance.
4.1.1 Supporting floor
-
The floor of the installation site must be horizontal and
even.
-
The surface supporting the appliance must be at the
same level as the surrounding floor.
4.1.2 Positioning
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
You can place the appliance directly next to an oven.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Install the appliance with the rear panel up against the
wall and always use the supplied wall spacers (see
below).
4.2 Installing multiple appliances
The appliances have been developed for different installa‐
tion methods. If you wish to install several appliances next
to each other or on top of each other, ensure that the
following requirements are met:
❑
Only install appliances next to or on top of each other if
they have been developed for this.
❑
Observe notices and the following table.
NOTICE
Risk of damage due to condensate!
► Do not place the appliance directly next to another
cooling/refrigeration unit.
NOTICE
Risk of damage due to condensation!
► Do not place the appliance directly on top of another
cooling/refrigeration unit.

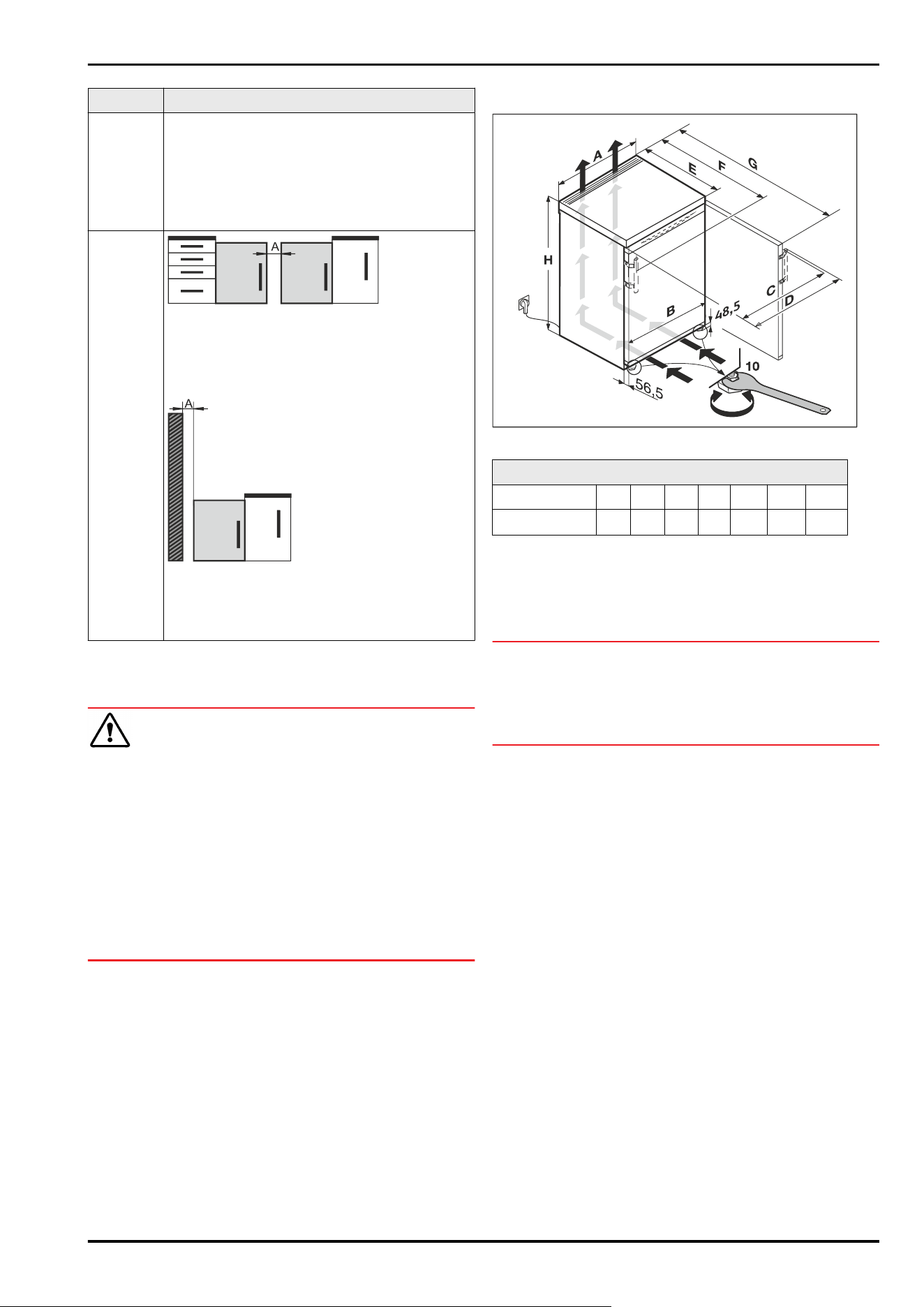

Model Installation method
All
models
Standalone
Putting into operation
* Depending on model and options 7
Model Installation method
Models
with a
model
designa‐
tion
starting
with S....
Side-by-Side (SBS)
Models
without
side wall
heating
Next to each other: Install with gap A of
100mm between the appliances.
If you do not comply with this gap, condensa‐
tion will form on the side walls between the
appliances.
On an exterior wall: Install with gap A as with
installation next to each other.
If you do not comply with this gap, condensa‐
tion may form on the appliance’s side wall.
Models and their installation method
4.3 Mains connection
WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
► Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
► Stand the appliance so that it is not touched by connec‐
tors or main cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
4.4 Installation dimensions
Fig.7
Dimensions with lever handle (mm):
H A C D E F G
F..16.. /FN..16.. 850 600 595 639
607
x
648
x
1162
x
x
This dimension increases by 35 mm on appliances with
attached wall spacer brackets. (see 4.8 Mounting wall
spacers)
4.4 Ventilation requirements
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
► Take care to ensure adequate air ventilation.
► Observe the ventilation requirements.
If the appliance is integrated into a fitted kitchen, the
following ventilation requirements must be adhered to:
-
As a rule, the larger the ventilation space the more effi‐
ciently the appliance can run.
4.5 Connection dimensions for the
power supply
The connection to the power supply is on the rear of the
appliance. To connect your appliance safely, ensure that the
following requirements are met:
❑
Dimensions for the connection to the power supply are
known and are adhered to. See table below.
❑
Connection to the power supply according to the instruc‐
tions. (see 4.13 Connecting the appliance to the power
supply)
4.6 Transporting appliance
Note when transporting the appliance:
► Transport the appliance upright.
► Use two people to transport the appliance.
During first use:
► Transport the appliance packaged.
When transporting appliances after initial commissioning
(e. g. moving or cleaning):
► Empty the appliance.
► Secure the door against unintentional opening.
Installation conditions
8 * Depending on model and options
4.7 Unpacking the appliance
Before you connect the appliance, report any damage imme‐
diately to the delivery company.
► Check the appliance and the packaging for damage
during transport. Contact the supplier immediately if you
suspect any level of damage.
► Remove all materials from the back or the side walls
of the appliance that may prevent proper installation or
ventilation.
► Remove all protective films from the appliance. Do not
use sharp or pointed objects for this.

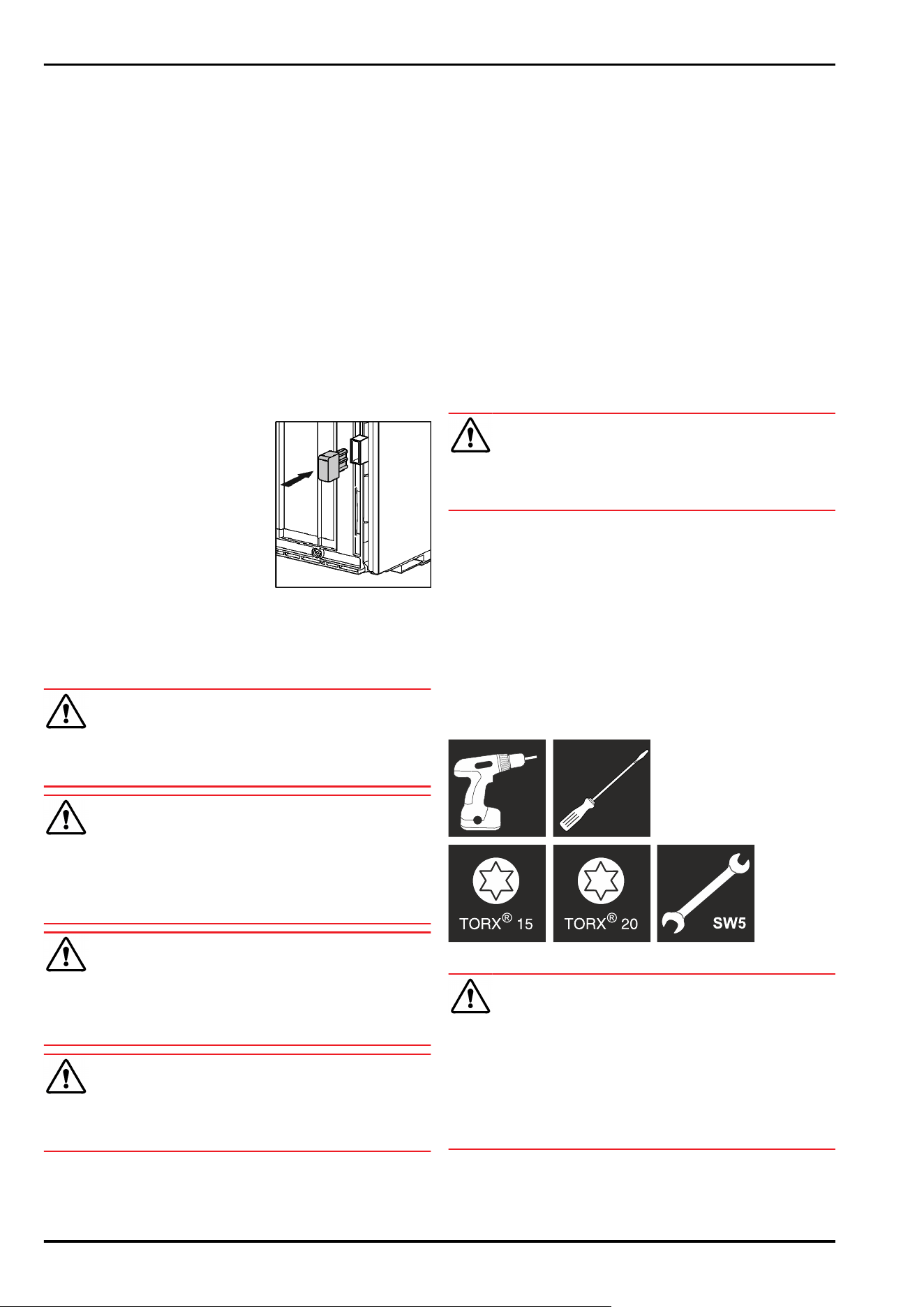

4.8 Mounting wall spacers
With wall spacers, your device achieves the declared energy
consumption and no condensation forms in high ambient
humidity. The device is fully functional without the spacer
brackets, but its energy consumption will be slightly higher.
If you insert the wall spacers, then the device depth
increases by approx.35mm.
► Appliance with enclosed wall spacers: Insert the wall
spacers on the rear of the appliance at the bottom left
and right.
4.9 Setting up the appliance
CAUTION
Risk of injury due to heavy appliance!
► Have two people transport the appliance to its installa‐
tion site.
WARNING
Risk of fire due to short circuit!
► When you set the appliance up: do not kink, jam or
damage the mains cable.
► The appliance must not be operated with a defective
mains cable.
WARNING
Danger of injury and damage due to the appliance being
unstable!
The appliance can topple over.
► Secure the appliance as described in the instructions.
WARNING
Fire hazard and danger of damage!
► Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Ensure that the following conditions are met:
❑
Only move the device when it is not loaded.
❑
Only install the appliance with help.
►
Remove the mains cable from the package.
► Plug the mains cable’s IEC socket completely into the
appliance plug on the back of the appliance. Ensure that
the IEC socket is tight.
► Use a cord to lay the mains plug to a freely accessible
socket if required.
4.10 After setting up
► Remove all transport safety components.
► Take off the protective film from the exterior of the appli‐
ance.
► Take off the protective film from the trim panels and
drawer fronts.
► Clean the device. (see 9.3Cleaning the appliance)
► Note the type (model, number), appliance designation,
appliance/serial number, purchase date and dealer’s
address.
4.11 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
► Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
► Take the packaging material to an official collecting
point.
4.12 Swapping the door hinge side
Tool
Fig.8
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw on the bearing brackets/bearing pins tightly with
4Nm.
► Check all screws and retighten them if necessary.
Installation conditions
* Depending on model and options 9
Fig.9
Note the direction of reading.
4.12.1 Preparation
► Tilt the device backwards with two persons.
4.12.2 Loosen the lower bearing components
CAUTION
Risk of injury if the door tips!
► Take good hold of the door.
► Set down the door carefully.
Fig. 10
► Unscrew the middle screw on the lower swap bearing
block with a Torx 20 screwdriver. (see Fig. 10)
► Unscrew the inner screw on the lower swap bearing
block with a Torx 20 screwdriver. (see Fig. 10)
► Put the screws aside.
Fig.11
► Remove the swap bearing block downwards. (see Fig.11)
► Set the swap bearing block aside.
Fig.12
► Remove the door downwards. (see Fig.12)
► Set down the door.
4.12.3 Preparing the door
Fig.13
► Carefully lift the cover plug on the top of the door
Fig.13(1) with a slotted screwdriver.
► Insert the cover plug on the opposite side. Fig.13(2)
Installation conditions
10 * Depending on model and options
4.12.4 Re-locating the handle
Fig. 14
► Pull off the cover. Fig. 14(1)
► Unscrew the screws with a Torx 15 screwdriver. Fig. 14(2)
► Take off the handle. Fig. 14(3)
► Carefully lift the side plug with a slotted screwdriver and
pull it out. Fig. 14(4)
► Replace the plug on the other side. Fig. 14(5)
Fig. 15
► Attach the handle on the opposite side. Fig. 15(1)
▷ The screw holes must be exactly on top of each other.
► Tighten screws with screwdriver T15. Fig. 15(2)
► Place the covers on the side and push them on. Fig. 15(3)
▷ Ensure that they latch into place.
4.12.5 Relocating the bearing components
Fig. 16
► Carefully lift the cover plug at the bottom of the device
with a slotted screwdriver.
► Pull out the cover plug. Fig. 16(1)
► Insert the cover plug on the opposite side. Fig. 16(2)
Fig.17
► Unscrew the bolt of the lower swap bearing block with an
Allen key AF5. Fig.17(1)
► Insert the bolt on the opposite side. Fig.17(2)
► Tighten the bolt with an Allen key AF5.
Installation conditions
* Depending on model and options 11
4.12.6 Relocating the upper bearing compo‐
nents
Fig. 18
► Unscrew the upper bolt with an Allen key. Fig. 18(1)
► Tighten the bolt on the opposite side with an Allen key.
Fig. 18(2)
4.12.7 Fitting the door
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw the bearing brackets on firmly with 4Nm.
► Check all screws and retighten them if necessary.
Fig. 19
► Slide the door onto the upper bolt in closed status. (see
Fig. 19)
Fig.20
► Insert the lower swap bearing block on the opposite side.
(see Fig.20)
Fig.21
► Tighten the middle screw of the swap bearing block
Fig.21(1) with a Torx 20 screwdriver.
► Tighten the inner screw of the swap bearing block
Fig.21(2) with a Torx 20 screwdriver.
► Check the door.
▷ The door hinge has been changed.
4.13 Connecting the appliance to the
power supply
WARNING
Danger of electric shock and injury due to damaged appli‐
ance or damaged mains cable!
Danger of cuts and fatal injuries. If the appliance or the
mains cable is damaged during transport, you may be elec‐
trocuted. You could also cut yourself on damaged parts of
the appliance housing.
► Check the appliance and the mains cable for damage
after transport.
► Never put the appliance into operation if the appliance or
the mains cable are damaged.
► Contact Customer Service.
You can connect your appliance to the mains using the
power cable supplied separately. The mains power cable
has an appliance coupler at one end and a mains plug at the
other end.
Make sure that the following requirements are fulfilled:
-
The appliance and power cable are undamaged.
-
The appliance is set up in accordance with the regula‐
tions. (see4.8 Mounting wall spacers)
-
Requirements for the electrical connection are met.
(see4 Installation conditions)
-
Dimensions for connection in accordance with regula‐
tions are known and observed. (see 4.5 Connection
dimensions for the power supply)
-
Mains voltage and frequency correspond to the specifica‐
tions on the type plate.
Installation conditions
12 * Depending on model and options
-
The socket is earthed according to the regulations and
fused.
-
The fuse tripping current is between 10A and 16A.
-
The socket is easily accessible and is not behind the
appliance. (see 4.5 Connection dimensions for the power
supply)
NOTICE
Danger of damage to incorrect operation!
Damage to the electrical components of the appliance.
► Only use the supplied mains cable.
WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
► Do not use an extension cable.
► Do not use distributor blocks.
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
► Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
► Connect the mains cable plug to the power supply.
Ensure that the plug is tightly in the socket.
▷ The appliance is connected. For information regarding
first use, see the following section or the operating
instructions.

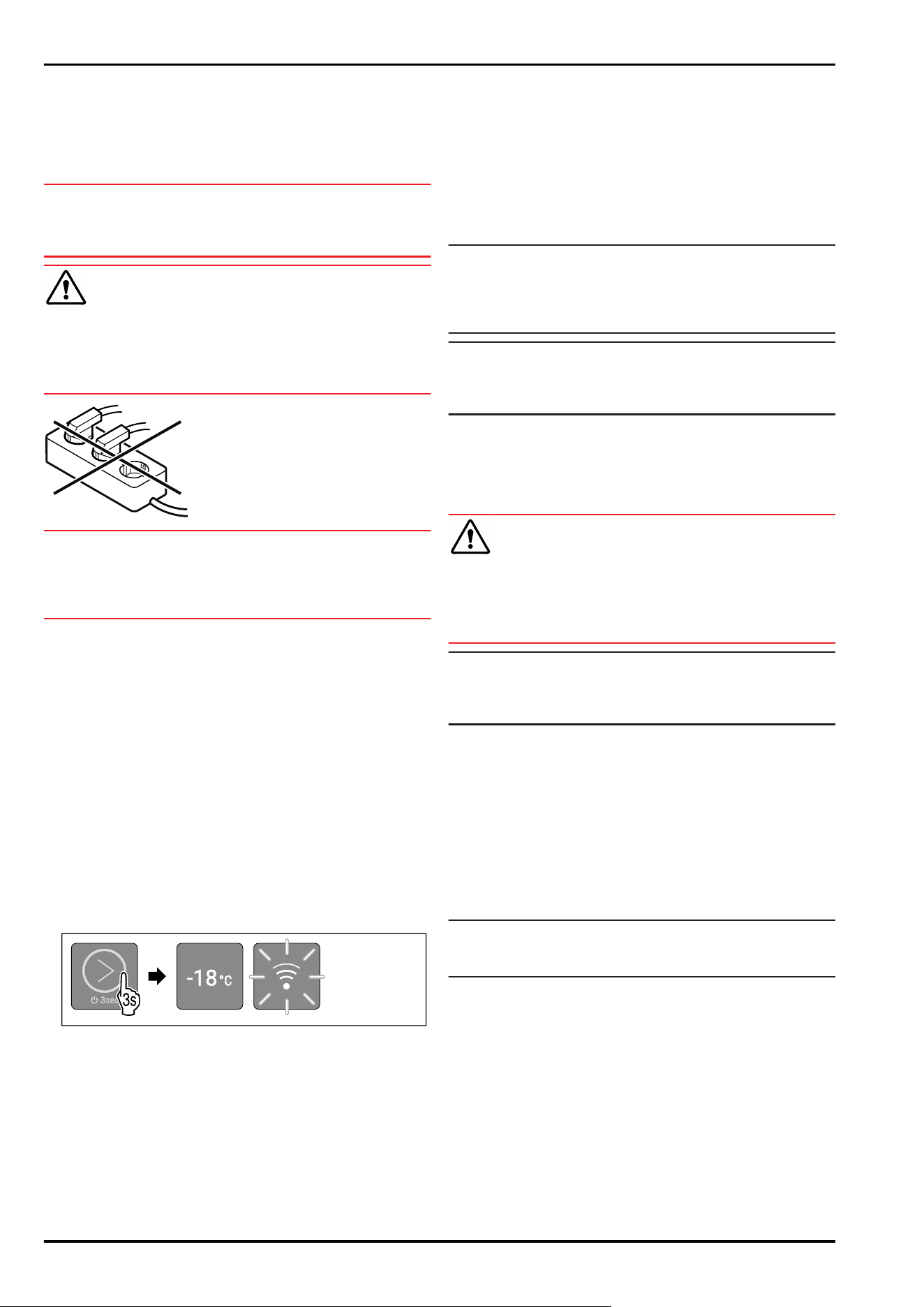

4.14 Switching on device (first use)
Make sure that the following requirements are fulfilled:
❑
The device has been installed and connected in accord‐
ance with the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the
device.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the display.
(see3 Functionality of the display)
Switching on the device:
Fig.22
► Touch the touchbutton as shown in the illustration for
3 seconds until you hear the confirmation tone.
▷ The device is switched on.
▷ Interior lighting is activated.
▷ LED 2 lights up: Temperature is set to -18 °C at the
factory.
▷ The device cools to the target temperature set at the
factory.
▷ WLAN LED flashes: WLAN access point is open for
30 minutes. (see Establishing WLAN connection)
Device starts in demo mode:
When the device starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
Display switches to sleep mode:
When the display switches to sleep mode:
► Briefly touch the touchbutton. (see 3.2.1 Sleep mode of
the display)
More information:
-
Start the SmartDevice. (see 2.3 SmartDevice) and
(seeWLAN)
Note
The manufacturer recommends:
► Store frozen foods at -18°C or colder.
► Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Package food properly.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
5.2 Freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
5.2.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.
Storage
* Depending on model and options 13
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the quantity to be frozen, you can activate
SuperFrost before freezing in order to achieve lower freezing
temperatures. (see SuperFrost)
Appliance without NoFrost:*
► Activate SuperFrost if the amount of food you have to
freeze is more than approx. 1 kg.*
Appliance with NoFrost:*
► Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.*
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Arranging your food properly
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
► Do not freeze bottles and cans containing drinks!
Arranging your food properly
On devices with NoFrost:*
Place packaged food in the top drawer.*
If possible, place food in the front of the drawer.*
On devices without NoFrost:*
Place packaged food in the bottom drawer.*
5.2.2 Defrosting food
WARNING
Risk of food poisoning!
► Do not re-freeze thawed food.
► Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In a fridge
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
► Take out only as much food as necessary.
5.3 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
Recommended storage period for various types of food
Ice cream at -18°C 2 to 6 months
Sausages, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 2.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
If there is a thick layer of frost in the appliance: defrost
the appliance.*
Dust deposits increase energy consump‐
tion:
-
For refrigerators with heat exchangers
dust the metal grid on the back of the
appliance once a year.
7 Controls
7.1 Operating controls and display
elements
The display provides a quick overview of the current status
of the appliance, the temperature setting, the status of
functions and messages.
You operate your appliance with the touchbutton.
Saving energy
14 * Depending on model and options
Fig. 23 Operating controls and display elements
(1)
Touchbutton (oper‐
ating control)
(3) WLAN LED
(2) Temperature display/
Status indicator
7.1.1 Temperature display/Status indicator
The temperature display/status indicator consists of five
LEDs:
Fig. 24 Temperature display/Status indicator
(1)
LED1 (4) LED4
(2) LED2 (5) LED5
(3) LED3
The LEDs indicate temperature settings (see 3.2.1 Main
menu) in the main menu and functions in the submenu
(see 3.2.2Submenu) .
7.1.2 LED behaviour
You can recognise the status of the device by the light up or
flashing of the LEDs:
LED behaviour
(example illustra‐
tion)
Description
LED does not light up:
LED is not selected. Function is not
active.
LED lights up:
LED is selected or function is active.
LED of the temperature display/
status indicator flashes:
LED flashes after a power failure or
temperature alarm until set tempera‐
ture is reached.
Several LEDs flash simultaneously:
An error has occurred.
(see 7.3Messages)
WLAN LED flashes:
WLAN access point is open or WLAN
connection is being established.
LED behaviour
7.1.3 Audible signals
An audible signal sounds in the following cases:
Audible signal Description
Confirmation
tone
Sounds when the touchbutton is touched.
Alarm tone Sounds when an error occurs.
(see 7.3Messages)
Error tone Sounds when the touchbutton is touched,
but the interaction is not possible.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see3 Functionality of the display)
❑
You have familiarised yourself with the operating and
display elements of your appliance. (see 7.1 Operating
controls and display elements)
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the device
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 11 Shutting down) are carried
out.
❑
You are in the main menu. (see 3.2.2Exiting the submenu)
Fig.25
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ LEDs of the display no longer light up.
▷ Interior lighting is deactivated.
▷ Device is switched off.
Switching on the device
Fig. 26 Example illustration depending on the previously
set temperature
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ The device is switched on.
▷ Interior lighting is activated.
▷ During first use: Temperature is set to -18 °C at the
factory.
Controls
* Depending on model and options 15
▷ If the device has been in operation before: Previously set
temperature is set.
▷ The device cools to the target temperature set.
▷ When using the device for the first time or if the device
was not previously connected to the WLAN: WLAN access
point is open for 30 minutes. (see Establishing WLAN
connection)
▷ If the device was previously connected to the WLAN: The
device automatically connects to the WLAN.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Recommended setting: -18°C
Setting the temperature
The function is located in the main menu on the positions of
LEDs 1-4.

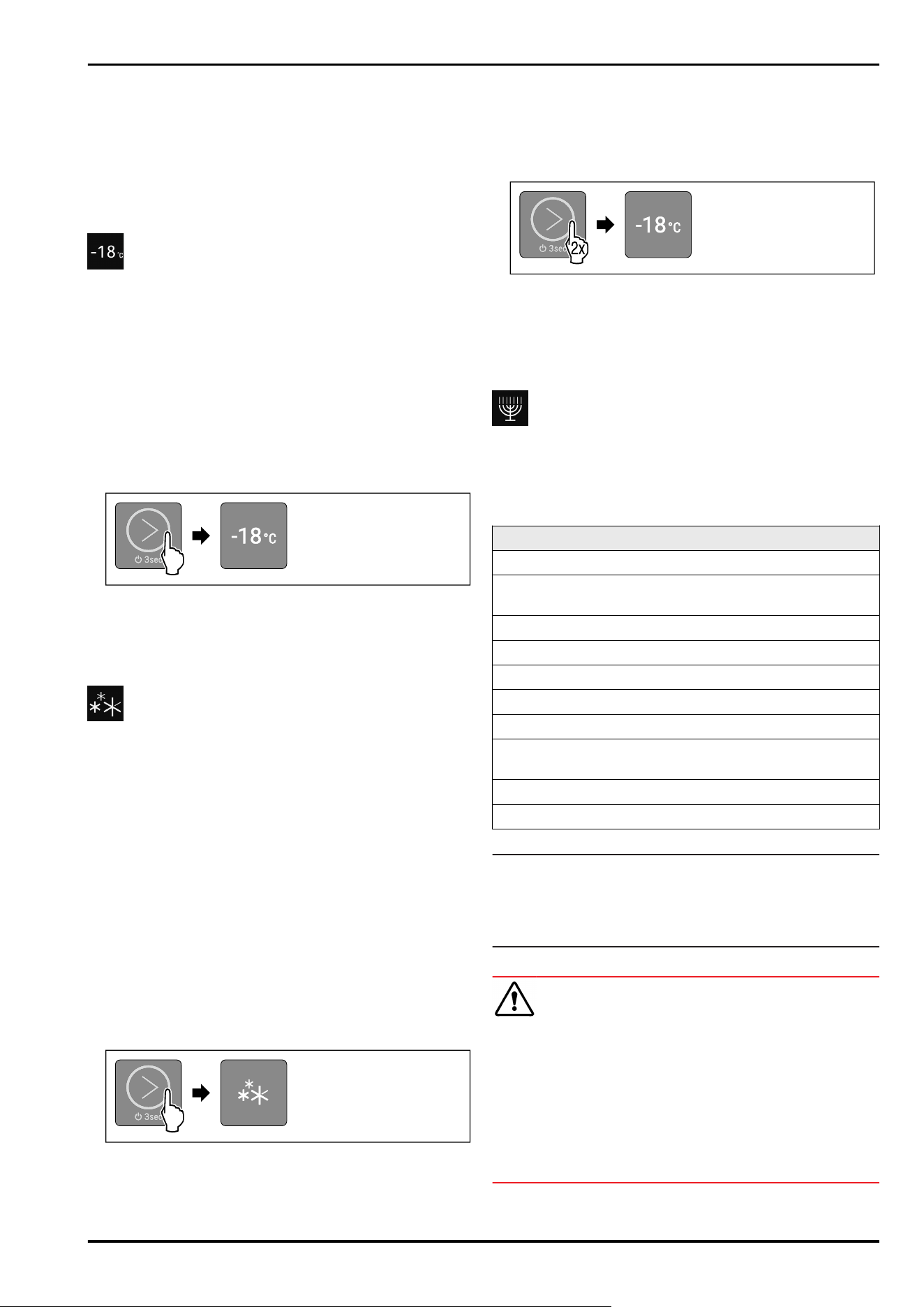

Fig. 27 Example illustration
► Briefly touch the touchbutton as shown until the desired
temperature lights up.
▷ Temperature is set.
▷ The device cools to the target temperature set.
SuperFrost
You can use this function to activate or deactivate
SuperFrost. If SuperFrost is activated, then the appliance
increases the freezing capacity. It allows you to achieve
lower freezing temperatures.
Application:
-
Quickly freeze fresh food through to the core.
This ensures that the nutrition, appearance and taste of
frozen food is maintained.
-
Increase the cold reserve in stored frozen food before
defrosting the device.
Activating SuperFrost
The function is located in the main menu at the position of
LED 5.
Make sure that the following requirements are fulfilled:
❑
Freezing quantity and time for activation of SuperFrost
are taken into account. (see Freezing food using
SuperFrost)
Fig.28
► Briefly touch the touchbutton as shown until LED 5 lights
up.
▷ LED 5 lights up: SuperFrost is activated.
▷
The device cools to the target temperature.
Deactivating SuperFrost
SuperFrost is automatically deactivated after 56 to 72 hours.
However, you can also deactivate SuperFrost manually at
any time by setting a temperature:
Fig. 29 Example illustration
► Briefly touch the touchbutton as shown until the desired
temperature lights up.
▷ Temperature is set and SuperFrost is deactivated.
▷ The appliance continues to run in normal mode.
▷ The device cools to the target temperature set.
SabbathMode
With this function you activate or deactivate the
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
LEDs 1-5 light up.
All functions in the display are locked except for the Deac‐
tivating SabbathMode function.
Active functions remain active.
The interior lighting is deactivated.
Messages are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrosting cycle operates only for the specified time,
without consideration to the device consumption.
After a power failure, the device returns to SabbathMode.
The WLAN connection is disconnected.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
The function is located in the submenu at the position of
LED2.
Controls
16 * Depending on model and options

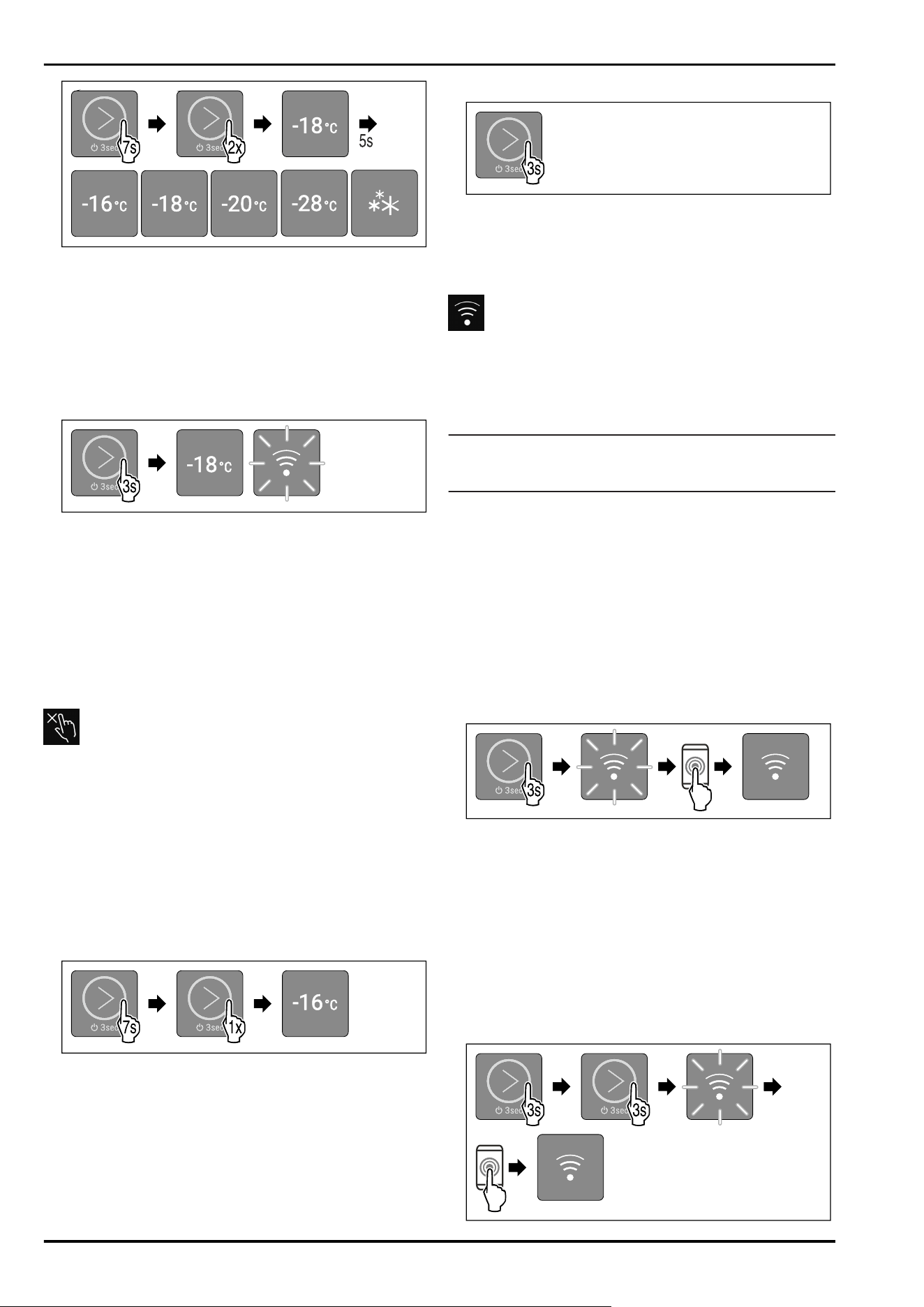

Fig.30
► Carry out action steps according to the illustration.
▷ LED 2 lights up.
▷ After 5 seconds without interaction, SabbathMode is
activated. LEDs 1-5 light up.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig. 31 Example illustration depending on the previously
set temperature
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ SabbathMode is deactivated.
▷ Interior lighting is activated.
▷ The device continues to run in normal mode. LED of the
previously set temperature lights up.
▷ If the device was previously connected to the WLAN: The
device automatically connects to the WLAN.
▷ You are in the main menu.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e. g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
The function is located in the submenu at the position of
LED1.
Fig.32
► Carry out action steps according to the illustration.
▷ LED 1 lights up.
▷ After 5 seconds without interaction, input lock is auto‐
matically activated.
Deactivating the input lock
Fig.33
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ Input lock is deactivated.
▷ You are in the main menu.
WLAN
Use this function to connect your device to WLAN. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WLAN connection.
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
Establishing WLAN connection
To connect the device to the WLAN, the WLAN access point
of the device must be open. If you are using the device for
the first time, open the WLAN access point by switching on
the device. If the device was already in operation without
a WLAN connection, then open the WLAN access point by
switching the device off and on again.
Make sure that the following requirements are fulfilled:
❑
SmartDevice app is installed (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is complete.
Switching on device (first use):
Fig.34
► Switching on the device: Touch the touchbutton as
shown in the illustration for 3 seconds until you hear the
confirmation tone.
▷ The device is switched on.
▷ WLAN LED flashes: WLAN access point is open for
30 minutes.
► Connect the device to the WLAN via the SmartDevice
app.
▷ If the device is connected to WLAN: WLAN LED lights up
continuously.
Switch the device off and on again (device is already in
operation):
Controls
* Depending on model and options 17
Fig.35
► Switch off the device in the main menu: Touch the touch‐
button as shown in the illustration for 3 seconds until you
hear the confirmation tone.
▷ Device is switched off.
► Switching the device back on: Touch the touchbutton as
shown in the illustration for 3 seconds until you hear the
confirmation tone.
▷ The device is switched on.
▷ WLAN LED flashes: WLAN access point is open for
30 minutes.
► Connect the device to the WLAN via the SmartDevice
app.
▷ If the device is connected to WLAN: WLAN LED lights up
continuously.
Disconnecting the WLAN connection
To disconnect the WLAN connection, you must reset the
entire device to factory settings.
► Carry out action steps. (see Resetting to factory
settings)
▷ Device is reset.
▷ WLAN LED flashes: WLAN access point is open for
30 minutes.
▷ After 30 minutes, the WLAN connection is deactivated.
Resetting WLAN connection
To reset the WLAN connection, you must reset the entire
device to factory settings.
► Carry out action steps. (see Resetting to factory
settings)
▷ Device is reset.
▷ WLAN LED flashes: WLAN access point is open for
30 minutes.
► Reconnect the device to the WLAN. (see Establishing
WLAN connection)
-or-
► Use the device without a WLAN connection.
Start defrosting cycle*
Use this function to start the automatic defrosting cycle
manually if it does not start automatically in the event of a
fault.
This function applies to NoFrost devices.*
Starting defrosting cycle
The function is located in the submenu at the position of
LED4.
When you start the defrosting cycle, all functions except
the Cancelling defrosting cycle function are disabled
during the defrosting process.

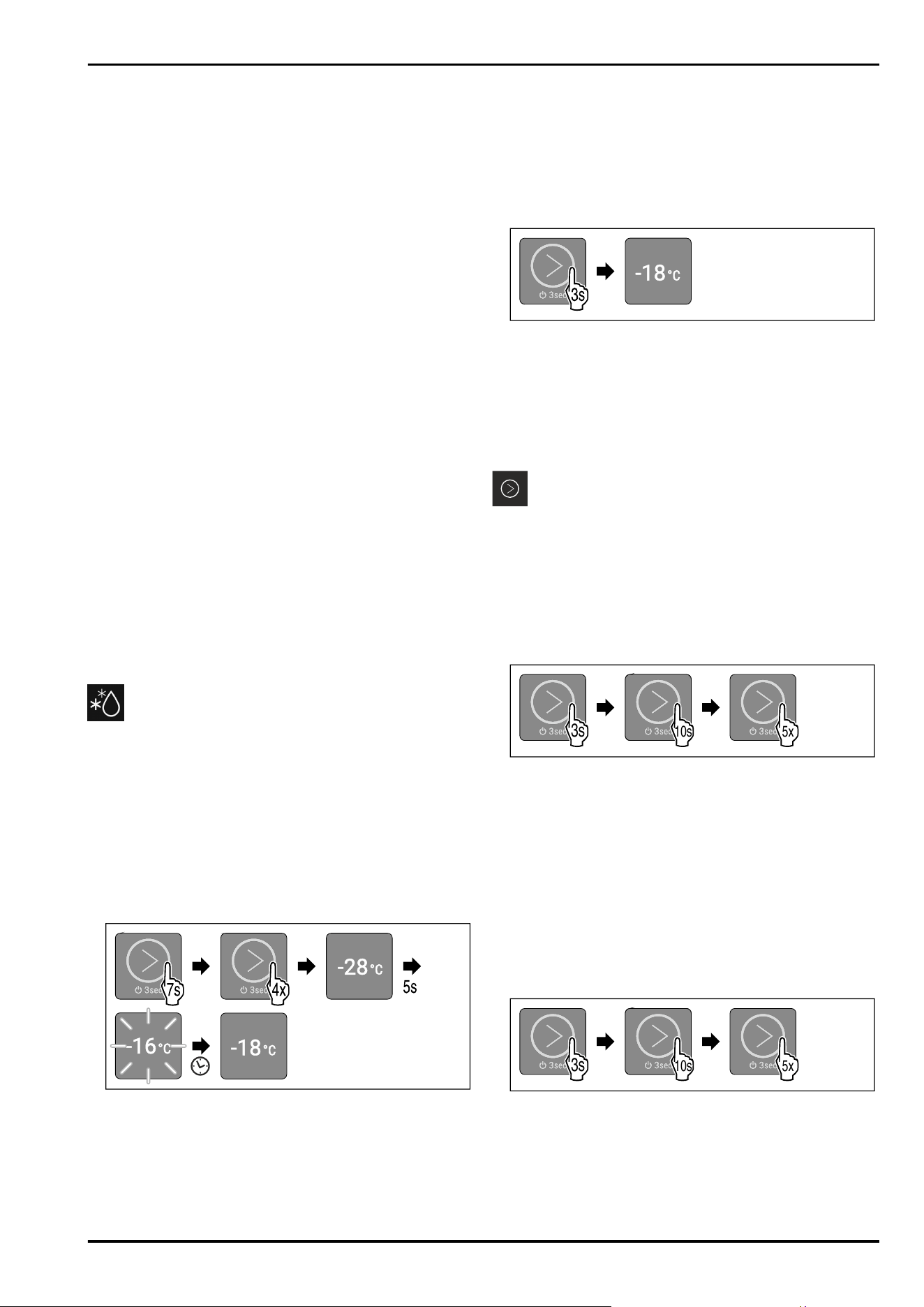

Fig. 36 Example illustration depending on the previously
set temperature
► Carry out action steps according to the illustration.
▷ LED 4 lights up.
▷ After 5 seconds without interaction, the defrosting cycle
starts. LED 1 flashes until defrosting cycle is automati‐
cally completed.
▷
When defrosting cycle is finished: The device continues
to run in normal mode. LED of the previously set tempera‐
ture lights up.
▷ You are in the main menu.
Cancelling defrosting cycle
The defrosting cycle will be stopped automatically. However,
you can also cancel the defrosting cycle at any time during
the defrosting process:
Fig. 37 Example illustration depending on the previously
set temperature
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ Defrosting cycle is cancelled.
▷ The device continues to run in normal mode. LED of the
previously set temperature lights up.
▷ You are in the main menu.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate device features. If you activate demo mode, all
refrigeration functions are deactivated and you cannot open
the submenu.
If you activate and then deactivate demo mode, the device
will be reset to factory defaults. (see Resetting to factory
settings)
Activating demo mode
4x
3s
10s 5x
Fig.38
► Touch the touchbutton as shown in the illustration for
3 seconds until you hear the confirmation tone.
▷ Device is switched off.
► Touch the touchbutton as shown in the illustration for
10 seconds until you hear the confirmation tone after
10seconds.
► Briefly touch the touchbutton five times.
▷ All temperature LEDs light up twice for a short time:
Demo mode is activated.
▷ Device is switched off.
► Switch on the device. (see Switching on the device)
▷ The device is in demo mode.
Deactivating demo mode
4x
3s
10s 5x
Fig. 39
► Touch the touchbutton as shown in the illustration for
3 seconds until you hear the confirmation tone.
▷ Device is switched off.
► Touch the touchbutton as shown in the illustration for
10 seconds until you hear the confirmation tone after
10seconds.
► Briefly touch the touchbutton five times.
Controls
18 * Depending on model and options
▷ All temperature LEDs light up briefly four times: Demo
mode is deactivated.
▷ Device is switched off.
► Switch on the device. (see Switching on the device)
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Application:
-
Reset device
-
Resetting WLAN connection
Performing a reset
The function is located in the submenu at the position of
LED 3.

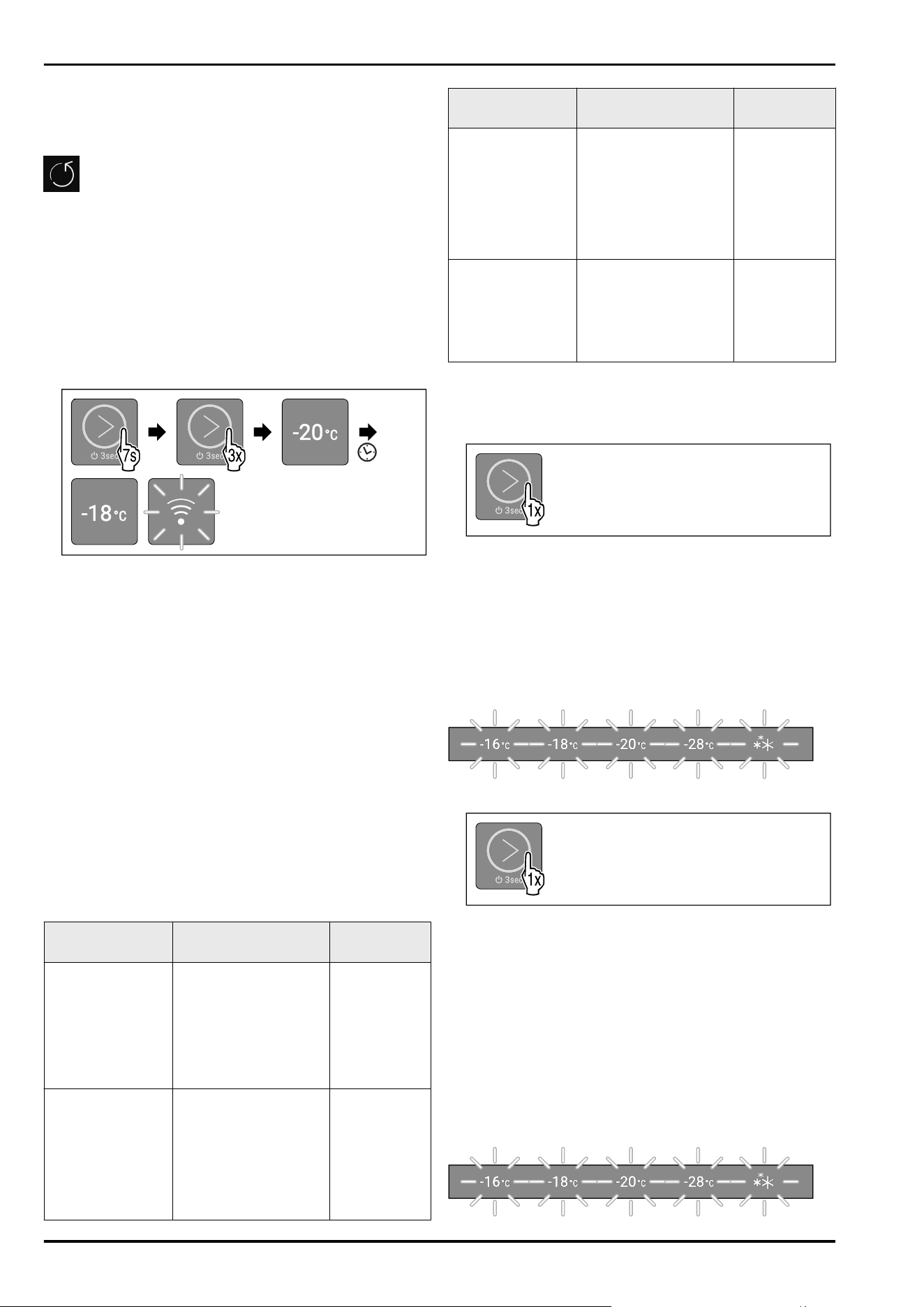

Fig.40
► Carry out action steps according to the illustration.
▷ LED 3 lights up.
▷ After 5 seconds without interaction, the device is reset
and restarted.
▷ Device is reset.
▷ LED 2 lights up: Temperature is set to -18 °C at the
factory.
▷ The device cools to the target temperature set at the
factory.
▷ WLAN LED flashes: WLAN connection is deactivated and
WLAN access point is open for 30 minutes. (see Estab‐
lishing WLAN connection)
7.3 Messages
Messages are indicated audibly by an alarm tone and visu‐
ally by the LEDs flashing in the display. Different LEDs flash
depending on the type of message.
You can end the following messages yourself. For all
other messages, you must contact the customer service.
(see 10.4 Customer Service)
Message
Cause Exit the
message
The alarm tone
sounds at an
ever-increasing
volume.
Interior lighting
pulses.
Door alarm
The message appears
if the door is open for
more than 60seconds.
Carry out
action steps
(see Door
alarm) .
LED 1-5 flash.
Alarm tone
sounds.
Interior lighting
pulses.
Power outage
alarm
The message appears
when a power failure
has occurred and the
freezing temperature
has changed.
Carry out
action steps
(see Power
outage
alarm) .
Message Cause Exit the
message
LED 1-5 flash.
Alarm tone
sounds.
Interior lighting
pulses.
Temperature
alarm
The message appears
if the temperature
does not correspond
to the set tempera‐
ture.
Carry out
action steps
(see Tempera‐
ture alarm) .
LED 2, LED 4 and
WLAN LED flash.
WLAN error
The message appears
if the device could
not be connected to
the WLAN or if the
WLAN connection is
interrupted.
Carry out
action steps
(see WLAN
error) .
Overview of messages
7.3.1 Ending messages
Door alarm
Fig. 41
► End alarm: Carry out action steps according to the
illustration.
-or-
► Close the door.
▷ Alarm has ended.
▷ If the door is not closed: Message appears again after
4 minutes.
Power outage alarm
Fig. 42 Display in case of power failure
Fig.43
► End alarm: Carry out action steps according to the
illustration.
▷ The device continues to run in normal mode.
▷ LED of the previously set temperature flashes until
temperature is reached.
▷ LED flashes once per second: Freezing temperature was
below -9 °C during the power failure. Food can still be
consumed.
▷ LED flashes twice per second: Freezing temperature has
risen above -9°C during the power failure.
When LED flashes twice per second:
► Check the food.
Temperature alarm
Controls
* Depending on model and options 19
Fig. 44 Display in case of temperature alarm
Possible causes for temperature differences:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The device is faulty.
► Eliminating causes.

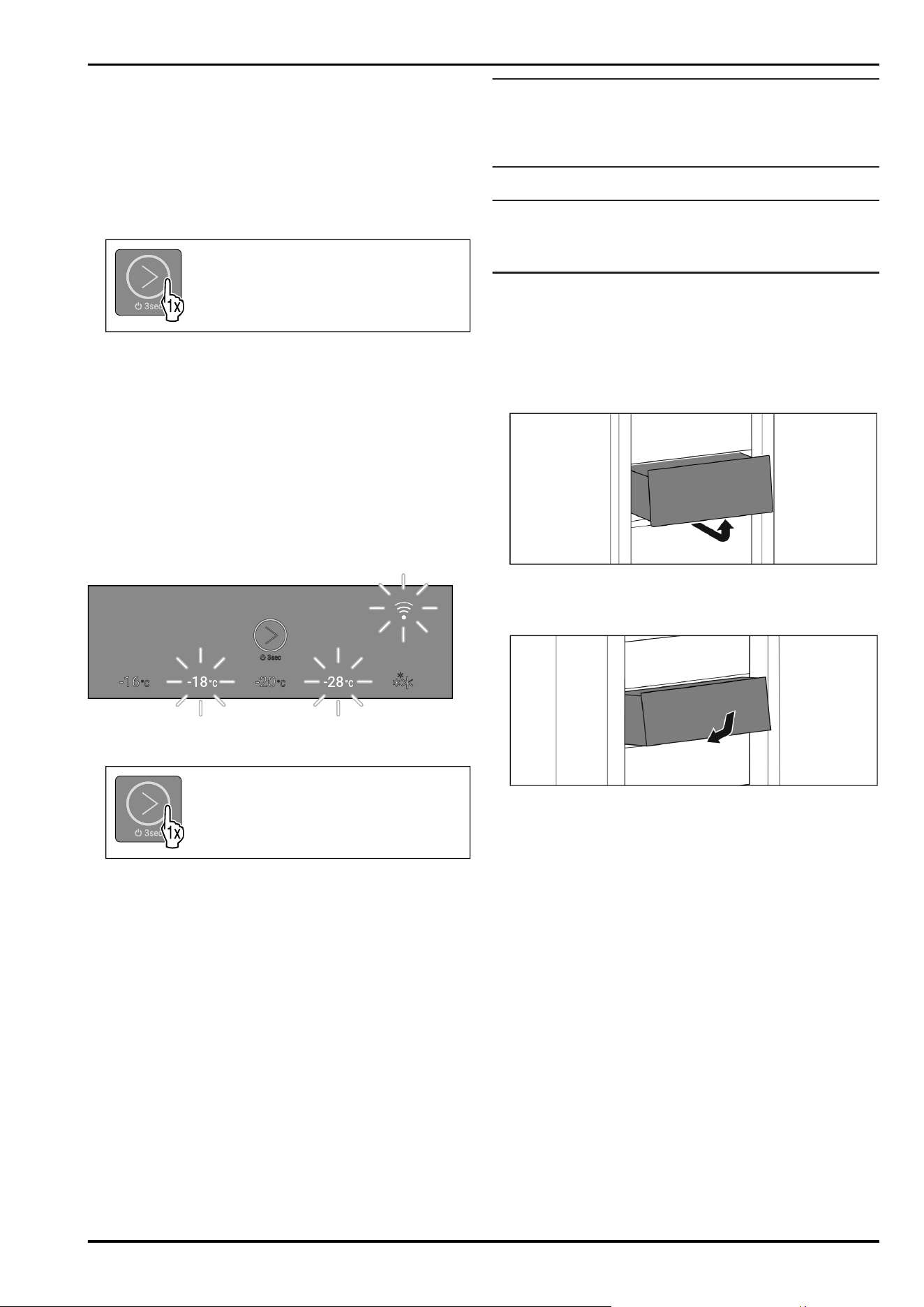

Fig.45
► End alarm: Carry out action steps according to the
illustration.
▷ The device continues to run in normal mode.
▷ LED of the previously set temperature flashes until
temperature is reached.
▷ LED flashes once per second: Freezing temperature was
below -9 °C during the temperature alarm. Food can still
be consumed.
▷ LED flashes twice per second: Freezing temperature has
risen above -9°C during the temperature alarm.
When LED flashes twice per second:
► Check the food.
WLAN error
Fig. 46 Display in case of WLAN error
► Check WLAN connection.
Fig. 47
► End alarm: Carry out action steps according to the
illustration.
-or-
► Re-establish WLAN connection.
▷ The device continues to run in normal mode. LED of the
previously set temperature lights up.
8 Features
8.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
For appliances with NoFrost:*
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.*
► Leave the bottom drawer in the appliance!*
► Always leave the fan air vents clear on the back wall!*
For appliances without NoFrost:*
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.*
► Always leave the fan air vents clear on the back wall!*
8.1.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
When you remove the drawers, you can use the glass
shelves below them as storage shelves.
Removing drawer
Fig.48
► Remove drawer as shown in the illustration.
Inserting drawer
Fig. 49
► Insert drawer as shown in the illustration.
8.2 Glass shelves
You can remove the glass shelves under the drawers for
cleaning.
You can remove the glass shelves under the drawers to use
VarioSpace.
8.2.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
❑
Glass shelf under the drawer: The drawer has been
removed. (see8.1 Drawers)
Features
20 * Depending on model and options
Removing glass shelf

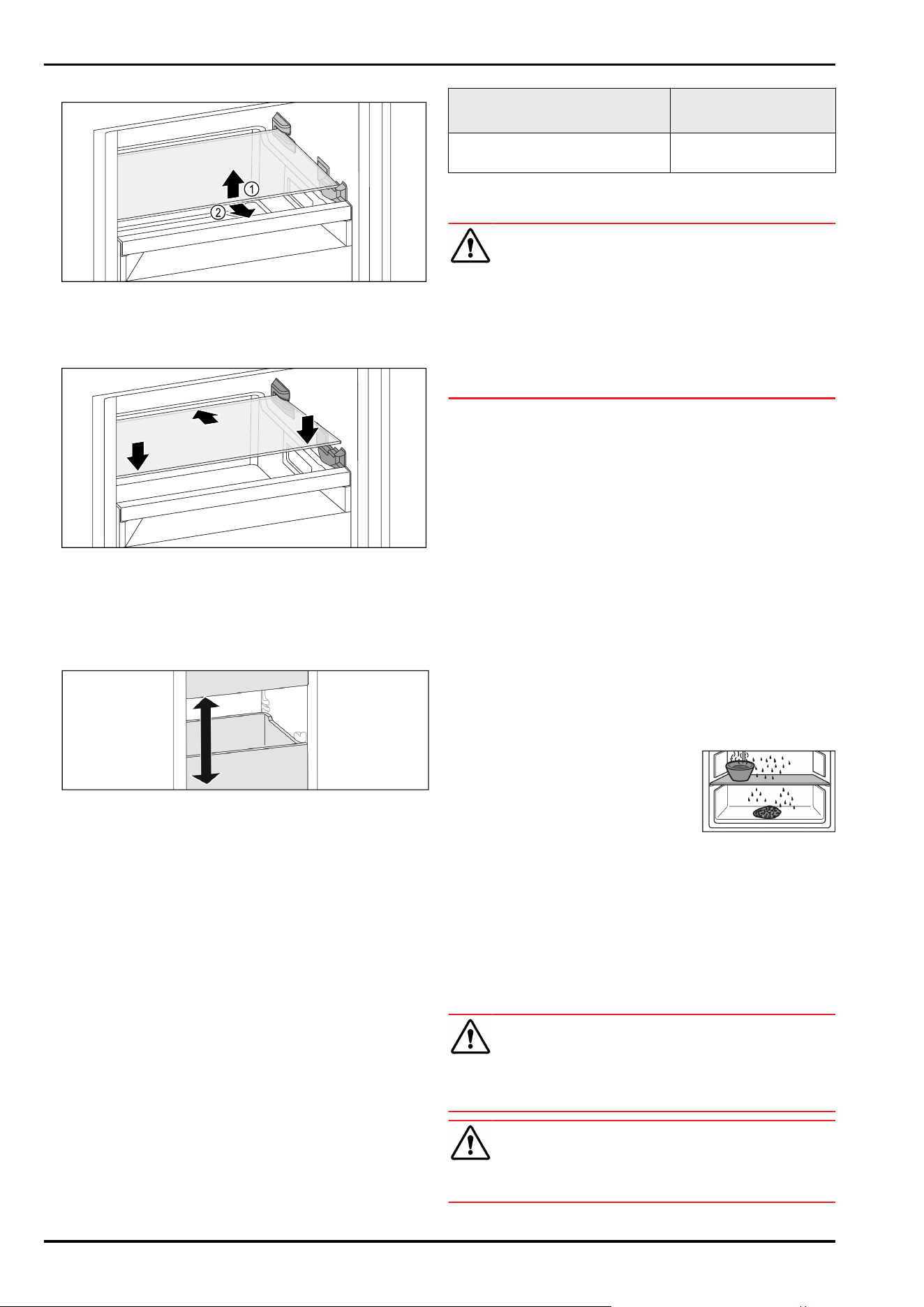

Fig. 50 Example illustration, glass shelf
► Lift the glass shelf forwards.
► Remove the glass shelf forwards.
Inserting glass shelf
Fig. 51 Example illustration, glass shelf
► Place the glass shelf at an angle behind the stoppers.
► Lower glass shelf.
► Slide in glass shelf to the back.
8.3 VarioSpace
Fig.52
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
► Note the weight limits on the drawers and glass panels
(see 10.1 Technical specifications) .
9 Maintenance
9.1 Disassembling / assembling pull-
out systems
9.1.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Drawer on appliance base or
glass shelf
cannot be disassembled
9.2 Defrosting the appliance
WARNING
Improper defrosting of the appliance!*
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
9.2.1 Defrosting with NoFrost*
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not have to be defrosted.
9.2.2 Manual defrosting*
A layer of frost or ice forms after prolonged use.
The following factors promote the formation of frost or ice:
- The appliance is opened frequently.
- Hot food is put in.
One day before defrosting:
► Activate SuperFrost. (see 7.2Appliance functions)
▷ Frozen goods have a “residual coldness”.
► Switch the appliance off.
► Pull the mains plug out of the socket or switch the fuse
off.
► Wrap the frozen produce in newspaper or blankets and
store in a cool place.
► Place a pan of hot water (not
boiling) on the middle shelf.
▷ This speeds up the defrosting process.
► Leave the appliance door open during defrosting.
► Remove loosened pieces of ice.
► Soak up the melted ice water with a sponge or cloth
several times as necessary.
► Clean the appliance. (see 9.3Cleaning the appliance)
9.3 Cleaning the appliance
9.3.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
Maintenance
* Depending on model and options 21
► Remove mains connector.
9.3.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
►
Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
9.3.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
9.3.4 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Drawer
Wash in the dishwasher up to 60°C:
- Ice cube tray
► To disassemble components: see the relevant section.
► Clean the components.
9.3.5 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Activate SuperFrost (see 7.2Appliance functions) .
The temperature is cold enough:
► Place the food inside.
► Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Freeze -28°C to -16°C
Maximum ice cube quantity / 24 hours
Freezer compart‐
ment
see type plate under “Freezing
capacity …/ 24 h”
Maximum loading weight for the equipment
Equipment
Drawer on glass shelf
(see8.1.1 Drawer on appliance base or glass shelf)
13 kg
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
For appliances with a WiFi connection:
Frequency specification
Frequency band 2.4GHz
Maximum radiated
power
< 100 mW
Purpose of the
wireless equipment
Integration in the local WiFi network
for data communication
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Customer help
22 * Depending on model and options
Noise Possible cause Type of noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
► Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.
► Do not re-freeze defrosted food,
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Problem solution: (see2.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ Too much fresh food was placed
inside without SuperFrost.
► Solution: (see SuperFrost)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
Customer help
* Depending on model and options 23
Defect Cause Remedy
Concentrated
collection of ice
on inside face at
centre of appliance
cover.*
→ This build-up of ice is normal.
Physical properties cause ice to
build up inside the top of the appli‐
ance.
► Remove the ice with a scraper tool.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Refer to the type plate for device information.
(see 10.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.

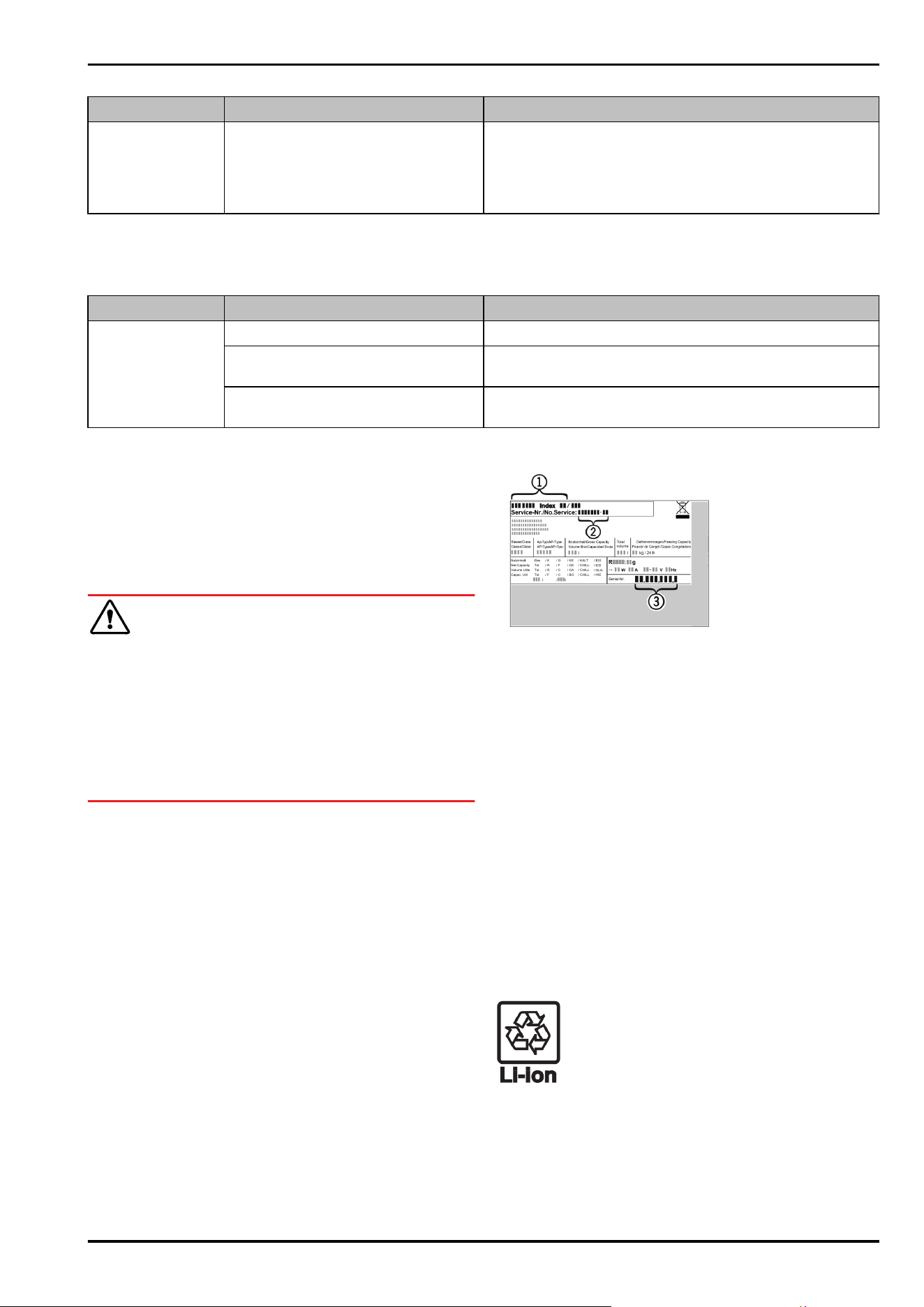

Fig.53
(1) Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 9.3Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
Shutting down
24 * Depending on model and options
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
(see4.6 Transporting appliance)
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
* Depending on model and options 25
home.liebherr.com/fridge-manuals
countertop freezer
ORIGINAL OPERATOR'S MANUAL
Issue date: 20250620
Part number index: 7086754-00
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
