PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance
and its accessible parts
become very hot. Keep
children well away from the
appliance.
• Protect hands with heat
resistant gloves during use.
• Never try to put out a fire or
flames with water: Turn off
the appliance and smother
the flames with a fire
blanket or other appropriate
cover.
• This appliance may only be
used by children aged 8
years and over, and by
people of reduced physical,
sensory or mental capacity,
or lacking in experience in
the use of electrical
appliances, provided that
they are supervised or have
been given instructions on
the safe use of the
appliance and of the
hazards associated with it.
• Children must not play with
the appliance.
• Keep children under the age
of eight at a safe distance
unless they are constantly
supervised.
• Keep children under the age
of 8 away from the
appliance when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Be aware of how rapidly
the cooking zones heat up.
Do not place empty pans on
26 - PRECAUTIONS 91477B506/D
the heat. Danger of
overheating.
• Activate the controls lock
when you have children or
pets which could reach the
hob.
• Do not touch or clean the
hob surface during
operation or when the
residual heat indicator
lights are still on.
• After use, switch off the
plates. Never rely solely on
the cookware detector.
• Supervise children carefully
as they cannot readily see
the residual heat indication.
After use the cooking zones
remain hot for a certain
period of time even if they
have been turned off. Keep
children away from the
cooking zones.
• The cooking process must
always kept under control.
A short cooking process
must be continuously
monitored.
• WARNING: Cooking foods
containing fat and/or oil
without monitoring them
can be dangerous and can
cause a fire.
• Fats and oils can catch fire
if they overheat. Do not
leave the appliance
unattended while preparing
foods containing oils or fats.
If fats or oils catch fire,
never put water on them.
Place the lid on the pan and
turn off the relevant cooking
zone.
• Do not use the Booster and/
or the Double Booster
functions (if present) to heat
fats or oils. Fire hazard.
• Do not place metal objects,
such as dishes or cutlery, on
the surface of the hob
during cooking as they may
overheat.
• Do not cook foods in closed
tins or containers or plastic
containers.
• Do not use magnetic tins.
• Do not use trivets or other
items between the bottom
of the pan and the glass
ceramic surface. Danger of
burns.
• Do not insert pointed metal
objects (cutlery or utensils)
into the slots in the
appliance.
• Do not use or store
flammable materials near
the appliance or directly
underneath the hob.
• Switch off the appliance
immediately after use.
• Do not pull the cable to
unplug the appliance (if
present).
•DO NOT USE AEROSOLS
IN THE VICINITY OF THIS
APPLIANCE WHILST IT IS
IN USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Always wear personal
protective equipment (PPE)
before carrying out any
work on the appliance
PRECAUTIONS - 2791477B506/D
e
(installation, maintenance,
positioning or moving).
• Do not clean the appliance
if it is still hot or in
operation.
• After use the cooking zones
remain hot for a certain
period of time after they
have been turned off. Do
not touch the hob surfaces.
• Before performing any work
on the appliance, switch off
the power supply.
• Do not try to repair the
appliance yourself or
without the assistance of a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to
arrange for it to be replaced
in order to avoid possible
hazards.
• If cracks or fissures form, or
if the glass ceramic cooking
surface breaks, turn off the
appliance immediately.
Disconnect the power
supply and call Technical
Support.
• People who have
pacemakers or other similar
devices fitted must make
sure that the operation of
these devices is not
affected by the induction
field, the frequency range of
which is between 20 and
50 kHz.
Risk of damaging the appliance
• Do not use abrasive or
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges) on glass parts.
• Use wooden or plastic
utensils.
• Do not sit on the appliance.
• Do not use the glass
ceramic cooking surface as
a support surface.
• Do not use the appliance as
a support surface.
• Do not obstruct ventilation
openings and heat
dispersal slots.
• Do not use the hob if the
pyrolytic cycle is taking
place inside any oven
installed below.
• Do not use steam jets to
clean the appliance.
• Never leave the appliance
unattended during cooking
operations where fats or
oils could be released, as
these could then heat up
and catch fire. Be very
careful.
• Fire hazard: Never leave
objects on the cooking
surfaces.
• DO NOT FOR ANY
REASON USE THE
APPLIANCE AS A SPACE
HEATER.
• Cooking vessels or griddle
plates should be placed
inside the perimeter of the
hob.
• All pans must have smooth,
flat bottoms.
• If any liquid does boil over
28 - PRECAUTIONS 91477B506/D
or spill, remove the excess
from the hob.
• Take care not to spill acid
substances such as lemon
juice or vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt
or catch fire (paper, plastic
or aluminium foil) on the
appliance while it is in use.
• Place the cookware directly
on the glass ceramic
surface.
• Do not put empty pans or
frying pans on switched on
cooking zones.
• Do not use rough or
abrasive materials or sharp
metal scrapers.
• The glass ceramic surface
is highly resistant to impact.
However, prevent hard,
solid objects from falling on
the cooking surface as they
may cause it to break.
• Do not use cleaning
products containing
chlorine, ammonia or
bleach on parts made of
steel or that have metallic
surface finishes (e.g.
anodizing, nickel- or
chromium-plating).
• This appliance is not
intended to be operated by
means of external timer or
separate remote control
system.
• To prevent scratching the
glass surface, avoid sliding
pots across it. Lift them and
place them gently where
needed instead.
Installation
• THIS APPLIANCE MUST
NOT BE INSTALLED IN
BOATS OR CARAVANS.
• Position the appliance into
the cabinet cut-out with the
help of a second person.
• Check that the carcase has
the required openings.
• Check that the carcase
material is heat resistant.
• Installation and servicing
should be carried out by
qualified personnel in
accordance with current
standards.
• Have the electrical
connection performed by
authorised technical
personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can
withstand temperatures of
at least 90°C.
• Run the power cable in the
rear part of the unit. Make
sure that it does not come
into contact with the lower
part of the hob or a built-in
oven below it.
• Be careful when connecting
additional electrical
appliances. Connection
cables must not come into
contact with hot cooking
PRECAUTIONS - 2991477B506/D
e
zones.
• The tightening torque of the
screws of the terminal
supply wires must be 1.5 -
2 Nm.
• Do not attach the appliance
too tightly to the unit as this
could cause damage during
use or partially obstruct the
heat dispersal slots.
• The power cable must only
be installed or replaced by a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to
arrange for it to be replaced
in order to avoid possible
hazards.
• Always use any necessary/
required personal
protective equipment (PPE)
before performing any work
on the appliance
(installation, maintenance,
positioning or movement).
• Before performing any work
on the appliance, switch off
the power supply.
• Allow the appliance to be
disconnected after
installation, via an
accessible plug or a switch
in the case of a fixed
connection.
• Fit the power line with an
all-pole circuit breaker with
a contact separation
distance sufficient to
provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• This appliance can be used
up to a maximum altitude of
2,000 metres above sea
level.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use
is considered improper. It
must also not be used:
• In kitchen areas provided
for employees in shops,
offices and other work
environments.
• in farms/farmhouses.
• By guests in hotels, motels
and other types of
residential environments.
• In bed and breakfasts.
This user manual
• This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the user's
reach for the whole working life of the
appliance.
• Read this user manual carefully before
using the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it
should be kept in mind that the
appliance may be equipped with an
updated version of the system, and as
such, all that appears on the display
may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in
This appliance may only
be installed and used
indoors.
30 - PRECAUTIONS 91477B506/D
the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment,
in accordance with current European
directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it
to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
To save ener g y
• The diameter of the base of the pan
must not extend beyond the lines
printed on the glass ceramic surface.
• Pans must not be placed outside the
perimeter of the hob or on the display.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also helps to retain vitamins
contained in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity
of food to be cooked. A large, half-
empty saucepan leads to a waste of
energy.
Information on power
consumption in off/stand-by
mode
Technical data on the appliance's power
consumption in off/stand-by mode can be
found at www.smeg.com under the page
corresponding to the product in question.
How to read the user manual
This user manual uses the following reading
conventions:
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Under certain circumstances, if the
hob and the oven are used at the
same time, the maximum power
limit of the electrical system might
be exceeded.
Warning/Caution
Information/Advice
DESCRIPTION - 3191477B506/D
e
DESCRIPTION

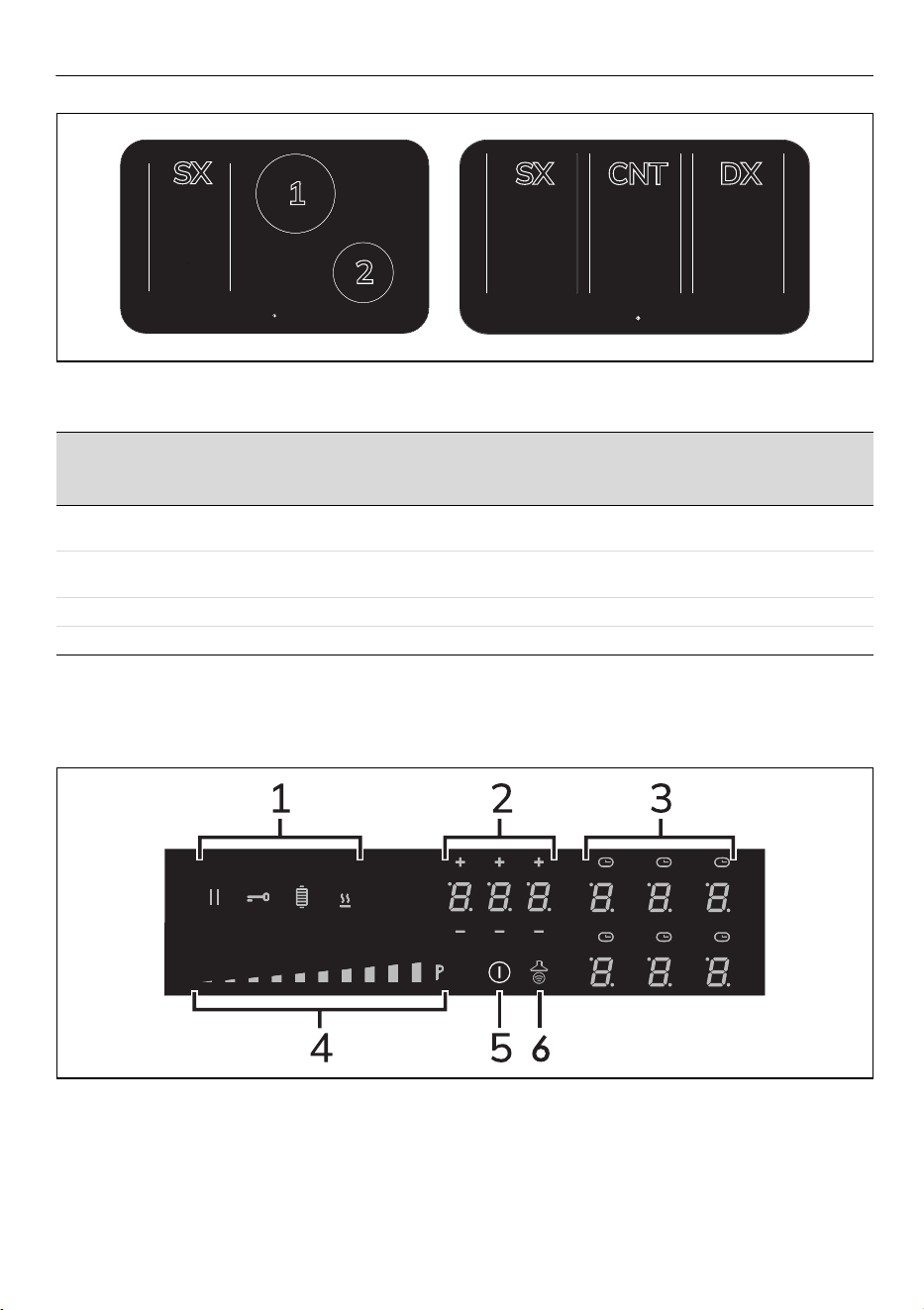

General description
1. Rear cooking zone
2. Front cooking zone
LEFT: Left multizone zone
CNT: Central multizone zone
RIGHT: Right multizone zone
*Power levels are approximate and may
vary according to the pan used or the
settings made.
Control panel
Cooking zones area
1. Functions buttons
2. Timer display
3. Cooking zone display
4. Scroll bar
5. ON/OFF button
6. Auto-Vent 2.0 function button
60
80 (A)
Zone
Dimensions H x L
(mm)
Maximum power
consumption Level
9 (W)*
Power draw in boo-
ster function (W) *
Power draw in Dou-
ble Booster function
(W)*
Left-Centre-Right
Zone (Single)
190 x 210 2100 2500 3000
Left-Centre-Right
Zone (Multizone)
360 x 210 3000 3700 -
Zone 1 200 x 200 2300 3000 -
Zone 2 160 x 160 1400 1850 2100
32 - USE 91477B506/D
Advantages of induction cooking
• Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the
hob.
• High level of energy transmitted from
the induction cooking zone to the base
of the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Power control
The hob is fitted with a power control
module that optimises/limits consumption. If
the overall set power level exceeds the
maximum limit permitted, the electronic
circuit board will automatically manage the
power supplied by the hot plates. The
module tries to maintain the maximum
deliverable power levels. Levels set by the
automatic control will appear on the
display.
USE
Preliminary operations
• Remove any protective film from the
outside or inside of the appliance,
including any accessories (if present).
• Remove any labels (apart from the
technical data plate).
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium
with a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
Advice on energy-saving
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking. If
you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the hot plate. If
the symbol appears on the display, it
The appliance is equipped with an
induction generator for each cooking
zone. Each generator located under
the glass ceramic cooking surface
creates an electromagnetic field
which induces a thermal current in
the base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.
Priority is given to the last zone set.
The power control module does not
affect the total power consumption
of the appliance.
See General safety instructions.
USE - 3391477B506/D
e
means the pan is not suitable.

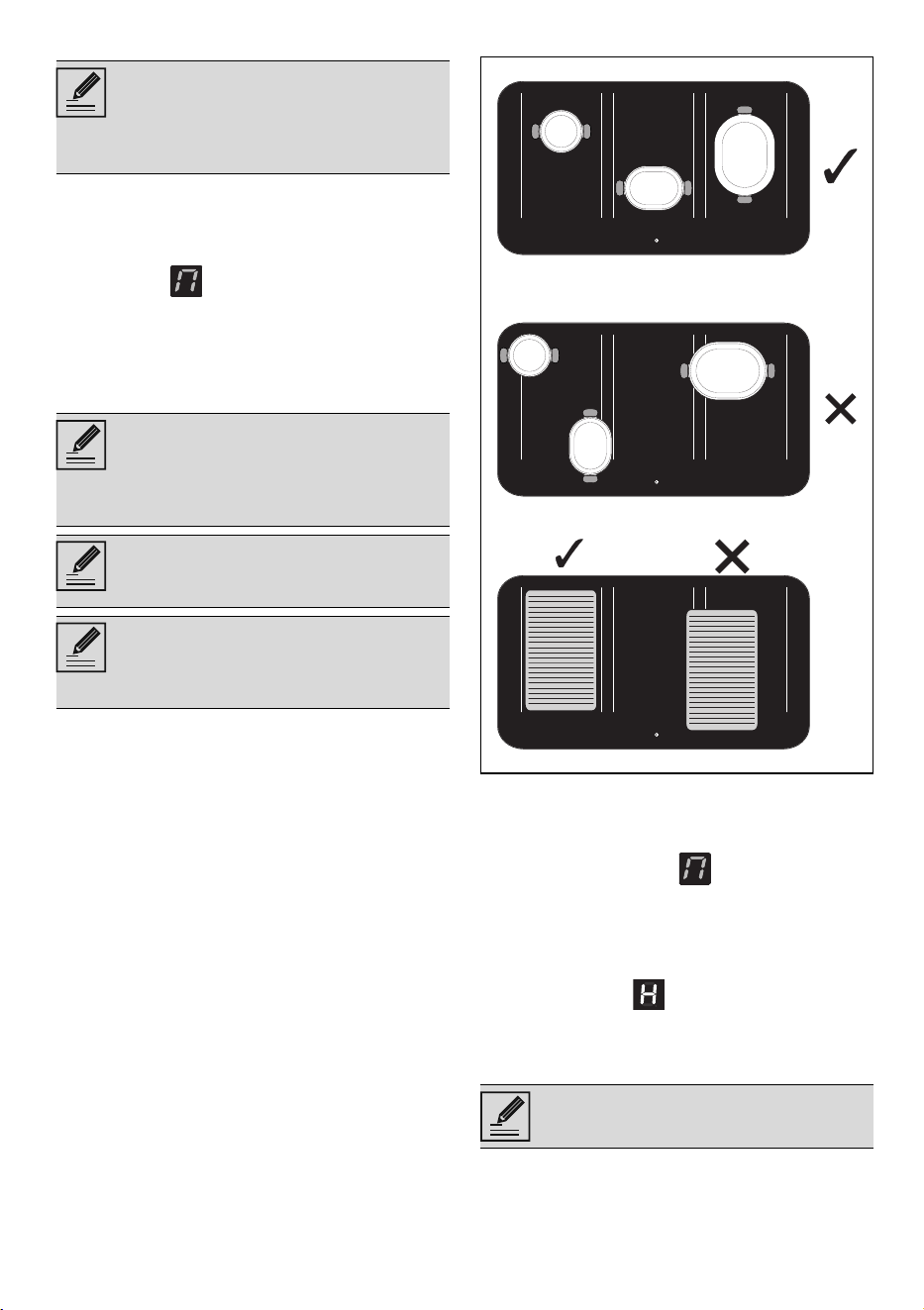

Cookware diameters
To ensure that the appliance detects the
containers correctly and for best results, use
the pan sizes indicated in the following
table.
Bear in mind the following:
• Pans should not extend beyond the lines
marked on the surface of the appliance.
• Do not place pans near to the edges of
the hob or close to the control panel.
• Any griddle must have a maximum size
of 36 x 19 cm.
• Do not use a griddle on zones 1 and 2.
Basic functions
First power connection
When connected to the power supply for
the first time, or after power has been
switched back on after a power failure, an
automatic check is carried out that control
turns on the indicator lights and the
displays for a few seconds. Afterwards, the
appliance can be used normally.
Switching on and off
Press and hold the button for at least
one second to switch on the appliance. To
turn off the appliance, press the button
until a sound is emitted. The appliance will
switch off automatically after about 10
seconds of inactivity.
Summary table of power levels
The power can be adjusted to various
levels. The table below shows the levels
suitable for various types of cooking.
Using the hob
Automatic cooking zone activation
After switching on the display:
1. Position a pan (suitable for induction
cooking and not empty) on the cooking
zone you wish to use.
• The display corresponding to the zone
on which the container has been placed
turns on automatically and displays .
If automatic pan detection is deactivated,
when the appliance is switched on,
the symbol with a flashing dot in the
bottom right corner appears on the all the
displays of the cooking zones. To activate
the zones, select them via the relative
display and then select the required power
level.
Adjusting cooking zones
After having placed a pan on the cooking
zone and made sure that the zone has been
activated:

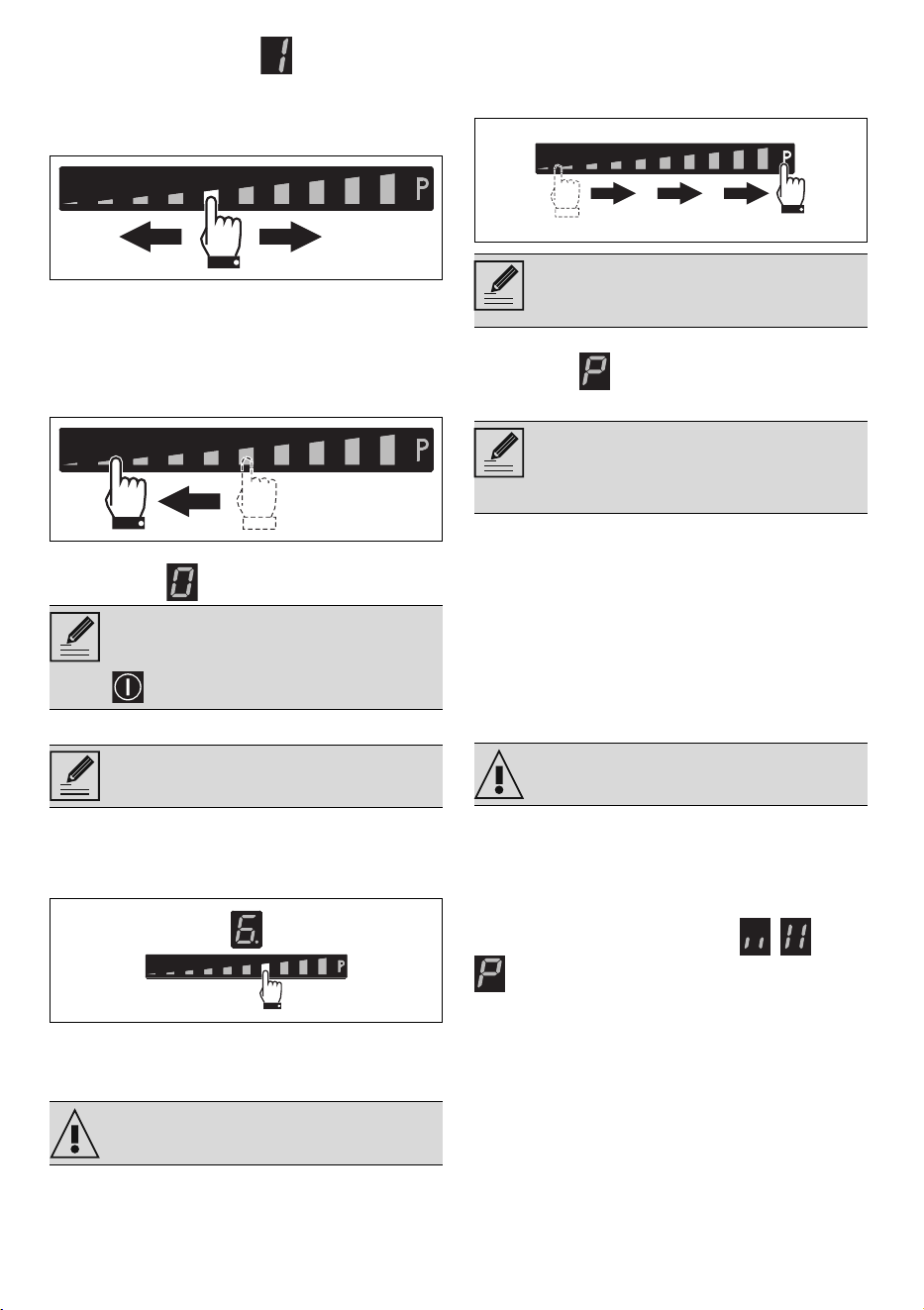

1. Place a finger on the left-hand side of
the scroll bar of the cooking zone to be
used.
Cooking zones
Minimum dia-
meter (mm)
Recommended
diameter (mm)
LEFT - CENTRE
- RIGHT (single)
110 180
LEFT - CENTRE
- RIGHT (multi-
zone)
190 220
1 110 200
2 90 160
Power level Suitable for:
0 OFF setting
1 to 2
Cooking small quantities of food
(minimum power)
3 to 4 Cooking
5 to 6
Cooking large quantities of food,
roasting larger portions
7 to 8 Roasting, slow frying with flour
9Roasting
Bringing large quantities of
water to a boil (maximum power,
see “Booster function”)
The hob is fitted with a pan
detection system that automatically
selects the zones on which a
suitable pan has been placed; this
function is enabled by default and
can be deactivated via the user
menu.
34 - USE 91477B506/D
The power level is now .
2. Move your finger to the left or right to
select the power level from 1 to 9 or
enable the Booster or Double Booster
function (see specific sections).
The display of the zone being used will
indicate the selected power level.
Switching off the cooking zones
1. Move your finger to the far left of the
scroll bar of the cooking zone you wish
to turn off.
1. The display of the zone selected
indicates .
Quick selection
After switching on the appliance and
having selected a cooking zone:
1. Place a finger on the scroll bar at
approximately the required power level.
2. Move your finger to the left or right to
select the required cooking power.
Booster function
The Booster function allows you to heat a
pan at maximum power for a limited
amount of time. It can be used to bring a
large amount of water to the boil rapidly.
After switching on the hob and having
selected a zone:
1. Swipe your finger from the far left to the
far right of the scroll bar.
2. The Booster function will be activated
and the symbol appears on the
cooking zone display.
To deactivate the Booster function, simply
decrease the power level of the cooking
zone or switch off the appliance.
The Booster function can be activated
quickly.
• After switching on the hob and having
selected a cooking zone, place a finger
on the “P” symbol at the far right of the
scroll bar.
Double Booster Function
The Double Booster function allows more
power to be supplied compared to the
Booster function.
After having activated the Booster function
for a cooking zone, press the far right of the
scroll bar again. The symbols , and
will be displayed in sequence to
indicate that the Double Booster function is
on.
To deactivate the function, simply select
any other power level or switch off the
appliance.
To switch off more than one cooking
zone at the same time, simply
switch off the appliance using the
button.
The appliance is fitted with an
automatic pan sensing system.
See General safety instructions.
The Booster function can also be
activated by a pressing the right end
of the scroll bar once.
The Booster function remains active
for a maximum of 5 minutes, after
which the power level of the zone
returns to 9.
See General safety instructions.
USE - 3591477B506/D
e
Multizone function
After switching on the hob:
1. Place a finger simultaneously on the
buttons of two cooking zones one above
the other.
• A symbol will appear in the rear zone
to indicate that the function is active.
2. Use the left-hand scroll bar to set the
required cooking power.
The same parameters are set on both
cooking zones.
If a large, oval or oblong pan is being used,
make sure that it is placed in the centre of
the cooking zone.
To deactivate the Multizone function:
Simultaneously press the buttons of the
cooking zones on which the Multizone
function is active. The symbol
disappears and the two zones can be
regulated separately.
Residual heat
If the cooking zone is still hot after being
switched off, the symbol will be
displayed on the display. The symbol clears
once the temperature drops below 60°C.
Pause function
To activate the Pause function:
1. Switch on at least one cooking zone.
This function allows you to operate
two cooking zones (front and rear)
at the same time when using pans
such as fish kettles or rectangular
containers.
The Multizone function can only be
activated between cooking zones
that are vertically connected (zones
indicated by “LH”, “CNT” and “RH” -
see “General Description”).
This function automatically divides
the power equally between both of
the hot plates in use.
It is not possible to activate the
Double Booster function for the
cooking zones on which the
Multizone function is active.
This function pauses the operation
of all the cooking zones.
36 - USE 91477B506/D
2. Hold down the pause button . The
symbol displays on all the cooking
zones.
To deactivate the Pause function:
1. Hold down the button . The pause
symbol, which has just been pressed,
starts to flash.
2. Press any button apart from the Pause
button.
3. The pause function has now been
deactivated and the previously set
functions are restored.
Controls lock
This is useful when cleaning the appliance
and to prevent functions being modified by
mistake.
To activate the controls lock function, at
least one cooking zone has to be active:
1. Press the button for at least one
second.
2. The LED on the display lights up for 2
seconds to indicate that the function has
been activated.
To disable the Controls lock, press the
button for at least one second.
Special functions
Warming Function
To activate the Warming function, first turn
on the hob, then:
1. Place a pan on a cooking zone.
2. Press the button to activate the
function. The symbol appears on the
display of the selected cooking zone and
the icon will appear next to the scroll
bar.
To turn off the Warming function, simply
press the button of the relative zone
again.
Grill Function
To activate the Grill function:
1. Place a griddle or a long pan on the left
zones.
2. Press the button. The LED above it
will flash.
The symbol appears on the front
zone display and the symbol appears
on the rear zone display. The electronics will
automatically set the power level to 9
(preheating phase).
After 3 minutes of operation, the power will
be lowered to level 7 and the LED above the
Grill function button becomes steady.
Use the scroll bar to modify the power level
at any time.
Press the button to deactivate the Grill
function.
The cooking time limitation, the
residual heat indicators and the
control lock function remain enabled
during the Pause function.
When the power comes back on
after a power failure, the pause
function will be deactivated.
The pause function can be
maintained for a maximum of 10
minutes, after which the appliance
switches off.
This feature is designed to lock all
the hob controls.
It is always active when the hob is
switched on.
It locks all buttons apart from this
one and the ON/OFF button.
It is always lit when the hob is
activated.
This function allows you to keep
cooked food warm or to keep water
on the boil.
This function is used to
automatically activate the Multizone
function for the left zones only. It is
used when using a griddle or
cooking with long pans.
USE - 3791477B506/D
e
Auto-Vent 2.0 function (on selected
models only)
The Auto-Vent 2.0 function is disabled by
default, but can be enabled from the user
menu.
This function has an automatic and a
manual mode:
• Automatic mode adjusts the hood
extractor fan speed according to the
total power of the appliance (see “User
menu - option U9).
• Manual mode allows you to adjust the
extractor fan speed by pressing the
button.
After switching on the hob, to activate
manual mode:
1. Press the button.
2. Each subsequent press of the button
increases the hood fan speed according
to a cyclic sequence with 5 levels of
adjustment, from 0 (off) to 4 (maximum
speed).
To go back to automatic mode, the
appliance has to be switched off and on
again.
Additional functions
Child lock
This is useful to prevent functions being
activated by mistake (e.g. by children).
To activate the child lock, the appliance
must be on, but with the zones deactivated:
1. Press and hold any cooking zone
display, an animation will be shown on
the scroll bar.
2. Release the display and slide your finger
on the bar from left to right.
The symbol appears on the timer and
cooking zone displays.
To deactivate the controls lock, with the
appliance switched on:
1. Press and hold any cooking zone
display, an animation will be shown on
the scroll bar.
2. Release the display and slide your finger
on the bar from right to left.
Rapid heating function
The rapid heating function heats one
cooking zone at maximum power for a
limited time, after which it continues
cooking at the set power level.
After selecting a cooking zone:
• Press and hold a power level (from 1 to
8) for at least 3 seconds.
• appears on the display of the
cooking zone.
• After the heating time has elapsed, the
cooking zone reverts to the previously
selected power level.
• This function can be deactivated by
pressing and holding the set power level
for at least 3 seconds, or by selecting a
lower power level.
Rapid heating times
Minute minder timer
After having switched on the hob, without
having activated any cooking zone:
• This function allows you to
control the speed of the hood
extractor fan via a wireless
connection.
• The hood must be designed to
use the Auto-Vent 2.0 function.
• The connection is always one
way, from the hob to the hood. It
is not possible to control the hob
via the hood.
Refer to the hood manual for more
detailed information.
When power comes back on after a
power failure, the child lock will
remain active.
Once deactivated, the child lock
cannot be reactivated. To reactivate
it, you have to turn the appliance off
and on again.
This function is not available for
power level 9 or the Booster and
Double Booster functions
Power level
Automatic heating time
(minutes/seconds)
1 48 s
2 2 m 24 s
3 3 m 50 s
4 5 m 12 s
5 6 m 48 s
62 m
7 2 m 48 s
8 3 m 36 s
38 - USE 91477B506/D
1. Simultaneously press the buttons inside
the timer setting area.
2. Use the and buttons to select
the required time.
• The first digit on the left is used to select
the hours, the middle one to set the tens
of minutes and the one on the right the
minutes.
3. After 10 seconds, the timer will start the
countdown.
4. When the time elapses, a series of
beeps will sound. Press any button to
deactivate them.
Modifying or deactivating the timer
To modify or deactivate the minute minder
during the countdown:
1. Press the On/Off key to
activate the hob (if it was on standby).
• The timer setting area will indicate the
minutes that were set.
2. Use the buttons and to change
the
minute minder time or reset it to zero.
3. After 10 seconds the timer
will start the new countdown or will be
deactivated.
Timed cooking
The timed cooking function can be
activated when at least one cooking zone is
switched on:
1. Select the power level.
2. Touch the inside of the timer setting
area.
• The flashing symbol will
appear above the cooking zone display.
3. Use the and buttons to select
the required time.
4. Timed cooking will start a few seconds
after the last selection.
At the end of the set time, a buzzer warns
the user.
5. Press any button to deactivate the
buzzer.
Modifying or deactivating timed cooking
To modify timed cooking during the
countdown:
1. Press the On/Off key to
activate the hob (if it was on standby).
2. Press the display button of the timed
cooking zone.
• The timer setting area will indicate the
minutes that were set.
3. Use the buttons and to change
the
minute minder time or reset it to zero.
4. After 10 seconds, the timer will start the
new countdown or will be deactivated.
Recall Function
If the appliance is switched off
unintentionally, carry out the following
procedure within 6 seconds:
1. Switch on the appliance.
• The button starts to flash.
A maximum of 9 hours and 59
minutes can be set.
Using the minute minder does not
stop the operation of the cooking
zones but rather informs the user
when the set minutes have run out.
A maximum of 9 hours and 59
minutes can be set.
This function can be activated on
multiple cooking zones at the same
time. The flashing LED and time
indicator refer to the next cooking
zone to be switched off.
This is used to restore some
functions that have already been
started after the appliance has been
switched off unintentionally.
USE - 3991477B506/D
e
2. Press the pause button immediately
to restore the functions that were
previously active.
User menu

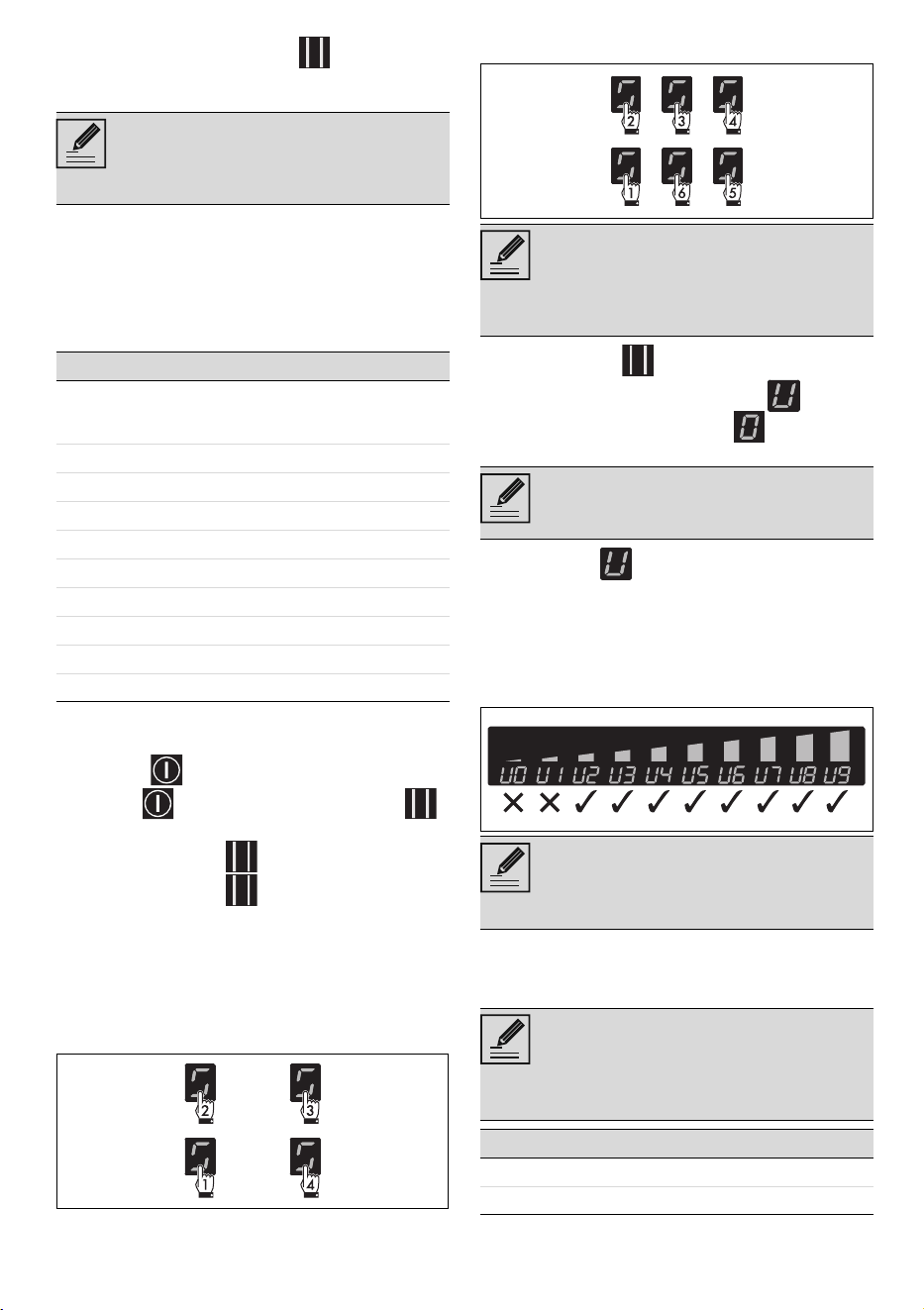

The user menu allows you to modify the
operating characteristics of the appliance.
There are 9 options available, marked with
the letter “U” together with a progressive
number on the timer display.
Accessing the user menu
1. If the hob is off, switch it on using the
button .
2. Press again to switch it off; the
icon starts flashing.
3. Press and hold .
4. Press and hold . Some symbols will
appear on the cooking zones displays
that have to be pressed in sequence to
access the menu options.
Press all the buttons of the cooking zones in
sequence in a clockwise direction starting
from the front left.
80 cm models:
90 cm models:
5. Release the button.
The user menu is active and the symbol
alternating with the number will appear
at the top of the cooking zones display.

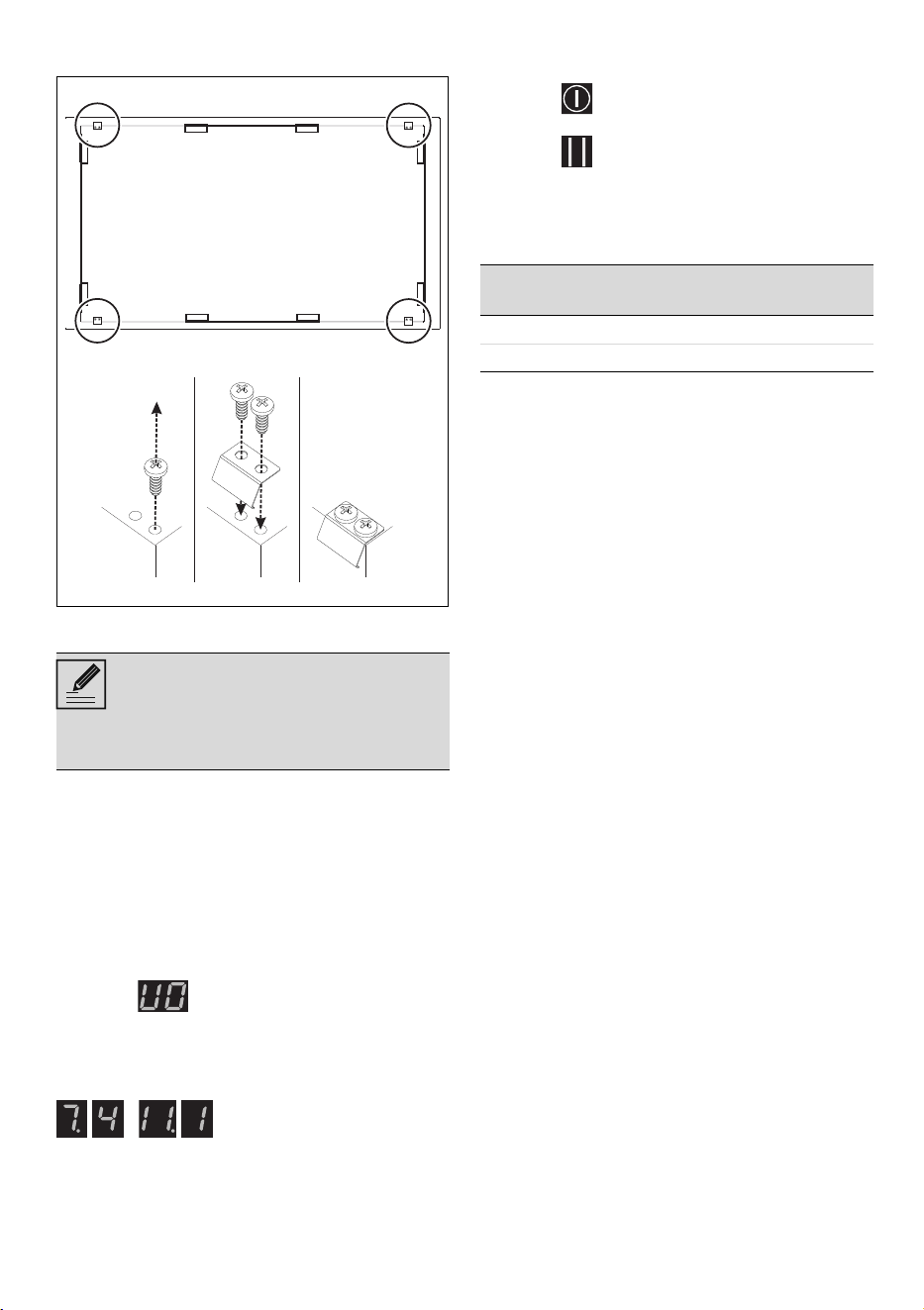

6. Press the symbol to go back to
selecting the options. A scroll bar
appears, each segment is associated
with a menu option.
7. Press the segments of the scroll bar
(except the first two) to select the
available options.
Option U2 modifies the volume of the
button sounds; 4 sound levels can be
selected using the scroll bar.
Option U3 modifies the volume of the sound
This function restores the cooking
zones, timer and rapid heating
functions; no other functions will be
restored.
Option Description
U0
Maximum total power (kW) -
To be modified by the installer
only
U1 Option disabled
U2 Button volume
U3 Timer alarm volume
U4 Display brightness
U5 Timer animation
U6 Automatic pan detection
U7 Timer alarm duration
U8 Hood fan configuration
U9 Auto-Vent 2.0 function
If the sequence of the buttons is
selected incorrectly, the hob will be
turned off and the procedure for
accessing the menu will have to be
repeated.
This option is only to be used by the
installer (see “Power limitation
procedure (for installer only)”).
For technical reasons, the second
segment from the left (option U1) is
disabled. Selecting this option will
have no effect.
According to the adjustment range
of each option, the scroll bar will
show only those segments that
correspond to the adjustments
available for each option.
Value Volume
0minimum
3maximum
40 - USE 91477B506/D
signals when the timer has ended. 4 levels
can be selected.
Option U4 modifies the brightness of the
display. 10 levels can be selected.
Option U5 allows you to display the
countdown of the minute minder timer and
timed cooking in seconds, from 59 to 0
seconds.
Option U6 allows you to activate or
deactivate the automatic pan detection
function. (see “Automatic cooking zone
activation”).
Option U7 specifies the length of the alarm
when the timer has finished. 3 levels can be
selected:
• 0: alarm duration 120 seconds.
• 1: alarm duration 10 seconds.
• 2: alarm disabled.
Option U8 allows you to activate the Auto-
Vent 2.0 function in automatic mode. 8
levels can be selected. The following table
summarises the possible settings:
Refer to the table below to select the most
suitable value according to the power
limitation of the appliance:
Option U9 allows you to activate or
deactivate the Auto-Vent 2.0 function:
•0: function off.
• 1: function on.
Exiting the user menu
There are two ways to exit from the user
menu:
1 Press the button. Any modification is
discarded and the hob switches off.
Or
2 Press the button for at least two
seconds. The modifications are saved
and the hob switches off.
Error notifications
If the appliance malfunctions or operates
incorrectly, the associated error code
appears on the display.
The error codes always begin with the letter
“E” or “Er” followed by a series of digits (e.g.
“Er47-30”).
Errors coded as:
• “E02”
•“E2”
• “Er21”
Indicate that the appliance or part of it is
overheating. If this occurs, you should
switch off the appliance immediately,
remove all pans and let it cool down.
Value Volume
0minimum
3maximum
Value Brightness
0maximum
9minimum
The seconds count is displayed
when the timer is set for less than
10 minutes.
Value Animation
0 deactivated
1activated
Value Automatic detection
0 disabled
1 enabled
If automatic pan detection is
disabled, the area must be switched
on manually when a pan is placed
on the hob.
Value Buzzer duration
0 120 seconds
1 10 seconds
2 deactivated
Value
Hood li-
ghting
Hood fan speed
Delicate
cooking
Medium
cooking
Intense
cooking
0Off Off
1On Off
2 - 4 - 6 On Off speed 1 speed 2
3 - 5 - 7 On speed 1 Speed 2 Speed 3
Value Power limitation
2 - 3 up to 4 kW
4 - 5 from 4 to 5 kW
6 - 7 5 kW upwards
If the appliance is set to a lower
power level lower than the one
indicated in the table above, it may
not be possible to select some of the
fan speeds.
CLEANING AND MAINTENANCE - 4191477B506/D
e
If these errors persist or if other errors
appear, make a note of the code and
contact Technical Support.
CLEANING AND MAINTENANCE
Cleaning the glass ceramic hob
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let
them cool first.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids. Pour the product onto a damp cloth
and wipe the surface, rinse thoroughly and
dry with a soft cloth or a microfibre cloth.
Weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass ceramic cleaning
product. Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it might undergo an aggressive
reaction when heated up and could modify
the structure of the cooking surface.
Food stains or residues
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar. Remove
any burnt-on residues after cooking; then
rinse with water and dry thoroughly with a
clean cloth. Dirt, which may have fallen on
the hob while cleaning lettuce or potatoes,
can scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately. Changes in
colour do not affect the operation and
stability of the glass. These are not
alterations to the material of the hob but
just residues which have not been removed
and have then carbonised. Shiny surfaces
can form due to the bases of pans,
especially aluminium ones, rubbing on the
surface, and due to the use of unsuitable
detergents. They are difficult to remove
using conventional cleaning products. It
may be necessary to repeat the cleaning
process several times. Use of corrosive
detergents or rubbing of pan bases can
wear away the decoration on the hob over
time and contribute to the formation of
stains.
What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown.
In this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not
tripped. In this case, reset the circuit
breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature
is not too high or too low.
• Make sure that the hob is properly
ventilated and that the air inlets are
unobstructed.
• Use cookware that is certified and
tested for induction cooking.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled
out of the pan and use a larger cooking
vessel, if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips
repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and
See General safety instructions.
In case of stubborn dirt, clean when
cold using a damp kitchen sponge
and neutral detergent; then dry with
a microfibre cloth.
We recommend the use of cleaning
products distributed by the
manufacturer.
After cleaning, dry the appliance
thoroughly to prevent any water or
detergent from interfering with its
operation or creating unsightly
marks.
42 - INSTALLATION 91477B506/D
contact Technical Support.
INSTALLATION
Electrical connection
General information
Check the mains characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer
than the other wires.
The device can be connected in the
following ways:
90 cm models:
80 cm models
Fixed connection
Fit the power line with an all-pole circuit
breaker with a contact separation distance
sufficient to provide complete disconnection
in category III overvoltage conditions,
pursuant to installation regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Section cut from the countertop
Safety instructions for positioning and
installation
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long
as they are heat resistant (>90°C).
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (>90°C),
otherwise they might warp over time.
• If the piece of furniture does not have
the required recess opening, either it will
have to be cut or masonry work carried
out by a competent technician.
• The minimum clearance between
exhaust hoods and the cooking surface
must be at least the distance indicated
in the exhaust hood installation
instructions.
• The minimum clearances must also be
respected for the edges of the hob on
the back as indicated in the assembly
instructions.
• If the appliance is to be installed above
an oven, the oven must be fitted with a
cooling fan.
See General safety instructions.

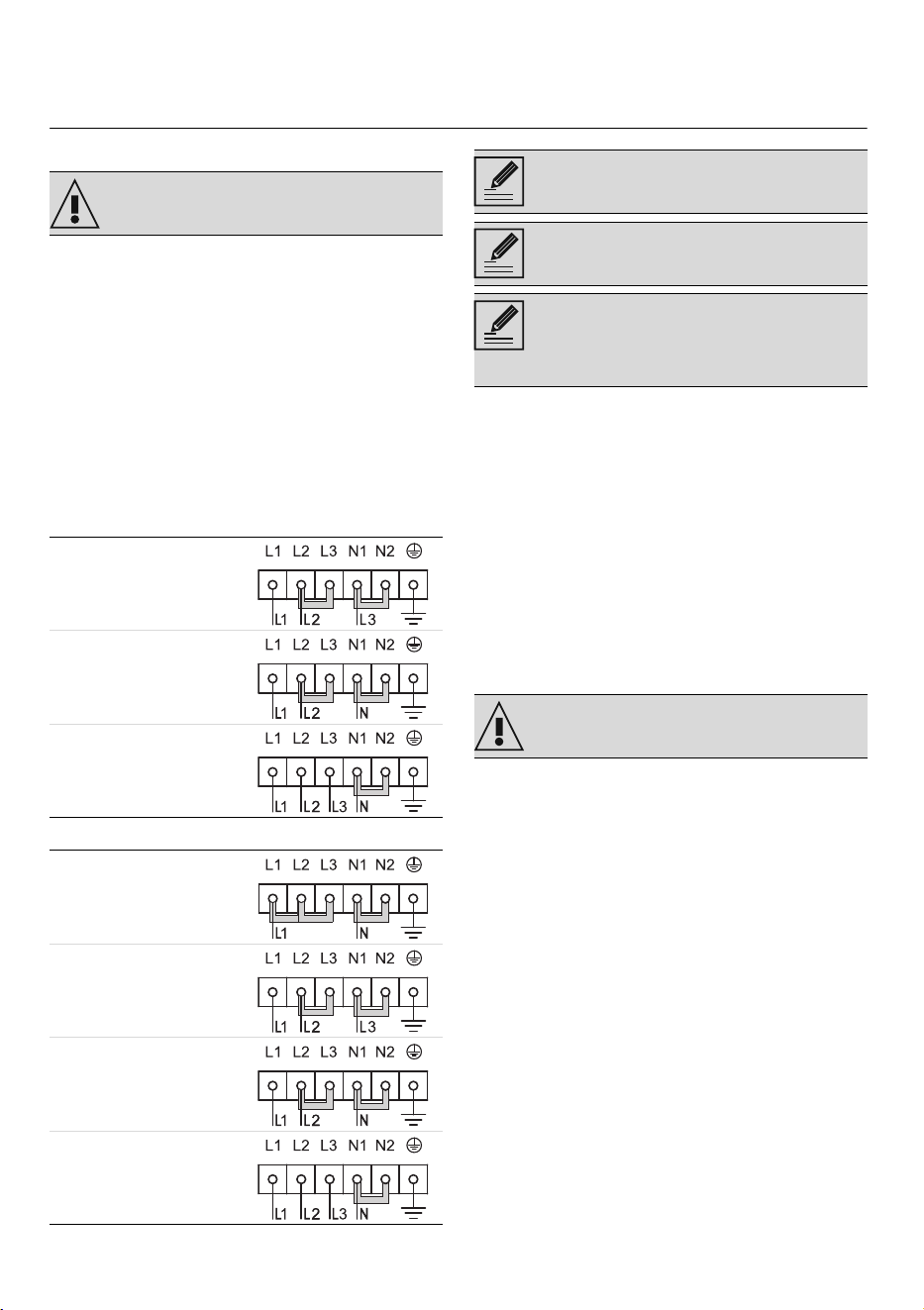

220-240V 3~
4 x 6 mm ²
four-core cable
380-415V 2N~
4 x 6 mm ²
four-core cable
380-415V 3N~
5 x 2.5 mm ²
five-core cable
220-240V ~
3 x 6 mm ²
three-core cable
220-240V 3~
4 x 4 mm ²
four-core cable
380-415V 2N~
4 x 4 mm ²
four-core cable
380-415V 3N~
5 x 1.5 mm ²
five-core cable
For all types of connection, use the
jumper provided.
The values indicated refer to the
cross-section of the internal lead.
The power cables are sized taking
into account the coincidence factor
(in compliance with standard EN
60335-2-6).
See General safety instructions.
INSTALLATION - 4391477B506/D
e

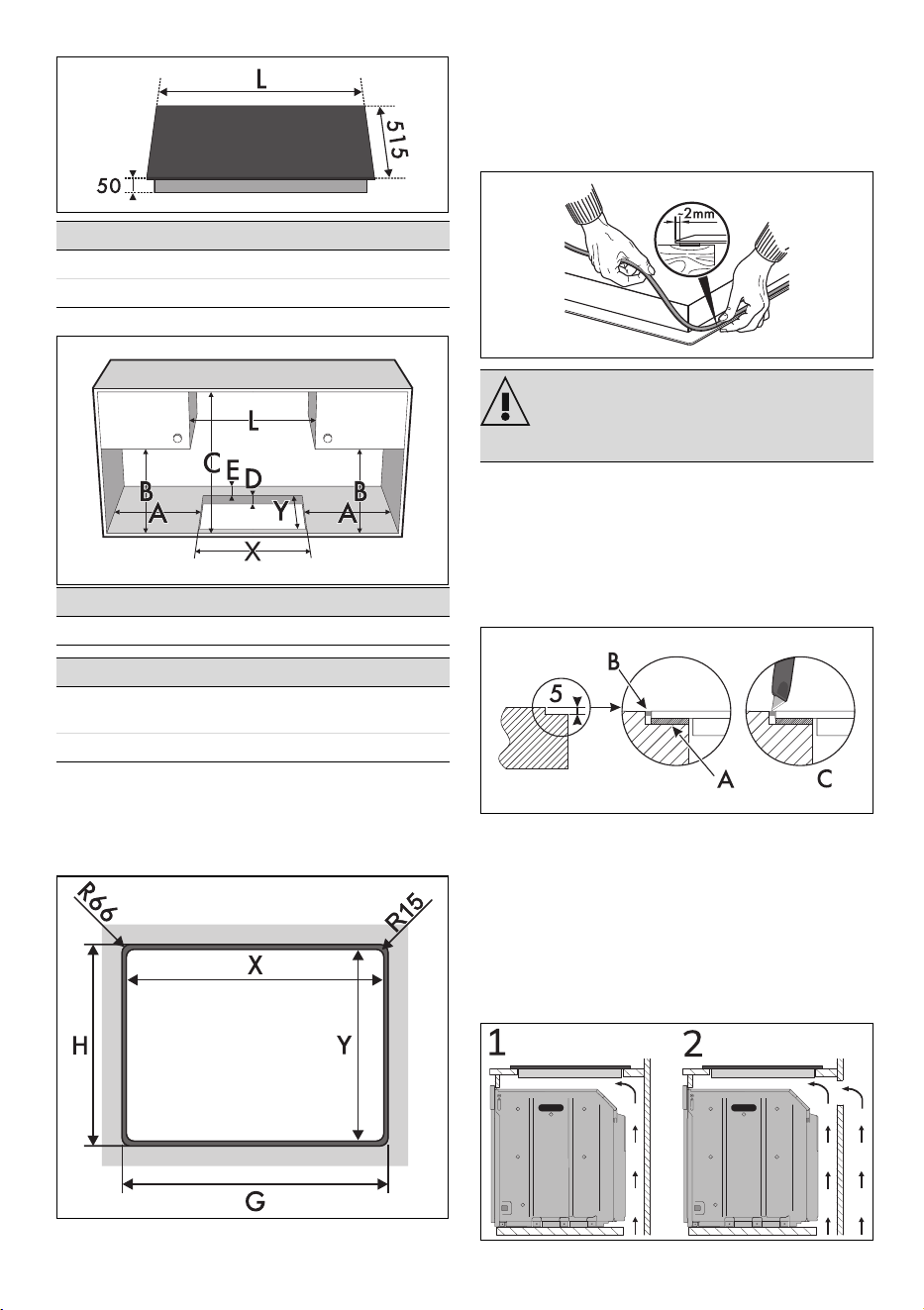

Appliance overall dimensions (mm)
Standard and flush built-in model (mm)
Flush built-in model
For this type of installation, it is necessary to
add a groove to be made along the edges of
the cut-out in the unit if you wish to install
the hob flush with the worktop.
*Refer to the measurements in the table
above.

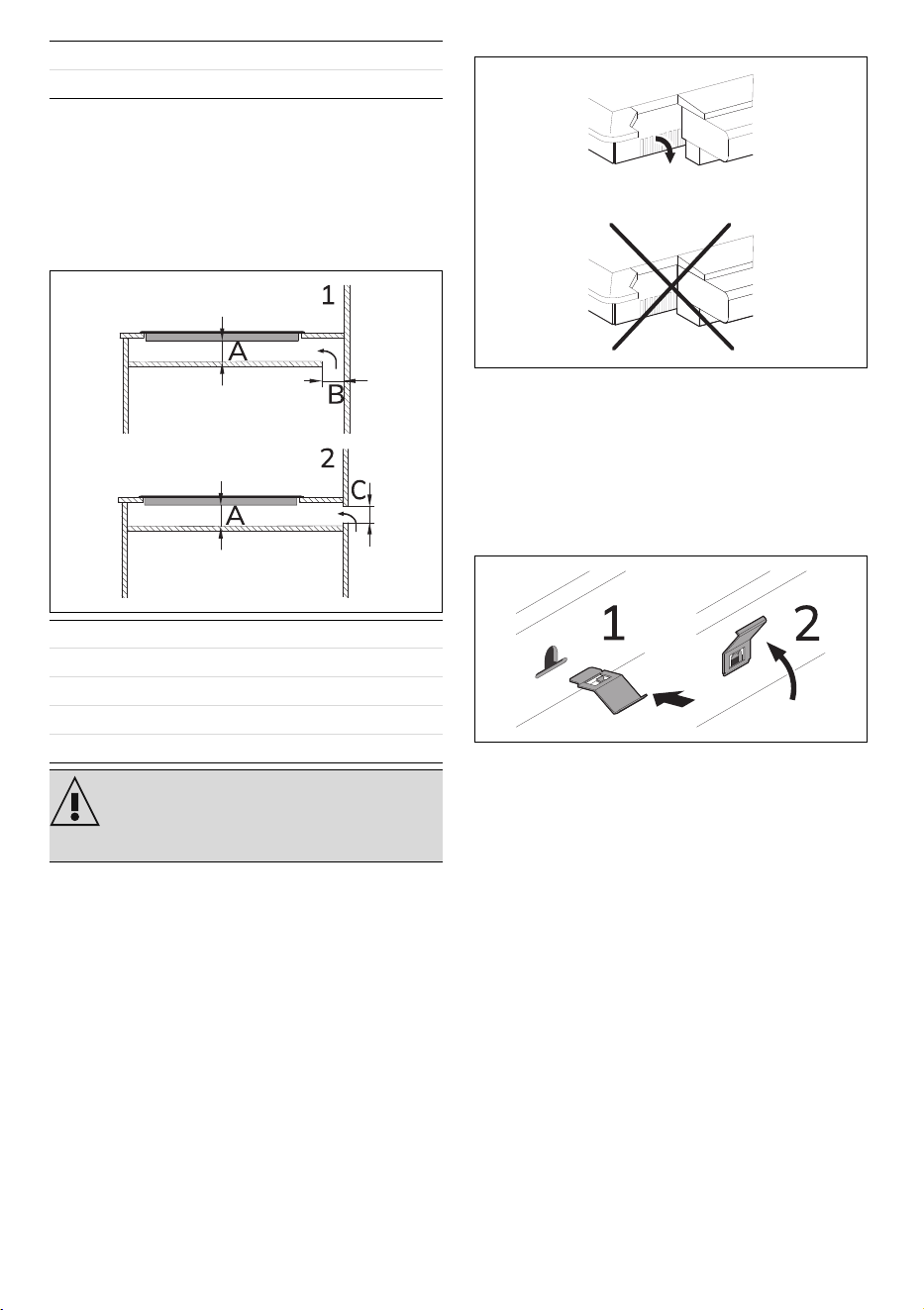

Hob seal
To prevent leakage of liquid between the
frame of the hob and the countertop, place
the adhesive seal provided along the entire
outer edge of the hob before assembly.
In the case of flush mounting, after placing
the adhesive seal (A) on the glass surface
and after positioning and securing the hob,
fill the edges with insulating silicone (B) and
wipe off any excess. If for any reason the
hob needs to be removed, cut the silicone
using a cutter before attempting to remove
it (C).
Mounting
Over built-in oven unit
The clearance between the hob and the
kitchen units or other built-in appliances
must be enough to ensure sufficient
ventilation and air discharge. If installed
above an oven, a space must be left
between the bottom of the hob and the top
of the appliance installed below.
L
80 cm models 820
90 cm models 920
A B C D E
min. 150 min. 460 min. 750 20 ÷ 60 min. 50
L X Y G H
800
730 ÷
750
480 ÷
490
824 519
900 860 490 924 519
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob without
damaging it.
44 - INSTALLATION 91477B506/D
On an empty kitchen
If there are other pieces of furniture under
the hob, a double-layer wooden base must
be installed at least 20 mm from the bottom
of the hob to avoid any accidental contact. It
must only be possible to remove the
double-layer base using suitable
equipment.
Ventilation
The illustrations below show an example of
installation suitable for proper ventilation
and one example of incorrect installation to
be avoided.
Fastening to the built-in cabinet
To ensure the hob is fixed and centred as
accurately as possible, the clips provided
must be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
2. Then turn them upwards to fix them in
place.
Fixing to the built-in cabinet
To ensure secure fixing and optimal
centring, the following instructions must be
followed:
1. Remove the screws from the appliance.
1 Opens on bottom
2 Opens on bottom and back
1 Opens on bottom
2 Opens on back
A min. 20 mm - max. 50 mm
B max. 50 mm
C max. 50 mm
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
INSTALLATION - 4591477B506/D
e
2. Position the bracket and tighten the
screws previously removed.
Power limitation procedure
In order to modify the maximum power
absorbed by the appliance, you have to
access the user menu (see “User menu”).
Once you have accessed the menu, the first
available option is indicated by “U0”
(Maximum total power). 10 of the options
can be modified. Each option is indicated on
the display with the letter “U”, which
alternates with a progressive number.
The power limitation option is marked with
the code .
The front and rear right zone displays
indicate the numbers associated with the
factory set power (expressed in kW -
depending on the models):
/
Use the scroll bar on the right to modify the
power: press the left part to decrease it and
the right part to increase it.
The Eco-Logic Advance function increases
or decreases the power level in steps of 0.1
kW at each touch.
To exit from the user menu:
1. Press for at least 2 seconds to save
the modifications.
2. Press to exit without saving the
modifications.
In both cases, the hob will be switched off
and will have to be switched back on.
Table of power draws
Tes ti ng
At the end of installation, carry out a brief
inspection test. If it fails to work, after
making sure that you have carried out the
instructions correctly, contact Technical
Support.
Instructions for the installer
• If you use a plug (if present) to connect
to the power supply, the plug must be
accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
• This procedure is restricted to
the installer.
• Depending on the model, the
appliance is set at maximum
power in factory.
Models
Minimum
power (kW)
Maximum
power (kW)
80 cm 2.4 7.4
90 cm 2.4 11.1
