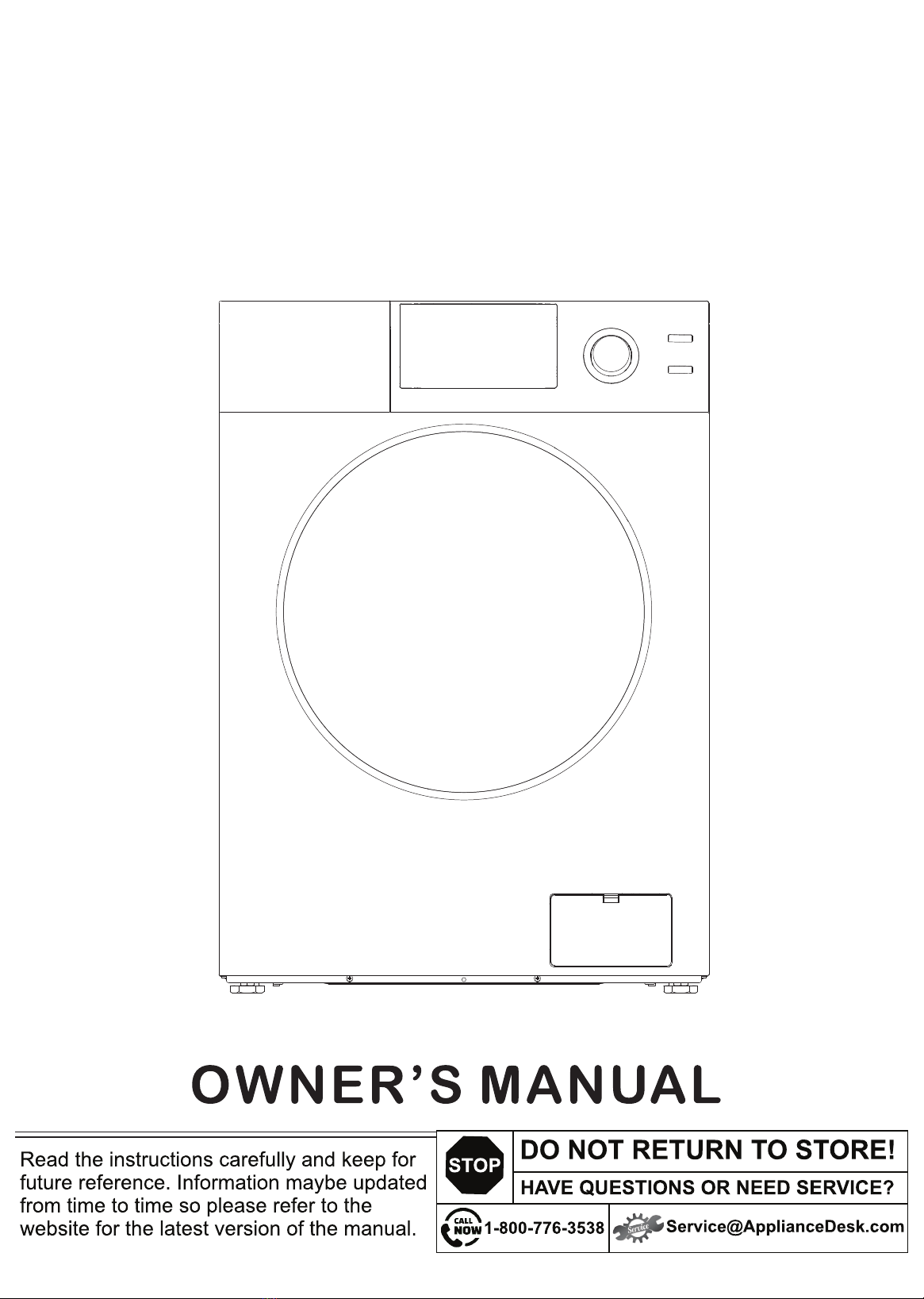

Marine Dryer
Model: 868
1. Scan QR Code
Open Smart Phone
Open Camera
Click the Link
2. Register online at ApplianceDesk.com/Warranty
3. QR Code is also used to obtain Product Information, Manuals and Updates

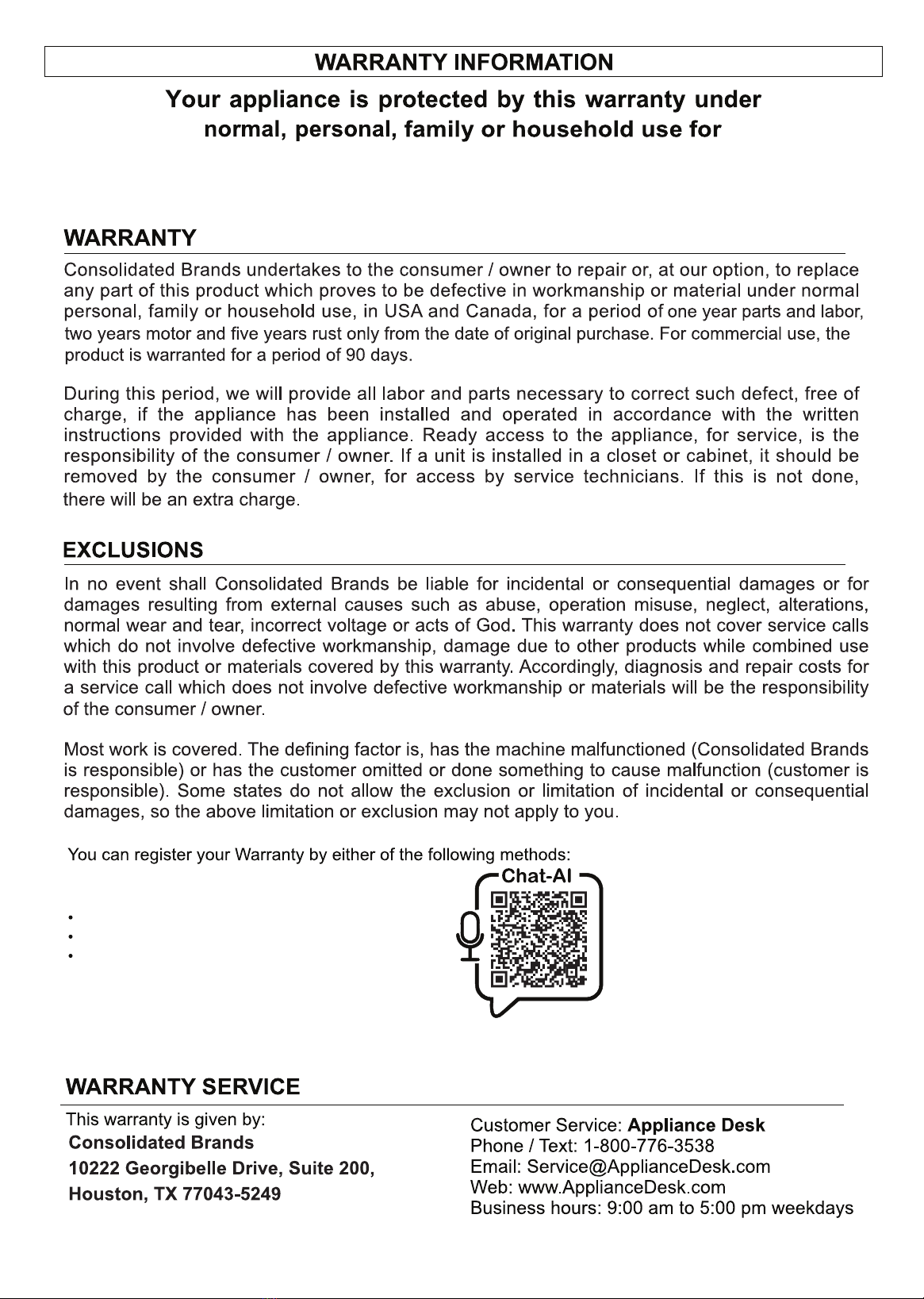

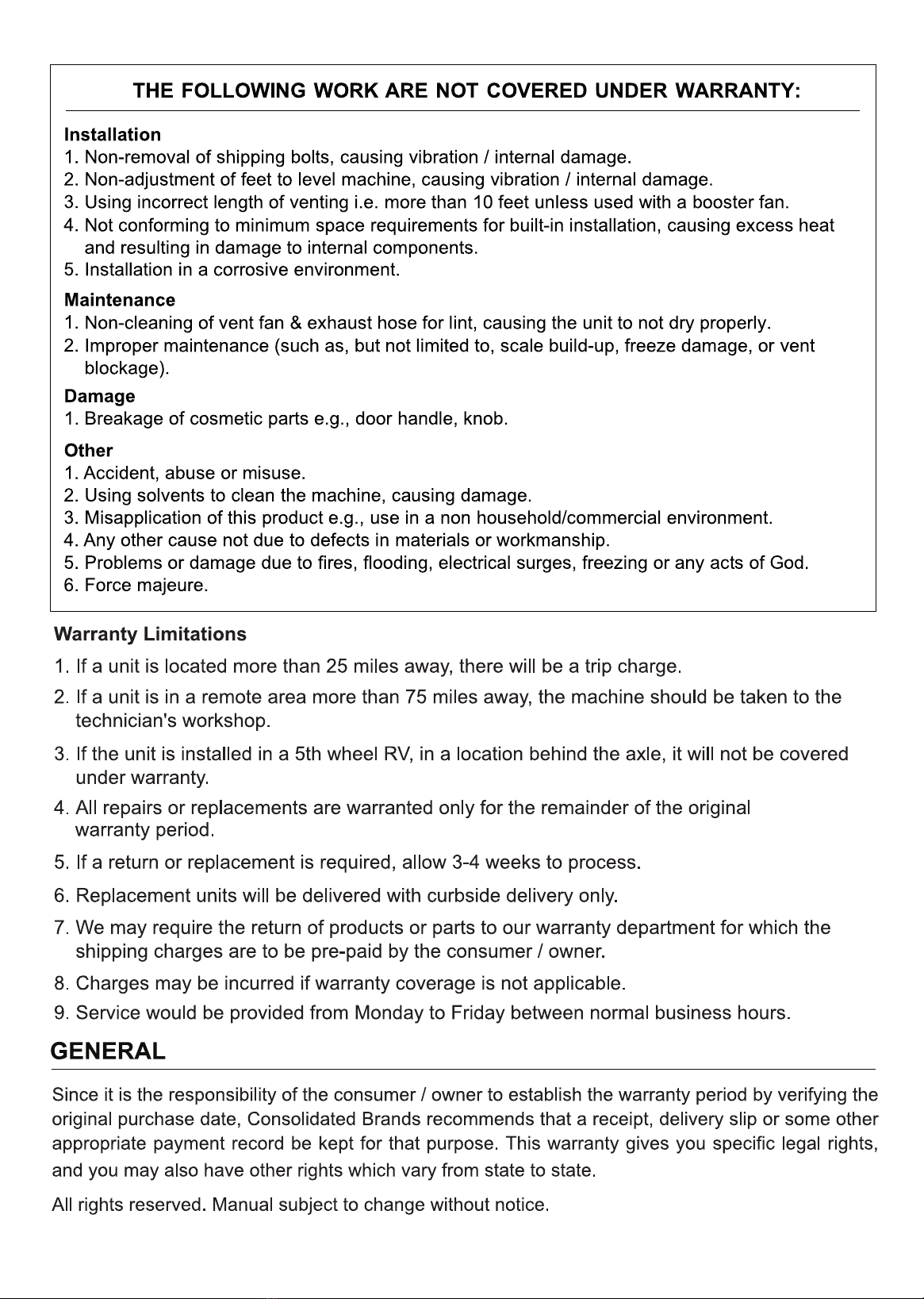

1 Year (Parts and Labor), 2 Years (Motor) and 5 Years (Rust Only)
and limited commercial use (90 days) in USA and Canada.
1. Cabinet - Galvanized steel with phosphate treatment and painted, to prevent rust
2. Nuts, Bolts, Screws, Clamps - Stainless steel grade 316
3. Terminals and Connecters - Conformal coating to prevent moisture build-up
4. Spider wheel (Containing Bearings): Conformal coating to prevent rust
5. Tub Enamel: 2 coats of enamel on tub to prevent rust
Upgraded Accessories Included:
1. Stacking Kit (1)
2. Floor Bracket (2)
3. Aluminum Flexible Duct (5 Feet Length + 2 Clamps)
Congratulations on your new Marine Dryer!
In addition to its contemporary design, this is a highly sophisticated
engineered product that will give you many years of satisfaction.
Here are some of the best reasons for buying your Marine Dryer
1. Reversible Door
Achieve the optimum fit in any space configuration.
2. Lint Reminder
Benefit from a Lint Reminder feature which reminds you to remove lint buildup
and prevent maintenance issues with your machine.
3. Diagnostic Menu
Take advantage of a diagnostic menu to help you troubleshoot any issues.
4. Multiple Dry Cycles
Use normal, heavy, eco, delicate, shoes, allergen 131, sanitize 165, or refresh
12 dry cycles for your clothes.
5. Child Lock
Protect young children with the Child Lock feature.
6. Powerful Machine
This dryer is powered by 1200 Watts and 110V to make it a dynamic,
energy-efficient machine.
7. Efficiently Built
This machine has dimensions of 33.5 x 23.6 x 22.2 inches and a net weight of 79 lbs.
FEATURES
1
Safety
Use the appliance indoors. It is not intended to be used outdoors.
Ensure that open flame sources, such as candles are not placed on top of the dryer.
Do not place items in the dryer that are soiled with flammable liquids, oils and other
chemicals. These items should be washed thoroughly before placing them in the dryer.
Ensure fabric softeners or products to eliminate static are not used inside the dryer,
unless recommended by manufacturers of these products.
Do not dry items containing rubber, plastic or similar materials.
Ensure the dryer and electrical cord are not placed near heat sources, such as
radiators, heaters, air ducts or in direct sunlight.
Ensure vents and ventilation openings are not blocked.
Ensure the power cord is not bent or twisted, and not exposed in an area where is
could be a tripping hazard.
Do not use the dryer if the cord is damaged.
To disconnect the dryer, press the power button to turn it off, then grasp the plug of
the power cored firmly and pull straight out of the outlet.
Do not open the dryer and reach into the drum while it is rotating.
Ensure the dryer is not overloaded.
Do not tamper with controls.
Perform regular maintenance and cleaning of lint filter after each use. Ensure periodic
cleaning of exhaust duct is done by a qualified technician.
Check that foreign objects are not in the drum.
This appliance is not intended for use by persons, including children, with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
In order to reduce the risk of fire, electric shock, and/or injury, please follow safety
precautions. Read all instructions carefully and save for future reference.
Safe Disposal
Before discarding the appliance, please remove the door to prevent risk of
child entrapment.
Keep children away from the shipping carton and packing components.
Please dispose off this appliance and all packaging material in accordance with
local regulations.
(Watts)
(Watts)
(Watts)
2

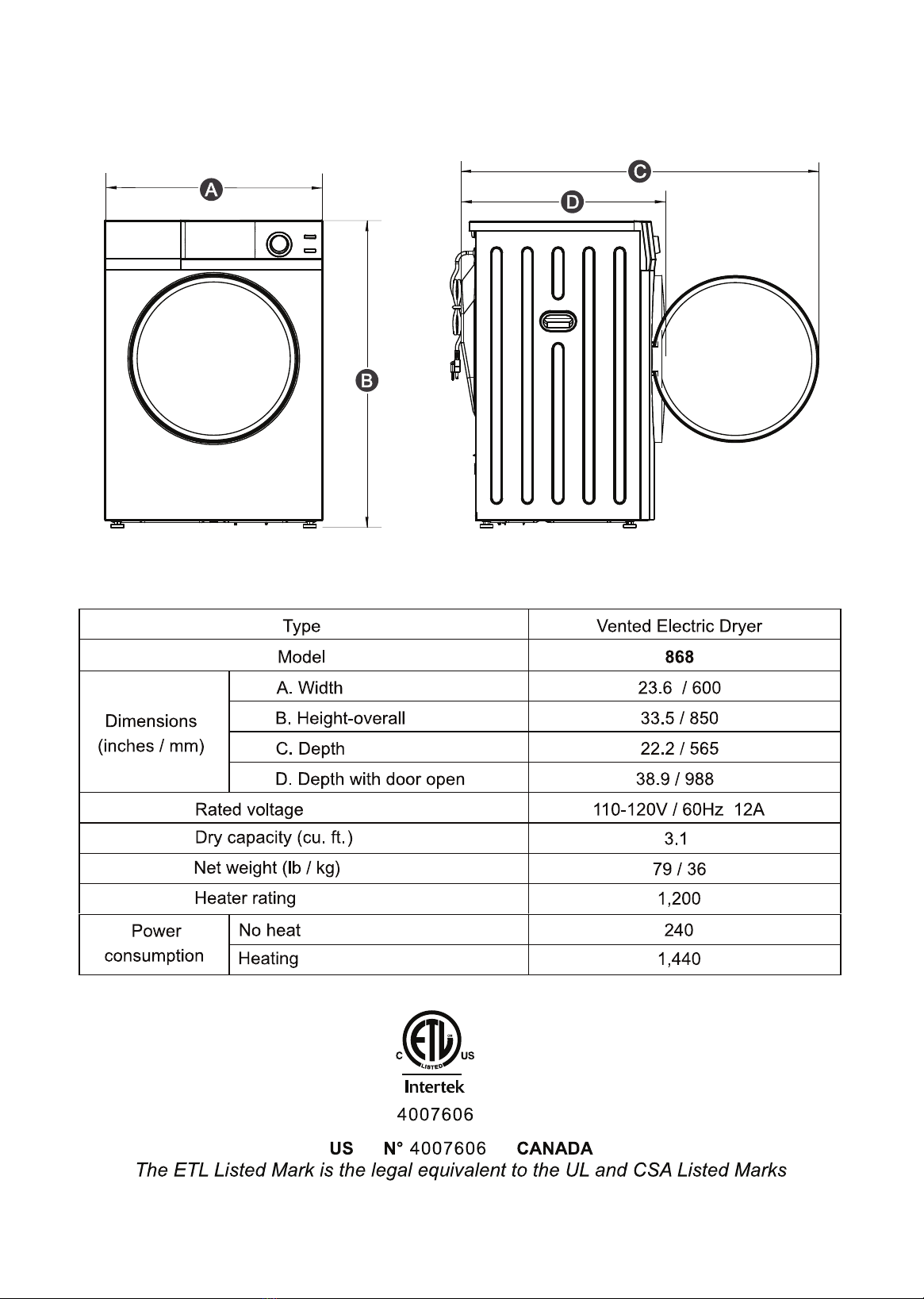

Technical Data
with screws (6)
(2 brackets)
3

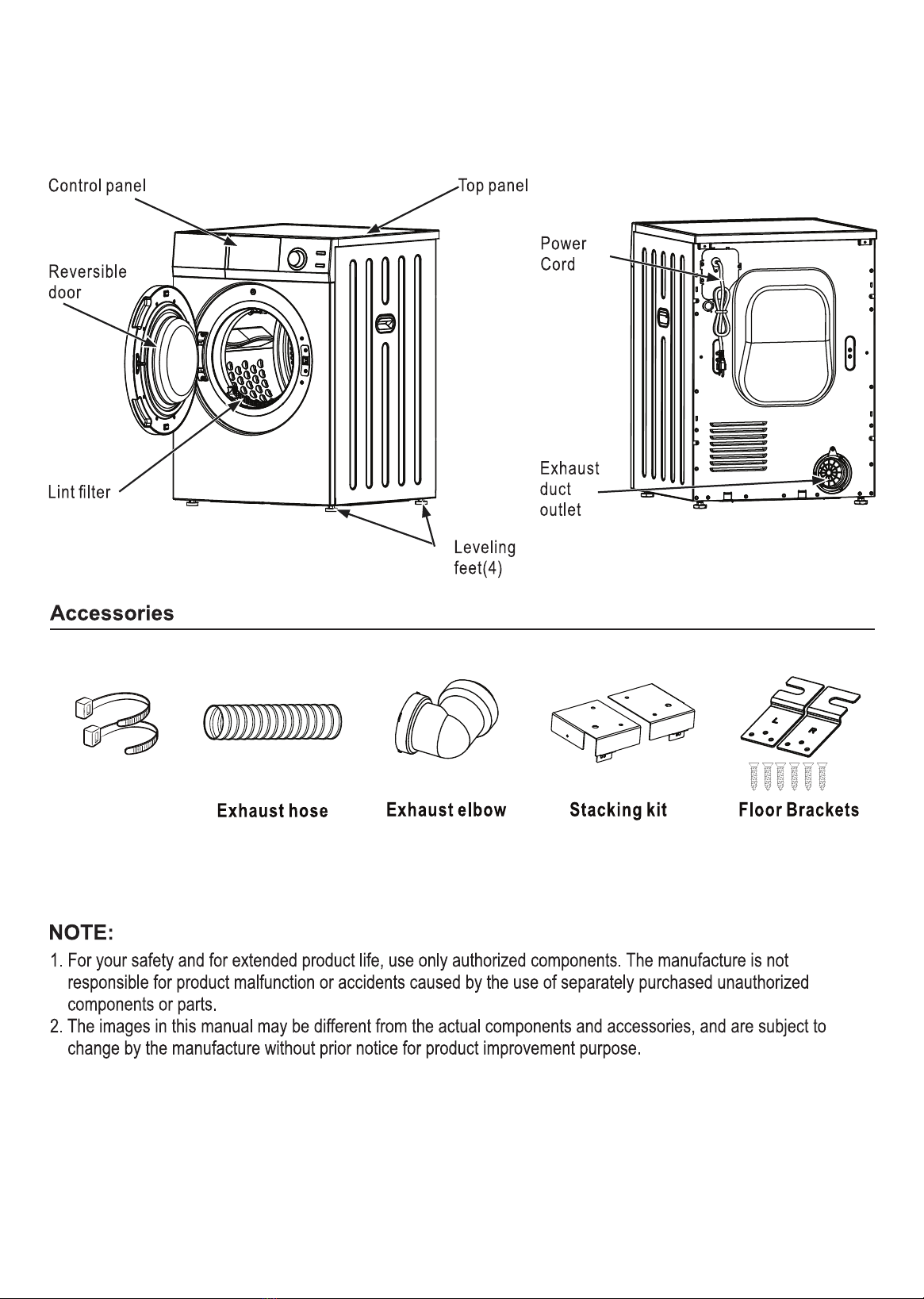

Dryer - External Components
Hose ties (x2)

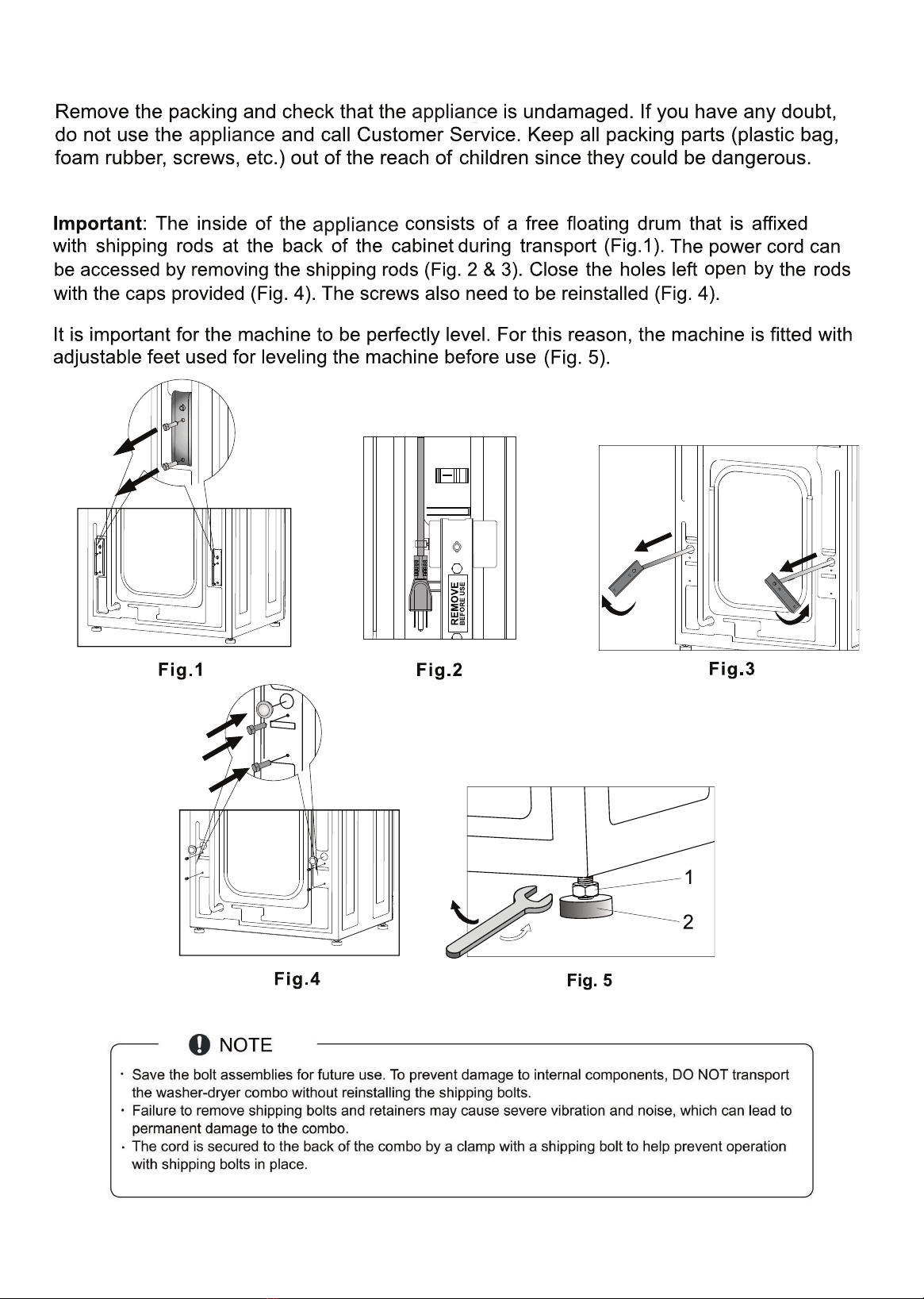

Handling and Placement
4
must not
must be metal.
CAN / CSA Z240MH
5
Installation
The dryer must be properly grounded. Do not modify the plug.
Do not install the dryer in a tight-fitting cabinet. Ensure there is adequate ventilation
space all around the dryer (please see detailed installation instructions).
Do not use flexible plastic venting materials which may collapse. Use only vent hoses
that are approved by the manufacturer.
In Canada and the United States, only those foil-type flexible ducts, if any, specifically
identified for use with the appliance by the manufacturer shall be used and that comply
with the outline for the Clothes Dryer Transition Duct, subject to 2158A, shall be used.
In Canada, the exhaust duct shall be 4” (10.2 cm) in diameter.
In the United States, the exhaust duct shall be 4” (10 cm) in diameter.
The total length of flexible metal duct shall not exceed 8 feet (2.4 m).
The duct shall not be assembled with screws or other fastening means that extend
into the duct and catch lint.
The appliance shall no be exhausted into a chimney, wall, ceiling, attic, crawl space,
or a concealed space of a building.
The dryer must be installed and serviced by a qualified technician.
Install the dryer according to manufacturer's instructions and local codes.
Secure the appliance to the floor using the floor brackets provided.
1. Level the appliance
Tighten the two back feet so they are all the way in.
2. Place the brackets around the front feet (Fig.6).
3. Secure both brackets to the floor using a drill and 3 screws each (Fig.7).
Do not drag the appliance
Do not hold protruding parts when lifting.
Install the appliance on a firm level surface.
Ensure the appliance is placed in a dry, well ventilated area.
Do not install the appliance outdoors where it can be exposed to freezing conditions.
Note: Any residual moisture inside the drum is due to the final testing
which every appliance undergoes before leaving the factory.
Tilt the appliance back. Then adjust the two front feet up or down so the
appliance does not rock side to side, or front to back when upright.
Installation Instructions
6
Fig. 6 Fig. 7
Right Leveling Leg
Left Leveling Leg
7

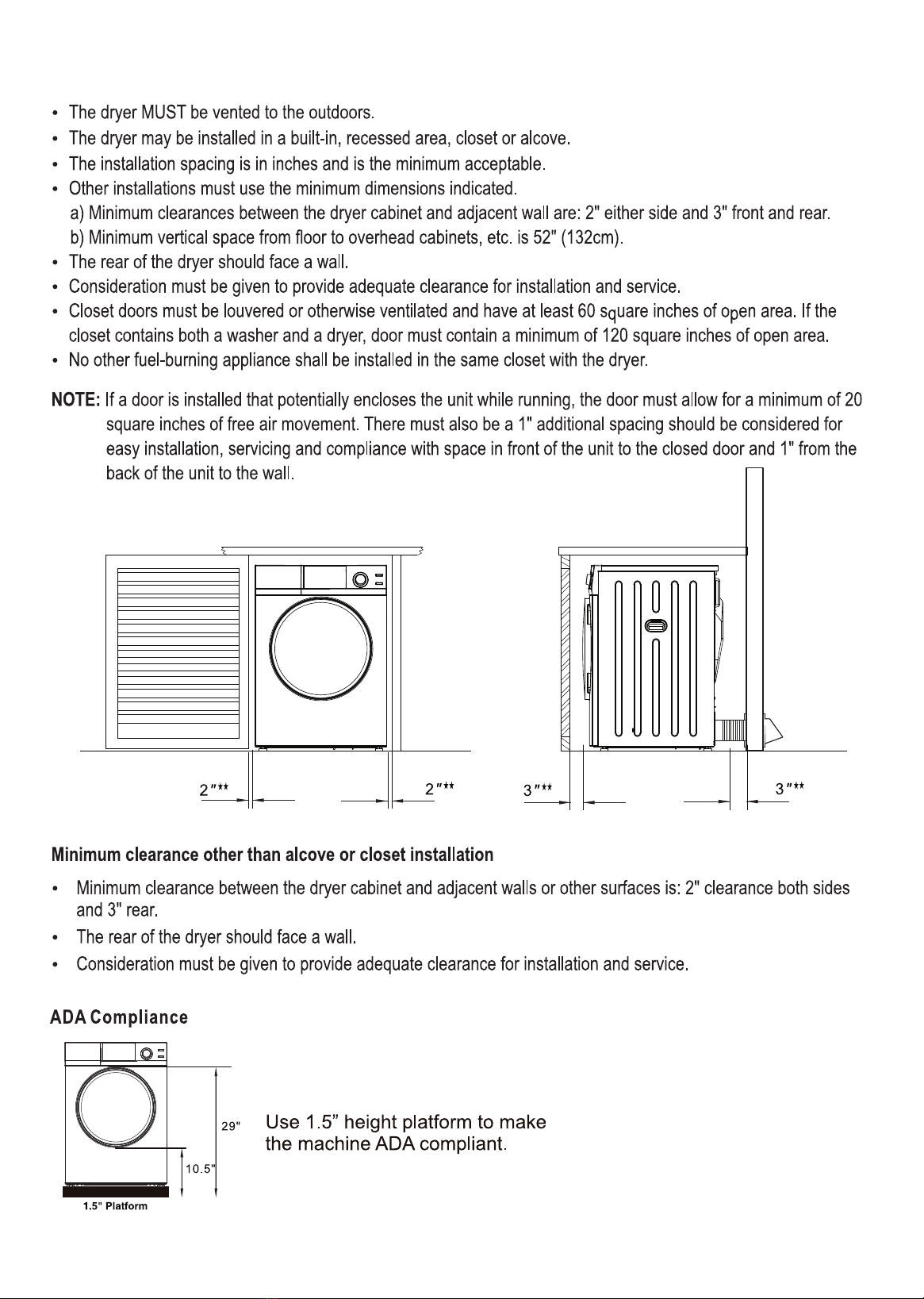

Built-In, Recessed, Closet and Alcove Installation
8

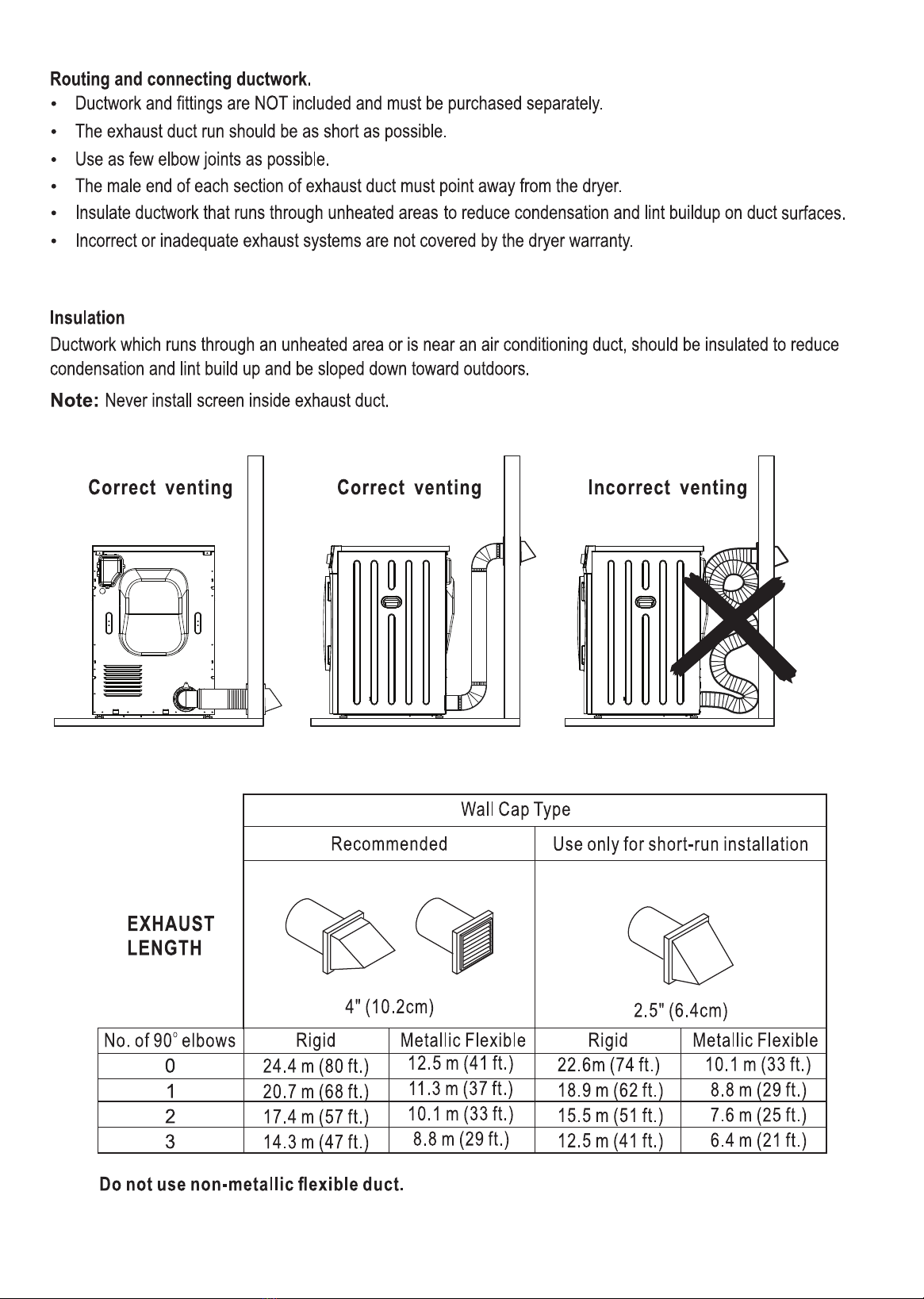

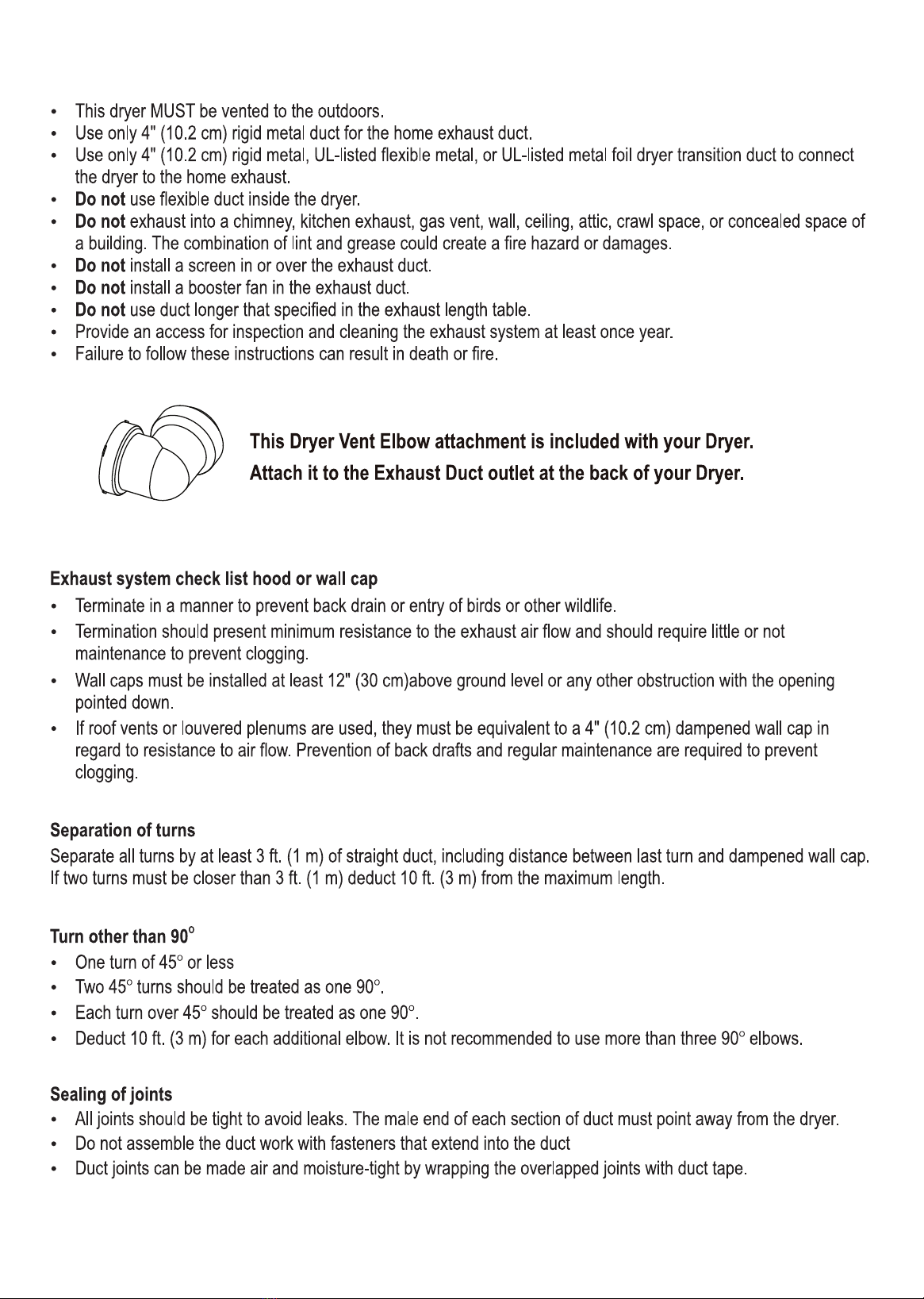

Venting Connections
is acceptable.
, as they may collect lint.
9
Note: If the electrical power supply does not meet the specifications listed above,
please call a licensed electrician.
This Marine Dryer must be connected to an individual circuit identical to the one specified on
10

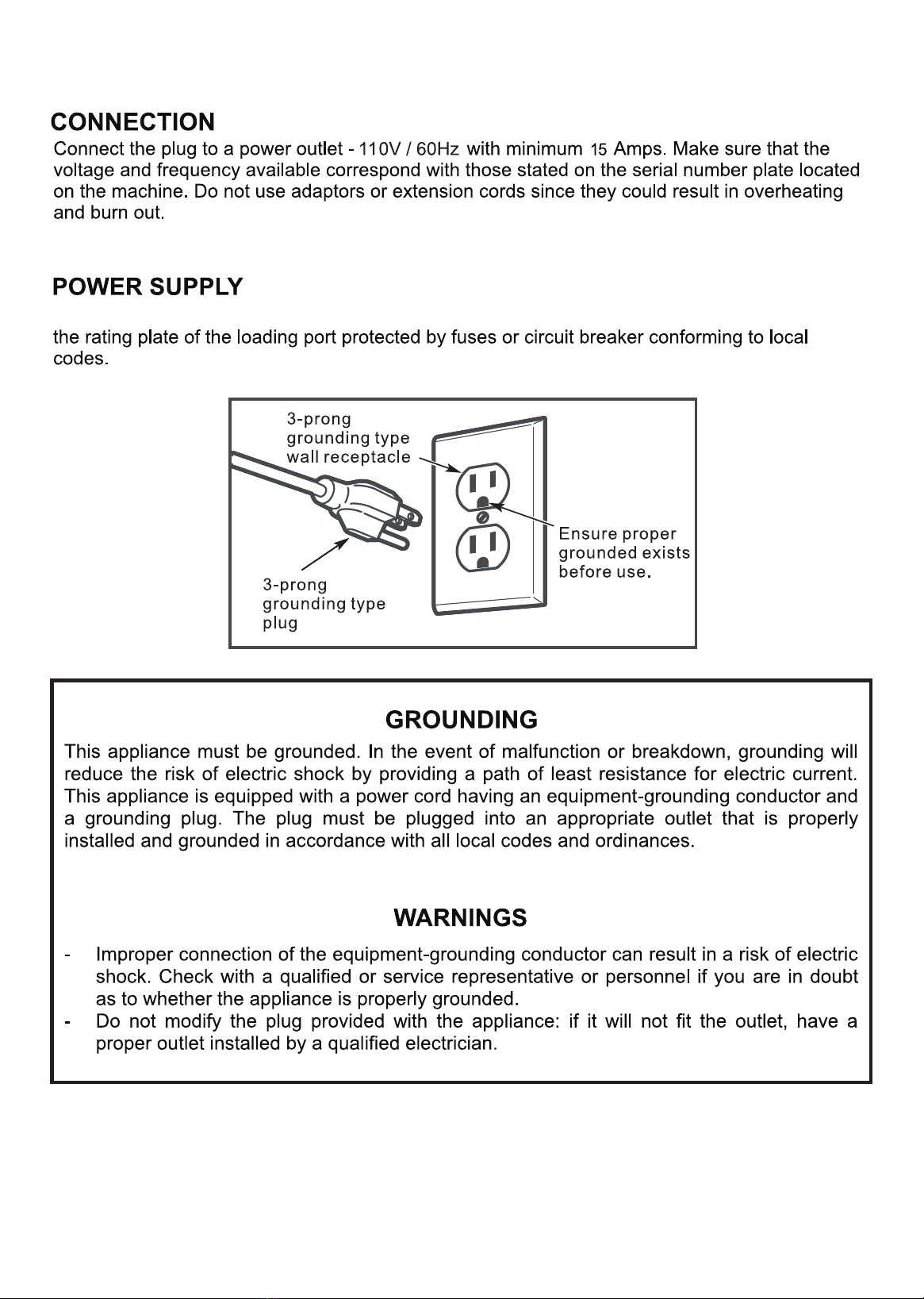

Electrical
11

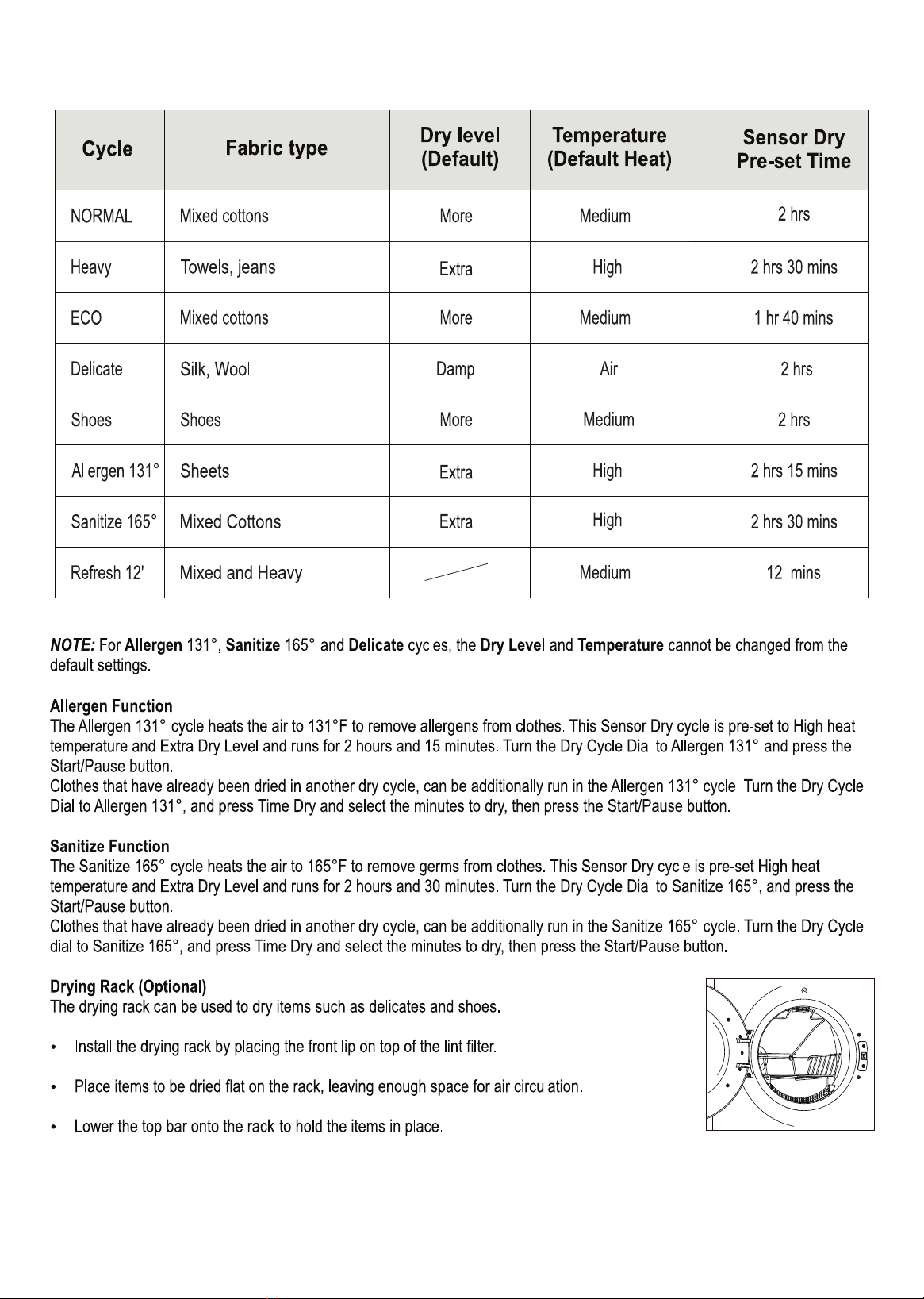

Program Selection Chart
12

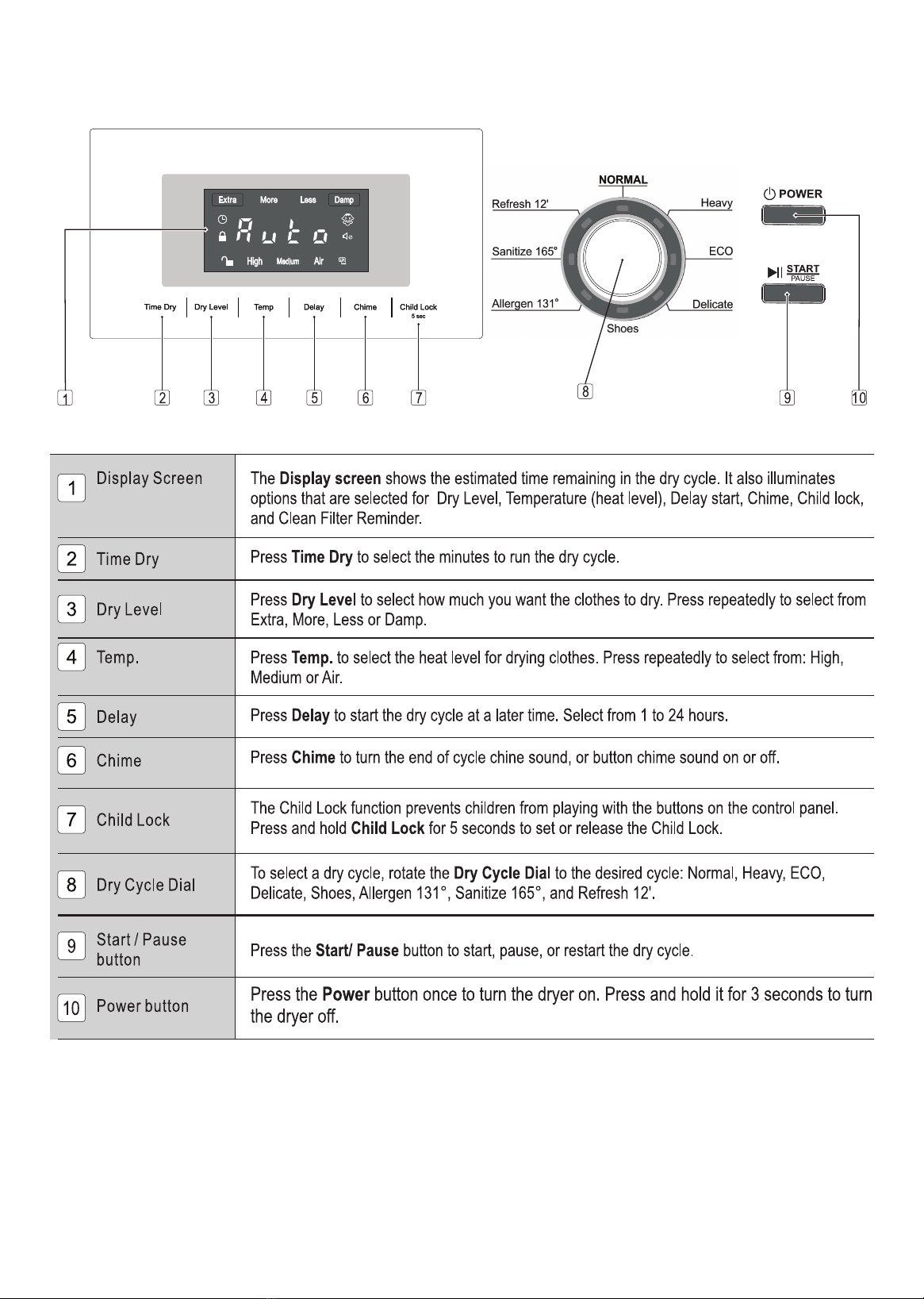

Control Panel
13

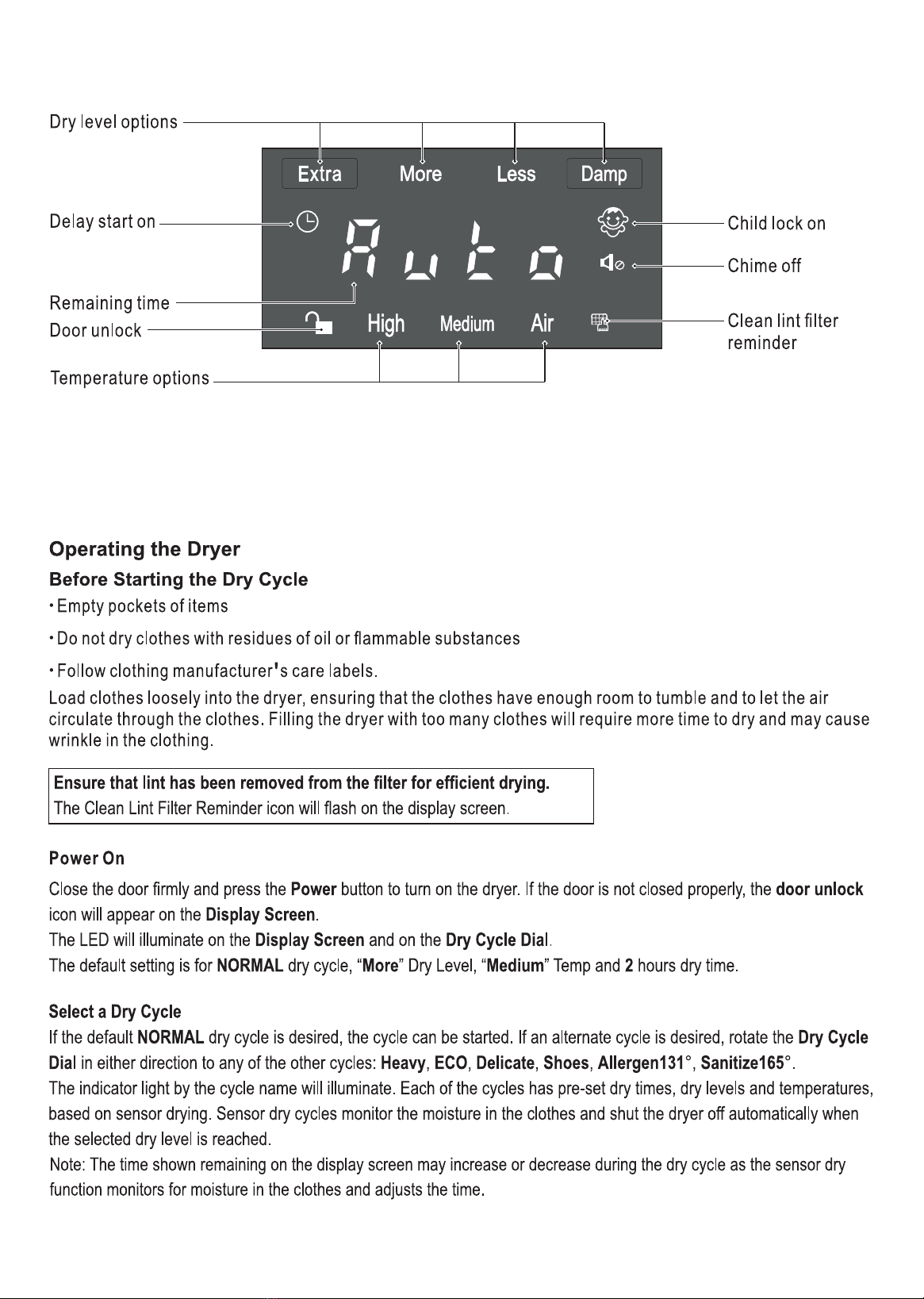

Display Panel

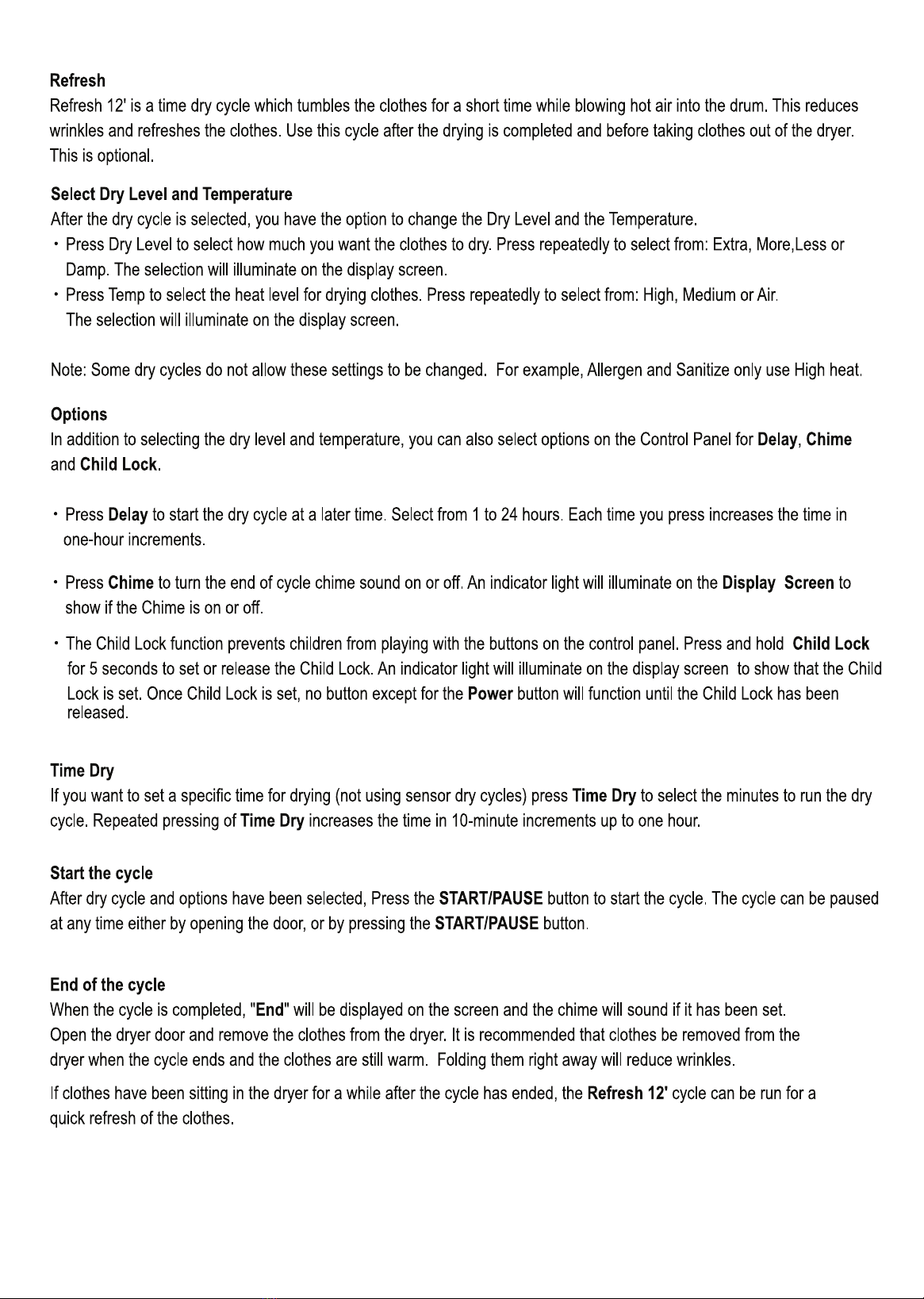

Operating Instructions
Before using the Dryer, please check the inside of the drum to ensure that children or pets have
not climbed into the appliance.
14
15

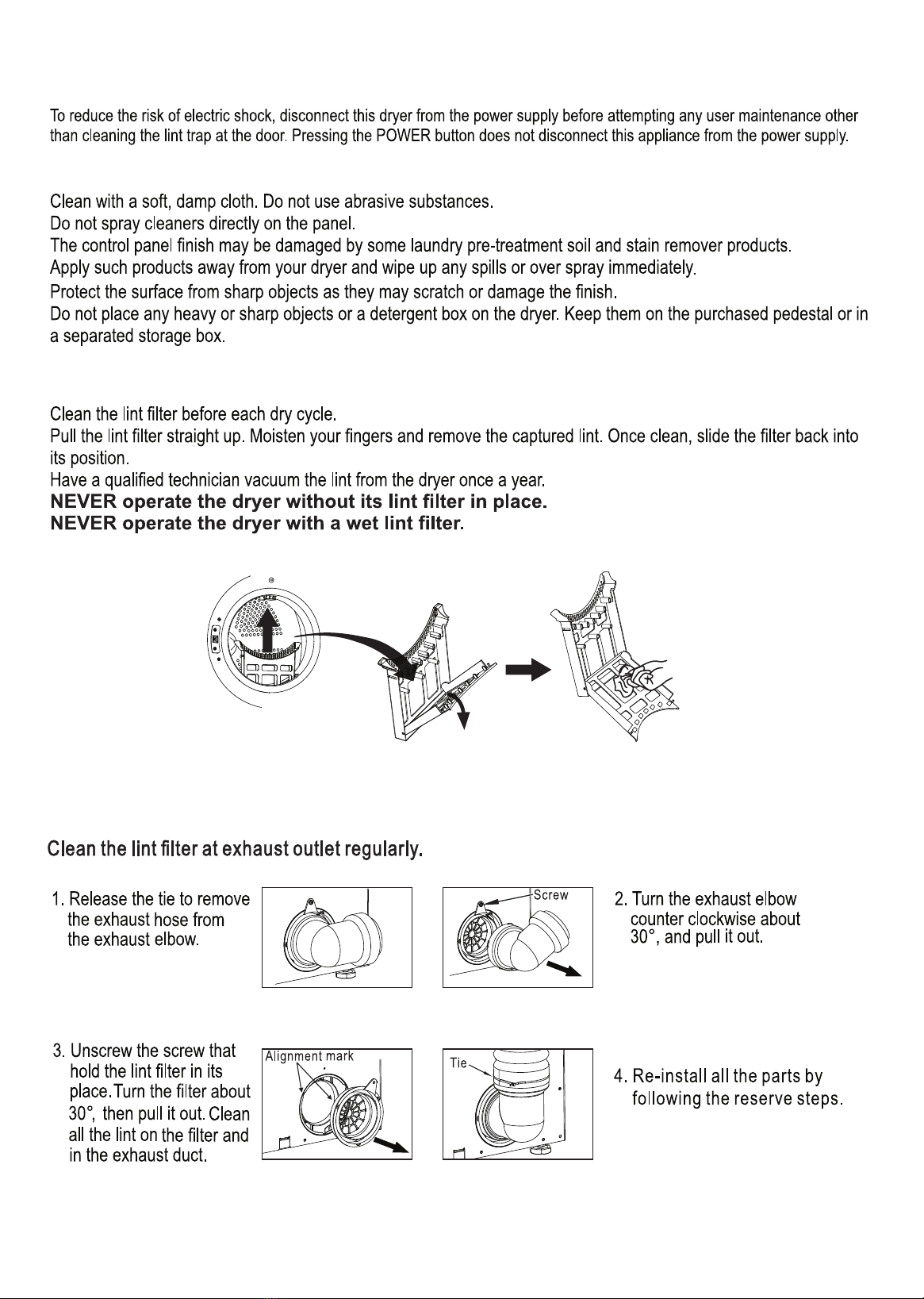

Maintenance
Cleaning
Lint Filter
16

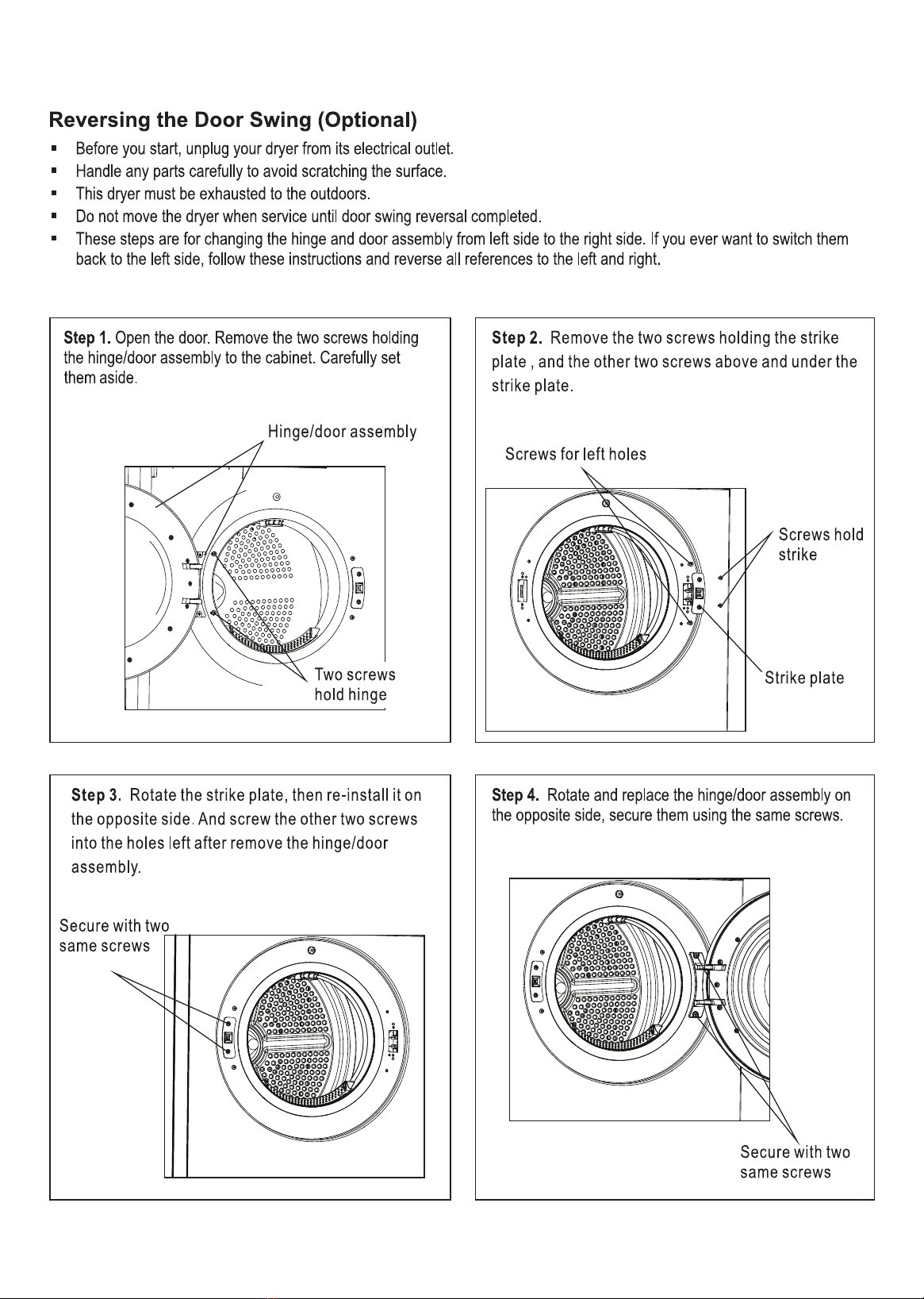

Door Reversal
17

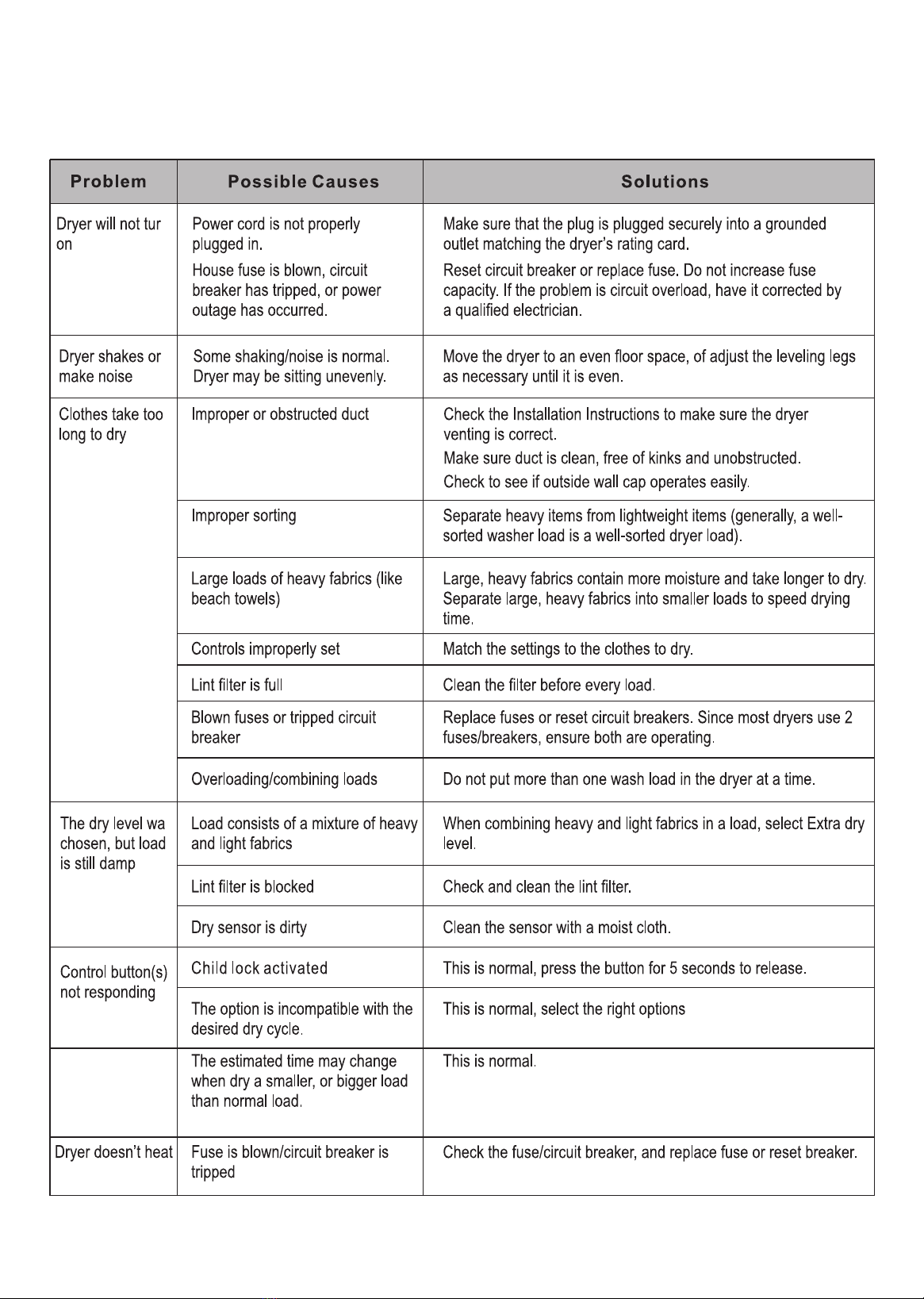

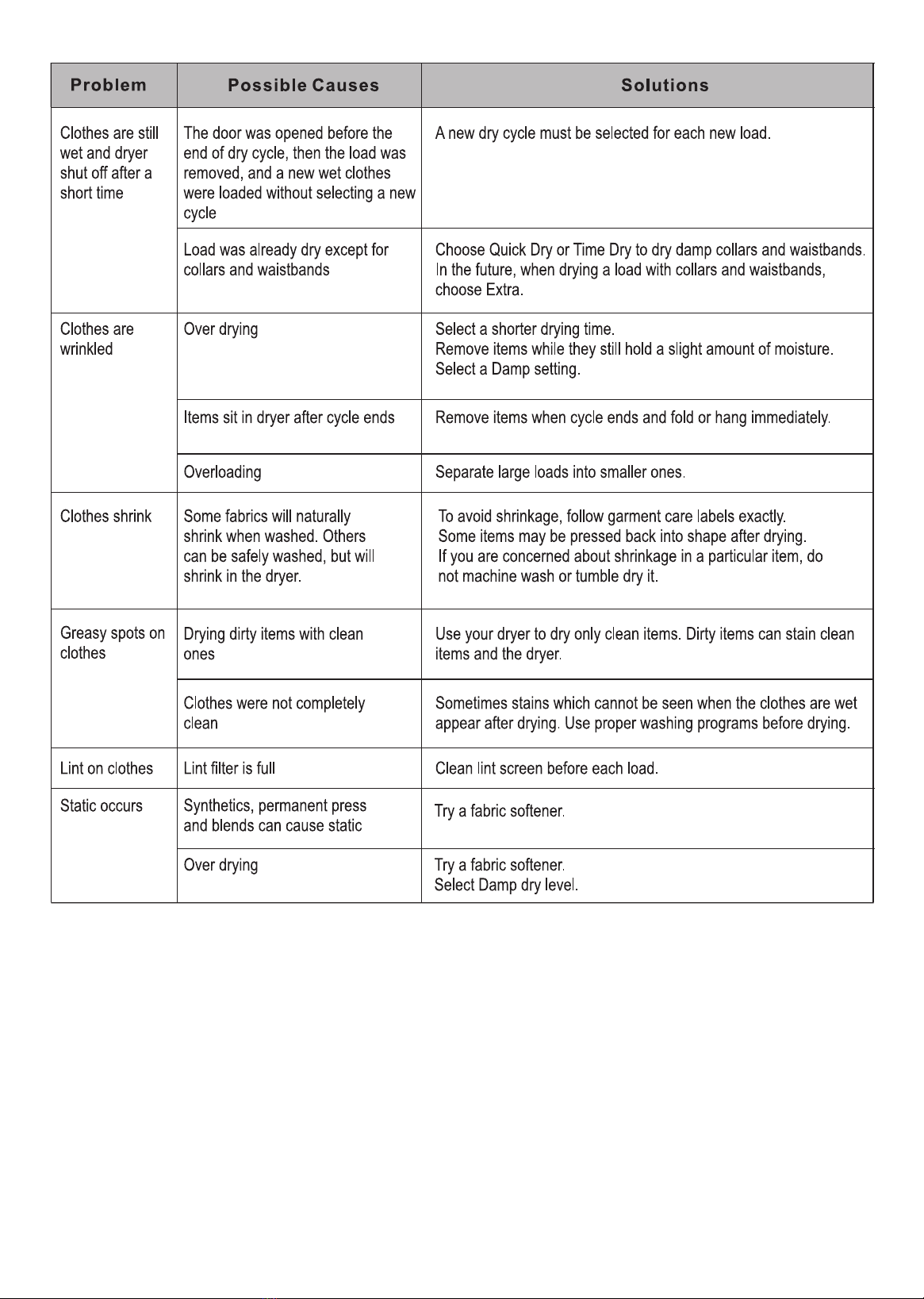

Troubleshooting
for your dry cycle.
Remaining time
changed to a
lower or a
greater number
In most cases, when your Dryer fails to work, the problems arising can be easily solved without having to
call for a technician. Before calling for assistance, always check these points.
18
19

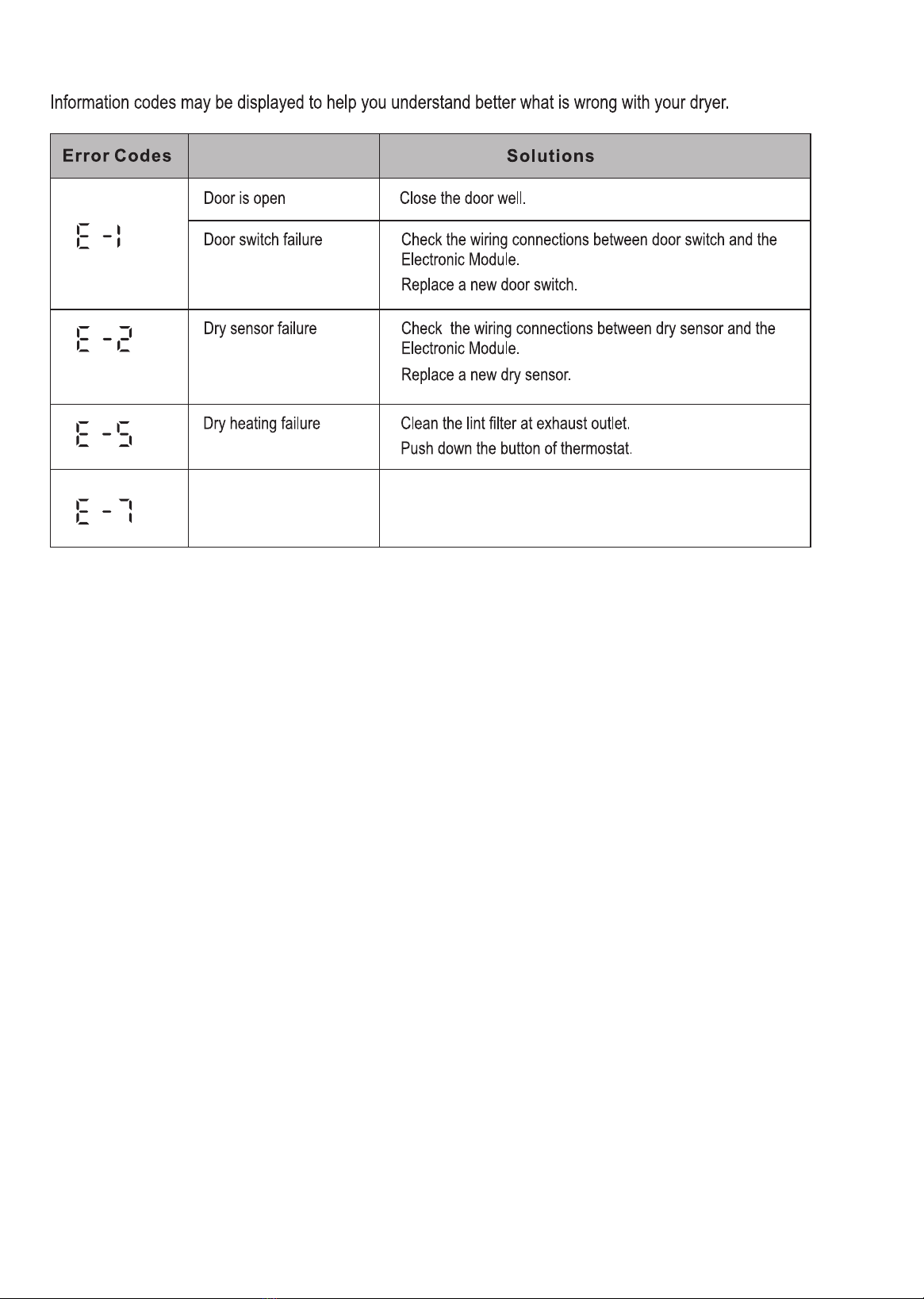

Error Codes
Drum does not rotate
Problem
Belt has fallen off or broken.
Replace belt.
If Error Codes display that are other than the ones listed in the table, please contact Customer Service.
