Operator’s Manual
www.mechmaxx.com
WARRANTY
TABLE OF CONTENTS
TABLE OF CONTENTS
GENERAL SAFETY INSTRUCTIONS
SAFETY DECAL
1
STORAGE
3
5
6
SPECIFICATIONS
7
7
MAINTENANCE AND STORAGE
8
BOLT TORQUE
9
TROUBLESHOOTING
1
www.mechmaxx.com
TABLE OF CONTENTS
OPERATION SAFETY
3
TRANSPORT SAFETY
3
SERVICE AND MAINTENANCE SAFETY
3
STORAGE SAFETY
4
SAFETY SIGNS
4
10

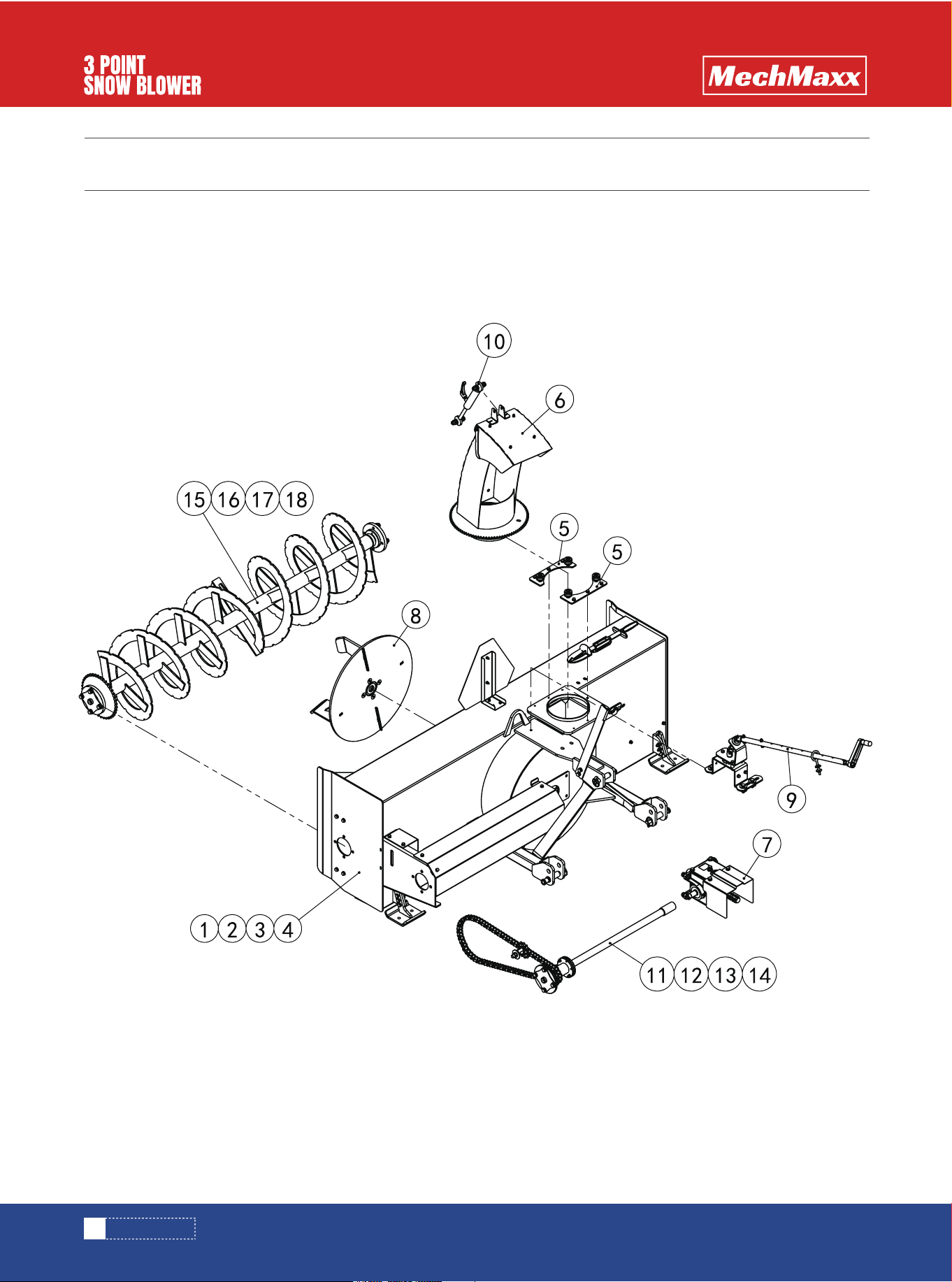

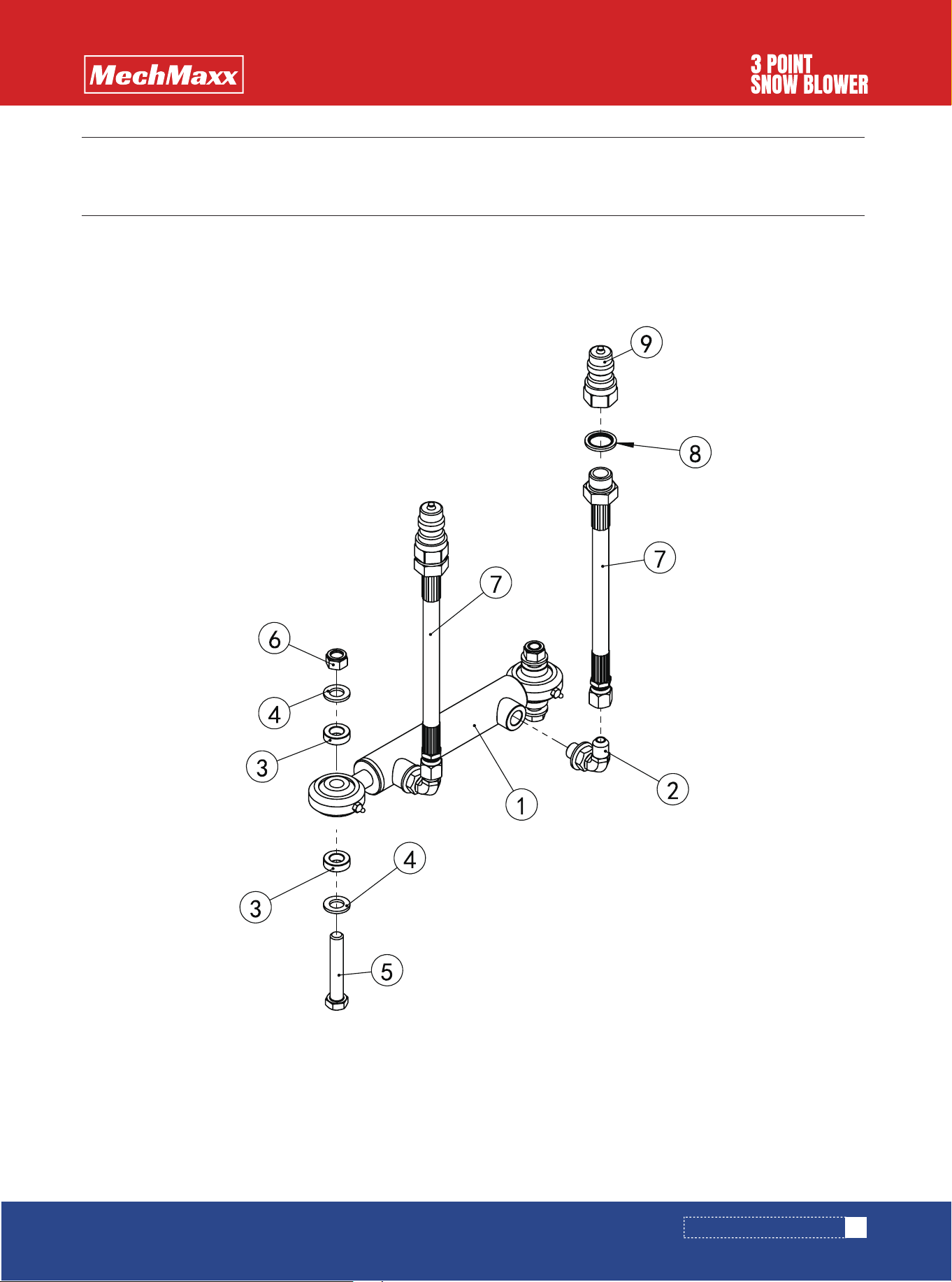

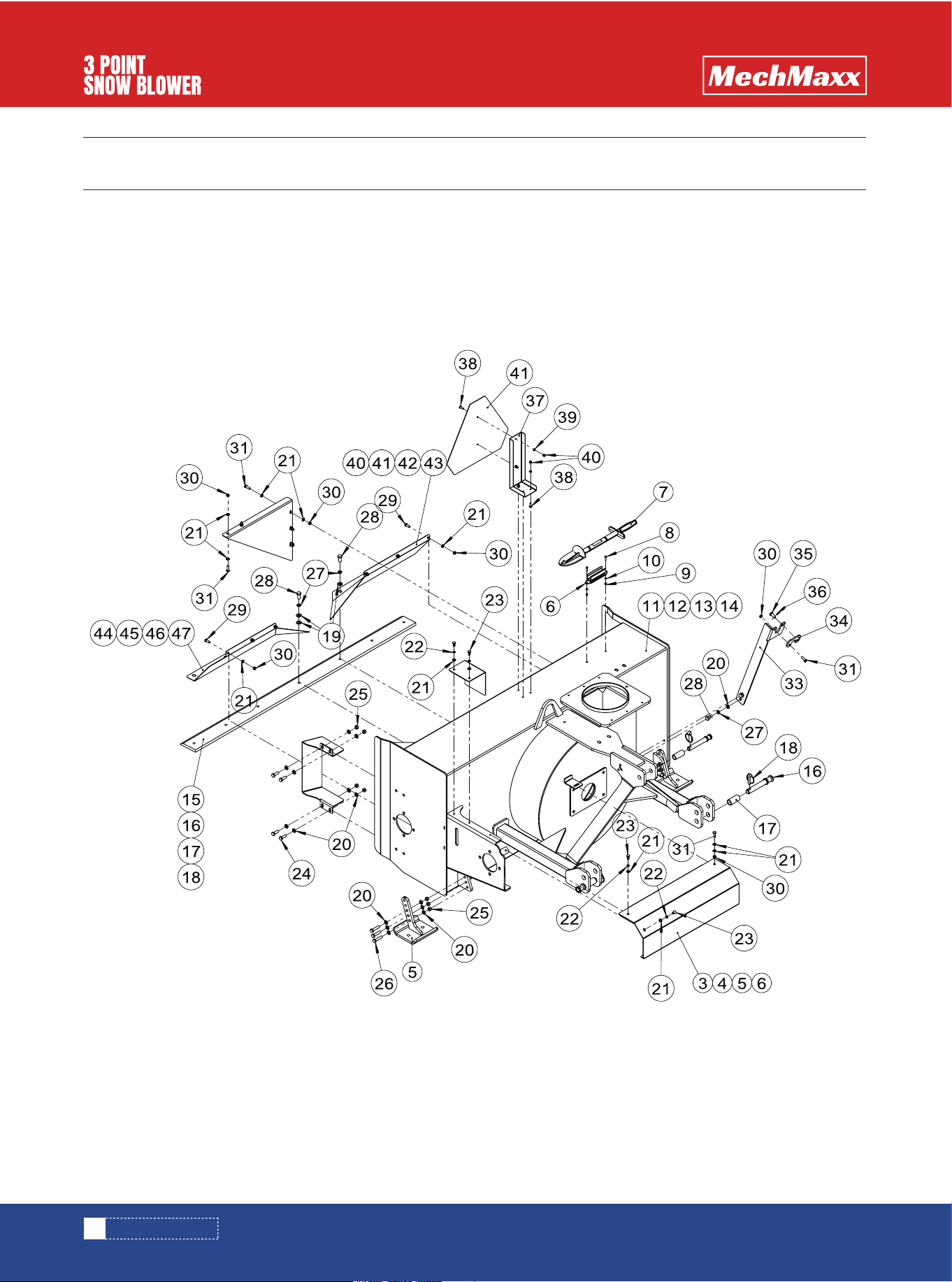

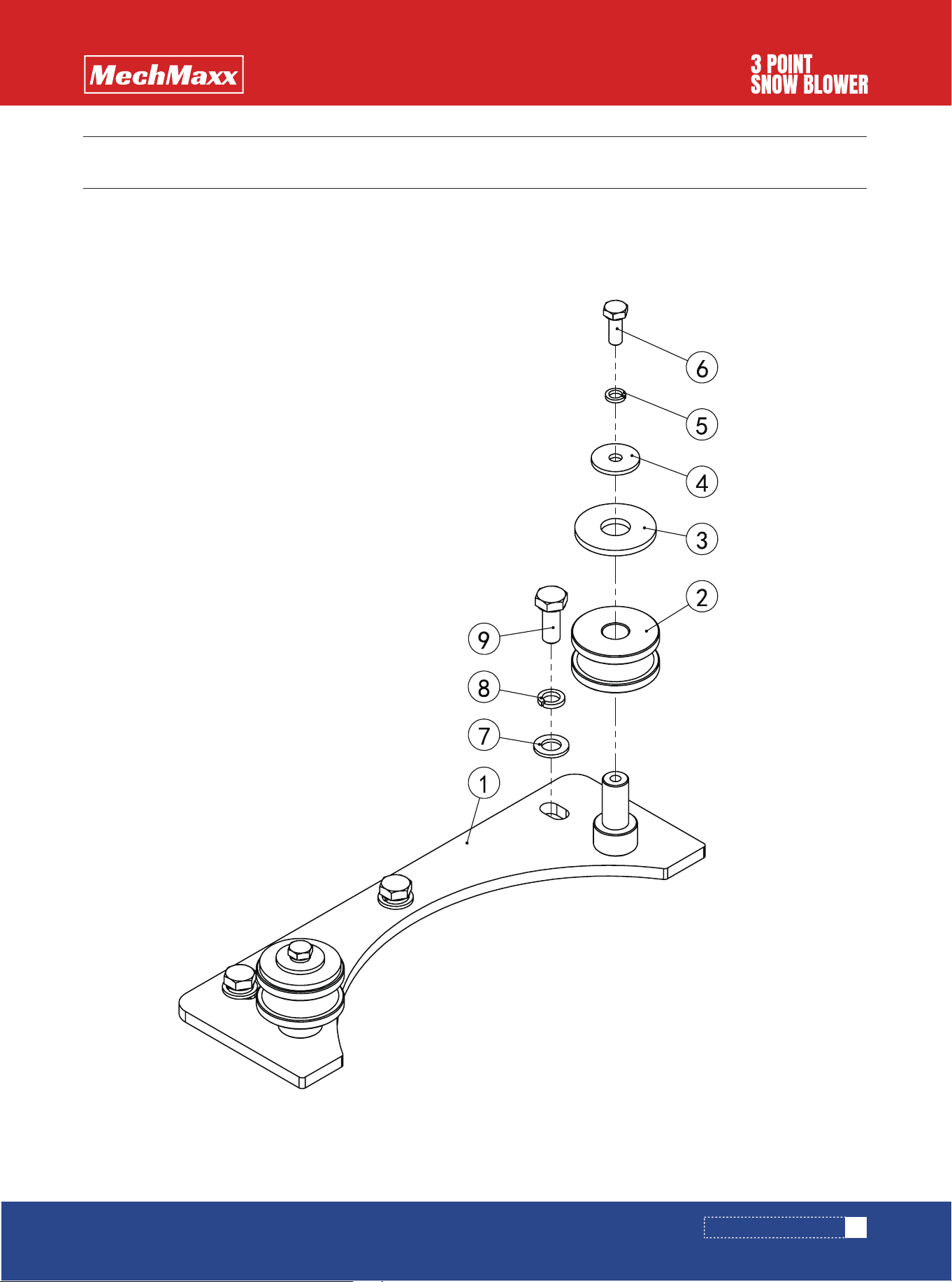

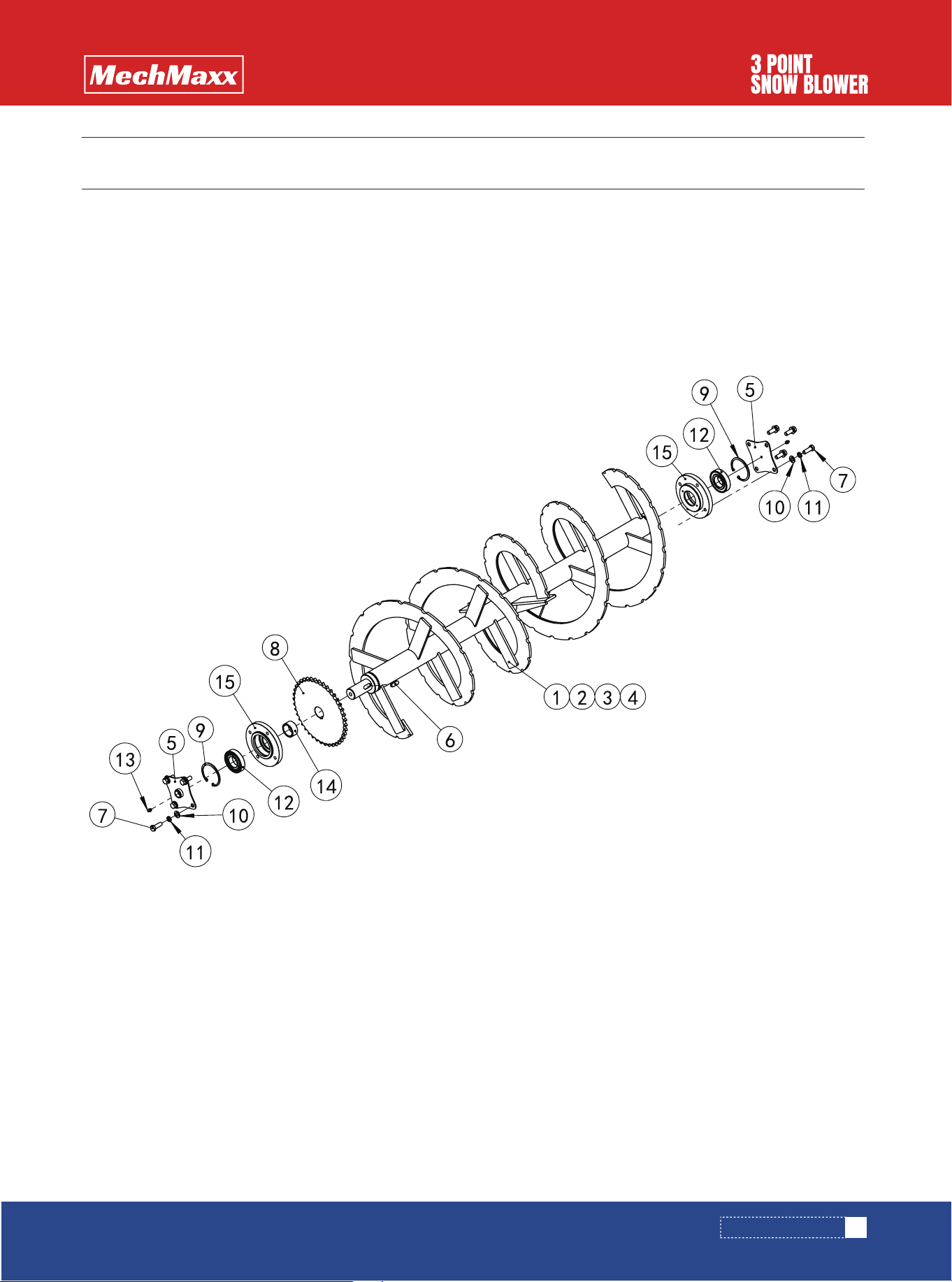

PARTS DIAGRAM
11
PARTS LIST
2
www.mechmaxx.com
• Please read the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make
these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with
the recommended operating and maintenance procedures and follows all the safety precautions. Most accidents can be
prevented. Do not risk injury or death by ignoring good safety practices.
The alert symbol is used throughout this manual. It indicates attention is required and identifies hazards. Follow the
recommended precautions.
The safety alert symbol means…
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
GENERAL SAFETY INSTRUCTIONS
WARNING
SAFETY INSTRUCTIONS
CAUTION
The caution symbol indicates a potentially hazardous situation that, if not avoided, may result in
minor or moderate injury. It may also be used to alert against unsafe practices.
WARNING
The Warning Symbol indicates a potentially hazardous situation that, if not avoided, could result in
death or serious injury, and includes hazards that are exposed when guards are removed. It may
also be used to alert against unsafe practices.
DANGER
The Danger Symbol indicates an imminently hazardous situation that, if not avoided will result in
death or serious injury. This signal word is to be limited to the most extreme situations, typically
for machine components that, for functional purposes, cannot be guarded.
3
www.mechmaxx.com
GENERAL SAFETY INSTRUCTIONS
GENERAL SAFETY INSTRUCTIONS
• Have a first-aid kit available for use and know how to
use it.
• Have a fire extinguisher available, stored in a highly
visible location, and know how to use it.
• Wear appropriate protective gear. This list may include
but is not limited to:
◦ hard hat
◦ protective shoes with slip resistant soles
◦ protective glasses or goggles
◦ heavy gloves
◦ wet weather gear
◦ hearing protection
◦ respirator or filter mask
• Read and understand the Operator’s Manual and all
safety signs before operating, servicing, adjusting,
repairing, or unplugging the equipment.
• Do not attempt any unauthorized modifications to your
product as this could affect function or safety, and
could affect the life of the equipment.
• Never start or operate the snow blower except from
the operator’s station on the power unit.
• Inspect and clean the working area before operating.
• Keep hands, feet, clothing, and hair away from moving
parts.
• Ensure bystanders are clear of the area before operat-
ing.
• Do not let inexperienced operators or children run this
equipment.
• Place all tractor and machine controls in neutral before
starting.
• Operate only with ROPS and seatbelt equipped
tractors.
• Do not operate inside a building unless there is
adequate ventilation.
• Ensure all shields are in place and in good condition
before operating.
• Stay clear of PTO shaft and machine when engaging
PTO.
• Do not permit riders.
• Do not wear loose fitting clothing during operation.
• Do not allow anyone other than the operator close to
the Auger when in operation.
• Stay clear of snow blower augers.
• Stay clear of snow blower discharge chute. Rocks or
debris can be picked up and thrown.
• Never operate over 540 PTO rpm speed.
• Never operate equipment in the raised position.
OPERATION SAFETY
• Review Transport Safety instructions in tractor manual
before moving.
• Check with local authorities regarding transport on
public roads. Obey all applicable laws and regulations.
• Make sure the SMV (Slow Moving Vehicle) emblem and
all the lights and reflectors that are required by the
local highway and transport authorities are in place, are
clean, and can be seen clearly by all overtaking and
oncoming traffic.
• Never have the equipment in operation during transport.
• Always travel at a safe speed.
TRANSPORT SAFETY
• Stop engine, set brake, remove ignition key, and wait for
all moving parts to stop before servicing, adjusting,
repairing, or unplugging.
• Support the equipment with blocks or safety stands
before working beneath it.
• Follow good shop practices including:
◦ keep service area clean and dry
◦ be sure electrical outlets and tools are properly ground-
ed
◦ use adequate light for the job.
• Use only tools, jacks, and hoists of sufficient capacity
for the job.
• Replace and secure all shields removed during servicing
before operating.
• Use heavy leather gloves to handle sharp objects.
• Check hydraulics regularly for leaks. Use cardboard to
look for leaks, and use hand and eye protection.
SERVICE AND MAINTENANCE SAFETY
4
www.mechmaxx.com
GENERAL SAFETY INSTRUCTIONS
• Store the unit in an area away from human activity.
• Do not permit children to play on or around the stored
machine.
• Support the frame on stands and blocks to provide a
secure base.
STORAGE SAFETY

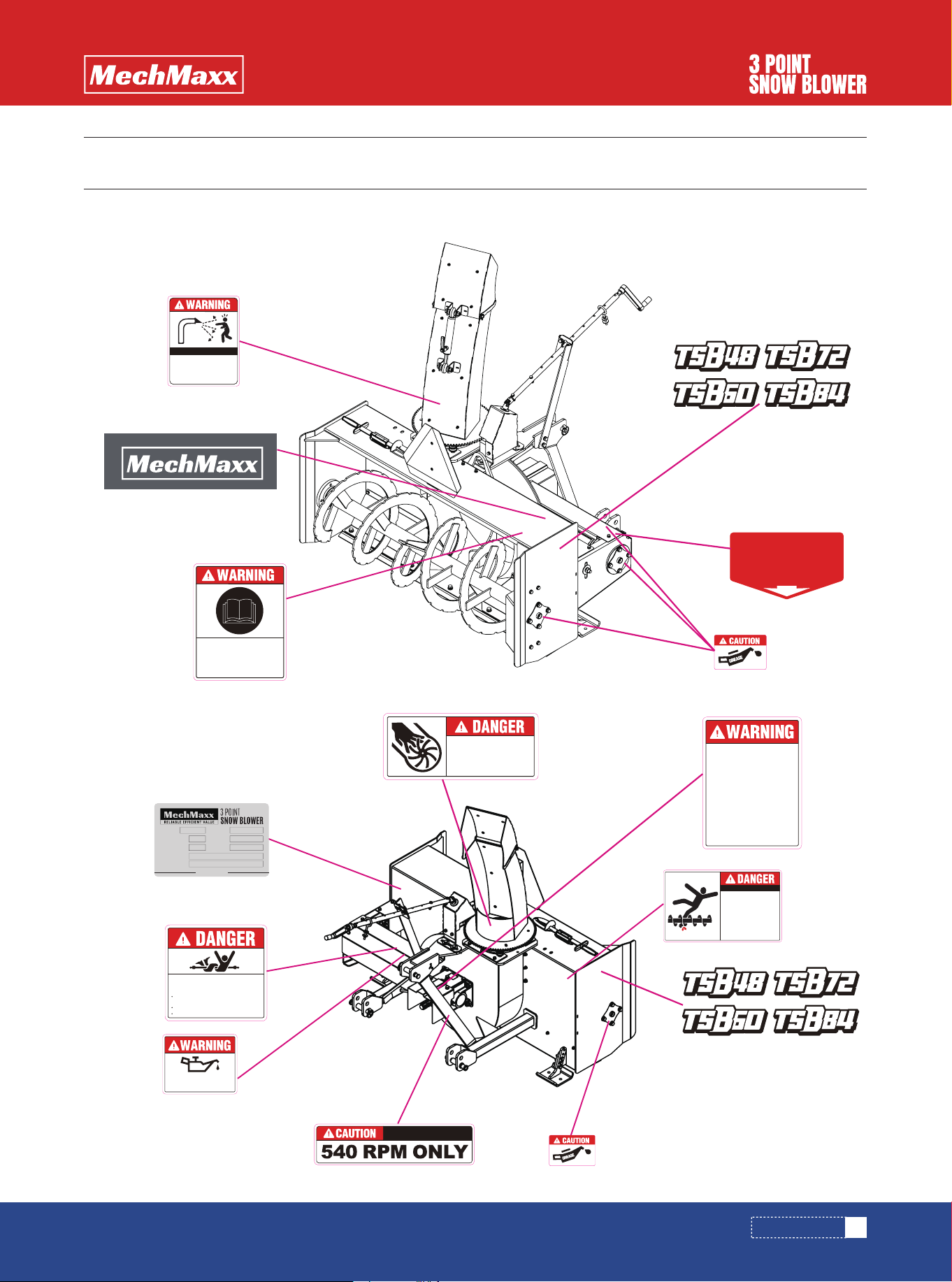

• The following illustration shows the approximate
location and detail of safety signs.
• Keep all safety signs clean and legible and replace any
that are damaged or missing.
• When original parts are replaced, any safety signs
affixed to those parts should be replaced as well.
• Replacement safety signs are available from your local
dealer.
SAFETY SIGNS
• Relieve pressure on hydraulic system before repairing or
adjusting.
5
www.mechmaxx.com
SAFETY DECAL
SAFETY DECAL
All driveline guards, tractor, and equipment
shields in place.
ROTATING DRIVELINE CONTACT CAN
CAUSE DEATH KEEP AWAY!
DO NOT OPERATE WITHOUT :
Drivelines securely attached at both ends.
Driveline guards that turn freely on driveline.
Read and understand
operators manual
before using this
machine.
AVOID INJURY OR DEATH
• Stop engine before placing hand
in discharge chute
• Rotating fan blades can crush &
dismember
The PTO Driveline
MUST be measured
and cut (if required)
as per the Owner's
Manual. Failure to do
so will result in
damage to both the
tractor and the
implement.
1.15L (1.22quart) is required.Gearoil type: 85W-90
MUST ADD GEARBOX OIL
BEFORE FIRST USE
To avoid injury or machine damage, operate only with
a 540 RPM.
- Keep hands, feet, and clothing away
from the rotating auger.
- Stop the engine, remove the key and
set the brake before servicing.
- ONLY use the clear-out tool to clear
blockages. NEVER use hands or body
parts.
- Keep all controls, guards, and safety
devices in good working order.
- Stay at least 10 feet (3m) away from
machine and attachment when in use.
- ONLY trained adults may operate —
NEVER children.
AVOID INJURY OR DEATH
NEVER direct discharge toward
people or property that could be
damaged by flying debris.
Debris can be thrown over great
distances.
AVOID INJURY OR DEATH
AUGER
SHEAR BOLTS
M6x40 Class 4.8
Model:
Weight:
Serial Number:
Working Width:
PTO Speed:
Working Height: Hitch Type:
Year of MFG:
www.mechmaxx.com
6
www.mechmaxx.com
SPECIFICATIONS
SPECIFICATIONS
Cutting Width
Cutting Height
Cutting Edge
Auger Diameter
Auger Thickness
Auger Tube Diameter
Fan Type
Fan Diameter
Fan Depth
Fan Steel Thickness
3-Point Hitch
PTO Speed
Gearoil Capacity
Gearoil Type Recommended
Model
48" 60" 72" 84"
27 in
1/2" × 4" Hardened bolt-on replacement
17.5 in
5/16 in
2 3/4 in
4-Blade Fan Style
24 in
7 in
13/32 in
CAT I & II
540 RPM
Approximately 1.22 quart (1.15L)
85W-90
TSB48/48T TSB60/60T TSB72/72T TSB84/84T
7
www.mechmaxx.com
MAINTENANCE AND STORAGE
MAINTENANCE AND STORAGE
Regular maintenance and lubrication
• Check/Tighten fasteners after the first 2 hours of use
and every 10 hours.
• Check and adjust drive chain tension every 20 hours.
• Lubricate PTO shaft driveline every 20 hours.
• Oil drive chain every 10 hours.
• Check gearbox oil every 20 hours.
• Check safety shields before each use.

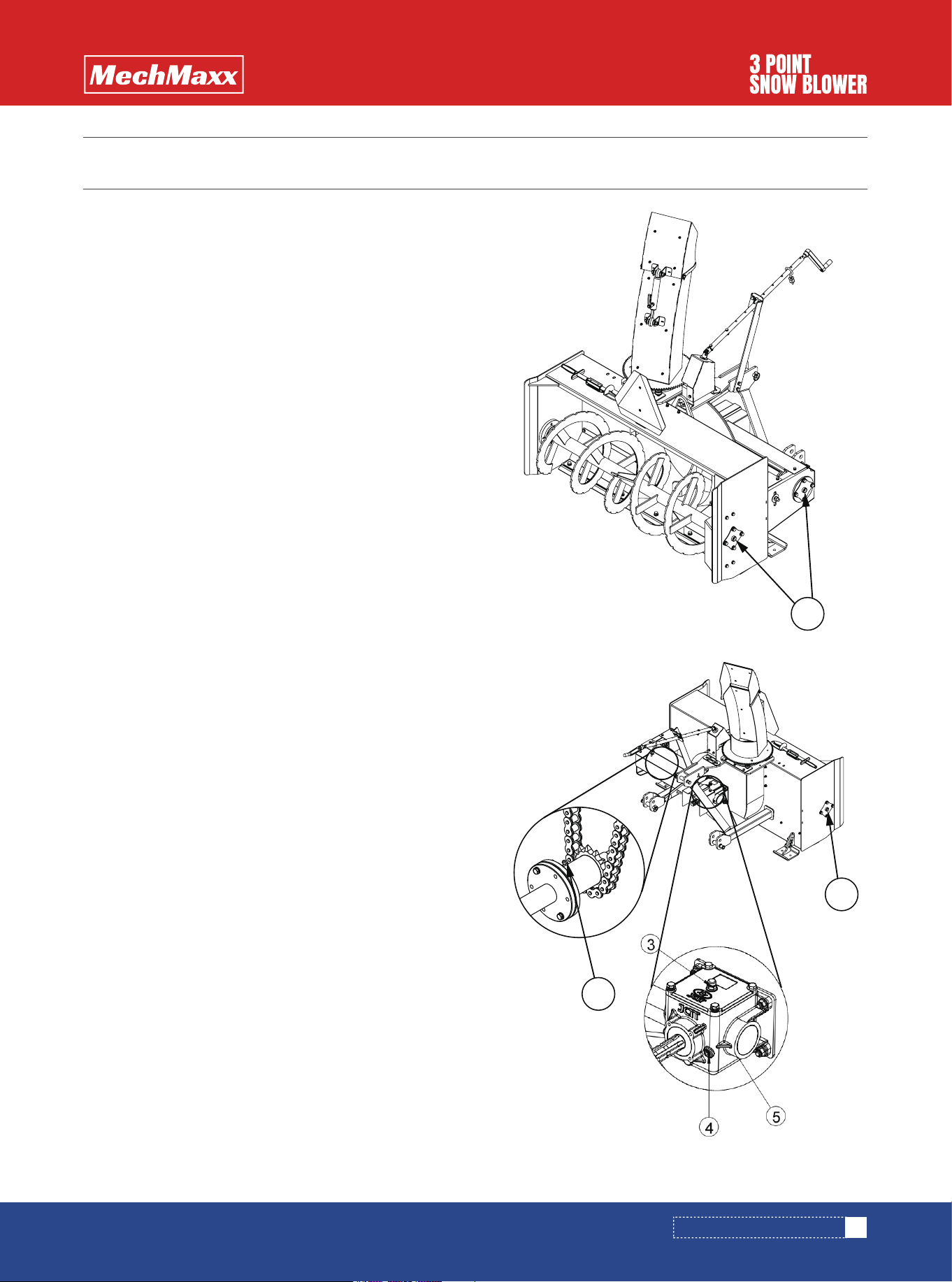

• Lubricate the bearings #1 & #2(see picture) every 50
hours,
1. Bearing lubricator
2. Bearing lubricator
3. Cap for inlet gearbox oil
4. Cap for gearbox oil level
5. Cap for discharge gearbox oil
At the end of the working season or when the snow blower
will not be used for a long period, it is a good practice to
clean off any dirt or salt that may have accumulated on
the snow blower and any of the moving parts. Apply a coat
of oil to the chain to prevent rust.
• Detach and store the snow blower in an area where
children normally do not play.
• Clean as necessary.
• Check cutting blade for wear and replace if necessary.
• Inspect snow blower for loose, damaged or worn parts
and adjust or replace as needed.
• Do not forget to check the safety labels.
• Replace worn labels.
• Store unit inside for longer life.
• Alternatively, cover with a tarp to reduce exposure and
prevent weather damage.
• Repaint parts where paint is worn or scratched to
prevent rust.
• Storing the snow blower in freezing conditions after use
may cause the fan & auger to freeze in place. This may
result in breaking PTO shaft shear bolts upon startup.
STORAGE
1
2
2
8
www.mechmaxx.com
BOLT TORQUE
BOLT TORQUE
The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques spec-
ified unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware
with the same strength bolt.
Torque figures indicated above are valid for non-greased or non-oiled threads and heads otherwise specified. Therefore, do
not grease or oil bolts or cap screws unless otherwise specified in this manual. When using locking elements, increase
torque values by 5%.
Torque tolerance +0%,-15% of torquing values. Unless otherwise specified use torque values listed above.
1
in-tpi = nominal thread diameter in inches-threads per
inch
2
N.m= newton-meters
3
ft-lb= foot pounds
4
mm x pitch = nominal thread diameter in millimeters x
thread pitch
TORQUE VALUES CHART FOR COMMON BOLT SIZES
Grade 2 Grade 5
Bolt Head Identification Bolt Head Identification
Grade 8 Class 5.8 Class 8.8 Class 10.9
Bolt Size
(Inches)
in-tpi
1
Bolt Size
(Inches)
mm x pitch
4
N.m
2
ft-lb
3
N.m
ft-lb
N.m
ft-lb
N.m
ft-lb
N.m
ft-lb
N.m
ft-lb
1/4"-20
1/4"-28
5/16"-18
5/16"-24
3/8" -16
3/8" -24
7/16" -14
7/16"-20
1/2" -13
1/2" -20
9/16"-12
9/16"-18
5/8" - 11
5/8" -18
3/4" -10
3/4" -16
7/8" -9
7/8" -14
1"-8
1"-12
1-1/8"-7
1-1/8" -12
1-1/4"-7
1-1/4" -12
1-3/8"-6
1-3/8" -12
1-1/2" -6
1-1/2" -12
M5X0.8
M6X1
M8X 1.25
M8X1
M10X 1.5
M10X0.75
M12X 1.75
M12X 1.5
M12X1
M14 X2
M14 X 1.5
M16X2
M16X 1.5
M18 X 2.5
M18 X 1.5
M20 X 2.5
M20 X 1.5
M24X3
M24 X2
M30 X 3.5
M30×2
M36 X3.5
M36X2
4
7
17
18
33
39
58
60
90
92
99
145
155
195
220
280
310
480
525
960
1060
1730
1880
3
5
12
13
25
29
42
44
66
68
73
105
115
145
165
205
230
355
390
705
785
1270
1380
6
11
26
28
52
61
91
95
105
145
155
225
240
310
350
440
650
760
830
1510
1680
2650
2960
5
8
19
21
39
45
67
70
77
105
115
165
180
230
260
325
480
560
610
1120
1240
1950
2190
9
15
36
39
72
85
125
130
145
200
215
315
335
405
485
610
900
1050
1150
2100
2320
3660
4100
7
11
27
29
53
62
93
97
105
150
160
230
245
300
355
450
665
780
845
1550
1710
2700
3220
7.4
8.5
15
17
27
31
43
49
66
75
95
105
130
150
235
260
225
250
340
370
480
540
680
750
890
1010
1180
1330
5.6
6
11
13
20
22
32
36
49
55
70
79
97
110
170
190
165
185
250
275
355
395
500
555
655
745
870
980
11
13
24
26
42
47
67
75
105
115
150
165
205
230
360
405
585
640
875
955
1080
1210
1520
1680
1990
2270
2640
2970
8
10
17
19
31
35
49
55
76
85
110
120
150
170
265
295
430
475
645
705
795
890
1120
1240
1470
1670
1950
2190
16
18
33
37
59
67
95
105
145
165
210
235
285
325
510
570
820
905
1230
1350
1750
1960
2460
2730
3230
3680
4290
4820
12
14
25
27
44
49
70
78
105
120
155
170
210
240
375
420
605
670
910
995
1290
1440
1820
2010
2380
2710
3160
3560
8.85.8 10.9
9
www.mechmaxx.com
TROUBLESHOOTING
TROUBLESHOOTING
PROBLEM SOLUTION
Not Throwing Snow
Excessive Vibration
Gearbox Noisy
Auger is Not Turning
Tractor Loaded Down
by Blower
• Operate at full throttle (540 PTO rpm), check PTO speed and tractor engine.
• Shift transmission to a lower gear.
• Discharge chute is plugged. Clear chute.
• Operate at full throttle (540 PTO rpm), check PTO speed and tractor engine.
• Shift to a lower gear. Reduce tractor speed.
• Discharge fan blade is bent or missing.
• Check oil level.
• Check the chain and transmissions.
CAUTION
DO NOT try to clear discharge chute when tractor is running. Bodily harm may occur!
10
www.mechmaxx.com
PARTS DIAGRAM (SNOW BLOWER)
SNOW BLOWER
11
www.mechmaxx.com
SNOW BLOWER
PARTS LIST (SNOW BLOWER)
POS. Description Specification 180-Qty 210-Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Bucket assembly
Bucket assembly
Bucket assembly
Bucket assembly
Pressboard assembly
Outfeed assembly
Gearbox as-rear
Fan assembly

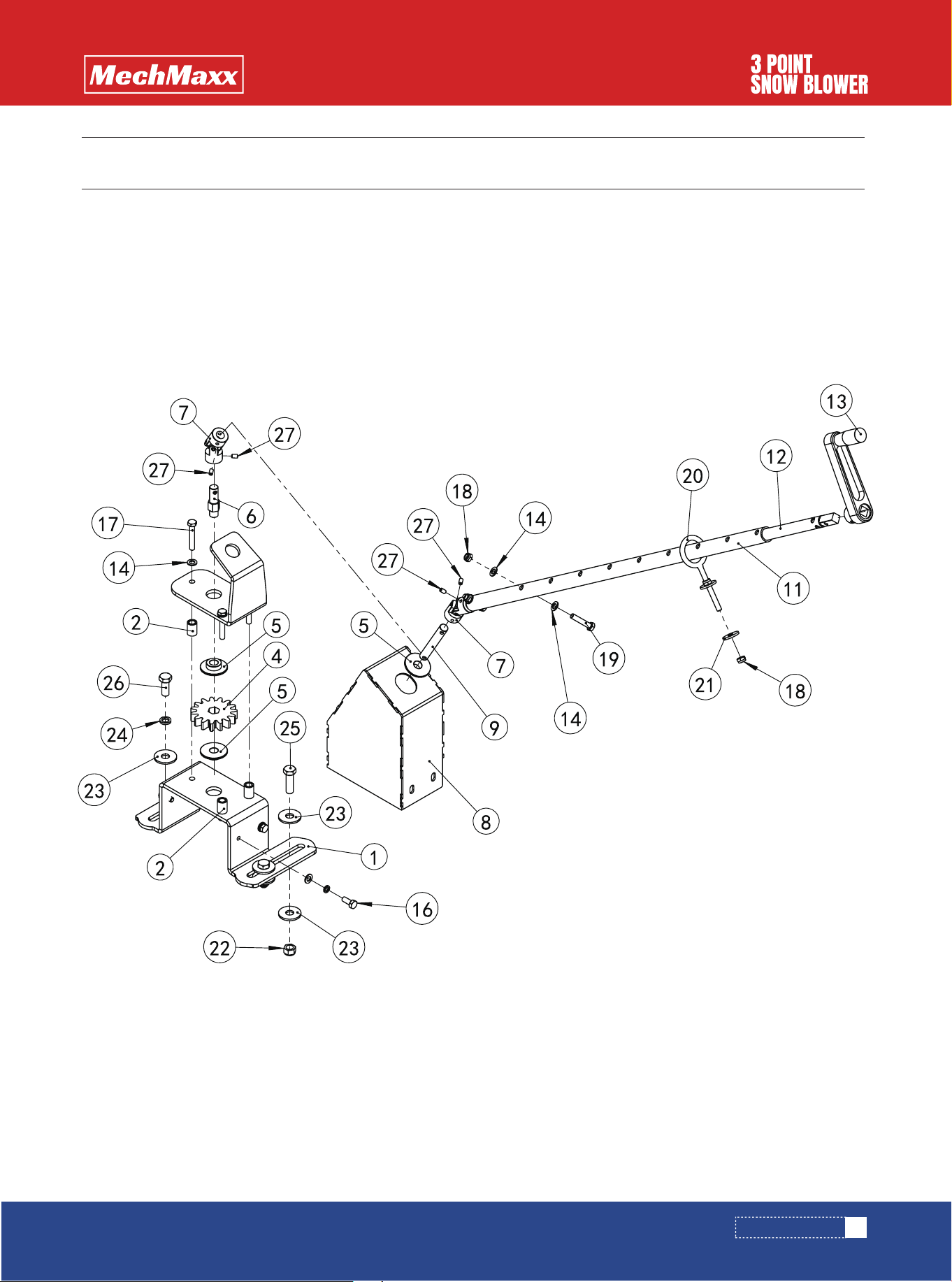

Handle as-hand
Handle as-hand
Drive assembly
Drive assembly
Drive assembly
Drive assembly
Stirring assembly
Stirring assembly
Stirring assembly
Stirring assembly
BP120-01
BP150-01
BP180-01
BP210-01
BP180-02
BP180-03
BP180-04
BP180-05
BP180-14
BP180-15
BP120-07
BP150-07
BP180-07
BP210-07
BP120-06
BP150-06
BP180-06
BP210-06
-
-
-
1
2
1
1
1
1
1
-
-
-
1
-
-
-
1
-
-
1
-
2
1
1
1
1
1
-
-
1
-
-
-
1
-
150-Qty
-
1
-
-
2
1
1
1
1
1
-
1
-
-
-
1
-
-
120-Qty
1
-
-
-
2
1
1
1
1
1
1
-
-
-
1
-
-
-
12
www.mechmaxx.com
PARTS DIAGRAM (BUCKET ASSEMBLY)
BUCKET ASSEMBLY
13
www.mechmaxx.com
PARTS LIST (BUCKET ASSEMBLY)
POS. Description Specification 180-Qty 210-Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Retroreflector
Triangular baffle
Drive shaft cover
Drive shaft cover
Drive shaft cover
Drive shaft cover
Front baffle
Retroreflector Mounting Bracket
Leg weldment
Hood weldment
Hood weldment
Hood weldment
Hood weldment
Blade
Blade
Blade
Blade
Sprocket cover
Clevis Pin with Head Type B
Linch Pins
Spring Cotters
Upper Suspension Pin Type I
suspension pin shaft spacer
Lower Suspension Pin Type I
Lower suspension pin shaft spacer
Hexagon Head Bolt -Full Thread
Hexagon Head Bolt - Full Thread
Hexagon Head Bolt- Full Thread
BP180-103
BP120-102
BP150-102
BP180-102
BP210-102
BP180-100
BP180-119
BP180-117
BP180-002
BP120-001
BP150-001
BP180-001
BP210-001
BP120-201-B
BP150-201-B
BP180-201-B
BP210-201-B
BP180-101
Ф3×50EP_Zn
BP180-202
BP180-229
BP180-203
BP180-204
350mm×2mm-2-Φ7×156mm
GB_T882-Φ10×25-EP_Zn
DIN 11023-10X45-EP-Zn
GB_T5783-M10×30-8.8-EP-Zn
GB_T5783-M10×45-8.8-EP-Zn
GB_T5783-M12×25-8.8-EP-Zn
150-Qty120-Qty
1
1
1
-
-
-
1
1
1
2
1
-
-
-
1
-
-
-
1
1
3
1
1
1
2
2
4
6
7
1
1
-
1
-
-
1
1
1
2
-
1
-
-
-
1
-
-
1
1
3
1
1
1
2
2
4
6
9
1
1
-
-
1
-
1
1
1
2
-
-
1
-
-
-
1
-
1
1
3
1
1
1
2
2
4
6
9
1
1
-
-
-
1
1
1
1
2
-
-
-
1
-
-
-
1
1
1
3
1
1
1
2
2
4
6
11
BUCKET ASSEMBLY
14
www.mechmaxx.com
POS. Description Specification 180-Qty 210-Qty
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Hexagon Head Bolt - Full Thread
Hexagon Head Bolt - Full Thread
Hexagon Head Bolt - Full Thread
Hexagon Head Bolt - Full Thread
GB_T70.2-M6x20-A4
GB_T95-10x2-EP_Zn
GB_T95-12x2.5-EP_Zn
GB_T95-5x1-EP_Zn
GB_T95-6-EP_Zn
GB_T95-8-EP_Zn
BP120-104
BP150-104
BP180-104
BP210-104
BP120-105
BP150-105
BP180-105
BP210-105
BP180-118
GB_T93-8x2.1-EP_Zn
GB_T93-12×3.1-EP_Zn
BP180-205
BP180-206
GB_T889.1-M10-8-EP_Zn
GB_T889.1-M5-8-EP_Zn
GB_T889.1-M6-8-EP_Zn
GB_T889.1-M8-8-EP_Zn
Plain Washer
Plain Washers
Plain Washer
Plain Washers
Plain Washer
Snow protection reinforcing plate
Snow protection reinforcing plate
Snow protection reinforcing plate
Snow protection reinforcing plate
Snow protection reinforcing plate
Snow protection reinforcing plate
Snow protection reinforcing plate
Snow protection reinforcing plate
Latch
Spring washer
Spring washer
Rubber
Rubber
Prevailing torque type hexagon nut
Prevailing torque type hexagon nut
Prevailing torque type hexagon nut
Prevailing torque type hexagon nut
Hexagon Socket Button Head Screws with Collar
GB_T5783-M5×20-8.8-EP-Zn
GB_T5783-M8×16-8.8-EP-Zn
GB_T5783-M8×20-8.8-EP-Zn
GB_T5783-M8×25-8.8-EP-Zn
150-Qty120-Qty
2
4
4
7
5
23
6
2
5
24
1
-
-
-
1
-
-
-
1
4
7
1
1
10
2
5
11
2
4
6
7
5
23
8
2
5
28
-
1
-
-
-
1
-
-
1
4
9
1
1
10
2
5
13
2
4
6
7
5
23
8
2
5
28
-
-
1
-
-
-
1
-
1
4
9
1
1
10
2
5
13
2
4
8
7
5
23
10
2
5
32
-
-
-
1
-
-
-
1
1
4
11
1
1
10
2
5
15
BUCKET ASSEMBLY
15
www.mechmaxx.com
PARTS DIAGRAM (PRESSBOARD ASSEMBLY)
PRESSBOARD ASSEMBLY
16
www.mechmaxx.com
PARTS LIST (PRESSBOARD ASSEMBLY)
PRESSBOARD ASSEMBLY
POS. Description Specification Qty
1
2
3
4
5
6
7
8
9
Press plate weldment
Pulley
Plain Washers - Large Series
Extra Large plain washer
Spring washer
Hexagon Head Bolt - Full Thread
Plain Washer
Spring washer
Hexagon Head Bolt - Full Thread
BP180-003
BP180-207
GB_T96.2-12-A4
GB_T5287-6-EP_Zn
GB_T93-6×1.6-EP_Zn
GB_T5783-M6x16-8.8-EP-Zn
GB_T95-8-EP_Zn
GB_T93-8x2.1-EP_Zn
GB_T5783-M8x20-8.8-EP-Zn
1
2
2
2
2
2
3
3
3
17
www.mechmaxx.com

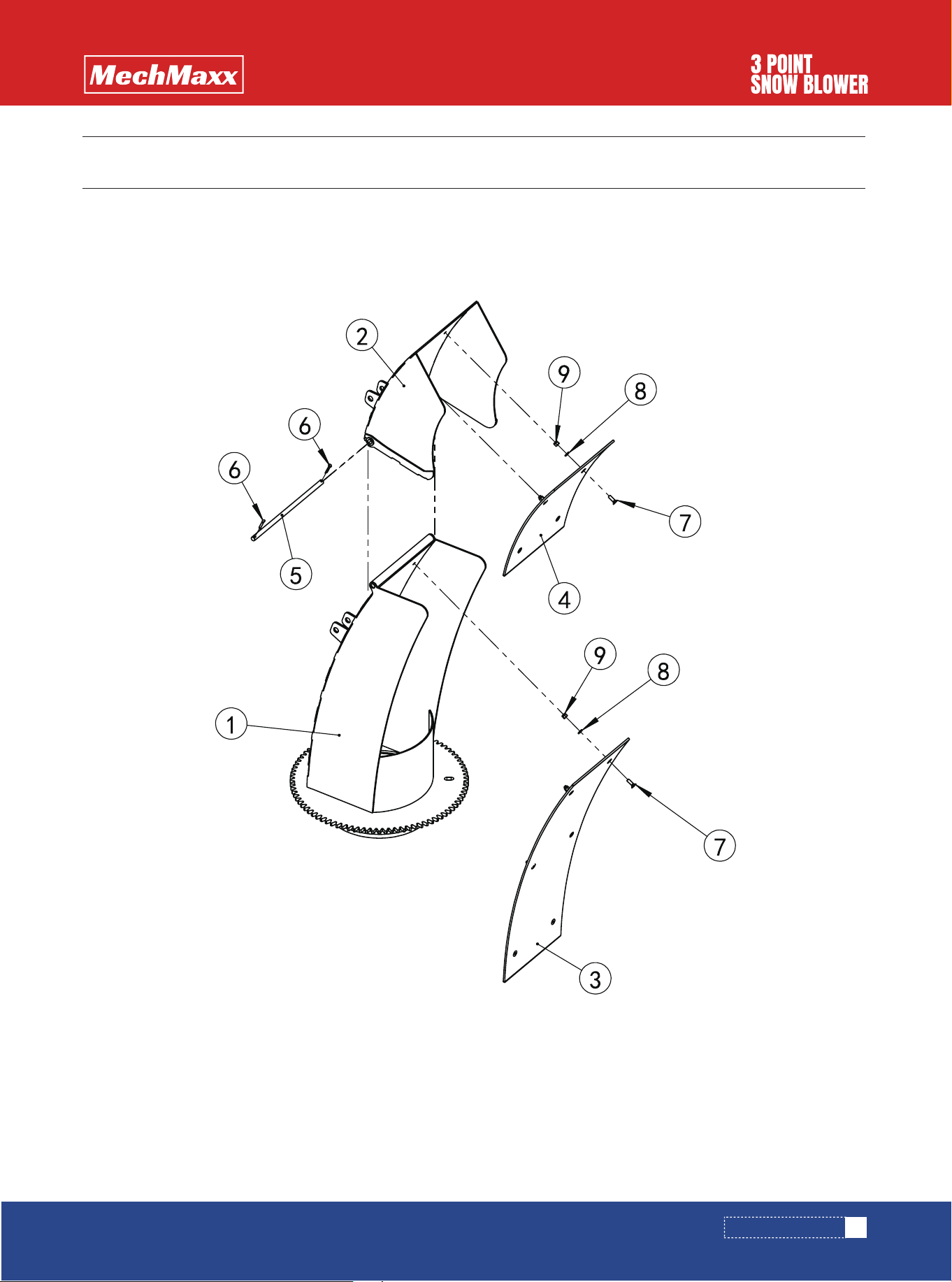

PARTS DIAGRAM (OUTFEED ASSEMBLY)
OUTFEED ASSEMBLY
18
www.mechmaxx.com
POS. Description Specification Qty
1
2
3
4
5
6
7
8
9
Welding parts of snow discharge cylinder
Flap weldment
Back panel veneer
Flap cover plate
Install pin
Split Pins
Hexagon Socket Countersunk Head Screw
Plain Washers
Prevailing torque type hexagon nut
BP180-004
BP180-005
BP180-106
BP180-107
BP180-208
GB_T91-4×20-EP_Zn_C
GB_T70.3-M6x20-8.8-EP_Zn
GB_T95-6-EP_Zn
GB_T889.1-M6-8-EP_Zn
1
1
1
1
1
2
10
10
10
PARTS LIST (OUTFEED ASSEMBLY)
OUTFEED ASSEMBLY
19
www.mechmaxx.com
POS. Description Specification Qty
1
2
3
4
5
6
7
8
Gear case cover
Hexagon Head Bolt - Full Thread
Plain Washers
Prevailing torque type hexagon nuts
Gear box
Hexagon Head Bolt -Full Thread
Plain Washer
Spring washer
BP180-108
GB_T5783-M12x45-8.8-EP-Zn
GB_T95-12x2.5-EP_Zn
GB_T889.1-M12-8-EP_Zn
XH38.100J.01W
GB T5783-M10x25-8.8-EP-Zn
GB_T95-10×2-EP_Zn
GB_T93-10x2.6-EP_Zn
1
4
8
4
1
2
2
2
PARTS LIST (GEARBOX AS-REAR)

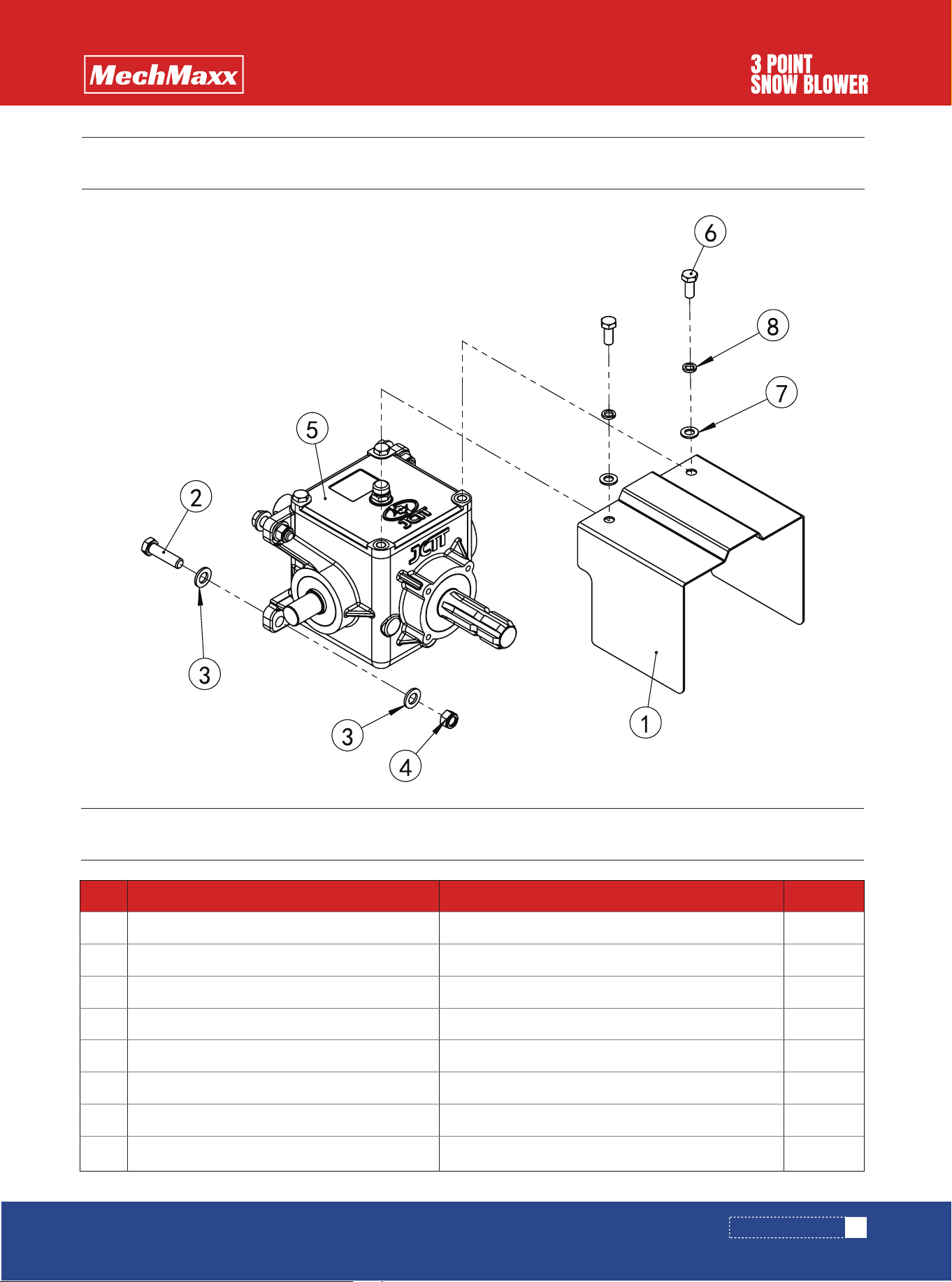

PARTS DIAGRAM (GEARBOX AS-REAR)
GEARBOX AS-REAR
20
www.mechmaxx.com
POS. Description Specification Qty
1
2
3
4
5
6
Fan weldment
Install the sleeve weldment
Hexagon Socket Countersunk Head Screw
Plain Washers
Prevailing torque type hexagon nuts
Expanding sleeve
BP180-006
BP180-007
GB_T70.3-M12×50-8.8-EP_Zn
GB_T95-12x2.5-EP_Zn
GB_T889.1-M12-8-EP_Zn
Z3A-33x60
1
1
4
4
4
1

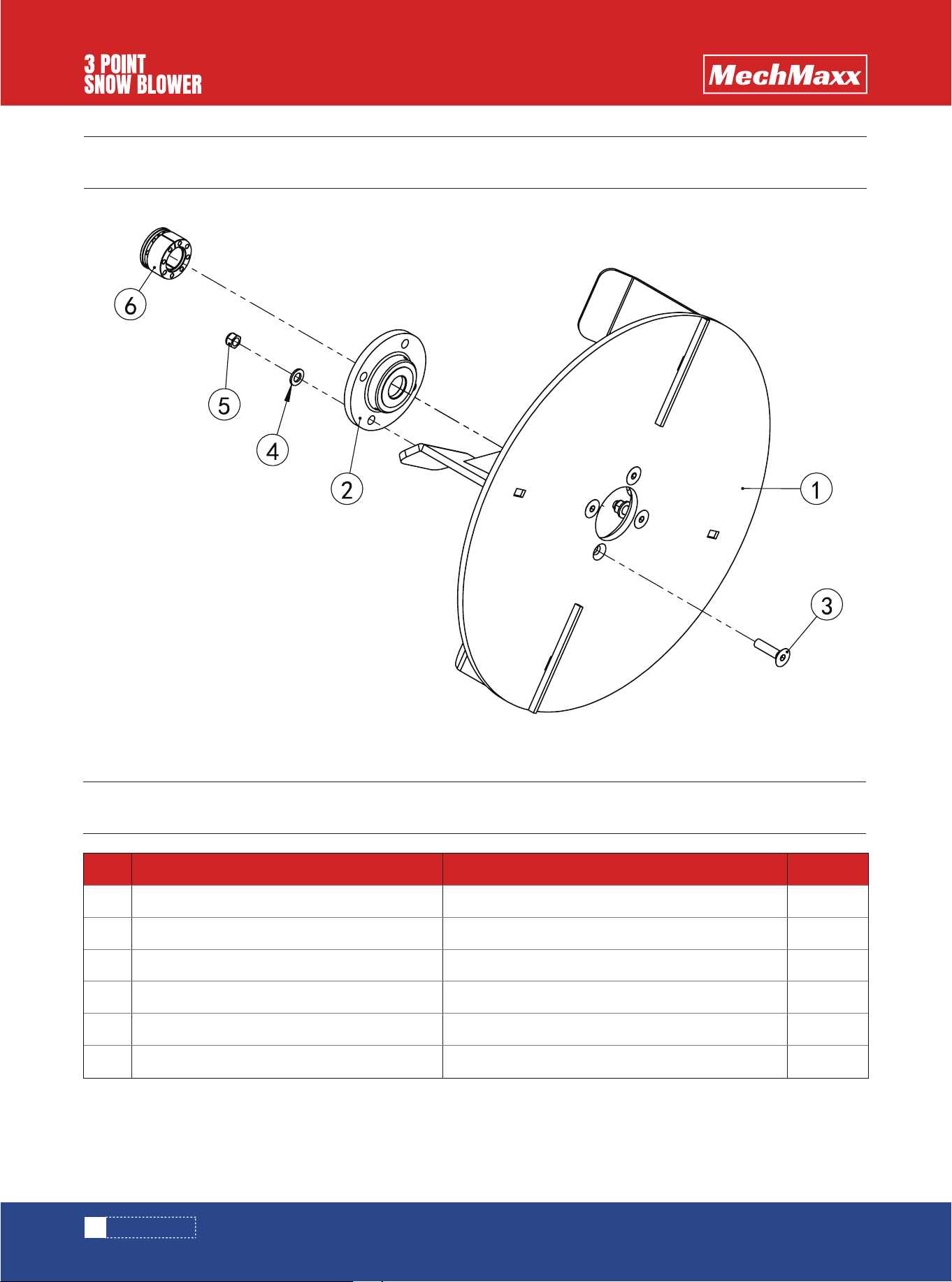

PARTS DIAGRAM (FAN ASSEMBLY)
PARTS LIST (FAN ASSEMBLY)
FAN ASSEMBLY
21
www.mechmaxx.com

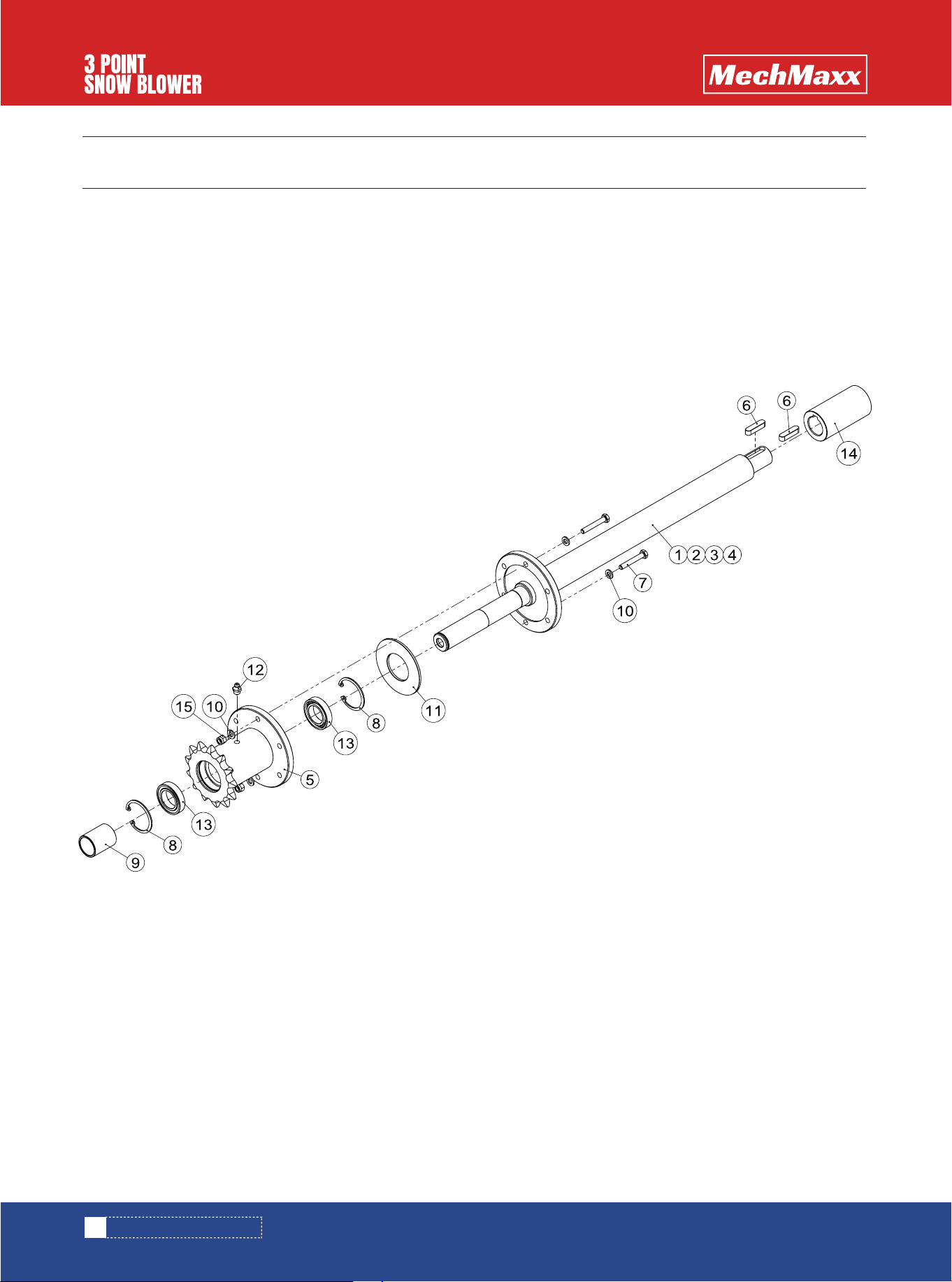

PARTS DIAGRAM (STIRRING ASSEMBLY)
STIRRING ASSEMBLY
POS. Description Specification 180-Qty 210-Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Stir up welding parts
Stir up welding parts
Stir up welding parts
Stir up welding parts
Mounting plate weldment
Square and rectangular key
Hexagon Head Bolts - Full Thread
Chain wheel
Retaining rings for borP
Plain Washers
Spring washer
Deep groove ball bearing
Grease nipple
Bushing
Bearing steel seat
BP120-008
BP150-008
BP180-008
BP210-008
BP180-009
GB_T1096-A12×8×32-EP_Zn
GB T5783-M12x35-8.8-EP-Zn
BP180-210
GB_T893-80-A
GB_T95-12x2.5-EP_Zn
GB_T93-12×3.1-EP_Zn
GB_T276-6208-RS
JB_T7940.1-M8x1
BP180-211
BP180-209
150-Qty120-Qty
-
-
1
-
2
1
8
1
2
8
8
2
2
1
2
-
1
-
-
2
1
8
1
2
8
8
2
2
1
2
1
-
-
-
2
1
8
1
2
8
8
2
2
1
2
-
-
-
1
2
1
8
1
2
8
8
2
2
1
2
22
www.mechmaxx.com
STIRRING ASSEMBLY
PARTS LIST (STIRRING ASSEMBLY)
23
www.mechmaxx.com

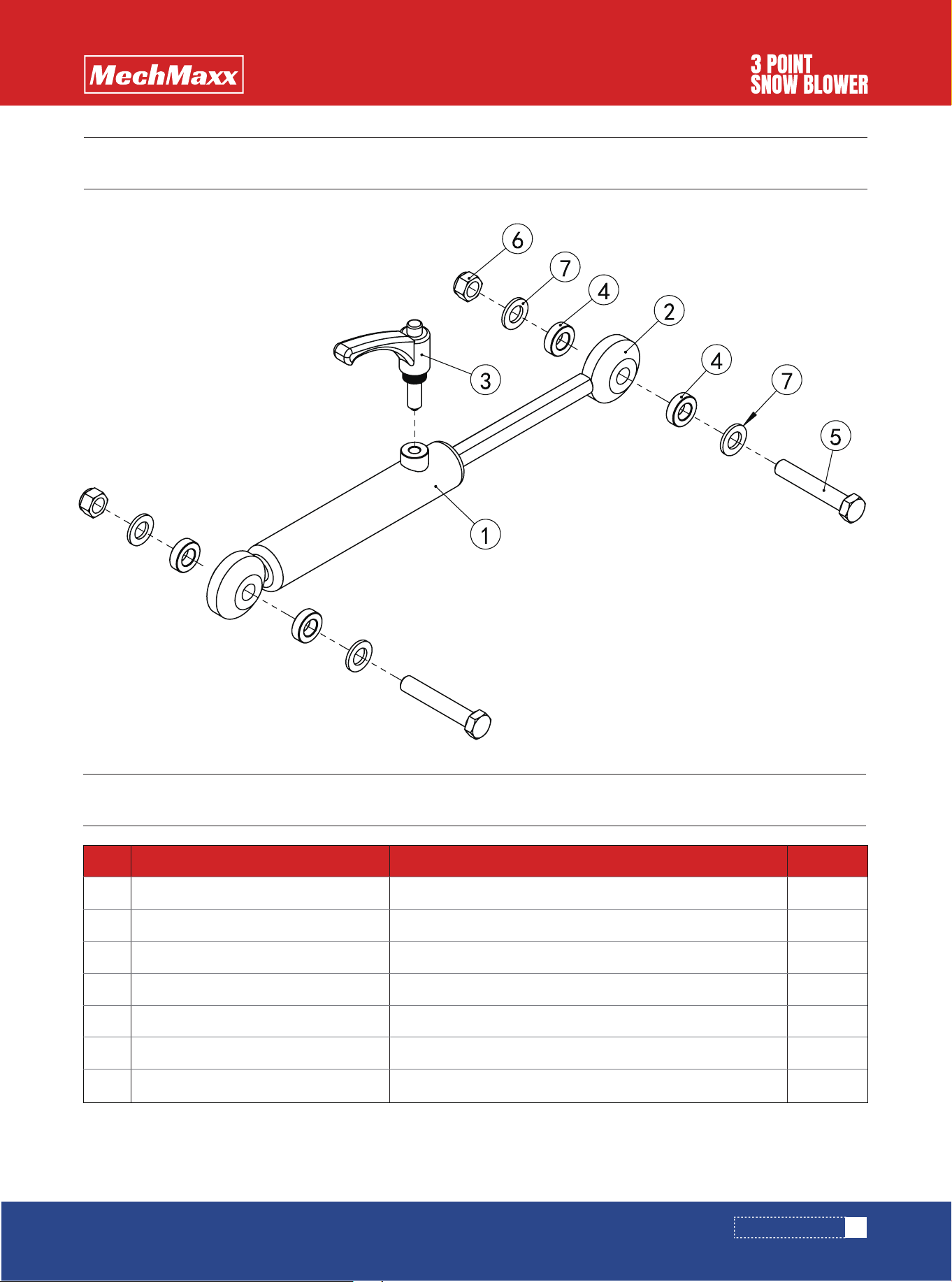

PARTS DIAGRAM (HANDLE AS-HAND)
HANDLE AS-HAND
24
www.mechmaxx.com
HANDLE AS-HAND
PARTS LIST (HANDLE AS-HAND)
POS. Description Specification Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Handle mount
Positioning sleeve
Hand support plate
Gear
Rotary spacer
Link bar
Cardan
Protective cover
Link bar
Link bar
Hand regulating tube
Adjusting rod weldment
Handle
Plain Washer
Spring washer
Hexagon Head Bolt - Full Thread
Hexagon Head Bolt - Full Thread
Prevailing torque type hexagon nut
Hexagon Head Bolt - Full Thread
Eye Bolts
Extra Large plain washer
Prevailing torque type hexagon nut
Plain Washers - Large Series
Spring washer
Hexagon Head Bolts - Full Thread
Hexagon Head Bolts - Full Thread
Hexagon socket screws with flat point
BP180-115
BP180-222
BP180-116
BP180-223
BP180-224-B
BP180-225
08G-Ф14×Ф28×L60-M6
BP180-010
BP180-226
BP180-227
BP180-228
BP180-011
NHXY-SB-18
GB_T95-8-EP_Zn
GB_T93-8×2.1-EP_Zn
GB_T5783-M8x20-8.8-EP-Zn
GB_T5783-M8x50-8.8-EP-Zn
GB_T889.1-M8-8-EP_Zn
GB_T5783-M8×50-8.8-EP-Zn
M8-80-Φ50×Φ36
GB_T5287-8-EP_Zn
GB_T889.1-M12-8-EP_Zn
GB_T96.2-12-EP_Zn
GB_T93-12×3.1-EP_Zn
GB_T5783-M12x40-8.8-EP-Zn
GB_T5783-M12x30-8.8-EP-Zn
GB_T77-M6×10
1
3
1
1
3
1
2
1
1
1
1
1
1
13
3
3
3
7
2
1
2
2
5
1
2
1
4
POS. Description Specification Qty
1
2
3
4
5
6
7
Manual Push-Cylinder Weldment
Manual Push Rod Weldment
Handles
Bushing
Hexagon Head Bolt - Full Thread
Prevailing torque type hexagon nuts
Plain Washers
BP180-013
BP180-012
M10×25
BP180-219
GB_T5783-M12x70-8.8-EP-Zn
GB_T889.1-M12-8-EP_Zn
GB_T95-12×2.5-EP_Zn
1
1
1
4
2
2
4
25
www.mechmaxx.com
PARTS DIAGRAM (HANDLE AS-HAND)
HANDLE AS-HAND
PARTS LIST (HANDLE AS-HAND)
26
www.mechmaxx.com

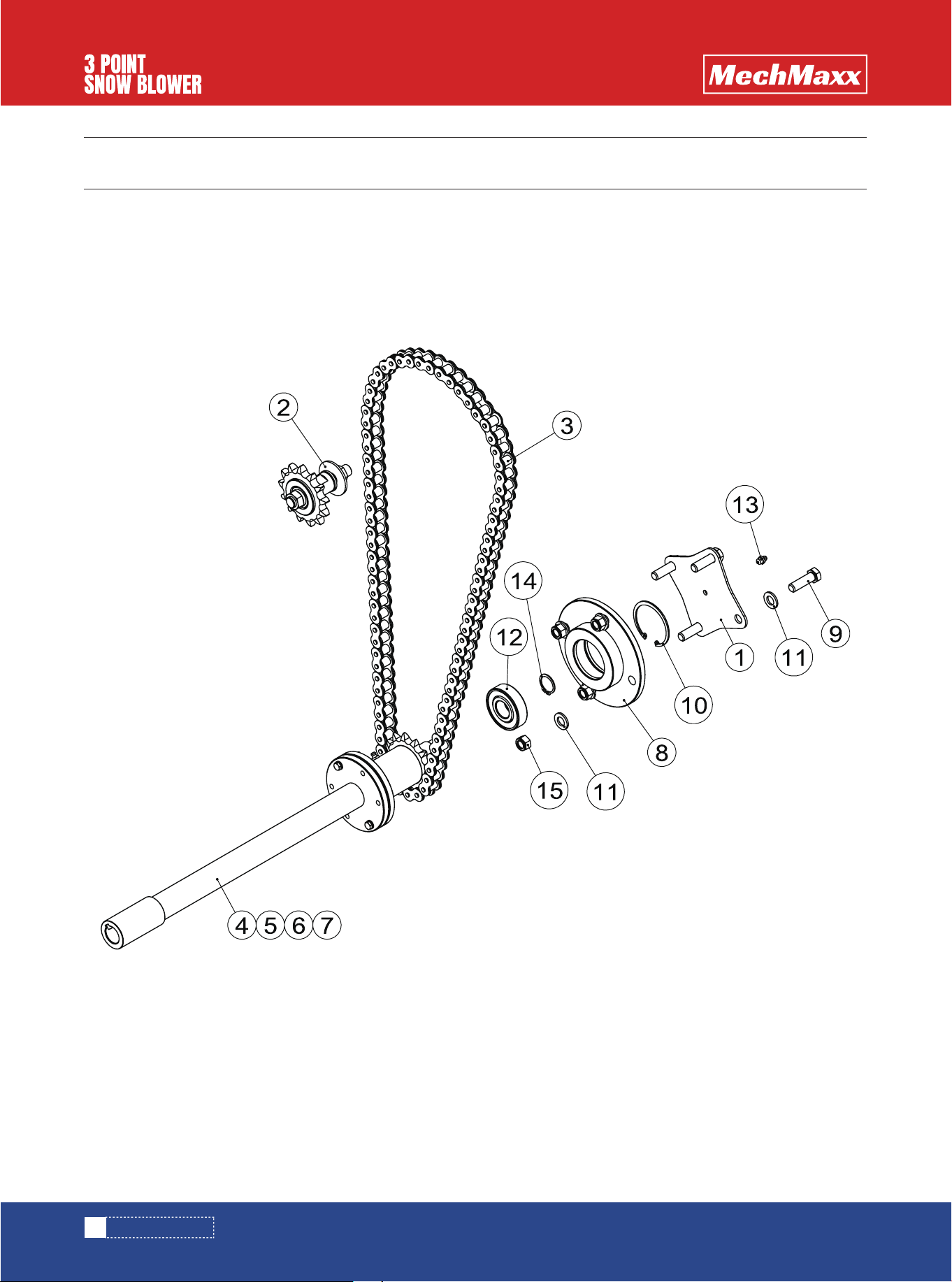

PARTS DIAGRAM (DRIVE ASSEMBLY)
DRIVE ASSEMBLY
27
www.mechmaxx.com
DRIVE ASSEMBLY
PARTS LIST (DRIVE ASSEMBLY)
POS. Description Specification 180-Qty 210-Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Mounting plate weldment
Tensioner as
Roller chain
Drive as-torque limiter
Drive as-torque limiter
Drive as-torque limiter
Drive as-torque limiter
Drive shaft bearing seat
Hexagon Head Bolts - Full Thread
Retaining rings for borP
Plain Washers
Deep groove ball bearing
Grease nipple
Circlip for shaft-type
Prevailing torque type hexagon nuts
BP180-009
BP180-10
GB_T1243-12A-1×86
BP120-09
BP150-09
BP180-09
BP210-09
BP180-214
GB_T5783-M12×40-8.8-EP-Zn
GB_T893-62-A
GB_T95-12x2.5-EP_Zn
GB_T276-6305-RS
JB_T7940.1-M8x1
GB_T894-25-A
GB_T889.1-M12-8-EP_Zn
150-Qty120-Qty
1
1
1
1
-
-
-
1
4
1
8
1
1
1
4
1
1
1
-
1
-
-
1
4
1
8
1
1
1
4
1
1
1
-
-
1
-
1
4
1
8
1
1
1
4
1
1
1
-
-
-
1
1
4
1
8
1
1
1
4
28
www.mechmaxx.com
PARTS DIAGRAM (DRIVE AS-TORQUE LIMITER)
DRIVE AS-TORQUE LIMITER
29
www.mechmaxx.com
POS. Description Specification 180-Qty 210-Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Transmission shaft
Transmission shaft
Transmission shaft
Transmission shaft
Chain wheel
Square and rectangular key
Hexagon Head Bolt -Full Thread
Retaining rings for borP
Sprocket bushing
Plain Washers
Gasket (PTFE)
Grease nipple
Deep groove ball bearing
connecting sleeve
Prevailing torque type hexagon nut
BP120-218
BP150-218
BP180-218
BP210-218
BP180-215
GB_T1096-A8x7x32-EP_Zn
GB_T5781-M6x40-4.8-EP-Zn
GB_T893-42-A
BP180-217
GB_T95-6-EP_Zn
GB 78X38X3(PTFE)
JB_T7940.1-M8x1
GB_T276-61905-RS
BP180-216
GB_T889.1-M6-8-EP_Zn
150-Qty120-Qty
-
-
1
-
1
2
2
2
1
4
1
1
2
1
2
-
1
-
-
1
2
2
2
1
4
1
1
2
1
2
1
-
-
-
1
2
2
2
1
4
1
1
2
1
2
-
-
-
1
1
2
2
2
1
4
1
1
2
1
2
DRIVE AS-TORQUE LIMITER
PARTS LIST (DRIVE AS-TORQUE LIMITER)
30
www.mechmaxx.com
PARTS DIAGRAM (TENSIONER ASSEMBLY)
PARTS LIST (TENSIONER ASSEMBLY)
TENSIONER ASSEMBLY
POS. Description Specification Qty
1
2
3
4
5
6
7
8
Tighten axle
Chain wheel
Plain Washers
Plain Washers - Large Series
Hexagon Nut
Spring washer
Retaining rings for bore
Deep groove ball bearing
BP180-218
BP180-219
GB_T95-16x3-EP_Zn
GB_T96.2-16-EP_Zn
GB_T41-M16-EP_Zn
GB_T93-16-EP_Zn
GB_T893-40-A
GB_T276-6203-2RS
1
1
2
1
2
2
1
1
31
www.mechmaxx.com
SOLD SEPARATELY, SKU:461033
PARTS DIAGRAM (HYDRAULIC RAM ASSEMBLY)
HYDRAULIC RAM ASSEMBLY
32
www.mechmaxx.com
POS. Description Specification Qty
1
2
3
4
5
6
7
8
9
Hydraulic cylinder
SAE6 fitting
Bushing
Plain Washers
Hexagon Head Bolt - Full Thread
Prevailing torque type hexagon nuts
Hydraulic hose
Combination washer (self-centering)
Hydraulic quick coupling
SOLD SEPARATELY, SKU:461033
BP180-200
9/16-18UNF
BP180-219
GB_T95-12×2.5-EP_Zn
GB_T5783-M12×70-8.8-EP-Zn
GB_T889.1-M12-8-EP_Zn
BP180-221
BS / A21.50(G1/2)
H001G1/2
1
2
4
4
2
2
2
2
2
HYDRAULIC RAM ASSEMBLY
PARTS LIST (HYDRAULIC RAM ASSEMBLY)
33
www.mechmaxx.com

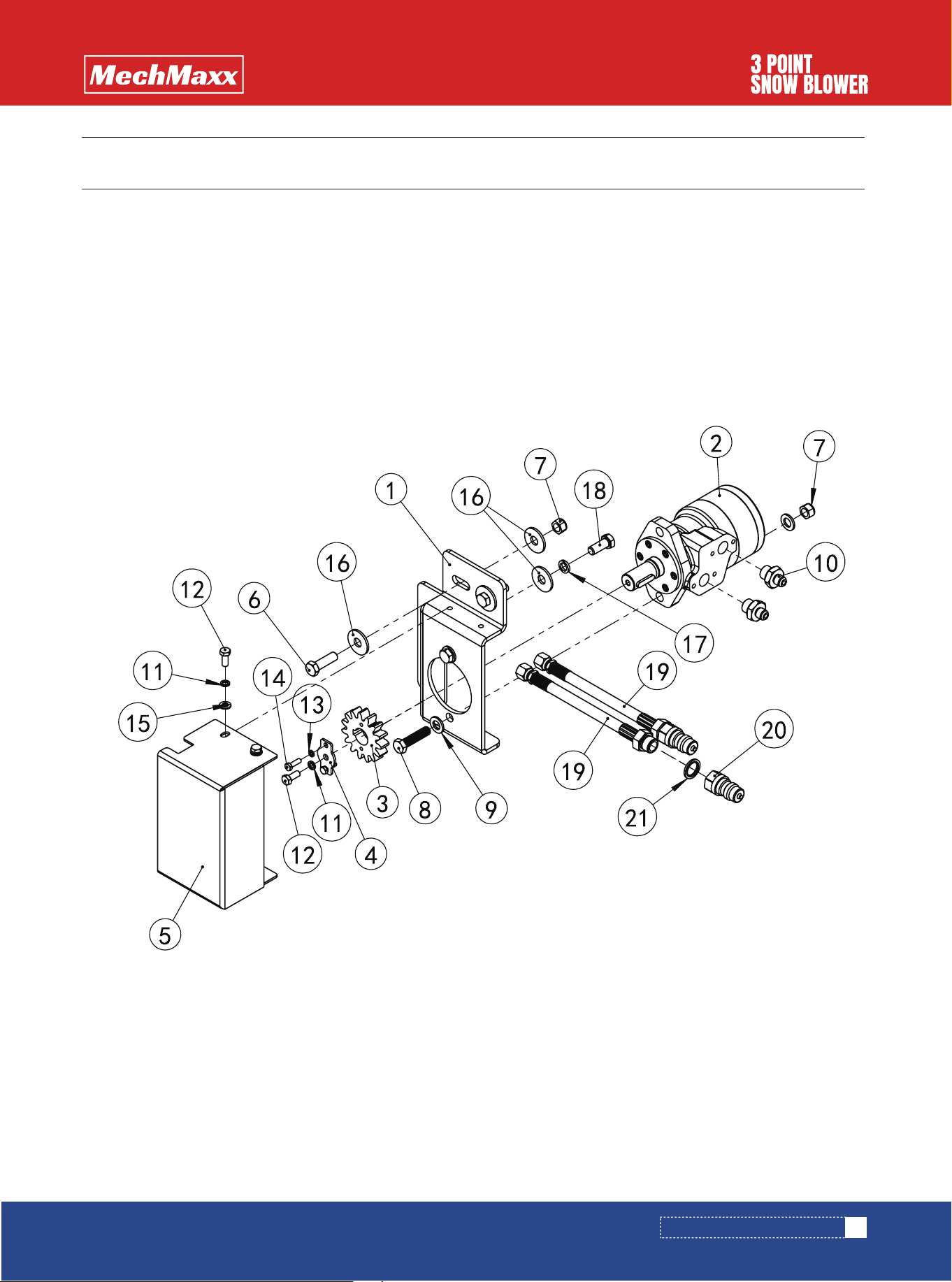

PARTS DIAGRAM (CHUTE ADJUSTMENT HYDRAULIC)
CHUTE ADJUSTMENT HYDRAULIC
POS. Description Specification Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Hydraulic motor mounting seat
Motor
Gear for hydraulic mode
platen
Safety cover
Hexagon Head Bolts- Full Thread
Prevailing torque type hexagon nut
Hexagon Head Bolts - Full Thread
Plain Washers
Transition joints
Spring washer
Hexagon Head Bolt - Full Thread
Spring washer
Hexagon Head Bolts
Plain Washer
Plain Washers - Large Series
Spring washer
Hexagon Head Bolts-Full Thread
Hydraulic hose
Hydraulic quick coupling
Combination washer (self-centering)
BP180-109
155160A6312AAAAAS
BP180-220
BP180-110
BP180-111
GB_T5783-M12x40-8.8-EP-Zn
GB_T889.1-M12-8-EP_Zn
GB_T5783-M12×50-8.8-EP-Zn
GB_T95-12x2.5-EP_Zn
9/16-18UNF /G1/2
GB_T93-8×2.1-EP_Zn
GB_T5783-M8x20-8.8-EP-Zn
GB_T93-6×1.6-EP_Zn
GB_T5783-M6x20-8.8-EP-Zn
GB_T95-8-EP_Zn
GB_T96.2-12-EP_Zn
GB_T93-12x3.1-EP_Zn
GB_T5783-M12×30-8.8-EP-Zn
BP180-221
H001G1 /2
BS/ A21.50(G1/2)
1
1
1
1
1
2
4
2
4
2
5
5
2
2
4
5
1
1
2
2
2
34
www.mechmaxx.com
CHUTE ADJUSTMENT HYDRAULIC
PARTS LIST (CHUTE ADJUSTMENT HYDRAULIC)
35
www.mechmaxx.com
POS. Description Specification Qty
1
2
3
4
Limiting plate
Plain Washer
Prevailing torque type hexagon nut
Hexagon Head Bolt - Full Thread
BP180-112
GB_T95-10x2-EP_Zn
GB_T889.1-M10-8-EP_Zn
GB_T5783-M10×30-8.8-EP-Zn
1
3
3
3

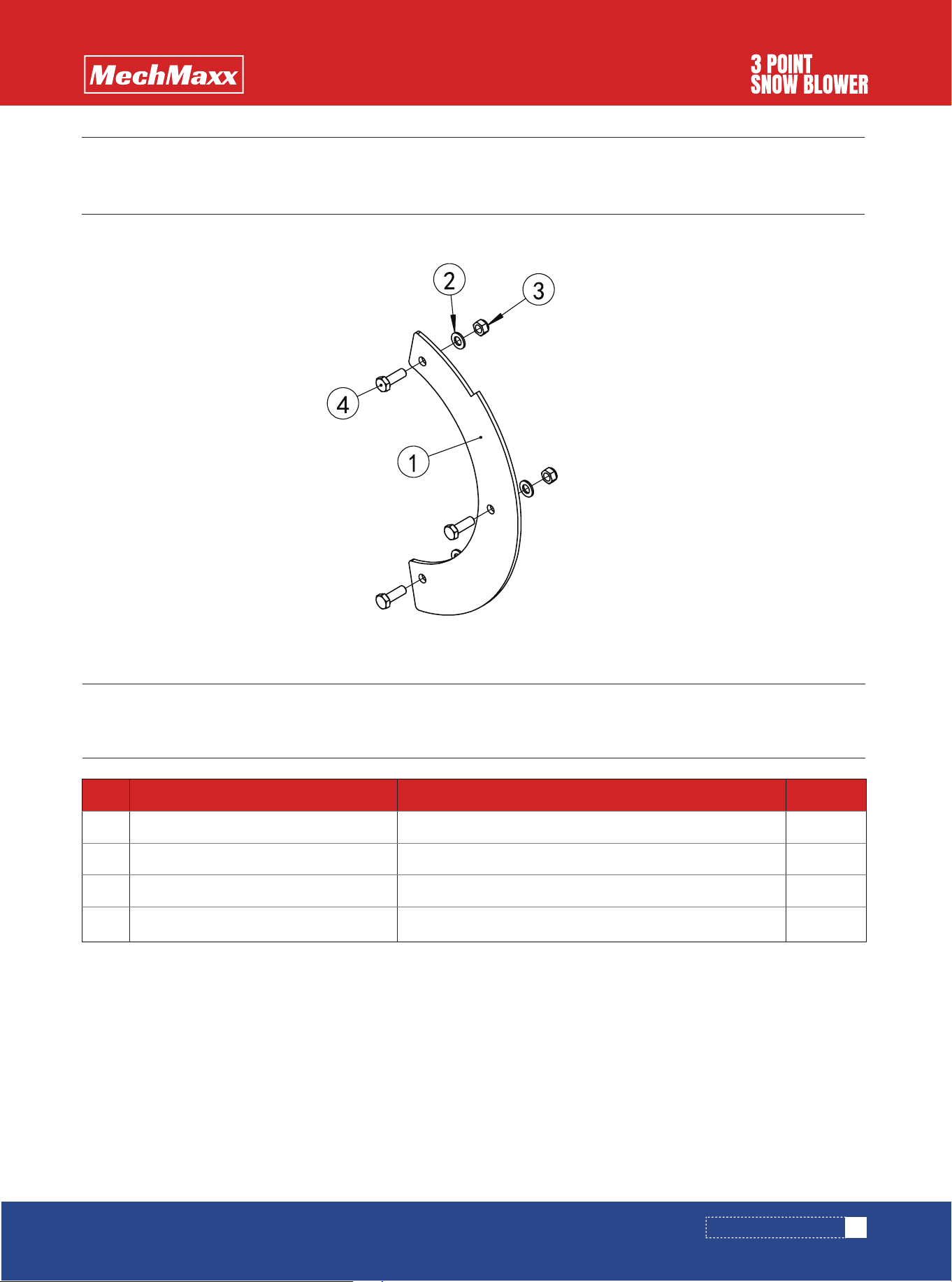

PARTS DIAGRAM (LIMIT PLATE ASSEMBLY)
LIMIT PLATE ASSEMBLY
PARTS LIST (LIMIT PLATE ASSEMBLY)
SOLD SEPARATELY, SKU:461033
SOLD SEPARATELY, SKU:461033
