Unimac UCT040QN 40lb Cabinet Hardmount Washer Extractor User Manual

Washer-Extractors

Cabinet Hardmount

Design 4, 6, 7 and 8 Machines

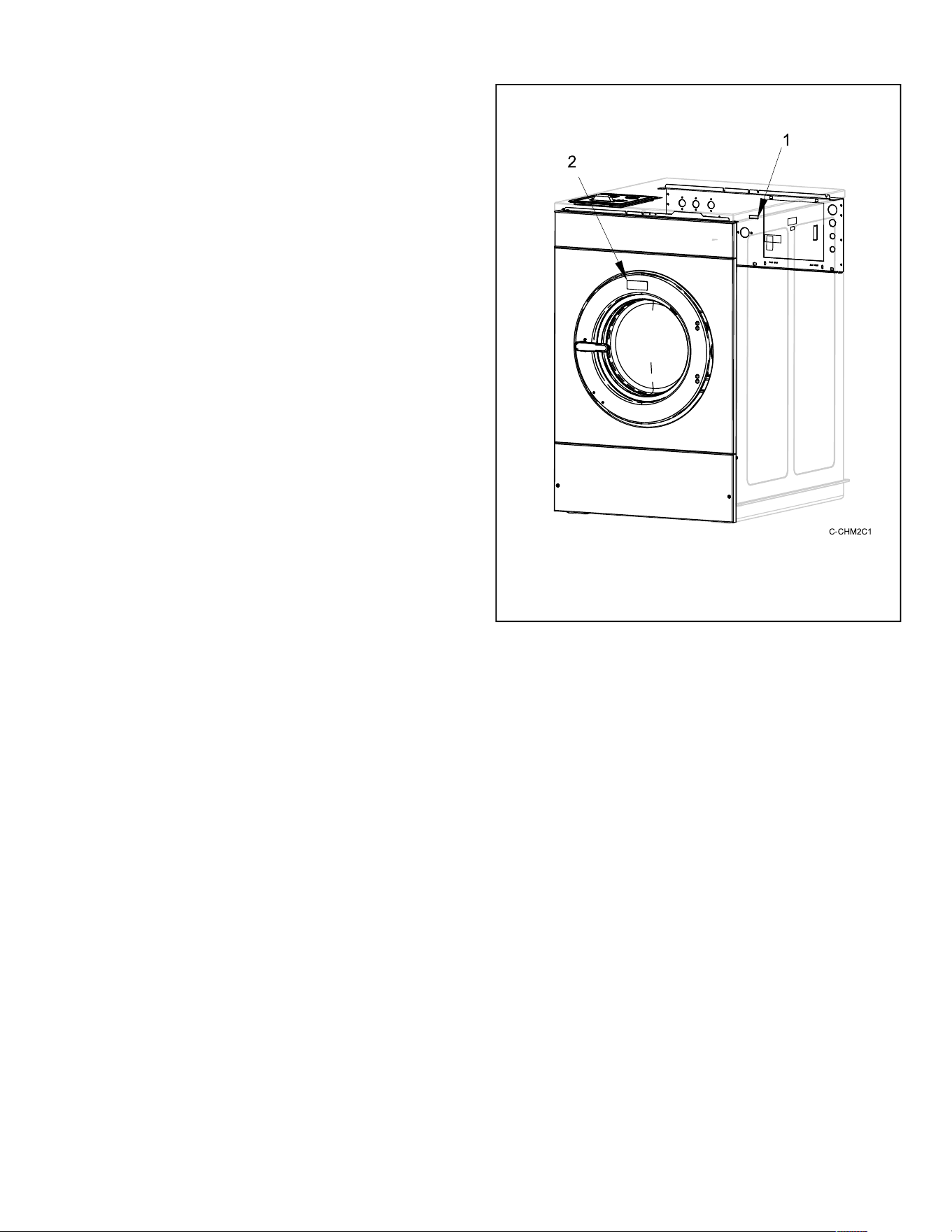

Refer to Page 9 for Machine Identification

Installation/Operation/Maintenance

www.alliancelaundry.com

Original Instructions

Keep These Instructions for Future Reference.

CAUTION: Read the instructions before using the machine.

(If this machine changes ownership, this manual must accompany machine.)

Part No. F8619501ENR14

December 2025

Regulatory Statements

PRODUCT COMPLIANCE

Users of this product are cautioned not to make modifications

or changes that are not approved by Alliance Laundry Sys-

tems, LLC. Doing so may void the compliance of this product

with applicable laws and regulatory requirements and may re-

sult in the loss of the user’s authority to operate the equipment.

UNITED STATES

This device complies with Part 15 of the FCC Rules. Opera-

tion is subject to the following two conditions; (1) This device

may not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installa-

tion. This equipment generates uses and can radiate radio fre-

quency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this equip-

ment does cause harmful interference to radio or television re-

ception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the radio or television receiving anten-

na.

• Increase the separation between the computer equipment or

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the radio or television receiver is con-

nected.

• Consult the dealer or experienced radio television techni-

cian for help.

CAUTION

To comply with the limits of the Class B device, pur-

suant to Part 15 of the FCC Rules, this device is to

comply with Class B limits. All peripherals must be

shielded and grounded. Operation with non-certi-

fied peripherals or non-shielded cables is likely to

result in interference and reception of the device.

W1004

Radiation Exposure Statement : This equipment complies

with FCC radiation exposure limits set forth for an uncon-

trolled environment. The radio installed in this equipment and

is intended to operate with minimum distance 20cm between

the radiator and your body.

Limited Channels Fixed For Use In USA : IEEE 802.11b or

802.11g or 802.11n(HT20) operation of this product in the

U.S. is firmware-limited to Channel 1 through 11.

CANADA - CAN ICES-3(B)/NMB-3(B)

This device contains license-exempt transmitter(s)/receiver(s)

that comply with Innovation, Science and Economic Develop-

ment Canada’s license-exempt RSS(s) standards. Operation is

subject to the following two conditions:

• This device may not cause interference.

• This device must accept any interference, including inter-

ference that may cause undesired operation of the device.

Radiation Exposure Statement: This equipment complies

with Innovation, Science and Economic Development Cana-

da’s radiation exposure limits set forth for in RSS-102. The ra-

dio installed in this equipment is installed and is intended to

operate with minimum distance 20cm between the radiator and

your body.

EUROPE

Products bearing the CE mark comply with the following EU

directives:

• EMC Directive 2014/30/EU

• Machinery Directive 2006/42/EC

• Gas Appliance Directive 2016/426/EU

• RoHS Directive 2011/65/EU and its amendment directives;

Commission Delegated Directive 2015/863 to restrict four

phthalates

If the product has telecommunications functionality, it also

complies with the requirements of the following EU directive:

• Radio Equipment Directive 2014/53/EU

Compliance with these Directives implies conformity to har-

monized European standards that are noted in the EU Declara-

tion of Conformity which is available upon request.

Alliance Laundry Systems products comply with the require-

ment of Article 12 as it can be operated in at least one Member

State as examined and the product is compliant with Article 11

as it has no restrictions on putting into service in all EU mem-

ber states.

This device contains a 2.4GHz transceiver, intended for indoor

use only in all EU member states, EFTA states, and Switzer-

land. Attention has been given to allowed operational frequen-

cies. For detailed information concerning installations in

France, the user should contact the national spectrum authority

in France (http://www.arcep.fr/ )

Be aware that outdoor installations require special attention

and will only be handled by trained and qualified installation

personnel. No one from the general-public is permitted to in-

stall wireless products outdoors when external antennas, power

Regulatory Statements

DO NOT COPY or TRANSMIT

3 Part No. F8619501ENR14

and grounding must be installed for use.

AUSTRALIA/NEW ZEALAND

The radio in this equipment complies with and is certified to

the Australian and New Zealand regulatory requirements.

BRAZIL ANATEL

This device is not entitled to protection against harmful inter-

ference and may not interfere with duly authorized systems.

CHINA SRRC

The radio device has recieved certification of conformance in

accordance with the People's Republic of China State Radio

Regulation Committee (SRRC) certification scheme. Integra-

tions of this radio into a final product does not require addi-

tional radio certification provided installation instructions are

followed. No changes are authorized to the radio or the anten-

na of the approved device.

JAPAN

This product is equipped with a certified wireless device pur-

suant to Article 2-1-19 of the Certification Ordinance. No

changes are authorized to the radio or the antenna of the ap-

proved device.

MEXICO IFETEL

“The operation of this equipment is subject to the following

two conditions: (1) it is possible that this equipment or device

does not cause harmful interference and (2) this equipment or

device must accept any interference, including that which may

cause its unwanted operation.”

SOUTH KOREA (KC)

The radio device has received certification of conformance in

accordance with the Radio Waves Act. Integration of this radio

into a final product does not require additional radio certifica-

tion provided installation instructions are followed. No

changes are authorized to the radio or the antenna of the ap-

proved device.

TAIWAN

The information in this section applies to products bearing the

Taiwan National Communications Commission mark:

This telecom equipment has complied with NCC regulations.

According to “Administrative Regulations of Low Power Ra-

dio Waves Radiated Devices:

Article 12 The low-power radio-frequency devices must not be

altered by changing the frequency, enhancing emission power,

adding external antenna, and modification of original design

characteristic as well as function.

Article 14 The operation of the low-power radio-frequency de-

vices is subject to the conditions that no harmful interference is

caused. The user must stop operating the device immediately

should harmful interference is caused and shall not resume un-

til the condition causing the harmful interference has been cor-

rected.

Moreover, the interference must be accepted that may be

caused by the operation of an authorized communications, or

ISM equipment. (1) Precautions (marked in the product manu-

al and on outer packaging)

THAILAND

The information in this section applies to products approved

by the Thailand National Communications Commission:

These telecommunication and device are compliance with the

requirements of National Broadcasting and Telecommunica-

tion Commission.

Manufacturing Date

The manufacturing date for your unit can be found on the seri-

al number. The first two digits indicate the year. The third and

fourth digits indicate the month. For example, a unit with serial

number 1505000001 was manufactured in May 2015.

Singapore Recommended Program For

Nominal Load

The ECO Cycle at 27 minutes with 1 wash and 1 rinse is the

program recommended for a nominal load at rated load capaci-

ty.

For the below model certification:

SCT020, SCT030, SCT040, SCT060

HCT020, HCT030, HCT040, HCT060

PCT020, PCT030, PCT040, PCT060

BCT020, BCT030, BCT040, BCT060

Refer to programming manual for details of this wash pro-

gram.

Regulatory Statements

DO NOT COPY or TRANSMIT

4 Part No. F8619501ENR14

continues...

China Restriction of hazardous substances

(RoHS)

The Table of Hazardous Substances/Elements and their Content

As required by China's Management Methods for Restricted Use of Hazardous Substances in Electrical and Electronic Products

Hazardous substances

Part

Name

Lead Mercury Cadmi-

Hexava-

lent

Chromi-

Poly-

bromi-

nated

biphenyl

Poly-

bromi-

nated

diphenyl

ethers

Dibutyl

phthalate

Di-

isobutyl

phthalate

Butylben-

zyl phtha-

late

Di(2-eth-

ylhexyl)

phthalate

(Pb) (Hg) (Cd) (CR[VI]) (PBB) (PBDE) (DBP) (DIBP) (BBP) (DEHP)

≤ 0.1% ≤ 0.1% ≤ 0.01% ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1%

PCBs X O O O O O O O O O

Electro-

mechani-

cal Parts

O O O O O O O O O O

Cables

and Wires

O O O O O O O O O O

Metal

Parts

O O O O O O O O O O

Plastic

Parts

O O O O O O O O O O

Sealing

strips

O O O O O O O O O O

Batteries O O O O O O O O O O

Hoses

and Tub-

ing

O O O O O O O O O O

Textile O O O O O O O O O O

Timing

Belts

O O O O O O O O O O

Insulation O O O O O O O O O O

Glass O O O O O O O O O O

Display O O O O O O O O O O

This table is prepared in accordance with the provisions of SJ/T-11364.

China Restriction of hazardous substances (RoHS)

DO NOT COPY or TRANSMIT

5 Part No. F8619501ENR14

continues...

O: Indicates that the content of said hazardous substance in all of the homogenous materials in the component is within the limits

required by GB/T 26572.

X: : Indicates that the content of said hazardous substance exceeds the limits required by GB/T 26572 in at least one homogenous

material in the component, however, it follows the standard advised by 2011/65/EU in the current version.

NOTE: The referenced Environmental Protection Use Period Marking was determined according to normal op-

erating use conditions of the product such as temperature and humidity.

Observing SJ/T 11364, Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products.

Observing SJ/Z 11388, General Guidelines of Environment-friendly Use Period of Electronic Information Products

Appendix B, adopting table look-up to verify the Environment Friendly Use Period 15 years.

China Restriction of hazardous substances (RoHS)

DO NOT COPY or TRANSMIT

6 Part No. F8619501ENR14

Safety Information

Explanation of Safety Instruction

Messages

Precautionary statements (“DANGER,” “WARNING,” and

“CAUTION”), followed by specific instructions, are found in

this manual and on machine decals. These precautions are in-

tended for the personal safety of the operator, user, servicer,

and those maintaining the machine.

DANGER

Indicates an imminently hazardous situation that, if

not avoided, will cause severe personal injury or

death.

WARNING

Indicates a hazardous situation that, if not avoided,

could cause severe personal injury or death.

CAUTION

Indicates a hazardous situation that, if not avoided,

may cause minor or moderate personal injury or

property damage.

Additional precautionary statements (“IMPORTANT” and

“NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used to in-

form the reader of specific procedures where minor

machine damage will occur if the procedure is not

followed.

NOTE: The word “NOTE” is used to communicate in-

stallation, operation, maintenance or servicing infor-

mation that is important but not hazard related.

Important Safety Instructions

WARNING

To reduce the risk of fire, electric shock, serious in-

jury or death to persons when using your washer,

follow these basic precautions:

W023

• Read all instructions before using the washer.

• Install the washer according the INSTALLATION instruc-

tions. Refer to the EARTH/GROUND instructions in the IN-

STALLATION manual for the proper earth/ground connec-

tion of the washer. All connections for water, drain, electrical

power and earth/ground must comply with local codes and

be made by licensed personnel when required. It is recom-

mended that the machine be installed by qualified techni-

cians.

• Do not install or store the washer where it will be exposed to

water and/or weather.

• To prevent fire and explosion, keep the area around machine

free from flammable and combustible products. Do not add

the following substances or textiles containing traces of the

following substances to the wash water: gasoline, kerosene,

waxes, cooking oils, vegetable oils, machine oils, dry-clean-

ing solvents, flammable chemicals, thinners, or other flam-

mable or explosive substances. These substances give off va-

pors that could ignite, explode or cause the fabric to catch

fire by itself.

• Under certain conditions, hydrogen gas may be produced in

a hot water system that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE. If the hot water

system has not been used for such a period, before using a

washing machine or combination washer-dryer, turn on all

hot water faucets and let the water flow from each for several

minutes. This will release any accumulated hydrogen gas.

The gas is flammable, do not smoke or use an open flame

during this time.

• To reduce the risk of an electric shock or fire, DO NOT use

an extension cord or an adapter to connect the washer to the

electrical power source.

• Do not allow children to play on or in the washer. Close su-

pervision of children is necessary when the washer is used

near children. This appliance is not intended for use by

young children or infirm persons without supervision. Young

children should be supervised to ensure that they do not play

with the appliance. This is a safety rule for all appliances.

• Models with electronic control: Remove and immediately re-

cycle or dispose of used controls according to local regula-

tions and keep away from children. Do NOT dispose of con-

trols in the trash or incinerate. Do not attempt to remove the

batteries. Even used batteries may cause severe injury or

death. Call a local poison control center for treatment infor-

mation. Non-rechargeable batteries are not to be recharged.

Do not force discharge, recharge, disassemble, heat above

70⁰C [158⁰F] or incinerate. Doing so may result in injury due

to venting, leakage or explosion resulting in chemical burns.

• DO NOT reach and/or climb into the tub or onto the washer,

ESPECIALLY if the wash drum is moving. This is an immi-

nently hazardous situation that, if not avoided, will cause se-

vere personal injury or death.

• Never operate the washer with any guards, panels and/or

parts removed or broken. DO NOT bypass any safety de-

vices or tamper with the controls.

• Use washer only for its intended purpose, washing textiles.

Never wash machine parts or automotive parts in the ma-

Safety Information

DO NOT COPY or TRANSMIT

7 Part No. F8619501ENR14

chine. This could result in serious damage to the basket or

tub.

• Use only low-sudsing, no-foaming types of commercial de-

tergent. Be aware that hazardous chemicals may be present.

Wear hand and eye protection when adding detergents and

chemicals. Always read and follow manufacturer’s instruc-

tions on packages of laundry and cleaning aids. Heed all

warnings or precautions. To reduce the risk of poisoning or

chemical burns, keep them out of the reach of children at all

times [preferably in a locked cabinet].

• Do not use fabric softeners or products to eliminate static un-

less recommended by the manufacturer of the fabric softener

or product.

• Always follow the fabric care instructions supplied by the

textile manufacturer.

• Loading door MUST BE CLOSED any time the washer is to

fill, tumble or spin. DO NOT bypass the loading door switch

by permitting the washer to operate with the loading door

open. Do not attempt to open the door until the washer has

drained and all moving parts have stopped.

• Be aware that hot water is used to flush the supply dispenser.

Avoid opening the dispenser lid while the machine is run-

ning.

• Do not attach anything to the supply dispenser’s nozzles, if

applicable. The air gap must be maintained.

• Do not operate the machine without the water reuse plug or

water reuse system in place, if applicable.

• Be sure water connections have a shut-off valve and that fill

hose connections are tight. CLOSE the shut-off valves at the

end of each wash day.

• Keep washer in good condition. Bumping or dropping the

washer can damage safety features. If this occurs, have

washer checked by a qualified service person.

• DANGER: Before inspecting or servicing machine, power

supply must be turned OFF. The servicer needs to wait for at

least 5 minutes after turning the power OFF and needs to

check for residual voltage with a voltage meter. The inverter

capacitor or EMC filter remains charged with high voltage

for some time after powering OFF. This is an imminently

hazardous situation that, if not avoided, will cause severe

personal injury or death.

• Do not repair or replace any part of the washer, or attempt

any servicing unless specifically recommended in the user-

maintenance instructions or in published user-repair instruc-

tions that the user understands and has the skills to carry out.

ALWAYS disconnect the washer from electrical, power and

water supplies before attempting any service.

• Disconnect the power by turning off the circuit breaker or by

unplugging the machine. Replace worn power cords.

• Before the washer is removed from service or discarded, re-

move the door to the washing compartment.

• Failure to install, maintain, and/or operate this washer ac-

cording to the manufacturer’s instructions may result in con-

ditions which can produce bodily injury and/or property

damage.

NOTE: The WARNINGS and IMPORTANT SAFETY IN-

STRUCTIONS appearing in this manual are not meant

to cover all possible conditions and situations that

may occur. Common sense, caution and care must be

exercised when installing, maintaining, or operating

the washer.

Any problems or conditions not understood should be reported

to the dealer, distributor, service agent or the manufacturer.

WARNING

Machine installations must comply with minimum

specifications and requirements stated in the ap-

plicable Installation Manual, any applicable munici-

pal building codes, water supply requirements,

electrical wiring regulations and any other relevant

statutory regulations. Due to varied requirements

and applicable local codes, this machine must be

installed, adjusted, and serviced by qualified main-

tenance personnel familiar with applicable local

codes and the construction and operation of this

type of machinery. They must also be familiar with

the potential hazards involved. Failure to observe

this warning may result in personal injury, property

damage, and/or equipment damage, and will void

the warranty.

W820

IMPORTANT: Ensure that the machine is installed on

a level floor of sufficient strength. Ensure that the

recommended clearances for inspection and mainte-

nance are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Information

DO NOT COPY or TRANSMIT

8 Part No. F8619501ENR14

WARNING

Never touch internal or external steam pipes, con-

nections, or components. These surfaces can be

extremely hot and will cause severe burns. The

steam must be turned off and the pipe, connec-

tions, and components allowed to cool before the

pipe can be touched.

SW014

WARNING

Models with electronic control:

• INGESTION HAZARD:INGESTION HAZARD: This product contains a

non-replaceable button cell or coin battery.

• Battery Type: CR-2450/VAN, CR-2354/VCN,

CR2032

• Nominal voltage: 3V

• DEATHDEATH or serious injury can occur if ingested.

• A swallowed button cell or coin battery can

cause Internal Chemical Burns in as little as 2

hours.

• KEEP new and used batteries OUT OF REACH of

CHILDREN.

• Seek immediate medical attention if a battery is

suspected to be swallowed or inserted inside

any part of the body.

W1076

NOTE: All appliances are produced according the

EMC-directive (Electro-Magnetic-Compatibility). They

can be used in restricted surroundings only (comply

minimally with class A requirements). For safety rea-

sons there must be kept the necessary precaution

distances with sensitive electrical or electronic de-

vice(s). These machines are not intended for domes-

tic use by private consumers in the home environ-

ment.

Applicable in Japan:

If used beyond the standard conditions, there is a risk of fire,

burns, or other accidents due to abnormal wear or degradation

over a shorter period than the standard usage period.

This machine is intended for use in household environments

and similar applications:

• Stores, offices, and other staff work areas

• Farms

• Customers in hotels, motels, and other residential-type en-

vironments

However, this does not include environments such as simple

accommodations (like guesthouses or hotels with pets and

breakfast included) or shared-use spaces such as laundry areas

in condominiums and apartments. New hoses must be used

with the machine, and it is not recommended to reuse old hose

sets.

Safety Decals

Safety decals appear at crucial locations on the machine. Fail-

ure to maintain legible safety decals could result in injury to

the operator or service technician.

Use manufacturer-authorized spare parts to avoid safety haz-

ards.

Operator Safety

WARNING

NEVER insert hands or objects into basket until it

has completely stopped. Doing so could result in

serious injury.

SW012

Machines referred to by model in this manual are intended to

be used by the general public in applications such as:

• staff areas in shops, offices, kitchens and other working en-

vironments

• by clients in hotels, motels and other residential type envi-

ronments

• areas for communal use in blocks of flats or in launderettes

• any other similar applications

Installation of these machines must fully conform to the in-

structions contained in this manual.

The following maintenance checks must be performed daily:

1. Verify that all warning labels are present and legible, replace

as necessary.

2. Check door interlock before starting operation of the ma-

chine:

a. Attempt to start the machine with the door open. The ma-

chine should not start.

b. Close the door without locking it and start the machine.

The machine should not start.

c. Attempt to open the door while a cycle is in progress.

The door should not open.

If the door lock and interlock are not functioning properly,

disconnect power and call a service technician.

3. Do not attempt to operate the machine if any of the following

conditions are present:

a. The door does not remain securely locked during the en-

tire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly grounded circuit.

Safety Information

DO NOT COPY or TRANSMIT

9 Part No. F8619501ENR14

Do not bypass any safety devices in the machine.

WARNING

Operating the machine with severe out-of-balance

loads could result in personal injury and serious

equipment damage.

W728

Safety Information

DO NOT COPY or TRANSMIT

10 Part No. F8619501ENR14

Table of Contents

Regulatory StatementsRegulatory Statements ....................................................................................................................................................................................................................................33

Manufacturing Date ................................................................................................................................4

Singapore Recommended Program For Nominal Load ..........................................................................4

China Restriction of hazardous substances (RoHS)China Restriction of hazardous substances (RoHS) ..........................................................................................................................................55

Safety InformationSafety Information ................................................................................................................................................................................................................................................77

Explanation of Safety Instruction Messages ...........................................................................................7

Important Safety Instructions..................................................................................................................7

Safety Decals...........................................................................................................................................9

Operator Safety .......................................................................................................................................9

IntroductionIntroduction..................................................................................................................................................................................................................................................................1414

Machine Identification ..........................................................................................................................14

Delivery Inspection ...............................................................................................................................26

Serial Plate Location .............................................................................................................................26

Replacement Parts.................................................................................................................................26

Customer Service ..................................................................................................................................26

Specifications and DimensionsSpecifications and Dimensions......................................................................................................................................................................................................2727

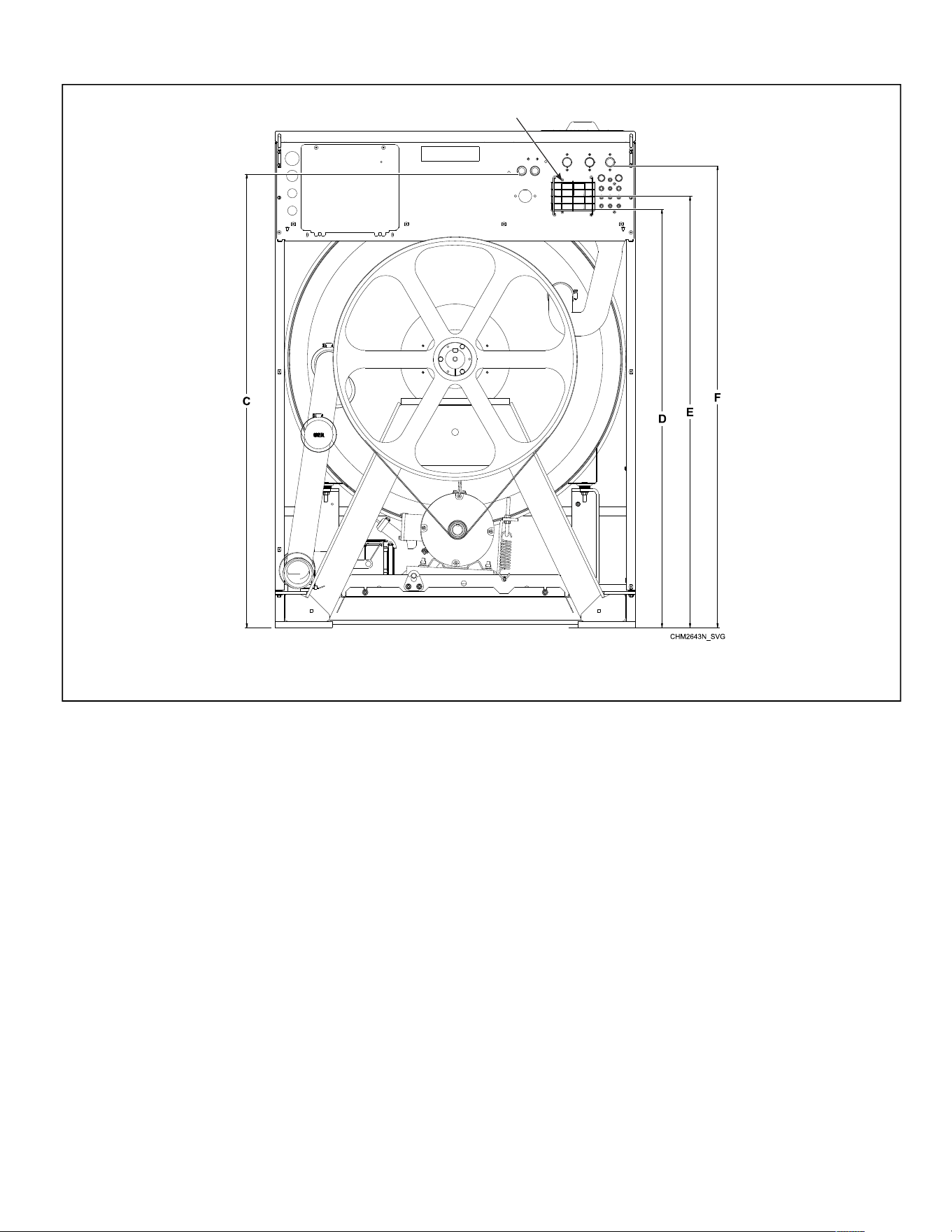

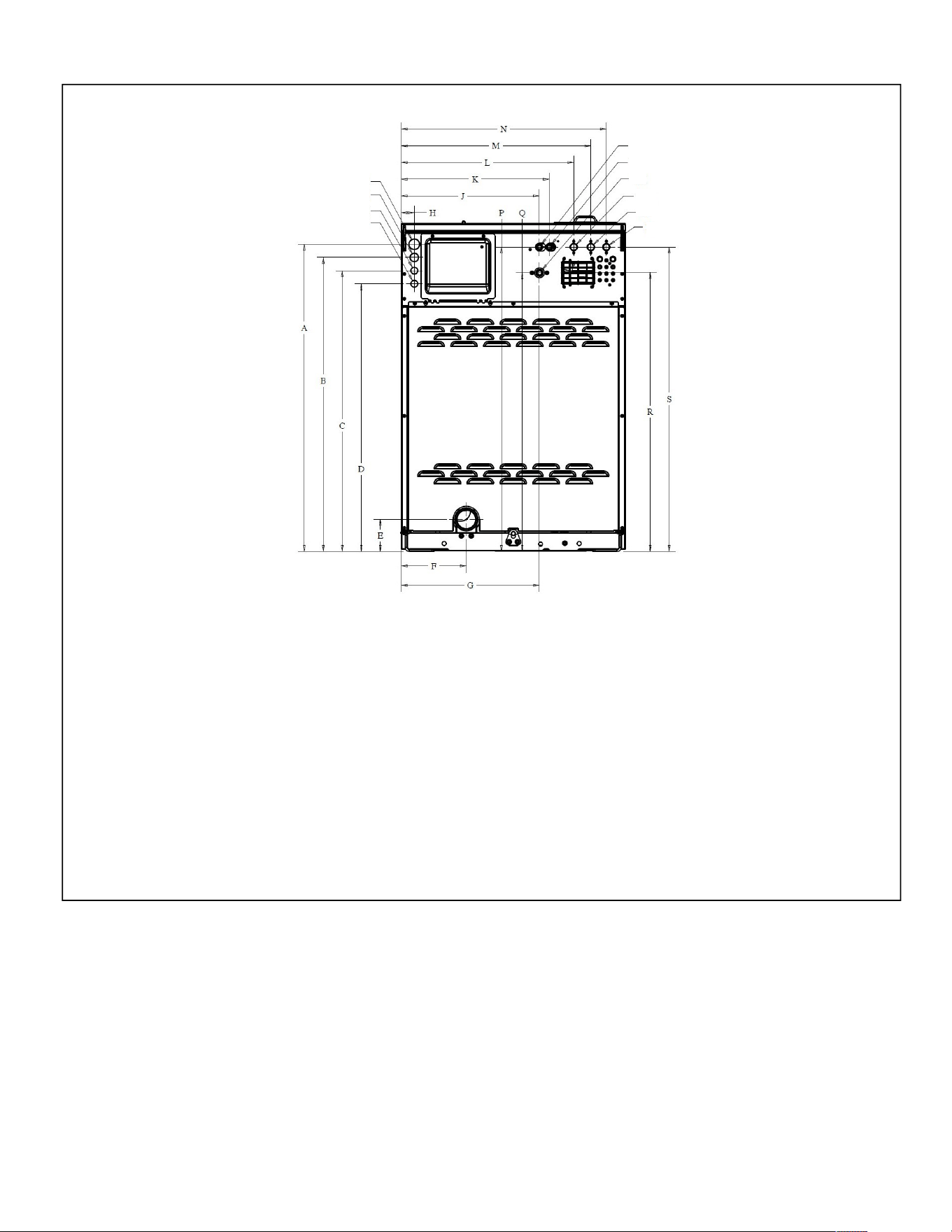

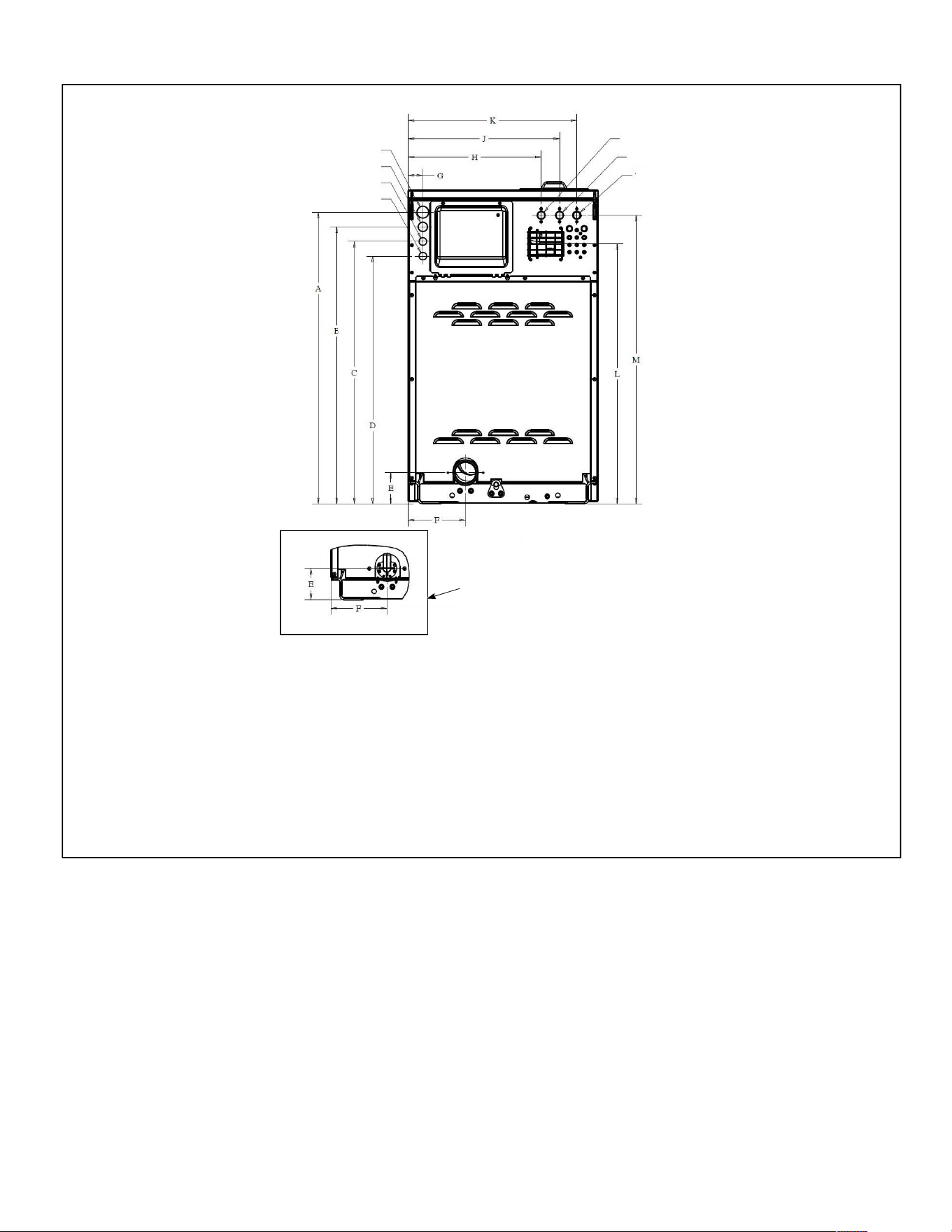

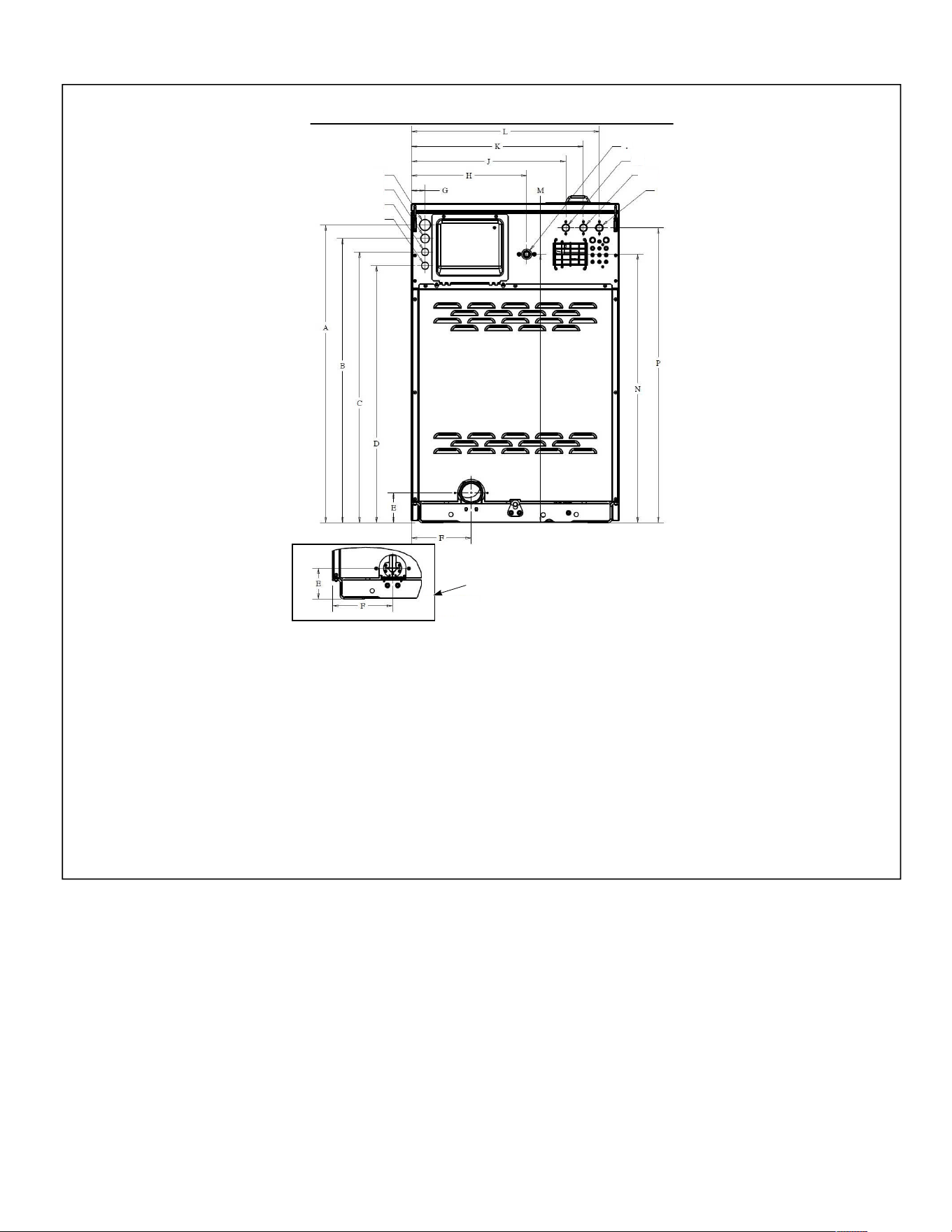

Machine Dimensions.............................................................................................................................30

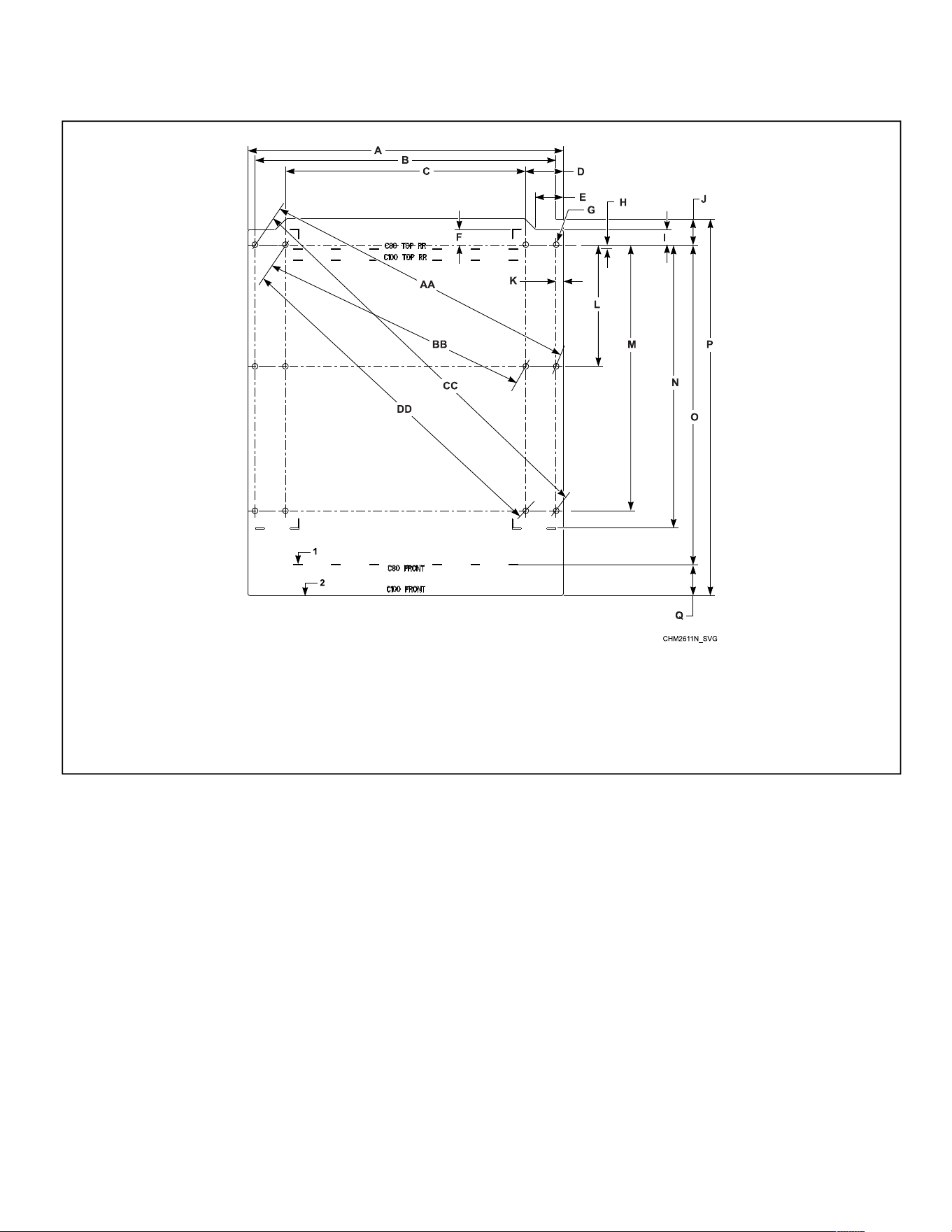

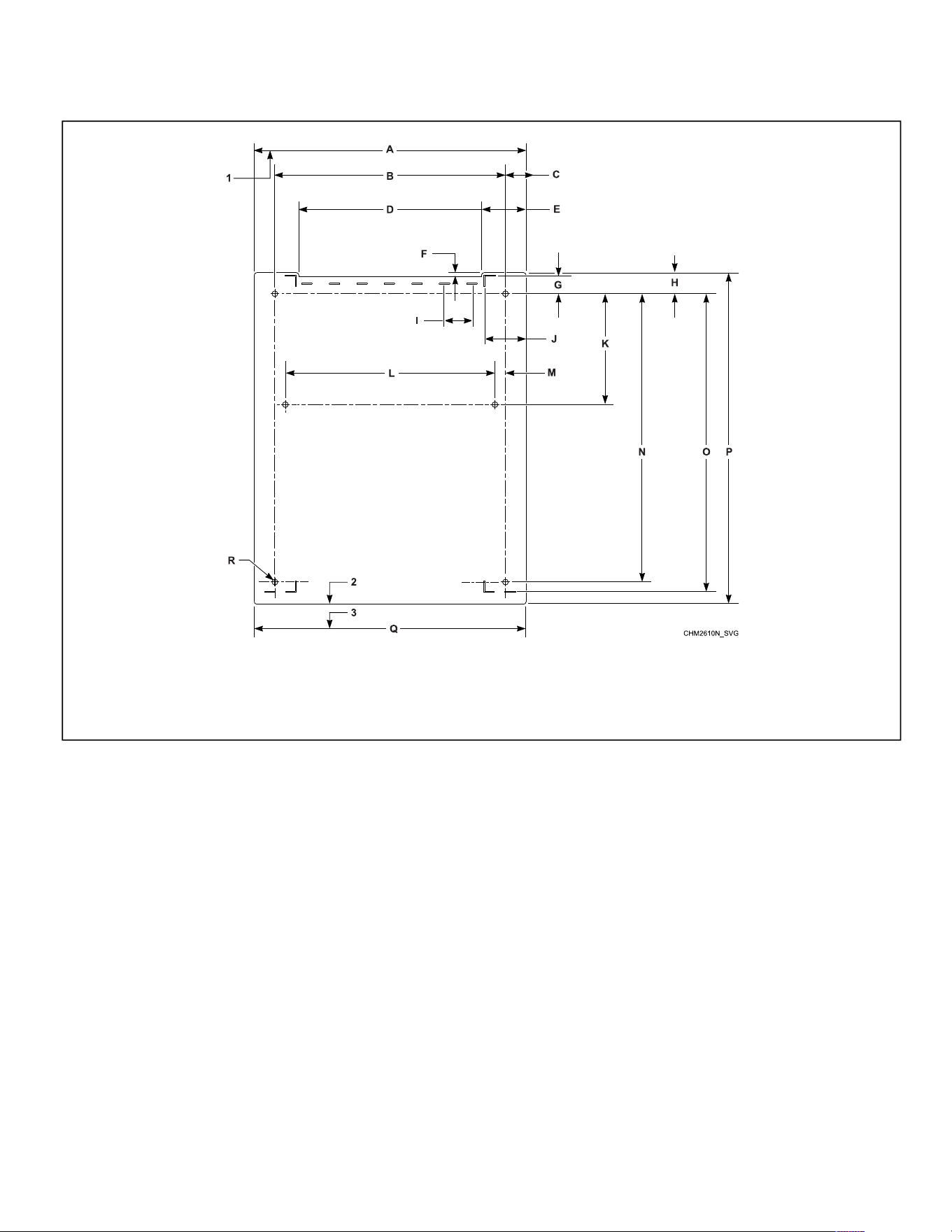

Mounting Bolt Hole Locations – 20 and 30 Models.............................................................................40

Mounting Bolt Hole Locations - 40 and 60 Models .............................................................................42

Mounting Bolt Hole Locations – 80 and 100 Models...........................................................................44

InstallationInstallation......................................................................................................................................................................................................................................................................4646

Foundation Options...............................................................................................................................46

Machine Installation on Existing Floor..............................................................................................46

Elevated Pad Installation on Existing Floor.......................................................................................46

Elevated Base Frame Installation on Existing Floor..........................................................................46

New Foundation.................................................................................................................................46

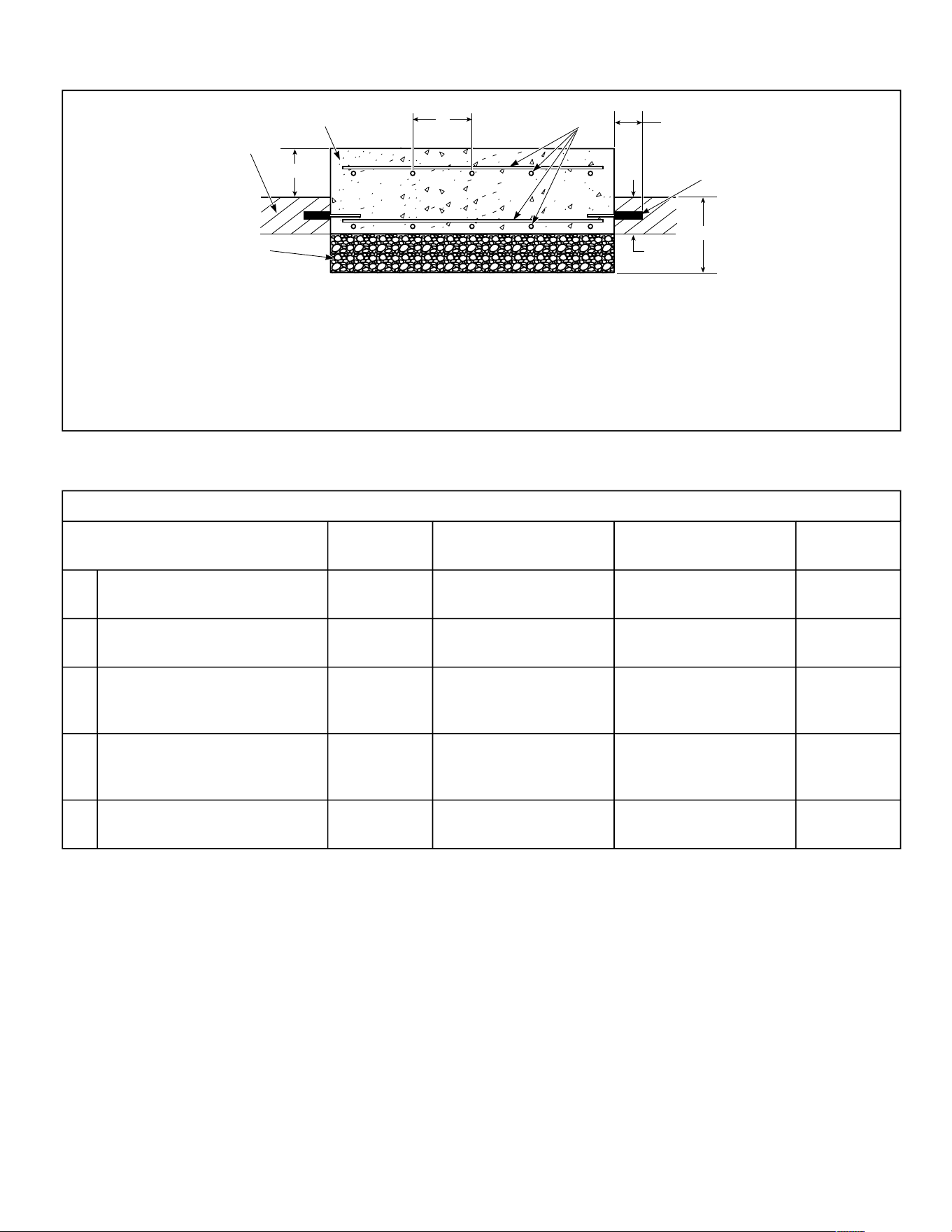

Isolated Pad Installation.....................................................................................................................46

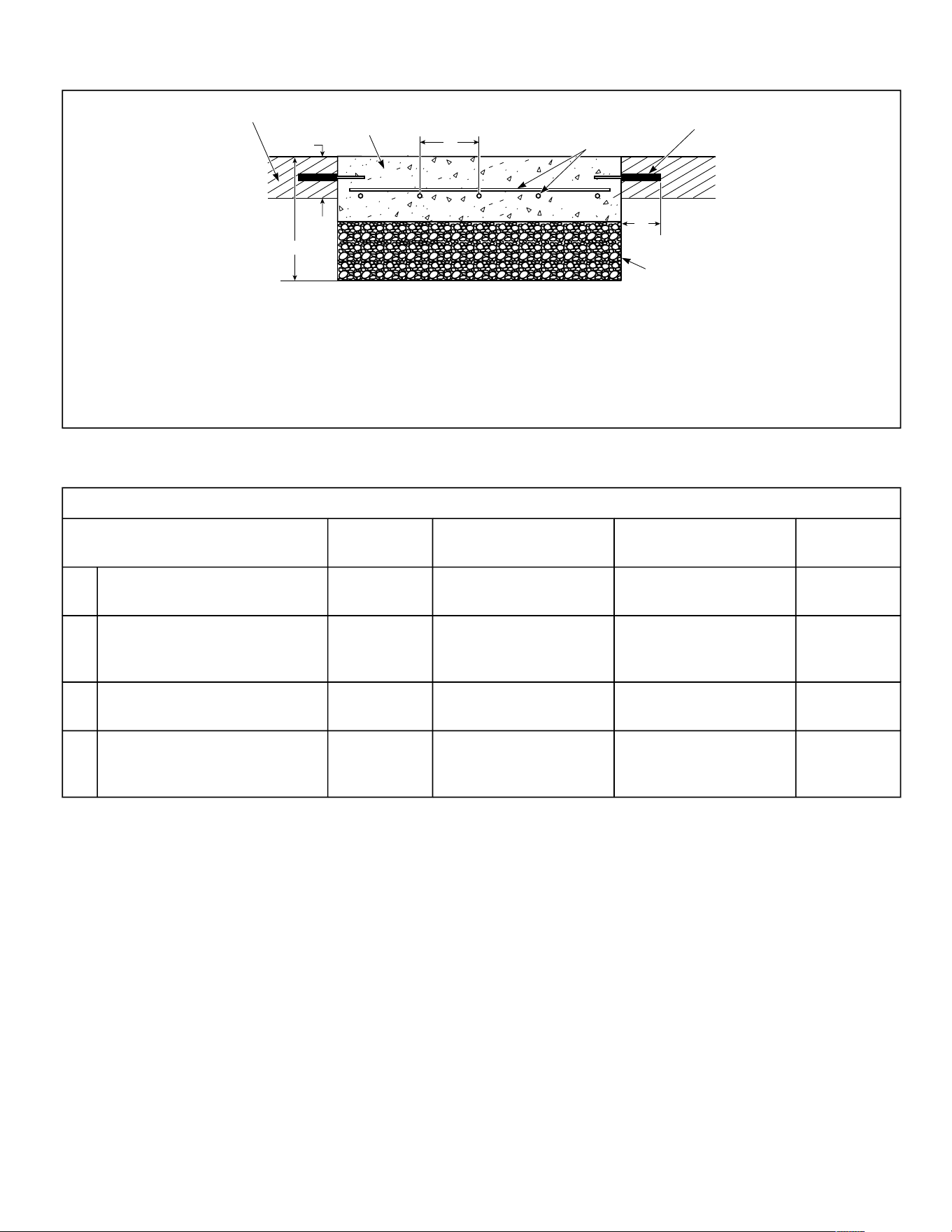

Foundation and Pad Installation............................................................................................................47

Floor Layout and Pad Dimensions........................................................................................................48

Foundation Requirements .....................................................................................................................56

Machine Mounting and Grouting..........................................................................................................60

Drain Connection Requirements ...........................................................................................................63

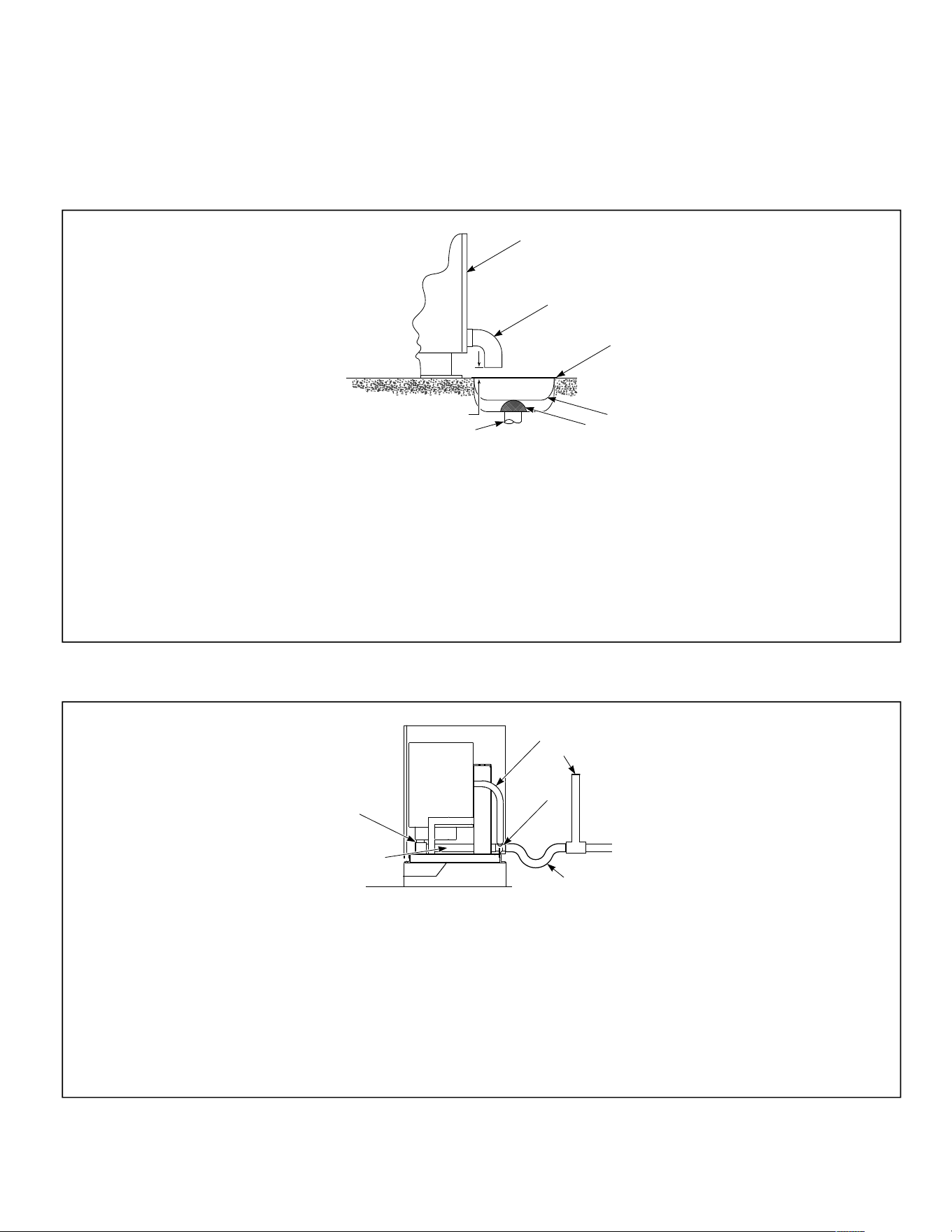

Drain Hose Models - Connect Drain Hose to Drain Receptacle .......................................................64

Water Connection Requirements...........................................................................................................65

consent of the publisher.

11 Part No. F8619501ENR14

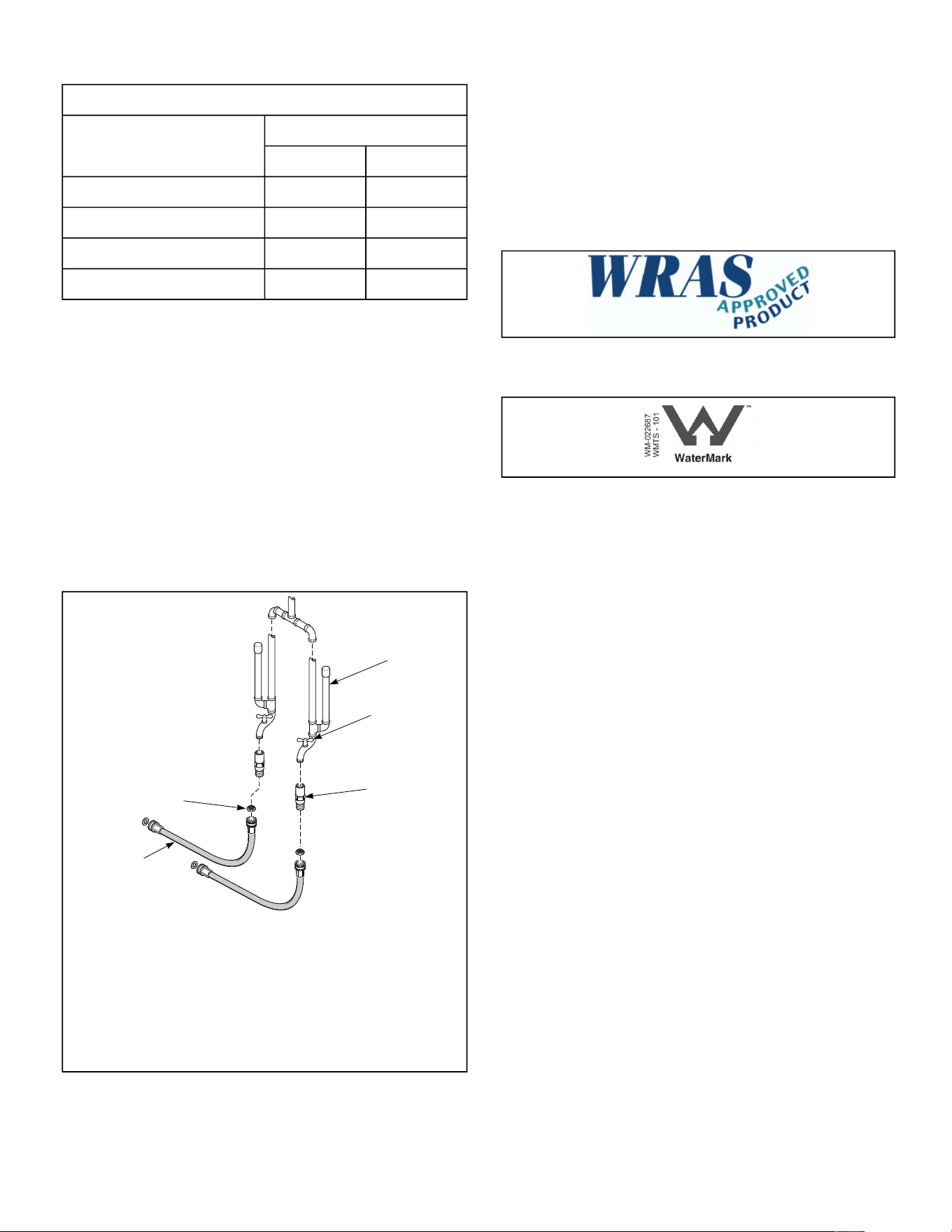

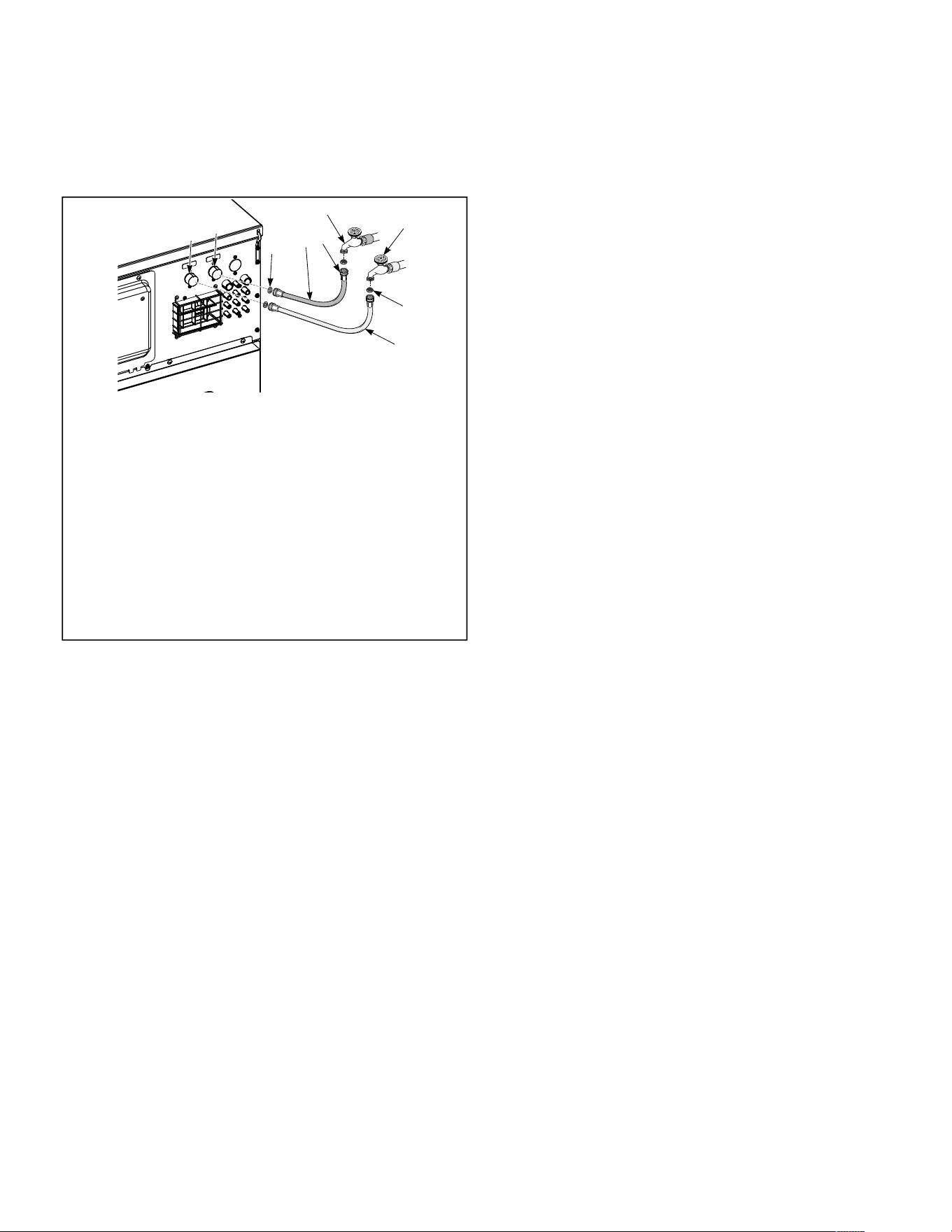

Connect Inlet Hoses (20-40 Models) .................................................................................................66

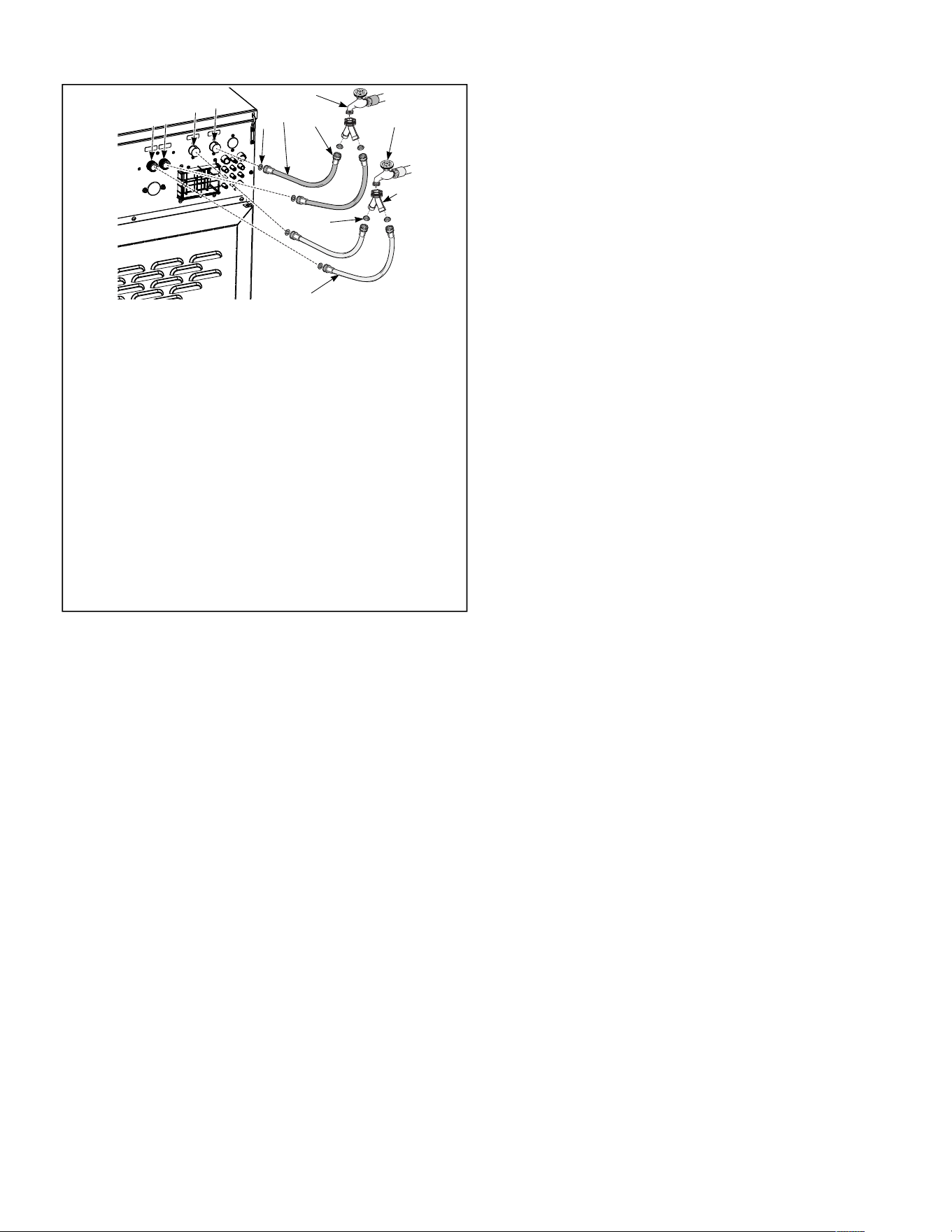

Connect Inlet Hoses with Y-Connectors (60-100 Models) ................................................................67

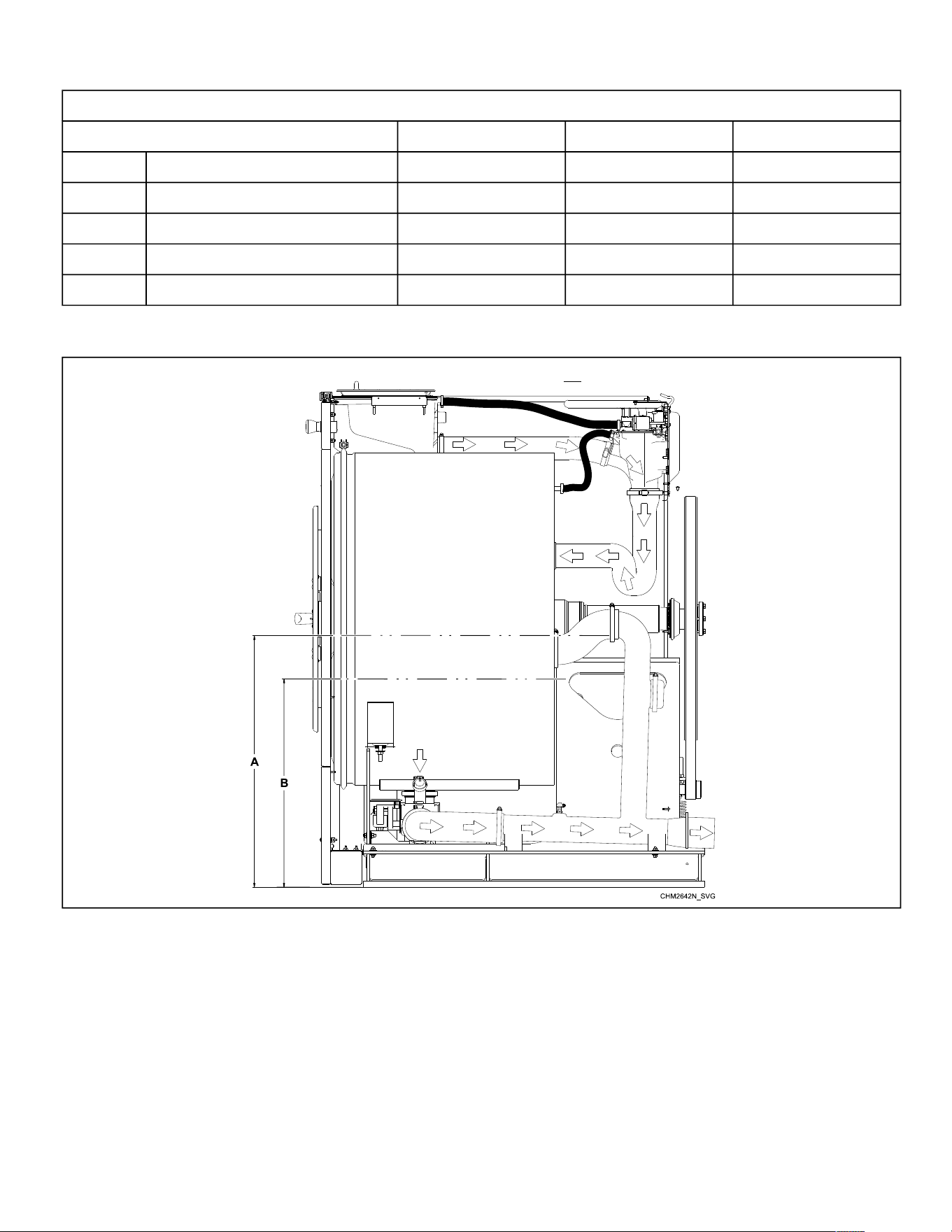

Plumbing Diagrams...............................................................................................................................69

Electrical Installation Requirements .....................................................................................................73

Input Power Conditioning .....................................................................................................................74

Input Voltage Requirements...............................................................................................................74

Circuit Breakers and Quick Disconnects ..............................................................................................74

Connection Specifications.....................................................................................................................74

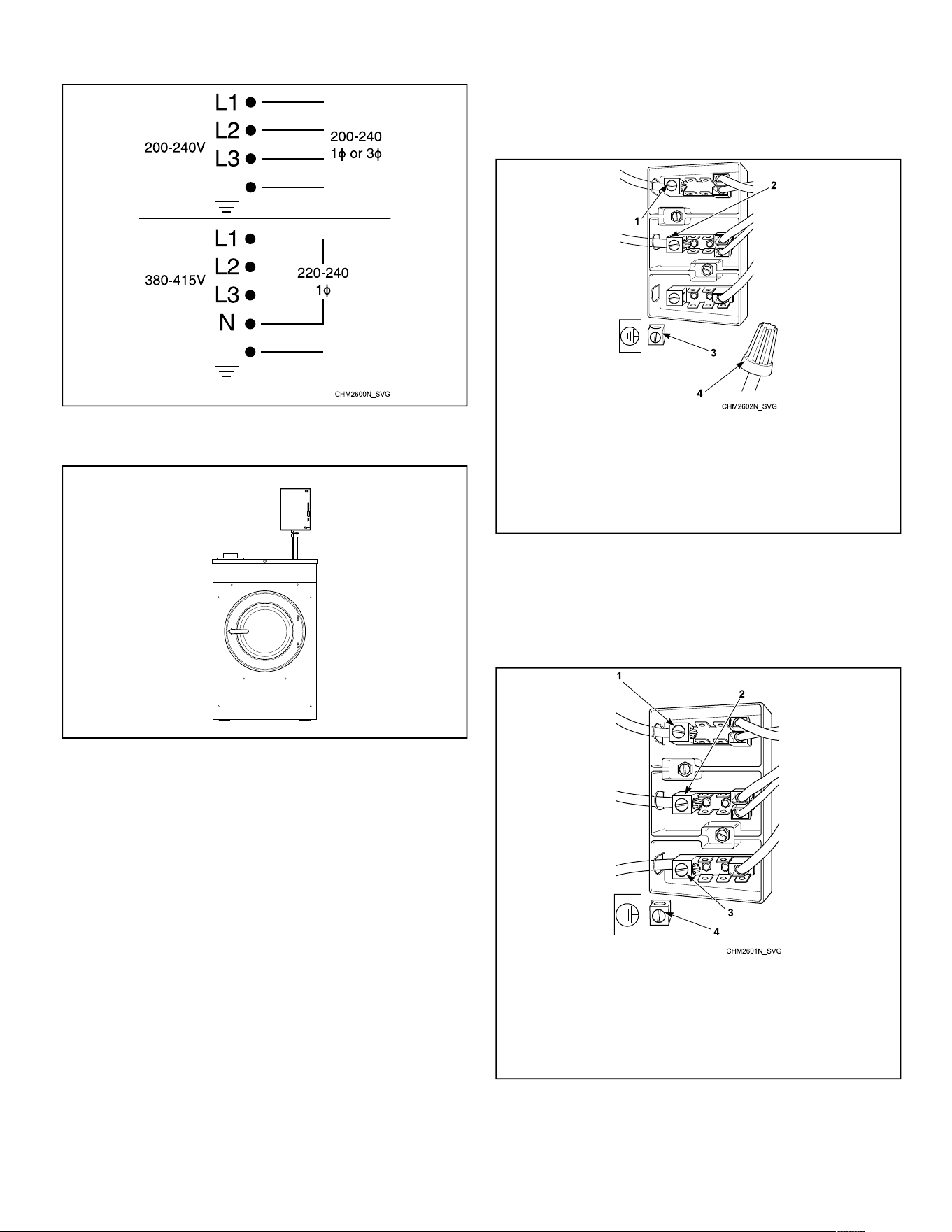

Single-Phase Connections..................................................................................................................75

Three-Phase Connections...................................................................................................................75

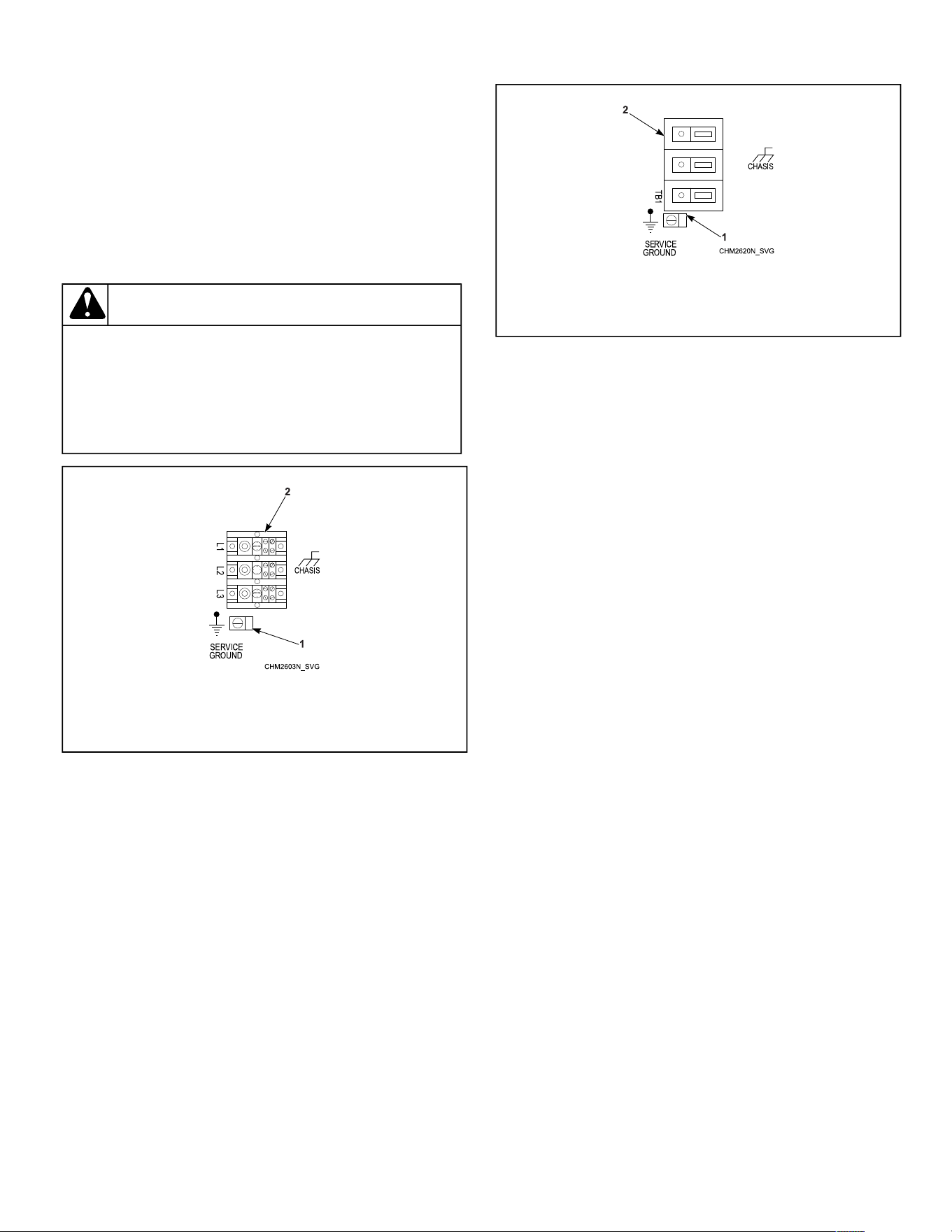

Grounding ..........................................................................................................................................76

Phase Adder .......................................................................................................................................76

Thermal Overload Protector ..............................................................................................................76

North American Approval .................................................................................................................77

CE Approval ......................................................................................................................................83

Steam Requirements (Steam Heat Option Only) ..................................................................................90

Chemical Injection Supply System .......................................................................................................90

External Supplies ..................................................................................................................................92

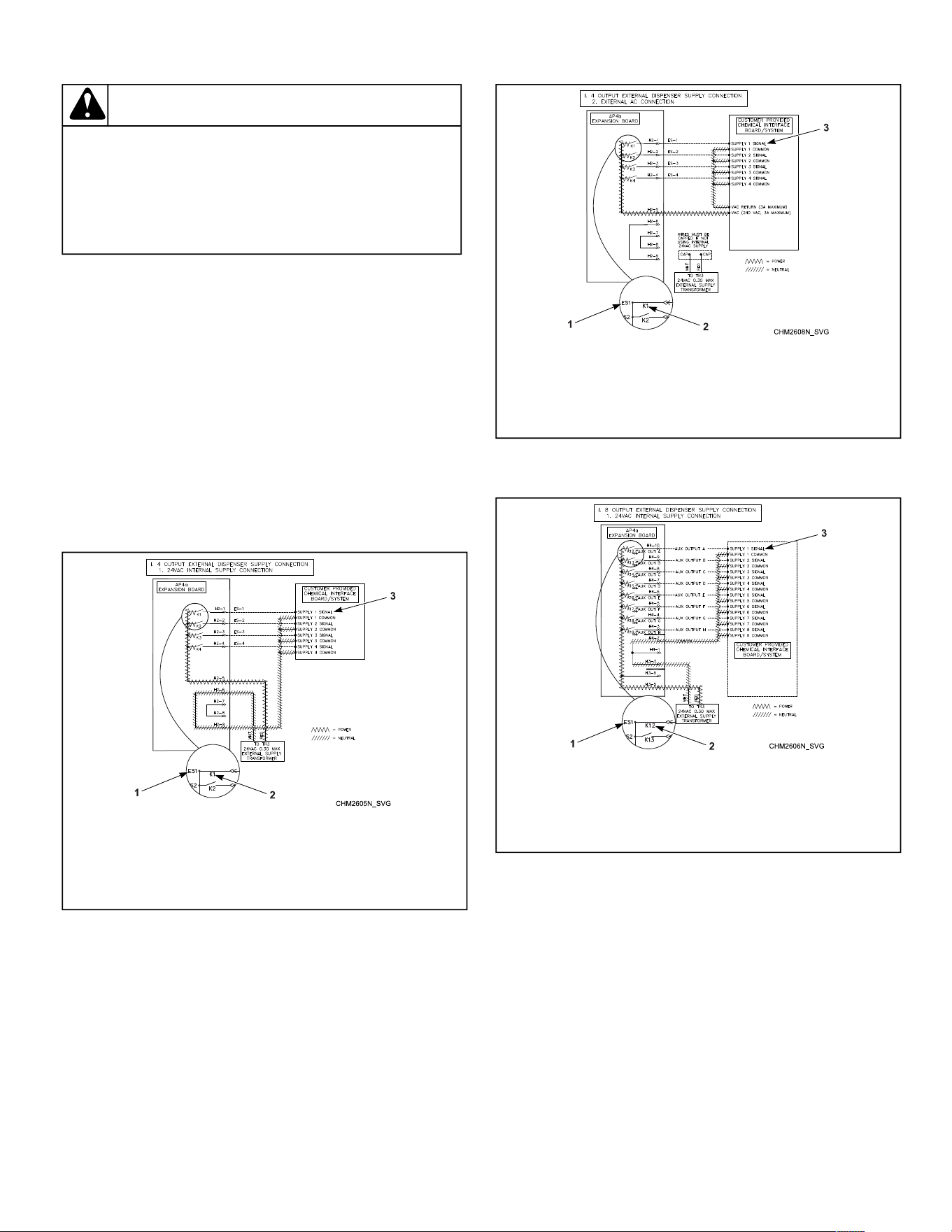

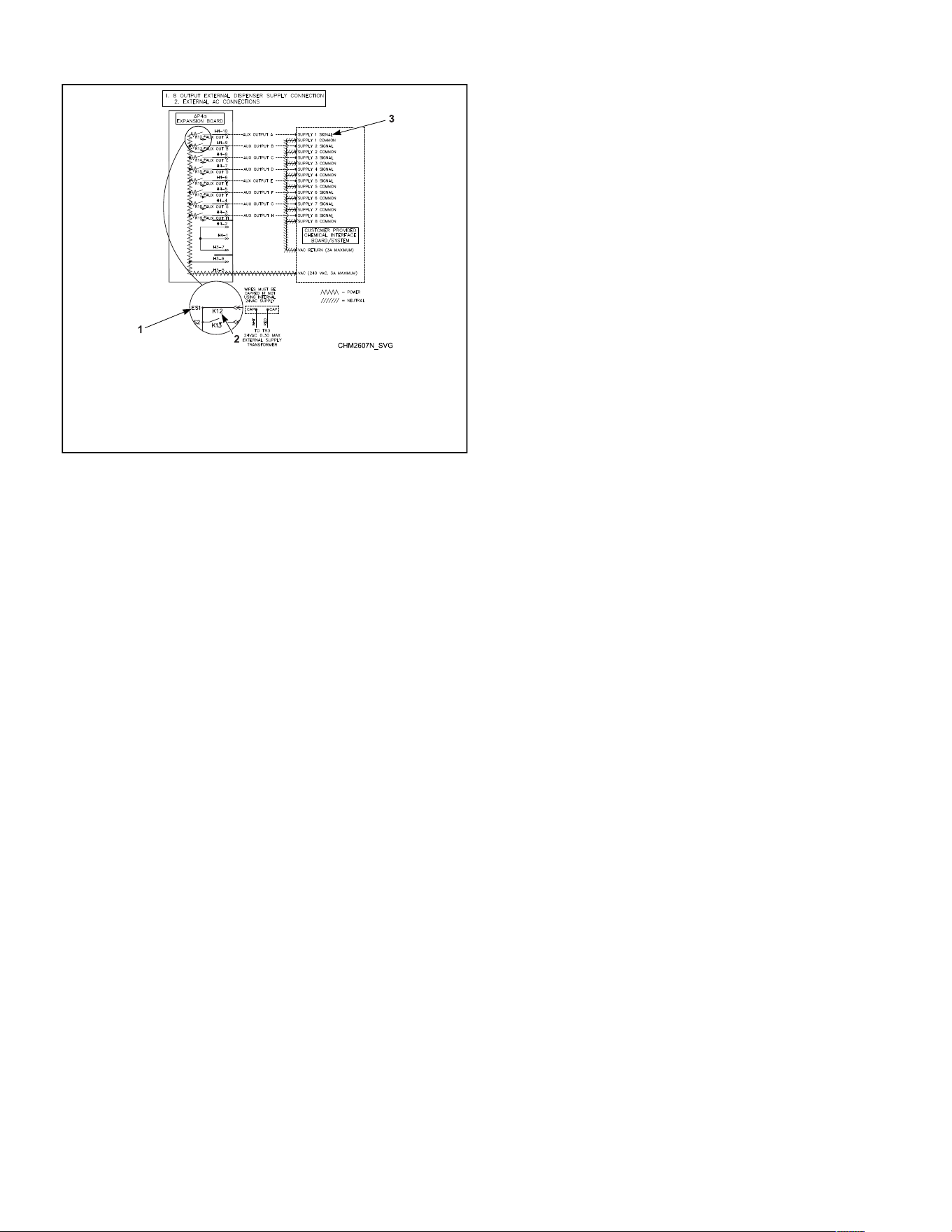

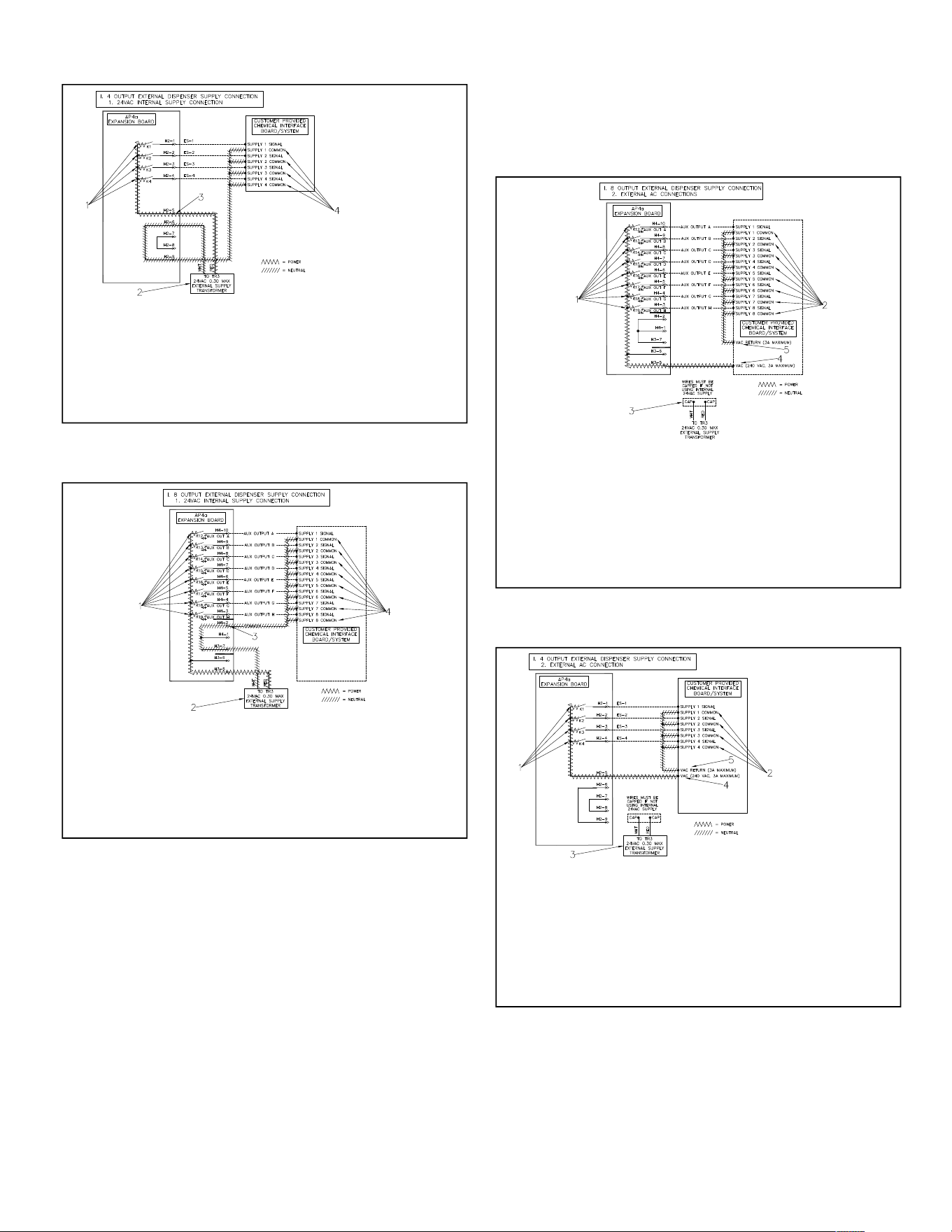

Chemical Injection Using Internal 24VAC Control Transformer ......................................................92

Chemical Injection Using External AC Power Source ......................................................................93

External Supply Signals.....................................................................................................................94

Start UpStart Up ..............................................................................................................................................................................................................................................................................9696

Basket Rotation .....................................................................................................................................96

OperationOperation..........................................................................................................................................................................................................................................................................9797

Operating Instructions...........................................................................................................................97

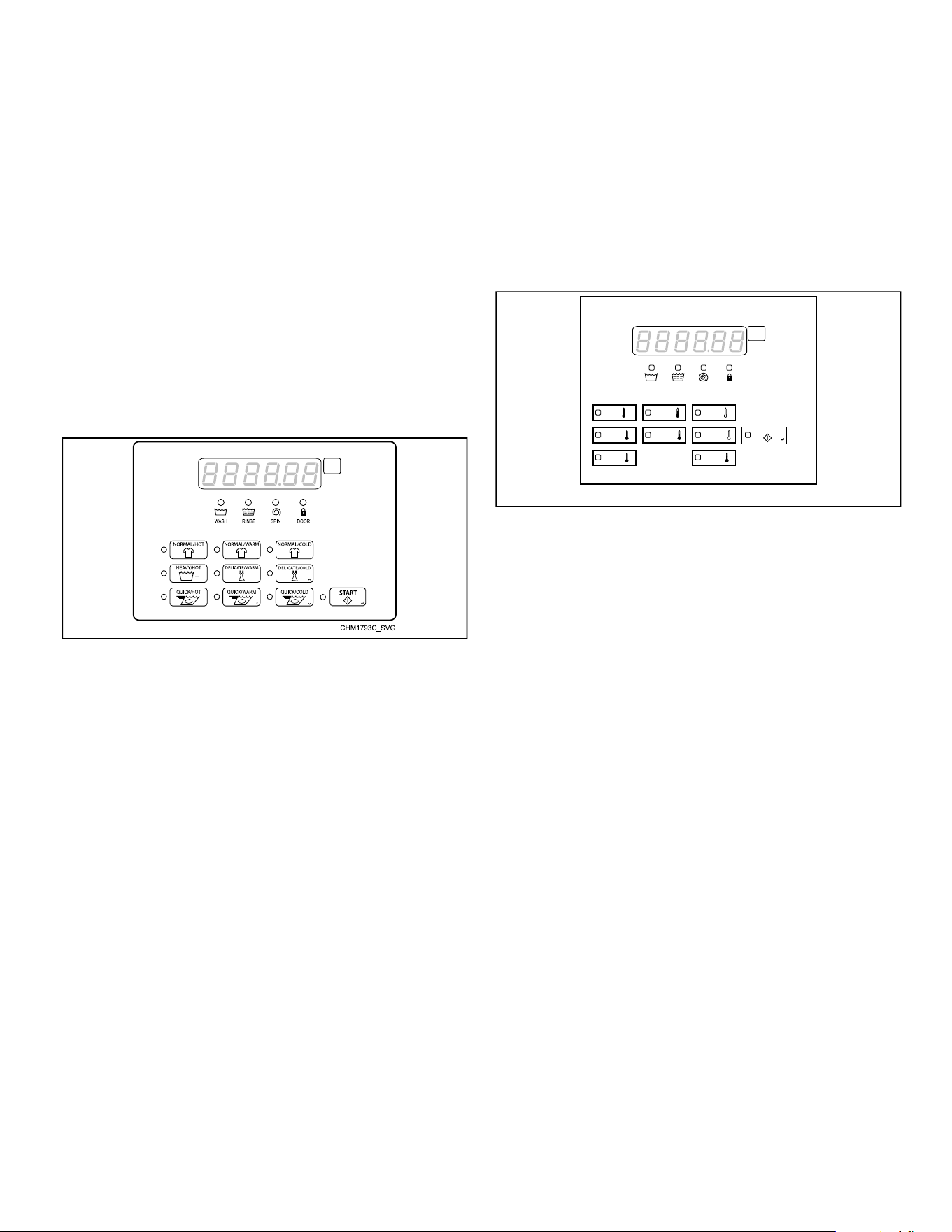

OPL Control Instructions ......................................................................................................................98

Models with F Control .......................................................................................................................98

HCT, SCA, SCD, SCG, SCH, SCJ, SCT, SCU, UCA, UCD, UCG, UCH, UCJ, UCT and UCU

Models with N Control ......................................................................................................................98

BCG, HCA, HCD, HCG, HCH, HCJ, HCT, HCU, PCG, SCA, SCG, SCT, UCA, UCD, UCG,

UCH, UCJ, UCT and UCU Models with Q Control .........................................................................99

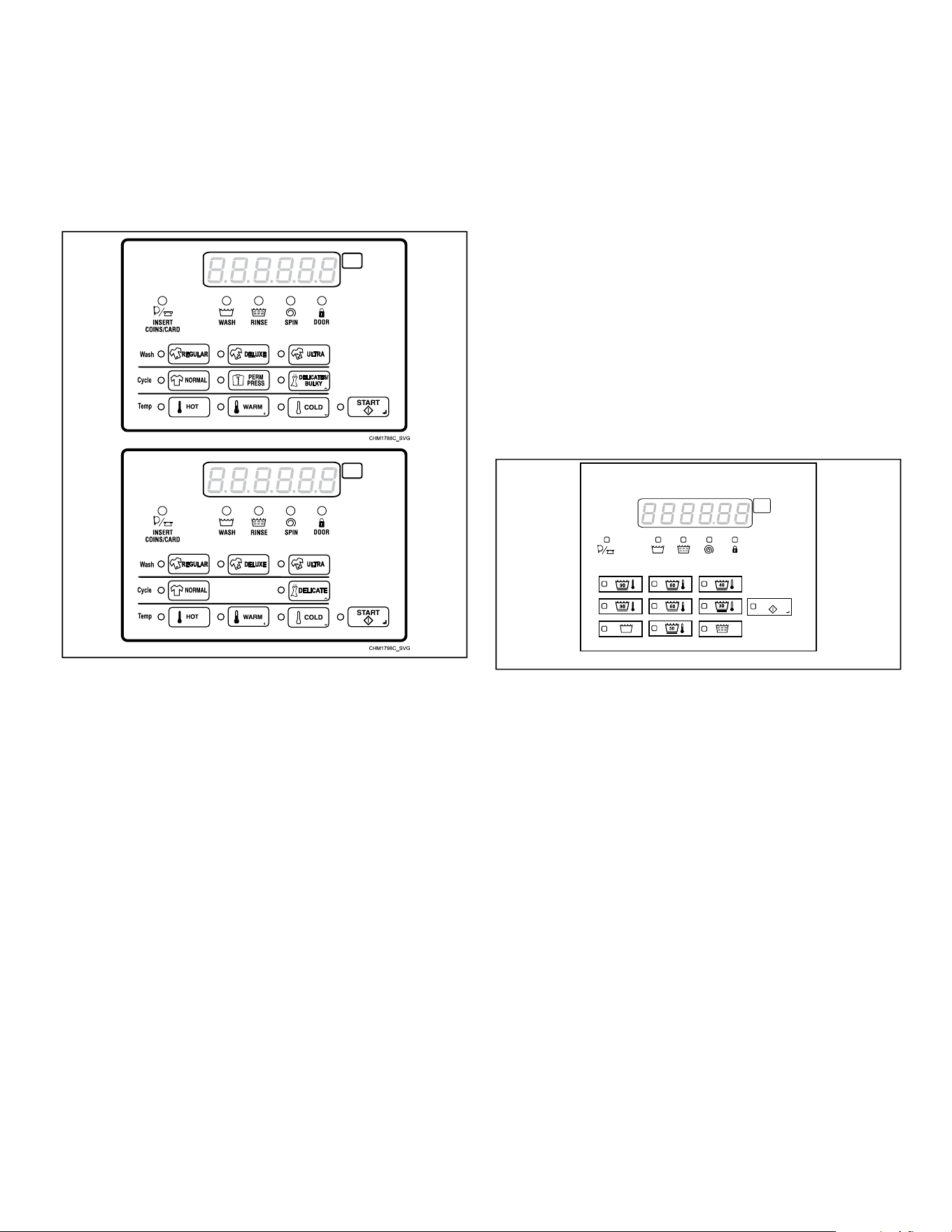

Vend Control Instructions ...................................................................................................................100

BCG, HCT and PCG Models with N and W Controls ....................................................................100

SCA, SCE, SCG, SCJ and SCU Models with N and W Controls ...................................................100

DCJ, HCT, SCH and SCT Models with N and W Controls ............................................................101

HCA, HCD, HCE, HCH, HCJ and HCU Models with N and W Controls......................................101

SCT Modles with Q Control ............................................................................................................102

HCT Models with Q Control ...........................................................................................................102

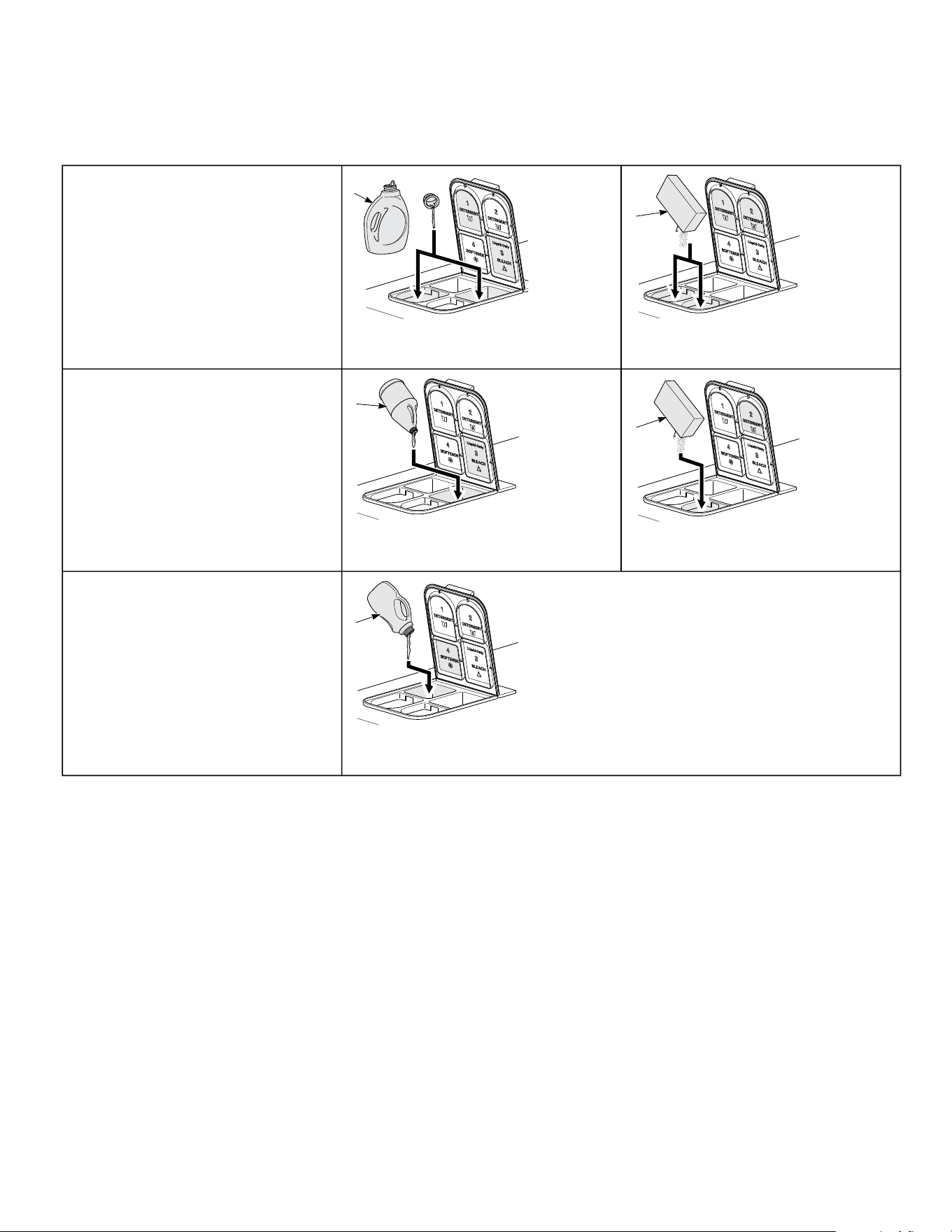

Adding Supplies ..................................................................................................................................103

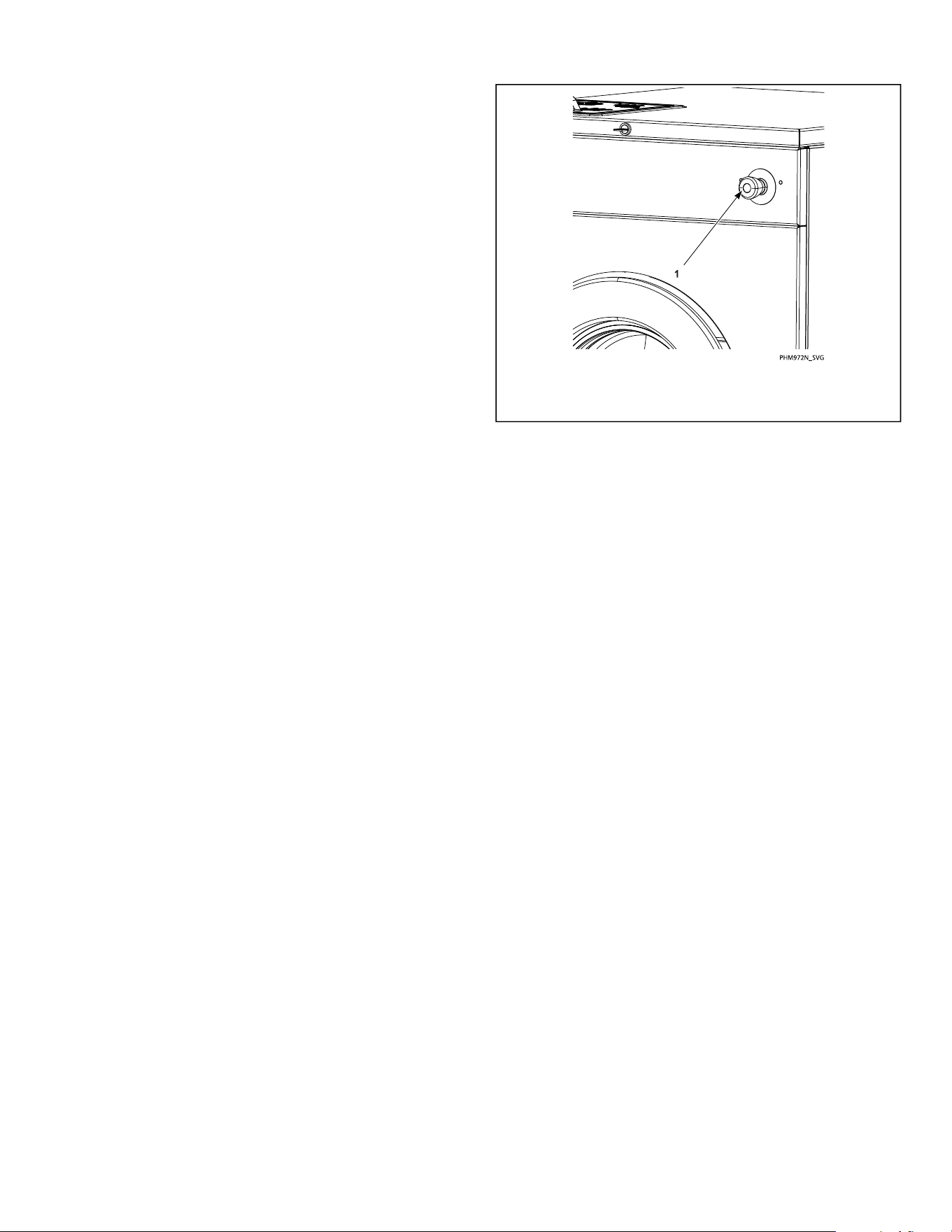

Emergency Stop Button (OPL Models Only) .....................................................................................104

MaintenanceMaintenance............................................................................................................................................................................................................................................................105105

Daily....................................................................................................................................................105

Beginning of Day.............................................................................................................................105

12 Part No. F8619501ENR14

End of Day .......................................................................................................................................105

Monthly ...............................................................................................................................................106

Yearly ..................................................................................................................................................106

Care of Stainless Steel.........................................................................................................................108

Disposal of UnitDisposal of Unit ................................................................................................................................................................................................................................................109109

13 Part No. F8619501ENR14

continues...

Introduction

Machine Identification

Information in this manual is applicable to these machines:

20 Machines

DCG020ND

DCJ020NC

DCJ020ND

DCJ020NE

DCJ020NF

DCJ020NH

DCJ020NL

DCJ020NQ

DCJ020NT

DCJ020NV

DCJ020NX

DCJ020NY

DCJ020WC

DCJ020WD

DCJ020WE

DCJ020WF

DCJ020WH

DCJ020WL

DCJ020WQ

DCJ020WT

DCJ020WV

DCJ020WX

DCJ020WY

BCA020NC

BCA020NH

BCA020NL

BCA020NX

BCA020NY

BCA020QN

BCA020WC

BCA020WH

BCA020WL

BCA020WX

BCA020WY

BCG020NC

BCG020ND

BCG020NE

BCG020NF

BCG020NH

BCG020NL

BCG020NQ

BCG020NT

BCG020NY

BCG020NV

BCG020NX

BCG020QN

BCG020WC

BCG020WD

BCG020WE

BCG020WF

BCG020WH

BCG020WL

BCG020WQ

BCG020WT

BCG020WV

BCG020WX

BCG020WY

BCK020NC

BCK020NH

BCK020NL

BCK020NX

BCK020NY

BCK020QN

BCK020WC

BCK020WH

BCK020WL

BCK020WX

BCK020WY

BCL020NC

BCL020NH

BCL020NL

BCL020NX

BCL020NY

BCL020QN

BCL020WC

BCL020WH

BCL020WL

BCL020WX

BCL020WY

BCT020NC

BCT020NH

BCT020NL

BCT020NX

BCT020NY

BCT020QN

BCT020WC

BCT020WH

BCT020WL

BCT020WX

BCT020WY

HCA020FN

HCA020NC

HCA020ND

HCA020NE

HCA020NF

HCA020NH

HCA020NL

HCA020NQ

HCA020NT

HCA020NV

HCA020NX

HCA020NY

HCA020QN

HCA020WC

HCA020WD

HCA020WE

HCA020WF

HCA020WH

HCA020WL

HCA020WT

HCA020WV

HCA020WX

HCA020WY

HCD020FN

HCD020NC

HCD020ND

HCD020NE

HCD020NF

HCD020NH

HCD020NL

HCD020NQ

HCD020NT

HCD020NV

HCD020NX

HCD020NY

HCD020QN

HCD020WC

HCD020WD

HCD020WE

HCD020WF

HCD020WH

HCD020WL

HCD020WQ

HCD020WT

HCD020WV

HCD020WX

HCD020WY

HCE020FN

HCE020NC

HCE020ND

HCE020NE

HCE020NF

HCE020NH

HCE020NL

HCE020NQ

HCE020NT

HCE020NV

HCE020NX

HCE020NY

HCE020WC

HCE020WD

HCE020WE

HCE020WF

HCE020WH

HCE020WL

HCE020WQ

HCE020WT

HCE020WV

HCE020WX

HCE020WY

HCG020FN

HCG020NC

HCG020ND

HCG020NE

HCG020NF

HCG020NH

HCG020NL

HCG020NQ

HCG020NT

HCG020NV

HCG020NX

HCG020NY

HCG020QN

HCG020WC

HCG020WD

HCG020WE

HCG020WF

HCG020WH

HCG020WL

HCG020WT

HCG020WV

HCG020WX

HCG020WY

HCH020FN

HCH020NC

HCH020ND

HCH020NE

HCH020NF

HCH020NH

HCH020NL

HCH020NQ

HCH020NT

HCH020NV

HCH020NX

HCH020NY

HCH020QN

HCH020WC

HCH020WD

HCH020WE

HCH020WF

HCH020WH

HCH020WL

HCH020WQ

HCH020WT

HCH020WV

HCH020WX

HCH020WY

HCJ020FN

HCJ020NC

HCJ020ND

HCJ020NE

HCJ020NF

HCJ020NH

HCJ020NL

HCJ020NQ

HCJ020NT

HCJ020NV

HCJ020NX

HCJ020NY

HCJ020QN

HCJ020WC

HCJ020WD

HCJ020WE

HCJ020WF

HCJ020WH

HCJ020WL

HCJ020WQ

HCJ020WT

HCJ020WV

HCJ020WX

HCJ020WY

HCK020NH

HCL020FN

HCL020WH

HCL020WX

HCT020FN

HCT020NC

HCT020ND

HCT020NE

HCT020NF

HCT020NH

HCT020NL

HCT020NN

HCT020NP

HCT020NQ

HCT020NT

HCT020NV

HCT020NX

HCT020NY

HCT020QC

HCT020QD

HCT020QE

HCT020QF

HCT020QH

HCT020QL

HCT020QN

HCT020QQ

HCT020QT

HCT020QV

HCT020QX

HCT020QY

HCT020WC

HCT020WD

HCT020WE

HCT020WF

HCT020WH

HCT020WL

HCT020WP

HCT020WQ

HCT020WT

HCT020WV

HCT020WX

HCT020WY

HCU020FN

HCU020NC

HCU020ND

HCU020NE

HCU020NF

HCU020NH

HCU020NL

HCU020NQ

HCU020NT

HCU020NV

HCU020NX

HCU020NY

HCU020QN

HCU020WC

HCU020WD

HCU020WE

HCU020WF

HCU020WH

HCU020WL

HCU020WQ

HCU020WT

HCU020WV

HCU020WX

HCU020WY

Introduction

DO NOT COPY or TRANSMIT

14 Part No. F8619501ENR14

continues...

20 Machines

PCA020NC

PCA020NH

PCA020NL

PCA020NX

PCA020NY

PCA020QN

PCA020WC

PCA020WH

PCA020WL

PCA020WX

PCA020WY

PCG020NC

PCG020ND

PCG020NE

PCG020NF

PCG020NH

PCG020NL

PCG020NQ

PCG020NT

PCT020NV

PCG020NX

PCG020NY

PCG020QN

PCG020WC

PCG020WD

PCG020WE

PCG020WF

PCG020WH

PCG020WL

PCG020WQ

PCG020WT

PCG020WV

PCG020WX

PCG020WY

PCK020NC

PCK020NH

PCK020NL

PCK020NX

PCK020NY

PCK020QN

PCK020WC

PCK020WH

PCK020WL

PCK020WX

PCK020WY

PCL020NC

PCL020NH

PCL020NL

PCL020NX

PCL020NY

PCL020QN

PCL020WC

PCL020WH

PCL020WL

PCL020WX

PCL020WY

PCT020NC

PCT020NH

PCT020NL

PCT020NX

PCT020NY

PCT020QN

PCT020WC

PCT020WH

PCT020WL

PCT020WX

PCT020WY

SCA020FN

SCA020NC

SCA020ND

SCA020NE

SCA020NF

SCA020NH

SCA020NL

SCA020NN

SCA020NT

SCA020NQ

SCA020NV

SCA020NX

SCA020NY

SCA020QN

SCA020WC

SCA020WD

SCA020WE

SCA020WF

SCA020WH

SCA020WL

SCA020WT

SCA020WQ

SCA020WV

SCA020WX

SCA020WY

SCD020FN

SCD020NC

SCD020ND

SCD020NE

SCD020NF

SCD020NH

SCD020NL

SCD020NN

SCD020NT

SCD020NQ

SCD020NV

SCD020NX

SCD020NY

SCD020WC

SCD020WD

SCD020WE

SCD020WF

SCD020WH

SCD020WL

SCD020WT

SCD020WQ

SCD020WV

SCD020WX

SCD020WY

SCE020FN

SCE020NC

SCE020ND

SCE020NE

SCE020NF

SCE020NH

SCE020NL

SCE020NN

SCE020NT

SCE020NQ

SCE020NV

SCE020NX

SCE020NY

SCE020WC

SCE020WD

SCE020WE

SCE020WF

SCE020WH

SCE020WL

SCE020WT

SCE020WQ

SCE020WV

SCE020WX

SCE020WY

SCG020FN

SCG020NC

SCG020ND

SCG020NE

SCG020NF

SCG020NH

SCG020NL

SCG020NN

SCG020NT

SCG020NQ

SCG020NV

SCG020NX

SCG020NY

SCG020QN

SCG020WC

SCG020WD

SCG020WE

SCG020WF

SCG020WH

SCG020WL

SCG020WT

SCG020WQ

SCG020WV

SCG020WX

SCG020WY

SCH020FN

SCH020NC

SCH020ND

SCH020NE

SCH020NF

SCH020NH

SCH020NL

SCH020NN

SCH020NQ

SCH020NT

SCH020NV

SCH020NX

SCH020NY

SCH020WC

SCH020WD

SCH020WE

SCH020WF

SCH020WH

SCH020WL

SCH020WQ

SCH020WT

SCH020WV

SCH020WX

SCH020WY

SCJ020FN

SCJ020NN

SCJ020WC

SCJ020WD

SCJ020WE

SCJ020WF

SCJ020WH

SCJ020WL

SCJ020WQ

SCJ020WT

SCJ020WV

SCJ020WX

SCJ020WY

SCK020FN

SCK020NC

SCK020ND

SCK020NE

SCK020NF

SCK020NH

SCK020NL

SCK020NN

SCK020NQ

SCK020NT

SCK020NV

SCK020NX

SCK020NY

SCK020WC

SCK020WD

SCK020WE

SCK020WF

SCK020WH

SCK020WL

SCK020WQ

SCK020WT

SCK020WV

SCK020WX

SCK020WY

SCL020FN

SCL020NC

SCL020ND

SCL020NE

SCL020NF

SCL020NH

SCL020NL

SCL020NN

SCL020NQ

SCL020NT

SCL020NV

SCL020NX

SCL020NY

SCL020WC

SCL020WD

SCL020WE

SCL020WF

SCL020WH

SCL020WL

SCL020WQ

SCL020WT

SCL020WV

SCL020WX

SCL020WY

SCT020FN

SCT020NC

SCT020ND

SCT020NE

SCT020NF

SCT020NH

SCT020NL

SCT020NN

SCT020NP

SCT020NT

SCT020NQ

SCT020NV

SCT020NX

SCT020NY

SCT020QC

SCT020QD

SCT020QE

SCT020QF

SCT020QH

SCT020QL

SCT020QN

SCT020QQ

SCT020QT

SCT020QV

SCT020QX

SCT020QY

SCT020WC

SCT020WD

SCT020WE

SCT020WF

SCT020WH

SCT020WL

SCT020WT

SCT020WQ

SCT020WV

SCT020WX

SCT020WY

SCU020FN

SCU020NC

SCU020ND

SCU020NE

SCU020NF

SCU020NH

SCU020NL

SCU020NN

SCU020NT

SCU020NQ

SCU020NV

SCU020NX

SCU020NY

SCU020WC

SCU020WD

SCU020WE

SCU020WF

SCU020WH

SCU020WL

SCU020WT

SCU020WQ

SCU020WV

SCU020WX

SCU020WY

UCA020FN

UCA020NN

UCA020QN

UCD020FN

UCD020NN

UCD020QN

UCG020FN

UCG020NN

UCG020QN

UCH020FN

UCH020NN

UCH020QN

UCE020FN

UCJ020FN

UCJ020NN

UCJ020QN

UCK020NN

UCK020QN

UCT020FN

UCT020NN

UCT020QN

UCU020FN

UCU020QN

UCU020NN

Introduction

DO NOT COPY or TRANSMIT

15 Part No. F8619501ENR14

continues...

30 Machines

DCG030ND

DCJ030NC

DCJ030ND

DCJ030NE

DCJ030NF

DCJ030NH

DCJ030NL

DCJ030NQ

DCJ030NT

DCJ030NV

DCJ030NX

DCJ030NY

DCJ030WC

DCJ030WD

DCJ030WE

DCJ030WF

DCJ030WH

DCJ030WL

DCJ030WQ

DCJ030WT

DCJ030WV

DCJ030WX

DCJ030WY

BCA030NC

BCA030NH

BCA030NL

BCA030NX

BCA030NY

BCA030QN

BCA030WC

BCA030WH

BCA030WL

BCA030WX

BCA030WY

BCG030NC

BCG030ND

BCG030NE

BCG030NF

BCG030NH

BCG030NL

BCG030NQ

BCG030NT

BCG030NV

BCG030NX

BCG030NY

BCG030QN

BCG030WC

BCG030WD

BCG030WE

BCG030WF

BCG030WH

BCG030WL

BCG030WQ

BCG030WT

BCG030WV

BCG030WX

BCG030WY

BCK030NC

BCK030NH

BCK030NL

BCK030NX

BCK030NY

BCK030QN

BCK030WC

BCK030WH

BCK030WL

BCK030WX

BCK030WY

BCL030NC

BCL030NH

BCL030NL

BCL030NX

BCL030NY

BCL030QN

BCL030WC

BCL030WH

BCL030WL

BCL030WX

BCL030WY

BCT030NC

BCT030NH

BCT030NL

BCT030NX

BCT030NY

BCT030QN

BCT030WC

BCT030WH

BCT030WL

BCT030WX

BCT030WY

HCA030FN

HCA030NC

HCA030ND

HCA030NE

HCA030NF

HCA030NH

HCA030NL

HCA030NQ

HCA030NT

HCA030NV

HCA030NX

HCA030NY

HCA030QN

HCA030WC

HCA030WD

HCA030WE

HCA030WF

HCA030WH

HCA030WL

HCA030WT

HCA030WV

HCA030WX

HCA030WY

HCD030FN

HCD030NC

HCD030ND

HCD030NE

HCD030NF

HCD030NH

HCD030NL

HCD030NQ

HCD030NT

HCD030NV

HCD030NX

HCD030NY

HCD030QN

HCD030WC

HCD030WD

HCD030WE

HCD030WF

HCD030WH

HCD030WL

HCD030WQ

HCD030WT

HCD030WV

HCD030WX

HCD030WY

HCE030FN

HCE030NC

HCE030ND

HCE030NE

HCE030NF

HCE030NH

HCE030NL

HCE030NQ

HCE030NT

HCE030NV

HCE030NX

HCE030NY

HCE030WC

HCE030WD

HCE030WE

HCE030WF

HCE030WH

HCE030WL

HCE030WQ

HCE030WT

HCE030WV

HCE030WX

HCE030WY

HCG030FN

HCG030NC

HCG030ND

HCG030NE

HCG030NF

HCG030NH

HCG030NL

HCG030NQ

HCG030NT

HCG030NV

HCG030NX

HCG030NY

HCG030QN

HCG030WC

HCG030WD

HCG030WE

HCG030WF

HCG030WH

HCG030WL

HCG030WT

HCG030WV

HCG030WX

HCG030WY

HCH030FN

HCH030NC

HCH030ND

HCH030NE

HCH030NF

HCH030NH

HCH030NL

HCH030NQ

HCH030NT

HCH030NV

HCH030NX

HCH030NY

HCH030QN

HCH030WC

HCH030WD

HCH030WE

HCH030WF

HCH030WH

HCH030WL

HCH030WQ

HCH030WT

HCH030WV

HCH030WX

HCH030WY

HCJ030FN

HCJ030NC

HCJ030ND

HCJ030NE

HCJ030NF

HCJ030NH

HCJ030NL

HCJ030NQ

HCJ030NT

HCJ030NV

HCJ030NX

HCJ030NY

HCJ030QN

HCJ030WC

HCJ030WD

HCJ030WE

HCJ030WF

HCJ030WH

HCJ030WL

HCJ030WQ

HCJ030WT

HCJ030WV

HCJ030WX

HCJ030WY

HCK030NH

HCL030FN

HCL030WH

HCL030WX

HCT030FN

HCT030NC

HCT030ND

HCT030NE

HCT030NF

HCT030NH

HCT030NL

HCT030NP

HCT030NQ

HCT030NT

HCT030NV

HCT030NX

HCT030NY

HCT030QC

HCT030QD

HCT030QE

HCT030QF

HCT030QH

HCT030QL

HCT030QN

HCT030QQ

HCT030QT

HCT030QV

HCT030QX

HCT030QY

HCT030WC

HCT030WD

HCT030WE

HCT030WF

HCT030WH

HCT030WL

HCT030WP

HCT030WQ

HCT030WT

HCT030WV

HCT030WX

HCT030WY

HCU030FN

HCU030NC

HCU030ND

HCU030NE

HCU030NF

HCU030NH

HCU030NL

HCU030NQ

HCU030NT

HCU030NV

HCU030NX

HCU030NY

HCU030QN

HCU030WC

HCU030WD

HCU030WE

HCU030WF

HCU030WH

HCU030WL

HCU030WQ

HCU030WT

HCU030WV

HCU030WX

HCU030WY

Introduction

DO NOT COPY or TRANSMIT

16 Part No. F8619501ENR14

continues...

30 Machines

PCA030NC

PCA030NH

PCA030NL

PCA030NX

PCA030NY

PCA030QN

PCA030WC

PCA030WH

PCA030WL

PCA030WX

PCA030WY

PCG030NC

PCG030ND

PCG030NE

PCG030NF

PCG030NH

PCG030NL

PCG030NQ

PCG030NT

PCG030NV

PCG030NX

PCG030NY

PCG030QN

PCG030WC

PCG030WD

PCG030WE

PCG030WF

PCG030WH

PCG030WL

PCG030WQ

PCG030WT

PCG030WV

PCG030WX

PCG030WY

PCK030NC

PCK030NH

PCK030NL

PCK030NX

PCK030NY

PCK030QN

PCK030WC

PCK030WH

PCK030WL

PCK030WX

PCK030WY

PCL030NC

PCL030NH

PCL030NL

PCL030NX

PCL030NY

PCL030QN

PCL030WC

PCL030WH

PCL030WL

PCL030WX

PCL030WY

PCT030NC

PCT030NH

PCT030NL

PCT030NX

PCT030NY

PCT030QN

PCT030WC

PCT030WH

PCT030WL

PCT030WX

PCT030WY

SCA030FN

SCA030NC

SCA030ND

SCA030NE

SCA030NF

SCA030NH

SCA030NL

SCA030NN

SCA030NT

SCA030NQ

SCA030NV

SCA030NX

SCA030NY

SCA030QN

SCA030WC

SCA030WD

SCA030WE

SCA030WF

SCA030WH

SCA030WL

SCA030WT

SCA030WQ

SCA030WV

SCA030WX

SCA030WY

SCD030FN

SCD030NC

SCD030ND

SCD030NE

SCD030NF

SCD030NH

SCD030NL

SCD030NN

SCD030NT

SCD030NQ

SCD030NV

SCD030NX

SCD030NY

SCD030WC

SCD030WD

SCD030WE

SCD030WF

SCD030WH

SCD030WL

SCD030WT

SCD030WQ

SCD030WV

SCD030WX

SCD030WY

SCE030FN

SCE030NC

SCE030ND

SCE030NE

SCE030NF

SCE030NH

SCE030NL

SCE030NN

SCE030NT

SCE030NQ

SCE030NV

SCE030NX

SCE030NY

SCE030WC

SCE030WD

SCE030WE

SCE030WF

SCE030WH

SCE030WL

SCE030WT

SCE030WQ

SCE030WV

SCE030WX

SCE030WY

SCG030FN

SCG030NC

SCG030ND

SCG030NE

SCG030NF

SCG030NH

SCG030NL

SCG030NN

SCG030NT

SCG030NQ

SCG030NV

SCG030NX

SCG030NY

SCG030QN

SCG030WC

SCG030WD

SCG030WE

SCG030WF

SCG030WH

SCG030WL

SCG030WT

SCG030WQ

SCG030WV

SCG030WX

SCG030WY

SCH030FN

SCH030NC

SCH030ND

SCH030NE

SCH030NF

SCH030NH

SCH030NL

SCH030NN

SCH030NQ

SCH030NT

SCH030NV

SCH030NX

SCH030NY

SCH030WC

SCH030WD

SCH030WE

SCH030WF

SCH030WH

SCH030WL

SCH030WQ

SCH030WT

SCH030WV

SCH030WX

SCH030WY

SCJ030FN

SCJ030NN

SCJ030WC

SCJ030WD

SCJ030WE

SCJ030WF

SCJ030WH

SCJ030WL

SCJ030WQ

SCJ030WT

SCJ030WV

SCJ030WX

SCJ030WY

SCK030FN

SCK030NC

SCK030ND

SCK030NE

SCK030NF

SCK030NH

SCK030NL

SCK030NN

SCK030NQ

SCK030NT

SCK030NV

SCK030NX

SCK030NY

SCK030WC

SCK030WD

SCK030WE

SCK030WF

SCK030WH

SCK030WL

SCK030WQ

SCK030WT

SCK030WV

SCK030WX

SCK030WY

SCL030FN

SCL030NC

SCL030ND

SCL030NE

SCL030NF

SCL030NH

SCL030NL

SCL030NN

SCL030NQ

SCL030NT

SCL030NV

SCL030NX

SCL030NY

SCL030WC

SCL030WD

SCL030WE

SCL030WF

SCL030WH

SCL030WL

SCL030WQ

SCL030WT

SCL030WV

SCL030WX

SCL030WY

SCT030FN

SCT030NC

SCT030ND

SCT030NE

SCT030NF

SCT030NH

SCT030NL

SCT030NN

SCT030NP

SCT030NT

SCT030NQ

SCT030NV

SCT030NX

SCT030NY

SCT030QC

SCT030QD

SCT030QE

SCT030QF

SCT030QH

SCT030QL

SCT030QN

SCT030QQ

SCT030QT

SCT030QV

SCT030QX

SCT030QY

SCT030WC

SCT030WD

SCT030WE

SCT030WF

SCT030WH

SCT030WL

SCT030WT

SCT030WQ

SCT030WV

SCT030WX

SCT030WY

SCU030FN

SCU030NC

SCU030ND

SCU030NE

SCU030NF

SCU030NH

SCU030NL

SCU030NN

SCU030NT

SCU030NQ

SCU030NV

SCU030NX

SCU030NY

SCU030WC

SCU030WD

SCU030WE

SCU030WF

SCU030WH

SCU030WL

SCU030WT

SCU030WQ

SCU030WV

SCU030WX

SCU030WY

UCA030FN

UCA030NN

UCA030QN

UCD030FN

UCD030NN

UCD030QN

UCE030FN

UCG030FN

UCG030NN

UCG030QN

UCH030FN

UCH030NN

UCH030QN

UCJ030FN

UCJ030NN

UCJ030QN

UCK030NN

UCK030QN

UCT030FN

UCT030NN

UCT030QN

UCU030FN

UCU030NN

UCU030QN

Introduction

DO NOT COPY or TRANSMIT

17 Part No. F8619501ENR14

continues...

40 Machines

DCG040ND

DCJ040NC

DCJ040ND

DCJ040NE

DCJ040NF

DCJ040NH

DCJ040NL

DCJ040NQ

DCJ040NT

DCJ040NV

DCJ040NX

DCJ040NY

DCJ040WC

DCJ040WD

DCJ040WE

DCJ040WF

DCJ040WH

DCJ040WL

DCJ040WQ

DCJ040WT

DCJ040WV

DCJ040WX

DCJ040WY

BCA040NC

BCA040NH

BCA040NL

BCA040NX

BCA040NY

BCA040QN

BCA040WC

BCA040WH

BCA040WL

BCA040WX

BCA040WY

BCG040NC

BCG040ND

BCG040NE

BCG040NF

BCG040NH

BCG040NL

BCG040NQ

BCG040NT

BCG040NV

BCG040NX

BCG040NY

BCG040QN

BCG040WC

BCG040WD

BCG040WE

BCG040WF

BCG040WH

BCG040WL

BCG040WQ

BCG040WT

BCG040WV

BCG040WX

BCG040WY

BCK040NC

BCK040NH

BCK040NL

BCK040NX

BCK040NY

BCK040QN

BCK040WC

BCK040WH

BCK040WL

BCK040WX

BCK040WY

BCL040NC

BCL040NH

BCL040NL

BCL040NX

BCL040NY

BCL040QN

BCL040WC

BCL040WH

BCL040WL

BCL040WX

BCL040WY

BCT040NC

BCT040NH

BCT040NL

BCT040NX

BCT040NY

BCT040QN

BCT040WC

BCT040WH

BCT040WL

BCT040WX

BCT040WY

HCA040FN

HCA040NC

HCA040ND

HCA040NE

HCA040NF

HCA040NH

HCA040NL

HCA040NQ

HCA040NT

HCA040NV

HCA040NX

HCA040NY

HCA040QN

HCA040WC

HCA040WD

HCA040WE

HCA040WF

HCA040WH

HCA040WL

HCA040WT

HCA040WV

HCA040WX

HCA040WY

HCE040FN

HCE040NC

HCE040ND

HCE040NE

HCE040NF

HCE040NH

HCE040NL

HCE040NQ

HCE040NT

HCE040NV

HCE040NX

HCE040NY

HCE040WC

HCE040WD

HCE040WE

HCE040WF

HCE040WH

HCE040WL

HCE040WQ

HCE040WT

HCE040WV

HCE040WX

HCE040WY

HCG040FN

HCG040NC

HCG040ND

HCG040NE

HCG040NF

HCG040NH

HCG040NL

HCG040NQ

HCG040NT

HCG040NV

HCG040NX

HCG040NY

HCG040QN

HCG040WC

HCG040WD

HCG040WE

HCG040WF

HCG040WH

HCG040WL

HCG040WT

HCG040WV

HCG040WX

HCG040WY

HCH040FN

HCH040NC

HCH040ND

HCH040NE

HCH040NF

HCH040NH

HCH040NL

HCH040NQ

HCH040NT

HCH040NV

HCH040NX

HCH040NY

HCH040QN

HCH040WC

HCH040WD

HCH040WE

HCH040WF

HCH040WH

HCH040WL

HCH040WQ

HCH040WT

HCH040WV

HCH040WX

HCH040WY

HCJ040FN

HCJ040NC

HCJ040ND

HCJ040NE

HCJ040NF

HCJ040NH

HCJ040NL

HCJ040NQ

HCJ040NT

HCJ040NV

HCJ040NX

HCJ040NY

HCJ040QN

HCJ040WC

HCJ040WD

HCJ040WE

HCJ040WF

HCJ040WH

HCJ040WL

HCJ040WQ

HCJ040WT

HCJ040WV

HCJ040WX

HCJ040WY

HCK040NH

HCL040FN

HCL040WH

HCL040WX

HCT040FN

HCT040NC

HCT040ND

HCT040NE

HCT040NF

HCT040NH

HCT040NL

HCT040NN

HCT040NP

HCT040NQ

HCT040NT

HCT040NV

HCT040NX

HCT040NY

HCT040QC

HCT040QD

HCT040QE

HCT040QF

HCT040QH

HCT040QL

HCT040WX

HCT040QN

HCT040QQ

HCT040QT

HCT040QV

HCT040QX

HCT040QY

HCT040WC

HCT040WD

HCT040WE

HCT040WF

HCT040WH

HCT040WL

HCT040WP

HCT040WQ

HCT040WT

HCT040WV

HCT040WY

HCU040FN

HCU040NC

HCU040ND

HCU040NE

HCU040NF

HCU040NH

HCU040NL

HCU040NQ

HCU040NT

HCU040NV

HCU040NX

HCU040NY

HCU040QN

HCU040WC

HCU040WD

HCU040WE

HCU040WF

HCU040WH

HCU040WL

HCU040WQ

HCU040WT

HCU040WV

HCU040WX

HCU040WY

PCA040NC

PCA040NH

PCA040NL

PCA040NX

PCA040NY

PCA040QN

PCA040WC

PCA040WH

PCA040WL

PCA040WX

PCA040WY

PCG040NC

PCG040ND

PCG040NE

PCG040NF

PCG040NH

PCG040NL

PCG040NQ

PCG040NT

PCG040NV

PCG040NX

PCG040NY

PCG040QN

PCG040WC

PCG040WD

PCG040WE

PCG040WF

PCG040WH

PCG040WL

PCG040WQ

PCG040WT

PCG040WV

PCG040WX

PCG040WY

PCK040NC

PCK040NH

PCK040NL

PCK040NX

PCK040NY

PCK040QN

PCK040WC

PCK040WH

PCK040WL

PCK040WX

PCK040WY

PCL040NC

PCL040NH

PCL040NL

PCL040NX

PCL040NY

PCL040QN

PCL040WC

PCL040WH

PCL040WL

PCL040WX

PCL040WY

PCT040NC

PCT040NH

PCT040NL

PCT040NX

PCT040NY

PCT040QN

PCT040WC

PCT040WH

PCT040WL

PCT040WX

PCT040WY

Introduction

DO NOT COPY or TRANSMIT

18 Part No. F8619501ENR14

continues...

40 Machines

SCA040FN

SCA040NC

SCA040ND

SCA040NE

SCA040NF

SCA040NH

SCA040NL

SCA040NN

SCA040NT

SCA040NQ

SCA040NV

SCA040NX

SCA040NY

SCA040QN

SCA040WC

SCA040WD

SCA040WE

SCA040WF

SCA040WH

SCA040WL

SCA040WT

SCA040WQ

SCA040WV

SCA040WX

SCA040WY

SCE040FN

SCE040NC

SCE040ND

SCE040NE

SCE040NF

SCE040NH

SCE040NL

SCE040NN

SCE040NT

SCE040NQ

SCE040NV

SCE040NX

SCE040NY

SCE040WC

SCE040WD

SCE040WE

SCE040WF

SCE040WH

SCE040WL

SCE040WT

SCE040WQ

SCE040WV

SCE040WX

SCE040WY

SCG040FN

SCG040NC

SCG040ND

SCG040NE

SCG040NF

SCG040NH

SCG040NL

SCG040NN

SCG040NT

SCG040NQ

SCG040NV

SCG040NX

SCG040NY

SCG040QN

SCG040WC

SCG040WD

SCG040WE

SCG040WF

SCG040WH

SCG040WL

SCG040WT

SCG040WQ

SCG040WV

SCG040WX

SCG040WY

SCH040FN

SCH040NC

SCH040ND

SCH040NE

SCH040NF

SCH040NH

SCH040NL

SCH040NN

SCH040NQ

SCH040NT

SCH040NV

SCH040NX

SCH040NY

SCH040WC

SCH040WD

SCH040WE

SCH040WF

SCH040WH

SCH040WL

SCH040WQ

SCH040WT

SCH040WV

SCH040WX

SCH040WY

SCJ040FN

SCJ040NN

SCJ040WC

SCJ040WD

SCJ040WE

SCJ040WF

SCJ040WH

SCJ040WL

SCJ040WQ

SCJ040WT

SCJ040WV

SCJ040WX

SCJ040WY

SCK040FN

SCK040NC

SCK040ND

SCK040NE

SCK040NF

SCK040NH

SCK040NL

SCK040NN

SCK040NQ

SCK040NT

SCK040NV

SCK040NX

SCK040NY

SCK040WC

SCK040WD

SCK040WE

SCK040WF

SCK040WH

SCK040WL

SCK040WQ

SCK040WT

SCK040WV

SCK040WX

SCK040WY

SCL040FN

SCL040NC

SCL040ND

SCL040NE

SCL040NF

SCL040NH

SCL040NL

SCL040NN

SCL040NQ

SCL040NT

SCL040NV

SCL040NX

SCL040NY

SCL040WC

SCL040WD

SCL040WE

SCL040WF

SCL040WH

SCL040WL

SCL040WQ

SCL040WT

SCL040WV

SCL040WX

SCL040WY

SCT040FN

SCT040NC

SCT040ND

SCT040NE

SCT040NF

SCT040NH

SCT040NL

SCT040NN

SCT040NP

SCT040NT

SCT040NQ

SCT040NV

SCT040NX

SCT040NY

SCT040QC

SCT040QD

SCT040QE

SCT040QF

SCT040QH

SCT040QL

SCT040QN

SCT040QQ

SCT040QT

SCT040QV

SCT040QX

SCT040QY

SCT040WC

SCT040WD

SCT040WE

SCT040WF

SCT040WH

SCT040WL

SCT040WT

SCT040WQ

SCT040WV

SCT040WX

SCT040WY

SCU040FN

SCU040NC

SCU040ND

SCU040NE

SCU040NF

SCU040NH

SCU040NL

SCU040NN

SCU040NT

SCU040NQ

SCU040NV

SCU040NX

SCU040NY

SCU040WC

SCU040WD

SCU040WE

SCU040WF

SCU040WH

SCU040WL

SCU040WT

SCU040WQ

SCU040WV

SCU040WX

SCU040WY

UCA040FN

UCA040NN

UCA040QN

UCE040FN

UCG040FN

UCG040NN

UCG040QN

UCH040FN

UCH040NN

UCH040QN

UCJ040FN

UCJ040NN

UCJ040QN

UCK040NN

UCK040QN

UCT040FN

UCT040NN

UCT040QN

UCU040FN

UCU040NN

UCU040QN

60 Machines

DCG060ND

DCJ060NC

DCJ060ND

DCJ060NE

DCJ060NF

DCJ060NH

DCJ060NL

DCJ060NQ

DCJ060NT

DCJ060NV

DCJ060NX

DCJ060NY

DCJ060WC

DCJ060WD

DCJ060WE

DCJ060WF

DCJ060WH

DCJ060WL

DCJ060WQ

DCJ060WT

DCJ060WV

DCJ060WX

DCJ060WY

BCA060NC

BCA060NH

BCA060NL

BCA060NX

BCA060NY

BCA060QN

BCA060WC

BCA060WH

BCA060WL

BCA060WX

BCA060WY

BCG060NC

BCG060ND

BCG060NE

BCG060NF

BCG060NH

BCG060NL

BCG060NQ

BCG060NT

BCG060NV

BCG060NX

BCG060NY

BCG060QN

BCG060WC

BCG060WD

BCG060WE

BCG060WF

BCG060WH

BCG060WL

BCG060WQ

BCG060WT

BCG060WV

BCG060WX

BCG060WY

BCK060NC

BCK060NH

BCK060NL

BCK060NX

BCK060NY

BCK060QN

BCK060WC

BCK060WH

BCK060WL

BCK060WX

BCK060WY

BCL060NC

BCL060NH

BCL060NL

BCL060NX

BCL060NY

BCL060QN

BCL060WC

BCL060WH

BCL060WL

BCL060WX

BCL060WY

BCT060NC

BCT060NH

BCT060NL

BCT060NX

BCT060NY

BCT060QN

BCT060WC

BCT060WH

BCT060WL

BCT060WX

BCT060WY

Introduction

DO NOT COPY or TRANSMIT

19 Part No. F8619501ENR14

continues...

60 Machines

HCA060FN

HCA060NC

HCA060ND

HCA060NE

HCA060NF

HCA060NH

HCA060NL

HCA060NQ

HCA060NT

HCA060NV

HCA060NX

HCA060NY

HCA060QN

HCA060WC

HCA060WD

HCA060WE

HCA060WF

HCA060WH

HCA060WL

HCA060WT

HCA060WV

HCA060WX

HCA060WY

HCE060FN

HCE060NC

HCE060ND

HCE060NE

HCE060NF

HCE060NH

HCE060NL

HCE060NQ

HCE060NT

HCE060NV

HCE060NX

HCE060NY

HCE060WC

HCE060WD

HCE060WE

HCE060WF

HCE060WH

HCE060WL

HCE060WQ

HCE060WT

HCE060WV

HCE060WX

HCE060WY

HCG060FN

HCG060NC

HCG060ND

HCG060NE

HCG060NF

HCG060NH

HCG060NL

HCG060NQ

HCG060NT

HCG060NV

HCG060NX

HCG060NY

HCG060QN

HCG060WC

HCG060WD

HCG060WE

HCG060WF

HCG060WH

HCG060WL

HCG060WT

HCG060WV

HCG060WX

HCG060WY

HCH060FN

HCH060NC

HCH060ND

HCH060NE

HCH060NF

HCH060NH

HCH060NL

HCH060NQ

HCH060NT

HCH060NV

HCH060NX

HCH060NY

HCH060QN

HCH060WC

HCH060WD

HCH060WE

HCH060WF

HCH060WH

HCH060WL

HCH060WQ

HCH060WT

HCH060WV

HCH060WX

HCH060WY

HCJ060FN

HCJ060NC

HCJ060ND

HCJ060NE

HCJ060NF

HCJ060NH

HCJ060NL

HCJ060NQ

HCJ060NT

HCJ060NV

HCJ060NX

HCJ060NY

HCJ060QN

HCJ060WC

HCJ060WD

HCJ060WE

HCJ060WF

HCJ060WH

HCJ060WL

HCJ060WQ

HCJ060WT

HCJ060WV

HCJ060WX

HCJ060WY

HCK060NH

HCL060FN

HCL060WH

HCL060WX

HCT060FN

HCT060NC

HCT060ND

HCT060NE

HCT060NF

HCT060NH

HCT060NL

HCT060NN

HCT060NP

HCT060NQ

HCT060NT

HCT060NV

HCT060NX

HCT060NY

HCT060QC

HCT060QD

HCT060QE

HCT060QF

HCT060QH

HCT060QL

HCT060QN

HCT060QQ

HCT060QT

HCT060QV

HCT060QX

HCT060QY

HCT060WC

HCT060WD

HCT060WE

HCT060WF

HCT060WH

HCT060WL

HCT060WP

HCT060WQ

HCT060WT

HCT060WV

HCT060WX

HCT060WY

HCU060FN

HCU060NC

HCU060ND

HCU060NE

HCU060NF

HCU060NH

HCU060NL

HCU060NQ

HCU060NT

HCU060NV

HCU060NX

HCU060NY

HCU060QN

HCU060WC

HCU060WD

HCU060WE

HCU060WF

HCU060WH

HCU060WL

HCU060WQ

HCU060WT

HCU060WV

HCU060WX

HCU060WY

PCA060NC

PCA060NH

PCA060NL

PCA060NX

PCA060NY

PCA060QN

PCA060WC

PCA060WH

PCA060WL

PCA060WX

PCA060WY

PCG060NC

PCG060ND

PCG060NE

PCG060NF

PCG060NH

PCG060NL

PCG060NQ

PCG060NT

PCG060NV

PCG060NX

PCG060NY

PCG060QN

PCG060WC

PCG060WD

PCG060WE

PCG060WF

PCG060WH

PCG060WL

PCG060WQ

PCG060WT

PCG060WV

PCG060WX

PCG060WY

PCK060NC

PCK060NH

PCK060NL

PCK060NX

PCK060NY

PCK060QN

PCK060WC

PCK060WH

PCK060WL

PCK060WX

PCK060WY

PCL060NC

PCL060NH

PCL060NL

PCL060NX

PCL060NY

PCL060QN

PCL060WC

PCL060WH

PCL060WL

PCL060WX

PCL060WY

PCT060NC

PCT060NH

PCT060NL

PCT060NX

PCT060NY

PCT060QN

PCT060WC

PCT060WH

PCT060WL

PCT060WX

PCT060WY

Introduction

DO NOT COPY or TRANSMIT

20 Part No. F8619501ENR14

continues...

60 Machines

SCA060FN

SCA060NC

SCA060ND

SCA060NE

SCA060NF

SCA060NH

SCA060NL

SCA060NN

SCA060NT

SCA060NQ

SCA060NV

SCA060NX

SCA060NY

SCA060QN

SCA060WC

SCA060WD

SCA060WE

SCA060WF

SCA060WH

SCA060WL

SCA060WT

SCA060WQ

SCA060WV

SCA060WX

SCA060WY

SCE060FN

SCE060NC

SCE060ND

SCE060NE

SCE060NF

SCE060NH

SCE060NL

SCE060NN

SCE060NT

SCE060NQ

SCE060NV

SCE060NX

SCE060NY

SCE060WC

SCE060WD

SCE060WE

SCE060WF

SCE060WH

SCE060WL

SCE060WT

SCE060WQ

SCE060WV

SCE060WX

SCE060WY

SCG060FN

SCG060NC

SCG060NX

SCG060ND

SCG060NE

SCG060NF

SCG060NH

SCG060NL

SCG060NN

SCG060NT

SCG060NQ

SCG060NV

SCG060NY

SCG060QN

SCG060WC

SCG060WD

SCG060WE

SCG060WF

SCG060WH

SCG060WL

SCG060WT

SCG060WQ

SCG060WV

SCG060WX

SCG060WY

SCH060FN

SCH060NC

SCH060ND

SCH060NE

SCH060NF

SCH060NH

SCH060NL

SCH060NN

SCH060NQ

SCH060NT

SCH060NV

SCH060NX

SCH060NY

SCH060WC

SCH060WD

SCH060WE

SCH060WF

SCH060WH

SCH060WL

SCH060WQ

SCH060WT

SCH060WV

SCH060WX

SCH060WY

SCJ060FN

SCJ060NN

SCJ060WC

SCJ060WD

SCJ060WE

SCJ060WF

SCJ060WH

SCJ060WL

SCJ060WQ

SCJ060WT

SCJ060WV

SCJ060WX

SCJ060WY

SCK060FN

SCK060NC

SCK060ND

SCK060NE

SCK060NF

SCK060NH

SCK060NL

SCK060NN

SCK060NQ

SCK060NT

SCK060NV

SCK060NX

SCK060NY

SCK060WC

SCK060WD

SCK060WE

SCK060WF

SCK060WH

SCK060WL

SCK060WQ

SCK060WT

SCK060WV

SCK060WX

SCK060WY

SCL060FN

SCL060NC

SCL060ND

SCL060NE

SCL060NF

SCL060NH

SCL060NL

SCL060NN

SCL060NQ

SCL060NT

SCL060NV

SCL060NX

SCL060NY

SCL060WC

SCL060WD

SCL060WE

SCL060WF

SCL060WH

SCL060WL

SCL060WQ

SCL060WT

SCL060WV

SCL060WX

SCL060WY

SCT060FN

SCT060NC

SCT060ND

SCT060NE

SCT060NF

SCT060NH

SCT060NL

SCT060NN

SCT060NP

SCT060NT

SCT060NQ

SCT060NV

SCT060NX

SCT060NY

SCT060QC

SCT060QD

SCT060QE

SCT060QF

SCT060QH

SCT060QL

SCT060QN

SCT060QQ

SCT060QT

SCT060QV

SCT060QX

SCT060QY

SCT060WC

SCT060WD

SCT060WE

SCT060WF

SCT060WH

SCT060WL

SCT060WT

SCT060WQ

SCT060WV

SCT060WX

SCT060WY

SCU060FN

SCU060NC

SCU060ND

SCU060NE

SCU060NF

SCU060NH

SCU060NL

SCU060NN

SCU060NT

SCU060NQ

SCU060NV

SCU060NX

SCU060NY

SCU060WC

SCU060WD

SCU060WE

SCU060WF

SCU060WH

SCU060WL

SCU060WT

SCU060WQ

SCU060WV

SCU060WX

SCU060WY

UCA060FN

UCA060NN

UCA060QN

UCE060FN

UCG060FN

UCG060NN

UCG060QN

UCH060FN

UCH060NN

UCH060QN

UCJ060FN

UCJ060NN

UCJ060QN

UCK060NN

UCK060QN

UCT060FN

UCT060NN

UCT060QN

UCU060FN

UCU060NN

UCU060QN

80 Machines

DCJ080NC

DCJ080ND

DCJ080NE

DCJ080NF

DCJ080NH

DCJ080NL

DCJ080NQ

DCJ080NT

DCJ080NV

DCJ080NX

DCJ080NY

DCJ080WC

DCJ080WD

DCJ080WE

DCJ080WF

DCJ080WH

DCJ080WL

DCJ080WQ

DCJ080WT

DCJ080WV

DCJ080WX DCJ080WY

BCA080NC

BCA080NH

BCA080NL

BCA080NX

BCA080NY

BCA080QN

BCA080WC

BCA080WH

BCA080WL

BCA080WX

BCA080WY

BCG080NC

BCG080ND

BCG080NE

BCG080NF

BCG080NH

BCG080NL

BCG080NQ

BCG080NT

BCG080NV

BCG080NX

BCG080NY

BCG080QN

BCG080WC

BCG080WD

BCG080WE

BCG080WF

BCG080WH

BCG080WL

BCG080WQ

BCG080WT

BCG080WV

BCG080WX

BCG080WY

BCK080NC

BCK080NH

BCK080NL

BCK080NX

BCK080NY

BCK080QN

BCK080WC

BCK080WH

BCK080WL

BCK080WX

BCK080WY

BCL080NC

BCL080NH

BCL080NL

BCL080NX

BCL080NY

BCL080QN

BCL080WC

BCL080WH

BCL080WL

BCL080WX

BCL080WY

BCT080NC

BCT080NH

BCT080NL

BCT080NX

BCT080NY

BCT080QN

BCT080WC

BCT080WH

BCT080WL

BCT080WX

BCT080WY

Introduction

DO NOT COPY or TRANSMIT

21 Part No. F8619501ENR14

continues...

80 Machines

HCA080FN

HCA080NC

HCA080ND

HCA080NE

HCA080NF

HCA080NH

HCA080NL

HCA080NQ

HCA080NT

HCA080NV

HCA080NX

HCA080NY

HCA080QN

HCA080WC

HCA080WD

HCA080WE

HCA080WF

HCA080WH

HCA080WL

HCA080WT

HCA080WV

HCA080WX

HCA080WY

HCG080FN

HCG080NC

HCG080ND

HCG080NE

HCG080NF

HCG080NH

HCG080NL

HCG080NQ

HCG080NT

HCG080NV

HCG080NX

HCG080NY

HCG080QN

HCG080WC

HCG080WD

HCG080WE

HCG080WF

HCG080WH

HCG080WL

HCG080WT

HCG080WV

HCG080WX

HCG080WY

HCH080FN

HCH080NC

HCH080ND

HCH080NE

HCH080NF

HCH080NH

HCH080NL

HCH080NQ

HCH080NT

HCH080NV

HCH080NX

HCH080NY

HCH080QN

HCH080WC

HCH080WD

HCH080WE

HCH080WF

HCH080WH

HCH080WL

HCH080WQ

HCH080WT

HCH080WV

HCH080WX

HCH080WY

HCJ080FN

HCJ080NC

HCJ080ND

HCJ080NE

HCJ080NF

HCJ080NH

HCJ080NL

HCJ080NQ

HCJ080NT

HCJ080NV

HCJ080NX

HCJ080NY

HCJ080QN

HCJ080WC

HCJ080WD

HCJ080WE

HCJ080WF

HCJ080WH

HCJ080WL

HCJ080WQ

HCJ080WT

HCJ080WV

HCJ080WX

HCJ080WY

HCK080NH

HCT080FN

HCT080NC

HCT080ND

HCT080NE

HCT080NF

HCT080NH

HCT080NL

HCT080NP

HCT080NQ

HCT080NT

HCT080NV

HCT080NX

HCT080NY

HCT080QC

HCT080QD

HCT080QE

HCT080QF

HCT080QH

HCT080QL

HCT080QN

HCT080QQ

HCT080QT

HCT080QV

HCT080QX

HCT080QY

HCT080WC

HCT080WD

HCT080WE

HCT080WF

HCT080WH

HCT080WL

HCT080WP

HCT080WQ

HCT080WT

HCT080WV

HCT080WX

HCT080WY

HCU080FN

HCU080NC

HCU080ND

HCU080NE

HCU080NF

HCU080NH

HCU080NL

HCU080NQ

HCU080NT

HCU080NV

HCU080NX

HCU080NY

HCU080QN

HCU080WC

HCU080WD

HCU080WE

HCU080WF

HCU080WH

HCU080WL

HCU080WQ

HCU080WT

HCU080WV

HCU080WX

HCU080WY

PCA080NC

PCA080NH

PCA080NL

PCA080NX

PCA080NY

PCA080QN

PCA080WC

PCA080WH

PCA080WL

PCA080WX

PCA080WY

PCG080NC

PCG080ND

PCG080NE

PCG080NF

PCG080NH

PCG080NL

PCG080NQ

PCG080NT

PCT080NV

PCG080NX

PCG080NY

PCG080QN

PCG080WC

PCG080WD

PCG080WE

PCG080WF

PCG080WH

PCG080WL

PCG080WQ

PCG080WT

PCG080WV

PCG080WX

PCG080WY

PCK080NC

PCK080NH

PCK080NL

PCK080NX

PCK080NY

PCK080QN

PCK080WC

PCK080WH

PCK080WL

PCK080WX

PCK080WY

PCL080NC

PCL080NH

PCL080NL

PCL080NX

PCL080NY

PCL080QN

PCL080WC

PCL080WH

PCL080WL

PCL080WX

PCL080WY

PCT080NC

PCT080NH

PCT080NL

PCT080NX

PCT080NY

PCT080QN

PCT080WC

PCT080WH

PCT080WL

PCT080WX

PCT080WY

Introduction

DO NOT COPY or TRANSMIT

22 Part No. F8619501ENR14

continues...

80 Machines

SCA080FN

SCA080NC

SCA080ND

SCA080NE

SCA080NF

SCA080NH

SCA080NL

SCA080NN

SCA080NT

SCA080NQ

SCA080NV

SCA080NX

SCA080NY

SCA080QN

SCA080WC

SCA080WD

SCA080WE

SCA080WF

SCA080WH

SCA080WL

SCA080WT

SCA080WQ

SCA080WV

SCA080WX

SCA080WY

SCG080NH

SCG080NL

SCG080NN

SCG080NT

SCG080NQ

SCG080FN

SCG080NC

SCG080ND

SCG080NE

SCG080NF

SCG080NV

SCG080NX

SCG080NY

SCG080QN

SCG080WC

SCG080WD

SCG080WE

SCG080WF

SCG080WH

SCG080WL

SCG080WT

SCG080WQ

SCG080WV

SCG080WX

SCG080WY

SCH080FN

SCH080NC

SCH080ND

SCH080NE

SCH080NF

SCH080NH

SCH080NL

SCH080NN

SCH080NQ

SCH080NT

SCH080NV

SCH080NX

SCH080NY

SCH080WC

SCH080WD

SCH080WE

SCH080WF

SCH080WH

SCH080WL

SCH080WQ

SCH080WT

SCH080WV

SCH080WX

SCH080WY

SCJ080FN

SCJ080NN

SCJ080WC

SCJ080WD

SCJ080WE

SCJ080WF

SCJ080WH

SCJ080WL

SCJ080WQ

SCJ080WT

SCJ080WV

SCJ080WX

SCJ080WY

SCK080FN

SCK080NC

SCK080ND

SCK080NE

SCK080NF

SCK080NH

SCK080NL

SCK080NN

SCK080NQ

SCK080NT

SCK080NV

SCK080NX

SCK080NY

SCK080WC

SCK080WD

SCK080WE

SCK080WF

SCK080WH

SCK080WL

SCK080WQ

SCK080WT

SCK080WV

SCK080WX

SCK080WY

SCT080FN

SCT080NC

SCT080ND

SCT080NE

SCT080NF

SCT080NH

SCT080NL

SCT080NN

SCT080NT

SCT080NQ

SCT080NV

SCT080NX

SCT080NY

SCT080QC

SCT080QD

SCT080QE

SCT080QF

SCT080QH

SCT080QL

SCT080QN

SCT080QQ

SCT080QT

SCT080QV

SCT080QX

SCT080QY

SCT080WC

SCT080WD

SCT080WE

SCT080WF

SCT080WH

SCT080WL

SCT080WT

SCT080WQ

SCT080WV

SCT080WX

SCT080WY

SCU080FN

SCU080NC

SCU080ND

SCU080NE

SCU080NF

SCU080NH

SCU080NL

SCU080NN

SCU080NT

SCU080NQ

SCU080NV

SCU080NX

SCU080NY

SCU080WC

SCU080WD

SCU080WE

SCU080WF

SCU080WH

SCU080WL

SCU080WT

SCU080WQ

SCU080WV

SCU080WX

SCU080WY

UCA080FN

UCA080NN

UCA080QN

UCG080FN

UCG080NN

UCG080QN

UCH080FN

UCH080NN

UCH080QN

UCJ080FN

UCJ080NN

UCJ080QN

UCK080NN

UCK080QN

UCT080FN

UCT080NN

UCT080QN

UCU080FN

UCU080NN

UCU080QN

100 Machines

DCJ100NC

DCJ100ND

DCJ100NE

DCJ100NF

DCJ100NH

DCJ100NL

DCJ100NQ

DCJ100NT

DCJ100NV

DCJ100NX

DCJ100NY

DCJ100WC

DCJ100WD

DCJ100WE

DCJ100WF

DCJ100WH

DCJ100WL

DCJ100WQ

DCJ100WT

DCJ100WV

DCJ100WX DCJ100WY

BCA100NC

BCA100NH

BCA100NL

BCA100NX

BCA100NY

BCA100QN

BCA100WC

BCA100WH

BCA100WL

BCA100WX

BCA100WY

BCG100NC

BCG100ND

BCG100NE

BCG100NF

BCG100NH

BCG100NL

BCG100NQ

BCG100NT

BCG100NV

BCG100NX

BCG100NY

BCG100QN

BCG100WC

BCG100WD

BCG100WE

BCG100WF

BCG100WH

BCG100WL

BCG100WQ

BCG100WT

BCG100WV

BCG100WX

BCG100WY

BCK100NC

BCK100NH

BCK100NL

BCK100NX

BCK100NY

BCK100QN

BCK100WC

BCK100WH

BCK100WL

BCK100WX

BCK100WY

BCL100NC

BCL100NH

BCL100NL

BCL100NX

BCL100NY

BCL100QN

BCL100WC

BCL100WH

BCL100WL

BCL100WX

BCL100WY

BCT100NC

BCT100NH

BCT100NL

BCT100NX

BCT100NY

BCT100QN

BCT100WC

BCT100WH

BCT100WL

BCT100WX

BCT100WY

Introduction

DO NOT COPY or TRANSMIT

23 Part No. F8619501ENR14

continues...

100 Machines

HCA100FN

HCA100NC

HCA100ND

HCA100NE

HCA100NF

HCA100NH

HCA100NL

HCA100NQ

HCA100NT

HCA100NV

HCA100NX

HCA100NY

HCA100QN

HCA100WC

HCA100WD

HCA100WE

HCA100WF

HCA100WH

HCA100WL

HCA100WT

HCA100WV

HCA100WX

HCA100WY

HCG100FN

HCG100NC

HCG100ND

HCG100NE

HCG100NF

HCG100NH

HCG100NL

HCG100NQ

HCG100NT

HCG100NV

HCG100NX

HCG100NY

HCG100QN

HCG100WC

HCG100WD

HCG100WE

HCG100WF

HCG100WH

HCG100WL

HCG100WT

HCG100WV

HCG100WX

HCG100WY

HCH100FN

HCH100NC

HCH100ND

HCH100NE

HCH100NF

HCH100NH

HCH100NL

HCH100NQ

HCH100NT

HCH100NV

HCH100NX

HCH100NY

HCH100QN

HCH100WC

HCH100WD

HCH100WE

HCH100WF

HCH100WH

HCH100WL

HCH100WQ

HCH100WT

HCH100WV

HCH100WX

HCH100WY

HCJ100FN

HCJ100NC

HCJ100ND

HCJ100NE

HCJ100NF

HCJ100NH

HCJ100NL

HCJ100NQ

HCJ100NT

HCJ100NV

HCJ100NX

HCJ100NY

HCJ100QN

HCJ100WC

HCJ100WD

HCJ100WE

HCJ100WF

HCJ100WH

HCJ100WL

HCJ100WQ

HCJ100WT

HCJ100WV

HCJ100WX

HCJ100WY

HCK100NH

HCT100FN

HCT100NC

HCT100ND

HCT100NE

HCT100NF

HCT100NH

HCT100NL

HCT100NP

HCT100NQ

HCT100NT

HCT100NV

HCT100NX

HCT100NY

HCT100QC

HCT100QD

HCT100QE

HCT100QF

HCT100QH

HCT100QL

HCT100QN

HCT100QQ

HCT100QT

HCT100QV

HCT100QX

HCT100QY

HCT100WC

HCT100WD

HCT100WE

HCT100WF

HCT100WH

HCT100WL

HCT100WP

HCT100WQ

HCT100WT

HCT100WV

HCT100WX

HCT100WY

HCU100FN

HCU100NC

HCU100ND

HCU100NE

HCU100NF

HCU100NH

HCU100NL

HCU100NQ

HCU100NT

HCU100NV

HCU100NX

HCU100NY

HCU100QN

HCU100WC

HCU100WD

HCU100WE

HCU100WF

HCU100WH

HCU100WL

HCU100WQ

HCU100WT

HCU100WV

HCU100WX

HCU100WY

PCA100NC

PCA100NH

PCA100NL

PCA100NX

PCA100NY

PCA100QN

PCA100WC

PCA100WH

PCA100WL

PCA100WX

PCA100WY

PCG100NC

PCG100ND

PCG100NE

PCG100NF

PCG100NH

PCG100NL

PCG100NQ

PCG100NT

PCG100NV

PCG100NX

PCG100NY

PCG100QN

PCG100WC

PCG100WD

PCG100WE

PCG100WF

PCG100WH

PCG100WL

PCG100WQ

PCG100WT

PCG100WV

PCG100WX

PCG100WY

PCK100NC

PCK100NH

PCK100NL

PCK100NX

PCK100NY

PCK100QN

PCK100WC

PCK100WH

PCK100WL

PCK100WX

PCK100WY

PCL100NC

PCL100NH

PCL100NL

PCL100NX

PCL100NY

PCL100QN

PCL100WC

PCL100WH

PCL100WL

PCL100WX

PCL100WY

PCT100NC

PCT100NH

PCT100NL

PCT100NX

PCT100NY

PCT100QN

PCT100WC

PCT100WH

PCT100WL

PCT100WX

PCT100WY

Introduction

DO NOT COPY or TRANSMIT

24 Part No. F8619501ENR14

continues...

100 Machines

SCA100FN

SCA100NC

SCA100ND

SCA100NE

SCA100NF

SCA100NH

SCA100NL

SCA100NN

SCA100NT

SCA100NQ

SCA100NV

SCA100NX

SCA100NY

SCA100QN

SCA100WC

SCA100WD

SCA100WE

SCA100WF

SCA100WH

SCA100WL

SCA100WT

SCA100WQ

SCA100WV

SCA100WX

SCA100WY

SCG100FN

SCG100NC

SCG100ND

SCG100NE

SCG100NF

SCG100NH

SCG100NL

SCG100NN

SCG100NT

SCG100NQ

SCG100NV

SCG100NX

SCG100NY

SCG100QN

SCG100WC

SCG100WD

SCG100WE

SCG100WF

SCG100WH

SCG100WL

SCG100WT

SCG100WQ

SCG100WV

SCG100WX

SCG100WY

SCH100FN

SCH100NC

SCH100ND

SCH100NE

SCH100NF

SCH100NH

SCH100NL

SCH100NN

SCH100NQ

SCH100NT

SCH100NV

SCH100NX

SCH100NY

SCH100WC

SCH100WD

SCH100WE

SCH100WF

SCH100WH

SCH100WL

SCH100WQ

SCH100WT

SCH100WV

SCH100WX

SCH100WY

SCJ100FN

SCJ100NN

SCJ100WC

SCJ100WD

SCJ100WE

SCJ100WF

SCJ100WH

SCJ100WL

SCJ100WQ

SCJ100WT

SCJ100WV

SCJ100WX

SCJ100WY

SCK100FN

SCK100NC

SCK100ND

SCK100NE

SCK100NF

SCK100NH

SCK100NL

SCK100NN

SCK100NQ

SCK100NT

SCK100NV

SCK100NX

SCK100NY

SCK100WC

SCK100WD

SCK100WE

SCK100WF

SCK100WH

SCK100WL

SCK100WQ

SCK100WT

SCK100WV

SCK100WX

SCK100WY

SCT100FN

SCT100NC

SCT100ND

SCT100NE

SCT100NF

SCT100NH

SCT100NL

SCT100NN

SCT100NT

SCT100NQ

SCT100NV

SCT100NX

SCT100NY

SCT100QC

SCT100QD

SCT100QE

SCT100QF

SCT100QH

SCT100QL

SCT100QN

SCT100QQ

SCT100QT

SCT100QV

SCT100QX

SCT100QY

SCT100WC

SCT100WD

SCT100WE

SCT100WF

SCT100WH

SCT100WL

SCT100WT

SCT100WQ

SCT100WV

SCT100WX

SCT100WY

SCU100FN

SCU100NC

SCU100ND

SCU100NE

SCU100NF

SCU100NH

SCU100NL

SCU100NN

SCU100NT

SCU100NQ

SCU100NV

SCU100NX

SCU100NY

SCU100WC

SCU100WD

SCU100WE

SCU100WF

SCU100WH

SCU100WL

SCU100WT

SCU100WQ

SCU100WV

SCU100WX

SCU100WY

UCA100FN

UCA100NN

UCA100QN

UCE100NN

UCG100FN

UCG100NN

UCG100QN

UCH100FN

UCH100NN

UCH100QN

UCJ100FN

UCJ100NN

UCJ100QN

UCK100NN

UCK100QN

UCT100FN

UCT100NN

UCT100QN

UCU100FN

UCU100NN

UCU100QN

Introduction

DO NOT COPY or TRANSMIT

25 Part No. F8619501ENR14

Delivery Inspection

Upon delivery, visually inspect crate, protective cover, and unit

for any visible shipping damage. If signs of possible damage

are evident, have the carrier note the condition on the shipping

papers before the shipping receipt is signed, or advise the car-

rier of the condition as soon as it is discovered.

Serial Plate Location

The serial plate is located on the rear panel and inside the door

of the machine.

Always provide the machine’s serial number and model num-

ber when ordering parts or when seeking technical assistance.

Refer to

Figure 1

1. Serial Plate on Panel

2. Serial Plate on Door Frame

Figure 1

Replacement Parts

If replacement parts are required, contact the source from

where you purchased your unit. If you are unable to locate an

authorized parts distributor, navigate to https://alliancelaun-

dry.com/contact/ for the nearest Alliance Laundry Systems of-

fice for assistance.

Customer Service

For technical assistance, contact your local distributor or visit:

www.alliancelaundry.com

Introduction

DO NOT COPY or TRANSMIT

26 Part No. F8619501ENR14

continues...

Specifications and Dimensions

Specification 20 30 40 60 80 100

Overall Dimensions

Overall width, mm [in.] 660 [26.0] 737 [29.0] 778 [30.6] 865 [34.1] 1054 [41.5] 1054 [41.5]

Overall height, mm [in] 1120 [44.1] 1171 [46.1] 1227 [48.3] 1295 [51] 1481 [58.3] 1481 [58.3]

Overall depth, mm [in.] 784 [30.9] 896 [35.3] 1073 [42.3] 1135 [44.7] 1196 [47.1] 1298 [51.1]

Weight and Shipping Information

Net weight, kg [lbs.] 154 [340] 197 [435] 249 [550] 308 [680] 567 [1250] 581 [1280]

Standard shipping weight, kg

[lbs.]

172 [380] 215 [475] 268 [590] 327 [720] 590 [1300] 603 [1330]

Standard shipping volume, m

[ft

]

0.76 [27] 1.01 [36] 1.24 [44] 1.61 [57] 2.35 [83] 2.52 [89]

Standard shipping dimensions

(WxDxH), mm [in.]

711 x 859 x

1255 [28.0 x

33.8 x 49.4]

800 x 973 x

1303 [31.5 x

38.3 x 51.3]

826 x 1105 x

1361 [32.5 x

43.5 x 53.6]

953 x 1191 x

1430 [37.5 x

46.9 x 56.3]

1118 x 1384 x

1514 [44.0 x

54.5 x 59.6]

1118 x 1486 x

1514 [44.0 x

58.5 x 59.6]

Slat crate shipping weight, kg

[lbs.]

209 [460] 263 [580] 308 [680] 381 [840] 649 [1430] 662 [1460]

Slat crate shipping volume, m

[ft

]

1.08 [38] 1.33 [47] 1.52 [54] 2.20 [78] 2.97 [105] 3.17 [112]

Slat crate shipping dimensions

(WxDxH), mm [in.]

826 x 935 x

1397 [32.5 x

36.8 x 55]

914 x 1049 x

1397 [36.0 x

41.3 x 55.0]

940 x 1166 x

1397 [37.0 x

45.9 x 55.0]

1067 x 1267 x

1626 [42.0 x

49.9 x 64.0]

1232 x 1461 x

1654 [48.5 x

57.5 x 65.1]

1232 x 1562 x

1654 [48.5 x

61.5 x 65.1]

Wash Cylinder Information

Cylinder diameter, mm [in.] 533 [21.0] 610 [24.0] 668 [26.3] 762 [30.0] 914 [36.0] 914 [36.0]

Cylinder depth, mm [in.] 350 [13.8] 406 [16.0] 515 [20.3] 559 [22.0] 556 [21.9] 657 [25.9]

Cylinder volume, l [ft

]

79.3 [2.8] 119 [4.2] 178 [6.3] 255 [9.0] 365 [12.9] 430 [15.2]

Cylinder capacity, kg [lbs.] 9.1 [20] 13.1 [30] 18.1 [40] 27.2 [60] 36.3 [80] 45.4 [100]

Perforation size, mm [in.] 4.78 [0.188] 4.78 [0.188] 4.78 [0.188] 4.78 [0.188] 4.78 [0.188] 4.78 [0.188]

Perforation open area, % 17.3 18.6 18.8 18.8 19.6 20.2

Door Opening Information

Door opening size, mm [in.] 295 [11.6] 363 [14.3] 414 [16.3] 414 [16.3] 470 [18.5] 470 [18.5]

Height of door bottom above

floor, mm [in.]

365 [14.4] 356 [14.0] 370 [14.6] 379 [14.9] 455 [17.9] 455 [17.9]

Height of door opening above

floor, mm [in.]

432 [17.0] 431 [17.0] 451 [17.7] 460 [18.1] 551 [21.7] 551 [21.7]

Table 1

Specifications and Dimensions

DO NOT COPY or TRANSMIT

27 Part No. F8619501ENR14

continues...

Specification 20 30 40 60 80 100

Power Consumption

Average power used per cycle,

kW-hr. (X-voltage, non-heat

models)

0.09 0.12 0.16 0.21 0.27 0.30

Estimated Building Heat Load

HVAC load Use 5% of total energy used per cycle.

Drive Train Information

Number of motors in drive

train

1 1 1 1 1 1

Drive motor power, kW [hp] 0.75 [1] 0.75 [1] 1.5 [2] 2.25 [3] 3.75 [5] 3.75 [5]

Cylinder Speeds

Gentle wash/reverse, G [RPM] 0.4 [37] 0.4 [34] 0.4 [33] 0.4 [31] 0.4 [28] 0.4 [28]

Wash/reverse, G [RPM] 0.8 [51] 0.8 [48] 0.8 [46] 0.8 [43] 0.8 [39] 0.8 [39]

Distribution, G [RPM] 2.5 [92] 2.5 [86] 2.5 [82] 2.5 [77] 2.5 [70] 2.5 [70]

Very low extract, G [RPM] 27 [301] 27 [282] 27 [269] 27 [252] 27 [230] 27 [230]

Low extract, G [RPM] 80 [518] 80 [485] 80 [464] 80 [434] 80 [396] 80 [396]

Medium extract, G [RPM] 100 [579] 100 [542] 100 [518] 100 [485] 100 [443] 100 [443]

High extract, G [RPM] 125 [648] 125 [606] 125 [579] 125 [542] 125 [495] 125 [495]

Very high extract, G [RPM] 150 [710] 150 [664] 150 [635] 150 [594] 150 [542] 150 [542]

Ultra high extract, G [RPM] 200 [819] 200 [766] 200 [733] 200 [686] 200 [626] 165 [568]

Direct Steam Heating (Optional)

Steam inlet connection size, in.

(NPT)

N/A N/A 1/2 1/2 1/2 1/2

Number of steam inlets N/A N/A 1 1 1 1

Maximum pressure, kPa [psi] N/A N/A 570 [85] 570 [85] 570 [85] 570 [85]

Required pressure, (min. - max.

kPa [psi] )

200-570

[30-85]

200-570

[30-85]

200-570

[30-85]

200-570

[30-85]

200-570

[30-85]

200-570

[30-85]

Steam re-

quired to raise

bath water

temperature

10°C/kg

[10°F/lbs.]

LOW N/A N/A 0.94 [2.09] 1.63 [3.80] 1.72 [3.80] 1.72 [3.80]

MED N/A N/A 1.09 [2.40] 2.11 [4.65] 2.11 [4.65] 2.49 [5.49]

HIGH N/A N/A 1.29 [2.84] 2.63 [5.79] 2.63 [5.79] 3.10 [6.84]

Average consumption per cy-

cle, kgf m [BHP]

N/A N/A 59 [0.78] 75 [0.98] 102 [1.34] 120 [1.58]

Table 1

Specifications and Dimensions

DO NOT COPY or TRANSMIT

28 Part No. F8619501ENR14

continues...

Specification 20 30 40 60 80 100

Electrical Heating (Optional)

Total electri-

cal heating ca-

pacity, kW

200V 5.4 5.4 10.8 10.8 19.1 19.1

240V 7.8 7.8 15.6 15.6 27.4 27.4

380V 6.5 6.5 13.0 13.0 17.2 17.2

415V 7.8 7.8 15.5 15.5 20.5 20.5

480V N/A N/A 15.6 15.6 27.4 27.4

Number of electrical heating

elements

3 3 6 6 6 6

Electrical heat element size,

2.6 2.6 2.6 2.6 4.2 4.2

Time required

to raise bath

temperature,

minutes per

5.5°C [10°F]

LOW 1.690 2.545 1.792 2.648 2.101 2.436

MED 2.048 3.119 2.187 2.902 2.268 2.843

HIGH 2.368 3.693 2.394 3.269 2.643 3.031

Noise Emissions

dBA Wash 58 58 58 58 60 64

Extract

(100G)

56 56 58 60 67 69

Extract

(200G)

61 65 65 65 73 73

N/A = Not Applicable

Table 1

Specifications and Dimensions

DO NOT COPY or TRANSMIT

29 Part No. F8619501ENR14

Machine Dimensions

Front View

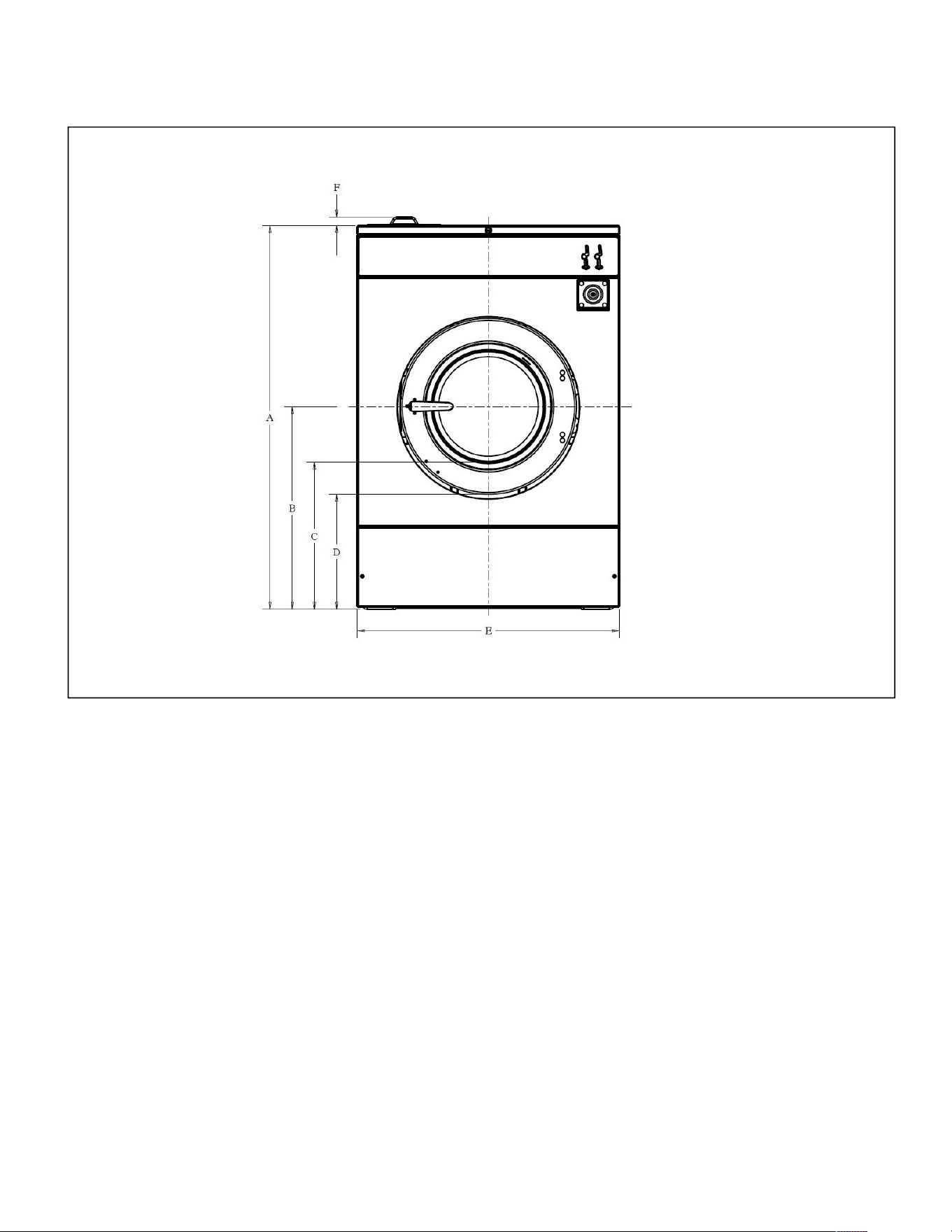

CHM2563N_SVG

Figure 2

Specifications and Dimensions

DO NOT COPY or TRANSMIT

30 Part No. F8619501ENR14

continues...

Machine Dimensions, mm [in.]

Specifica-

tion

20 30 40 60 80 100

A 1092 [43.0] 1143 [45.0] 1199 [47.2] 1267 [49.9] 1453 [57.2] 1453 [57.2]

B 584 [23.0] 610 [24.0] 660 [26.0] 671 [26.4] 785 [30.9] 785 [30.9]

C 432 [17.0] 432 [17.0] 450 [17.7] 460 [18.1] 551 [21.7] 551 [21.7]

D 366 [14.4] 356 [14.0] 371 [14.6] 378 [14.9] 378 [17.9] 378 [17.9]

E 660 [26.0] 737 [29.0] 777 [30.6] 866 [34.1] 1054 [41.5] 1054 [41.5]

F 28 [1.1] 28 [1.1] 28 [1.1] 28 [1.1] 28 [1.1] 28 [1.1]

Table 2

Specifications and Dimensions

DO NOT COPY or TRANSMIT

31 Part No. F8619501ENR14

Side View

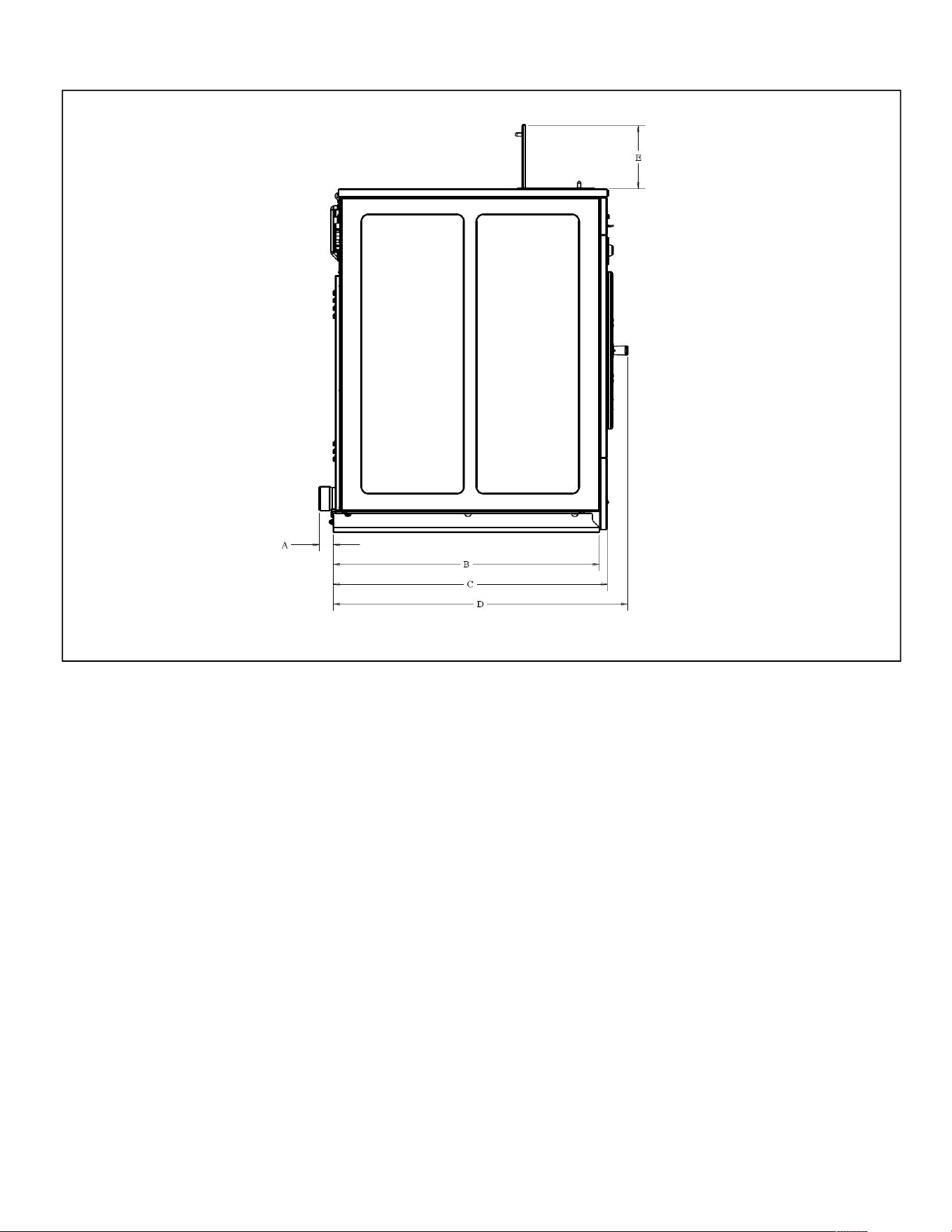

CHM2564N_SVG

Figure 3

Specifications and Dimensions

DO NOT COPY or TRANSMIT

32 Part No. F8619501ENR14

continues...

Machine Dimensions, mm [in.]

Specifica-

tion

20 30 40 60 80 100

A 51 [2.0] 51 [2.0] 51 [2.0] 51 [2.0] 28 [1.1] 28 [1.1]

B 681 [26.8] 800 [31.5] 902 [35.5] 980 [38.6] 996 [39.2] 996 [39.2]

C 693 [27.3] 808 [31.8] 940 [37.0] 1003 [39.5] 1120 [44.1] 1222 [48.1]

D 785 [30.9] 897 [35.3] 1074 [42.3] 1135 [44.7] 1196 [47.1] 1298 [51.1]

E 236 [9.3] 236 [9.3] 236 [9.3] 236 [9.3] 236 [9.3] 236 [9.3]

Door width 426 [16.75] 492 [19.38] 552 [21.75] 552 [21.75] 641 [25.25] 641 [25.25]

Table 3

Specifications and Dimensions

DO NOT COPY or TRANSMIT

33 Part No. F8619501ENR14

20-30 Models Rear View

CHM2565N_SVG

1. 1 1/2" Electrical

2. 1 1/8" Electrical

3. 7/8" Electrical

4. 7/8" Electrical

5. Compartment Cold Fill Valve

6. Compartment Hot Fill Valve

7. Cold Hard Water Valve or 3rd Water Inlet

8. Pump Drain View

Figure 4

Specifications and Dimensions

DO NOT COPY or TRANSMIT

34 Part No. F8619501ENR14

continues...

Machine Dimensions, mm [in.]

Specification 20 30

A 1011 [39.8] 1062 [41.8]

B 960 [37.8] 1011 [39.8]

C 909 [35.8] 960 [37.8]

D 859 [33.8] 909 [35.8]

E 99 [3.9] 109 [4.3]

F 198 [7.8] 236 [9.3]

G 51 [2.0] 51 [2.0]

H 460 [18.1] 536 [21.1]

J 526 [20.7] 602 [23.7]

K 587 [23.1] 663 [26.1]

L 1001 [39.4] 1052 [41.4]

M 904 [35.6] 953 [37.5]

Table 4

Specifications and Dimensions

DO NOT COPY or TRANSMIT

35 Part No. F8619501ENR14

40 Models Rear View

CHM2566N_SVG

1. 1 1/2" Electrical

2. 1 1/8" Electrical

3. 7/8" Electrical

4. 7/8" Electrical

5. Steam Valve

6. Compartment Cold Fill Valve

7. Compartment Hot Fill Valve

8. Cold Hard Water Valve or 3rd Water Inlet

9. Pump Drain View

Figure 5

Specifications and Dimensions

DO NOT COPY or TRANSMIT

36 Part No. F8619501ENR14

continues...

Machine Dimensions, mm [in.]

Specification 40

A 1118 [44.0]

B 1067 [42.0]

C 1024 [40.3]

D 965 [38.0]

E 114 [4.5]

F 224 [8.8]

G 432 [17.0]

H 51 [2.0]

J 579 [22.8]

K 645 [25.4]

L 704 [27.7]

M 1008 [39.7]

N 1107 [43.6]

P 1105 [43.5]

Table 5

Specifications and Dimensions

DO NOT COPY or TRANSMIT

37 Part No. F8619501ENR14

60-100 Models Rear View

CHM2567N_SVG

1. 1 1/2" Electrical

2. 1 1/8" Electrical

3. 7/8" Electrical

4. 7/8" Electrical

5. Tub Cold Fill Valve

6. Tub Hot Fill Valve

7. Steam Valve

8. Compartment Cold Fill Valve

9. Compartment Hot Fill Valve

10. Cold Hard Water Valve or 3rd Water Inlet

Figure 6

Specifications and Dimensions

DO NOT COPY or TRANSMIT

38 Part No. F8619501ENR14

continues...

Machine Dimensions, mm [in.]

Specification 60 80 100

A 1186 [46.7] 1372 [54.0] 1372 [54.0]

B 1135 [44.7] 1321 [52.0] 1321 [52.0]

C 1085 [42.7] 1270 [50.0] 1270 [50.0]

D 1034 [40.7] 1219 [48.0] 1219 [48.0]

E 124 [4.9] 130 [5.1] 130 [5.1]

F 251 [9.9] 69 [2.7] 69 [2.7]

G 533 [21.0] 732 [28.8] 732 [28.8]

H 51 [2.0] 51 [2.0] 51 [2.0]

J 533 [21.0] 721 [28.4] 721 [28.4]

K 572 [22.5] 759 [29.9] 759 [29.9]

L 665 [26.2] 853 [33.6] 853 [33.6]

M 732 [28.8] 919 [36.2] 919 [36.2]

N 792 [31.2] 980 [38.6] 980 [38.6]

P 1176 [46.3] 1336 [52.6] 1336 [52.6]

Q 1077 [42.4] 1262 [49.7] 1262 [49.7]

R 1176 [46.3] 1361 [53.6] 1361 [53.6]

S 1097 [42.4] 1262 [49.7] 1262 [49.7]

Table 6

Specifications and Dimensions

DO NOT COPY or TRANSMIT

39 Part No. F8619501ENR14

Mounting Bolt Hole Locations – 20 and 30 Models

20-30 Models (refer to Table 7)

CHM2609N_SVG

PON

1. Elevated Base Width

2. Front of Mounting Bolt Template

3. Machine Width

Figure 7

Specifications and Dimensions

DO NOT COPY or TRANSMIT

40 Part No. F8619501ENR14

continues...

Mounting Bolt Hole Locations – 20 and 30 Models, mm [in.]

Specification 20 30

A 660 [26] 737 [29]

B 530 [20.875] 607 [23.886]

C 65 [2.562] 65 [2.558]

D 413 [16.25] 479 [18.87]

E 124 [4.875] 129 [5.065]

F 28 [1.12] 26 [1.033]

G 55 [2.15] 46 [1.81]

H 69 [2.71] 60 [2.37]

I 71 [2.8] 71 [2.813]

J 114 [4.5] 114 [4.51]

K 245 [9.638] 267 [10.5]

L 525 [20.649] 597 [23.5]

M 3 [0.113] 5 [0.188]

N 608 [23.938] 735 [28.938]

O 627 [24.69] 754 [29.69]

P 710 [27.95] 597 [32.38]

Q 660 [26] 737 [29]

R 16 [0.641] 16 [0.641]

Table 7

Specifications and Dimensions

DO NOT COPY or TRANSMIT

41 Part No. F8619501ENR14

Mounting Bolt Hole Locations - 40 and 60 Models

40 and 60 Models (refer to Table 8)

1. Elevated Base Width

2. Front of Mounting Bolt Template

3. Machine Width

Figure 8

Specifications and Dimensions

DO NOT COPY or TRANSMIT

42 Part No. F8619501ENR14

continues...

Mounting Bolt Hole Locations - 40 and 60 Models, mm [in.]

Specification 40 60

A 778 [30.63] 865 [34.06]

B 660 [26] 762 [30]

C 59 [2.315] 52 [2.03]

D 524 [20.63] 594 [23.39]

E 127 [5] 136 [5.34]

F 11 [0.422] 16 [0.614]

G 50 [1.98] 44 [1.75]

H 60 [2.37] 60 [2.37]

I 79 [3.1] 83 [3.28]

J 118 [4.63] 126 [4.96]

K 318 [12.5] 303 [11.927]

L 600 [23.626] 699 [27.5]

M 30 [1.187] 32 [1.25]

N 826 [32.5] 914 [36]

O 852 [33.54] 699 [36.87]

P 949 [37.36] 1034 [40.7]

Q 777 [30.6] 866 [34.1]

R 16 [0.641] 16 [0.641]

Table 8

Specifications and Dimensions

DO NOT COPY or TRANSMIT

43 Part No. F8619501ENR14

Mounting Bolt Hole Locations – 80 and 100 Models

80 and 100 Models (refer to Table 9)

1. Front of Mounting Bolt Template

NOTE: For single machine installations or two machines installed back to back, use the outside bolt holes

marked “A”. For multiple machines installed side by side with minimum clearance, use the inside bolt holes

marked “B”.

Figure 9

Specifications and Dimensions

DO NOT COPY or TRANSMIT

44 Part No. F8619501ENR14

continues...

Mounting Bolt Hole Locations – 80 and 100 Models, mm [in.]

Specification 80 100

A 1054 [41.5] 1054 [41.5]

B 1006 [39.62] 1006 [39.62]

C 803 [31.62] 803 [31.62]

D 124 [4.94] 124 [4.94]

E 92 [3.612] 92 [3.612]

F 50 [1.96] 50 [1.96]

G 19 [0.766] 19 [0.766]

H 13 [0.508] 13 [0.508]

I 50 [1.96] 50 [1.96]

J 86 [3.38] 86 [3.38]

K 24 [0.94] 24 [0.94]

L 406 [16] 406 [16]

M 889 [35] 889 [35]

N 947 [37.28] 947 [37.28]

O 1071 [42.16] 1071 [42.16]

P 1258 [49.54] 1258 [49.54]

Q 102 [4] 102 [4]

AA Outside 1085 [42.72] 1085 [42.72]

BB Inside 900 [35.43] 900 [35.43]

CC Outside 1342 [52.86] 1342 [52.86]

DD Inside 1197 [47.16] 1197 [47.16]

Table 9

Specifications and Dimensions

DO NOT COPY or TRANSMIT

45 Part No. F8619501ENR14

Installation

Foundation Options

A minimum 3500 psi (refer to rating per supplier) reinforced

concrete set on a prepared bed is required for all new machine

installations.

NOTE: Do not mount on wooden floors, tile floors, el-

evated floor levels, stacked multiple base frames, or

over basements or crawl spaces because of the high

extract speed and the G-forces exerted. For 80 mod-

els and larger, do not mount on metal base frames.

Thoroughness of detail must be stressed with all foundation

work to ensure a stable unit installation, eliminating possibili-

ties of excessive vibration during extract.

WARNING

To reduce the risk of fire, serious injury, property

damage and/or death, install the machine on a level

(within 3/8 inch), uncovered concrete floor of

sufficient strength at grade.

W787

For new foundations a mounting bolt template is available at

extra cost or use machine base if available.

The machine must be anchored to a smooth level surface so

that the entire base of the machine is supported and rests on the

mounting surface.

IMPORTANT: Do not permanently support the ma-

chine on only four points with spacers. Grouting is re-

quired and spacers must be removed.

Machine Installation on Existing Floor

The existing floor slab must be reinforced concrete without

voids under slab and meet depth requirements per

Table 19

. If

the floor meets these requirements and an elevated pad is NOT

desired, refer to

Figure 18

and proceed to

Machine Mounting

and Grouting

If the floor does not meet these requirements and an elevated

pad is NOT desired, refer to

Figure 21

and proceed to

Machine

Mounting and Grouting

Elevated Pad Installation on Existing Floor

The existing floor slab must meet minimum requirements

shown in

Foundation Requirements

per machine. The floor

must be reinforced concrete without voids under slab. If the

slab meets these requirements and an elevated pad is desired,

refer to

Figure 20

and proceed to

Machine Mounting and

Grouting

Elevated Base Frame Installation on Existing

Floor

The existing floor slab must meet minimum requirements

shown in

Machine Foundation and Pad Installation

per ma-

chine. The floor must be reinforced concrete without voids un-

der slab. Refer to

Figure 18

and

Figure 19

. If the slab does not

meets these requirements and an elevated base frame is de-

sired, refer to

Figure 21

. Proceed to

Machine Mounting and

Grouting

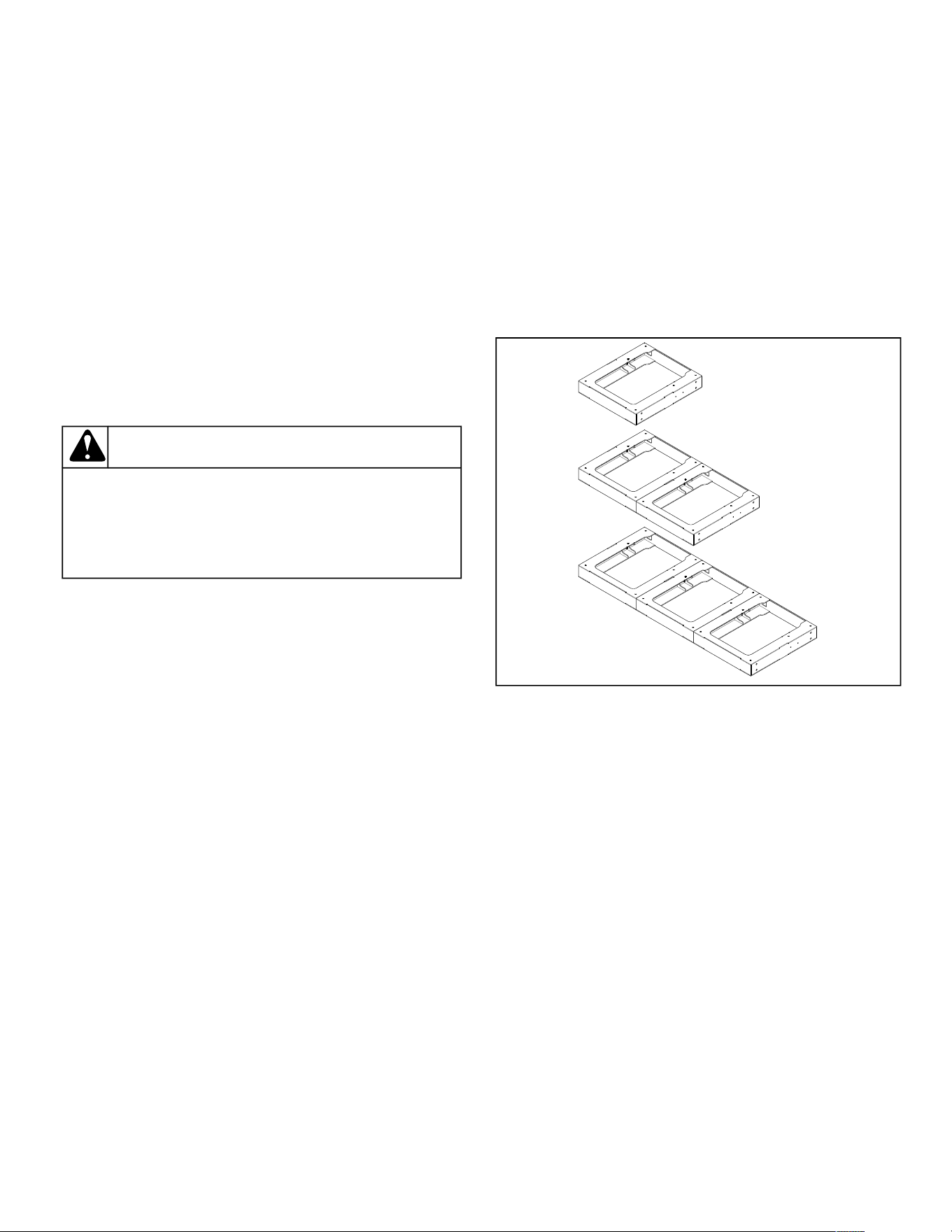

CHM2412N_SVG

Figure 10

New Foundation

If the existing floor slab does not meet the single machine

foundation requirements per model and/or a new monolithic

foundation is desired, refer to

Figure 19

and proceed to

Foun-

dation and Pad Installation

Isolated Pad Installation

This type of installation is NOT recommended. Installer

MUST consult a Structural Engineer for concrete specifica-

tions and requirements for installations that will not be tied in-

to adjacent foundations.

IMPORTANT: The above instructions and recommen-

dations are conservative specifications for a typical

installation based on consultations with a structural

engineer. Alliance Laundry Systems stands behind

all installations meeting these specifications. For al-

ternate installation specifications based on your soil

type, location, building structure, unique floor geom-

etry, machine types, and utilities, consult a structural

engineer in your local area.

Installation

DO NOT COPY or TRANSMIT

46 Part No. F8619501ENR14

continues...

Foundation and Pad Installation

A concrete pad may be constructed to elevate a machine. Care

must be exercised in the design of the pad due to the force ex-

erted by the machine during extract. This concrete pad, recom-

mended not to exceed 203 mm [8 inches] above existing floor,

must be placed, reinforced with rebar and tied to the existing

floor. Refer to

Floor Layout and Pad Dimensions

and

Founda-

tion Requirements

sections for multiple machine installations.

Elevated Pad, mm [in.]

Description 20-30 40-60

(F-

spee

40-60

(V-

spee

80-100

A Height of elevat-

ed pad above

floor (maximum)

203 [8] 203 [8] 203 [8] 203 [8]

B Distance between

reinforcing bars

(maximum)

305

[12]

305

[12]

305

[12]

305

[12]

C Length of rein-

forcing bar ex-

tending into exist-

ing floor (mini-

mum)

[2.5]

D Total depth of

foundation (con-

crete plus 152

mm [6 in.] fill)

(minimum)

203 [8] 203 [8] 305

[12]

381

[15]

E Required thick-

ness of existing

floor (minimum)

102 [4] 102 [4] 152 [6] 152 [6]

IMPORTANT: Do NOT install a pad on top of the exist-

ing floor. The foundation and pad must be construct-

ed and tied together as one piece.

If the existing floor is not reinforced concrete at least 305 mm

[12 inches] thick, an elevated pad is desired or multiple ma-

chines are to be installed, the following steps must be per-

formed (refer to

Foundation Requirements

1. Cut a hole through the existing floor that is larger on all sides

than the machine base, refer to

Floor Layout and Pad Di-

mensions

2. Excavate to a depth as indicated in

Table 10

from the top of

the existing floor.

3. If installing a foundation with elevated pad, prepare a form

for the above-ground portion of the foundation. Verify that

the top of the foundation is level. The height of the founda-

tion pad must not exceed 203 mm [8 inches] above the exist-

ing floor.

4. Backfill with clean fill dirt.

5. Compact backfill, making sure to allow for correct concrete

thickness.

6. Drill holes (refer to manufacturer’s requirements for drill

hole size) for the perimeter reinforcing bar at a depth of 64

mm [2-1/2 inches] into the existing floor. The reinforcing

should be 305 mm [12 inches] on center each way around

entire perimeter.

7. Clean out debris from each reinforcing bar hole.

8. Fill half the hole depth with acrylic adhesive.

NOTE: Procure acrylic adhesive rated for commer-

cial-grade vibratory machine installations

9. Using 60 ksi [#4] reinforcing bar, tie new pad to existing

floor making sure to tie reinforcing bars at the intersections

and using proper reinforcing bar supports to hold bars at the

proper depth in the pad.

10. Allow adhesive around reinforcing bar to cure properly, re-

fer to adhesive manufacturer for recommended cure times.

11. Completely fill with 3500 psi concrete up to the existing

foundation level plus any added level (maximum of 203 mm

[8 inch] ) for the desired elevated pad. The concrete must be

poured so that the entire foundation and pad cures as one

piece.

12. Allow concrete to cure, refer to manufacturer’s recommend-

ed cure times.

13. Using a mounting bolt template or machine base, mark

where the holes should be drilled to mount the machine.

NOTE: As an alternate method, cast in the Grade 5

(minimum SAE rating), 16 mm [5/8 inch] for 20-60

models and 19 mm [3/4 inch] for 80 and 100 an-

chor bolts as the concrete is poured, refer to Fig-

ure 23 and Table 23.

14. Proceed to

Machine Mounting and Grouting

Table 10

Installation

DO NOT COPY or TRANSMIT

47 Part No. F8619501ENR14

continues...

Floor Layout and Pad Dimensions

Dimensional Clearances - Single Machine Mount - 20-60 Pound [9.1-27.2 Kg] Models (refer to Table 11)

CHM2504N_SVG

1. Wall

2. Rear Edge of Pad

3. Side Edge of Pad

4. Machine 1

5. Front Edge of Pad

Figure 11

Dimensional Clearances - Single Machine Mount - 20-60 Pound [9.1-27.2 Kg] Models, in. [mm]

Description 20 30 40 60

A Distance to wall (minimum) 24 [610] 24 [610] 24 [610] 24 [610]

B Distance of machine base to

edge of pad (minimum)

3.44 [87] 4 [102] 3.99 [101] 5.99 [152]

C Distance of machine base to

edge of pad (minimum)

2.52 [64] 2.51 [64] 2.81 [71] 5.18 [131]

D Length of pad (minimum) 34.8 [884] 39.5 [1003] 43.5 [1105] 50.6 [1285]

E Width of pad (minimum) 31.4 [798] 34.4 [874] 36.5 [927] 44.8 [1138]

Table 11

Installation

DO NOT COPY or TRANSMIT

48 Part No. F8619501ENR14

continues...

Dimensional Clearances - Side-by-Side Mount - 20-60 Pound [9.1-27.2 Kg] Models (refer to Table 12)

CHM2505N_SVG

B B

1. Wall

2. Rear Edge of Pad

3. Machine 1

4. Machine 2

5. Front Edge of Pad

Figure 12

Dimensional Clearances - Side-by-Side Mount - 20-60 Pound [9.1-27.2 Kg] Models, in. [mm]

Description 20 30 40 60

A Distance to wall (minimum) 24 [610] 24 [610] 24 [610] 24 [610]

B Mounted without bases (mini-

mum)

5.14 [131] 5.12 [130] 4.63 [118] 4.06 [103]

Mounted with bases (mini-

mum)

5.5 [139] 5.5 [139] 4.88 [124] 4.44 [112]

C Length of pad (minimum) 34.8 [884] 39.5 [1003] 43.5 [1105] 50.6 [1285]

D Width of pad (minimum) 57.54 [1462] 63.52 [1613] 67.38 [1711] 78.98 [2006]

E Side clearance between ma-

chines

.5 [13] .5 [13] .5 [13] .5 [13]

Table 12

Installation

DO NOT COPY or TRANSMIT

49 Part No. F8619501ENR14

continues...

Dimensional Clearances - Back-to-Back Mount - 20-60 Pound [9.1-27.2 Kg] Models (refer to Table 13)

CHM2506N_SVG

1. Front-facing Edge of Pad

2. Machine 2

3. Rear of Machine

4. Machine 1

5. Side Edge of Pad or Wall

Figure 13

Dimensional Clearances - Back-to-Back Mount - 20-60 Pound [9.1-27.2 Kg] Models, in. [mm]

Description 20 30 40 60

A Adjacent rear bolt spacing

(minimum)

28.3 [719] 27.6 [702] 28.0 [710] 27.5 [699]

B Distance from front bolt to

edge of pad (minimum)

5.26 [134] 5.26 [134] 6.19 [157] 8.9 [226]

C Length of pad (minimum) 88.63 [2251] 98.37 [2499] 115.23 [2927] 119.48 [3035]

D Width of pad (minimum) 31.4 [798] 34.4 [874] 36.5 [927] 44.8 [1138]

Table 13

Installation

DO NOT COPY or TRANSMIT

50 Part No. F8619501ENR14

continues...

Dimensional Clearances - Single Machine Mount - 80 and 100 Pound [36.3 and 45.4 Kg] Models (refer to Table

14 )

CHM2519N_SVG

1. Wall

2. Rear Edge of Pad

3. Side Edge of Pad

4. Machine 1

5. Front Edge of Pad

Figure 14

Single Machine Mount - 80 and 100 Pound [36.3 and 45.4 Kg] Models, in. [mm]

Description 80-100

A Distance to wall (minimum) 24 [610]

B Distance of machine base to edge of pad (minimum) 4.98 [126]

C Distance of machine base to edge of pad (minimum) 8 [203]

D Length of pad (minimum) 49.2 [1250]

E Width of pad (minimum) 57.5 [1461]

Table 14

Installation

DO NOT COPY or TRANSMIT

51 Part No. F8619501ENR14

continues...

Dimensional Clearances - Side by Side Mount - 80 and 100 Pound [36.3 and 45.4 Kg] Models (refer to Table 15 )

CHM2520N_SVG

1. Wall

2. Rear Edge of Pad

3. Machine 1

4. Machine 2

5. Front Edge of Pad

Figure 15

Standard Mount Side-by-Side - 80 and 100 Pound [36.3 and 45.4 Kg] Models, in. [mm]

Description 80-100

A Distance to wall (minimum) 24 [610]

B Adjacent unit spacing (minimum) 6 [152]

C Length of pad (minimum) 49.2 [1250]

D Width of pad (minimum) 99.5 [2527]

Table 15

Installation

DO NOT COPY or TRANSMIT

52 Part No. F8619501ENR14

continues...

Close Mount Side-by-Side - 80 and 100 Pound [36.3 and 45.4 Kg] Models (refer to Table 15)

CHM2521N_SVG

Figure 16

Close Mount Side-by-Side - 80 and 100 Pound [36.3 and 45.4 Kg] Models, in. [mm]

Description 80-100

A Distance to wall (minimum) 24 [610]

B Adjacent unit bolt spacing (minimum) 10.38 [264]

C Length of pad (minimum) 49.2 [1250]

D Width of pad (minimum) 99.5 [2527]

IMPORTANT: When close mounting, bolt machine using inside bolt holes.

Table 16

Installation

DO NOT COPY or TRANSMIT

53 Part No. F8619501ENR14

continues...

Dimensional Clearances - Back to Back Mount - 80 and 100 Pound [36.3 and 45.4 Kg] Models (refer to Table 17 )

CHM2522N_SVG1

1. Front-facing Edge of Pad

2. Machine 2

3. Rear of Machine

4. Machine 1

5. Side Edge of Pad or Wall

Figure 17

Back-to-Back Mount - 80 and 100 Pound [36.3 and 45.4 Kg] Models, in. [mm]

Description 80-100

A Adjacent rear spacing (minimum) 33.3 [846]

B Distance of machine base to edge of pad (minimum) 8 [203]

C Length of pad (minimum) 130.56 [3316]

D Width of pad (minimum) 51.5 [1308]

E Distance from front bolt to edge of pad (minimum) 8.94 [227]

Table 17

Installation

DO NOT COPY or TRANSMIT

54 Part No. F8619501ENR14

continues...

Pad Thickness Requirements, in. [mm]

Specification 20 30 40 60 80-100

Minimum Foun-

dation Thickness

F-speed 4 [102] 4 [102] 4 [102] 4 [102] 6 [152]

V-speed 4 [102] 4 [102] 6 [152] 6 [152] 9 [229]

Minimum Exca-

vation Depth

F-speed 8 [203] 8 [203] 8 [203] 8 [203] 12 [305]

V-speed 8 [203] 8 [203] 12 [305] 12 [305] 15 [381]

Table 18

Installation

DO NOT COPY or TRANSMIT

55 Part No. F8619501ENR14

continues...

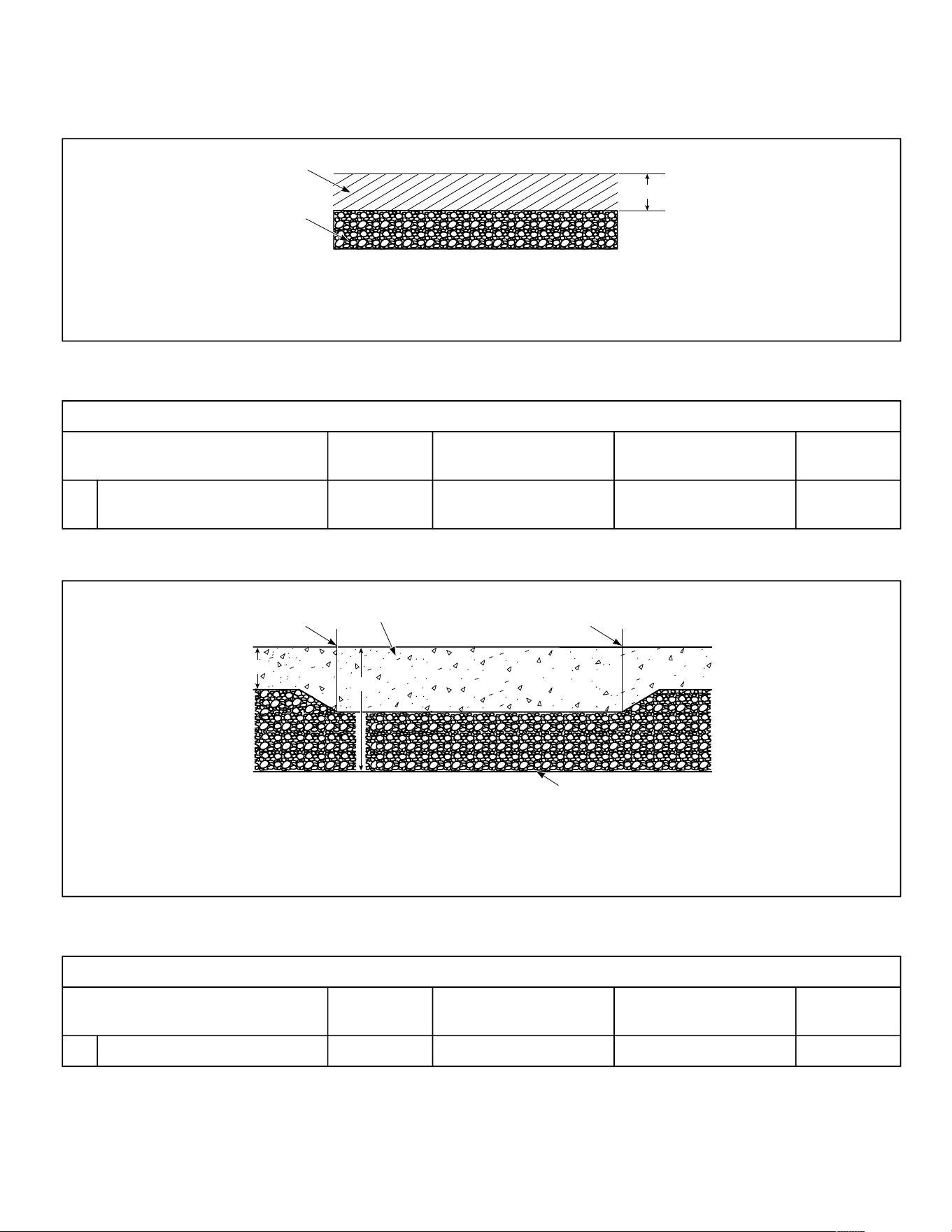

Foundation Requirements

Existing Floor (refer to Table 19 )

PHM814N_SVG

1. Existing Floor with 3500 PSI (minimum) Concrete

2. Compacted Fill (minimum 152 mm [6 in.] )

Figure 18

Existing Floor, mm [in.]

Description 20-30 40-60 (F-speed) 40-60 (V-speed) /

80-100 (F-speed)

80-100 (V-

speed)

A Required thickness of existing

floor (minimum)

102 [4] 102 [4] 152 [6] 229 [9]

New Monolithic Floor (refer to Table 20 )

PHM981N_SVG

1. Edge of Pad

2. 3500 PSI (minimum) Concrete

3. Compacted Fill (minimum 152 mm [6 in.] beneath machine)

Figure 19

New Monolithic Floor, mm [in.]

Description 20-30 40-60 (F-speed) 40-60 (V-speed) /

80-100 (F-speed)

80-100 (V-

speed)

A Depth of Surrounding Floor 102 [4] 102 [4] 152 [6] 229 [9]

Table 19

Table 20

Installation

DO NOT COPY or TRANSMIT

56 Part No. F8619501ENR14

continues...

New Monolithic Floor, mm [in.]

Description 20-30 40-60 (F-speed) 40-60 (V-speed) /

80-100 (F-speed)

80-100 (V-

speed)

B Total depth of foundation (con-

crete plus 152 mm [6 in.] fill)

(minimum)

254 [10] 254 [10] 305 [12] 381 [15]

Table 20

Installation

DO NOT COPY or TRANSMIT

57 Part No. F8619501ENR14

continues...

Elevated Pad (refer to Table 21 )

PHM852N_SVG

1. Existing Floor

2. 3500 PSI (minimum) Concrete

3. Reinforcing Bar

4. Perimeter Reinforcing Bar

5. Compacted Fill (minimum 152 mm [6 in.] )

Figure 20

Elevated Pad, mm [in.]

Description 20-30 40-60 (F-speed) 40-60 (V-speed) /

80-100 (F-speed)

80-100 (V-

speed)

A Height of elevated pad above

floor (maximum)

203 [8] 203 [8] 203 [8] 203 [8]

B Distance between reinforcing

bars (maximum)

305 [12] 305 [12] 305 [12] 305 [12]

C Length of reinforcing bar ex-

tending into existing floor (mini-

mum)

64 [2.5] 64 [2.5] 64 [2.5] 64 [2.5]

D Total depth of foundation (con-

crete plus 152 mm [6 in.] fill)

(minimum)

254 [10] 254 [10] 305 [12] 381 [15]

E Required thickness of existing

floor (minimum)

102 [4] 102 [4] 152 [6] 229 [9]

Table 21

Installation

DO NOT COPY or TRANSMIT

58 Part No. F8619501ENR14

continues...

Tie-in to Existing Floor (refer to Table 22 )

CHM2390N_SVG

1. Existing Floor

2. 3500 PSI (minimum) Concrete

3. Reinforcing Bar

4. Perimeter Reinforcing Bar

5. Compacted Fill (minimum 152 mm [6 in.] )

Figure 21

Tie-in to Existing Floor, mm [in.]

Description 20-30 40-60 (F-speed) 40-60 (V-speed) /

80-100 (F-speed)

80-100 (V-

speed)

A Required thickness of existing

floor (minimum)

102 [4] 102 [4] 152 [6] 229 [9]

B Total depth of foundation (con-

crete plus 152 mm [6 in.]

fill)(minimum)

254 [10] 254 [10] 305 [12] 381 [15]

C Distance between reinforcing

bars (minimum)

305 [12] 305 [12] 305 [12] 305 [12]

D Length of reinforcing bar ex-

tending into existing floor (mini-

mum)

64 [2.5] 64 [2.5] 64 [2.5] 64 [2.5]

Table 22

Installation

DO NOT COPY or TRANSMIT

59 Part No. F8619501ENR14

Machine Mounting and Grouting

NOTE: After the concrete has cured completely and

the cast-in-place method was used, refer to Figure 23

and proceed to Step 7. If acrylic adhesive anchors are

desired, refer to Figure 22 and proceed with Step 1 af-

ter concrete has cured completely.

1. Refer to

Table 23

to set the drill depth gauge.

2. Drill the holes to the set depth.

3. Use compressed air or squeeze bulb to clean out debris from

each hole.

4. Fill half the hole depth with an industry-accepted adhesive

anchoring system.

5. Insert anchor bolt until it reaches the bottom. Refer to

Table

6. Ensure all air pockets are removed from adhesive surrounding

the bolt.

7. Allow adhesive around bolt to cure completely.

8. Remove shipping materials and place the machine or elevated

base frame carefully over the bolts.

NOTE: Never attempt to lift the machine by the

door handle or by pushing on the cover panels.

Always insert a pry bar or other lifting device un-

der the bottom frame of the machine to move it.

IMPORTANT: DO NOT install 80 models or larger

machines on an elevated metal base frame.

9. Raise and level the machine or elevated base frame 1.27 cm

[1/2 inch] off the floor on four corners, using spacers such as

nut fasteners.

WARNING

Crush hazard. To avoid personal injury and/or

property damage, do not tip the machine more

than 25 degrees in any direction.

W793

10. Completely fill the space between the elevated base frame or

machine base and the floor with a good quality non-shrink-

ing machinery precision grout to ensure a stable installa-

tion. Grout completely under frame. Remove front panel and

back panel to gain access to entire perimeter of base

plates. Force grout under base until all voids are filled.

IMPORTANT: Minimum Grade 5, SAE rating, flat

washers and minimum Grade 5, SAE rating, ser-

rated hex flange locknuts are the recommended

hardware for anchoring machine or elevated base

frame to anchor bolts.

11. Position the flat washers and locknuts on the anchor bolts

and finger-tighten to machine base or elevated base frame.

12. Allow machine grout to set, but not cure.

IMPORTANT: Refer to bolt manufacturer’s recom-

mended adhesive cure times.

13. Remove the spacers carefully, allowing the machine base or

elevated base frame to settle into the wet grout.

NOTE: If installing a 20-60 model directly to fin-

ished floor, wait until grout is completely cured

and skip to Step 18. If installing on elevated base

frame, proceed to Step 14.

20-60 Models

14. After the grout is completely cured, position the machine

over the elevated base frame.

15. Align the mounting holes on the machine with the corre-

sponding holes on the elevated base frame.

16. Install a bolt, flat washer and locknut in each mounting hole.

17. Hand tighten each nut.

a. Tighten the two rear nuts two turns.

b. Tighten the two front nuts two turns.

c. Tighten the two middle nuts firmly.

18. Torque all the locknuts to 90 ± 9 ft.-lbs. – one after the other

– until all are tightened evenly and the machine is fastened

securely to the elevated base frame or floor.

80 Models and Larger

19. After the grout is completely cured, torque the locknuts to

150 ± 15 ft.-lbs. – one after the other – until all are tightened

evenly and the machine is fastened securely to the floor.

IMPORTANT: Refer to recommended grout cure

times from manufacturer before torquing lock-

nuts.

IMPORTANT: All torque joints must remain dry

(non-lubricated).

NOTE: Check and retighten the locknuts after five

to ten days of operation and every month there-

after.

Installation

DO NOT COPY or TRANSMIT

60 Part No. F8619501ENR14

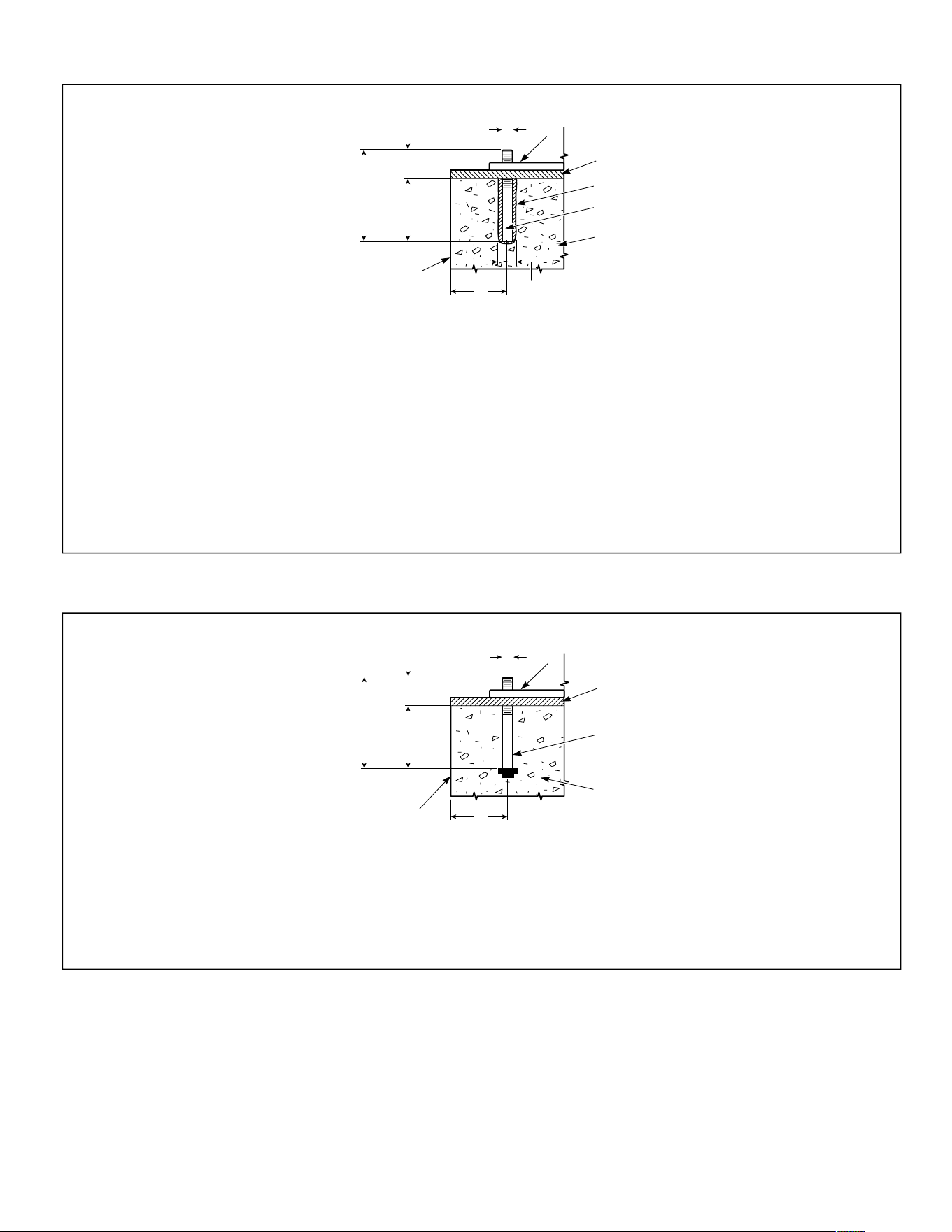

Acrylic Adhesive Anchors (refer to Table 23)

PHM811N_SVG

1. Machine Frame Base

2. Grout 13 mm [1/2 in.]

3. Acrylic Adhesive*

4. Anchor Bolt* (minimum Grade 5 SAE rating)

5. Concrete

6. Drill Hole Size per Manufacturer Requirements

7. Edge of Pad

NOTE: *Available for purchase through the distributor. If not purchasing from a distributor, procure acrylic ad-

hesive rated for commercial-grade vibratory machine installations.

Figure 22

Cast-in-place Anchors (refer to Table 23)

CHM2438N_SVG

1. Machine Frame Base

2. Grout

3. Anchor Bolt (minimum Grade 5 SAE rating)

4. Concrete

5. Edge of Pad

Figure 23

Installation

DO NOT COPY or TRANSMIT

61 Part No. F8619501ENR14

continues...

Minimum Anchoring Specifications, mm [in.]

Description 20 30 40 60 80 100

Number of Bolts 4 or 6* 4 or 6* 4 or 6* 6 6 6

A Bolt Length 152 [6] 152 [6] 152 [6] 152 [6] 216 [8-3/4] 216 [8-3/4]

B Thread Extension 64 [2-1/2] 64 [2-1/2] 64 [2-1/2] 64 [2-1/2] 70 [2-3/4] 70 [2-3/4]

C Bolt Diameter 16 [5/8] 16 [5/8] 16 [5/8] 16 [5/8] 19 [3/4] 19 [3/4]

D Embedment Depth 89 [3-1/2] 89 [3-1/2] 89 [3-1/2] 89 [3-1/2] 152 [6] 152 [6]

E Distance from Bolt

Center to Edge of

Concrete Pad

134 [5.26] 134 [5.26] 157 [6.19] 226 [8.9] 227 [8.94] 227 [8.94]

* On 20-40 models, the four (4) corner bolts are required and the two (2) center bolts are optional when mounting a machine or ele-

vated base frame to floor.

Floor Load Data

Specification 20 30 40 60 80 100

Static floor load, kN [lbs.] 1.91 [430] 2.45 [550] 3.07 [690] 4.09 [920] 7.07 [1590] 7.51 [1690]

Static pressure, kN-m

[lbs.-ft

]

4.64 [97] 4.55 [95] 4.69 [98] 5.03 [105] 6.70 [140] 7.13 [149]

Dynamic floor load, kN [lbs.] 1.86 [420] 2.80 [630] 3.74 [840] 5.61 [1260] 7.48 [1680] 7.48 [1680]

Dynamic floor pressure, kN-m

[lbs.-ft2]

4.60 [96] 5.22 [109] 5.70 [119] 6.85 [143] 7.13 [149] 7.13 [149]

Dynamic load

frequency, Hz

F-speed 9.7 9.0 8.6 8.1 7.4 7.4

V-speed 13.7 12.8 12.2 11.4 10.4 9.5

Maximum moment about ma-

chine base, kN-m [lbs.-ft.]

1.09 [805] 1.71 [1260] 2.47 [1820] 3.76 [2770] 5.87 [4330] 5.87 [4330]

Maximum vertical load, kN

[lbs.]

3.56 [800] 5.03 [1130] 6.49 [1460] 9.16 [2060] 13.75 [3090] 14.06 [3160]

Table 23

Table 24

Installation

DO NOT COPY or TRANSMIT

62 Part No. F8619501ENR14

Drain Connection Requirements

IMPORTANT: Machine must be installed in accor-

dance with all local codes and ordinances.

All drain systems must be vented to prevent an air lock or si-

phoning.

Use the supplied black rubber adapter and clamps to transition

from the machine drain outlet to the 76 mm [3 inches] sched-

ule 40 PVC plumbing.

If proper drain size is not available or practical, a surge tank is

required. A surge tank along with a sump pump should be used

when gravity drainage is not possible.

Drain Trough System

CHM2379N_SVG

1. Rear of Machine

2. Drain Pipe

3. Steel Grate

4. Drain Trough

5. Strainer

6. Waste Line

7. 25 mm [1 in.] minimum gap

Figure 24

Direct Drain System

CHM2386N_SVG

1. Drain Hose

2. Drain Valve

3. Drain Tee

4. Overflow Hose

5. Vent Pipe*

6. Trap (as required by local codes)

* Drain line must be vented to meet local plumbing codes.

Figure 25

Installation

DO NOT COPY or TRANSMIT

63 Part No. F8619501ENR14

continues...

IMPORTANT: Increasing the drain hose length, in-

stalling elbows, or causing bends will decrease drain

flow rates and increase drain times, impairing ma-

chine performance.

Drain Information

Specification 20 30 40 60 80 100

Drain connection size, in. 3 * 3 * 3 * 3 * 3 * 3 *

Overflow drain connection size,

in.

1-1/2 2-1/4 2-1/4 2-1/4 2-1/4 2-1/4

Number of drain outlets 1 1 1 1 1 1

Drain flow capacity, l/min [gal/

min]

95 [25] 114 [30] 151 [40] 189 [50] 208 [55] 208 [55]

Maximum discharge (level 30), l

[gal]

42 [11.2] 90 [23.9] 104 [27.4] 117 [30.8] 165 [43.4] 202 [53.3]

Recommended drain pit size, l [ft

]

57 [2.0] 71 [2.5] 128 [3.5] 161 [5.7] 221 [8.0] 269 [9.5]

* Also works with 3 inch OD PVC pipe if connected to inside of drain tee connector.

Drain Hose Models - Connect Drain Hose to

Drain Receptacle

Remove the drain hose from its shipping position on the rear

of the washer by removing the shipping tape.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 35 mm [1-3/8 inch] outside di-

ameter drain hose.

Drain Flow Rate - 100-127 Volt/60 Hertz

Drain Height

Flow Rate

liters per minute [gal-

lons per minute]

0.9 m [3 ft.] 32.7 [8.6]

1.5 m [5 ft.] 25.9 [6.8]

1.8 m [6 ft.] 22.7 [6.0]

2.1 m [7 ft.] 19.5 [5.1]

2.4 m [8 ft.] 15.2 [4.0]

Drain Flow Rate - 220-240 Volt/50 Hertz

Drain Height

Flow Rate

liters per minute [gal-

lons per minute]

0.9 m [3 ft.] 27.7 [7.3]

1.5 m [5 ft.] 17.8 [4.7]

1.8 m [6 ft.] 13.4 [3.5]

2.1 m [7 ft.] 4.8 [1.3]

2.4 m [8 ft.] 0 [0]

Drain Flow Rate - 208-240 Volt/60 Hertz

Drain Height

Flow Rate

liters per minute [gal-

lons per minute]

0.9 m [3 ft.] 35.5 [9.4]

1.5 m [5 ft.] 28.8 [7.6]

1.8 m [6 ft.] 25.1 [6.6]

Table 25

Table 26

Table 27

Table 28

Installation

DO NOT COPY or TRANSMIT

64 Part No. F8619501ENR14

continues...

Drain Flow Rate - 208-240 Volt/60 Hertz

Drain Height

Flow Rate

liters per minute [gal-

lons per minute]

2.1 m [7 ft.] 21.2 [5.6]

2.4 m [8 ft.] 16.4 [4.3]

Water Connection Requirements

WARNING

To prevent personal injury, avoid contact with inlet

water temperatures higher than 125° Fahrenheit [51°

Celsius] and hot surfaces.

W748

The maximum water inlet temperature for vended models is

125°F [51°C] and the recommended maximum water inlet

temperature for on-premises models is 150°F [66°C] (standard

models) or 140°F [60°C] (WRAS approved models) .

Connections should be supplied by a hot and a cold water line

of at least the sizes shown in

Table 30

. Installation of addition-

al machines will require proportionately larger water lines.

Connections should be supplied by a hot and a cold water line

per national and local codes and in accordance with AS/NZS

3500.I.

Water Supply Information

Specification Model Require-

ment

Water inlet connection size,

in.

20-100 3/4

Thread pitch, GHT [BSPP] 20-100 3/4 x 11-1/2

[3/4 x 14]

Number of water inlets 20-40 2

60-100

(standard

models)

60-100

(WRAS- ap-

proved mod-

els)

Recommended pressure, psi

[kPa]

20-100 30-85

[200-570]

Maximum inlet flow capacity

per machine, gal/min at 85 psi

[l/min at 1232 Pa]

20-40 10.5 [40]

60 18.5 [70]

80-100 23.0 [87]

Extra water inlet flow, gal/

min at 85 psi [l/min at 1232

Pa]

20-100 5.2 [20]

Table 28

Table 29

Installation

DO NOT COPY or TRANSMIT

65 Part No. F8619501ENR14

continues...

Water Supply Line Sizing, in.

Number of Machines Supply Line Size

Main Hot/Cold

1 3/4 3/4

2 1 3/4

3 1-1/4 1

4 1-1/2 1

Suitable air cushions (risers) should be installed in supply lines

to prevent “hammering.” Refer to

Figure 26

Alliance Laundry Systems, LLC ranges of front loading com-

mercial clothes washing machines have solenoid valves at the

inlets. The water supply to the washing machines is supplied

with an AB air gap between the soap tray and the drum. Mini-

mum and maximum working pressure 1.4 bar and 8.3 bar. The

machines are supplied with approved inlet hoses with a maxi-

mum inlet dimension of 1/2 inch (ID).

NOTE: This machine has a fluid category 5 backflow

prevention device built in between the soap tray and

drum.

PHM831N_SVG

1. Air Cushions (Risers)

2. Water Supply Faucets

3. Dual Check Valves

4. Filters

5. Hoses

Figure 26

To comply with WRAS (IRN R160) and the Plumbing Code of

Australia, European standard EN1717 and Australian standard

WMTS-101, an approved dual check valve backflow preven-

tion device with the watermark is provided with the unit and

must be fitted at the point of connection(s) between the supply

and the fitting. Refer to

Figure 26

NOTE: No more than three (3) water connection

hoses should be used on WRAS-approved models.

Figure 27

Figure 28

Connect Inlet Hoses (20-40 Models)

To connect water service to a machine with hoses, use the fol-

lowing procedure:

1. Before installing hoses, flush the building’s water system at

the machine connection valves for at least two (2) minutes.

2. Remove the two (2) plain rubber washers and two (2) filter

screens from the accessories bag supplied with the machine.

3. Install one (1) plain rubber washer onto one end and one (1)

filter screen into the other end of each fill hose. The screens

must be facing outward toward the water supply. Refer to

Figure 29

4. Screw hose couplings with the filter screens onto the water

supply faucets until they are finger-tight. Use the red color-

coded hose for the hot water connection and the blue color-

coded hose for the cold water connection.

5. Using pliers, screw approximately 1/4 turn.

6. Screw the coupling with the plain rubber washer of the red

color-coded hose (attached to the hot water connection) onto

the valve inlet marked with a red label. Screw the coupling

with the plain rubber washer of the blue color-coded hose

(attached to the cold water connection) to the valve inlet

marked with a blue label. Tighten to finger-tight.

7. Using pliers, screw approximately 1/4 turn.

IMPORTANT: DO NOT cross thread or overtighten

couplings. This will cause them to leak.

8. Hang hoses in a large loop; do not allow them to kink.

9. Turn on water supply and check for leaks.

10. If leaks are found, turn off the water, unscrew hoses and re-

install them until there are no leaks.

Table 30

Installation

DO NOT COPY or TRANSMIT

66 Part No. F8619501ENR14

IMPORTANT: Turn off water supply whenever

there will be an extended period of non-use.

If additional hose lengths are needed or using hoses other than

those supplied by manufacturer, flexible hoses with screen fil-

ters are required.

CHM2645N_SVG1

1. Cold Water Valve Inlet

2. Hot Water Valve Inlet

3. Rubber Washer (plain)

4. Red Fill Hose (hot)

5. Hose Coupling

6. Hot Water Supply Faucet

7. Cold Water Supply Faucet

8. Filter Screen (screen must be facing outward, toward water

supply)

9. Blue Fill Hose (cold)

Figure 29

Connect Inlet Hoses with Y-Connectors

(60-100 Models)

To connect water service (for laundries with two [2] supply

faucets) to a machine with hoses, use the following procedure:

1. Before installing hoses, flush the building’s water system at

the machine connection valves for at least two (2) minutes.

2. Remove the four (4) plain rubber washers and four (4) filter

screens from the accessories bag supplied with the machine.

3. Install one (1) plain rubber washer onto one end and one (1)

filter screen into the other end of each fill hose. The screens

must be facing outward toward the water supply. Refer to

Figure 30

4. Screw one (1) of the Y-connectors (supplied with the ma-

chine) into the cold water supply faucet and one (1) into the

hot water supply faucet.

5. Screw hose couplings with the filter screens onto the water

supply faucets until they are finger-tight. Use the two (2) red

color-coded hose for the hot water connection and the two

(2) blue color-coded hose for the cold water connection.

6. Using pliers, screw approximately 1/4 turn.

7. Screw the coupling with the plain rubber washer of one (1)

of the red color-coded hoses (attached to the hot water con-

nection) onto the main fill valve inlet (marked with a red la-

bel). Screw the coupling with the plain rubber washer of the

other red color-coded hose onto the tub fill valve inlet

(marked with a red label). Tighten to finger-tight. Refer to

Figure 30

8. Screw the coupling with the plain rubber washer of one (1)

of the blue color-coded hoses (attached to the cold water

connection) onto the main fill valve inlet (marked with a

blue label). Screw the coupling with the plain rubber washer

of the other blue color-coded hose onto the tub fill valve in-

let (marked with a blue label). Tighten to finger-tight. Refer

Figure 30

9. Using pliers, screw approximately 1/4 turn.

IMPORTANT: DO NOT cross thread or overtighten

couplings. This will cause them to leak.

10. Hang hoses in a large loop; do not allow them to kink.

11. Turn on water supply and check for leaks.

12. If leaks are found, turn off the water, unscrew hoses and re-

install them until there are no leaks.

IMPORTANT: Turn off water supply whenever

there will be an extended period of non-use.

If additional hose lengths are needed or using hoses other than

those supplied by manufacturer, flexible hoses with screen fil-

ters are required.

Installation

DO NOT COPY or TRANSMIT

67 Part No. F8619501ENR14

CHM2644N_SVG1

1. Cold Tub Fill Valve Inlet

2. Hot Tub Fill Valve Inlet

3. Cold Water Main Fill

4. Hot Water Main Fill

5. Rubber Washer (plain)

6. Red Fill Hose (hot)

7. Hose Coupling

8. Hot Water Supply Faucet

9. Cold Water Supply Faucet

10. Y-connection

11. Filter Screen (screen must be facing outward, toward water

supply)

12. Blue Fill Hose (cold)

Figure 30

Installation

DO NOT COPY or TRANSMIT

68 Part No. F8619501ENR14

Plumbing Diagrams

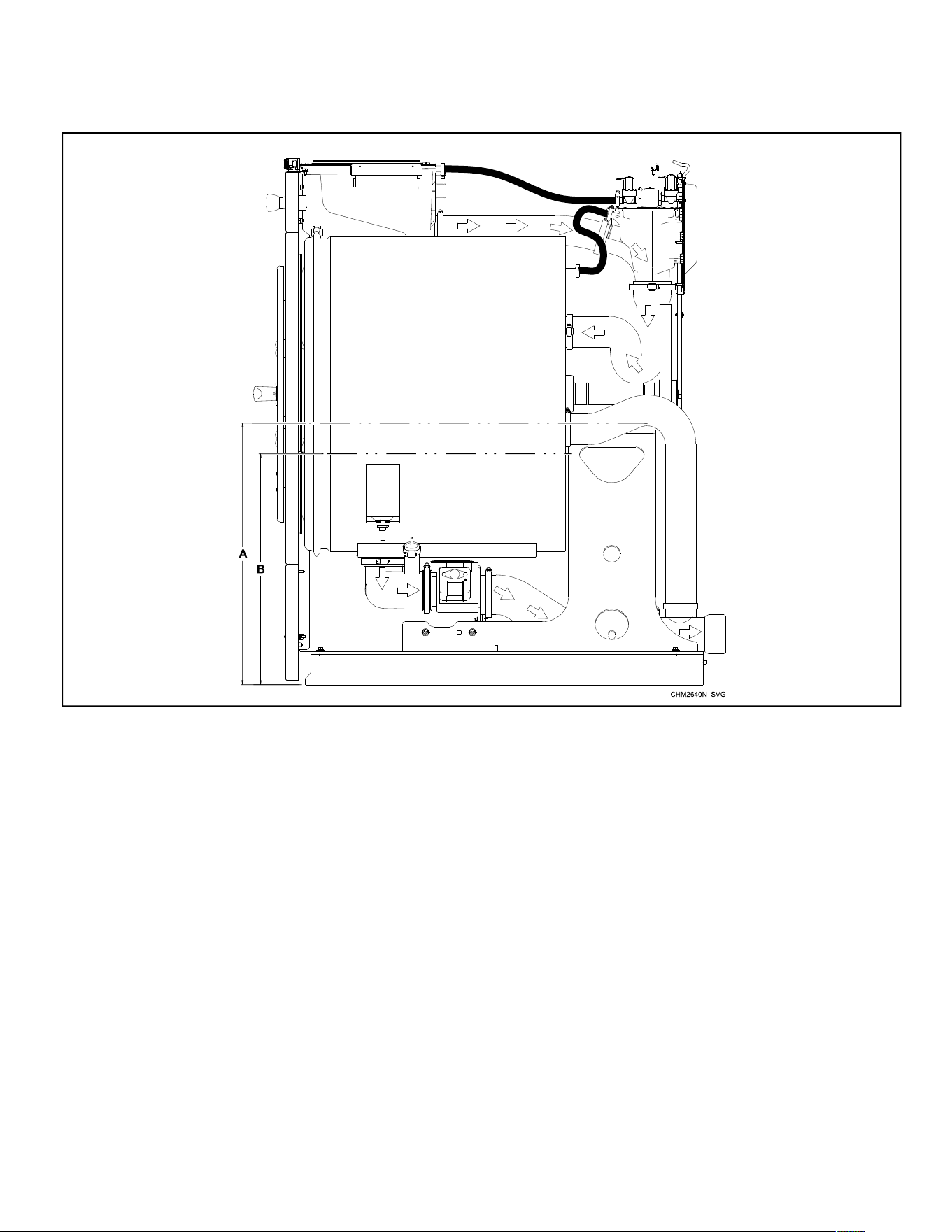

20-60 Models - Side View (refer to Table 31)

Figure 31

Installation

DO NOT COPY or TRANSMIT

69 Part No. F8619501ENR14

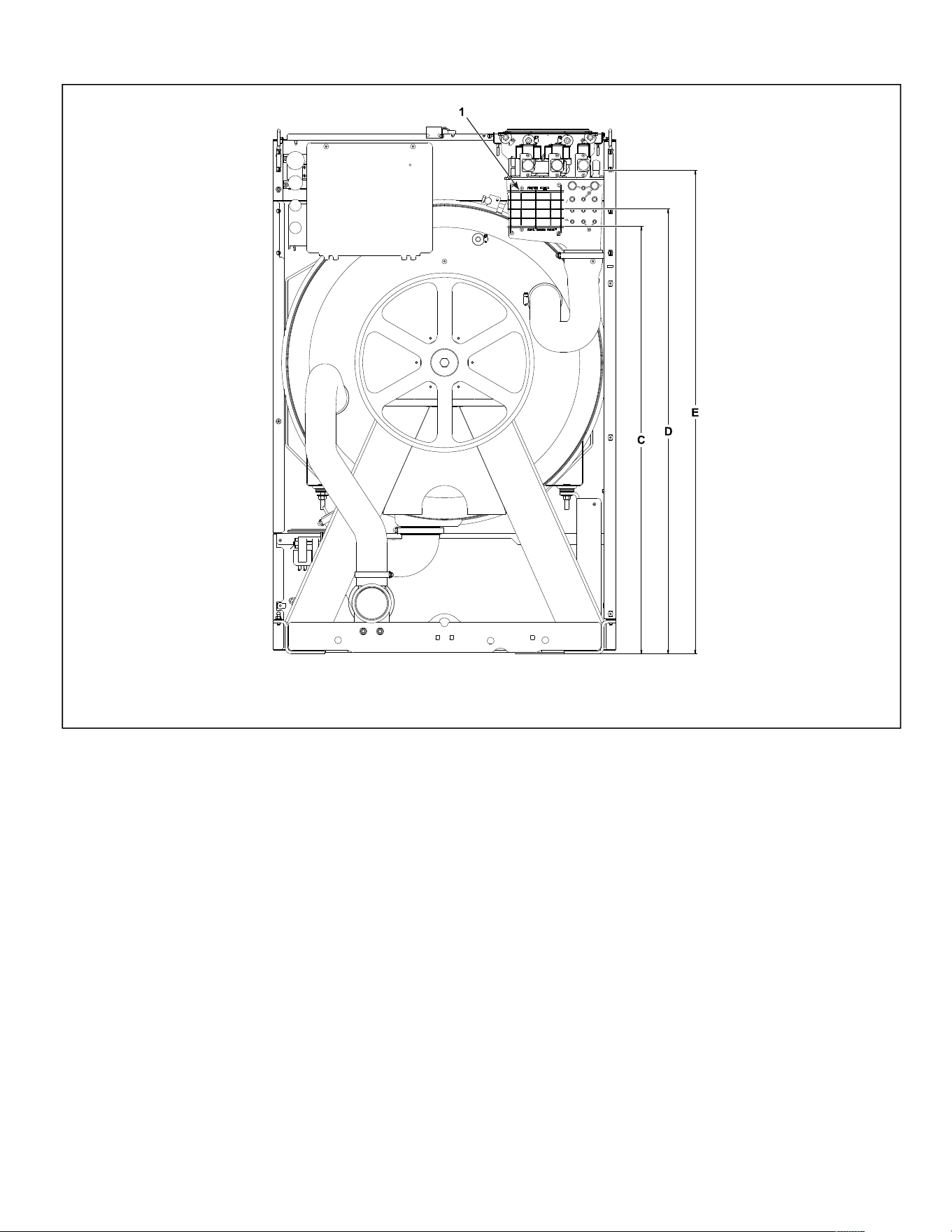

20-60 Models - Rear View (refer to Table 31)

CHM2641N_SVG

1. Vacuum Breaker Overflow

Figure 32

Installation

DO NOT COPY or TRANSMIT

70 Part No. F8619501ENR14

continues...

Plumbing Diagram - 20-60 Models, mm [in.]

Description 20 30 40

A Maximum overflow height 521 [20.5] 544 [21.4] 587 [23.1]

B Maximum operating water level 470 [18.5] 432 [17.0] 505 [19.9]

C Vaccum breaker overflow 861 [33.9] 909 [35.8] 965 [38.0]

D Vaccum breaker overflow centerline 902 [35.5] 953 [37.5] 1008 [39.7]

E Inlet Valves 988 [38.9] 1052 [41.4] 1097 [43.2]

60-100 Models - Side View (refer to Table 32)

Figure 33

Table 31

Installation

DO NOT COPY or TRANSMIT

71 Part No. F8619501ENR14

60-100 Models - Rear View (refer to Table 32)

1. Vacuum Breaker Overflow

Figure 34

Installation

DO NOT COPY or TRANSMIT

72 Part No. F8619501ENR14

continues...

Plumbing Diagram - 60-100 Models, mm [in.]

Description 60 80 100

A Maximum overflow height 587 [23.1] 732 [28.8] 732 [28.8]

B Maximum operating water level 523 [20.6] 632 [24.9] 632 [24.9]

C Aux Inlet valves 1163 [45.8] 1326 [52.2] 1326 [52.2]

D Vaccum breaker overflow 1034 [40.7] 1219 [48.0] 1219 [48.0]

E Vaccum breaker overflow centerline 1077 [42.4] 1262 [49.7] 1262 [49.7]

F Inlet Valves 1166 [45.9] 1349 [53.1] 1349 [53.1]

Electrical Installation Requirements

IMPORTANT: Electrical ratings are subject to change.

Refer to serial plate for electrical ratings information

specific to your machine.

DANGER

Electrical shock hazard will result in death or

serious injury. Disconnect electric power and wait

five (5) minutes before servicing.

W810

WARNING

Dangerous voltages are present inside the machine.

Only qualified personnel should attempt

adjustments and troubleshooting. Disconnect

power from the machine before removing any cover

and guards, and before attempting any service

procedures.

W736

WARNING

Hazardous Voltage. Can cause shock, burn or

death. Verify that a ground wire from a proven earth

ground is connected to the lug near the input power

block on this machine.

W360

WARNING

This Machine produces excessive leakage current.

Do not use a grounding conductor smaller than

10mm

W946

NOTE: For voltages above or below listed specifica-

tion, a qualified electrical contractor must be consult-

ed to install the appropriate transformer to meet the

OEM electrical specifications. Refer to Electrical

Specifications (North American Approval) and Electri-

cal Specifications (CE Approval).

Electrical connections are made at the rear of the machine. The

machine must be connected to the proper electrical supply

shown on the serial plate on the rear of the machine, using

copper conductors only.

IMPORTANT: Alliance Laundry Systems warranty

does not cover components that fail as a result of

improper input voltage.

Machines are equipped with an AC inverter drives requiring a

clean power supply, free from voltage spikes and surges. Use

voltage monitor to check incoming power.

Table 32

Installation

DO NOT COPY or TRANSMIT

73 Part No. F8619501ENR14

continues...

Input Power Conditioning

The drive is suitable for direct connection to input power with-

in the rated voltage of the drive. Listed in

Table 33

are certain

input power conditions which may cause component damage

or reduction in product life. If any of the conditions exist, in-

stall one of the devices listed under the

Possible Corrective

Action(s)

IMPORTANT: Only one device per branch circuit is

required. It should be mounted closest to the branch

and sized to handle the total current of the branch

circuit.

Input Power Condition Possible Corrective Action(s)

Low Line impedance (less than 1% line reactance)

• Install Line Reactor

• Isolation Transformer

Greater than 120 kVA supply transformer

Line has power factor correction capacitors

• Install Line Reactor

• Isolation Transformer

Line has frequent power interruptions

Line has intermittent noise spikes in excess of 3000V (lightning)

Phase to ground voltage exceeds 125% of normal line to line

voltage

• Remove MOV jumper to ground

• Install Isolation Transformer with grounded secondary (if nec-

essary)

Ungrounded distribution system

240V open delta configuration (stinger leg)*

• Install Line Reactor

* For drives applied on an open delta with a middle phase grounded neutral system, the phase opposite the phase that is tapped in

the middle to the neutral or earth is referred to as the “stinger leg,” “high leg,” “red leg,” etc. This leg should be identified through-

out the system with red or orange tape on the wire at each connection point. The stinger leg should be connected to the center Phase

B on the reactor.

Input Voltage Requirements

For voltages above or below listed specifications, contact your

power company or local electrician.

IMPORTANT: Improper connections will result in

equipment damage and will void warranty.

DANGER

Electrical shock hazard will result in death or

serious injury. Disconnect electric power and wait

five (5) minutes before servicing.

W810

Circuit Breakers and Quick

Disconnects

Single-phase machines require a single-phase inverse-time cir-

cuit breaker. Three-phase machines require a separate, three-

phase inverse-time circuit breaker to prevent damage to the

motor by disconnecting all legs if one should be lost acciden-

tally. Refer to

North American Approval

and

CE Approval

sections for model-specific circuit breaker requirements.

IMPORTANT: All quick disconnects should comply

with the specifications. DO NOT use fuses instead of

circuit breakers.

Connection Specifications

IMPORTANT: Connection must be made by a quali-

fied electrician using wiring diagram provided with

machine, or according to accepted European Union

standards.

Connect machine to an individual branch circuit not shared

with lighting or other equipment. Shield conductors in a liquid-

tight or approved flexible conduit. Copper conductors of cor-

rect size must be installed in accordance with National Electric

Code (NEC) or other applicable codes.

Use wire sizes indicated in the Electrical Specifications chart

for runs up to 15 m [50 feet] . Use next larger size for runs of

15 to 30 m [50 to 100 feet] . Use two (2) sizes larger for runs

greater than 30 m [100 feet] .

IMPORTANT: For X voltage - To obtain 200-240V from a

200-240V source, connect L1 and L2. To obtain

220-240V from a 380-415V source, connect L1 and N.

Refer to Figure 35.

Table 33

Installation

DO NOT COPY or TRANSMIT

74 Part No. F8619501ENR14

Figure 35

Machine Must Be Hard Wired

CHM2555N_SVG

Figure 36

NOTE: Electrical receptacle must be located so that it

is easily accessible with machine in place. An inter-

mediate shut-off box with a 3 mm gap is required to

meet EN 60335-1, clauses 24.3 and 22.2 or 3.5 mm

gap is required to meet Standard IEC 60335-1, claus-

es 24.3 and 22.2. Gap is defined as the minimum con-

tact separation of each pole in the switch between the

“ON” and “OFF” positions.

IMPORTANT: Where an emergency stop is required

by local ordinances, a disconnect must be installed

that is readily accessible to all users.

NOTE: Installation of models in North America: rec-

ommended installation is hard wired without a GFCI.

If a GFCI is mandatory due to local requirements,

then the GFCI must be rated for 30mA or higher.

Single-Phase Connections

For single-phase input, connect L1, L2 and Ground and cap

neutral as shown in

Figure 37

1. L1

2. L2/N

3. Ground

4. Neutral (capped)

Figure 37

Three-Phase Connections

For three-phase input, connect L1, L2, L3 and Ground as

shown in

Figure 38

1. L1

2. L2

3. L3

4. Ground

Figure 38

Installation

DO NOT COPY or TRANSMIT

75 Part No. F8619501ENR14

IMPORTANT: If a stinger leg is used for three-phase

input, it MUST be connected to L3.

Grounding

For personal safety and proper operation, the machine must be

grounded in accordance with state and local codes. If such

codes are not available, grounding must conform to the Na-

tional Electric Code, article 250 (current edition). The ground

connection must be made to a proven earth ground, not to con-

duit or water pipes.

WARNING

Electrically heated machines DO NOT require dual

power sources. Do not connect customer power or

customer load to the Internal Load Distribution ter-

minal block. Refer to the machine electrical

schematic for details.

W759

Machines with Electric Heat

1. Grounding Lug: Connect to proven earth ground

2. Customer Input Power Terminals

Figure 39

Machines without Electric Heat

1. Grounding Lug: Connect to proven earth ground

2. Customer Input Power Terminals

Figure 40

Phase Adder

IMPORTANT: Do not use a phase adder on any ma-

chine.

Thermal Overload Protector

The inverter drive provides overload protection for the drive

motor.

Installation

DO NOT COPY or TRANSMIT

76 Part No. F8619501ENR14

continues...

North American Approval

NOTE: Wire sizing listed in this table is based on Article 310, Table 310.16 of the NEC; at 40°C [104°F] ambient

temperature. Follow your local electrical codes. Use only copper conductors, rated for 90°C [194ºF] or higher,

type THHN or better. No more than three current carrying conductors per raceway. Contact your local Authority

having jurisdiction if you have questions. Circuit breakers should be UL 489 listed or better. Single phase circuit

breakers for single phase machines only; three phase circuit breakers for all others.

20 Models - North American Approval

Voltage Designation Specifications

F-Speed Models

B 120 60 1 2 8 15 14 2.5

W 200-240 50 1/3 2/3 4/3 15 14 2.5

Y 200-240 60 1/3 2/3 4/3 15 14 2.5

X 200-240 50- 60 1/3 2/3 4/3 15 14 2.5

Q Electric Heat 200-240 50-60 3 3 22 30 10 6.0

P Standard 380-415 50- 60 3 3 2 15 14 2.5

Electric Heat 12 15 14 2.5

N Standard 440-480 50-60 3 3 2 15 14 2.5

Electric Heat 14 15 14 2.5

V-Speed Models

B 120 60 1 2 9 15 14 2.5

W 200-240 50 1/3 2/3 4/3 15 14 2.5

Y 200-240 60 1/3 2/3 4/3 15 14 2.5

X 200-240 50- 60 1/3 2/3 4/3 15 14 2.5

Q Electric Heat 200-240 50- 60 3 3 22 30 10 6.0

P Standard 380-415 50- 60 3 3 2 15 14 2.5

Electric Heat 12 15 14 2.5

N Standard 440-480 50- 60 3 3 2 15 14 2.5

Electric Heat 14 15 14 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

AWG

Table 34

Installation

DO NOT COPY or TRANSMIT

77 Part No. F8619501ENR14

continues...

30 Models - North American Approval

Voltage Designation Specifications

F-Speed Models

B 120 60 1 2 10 15 14 2.5

W 200-240 50 1/3 2/3 5/4 15 14 2.5

Y 200-240 60 1/3 2/3 5/4 15 14 2.5

X 200-240 50- 60 1/3 2/3 5/4 15 14 2.5

Q Electric

Heat

200-240 50- 60 3 3 22 30 10 6.0

P Standard 380-415 50- 60 3 3 3 15 14 2.5

Electric

Heat

12 15 14 2.5

N 440-480 50- 60 3 3 3 15 14 2.5

14 15 14 2.5

V-Speed Models

B 120 60 1 2 12 15 12 4

W 200-240 50 1/3 2/3 7/4 15 14 2.5

Y 200-240 60 1/3 2/3 7/4 15 14 2.5

X 200-240 50-60 1/3 2/3 7/4 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 22 30 10 6.0

P Standard 380-415 50-60 3 3 3 15 14 2.5

Electric

Heat

12 15 14 2.5

N Standard 440-480 50-60 3 3 3 15 14 2.5

Electric

Heat

14 15 14 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

AWG

Table 35

Installation

DO NOT COPY or TRANSMIT

78 Part No. F8619501ENR14

continues...

40 Models - North American Approval

Voltage Designation Specifications

F-Speed Models

B 120 60 1 2 10 15 14 2.5

W 200-240 50 1/3 2/3 6/4 15 14 2.5

Y 200-240 60 1/3 2/3 6/4 15 14 2.5

X 200-240 50-60 1/3 2/3 6/4 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 41 50 8 10.0

P Standard 380-415 50-60 3 3 3 15 14 2.5

Electric

Heat

24 30 10 6.0

N Standard 440-480 50-60 3 3 3 15 14 2.5

Electric

Heat

22 30 10 6.0

V-Speed Models

B 120 60 1 2 12 15 12 2.5

W 200-240 50 1 2/3 7/4 15 14 2.5

Y 200-240 60 1/3 2/3 7/4 15 14 2.5

X 200-240 50-60 1/3 2/3 7/4 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 41 50 8 10.0

P Standard 380-415 50-60 3 3 3 15 14 2.5

Electric

Heat

24 30 10 6.0

N Standard 440-480 50-60 3 3 3 15 14 2.5

Electric

Heat

22 30 10 6.0

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

AWG

Table 36

Installation

DO NOT COPY or TRANSMIT

79 Part No. F8619501ENR14

continues...

60 Models - North American Approval

Voltage Designation Specifications

F-Speed Models

X 200-240 50-60 1/3 2/3 8/5 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 41 50 8 10.0

P Standard 380-415 50-60 3 3 4 15 14 2.5

Electric

Heat

26 30 10 6.0

N Standard 440-480 50-60 3 3 4 15 14 2.5

Electric

Heat

22 30 10 6.0

V-Speed Models

X 200-240 50-60 1/3 2/3 11/7 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 41 50 8 10.0

P Standard 380-415 50-60 3 3 4 15 14 2.5

Electric

Heat

26 30 10 6.0

N Standard 440-480 50-60 3 3 4 15 14 2.5

Electric

Heat

22 30 10 6.0

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

AWG

Table 37

Installation

DO NOT COPY or TRANSMIT

80 Part No. F8619501ENR14

continues...

80 Models - North American Approval

Voltage Designation Specifications

F-Speed Models

X 200-240 50-60 1/3 2/3 12/8 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 73 80 4 25.0

P Standard 380-415 50-60 3 3 5 15 14 2.5

Electric

Heat

33 40 8 10.0

N Standard 440-480 50-60 3 3 5 15 14 2.5

Electric

Heat

36 40 8 10.0

V-Speed Models

X 200-240 50-60 1/3 2/3 15/9 20/15 12/14 4/2.5

Q Electric

Heat

200-240 50-60 3 3 73 80 4 25.0

P Standard 380-415 50-60 3 3 6 15 14 2.5

Electric

Heat

33 40 8 10.0

N Standard 440-480 50-60 3 3 6 15 14 2.5

Electric

Heat

36 40 8 10.0

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

AWG

Table 38

Installation

DO NOT COPY or TRANSMIT

81 Part No. F8619501ENR14

continues...

100 Models - North American Approval

Voltage Designation Specifications

F-Speed Models

X 200-240 50-60 1/3 2/3 12/8 15 14 2.5

Q Electric

Heat

200-240 50-60 3 3 74 80 4 25.0

P Standard 380-415 50-60 3 3 5 15 14 2.5

Electric

Heat

32 40 8 10.0

N Standard 440-480 50-60 3 3 5 15 14 2.5

Electric

Heat

36 40 8 10.0

V-Speed Models

X 200-240 50-60 1/3 2/3 16/10 20/15 12/14 4/2.5

Q Electric

Heat

200-240 50-60 3 3 74 80 4 25.0

P Standard 380-415 50-60 3 3 6 15 14 2.5

Electric

Heat

32 40 8 10.0

N Standard 440-480 50-60 3 3 6 15 14 2.5

Electric

Heat

36 40 8 10.0

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

AWG

Table 39

Installation

DO NOT COPY or TRANSMIT

82 Part No. F8619501ENR14

continues...

CE Approval

NOTE: Wire sizing listed in this table is based on Arti-

cle 310, Table 310.16 of the NEC; at 40°C [104°F] am-

bient temperature. Follow your local electrical codes.

Use only copper conductors, rated for 90°C [194ºF] or

higher, type THHN or better. No more than three cur-

rent carrying conductors per raceway. Contact your

local Authority having jurisdiction if you have ques-

tions. Circuit breakers should be UL 489 listed or bet-

ter. Single phase circuit breakers for single phase

machines only; three phase circuit breakers for all

others.

NOTE: N and P Voltage - Where the protective con-

ductor has a cross-sectional area of less than 10

mm2 Cu, a second protective conductor of at least

the same cross-sectional area shall be provided up to

a point where the protective conductor has a cross-

sectional area not less than 10 mm2 Cu.

20 Models - CE Approval

Voltage Designation Specifications

F-Speed Models

B 120 60 1 2 8 10 2.5

W 200-240 50 1/3 2/3 4/3 6 2.5

Y 200-240 60 1/3 2/3 4/3 6 2.5

X 200-240 50-60 1/3 2/3 4/3 6 2.5

Q Electric

Heat

200-240 50-60 3 3 17- 20 25 2.5

P Standard 380-415 50-60 3 3 2 6 2.5

Electric

Heat

11 16 2.5

N 440-480 50-60 3 3 2 6 2.5

V-Speed Models

B 120 60 1 2 9 10 2.5

W 200-240 50 1/3 2/3 4 6 2.5

Y 200-240 60 1/3 2/3 4 6 2.5

X 200-240 50-60 1/3 2/3 4/3 6 2.5

Q Electric

Heat

200-240 50-60 3 3 17- 20 25 2.5

P Standard 380-415 50-60 3 3 2 6 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 40

Installation

DO NOT COPY or TRANSMIT

83 Part No. F8619501ENR14

continues...

20 Models - CE Approval

Voltage Designation Specifications

Electric

Heat

11 16 2.5

N 440-480 50-60 3 3 2 6 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 40

Installation

DO NOT COPY or TRANSMIT

84 Part No. F8619501ENR14

continues...

30 Models - CE Approval

Voltage Designation Specifications

F-Speed Models

B 120 60 1 2 10 10 2.5

W 200-240 50 1/3 2/3 5/4 6 2.5

Y 200-240 60 1/3 2/3 5/4 6 2.5

X 200-240 50-60 1/3 2/3 5/4 6 2.5

Q Electric

Heat

200-240 50-60 3 3 17- 20 25 2.5

P Standard 380-415 50-60 3 3 3 6 2.5

Electric

Heat

11 16 2.5

N 440-480 50-60 3 3 3 6 2.5

V-Speed Models

B 120 60 1 2 12 16 2.5

W 200-240 50 1/3 2/3 7/4 10/6 2.5

Y 200-240 60 1/3 2/3 7/4 10/6 2.5

X 200-240 50-60 1/3 2/3 7/4 10/6 2.5

Q Electric

Heat

220-240 50-60 3 3 17- 20 25 2.5

P Standard 380-415 50-60 3 3 3 6 2.5

Electric

Heat

11 16 2.5

N 440-480 50-60 3 3 3 6 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 41

Installation

DO NOT COPY or TRANSMIT

85 Part No. F8619501ENR14

continues...

40 Models - CE Approval

Voltage Designation Specifications

F-Speed Models

B 120 60 1 2 10 10 2.5

W 200-240 50 1/3 2/3 6/4 6 2.5

Y 200-240 60 1/3 2/3 6/4 6 2.5

X 200-240 50-60 1/3 2/3 7/4 10/6 2.5

Q Electric

Heat

220-240 50-60 3 3 33- 39 50 10.0

P Standard 380-415 50-60 3 3 3 6 2.5

Electric

Heat

23 25 2.5

N Standard 440-480 50-60 3 3 3 6 2.5

Electric

Heat

20 25 2.5

V-Speed Models

B 120 60 1 2 12 16 2.5

W 200-240 50 1/3 2/3 7/4 10/6 2.5

Y 200-240 60 1/3 2/3 7/4 10/6 2.5

X 200-240 50-60 1/3 2/3 7/4 10/6 2.5

Q Electric

Heat

200-240 50-60 3 3 33- 39 50 10.0

P Standard 380-415 50-60 3 3 3 6 2.5

Electric

Heat

23 32 2.5

N Standard 440-480 50-60 3 3 3 6 2.5

Electric

Heat

30 25 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 42

Installation

DO NOT COPY or TRANSMIT

86 Part No. F8619501ENR14

continues...

60 Models - CE Approval

Voltage Designation Specifications

F-Speed Models

X 200-240 50-60 1/3 2/3 8/5 10/6 2.5

220-240

Q Electric

Heat

200-240 50-60 3 3 33- 39 50 10.0

P Standard 380-415 50-60 3 3 4 6 2.5

Electric

Heat

23 32 2.5

N Standard 440-480 50-60 3 3 4 6 2.5

Electric

Heat

20 25 2.5

V-Speed Models

X 200–240 50-60 1/3 2/3 11/7 16/ 10 2.5

Q Electric

Heat

200-240 50-60 3 3 33- 39 50 10.0

P Standard 380-415 50-60 3 3 4 6 2.5

Electric

Heat

23 32 2.5

N Standard 440-480 50-60 3 3 4 6 2.5

Electric

Heat

20 25 2.5

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 43

Installation

DO NOT COPY or TRANSMIT

87 Part No. F8619501ENR14

continues...

80 Models - CE Approval

Voltage Designation Specifications

F-Speed Models

X 200-240 50-60 1/3 2/3 12/8 16/ 10 2.5

Q Electric

Heat

200-240 50-60 3 3 59- 70 80 16.0

P Standard 380-415 50-60 3 3 5 6 2.5

Electric

Heat

30 40 4.0

N Standard 440-480 50-60 3 3 5 6 2.5

Electric

Heat

35 40 4.0

V-Speed Models

X 200-240 50-60 1/3 2/3 17/ 11 20/ 16 2.5

Q Electric

Heat

200-240 50-60 3 3 59- 70 80 16.0

P Standard 380-415 50-60 3 3 7 10 2.5

Electric

Heat

30 40 4.0

N Standard 440-480 50-60 3 3 7 10 2.5

Electric

Heat

35 40 4.0

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 44

Installation

DO NOT COPY or TRANSMIT

88 Part No. F8619501ENR14

continues...

100 Models - CE Approval

Voltage Designation Specifications

F-Speed Models

X 200-240 50-60 1/3 2/3 12/8 10/ 16 2.5

Q Electric

Heat

220-240 50-60 3 3 59- 70 80 16.0

P Standard 380-415 50-60 3 3 5 6 2.5

Electric

Heat

30 40 4.0

N Standard 440-480 50-60 3 3 5 6 2.5

Electric

Heat

35 40 4.0

V-Speed Models

X 200-240 50-60 1/3 2/3 17/ 11 20/ 16 2.5

Q Electric

Heat

220-240 50-60 3 3 59- 70 80 16.0

P Standard 380-415 50-60 3 3 7 10 2.5

Electric

Heat

30 40 4.0

N Standard 440-480 50-60 3 3 7 10 2.5

Electric

Heat

35 40 4.0

Code

Voltage

Cycle

Phase

Wire

Full Load Amps

Circuit Breaker

Table 45

Installation

DO NOT COPY or TRANSMIT

89 Part No. F8619501ENR14

continues...

Steam Requirements (Steam Heat

Option Only)

WARNING

Hot Surfaces. Will cause severe burns. Turn steam

off and allow steam pipes, connections and compo-

nents to cool before touching.

W505

For machines equipped with optional steam heat, install piping

in accordance with approved commercial steam practices.

Steam requirements are shown in

Table 1

Chemical Injection Supply System

WARNING

Dangerous Chemicals. May damage eyes and skin.

Wear eye and hand protection when handling

chemicals; always avoid direct contact with raw

chemicals. Read the manufacturer’s directions for

accidental contact before handling chemicals.

Ensure an eye-rinse facility and an emergency

shower are within easy reach. Check at regular

intervals for chemical leaks.

W363

IMPORTANT: Undiluted chemical dripping can dam-

age the machine. All chemical injection supply dis-

penser pumps and dispenser tubing should be

mounted below the washer’s injection point. Loops

do not prevent drips if these instructions are not fol-

lowed. Figure 43 shows a typical Chemical Injection

Supply System.

IMPORTANT: Failure to follow these instructions

could damage the machine and void the warranty.

The chemical supply connector is located on the back right-

hand side of the machine. There are 12 chemical ports on the

connector, through each a liquid supply hose can be connected.

A flush manifold system can only be connected through the

top 6 ports (refer to

Figure 42

IMPORTANT: Water pressure must not exceed 275

kPa [40 psi] .

1. Drill through the ports on the chemical supply connector as

needed for the external supply hoses.

NOTE: 3/8 inch ports must be drilled through with a

3/16 inch diameter drill bit and 1/2 inch ports must

be drilled through with a 5/16 inch diameter drill bit

before connecting chemical lines. Refer to Figure

42.

IMPORTANT: Be careful to only drill through the

first wall so as not to damage the machine.

2. Remove plastic debris.

3. Attach the external supply hoses to the ports at each of the

drilled holes.

4. Secure with proper clamps.

CAUTION

Drill out plugs and nipples before making supply

hose connection. Failure to do so can cause

buildup of pressure and risk a tubing rupture.

W491

Supply Dispensing

Number of liquid chemical supply signals (if

equipped)

4 or 8

Number of supply compartments 4

Number of external liquid supply connections 12

Table 46

Installation

DO NOT COPY or TRANSMIT

90 Part No. F8619501ENR14

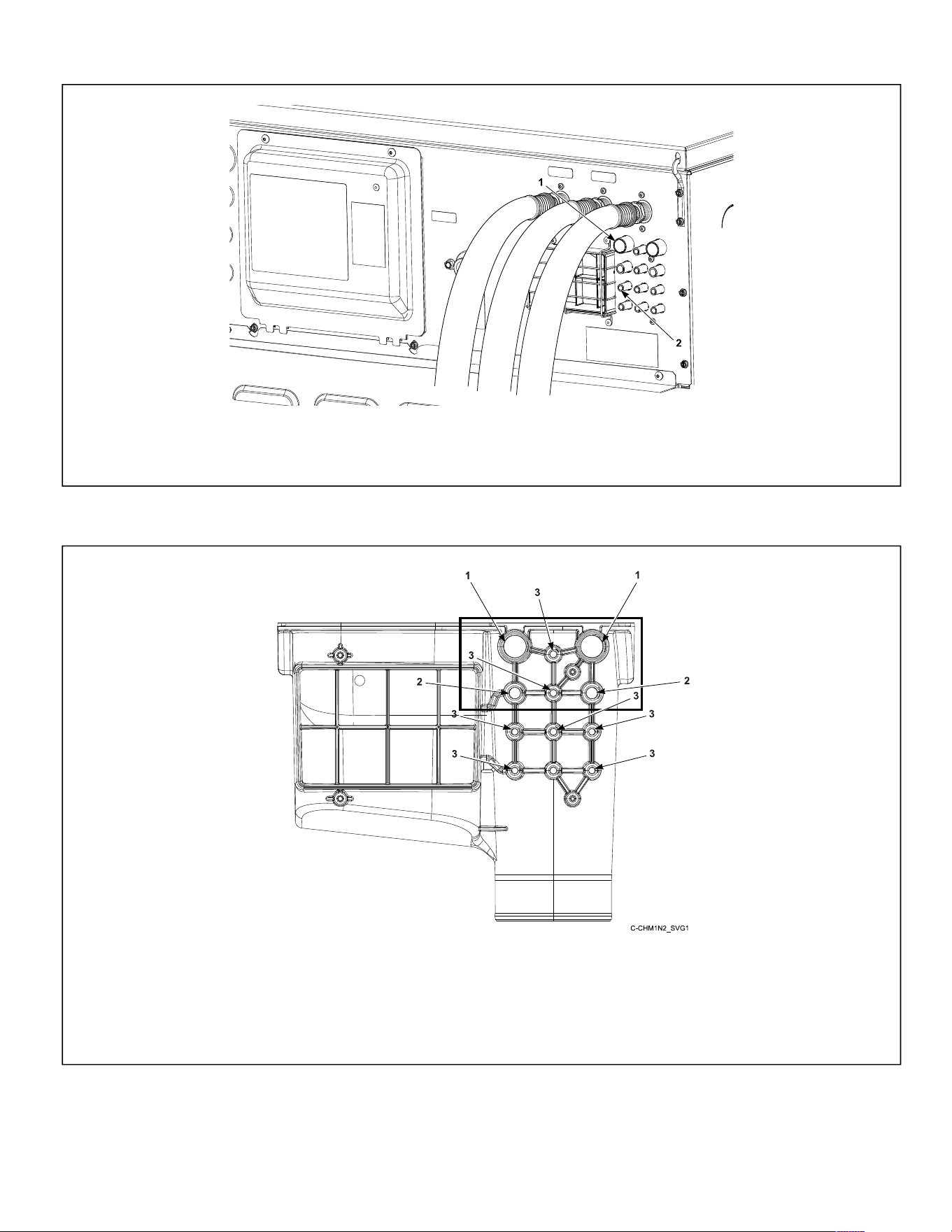

Connection for Chemical Supply Hoses (refer to Figure 42 for detail of chemical supply connector)

C-CHM1N1_SVG1

1. Chemical Supply Connector

2. External Liquid Supply Connection Ports (12)

Figure 41

External Liquid Supply Connection Ports

NOTE: A flush manifold system can only be connected through the top 6 ports (boxed).

1. 3/4 inch port, O.D.

2. 1/2 inch port, O.D.

3. 3/8 inch port, O.D.

Figure 42

Installation

DO NOT COPY or TRANSMIT

91 Part No. F8619501ENR14

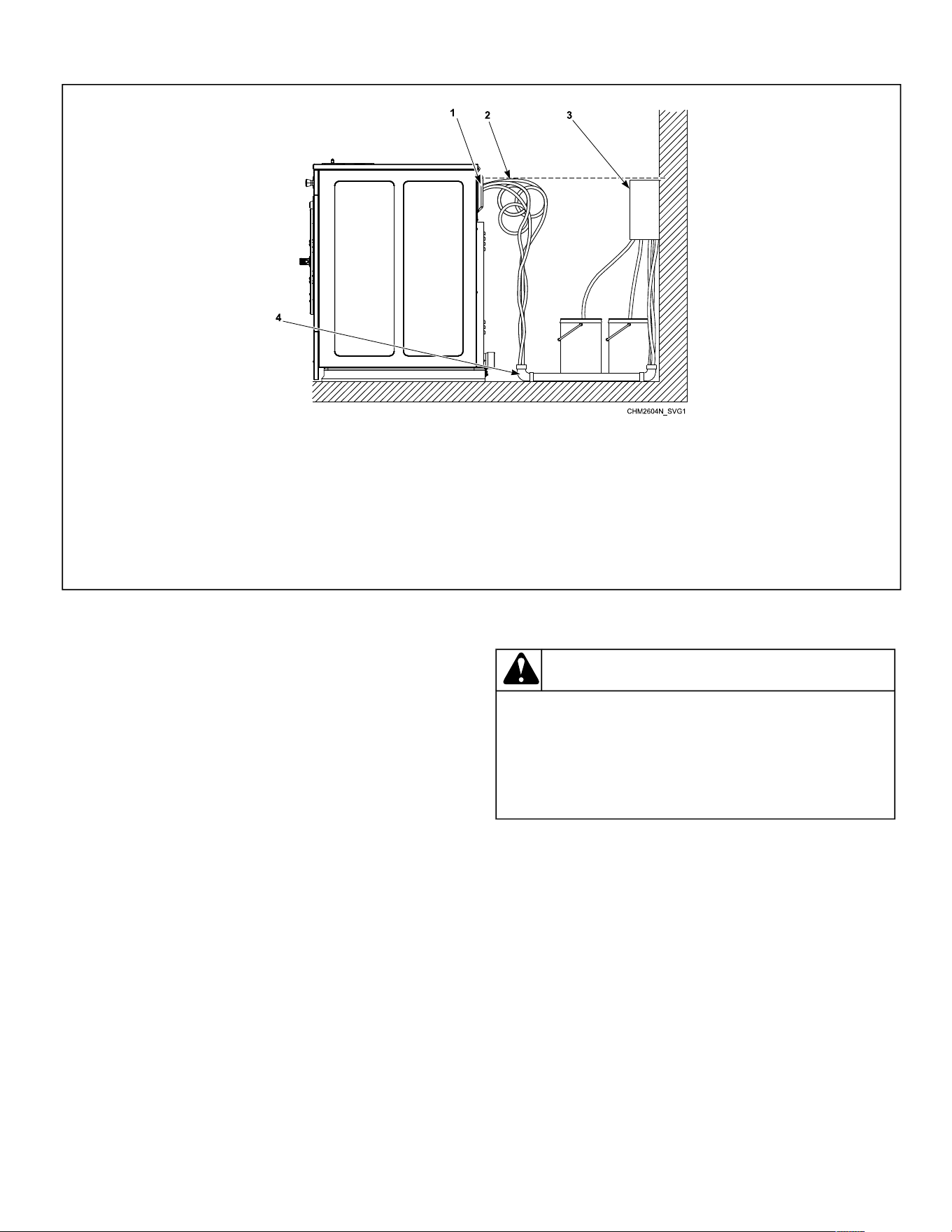

Chemical Supply Setup

1. Injection Point*

2. Loops

3. Chemical Dispenser Pump Outlet †

4. PVC Pipe

* Use a check valve on the end of tubing

† Pumps must be mounted below the injection point

Figure 43

External Supplies

For proper communication between the machine and an exter-

nal chemical supply system, it is important for the low-voltage

signal power to be connected properly. The included wiring di-

agram shows several different options for safe and correct

wiring of this interface.

The preferred method for connecting the wiring from the ex-

ternal chemical supply system to the machine is to use the

300mA power of the machine’s 24VAC control transformer,

which is intended strictly for this purpose. Refer to

Figure 44

and

Figure 45

. Other voltage and current options are available,

but require some wiring changes and must be provided with an

external power source. Under no circumstances should the

high-voltage machine supply connections or source be used for

the communication wiring.

Communication wiring connections, which is H2 a single row

green connector on a small output board, can be found under a

service panel at the upper back of the machine.

Chemical Injection Using Internal 24VAC

Control Transformer

NOTE: Using the Internal 24VAC 300 Milliamp Con-

trol Transformer is recommended by Alliance Laun-

dry Systems.

CAUTION

Do not attempt to increase fuse rating or alter

wiring of external chemical supply terminal strip in

such as way that may conflict with the suggested

methods provided on the Optional External Supply

Wiring Diagram.

W699

IMPORTANT: Do not use the transformer terminals if

an external power supply is used.

Installation

DO NOT COPY or TRANSMIT

92 Part No. F8619501ENR14

CHM2570N_SVG

1. External Supply Power Output

2. Internal Control Transformer

3. RELAY COM Terminal

4. External Dispenser Input Signal Common

Figure 44

CHM2571N_SVG

1. External Supply Power Output

2. Internal Control Transformer

3. RELAY COM Terminal

4. External Dispenser Input Signal Common

Figure 45

Chemical Injection Using External AC Power

Source

NOTE: An External AC Power Source is NOT provided

by Alliance Laundry Systems.

NOTE: Power for external supplies must not be de-

rived from the high-voltage main power connection

point.

IMPORTANT: The external power must supply power

of 240VAC or less and be protected at 3 Amps or less.

1. Disconnect and cap off the Red and White 24VAC wires.

2. Connect one side of the external power to the “RELAY

COM” and the other to the external dispenser input signals

common. Refer to

Figure 46

and

Figure 47

CHM2573N_SVG

1. External Supply Power Output

2. External Dispencer Input Signal Common

3. Capped Off 24VAC Supply

4. VAC Terminal

5. VAC COM Terminal

Figure 46

CHM2572N_SVG

1. External Dispencer Power Output

2. External Dispencer Input Signal Common

3. Capped Off 24VAC Supply

4. VAC Terminal

5. VAC COM Terminal

Figure 47

Installation

DO NOT COPY or TRANSMIT

93 Part No. F8619501ENR14

CAUTION

Do not attempt to increase fuse rating or alter

wiring of external chemical supply terminal strip in

such as way that may conflict with the suggested

methods provided on the Optional External Supply

Wiring Diagram.

W699

External Supply Signals

Wash-cycle signals are provided to the external chemical sup-

ply equipment and a “wait for the next step” signal can be re-

ceived from the supply equipment.

For example of a 4-signal board, if ES1 is selected the K1 con-

tact will close and power will be supplied to Supply 1 Signal.

The contact will remain closed for the amount of time pro-

grammed in control. Refer to

Figure 48

for Internal Supply

Connection or

Figure 50

for External AC Connection.

For example of an 8-signal board, if ES1 is selected the K12

contact will close and power will be supplied to Supply 1 Sig-

nal. The contact will remain closed for the amount of time pro-

grammed in control. Refer to

Figure 49

for Internal Supply

Connection or and

Figure 51

for External AC Connection.

1. ES1 Power supply

2. K1 Contact

3. Supply 1 Signal

Figure 48

1. ES1 Power supply

2. K1 Contact

3. Supply 1 Signal

Figure 49

1. ES1 Power supply

2. K12 Contact

3. Supply 1 Signal

Figure 50

Installation

DO NOT COPY or TRANSMIT

94 Part No. F8619501ENR14

1. ES1 Power supply

2. K12 Contact

3. Supply 1 Signal

Figure 51

Installation

DO NOT COPY or TRANSMIT

95 Part No. F8619501ENR14

Start Up

Basket Rotation

After installation is complete, run the machine through a test

cycle and check that basket rotation is counter clockwise in the

extract step.

1. If rotation is not counter clockwise, disconnect power to ma-

chine.

2. Have a qualified electrician reverse any two motor leads at

the motor.

Start Up

DO NOT COPY or TRANSMIT

96 Part No. F8619501ENR14

Operation

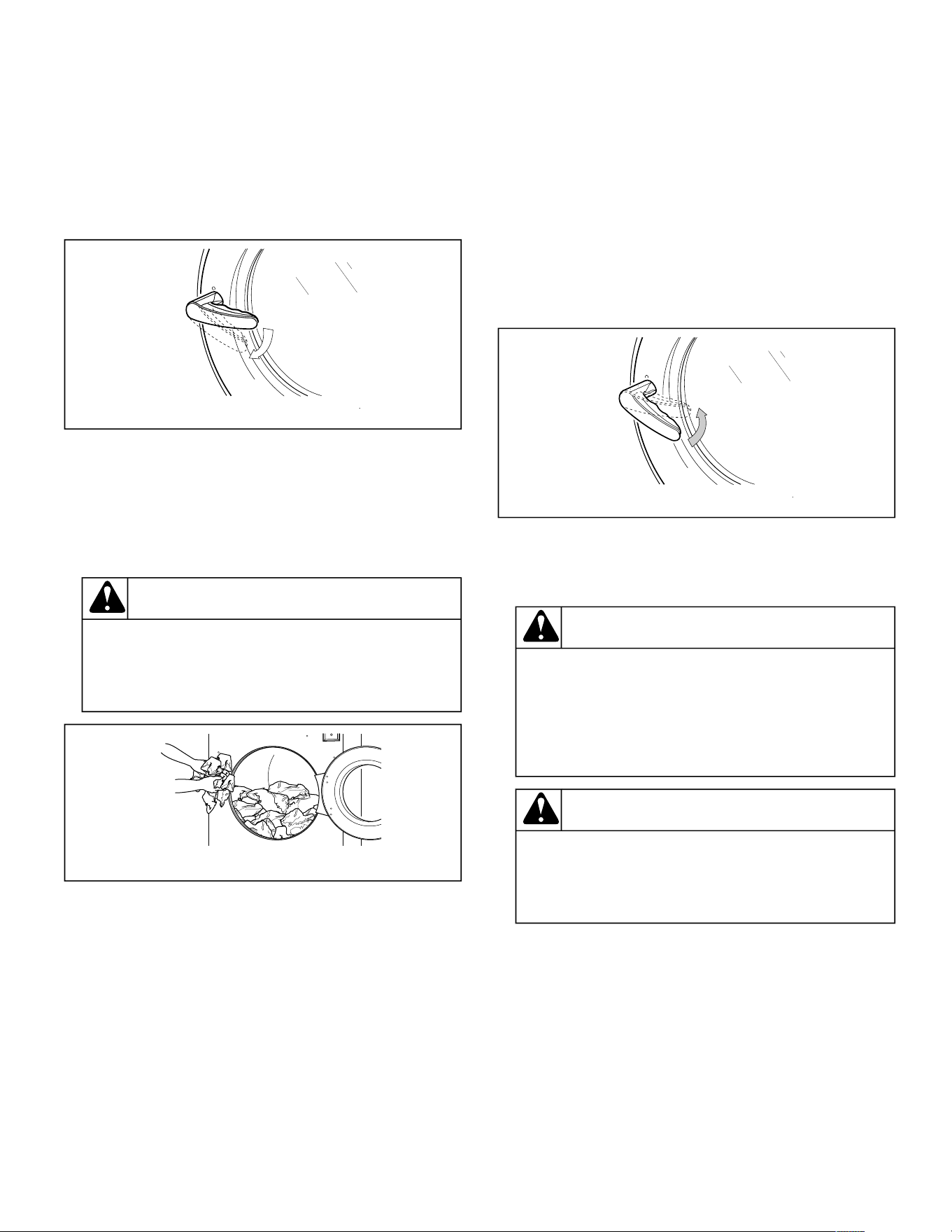

Operating Instructions

1. Turn on main power source (circuit breaker).

2. Turn handle clockwise to open. Refer to

Figure 52

CHM2243N_SVG

Figure 52

3. Load to capacity whenever possible. DO NOT OVERLOAD.

Refer to

Figure 53

NOTE: Underloading can cause out-of-balance

conditions that can shorten machine life.

CAUTION

Be careful around the open door, particularly

when loading from a level below the door. Impact

with door edges can cause personal injury.

SW025

U003I_SVG

Figure 53

NOTE: When washing items which may disinte-

grate or fragment, such as mop heads or sponges,

use laundry nets to prevent drain blockage.

IMPORTANT: To prevent out-of-balance condi-

tions, premature wear or damage to machine

when using laundry nets, use several small nets in

a load.

4. Close the door and turn handle counter clockwise. Refer to

Figure 54

CHM2244N_SVG

Figure 54

5. Refer to

OPL Control Instructions

to select and start a cycle.

CAUTION

Water cannot be extracted from rubber backed

items. To avoid damage to machine from out of

balance conditions, do not use a spin (extract)

step when washing rubber backed items. War-

ranty will be voided.

W880

WARNING

To prevent personal injury, avoid contact with in-

let water temperatures higher than 51° Celsius

[125° Fahrenheit] and hot surfaces.

W748

Operation

DO NOT COPY or TRANSMIT

97 Part No. F8619501ENR14

OPL Control Instructions

NOTE: The control digit is the 7th digit in the model

number. Example: HCT020 [Q] N0VXU400000

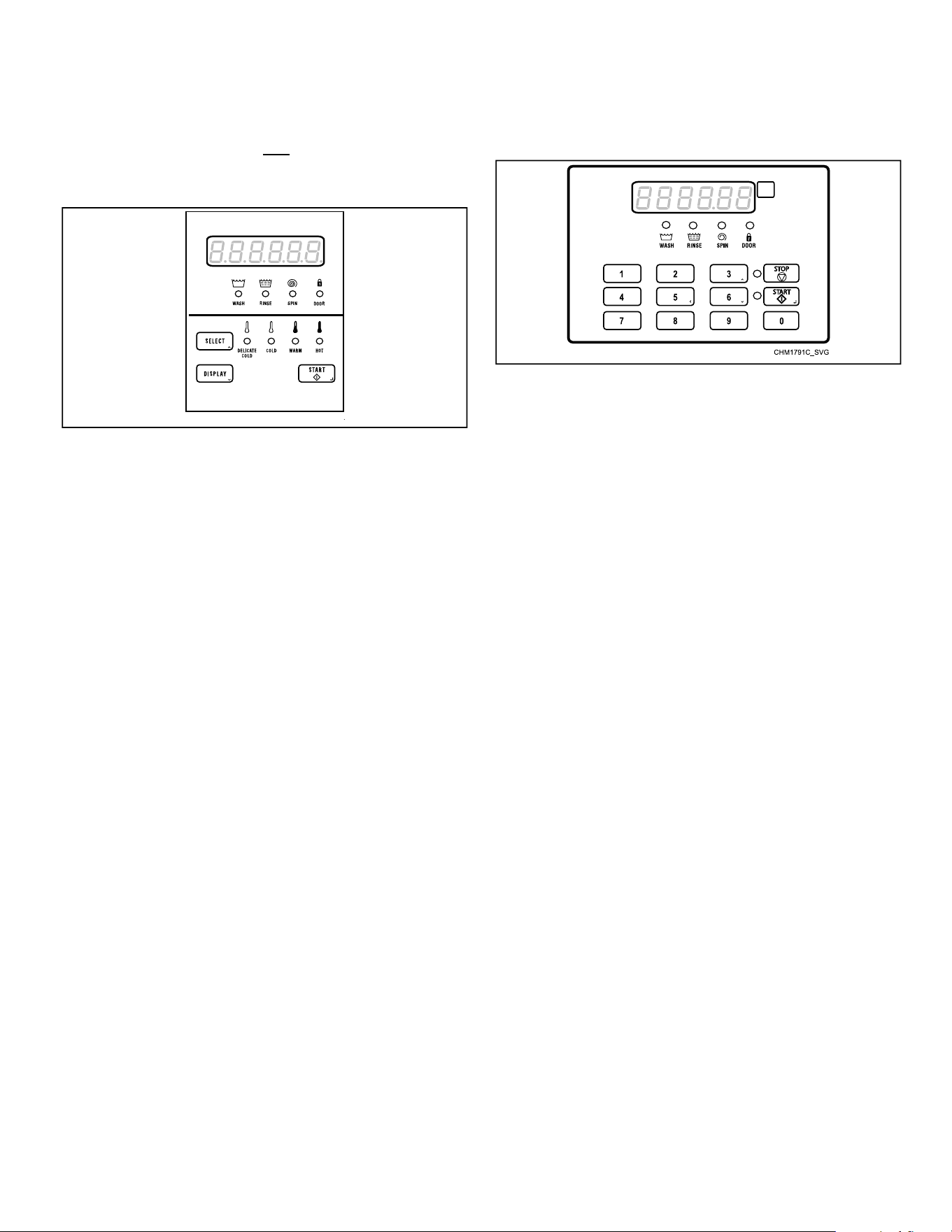

Models with F Control

CHM2561N_SVG

Figure 55

1. If display has gone blank due to sitting idle, press the DIS-

PLAY keypad.

2. Press the SELECT keypad to choose Delicate Cold, Cold,

Warm or Hot. The corresponding LED indicates the selec-

tion.

3. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

4. Press the START (enter) keypad to select.

NOTE: Cycles can be changed anytime during the

first Fill Step. After the first Fill Step, all cycle key-

pad presses are ignored.

5. When a cycle is complete, the control displays 0000.

HCT, SCA, SCD, SCG, SCH, SCJ, SCT, SCU,

UCA, UCD, UCG, UCH, UCJ, UCT and UCU

Models with N Control

Figure 56

1. If equipped with an optional supply dispenser, add dry sup-

plies to the compartment cups prior to the start of each cycle.

Liquid supplies can be injected directly into the supply dis-

penser by an external chemical supply system.

NOTE: Supply dispenser compartment cups must

not be removed when an external chemical injec-

tion supply system is attached to the machine.

2. Press the 1, 2, 3, 4, 5, 6, 7, 8, 9 or 0 keypad to select the de-

sired cycle.

3. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

4. Press the START (enter) keypad to select.

NOTE: Cycles cannot be changed anytime after

the machine is started.

5. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

Operation

DO NOT COPY or TRANSMIT

98 Part No. F8619501ENR14

BCG, HCA, HCD, HCG, HCH, HCJ, HCT, HCU,

PCG, SCA, SCG, SCT, UCA, UCD, UCG, UCH,

UCJ, UCT and UCU Models with Q Control

2 3

5 6

8 9

CHM1792C_SVG

START

STOP

Figure 57

1. Press the 1, 2, 3, 4, 5, 6, 7, 8 or 9 keypad to select the desired

cycle.

2. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

3. Press the START (enter) keypad to select.

NOTE: Cycles cannot be changed anytime after

the machine is started.

4. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

Operation

DO NOT COPY or TRANSMIT

99 Part No. F8619501ENR14

Vend Control Instructions

NOTE: The control digit is the 7th digit in the model

number. Example: HCT020 [N] C1VXU400000

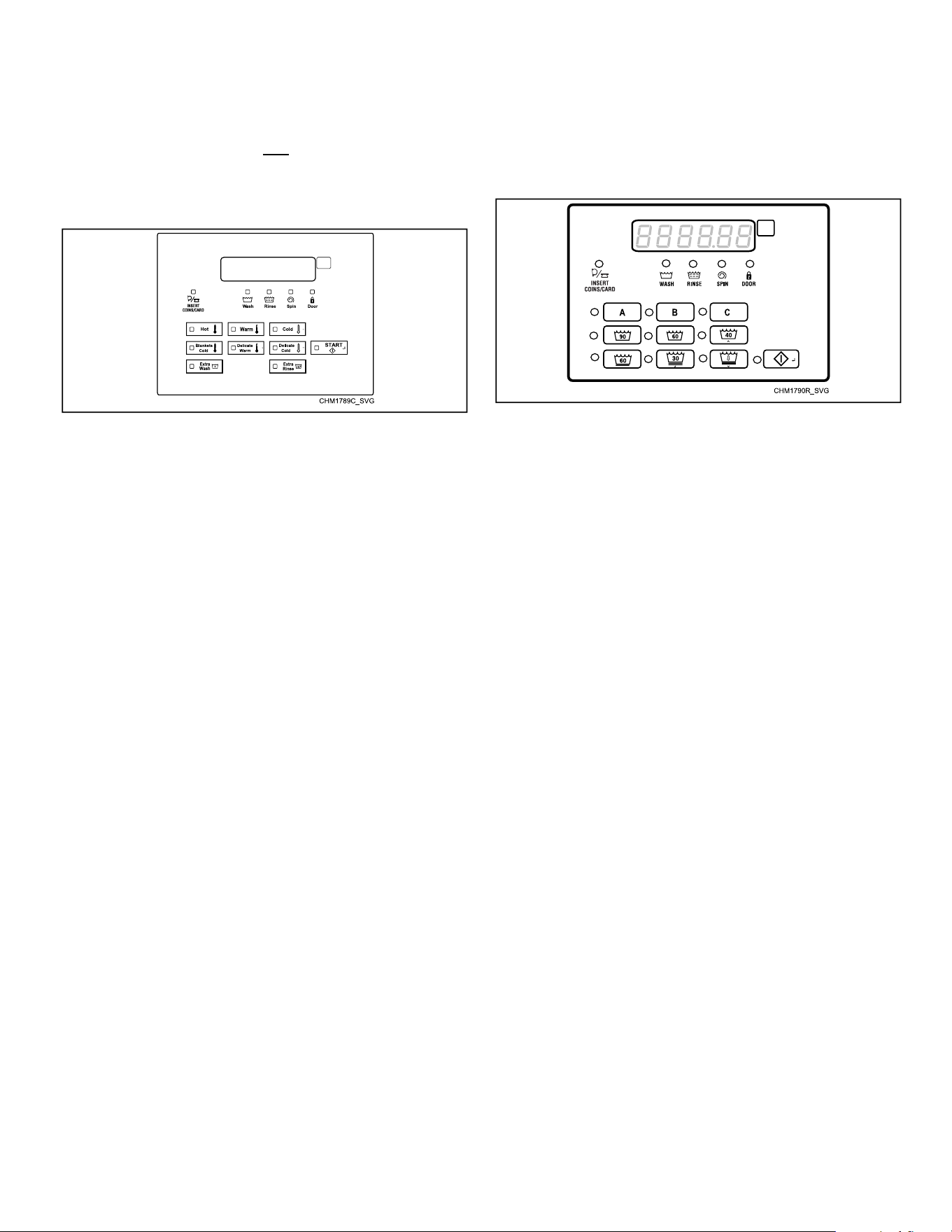

BCG, HCT and PCG Models with N and W

Controls

Figure 58

1. Press the Hot, Warm, Cold, Blankets Cold, Delicate Warm or

Delicate Cold keypad to choose the desired cycle/tempera-

ture. The corresponding LED indicates the selection.

2. Press the Extra Wash and/or Exra Rinse keypads to add mod-

ifiers to the cycle. The corresponding LEDs indicate the

added modifiers.

3. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins. As each

coin is added, the vend counts down to the amount re-

maining.

• If the machine is a card operated unit, insert and remove

card per card system instructions.

• If the unit is interfaced to a central/remote pay system,

go to the central/remote pay console, make payment and

select the machine and follow central/remote pay system

instructions.

4. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

5. Press the START (enter) keypad to select.

NOTE: Cycles can be changed anytime during the

first Fill Step. After the first Fill Step, all cycle key-

pad presses are ignored.

6. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

SCA, SCE, SCG, SCJ and SCU Models with N

and W Controls

Figure 59

1. Press the Normal 90C, Normal 60C, Normal 40C, Perminant

Press 60C, Delecates 30C or Delecates Cold keypad to select

the desired cycle/temperature. The corresponding LED indi-

cates the selection.

2. Press the A keypad to run the selected cycle with no modi-

fiers. Press the B and/or C keypads to add modifiers to the

selected cycle. The corresponding LEDs indicate the select-

ed modifiers.

3. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins. As each

coin is added, the vend counts down to the amount re-

maining.

• If the machine is a card operated unit, insert and remove

card per card system instructions.

• If the unit is interfaced to a central/remote pay system,

go to the central/remote pay console, make payment and

select the machine and follow central/remote pay system

instructions.

4. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

5. Press the START (enter) keypad to select.

Operation

DO NOT COPY or TRANSMIT

100 Part No. F8619501ENR14

NOTE: Cycles can be changed anytime during the

first Fill Step. After the first Fill Step, all cycle key-

pad presses are ignored.

6. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

DCJ, HCT, SCH and SCT Models with N and

W Controls

Figure 60

1. Press the Regular, Deluxe or Ultra keypad to choose the de-

sired soil level. The corresponding LED indicates the selec-

tion.

2. Press the Normal, Perm Press (if available) or Delicates/

Bulky keypad to choose the desired cycle. The correspond-

ing LED indicates the selection.

3. Press the Hot, Warm or Cold keypad to choose the desired

temperature. The corresponding LED indicates the selection.

4. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins. As each

coin is added, the vend counts down to the amount re-

maining.

• If the machine is a card operated unit, insert and remove

card per card system instructions.

• If the unit is interfaced to a central/remote pay system,

go to the central/remote pay console, make payment and

select the machine and follow central/remote pay system

instructions.

5. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

6. Press the START (enter) keypad to select.

NOTE: Cycles can be changed anytime during the

first Fill Step. After the first Fill Step, all cycle key-

pad presses are ignored.

7. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

HCA, HCD, HCE, HCH, HCJ and HCU Models

with N and W Controls

CHM1795C_SVG

RinseWashInsert

Coins/Card

Spin Door

START

Figure 61

1. Press the Normal 90C, Normal 60C, Normal 40C, Perm

Press 90C, Perm Press 60C, Gentle 30C or Perm Press 50C

keypad to choose the desired cycle/temperature. The corre-

sponding LED indicates the selection.

2. Press the Extra Wash and/or Extra Rinse keypads to add

modifiers to the cycle. The corresponding LEDs indicate the

added modifiers.

3. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins. As each

coin is added, the vend counts down to the amount re-

maining.

• If the machine is a card operated unit, insert and remove

card per card system instructions.

• If the unit is interfaced to a central/remote pay system,

go to the central/remote pay console, make payment and

select the machine and follow central/remote pay system

instructions.

4. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

Operation

DO NOT COPY or TRANSMIT

101 Part No. F8619501ENR14

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

5. Press the START (enter) keypad to select.

NOTE: Cycles can be changed anytime during the

first Fill Step. After the first Fill Step, all cycle key-

pad presses are ignored.

6. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

SCT Modles with Q Control

Figure 62

1. Press the Normal/Hot, Normal/Warm, Normal/Cold, Heavy/

Hot, Delicate/Warm, Delicate/Cold, Quick/Hot, Quick/Warm

or Quick/Cold keypad to select the desired cycle.

2. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins. As each

coin is added, the vend counts down to the amount re-

maining.

• If the machine is a card operated unit, insert and remove

card per card system instructions.

• If the unit is interfaced to a central/remote pay system,

go to the central/remote pay console, make payment and

select the machine and follow central/remote pay system

instructions.

3. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

4. Press the START (enter) keypad to select.

NOTE: Cycles cannot be changed anytime after

the machine is started.

5. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

HCT Models with Q Control

CHM1794C_SVG

RinseWash Spin Door

Hot Warm Cold

Heavy

Hot

Quick

Hot

Delicate

Warm

Delicate

Cold

START

Quick

Warm

Figure 63

1. Press the Hot, Warm, Cold, Heavy/Hot, Delicate/Warm, Del-

icate/Cold, Quick/Hot or Quick/Warm keypad to choose the

desired cycle/temperature. The corresponding LED indicates

the selection.

2. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins. As each

coin is added, the vend counts down to the amount re-

maining.

• If the machine is a card operated unit, insert and remove

card per card system instructions.

• If the unit is interfaced to a central/remote pay system,

go to the central/remote pay console, make payment and

select the machine and follow central/remote pay system

instructions.

3. Add liquid and/or powder supplies to supply dispenser. Refer

Table 47

a. Detergent:

• Liquid - Compartment 1 (prewash) + Compartment

• Powder - Compartment 1 (prewash) + Compartment

b. Bleach:

• Liquid - Compartment 3

• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

4. Press the START (enter) keypad to select.

Operation

DO NOT COPY or TRANSMIT

102 Part No. F8619501ENR14

continues...

NOTE: Cycles can be changed anytime during the

first Fill Step. After the first Fill Step, all cycle key-

pad presses are ignored.

5. When a cycle is complete, the control displays OPENOPEN DOORDOOR.

Adding Supplies

a. DETERGENT

CHM2228N_SVG

1. Liquid Detergent

CHM2227N_SVG

2. Powder Detergent

b. BLEACH

CHM2229N_SVG

3. Liquid Bleach

CHM2230N_SVG

4. Powder Bleach

c. SOFTENER

CHM2231N_SVG

5. Liquid Softener

Table 47

Operation

DO NOT COPY or TRANSMIT

103 Part No. F8619501ENR14

Emergency Stop Button (OPL Models

Only)

Depress the emergency stop button (refer to

Figure 64

) to

terminate machine operation when any unsafe condition is

present during machine operation.

1. Emergency Stop Button

Figure 64

1. Press red emergency stop button to stop all action.

2. To restart the machine, pull red emergency stop button out

and press START (enter) on the control.

Operation

DO NOT COPY or TRANSMIT

104 Part No. F8619501ENR14

Maintenance

Routine maintenance maximizes operating efficiency and min-

imizes downtime. The maintenance procedures described be-

low will prolong the life of the machine and help prevent acci-

dents.

WARNING

Sharp edges can cause personal injury. Wear safety

glasses and gloves, use proper tools and provide

lighting when handling sheet metal parts.

W366R1

CAUTION

Replace all panels that are removed to perform

service and maintenance procedures. Do not

operate the machine with missing guards or with

broken or missing parts. Do not bypass any safety

devices.

SW019

Follow local codes for proper advise on laundering infected

garments.

The following maintenance procedures must be performed reg-

ularly at the required intervals.

Daily

IMPORTANT: Replace all panels that are removed to

perform maintenance procedures. Do not operate the

machine with missing guards or with broken or miss-

ing parts. Do not bypass any safety devices.

WARNING

Do not spray the machine with water. Short

circuiting and serious damage may result.

W782

IMPORTANT: Door lock should be checked daily to

ensure proper operation. Also check that all safety

and instruction stickers are on the machine. Any

missing or illegible safety instructions stickers

should be replaced immediately.

Beginning of Day

1. Inspect the door interlock before starting operation.

a. Attempt to start the machine with the door open. The ma-

chine should not start.

b. Close the door without locking it and start the machine.

The machine should not start.

c. Attempt to open the door while the cycle is in progress.

The door should not open.

If the door lock and interlock are not functioning properly,

disconnect power and call a service technician.

2. Check the machine for leaks.

a. Start an unloaded cycle to fill the machine.

b. Verify that door and door gasket do not leak.

c. Verify that the drain valve is operating and that the drain

system is free from obstruction. If water does not leak

out during the first wash segment, the drain valve is

closed and functioning properly.

3. Inspect the water inlet valve hose connections on the back of

the machine for leaks.

4. Inspect the chemical connections for machines equipped with

an automatic chemical supply system by inspecting all con-

nections and chemical hoses for leaks or cracks.

WARNING

To reduce the risk of electrical shock, serious in-

jury or death, disconnect the electrical power to

washer-extractor before examining the wiring.

W636

5. If applicable, inspect the steam hose connections for leaks.

6. Ensure all panels and guards are properly installed.

End of Day

1. Clean the wash drum, door glass, and door gasket of residual

detergent and all foreign matter.

2. Clean the chemical dispenser, flushing with clean water.

3. Clean the machine’s exposed surfaces with all-purpose clean-

er.

IMPORTANT: Use only isopropyl alcohol to clean

graphic overlays. DO NOT use ammonia based or

vinegar-based cleans on overlays.

NOTE: Unload the machine promptly after each

completed cycle to prevent moisture buildup.

Leave loading door and dispenser lid open at the

end of each completed cycle to allow moisture to

evaporate.

4. Leave the loading door and dispenser lid open to allow mois-

ture to evaporate.

NOTE: Unload the machine promptly after each

completed cycle to prevent moisture buildup.

5. Shut off water supply.

Maintenance

DO NOT COPY or TRANSMIT

105 Part No. F8619501ENR14

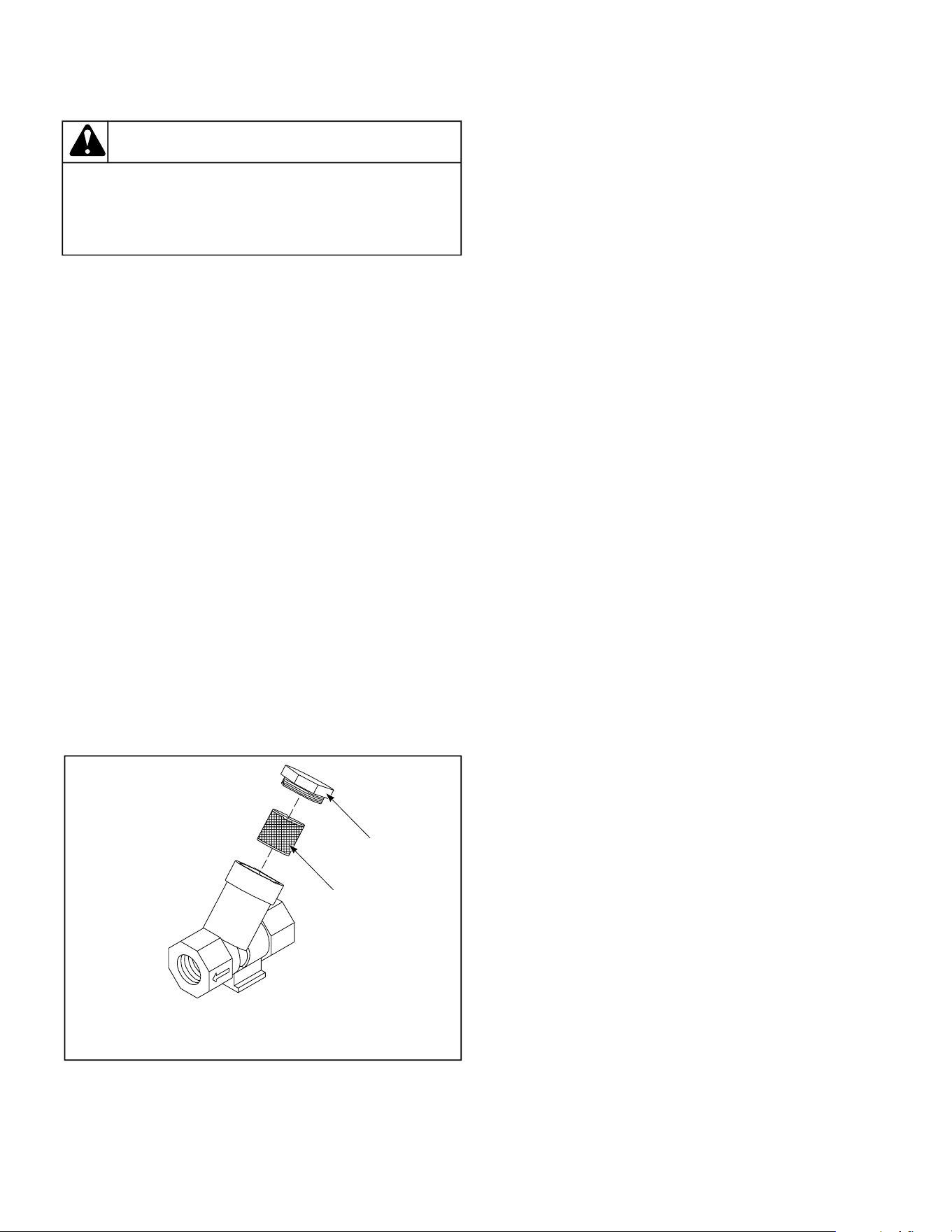

Monthly

WARNING

To reduce the risk of electrical shock, serious injury

or death, disconnect the electrical power to washer-

extractor before examining the wiring.

W636

1. Inspect the electrical connections for looseness. Tighten as

required after disconnecting power.

a. Verify that insulation is intact on all external wires and

that all connections are secure. If bare wire is evident,

call a service technician.

2. Clean inlet hose filter screens.

a. Turn water off and allow valve and water line to cool, if

necessary.

b. Unscrew inlet hose from the faucet and remove filter

screen.

c. Clean with soapy water and reinstall. Replace if worn or

damaged.

d. Repeat procedure with the filter located inside the valve

at the back of the machine.

NOTE: All filter screens should be replaced

every five years.

3. If applicable, clean the customer-supplied steam filter. Refer

Figure 65

a. Turn off steam supply and allow time for the valve to

cool.

b. Unscrew cap.

c. Remove element and clean.

d. Replace element and cap.

H042I_SVG

1. Cap

2. Steam Filter Element

Figure 65

4. For electric heat models only, inspect heating elements for

excess debris by rotating basket to view them through its

perforations. Remove drain valve hose to access and clear

debris with pliers. Replace element(s) if necessary.

NOTE: Lint buildup may take several months to

occur. Inspect heating elements a minimum of

every 6 months.

5. For 36.3 and 45.4 kg [80 and 100 pound] capacity models

only : Lubricate the barings each month or after every 200

hours of operation. Visually inspect grease line for air pock-

ets, purging air pockets as necessary.

The grease must have the following characteristics:

• NLGI Grade 2

• Lithium-based

• Water-insoluble

• Anti-rusting

• Anti-oxidizing

• Mechanically stable

The grease must have adequate base oil viscosity with one of

the following ratings:

• ISO VG 150 (135–165 cSt at 40°C [709–871 SUS at

100°F] )

• ISO VG 220 (198–242 cSt at 40°C [1047–1283 SUS at

100°F] )

• An SAE 40 rating is also acceptable as long as the cSt or

SUS values are within the specified ranges.

Pump the grease gun slowly, permitting only 2 strokes.

NOTE: Do not pump the grease gun until grease

comes out of the bearing housing. This can result

in over lubrication, causing damage to bearings

and seals.

Yearly

NOTE: Disconnect power to the machine at its source

before performing maintenance procedures.

1. Remove the front panel(s) and rear access panels and inspect

all hose, drain, and overflow connections/clamps for leaks.

Inspect all hoses for visible signs of deterioration. Replace

as necessary.

2. Inspect the belt for unusual wear, frayed edges, and improper

belt tension, replacing belts and/or adjusting tensioning ele-

ments as necessary.

NOTE: Belts must not be twisted and must be

properly seated on pulleys. Belt must be centered

on basket pulley within 1 mm [.04 inches] .

a. Use the following procedures to determine if belt(s) re-

quire replacement or adjustment. Call a qualified service

technician in either case.

NOTE: Basket pulley must be rotated three (3)

full turns before assessing belt tension after

every adjustment.

Maintenance

DO NOT COPY or TRANSMIT

106 Part No. F8619501ENR14

continues...

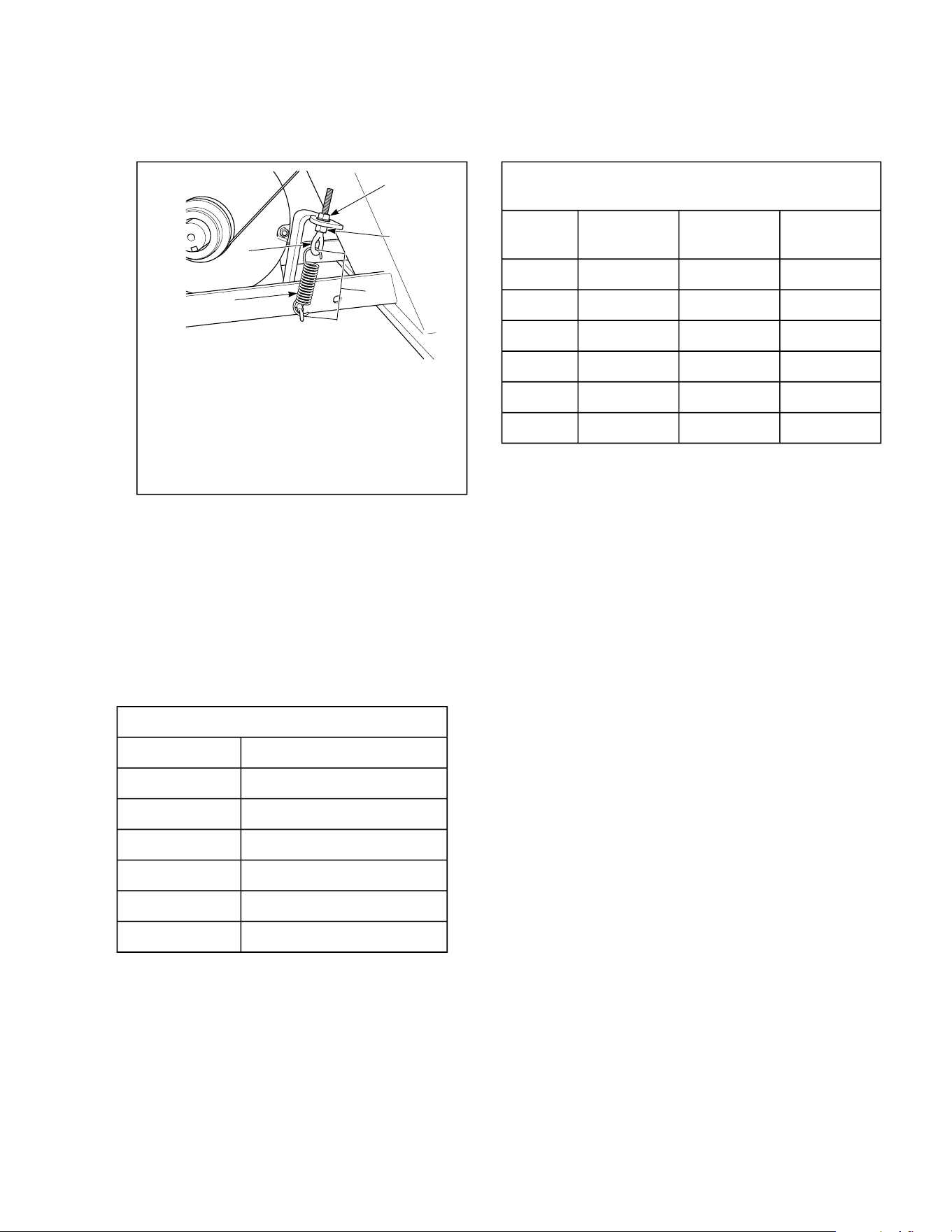

• Frequency Gauge. Tighten eyebolt top nut until the

correct frequency (refer to

Table 49

) is obtained

mid-span. Torque jam nut to spring bracket to 20.6 ±

2 ft.-lbs. Refer to

Figure 66

PHM963N_SVG

1. Top Nut

2. Jam Nut

3. Spring Length

4. Spring

5. Eyebolt

Figure 66

• Tension Gauge. Tighten eyebolt top nut until the

proper belt gauge (refer to

Table 49

) is obtained

mid-span. Torque jam nut to spring bracket to 20.6 ±

2 ft.-lbs. Refer to

Figure 66

• Spring Length. Tighten eyebolt top nut until the

spring measures the correct distance between the

hooks. Refer to

Table 48

. Torque jam nut to spring

bracket to 20.6 ± 2 ft.-lbs. Refer to

Figure 66

Spring Length, mm [in.]

Model Distance Between Hooks

20 (2 HP) 116 [4-9/16]

30 114 [4-1/2]

40 117 [4-5/8]

60 133 [5-1/4]

80 116 [4-9/16]

100 124 [4-9/10]

• Maintain Tension During Belt Removal. If proper

tension is achieved, tape the jam nut in place and

loosen eyebolt top nut to release the belt. Replace

belt and retighten eyebolt top nut back to jam nut po-

sition. Refer to

Figure 66

IMPORTANT: All torque joints must remain dry

(non-lubricated).

b. 20-60 Models: verify the belt is centered on the basket

pulley with in one (1) rib. 80-100 Models: verify the

belt is within the allowable distance of 1 mm [.04 inch]

between the belt and the edge of basket pulley.

Belt Tension by Frequency or Belt Tension

Gauge

Model Frequency

(Hz)

Belt Ten-

sion (lbs.)

Tension

Gauge (N)

20 88 ± 2 60.4 ± 6.1 269 ± 27

30 84 ± 2 63.2 ± 6.3 281 ± 28

40 75 ± 2 88.6 ± 8.8 394 ± 39

60 70 ± 2 100.2 ± 5.7 446 ± 25

80 102 ± 2 135 ± 5 601 ± 23

100 110 ± 2 158 ± 5 702 ± 23

3. Remove any accumulated debris on or near the motor and

motor variable frequency drive heat sinks, if applicable.

4. If applicable, unlock or unscrew the top cover and inspect the

supply dispenser hoses and hose connections for visible

signs of deterioration. Replace hoses if worn or damaged.

NOTE: Hoses and other natural rubber parts dete-

riorate after extended use. Hoses may develop

cracks, blisters or material wear from the tempera-

ture and constant high pressure they are subject-

ed to.

5. Remove any dust from all electrical components, including

coin acceptors if applicable, with compressed air.

6. Inspect hardware for any loose nuts, bolts, screws.

a. Check the tightness of the motor spring and motor pulley

hardware. Also check that the eyebolt is tightened prop-

erly.

b. Tighten motor mounting bolt locknuts and bearing bolt

locknuts, if necessary.

c. Check the bearing mounting bolts to make sure they are

torqued properly. Refer to

Table 50

Table 48

Table 49

Maintenance

DO NOT COPY or TRANSMIT

107 Part No. F8619501ENR14

continues...

Torque, ft-lbs.

Model Bearing Torque

20 All 41

30-40 All 101

60 All 201

80-100 All 357

d. Tighten door hinges and fasteners, if necessary.

7. Place a large magnet over the normally-closed ball switch to

verify the stability switch operation.

8. Ensure all panels and guards are properly reinstalled.

a. Verify that the drain motor shield is in place and secure,

if so equipped.

9. Run factory test, reference programming manual for proce-

dure details and components tested.

NOTE: Refer to the Programming Manual for pro-

cedure details and components tested.

10. Inspect all painted surfaces for exposed metal. Replace or

repaint if necessary.

• If bare metal is showing, paint with primer or solvent-

based paint.

• If rust appears, remove it with sandpaper or by chemical

means. Repaint with primer or solvent-based paint.

11. Torque anchor bolts and inspect grout for cracking.

NOTE: Refer to the Installation Manual for anchor

bolt specifications.

IMPORTANT: All torque joints must remain dry

(non-lubricated).

12. Every 5 years replace inlet hoses, hose screens, belt, and fan

filter (if applicable).

Care of Stainless Steel

• Remove dirt and grease with detergent and water. Thorough-

ly rinse and dry after washing.

• Avoid contact with dissimilar metals to prevent galvanic cor-

rosion when salty or acidic solutions are present.

• Do not allow salty or acidic solutions to evaporate and dry

on stainless steel. Wipe clean of any residues.

• Rub in the direction of the polish lines or “grain” of the

stainless steel to avoid scratch marks when using abrasive

cleaners. Use stainless steel wool or soft, non-metal bristle

brushes. Do not use ordinary steel wool or steel brushes.

• If the stainless steel appears to be rusting, the source of the

rust may be an iron or steel part not made of stainless steel,

such as a nail or screw.

• Remove discoloration or heat tint from overheating by scour-

ing with a powder or by employing special chemical solu-

tions.

• Do not leave sterilizing solutions on stainless steel equip-

ment for prolonged periods of time.

• When an external chemical supply is used, ensure no siphon-

ing of chemicals occurs when the machine is not in use.

Highly concentrated chemicals can cause severe damage to

stainless steel and other components within the machine.

Damage of this kind is not covered by the manufacturer’s

warranty. Locate the pump and tubing below the machine’s

injection point to prevent siphoning of chemicals into the

machine.

Table 50

Maintenance

DO NOT COPY or TRANSMIT

108 Part No. F8619501ENR14

Disposal of Unit

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE).

This symbol on the product or on its packaging indicates that

this product shall not be treated as household waste. Refer to

Figure 67

. Instead it shall be handed over to the applicable col-

lection point for the recycling of electrical and electronic

equipment. Ensuring this product is disposed of correctly will

help prevent potential negative consequences for the environ-

ment and human health which could otherwise be caused by

inappropriate waste handling of this product. The recycling of

materials will help to conserve natural resources. For more de-

tailed information about recycling of this product, please con-

tact the local city office, household waste disposal service, or

the source from which the product was purchased.

MIX1N_SVG

Figure 67

Disposal of Unit

DO NOT COPY or TRANSMIT

109 Part No. F8619501ENR14
