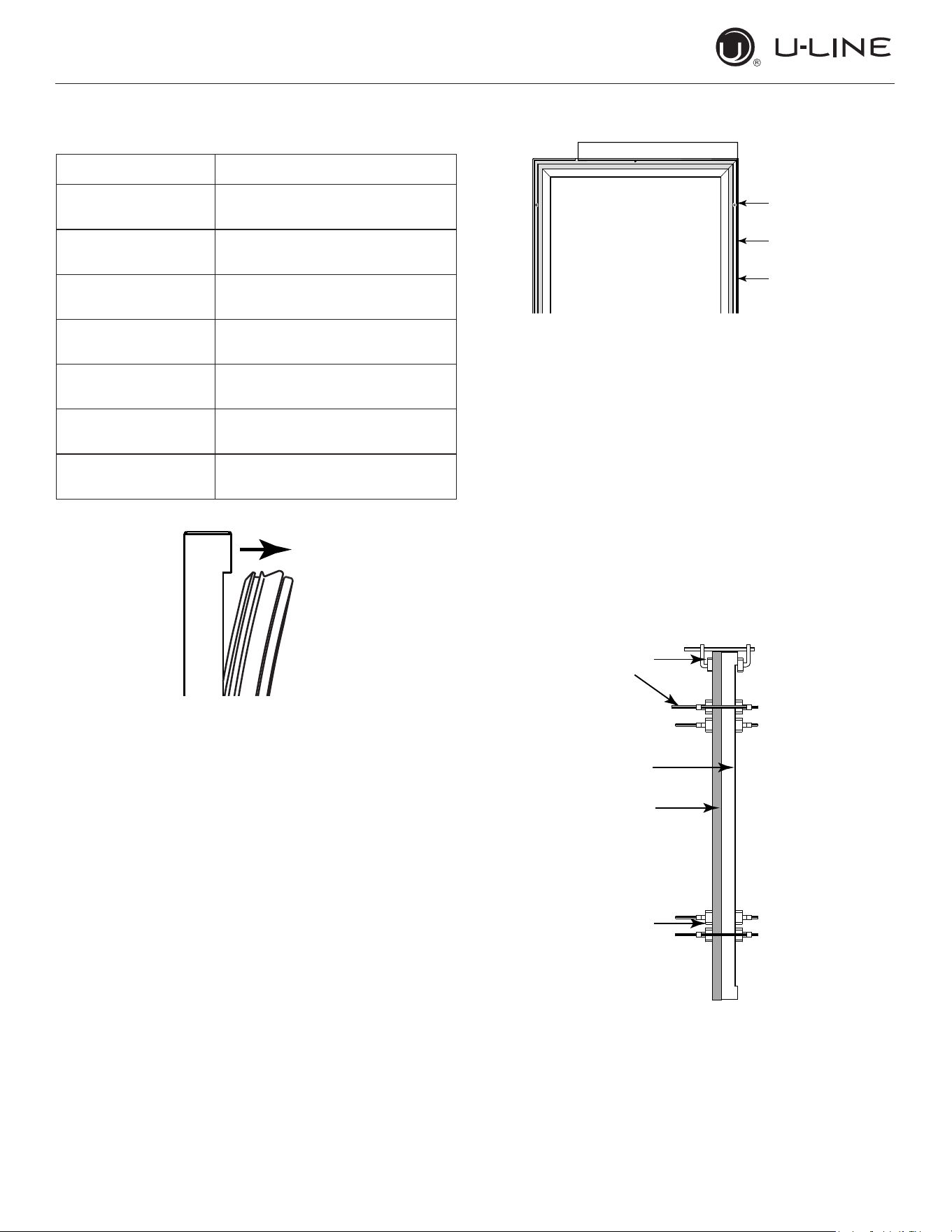

INSTALLATION
1. Open door/drawer completely.
2. Starting at corner, pull gasket away from door/drawer
and remove.
3. Upon removal, lay gasket down on a at surface.
Certain frame panels include a pre-installed black
insert. Remove the protective foil on the top and
bottom sides if applicable.
4. Align the pilot holes by placing the panel on the top
corner edge of the door/drawer.
5. Have a second person hold the panel in place or
secure with a clamp.
6. Locate the 6 #8-321-1/4 (32 mm) screws provided
with your panel. (Drawer panels use only 4 screws per
panel)
7. Using a #2 Phillips screwdriver, place 1 screw in each
of the 6 pilot holes and secure. Do not over-tighten.
8. Reinstall gasket beginning at the corners.
Accessory # Description
ULASHP15SOLID
15” (38cm) Solid Door
14.872” x 29.90” x .751”
ULASHP15FRAME
15” (38cm) Frame Door
14.872” x 29.90” x .751”
ULASHP18SOLID
18” (45cm) Solid Door
17.464” x 29.90” x .751”
ULASHP18FRAME
18” (45cm) Frame Door
17.464” x 29.90” x .751”
ULASHP24SOLID
24” (60cm) Solid Door
23.364” x 29.90” x .751”
ULASHP24FRAME
24” (60cm) Frame Door
23.364” x 29.90” x .751”
ULASHP24DWR
24” (60cm) Drawer (2 Panels)
23.364” x 14.858” x .751”
STAINLESS ACCESSORY PANEL
Align Panel
Against
Door Edge
Align top of panel with highest point of door/drawer
Wood
Panel
Door/Drawer
Bar
Clamp
Bar
Clamp
30436 Rev E 6/2024
