FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 6.5 x 12.7 x 1.5mm Flat Washer (16)
2 14-46-2008 Locking Strap Assembly (1)
3 --------------- Bolt, M6 x 1.0 x 19mm Hex Head (8)
4 --------------- 9 x 24 x 2mm Flat Washer (4)
5 --------------- Inside Bracket (2)
6 --------------- M6-1.0 Nylon-Insert Lock Nut (8)
7 --------------- Outside Bracket - Left (1)
8 --------------- Outside Bracket - Right (1)
9 --------------- 20mm External Retaining Ring (6)
10 --------------- M8 x 16mm Button Hd. Hex Dr. Screw (1)
11 --------------- 6" Wheel with Roller Bearing (2)
12 --------------- M20 Flat Washer (4)
13 14-46-2001 Wheel Frame Weldment (1)
14 14-46-1913 Left Bracket Servive Kit (1)
15 14-46-1912 Right Bracket Service Kit (1)
16 14-46-1914 Wheel/Hardware Service Kit (2)
0
00
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookîżeld, Wisc. 53005

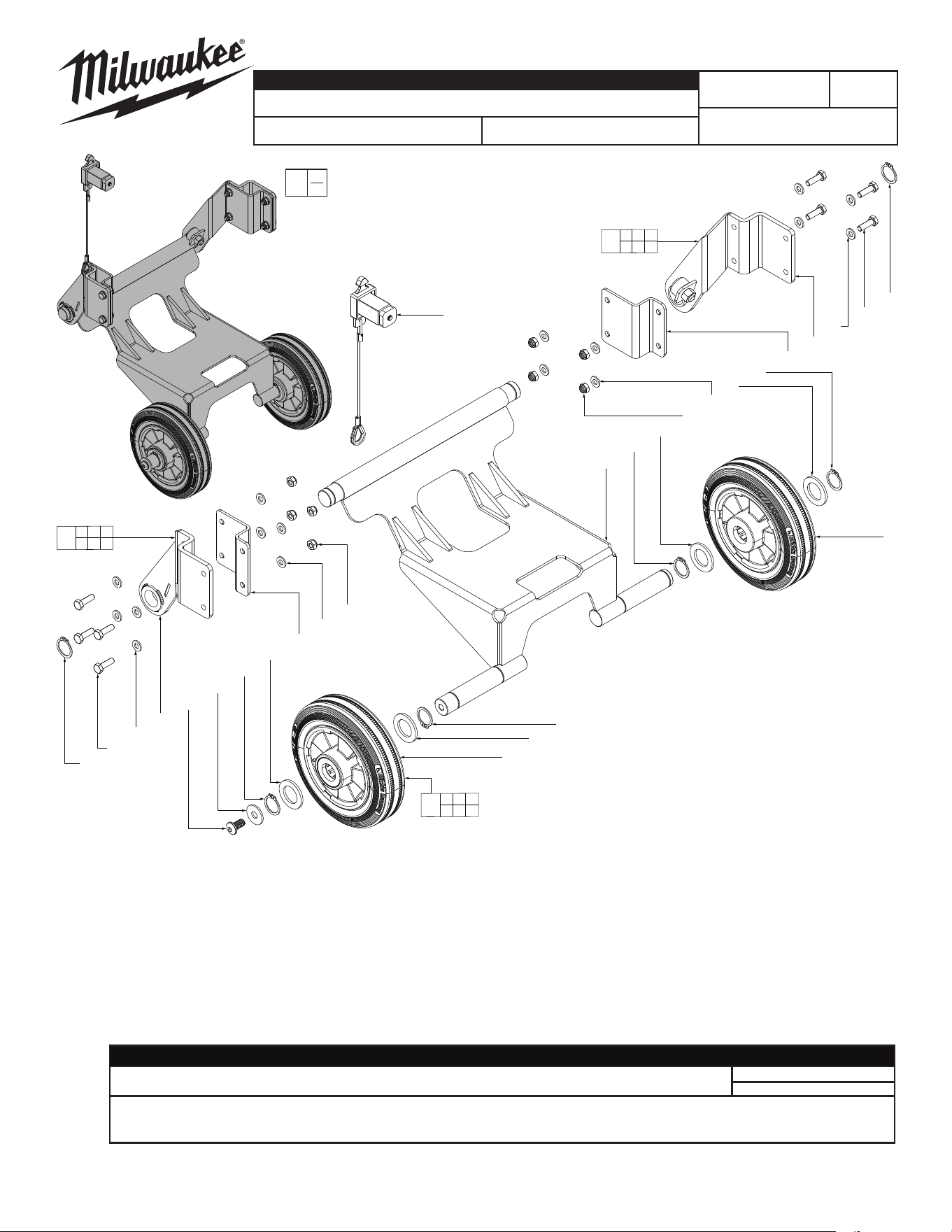

Drwg. 1
9
3
(4x)
1
(4x)
8
10
12
9
4
5
1
(4x)
6
(4x)
9
3
(4x)
1
(4x)
7
9
4
5
1
(4x)
6
(4x)
11
4
9
13
4
9
11
2
1 3 5
6 7 9
14
1 3 5
6 8 9
15
4 9 10
1112
16
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. DESCRIPTION OF FASTENER WHERE USED (lb-in) (kgf-cm)
2 Screw on Left Outside Bracket Fastener is part of the Locking Strap Assy. 30.3 35
3 --------------- Bolt, M6 x 1.0 x 19mm Hex Head Right and Left Outside Brackets 30.3 35
10 05-81-1281 M8 x 16mm Button Hd. Hex Dr. Screw Right Axle Side of Wheel Frame Weldment 22.5 26
SERVICE PARTS LIST
BULLETIN NO.
PN0002454
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS REVISED BULLETIN DATE
May 2025
WHEEL KIT ASSEMBLY for MX FUEL Plate Compactor
WIRING INSTRUCTION
CATALOG NO. 49-49-2020 SERIAL NO.
