INTRODUCTION & WARRANTY
Non-replaceable light source Non-replaceable control gear
AC:220~240V, 50Hz
-20°C to +40°C
10%~95%
2400 Lm 4800 6000
225±5g 365±5g 450±5g
INPUT VOLTAGE
OPERATING TEMPERATURE
OPERATING HUMIDITY
LUMENS
@SPHERE 360°
NET WEIGHT
D1(mm) D2(mm) L1(mm)DIMENSIONS
24±1 300±276±1
10W
24±1 566±276±1
20W
26±1 1166±276±1
40W
26±1 1466±276±1
50W

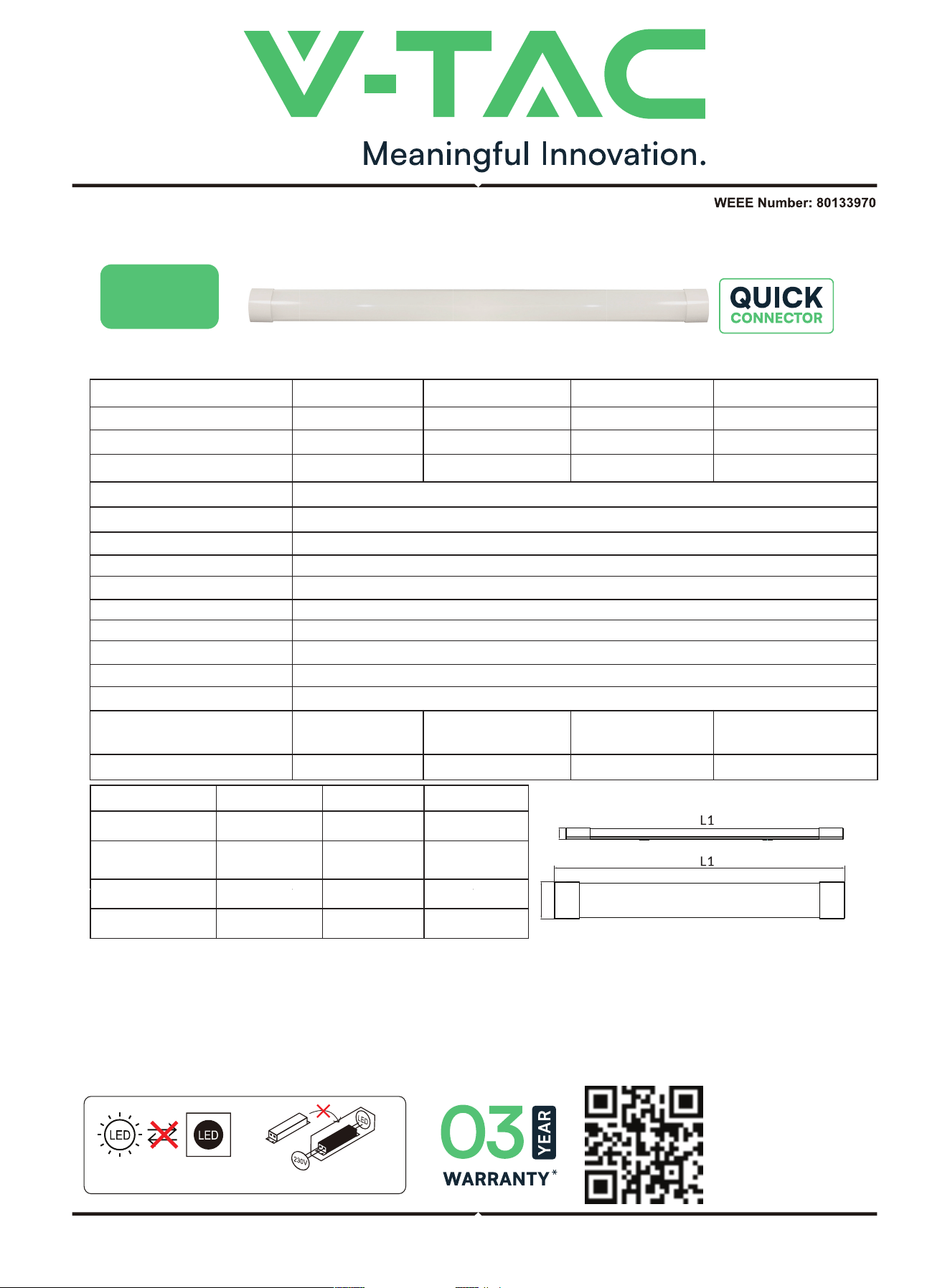

INSTRUCTION MANUAL
LED PRISMATIC FITTING
TECHNICAL DATA
MODEL VT-8320CCT VT-8340CCT VT-8350CCT
Plastic
>0.7
>80
120°
25,000 Hours
>15,000 Times
>0.9 >0.9
20W 40W 50W
SKU
WATTS
BODY TYPE
DF
CRI
BEAM ANGLE
LIFE SPAN
ON/OFF CYCLE
IP RATING
IP20
IK RATING
IK06
24218
1200 Lm
225±5g
VT-8310CCT
>0.7
10W
24213 23680 23681
76
26
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
SUPER BRIGHT
LM/WATT EFFICIENCY
120
+
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before
starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer
or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is
valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal
wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the
product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty.
This product is warranted for manufacturing defects only.
INSTALLATION INSTRUCTIONS

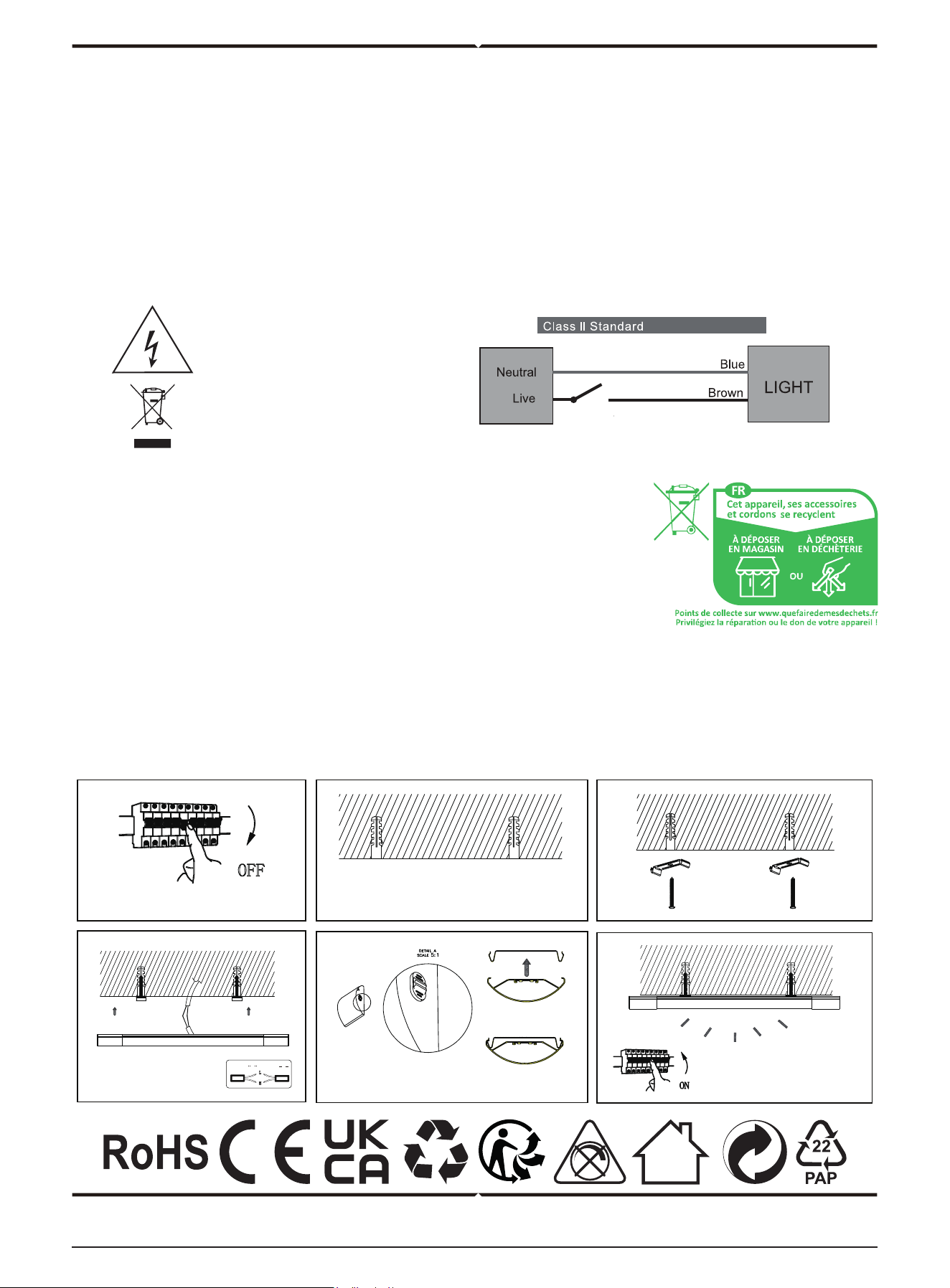

INSTALLATION DIAGRAM
WARNING
Note: Replace cable spec" H03VVH2-F 2X0.75mm² ", should be replaced by a qualified technician.
220V 50HZ
Figure 1
Figure 2
Figure 3
Figure 4 Figure 5 Figure 6
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
BLUE
BROWN
L
N
WIRING DIAGRAM
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
4. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall
be destroyed.
5. For Indoor use only
6. Inspect the product and accessories for damage prior to installation.
7. Maintain at least 0.2m clearance from flammable materials; avoid installing on ceilings or heat-emitting surfaces;
separate low and high voltage wiring.
8. Ensure power cords are long enough, free from kinks, and routed separately from other cables.
1. Ensure the power supply is switched o before beginning installation.
2. Select an appropriate mounting location, drill two holes, and insert screws
ensuring a minimum spacing of 50mm and less than the bracket length.
3. Align the shrapnel with the drilled holes and secure with screws; for luminaires
1.5m and longer, use three mounting buckles as appropriate. Ensure all
brackets are level to maintain optimal product performance.
4. Ensure all installation brackets are aligned horizontally to maintain optimal
product performance and structural integrity.
5. Connect the wires as per the diagram provided.
6. Use the button located at one end of the lamp to select the desired colour temperature: 3000K, 4000K,
or 6500K.
7. Firmly press the lamp body into the mounting buckles to secure it, then slide it along the buckles to adjust
positioning as needed.
8. Turn on the power and test the lamp.
