User Guide
Smart Wire-Free Security Camera
©2024 TP-Link 1910013620 REV1.0.0
Contents
About This Guide ···········································································1
Introduction ······················································································ 2
Appearance ······················································································3
Status LED Indication ··································································4
Charge the Battery ········································································5
Set Up Your Camera ·····································································6
Set Up Using Amazon Frustration-Free Setup ··············7
Mounting Tips ···············································································11
Mount Your Camera··································································· 12
Work with Tapo Solar Panel ···················································13
Authentication ··············································································14
1
About This Guide
This guide provides a brief introduction to the Smart Wire-Free Security Camera and the Tapo app, as well as regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Tapo Camera experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue
Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note:
Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Specications can be found on the product page at https://www.tapo.com.
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
• For camera setup and mounting videos, please refer to https://www.tp-link.com/support/setup-video/#cloud-cameras.
2
Introduction
The Tapo wire-free camera combines convenience and performance to meet all your security needs. With its versatile design, you can easily place it
on a tabletop or mount it on a wall or ceiling. Experience day and light color live view along with two-way audio, providing comprehensive monitoring
capabilities. It also comes with free smart AI detection to accurately identify events and send real-time notications, guarding every corner.
• 100% Wire-Free, Goes Everywhere - Embrace total freedom with its battery-powered, wire-free design. Its versatility eliminates outlet constraints,
enabling ultra-exible indoor and outdoor security monitoring from anywhere.
• Color Night Vision - Enhances your security by revealing vivid colors with built-in spotlights.
• Crisp Clear Details - Captures more details and delivers high-denition pictures.
• Rechargeable Battery - The built-in rechargeable battery leads to a long-lasting life (up to 180 days)*, extending your usage.
• Smart Person Detection - Get alerts when a person is detected, reducing false alerts and unnecessary notications, which also extends battery life.
• Optional Solar Panel - Enjoy a maintenance-free security experience with the Tapo Solar Panel, which provides a continuous power supply.
△
• Customizable Sound and Audio Alarm - Customize your alarm by recording your own audio and adjusting the brightness of the dual spotlights to
suit your preferences.
• Local and Cloud Storage
†
– Save recorded video on a microSD card (up to 512 GB), no subscription required. Cloud storage is also supported for
exibility.
• Two-Way Audio - Enables direct communication through a built-in microphone and speaker.
• IP65 Weatherproof - Performs well even in harsh environments with rain and dust, ideal for indoor/outdoor scenarios.
*180-day battery life is based on Tapo laboratory tests with 250s of use per day. The time of use includes recording and watching live views. Actual battery life may vary due to device
settings, usage, router specications, and environmental factors.
**
Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device’s specications.
△
Tapo solar panel purchased separately. Actual experience may vary due to placement angle, weather conditions, and camera usage.
†
microSD card must be purchased separately. Actual storage capacity depends on the size of the microSD card used. Subscribe for cloud storage at https://www.tapo.com/tapocare/
3
Appearance
Front Side
5
6
1 72 3 4 1
Motion Sensor
Light Sensor
6
Status LED
5
Lens
4
Microphone
3
1
2
1
Speaker
7
8
Power Button
11
USB Type-C Charging Port
9
microSD Card Slot
10
Reset Button
Use a pin to press and hold for at least 5 seconds
to reset the camera to factory default settings.
Press and hold for about 3 seconds
to turn on/o the camera.
Back
8
10
microSD
9
11
Spotlights
4
Status LED Indication
Blinking red and green
Blinking red slowly
Solid amber
Blinking red quickly
Solid red
Blinking amber quickly for 3 seconds
Solid green
Blinking green quickly
Starting up
Plugging in USB charger
Connected to the cloud
Ready for setup
Connecting to Wi-Fi
Connected to Wi-Fi
Camera resetting
Camera updating
5
Charge the Battery
The battery comes partially charged. We recommend that you fully charge the battery before use. This will take about seven and a half hours.
5V 1A USB Charger
Note:
1. Peel o lm from the camera before use.
2. Warning: Do not tear o the silicone part by force as it may aect the waterproof performance.
3. Charge the battery using the USB cable included in the package. Inappropriate cables may result in slow charging or failure to charge.
4. When you plug in the USB charger, the LED should blink amber quickly for 3 seconds. If not, make sure the power is running and check your connection.
5. The camera may not power up after falling. Plug in the USB charger to power it on again.
6. Keep the ports rmly covered when not in use to ensure waterproof performance.
7. Check the battery status on the Tapo app after setup.
6
Set Up Your Camera
Follow the steps below to set up your camera. For the setup video, please refer to https://www.tp-link.com/support/setup-video/#cloud-cameras.
Step 1. Download Tapo App
Get the Tapo app from the App Store or
Google Play, or by scanning the QR code
below.
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your Camera
Tap the button in the app and select your
model. Follow app instructions to complete
the setup.
OR
7
Set Up Using Amazon Frustration-Free Setup
Note: Amazon Frustration-Free Setup is only available for Tapo C410/C402. TC82 doesn't support Amazon Frustration-Free Setup.
What is Amazon Frustration-Free Setup?
Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi
password on each device.
To use this feature, conrm the following:
● The new Tapo device supports Amazon FFS.
● The new Tapo device is purchased from Amazon.
● You have an Amazon FFS enabled Alexa device or router.
● You have saved your Wi-Fi information to Amazon by using Alexa echo.
● Your Tapo device and router are on the same network as your Alexa echo.
LED Indications during Amazon Frustration-Free Setup
LED Status
Blinking red and green Ready for setup
Blinking amber FFS setup in progress
Solid green Working properly
If the LED does not turn solid green after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once.
Then open the Tapo app, tap the + button on the page, select your device model, and follow the app instructions. )
8
1. Open the Amazon Alexa app. Then tap More and select Skills &
Games.
How to use Amazon Frustration-Free Setup with Tapo devices
2. Enter Tapo in the search bar and choose Tapo.
9
3. Tap the ENABLE TO USE button.
4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized
successfully, the message Tapo has been successfully linked will come up.
10
5. Plug in your Tapo device and the setup will complete automatically in two minutes.
For setting up more Tapo devices, just plug in and enjoy!
Done!
If this device displays on the Home page in the Tapo app, it indicates this device has been successfully associated with your Amazon account and
joined your Wi-Fi network automatically.
If this device does not display on the Home page in the Tapo app, try setting it up manually. (Tap the + button on the page, select your device model,
and then follow the app instructions.)
11

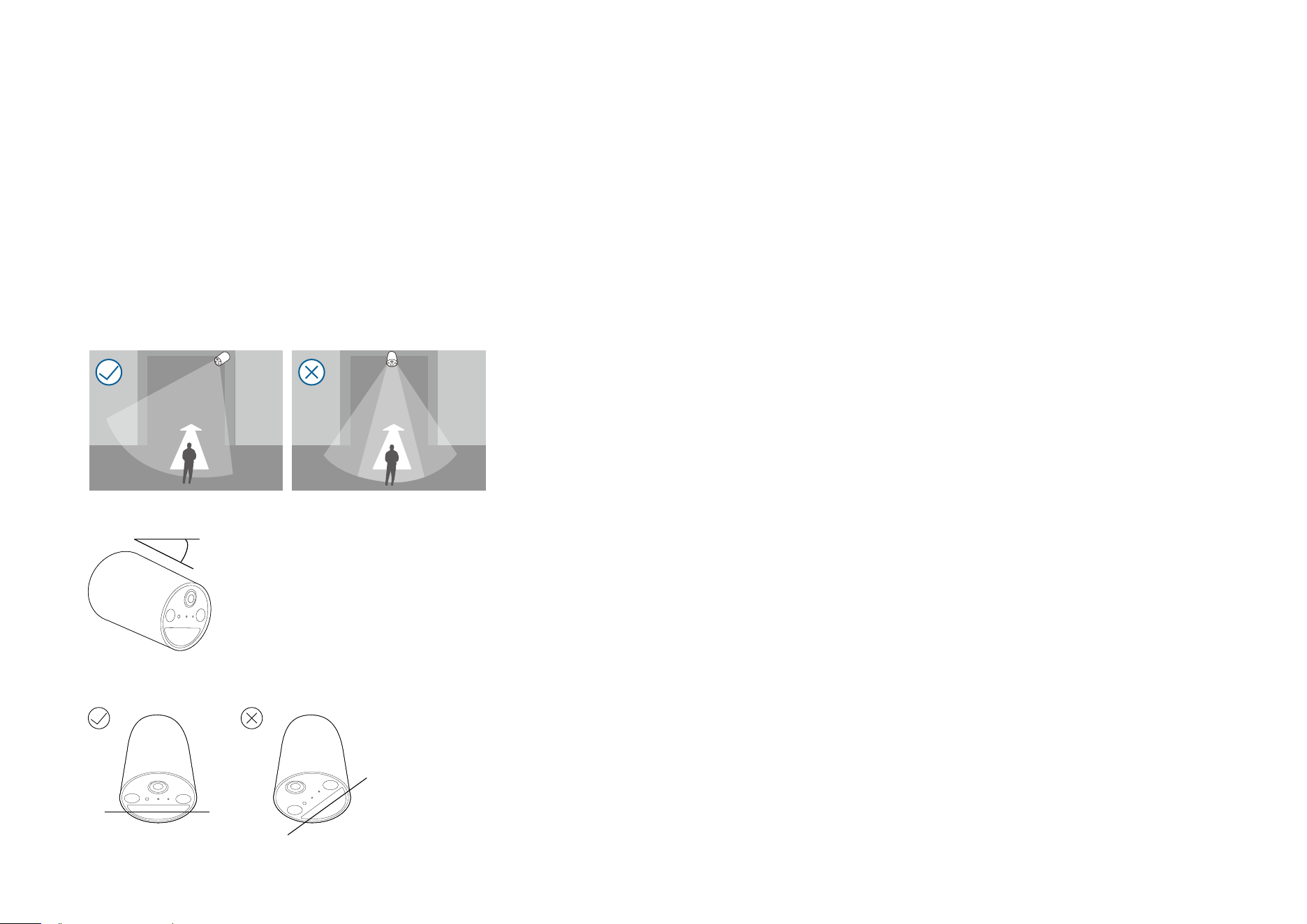

Mounting Tips
Read mounting tips before you mount the camera.
1. Avoid placing behind glass. Glass will obstruct the motion sensor of your camera.
2. Choose a proper location to mount your camera, or it will be triggered too often by false alarms.
• Avoid pointing the camera directly at swaying trees.
• Avoid pointing the camera directly at vehicles and pedestrians on the road.
• Avoid pointing the camera directly at street lamps and sunlight.
3. Mount your camera to the side so that movement goes across the len’s eld of view to better trigger motion detection and AI detection.
4. Tilt the camera downwards at an angle of about 20°.
5. Do not place the camera upside down.
6. Keep the motion sensor level for best results.
*Do not mount facing the direction of movement.
20°
12

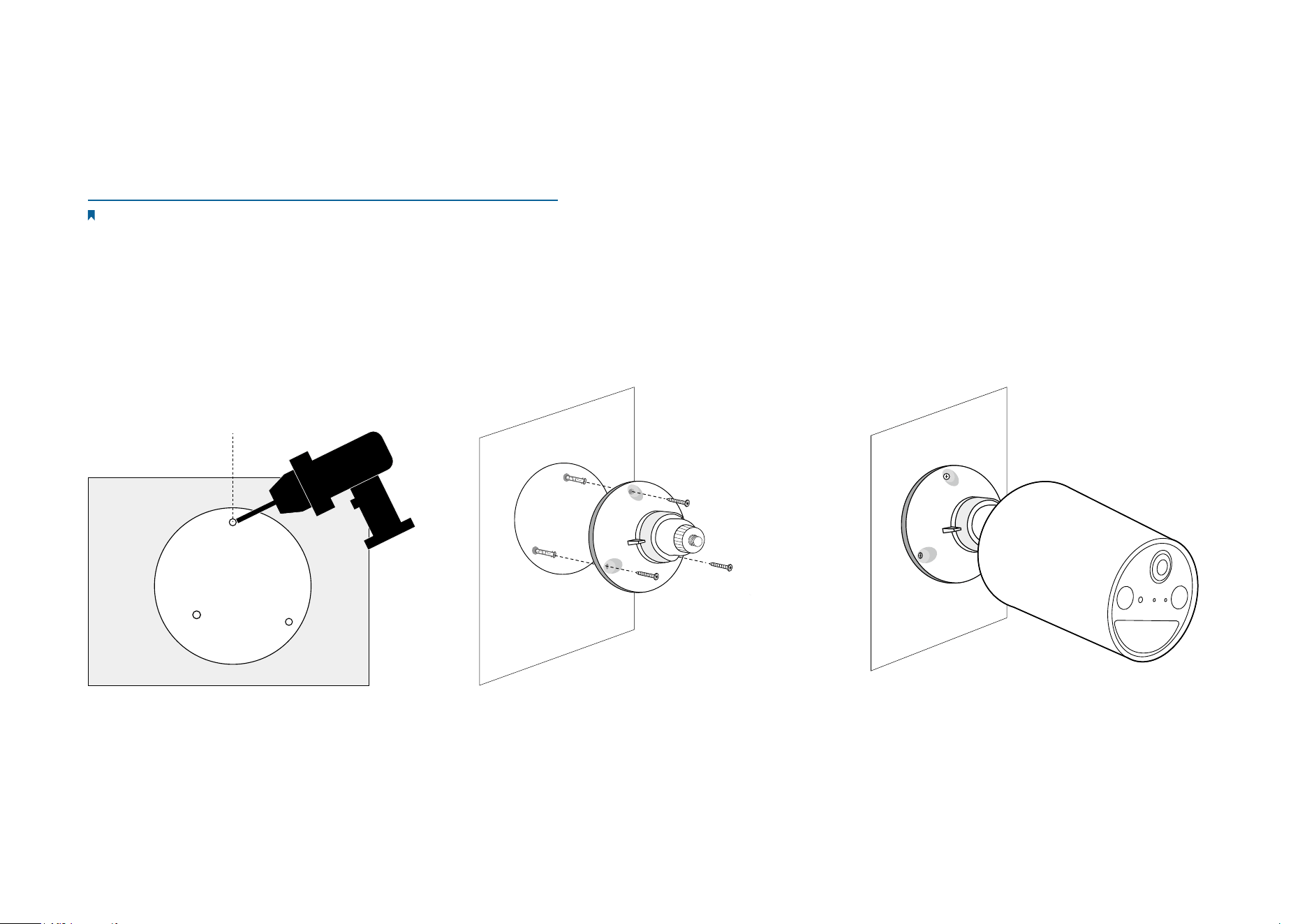

Mount Your Camera
When you nish setting up your camera in the Tapo app, you can follow the steps below to mount the camera. For the setup video, please refer to
https://www.tp-link.com/support/setup-video/#cloud-cameras.
Note: You can always get detailed mounting instructions in the Tapo app.
1. Drill Holes
Stick the mounting template to the desired
mounting place. Drill 3 holes according to the
template.
Φ=6 mm (15/64 in.)
2. Install the Bracket
Insert three anchors into the holes and use the
screws to ax the bracket over the anchors.
3. Install the Camera
Install the camera on the mounting bracket,
and adjust the camera angle.
13
Work with Tapo Solar Panel
The Tapo Solar Panel charges your Smart Wire-Free Indoor/Outdoor Security Camera continuously.
1. Install the waterproof gasket to the charging port of your camera.
2. Connect the solar panel to the charging port of your camera.
For detailed connection instructions, please refer to https://www.tp-link.com/support/faq/3800/
If you don’t yet have a Tapo Solar Panel, charge the rechargeable battery with a standard and high-quality DC 5V/2A battery charger. Keep
the charging port rmly covered when fully charged.
Note:
1. When using a dierent Tapo solar panel to charge this camera, please refer to https://www.tp-link.com/support/faq/3800/
2. If you use a third-party solar panel to charge this camera, we cannot guarantee the waterproof performance.
14
Authentication
FCC compliance information statement
Product Name: Smart Wire-Free Security Camera
Model Number: Tapo C410/Tapo C402/TC82
Component Name Model
USB ADAPTER A8-501000
Responsible Party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
15
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2024-02-19
FCC compliance information statement
Product Name: USB Adapter
Model Number: A8-501000
Responsible Party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
16
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2024-02-19
17
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
2412MHz—2472MHz (20dBm)
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,
2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tapo.com/en/support/ce/.
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way
of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment
Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.
18
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
19
NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
為避免本器材影像畫面遭偷窺或擷取，本器材使用者應先修改預設密碼，並定期更新密碼。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
• 電源供應器应使用在环境温度低於或等於40℃的室內。
限用物質含有情況標示聲明書
設備名稱：Smart Wire-Free Security Camera 型號（型式）：Tapo C410/Tapo C402/TC82
Equipment name Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent chromium
(Cr
+6
)
多溴聯苯
Polybrominated biphenyls
(PBB)
多溴二苯醚
Polybrominated diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
20
外殼 ○ ○ ○ ○ ○ ○
電源供應器 − ○ ○ ○ ○ ○
其他及其
配件
− ○ ○ ○ ○ ○
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value
of presence.
備考 3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам,
що передбачені чинними законодавчими актами України.
21
Safety Information
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t
hesitate to contact us.
• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not disassemble, repair or modify the product.
• Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to
malfunction resulting in an accident.
• Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
• Do not use liquid to clean the product. Only use a dry cloth.
• Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
• This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers
or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
• Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF
energy.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long time unplug the product from the power outlet.
• This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
• Operating Temperature: -20°C ~ 45°C (-4°F ~ 113°F)
• When mounting the camera with the magnetic base, we recommend installing it no higher than 2 meters.
• Adapter should be used indoors where the ambient temperatureis lower than or equal to 40°C.
22
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to
improper use of the device. Please use this product with care and operate at your own risk.
23
Explanation of the symbols on the product label
Note: Symbols may vary from products.
Symbol Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
DC voltage
Polarity of output terminals
Indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy efficiency Marking
Protective earth
Earth
Frame or chassis
24
Symbol Explanation
Functional earthing
Caution, hot surface
Caution
Operator’s manual
Stand-by
“ON”/”OFF” (push-push)
Fuse
Fuse is used in neutral N
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means
that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to
minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new
electrical or electronic equipment.
Caution, avoid listening at high volume levels for long periods
Disconnection, all power plugs
25
Symbol Explanation
m Switch of mini-gap construction
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
