INSTALLATION/OWNER’S MANUAL
DVD Multimedia Receiver with Bluetooth
featuring a 6.2" Touch Screen Display
VX2529
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.
Safety Notes: (Only DVD Receiver)
´
DVD Mechless
Copyright Notes
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
SD Logo is a trademark of SD-3C, LLC.
Other trademarks and trade names are those of their respective owners.
2
Page
Warning Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Information/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation/Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AM/FM Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD/USB/SD Card Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Media Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iPod Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .
Auxiliary Inputs/Rear Camera Operation. . . . . . . . . . . . . . . . . . . . . . . . . .
SWC Input Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual iPod APP Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
VX2529 PREPARATION
3
4
5
6
7
8
9-11
12-13
13
14-16
17-18
19-20
21
22
23
24
25
26
27
3
Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle
must not operate this unit by watching videos or playing video games while driving.
Failure to follow this instruction could lead to driver distraction which could result in
serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or
property damage.
Several states prohibit the installation of monitors/DVD players if the screen is visible from
the driver’s seat. If you reside in a jurisdiction which has enacted such a law, this unit
must not be installed so that the screen is visible from the driver’s seat. When installing
this unit in the front console/dashboard, the unit must be positioned so that it is facing the
front passenger seat only. Failure to follow this instruction could lead to driver distraction
which could result in serious injury or death to the vehicle’s occupants or persons outside
the vehicle and/or property damage.
This unit is designed so that it may be operated only when the vehicle is in “Park” and the
parking brake is fully engaged. To this end, this unit includes a parking brake lock-out
feature which prohibits the unit from operating if the vehicle is not in “Park” and/or the
parking brake is not fully engaged. When installing this unit, the installer must connect
the parking brake detect wire to the parking brake mechanism in order to make the
parking brake lock-out feature operable. DO NOT simply ground the parking brake detect
wire to a metal portion of the vehicle. Failure to properly install the parking brake lock-
out feature could lead to driver distraction which could result in serious injury or death to
the driver’s occupants or persons outside the vehicle and/or property damage.
Once the parking brake lock-out feature is installed, the owner/user must not attempt to
disrupt/neutralize the parking brake lock-out feature by (a) partially engaging the parking
brake and/or (b) purchasing/using any device or unit designed to send necessary brake
signals to the unit. Failure to follow these instructions could lead to driver distraction
which could result in serious injury or death to the driver’s occupants or persons outside
the vehicle and/or property damage.
When operating this unit, keep the unit’s volume level low enough so that the vehicle’s
* Note
The above video Content is for DVD Receiver Only.
occupants can hear traffic-related sounds such as police and emergency vehicles.
Failure to follow this instruction could lead to driver distraction which could result in
serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or
property damage.
WARNING
VX2529 PREPARATION
4
VX2529 OPERATION
Safety Information
Please read all instructions carefully before attempting to install or operate.
Due to its technical nature, it is highly recommended that your DUAL VX2529 is installed by a professional installer
or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.
To prevent damage or injury:
• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may
cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• You cannot view video while the vehicle is moving. Find a safe place to park and engage the parking brake.
• If you experience problems during installation, consult your nearest DUAL dealer.
• If the unit malfunctions, reset the unit as described on page 10 first. If the problem still persists, consult your
nearest DUAL dealer or call tech assistance @ 1-866-382-5476.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use a stiff cloth, or volatile solvents
such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than
usual. Normal brightness will return after using the monitor for a while.
• When extending the ignition, battery or ground cables, make sure to use automotive-grade cables or other cables
with an area of 0.75mm (AWG 18) or more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous
to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap
immediately.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
5
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it
would be subject to dust, dirt or excessive vibration.
Getting Started
• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve.
• Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness as shown on page 6. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately).
• Reconnect negative battery terminal, and test for correct operation.
• Snap trim ring into place (if required).
• Slide unit into mounting sleeve to secure.
VX2529 INSTALLATION
Preparation

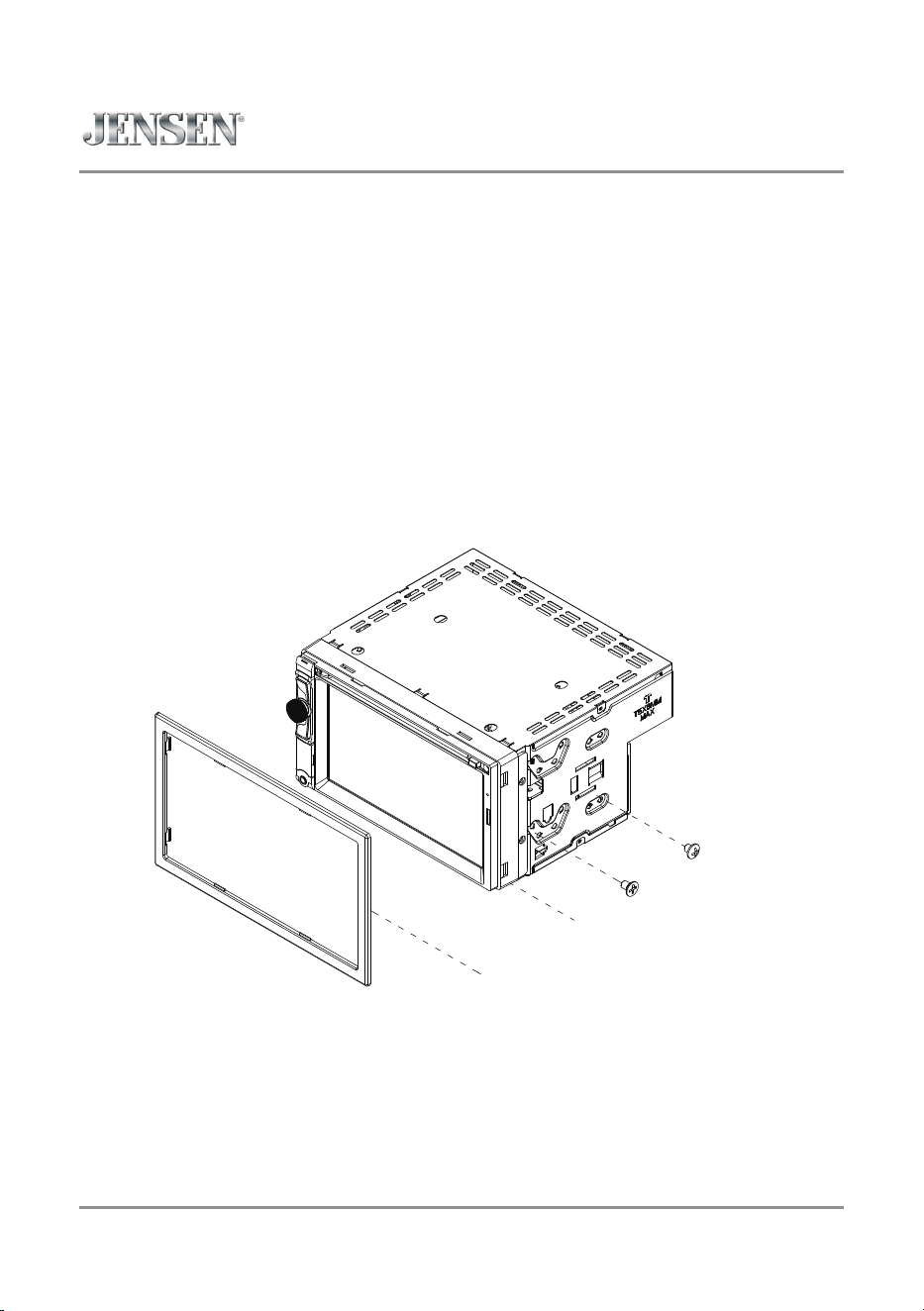

TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Trim Ring
Main Unit
Taptite Truss
Head 5x6mm
Taptite Binding
Head 5x6mm
6

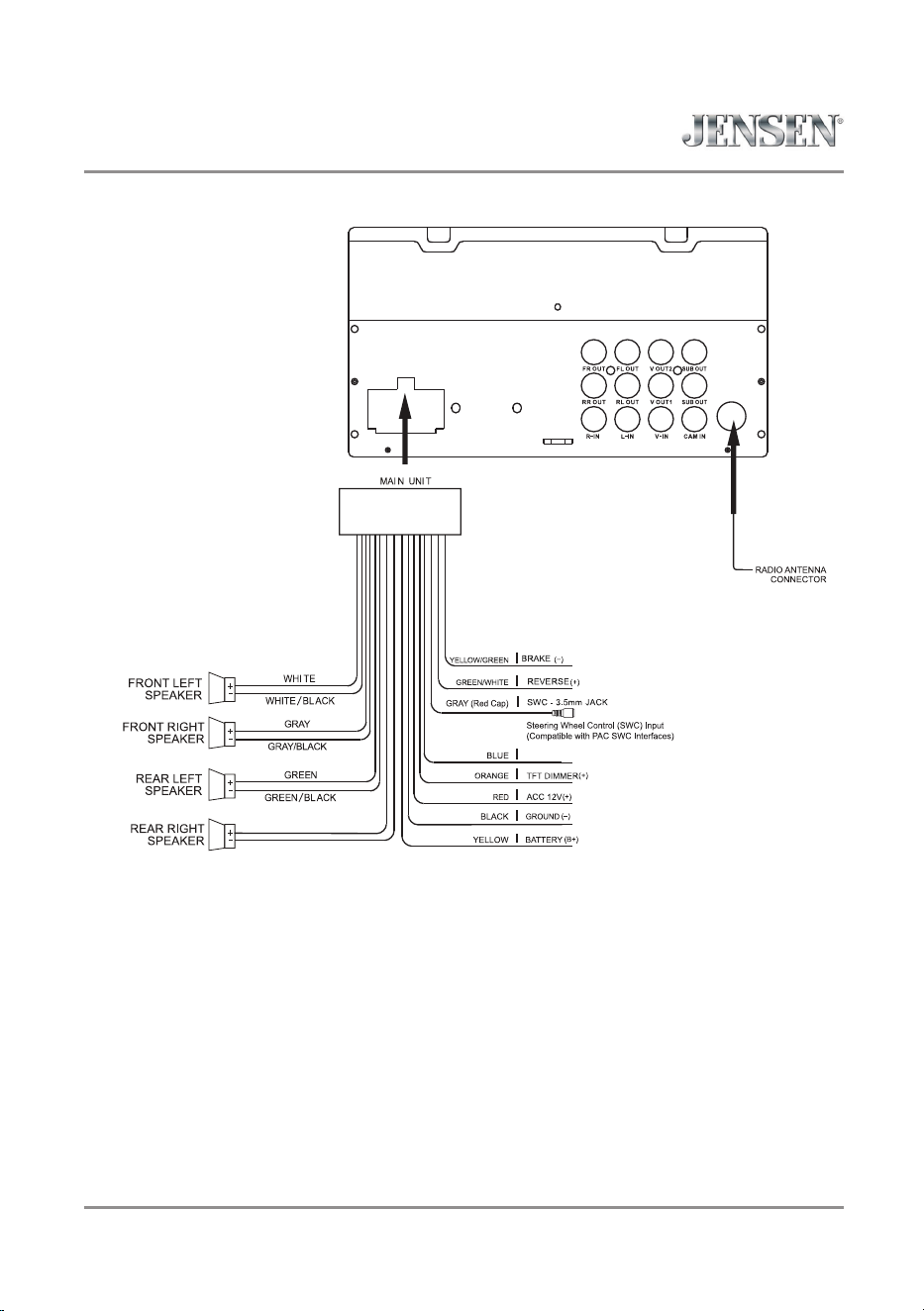

Wiring Diagram - Inputs/Outputs
VX2529 INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 10 amp ATM mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
VIOLET
VIOLET/BLACK
ANT/AMP(+)
7

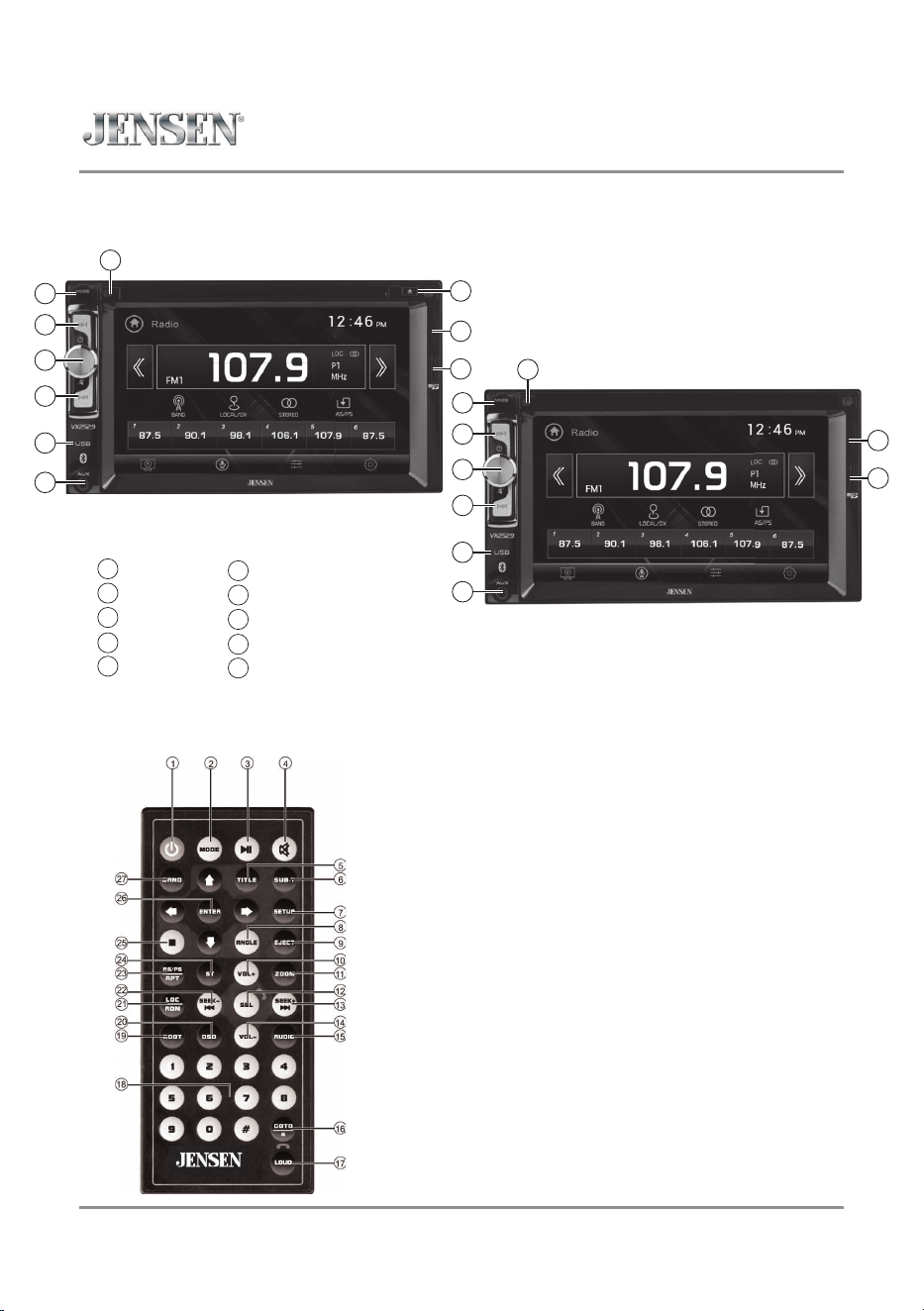

Control Locations
VX2529 OPERATION
microSD
Microphone
Eject
Reset
Mode
1
2
3
Tune/Track Up
Power / Volume / Mute
Tune / Track Down
USB Port
Auxiliary Input
6
7
8
9
4
5
Audio
Go To / *
Loudness / End Call
Number Keys
Root
OSD (On Screen Display)
Local / Random
Seek Down / Previous Track
AS/PS / Repeat
Stereo
Stop
Enter
Band
Power
Mode
Play / Pause
Mute
Title
Subtitle
Setup
Angle
Eject
Volume Up
Zoom
Select / Talk
Seek Up / Next Track
Volume Down
1
12
2
13
3
14
4
15
5
16
6
17
7
18
8
19
9
10
20
11
21
22
23
24
25
26
27
10
5
4
6
7
8
9
10
2
3
1
5
4
6
7
8
9
10
2
1
_

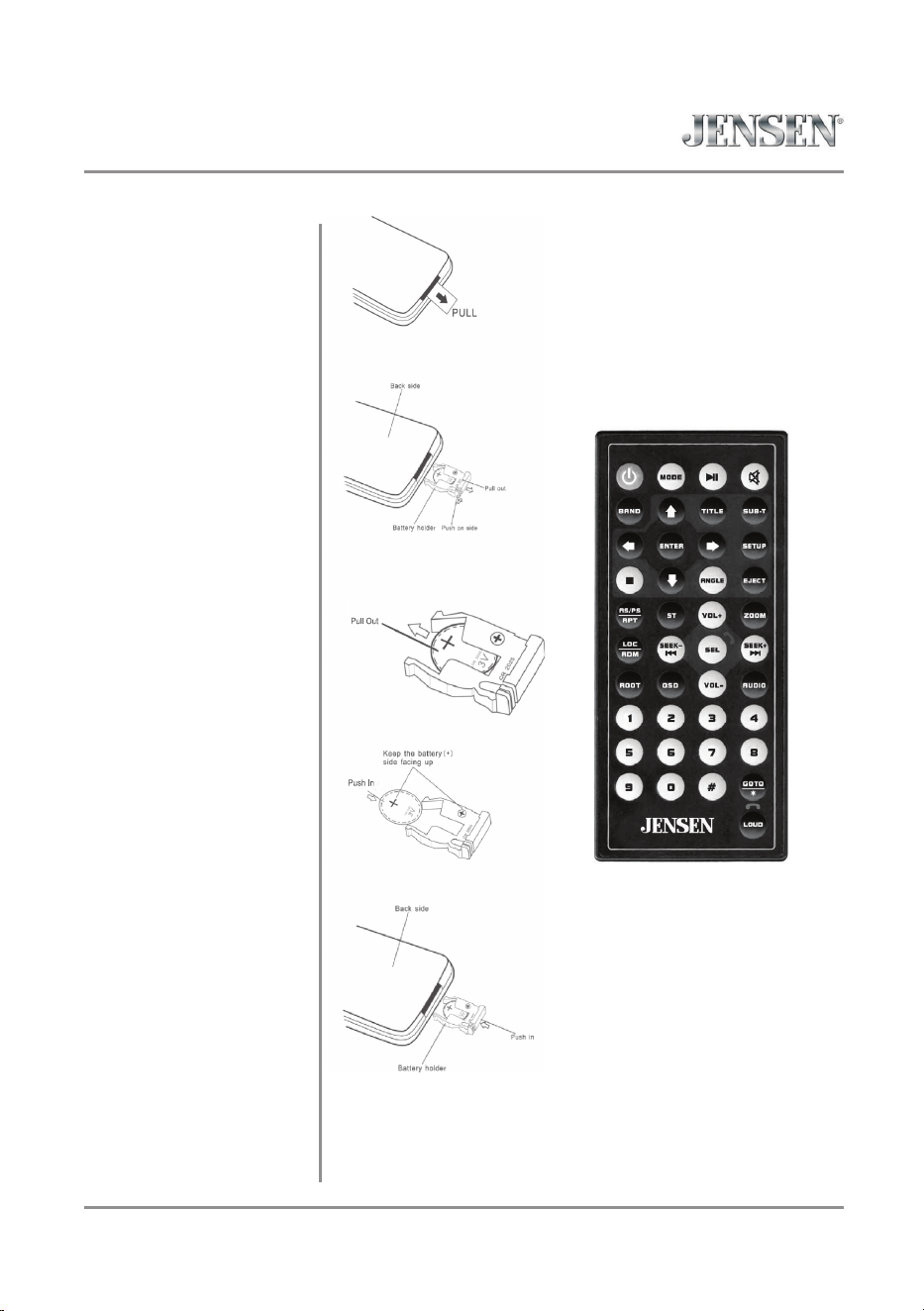

Remote Control Preparation
VX2529 OPERATION
Notes:
• The remote control uses one 3 volt Lithium
CR2025 battery. Remove the battery if the
remote will not be used for a month or
longer.
• Remove and dispose of battery properly.
• Do not store battery with metallic objects
or materials.
Remove battery insulation tape .
To insert or replace the battery,
remove the battery holder.
Remove the battery from the
battery holder.
Install the new battery.
Make sure to keep the (+) side up.
Insert the battery holder .
9
Power On/Off
Volume
Mute
Mode
Auxiliary Input
iPod
SD Card
Main Menu
Reset
Momentarily press to turn the unit on. Press and hold to turn the
unit off.
Rotate the volume knob to increase or decrease the volume level.
Momentarily press MUTE to silence the audio. Momentarily press MUTE
again to return to the previously selected volume. Rotating the volume
knob while the volume is muted will also cancel the mute function.
Press MODE to step through all available input modes: Radio, Disc
(which includes DVD and CD playback), SD Card, AV In, iPod, Bluetooth
Phone, Bluetooth Music, Auxiliary Input, Rear Camera and Settings.
Modes of operation are indicated on the display and/or the monitor.
Optional iPod device and SD card must be connected/inserted to
appear in the mode selection string.
Connect external audio/video devices to the 3.5mm auxiliary input on
the front panel.
Connect an iPod device to play MP3 files.
Insert an SD card into the SD slot to play MP3 files.

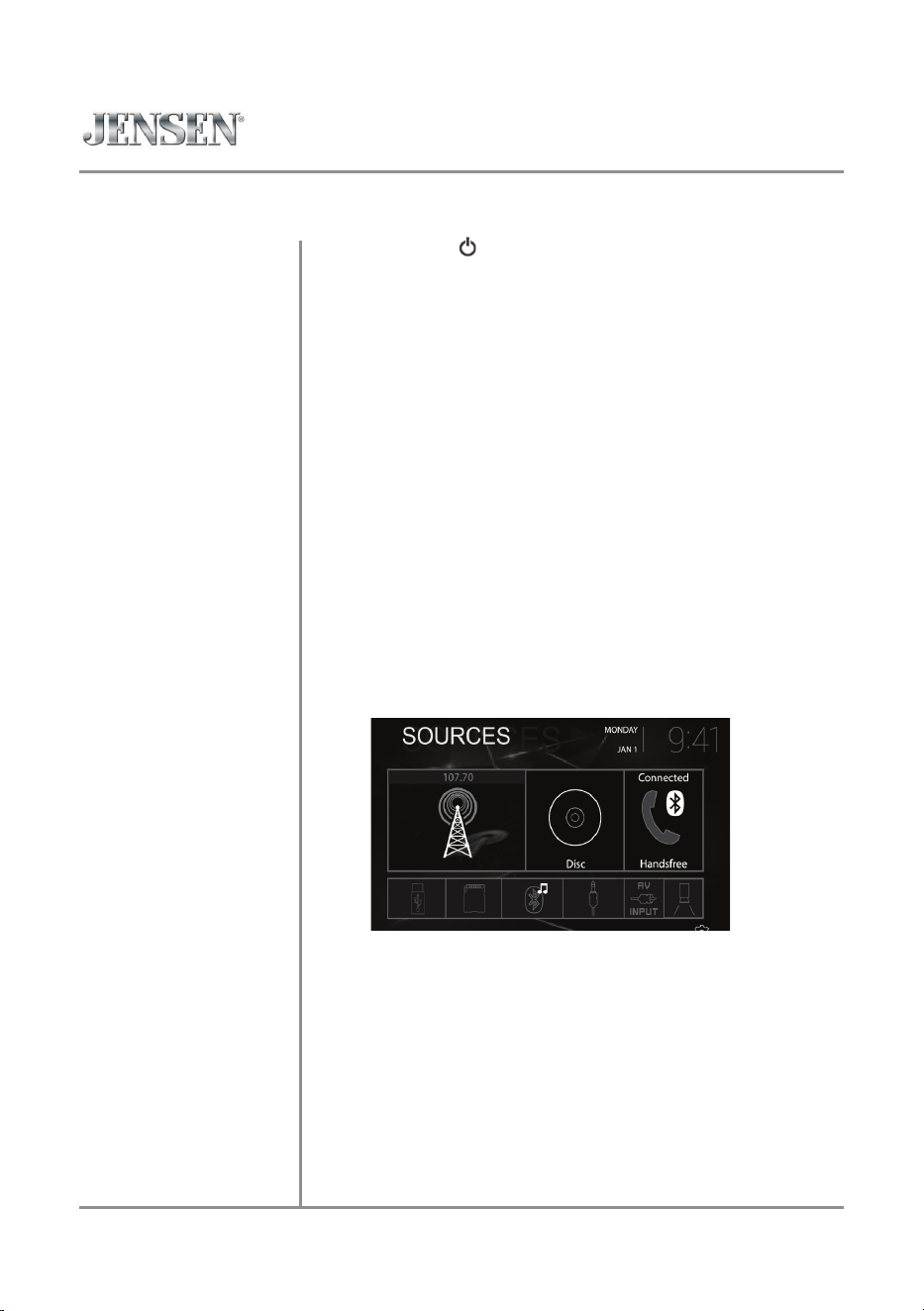

Press the house ico
n in the top left corner to access the Main Menu
screen. Use the arrows in the bottom corners to navigate to the next or
previous screen.
To resolve abnormal operation or if the unit is inoperable, use the
tip of a pen to pr
ess the RESET button. The unit will reset the main
processor to the default settings.
General Operation
VX2529 OPERATION
10

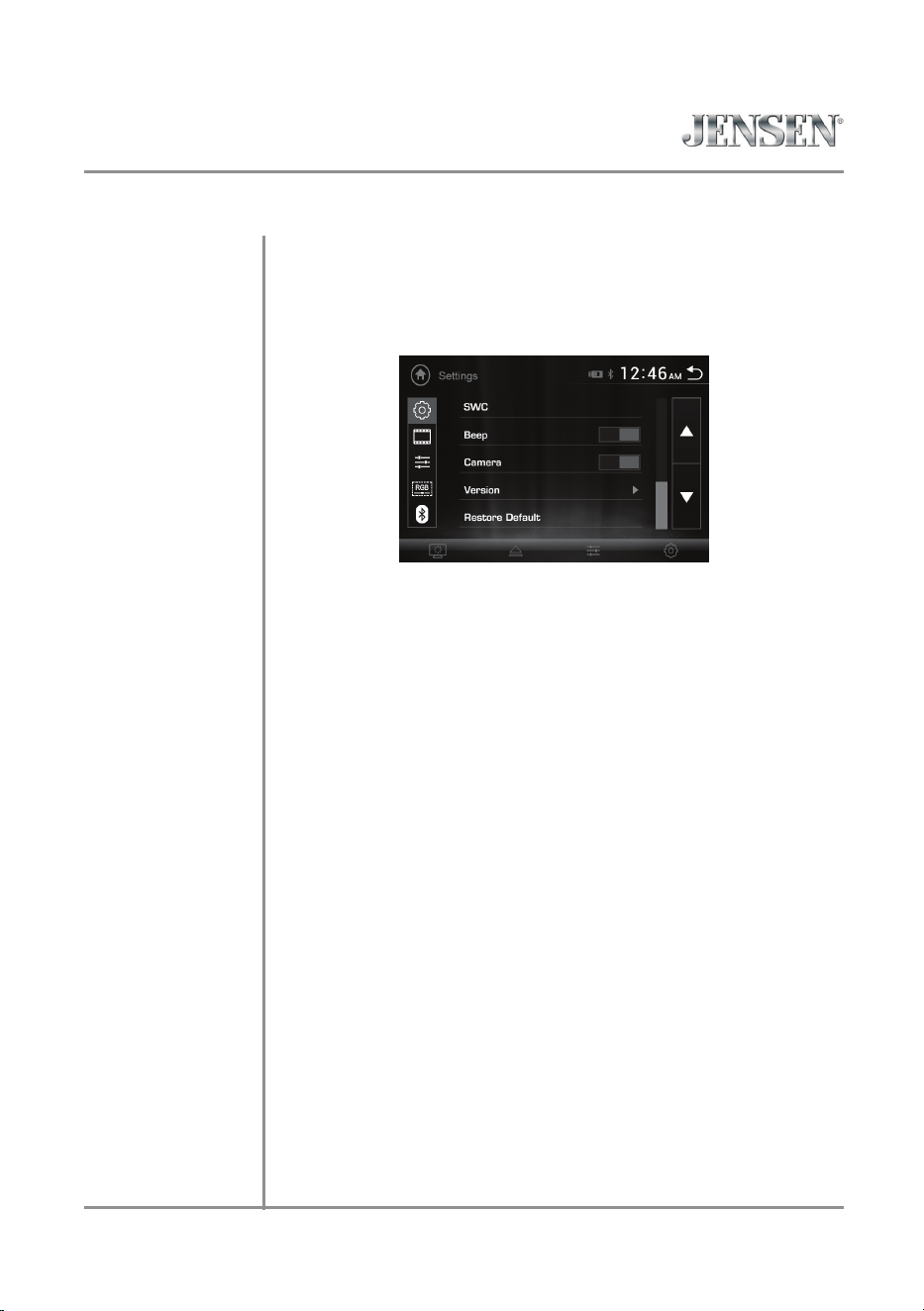

From the Main Menu screen, select Settings to access the Setup menu and
select from five categories represented by the icons on the left side of the
screen: General, Language, Audio, Screen and Bluetooth. Select the desired
sub-menu, and adjust using the up/down arrows on the right side of the
screen. To return to the previous screen, use the arrow in the upper right
corner of the screen.
General:
• OSD Language - On-screen display language is set to English.
• Wallpaper - Select one of three wallpaper options.
• Panel Adjust - Follow the prompts to calibrate the touch screen.
• Radio Area - Adjust the following radio options: Europe, USA, South
America, Russian and Asia.
• Time Setting - Access and adjust date and time settings.
• Beep - Turn the audible beep on or off.
• Camera - Turn the rear camera input on or off.
• Version - View current version numbers for the unit.
• Restore default - Press to restore unit to factory settings.
Language:
• Audio Language - Select a language option for the unit's audio.
• Subtitle Language - Select a language for subtitles (or select to turn
subtitles off).
• Menu Language - Select a language option for the unit's menu options.
Audio:
• Sound Effect - Adjust EQ, Surround Sound or Balance/Fader settings.
• Subwoofer - Press to adjust subwoofer frequency and volume.
• Loudness - Press to turn Loudness feature on or off.
• Loudness Cutoff Frequency - When the Loudness feature is activated,
press to set the Loudness cutoff frequency to 400Hz, 800Hz or 2400Hz.
Screen:
• Aspect Ratio - Select between 4:3PS, 4:3LM or16:9.
• Adjust - Adjust Brightness, Contrast, Hue, Saturation and Sharpness.
• Panel - Adjust Backlight settings, or turn Backlight off.
Bluetooth:
• Auto Connect - Turn Auto Connect feature on or off.
• Auto Answer - Turn Auto Answer feature on or off.
General Operation
VX2529 OPERATION
Setup Menu
11
General Operation
VX2529 OPERATION

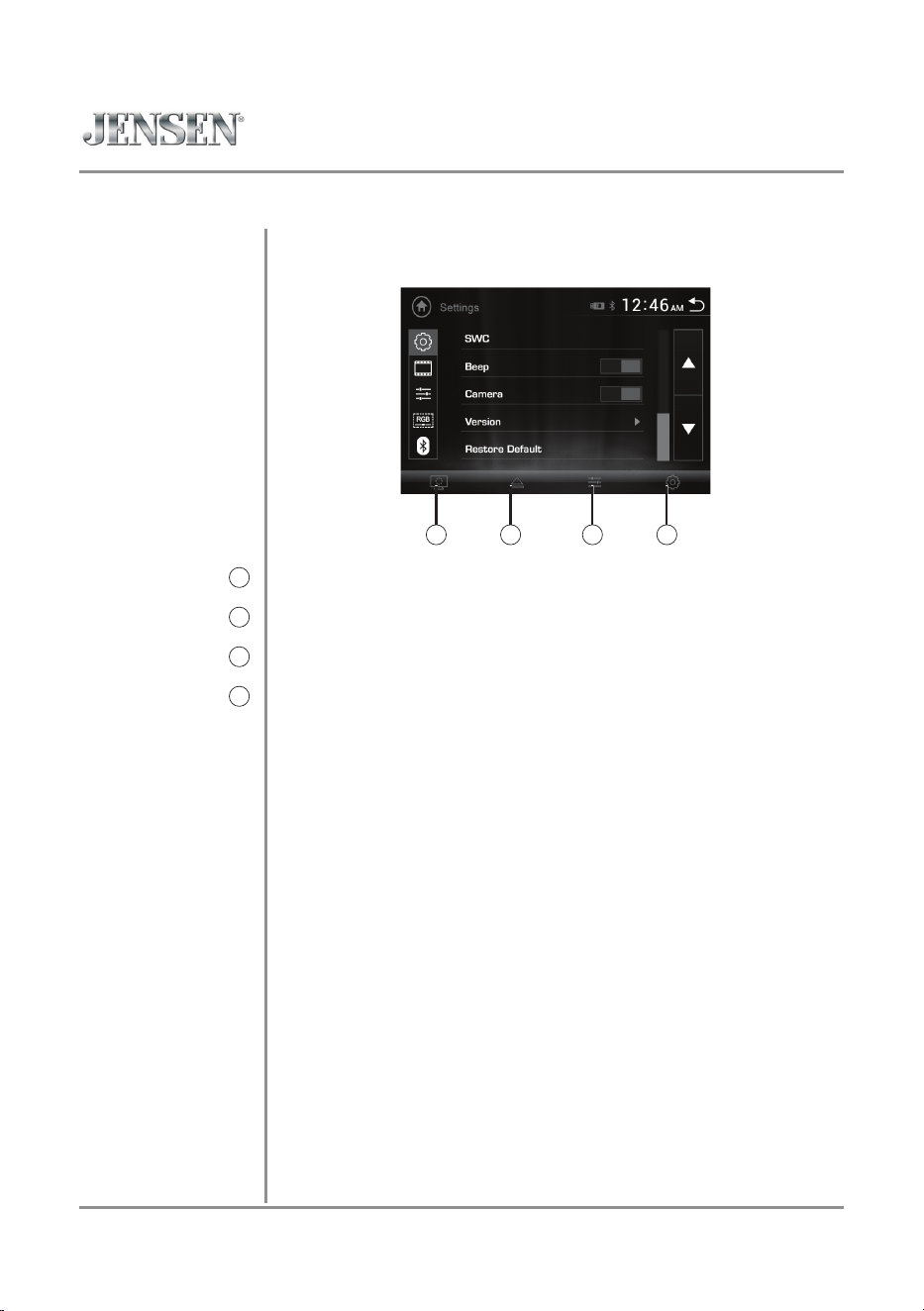

The touch screen controls on the bottom of each screen allow direct access
to important features during any mode of operation.
Press to dim the display or put the unit in Stanby mode.
Press to eject the disc.
Press to adjust audio options such as EQ, Surround Sound and Balance/
Fader.
Press to access the settings menu.
Touch Screen
Controls
Standby
1
Eject
2
Audio
3
Settings
4
1 2 3 4
12

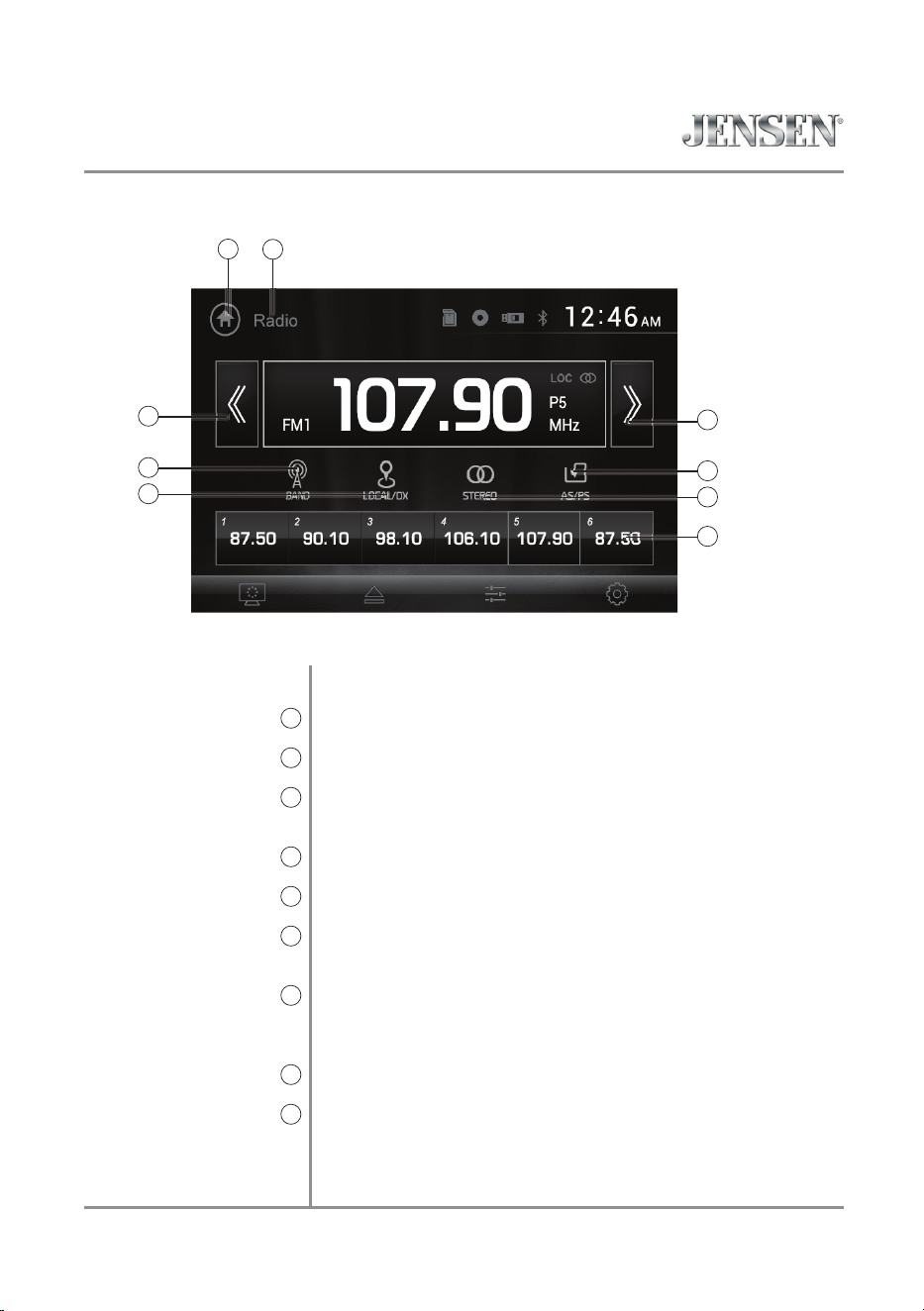

Select the Radio icon from the Main Menu screen.
Press to return to Main Menu screen.
Displays current mode of operation.
Press and hold << to seek a lower frequency. Press << momentarily
to tune the unit down one step at a time.
Press between 2 AM and 3 FM bands.
Press to toggle between Local and DIstance tuning.
Press and hold >> to seek a higher frequency. Press >> momentarily
to tune the unit up one step at a time.
Press to scan presets and listen to the first 10 seconds of each. Press
again to stop scanning and listen to the station. Press and hold to
automatically find and store the strongest stations as presets.
Press to toggle between Stereo and Mono tuning.
Press and hold to set the current station in that preset spot. Press
momentarily to recall the desired preset and begin playback.
Radio Operation
Main Menu
1
Current Mode Indicator
2
Tune Frequency Down
3
Band
4
Local / Distance
5
Tune Frequency Up
6
AS/PS
7
Stereo
8
Preset Stations
9
1
3
VX2529 OPERATION
2
AM/FM Tuner Operation
6
4
5
7
8
9
13
VX2529 OPERATION

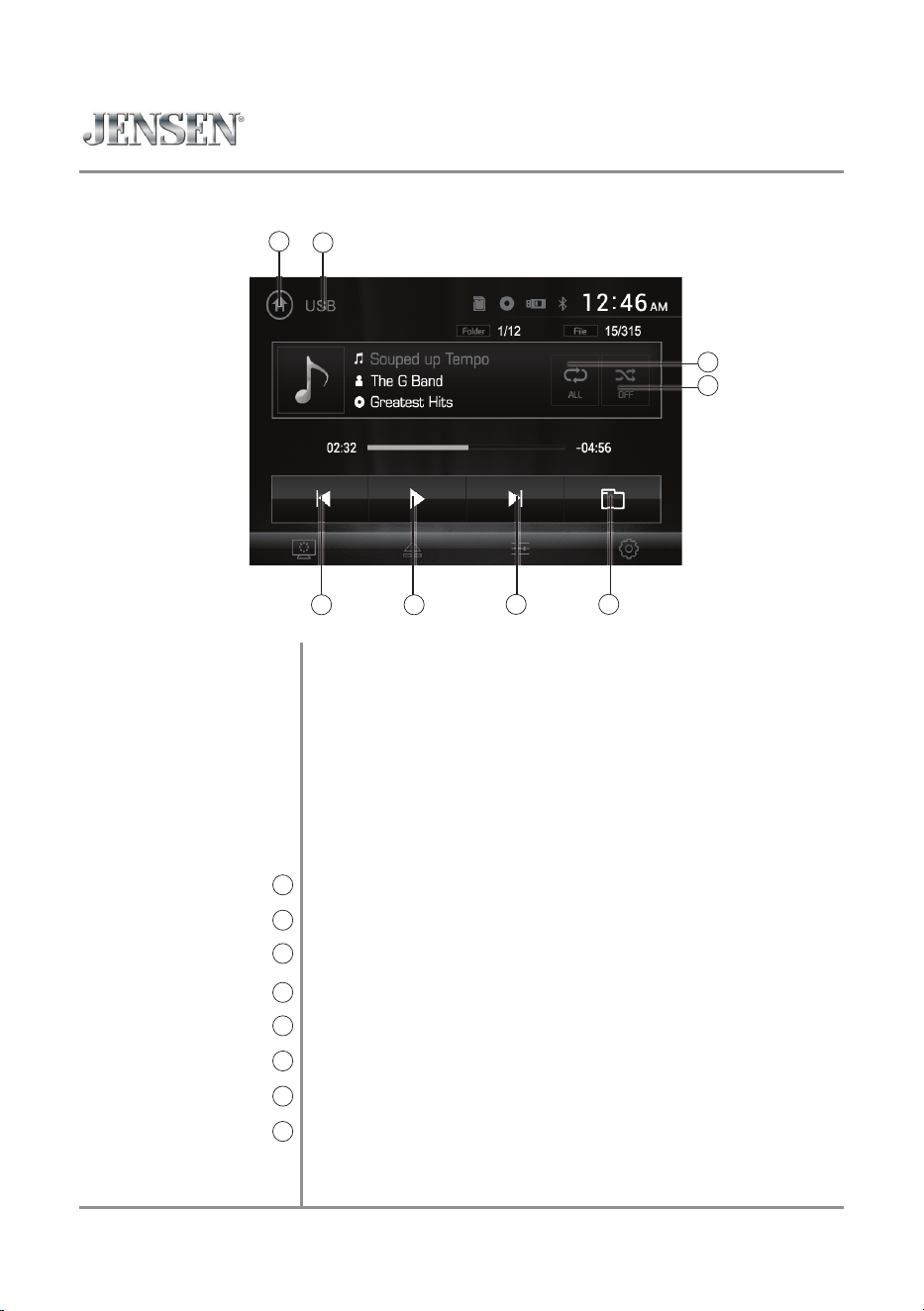

CD/USB/SD Card Operation
CD/USB
or SD Operation
Main Menu
1
Current Mode Indicator
2
Repeat
3
Random
4
Previous File / Track
5
Play / Pause
6
Next File / Track
7
Folder Access
8
To play audio files from a disc or MP3 files from a disc, USB device or SD
card, insert disc or device and playback will begin automatically. To return
to disc, USB or SD card playback from another mode of operation, select
the corresponding icon from the Main Menu.
• Disc Playback - Insert disc into the slot, and playback will begin
automatically.
• USB Playback - Insert a USB device into the USB slot on the side of
the unit.
• SD Card Playback - Insert SD card into the SD slot on the top of the
unit. When inserting an SD card, the label should face up.
Press to return to Main Menu screen.
Displays current mode of operation.
Press to select a repeat option: Repeat 1, Repeat Folder or Repeat Off.
Press to enable or disable random playback.
Press to go back to the previous file or track.
Press to pause or resume playback.
Press to advance to the next file or track.
Press to access all folders on device.
1
2
3
4
5 6
7 8
14
VX2529 OPERATION
Media Compatibility
The following types of discs/files are compatible:
• CD-DA, CD-ROM (ISO), CD-R, CD-RW
• DVD Video, DVD+R/RW, DVD-R/RW
The following types of discs/files are not compatible:
• WMA files that are protected by DRM (Digital Rights Management)
• WMA lossless format
• Discs recorded with Track At Once or packet writing
• MP3 PRO format, MP3 playlists
• RMP format
• WAV format
• WMV format
• AAC, protected AAC, M4V, M4A format
Some recordable DVD's and CD's may be incompatible with this unit,
depending on media type and recording method.
MP3 playback sequence begins in the root folder of the disc, USB flash drive
or SD card. Any empty folders or folders that do not include MP3 files are
skipped.
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root folder).
• Valid characters for folder/file names are letters A-Z (all caps), numbers
0-9, and “_” (underscore). Some characters may not be displayed correctly,
depending on the character type.
• This device can play back discs in Joliet and other standards that conform
to ISO9660. MP3 written in the formats other than the above may not play
and/or their file names or folder names may not be displayed properly.
Some files may not play or be displayed correctly, depending on sampling
rates and bit rates.
For best results, use the following settings when ripping MP3 files:
128kbps or higher constant bit rate
44.1kHz or higher sampling frequency
Media Compatibility
Playback Order
Compatible Recording Formats
Notes
15

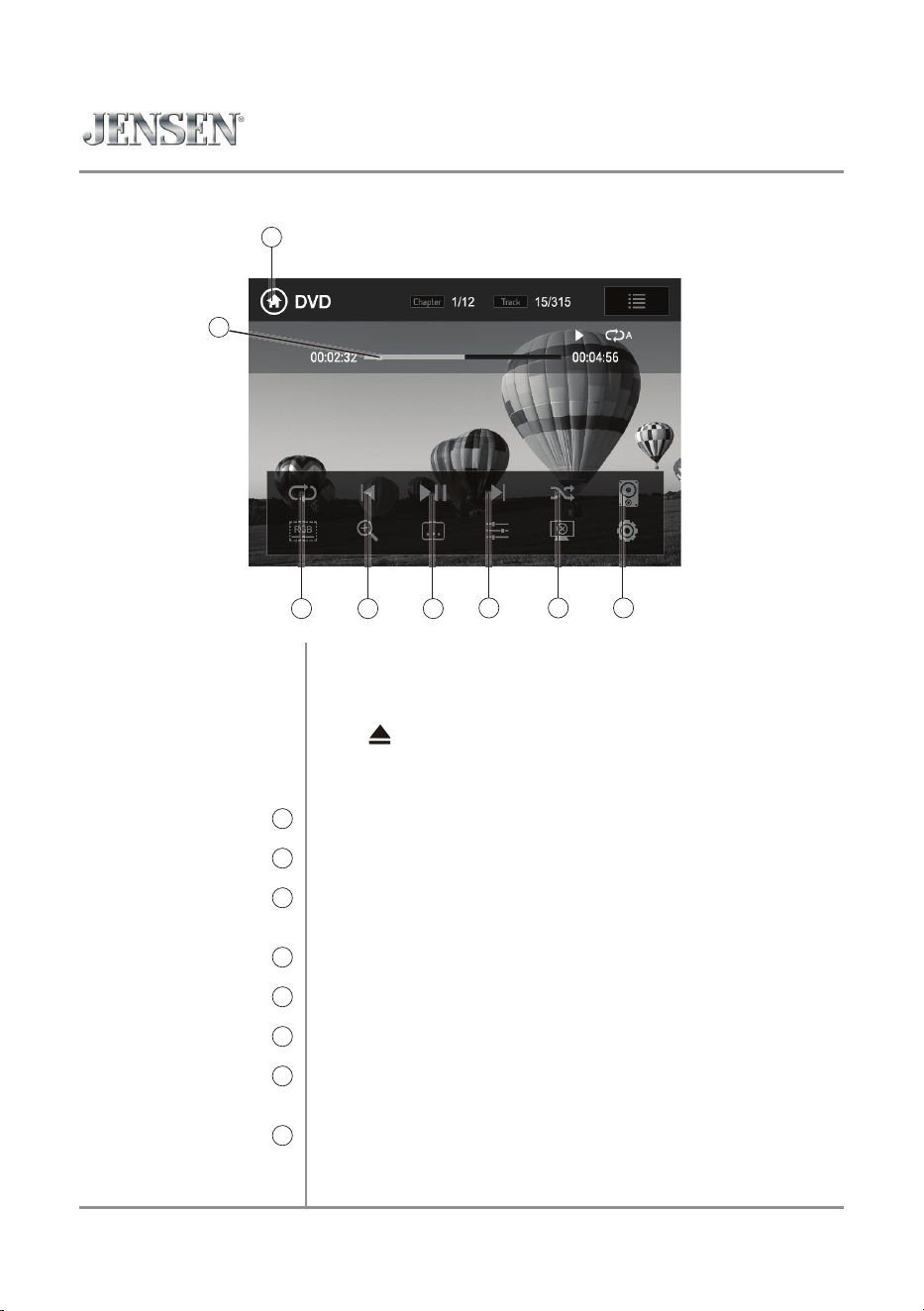

Inserting a Disc
Ejecting the Disc
Touchscreen Controls
Main Menu
1
Elapsed Time
2
Repeat
3
Previous Chapter
4
Play / Pause
5
Next Chapter
6
Random
7
Audio
8
Insert disc into the slot, and playback will begin automatically. Sub-
menus may have to be pressed to access the DVD content. Read the
directions of your specific DVD disc for other features.
Press to eject the disc.
Press anywhere on the LCD to display touch screen controls.
Press to return to Main Menu screen.
Displays elapsed time and time remaining on the DVD.
Press to select from the following repeat options: Repeat Chapter,
Repeat Title, Repeat All or Repeat Off
Press to return to the previous chapter on the DVD.
Press to play or pause DVD playback.
Press to advance to the next chapter.
Press Random to play chapters in random order or Random Off to play
disc in order.
Press to adjust audio language settings.

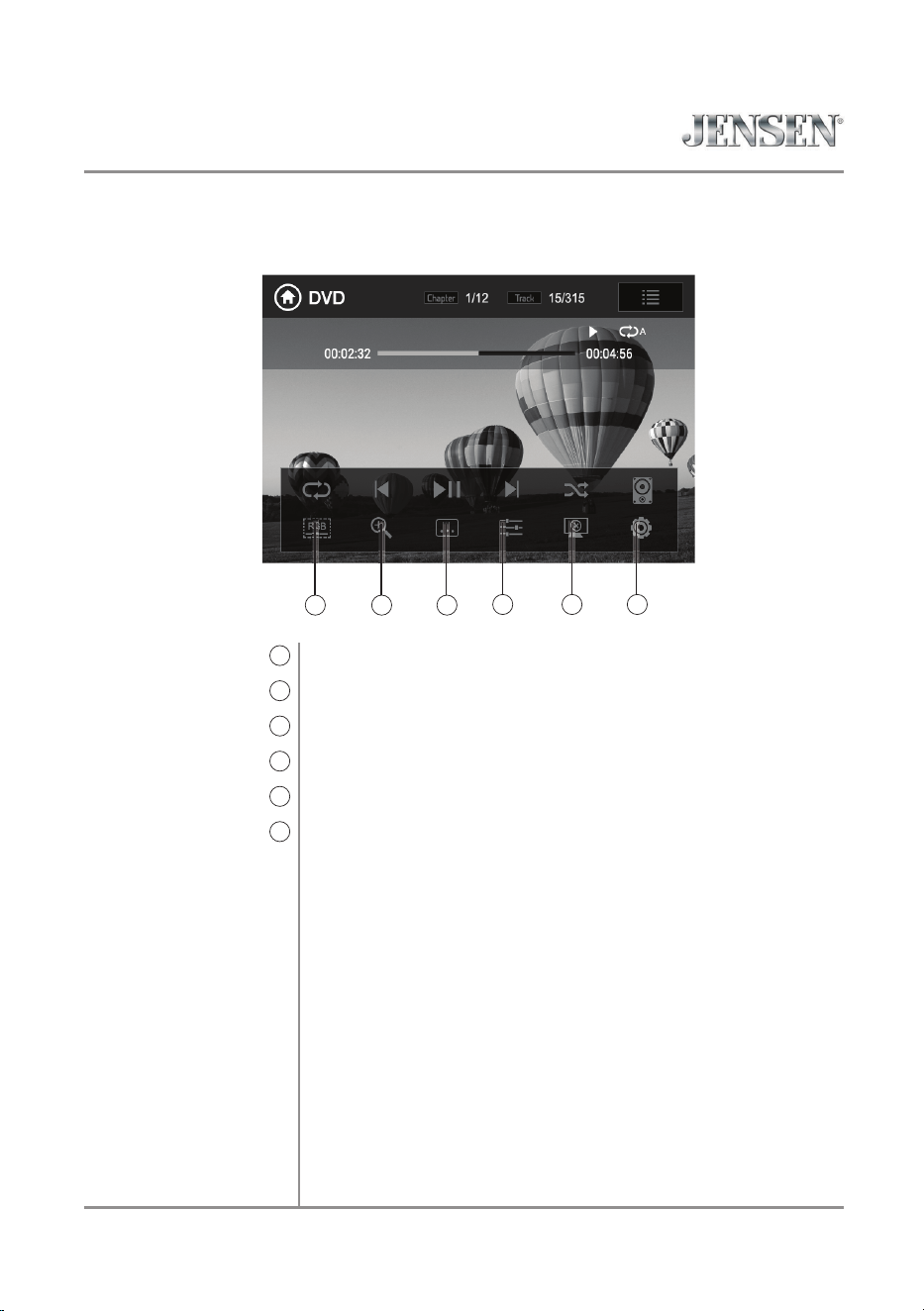

DVD Operation
VX2529 OPERATION
1
2
43 5
76 8
16
DVD Operation
VX2529 OPERATION
Press to adjust screen color settings.
Press to zoom in or out on an image.
Press to access subtitle options.
Press to adjust audio options.
Press to put the monitor in standby mode.
Press to directly access the setup menu.
Screen Setup
9
Zoom
Subtitle
Audio
Monitor On/Off
Settings
10
11
12
13
14
91011121314
17

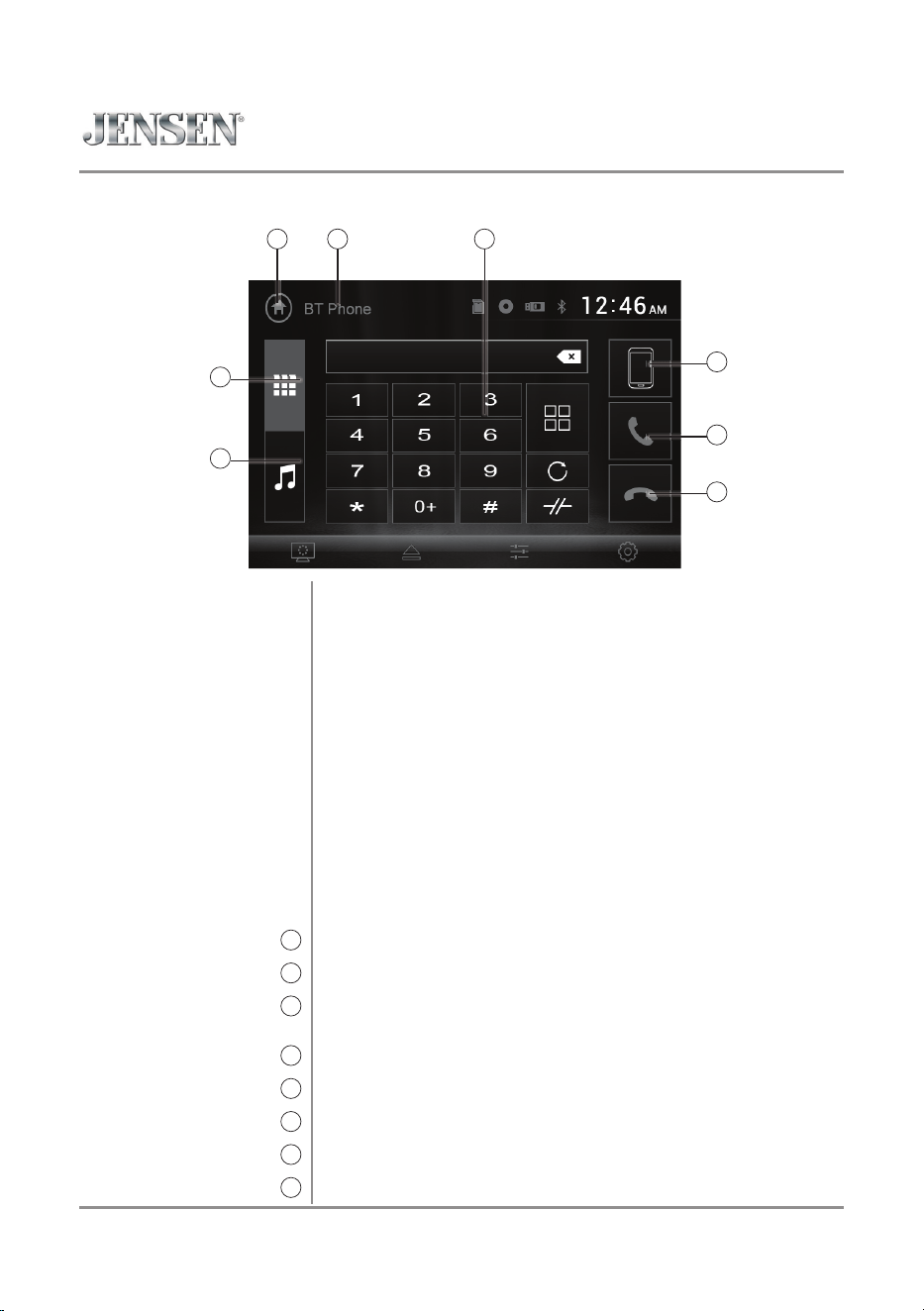

Bluetooth Operation
Before you can use a Bluetooth device, it must be paired and
connected. Make sure that Bluetooth is activated on your device
before you begin the pairing process.
The unit broadcasts the pairing signal constantly when no
devices are currently connected. Complete the pairing sequence
from your Bluetooth device. Refer to the owner's manual for
your device for more details. The device name is "VX2529". The
Bluetooth passcode is "0000". The unit can be in any mode of
operation when pairing is performed. On certain phones, pairing
may need to be done more than once.
Most Bluetooth devices support the auto-connect feature and will
connect automatically if the device is in range when the unit is
powered-on. If your device was previously paired but does not
connect, enter the Bluetooth setup menu and ensure that Auto
Connect is On.
To access the phone, select Bluetooth Phone from the Main Menu
or press the phone icon from any operational mode.
Press to return to the Main Menu screen.
Displays current mode of operation.
Use the phone keypad to dial the desired phone number.
Alternately, numbers can be dialed directly from the phone.
Press to access Bluetooth phone.
Press to access Bluetooth music.
Press to view a list of available devices.
Press to connect a call.
Press to end a call.
Preparation
Pairing a New Device
Connecting a
Paired Device
Bluetooth Phone
Main Menu
1
Current Mode Indicator
2
Phone Keypad
3
Bluetooth Phone
4
Bluetooth Music
5
Available Devices
6
Talk
7
End Call
8
1
2
4
5
6
7
3
8
VX2529 OPERATION
18

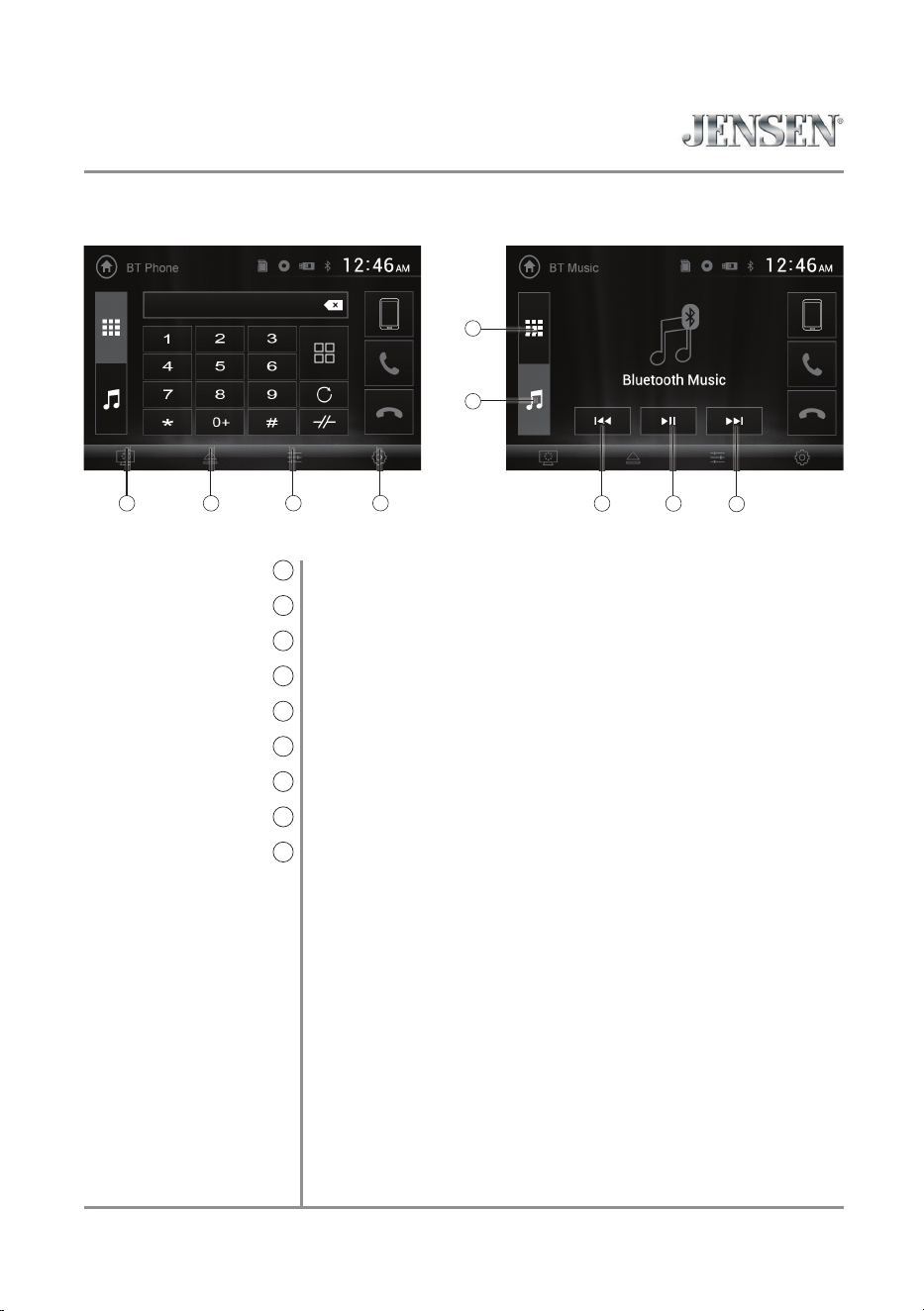

Bluetooth Operation
91011
Standby
9
Eject
Audio
Settings
Bluetooth Music
Previous File / Track
Play / Pause
Next File/Track
Bluetooth Phone
Press to put the monitor into standby mode.
Press to eject the disc.
Press to adjust Audio options.
Press to access the Settings menu.
Press to access Bluetooth Music (from Phone mode).
Press to go back to the previous file or track.
Press to pause or resume playback.
Press to advance to the next file or track.
Press to access Bluetooth Phone (from Music mode).
VX2529 OPERATION
12
13
17
14 15 16
10
11
12
13
14
15
16
17
19

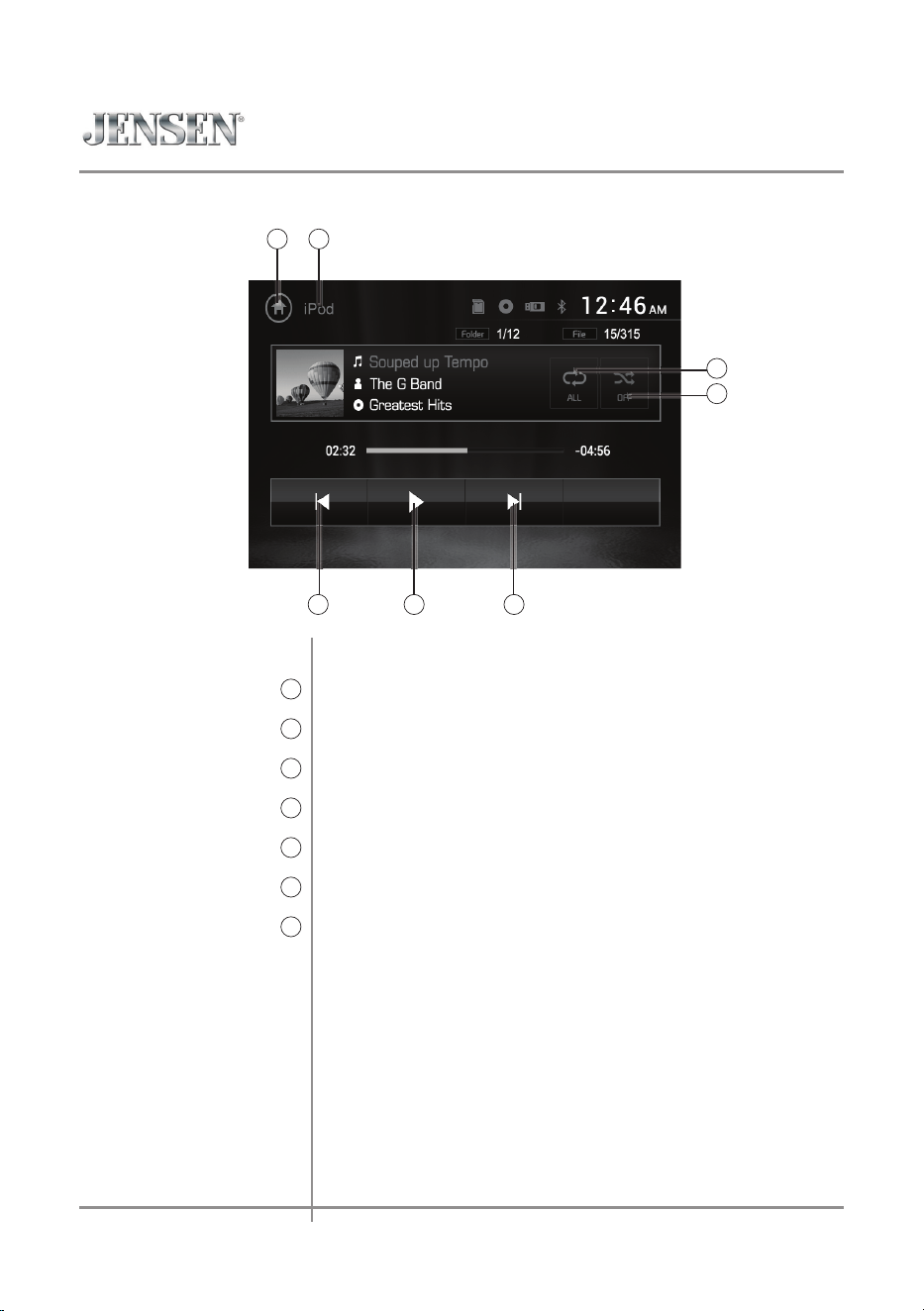

iPod Operation
Connect an iPod device to the unit's USB port.
Press to return to the Main Menu screen.
Displays current mode of operation.
Press to select a repeat option: Repeat 1, Repeat All or Repeat Off.
Press to enable or disable random playback.
Press to go back to the previous file or track.
Press to pause or resume playback.
Press to advance to the next file or track.
Connecting an iPod Device
Main Menu
1
Current Mode Indicator
2
Repeat
3
Random
4
Previous File / Track
5
Play / Pause
6
Next File / Track
7
1
2
3
4
5 6 7
VX2529 OPERATION
20
Front 3.5mm Aux Input & Rear RCA A/V Input
Rear Camera Operation - (Optional)
Connect an optional audio source into the 3.5mm (front panel) input.
Select auxiliary input from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the
headphone output of the device).
Connect an optional audio/video sour
ce to the rear auxiliary input (Red/White/
Yellow RCA connectors). Refer to page 6 for details.
Select AV Input from the Main Menu to listen to audio.
Engage parking brake to watch video.
Connect an optional rear camera to the Camera Input (Black RCA connector).
Refer to the wiring diagram for details.
Manual selection - Touch CAMERA icon from the Main Menu or from any
operational mode (when enabled) to select camer
a mode. Touch the top left area
on the screen to exit camera mode.
Note: The manual mode is for dedicated cameras that are ALWAYS on while
driving, it is not meant for cameras that are connected to the vehicle's reverse
light.
The unit will automatically select camera mode when connected to the reverse
lamp circuitry.
Note: The external video output is not active when using the rear camera input.
Auxiliary Input
Using AV Input
Using Rear Camera
Auto Selection
VX2529 OPERATION
21
SWC Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC
SWI-RC is recommended. A third-party adapter must be used in order for the VX2529 to be
compatible with any steering wheel controls. The following controls are available for most
vehicles.
Note: Not all OE steering wheel functions may be supported by the VX2529.
1. Volume Up (+) 4. Preset (+) 7. Seek/Track Up (+) 10. BT Talk
2. Volume Down (-) 5. Preset (-) 8. Seek/Track Down (-) 11. BT End
3. Mute 6. Mode 9. Band
PAC SWI-RC Installation Hints
1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2. To program, use the Pioneer/Sony/Other radio function mapping order for Dual units.
3. When programming the SWI-RC, if a function is not supported (or not desired), then the
function MUST be skipped as per the PAC SWI-RC instructions.
4. The SWC function MUST be programmed in the correct order per the PAC SWI-RC radio
function mapping order instructions.
Function
Order
Function
Mapping
SWI-RC (3.3VDC Reference)
Center Pin (Ring) Voltage
(Function Select)
Tip Pin Voltage
1 Volume + H 5.0v 2.07
2 Volume - H 5.0v 2.32
3 Mute H 5.0v 1.01
4 Preset + L 0.0V 1.54
5 Preset - L 0.0V 1.81
6 Source H 5.0v 0.60
7 Seek + / Track + H 5.0v 1.54
8 Seek - / Track - H 5.0v 1.81
9 Band H 5.0v 2.73
10 BT Talk L 0.0V 0.60
11 BT End L 0.0V 1.01
VX2529 OPERATION
22

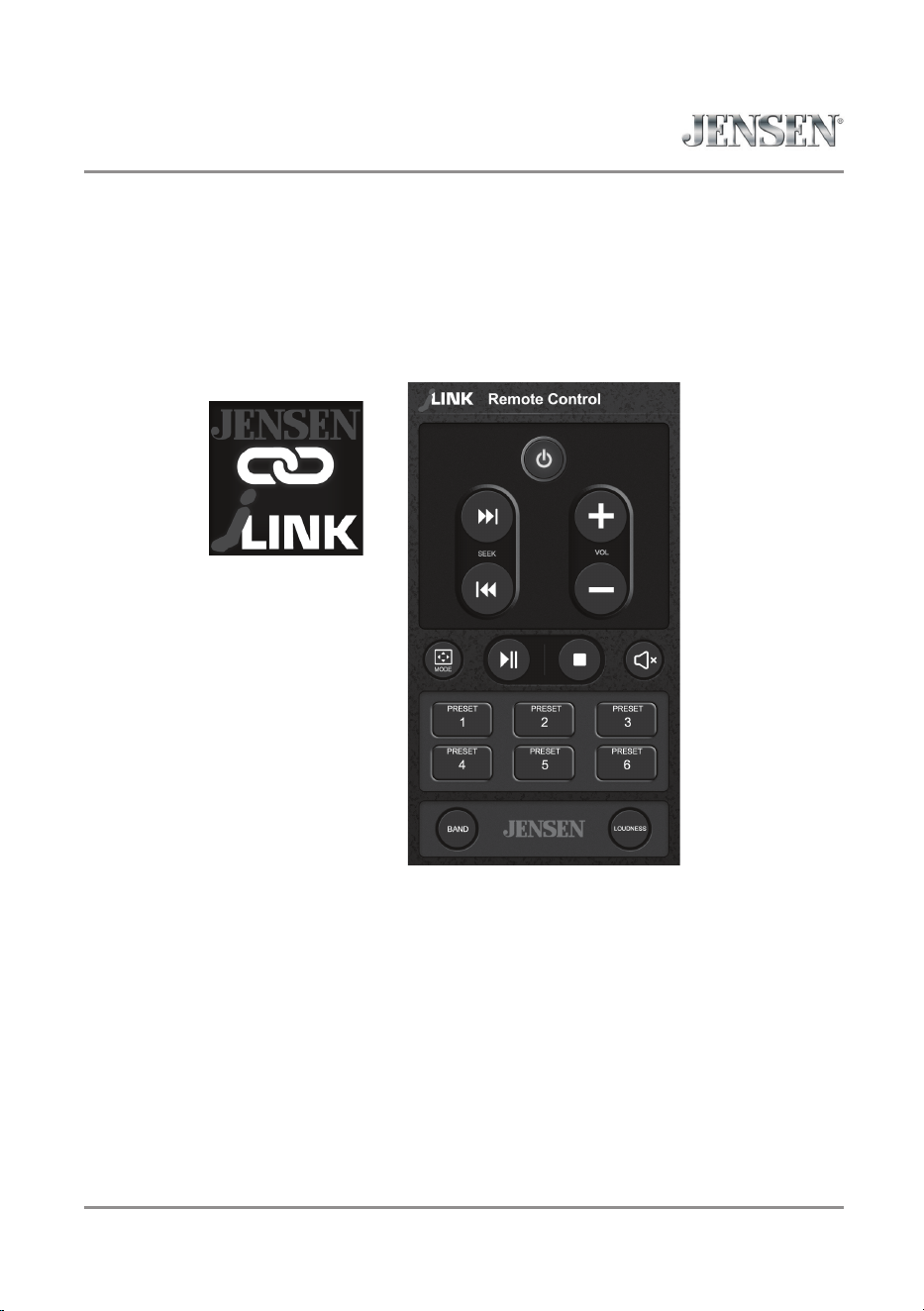

Jensen jLink App Operation
The Jensen jLink Smart App is the ultimate wireless remote control for your multimedia
receiver.
You can download the Jensen jLink app from Apple Appstore or Google Playstore and
install it on your smartphone or tablet.
VX2529 OPERATION
23
Specifications
Disc
FM Tuner
AM Tuner
Front USB
SD
Monitor
General
Frequency response: 20Hz-20kHz
Channel separation @ 1kHz: >80dB
D/A converter: 24 Bit
Tuning range: 87.5MHz-107.9MHz
Usable sensitivity: 10dBf
50dB quieting sensitivity: 20dBf
Stereo separation @ 1kHz: 38dB
Frequency response: 30Hz-13kHz
Tuning range: 530kHz-1710kHz
Usable sensitivity: 24uV
Frequency response: 30Hz-2.3kHz
Compatibility: High Speed USB 2.0
USB Class: Mass storage class
Compatibility: Micro SD memory card & Micro SDHC memory card
Panel size: 6.2” diagonal measurement
View angle (up/down/left/right): 50/70/70/70
Resolution: 800 (H) x 480 (V)
Brightness (cd/m
2
): 250
Contrast ratio: 500:1
Pixels: 1,152,000
Speaker output impedance: 4 ohms
Line output voltage: 2 volt RMS
Line output impedance: 200 ohms
Chassis dimensions: 7" x 7" x 4" (W x D x H)
Design and specifications subject to change without notice.
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1% THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
VX2529 OPERATION
24
Limited One Year Warranty
This warranty gives you specific legal rights. You may
also have other rights which vary from state to state.
Dual Electronics Corp. warrants this product to the
original purchaser to be free from defects in material
and workmanship for a period of one year from the
date of the original purchase.
Dual Electronics Corp. agrees, at our option, during
the warranty period, to repair any defect in material
or workmanship or to furnish an equal new, renewed
or comparable product (whichever is deemed
necessary) in exchange without charges, subject to
verification of the defect or malfunction and proof
of the date of purchase. Subsequent replacement
products are warranted for the balance of the original
warranty period.
Who is covered? This warranty is extended to the
original retail purchaser for products purchased from
an authorized Dual dealer and used in the U.S.A.
What is covered? This warranty covers all defects
in material and workmanship in this product. The
following are not covered: software, installation/
removal costs, damage resulting from accident,
misuse, abuse, neglect, product modification,
improper installation, incorrect line voltage,
unauthorized repair or failure to follow instructions
supplied with the product, or damage occurring
during return shipment of the product. Specific
license conditions and copyright notices for the
software can be found via www.dualav.com.
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s manual.
A slight adjustment of any custom controls may
save you a service call.
2. If you require service during the warranty period,
you must carefully pack the product (preferably
in the original package) and ship it by prepaid
transportation with a copy of the original receipt
from the retailer to an
authorized service center.
3. Please describe your problem in writing and
include your name, a return UPS shipping address
(P.O. Box not acceptable), and a daytime phone
number with your shipment.
4. For more information and for the location of the
nearest authorized service center please contact
us by one of the following methods:
• Call us toll-free at 1-866-382-5476
• E-mail us at cs@dualav.com
Exclusion of Certain Damages: This warranty is
exclusive and in lieu of any and all other warranties,
expressed or implied, including without limitation
the implied warranties of merchantability and fitness
for a particular purpose and any obligation, liability,
right, claim or remedy in contract or tort, whether or
not arising from the company’s negligence, actual or
imputed. No person or representative is authorized
to assume for the company any other liability in
connection with the sale of this product. In no event
shall the company be liable for indirect, incidental or
consequential damages.
VX2529 OPERATION
25
Troubleshooting
General
Problem Cause Action
Unit will not turn on
(no power)
Yellow wire not connected or incorrect voltage
Red wire not connected or incorrect voltage
Check connections for proper voltage (11~16VDC)
Black wire not connected Check connection to ground
Fuse blown Replace fuse(s)
Unit has power
(but no sound)
Speaker wires not connected Check connections at speakers
One or more speaker wires touching each
other or touching chassis ground
Insulate all bare speaker wires from each other and
chassis ground
Unit blows fuse(s)
Yellow or red wire touching chassis ground Check for pinched wire
Speaker wires touching chassis ground Check for pinched wire
Incorrect fuse rating Use fuses with correct rating
Unit has audio
(but no video)
Parking brake safety circuit not connected
Parking brake not applied
Check connections at parking brake
Apply parking brake as described on page 26
No video display
(when in reverse)
Reverse circuit not connected
Vehicle is not in reverse
Check connections at reverse lamp
Select reverse gear
DVD does not start
playback
Physical defect in media
Wrong region
Check media for scratches
Use discs labeled "Region 1" or "All" only
IR remote does not work
Dead battery Replace battery
Excessive skipping
Unit is not mounted correctly Check mounting sleeve
Physical defect in media Check media for scratches
Disc Region Incorrect
appears on display
Region code error Use discs labeled "Region 1" or "All" only
Please keep your original sales receipt and be prepared to provide this receipt in
the event you require service, as your original receipt is considered the best proof of
purchase and indicates the date you purchased your Dual product.
Dealer Name
Dealer Phone
Purchase Date
Register your product online at www.jensenmobile.com.
For Your Records
Register Your Product
VX2529 OPERATION
26
Notes
VX2529 OPERATION
Dual Electronics Corp.
Toll Free: 888-921-4088
www.jensenmobile.com
©2019 Dual Electronics Corp. All rights reserved.
The Bluetooth
®
word mark and logos are owned by the Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
NSA0419-V01
