Operating instructions
Chest freezer
Read the operating instruction before switching on for the rst time
EN
Page 9
2
Safety instructions and warnings
- WARNING: Keep ventilation openings, in the ap-
pliance enclosure or the built-in structure, clear of
obstruction.
- WARNING: Only use the mechanical devices or
other aids recommended by the manufacturer to
help speed up the defrosting process.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use any electrical devices in
the refrigerator compartment which do not comply
with the design recommended by the manufacturer.
- WARNING: The main cable must not be dam-
aged while installing the appliance.
- WARNING: Multi-sockets or distributor strips and
other electronic devices (such as halogen trans-
formers) must not be positioned and operated at
the rear of appliances.
- WARNING: Danger of injury through electric
shock. There are live parts under the cover. Only
have the interior LED light replaced or repaired
by customer service staff or trained personnel.
- WARNING: Risk of injury from the LED lamp.
The light intensity of the LED light complies with
laser class RG 2. If the cover is defective, do not
look directly at the light through optical lenses
from a close distance. This may damage your
eyes.
- WARNING: When positioning the appliance, en-
sure the supply cord is not trapped or damaged.
- WARNING: Do not locate multiple portable
socket-outlets or portable power supplies at the
rear of the appliance
- WARNING: This appliance must be secured as
described in the operating instructions (Installa-
tion instructions) to rule out any potential risks
due to its instability.
- This appliance may be used by children aged 8
and over and by people with reduced physical,
sensory or mental abilities or a lack of experi-
ence and expertise if they are supervised or have
been instructed on the safe use of the appliance
and have understood the risks associated with
it. Children must not be allowed to play with the
appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
Children aged 3 or over and 8 or younger may
load and unload the refrigerator/freezer.
- Do not store any explosive substances, such as
aerosol containers with flammable propellant gas,
inside the appliance.
- To prevent injury and damage to property, the
appliance should only be installed by two people.
- After unpacking it, check the appliance for signs
of damage. Contact the supplier if it is damaged.
Do not connect the appliance to the mains power
supply.
- Avoid prolonged skin contact with cold surfaces
(e.g. chilled/frozen products). If necessary, take
safety action (e.g. gloves).
- Do not eat ice cream, particulary ice lollies or ice
cubes, immediately after taking them from the
freezer compartment as there is a risk of "burn-
ing" because of the very cold temperatures.
- Do not consume food which has been stored for
too long, as it could cause food poisoning.
- All repairs and work on the appliance may only
be carried out by customer service personnel
or other trained personnel. The same applies to
changing the mains power cable.
- Only carry out repair and other work on the ap-
pliance when the mains plug has visibly been
disconnected.
- Only install, connect and dispose of the appliance
as described in these operating instructions.
- In the event of a fault, pull out the plug or switch
o the fuse.
- When disconnecting the appliance from the mains,
pull on the plug. Do not pull on the cable.
Priority of warnings
DANGER
identifies a situation involving direct dan-
ger which, if not obviated, may result in
death or severe bodily injury.
WARNING
identifies a dangerous situation which,
if not obviated, may result in death or
severe bodily injury.
CAUTION
identifies a dangerous situation which,
if not obviated, may result in minor or
medium bodily injury.
NOTICE
identies a dangerous situation
which, if not obviated, may result in
damage to property.
Note
identifies useful information and tips.
EN
3

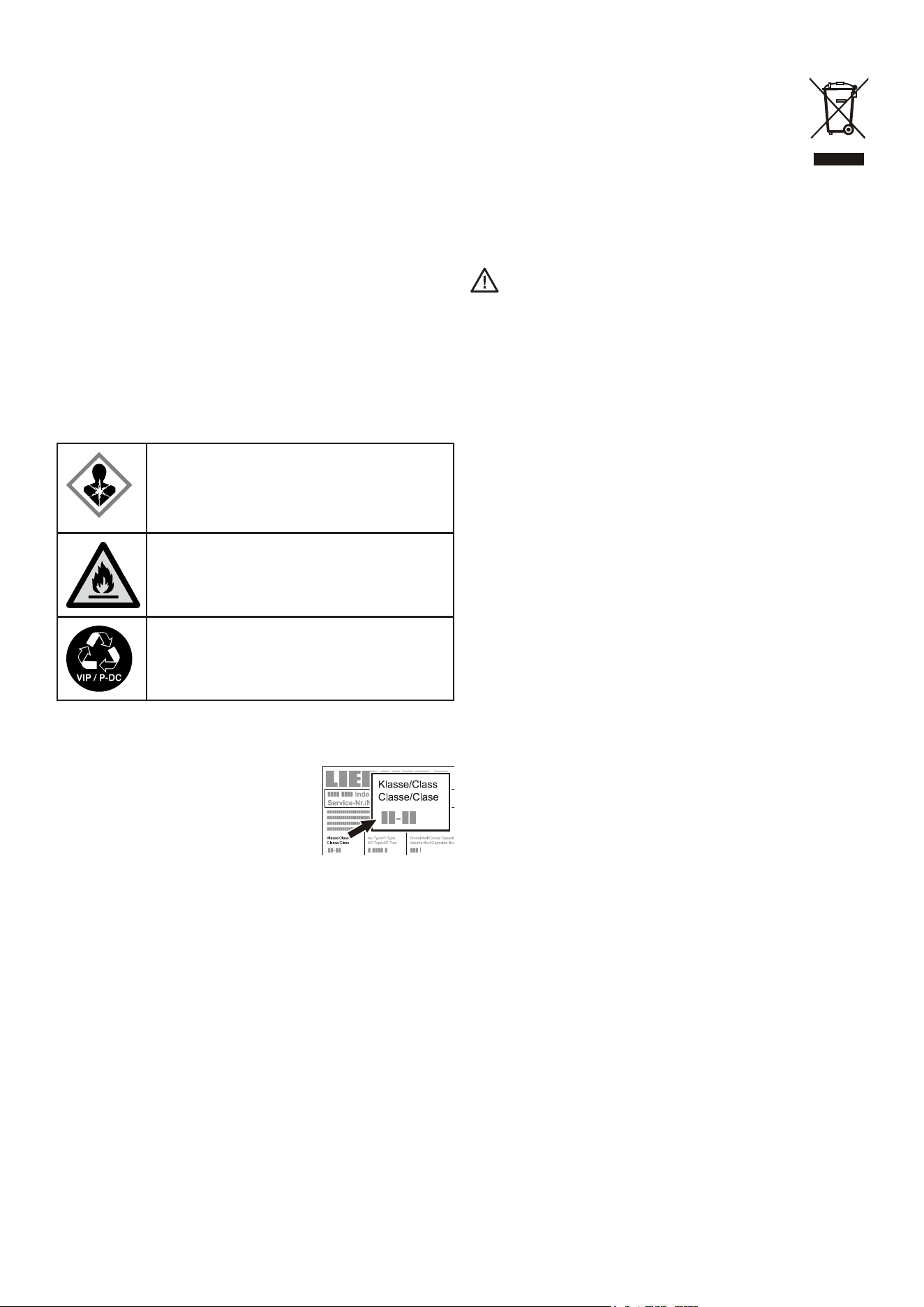

EN
- If you have a lockable appliance, do not keep the
key near the appliance or within reach of children.
- The appliance is designed for use in enclosed
areas. Do not operate the appliance outdoors or
in areas where it is exposed to splash water or
damp conditions.
- Do not use the interior LED light to light the room.
T h e i n t e r i o r L E D l i g h t i s o n l y d e s i g n e d t o i l l u m i n a t e
the interior of the appliance.
- Do not allow naked ames or ignition sources to
enter the appliance.
- Alcoholic drinks or other vessels containing al-
cohol should be sealed tightly for storage.
Disposal notes
The appliance contains reusable materials and should
be disposed of properly - not simply with unsorted
household refuse. Appliances that are no longer needed
must be disposed of professionally and appropriately, in
accordance with the current local regulations and laws.
When disposing of the appliance, ensure that the refrig-
erant circuit is not damaged to prevent the uncontrolled escape of
the refrigerant it contains (data on type plate) and oil.
• Disable the appliance.
• Pull out the mains plug.
• Cut through the connection cable.
WARNING
Danger of suffocation due to the packing material and plastic film!
Do not allow children to play with packaging material. Take the
packaging material to an official collection point.
Range of appliance use
The appliance is suitable solely for storage and
freezing packed foods in a domestic environment
or similar. This includes, for example, the use
- in staff kitchenettes, bed and breakfast establish-
ments,
- by guests in cottages, hotels, motels, and other
forms of accommodation,
- in catering and similar services in the wholesale
trade.
Use the appliance solely as is customary within a domestic envi-
ronment. All other types of use are inadmissible. The appliance
is not suitable for storing and cooling medicines, blood plasma,
laboratory preparations, or similar substances and products cov-
ered by the 2007/47/EC Medical Devices Directive. Any misuse
of the appliance may result in damage to or spoilage of stored
goods. Furthermore, the appliance is not suitable for operation
in potentially explosive atmospheres.
Symbols on the appliance
The symbol can be located on the compressor. It
refers to the oil in the compressor and indicates
the following danger: swallowing or inhaling can
be fatal. This is only relevant for recycling. There
is no danger in normal operation.
Risk of fire / flammable materials
A sticker to this effect may be applied to the rear
of the appliance. It refers to the foampadded
panels in the door and/or the housing. This is only
relevant for recycling. Do not remove the sticker.
Climate rating
The climate rating indicates the room
temperature at which the appliance may
be operated in order to achieve full refrig-
eration performance.
The climate rating is indicated on the type
plate.
The position of the type plate is shown in
the section entitled Description of the appliance.
Climate rating Room temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
SN-ST +10°C to +38°C
SN-T +10°C to +43°C
Fault-free operation of the appliance is ensured provided that the
ambient temperature does not fall below -15°C.
4

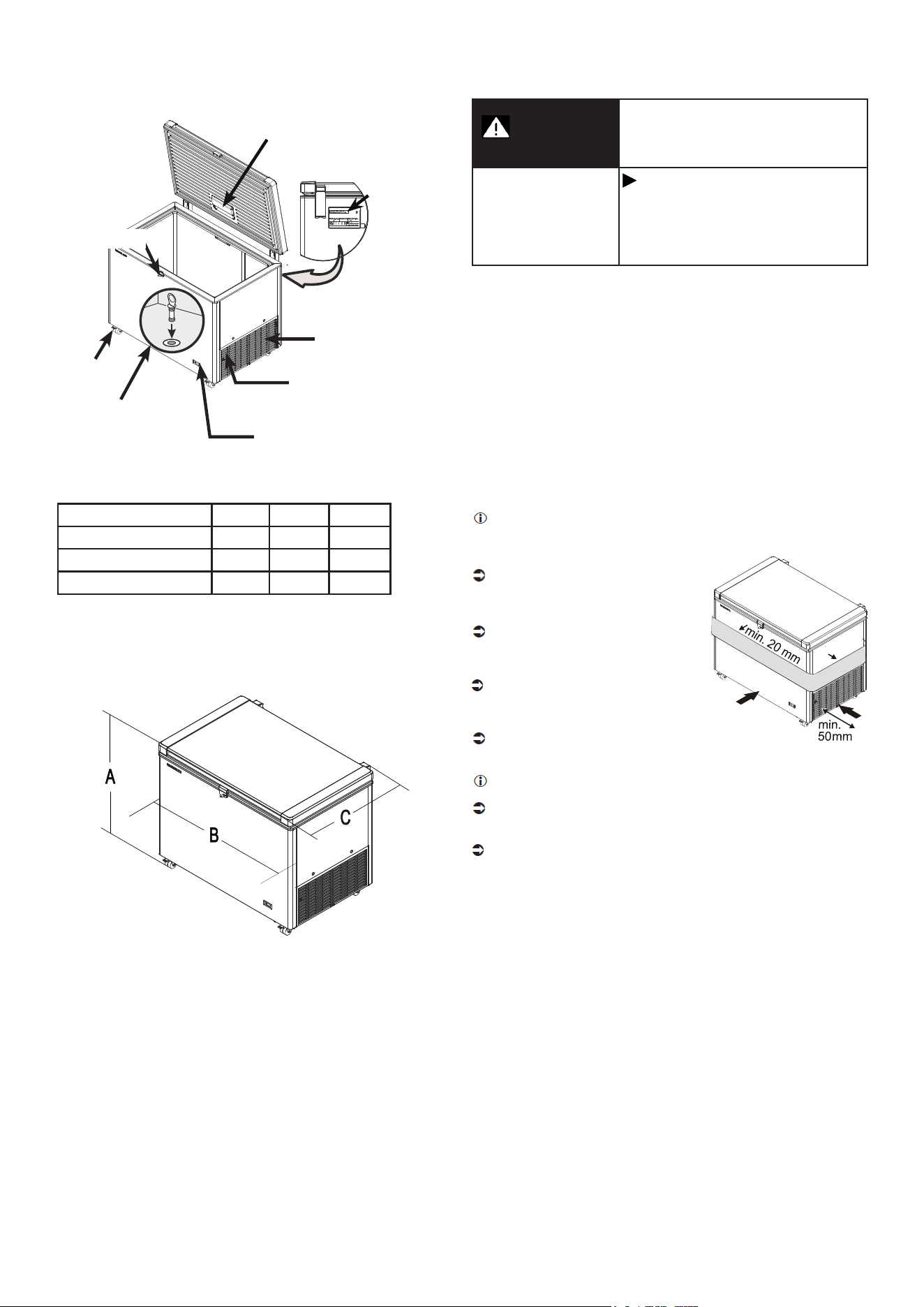

Appliance dimensions
Model A B C
EFL 3055 / 3056 825 1045 702
EFL 4655 / 4656 825 1465 702
EFL 6055 / 6056 825 1885 702
Description of the appliance
EN
Interior light
Compressor compartment
ventilation grille
Lock
Temperature display
Defrost drain
Rear View
Type plate
The ventilation clearance between the edge of the chest and
the floor is used to supply the refrigeration unit with cooling
air.
Ensure that the ventilation clear-
ance between the underside of the
chest and floor is not blocked.
Ensure the distance between the
ventilation grille and wall is at least
50 mm.
Ensure that the area between the
ventilation grille and wall is not
obstructed.
Ensure that the ventilation grille is
clear of dirt and foreign bodies.
The appliance dissipates air through its exterior skin.
Do not place objects right next to the exterior skin of the ap-
pliance.
Ensure that the distance between the exterior skin of the ap-
pliance and neighbouring items is at least 20 mm.
Installing the appliance
Requirements for the place of installation:
Check that the volume of the installation room is large
enough relative to the appliance’s refrigerant capacity.
The refrigerant capacity is shown on the type plate.
• No direct sunlight.
• No heat sources such as a stove or heater in the vicinity.
• The floor is horizontal and flat.
DANGER!
Unsuitable ratio of refrigerant to
installation room volume.
Risk of explosion.
Ensure that the room which you
install your appliance has a volume
of 1 m³ per 8 g of R600a/R290
refrigerant used in the appliance
as set out in standard EN 378.
Temperature control
Castor
5

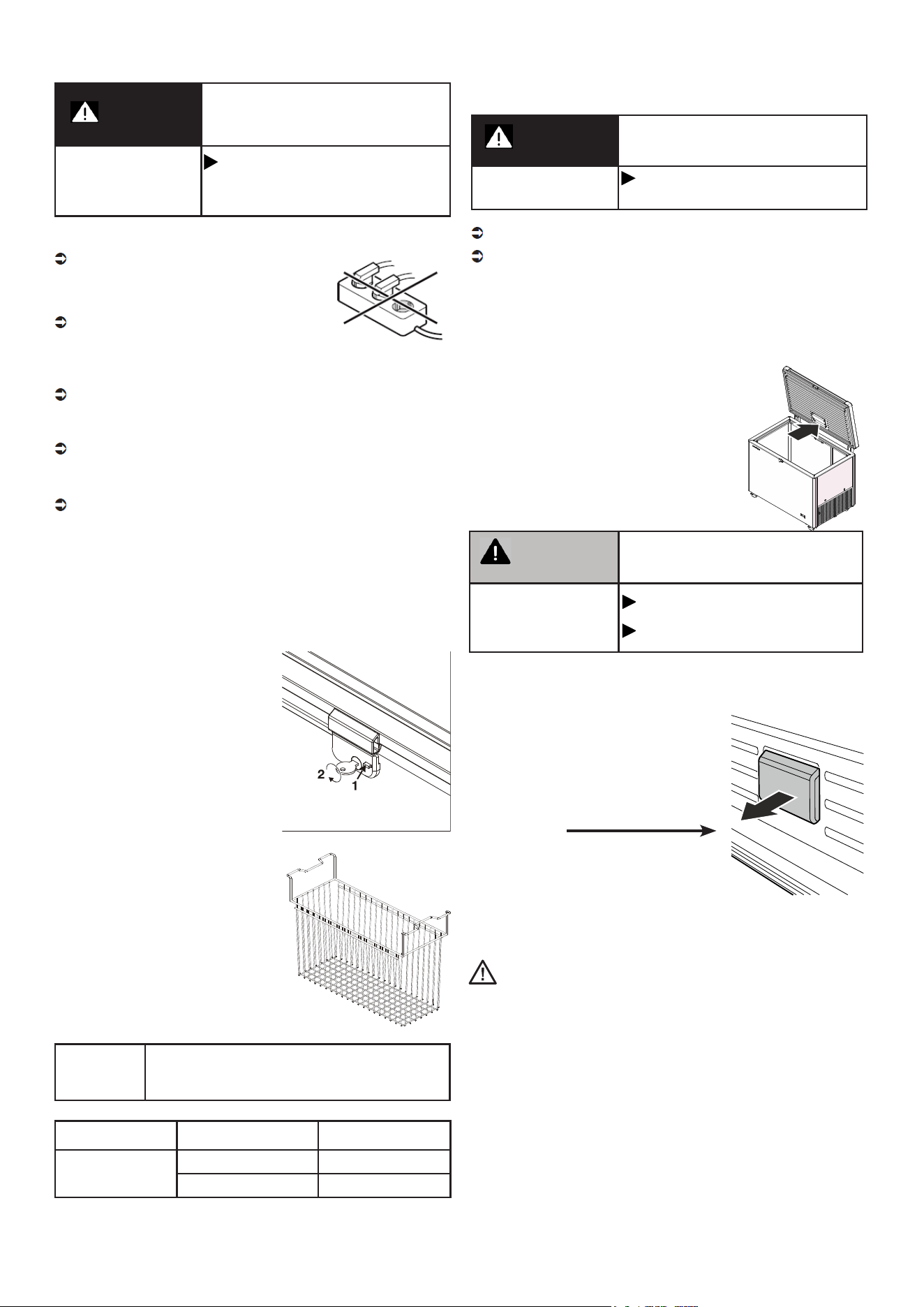

Commissioning
Unpacking
Please take packaging to an official collection point.
Clean the interior of the appliance before switching it on for
the first time, see “Cleaning”.
DANGER!
Packaging material and film.
Danger of asphyxiation.
Do not allow children to play with
the packaging material.
EN
Equipment
Interior LED light
An LED lamp is fitted as standard to illumi-
nate the interior of the appliance.
The interior light switches on automatically
when the lid is opened and switches off
again when it is closed.
WARNING!
High light intensity.
Eye injury.
Do not remove the light cover.
Do not look into the light through
optical lenses.
Replacing the lamp
If the lamp is defective, it can be replaced
taking into account the following points.
1. Pull out the plug or switch off the
fuse.
2. Remove the cover panel in the direction
of the arrow.
Only original LED lamps from the appliance manufacturer may
be used. The lamp can be purchased from the customer service
department or specialist dealers.
WARNING!
When using LED lamps made by other manu-
facturers, there is a risk of overheating or fire.
Accessories
Lock for EFL
The lock is equipped with a safety
mechanism.
Locking the appliance:
1. Press the button and keep it
depressed.
2. Turn the key 90°.
Baskets
Baskets are available as accessories.
Model Basket Max load
EFL
210 mm 47 kg
270 mm 54 kg
NOTICE
Excessive load!
Damage to property.
Electrical connection
Ensure that the socket is not
covered by the appliance and is
easily accessible.
Power supply (AC) and voltage at the Power supply (AC) and voltage at the
operating point must comply with the operating point must comply with the
details on the type plate. The type plate is details on the type plate. The type plate is
located on the rear of the appliance.located on the rear of the appliance.
Only connect the appliance to a socket protected by a fuse
which has been earthed in accordance with the appropriate
regulations.
The socket must be fused with a 10 A fuse or higher, it must The socket must be fused with a 10 A fuse or higher, it must
be away from the rear of the appliance and must be easily be away from the rear of the appliance and must be easily
accessible.accessible.
Do not connect the appliance using extension cables or
extension sockets.
Connect the appliance with a properly earthed fused plug Connect the appliance with a properly earthed fused plug
and socket only.and socket only.
DANGER!
Incorrect voltage supply.
Damage to property or personal
injury.
Ensure that the voltage supply
complies with the specifications
in the section entitled “Technical
data”.
6
NOTICE
Incorrect room temperature.
Damage to property and reduced cooling
capacity.
Ensure that the room temperature corre-
sponds to the climate rating of the appliance,
see “Technical data”.
Setting the temperature
The temperature can be infinitely adjusted
using the control knob. There are markings
near the control knob. The appliance will
achieve its lowest temperature when set to
3 (***).
To set the temperature, turn the control
knob to required setting (* to ***) using a
flat-blade screwdriver.
Shutting down the appliance
Switching the appliance off
Pull out the mains plug or turn the
temperature control knob anti-
clockwise until it locks in the Off
position.
If it is switched off using the
temperature control knob, the ap-
pliance is not disconnected from
the mains supply.
Before shutting down the appliance for a
lengthy period
Switch off the appliance.
Pull out the plug or switch off the fuse.
Clean the appliance.
Ensure that the appliance is dry inside and outside.
There must be no moisture in the interior container.
If the chest lid is closed when the appliance remains shut
down for a length period, odours will form inside it.
Open the chest lid and secure it to prevent it being closed.
Ensure that the ambient conditions for storage comply with
the specifications in the section entitled “Storing the appli-
ance after shutting down”.
Temperature display
The thermometer shows the warmest temperature of the frozen
volume at the maximum filling height.
It is adjusted and designed so that only
temperatures below 0°C are accurately
displayed.
EN
Malfunctions/Troubleshooting
Contact your nearest customer service department if the ap-
pliance suffers faults which you cannot rectify.
To ensure that your query can be dealt with quickly, make
a note of the type designation 1, service number 2 and se-

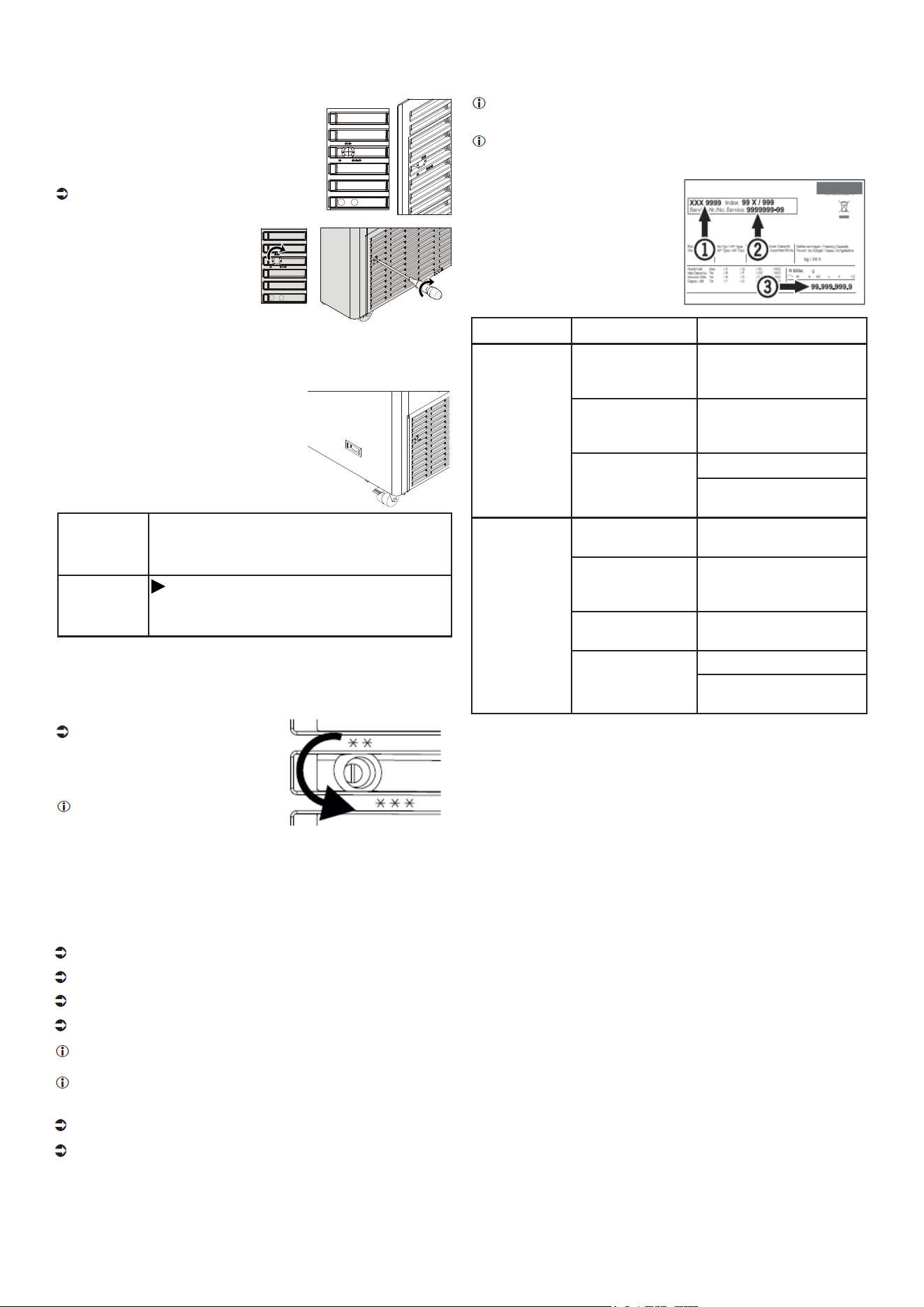

rial number 3 on the type plate and quote them when you
contact the customer service
department. The position of
the type plate is shown in the
section entitled “Description
of the appliance”.
Malfunction Possible cause Remedy
Appliance
does not cool
down.
The temperature
control knob is in
the Off position.
Set the temperature
control knob to a cooling
position.
The mains plug
has been discon-
nected.
Connect the appliance to
the mains.
The power supply
has been inter-
rupted.
Check the power supply.
Check the fuses in the
power supply.
The tempera-
ture is not low
enough.
Incorrect tempera-
ture set.
Set the correct tempera-
ture.
The thermometer
display is incorrect.
Check the temperature
with an additional ther-
mometer.
Ventilation is inad-
equate.
Ensure that there is ad-
equate ventilation.
The appliance is
located too close
to a heat source.
Remove the heat source.
Choose a suitable place of
installation.
7

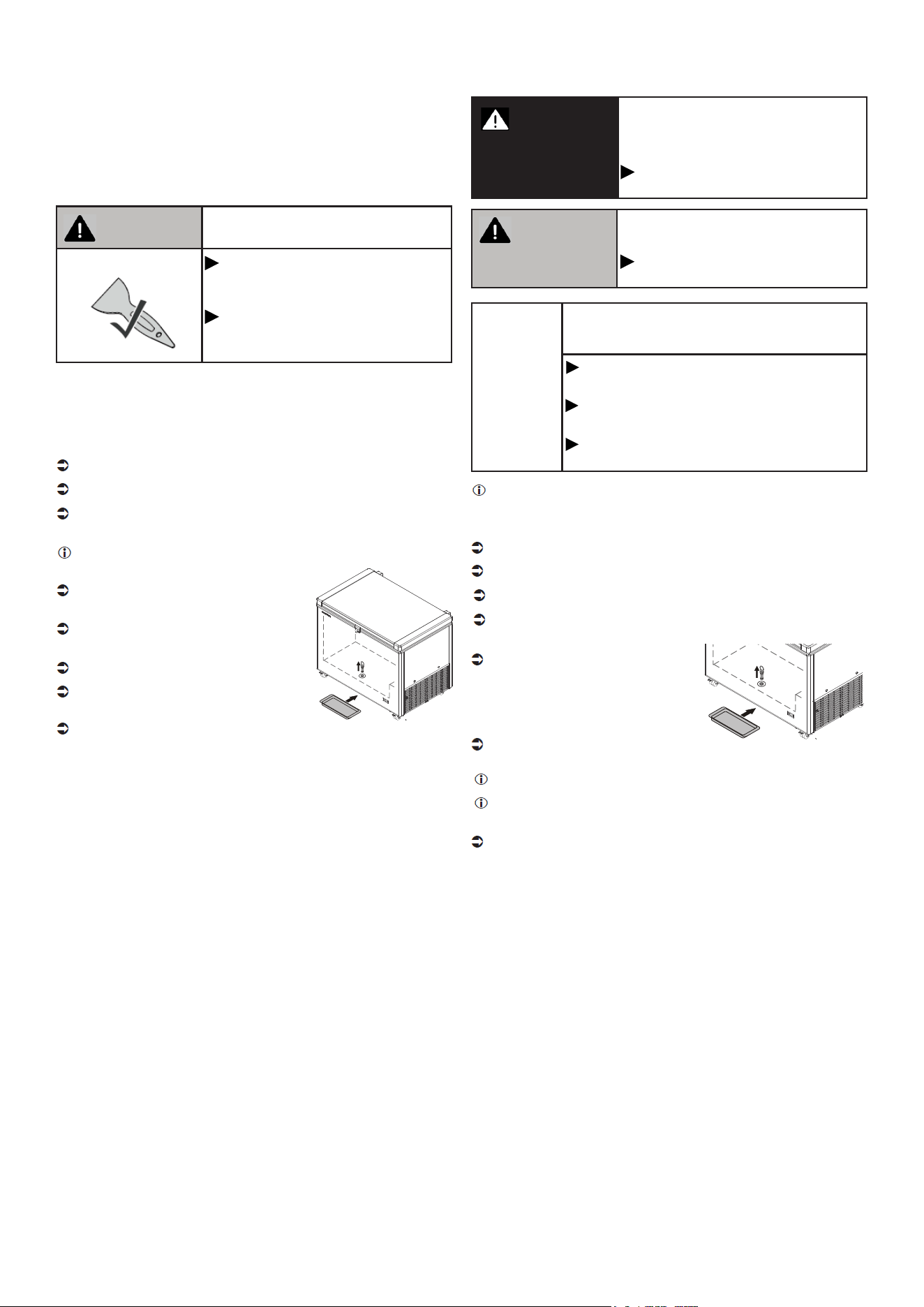

Cleaning
Clean the appliance every 6 months.
CAUTION!
Hot steam.
Injuries and damage to property.
Do not use steam/high-pressure
cleaning equipment.
DANGER!
Risk of electric shock if an incor-
rect cleaning method is used.
Danger of death.
Pull out the mains plug before start-
ing the cleaning work.
NOTICE
Unsuitable cleaning products.
Damage to the appliance.
Do not use concentrated cleaning products
without diluting them.
Only use soft cloths and an all-purpose
cleaner with neutral pH value.
Only use food-compatible cleaning and care
products on the inside of the appliance.
Remove all the frozen items.
Place a suitable vessel under the drain opening.
Remove the defrost water plug from the drain opening.
Ensure that no water flows into the ventilation grille or electri-
cal components during cleaning.
Clean the interior container, outer
walls and equipment parts of the
appliance using suitable cloths
and a mixture of lukewarm water
and all-purpose cleaner.
Dry the appliance with a suitable
cloth.
There must be no moisture in the interior container.
Dust deposits on the ventilation grille cause increased power
consumption.
Remove dust deposits from the ventilation grille.
Defrosting
After a long period of operation, a layer of frost or ice can build
up on the walls of the freezer compartment.
The layer of frost or ice will form more quickly if the appliance is
opened frequently. A thick layer of ice increase energy consump-
tion. You should therefore defrost the freezer regularly.
CAUTION!
High light intensity.
Eye injury.
Do not use electric heaters or steam
cleaners, naked flames or defrost-
ing sprays.
Do not remove ice with sharp ob-
jects. (Risk of damage to the interior
walls)
Defrosting
Switch off the appliance.
Pull out the plug or switch off the fuse.
Wrap the frozen goods in paper or blankets and store in a
cool place.
Mop up defrost water with a sponge or cloth in appliances
without a drain opening.
Place a suitable vessel under the drain
opening to collect defrost water.
Remove the defrost water plug from
the drain opening.
Leave the lid open while defrosting.
Mop up the remaining defrost water
with a cloth after defrosting.
Clean the appliance, see “Cleaning”.
EN
8
Declaration of Conformity
The appliance complies with the relevant safety regulations and
EU Directives 2014/30/EU and 2006/42/EC.
Disposal
The appliance contains recyclable materials and flammable
materials.
Disconnect the appliance from the power supply.
Cut through the mains power cable to render the appliance
unusable.
Do not simply dispose of the appliance properly with unsort-
ed household refuse.
Ensure that the appliance is disposed of in a professional
and appropriate way, in accordance with the current local
regulations and laws.
NOTICE
Escaping refrigerant and oil.
Damage to the environment.
Ensure that the refrigerant circuit is not
damaged during the disposal process.
EN
Additional information
- Food will remain fresh for longer if stored at the correct tem-
perature. This can prevent having to discard food needlessly.
- If the condenser coil is not cleaned every year, it will significantly
reduce the appliance's efficiency.
- The period during which spare parts, necessary for the repair
of the refrigerating appliance with a direct sales function, are
available is 10 years.
- The minimum duration of the guarantee of the refrigerating
appliance with a direct sales function offered by the manufac-
turer, importer or authorised representative is 2 years.
- EPREL database:
As from 1 March 2021, information about energy labelling and
e c o d e s i g n r e q u i r e m e n t s w i l l b e a v a i l a b l e i n t h e Eu r o p e a n p r o d u c t
database (EPREL). You can access the product database using
the following link: https://eprel.ec.europa.eu/. You will be asked
to enter the model identifier. You will find the model identifier on
the type plate.
Technical data
Voltage supply
The precise values for the correct voltage supply are shown
on the type plate.
Specification Value
Type of current Alternating current
Fuse trip current Between 10 and 16 A
Storing the appliance after shutting down
Ensure that the appliance is dry inside and outside.
There must be no moisture in the insterior container.
Ensure that the room temperature is between -10 ºC and
+50 ºC.
NOTICE
Unsuitable room temperature during
storage.
Damage to property.
Ensure that the room temperature is
between -10 ºC and +50 ºC.
