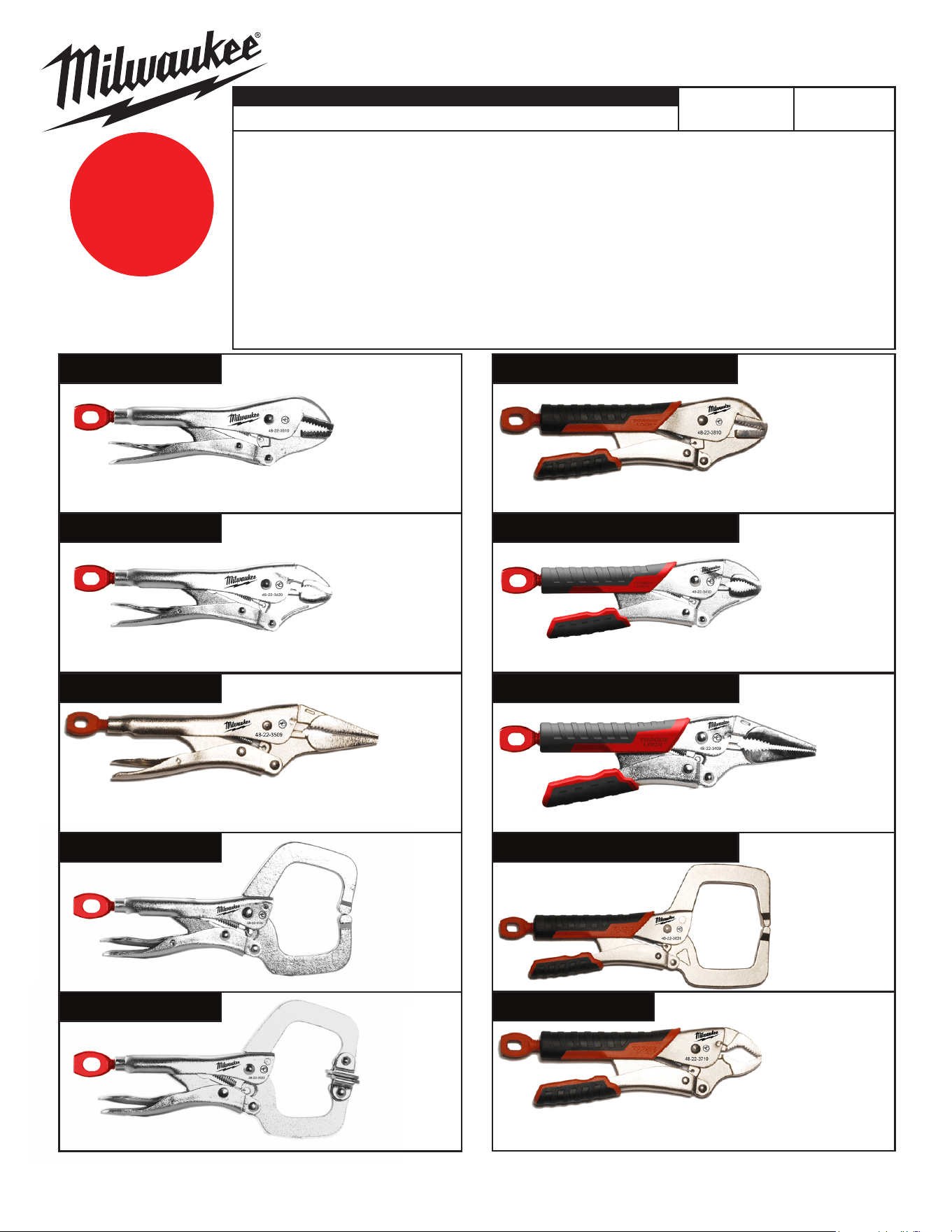

TORQUE LOCK™ PLIERS / CLAMPS
Sept. 2016
54-49-3130
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
48-22-3405 5" Curved Jaw
48-22-3406 6" Long Nose
48-22-3407 7" Curved Jaw
48-22-3409 9" Long Nose
48-22-3410 10" Curved Jaw
48-22-3420 10" Curved Jaw
48-22-3421 7" Curved Jaw
48-22-3422 5" Curved Jaw
48-22-3423 4" Curved Jaw
48-22-3504 4" Long Nose
48-22-3506 6" Long Nose
48-22-3507 7" Straight Jaw
48-22-3509 9" Long Nose
48-22-3510 10" Straight Jaw
48-22-3520 18" Swivel C-Clamp
48-22-3521 11" Swivel C-Clamp
48-22-3522 6" Swivel C-Clamp
48-22-3523 9" Swivel C-Clamp
48-22-3529 18" C-Clamp
48-22-3530 18" C-Clamp
48-22-3531 11" C-Clamp
48-22-3532 6" C-Clamp
48-22-3533 9" C-Clamp
48-22-3540 8" Locking Seamer
48-22-3541 Large Jaw Locking
48-22-3542 Locking Chain
48-22-3543 Locking Welder
48-22-3607 7" MAXBITE™
48-22-3610 10" MAXBITE™
48-22-3631 11" C-Clamp
48-22-3632 6" C-Clamp
48-22-3707 7" MAXBITE™
48-22-3710 10" MAXBITE™
48-22-3807 7" Straight Jaw
48-22-3810 10" Straight Jaw
C-CLAMP
REG. JAW C-CLAMP - GRIPPED
LONG NOSE - GRIPPED
CURVED JAW - GRIPPED
STRAIGHT JAW - GRIPPED
SWIVEL C-CLAMP
REG. JAW C-CLAMP
LONG NOSE
CURVED JAW
STRAIGHT JAW
48-22-3631
11" C-Clamp
48-22-3632
6" C-Clamp
48-22-3507 7" Straight Jaw
48-22-3510 10" Straight Jaw
48-22-3807 7" Straight Jaw
48-22-3810 10" Straight Jaw
48-22-3420 10" Curved Jaw
48-22-3421 7" Curved Jaw
48-22-3422 5" Curved Jaw
48-22-3423 4" Curved Jaw
48-22-3405 5" Curved Jaw
48-22-3407 7" Curved Jaw
48-22-3410 10" Curved Jaw
48-22-3406 6" Long Nose
48-22-3409 9" Long Nose
48-22-3504 4" Long Nose
48-22-3506 6" Long Nose
48-22-3509 9" Long Nose
48-22-3531
11" C-Clamp
48-22-3532
6" C-Clamp
48-22-3521
11"Swivel
C-Clamp
48-22-3522
6" Swivel
C-Clamp
MAXBITE™
48-22-3707 7” MAXBITE™
48-22-3710 10” MAXBITE™
See page
two for a listing
of Spring Service Kits
and Adjustable Bolt
Service Kits specic
to each clamping
device
See page three for
installation instructions
regarding Service Kits

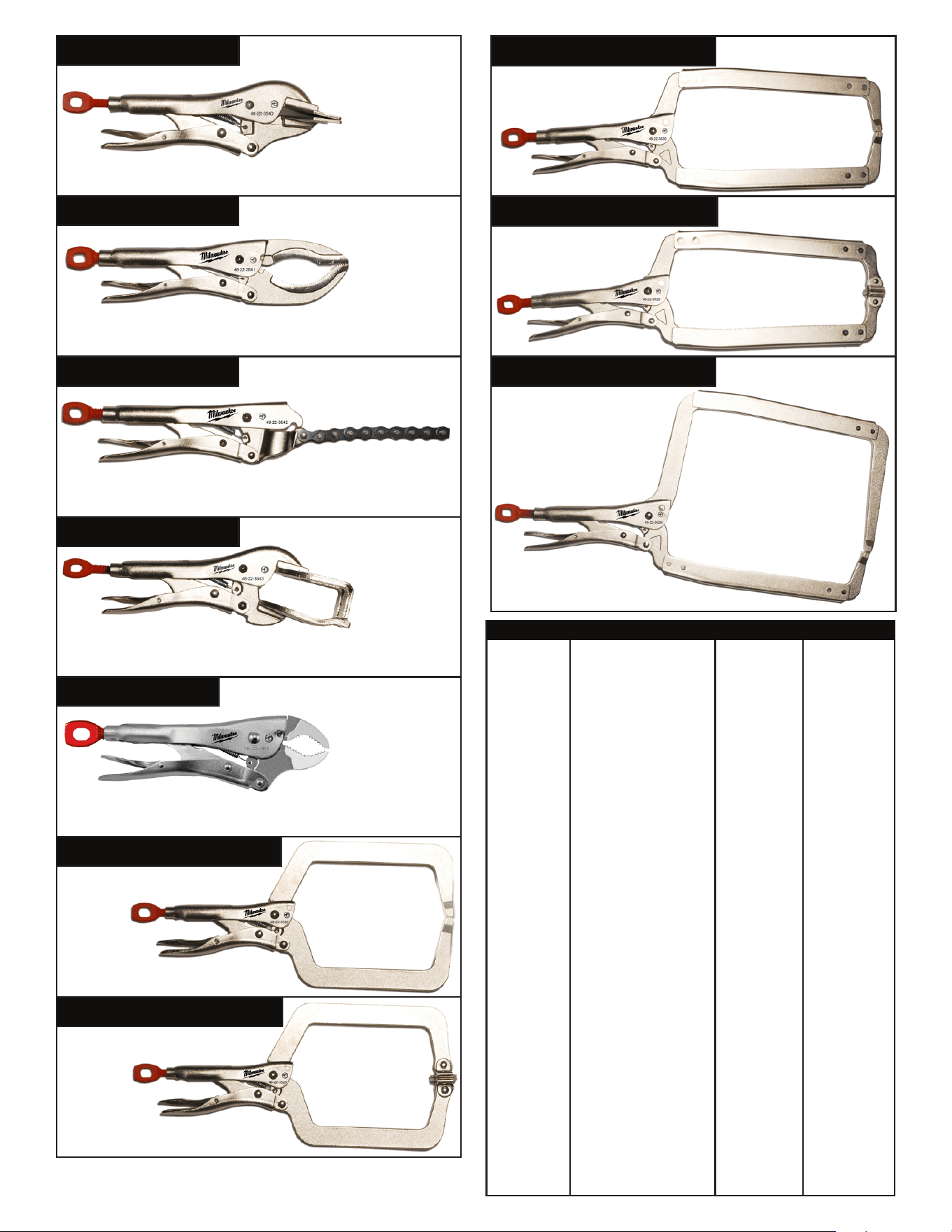

MAXBITE™
LOCKING WELDER
LOCKING CHAIN
LARGE JAW LOCKING
LOCKING SEAMER
48-22-3540 8" Locking Seamer
48-22-3541 Large Jaw Locking
Plier
48-22-3542 Locking Chain
48-22-3543 Locking Welder
Clamp
DEEP REACH C-CLAMP
48-22-3533
9” Deep Reach
C-Clamp
DEEP REACH SWIVEL C-CLAMP
48-22-3523
9” Deep Reach
Swivel C-Clamp
DEEP REACH C-CLAMP
48-22-3530
18” Deep Reach
C-Clamp
DEEP REACH SWIVEL C-CLAMP
48-22-3520
18” Deep Reach
Swivel C-Clamp
DEEP REACH C-CLAMP
48-22-3529
18” Deep Reach
C-Clamp
48-22-3607 7” MAXBITE™
48-22-3610 10” MAXBITE™
TOOL NO. TOOL DESCRIPTION SPRING KIT ADJ. BOLT KIT
48-22-3405 5" Curved Jaw 40-50-0935 06-14-0115
48-22-3406 6" Long Nose 40-50-0935 06-14-0115
48-22-3407 7" Curved Jaw 40-50-0940 06-14-0110
48-22-3409 9" Long Nose 40-50-0940 06-14-0110
48-22-3410 10" Curved Jaw 40-50-0945 06-14-0105
48-22-3420 10" Curved Jaw 40-50-0945 06-14-0105
48-22-3421 7" Curved Jaw 40-50-0940 06-14-0110
48-22-3422 5" Curved Jaw 40-50-0935 06-14-0115
48-22-3423 4" Curved Jaw 40-50-0934 06-14-0035
48-22-3504 4" Long Nose 40-50-0934 06-14-0035
48-22-3506 6" Long Nose 40-50-0935 06-14-0115
48-22-3507 7" Straight Jaw 40-50-0940 06-14-0110
48-22-3509 9" Long Nose 40-50-0940 06-14-0110
48-22-3510 10" Straight Jaw 40-50-0945 06-14-0105
48-22-3520 18" Swivel C-Clamp 40-50-0945 06-14-0105
48-22-3521 11" Swivel C-Clamp 40-50-0945 06-14-0105
48-22-3522 6" Swivel C-Clamp 40-50-0935 06-14-0115
48-22-3523 9" Swivel C-Clamp 40-50-0935 06-14-0115
48-22-3529 18" Swivel C-Clamp 40-50-0945 06-14-0105
48-22-3530 18" C-Clamp 40-50-0945 06-14-0105
48-22-3531 11" C-Clamp 40-50-0945 06-14-0105
48-22-3532 6" C-Clamp 40-50-0935 06-14-0115
48-22-3533 9" C-Clamp 40-50-0935 06-14-0115
48-22-3540 8" Locking Seamer 40-50-0940 06-14-0110
48-22-3541 Large Jaw Locking 40-50-0945 06-14-0105
48-22-3542 Locking Chain 40-50-0945 06-14-0105
48-22-3543 Locking Welder Clamp 40-50-0940 06-14-0110
48-22-3607 7" MAXBITE™ 40-50-0940 06-14-0110
48-22-3610 10" MAXBITE™ 40-50-0945 06-14-0105
48-22-3631 11" C-Clamp 40-50-0945 06-14-0105
48-22-3632 6" C-Clamp 40-50-0935 06-14-0115
48-22-3707 7" MAXBITE™ 40-50-0940 06-14-0110
48-22-3710 10" MAXBITE™ 40-50-0945 06-14-0105
48-22-3807 7" Straight Jaw 40-50-0940 06-14-0110
48-22-3810 10" Straight Jaw 40-50-0945 06-14-0105

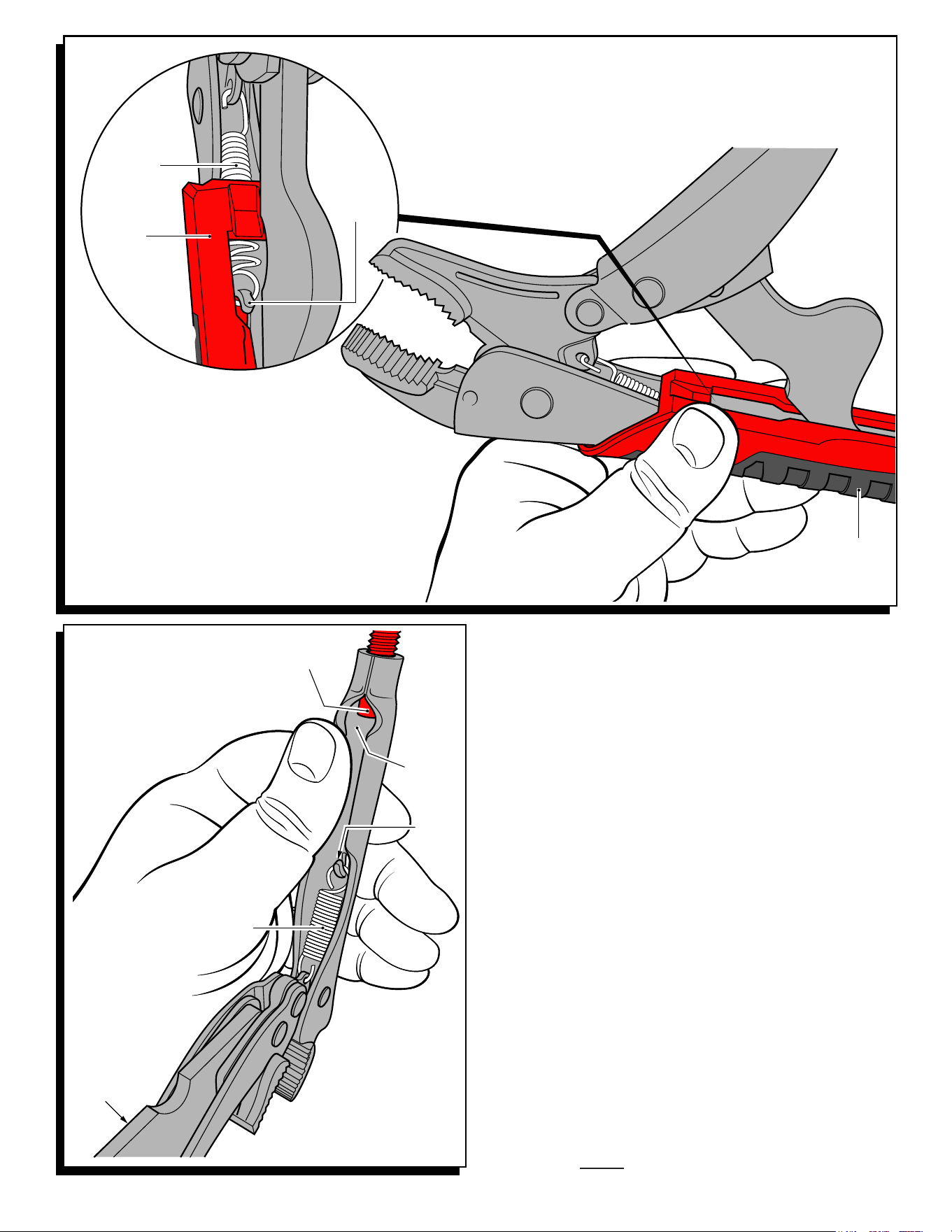

(1)
Adjustment
Bolt
NOTE: As an aid to installing a
service replacement spring onto
a TORQUE LOCK™ clamping
device, draw back the Adjustment
Bolt (1) to allow for the end of the
middle pivot plate in the lower
handle assembly to be freed
through the round opening
in the upper handle.
Expand open the
lower handle
assembly
as shown.
Round
Opening
Middle Pivot
Plate
(2)
Spring
Hook the open end
of the replacement
spring through the
hole in the lower jaw.
Use a small flat blade
screwdriver or a similar
instrument to pull the
close coil end of the spring
over the hook on the inside
of the upper handle as shown.
Place the end of middle pivot
plate back through the round
opening and secure with adjustment bolt.
Upper
Handle
Hook
Installing Spring Kit into TORQUE LOCK™
clamping devices with handle grip
NOTE: As an aid to installing a service replacement spring onto a TORQUE LOCK™ clamping device
(with handle grip), draw back the Adjustment Bolt (#1 not shown) to create an opening that will
allow a clear view and easiest access to hook that is inside of the upper handle. Feed open
end of replacement spring through hole in the lower jaw. Route spring into upper handle
cavity, under handle grip. Use a small flat blade screwdriver or a similar instrument to
pull the close coil end of the spring over hook on inside of upper handle as shown.
(2)
Spring
Upper
Handle
Hook
Handle
Grip
Handle
Grip
Installing Spring Kit into TORQUE LOCK™
clamping devices without a handle grip
