Drwg. 1
BULLETIN NO.
54-06-2040
SERVICE PARTS LIST
CATALOG NO. 2129-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL NO.
DATE
Mar. 2024
WIRING INSTRUCTION
P55A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. NOTES
7 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or name
plate.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Lamp Top Housing (1)
2 --------------- Gasket (1)
3 --------------- Lens Protector (1)
4 --------------- Lens (1)
5 --------------- Reector (1)
6 --------------- PT3 x 12mm Screw (15)
7 12-20-8802 Service Nameplate (1)
8 42-38-0164 Storage Boot (1)
9 22-68-0237 Light Head Kit (1)

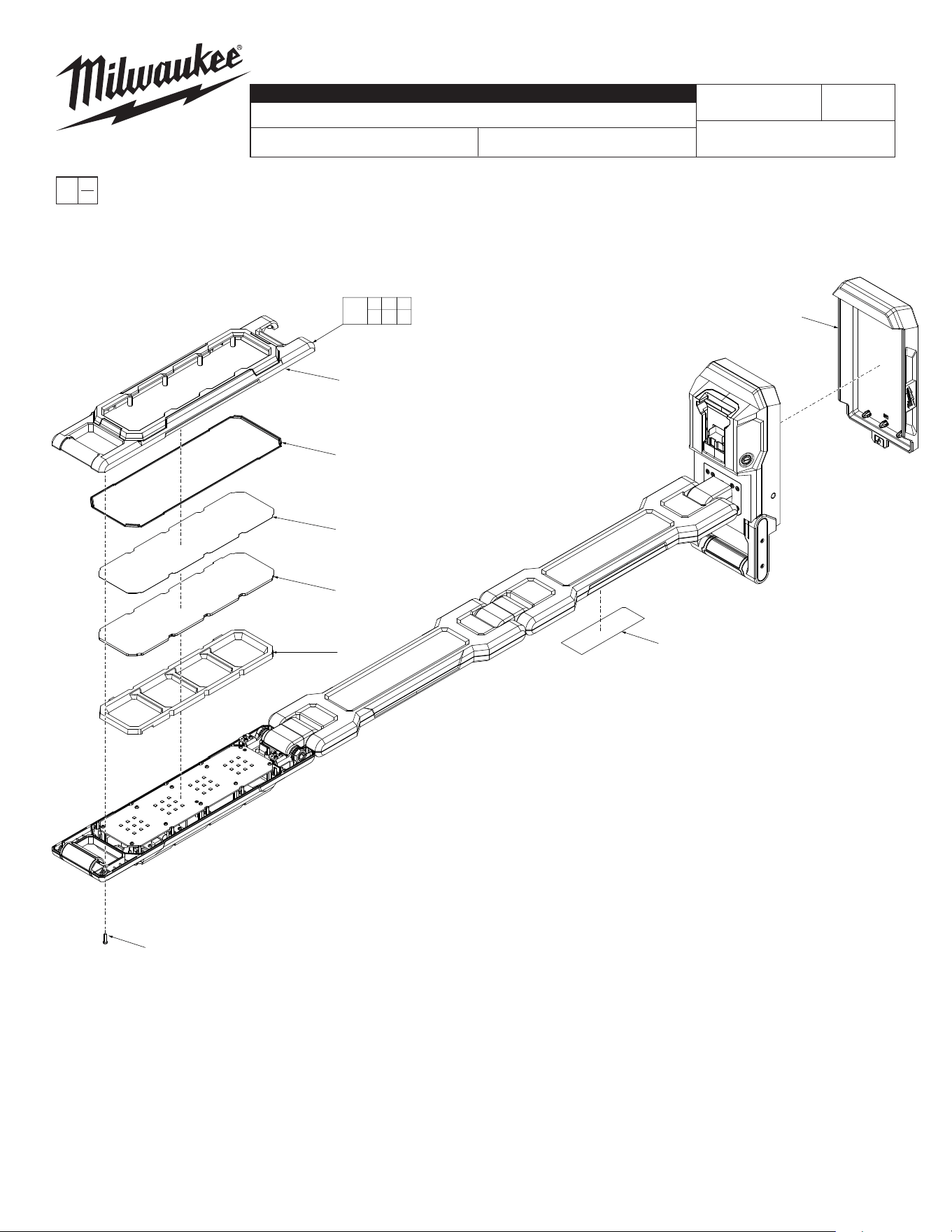

M18™ Magnetic Extendable Boom Light
1
2
3
4
5
8
9
1 2 3
4 5 6
7
6
(x15)
