WALL MOUNT RANGE HOOD
COS-63175
COS-63190
COS-63175S
COS-63190S
COS-6324EWH
COS-63024P
INSTALLATION INSTRUCTIONS
AND USE & CARE GUIDE
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR
THE OWNER.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
IMPORTANT:
INSTALLER:
OWNER:
COS-668A750
COS-668A900
COS-668AS750
COS-668AS900
COS-668WRC75
COS-668WRC90
COS-668WRCS75
COS-668WRCS90
Rev.23.03
2
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and
products to choose from and we are honored to know that you have decided
to take one of our products into your home and hope that you enjoy it.
COSMO Appliances are designed according to the strictest safety and
performance standard for the North American market. We follow the most
advanced manufacturing philosophy. Each appliance leaves the factory after
thorough quality inspection and testing. Our distributors and our service
partners are ready to answer any questions you may have regarding how to
install, use and case for your products. We hope that this manual will help you
learn to use the product in the safest and most effective manner.
Before using this product, please read through this manual carefully. Keep
this user manual in a safe place for future reference. Please ensure that other
persons using this product are familiar with these instructions as well.
If you have any questions or concerns, please contact the dealer from whom you
purchased the product, or contact our Customer Support at:
1-888-784-3108
Reach us online at:
www.cosmoappliances.com
TABLE OF CONTENTS
3
RANGE HOOD SAFETY ........................................................................................ 4
Important Safety Instructions ................................................................................. 5
INSTALLATION REQUIREMENTS ........................................................................ 7
Tools and Parts .......................................................................................................... 7
Location Requirements ............................................................................................ 9

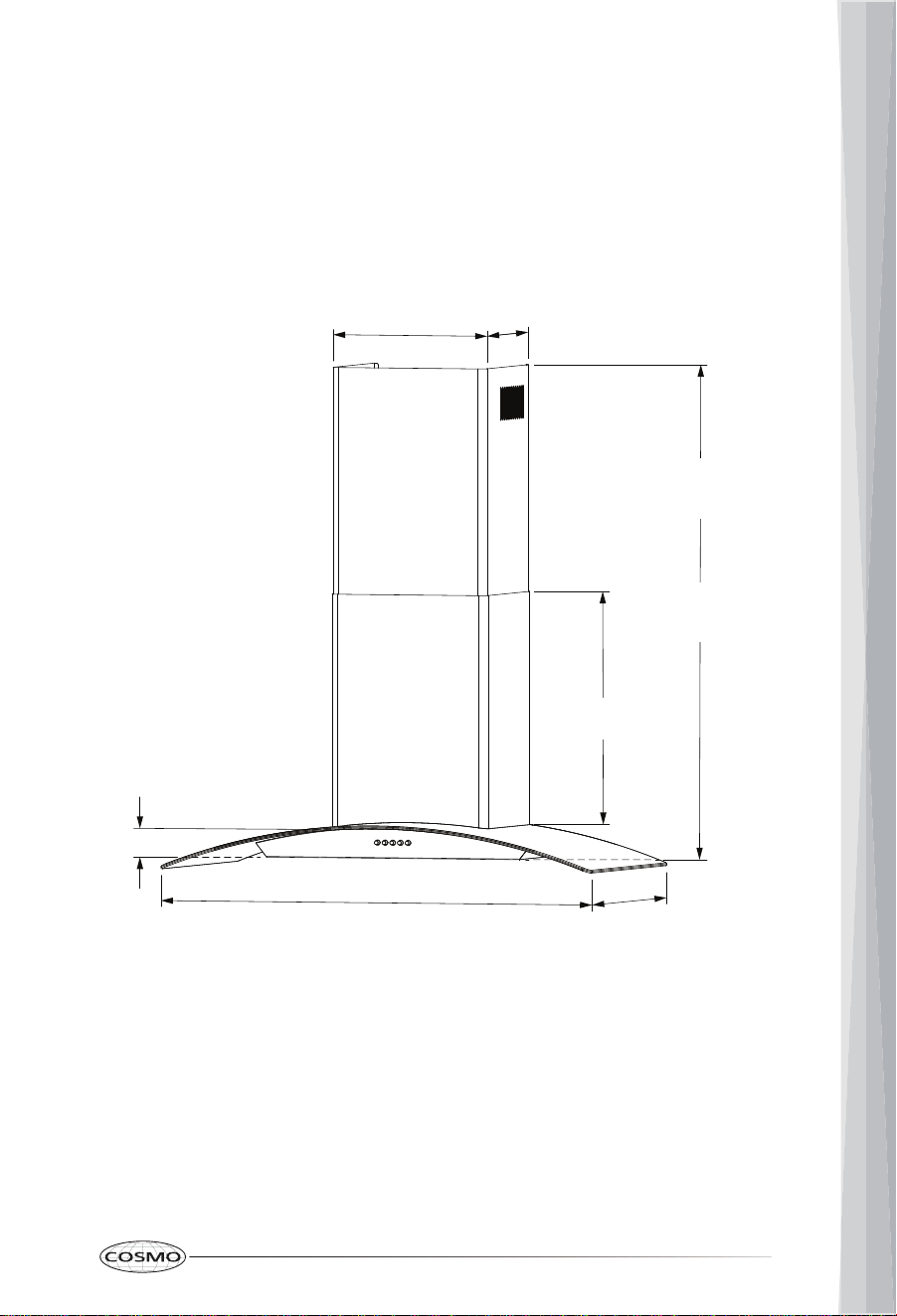

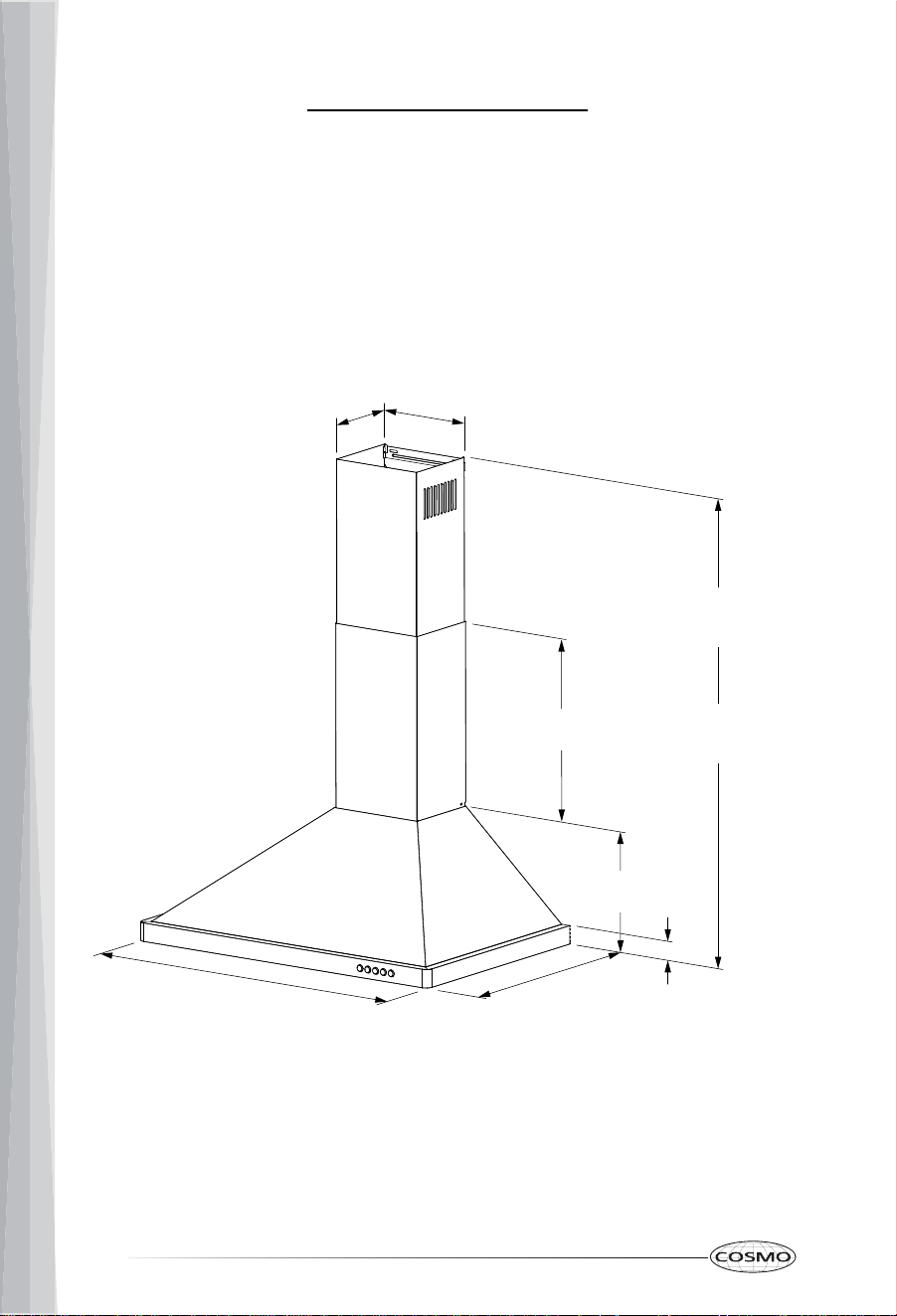

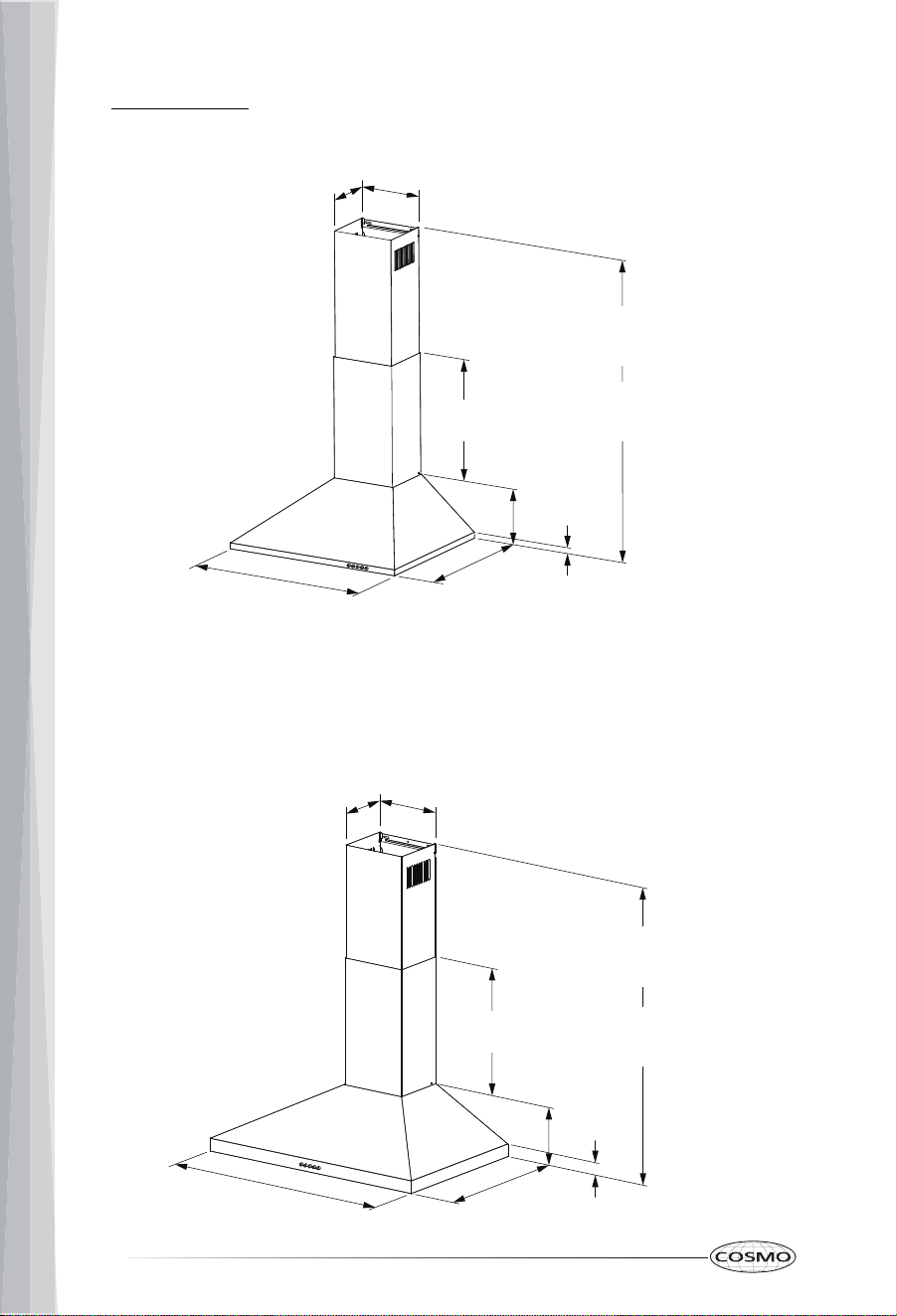

Product Dimensions ................................................................................................ 10

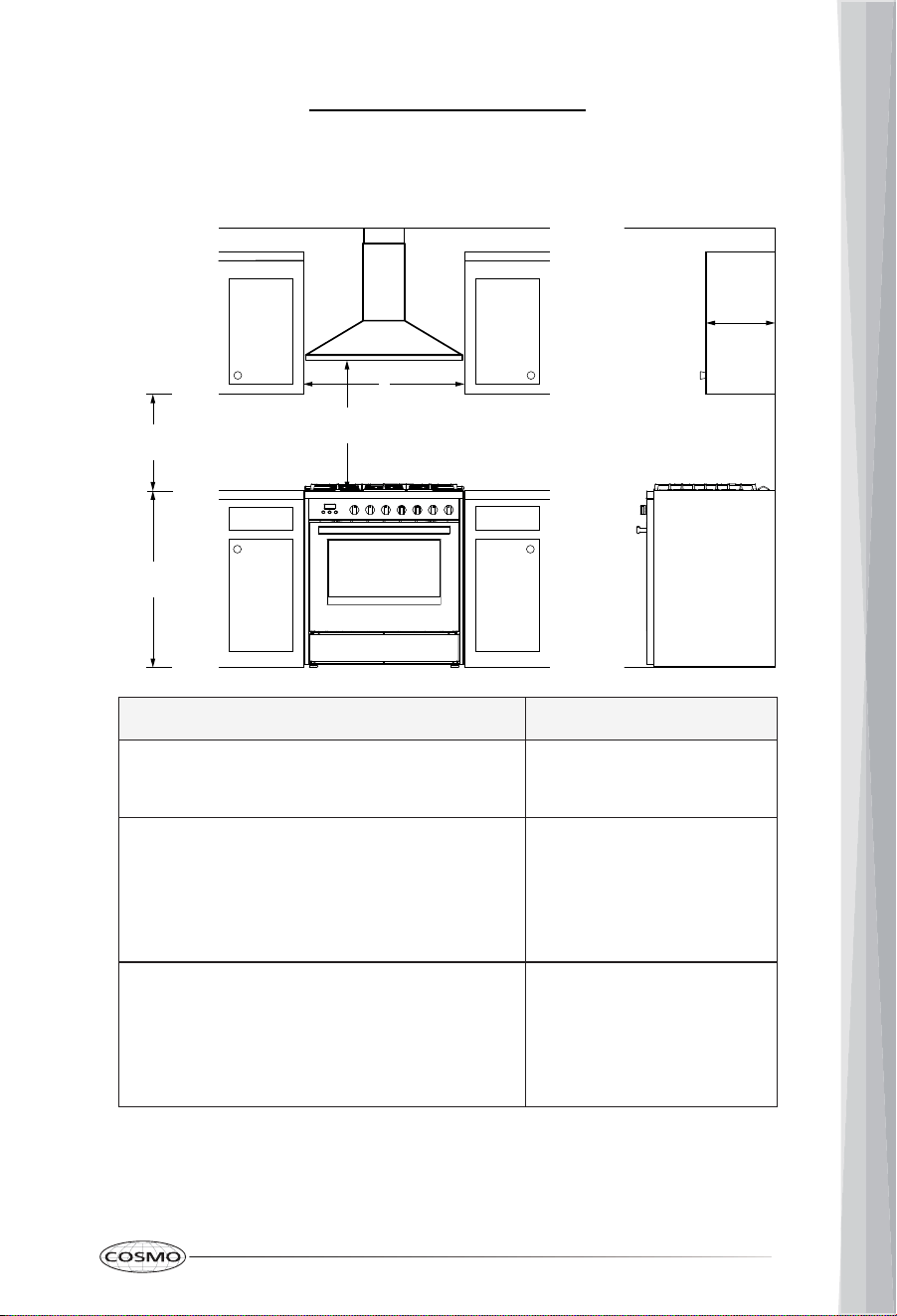

Cabinet Clearances ................................................................................................. 13

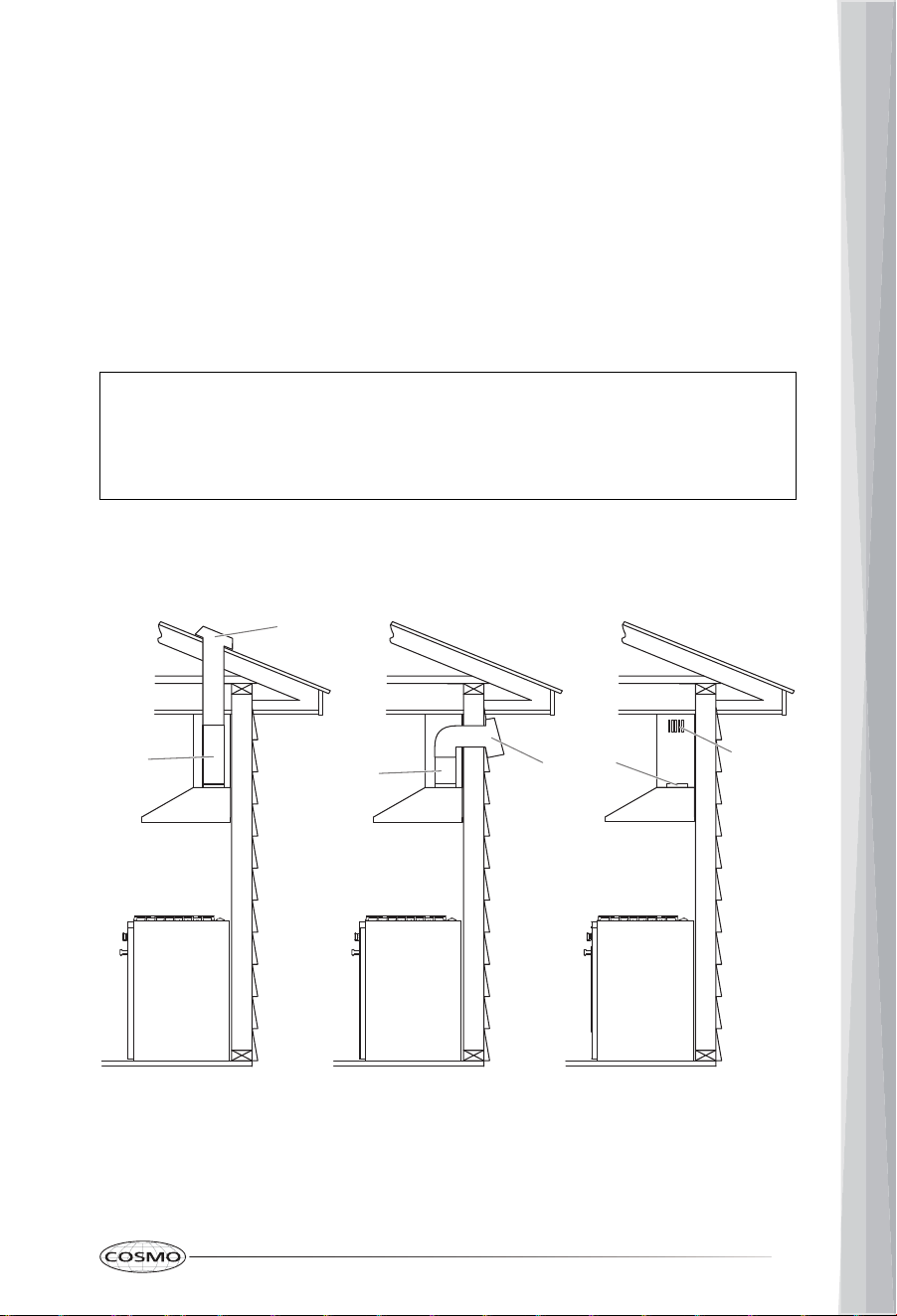

Venting Requirements ............................................................................................. 14
Electrical Requirements ........................................................................................... 17
INSTALLATION INSTRUCTIONS ......................................................................... 18
Prepare Location ..................................................................................................... 20

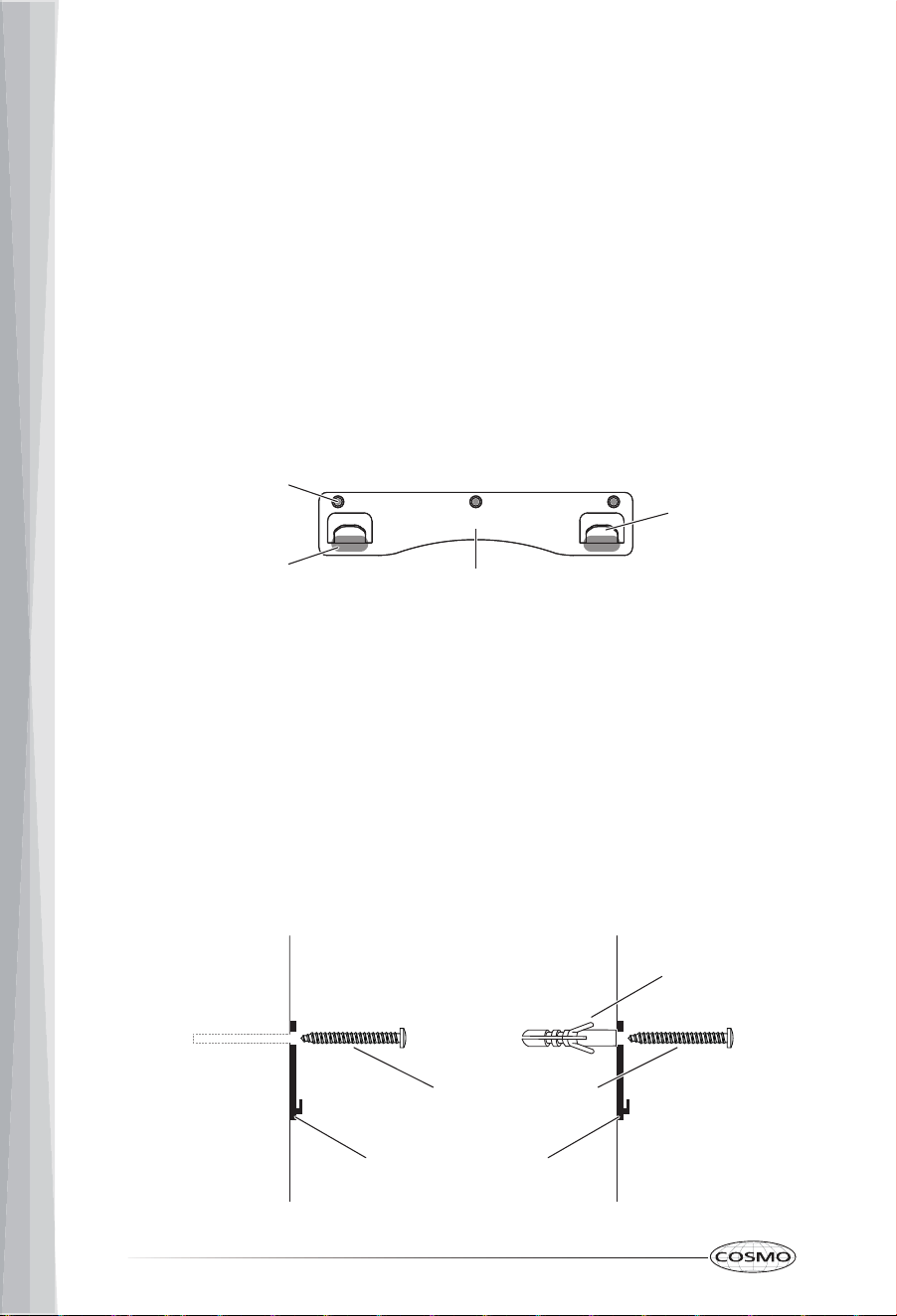

Brackets Installation ........................................................................................... 21
Install Range Hood ................................................................................................. 26
Complete Installation ............................................................................................. 28
RANGE HOOD USE ............................................................................................ 29

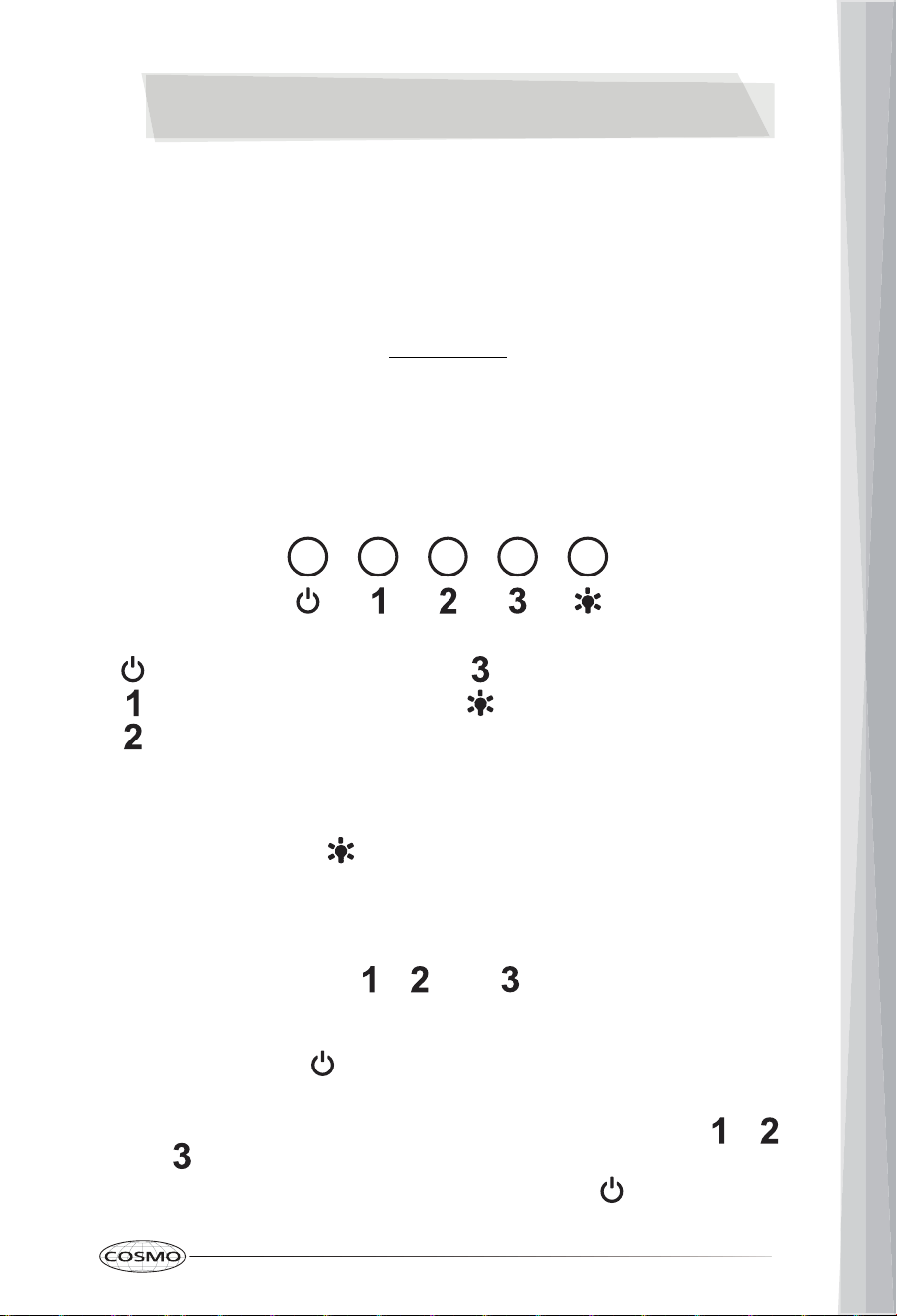

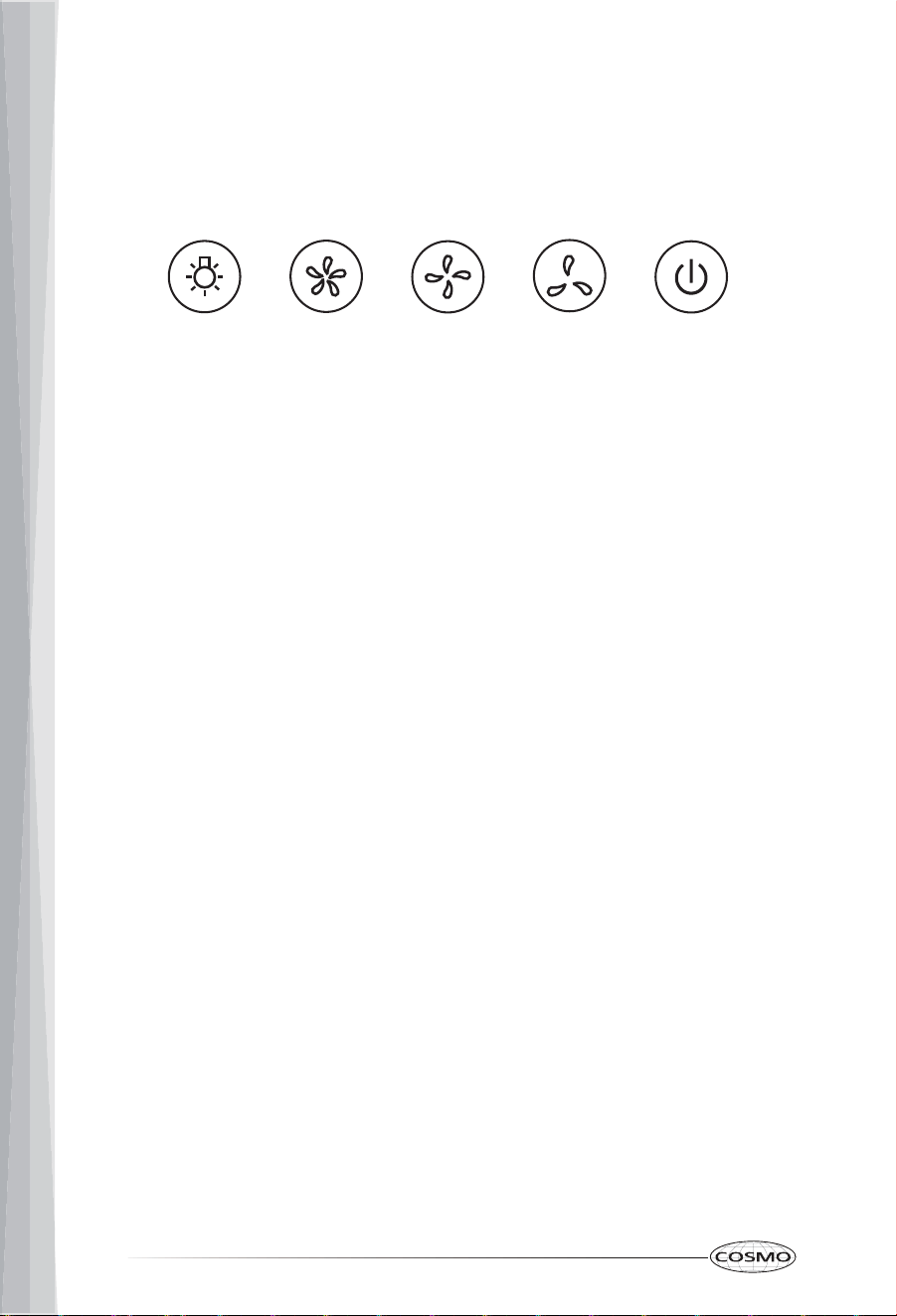

Controls ..................................................................................................................... 29
RANGE HOOD CARE ......................................................................................... 32
Cleaning .................................................................................................................... 32

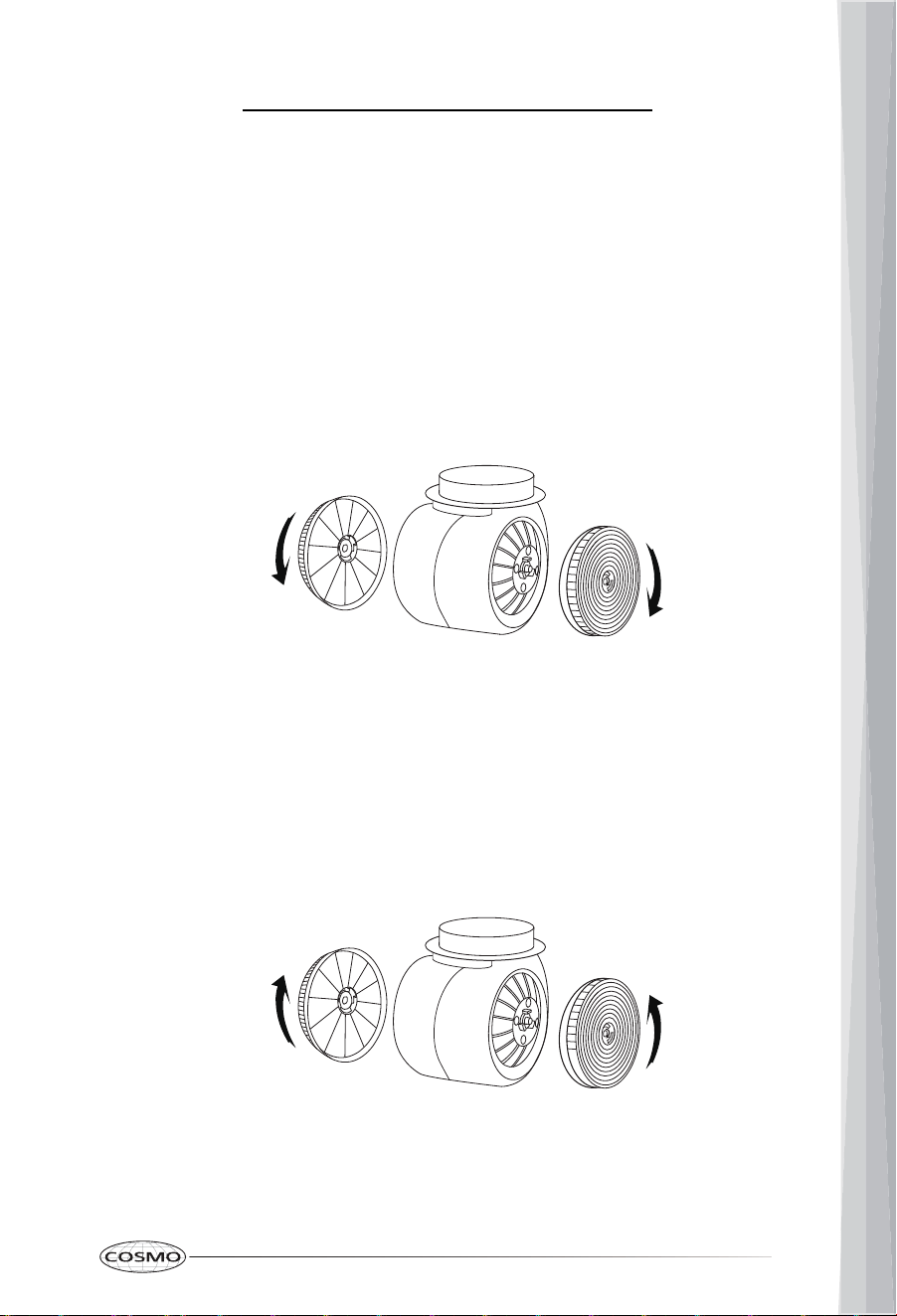

Replacing the Charcoal Filter ............................................................................... 33
Replacing the LED Light ......................................................................................... 34
LIMITED WARRANTY ........................................................................................ 35
RANGE HOOD SAFETY
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on
your appliance. Always read and obey all safety messages.
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards
that can kill or hurt you and others.
All safety messages will follow the safety alert
symbol and either the word "WARNING" or
"CAUTION." These words mean:
You can be killed or seriously injured if you
don't follow instructions.
A potentially hazardous situation which, if not
avoided, could result in minor or moderate
injury.
All safety messages will tell you what the potential hazard is, tell you how
to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
California Proposition 65 Warning
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
4
WARNING: This appliance is intended for normal indoor residential use. It
is not approved for commercial use, outdoor installation, installation over
an outdoor BBQ grill, or any other application not specifically allowed by
this manual. Damage from improper installation or use of this appliance is
not covered by the product warranty.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
5
WARNING: TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE
FOLLOWING:
• Use this unit only in the manner
intended by the manufacturer. If
you have questions, contact the
manufacturer.
• Before servicing or cleaning the
unit, switch the power off at the
service panel and lock the
service panel to prevent power
from being switched on
accidentally. When the service
disconnecting means cannot be
locked, securely fasten a
prominent warning device, such
as a tag to the service panel.
• Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
• Do not operate any fan with a
damaged cord or plug. Discard
fan or return to an authorized
service facility for examination
and/or repair.
• Ducted fans must always be
vented to the outdoors.
- CAUTION: For general
ventilating use only. Do not
use to exhaust hazardous or
explosive materials and
vapors.
- CAUTION: To reduce the risk
of fire and to properly
exhaust air, be sure to duct
air outside - do not vent
exhaust air into spaces
within walls or ceilings, or
into attics, crawl spaces or
garages.
• Sufficient air is needed for
proper combustion and
exhausting of gases through the
flue (chimney) of fuel burning
equipment to prevent
backdrafting. Follow the heating
equipment manufacturer’s
guideline and safety standards
such as those published by the
National Fire Protection
Association (NFPA), the
American Society for Heating,
Refrigeration and Air
Conditioning Engineers
(ASHRAE), and the local code
authorities.
• When cutting or drilling into the
wall or ceiling; do not damage
electrical wiring and other
hidden utilities.
WARNING: TO REDUCE THE RISK OF
A RANGE TOP GREASE FIRE:
• Never leave surface units
unattended at high settings.
Boilovers cause smoking and
greasy spillovers that may ignite.
Heat oils slowly on low or
medium settings.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
6
• Always turn the hood ON when
cooking at high heat or when
flambéing food (i.e. Crepes
Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
• Clean ventilating fans
frequently. Grease should not be
allowed to accumulate on the
fan or filter.
• Use proper pan sizes. Always use
cookware appropriate for the
size of the surface element.
WARNING: TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:*
• SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal
tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If
the flames do not go out
immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN
- you may be burned.
• DO NOT USE WATER, including
wet dishcloths or towels - a
violent steam explosion will
result.
• Use an extinguisher ONLY if:
- You know you have a class
ABC extinguisher, and you
already know how to
operate it.
- The fire is small and
contained in the area where
it started.
- The fire department is being
called.
- You can fight the fire with
your back to an exit.
* Based on "Kitchen Fire Safety Tips"
published by NFPA.
WARNING: TO REDUCE THE RISK OF
FIRE, USE ONLY METAL DUCTWORK.
WARNING: To reduce the risk of fire
or electrical shock, do not use this
fan with any solid-state speed
control device.
WARNING: Do not let children near
this appliance. Do not let children
play with this appliance. Keep all
packaging materials out of
children’s reach. Properly dispose
the packaging materials after this
appliance is unpacked.
• The manufacturer declines all
responsibility in the event of
failure to observe the
instructions given here for
installation, maintenance, and
suitable use of the product.
• The manufacturer further
declines all responsibility for
injury due to negligence and the
warranty of the unit
automatically expires due to
improper maintenance.
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation. Read and
follow the instructions provided with any tools listed here.
Tools Needed
• Level
• Drill with 5/32" (4 mm) and 5/16" (8 mm) drill bits
• Pencil
• Tape measure or ruler
• Phillips screwdriver
• Hand gloves
Parts Needed
For ducted installations, you will need:
• Duct system
• Duct clamps or HVAC foil tape
• Caulking gun and weatherproof caulking compound
For ductless (recirculating) installations, you will need:
• Charcoal filter kit. See the "Optional Parts" section to order.
7
8

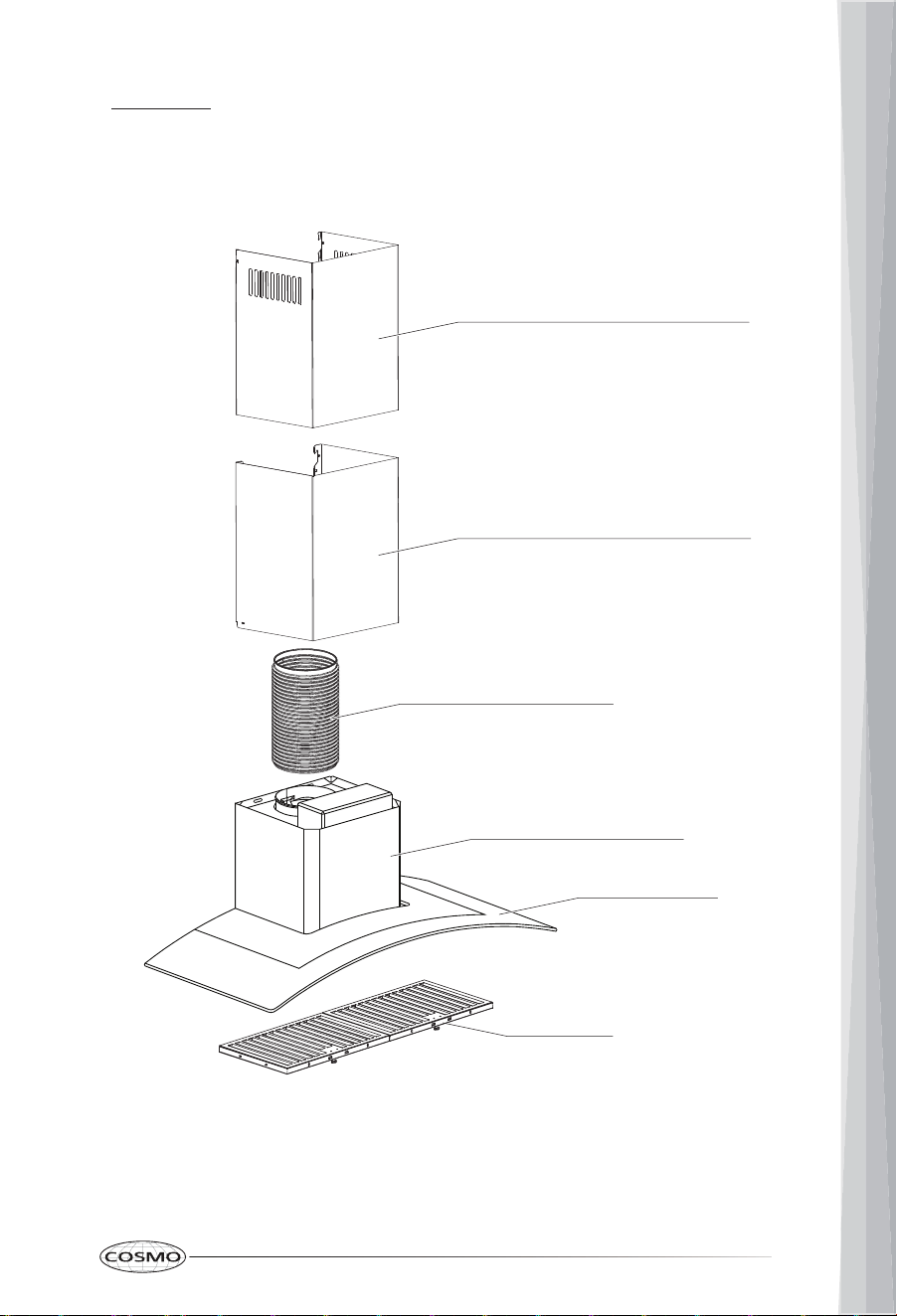

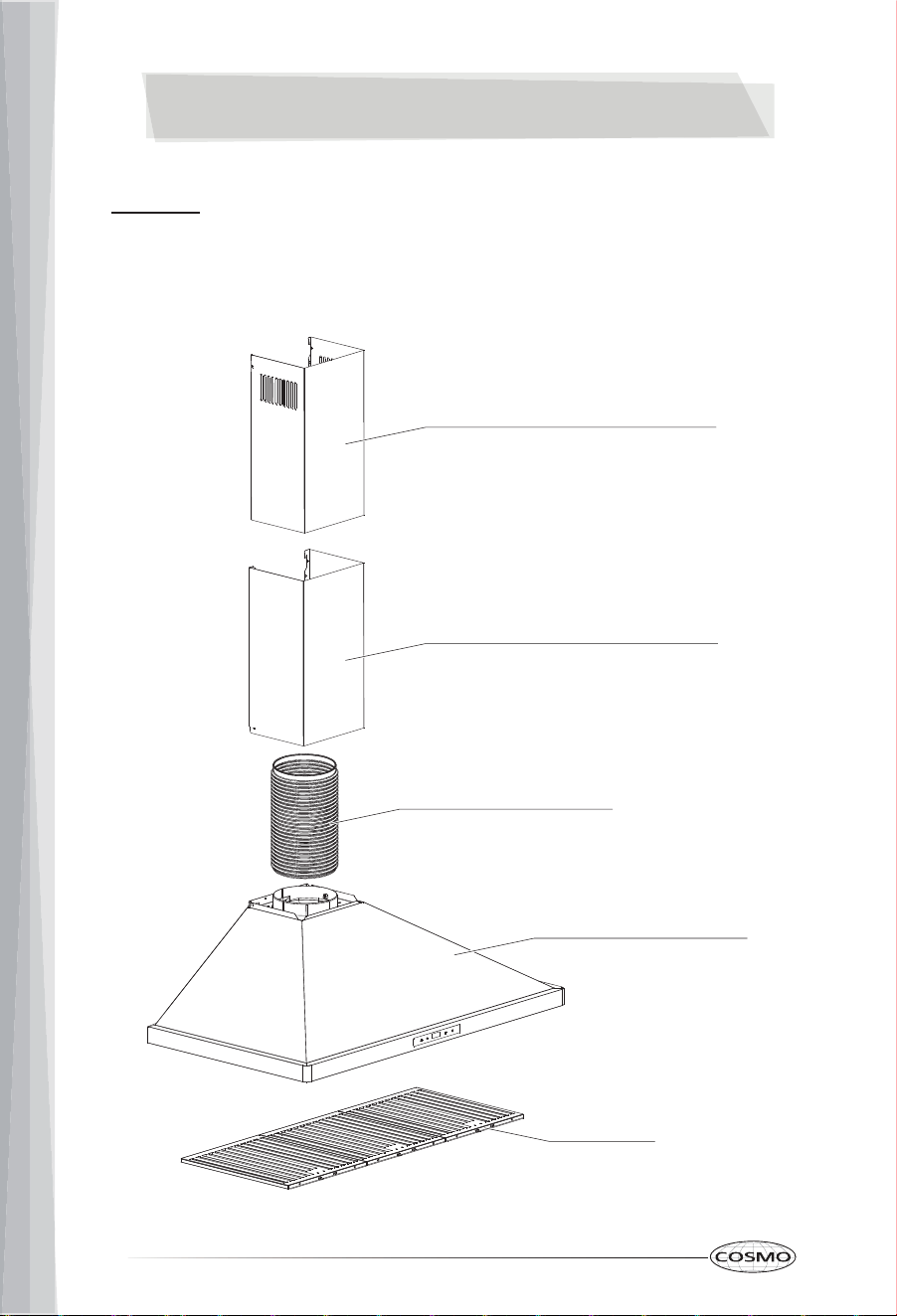

Parts Supplied
Remove parts from packages. Check that all parts are included.
• Range hood (main core) with damper, blower, and LED lights installed
• Metal filters
• Inner chimney (upper vent cover)
• Outer chimney (lower vent cover)
• Range hood (main core) mounting bracket
• Inner chimney support bracket
• Outer chimney support bracket
• 6" round aluminum duct
• Oil tray (not included for Models: COS-6324EWH, COS-63024P)
• 4 x 30 mm mounting screws (11)
• 3 x 10 mm screws (4)
• 8 x 35 mm wall anchors (11)
Optional Parts
To purchase these or any other accessories, please visit
www.cosmoappliances.com or reference the contact information at the end
of this manual.
• Charcoal filter kit
• Chimney (vent cover) extensions
NOTE:
• 27.5" chimney extensions replace the chimneys shipped with the
range hood.
9
Location Requirements
IMPORTANT:
Have a qualified technician install the range hood. It is the installer’s
responsibility to comply with installation clearances specified on the
model/serial/rating plate. The model/serial/rating plate is located inside the
range hood on the rear wall of the range hood.
Range hood location should be away from strong draft areas, such as
windows, doors, and strong heating vents.
Cabinet opening dimensions that are shown must be used. Given dimensions
provide minimum clearance.
Grounded electrical outlet is required. See the "Electrical Requirements"
section.
The range hood is factory set for venting through the roof or wall. If it is not
possible to vent cooking fumes and vapors to the outside, the range hood can
be used in the ductless (recirculating) version. Charcoal filters are required for
ductless (recirculating) installations. See "Optional Parts" in the "Tools and
Parts" section to order.
All openings in ceiling and wall where range hood will be installed must be
sealed.
For Mobile Home Installations:
The installation of this range hood must conform to the Manufactured Home
Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal
Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280)
or when such standard is not applicable, the standard for Manufactured
Home Installation 1982 (Manufactured Home Sites, Communities and Setups)
ANSI A225.1/NFPA 501A or latest edition, or with local codes.
• Observe all governing codes and ordinances.
10
Product Dimensions
631 SERIES
30" Model: COS-63175 / 63175S
36" Model: COS-63190 / 63190S
6 ³⁄₄"
(17.2 cm)
8 ¹⁄₄"
(20.9 cm)
30" Model: 29 ⁵⁄₁₆" (74.5 cm)
or
36" Model: 35 ¹⁄₄" (89.5 cm)
19 ¹¹⁄₁₆"
(50.0 cm)
1 ⁹⁄₁₆"
cm)(4.0
10 ³⁄₁₆"
(25.8 cm)
15 ¹⁄₂"
(39.3 cm)
Ducted (Vented):
25 ⁵⁄₈" (65.1 cm) min.
39 ⁷⁄₁₆" (100.1 cm) max.
Ductless (Recirculating):
29 ³⁄₄" (75.6 cm) min.
39 ⁷⁄₁₆" (100.1 cm) max.
11
668 SERIES
30" Model: COS-668A750 / 668AS750 / 668WRC75 / 668WRCS75
36" Model: COS-668A900 / 668AS900 / 668WRC90 / 668WRCS90
2 ³⁄₈"
(6.0 cm)
18 ¹⁄₂"
(47.0 cm)
30" Model: 29 ⁵⁄₁₆" (74.5 cm)
or
36" Model: 35 ¹⁄₄" (89.5 cm)
19 ³⁄₈"
(49.2 cm)
12 ³⁄₄"
(32.4 cm)
11 ¹⁄₈"
(28.3 cm)
Ducted (Vented):
21 ⁷⁄₁₆" (54.5 cm) min.
39 ³⁄₁₆" (99.5 cm) max.
Ductless (Recirculating):
25 ⁹⁄₁₆" (65.0 cm) min.
39 ³⁄₁₆" (99.5 cm) max.
12
COS-6324EWH
COS-63024P
6 ³⁄₄"
(17.2 cm)
8 ¹⁄₄"
(20.9 cm)
23 ⁷⁄₁₆" (59.5 cm)
18 ¹⁵⁄₁₆"
(48.1 cm)
¹³⁄₁₆"
(2.0 cm)
15 ¹⁄₂"
(39.3 cm)
7 ¹⁄₁₆"
(18.0 cm)
Ducted (Vented):
22 ⁹⁄₁₆" (57.3 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
Ductless (Recirculating):
26 ¹¹⁄₁₆" (67.8 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
6 ³⁄₄"
(17.2 cm)
8 ¹⁄₄"
(20.9 cm)
15 ¹⁄₂"
(39.3 cm)
7 ¹⁄₁₆"
(18.0 cm)
Ducted (Vented):
22 ⁹⁄₁₆" (57.3 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
1 ⁹⁄₁₆"
(4.0 cm)
29 ⁵⁄₁₆" (74.5 cm)
18 ⁷⁄₈"
(48.0 cm)
Ductless (Recirculating):
26 ¹¹⁄₁₆" (67.8 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
13
Cabinet Clearances
Given dimensions are minimum clearances.
IMPORTANT:
• 24" (61.0 cm) minimum and 36" (91.4 cm) suggested maximum clearances
between cooking surface and bottom of the range hood.
Model A
24" Model:
COS-6324EWH
23 ⁷/₁₆" (59.5 cm)
29 ⁵/₁₆" (74.5 cm)30" Model:
COS-668A750, COS-668AS750
COS-668WRC75, COS-668WRCS75
COS-63024P, COS-63175, COS-63175S
35 ⁷/₁₆" (90.0 cm)36" Model:
COS-668A900, COS-668AS900
COS-668WRC90, COS-668WRCS90
COS-63190, COS-63190S
Wall Mount Range Hood
12"
(30.5 cm)
Overhead
Cabinet
Depth
A
Max. 36" (91.4 cm)
Min. 24" (61.0 cm)
18"
(45.7 cm)
36"
(91.4 cm)
Venting Requirements
(Ducted installations only)
• Duct system must terminate to the outdoors, except for ductless
(recirculating) installations.
• Do not terminate the duct system in an attic or other enclosed area.
• Do not use 4" (10.2 cm) laundry-type wall cap.
• Use metal duct only. A rigid metal duct is recommended. Plastic or metal
foil duct is not recommended.
• The length of duct system and number of elbows should be kept to a
minimum to provide efficient performance.
14
For the most efficient and quiet operation:
• Use rigid metal duct.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24" (61.0 cm) of straight duct between
the elbows if more than 1 elbow is used.
• Do not install 2 elbows together.
• Use clamps to seal all joints in the duct system.
• The duct system must have a damper. If the roof or wall cap has a
damper, do not use the damper supplied with the range hood.
• Use caulking to seal exterior wall or roof opening around the cap.
• The size of the duct should be uniform.
Cold Weather Installations:
An additional backdraft damper should be installed to minimize backward
cold air flow and a thermal break should be installed to minimize conduction
of outside temperatures as part of the duct system. The damper should be on
the cold air side of the thermal break.
The break should be as close as possible to where the duct system enters the
heated portion of the house.
Makeup Air:
Local building codes may require the use of makeup air systems when using
ventilation systems greater than specified CFM of air movement. The specified
CFM varies from locale to locale. Consult your HVAC professional for specific
requirements in your area.
15
Venting Methods
• This range hood is factory set for venting through the roof or through the
wall. The exhaust opening is 6" (15.2 cm) round. A 6" (15.2 cm) round duct
system is recommended. The duct system needed for installation is not
included.
• If it is not possible to vent cooking fumes and vapors to the outside, the
range hood can be used in the ductless (recirculating) version, using a
charcoal filter kit. To order, see "Optional Parts" in the "Tools and Parts"
section.
NOTE:
• If exhaust ducting is less than 5.91" (15.0 cm) in diameter or if flat
ducting is used, the noise level of the range hood may increase and the
exhaustion may be less efficient.
RRooooff VVeennttiinngg WWaallll VVeenntitinngg DDuuccttlleessss ((NoNonn--VVeenntteedd))
A. Roof cap
B. 6" (15.2 cm) round
duct
A. Wall cap
B. 6" (15.2 cm) round
duct
A. Duct opening
B. Chimney venting
holes
A
B
A
B
A
B
16
Calculating Duct System Length
The recommended duct system is 6" (15.2 cm) round duct with a maximum
length of 35 ft (10.7 m). For the best performance, use no more than three 90°
elbows.
To calculate the length of the system you need, add the equivalent feet
(meters) for each duct piece used in the system.
Duct Piece
45° elbow
6" (15.2 cm) Round
2.5 ft (0.8 m)
90° elbow 5.0 ft (1.5 m)
90˚ elbow Wall cap
Maximum equivalent duct length is 35 ft (10.7 m).
Example Duct System - 6" (15.2 cm)
6 ft (1.8 m)
3 ft
(0.93 m)
Maximum length = 35 ft (10.7 m)
1 - 90° elbow
1 – wall cap
6 ft (1.8 m) straight
3 ft (0.9 m) straight
System length
= 14.0 ft (4.3 m)
= 5.0 ft (1.5 m)
= 0.0 ft (0.0 m)
= 6.0 ft (1.8 m)
= 3.0 ft (0.9 m)
17
Electrical Requirements
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in conformance with
National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards
C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition)
and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a
qualified electrician determine that the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
• A 120-volt, 60 Hz., AC-only, 2-amp, fused electrical circuit is required.
• If the house has aluminum wiring, follow the procedure below:
- Connect a section of solid copper wire to the pigtail leads.
- Connect the aluminum wiring to the added section of copper wire
using special connectors and/or tools designed and UL Listed for
joining copper to aluminum.
- Follow the electrical connector manufacturer's recommended
procedure. Aluminum/copper connection must conform with local
codes and industry accepted wiring practices.
• Wire sizes and connections must conform with the rating of the appliance
as specified on the model/serial/rating plate. The model/serial/rating
plate is located behind the left filter on the rear wall of the range hood.
• Wire sizes must conform to the requirements of the National Electrical
Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94,
Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and
all local codes and ordinances.
18
INSTALLATION INSTRUCTIONS
Metal filters
Range hood (main core)
6" round aluminum duct
Outer chimney (lower vent cover)
Inner chimney (upper vent cover)
63 SERIES
COS-63175 / COS-63190 / COS-63175S / COS-63190S
COS-6324EWH / COS-63024P
19
668 SERIES
COS-668A750 / COS-668A900 / COS-668AS750 / COS-668AS900
COS-668WRC75 / COS-668WRC90 / COS-668WRCS75 / COS-668WRCS90
Metal filters
Range hood (main core)
6" round aluminum duct
Outer chimney (lower vent cover)
Inner chimney (upper vent cover)
Tempered glass
20
Prepare Location
• It is recommended that the duct system be installed before the range
hood is installed.
• Before making cutouts, make sure there is proper clearance within the
ceiling or wall for duct fittings.
• Remove installations parts carefully. Wear hand gloves to protect against
sharp edges.
• Remove the foams, tapes, and protective films covering the product
before putting it into operation.
• Confirm that all installations parts have been removed from the shipping
carton and the range hood canopy.
1. Disconnect power.
2. Determine which venting method to use: roof, wall, or ductless.
3. Select a flat surface for assembling the range hood. Place covering over
that surface.
4. Using 2 or more people, lift range hood onto covered surface.
• Use two or more people to move and install range hood.
• Failure to do so can result in back or other injury.
WARNING EXCESSIVE WEIGHT HAZARD
21

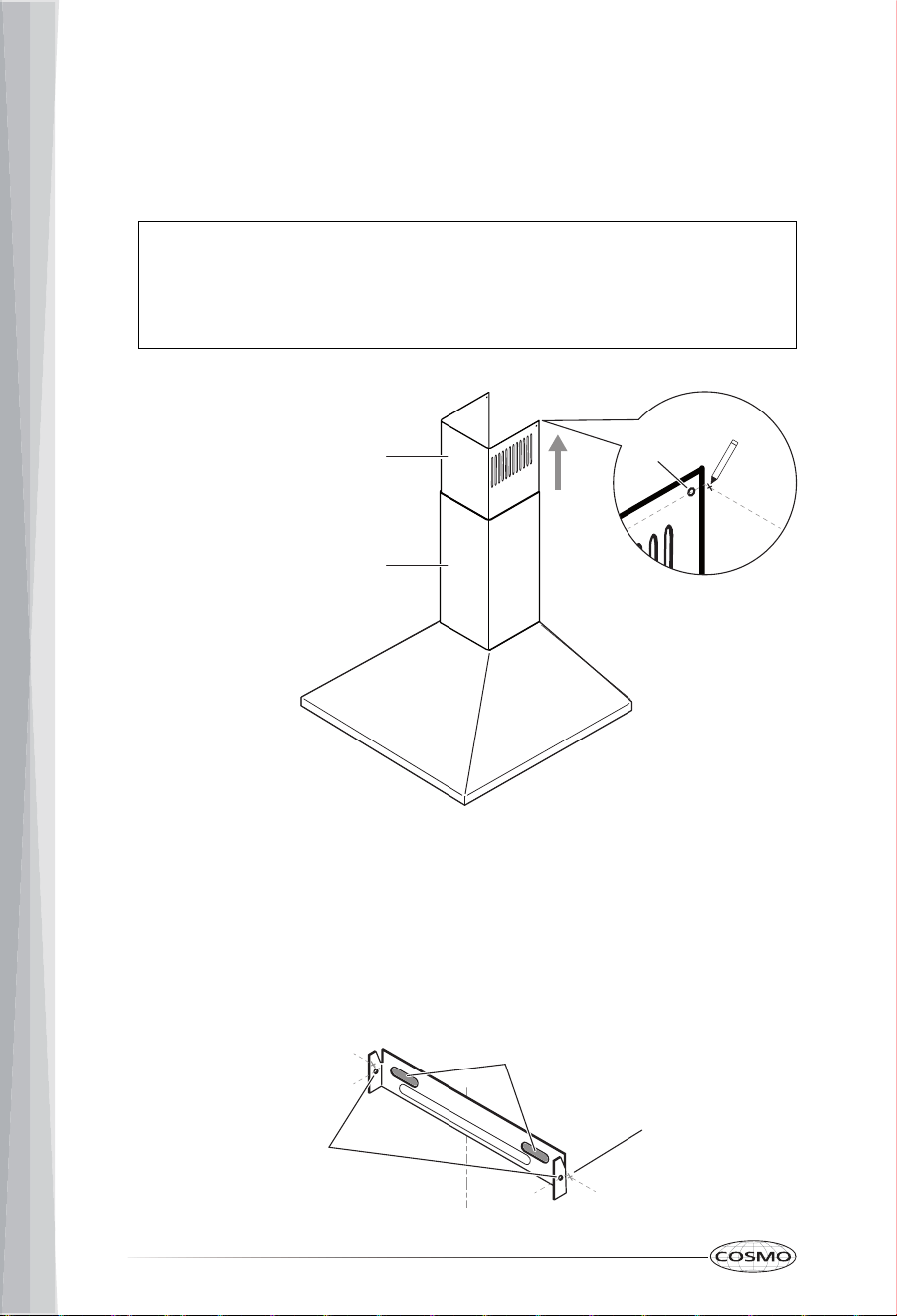

Range Hood Mounting Bracket
1. Determine and mark the vertical centerline on the wall where the range
hood will be installed.
2. Select a mounting height between a minimum of 24" (61.0 cm) and a
suggested maximum of 36" (91.4 cm) above the cooktop/range to the
bottom of the range hood. Mark a horizontal line on the wall referencing
the bottom of the range hood.
NOTE:
• Make sure the chimney can reach the ceiling. For wall venting, it is
not necessary for the chimney to be in contact with the ceiling.
• For higher ceilings, chimney extensions are available to replace
the chimneys shipped with the range hood. To purchase, visit
www.cosmoappliances.com or reference the contact information
at the end of this manual.
WARNING EXCESSIVE WEIGHT HAZARD
• Use two or more people to move and install range hood.
• Failure to do so can result in back or other injury.
WALL BACK VIEW
Brackets Installation
22
3. Place range hood on the wall above the horizontal reference line, and
make sure it is level. Mark the mounting slots on back of range hood on
the wall, and rest range hood on covered surface.
4. Align the mounting arms on range hood mounting bracket with the
mounting slot markings on the wall, and make sure it is level. Mark
centers of the (3) mounting screw locations on the wall.
IMPORTANT:
• All mounting screws must be installed into wood stud where possible.
If there is no wood stud to screw into, additional wall framing
supports may be required, or use the 8 x 35 mm wall anchors with the
4 x 30 mm screws.
5. For wood, drill 5/32" (4mm) pilot holes at all locations where mounting
screws are being installed into wood.
For wall anchors, drill 5/16" (8 mm) holes at all locations where wall
anchors are being used.
6. Secure the mounting bracket on the wall with (3) mounting screws.
For wood, install the 4 x 30 mm mounting screws.
For wall anchors, install the 8 x 35 mm wall anchors and install the 4 x 30
mm mounting screws into the wall anchors.

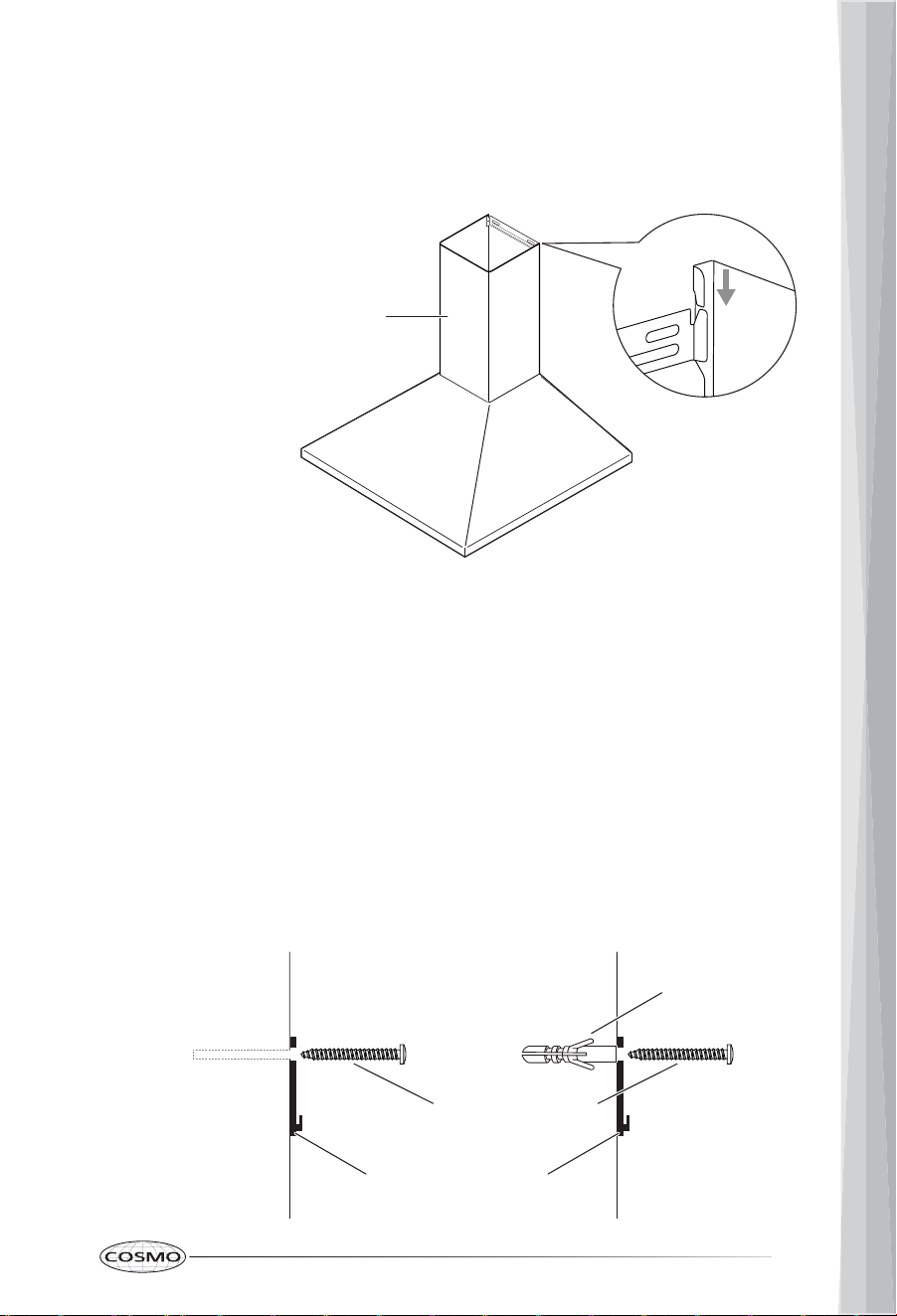

Range hood mounting bracket
Mounting arm
Range hood
mounting slot
markings
Mounting screw
location
WALLWOOD STUD
Mounting bracket
Wall anchor
Mounting screw
23

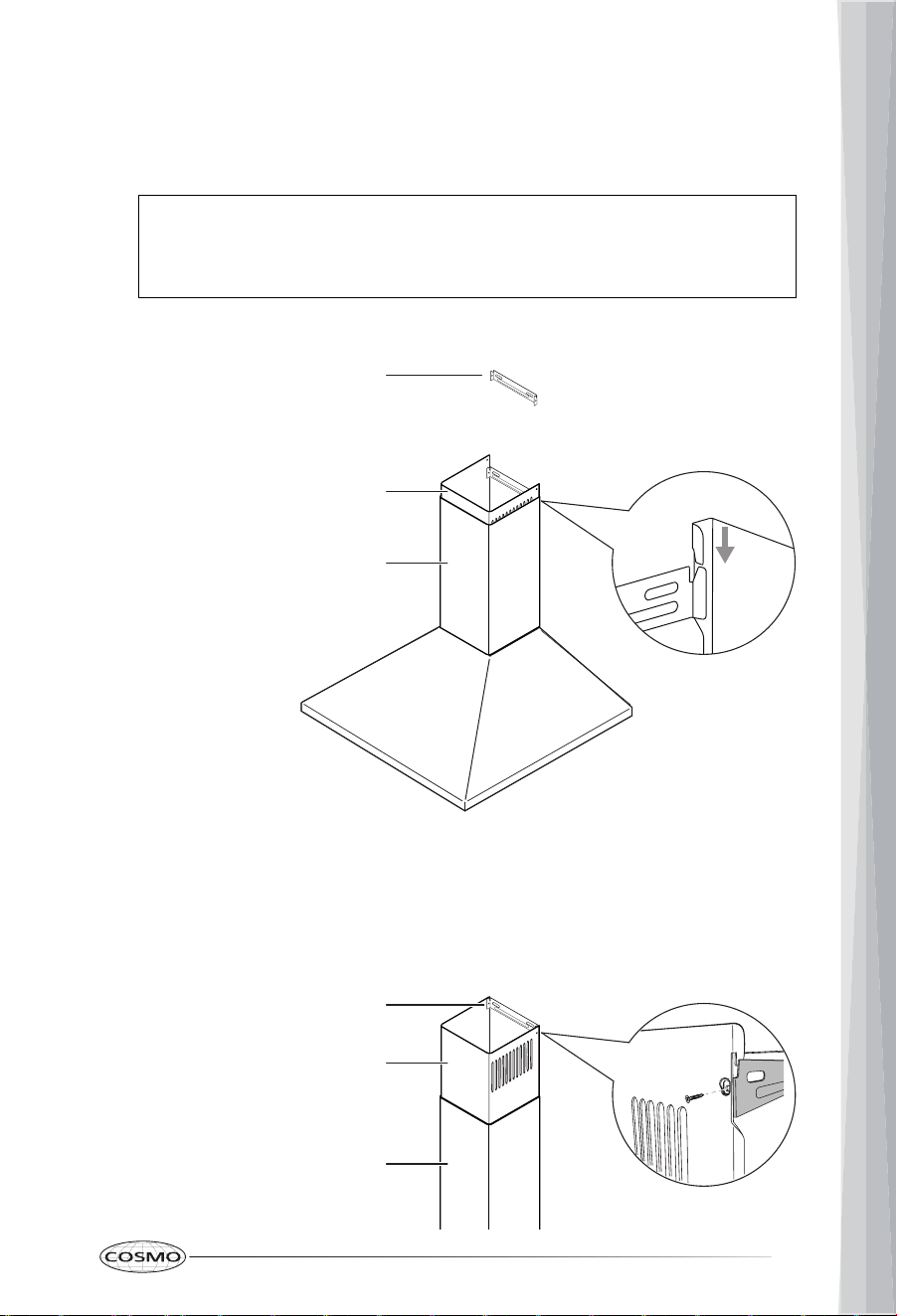

Chimney (Vent Cover) Support Brackets
WARNING EXCESSIVE WEIGHT HAZARD
• Use two or more people to move and install range hood.
• Failure to do so can result in back or other injury.
IMPORTANT:
• The inner (upper) chimney support bracket is slightly longer than the
outer (lower) chimney support bracket.

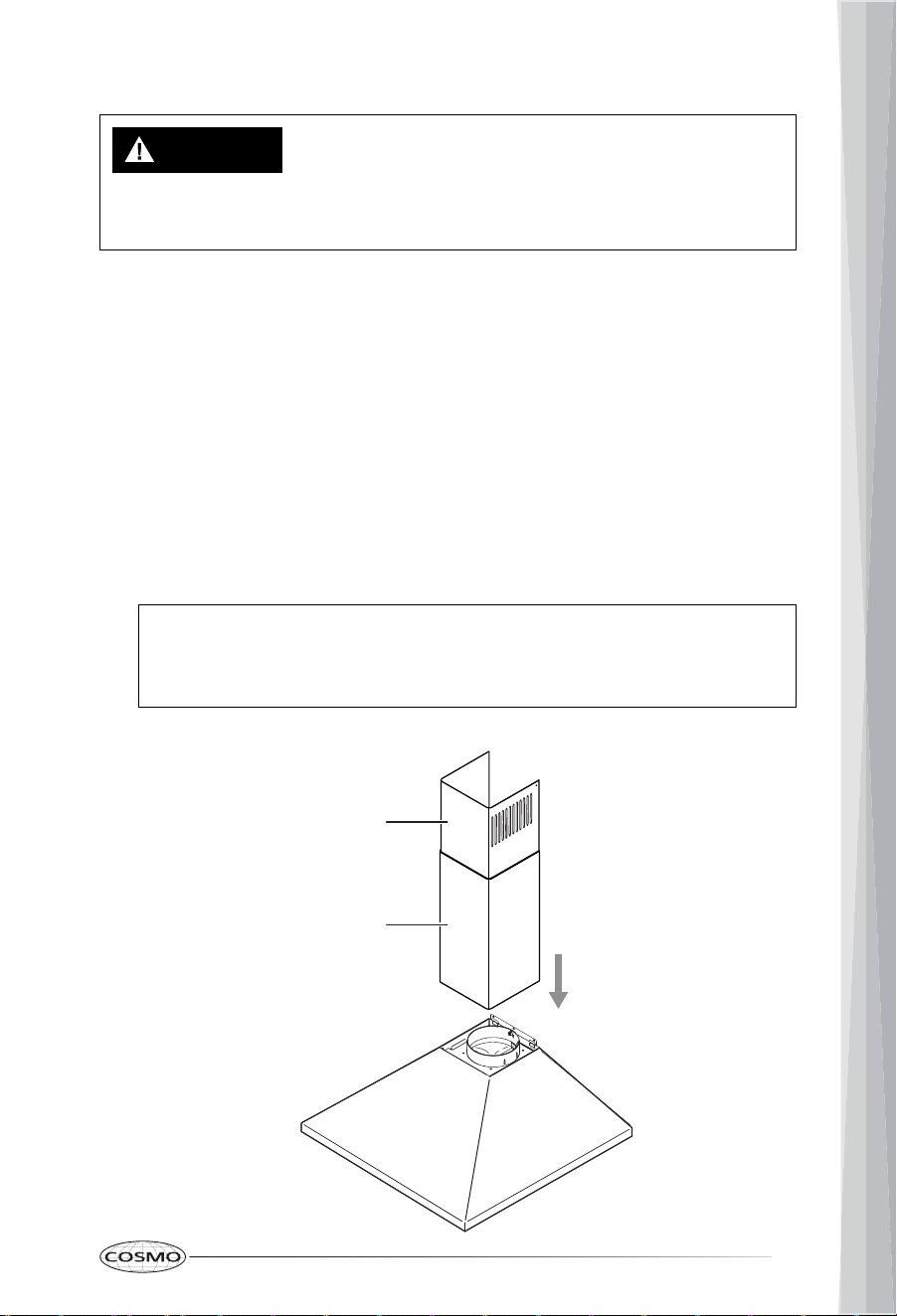

1. Using 2 or more people, hang range hood on mounting bracket through
the mounting slots on back of range hood.
2. Place both inner (upper) and outer (lower) chimneys onto hood. The inner
chimney must slide into the outer chimney.
NOTE:
• To help prevent scratches, lay paper or a kitchen towel over the
top edges of the outer (lower) chimney to protect the surface.
Inner (upper) chimney
Outer (lower) chimney
24
3. Lift inner (upper) chimney to ceiling. Using a pencil, mark on the wall
adjacent to the inner chimney the center of the screw locations near the
top on both sides of the inner chimney. Carefully slide the inner (upper)
chimney down.
NOTE:
• For ductless (recirculating) installations, the venting holes near the
top of the inner (upper) chimney should be exposed from the outer
(lower) chimney to allow air recirculation.
4. Align the center of the inner chimney support bracket with the centerline
on the wall, and align the screw hole on both sides of the support bracket
with the previously marked inner (upper) chimney screw locations on the
wall. Make sure the support bracket is level, and mark the (2) mounting
screw locations.
Outer (lower) chimney
Inner (upper) chimney
WALL
Screw
location
Centerline
Mounting screw
location
Screw hole
Marked chimney
screw location
25
5. Position the outer chimney support bracket on the wall with the top of the
outer chimney hooking onto the support bracket on both sides. Align the
center of the support bracket with the centerline on the wall, and make
sure it is level. Mark the (2) mounting screw locations of the support
bracket.
6. Rest chimneys and range hood on covered surface.
For wood, drill 5/32" (4mm) pilot holes at all locations where mounting
screws are being installed into wood.
For wall anchors, drill 5/16" (8 mm) holes at all locations where wall
anchors are being used.
7. Attach chimney support brackets to the wall with (2) mounting screws
each.
For wood, install the 4 x 30 mm mounting screws.
For wall anchors, install the 8 x 35 mm wall anchors and install the 4 x 30
mm mounting screws into the wall anchors.
Outer (lower) chimney
WALL
WOOD STUD
Mounting bracket
Wall anchor
Mounting screw
26

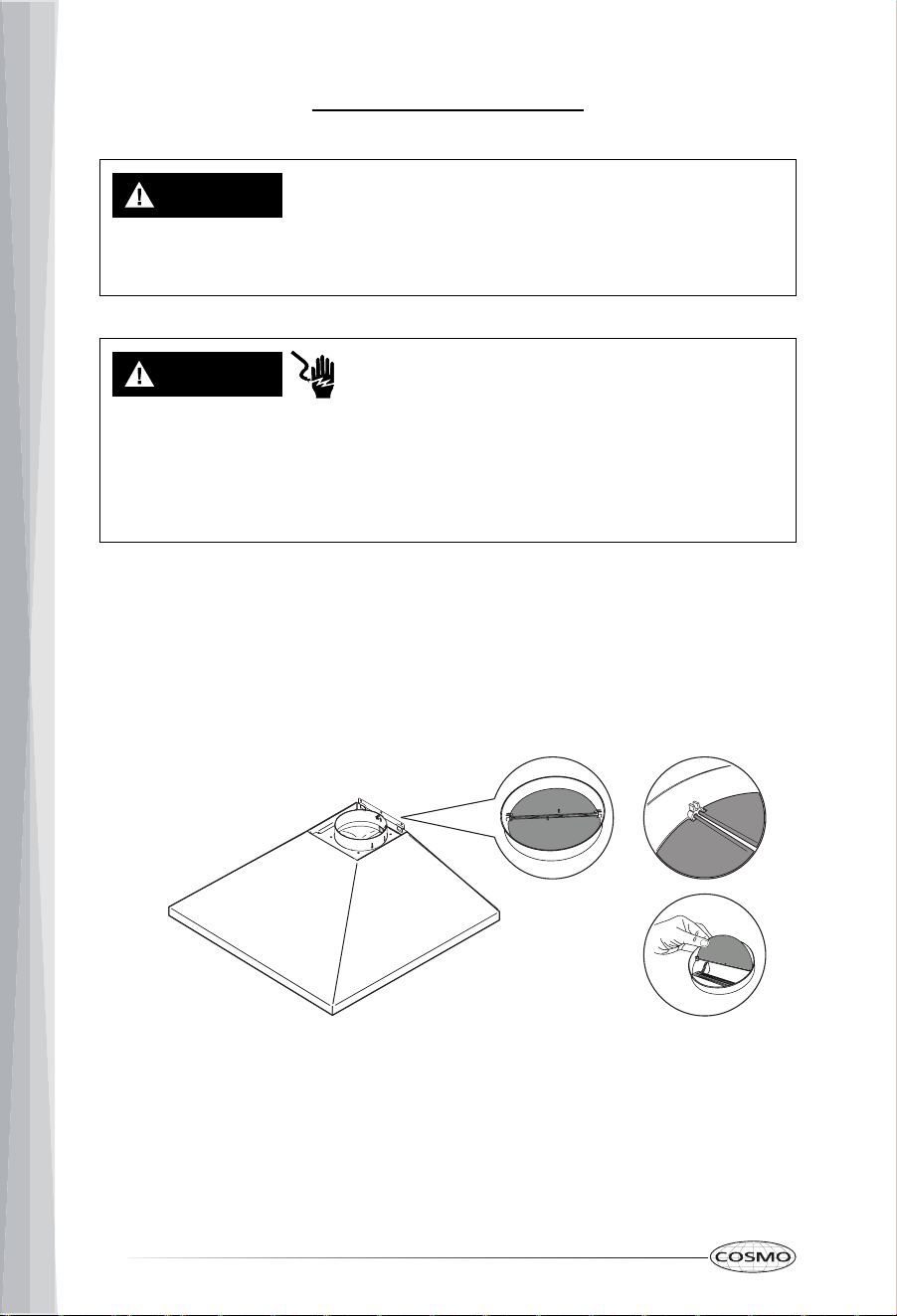

Install Range Hood
1. Using 2 or more people, hang range hood on mounting bracket through
the mounting slots on back of range hood.
2. Check and verify the round damper is properly installed into the duct
opening of the range hood.
3. For ducted installations only: Connect one end of 6" round aluminum
duct to the top duct opening of the range hood, and the other end to the
existing duct system. Seal connections with clamps or HVAC foil tape (not
included).
4. Plug range hood into a grounded 3-prong outlet.
WARNING EXCESSIVE WEIGHT HAZARD
• Use two or more people to move and install range hood.
• Failure to do so can result in back or other injury.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Plug into a grounded 3-prong outlet.
• Failure to do so can result in death, fire, or electrical shock
ELECTRIC SHOCK HAZARD WARNING
27
5. Place both inner (upper) and outer (lower) chimneys onto hood, and hang
outer chimney onto the lower support bracket on the wall. The inner
chimney must slide into the outer chimney.
NOTE:
• To help prevent scratches, lay paper or a kitchen towel over the
top edges of the outer (lower) chimney to protect the surface.
6. Lift inner (upper) chimney to upper support bracket on the wall, install
with (2) 3 x 10 mm screws on both sides of the chimney, or hang chimney
onto the support bracket.
Inner (upper) chimney
Outer (lower) chimney
Inner (upper) chimney
support bracket
Inner (upper) chimney
support bracket
Inner (upper) chimney
Outer (lower) chimney
28

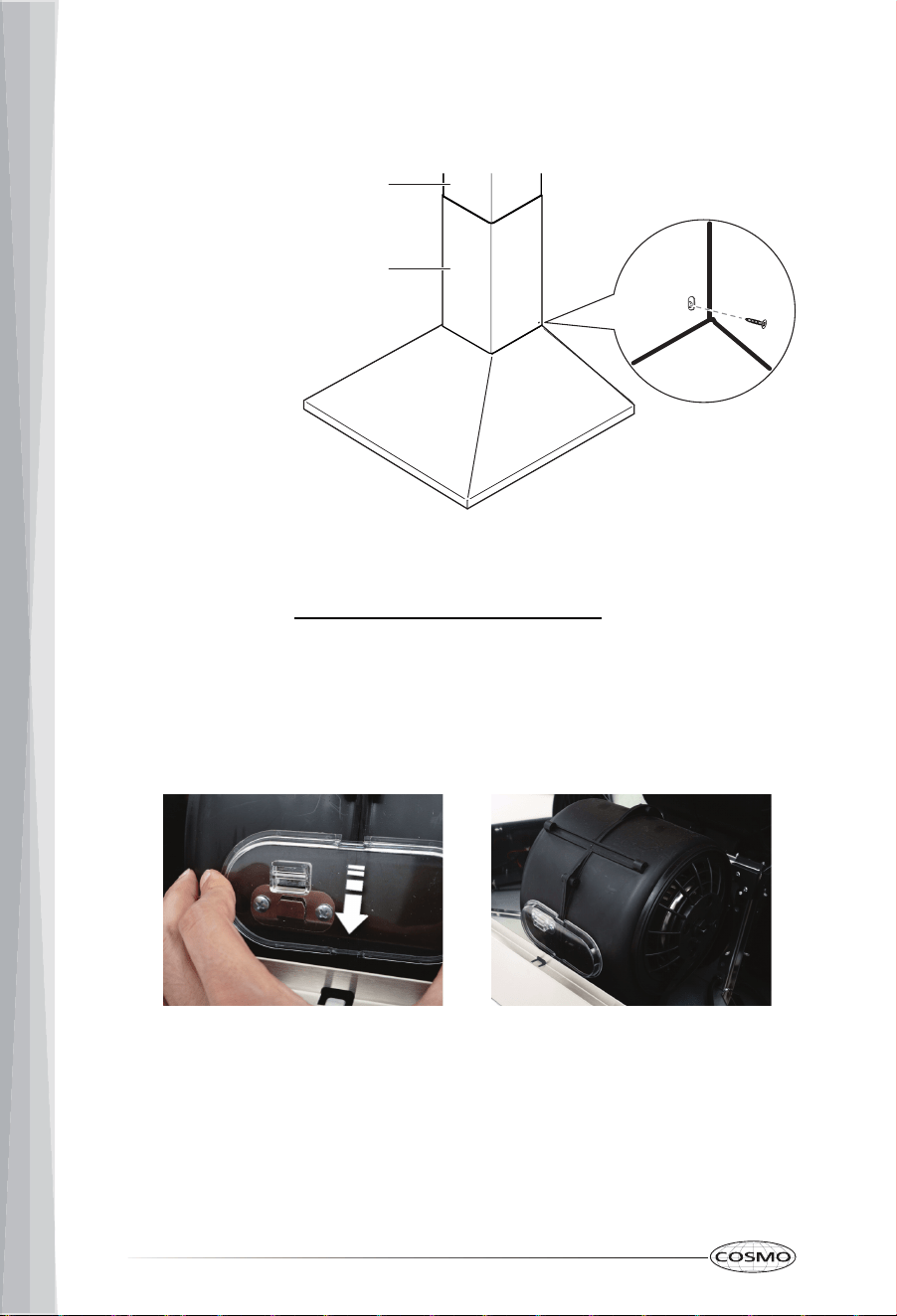

7. (Optional) For models with screw holes on the range hood aligning with
the screw holes on both sides of the outer (lower) chimney at the bottom,
install (2) 3 x 10 mm screws.
Complete Installation
1. For ductless (recirculating) installations only: Install charcoal filters over
grille on blower housing. See the "Range Hood Care" section.
2. For models with oil tray included: Install the oil tray on the blower.
3. Install metal filters. See the "Range Hood Care" section.
4. Check the operation of the range hood blower and light. See the "Range
Hood Use" section.
Outer (lower) chimney
Inner (upper) chimney
29
RANGE HOOD USE
The range hood is designed to remove smoke, cooking vapors and odors from
the cooktop area. For best results, start the range hood before cooking and
allow it to operate several minutes after the cooking is complete to clear all
smoke and odors from the kitchen.
Controls
Push-Button Models
COS-6324EWH COS-63024P
Blower Off button
Blower speed minimum button
Blower speed medium button
Blower speed maximum button
Light On/Off button
controls both lights. Press once for on and again
The Blower Speed buttons ( , , and
Operating the Light
The Light On/Off button
for off.
Operating the Blower
) set the desired speed and
The Blower Off button
control the sound level for quiet operation. The speed can be changed
anytime during fan operation by pressing the desired blower speed button.
turns the blower off.
1. To turn the blower on, press the desired Blower Speed button ( ,
,
or ).
2. To turn the blower off, press the Blower Off button .
30
Push-Button Models
COS-668A750
COS-668A900
COS-63175 COS-668WRC75
COS-668WRC90 COS-63190
A. Light On/Off button
B. Blower speed maximum button
C. Blower speed medium button
A
B
C D
E
D. Blower speed minimum button
E. Blower Off button
Operating the Light
The Light On/Off button (A) controls both lights. Press once for on and again
for off.
Operating the Blower
The Blower Speed buttons (B, C, and D) set the desired speed and control the
sound level for quiet operation. The speed can be changed anytime during
fan operation by pressing the desired blower speed button.
The Blower Off button (E) turns the blower off.
1. To turn the blower on, press the desired Blower Speed button (B, C, or D).
2. To turn the blower off,
- press the Blower Off button (E) once to delay turn off by 1 minute.
- press the Blower Off button (E) twice to turn off immediately.
31
Soft-Touch Models
COS-668AS750
COS-668AS900
COS-63175S COS-668WRCS75
COS-668WRCS90 COS-63190S
A B C D E F
A. Light On/Off button
B. Timer button
C. Blower speed decrease button
D. Blower speed increase button
E. Blower speed maximum button
F. Blower power On/Off button
Operating the Light
The Light On/Off button (A) controls both lights. Press once for on and again
for off.
Operating the Blower
The Blower Speed buttons (C, D, and E) set the desired speed and control the
sound level for quiet operation. The speed can be changed anytime during
fan operation by pressing the desired blower speed button.
The Blower Power On/Off button (F) turns the blower power on or off.
1. To turn the blower on, press the Blower Power On/Off button (F) and use
the Blower Speed buttons (C, D, or E) to set the desired speed.
2. To turn the blower off, press the Blower Power On/Off button (F).
Setting the Timer
1. Turn on the blower at desired speed.
2. Press the Timer button (B) repeatedly to set the desired length of
operating time in minutes. After the time has completed, the blower will
automatically turn off.
32
Cleaning
IMPORTANT:
• Clean the range hood and grease filter frequently according to the
following instructions. Replace grease filter before operating range hood.
• Be sure the power is off/disconnected and the lights are cool before
cleaning the range hood.
Exterior Surfaces
Clean the range hood with a mild detergent and soft cloth. To avoid damage
to the exterior surface, do not use abrasive cleansers or steel-wool pads
Metal Grease Filter
The metal filter should be washed frequently. Place metal filter in dishwasher
or hot detergent solution to clean. Let metal filter dry thoroughly before
replacing it.
1. Turn off fan and lights. Check that the LED lights are cool.
2. Remove the metal filter by pushing the release knob and then pulling
down the metal filter.
3. Wash the metal filter as needed in the dishwasher or hot detergent
solution.
4. Reinstall the metal filter by pushing the release knob, pushing up the
metal filter back into the range hood, and releasing the knob to latch into
place.
RANGE HOOD CARE
Setting the Clock
1. Press and hold the Timer button (B) for 3 seconds.
2. Press or hold the Blower Speed Increase button (D) to set hours, and the
Blower Speed Decrease button (C) to set minutes.
3. Press the Timer button (B) to confirm. Wait for 5 seconds for the changes
to be saved.
33
Replacing the Charcoal Filter
For Ductless (Recirculating) Installations
After approximately 6 months of normal use the charcoal filter should be
replaced. To order replacement charcoal filter kit, see "Optional Parts" in the
"Tools and Parts" section.
To Install Charcoal Filter
1. Turn off fan and lights. Check that the LED lights are cool.
2. Remove the metal filters. See the "Metal Grease Filter" section.
3. Fit and turn clockwise the charcoal filter on both sides of the fan motor.
Be sure the charcoal filters are securely locked in place.
4. Reinstall the metal filters into the range hood.
To Replace Charcoal Filter
1. Turn fan and lights off. Check that the LED lights are cool.
2. Remove the metal filters. See the "Metal Grease Filter" section.
3. Turn counter-clockwise and remove the charcoal filters, and discard
them.
4. Install the replacement charcoal filters. See the "To Install Charcoal Filter"
section.
5. Reinstall the metal filters into the range hood.
34
Replacing the LED Light
1. Disconnect power.
2. Remove the metal filters. See "Metal Grease Filter" in the "RANGE HOOD
CARE" section.

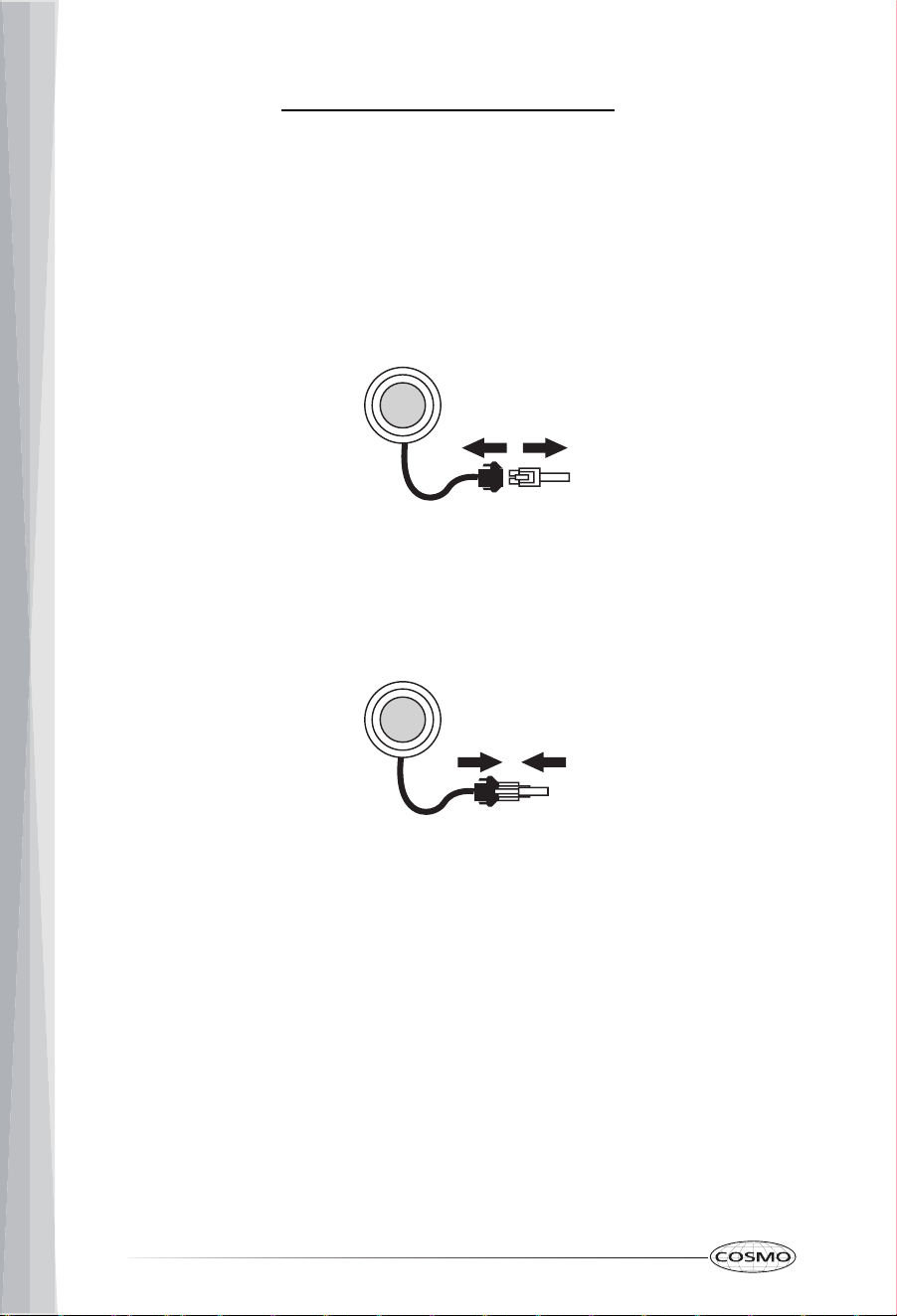

3. Disconnect the LED light cable from the range hood.
4. Use a flat-blade screwdriver to gently pry and remove the LED light.
5. Install a replacement LED light. Be sure to properly align the LED light with
the opening and the LED light is securely locked into place.
6. Connect the LED light cable to the range hood.
7. Reinstall the metal filters into the range hood.
8. Reconnect power.
Turn off the range hood and allow the LED Lights to cool. Replace the LED
lights using tissue or wearing cotton gloves to handle them.
35
LIMITED WARRANTY
WARRANTY AND SERVICE
TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED.
TO REGISTER AND REVIEW FULL WARRANTY DETAILS, VISIT:
WWW.COSMOAPPLIANCES.COM/WARRANTY
SCAN TO REGISTER
CUSTOMER SUPPORT
TO CHAT WITH US LIVE FOR ASSISTANCE, VISIT:
WWW.COSMOAPPLIANCES.COM/CHAT
SCAN TO CHAT
36
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact COSMO Customer
Support at
+1 (888) 784-3108
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR
WARRANTY SERVICE.
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs Cosmo Customer Support au
+1 (888) 784-3108
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el ayuda al
cliente COSMO al
+1 (888) 784-3108
(Válido solo en E.U.A.)
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE MODELO Y DE
SERIE PARA EL SERVICIO DE LA GARANTÍA.
Correct disposal of this product:
This marking indicates that this appliance should not be
disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
MEMO
Cosmo is constantly making efforts to improve the quality and
performance of our products, so we may make changes to our
appliances without updating this manual.
Electronic version of this manual is available at:
www.cosmoappliances.com
APPLIANCES
