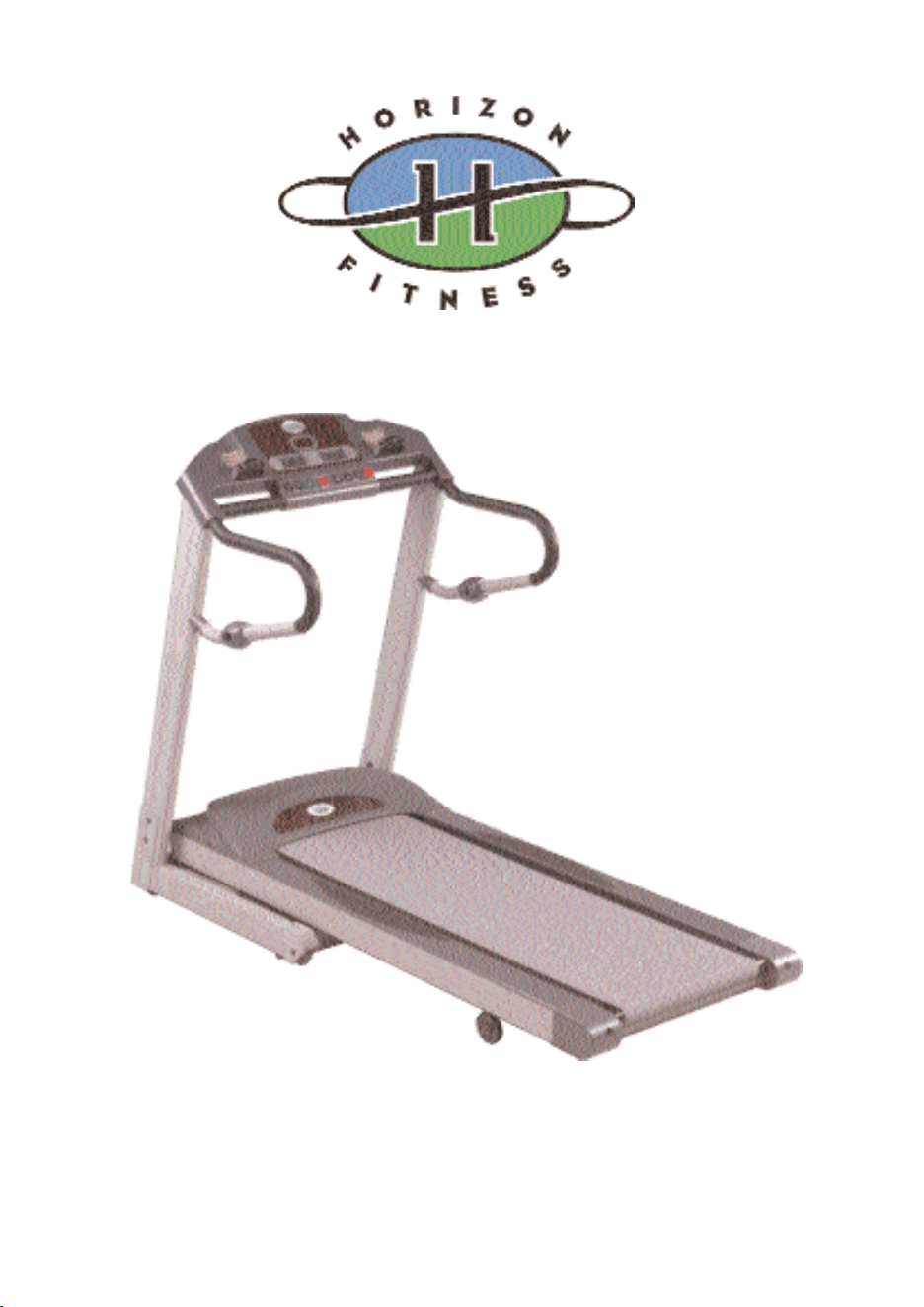

OMEGA OWNER’S GUIDE
Table of Contents
SAFETY INSTRUCTIONS 4
FOLDING & MOVING 7
LEVELING, POWER & EMERGENCY STOP 8
QUICK START UP 10
PAUSE/RESET 11
PROGRAMMING 12
DISPLAY 13
TARGET ZONE 15
TROUBLESHOOTING 16
COMMON QUESTIONS 17
TENSION & CENTERING BELT 18
HOME USE WARRANTY 20
STRETCHING 21
EXERCISE GUIDELINES 23
FITNESS GOALS 25
WEEKLY LOG SHEETS 26
MONTHLY LOG SHEETS 27
omega
3
CONSOLE
HANDLEBARS
RUNNING BELT
TRANSPORT WHEEL
SIDE RAIL
LEVELER
MOTOR COVER
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before using this Treadmill.
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this HORIZON FITNESS Treadmill
WARNING! Connect this exercise product to a properly grounded
outlet only. See grounding instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or
breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electrical shock. This product is equipped
with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with local codes and ordinances.
DANGER! Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product. If it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
omega
4
This product is for use on a nominal 120-volt circuit, and has a ground-
ing plug that looks like the plug illustrated below. A temporary adapter
such as the one illustrated below may be used to connect this plug to a
2-pole receptacle as shown, if a properly grounded outlet is not
available. The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from the adapter must be
connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a
metal screw.
omega
5
3-POLE
GROUNDED
OUTLET
GROUNDED
TREADMILL
POWERCORD
METAL
GROUNDING
SCREW
2-POLE
OUTLET IN
GROUNDED BOX
ADAPTOR
WARNING! To reduce the risk of burns, fire, electrical shock or
injury to persons:
• Never use the treadmill before securing the safety tether clip to your
clothing.
• If you experience chest pains, nausea, dizziness, or shortness of
breath, stop exercising immediately and consult your physician
before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Keep power cord away from heated surfaces.
• Keep children off of treadmill at all times.
• Do not use treadmill outdoors.
• Unplug treadmill before moving it.
• Do not remove the treadmill motor covers or roller covers. Service
should be performed only by an authorized Horizon Fitness service
provider.
• Treadmill should be plugged into a dedicated 20amp circuit.
CHILDREN
• Keep children off your Treadmill at all times.
• When the Treadmill is in use, young children and pets should be
kept at least 10 feet away.
OTHER SAFETY TIPS FOR YOUR HORIZON FITNESS TREADMILL
CAUTION! If you experience chest pains, nausea, dizziness or short-
ness of breath, stop exercising immediately and consult your physician
before continuing.
• Do not wear clothing that might catch on any part of the Treadmill.
• Read this Owner’s Guide before operating this Treadmill.
CLEANING
• Clean with soap and slightly damp cloth only; never use solvents.
omega
6
omega
7

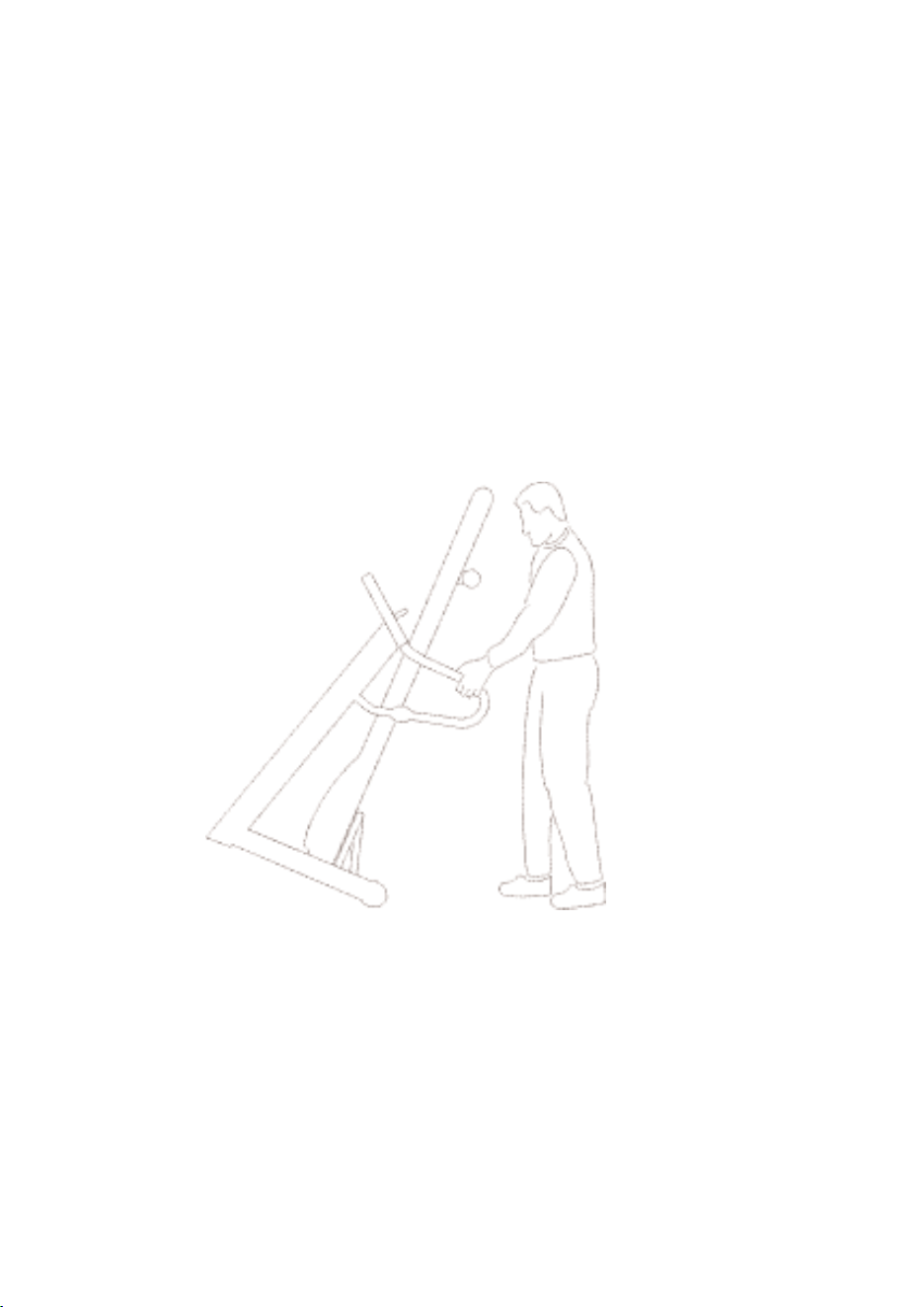

FOLDING
Firmly grasp the back end of the treadmill. Carefully lift the end of the
treadmill deck to the upright position. Make sure the deck is securely
locked before letting go of the deck.
MOVING
Your Horizon Fitness treadmill has a pair of transport wheels built into
the base frame. To move, make sure the treadmill is folded and securely
latched. Then firmly grasp the handlebars, tilt the treadmill back and
roll.
CAUTION! Our Treadmills are heavy, use care and additional help if
necessary when moving.
omega
8

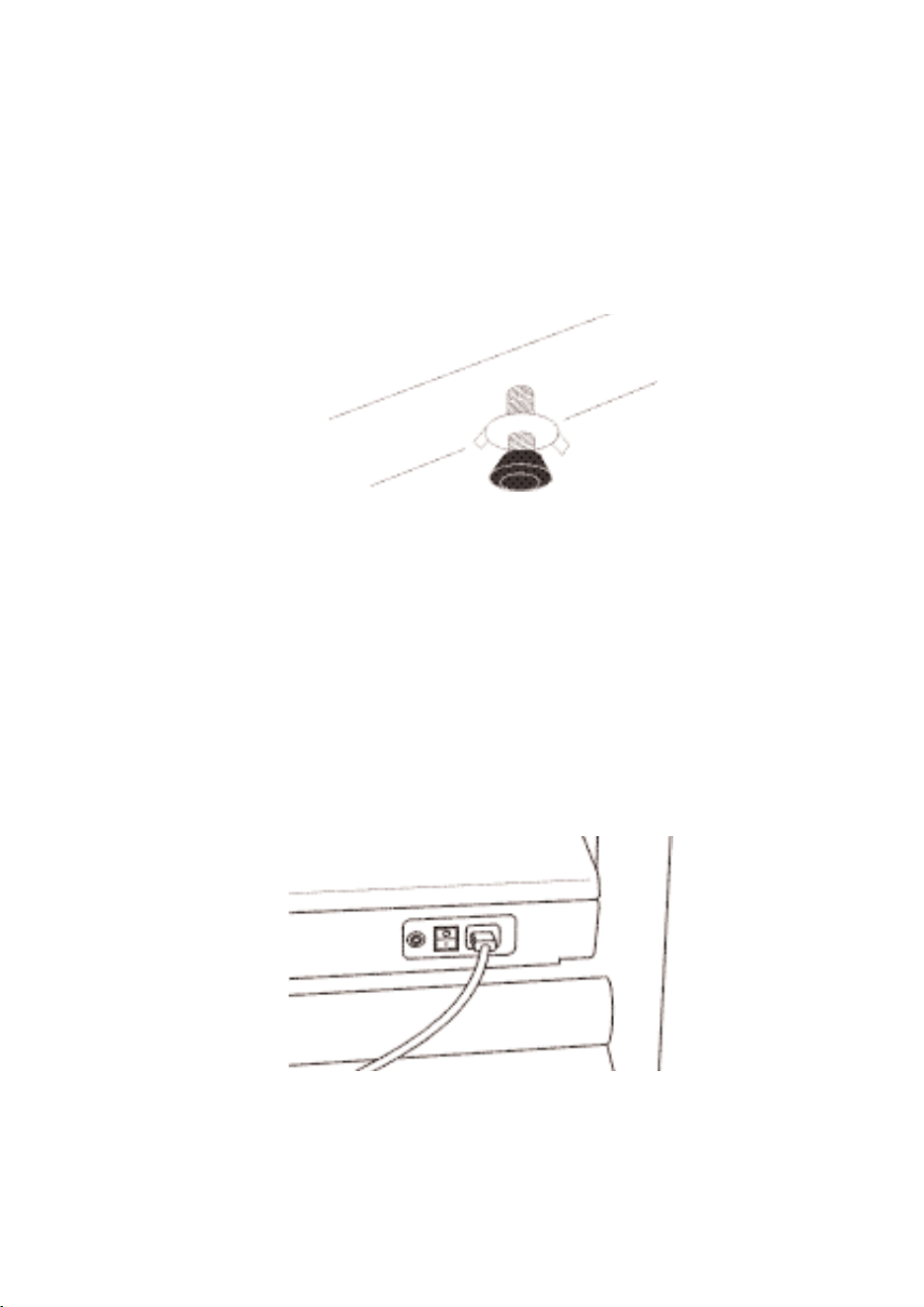

LEVELING
The treadmill should be level for optimum use. Once you have placed
the treadmill where you intend to use it, raise or lower the adjustable
levelers located on the treadmill base frame. Once you have leveled
the treadmill, lock the levelers in place by tightening the nuts against
the frame. To assure the treadmill is level, a carpenter's level is
recommended.
TURN POWER ON
Make sure that your treadmill is properly connected to a power outlet.
The on/off switch is located next to the power cord. Flip this switch to the
'on' position, so that the switch is lit. You will hear a beep and the console
will light up.
omega
9

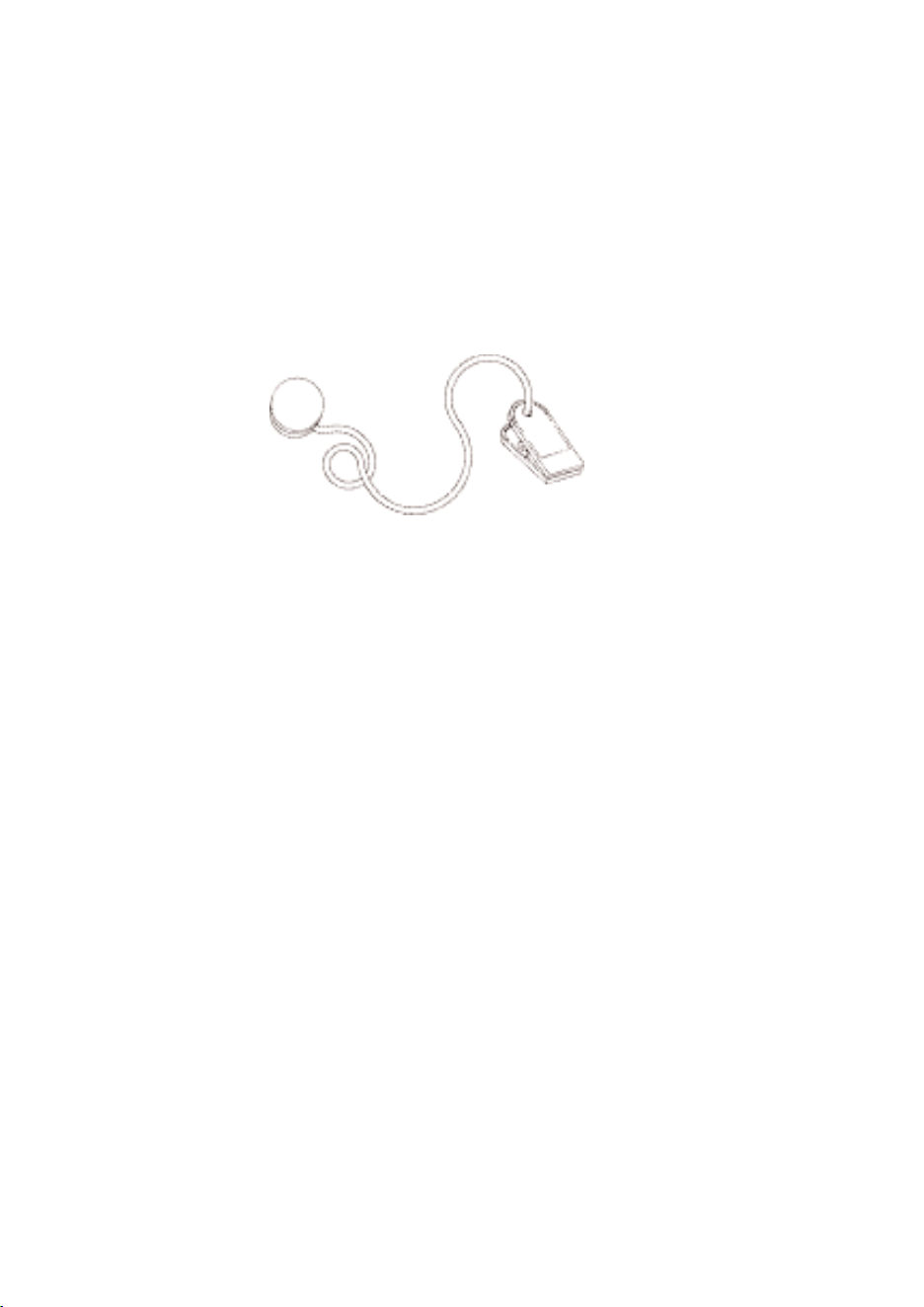

SAFETY KEY
Your treadmill will not start unless the safety key is placed on the safety
key holder. Attach the clip end securely to your clothing. This safety key
is designed to cut the power to the treadmill if you should fall. NEVER
USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP
TO YOUR CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO
MAKE SURE IT WILL NOT COME OFF YOUR CLOTHING.
omega
10

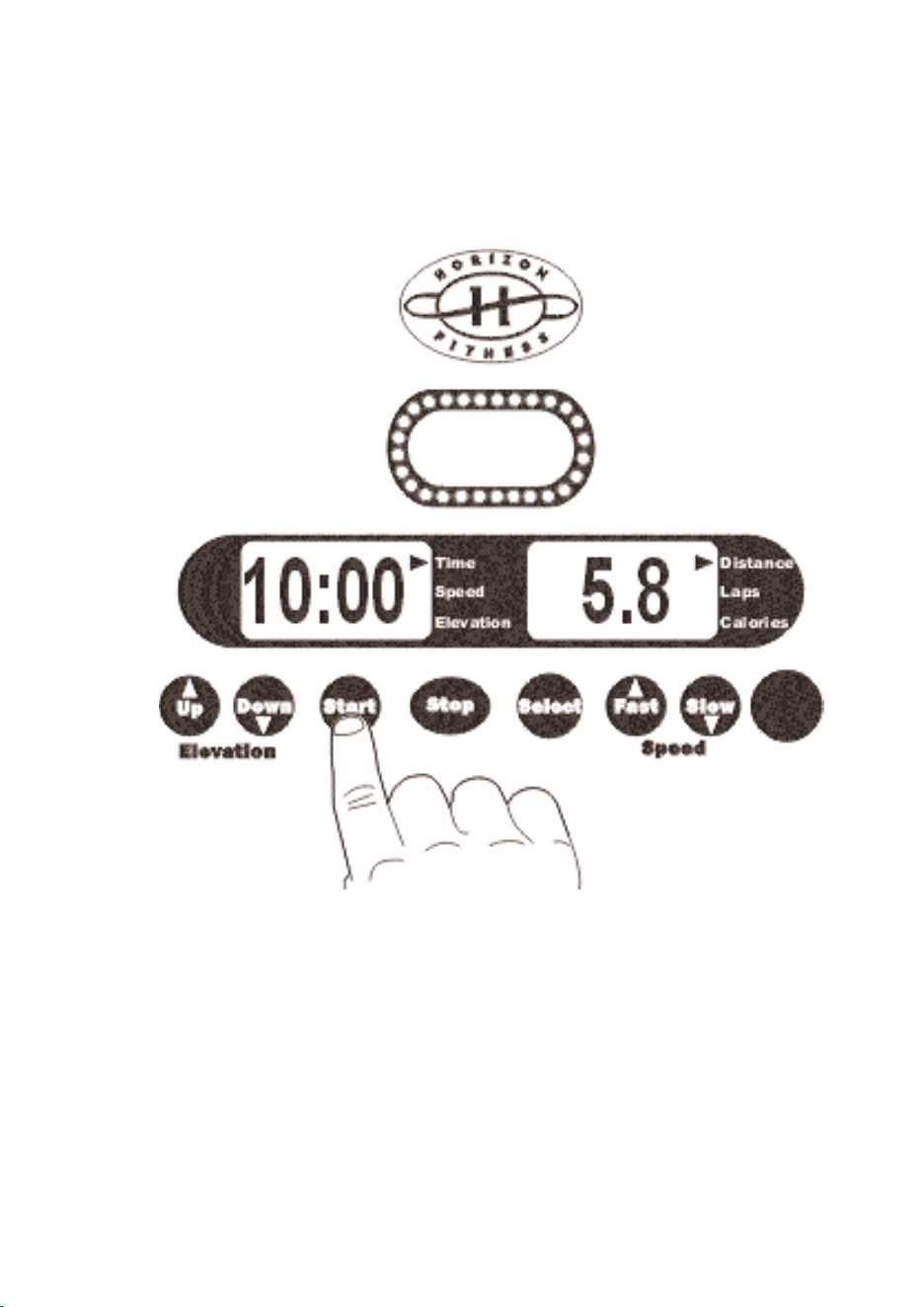

QUICK START UP
Simply press the Start button to begin exercising.
omega
11

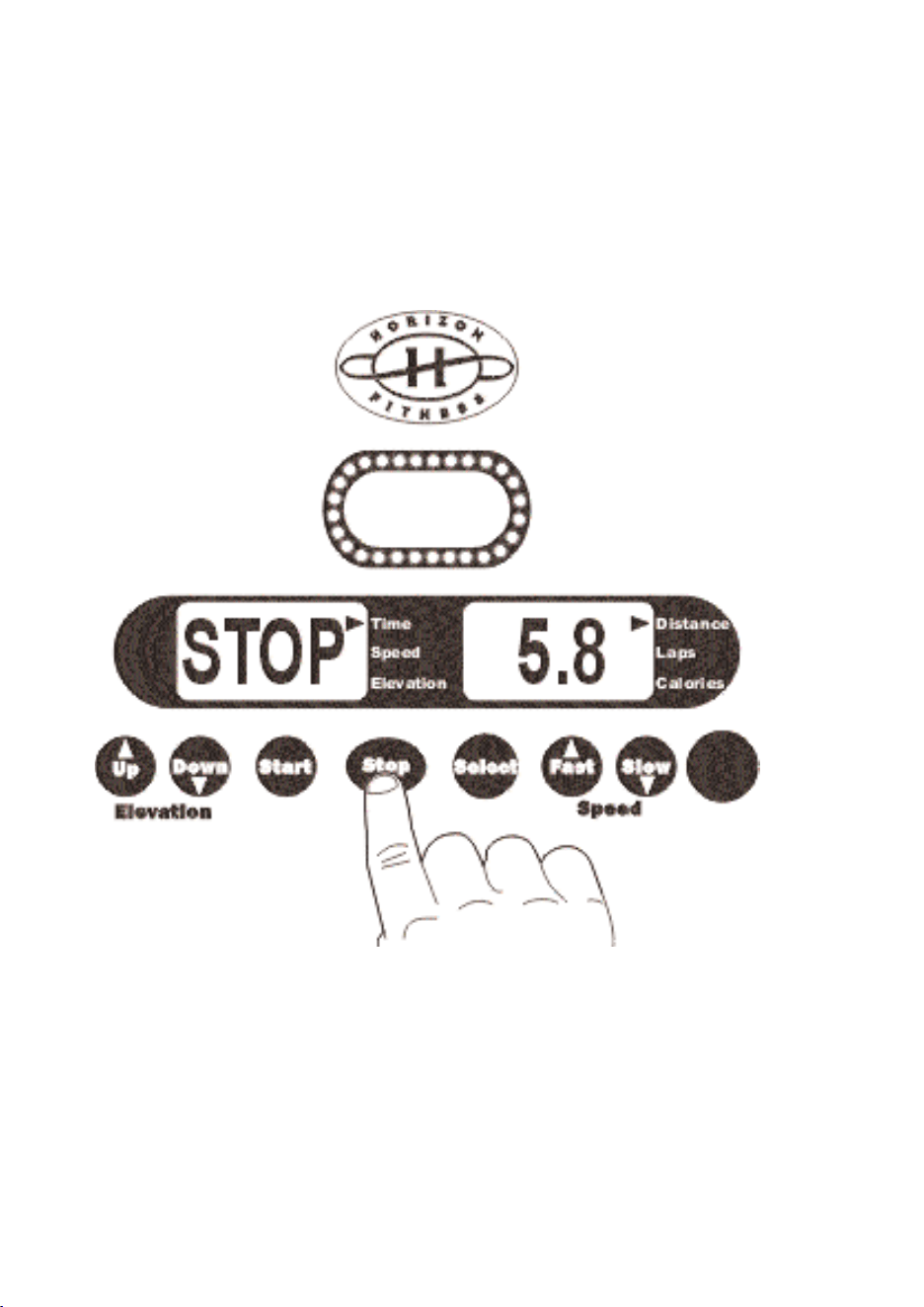

PAUSE
Press the Stop button to pause your workout.
RESET
Press and hold the Stop button to reset the treadmill.
omega
12
CHOOSING THE TIME
Press SELECT and use the
FAST or SLOW buttons to set
Time. Once the desired Time
is selected, press the START
button.
FINISHING A WORKOUT
When your workout is finished, the
treadmill console will beep twice
and ‘END’ will be displayed in the
Time window. Your workout
information will stay displayed on
the console for 15 seconds before
it will reset.
PROGRAMMING
omega
13

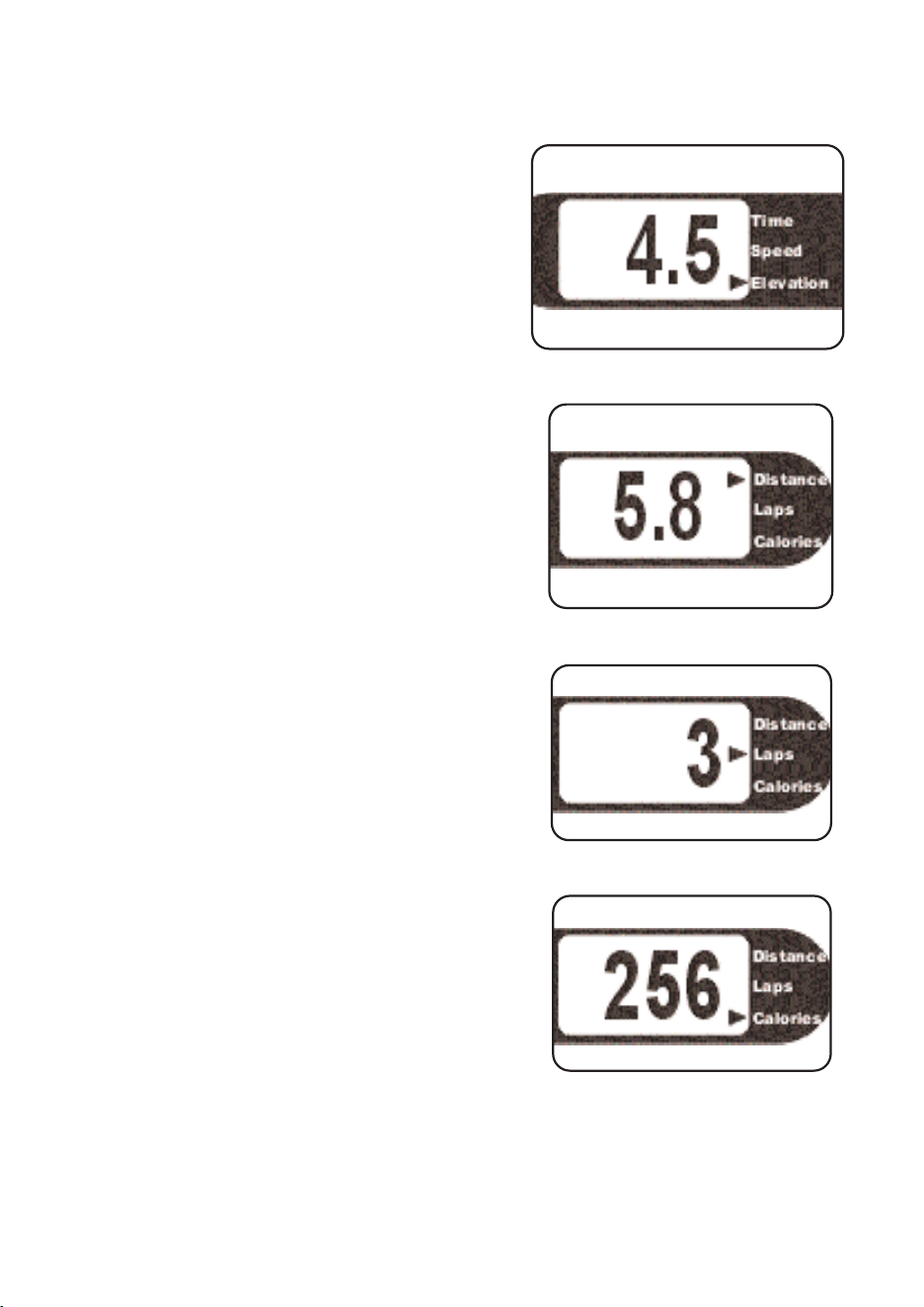

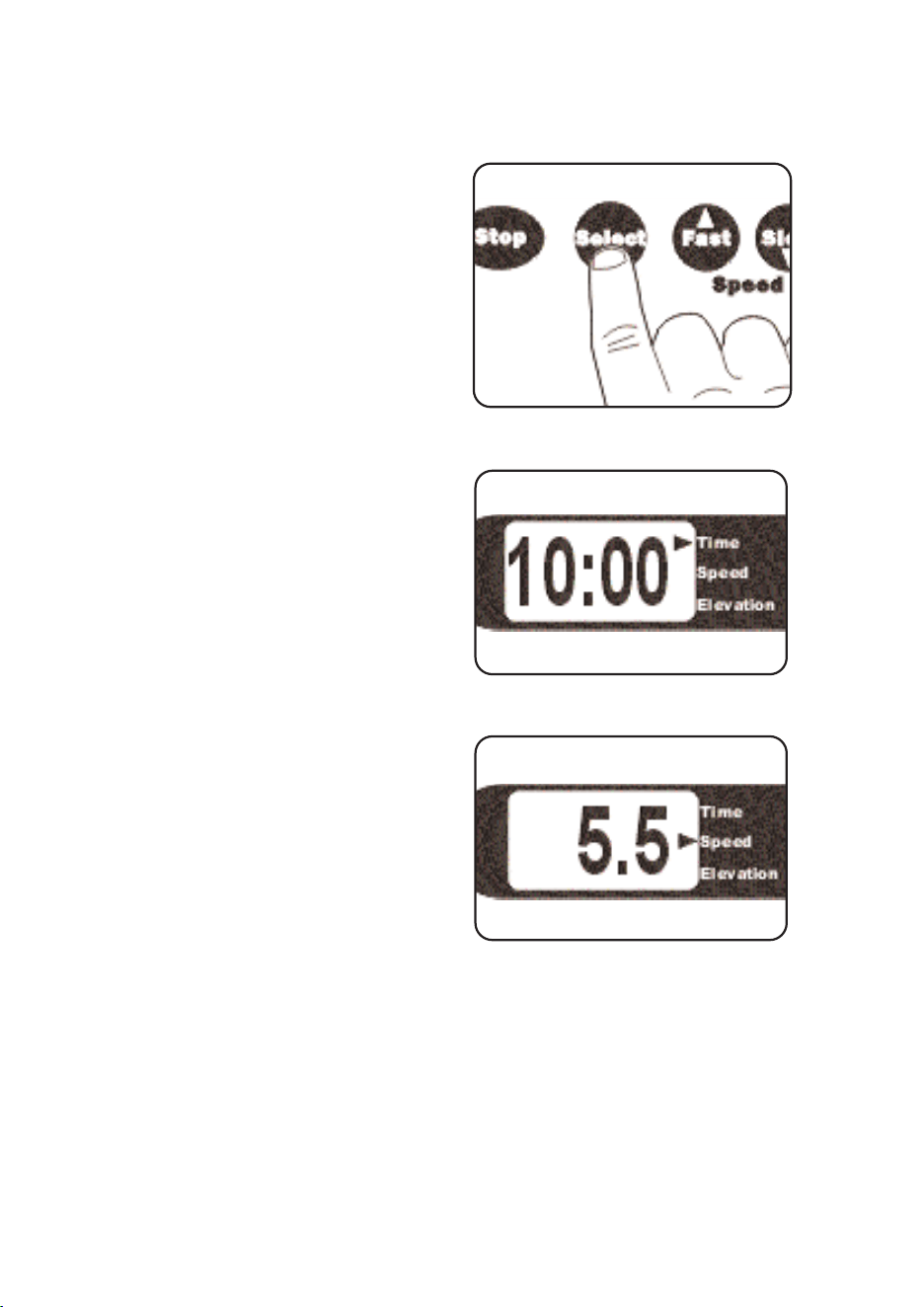

DISPLAY
SELECT
Used to view between your
Time/Distance, Speed/Laps
and Elevation/Calories during
your workout; console will
automatically default back to
show Time/Distance
TIME
Shown as Minutes:Seconds. View
the time remaining or the time
elapsed in your workout.
SPEED
Indicates how fast your walking or
running surface is moving.
omega
14
ELEVATION
Indicates the incline of your walking
or running surface.
DISTANCE
Indicates the miles traveled during
your workout.
LAPS
Indicates the number of times you
have traveled around the lap profile
window. One lap around the profile
window equals 1/4 of a mile
CALORIES
Indicates te total number of calories
burned during your workout.
DISPLAY
omega
15

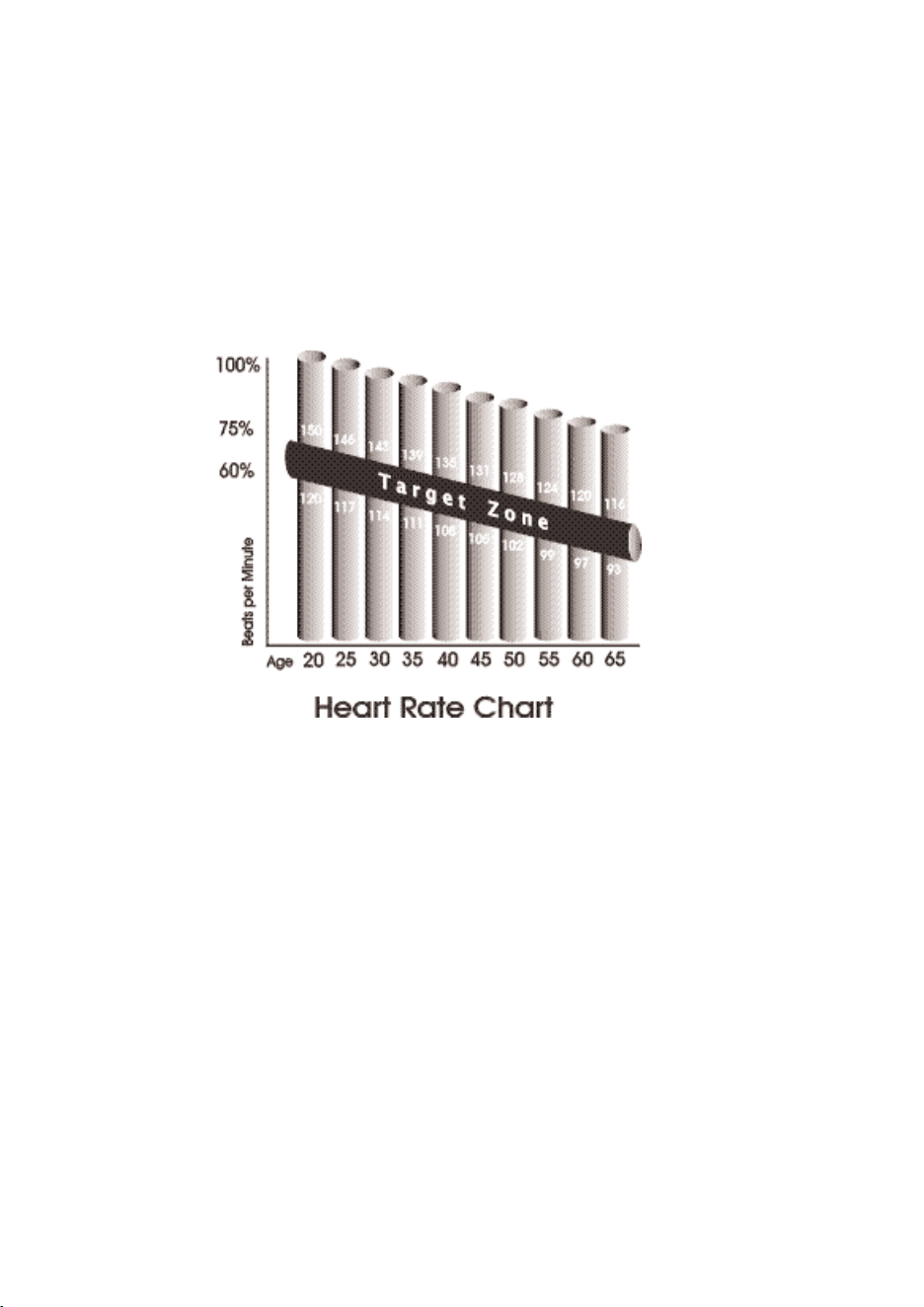

TARGET HEART RATE ZONE
Your Target Heart Rate Zone is a percentage of your maximum heart
rate. Target Zone will vary for each individual, depending on age,
current level of conditioning, and personal fitness goals. The American
Heart Association recommends working-out at a Target Heart Rate
Zone of between 60% and 75% of your maximum heart rate. See the
chart below for convenient reference.
EXAMPLE for a 42-year old user: find AGE along the bottom of the
chart (round to 40), follow AGE column up to the TARGET ZONE BAR.
RESULTS: 60% of maximum Hear Rate = 108 Beats Per Minute, 75%
of maximum Heart Rate = 135 Beat Per Minute.
omega
16
TROUBLESHOOTING YOUR TREADMILL
Horizon Fitness treadmills are designed to be reliable and easy to use.
However, if you experience a problem, please reference the troubleshooting
guide listed below.
PROBLEM: The console does not light up.
SOLUTION: Verify that the power cord is plugged in properly to the
outlet, and that the treadmill switch is turned on.
PROBLEM: The treadmill circuit breaker trips during a workout.
SOLUTION: Verify that the treadmill is plugged into a dedicated 20amp
circuit.
PROBLEM: The treadmill shuts off when elevating
SOLUTION: Verify that there is enough slack in the power cord to
reach to the wall outlet during elevation.
PROBLEM: The running belt does not stay centered during a workout.
SOLUTION: Verify that the treadmill is on a level surface. Verify that
the belt is properly tightened (refer to Centering The Belt; page 19).
If the above troubleshooting section does not remedy the problem,
discontinue use and turn the power off.
DO NOT RETURN TO THE STORE, PLEASE CONTACT THE
HORIZON FITNESS CUSTOMER ASSISTANCE CENTER;
TOLLFREE @ 1-888-993-3199.
omega
17
COMMON PRODUCT QUESTIONS
Are the sounds my treadmill makes normal?
All treadmills make a certain type of thumping noise due to the belt
riding over the rollers, especially new treadmills. This noise will diminish
over time, although may not totally go away. Over time, the belt will
stretch, causing the belt to ride smoother over the rollers.
Why is the treadmill I had delivered louder than the one at the
store?
All fitness products seem quieter in a large store showroom because
there is generally more background noise than in your home. Also,
there will be less reverberation on a carpeted concrete floor than on a
wood overlay floor. Sometimes a heavy rubber mat will help reduce
reverberation through the floor. If a fitness product is placed close to a
wall, there will be more reflected noise.
When should I be worried about a noise?
As long as the sounds your treadmill makes are no louder that a
normal conversational tone of voice, it is considered normal noise. If
your treadmill is louder than this, you may want to call the Horizon
Fitness Customer Service Center @ 1.888.993.3199. Sometimes an
initial diagnosis can be made over the phone.
MAINTENANCE
What kind of routine maintenance is required?
We use sealed bearings throughout our treadmill so lubrication is not
needed. The most important maintenance step is to simply wipe your
perspiration off the treadmill after each use.
How do I clean my Horizon Fitness Treadmill?
Clean with soap and water cleaners only. Never use solvents on plastic
parts.
omega
18

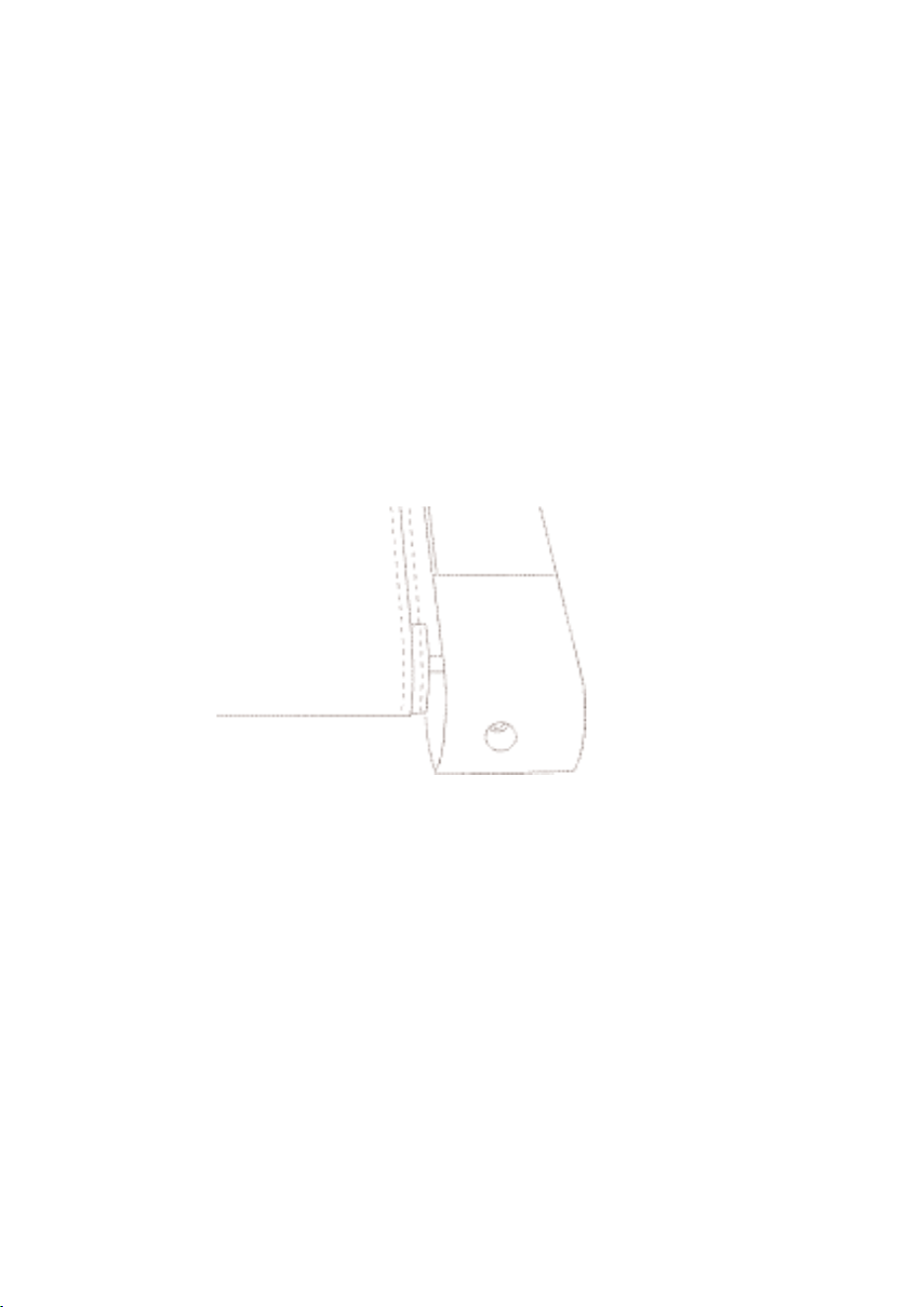

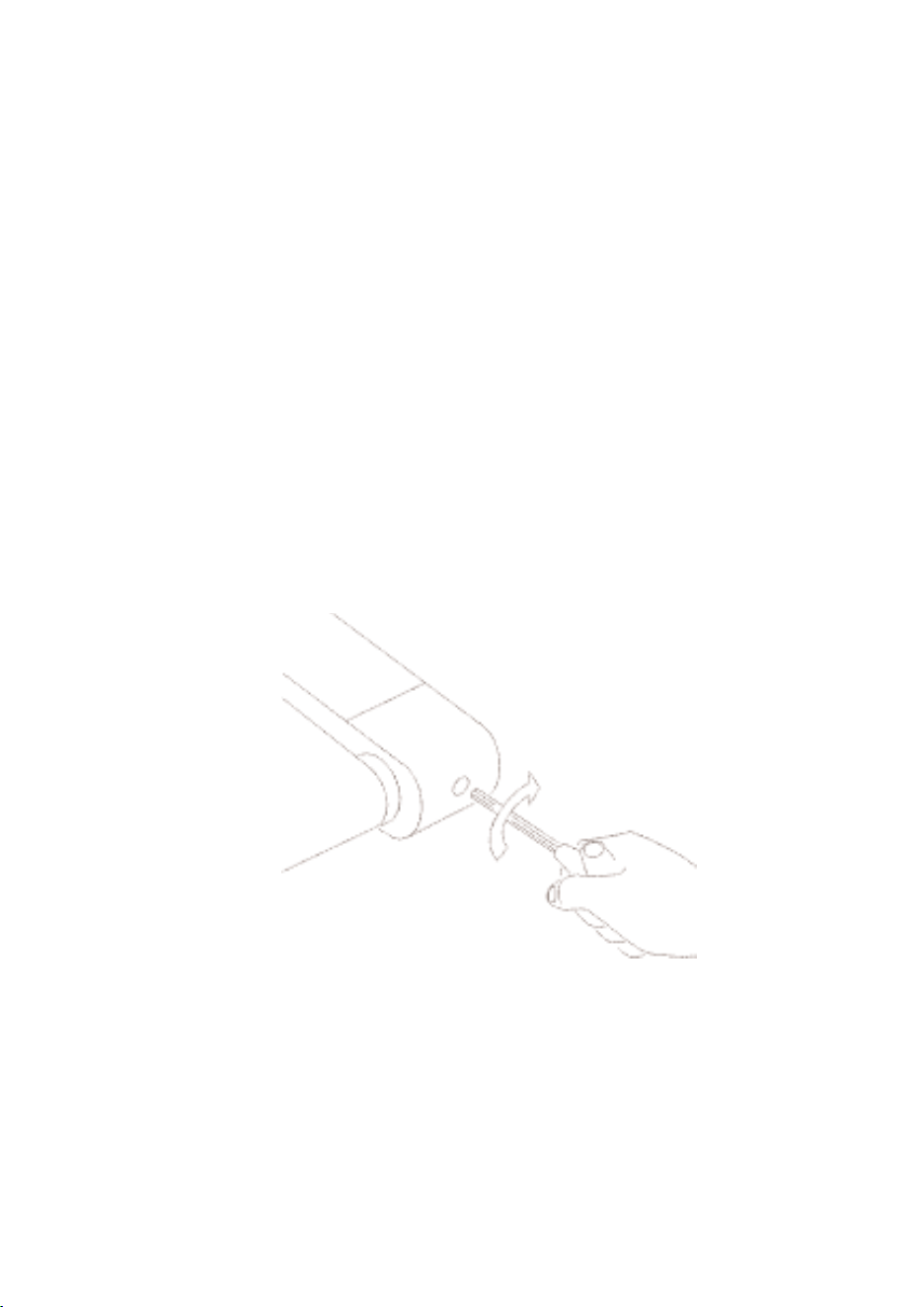

TENSIONING THE BELT
If you can feel a slipping sensation when running on the treadmill, the
running belt must be tightened. In most cases, the belt has stretched
from use, causing the belt to slip. This is a normal and common
adjustment. To eliminate this slipping, tension both the rear roller bolts
with the 6
MM
Allen wrench, turning it 1/4 TURN to the right as shown.
Try the treadmill again to check for slipping. Repeat if necessary, but
NEVER TURN the roller bolts more than 1/4 turn at a time. The belt
tension is set properly when the running belt is 1/4 of an inch from the
deck.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start
the treadmill at a fast running speed and attempt to jump on!
omega
19
CENTERING THE BELT
If the running belt is too far to the right side, use the supplied Allen
wrench to turn the right tension bolt clockwise 1/4 turn at a time until
the belt remains centered during use.
If the running belt is too far to the left side, turn the left tension bolt
clockwise 1/4 turn at a time until the belt remains centered during use.
If the belt is too far to the left side:
1) Turn the left roller bolt 1/4 turn clockwise (tighten).
If the belt is too far to the right side:
1) Turn the right roller bolt 1/4 turn clockwise (tighten).
omega
20
LIMITED HOME USE WARRANTY
FRAME - LIFETIME
Horizon Fitness warrants the frame against defects in workmanship and
materials for the lifetime of the original owner.
DRIVE MOTOR - 10 year
Horizon Fitness warrants the drive motor against defects in workmanship and
materials for a period of ten years from the date of purchase, so long as the
device remains in the possession of the original owner.
ELEVATION MOTOR - 3 year
Horizon Fitness warrants the elevation motor against defects in workmanship
and materials for a period of three years from the date of purchase, so long as
the device remains in the possession of the original owner.
ELECTRONICS & PARTS - 1 year
Horizon Fitness warrants the electronic components and all original parts for a
period of one year from the date of original purchase, so long as the device
remains in the possession of the original owner.
LABOR - 1 year
Horizon Fitness shall cover the labor cost for the repair of the device for a
period of 1 year from the date of the original purchase, so long as the device
remains in the possession of the original owner.
EXCLUSIONS AND LIMITATIONS
This warranty applies only to the original owner and is not transferable. This
warranty is expressly limited to the repair or replacement of a defective frame,
motor, electronic component, or defective part and is the sole remedy of the
warranty. The warranty does not cover normal wear and tear, improper
assembly or maintenance, or installation of parts or accessories not originally
intended or compatible with the Treadmill as sold. The warranty does not apply
to damage or failure due to accident, abuse, corrosion, discoloration of paint or
plastic, or neglect. Horizon Fitness shall not be responsible for incidental or
consequential damages. All returns must be pre-authorized by Horizon Fitness.
Horizon Fitness’ obligation under this warranty is limited to replacing or
repairing, at Horizon Fitness’ option, the product at one of its authorized service
centers. An Horizon Fitness authorized service center must receive all products
for which a warranty claim is made. These products must be received with all
freight and other transportation charges prepaid, accompanied by sufficient
proof of purchase. Parts and electronic components reconditioned to As New
Condition by Horizon Fitness or its vendors may sometimes be supplied as
warranty replacement parts and constitute fulfillment of warranty terms. This
warranty gives you specific legal rights, and your rights may vary from state to
state.
WARRANTY REGISTRATION
Your warranty card must be completed and sent to Horizon Fitness or register
on line at www.horizonfitness.com, before a warranty claim can be processed.
omega
21
DEVELOPING A FITNESS PROGRAM
STRETCH FIRST
Before using your Horizon Fitness product, it is best to take a few
minutes doing a few gentle stretching exercises. Stretching prior to
exercise will improve flexibility and reduce chances of exercise related
injury. Ease into each of these stretches with a slow gentle motion. Do
not stretch to the point of pain. Make sure not to bounce while doing
these stretches.
WALL PUSH
Stand near a wall with the toes of one foot about 18" from the wall, and
the other foot about 12" behind the other foot. Lean forward, pushing
against the wall with your palms. Keep your heels flat and hold this
position for a count of 15 seconds. Make sure that you do not bounce
while stretching. Alternate positions of your feet and repeat for a total of
8 repetitions.
STANDING QUADRICEPS STRETCH
Using a wall to provide balance, grasp your left ankle with your left
hand and hold your foot against the back of your thigh for a count of 15
seconds. Repeat with your right ankle and hand, and continue alternating
for a total of 8 repetitions.
SEATED TOE TOUCH
Sit on the floor with your legs together and straight out in front of you.
Do not lock your knees. Extend your fingers towards your toes and
hold for a count of 15 seconds. Make sure that you do not bounce
while stretching. Sit upright again. Repeat for a total of 8 repetitions.
omega
22
THE IMPORTANCE OF WARM UP AND COOL DOWN
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up.
The warm-up will limber your muscles and prepare them for more
strenuous exercise. Make sure that you warm-up on your Horizon
Fitness product at a slow pace.
COOL DOWN
Never stop exercising suddenly! A cool-down period allows your heart
to readjust to the decreased demand. Make sure that your cool down
period consists of a very slow pace to allow your heart rate to lower.
After the cool-down, repeat the stretching exercises on page 21 to
loosen and relax your muscles.
omega
23
EXERCISE GUIDELINES
Always consult your physician before beginning an exercise program.
How Often?
The American Heart Association recommends that you exercise at
least 3 to 4 days per week to maintain cardiovascular fitness. If you
have other goals such as weight or fat loss, you will achieve your goal
faster with more frequent exercise. Whether it’s 3 days or 6 days,
remember that your ultimate goal should be to make exercise a lifetime
habit. Many people are successful staying with a fitness program if
they set aside a specific time of day to exercise. It doesn’t matter
whether it’s in the morning before your shower, during lunch hour or
while watching the evening news. What’s more important is that it’s a
time that allows you to keep a schedule, and a time when you won’t be
interrupted. If you are to be successful with your fitness program, you
have to make it a priority in your life. So decide on a time, pull out your
day planner and pencil in your exercise times for the next month!
How Long?
For aerobic exercise benefits, it’s recommended that you exercise from
between 24 and 32 minutes per session. But start slowly and gradually
increase your exercise times. If you’ve been sedentary during the past
year
, it may be a good idea to keep your exercise times to as little as
five minutes initially. Your body will need time to adjust to the new
activity. If your goal is weight loss, a longer exercise session at lower
intensities has been found to be most effective. A workout time of 48
minutes or more is recommended for best weight loss results.
omega
24
How Hard?
How hard you workout is also determined by your goals. If you use your
Horizon Fitness Treadmill to prepare for a 5K run, you will probably
work out at a higher intensity than if your goal is general fitness.
Regardless of your long term goals, always begin an exercise program
at low intensity. Aerobic exercise does not have to be painful to be
beneficial! There are two ways to measure your exercise intensity. The
first is by monitoring your heart rate, and the second is by evaluating
your perceived exertion level (this is simpler than it sounds!).
Perceived Exertion Level
The second and simpler way to gauge your exercise intensity is to
evaluate your perceived exertion level. While exercising if you are too
winded to maintain a conversation without gasping, you are working
out too hard. A good rule of thumb is to work to the point of exhilaration,
not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of other warning signs of overexertion.
omega
25
ACHIEVING YOUR FITNESS GOALS
An important step in developing a long term fitness program is to
determine your goals. Is your primary goal for exercising on your
Horizon Fitness Treadmill to lose weight? Improve muscle? Burn
Stress? Prepare for the spring racing schedule? Knowing what your
goals are will help you develop a more successful exercise program.
Below are some common exercise goals:
If possible try to define your personal goals in precise, measurable
terms, and then put your goals in writing. The more specific you can
be, the easier it will be to track your progress. If your goals are long
term, divide them up into monthly and weekly segments. Longer term
goals can lose some of the immediate motivation benefits. Short term
goals are easier to achieve. Your Horizon Fitness Treadmill console
provides you with several readouts that can be used to record your
progress. You can track Distance, Calories or Time. Time is the most
important and useful of test functions.
Keeping an exercise dairy
Photocopy the weekly and monthly log sheets on the following pages
to make your personal exercise log book. As time goes by you’ll be
able to look back with pride at the work you’ve done. As your fitness
improves, you can look back and see how far you’ve come.
- Weight Loss
- Improve Body Shape and Tone
- Increased Energy Level
- Improved Sports Performance
- Improved Cardiovascular Endurance
- Weight Maintenance
- Strengthen Leg Muscles
- Improved Sleep Patterns
- Stress Reduction
omega
26

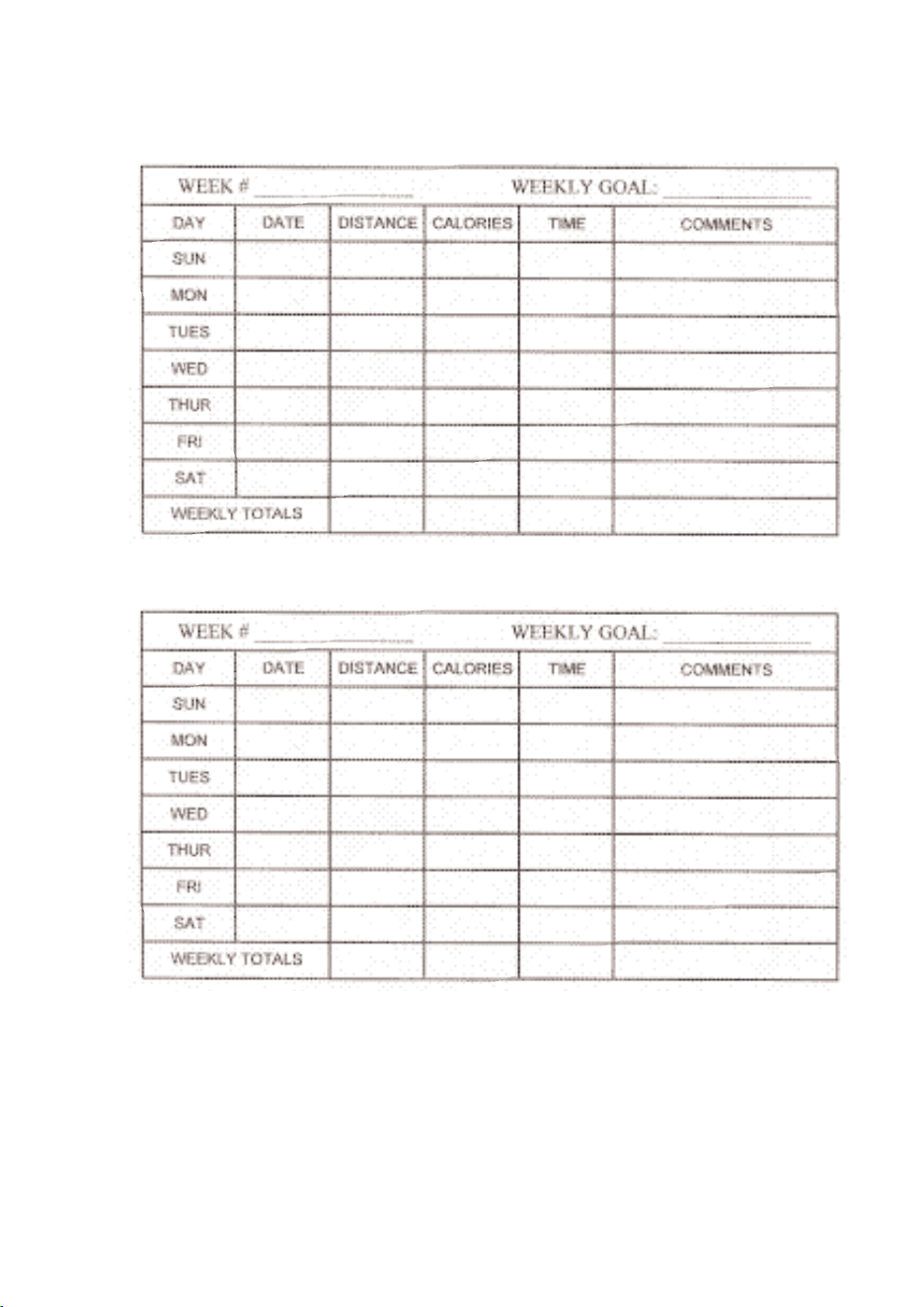

WEEKLY LOG SHEETS
omega
27

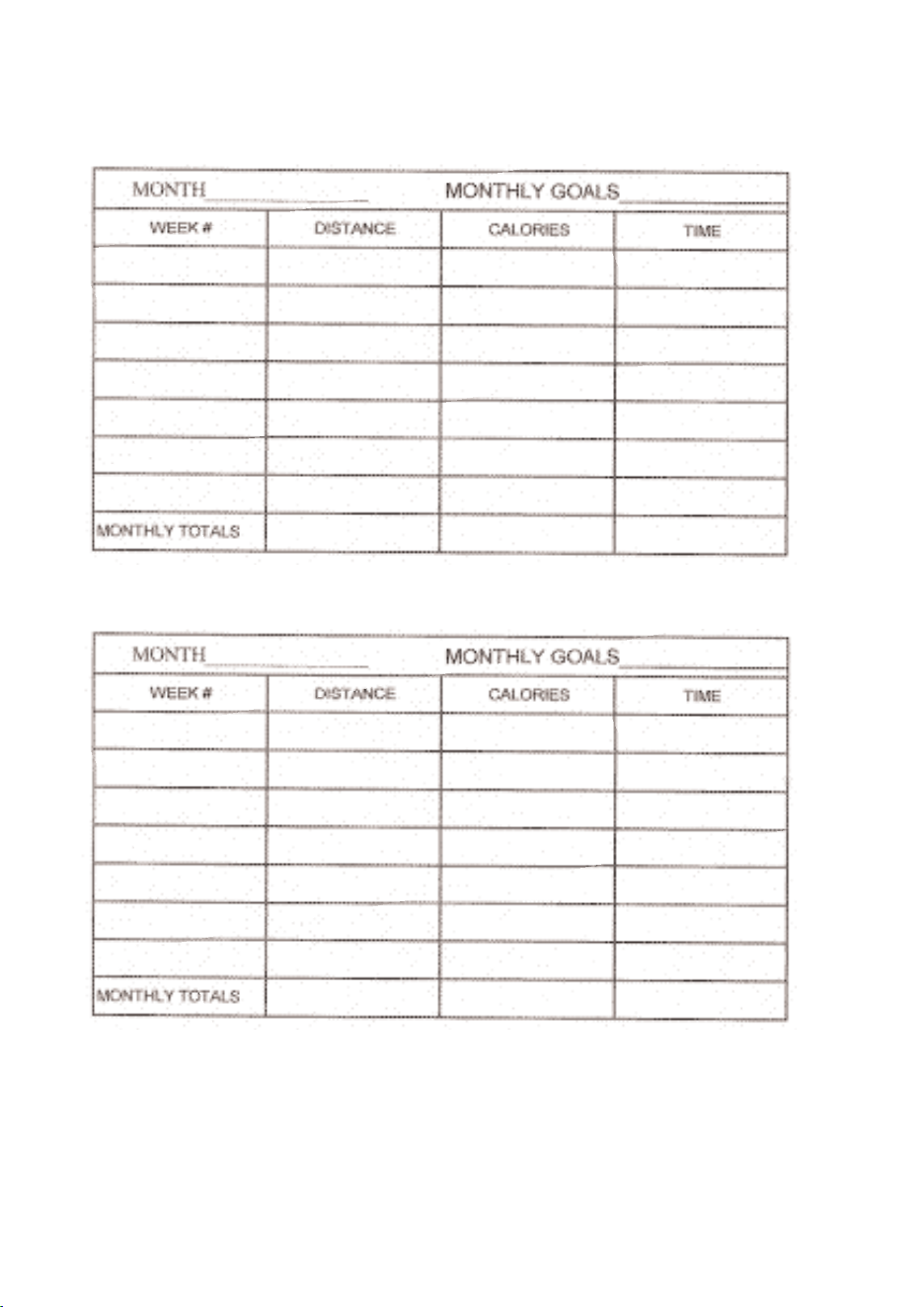

MONTHLY LOG SHEETS
Horizon Fitness
800 Burton Blvd
DeForest, Wisconsin 53532
Customer Assistance Center: 1.800.244.4192
Fax: 1.608.842.1660 or www.horizonfitness.com
Rev. 1.1
