73 YEARS AGO THE GENESIS
OF SOMETHING VERY SPECIAL
OCCURRED IN A TINY TIN SHED
IN HOPE, ARKANSAS
In 1946 Paul W. Klipsch – genius, madman and maverick
– designed and hand-built the legendary Klipschorn
®
loudspeaker with the goal of bringing live music into his
living room. He was an American audio pioneer and a true
eccentric. PWK gave rise to speaker technologies that
would forever impact generations of music lovers.
Today, in this honored tradition, we move forward,
pushing the boundaries of art and science – while
driving new technologies to deliver an ever-incredible
listening experience.
Remember great sound? We never forgot.
We are THE KEEPERS OF THE SOUND
®
KLIPSCH | CI BUYERS GUIDE 2019-2020
5
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

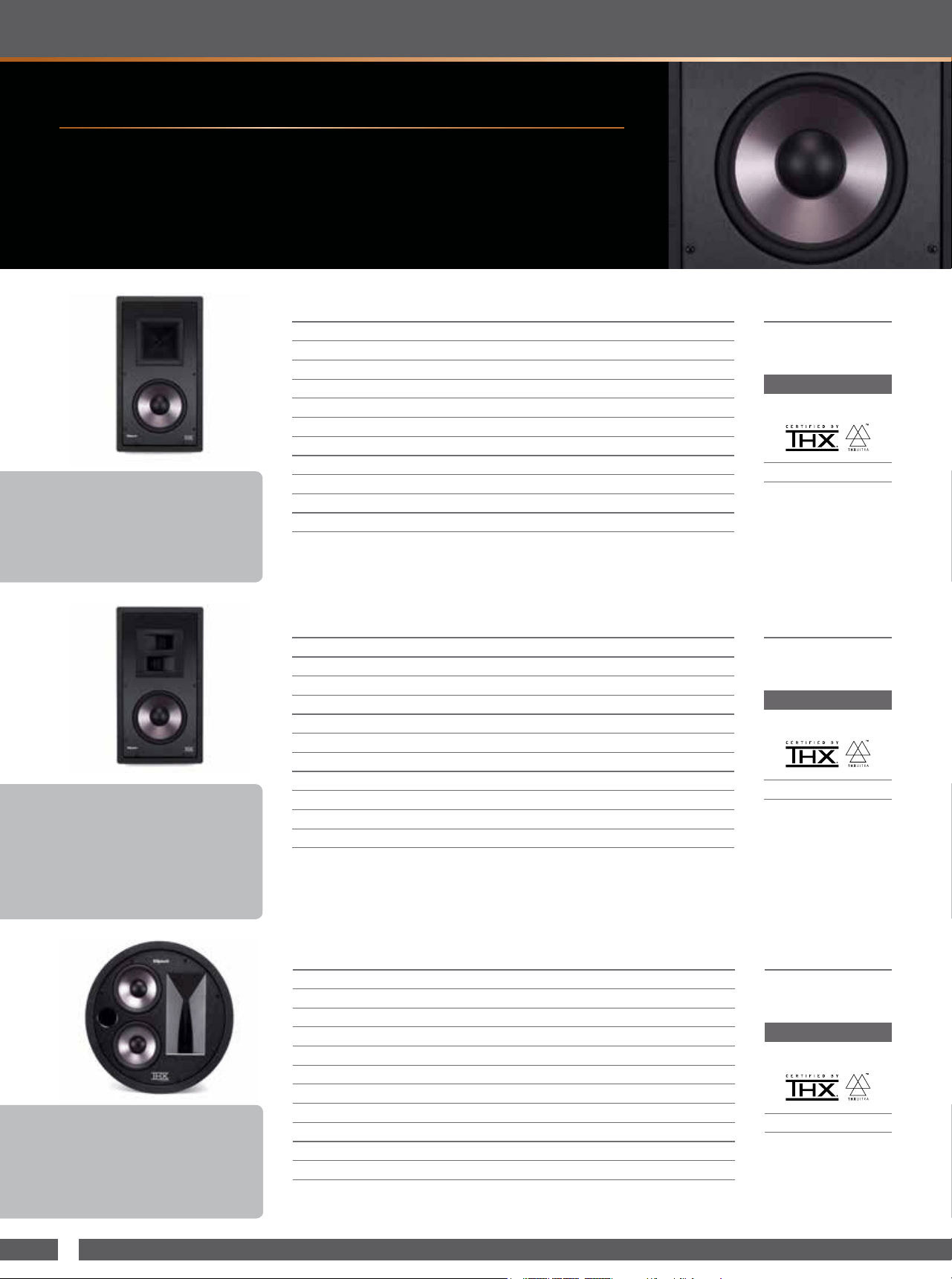

THX
®
CINEMA SERIES
This extraordinary custom home theater series brings cinema-quality sound to the comforts of home by
using Klipsch’s renowned, professional-grade technology. These THX Ultra and Select certied speakers
expertly deliver the raw explosiveness and ne detail of any lm format and will shatter your expectations
for home theater performance. The at magnetic grille allows these in-wall and in-ceiling speakers to melt
seamlessly into your home theater.
• THX Certied for high performance home cinema • THX Ultra and THX Select Certied models
THX-8000-L 8” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 80Hz-23kHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2300Hz
POWER HANDLING (CONT/PEAK) 150W /600W
HIGH FREQUENCY DRIVER 1” (2.54cm) Titanium dome compression driver mated to 80° x 80° Tractrix Horn
LOW FREQUENCY DRIVER 8” (20cm) Aluminum Cone Woofer
DIMENSIONS 20.63” (52.4cm) H x 11.63” (29.54cm) W
MOUNTING DEPTH 3.88” (9.85cm)
CUTOUT DIMENSIONS 19.13” (48.59cm) H x 10.12” (25.7cm) W
WEIGHT 17.5 lbs. (7.9kg)
INSTALLATION KIT IK-802-W (sold separately)
NOTES:
• THX Ultra Certied in-wall LCR speaker for
rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Flat, magnetic, paintable grille
• THX Ultra Certied in-wall surround
speaker for rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Wide Dispersion Sound Technology (WDST)
• Flat, magnetic, paintable grille
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9 kg
19.9 lbs
PART NUMBER
1066109
THX-8000-S 8” IN-WALL SURROUND SPEAKER
FREQUENCY RESPONSE 80Hz-20kHz +/- 3dB
SENSITIVITY 90dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2130Hz
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER Two 1” (2.5cm) Titanium dome neodymium tweeters in a diffuse Tractrix horn array
LOW FREQUENCY DRIVER 8” (20cm) Aluminum Cone Woofer
DIMENSIONS 20.63” (52.4cm) H x 11.63” (29.54cm) W
MOUNTING DEPTH 3.88” (9.85cm)
CUTOUT DIMENSIONS 19.13” (48.59cm) H x 10.12” (25.7cm) W
WEIGHT 17.5 lbs. (7.9kg)
INSTALLATION KIT IK-802-W (sold separately)
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 8.57 kg
18.9 lbs
PART NUMBER
1066110
THX-5002-L DUAL 5.25” IN-CEILING LCR SPEAKER
FREQUENCY RESPONSE 45Hz-20kHz +/- 3dB
SENSITIVITY 93dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 1200 Hz & 1800 Hz
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER 1” (2.5cm) Titanium tweeter in a 7.5 x 3.75” 60-90-110 VCT 45° Skewed horn
LOW FREQUENCY DRIVER Two 5.25” (16.51cm) Cerametallic Woofers
DIMENSIONS Ø 14.89” (37.82cm)
MOUNTING DEPTH 9.23” (23.44cm)
CUTOUT DIMENSIONS Ø 13.39” (34.01cm)
WEIGHT 12 lbs (5.4kg)
INSTALLATION KIT IK-502-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 7.2 kg
15.9 lbs
PART NUMBER
1066119
NOTES:
• THX Ultra Certied in-wall LCR speaker for
rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Flat, magnetic, paintable grille
6

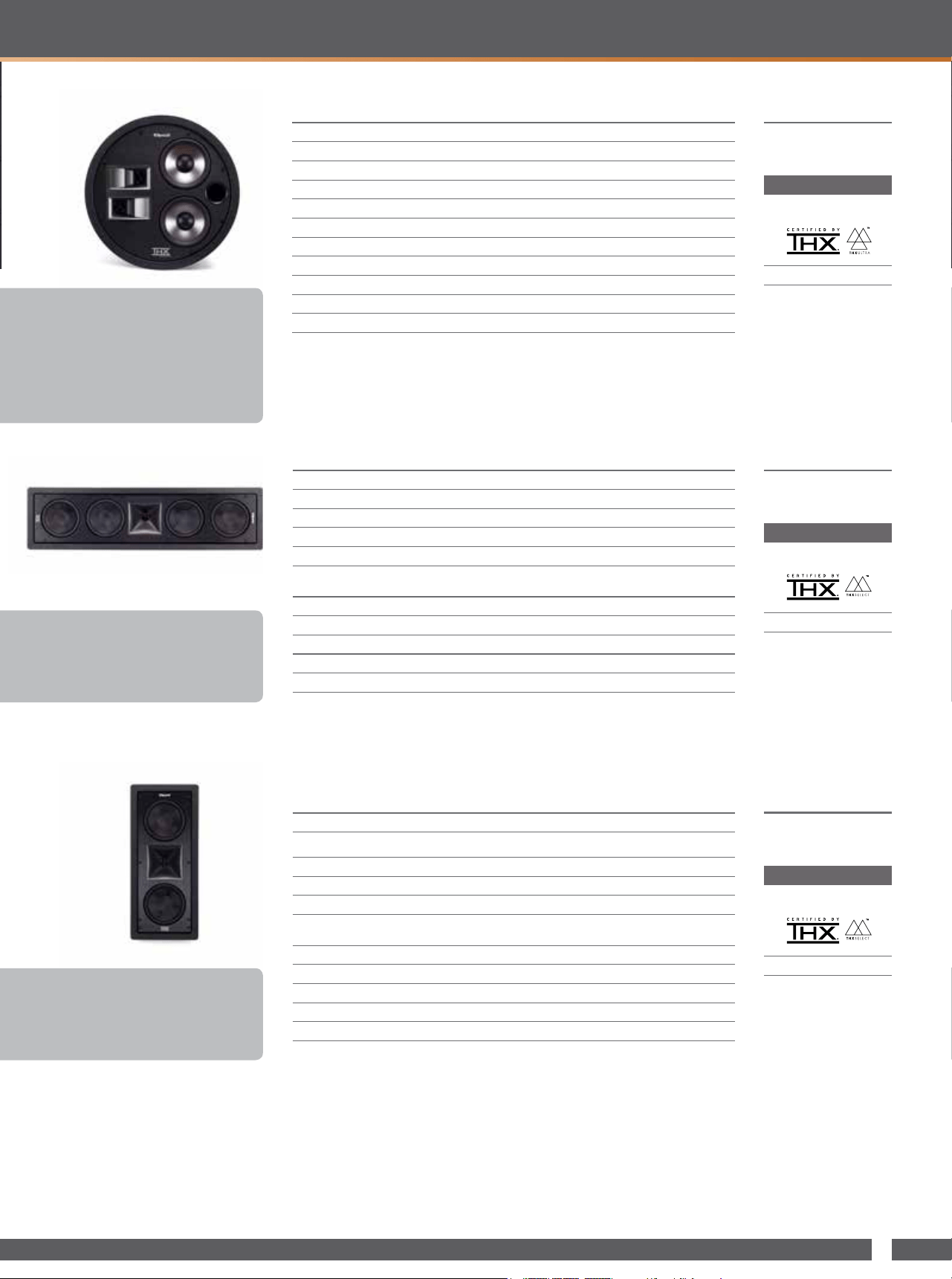

THX CINEMA SERIES
THX-502-L DUAL 5.25” IN-WALL SPEAKER
FREQUENCY RESPONSE 46Hz-20kHz +/- 3dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2100Hz & 1200Hz
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER
1” (2.54cm) Titanium diaphragm compression driver
mated to 90° x 90° square Tractrix Horn
LOW FREQUENCY DRIVER Dual 5.25” (13.3cm) high-output, berglass cone woofers
DIMENSIONS 17.98” (45.66cm) H x 8.11” (20.59cm) W
MOUNTING DEPTH 3.49” (8.86cm)
CUTOUT DIMENSIONS 16.42” (41.7cm) H x 6.57” (16.68cm) W
WEIGHT 9.6 lbs (4.4kg)
INSTALLATION KIT IK-502-W or IK-502-W II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 5.4 kg
11.9 lbs
PART NUMBER
1066128
NOTES:
THX-504-L QUAD 5.25” IN-WALL SPEAKER
FREQUENCY RESPONSE 46Hz-20kHz +/- 3dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 250 Hz & 2100 Hz
POWER HANDLING (CONT/PEAK) 150W /600W
HIGH FREQUENCY DRIVER
1” (2.54cm) Titanium diaphragm compression driver
mated to 90° x 90° square Tractrix Horn
LOW FREQUENCY DRIVER Four 5.25” (13.3cm) high-output, berglass cone woofers
DIMENSIONS 28.88” (73.35cm) H x 8.13” (20.65cm) W
MOUNTING DEPTH 3.52” (8.94cm)
CUTOUT DIMENSIONS 27.24” (69.19cm) H x 6.5” (16.51cm) W
WEIGHT 18.3 lbs (8.3kg)
INSTALLATION KIT IK-504-W (sold separately)
NOTES:
• THX Select Certied in-wall speaker for
rooms up to 2000 cubic feet
• Cinema quality sound in an architectural format
• Flat, magnetic, paintable grille
• THX Select Certied in-wall speaker for
rooms up to 2000 cubic feet
• Cinema quality sound in an architectural format
• Flat, magnetic, paintable grille
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9 kg
19.9 lbs
PART NUMBER
1066127
THX-5002-S DUAL 5.25” IN-CEILING SURROUND SPEAKER
FREQUENCY RESPONSE 45Hz-20kHz +/- 3dB
SENSITIVITY 93dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2500Hz
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER Two 1” Titanium tweeters in vertically stacked Tractrix horns
LOW FREQUENCY DRIVER Two 5.25” (16.51cm) Cerametallic Woofers
DIMENSIONS Ø 14.89” (37.82cm)
MOUNTING DEPTH 9.23” (23.44cm)
CUTOUT DIMENSIONS Ø 13.39” (34.01cm)
WEIGHT 11 lbs. (5.0kg)
INSTALLATION KIT IK-502-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 6.3 kg
13.9 lbs
PART NUMBER
1066125
NOTES:
• THX Ultra Certied in-ceiling surround
speaker for rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Wide Dispersion Sound Technology (WDST)
• Flat, magnetic, paintable grille
8

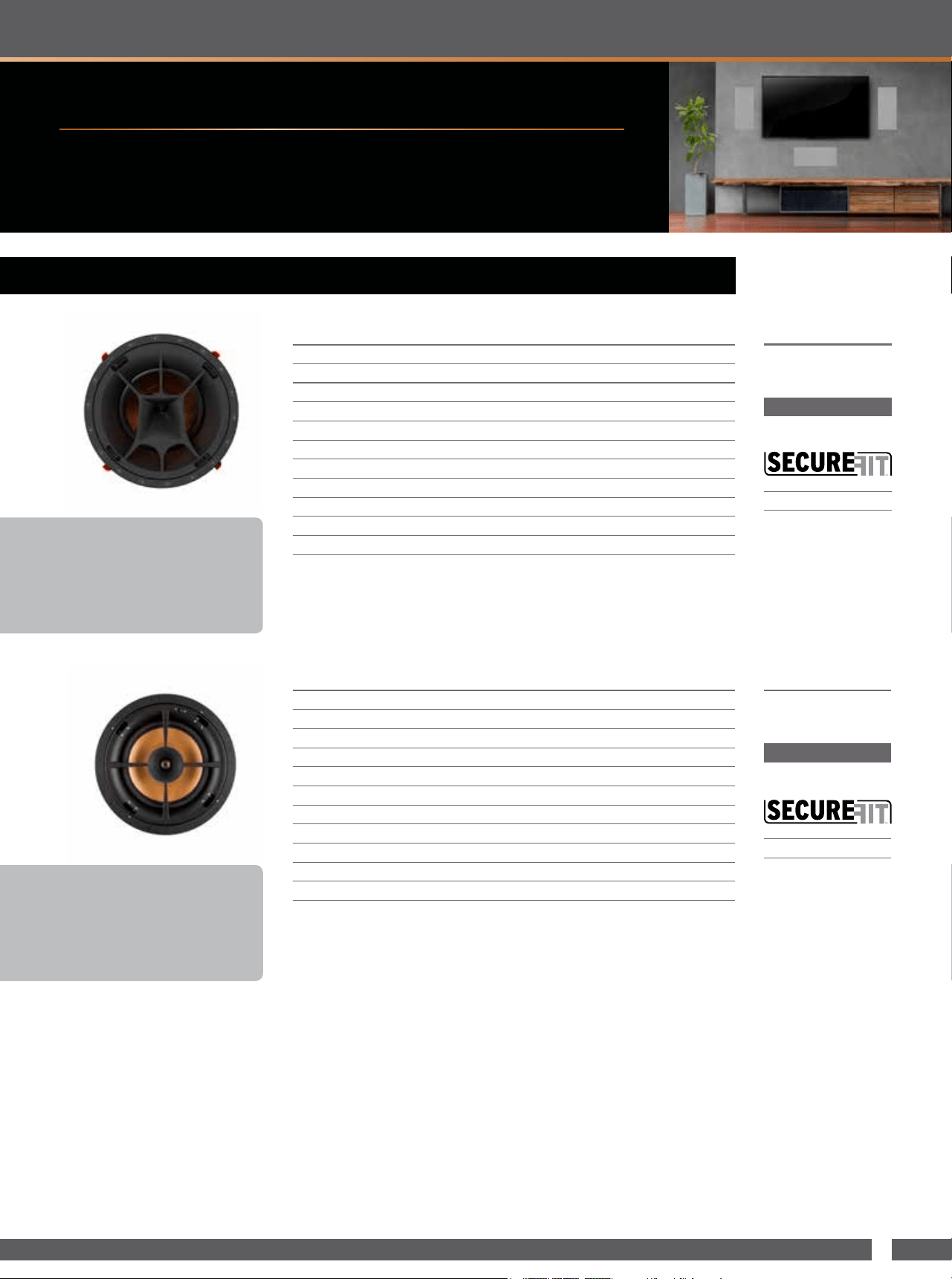

PROFESSIONAL SERIES
PROFESSIONAL SERIES REFERENCE PREMIERE
Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box
speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics
of an architectural speaker with the pure performance and dynamic voicing of the Reference
Premiere series.
PRO-180RPC LCR 8” IN-CEILING LCR SPEAKER
FREQUENCY RESPONSE 52Hz – 23kHz +/- 3dB
SENSITIVITY 96dB @1M, @2.83V
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER Angled 1” (2.54cm) titanium dome tweeter mated to a composite coated FEA optimized horn
LOW FREQUENCY DRIVER Angled 8” (20.32cm) Cerametallic woofer, angled 45˚
DIMENSIONS 12.7” W x 12.7” H x 5.89” D (32.3cm H x 32.3cm W x 15cm D)
MOUNTING DEPTH 5.68” (14.4cm)
CUTOUT DIMENSIONS 11.57” (29.4cm)
WEIGHT 8.4lbs. (3.8kg)
INSTALLATION KIT
IK-810-C
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.3 kg
9.5 lbs
PART NUMBER
1063968
NOTES:
• Angled In-Ceiling LCR speaker for home
theater or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
IN-CEILING
PRO-180RPC 8” IN-CEILING SPEAKER
FREQUENCY RESPONSE 52Hz – 23kHz +/- 3dB
SENSITIVITY 96dB @1M, @2.83V
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium dome tweeter mated to a composite coated round Tractrix
®
horn
LOW FREQUENCY DRIVER 8” (20.32cm) Cerametallic woofer
DIMENSIONS 10.89” W x 10.89” H x 4.83” D (27.7cm H x 27.7cm W x 12.3cm D)
MOUNTING DEPTH 4.58” (11.6cm)
CUTOUT DIMENSIONS 9.72” (24.7cm)
WEIGHT 7.4lbs. (3.36kg)
INSTALLATION KIT
IK-800-C or IK-800-C II
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.9kg
8.6 lbs
PART NUMBER
1063967
NOTES:
• In-Ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
KLIPSCH | CI BUYERS GUIDE 2019-2020
9
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

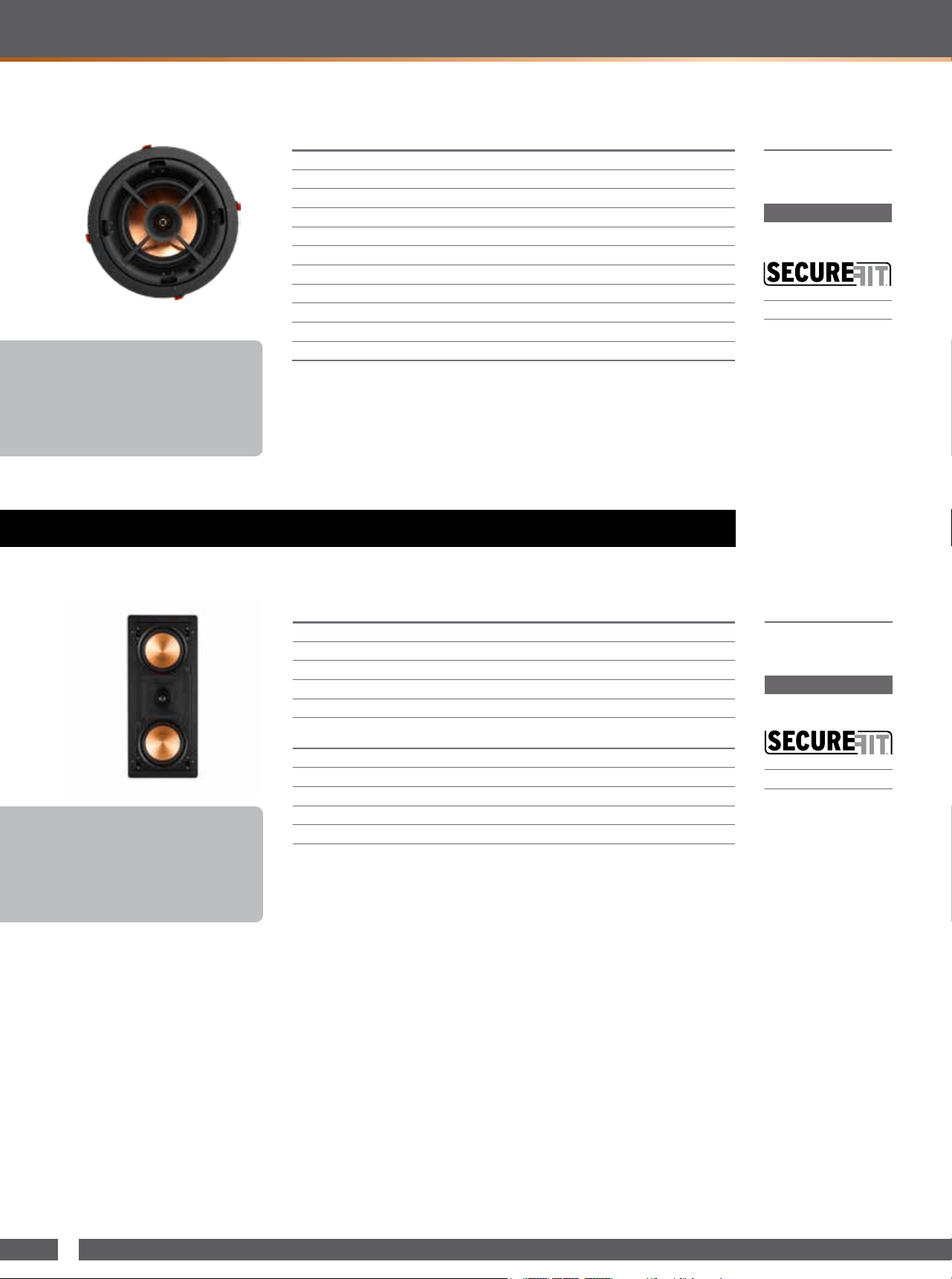

PRO-160RPC 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 56Hz – 23kHz +/- 3dB
SENSITIVITY 95dB @1M, @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium dome tweeter mated to a composite coated round Tractrix
®
horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) Cerametallic woofer
DIMENSIONS 9.31” W x 9.31” H x 4.71” D (23.7cm H x 23.7cm W x 12cm D)
MOUNTING DEPTH 4.46” (11.3cm)
CUTOUT DIMENSIONS 8.15” (20.7cm)
WEIGHT 7lbs. (3.18kg)
INSTALLATION KIT
IK-650-C or IK-650-C II
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.7 kg
8.15 lbs
PART NUMBER
1063966
NOTES:
• In-Ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included

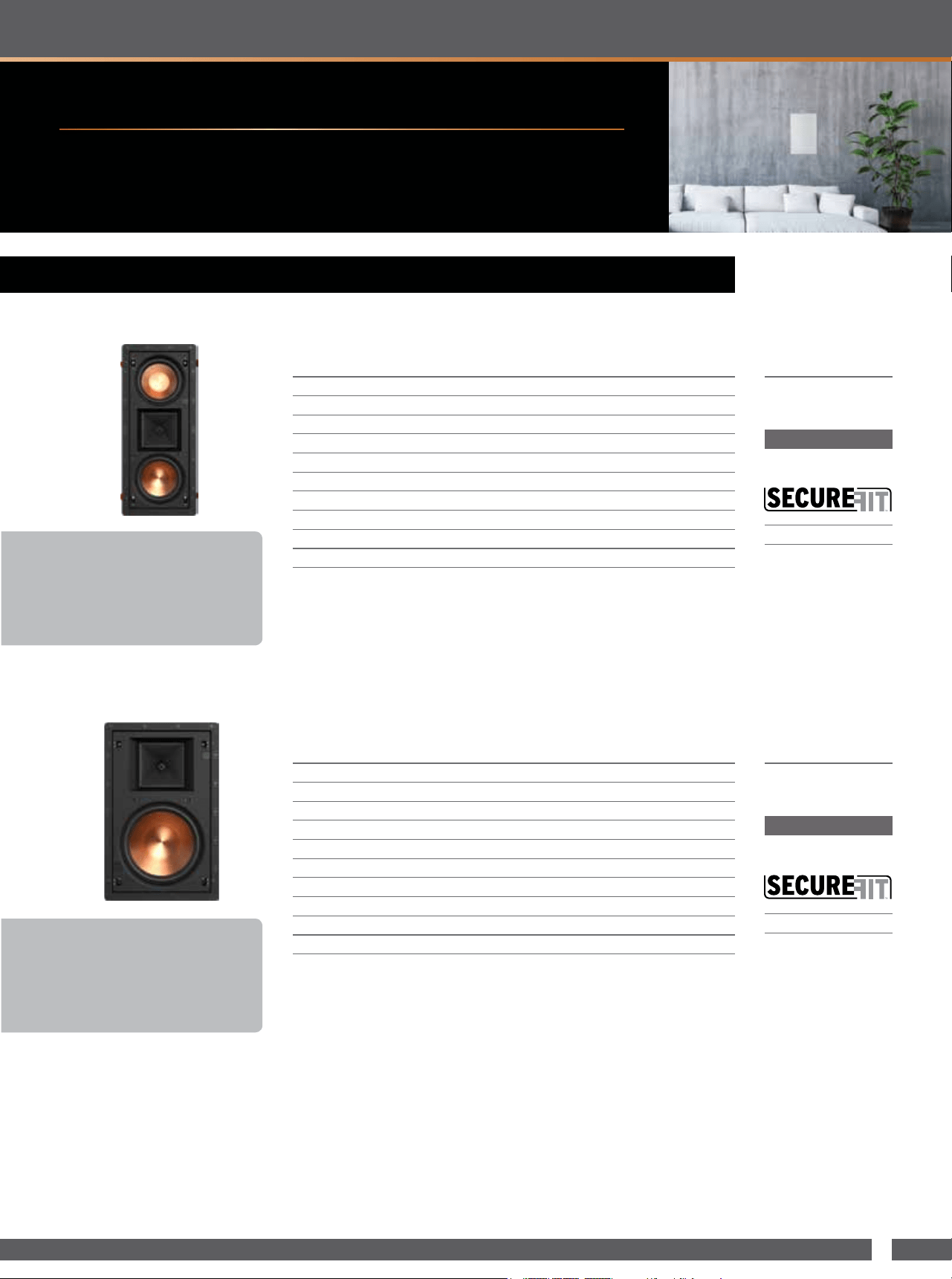

PRO-250RPW LCR DUAL 5.25” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 46Hz – 23kHz +/- 3dB
SENSITIVITY 94dB @1M, @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 90˚ x 90˚
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER
1” (2.54cm) titanium dome tweeter mated to a composite coated hybrid cross section
Tractrix
®
horn
LOW FREQUENCY DRIVER Dual 5.25” (13.34cm) Cerametallic woofers
DIMENSIONS 7.65” W x 17.53” H x 3.81” D (19.4cm H x 44.5cm W x 9.7cm D)
MOUNTING DEPTH 3.68” (9.3cm)
CUTOUT DIMENSIONS 6.5” H X 16.38” W (16.5cm H X 41.6cm W)
WEIGHT 6.5 lbs. (2.95kg)
INSTALLATION KIT
IK-502-W
or IK-502-W II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.5 kg
7.7 lbs
PART NUMBER
1063965
NOTES:
• In-Wall LCR speaker for home theater or
2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
IN-WALL

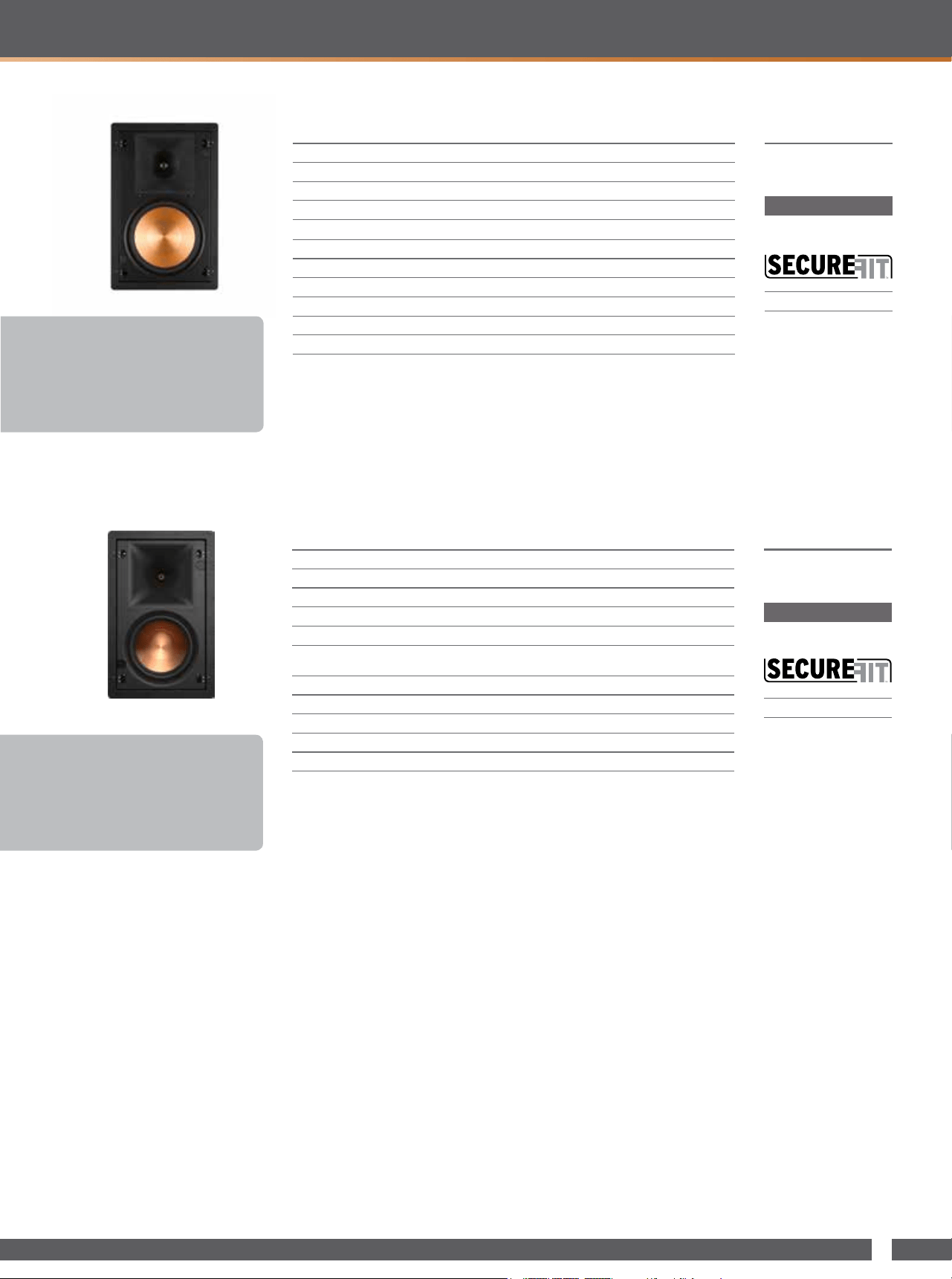

10
PROFESSIONAL SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26 lbs
PART NUMBER
1063963
PRO-160RPW 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 56Hz-23kHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 90˚ x 90˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER
1” (2.54cm) Titanium dome tweeter mated to a composite coated hybrid cross section
Tractrix® Horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) Cerametallic woofer
DIMENSIONS 9.1” W x 14.22” H x 3.9” D (23.1cm H x 36.1cm W x 9.9cm D)
MOUNTING DEPTH 3.77” (9.6cm)
CUTOUT DIMENSIONS 7.95” H X 13.07” W (20.2cm H X 33.2cm W)
WEIGHT 7.2 lbs. (3.25kg)
INSTALLATION KIT IK-650-W or IK-650-W II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.1 kg
9 lbs
PART NUMBER
1064064
PRO-180RPW 8” IN-WALL SPEAKER
FREQUENCY RESPONSE 52Hz-23kHz +/- 3dB
SENSITIVITY 96dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 90˚ x 90˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® Horn
LOW FREQUENCY DRIVER 8” (20.32cm) Cerametallic woofer
DIMENSIONS 10.3” W x 15.89” H x 4.01” D (26.2cm H x 40.4cm W x 10.2cm D)
MOUNTING DEPTH 3.88” (9.9cm)
CUTOUT DIMENSIONS 9.13” H X 14.72” W (23.2cm H X 37.4cm W)
WEIGHT 7.9 lbs. (3.6kg)
INSTALLATION KIT IK-800-W or IK-800-W II (sold separately)
NOTES:
NOTES:
• In-Wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
• In-Wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
12
PROFESSIONAL SERIES
PROFESSIONAL SERIES REFERENCE
Using the same acoustic components and horn material as the highly acclaimed Reference Premiere
box speaker line, the Professional Reference Series perfectly combines the aesthetics of an architectural
speaker with the pure performance and dynamic voicing of the Reference series.
• True Reference acoustics • SecureFit
™
Installation System • Minimal footprint models available
PRO-25RW LCR DUAL 5.25” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 50Hz-23kHz +/- 3dB
SENSITIVITY 93dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER 1” (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5.25” (16.51cm) IMG woofers
DIMENSIONS 7.65” W x 17.53” H x 3.81” D (19.4cm H x 44.5cm W x 9.7cm D)
MOUNTING DEPTH 3.68” (9.3cm)
CUTOUT DIMENSIONS 6.5” W X 16.38” H (16.5cm W X 41.6cm H)
WEIGHT 6.5 lbs. (2.95kg)
INSTALLATION KIT IK-502-W or IK-502-W II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.5 kg
7.7 lbs
PART NUMBER
1064445
NOTES:
PRO-18RW 8” IN-WALL SPEAKER
FREQUENCY RESPONSE 56Hz-23kHz +/- 3dB
SENSITIVITY 95dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® Horn
LOW FREQUENCY DRIVER 8” (20.32cm) IMG woofer
DIMENSIONS 10.3” W x 15.89” H x 4.0” D (26.2cm H x 40.4cm W x 10.2cm D)
MOUNTING DEPTH 3.88” (9.9cm)
CUTOUT DIMENSIONS 9.13” W X 14.72” H (23.2cm W X 37.4cm H)
WEIGHT 7.9 lbs. (3.6kg)
INSTALLATION KIT IK-800-W or IK-800-W II (sold separately)
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.1 kg
9 lbs
PART NUMBER
1064444
• In-wall LCR speaker for home theater or
2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
IN-WALL
14

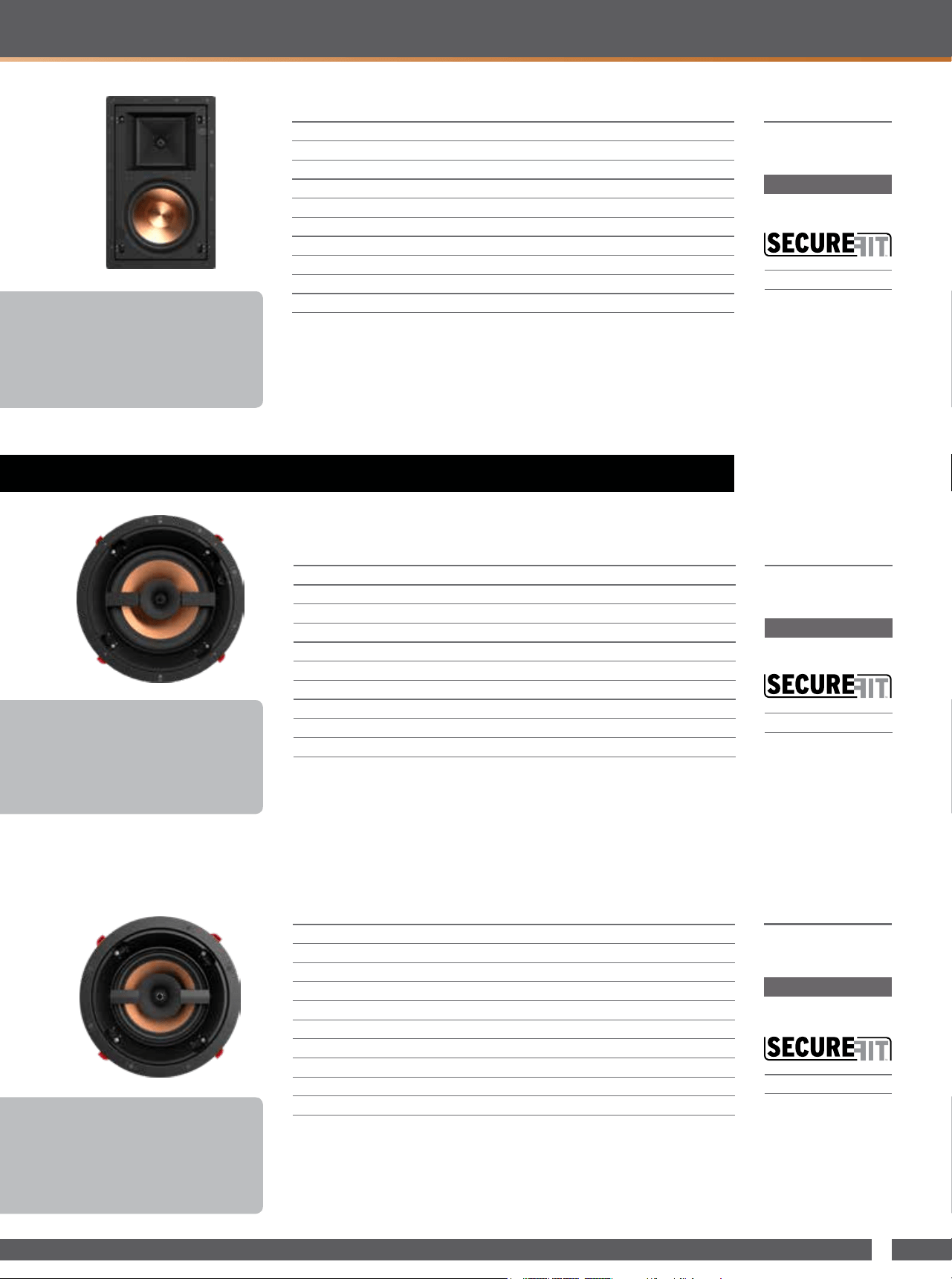

IN-CEILING
PROFESSIONAL SERIES
PRO-16RC 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 63Hz – 23kHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) aluminum dome tweeter mated to a round Tractrix
®
horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) IMG woofer
DIAMETER 9.31” (23.7cm)
CUTOUT DIAMETER 8.15” (20.7cm)
MOUNTING DEPTH 6.15” (15.6cm)
WEIGHT 7 lbs. (3.18kg)
INSTALLATION KIT
IK-650-C or IK-650-C II
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
7.9 lbs
PART NUMBER
1064446
NOTES:
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-18RC 8” IN-CEILING SPEAKER
FREQUENCY RESPONSE 56Hz – 23kHz +/- 3dB
SENSITIVITY 95dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) aluminum dome tweeter mated to a round Tractrix
®
horn
LOW FREQUENCY DRIVER 8” (20.32cm) IMG woofer
DIAMETER 10.89” (27.7cm)
CUTOUT DIAMETER 9.72” (24.7cm)
MOUNTING DEPTH 6.35” (16.1cm)
WEIGHT 7.4 lbs. (3.36kg)
INSTALLATION KIT
IK-800-C
or
IK-800-C II
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.8 kg
8.3 lbs
PART NUMBER
1064447
NOTES:
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-16RW 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 60Hz-23kHz +/- 3dB
SENSITIVITY 93dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) aluminum dome tweeter mated to a round Tractrix Horn
LOW FREQUENCY DRIVER 6.5” (16.5cm) IMG Woofer
DIMENSIONS 9.1” W x 14.22” H x 3.91” D (23.1cm H x 36.1cm W x 9.9cm D)
MOUNTING DEPTH 3.78” (9.6cm)
CUTOUT DIMENSIONS 7.95” W X 13.07” H (20.2cm W X 33.2cm H)
WEIGHT 7.2 lbs. (3.25kg)
INSTALLATION KIT IK-650-W or IK-650-W II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26 lbs
PART NUMBER
1064443
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
KLIPSCH | CI BUYERS GUIDE 2019-2020
15
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

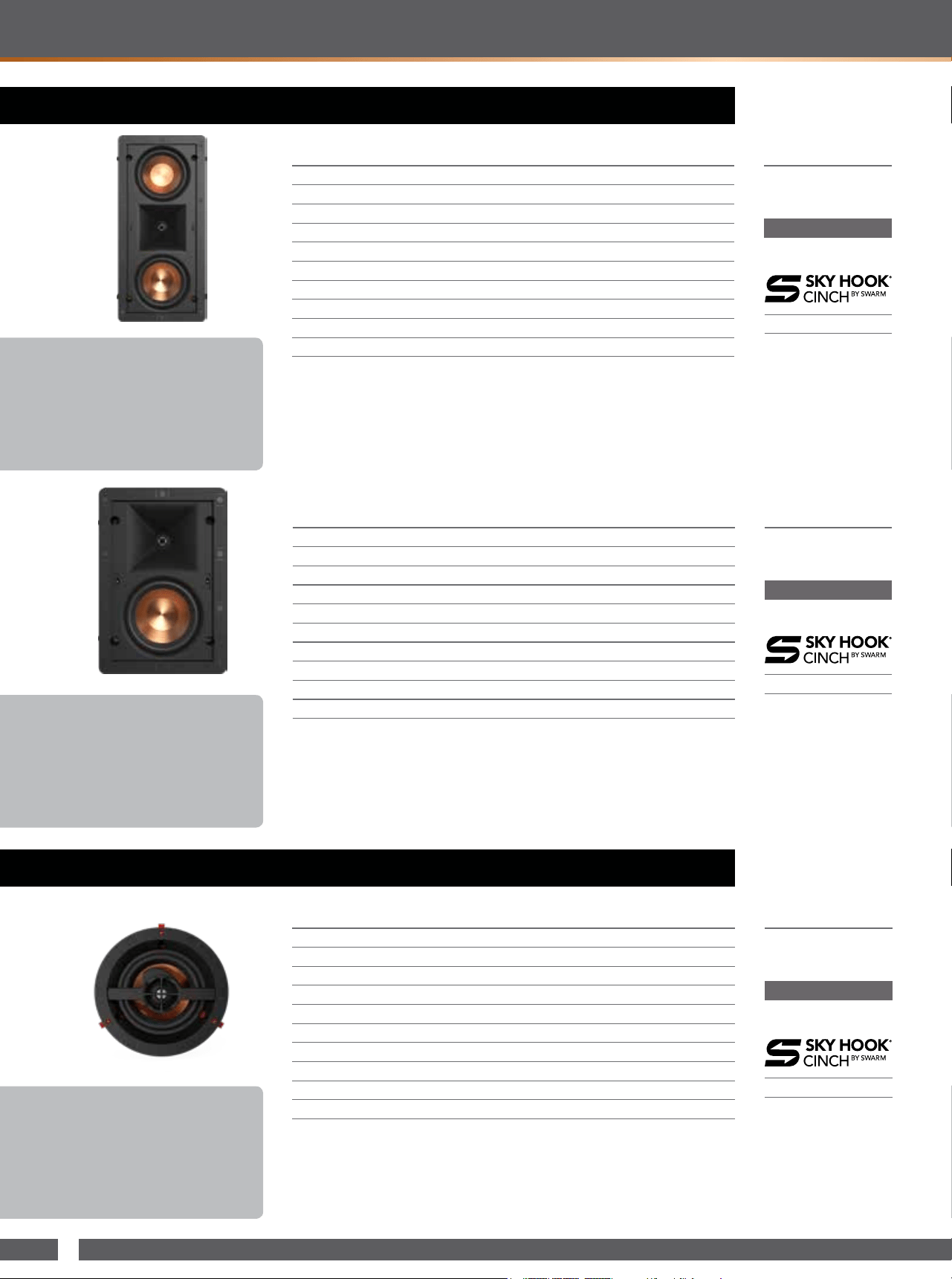

PROFESSIONAL SERIES MINIMAL FOOTPRINT
PRO-14RW MINIMAL FOOTPRINT 4” IN-WALL SPEAKER
FREQUENCY RESPONSE 70Hz-23kHz +/- 3dB
SENSITIVITY 88dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 30W /120W
HIGH FREQUENCY DRIVER 1” (2.54cm) Silk dome tweeter mated to 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER Dual 4” (10.2cm) Polypropylene Woofers
DIMENSIONS 6.38” W x 9.2” H x 3.56” D (16.2cm H x 23.4cm W x 9cm D)
MOUNTING DEPTH 3.41” (8.7cm)
CUTOUT DIMENSIONS 5.26” W X 8.13” H (13.4cm W X 20.7cm H)
WEIGHT 4lbs (1.8kg)
INSTALLATION KIT IK-400-W (sold separately)
PRO-14RC MINIMAL FOOTPRINT 3.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 72Hz – 23kHz +/- 3dB
SENSITIVITY 88dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 30W /120W
HIGH FREQUENCY DRIVER .75” (1.9cm) aluminum dome tweeter
LOW FREQUENCY DRIVER 3.5” (8.89cm) IMG woofer
DIAMETER 4.86” (12.4cm)
CUTOUT DIAMETER 4.21” (10.7cm)
MOUNTING DEPTH 3.89” (9.9cm)
WEIGHT 4 lbs. (1.8kg)
INSTALLATION KIT
IK-400-C
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.3 kg
5 lbs
PART NUMBER
1064450
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.3 kg
5 lbs
PART NUMBER
1064448
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Flat magnetic grille
• PVC Paint Shield included
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-24RW LCR MINIMAL FOOTPRINT DUAL 4” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 68Hz-23kHz +/- 3dB
SENSITIVITY 89dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 30W /120W
HIGH FREQUENCY DRIVER .75” (1.9cm) aluminum dome tweeter
LOW FREQUENCY DRIVER Dual 4” (10.16cm) IMG Woofers
DIMENSIONS 6.36” W x 13.42” H x 3.32” D (16.2cm H x 34.1cm W x 8.4cm D)
MOUNTING DEPTH 3.17” (8.1cm)
CUTOUT DIMENSIONS 5.26” W X 12.35” H (13.4cm W X 31.4cm H)
WEIGHT 4.5 lbs. (2.1kg)
INSTALLATION KIT IK-402-W (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.6 kg
5.73 lbs
PART NUMBER
1064449
NOTES:
• In-wall LCR speaker for home theater or
2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
MINIMAL FOOTPRINT IN-WALL
MINIMAL FOOTPRINT IN-CEILING
16

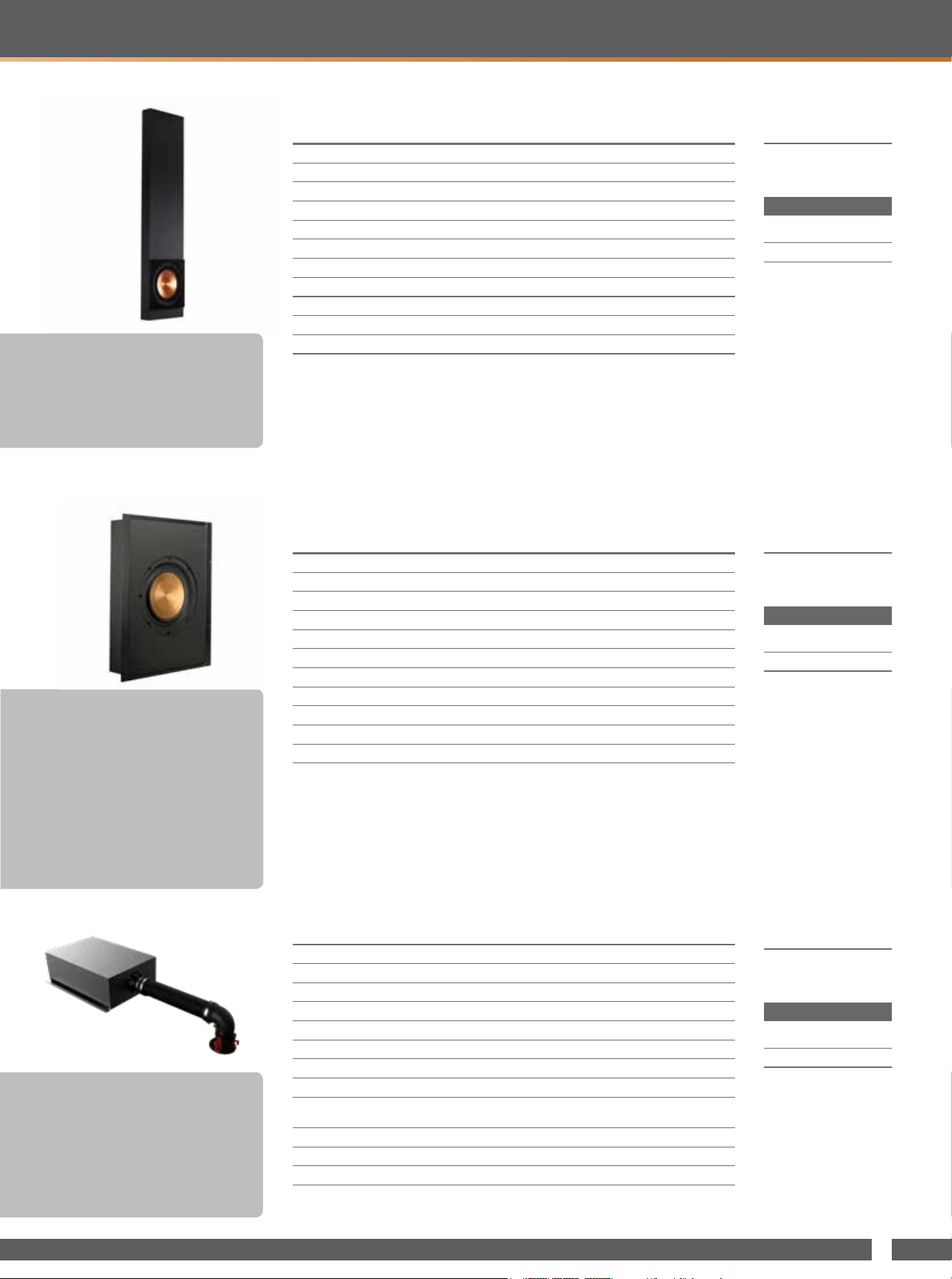

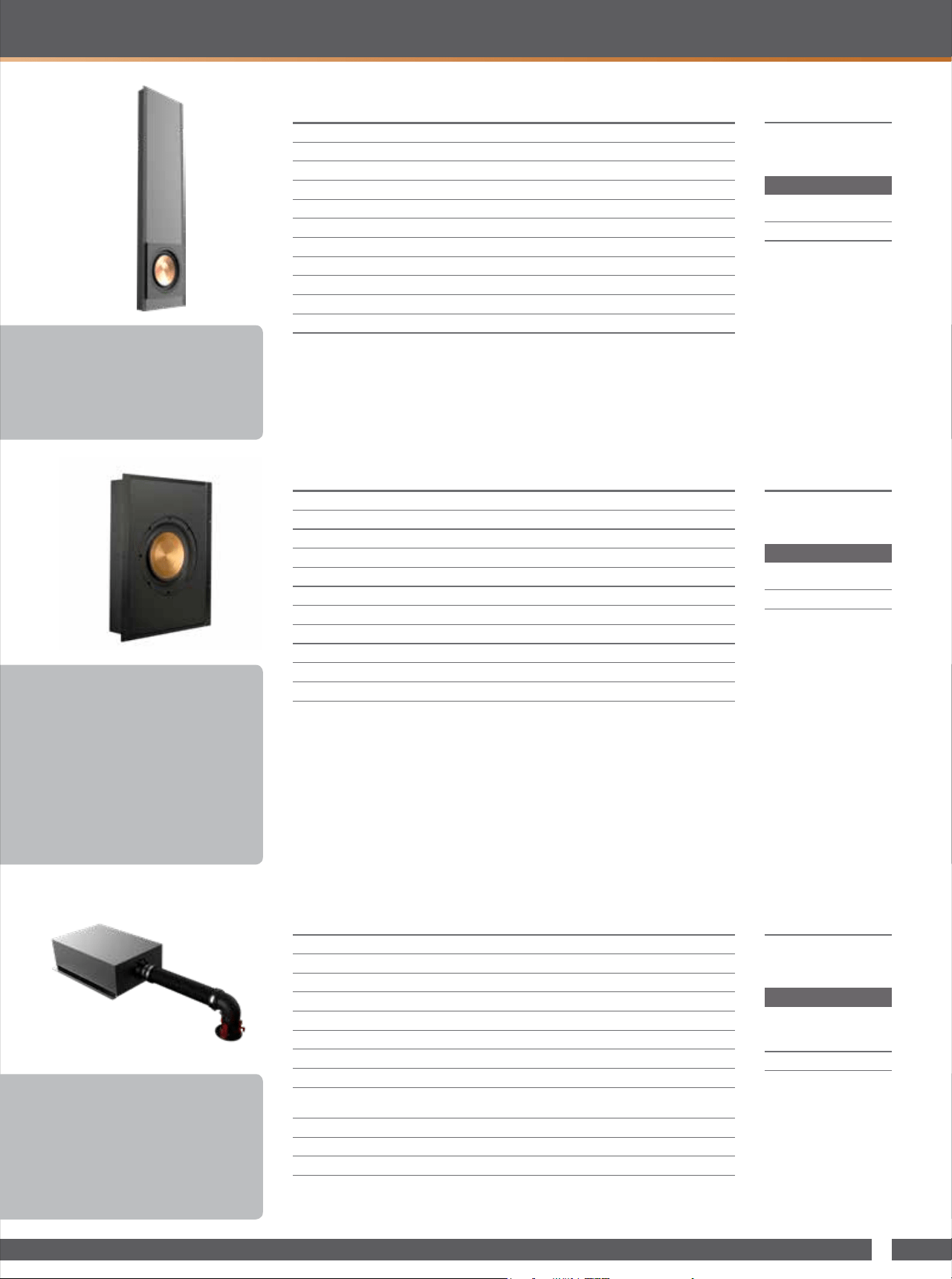

PROFESSIONAL SERIES SUBWOOFERS
• 10” Long-throw Cerametallic
™
woofer for
superior low frequency response
• Performs as the anchor for a home theater
system or a premium distributed audio solution
• MDF enclosure
• Flat, paintable, white magnetic grille
• Suitable for retrot or new construction
applications
• Compatible with the KDA-500 amplier
(see page XX)
PRO-1200SW 12” IN-WALL SUBWOOFER
FREQUENCY RANGE 21Hz - 100Hz +/- 3dB *
SYSTEM TYPE Sealed Box
WOOFER 12” (25.4cm) Long-Throw Cerametallic
™
MAXIMUM OUTPUT* 112dB @ 70Hz
POWER HANDLING 250W RMS / 600W Peak
IMPEDANCE 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS 65.75” H x 15.69” W x 3.47” D (1670.05mm x 398mm x 100mm)
MOUNTING DEPTH 3.4” (88.138mm)
CUTOUT DIMENSIONS 14.25” x 14.25” (361.95mm x 361.95mm)
PRODUCT WEIGHT 35.5 lbs (16.1 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 16.6 kg
36.6 lbs
PART NUMBER
1064595
NOTES:
PRO-1000SW 10” IN-WALL SUBWOOFER
FREQUENCY RANGE 24-100Hz +/- 3dB *
SYSTEM TYPE Sealed Box
WOOFER 10” (25.4cm) Long-Throw Cerametallic
™
MAXIMUM OUTPUT* 109dB @ 70Hz
POWER HANDLING 200W RMS / 500W Peak
IMPEDANCE 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS 21.97” x 17.56” x 4.0” (558mm x 448mm x 102mm)
MOUNTING DEPTH 3.94” (100mm)
CUTOUT DIMENSIONS 20.24” x 14.41” (514.096mm x 366.014mm)
PRODUCT WEIGHT 20.3 lbs (9.2 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9.8 kg
21.6 lbs
PART NUMBER
1063646
NOTES:
PRO-800SW 8” IN-WALL SUBWOOFER
FREQUENCY RANGE 38Hz - 125Hz +/- 3dB
SYSTEM TYPE Bandpass via exible port tube
WOOFER 8” (203cm) Dual Voice Coil Long-Throw Cerametallic
™
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Peak
IMPEDANCE 2 x 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS
Cabinet: 6.9” H x 21.1” W x 14.2” D (176mm x 536mm x 361mm)
Grille: 5” (127mm)
MOUNTING DEPTH 7” (178mm)
CUTOUT DIAMETER 4.25” (108mm)
PRODUCT WEIGHT 22.1 lbs (10.1 kg)
ACCESSORIES PRO-800SW Vent Boot Kit (Sold Separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10.6 kg
23.4 lbs
PART NUMBER
1064594
NOTES:
• In-ceiling bandpass dual voice coil
subwoofer for new construction or retrot
• Minimal visual footprint
• Round and square grilles included
• Floor vent boot kit accessory (sold
separately)
* With Klipsch KDA Amplier DSP Preset
* With Klipsch KDA Amplier DSP Preset
* With Klipsch KDA Amplier DSP Preset
• Full stud-bay-in-wall subwoofer for new
construction
• Ideal for home cinema or high performance
distributed audio
• Easily installs into any standard stud-bay
18

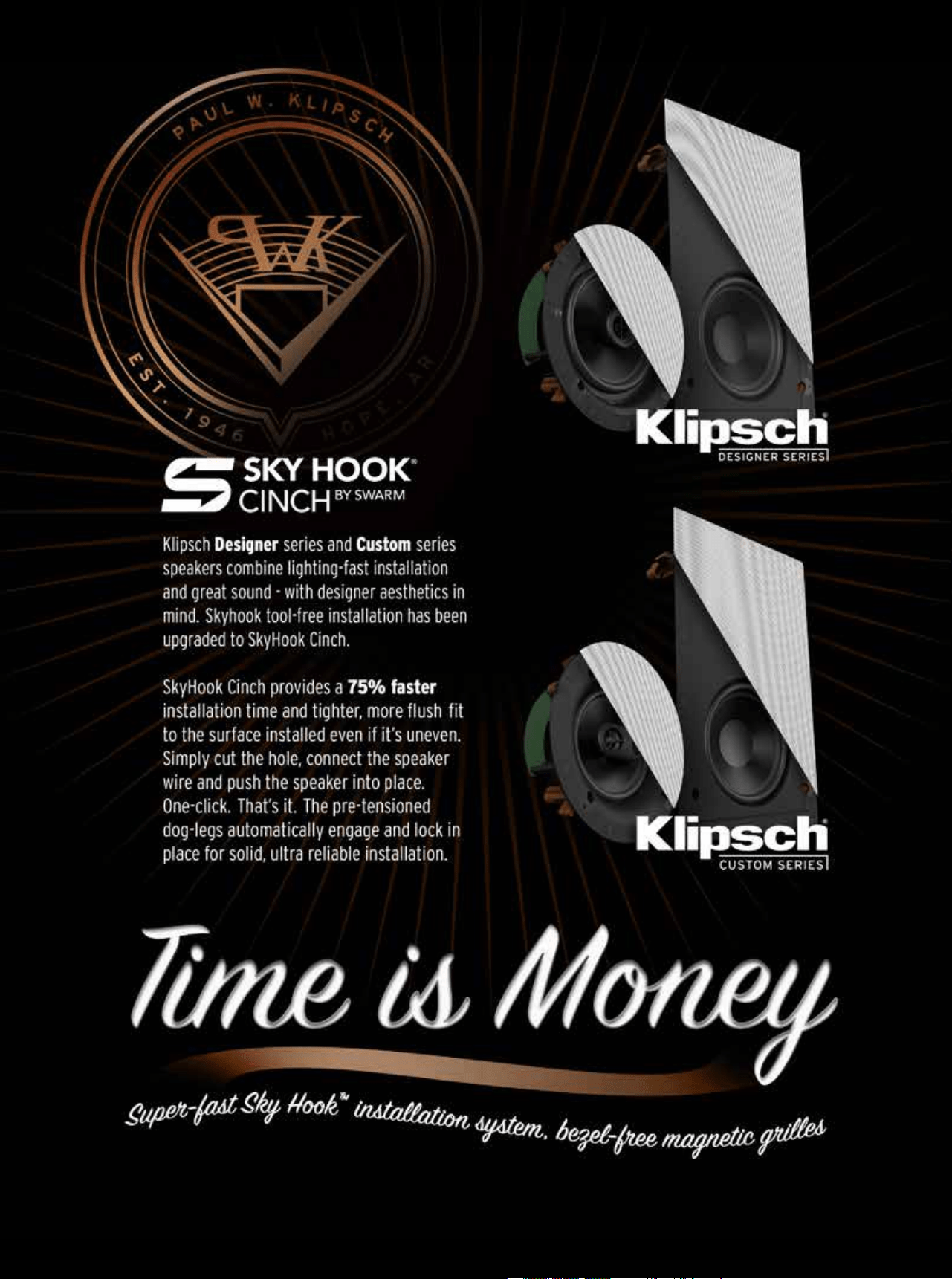

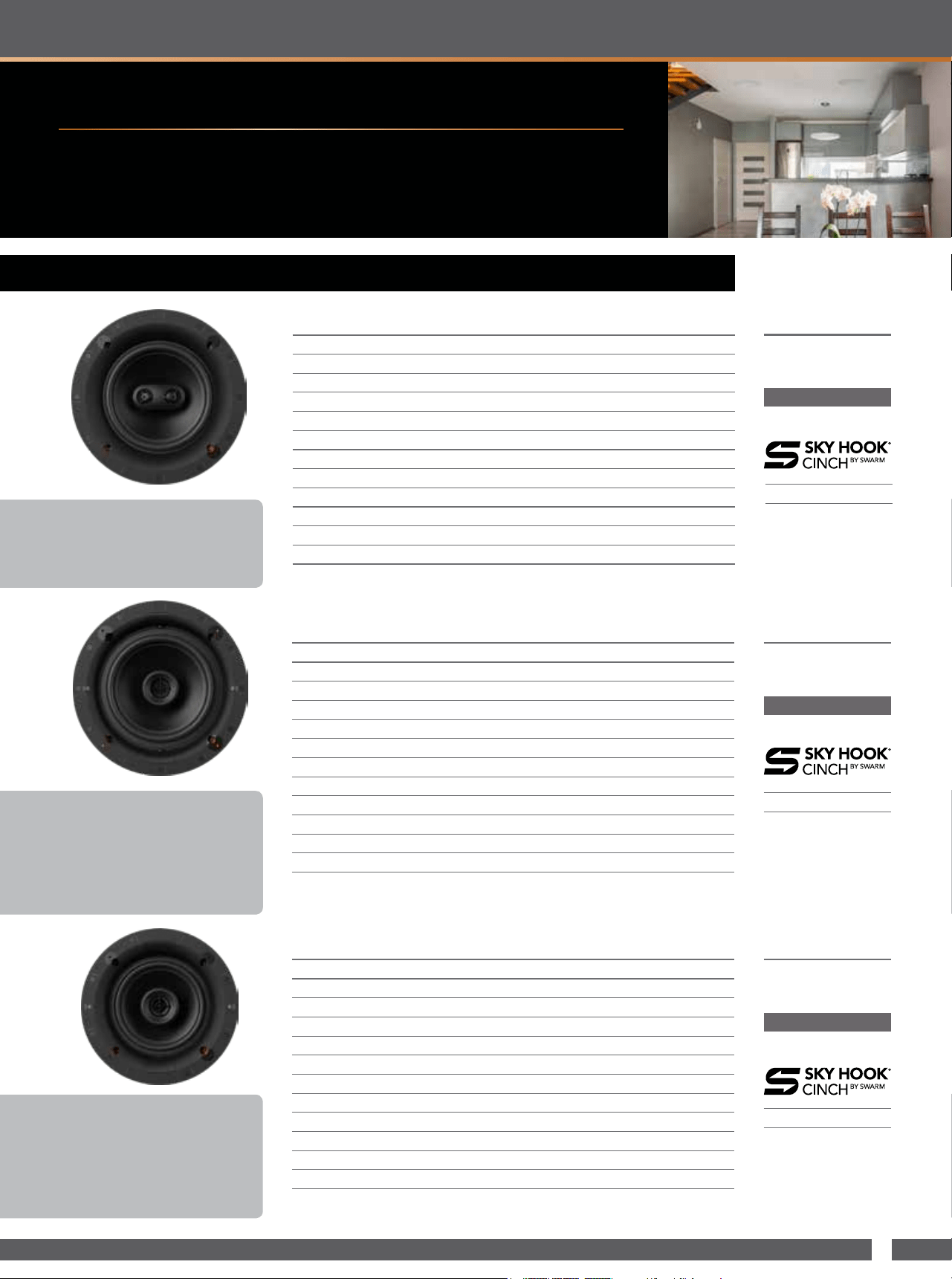

DESIGNER SERIES
DS-180CDT 8” IN-CEILING PIVOTING SPEAKER
FREQUENCY RESPONSE 64Hz-20KHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.5cm) silk dome tweeter mated to a round Tractrix
®
Horn
LOW FREQUENCY DRIVER 8” (20.32cm) polypropylene woofer
DIAMETER 10.88” (27.6cm)
CUTOUT DIAMETER 9.57” (24.3cm)
MOUNTING DEPTH 4.66” (11.8cm)
WEIGHT 7.4 lbs. (3.36 kg)
INSTALLATION KIT IK-800-C II (sold separately)
FIRE RATED ENCLOSURE ME-800-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.8 kg
8.37 lbs
PART NUMBER
1064167
NOTES:
DS-180CSM 8” STEREO IN-CEILING SPEAKER
FREQUENCY RESPONSE 64Hz-20KHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER Dual .75” (1.9cm) silk dome tweeters
LOW FREQUENCY DRIVER 8” (20.32cm) Polypropylene woofer
DIAMETER 10.88” (27.6cm)
CUTOUT DIAMETER 9.57” (24.3cm)
MOUNTING DEPTH 4.24” (10.8cm)
WEIGHT 7.4 lbs. (3.36kg)
INSTALLATION KIT IK-800-C II (sold separately)
FIRE RATED ENCLOSURE ME-800-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.8 kg
8.37 lbs
PART NUMBER
1064169
NOTES:
DESIGNER SERIES
Using the same Tractrix® horn technology and design principles of our premium architectural and box
speaker lines, the all new Klipsch Designer series delivers true Klipsch sound perfectly suited for distributed
audio systems or small home theaters. These speakers utilize the fast, easy SkyHook™ tool-free installation
system that reduces install time by up to 75%.
• SkyHook™ Installation System • Tractrix® Horn technology • Magnetic, bezel-free grilles
DS-160CDT 6.5” IN-CEILING PIVOTING SPEAKER
FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.5cm) silk dome tweeter maetd to a round Tractrix
®
Horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) Polypropylene woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 4.41” (11.2cm)
WEIGHT 7 lbs. (3.18kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED ENCLOSURE ME-650-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
7.9 lbs
PART NUMBER
1064166
NOTES:
IN-CEILING
• In-ceiling stereo speaker for distributed
audio
• SkyHook
™
ultra-fast Installation System
• Flat, magnetic grille
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook
™
ultra-fast Installation System
• Controlled Dispersion Technology (CDT)
allows tweter and woofer to be aimed
• Flat, magnetic grille
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook
™
ultra-fast Installation System
• Controlled Dispersion Technology (CDT)
allows tweter and woofer to be aimed
• Flat, magnetic grille
KLIPSCH | CI BUYERS GUIDE 2019-2020
19
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

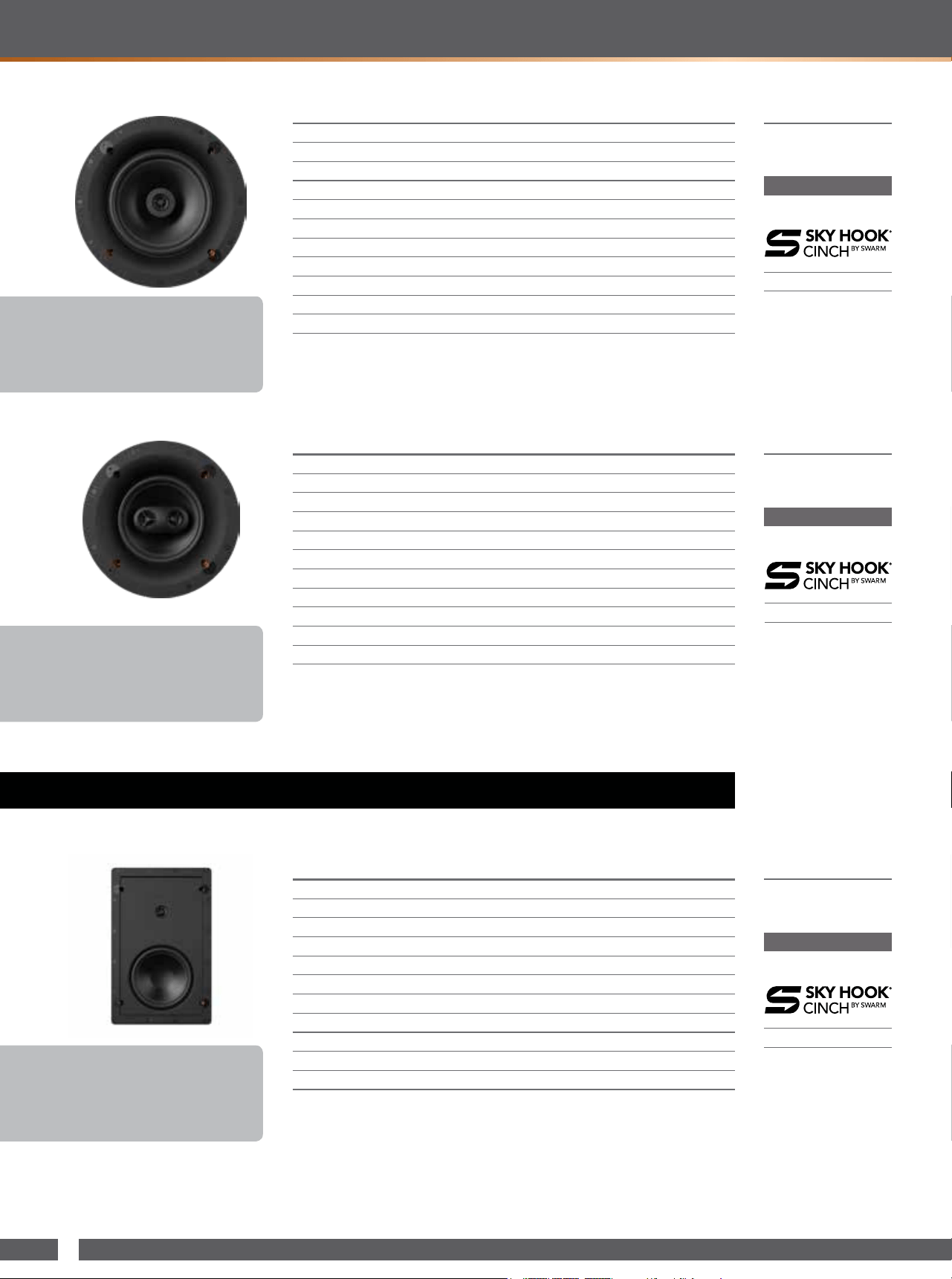

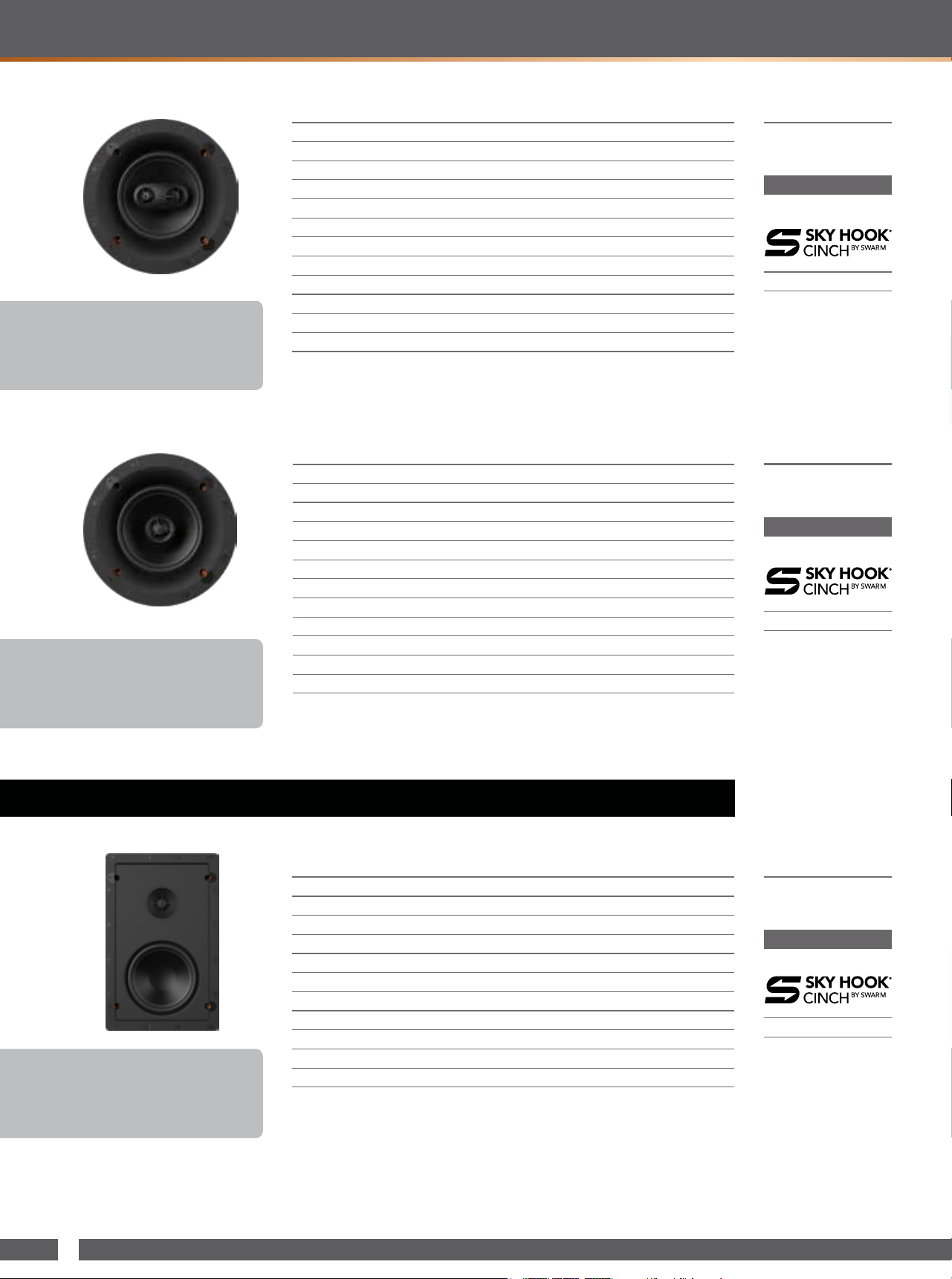

DS-160W 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 65Hz-20kHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) Silk dome tweeter mated to a round Tractrix
®
Horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) Polypropylene Woofer
DIMENSIONS 9.11” W x 14.23” H x 3.46” D (23.1cm H x 36.1cm W x 8.8cm D)
MOUNTING DEPTH 3.31” (8.4cm)
CUTOUT DIMENSIONS 7.87” W X 12.99” H (20cm W X 33cm H)
WEIGHT 7.2 lbs. (3.25kg)
INSTALLATION KIT IK-650-W II (sold separately)
FIRE RATED ENCLOSURE ME-650-W (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26 lbs
PART NUMBER
1064163
NOTES:
DS-160CSM 6.5” STEREO IN-CEILING SPEAKER
FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER Dual .75” (1.9cm) silk dome tweeters
LOW FREQUENCY DRIVER 6.5” (16.51cm) Dual voice coil polypropylene woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 3.99” (10.1cm)
WEIGHT 7 lbs (3.18kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED ENCLOSURE ME-650-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.7 kg
8.1 lbs
PART NUMBER
1064168
NOTES:
IN-WALL
DS-160C 6.5” IN-CEILLING SPEAKER
FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.5cm) silk dome tweeter mated to a round Tractrix
®
Horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) Polypropylene woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 3.99” (10.7cm)
WEIGHT 7 lbs (3.18 kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED ENCLOSURE ME-650-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.7 kg
8.1 lbs
PART NUMBER
1064165
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SkyHook
™
ultra-fast Installation System
• Flat, magnetic grille
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook
™
ultra-fast Installation System
• Flat, magnetic grille
• In-ceiling stereo speaker for distributed
audio
• SkyHook
™
ultra-fast Installation System
• Flat, magnetic grille
DESIGNER SERIES
20
CUSTOM SERIES

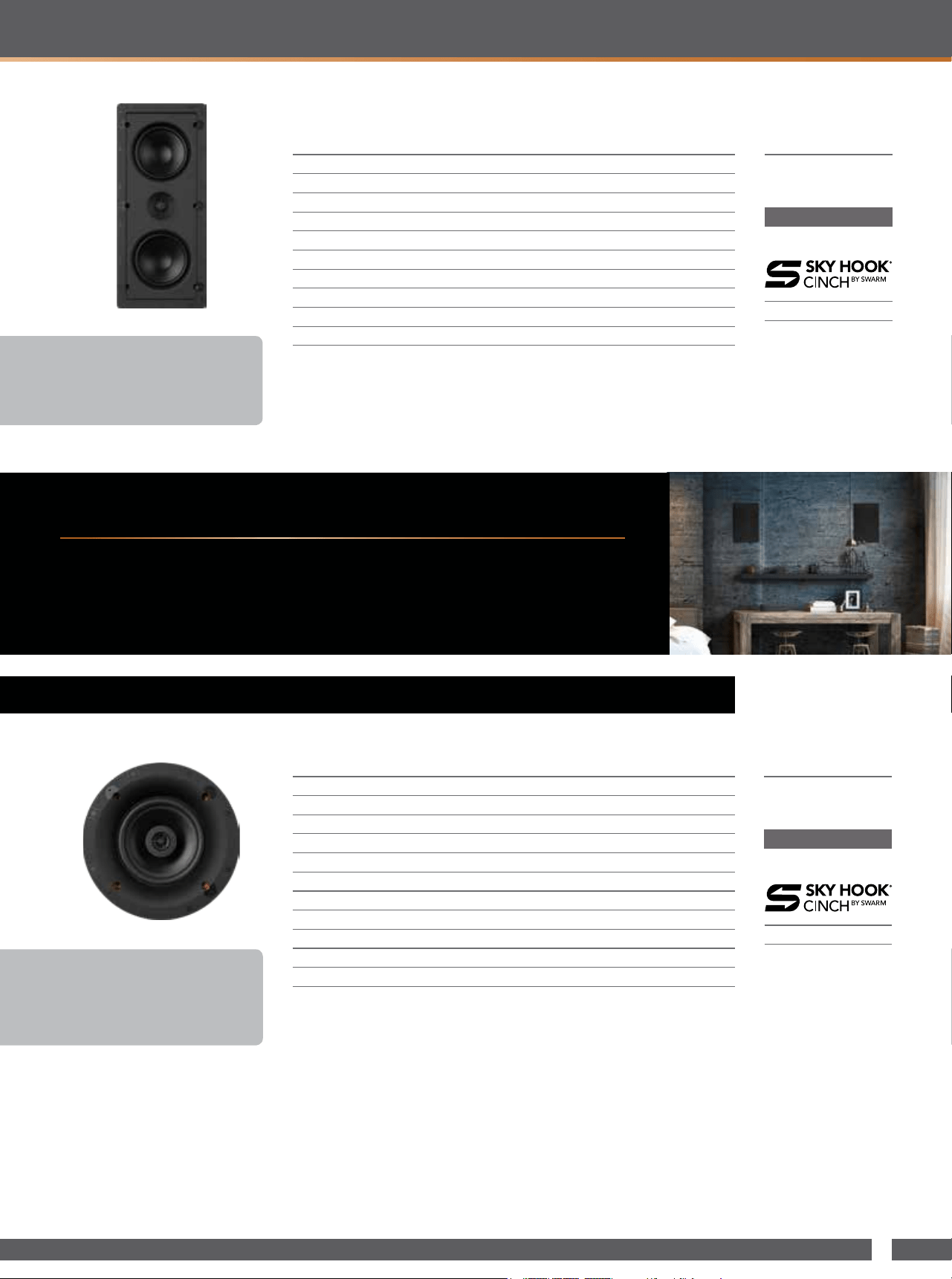

CS-16C II 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 57Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 35W /140W
HIGH FREQUENCY DRIVER 1” (2.5cm) polymer dome tweeter
LOW FREQUENCY DRIVER 6.5” (16.51cm) poly woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 3.91” (9.9cm)
WEIGHT 5.1 lbs (2.3 kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED ENCLOSURE ME-650-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.6 kg
5.7 lbs
PART NUMBER
1064160
NOTES:
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
CUSTOM SERIES
Using the same design pricipals of our premium architectural and box speaker lines, the all new Klipsch
Custom series delivers true Klipsch sound for distributed audio or small home theater. These speakers
utilize the exclusive SkyHook
™
tool-free installation system to engage the dog legs automatically when
the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of
overtorquing. This fast, easy installation system reduces install time by up to 75%.
IN-CEILING
DS-250W LCR DUAL 5.25” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 45Hz-20kHz +/- 3dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 60W /240W
HIGH FREQUENCY DRIVER 1” (2.54cm) Silk dome tweeter mated to a round Tractrix
®
Horn
LOW FREQUENCY DRIVER Dual 5.25” (13.34cm) Polypropylene Woofers
DIMENSIONS 7.65” W x 17.54” H x 3.12” D (19.4cm H x 44.5cm W x 7.9cm D)
MOUNTING DEPTH 2.97” (7.5cm)
CUTOUT DIMENSIONS 6.42” W X 16.3” H (16.3cm W X 41.4cm H)
WEIGHT 6.5lbs (2.95kg)
INSTALLATION KIT IK-502-W II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.5 kg
7.7 lbs
PART NUMBER
1064164
NOTES:
• In-wall speaker for home theater or
2-channel listening
• SkyHook
™
ultra-fast Installation System
• Flat, magnetic grille
KLIPSCH | CI BUYERS GUIDE 2019-2020
21
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
CS-16W 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 57Hz-20kHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 40W /160W
HIGH FREQUENCY DRIVER 1” (2.54cm) polymer tweeter
LOW FREQUENCY DRIVER 6.5” (16.5cm) polymer woofer
DIMENSIONS 9.11” W x 14.23” H x 3.43” D (23.1cm H x 36.1cm W x 8.7cm D)
MOUNTING DEPTH 3.28” (8.3cm)
CUTOUT DIMENSIONS 7.87” W X 12.99” H (20cm W X 33cm H)
WEIGHT 7.2 lbs. (3.25kg)
INSTALLATION KIT IK-650-W II (sold separately)
FIRE RATED ENCLOSURE ME-650-W (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26lbs
PART NUMBER
1064159
NOTES:
CS-18C 8” IN-CEILING SPEAKER
FREQUENCY RESPONSE 55Hz-20KHz +/- 3dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 40W /160W
HIGH FREQUENCY DRIVER 1” (2.54cm) polymer dome tweeter
LOW FREQUENCY DRIVER 8” (20.32cm) polymer woofer
DIAMETER 10.88” (27.6cm)
CUTOUT DIAMETER 9.57” (24.3cm)
MOUNTING DEPTH 4.17” (10.6cm)
WEIGHT 7.4 lbs (3.36 kg)
INSTALLATION KIT IK-800-C II (sold separately)
FIRE RATED ENCLOSURE ME-800-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.9 kg
6.4 lbs
PART NUMBER
1064161
CS-16CSM 6.5” STEREO IN- CEILING SPEAKER
FREQUENCY RESPONSE 57Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 40W /160W
HIGH FREQUENCY DRIVER Dual .75” (1.9cm) polymer dome tweeters
LOW FREQUENCY DRIVER 6.5” (16.51cm) dual voice coil polymer woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 3.99” (10.1cm)
WEIGHT 7 lbs (3.18 kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED ENCLOSURE ME-650-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 7.5 kg
16.5 lbs
PART NUMBER
1064162
NOTES:
NOTES:
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
• In-ceiling stereo speaker for distributed
audio
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
IN-WALL
CUSTOM SERIES
22

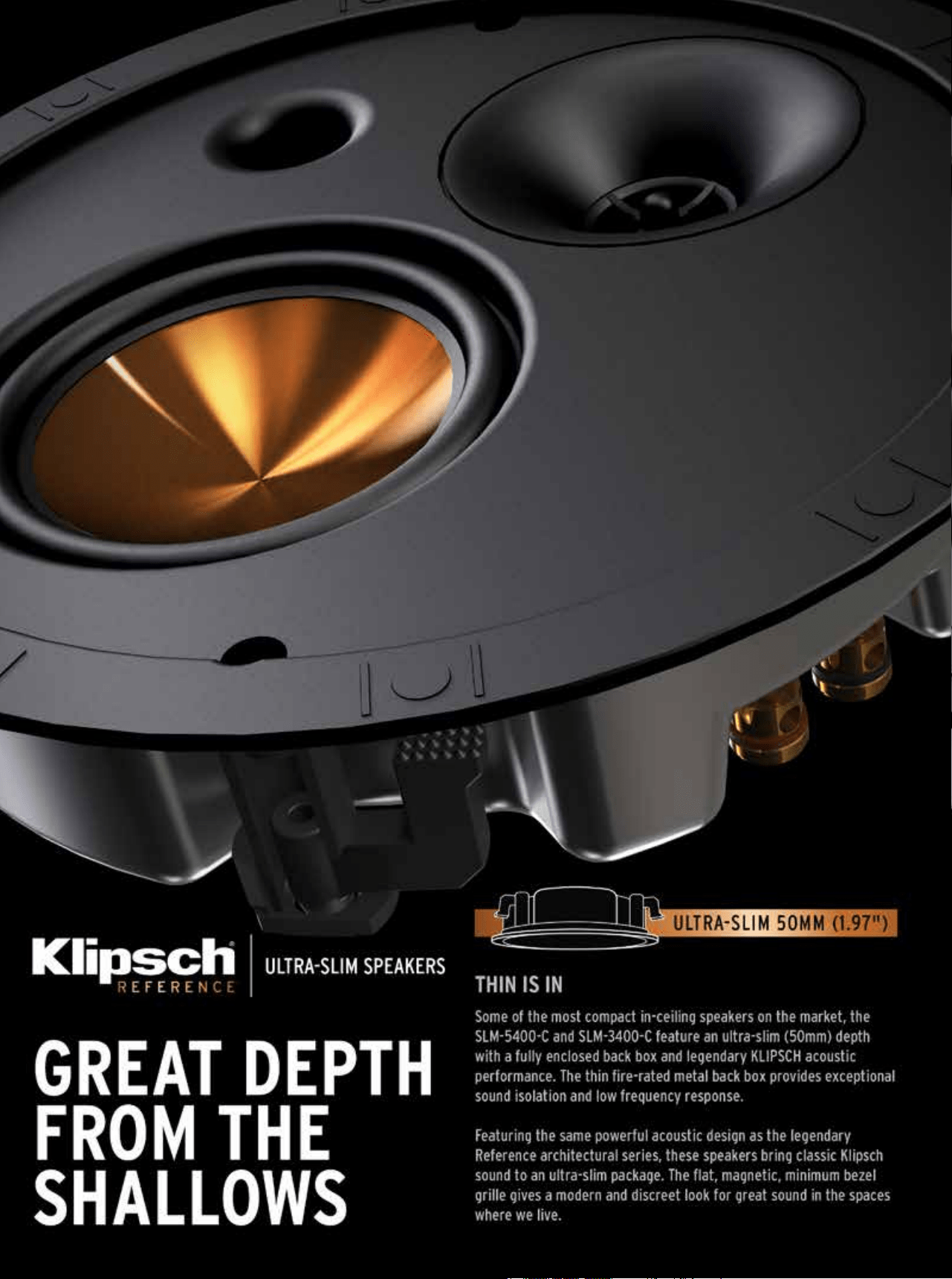

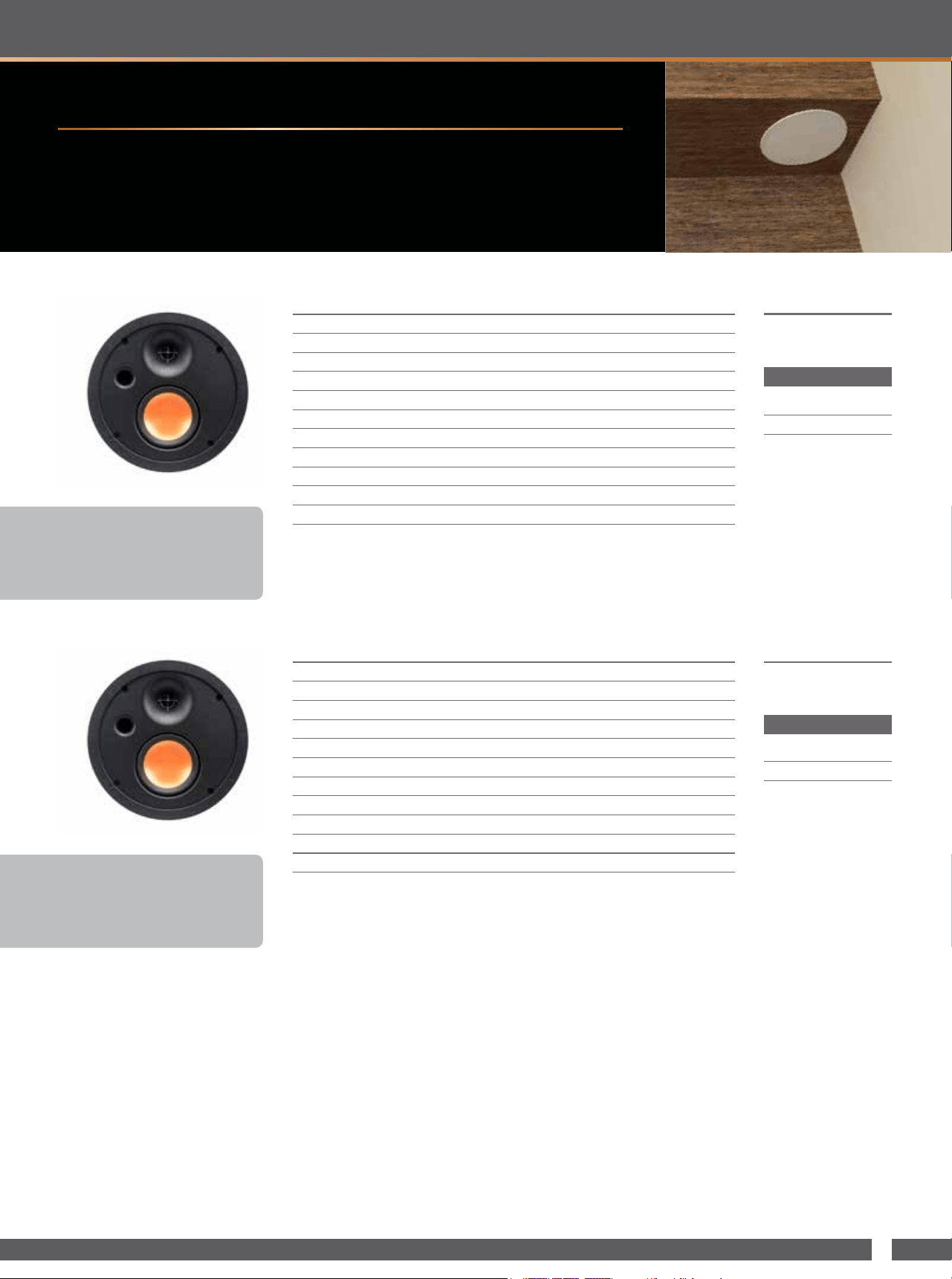

SHALLOW DEPTH SPEAKERS
ARCHITECTURAL CUSTOM
SLM-5400-C 4” SHALLOW DEPTH IN-CEILING SPEAKER
FREQUENCY RESPONSE 90Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
RECOMMENDED AMP POWER
50W
POWER HANDLING 120W Peak
HIGH FREQUENCY DRIVER 1” (2.5cm) titanium dome tweeter with a round Tractrix Horn
LOW FREQUENCY DRIVER 4” (10.2cm) Cerametallic
™
woofer
DIAMETER 9.516” (24.17cm)
CUTOUT DIAMETER 8.15” (20.7cm)
MOUNTING DEPTH 1.97” (5cm)
WEIGHT 7.4 lbs. (3.35kg)
INSTALLATION KIT IK-650-C or IK-650-C II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
8 lbs
PART NUMBER
1063201
NOTES:
• Ultra-slim in-ceiling speaker
• 50mm deep re-rated back box
• Flat, magnetic grille - round and square
grilles included
• Ultra-slim in-ceiling speaker
• 50mm deep re-rated back box
• Flat, magnetic grille - round and square
grilles included
SHALLOW DEPTH SPEAKERS
Creating a benchmark in architectural audio excellence, the Reference Series shallow depth in-ceiling
architectural speakers deliver a level of realism and subtlety that surpasses and even intimidates competing
designs. With ultra-slim 50mm back boxes, these speakers belie their size with full, detailed sound in any
installation.
• Ultra-slim in-ceiling speakers • Great performance in any installation
SLM-3400-C 4” SHALLOW DEPTH IN-CEILING SPEAKER
FREQUENCY RESPONSE 92Hz-20KHz +/- 3dB
SENSITIVITY 90dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
RECOMMENDED AMP POWER
50W
POWER HANDLING 120W Peak
HIGH FREQUENCY DRIVER 1” (2.5cm) aluminum dome tweeter with a round Tractrix Horn
LOW FREQUENCY DRIVER 4” (10.2cm) IMG woofer
DIAMETER 10.516” (26.7cm)
CUTOUT DIAMETER 8.15” (20.7cm)
MOUNTING DEPTH 1.97” (5cm)
WEIGHT 7.4 lbs. (3.35kg)
INSTALLATION KIT IK-650-C or IK-650-C II (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
8 lbs
PART NUMBER
1063200
NOTES:
24

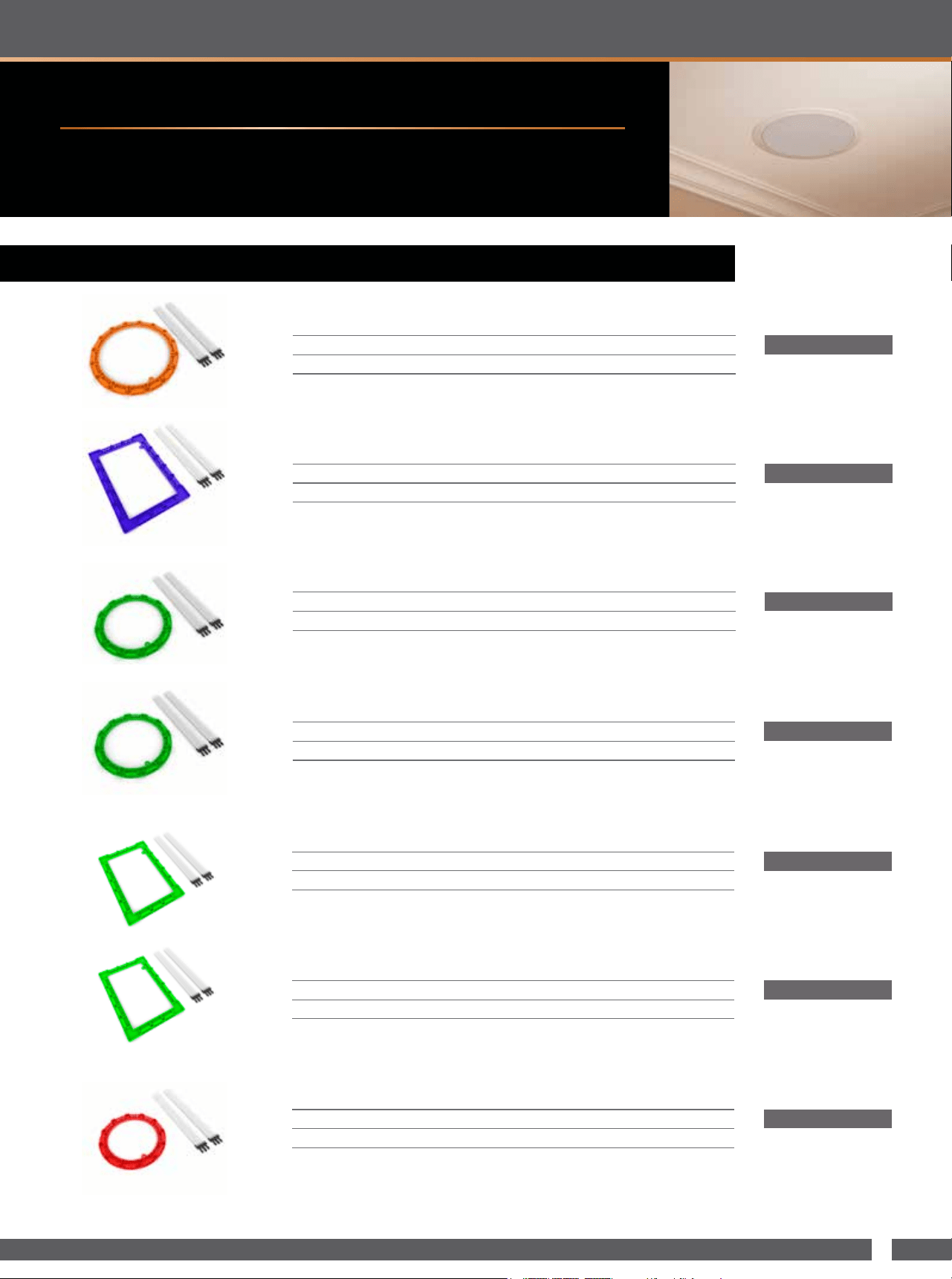

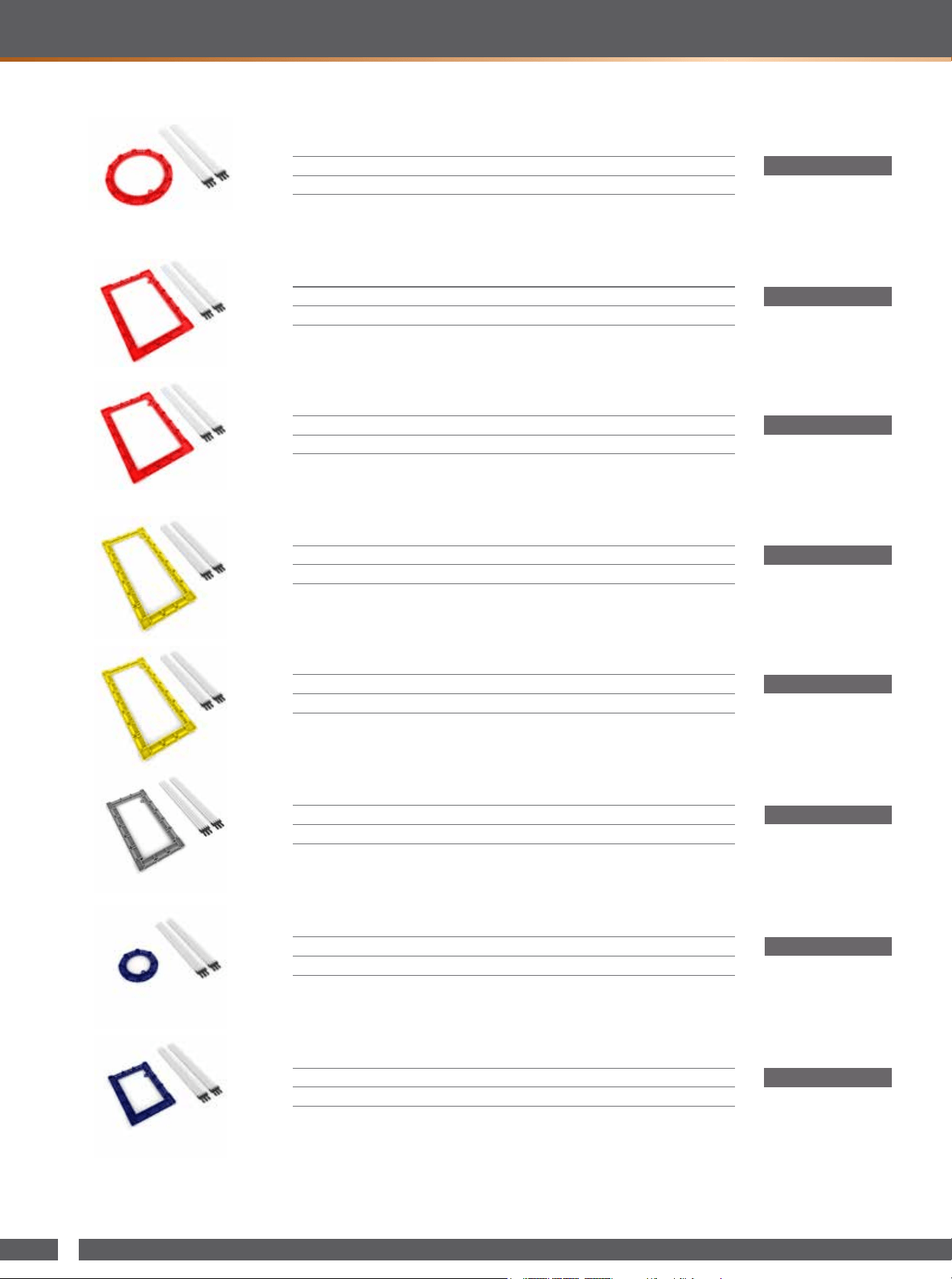

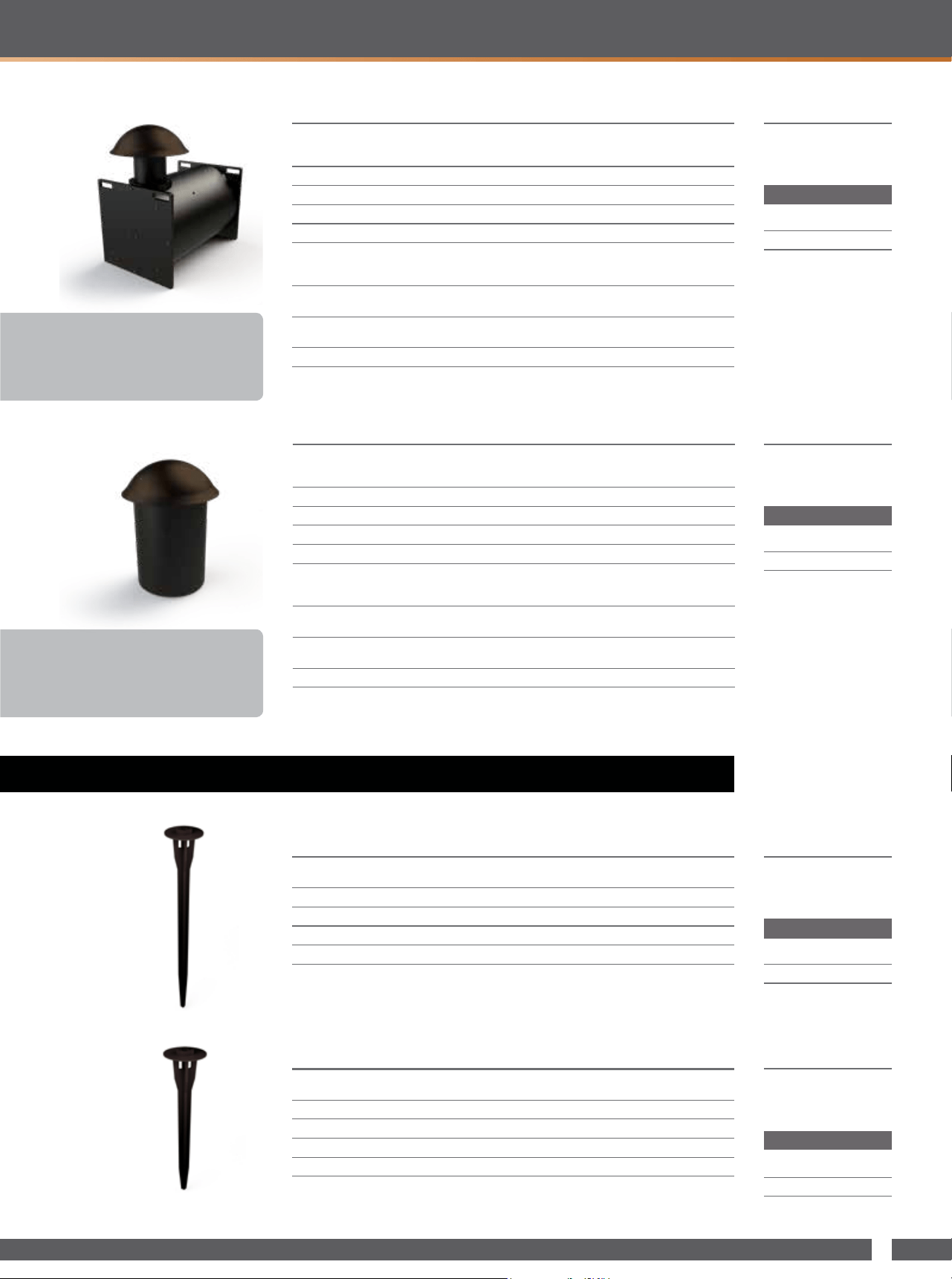

ACCESSORIES
ACCESSORIES
At Klipsch, we make products to suit any need, but we also realize that not everyone will use our
products in the same way. That’s why we offer stylish and useful accessories to protect your investment,
customize your speaker installations and maximize your listening experience.
INSTALLATION KITS
IK-810-C INSTALLATION BRACKET FOR 8” IN-CEILING LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 1.3 kg | 3 lbs
FOR USE WITH PRO-180RPC LCR
IK-802-W INSTALLATION BRACKET FOR THX ULTRA2
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 1.3 kg | 3 lbs
FOR USE WITH THX Ultra2 in-wall speakers and in-wall subwoofer
IK-800-C INSTALLATION BRACKET FOR 8” IN-CEILING SPEAKER
SHIPPING QUANTITY Each
SHIPPING WEIGHT .45 kg | 1 lbs
FOR USE WITH PRO-180RPC, PRO-18RC, DS-180CDT, CS-18C
PART NUMBER
1065326
PART NUMBER
1007229
PART NUMBER
1001180
IK-800-C II INSTALLATION BRACKET FOR 8” IN-CEILING SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 4.5 kg | 10 lbs
FOR USE WITH PRO-180RPC, PRO-18RC, DS-180CDT, DS-180CSM, CS-18C
IK-800-W INSTALLATION BRACKET FOR 8” IN-WALL SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-180RPW, PRO-18RW
IK-800-W II INSTALLATION BRACKET FOR 8” IN-WALL SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-180RPW, PRO-18RW
PRO-16-SBR INSTALLATION BRACKET FOR 6.5” IN-CEILING SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-160RPC, PRO-16RC, DS-160C, DS-160CDT, CS-16C II
PART NUMBER
1065322
PART NUMBER
1001178
PART NUMBER
1065324
PART NUMBER
1001179
KLIPSCH | CI BUYERS GUIDE 2019-2020
25
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
IK-650-C II INSTALLATION BRACKET FOR 6.5” IN-CEILING SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 4.5 kg | 10 lbs
FOR USE WITH PRO-160RPC, PRO-16RC, DS-160C, DS-160CDT, DS-160CSM, CS-16C II, CS-16CSM
IK-650-W INSTALLATION BRACKET FOR 6.5” IN-WALL SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-160RPW, PRO-16RW
IK-650-W II INSTALLATION BRACKET FOR 6.5” IN-WALL SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 4.5 kg | 10 lbs
FOR USE WITH PRO-160RPW, PRO-16RW, DS-160W, CS-16W
IK-400-W INSTALLATION BRACKET FOR 4” IN-WALL SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-14RW
IK-400-C INSTALLATION BRACKET FOR 3.5” IN-CEILING SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-14RC
IK-402-W INSTALLATION BRACKET FOR DUAL 4” IN-WALL LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-24RW LCR
IK-502-W II INSTALLATION BRACKET FOR DUAL 5.25” IN-WALL LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-250RPW LCR, PRO-25RW LCR, DS-250W LCR
IK-502-W INSTALLATION BRACKET FOR DUAL 5.25” IN-WALL LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WITH PRO-250RPW LCR, PRO-25RW LCR
PART NUMBER
1065321
PART NUMBER
1001177
PART NUMBER
1065323
PART NUMBER
1065329
PART NUMBER
1065327
PART NUMBER
1065328
PART NUMBER
1065325
PART NUMBER
1009682
26

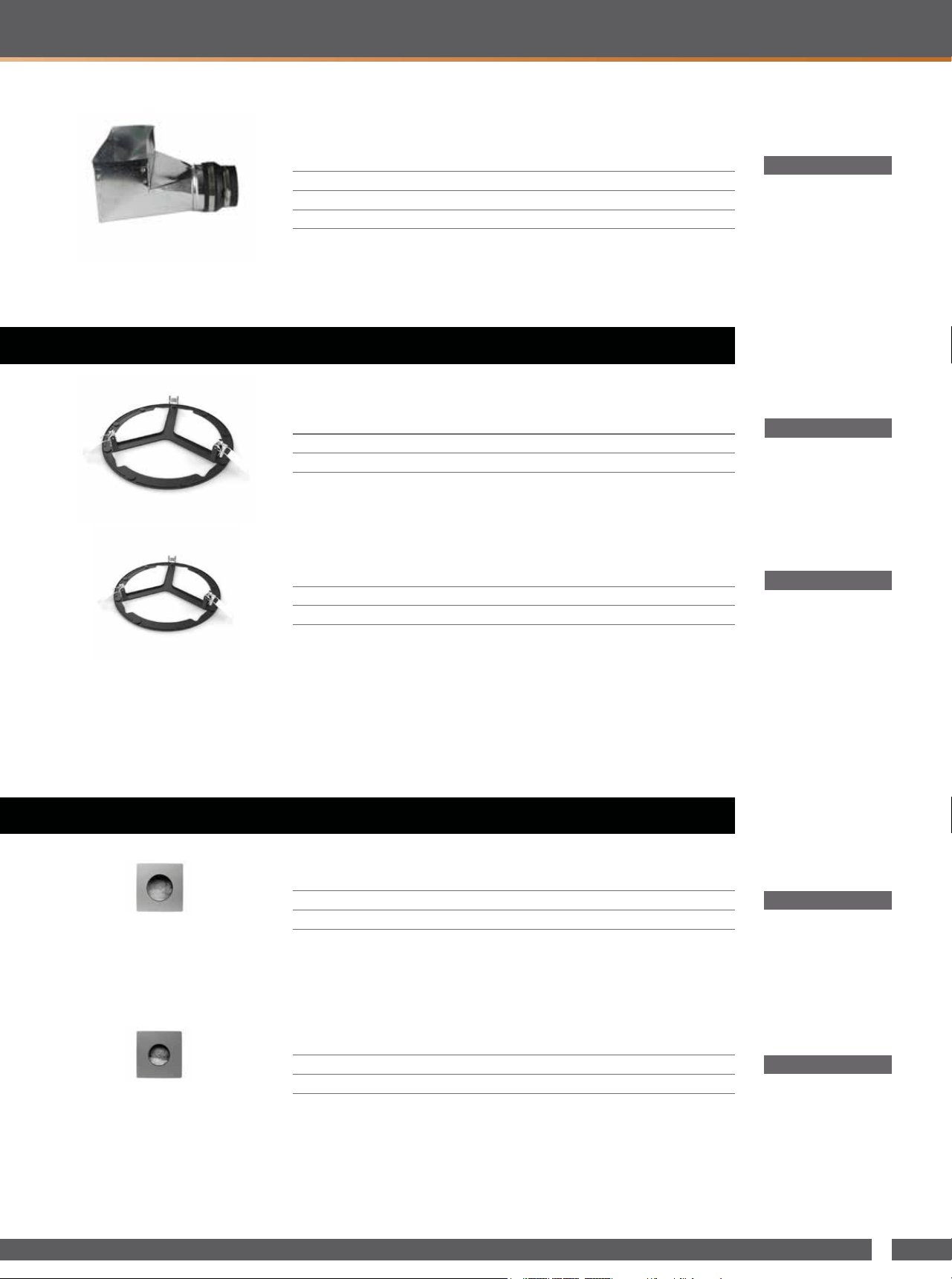

ACCESSORIES
Designed to meet UL2043 requirements for
installation in plenum spaces
Tested to comply with: UL 263 • ASTM E119-98 •
NFPA 251 • UBC 7-1 • ULC CAN/ULC-S101 -M89
Designed to meet UL2043 requirements for
installation in plenum spaces
Tested to comply with: UL 263 • ASTM E119-98 •
NFPA 251 • UBC 7-1 • ULC CAN/ULC-S101 -M89
FIRE RATED ENCLOSURES
GRILLE BRACKETS
ME-800-C FIRE RATED ENCLOSURE
SHIPPING QUANTITY Single
SHIPPING WEIGHT 7.25 kg | 16 lbs
FOR USE WITH All 8-inch round in-ceiling models
IK-800-C GRILLE BRACKET
GRILLE ATTACHMENT KIT FOR 8” IN-CEILING INSTALLATION KITS
SHIPPING QUANTITY 10 pack (grilles included)
SHIPPING WEIGHT 4.5 kg | 10 lbs
FOR USE WITH IK-800-C, IK-800-C II
PRO-800SW VENT BOOT KIT
SHIPPING QUANTITY Each
SHIPPING WEIGHT 0.89 kg | 1.98lbs
VENT AREA DIMENSION 4” x 10” (10.16 cm x 25.4 cm)
FOR USE WITH PRO-800SW
ME-650-C FIRE RATED ENCLOSURE
SHIPPING QUANTITY Single
SHIPPING WEIGHT 4.1 kg | 9.2 lbs
FOR USE WITH All 6.5-inch round in-ceiling models
IK-650-C GRILLE BRACKET
GRILLE ATTACHMENT KIT FOR 6.5” IN-CEILING INSTALLATION KITS
SHIPPING QUANTITY 10 pack (grilles included)
SHIPPING WEIGHT 4.5 kg | 10 lbs
FOR USE WITH IK-650-C, IK-650-C II
PART NUMBER
1001184
PART NUMBER
1065331
PART NUMBER
1064948
PART NUMBER
1001183
PART NUMBER
1065330
KLIPSCH | CI BUYERS GUIDE 2019-2020
27
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

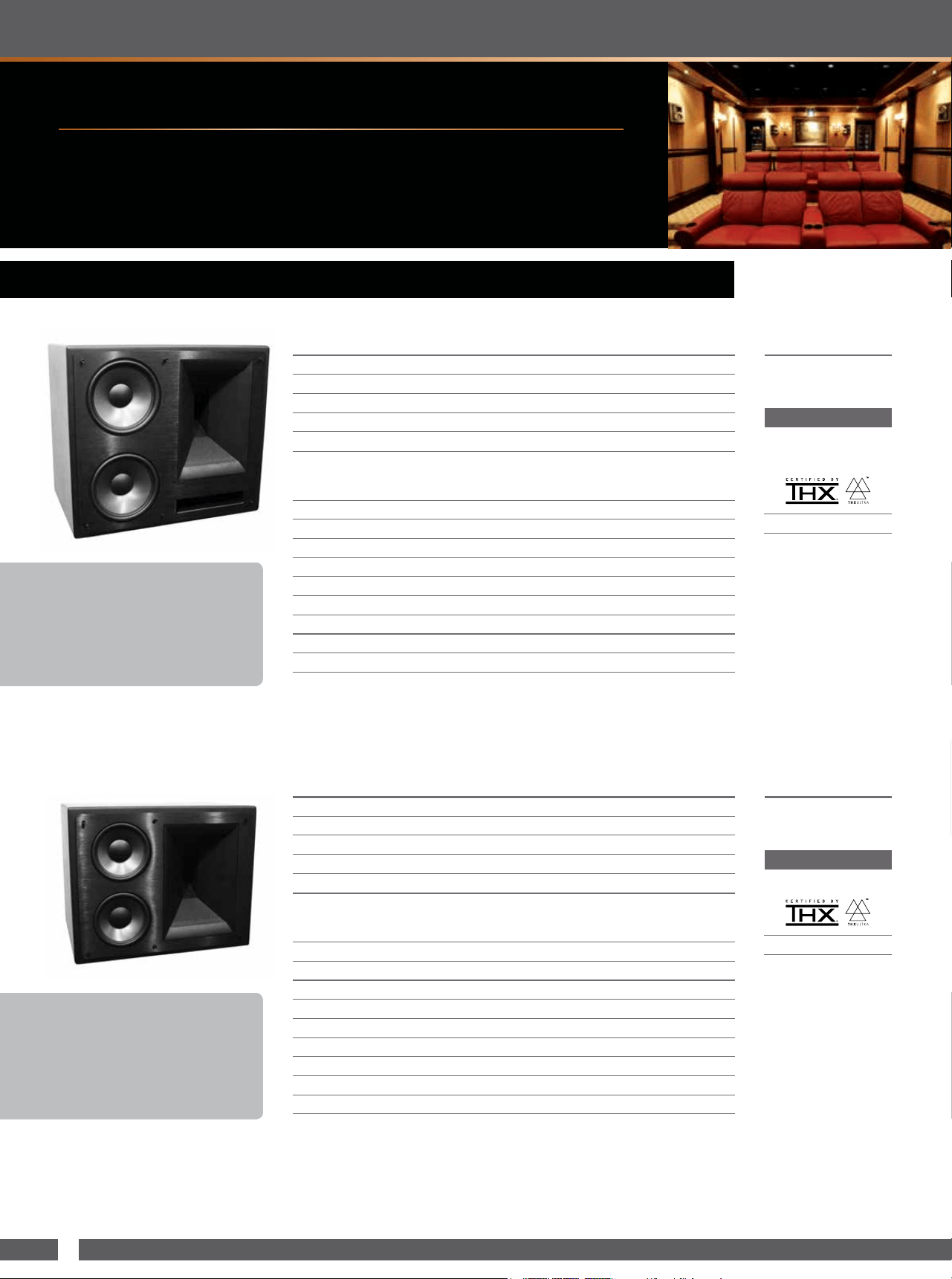

THX
®
ULTRA
™
SERIES
Utilizing the same professional-grade technology as our renowned commercial theater systems, every
Klipsch THX
®
Ultra speaker brings real cinema sound to the comforts of home. Expertly delivering the raw
explosiveness and ne detail of any lm format, these products – which can be assembled in a variety of
combinations – will forever shatter your expectations for home theater performance.
• THX Ultra certied • For rooms 3,000 cubic feet or larger
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 20.6 kg
45.5 lbs
PART NUMBER
1010651 (Left)
1010650 (Right)
KL-650-THX DUAL 6.5” LCR SPEAKER
FREQUENCY RESPONSE 48 Hz - 20 kHz +/- 3dB
SENSITIVITY 97dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 150W/600W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1400Hz
HIGH FREQUENCY DRIVER
1” (2.5cm) magnetically shielded, titanium-dome compression driver
with 9.6 oz ceramic magnet structure with a 10” x 6” rectangular 90ºx 60º Tractrix
Horn
LOW FREQUENCY DRIVER
Two 6.5” (16.5cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
ENCLOSURE MATERIAL Medium density berboard (MDF)
ENCLOSURE TYPE Bass reex via front-ring port
INPUTS Two sets of binding post speaker terminals (connected via bass strap jumpers)
HEIGHT 15” (38.1cm)
WIDTH 17” (43.2cm)
DEPTH 12.5” (31.8cm)
WEIGHT 39 lbs (17.7 kg)
MOUNTING 4-bolt pattern 1/4”-20 threaded inserts
FINISH Galaxy Black cabinet with Black anodized aluminum fascia
LCR SPEAKERS
NOTES:
• THX Ultra certied LCR speaker
• Front-ring port for low bass extension
• Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate
wall or ceiling mounting using standard
hardware
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 20.6 kg
45.5 lbs
PART NUMBER
1010648
KL-525-THX DUAL 5.25” LCR SPEAKER
FREQUENCY RESPONSE 80 Hz - 20 kHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1500Hz
HIGH FREQUENCY DRIVER
1” (2.5cm) magnetically shielded, titanium-dome compression driver
with 9.6 oz ceramic magnet structure with a 10” x 6” rectangular 90ºx 60º Tractrix
Horn
LOW FREQUENCY DRIVER
Two 5.25” (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
ENCLOSURE MATERIAL Medium density berboard (MDF)
ENCLOSURE TYPE
Sealed
INPUTS Two sets of binding post speaker terminals (connected via bass strap jumpers)
HEIGHT
12.75” (32.4cm)
WIDTH
16” (40.6cm)
DEPTH
12.5” (31.8cm)
WEIGHT
32 lbs (14.5kg)
MOUNTING 4-bolt pattern 1/4”-20 threaded inserts
FINISH Galaxy Black cabinet with Black anodized aluminum fascia
NOTES:
• THX Ultra certied LCR speaker
• Sealed enclosure
• Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate
wall or ceiling mounting using standard
hardware
28

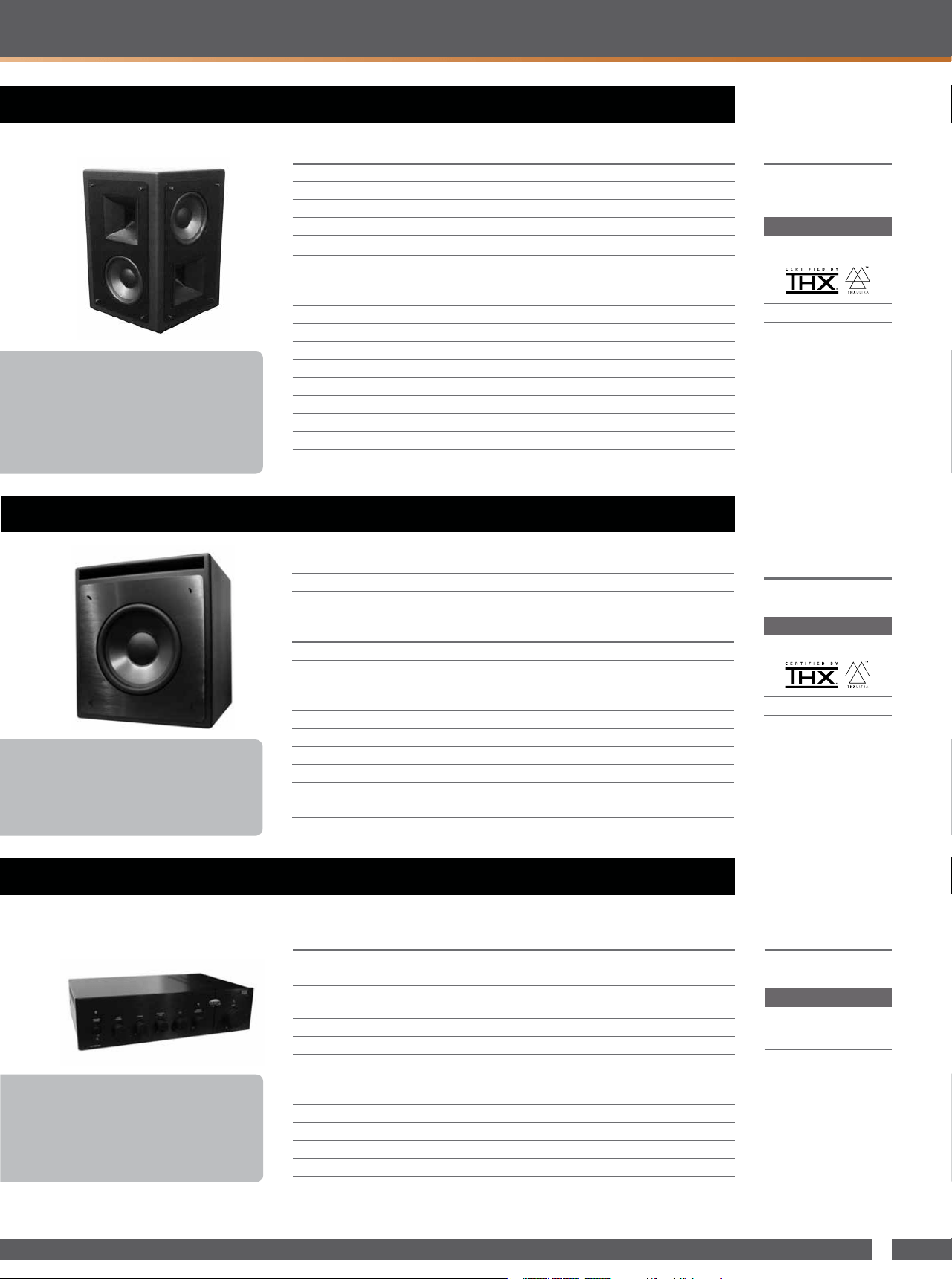

THX ULTRA SERIES
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 20.3 kg
44.75 lbs
PART NUMBER
1010647
KS-525-THX DUAL 5.25” SURROUND
FREQUENCY RESPONSE 80 Hz - 20 kHz +/- 3dB
SENSITIVITY 96dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2100Hz
HIGH FREQUENCY DRIVER Two 1” (2.5cm) magnetically shielded, titanium-dome compression driver
with 9.6 oz ceramic magnet structure with a 5” square 90ºx 60º Tractrix Horn
LOW FREQUENCY DRIVER
Two 5.25” (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
ENCLOSURE MATERIAL Medium density berboard (MDF)
ENCLOSURE TYPE
Sealed
INPUTS Two sets of binding post speaker terminals (connected via bass strap jumpers)
HEIGHT 13.75” (35cm)
WIDTH 13” (33cm)
DEPTH 8.5” (21.6cm)
WEIGHT 20 lbs (9.1kg)
MOUNTING Dual keyholes and 2-bolt pattern 1/4”-20 threaded inserts
FINISH Galaxy Black cabinet with Black anodized aluminum fascia
SURROUND
SUBWOOFER
NOTES:
• THX Ultra certied LCR speaker
• Wide Dispersion Surround Technology (WDST)
• Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate
wall or ceiling mounting using standard
hardware
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 93 lbs
PART NUMBER
1010649
KW-120-THX 12” PASSIVE SUBWOOFER
FREQUENCY RESPONSE 20 Hz - 200 Hz +/- 3dB
MAX ACOUSTIC OUTPUT 130dB @ 30Hz, 122dB @ 20Hz, 112dB@ 15Hz 1/8 space,
1 meter (2 enclosures side-by-side per THX Ultra2)
AMPLIFIER Use only with KA-1000-THX
NOMINAL IMPEDANCE 8 Ohms Compatible
LOW FREQUENCY DRIVER 12” (30.5cm) front-ring, Cerametallic cone, cast aluminum frame drivers
with a 240oz ceramic magnet structure
ENCLOSURE MATERIAL Medium density berboard (MDF)
ENCLOSURE TYPE Bass reex via front-ring port
INPUTS 1 Speakon NL2 jack and included cable
HEIGHT 20.25” (51.4cm)
WIDTH 17.75” (45.1cm)
DEPTH 17.75” (31.8cm)
WEIGHT 80 lbs (36.3kg)
FINISH Galaxy Black cabinet with Black anodized aluminum fascia
NOTES:
• THX Ultra certied passive subwoofer
• Front-ring port
• Top-of-the-line internal wiring
• For use with KA-1000-THX amplier
THX
®
ULTRA
™
AMPLIFIER
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 31 lbs
PART NUMBER
221200080011 (12OV)
221200080012 (230V)
KA-1000-THX THX CERTIFIED CLASS D SUBWOOFER AMPLIFIER
FREQUENCY RESPONSE 20 Hz - 1 kHz +/- 3dB
AMPLIFIER High-Efciency Class D
AMPLIFIER POWER FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
Dynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD
AUTO POWER ON 2 second ON delay, 15 minute off delay
LOW PASS CROSSOVER Continuously variable from 40Hz-120Hz, 24dB/octave slope above 120z (non-THX mode)
INPUTS 2 Gold-plated RCA phono jacks
OUTPUTS 2 Gold-plated RCA phono jacks (unltered)
2 Speakon
®
NL2 jacks
DIMENSIONS 4.75” (12.1cm) H x 17.5” (44.5cm) W x 12.25” (31.1cm) D
FINISH Black anodized aluminum
VOLTAGE 110/120 VAC 60Hz
EXPORT VOLTAGE 230 VAC 50/60Hz
FEATURES THX On/Off
Boundary Gain Compensation On/Off
NOTES:
• Delivers 1000 watts into a 4 Ohm load
• Can support two high performace
subwoofers
• Finished in black with a machined
aluminum front panel and knobs
30

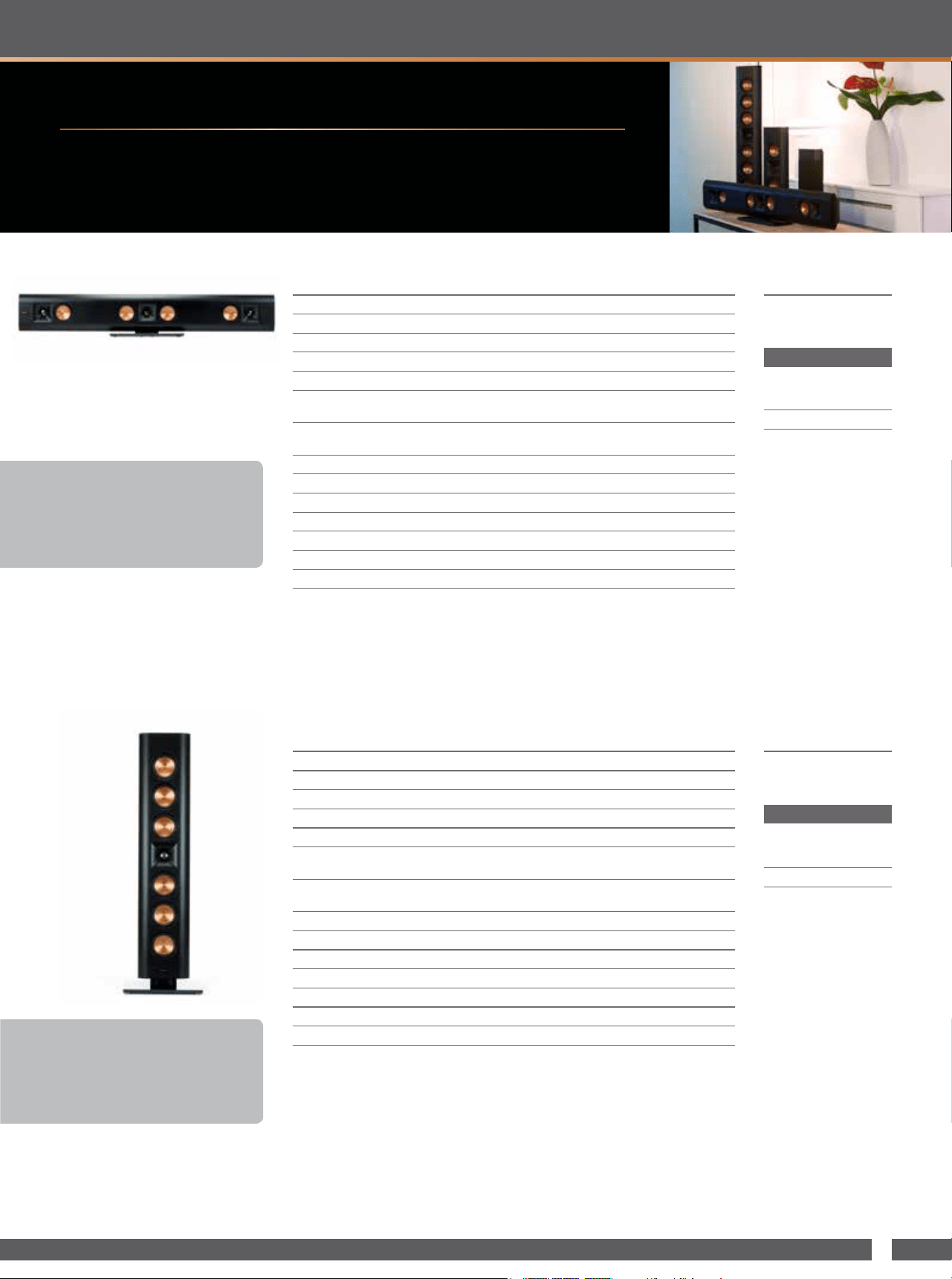

DESIGNER ON-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.1 kg
9 lbs
PART NUMBER
1064179 (Black)
RP-640D SLIM ON-WALL LCRS SPEAKER
FREQUENCY RESPONSE
55Hz - 24kHz +/-3dB
SENSITIVITY 94dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 75W/300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
1” (2.54cm) Titanium diaphragm compression driver mated to a 90˚ x 90˚ square
Tractrix
®
Horn
LOW FREQUENCY DRIVER
Two 3.5” (8.89 cm) active long-throw cerametallic woofers
Four 3.5” (8.89 cm) passive cerametallic radiators
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reex via passive radiators
INPUTS Single wire 5-way binding posts
HEIGHT 28.5 “ (72.39cm)
WIDTH 6” (15.24cm)
DEPTH 2.4” (6.1cm)
WEIGHT 8 lbs (3.63 kg)
FINISH Matte black paint
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 6 kg
13.22 lbs
PART NUMBER
1064178 (Black)
RP-440D SB SLIM ON-WALL 3-CHANNEL PASSIVE LCR SOUND BAR
FREQUENCY RESPONSE
65Hz - 24Hz +/-3dB
SENSITIVITY 92 dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
Three 1” (2.54cm) Titanium diaphragm compression drivers mated to a 90˚ x 90˚
square Tractrix
®
Horn
LOW FREQUENCY DRIVER
Four 3.5” (8.89 cm) active long-throw cerametallic woofers (One each for left and
right channels, two for center channel)
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reex
INPUTS Single wire 5-way binding posts (3 sets)
HEIGHT 6 “ (15.24cm)
WIDTH 42” (106.68cm)
DEPTH 2.4” (6.10cm)
WEIGHT 12 lbs (5.44 kg)
FINISH Matte black paint
NOTES:
REFERENCE PREMIERE DESIGNER ON-WALL
Klipsch Reference Premiere Designer On-Wall is a rst class low-prole home audio solution, offering
minimalist home theater system speakers that add beauty to any room. With its modern-day aesthetic and
legendary sonic signature — great sound has never looked so good.
• 3-Channel passive LCR sound bar
• Wall-mountable or table-mountable with
included glass base
• True Reference Premiere acoustics in a
slim on-wall solution
• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with
inluded glass base
• True Reference Premiere acoustics in a
slim on-wall solution
KLIPSCH | CI BUYERS GUIDE 2019-2020
31
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

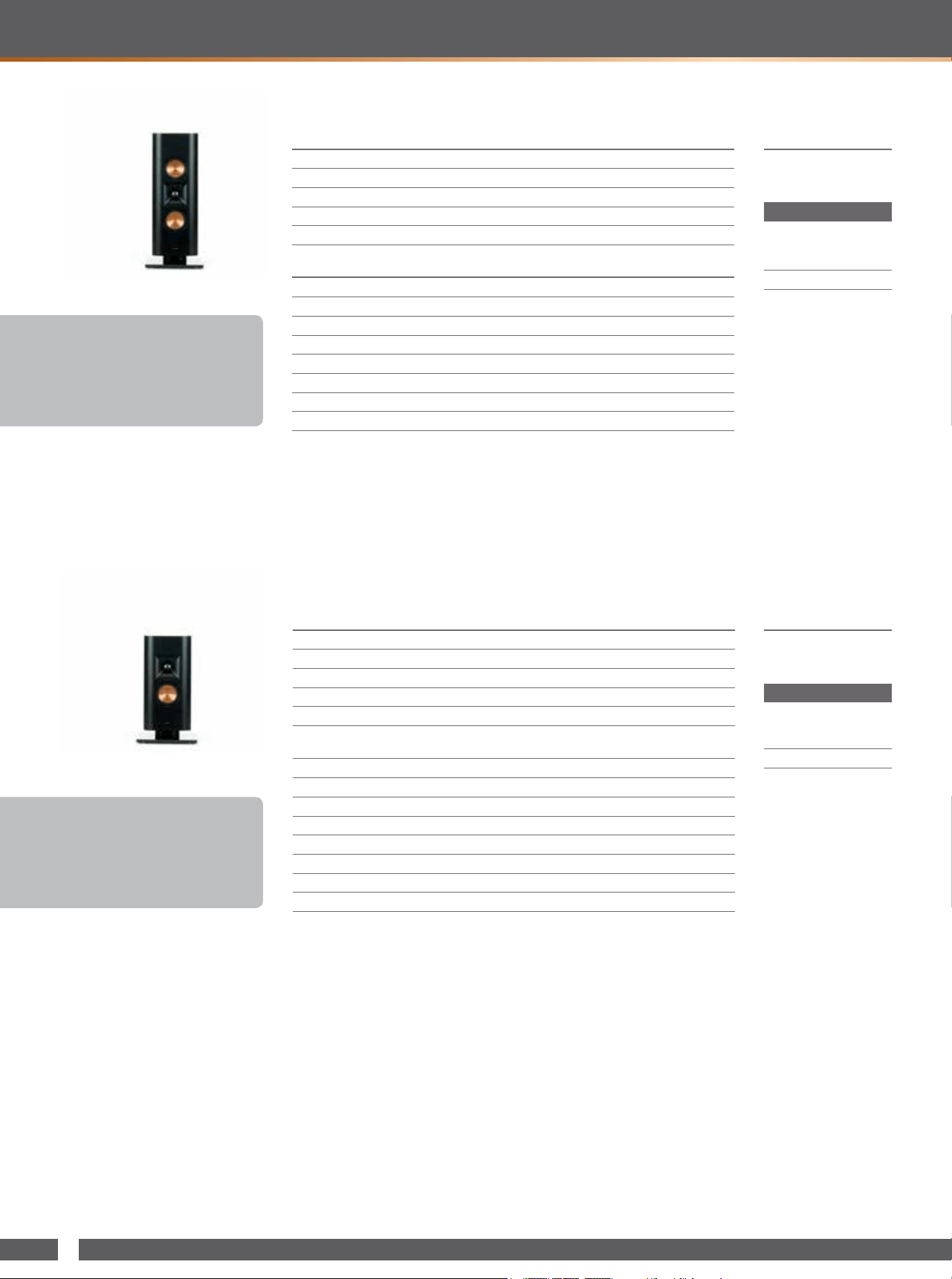

SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.9 kg
6.4 lbs
PART NUMBER
1064180 (Black)
RP-240D SLIM ON-WALL LCRS SPEAKER
FREQUENCY RESPONSE
67Hz - 24kHz +/-3dB
SENSITIVITY 94dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 75W/300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
1” (2.54cm) Titanium diaphragm compression driver mated to a 90˚ x 90˚ squre
Tractrix
®
Horn
LOW FREQUENCY DRIVER Two 3.5” (8.89 cm) long-throw cerametallic woofers
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reex
INPUTS Single wire 5-way binding posts
HEIGHT 16 “ (40.64cm)
WIDTH 6” (15.24cm)
DEPTH 2.4” (6.1cm)
WEIGHT 5.25lbs (2.38 kg)
FINISH Matte black paint
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.2 kg
4.85 lbs
PART NUMBER
1064181 (Black)
RP-140D SLIM ON-WALL LCRS SPEAKER
FREQUENCY RESPONSE
69Hz - 24kHz+/-3dB
SENSITIVITY 91dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
1” (2.54cm) Titanium diaphragm compression driver mated to a 90˚ x 90˚ squre
Tractrix
®
Horn
LOW FREQUENCY DRIVER 3.5” (8.89 cm) long-throw cerametallic woofer
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reex
INPUTS Single wire 5-way binding posts
HEIGHT 12 “ (30.48cm)
WIDTH 6” (15.24cm)
DEPTH 2.4” (6.1cm)
WEIGHT 3.75 lbs (1.7 kg)
FINISH Matte black paint
NOTES:
• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with
included glass base
• True Reference Premiere acoustics in a
slim on-wall solution
• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with
included glass base
• True Reference Premiere acoustics in a
slim on-wall solution
DESIGNER ON-WALL
32

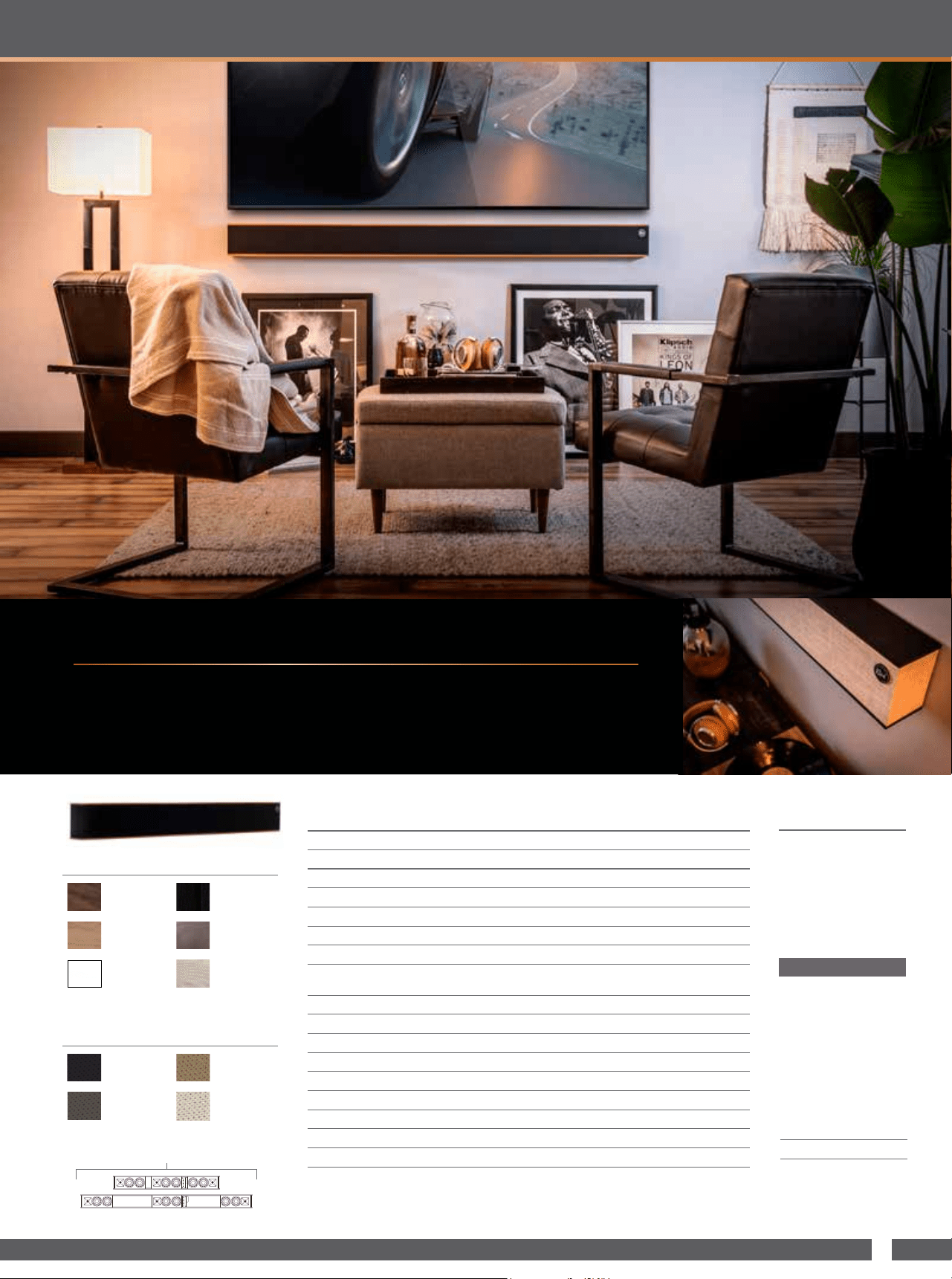

CUSTOMIZED HERITAGE THEATER BAR
CUSTOMIZED HERITAGE THEATER BAR
FREQUENCY RESPONSE 120Hz – 20kHz +/1 3 dB
SENSITIVITY 90dB @ 2.83V/1M
MAXIMUM CONTINUOUS OUTPUT 106 dB (112 dB peak)
POWER HANDLING (NOM./PEAK) 75W / 300 W
REC. AMPLIFIER POWER 50W – 150W
NOMINAL IMPEDANCE 8 ohms compatible
CROSSOVER 2,800 Hz
HIGH FREQUENCY DRIVER
3/4” (19cm) Titanium diaphragm compression driver mated to a
90
º
x 90
º
Tractrix Horn
LOW FREQUENCY DRIVER Dual 4” (10.2cm) Black Cerametallic woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Sealed box
INPUTS Spring loaded input terminals (left, center, right)
GRILLE CLOTH Black knit
HEIGHT 6.25” (15.9cm)
WIDTH 49.5” (125.7cm) to 80” (203.2cm)
DEPTH 4” (10.2cm)
WEIGHT 26 Ibs. (11.8kg)
ACCESSORIES Low-prole wall hanging bracket and wall mounting template
SHIPPING QUANTITY: Single
SHIPPING WEIGHT:
QUICK SHIP
35 lbs (16 kg)
CUSTOM
35-52 lbs (16-24 kg)
PART NUMBER
QUICK SHIP
American Walnut - 1066275
Satin Black Ash - 1065987
CUSTOM
49.5” – 65” – 1066279
65.1” – 80” - 1066277
NOTES:
CUSTOMIZED HERITAGE THEATER BAR
The Heritage Theater Bar is a passive LCR sound bar that blends the acoustics and classic, nostalgic design
legacy of founder Paul W. Klipsch with the most premium materials and latest technologies available today.
Assembled in the USA, the Heritage Theater Bar is the perfect combination of sonic performance and
architectural elegance. Customizable Heritage Theater Bars range in width from 49.5" to 80". A standard
49.5" model is also available and designed to match most 55" televisions.
FINISH OPTIONS
GRILLE OPTIONS
American Walnut
Black Knit
Natural Cherry
Gray Knit
Primed White
Satin Black Ash
Taupe Knit
Distressed Oak
Cream Knit
Raw Ash
Wood Veneer
Ready for Paint Ready for Stain
CUSTOM WIDTH 49.5” – 80”
ARCHITECTURAL SPEAKERS
34

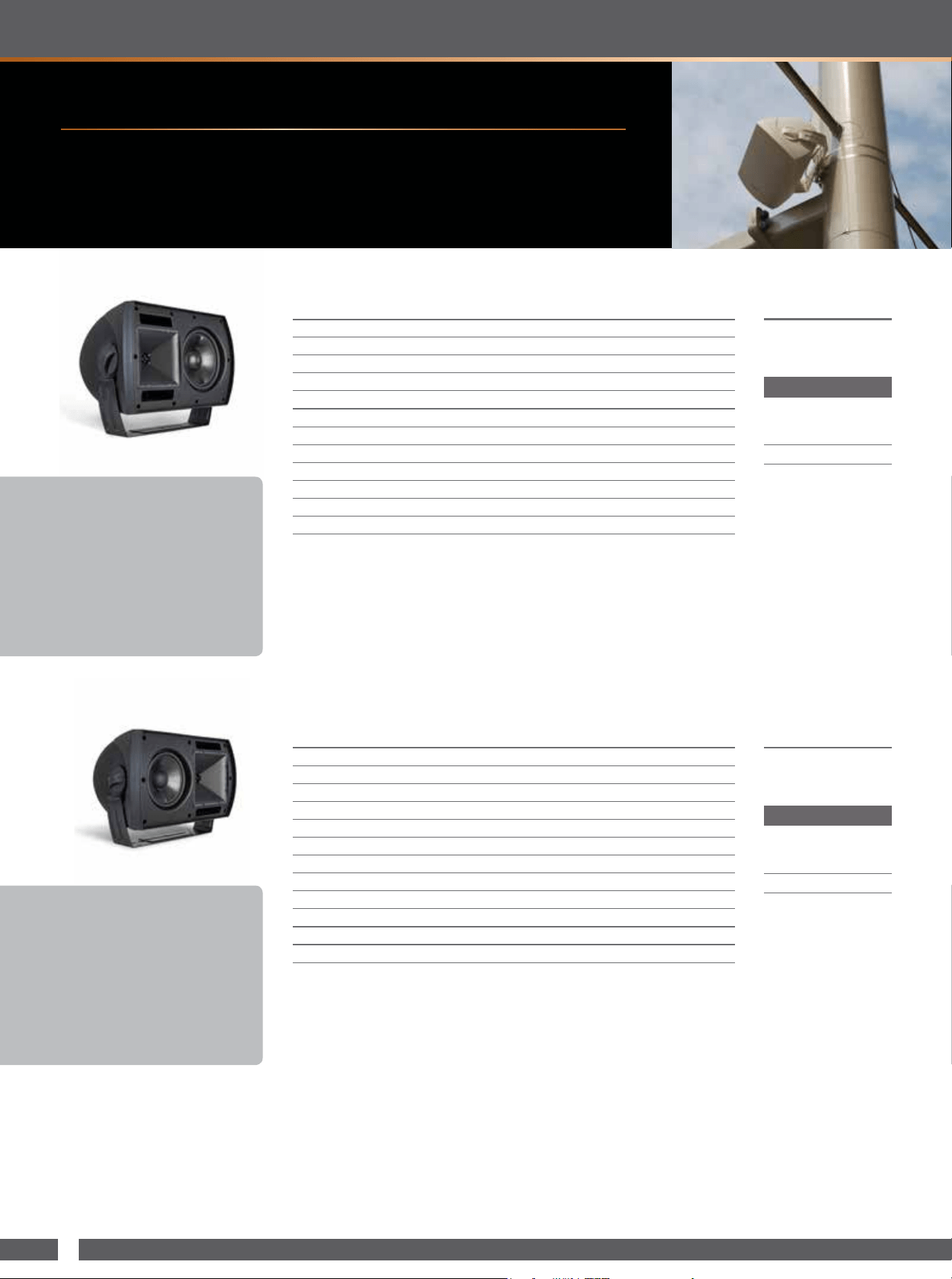

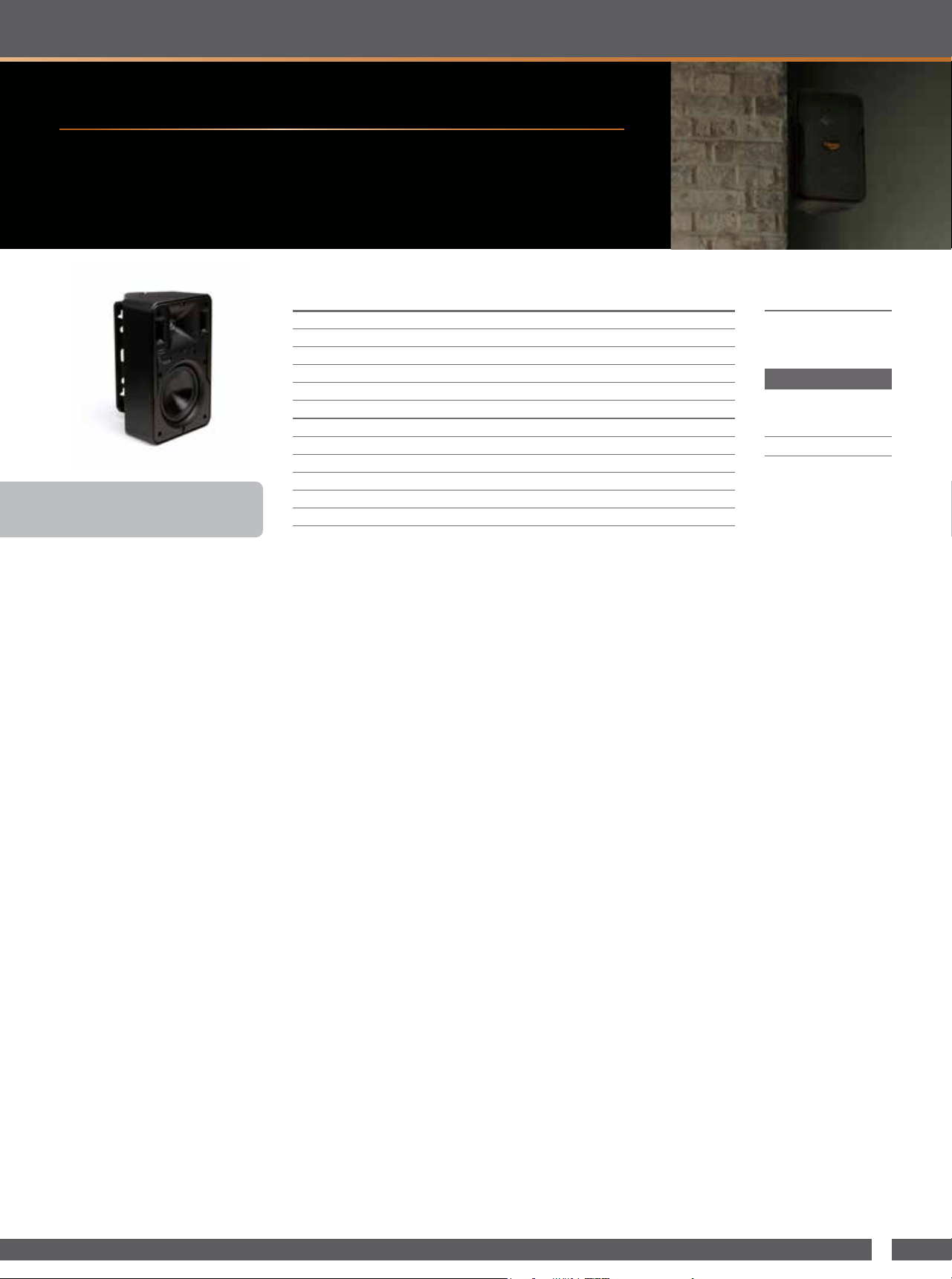

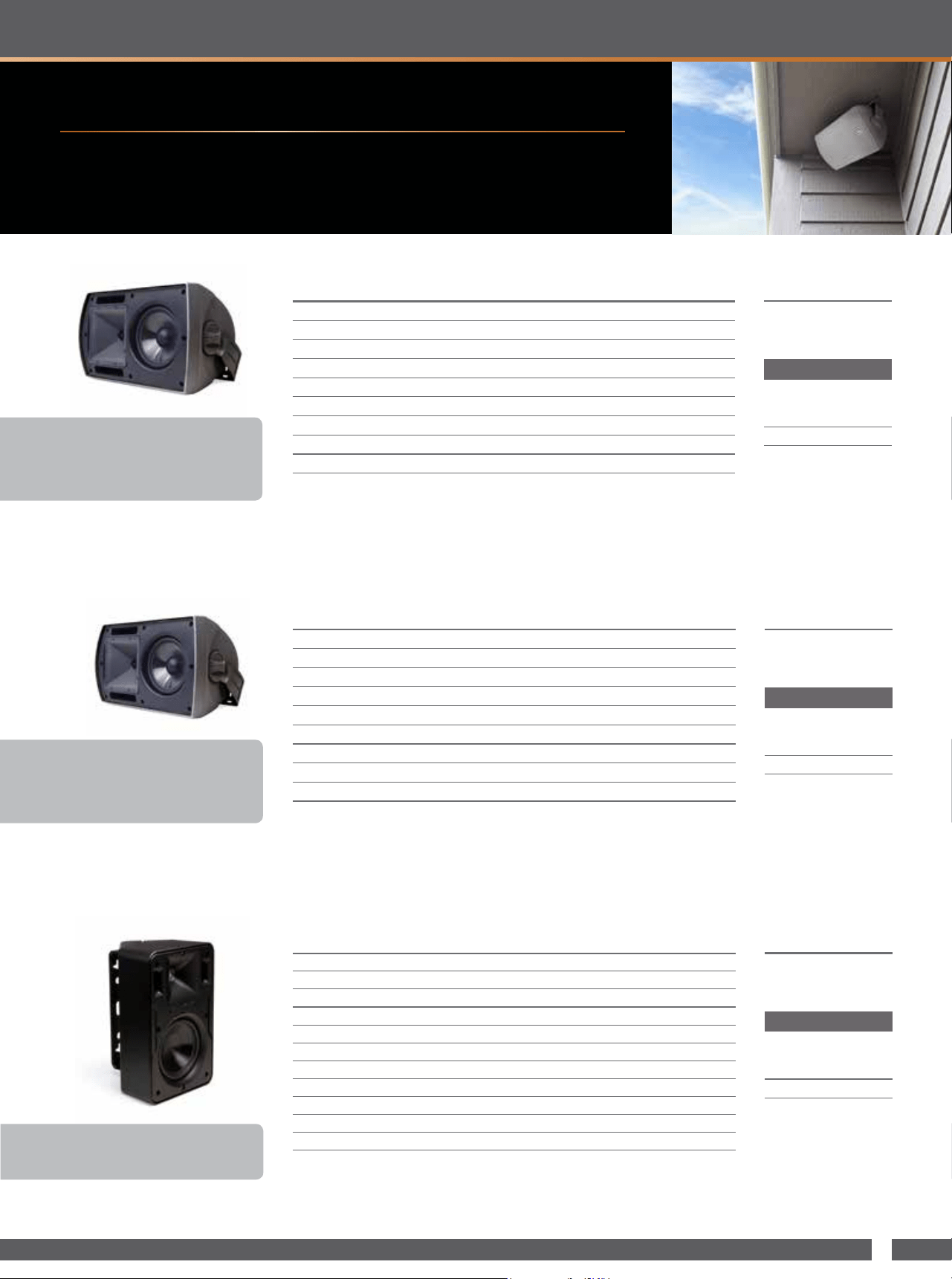

OUTDOOR SPEAKERS
ALL-WEATHER SERIES
When you want to listen to your favorite music by the pool or want to provide background music while
you entertain guests on your patio, our line of outdoor speakers has you covered. The Klipsch All-Weather
loudspeaker line delivers clear, dynamic performances while providing more sound per watt than comparably
sized speakers, allowing for better sound coverage in a smaller package.
AW-650 6.5” ALL-WEATHER SPEAKER
FREQUENCY RESPONSE 70Hz-20KHz +/- 3dB
SENSITIVITY 95dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 3400Hz
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER 1” (2.5 cm) titanium dome tweeter with a 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER 6.5” (16.5cm) IMG woofer
DIMENSIONS 15” (38.1cm) H x 9.5” (21.4cm) W x 11” (27.9) cm) D
WEIGHT 9 lbs (4.1 kg)
FINISH Black or White enclosure and grille
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 11.8 kg
26 lbs
PART NUMBER
1009316 (Black)
097093000001 (White)
NOTES:
• Paintable, UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
AW-525 5.25” ALL-WEATHER SPEAKER
FREQUENCY RESPONSE 80Hz-20KHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2450Hz
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER 1” (2.5 cm) titanium dome tweeter with a 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER 5.25” (13.3cm) IMG woofer
DIMENSIONS 11.8” (30cm) H x 8” (20.3cm) W x 9” (22.9 cm) D
WEIGHT 6.5 lbs (3kg)
FINISH Black or White enclosure and grille
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 8.1 kg
18 lbs
PART NUMBER
1009313 (Black)
097090000001 (White)
NOTES:
• Paintable, UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
• Quick, easy installation
• Multipurpose design
CP-6 5.25” COMPACT HIGH PERFORMANCE SPEAKER
FREQUENCY RESPONSE 70Hz-22KHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 3000Hz
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER .75” (1.9cm) aluminum dome tweeter with a 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER 5.25” (13.3cm) long-throw IMG woofer
TERMINALS Front bafe mounted accessed via rear pull-through
DIMENSIONS 11.0”(27.9cm) H x 7.0”(17.8cm) W x 6.1”(15.5cm) D
MOUNTING DEPTH 6.9”(17.5cm) D
WEIGHT 5.8 lbs (2.6kg)
FINISH Black or White enclosure and grille
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 7.8 kg
17.19 lbs
PART NUMBER
1016297 (Black)
1060387 (White)
NOTES:
KLIPSCH | CI BUYERS GUIDE 2019-2020
35
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

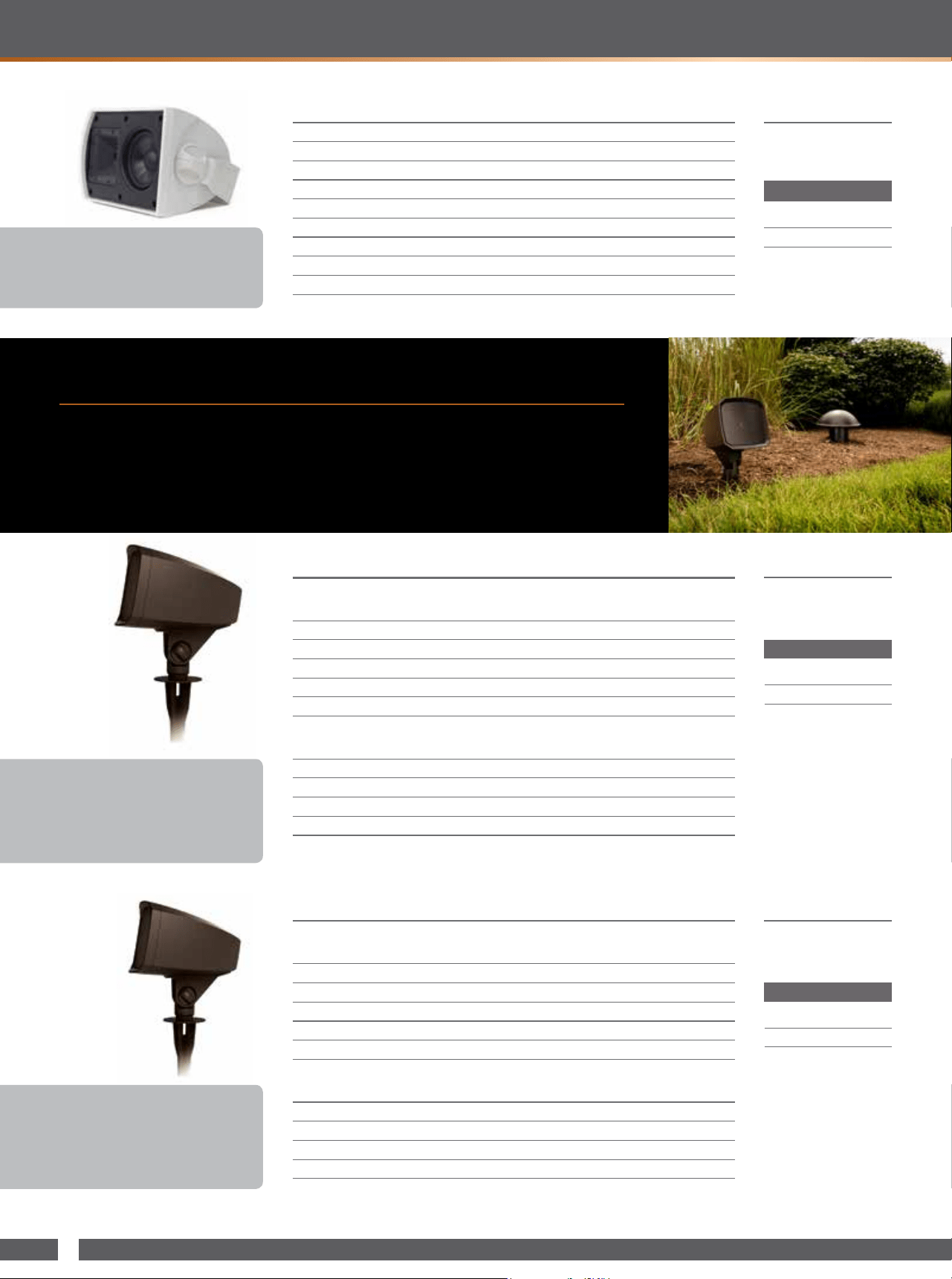

AW-400 4” ALL-WEATHER SPEAKER
FREQUENCY RESPONSE 91Hz-20KHz +/- 3dB
SENSITIVITY 91dB @@ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2940Hz
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.5 cm) titanium dome tweeter with a 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER 4” (10.2cm) IMG woofer
DIMENSIONS 9.5” (24.1cm) H x 6.5” (16.5cm) W x 7.25” (18.4 cm) D
WEIGHT 5 lbs (2.3 kg)
FINISH White enclosure and grille
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT:
5.5 kg
12.1 l
bs
PART NUMBER
097085000001
NOTES:
• Paintable, UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
PRO-500T-LS 5” LANDSCAPE SATELLITE
FREQUENCY RANGE
130Hz - 30kHz +/- 3dB
113Hz - 32kHz +/- 6dB
93Hz - 36kHz +/- 10dB
HIGH FREQUENCY DRIVER 1” (2.54cm) Aluminum Dome Tweeter mated to an all new 105º custom Tractrix® horn
LOW FREQUENCY DRIVER 5” (12.7cm) IMG Woofer
SENSITIVITY 88 dB @ 2.83V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 60W Peak
70V / 100V TAP SETTINGS
70V: 3.75W, 7.5W, 15W, 30W
100V: 7.5W , 15W, 30W
8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated, Glass-Filled ABS Cabinet
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 6.3” x 6.85” x 8.5” (160mm x 174mm x 216mm)
PRODUCT WEIGHT 5 lbs (2.27 kg)
ACCESSORIES PRO-10-GS 10” Ground Stake (PN: 1063447) (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
8 lbs
PART NUMBER
1063137
PRO-650T-LS 6.5” LANDSCAPE SATELLITE
FREQUENCY RANGE
100Hz - 24kHz +/- 3dB
92Hz - 30kHz +/- 6dB
77Hz - 35kHz +/- 10dB
HIGH FREQUENCY DRIVER 1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105º custom Tractrix® horn
LOW FREQUENCY DRIVER 6.5" (16.51cm) IMG Woofer
SENSITIVITY 90 dB @ 2.83V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 100W Peak
70V / 100V TAP SETTINGS
70V: 6.25W, 12.5W, 25W, 50W
100V: 12.5W , 25W, 50W
8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated, Glass-Filled ABS Cabinet
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 8.27” x 8.82” x 11.02” (210mm x 224mm x 280mm)
PRODUCT WEIGHT 7 lbs (3.18 kg)
ACCESSORIES PRO-18-GS 18” Ground Stake (PN: 1063448) (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.5 kg
10 lbs
PART NUMBER
1063139
NOTES:
NOTES:
• All-new custom Tractrix
®
Horn provides
ultra-wide 105˚ horizontal dispersion
• 50 watt, 70V/100V multi-tap transformer
with 8-ohm bypass
• All-weather durability - IP45 rating
• All-new custom Tractrix
®
Horn provides
ultra-wide 105˚ horizontal dispersion
• 50 watt, 70V/100V multi-tap transformer
with 8-ohm bypass
• All-weather durability - IP45 rating
PROFESSIONAL SERIES LANDSCAPE SPEAKERS
The new Klipsch Landscape Series is a horn-loaded, all-weather, durable, low-distortion, high-efciency
system – designed from the ground up with 70 years of high-performance audio experience by one of the
most legendary and reliable audio companies in the world.
• Landscape Satellites and Subwoofers for full-range outdoor performance • 70V/100V/8 Ohm compatibility
• UV-resistant enclosures
36
OUTDOOR SPEAKERS
PRO-12SW-LS 12” DIRECT BURIAL SUBWOOFER
FREQUENCY RANGE
34Hz - 100Hz +/- 3dB
29Hz - 110Hz +/- 6dB
25Hz - 125Hz +/- 10dB
SYSTEM TYPE Band Pass Full Burial
WOOFER 12" (30.48cm) IMG Dual Voice Coil
SENSITIVITY 90 dB @ 2.83V/1 meter
POWER HANDLING 250W
IMPEDANCE
70V @ 300W (Transformerless)
8 Ohm Stereo
4 Ohm Mono
ENCLOSURE MATERIAL
Canopy: Rustproof, UV Resistant Aluminum
Cabinet: Heavy Duty, High Impact Polyethylene
FINISH
Canopy: Metallic Brown, Paintable
Cabinet: Matte Black, Paintable
PRODUCT DIMENSIONS 25” x 16.14” x 26.42” (635mm x 410mm x 671mm)
PRODUCT WEIGHT 55 lbs (25 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 34 kg
75 lbs
PART NUMBER
1063141
NOTES:
• Long-throw 12” IMG woofer
• Dual voice coil design for transformerless
70V/100V/8 Ohm compatibility
• All-weather durability - IP45 rating
• Long-throw 10” IMG woofer
• Dual voice coil design for transformerless
70V/100V/8 Ohm compatibility
• All-weather durability - IP45 rating
PRO-10SW-LS 10” HALF BURIAL SUBWOOFER
FREQUENCY RANGE
47Hz - 103Hz +/- 3dB
40Hz - 110Hz +/- 6dB
33Hz - 123Hz +/- 10dB
SYSTEM TYPE Band Pass Half Burial
WOOFER 10" (25.4cm) IMG Dual Voice Coil
SENSITIVITY 90 dB @ 2.83V/1 meter
POWER HANDLING 200W
IMPEDANCE
70V @ 250W (Transformerless)
8 Ohm Stereo
4 Ohm Mono
ENCLOSURE MATERIAL
Canopy: Rustproof, UV Resistant Aluminum
Cabinet: Heavy Duty, High Impact Polyethylene
FINISH
Canopy: Metallic Brown, Paintable
Cabinet: Matte Black, Paintable
PRODUCT DIMENSIONS 21.85” x 16.10” x 16.10” (555mm x 409mm x 409mm)
PRODUCT WEIGHT 35 lbs (15.91 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 22.6 kg
50 lbs
PART NUMBER
1063140
NOTES:
PRO-18-GS 18” GROUND STAKE
MATERIAL
Ground Stake: Glass-Filled (25%) ABS
Security Plate: Galvanized Stamped Steel
INCLUDED IN-BOX 18” Ground Stake, 7” Security Plate, Installation Manual
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 17.99” x 3.35” x 3.35” (457mm x 85mm x 85mm)
PRODUCT WEIGHT 2 lbs (0.91 kg)
RECOMMENDED FOR USE WITH PRO-650T-LS 6.5” Landscape Satellite (PN: 1063139)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.3 kg
3 lbs
PART NUMBER
1063448
NOTES:
PRO-10-GS 10” GROUND STAKE
MATERIAL
Ground Stake: Glass-Filled (25%) ABS
Security Plate: Galvanized Stamped Steel
INCLUDED IN-BOX 10” Ground Stake, 7” Security Plate, Installation Manual
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 11.81” x 3.35” x 3.35” (300mm x 85mm x 85mm)
PRODUCT WEIGHT 2 lbs (0.91 kg)
RECOMMENDED FOR USE WITH PRO-500T-LS 5” Landscape Satellite (PN: 1063137)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.3 kg
3 lbs
PART NUMBER
1063447
NOTES:
ACCESSORIES
KLIPSCH | CI BUYERS GUIDE 2019-2020
37
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

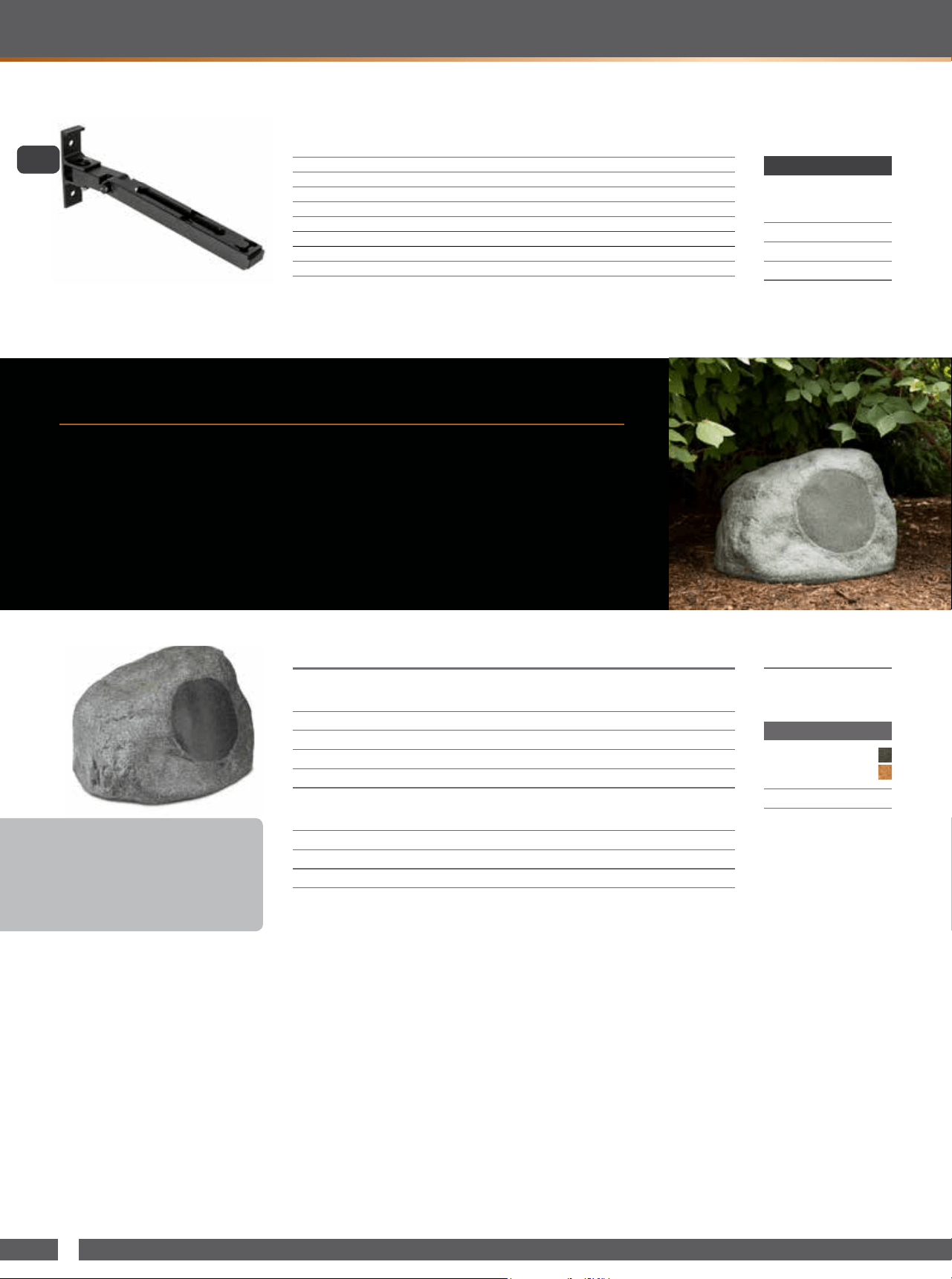

PROFESSIONAL SERIES ROCK SPEAKERS
With IMG woofers and Tractrix horn-loaded Aluminum Dome Tweeters, the Pro Series rock speakers use the same
high performance acoustic design philosophies of our legendary indoor products, bringing the world’s most
dynamic, powerful, detailed sound to your outdoor living space. From small residential systems to massive
commercial installs, the Klipsch Pro Series rock speakers are designed to make any installation job quick and
easy. For distributed line application, the Pro Series rock speakers feature a 70V/100V multi-tap transformer
with 8 ohm bypass, allowing for exceptional balance at any listening location - all selectable from an easily
accessible, tool-free rotary switch on the back of the speaker.
• Rock satellites and subwoofer for full-range outdoor performance • 70V/100V/8 Ohm compatibility
• UV-resistant enclosures
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 16 kg
35.4 lbs
PART NUMBER
1063232 (Granite)
1063231 (Sandstone)
NOTES:
PRO-10SW-RK 10” ROCK SUBWOOFER
FREQUENCY RANGE
47Hz - 103Hz +/- 3dB
40Hz - 110Hz +/- 6dB
33Hz - 123Hz +/- 10dB
SYSTEM TYPE Sealed box
WOOFER 10" (25.4cm) IMG Dual Voice Coil
SENSITIVITY 90 dB @ 2.83V/1 meter
POWER HANDLING 200W
IMPEDANCE
70V @ 250W (Transformerless)
8 Ohm Stereo
4 Ohm Mono
ENCLOSURE MATERIAL UV Treated Fiberglass
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 13.39” x 18.43” x 20.67” (340mm x 468mm x 525mm)
PRODUCT WEIGHT 30 lbs (13.6 kg)
• Rock subwoofer speaker
• Dual voice coil design for transformerless
70V/100V capability with 8-ohm bypass
• UV-resistant, mechanically reinforced
berglass cabinet
PRO-1-SM
FOR USE WITH PRO-500T-LS (1063137) and PRO-650T-LS (1063139)
CONSTRUCTION Rustproof aluminum parts with stainless steel hardware
MAXIMUM PITCH 45° up, 90°down
PITCH INCREMENTS 15°
MAXIMUM PAN 100° clockwise, 100° counterclockwise
WEIGHT 1.2 lbs / .54 kg
DIMENSIONS 1.68" x 11.12"x 4.13" (4.3cm x 29.5cm x 10.5cm)
PACKED AS Eaches
FINISH Satin Black
ACCESSORIES (NOT INCLUDED) 5/16” Washers (2) and Mounting Hardware
1” Tree Strap
Square U-Bolt for Pole Mounting (1.25” Minimum Width)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10 lbs
PART NUMBER
1063139
NOTES:
NEW
38

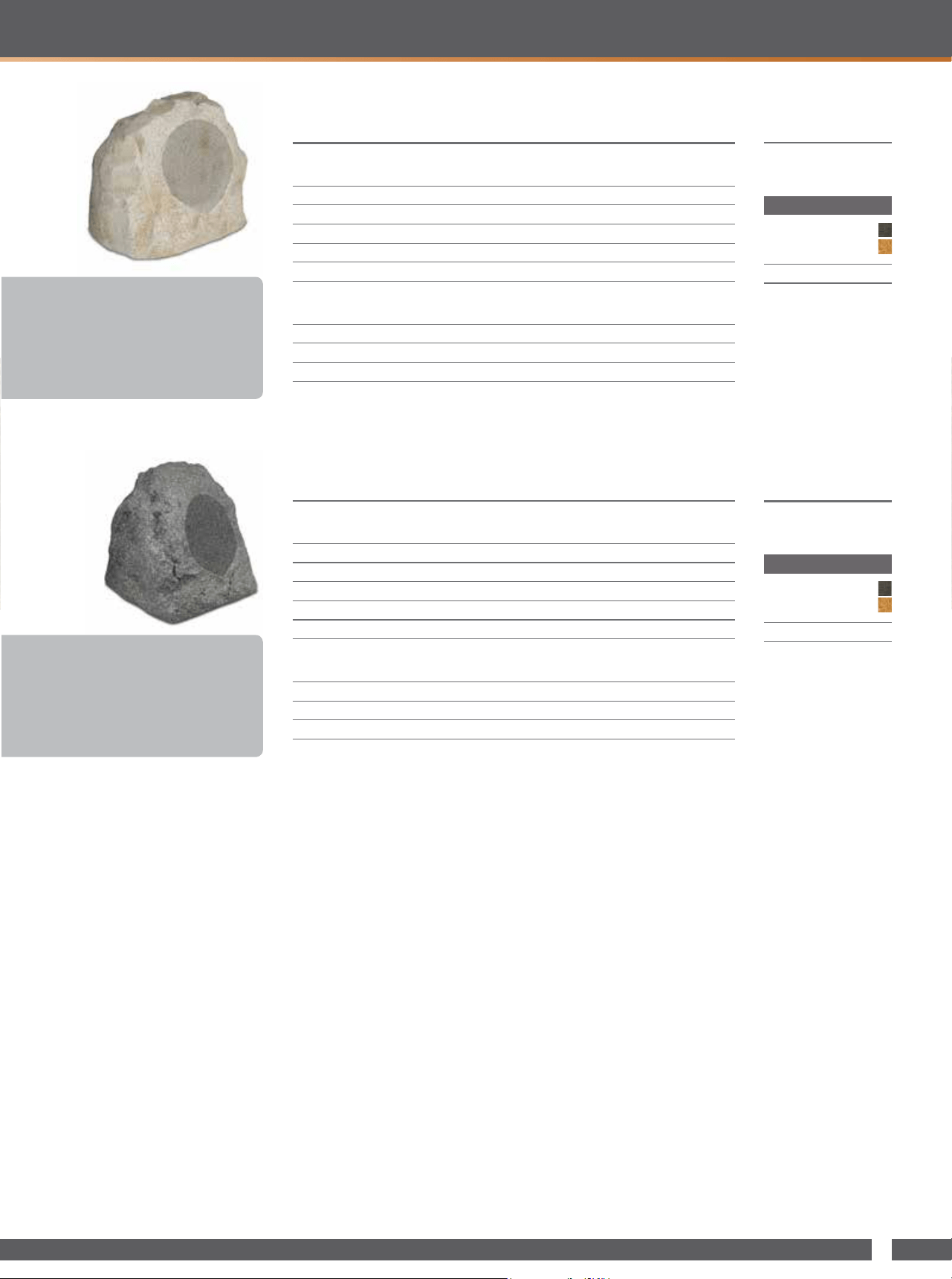

OUTDOOR SPEAKERS
PRO-500T-RK 5” 2-WAY ROCK SATELLITE
FREQUENCY RANGE
130Hz - 30kHz +/- 3dB
113Hz - 32kHz +/- 6dB
93Hz - 36kHz +/- 10dB
HIGH FREQUENCY DRIVER 1” (2.54cm) Aluminum Dome Tweeter mated to an all new 105º custom Tractrix® horn
LOW FREQUENCY DRIVER 5” (12.7cm) IMG Woofer
SENSITIVITY 88 dB @ 2.83V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 60W Peak
70V / 100V TAP SETTINGS
70V: 3.75W, 7.5W, 15W, 30W
100V: 7.5W , 15W, 30W
8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated Fiberglass
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 9.21” x 9.72” x 10.43” (234mm x 247mm x 265mm)
PRODUCT WEIGHT 8 lbs (3.62 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 5.1 kg
11.2 lbs
PART NUMBER
1063228 (Granite)
1063227 (Sandstone)
NOTES:
• All-new custom Tractrix
®
Horn provides
ultra-wide 105˚ horizontal dispersion
• 70V/100V multi-tap transformer with
8-ohm bypass
• UV-resistant, mechanically reinforced
berglass cabinet
PRO-650T-RK 6.5” 2-WAY ROCK SATELLITE
FREQUENCY RANGE
100Hz - 24kHz +/- 3dB
92Hz - 30kHz +/- 6dB
77Hz - 35kHz +/- 10dB
HIGH FREQUENCY DRIVER 1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105º custom Tractrix® horn
LOW FREQUENCY DRIVER 6.5" (16.51cm) IMG Woofer
SENSITIVITY 90 dB @ 2.83V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 100W Peak
70V / 100V TAP SETTINGS
70V: 6.25W, 12.5W, 25W, 50W
100V: 12.5W , 25W, 50W
8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated Fiberglass
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 10.91” x 9.65” x 13.43” (277mm x 245mm x 341mm)
PRODUCT WEIGHT 11 lbs (4.98 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 6.6 kg
14.7 lbs
PART NUMBER
1063230 (Granite)
1063229 (Sandstone)
NOTES:
• All-new custom Tractrix
®
Horn provides
ultra-wide 105˚ horizontal dispersion
• 70V/100V multi-tap transformer with
8-ohm bypass
• UV-resistant, mechanically reinforced
berglass cabinet
40

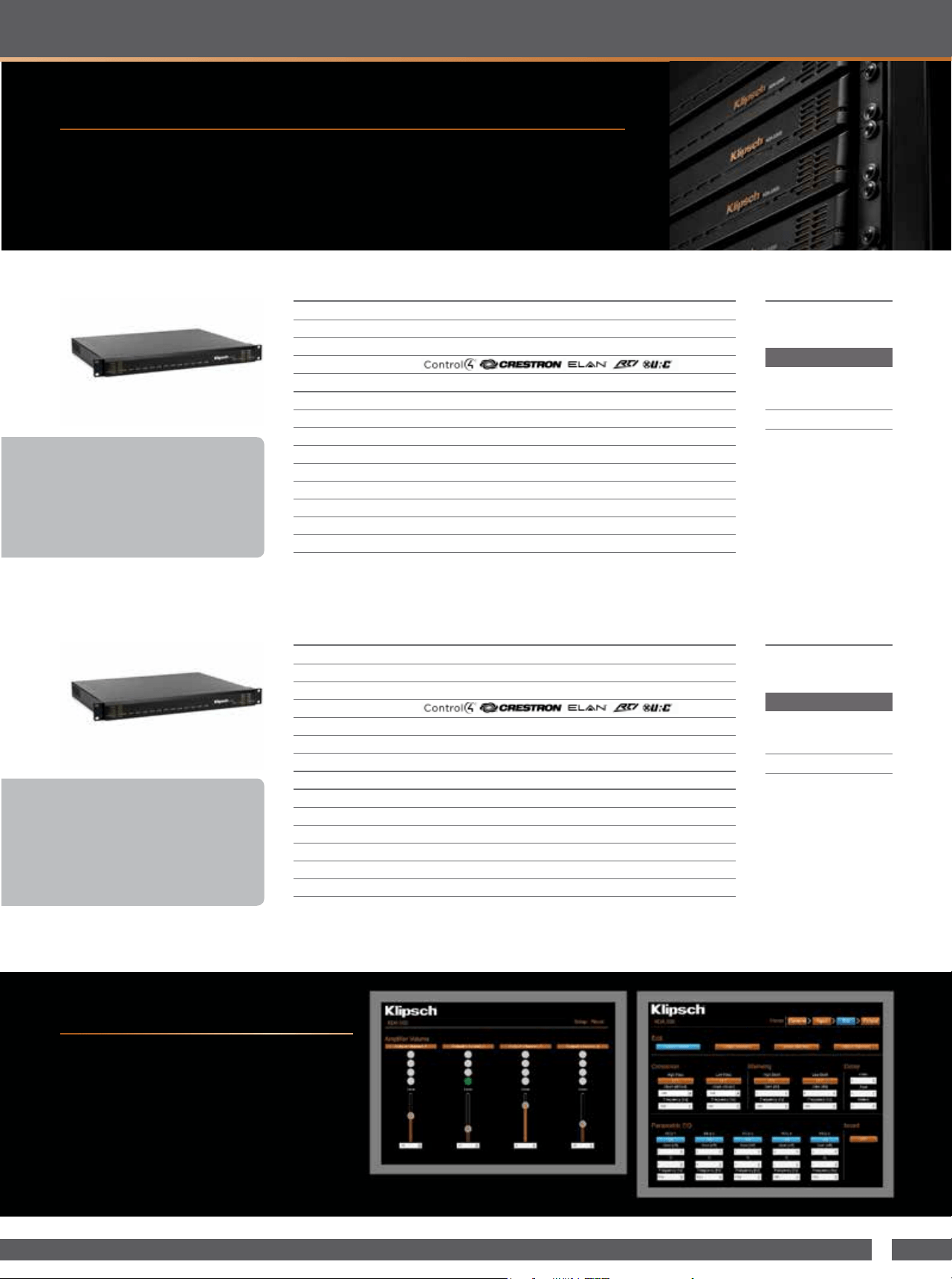

AMPLIFIERS
KLIPSCH DSP MULTI-ZONE AMPLIFIERS
The Klipsch KDA Series DSP Ampliers deliver legendary Klipsch power and performance in a sleek,
high-tech, one rack solution. The KDA Ampliers boast class G power, for clean dynamic power in any
type or size of installation. With 2-way IP Network control drivers and 70V/100V and low impedance
compatibility, the Klipsch DSP Multi-Zone Ampliers provide maximum installation exibility.
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 18 lbs
PART NUMBER
1063257 (120V)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 18 lbs
PART NUMBER
1063258 (120V)
KDA-500 4 IN X 4 OUT 500W DSP AMPLIFIER
AMPLIFIER TYPE
High efciency class G/H
AMPLIFIER POWER 500 watts total system power | 4 x 125 watts per channel | 2 x 250
INPUTS Balanced: 4 x Phoenix line level (up to 12 AWG wire) | Unbalanced: 4 x RCA line level
IP CONTROL
OUTPUTS 4 x Phoenix speaker level (up to 12 AWG wire) | 4 x RCA line level (throughs)
INPUT SENSITIVITY 750mV balanced | 0dBU
INPUT IMPEDENCE Balanced 40k
THD <1% @ rated output
SIGNAL TO NOISE -100dB below rated output
ENCLOSURE MATERIAL Front face: ABS plastic | Case: Machine formed steel
RACK UNIT 1RU
PRODUCT DIMENSIONS 1.73” (44mm) x 19.02” (483mm) x 14.29” (363mm)
PRODUCT WEIGHT 15 lbs. (6.82 kg)
MOUNTING Removable 1RU rack ears | removable rubber feet
BUILT FROM 2016
KDA-1000 4 IN X 4 OUT 1000W DSP AMPLIFIER
AMPLIFIER TYPE
High efciency class G/H
AMPLIFIER POWER 1000 watts total system power | 4 x 250 watts per channel | 2 x 500
INPUTS Balanced: 4 x Phoenix line level (up to 12 AWG wire) | Unbalanced: 4 x RCA line level
IP CONTROL
OUTPUTS 4 x Phoenix speaker level (up to 12 AWG wire) | 4 x RCA line level (throughs)
INPUT SENSITIVITY 750mV balanced | 0dBU
INPUT IMPEDENCE Balanced 40k
THD <1% @ rated output
SIGNAL TO NOISE -100dB below rated output
ENCLOSURE MATERIAL Front face: ABS plastic | Case: Machine formed steel
RACK UNIT 1RU
PRODUCT DIMENSIONS 1.73” (44mm) x 19.02” (483mm) x 14.29” (363mm)
PRODUCT WEIGHT 15 lbs. (6.82 kg)
MOUNTING Removable 1RU rack ears | removable rubber feet
BUILT FROM 2016
Customize Kipsch DSP Multi-Zone Ampliers through
streamlined web-based menus - including Klipsch
speaker presets - for one-click optimization.
CUSTOM DSP INTERFACE
NOTES:
NOTES:
• High performance power platform
• 70V/100V and low impedance compatibility
• Flexible I/O
• State-of-the-art DSP control and set-up
• Ethernet port for 2-Way IP Ethernet Control
• High performance power platform
• 70V/100V and low impedance compatibility
• Flexible I/O
• State-of-the-art DSP control and set-up
• Ethernet port for 2-Way IP Ethernet Control
KLIPSCH | CI BUYERS GUIDE 2019-2020
41
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

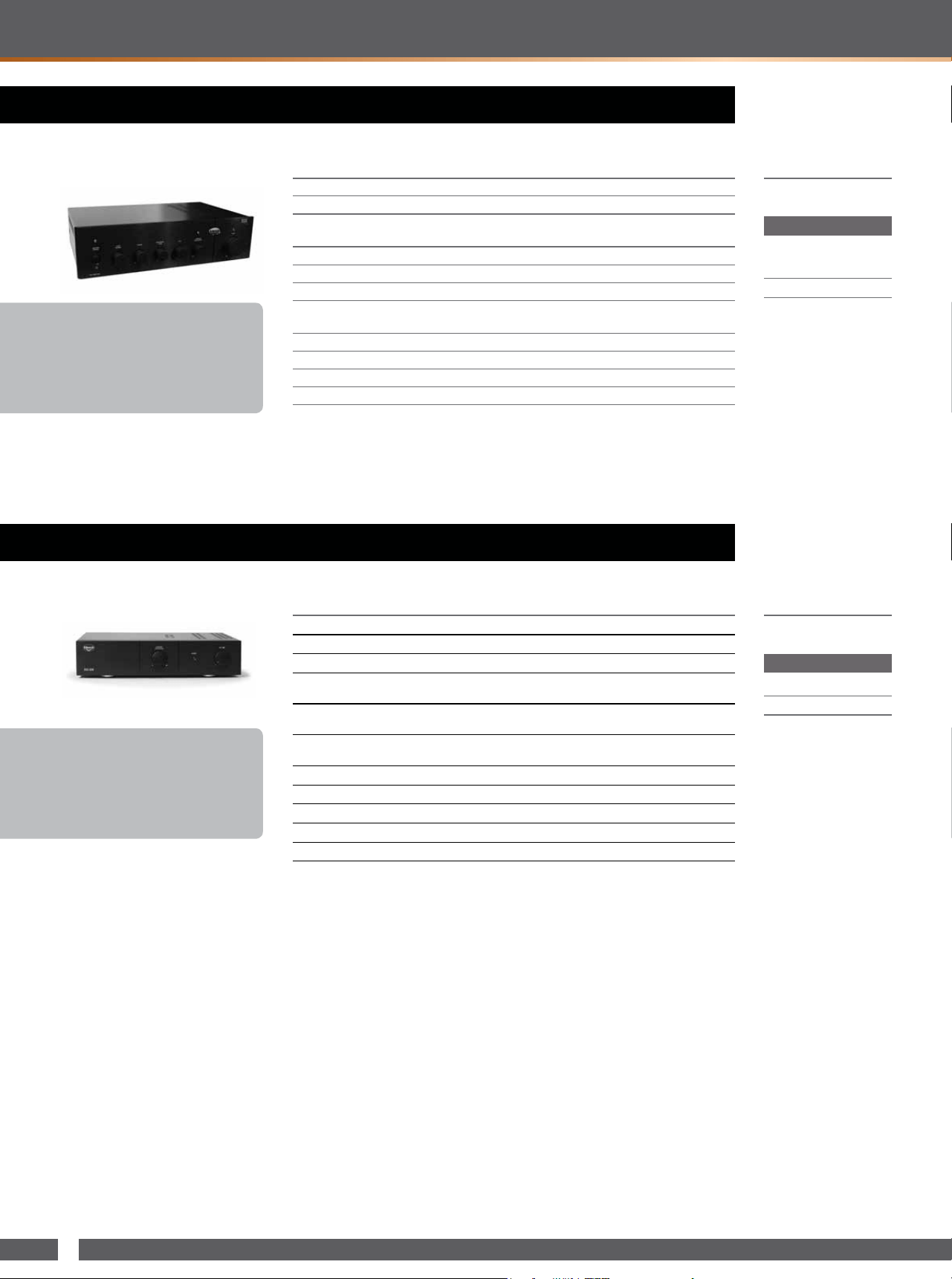

THX
®
ULTRA2
™
AMPLIFIERS
REFERENCE AMPLIFIERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 31 lbs
PART NUMBER
221200080011 (12OV)
KA-1000-THX THX CERTIFIED CLASS D SUBWOOFER AMPLIFIER
FREQUENCY RESPONSE 20 Hz - 1 kHz +/- 3dB
AMPLIFIER High-Efciency Class D
AMPLIFIER POWER FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
Dynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD
AUTO POWER ON 2 second ON delay, 15 minute off delay
LOW PASS CROSSOVER Continuously variable from 40Hz-120Hz, 24dB/octave slope above 120z (non-THX mode)
INPUTS 2 Gold-plated RCA phono jacks
OUTPUTS 2 Gold-plated RCA phono jacks (unltered)
2 Speakon
®
NL2 jacks
DIMENSIONS 4.75” (12.1cm) H x 17.5” (44.5cm) W x 12.25” (31.1cm) D
FINISH Black anodized aluminum
VOLTAGE 110/120 VAC 60Hz
EXPORT VOLTAGE 230 VAC 50/60Hz
FEATURES THX On/Off
Boundary Gain Compensation On/Off
NOTES:
RSA-500 500W/4 OHM DIGITAL HYBRID SUBWOOFER AMPLIFIER
AMPLIFIER TYPE Bash Digital Hybrid
AMPLIFIER POWER FTC Rated Power: 500W continuous into 4 ohms @ <2% THD Dynamic Power: 1000W
FRONT CONTROLS Volume and Variable Crossover
REAR CONTROLS Phase Switch (0/180), EQ Selector, Trigger Input, Power Mode Selector,
Main Power Switch
INPUTS L/R and LFE Line-level RCA jacks
L/R High-level speaker binding posts
OUTPUTS L/R and LFE Line-level RCA jacks (unltered)
L/R speaker binding posts
DIMENSIONS 3.5" (8.9cm) H x 16.8" (42.7cm) W
DIMENSIONS WITH FEET 3.8" (9.6cm) H x 16.8" (42.7cm) W
WEIGHT 17.5 lbs (7.9kg)
VOLTAGE 110/120 VAC 60Hz
FINISH Black Anodized Brushed Aluminum
ACCESSORIES Rack Ears (included) *For use only with RW-5802
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 21 lbs
PART NUMBER
1001188
NOTES:
• THX Ultra2 certied subwoofer amplier
• Can support two high performace
subwoofers
• Finished in black with a machined
aluminum front panel and knobs
• EQ preset for use with the RW-5802
subwoofer
• Selectable signal-sensing or voltage
triggered auto-on/off circuit
• Line and speaker level inputs
42

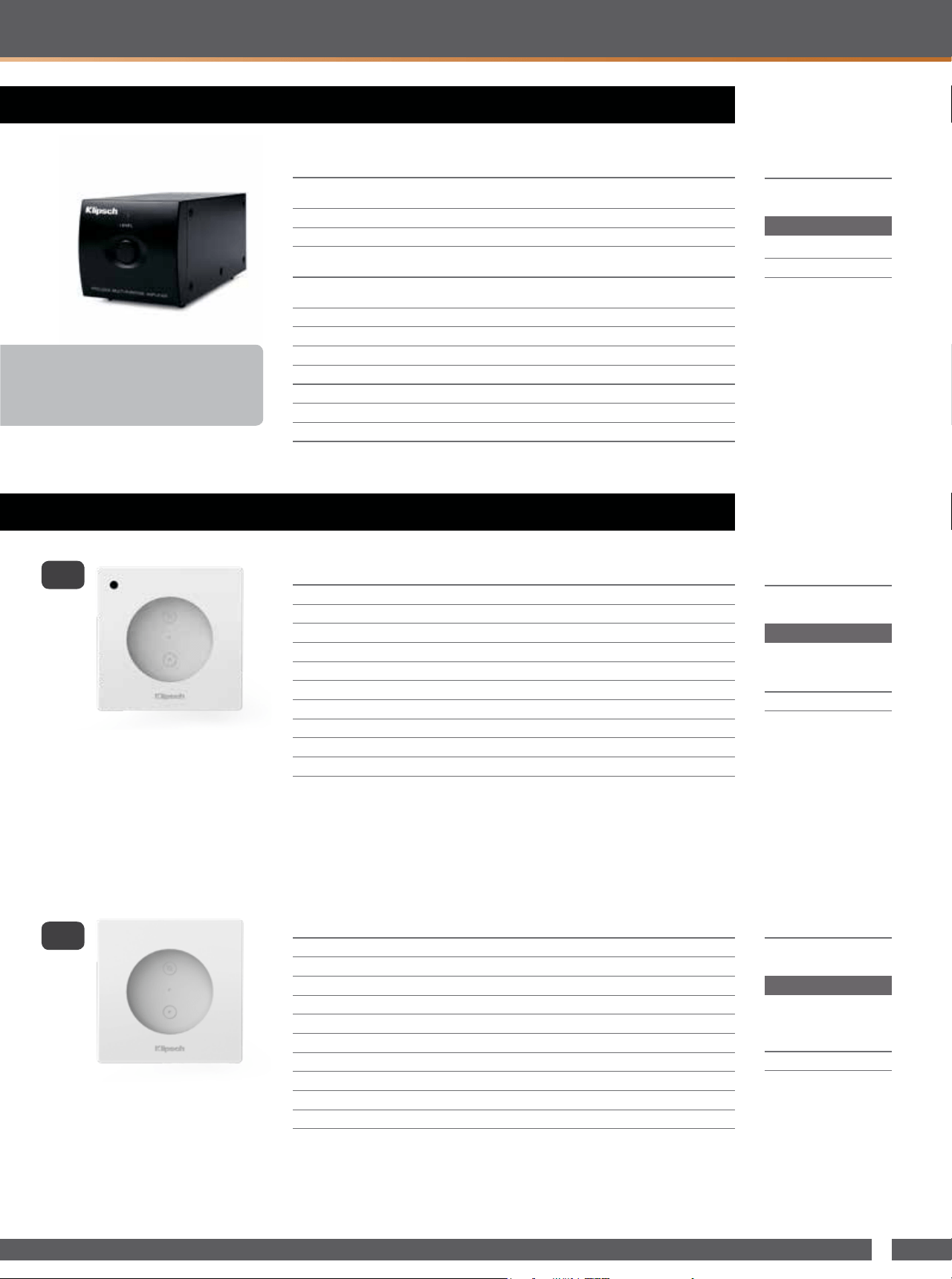

KVA-40
AMPLIFIER POWER 40W Total System Power, 2 x 20W per channel
AMPLIFIER TYPE Class D
INPUTS Amazon Echo Input (3.5mm Audio Input and Micro-USB Power)
OUTPUTS 2 x Phoenix Speaker Level (Recommended 16/2 wire)
INSTALLATION Pre-construction – double gang box, Retrot – doglegs (included)
CUTOUT DIMENSIONS 3.875” x 3.875” (9.8cm x 9.8cm)
PRODUCT DIMENSIONS 4.92” x 4.92” x 1.75” (12.5cm x 12.5cm x 4.4cm)
SHIPPING DIMENSIONS 7.125” x 5.25” x 3” (18.1cm x 13.3cm x 11.2cm)
INPUT POWER 24V, 3A
POWER CONNECTION DC Input Wall Plate
ACCESSORIES DC Input Wall Plate, Doglegs and hardware, AC Adapter
AMPLIFIERS
PROFESSIONAL AMPLIFIERS
AMAZON ECHO INPUT AMPLIFIERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 13 lbs
PART NUMBER
1062388
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.06 lbs
PART NUMBER
120V: 1068198
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.06 lbs
PART NUMBER
120V: 1068200
PRO-200A 2 X 100W STEREO/SUBWOOFER AMPLIFIER
RATED POWER OUTPUT 2 x 100 Watts (Stereo) into 4 ohm Load
200 Watts (BTL) into 8 ohm Load
TOTAL HARMONIC DISTORTION <0.1%
SIGNAL-TO-NOISE RATIO >100dB
CROSSOVER FREQUENCY @ Min position 18.5-55.2Hz 40Hz/0dB ref
@ Max position 18.2-168.8Hz 40Hz/0dB ref
AUTO TURN ON SENSITIVITY 5mV +/-2mV Full Range 1KHz
5mV +/-2mV Input 50 Hz
DELAY ”OFF“ TIME 8 minutes
LINE OUT FREQ. RESPONSE 20Hz +/-5K - 20 KHz +/-5K 1KHz/0dB ref
INPUT IMPEDANCE LINE IN 9.2K ohm +/-5%
MAX. NOISE+HUM VOL MAX <1.0mV, Input Shorted
POWER REQUIREMENT 115V 60Hz or 220 - 240V 50Hz
DIMENSIONS 5.5” (14cm) H 5.69” (14.5cm) W 12.75” (32.4cm) D
CLEARANCE FOR VENTILATION Top: Min. 0.375” (10mm) | Back: Min. 2” (50mm)
WEIGHT 11 lbs (5.3kg)
KVA-110
AMPLIFIER POWER 110W Total System Power, 2 x 55W per channel
AMPLIFIER TYPE Class D
INPUTS Amazon Echo Input (3.5mm Audio Input and Micro-USB Power)
OUTPUTS 2 x Phoenix Speaker Level (Recommended 16/2 wire) , Subwoofer LFE
INSTALLATION Pre-construction – double gang box, Retrot – doglegs (included)
CUTOUT DIMENSIONS 3.875” x 3.875” (9.8cm x 9.8cm)
PRODUCT DIMENSIONS 4.92” x 4.92” x 1.75” (12.5cm x 12.5cm x 4.4cm)
SHIPPING DIMENSIONS 7.125” x 5.25” x 3” (18.1cm x 13.3cm x 11.2cm)
INPUT POWER 24V, 3A
POWER CONNECTION DC Input Wall Plate
ACCESSORIES
DC Input Wall Plate, Optical/Analog Input Wall Plate, Subwoofer Output Plate, Doglegs
and hardware, AC Adapter
NOTES:
NOTES:
NOTES:
• Bridgeable 2-channel amplier
• Full-range or low-pass operation
• Daisy chain capability
NEW
NEW
44

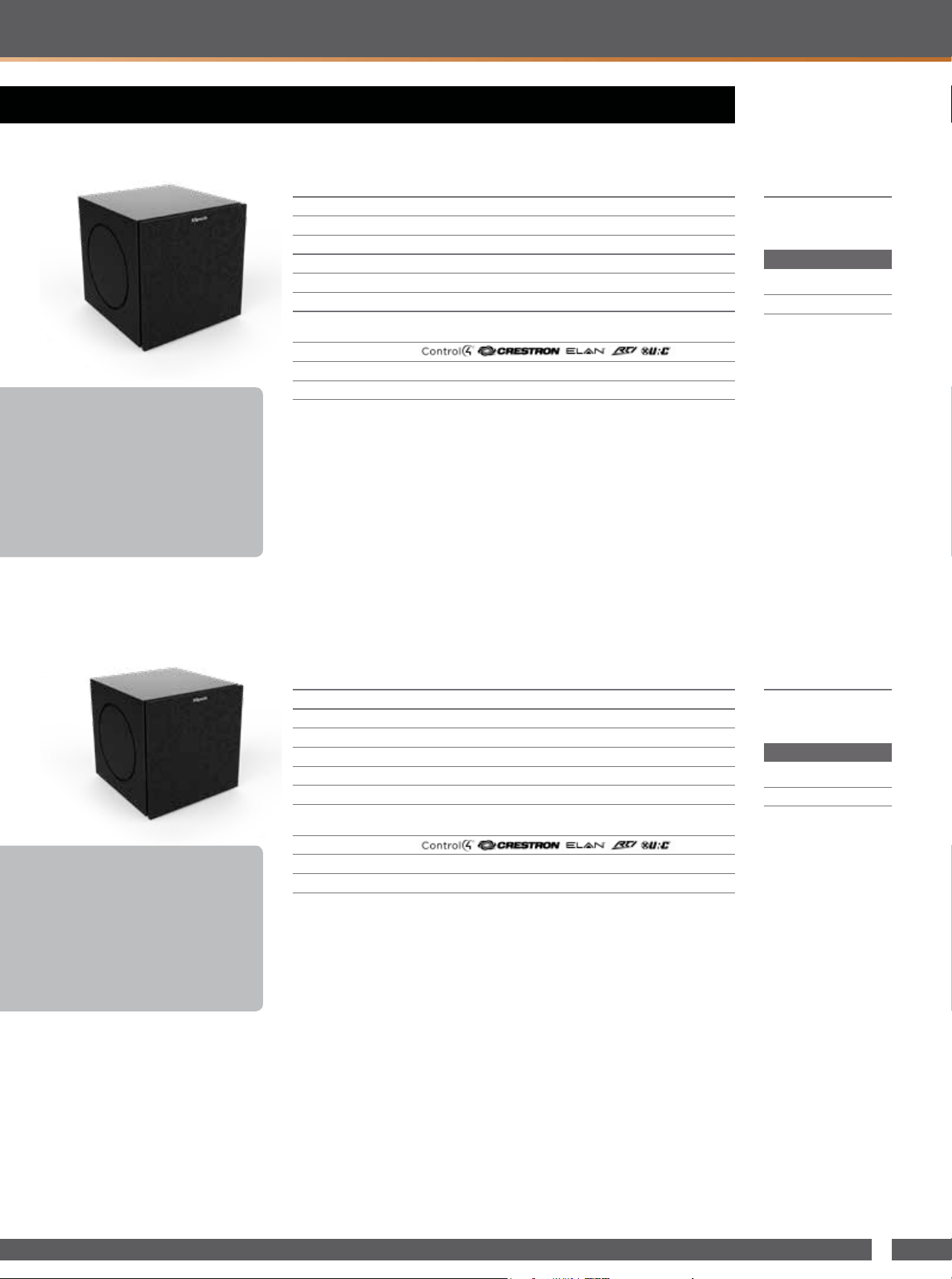

SUBWOOFERS
C-310ASWi 10” HIGH PERFORMANCE COMPACT SUBWOOFER
FREQUENCY RANGE 25-150Hz +/- 3dB
SYSTEM TYPE Bass-reex via dual side-ring passive radiators
WOOFER 10” (20.3cm) Active / Dual 10” passive
MAXIMUM OUTPUT 116dB @ 35Hz
POWER HANDLING 400W RMS
ENCLOSURE MATERIAL MDF
INPUTS
Line level RCA, Balanced XLR, High level, Wireless (with optional transmitter sold
separately)
IP CONTROL
PRODUCT DIMENSIONS 13.42” x 13.42” x 13.42” (341mm x 341mm x 341mm)
PRODUCT WEIGHT 39 lbs (17.69 kg)
FINISH Piano gloss black
C-308ASWi 8” HIGH PERFORMANCE COMPACT SUBWOOFER
FREQUENCY RANGE 28-150Hz +/- 3dB
SYSTEM TYPE Bass-reex via dual side-ring passive radiators
WOOFER 8” (20.3cm) Active / Dual 8” passive
MAXIMUM OUTPUT 110dB @ 35Hz
POWER HANDLING 300W RMS
ENCLOSURE MATERIAL MDF
INPUTS
Line level RCA, Balanced XLR, High level, Wireless (with optional transmitter sold
separately)
IP CONTROL
PRODUCT DIMENSIONS 11.22” x 11.22” x 11.22” (285mm x 285mm x 285mm)
PRODUCT WEIGHT 27 lbs (12.25 kg)
FINISH Piano gloss black
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 18.2 kg
40.1 lbs
PART NUMBER
1064619 (Black)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 12.75 kg
28.1lbs
PART NUMBER
1064615 (Black)
NOTES:
NOTES:
C-SERIES
• High performance app controlled compact
subwoofer
• Klipsch LowControl App for iOS/Android
provides automatic room correction and fully
customizable EQ with presets
• Supports multiple input types
• Ethernet input for IP control
• Piano gloss nish for premium look
• High performance app controlled compact
subwoofer
• Klipsch LowControl App for iOS/Android
provides automatic room correction and fully
customizable EQ with presets
• Supports multiple input types
• Ethernet input for IP control
• Piano gloss nish for premium look
46
SUBWOOFERS
PRO-1200SW 12” IN-WALL SUBWOOFER
FREQUENCY RANGE 21Hz - 100Hz +/- 3dB *
SYSTEM TYPE Sealed Box
WOOFER 12” (25.4cm) Long-Throw Cerametallic
™
MAXIMUM OUTPUT* 112dB @ 70Hz
POWER HANDLING 250W RMS / 600W Peak
IMPEDANCE 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS 65.75” H x 15.69” W x 3.47” D (1670.05mm x 398mm x 100mm)
MOUNTING DEPTH 3.4” (88.138mm)
CUTOUT DIMENSIONS 14.25” x 14.25” (361.95mm x 361.95mm)
PRODUCT WEIGHT 35.5 lbs (16.1 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 16.6 kg
36.6 lbs
PART NUMBER
1064595
NOTES:
• Full stud-bay-in-wall subwoofer for new
construction
• Ideal for home cinema or high performance
distributed audio
• Easily installs into any standard stud-bay
PRO-1000SW 10” IN-WALL SUBWOOFER
FREQUENCY RANGE 24-100Hz +/- 3dB *
SYSTEM TYPE Sealed Box
WOOFER 10” (25.4cm) Long-Throw Cerametallic™
MAXIMUM OUTPUT* 109dB @ 70Hz
POWER HANDLING 200W RMS / 500W Peak
IMPEDANCE 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS 21.97” x 17.56” x 4.0” (558mm x 448mm x 102mm)
MOUNTING DEPTH 3.94” (100mm)
CUTOUT DIMENSIONS 20.24” x 14.41” (514.096mm x 366.014mm)
PRODUCT WEIGHT 20.3 lbs (9.2 kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9.8 kg
21.6 lbs
PART NUMBER
1063646
NOTES:
• 10” Long-throw Cerametallic
™
woofer for
superior low frequency response
• Performs as the anchor for a home theater
system or a premium distributed audio solution
• MDF enclosure
• Flat, paintable, white magnetic grille
• Suitable for retrot or new construction
applications
• Compatible with the KDA-500 amplier
(see page 47)
PRO-800SW 8” IN-CEILING BAND PASS SUBWOOFER
FREQUENCY RANGE 38Hz - 125Hz +/- 3dB
SYSTEM TYPE Bandpass via exible port tube
WOOFER 8” (203cm) Dual Voice Coil Long-Throw Cerametallic
™
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Peak
IMPEDANCE 2 x 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS
Cabinet: 6.9” H x 21.1” W x 14.2” D (176mm x 536mm x 361mm)
Grille: 5” (127mm)
MOUNTING DEPTH 7” (178mm)
CUTOUT DIAMETER 4.25” (108mm)
PRODUCT WEIGHT 22.1 lbs (10.1 kg)
ACCESSORIES PRO-800SW Vent Boot Kit (Sold Separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10.6 kg
23.4 lbs
PART NUMBER
1064594
1064948 (Floor Vent Boot Kit)
NOTES:
• In-ceiling bandpass dual voice coil
subwoofer for new construction or retrot
• Minimal visual footprint
• Round and square grilles included
• Floor vent boot kit accessory (sold
separately)
* With Klipsch KDA Amplier DSP Preset
* With Klipsch KDA Amplier DSP Preset
* With Klipsch KDA Amplier DSP Preset
KLIPSCH | CI BUYERS GUIDE 2019-2020
47
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

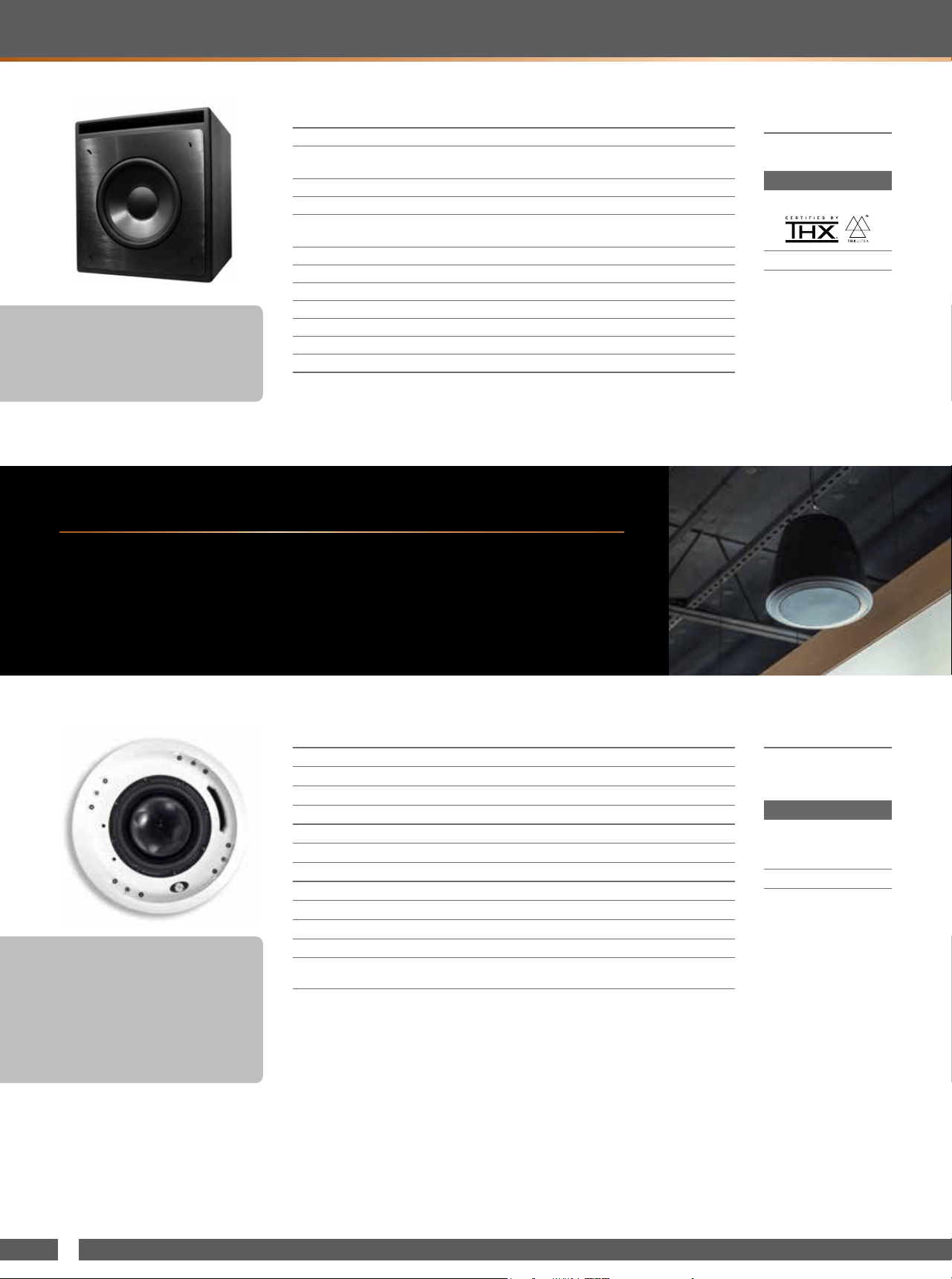

SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 93 lbs
PART NUMBER
1010649
KW-120-THX 12” PASSIVE SUBWOOFER
FREQUENCY RESPONSE 20 Hz - 200 Hz +/- 3dB
MAX ACOUSTIC OUTPUT 130dB @ 30Hz, 122dB @ 20Hz, 112dB@ 15Hz 1/8 space,
1 meter (2 enclosures side-by-side per THX Ultra2)
AMPLIFIER Use only with KA-1000-THX
NOMINAL IMPEDANCE 8 Ohms Compatible
LOW FREQUENCY DRIVER 12” (30.5cm) front-ring, Cerametallic cone, cast aluminum frame drivers
with a 240oz ceramic magnet structure
ENCLOSURE MATERIAL Medium density berboard (MDF)
ENCLOSURE TYPE Bass reex via front-ring port
INPUTS 1 Speakon NL2 jack and included cable
HEIGHT 20.25” (51.4cm)
WIDTH 17.75” (45.1cm)
DEPTH 17.75” (31.8cm)
WEIGHT 80 lbs (36.3kg)
FINISH Galaxy Black cabinet with Black anodized aluminum fascia
NOTES:
• THX Ultra2 certied passive subwoofer
• Front-ring port
• Top-of-the-line internal wiring
• For use with KA-1000-THX amplier
COMMERCIAL IN-CEILING
The Klipsch Commercial In-Ceiling series of loudspeakers packs proven materials and wide dispersion horn
technology into installer-friendly products. Designed to mix and match with Klipsch CA-T speakers, these IC
speakers have been included in a number of major installations nationally — from Bloomingdale’s in New York
City to Ron Jon Surf Shop in Orlando.
IC-800-T FULL RANGE 8” TWO-WAY IN-CEILING SPEAKER
FREQUENCY RESPONSE 49Hz-20KHz +/- 4dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 6.5 ohms (in 8 ohm bypass mode)
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium diaphragm compression driver
LOW FREQUENCY DRIVER 8” (20.32cm) woofer
DIAMETER 9.5” (24.13cm)
CUTOUT DIAMETER 12.625” (32.1cm)
MOUNTING DEPTH 12.75” (32.4cm)
WEIGHT 21 lbs (9.5 kg)
INSTALLATION KIT 061347 (sold separately)
TAP SETTINGS
70V – 100W, 50W, 25W, 12.5W
100V – 100W, 50W, 25W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10 kg
22 lbs
PART NUMBER
1062346 (Black)
1062347 (White)
NOTES:
• Tight 75˚ coverage pattern for high
ceiling applications
• 100 watt, low insertion loss, multi-tap
transformer for high output and less
compression
• 70-volt, 100-volt or low impedance
operation selectable via a front bafe
switch
48

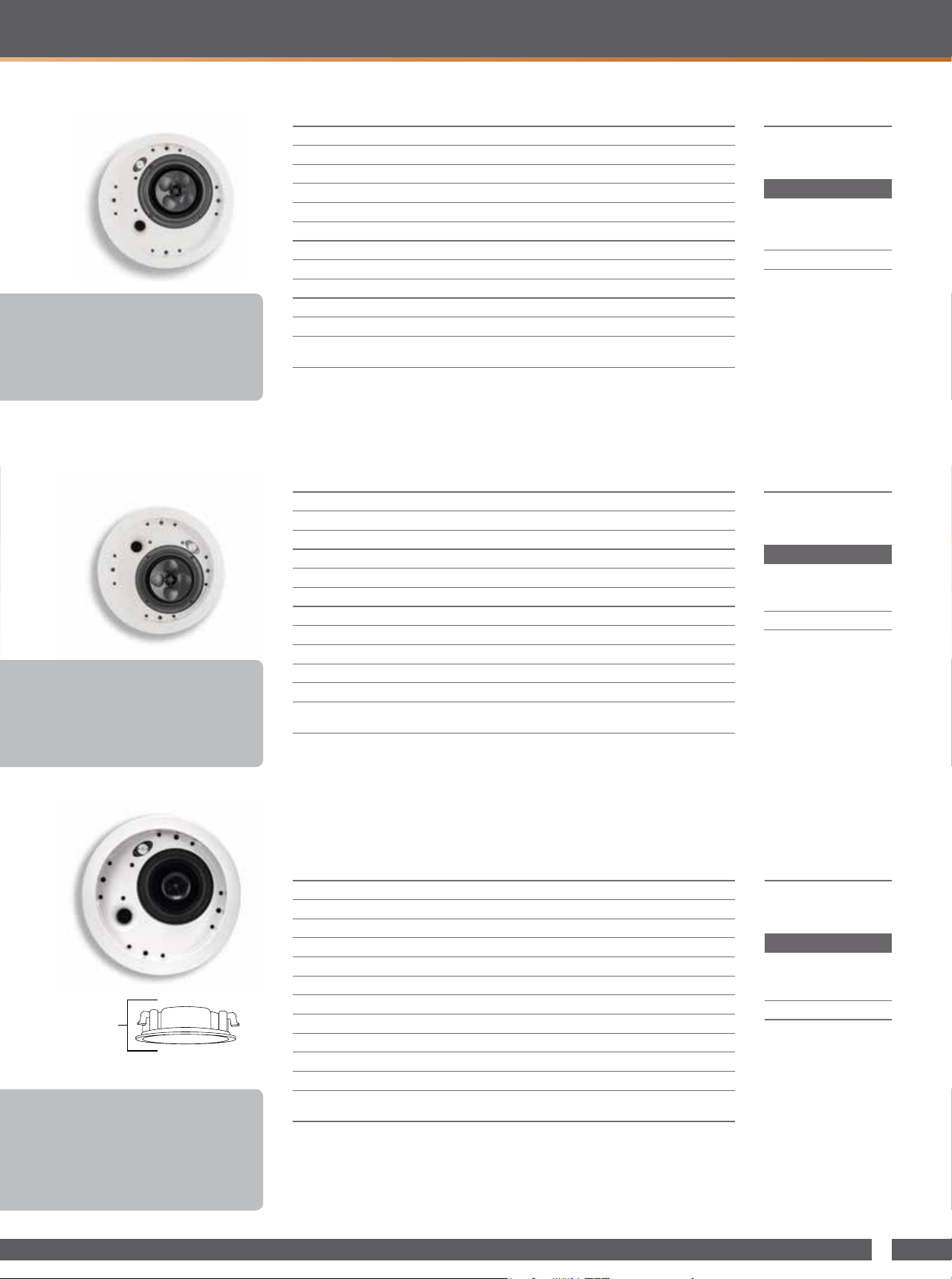

COMMERCIAL SPEAKERS
IC-650-T 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 50Hz-20KHz +/- 4dB
SENSITIVITY 90dB @ 2.83V/1 meter
IMPEDANCE 8 ohms
POWER HANDLING (CONT/PEAK) 80W /320W
HIGH FREQUENCY DRIVER 1” (2.5cm) titanium compression tweeter on a modied Tractrix
®
horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) woofer
DIAMETER 11.7” (29.7cm)
CUTOUT DIAMETER 10.125” (25.7cm)
MOUNTING DEPTH 10.1” (25.65cm)
WEIGHT 11.3 lbs (5.12 kg)
INSTALLATION KIT IK-650-C (sold separately)
TAP SETTINGS
70V – 60W, 30W, 15W, 7.5W
100V – 60W, 30W, 15W
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 11.2 kg
24.7 lbs
PART NUMBER
1008721 (Black)
1007627 (White)
NOTES:
• Wider, shorter design to t low ceilings
• 70-volt, 100-volt or 8-ohm operation
selectable via a front bafe switch
• Tractrix
®
Port design for deep bass with
less compression
IC-525-T 5.25” IN-CEILING SPEAKER
FREQUENCY RESPONSE 65Hz-20KHz +/- 4dB
SENSITIVITY 89dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) Titanium compression driver on 3.5” (8.89cm) round modied Tractrix
®
horn
LOW FREQUENCY DRIVER 5.25” (16.51cm) woofer
DIAMETER 10.75” (27.3cm)
CUTOUT DIAMETER 9.125” (23.2cm)
MOUNTING DEPTH 8.2” (20.8cm)
WEIGHT 7 lbs. (3.2kg)
INSTALLATION KIT 1010413 (sold separately)
TAP SETTINGS
70V – 30W, 15W, 7.5W, 3.8W
100V – 30W, 15W, 7.5W
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 7.4 kg
16.3 lbs
PART NUMBER
1008720 (Black)
1007626 (White)
NOTES:
IC-500-T-SC SHALLOW DEPTH 5” 2-WAY IN-CEILING SPEAKER
FREQUENCY RESPONSE 95Hz-20KHz +/- 4dB
SENSITIVITY 87dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium diaphragm compression driver
LOW FREQUENCY DRIVER 5” (12.7cm) woofer
DIAMETER 10.75” (27.3cm)
CUTOUT DIAMETER 9.125” (23.2cm)
MOUNTING DEPTH 4.125” (10.5cm)
WEIGHT 5.5 lbs. (2.5kg)
INSTALLATION KIT 1010413 (sold separately)
TAP SETTINGS
70V – 15W, 7.5W, 3.8W, 1.9W
100V – 15W, 7.5W, 3.8W
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 6 kg
13.2 lbs
PART NUMBER
1062344 (Black)
1062345 (White)
NOTES:
• Wider, shorter design to t low ceilings
• 70-volt, 100-volt or 8-ohm operation
selectable via a front bafe switch
• Tractrix
®
Port design for deep bass with
less compression
• Includes 15 watt 70/100 volt multi-tap
transformer
• 70-volt, 100-volt or 8-ohm operation
selectable via a front bafe switch
• Tractrix
®
Port design for deep bass with
less compression
4.125” (10.5cm)
KLIPSCH | CI BUYERS GUIDE 2019-2020
49
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM

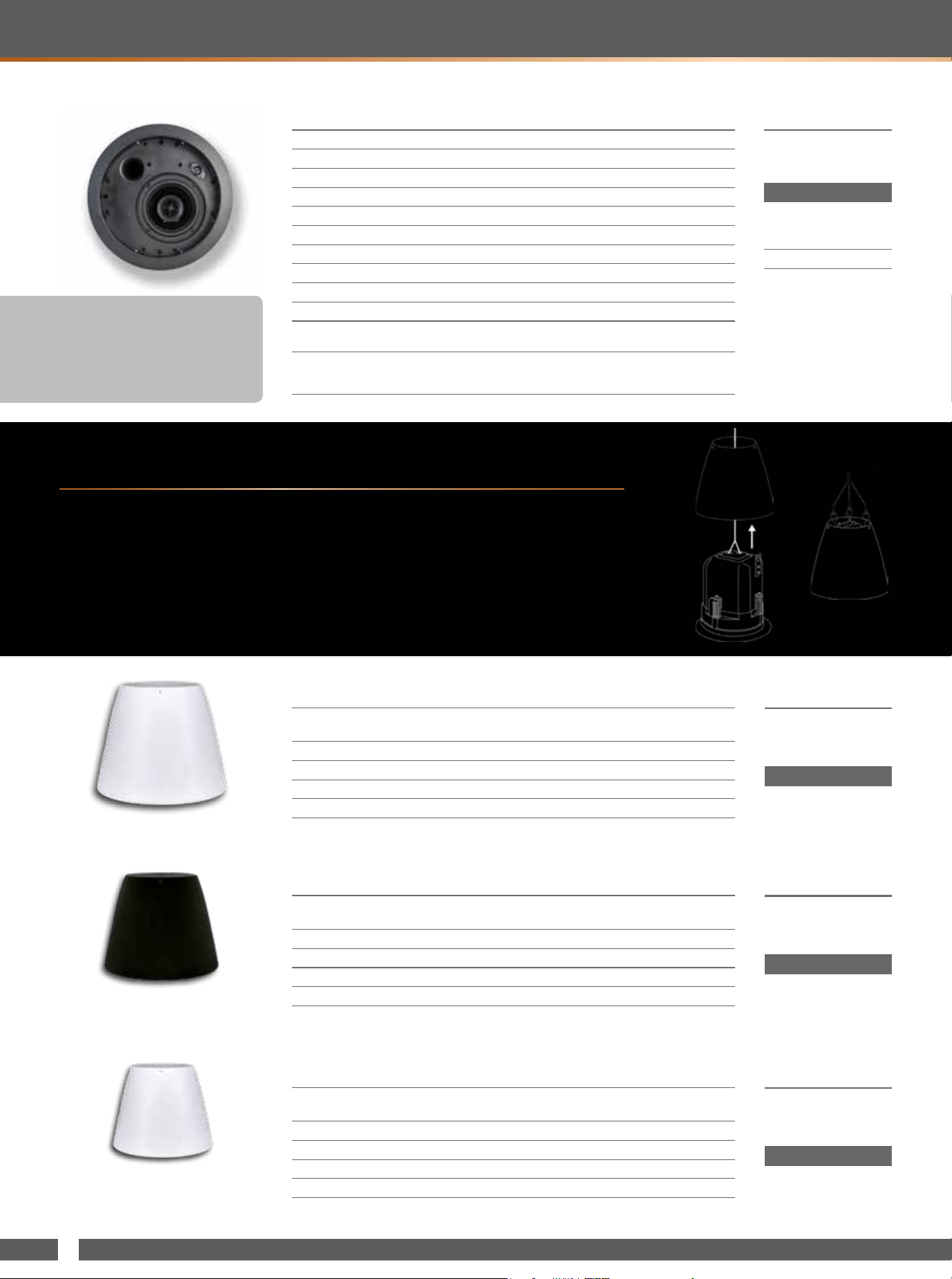

IC-400-T 5” 2-WAY IN-CEILING SPEAKER
FREQUENCY RESPONSE 70Hz – 20kHz +/- 4dB, –10dB 50Hz
SENSITIVITY 86dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium diaphragm compression driver on modied Tractrix
®
horn
LOW FREQUENCY DRIVER 5” (12.7cm) woofer
DIAMETER 10.75” (27.31cm)
CUTOUT DIAMETER 9.125” (23.18cm)
MOUNTING DEPTH 7.3” (18.54cm)
WEIGHT 6.25 lbs. (2.83kg)
TAP SETTINGS
70V – 15W, 7.5W, 3.8W, 1.9W
100V – 15W, 7.5W, 3.8W
INSTALLATION KIT
Mud Ring Kit (Part #1010413)
(sold separately)
Pendant Housing (Part #1016408 – White)
(sold separately)
Pendant Housing (Part #1016409 – Black)
(sold separately)
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 6.6 kg
14.5 lbs
PART NUMBER
1008719 (Black)
1007625 (White)
NOTES:
• 70-volt, 100-volt or 8-ohm operation
selectable via front bafe switch
• Tractrix
®
Port design for deep bass with
less compression
• Tractrix
®
Horn tweeter for smooth sound
PENDANT HOUSINGS
When overhead sound distribution is a challenge due to either a high ceiling or a lack of a suspended
ceiling, Klipsch Pendant Housings combine with Klipsch In-Ceiling speakers for an aesthetically pleasing,
great sounding solution.
• Aluminum Pendant Housing in Black, White or Paintable for customization
• Perfect for high-ceiling structures or areas with no suspended ceiling for direct, overhead
distributed sound
• Includes the necessary mounting hardware for typical suspended installation scenarios
KPH-800 12.5” PENDANT HOUSING
PACKAGE CONTENTS
One Pendant housing, One 9.5’ (2.5m) drop cable with balance cables and S-hooks,
One Fast Link cable joiner
ENCLOSURE 1.5mm Aluminum housing
DIMENSIONS 16.8” (42.7cm) Base diameter, 12.5” (31.8cm) Flange diameter, 13.7” (34.8cm) Height
WEIGHT 2.2 lbs (1 kg)
WORKS WITH IC-800-T, IC-SW-8T2
COLORS White (paintable)
KPH-650 10.3” PENDANT HOUSING
PACKAGE CONTENTS
Two Pendant housings, Two 9.5’ (2.5m) drop cables with balance cables and S-hooks,
Two Fast Link cable joiners
ENCLOSURE 1.5mm Aluminum housing
DIMENSIONS 12.3” (32.2m) Base diameter, 10.3” (26.2cm) Flange diameter, 11.2” (28.5cm) Height
WEIGHT 2 lbs (0.9 kg)
WORKS WITH IC-650-TUL
COLORS Black or White (paintable)
KPH-525 9.7” PENDANT HOUSING
PACKAGE CONTENTS
Two Pendant housings, Two 9.5’ (2.5m) drop cables with balance cables and S-hooks,
Two Fast Link cable joiners
ENCLOSURE 1mm Aluminum housing
DIMENSIONS 11.6” (29.5cm) Base diameter, 9.7” (24.6cm) Flange diameter, 9.4” (23.9cm) Height
WEIGHT 1.25 lbs (0.57 kg)
WORKS WITH IC-400-T, IC-500T-SC, IC-525-TUL
COLORS Black or White (paintable)
SHIPPING QUANTITY: SIngle
SHIPPING WEIGHT: 1.5 kg
3.3 lbs
PART NUMBER
1063456
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 4.5 kg
9.9 lbs
PART NUMBER
1063455 (Black)
1063454 (White)
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 1.5 kg
3.3 lbs
PART NUMBER
1016409 (Black)
1016408 (White)
50
COMMERCIAL SPEAKERS
COMPACT PERFORMANCE SERIES
The Klipsch Compact Performance Series is designed for high-performance sound indoors or out. The CP-6,
in paintable Black or White, is designed to quickly wall-mount with the included brackets or rest on a shelf
or bookcase in equally appealing form. Traditional Klipsch lifelike sound with Tractrix horns, utilize them for
deck or patio sound, as part of a 2-channel music system or as surrounds in a Home Theater system. Their
versatility is endless.
• Quick, easy installation
• Multipurpose design
CP-6T 5.25” COMPACT HIGH PERFORMANCE SPEAKER
FREQUENCY RESPONSE 83Hz-22kHz +/- 3dB
SENSITIVITY 94dB
IMPEDANCE 8 ohm @ 2.83V/1 meter (8 ohm bypass)
CROSSOVER FREQUENCY 3kHz 12dB octave
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER .75” (1.9cm) aluminum dome tweeter with a 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER 5.25” (13.3cm) long-throw IMG woofer
TERMINALS Front bafe mounted accessed via rear pull-through
DIMENSIONS 11.0”(27.9cm) H x 7.0”(17.8cm) W x 6.1”(15.5cm) D
MOUNTING DEPTH 6.9”(17.5cm) D
WEIGHT 6.85 lbs. (3.1kg)
FINISH Black or White enclosure and grille
TAP SETTINGS
70V – 30W, 15W, 7W, 3.75W
100V – 30W, 15W, 7W, 3.75W
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 7 kg
15.43 lbs
PART NUMBER
1016298 (Black)
1060388 (White)
NOTES:
KLIPSCH | CI BUYERS GUIDE 2019-2020
51
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
COMMMERCIAL ALL-WEATHER SERIES
These compact full-range loudspeakers deliver big time sound and worry free performance. Designed for
distributed audio applications, these amazing little speakers are equally at home in outdoor or indoor
background music and paging applications in both commercial and recreational environments.
• Built-in 60-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
• Very high sensitivity and power handling
• 90˚ x 90˚ Tractrix
®
Horn tweeter for clean,
clear highs
• Supplied with C-style mounting bracket
and stainless steel hardware
• Built-in 60-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Very high sensitivity and power handling
• 6.5” IMG cone woofer and a 1” Titanium
dome tweeter
• 90˚ x 90˚ Tractrix
®
Horn tweeter for clean,
clear highs
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
CA-650T ALL-PURPOSE 6.5” 2-WAY SPEAKER
FREQUENCY RESPONSE 69Hz-20kHz +/- 4dB
SENSITIVITY 95dB @ 2.83V/1 meter
IMPEDANCE 8 ohm
CROSSOVER FREQUENCY 1.9kHz 12dB octave high-pass / 12dB octave low-pass
POWER HANDLING 85W
HIGH FREQUENCY DRIVER K-150-A 1” titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1182-A 6.5” woofer with IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 9.5”(24.13cm) H x 15.2”(38.56cm) W x 10.875”(27.62cm) D
WEIGHT 13 lbs. (5.9kg)
FINISH Black or White (paintable)
TAP SETTINGS
70V – 60W, 30W, 15W, 7.5W, 3.75W
100V – 60W, 30W, 15W, 7.5W
CA-800T ALL-PURPOSE 8” 2-WAY SPEAKER
FREQUENCY RESPONSE 64Hz-17.5kHz +/- 4dB
SENSITIVITY 96dB @ 2.83V/1 meter
IMPEDANCE 8 ohm
CROSSOVER FREQUENCY 1.9kHz 12dB octave high-pass / 12dB octave low-pass
POWER HANDLING 100W
HIGH FREQUENCY DRIVER K-150-A 1” titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1183-A 8” woofer with IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 11.125”(28.26cm) H x 156.375”(41.53cm) W x 12.31”(31.27cm) D
WEIGHT 18 lbs. (8.16kg)
FINISH Black or White (paintable)
TAP SETTINGS
70V – 60W, 30W, 15W, 7.5W, 3.75W
100V – 60W, 30W, 15W, 7.5W, 3.75W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 7.1 kg
15.6 lbs
PART NUMBER
097148000001 (Black)
097092000001 (White)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9.4 kg
20.7 lbs
PART NUMBER
097150000001 (Black)
097097000001 (White)
NOTES:
NOTES:
52

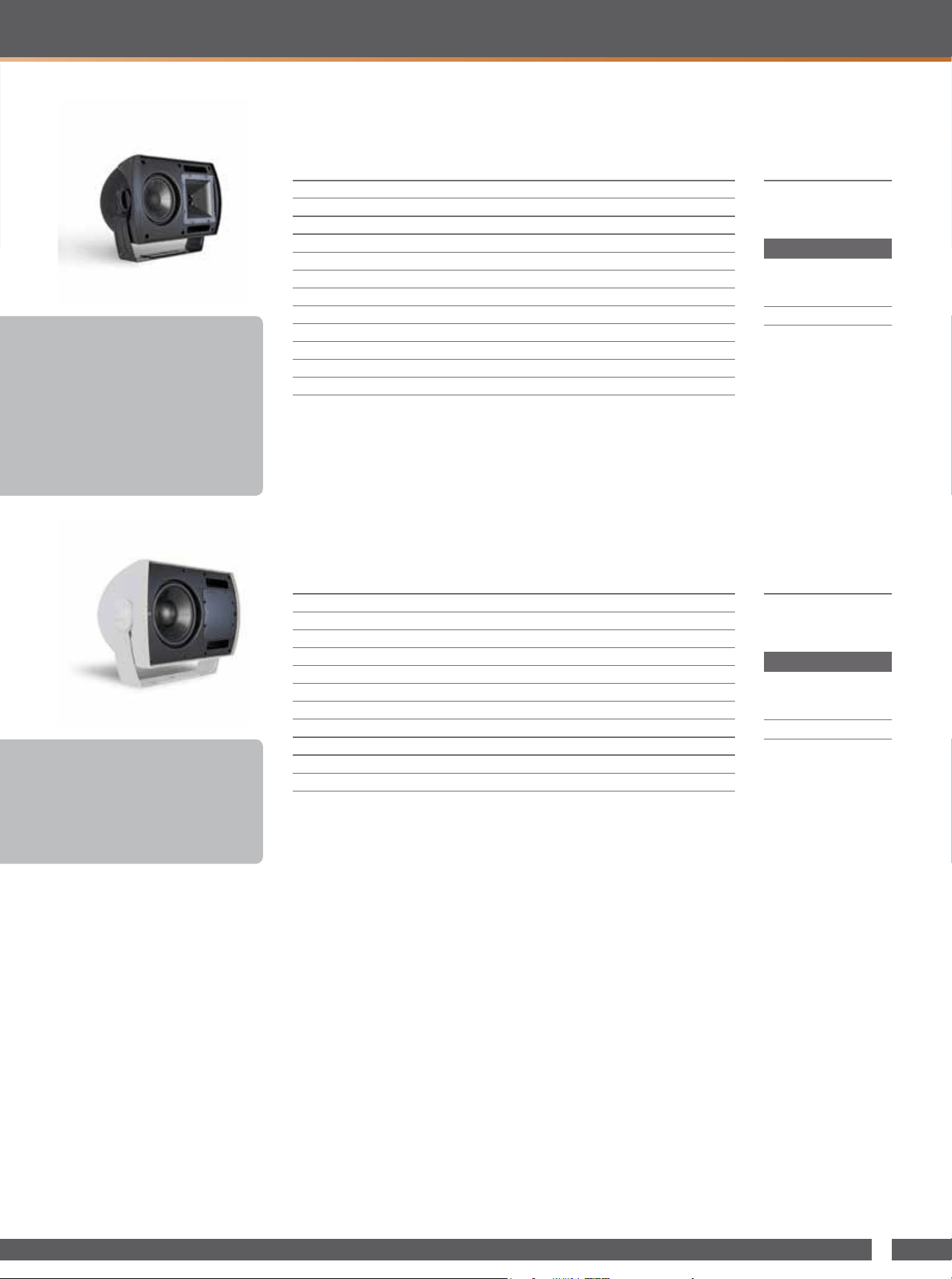

COMMERCIAL SPEAKERS
• Built-in 30-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Very high sensitivity and power handling
• 90˚ x 90˚ Tractrix
®
Horn tweeter for clean,
clear highs
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
• Built-in 60-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
CA-800-TSW ALL-PURPOSE 8” SUBWOOFER
FREQUENCY RESPONSE 51Hz-135kHz +/- 4dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 6 ohm
CROSSOVER FREQUENCY 150Hz 12dB octave
POWER HANDLING 150W
LOW FREQUENCY DRIVER K-1185-A 8” woofer with IMG cone
INPUT CONNECTORS 4 point terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 11.1”(28.3cm) H x 16.4”(41.5cm) W x 12.3”(31.3cm) D
WEIGHT 20 lbs. (9.07kg)
FINISH Black or White (paintable)
TAP SETTINGS
70V – 60W, 30W, 15W, 7.5W, 3.75W
100V – 60W, 30W, 15W, 7.5W, 3.75W
CA-525T ALL-PURPOSE 5.25” 2-WAY SPEAKER
FREQUENCY RESPONSE 75Hz-15kHz +/- 4dB
SENSITIVITY 94dB @ 2.83V/1 meter
IMPEDANCE 6 ohm
CROSSOVER FREQUENCY 2.9kHz 18dB octave high-pass / 12dB octave low-pass
POWER HANDLING 75W
HIGH FREQUENCY DRIVER K-150-A 1” titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1181-A 5.25” woofer with IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 8.125”(20.64cm) H x 12”(30.48cm) W x 8.875”(22.54cm) D
WEIGHT 9 lbs. (4.1kg)
FINISH Black or White (paintable)
TAP SETTINGS
70V – 30W, 15W, 7.5W, 3.75W, 1.8W
100V – 30W, 15W, 7.5W, 3.75W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10.7 kg
23.6 lbs
PART NUMBER
097149000001 (Black)
097096000001 (White)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 5 kg
11 lbs
PART NUMBER
097147000001 (Black)
097087000001 (White)
NOTES:
NOTES:
WE NEVER, EVER STOP INNOVATING
For 70 years Klipsch Group has designed and engineered its products
in-house with some of the most talented, skilled and passionate
people in the industry - starting with our founder, Paul W. Klipsch,
in a tin shed in Hope, Arkansas. Today, our advanced acoustic
research and development continues at our state-of-the-art facility
in Indianapolis, Indiana. The world-class Klipsch Design & Technology
Center is home to some of the most brilliant minds in consumer
electronics and some of the most legendary products the industry
has ever heard. We continue to innovate, honoring the principals and
ideals of PWK, reaching ever-farther towards that perfect sound.
VISIT KLIPSCH.COM/CUSTOM
FOLLOW US
©2017 Klipsch Group, Inc. Klipsch, Keepers of the sound, Tractrix, Klipsch Gallery, Klipschorn, La Scala, Heresy, Groove and Stadium
are trademarks of Klipsch Group, Inc. registered in the U.S. and other countries. a wholly owned subsidiary of voxx international
corporation.
The
Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth Sig, Inc. and any use of such marks by
Klipsch Group, Inc. is under license.
The AptX
tm
software is copyright CSR PLC or its group companies. All rights reserved. the APTX
tm
mark is a trademark of CSR PLC or one of its companies and may be registered in one or more jurisdictions. The terms HDMI and HDMI
High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI licensing LLC in the United
States and other countries. Dolby, Pro Logic, Dolby Atmos and the Double-D symbol are registered trademarks of Dolby Laboratories.
For DTS patents, see HTTP://PATENTS.DTS.COM. Manufactured under license from DTS Licensing Limited. DTS, the symbol, & DTS and the
symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All rights reserved
KLIPSCH OFFERS FREE DESIGN SERVICES
You need to make the best impression, from the initial job quote through the completed installation. We can help you choose the best
Klipsch speakers and components for the application and help design a system that thoroughly impresses.
Send your plans, questions and concepts to us at: PROSYSTEMDESIGN@KLIPSCH.COM
KLIPSCHDEALER.COM
Same day shipping
Place orders and pay by credit card
Real-time inventory levels, order history and account info
Special deals
GO TO KLIPSCHDEALER.COM TO GET SIGNED UP
DEALER RESOURCES
Product Marketing Assets - klipsch.com/share
Product Launch Assets - klipsch.com/channel
Firmware - klipsch.com/rmware
Support - suppor[email protected]
Orders - [email protected]
Marketing - [email protected]
ADDRESS.AFMG.EUD-TOOLS.COM PORTAL.IO
CI INTEGRATION PARTNERS
v01 - 190809
