Introduction
_ Dear customer, _
_ Thank you for choosing the Dynaudio Evidence Platinum. _
In the Evidence Platinum, you can rest assured in the fact that you now own one of the finest
loudspeakers available today; a speaker featuring the very latest Dynaudio technologies which
has been meticulously crafted in-house to the highest standard of quality by Dynaudio in
Skanderborg, Denmark.
When Dynaudio was founded over 35 years ago, we set out to create loudspeakers that
performed on a much higher level than the loudspeakers available at the time – Dynaudio
wanted to create loudspeakers that would reproduce music naturally and authentically. Due to
the fact that technologies which matched our requirements were lacking, we consequently
developed our own unique Dynaudio bass drivers, tweeters and cabinets, surpassing all
existing industry standards and allowing us to realize our ambitious goals.
Over the years, Dynaudio has always stayed true to these original roots, while developing the company‘s core
technologies even further to create many exceptional loudspeaker models. In the Evidence Platinum we have now
improved and perfected this technological platform to the highest degree, which combined with the innovative
DDC technology will provide you a level of sound quality you’ve never before experienced in your listening room.
I wish you many years of enjoying the Evidence Platinum.
Wilfried Ehrenholz, Founder and CEO of Dynaudio
About the Evidence Platinum
The Dynaudio Evidence Platinum is a unique loudspeaker realizing new standards in sound performance, with
unmatched musical purity and unequalled sound staging. The Evidence Platinum was first shown in May 2012 as
a Concept Study, improving upon the original Evidence Temptation and Evidence Master by adding experience
and knowledge gained when creating Dynaudio’s Consequence Ultimate Edition and Confidence Signature
loudspeakers.
Handcrafted to the highest standards by Dynaudio in Skanderborg, Denmark, the Evidence Platinum combines

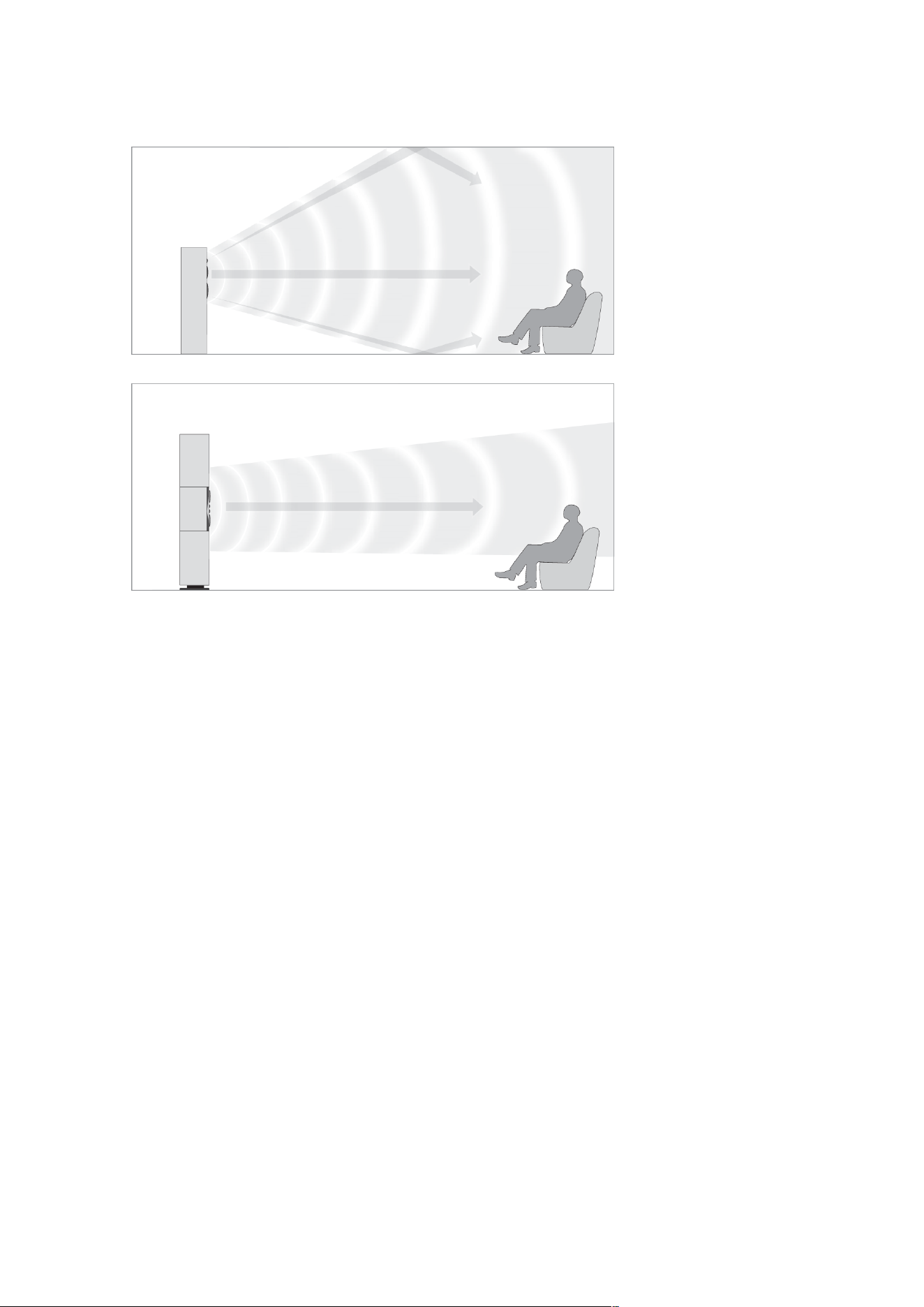

the innovative Dynaudio Directivity Control technology (DDC) with the company‘s most advanced drive units,
select crossover components and the highest level of fine-tuning. In each speaker, newly developed woofers and
midrange drivers achieve a superior sound performance across the whole bass and midrange. Dynamics and
accuracy in the lower frequencies are further enhanced by using multiple bass woofers working in parallel, oering
the same large diaphragm surface of one conventional woofer, but taking advantage of multiple voice coil/magnet
assemblies.
For the higher frequencies Dynaudio’s best coated soft dome tweeter, the renowned Esotar2, is incorporated in
an Evidence model for the first time. In the Evidence Platinum the latest Esotar2 version including new Precision
Coating is used. In each speaker, two Esotar2 as well as two dedicated midrange drive units are used in order to
implement the DDC technology.
The Dynaudio Evidence models were always bringing authentic sound quality to the listener. With the Evidence
Platinum, Dynaudio brings one closer than ever to the music.
Technical highlights of the Evidence Platinum
▪ Esotar2 tweeters
Introduction 5
▪ Evidence Platinum 15cm MSP midrange drivers
▪ Evidence Platinum 18cm MSP woofers (18W75)
▪ Highest-grade Crossover with select components on glassfibre-reinforced PCB
▪ WBT NextGen™ connectors with gold-plated pure copper conductors
▪ Internal wiring with select oxygen-free copper cables
▪ Select metal film resistors in the crossover’s tweeter section
▪ Advanced DDC Technology to reduce room reflections
▪ Ultra-solid, resonance-damping 40mm black aluminium front bae
▪ Reinforced cabinet finished in the finest veneers and lacquers
▪ Reinforced base plate with larger footprint for improved stability
Register your Evidence Platinum
For full warranty and in order to allow the best service and support from Dynaudio, please register your new
Evidence Platinum.
In this manual you will find a credit-card sized Owners Club card and a Warranty Guideline printout.
Please fill in the form and register online. You may register your speakers online at www.register.dynaudio.com or
contact your dealer for assistance. Your contact details will be kept within Dynaudio and will only be used in the
case of support or service for your loudspeaker.
Once you register your Evidence Platinum online, Dynaudio will extend the manufacturer’s warranty on your
loudspeakers to a period of 10 years total (from original date of purchase). Rest assured that Dynaudio will never
forward your personal information or details to un-related third parties.
The warranty only covers faults or defects in material and production. Damage caused as a result of abuse,
misuse or defective electronics is not covered by the warranty. All warranty claims must be accompanied by a
copy of the original purchase invoice and warranties are only valid in the country or market of original origin or
distribution.
Should warranty service be required, it must be arranged for in the country of purchase by an authorized
Dynaudio dealer.
About this guide
This owner’s manual is an important part of your Evidence Platinum and will guide you through unpacking,
mounting, placing and connecting your new loudspeaker correctly. Please read carefully and follow all advice step
by step in order to achieve the best from your Evidence Platinum. If anything is not explained clearly enough
please do not hesitate to contact Dynaudio or your Dynaudio Platinum dealer.
CAUTION
The Caution sign is intended to alert you and indicates a potentially hazardous situation which, if not avoided,
could result in minor or moderate injury or damage to your equipment.
6 Evidence User manual
Note
In a Note, additional information is provided which is important to fully understand the loudspeaker, how to
operate it, and improve the performance.
Introduction 7
Unpacking the Evidence Platinum
When unpacking and positioning the Evidence Platinum for the first time, please makes sure to open, unpack and
mount the loudspeakers exactly according to the following steps:
Chapter 2: Unpacking the base plinths and the loudspeakers.
Chapter 3: Mounting the plinths and adjustable feet to the loudspeakers.
Only thereafter can you continue with Chapter 4, fully unpacking and positioning the loudspeakers.
Note
We strongly recommend that you keep the Evidence Platinum crates and internal packaging for future use, be
it for the safe transport of the loudspeaker during a move, or in the event that service or support should ever
be required.
CAUTION
HEAVY PARTS
Unpacking the Evidence Platinum without assistance may lead to personal injuries or damage to your equipment.
▪ Consult your trained Dynaudio dealer for assistance.
▪ It is recommended that two people unpack the loudspeakers.
8 Evidence User manual
Unpacking the Evidence Platinum base plinths

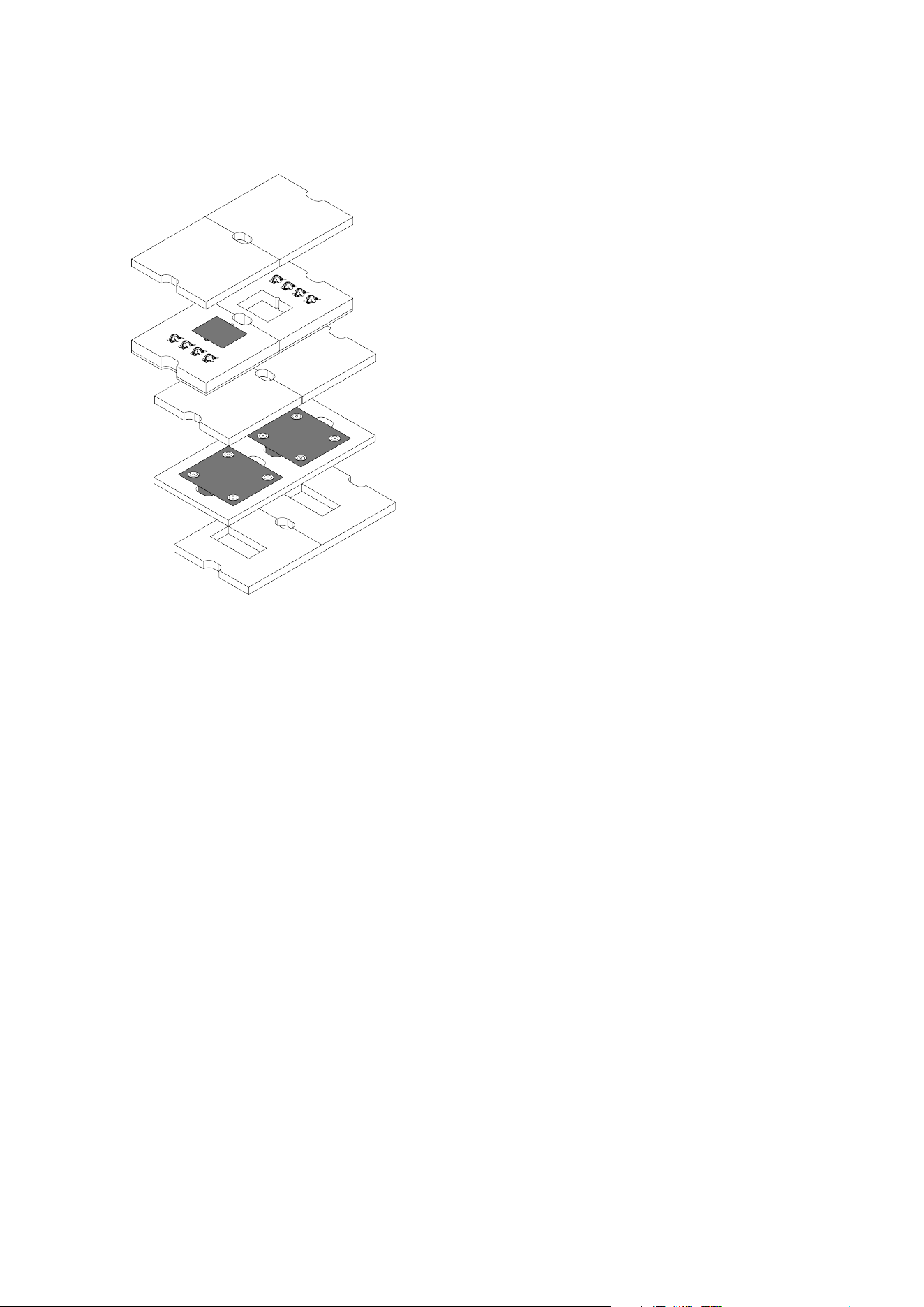

Open the packaging box marked “No. 1” first. This box contains:
▪ This manual including Owners Club card
▪ 1x Hex Key 4mm (for mounting the base plinth)
▪ 1x Hex Key 3mm (for mounting and adjusting the spike feet)
▪ 1x Pair of white gloves
▪ 1x Cleaning cloth
▪ 1x Multilingual manual poster
▪ 1x Warranty card
▪ 1x Lifter Pad (for bringing the loudspeakers upright)
▪ 16x Metal screws (for axing the base plinth)
▪ 8x Three-Spike Platinum Feet (optional)
▪ 2x Loudspeaker base plinth
Unpacking the Evidence Platinum 9
Unpacking the Evidence Platinum loudspeakers

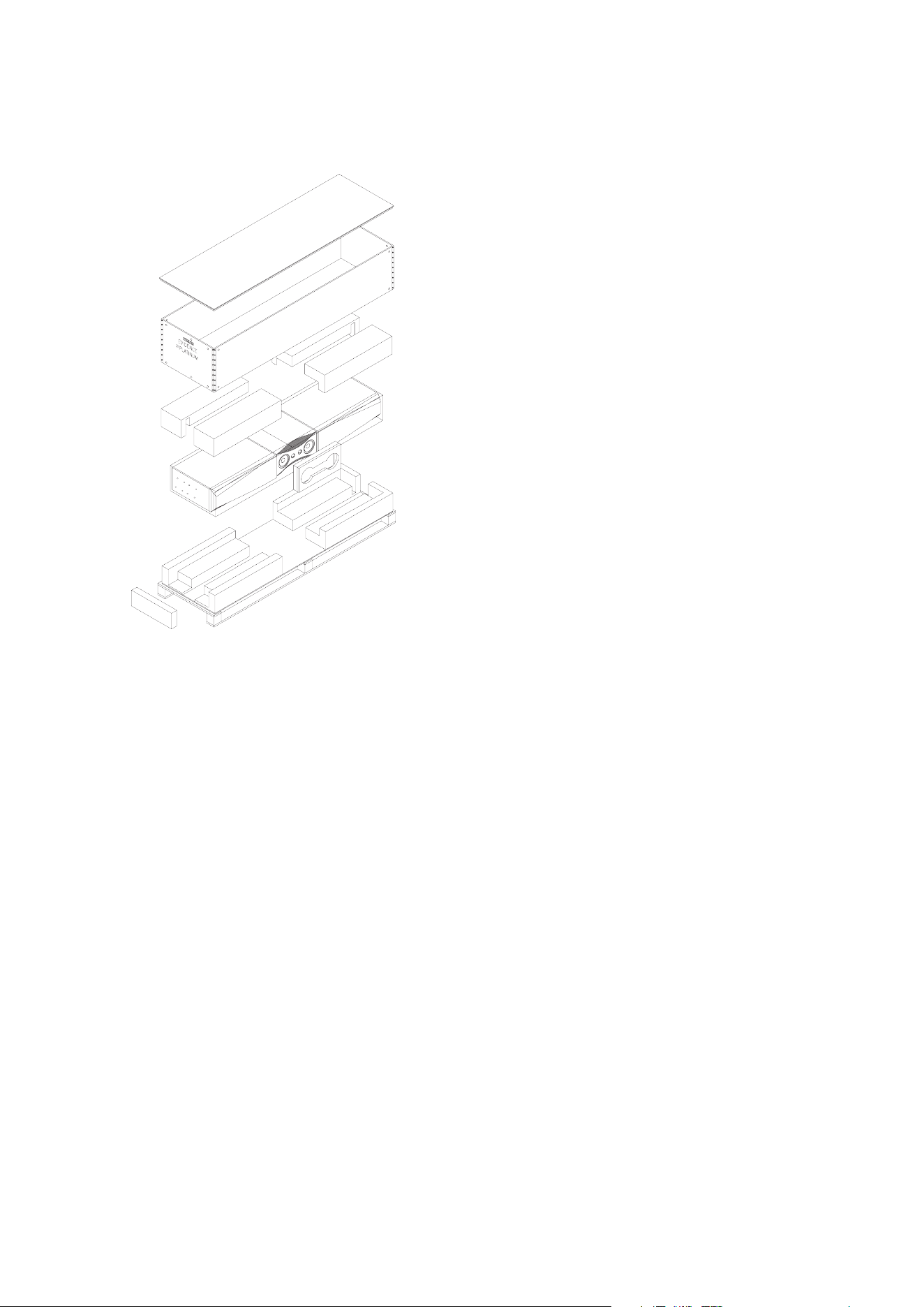

Open the packaging boxes marked “No. 2” and prepare loudspeakers for plinth mounting.
1. Unscrew and open the top cover and lift out the corner paddings.
2. Unscrew and lift up the sidewall frame.
3. Unfold the white cloth of the loudspeaker to each side. Do not unwrap completely.
4. Find the loudspeaker’s underside (Underside has 8 screw holes drilled into the cabinet).
5. Remove the padding in front of the loudspeaker’s underside.
10 Evidence User manual
Mounting the base plinth
Mount the base plinth to the speaker

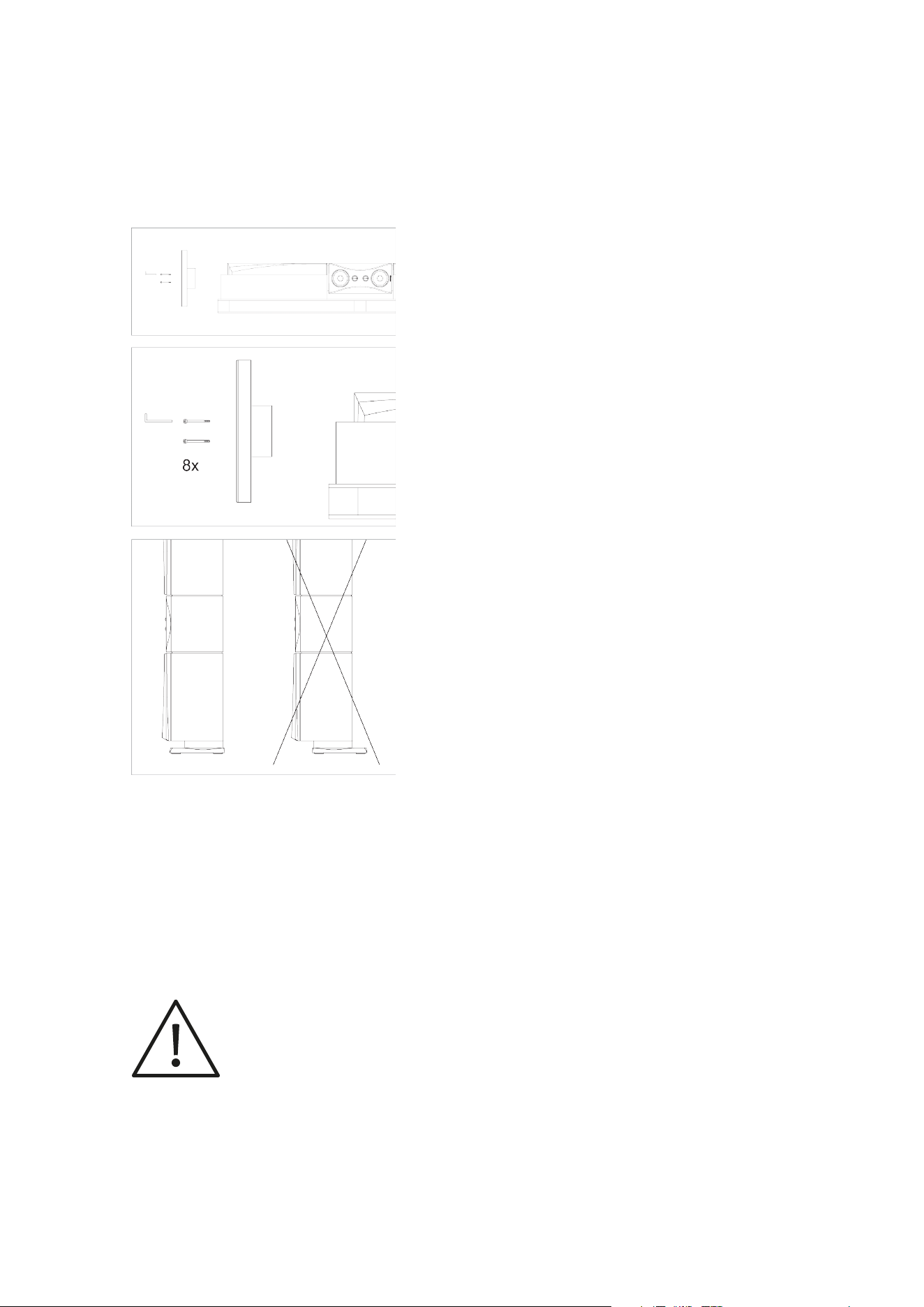

1. Lift out one plinth. It is recommended that two people hold the plinth.
2. Hold up the plinth in front of the loudspeaker’s underside, with the 8 screw holes lined up. Make sure that the plinth’s
rounded front matches the loudspeaker’s front.
3. With the holes aligned, insert the 8 screws and hand-tighten them with the Hex key 4mm.
4. When all 8 screws are inserted, tighten all screws with Hex key 4mm.
5. Repeat the above process with the second loudspeaker.
CAUTION
HEAVY PARTS
Mounting the base plinth 11
Unpacking the Evidence Platinum without assistance may lead to personal injuries or damage to your equipment.
▪ Consult your trained Dynaudio dealer for assistance.
▪ It is recommended that two people unpack the loudspeakers.
Changing the plinth feet
The Evidence Platinum is delivered with two dierent types of feet.
The loudspeaker comes with the Universal Platinum Feet mounted. This type has an anti-slide, resonance-
minimizing rubber ring underneath its lower disc. It is intended for hard floors such as marble, tile, wood, stone or
any other similar material. It may also be used on any other floor material.
Universal Platinum Foot
The loudspeaker also comes with additional Three-Spike Platinum Feet included in Box 1. This type oers the
firmest stand on soft floors such as carpet; the spikes are intended to pierce through the carpet and make
contact with the harder floor under- neath. It may also be used on hardwood floors but it will likely leave visible
marks or scratches.
Alternative Three-Spike disc
Both feet types have an internal hardened spike on hardened brass disc assembly. Release the internal spike fully
only after the loudspeaker has been placed at its final position, see next chapter.
1. Unscrew the 3 flat-head hex screws around the brass middle (see picture).
2. Lift o the disc.
3. Exchange with the alternative disc in place (rubber ring disc or spike disc)
4. Screw and tighten the 3 flat-head screws around the brass middle.
5. Repeat with all 4 plinth feet per loudspeaker.
CAUTION
SHARP POINTS
Spikes with sharp points. The spikes may cause injuries and damage sensitive surfaces like hardwood flooring,
tile or carpet. Be careful when handling the loudspeakers. Do not shift or pull the loudspeakers without lifting them
up from the floor.
12 Evidence User manual
Lifting the loudspeaker
Lifting the loudspeaker with Lifter Pad
For the next step, Dynaudio provides the Loudspeaker Lifter Pad inside the packaging box marked No. 1.
Note
When bringing the loudspeaker upright, this Lifter Pad MUST be used, otherwise the plinth feet may be
damaged. Use the Lifter Pad every time when tilting the loudspeaker.
1. Take out the Lifter Pad and place in front of the mounted loudspeaker plinth.
2. Shift the loudspeaker outwards by sliding it together with its paddings.
3. Carefully tilt the loudspeaker by rolling the plinth’s corner over the Lifter Pad. Two people are recommended for lifting the
loudspeaker upright.
4. When the loudspeaker stand upright, the Lifter Pad can be removed by slightly tilting the loudspeaker to one side.
5. Once the loudspeaker has been placed at its desired position, release out the internal spike in each foot by inserting Hex
key 3 mm through the top opening . As soon as the plinth is lifted up slightly, stop turning the spike. Repeat with all 4 feet
until the loudspeaker is level.
6. Repeat with second loudspeaker.
CAUTION
HEAVY PARTS
Unpacking the Evidence Platinum without assistance may lead to personal injuries or damage to your equipment.
Lifting the loudspeaker 13
▪ Consult your trained Dynaudio dealer for assistance.
▪ It is recommended that two people unpack the loudspeakers.
14 Evidence User manual
Positioning the Loudspeaker
Loudspeaker placement
A≤B
BB
A

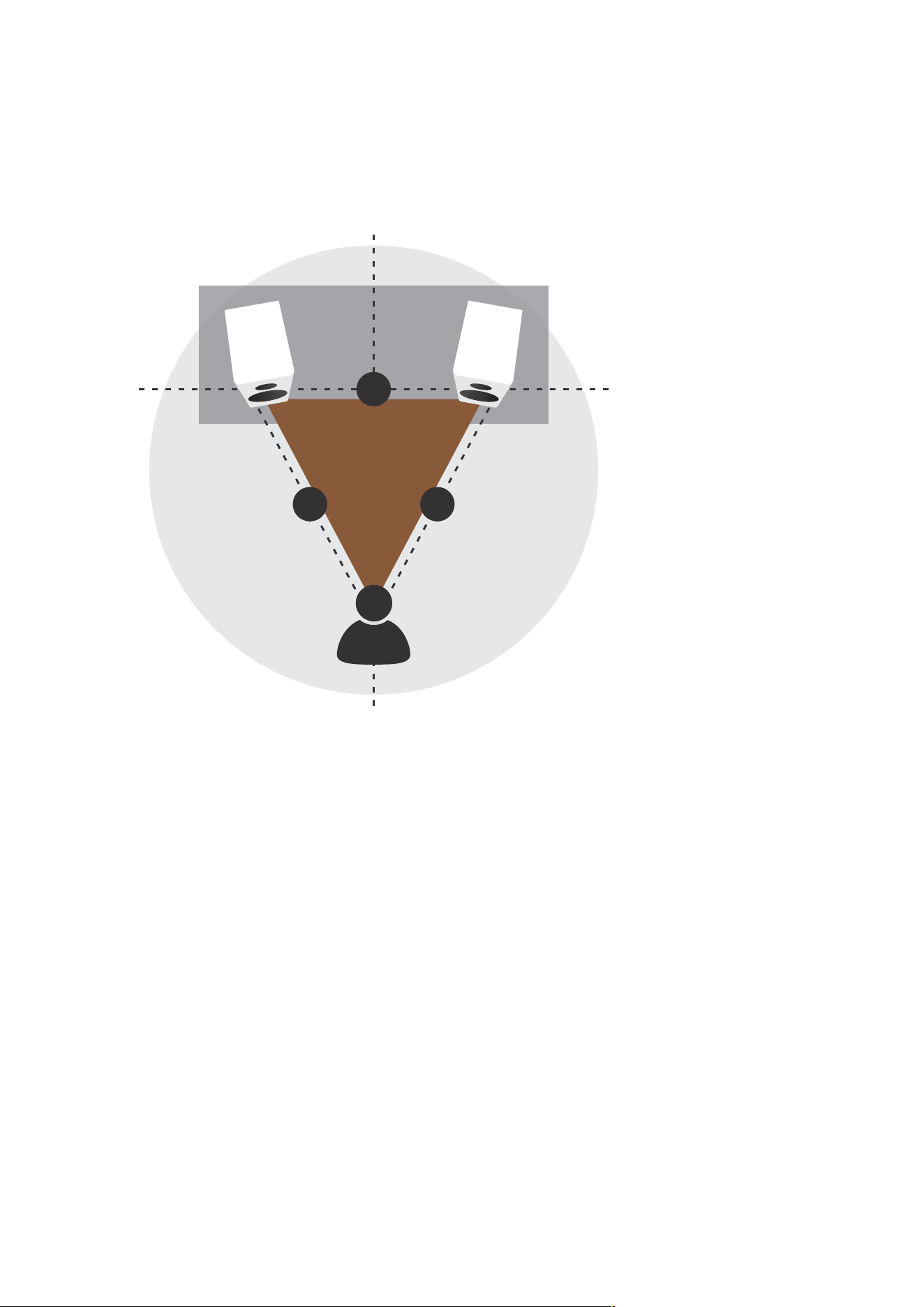

The starting point for any setup will be to create a triangle between each loudspeaker and the listening seat. Each
side of the triangle should have about the same distance. From this starting point the best possible sound staging
and sound balance can be found.
Distance between loudspeakers
Setting the distance between the speakers is a trade-o between a wide sound and a precise centre image. The
farther apart the speakers (with the same listening position) the wider the sound stage, however the centre image
weakens. Achieve the best pos- sible balance for your listening taste.
Distance between loudspeaker and the rear wall
The distance to the rear wall should be at least 0.5 meters. The rear wall reflects the low frequency sound into the
room making the sound more bass-heavy with more slam and changes the tonal balance of the sound. The
nearer the rear wall the more bass. But this will also colour the sound and make the room impose the sound even
further in the bass region. Move the speakers back and forth to achieve the right tonal balance (with the listening
seat at the same position). Moving the speaker further into the room also improves the depth of the soundstage.
Achieve the right trade-o between the tonal balance and the depth of the soundstage.
Position of the listening point
The distance between the speakers and the listening position, also called the sweet spot, should be at least 3
meters for the sound from the woofers, midranges and tweet- ers to integrate. Be careful not to have the listening
Positioning the Loudspeaker 15
position right next to a wall. In the best listening position everything snaps into focus, the soundstage is precise
and spacious and the tonal balance is just right. Move the listening position back and forth to achieve this.
Angling of the speakers (toe-in)
Toe-in is angling the loudspeaker inwards towards the listener. It is important that the angle of toe-in is the same
for each speaker. There is no rule on exactly how much toe- in the speakers should be at, but it greatly depends
on the speakers’ position, the room acoustics and personal taste. Increasing the toe-in will increase the amount of
direct sound towards the listener. This means the soundstage will become more precise and the tonal balance
more bright. Reducing toe-in can create a more spacious soundstage and a warmer tonal balance. One may use
toe-in to achieve the desired balance in respect to the above. It is also possible to adjust the tilt-rake of the
speaker by raising the speaker with the spikes more in the back or in the front. This might be necessary if you sit
very low or very high in your listening position, for example.
Positioning of multi-channel and home theatre loudspeakers
When setting up a home theatre system, all loudspeakers should create a realistic soundstage with similar sound
characteristics on each channel. It is therefore important that any speaker used in a multi-channel setup should
oer a similar high level of quality.
Consult your Dynaudio dealer for possibilities to create a multi-channel system with your Evidence Platinum.
16 Evidence User manual
Connecting the Loudspeakers
Choice of cable connectors
Binding posts at rear of cabinet
The high quality, gold plated WBT NextGen™ binding posts can accommodate dierent connection systems:
▪ 4-mm banana plugs: The plug pins can be put directly into the binding post without any tightening necessary.
▪ 6 mm cable spades: Cable spades can be connected by un-tightening the binding posts, inserting the spade into the
opening, and securing the spade by tightening the posts.
▪ Bare wires: Bare wires can be connected by un-tightening the binding posts and placing the cable into the binding Post
openings and tightening the posts. Dynaudio recommends using banana plugs or cable spades.
Connecting the loudspeakers to your amplifier
Before connecting the loudspeakers to your amplifier, switch o the amplifier completely.
Step 1:
Connect a two-pole loudspeaker cable to the binding posts of the LEFT speaker, located at rear of the Cabinet.
Connect one cable lead to the red (+) post, and the other cable lead to the white (–) post.
Connect a two-pole loudspeaker cable to the binding posts of the RIGHT speaker, located at rear of the Cabinet.
Connect one cable lead to the red (+) post, and the other cable lead to the white (–) post.
Connecting the Loudspeakers 17
Step 2:
SPEAKERS
R L
Amplifier loudspeaker outputs (example)
With your amplifier switched o, connect the other end of the LEFT loudspeaker cable to the LEFT loudspeaker
outputs of the amp.
Take care to ensure the correct polarity: Choose the red (+) output and white or black (–) output according to the
loudspeaker binding posts.
Keeping the amplifier switched o, connect the other end of the RIGHT loudspeaker cable to the RIGHT
loudspeaker outputs of the amp.
Take care to ensure correct polarity: Choose the red (+) output and white or black (–) output according to the
loudspeaker binding posts.
CAUTION
Ensure that the positive and negative cables (+/-) do not make contact with each other. Otherwise your amplifier
or loudspeaker may be damaged.
Note
Ensure that the connectors have a clean contact area and that the contact is tight. Tighten the posts and
check the contact regularly to make sure that it hasn’t loosened over time.
Bi-wiring/bi-amping is not possible with the Evidence Platinum. Every Dynaudio loud- speaker features a carefully
fine-tuned cross-over, optimised using select parts and an advanced circuitry to achieve a truly balanced and
smooth frequency response as well as a correct phase response. Therefore, dividing the frequency sections
through bi-wiring or bi-amping is neither recommended nor necessary.
18 Evidence User manual
Running-in the loudspeakers
After connecting the loudspeakers for the first time Dynaudio advises that you run-in the loudspeakers prior to any
critical listening. The moving parts of this newly-manufactured loudspeaker have been acoustically checked after
production, but nevertheless are not as flexible as they need to be for optimum sound quality to be realised.
A newly unpacked Dynaudio loudspeaker therefore requires up to several weeks running/playing to reach its
optimum performance capability. After that period, a couple of minutes before every listening session will be
helpful to “warm up” the loudspeakers.
CAUTION
HIGH SOUND PRESSURE LEVELS
Listening to high volume levels may harm your hearing. To avoid auditory eects, do not listen to high sound
pressure levels over a longer period of time. To avoid too high output signals, check the volume level before
switching your amplifier on.
Running-in the loudspeakers 19
Improving the Sound Performance
Choosing the right amplifier
Due to the advanced loudspeaker design and the excellent technology the Evidence Platinum can be driven with
a wide range of amplifiers. With a high quality amplifier, delivering clean and undistorted signals, the speaker can
achieve very high volume levels without any compromises in sound quality. However, attention must be given to
amplifiers with very low power and adjustable tone controls or loudness switches. These types may soon
overreach their own performance limits and may send distorted output signals to the speakers, compromising
even the highest quality loudspeaker. Any dam- age caused under such circumstances is not covered by the
Dynaudio warranty and is easily avoided in the first place by consulting your Dynaudio dealer for advice regarding
the choice of amplifier, or you may contact Dynaudio.
CAUTION
DISTORTED OR TOO HIGH OUTPUT SIGNALS
Distorted output signals from too weak, defective or overloaded amplifiers may damage the loudspeakers. Use
high quality amplifiers only and run loudspeakers and amplifiers within specified power ratings. To avoid too high
output signals, check volume level before switching your amplifier on.
Choosing the right speaker cable
The choice of loudspeaker cable may improve the sound quality of your system. Dynaudio loudspeakers are
designed to be very neutral and thus are not especially suited to any particular cable type, brand, diameter, or
conductor material. In general, quality cable products will yield a quality result. The choice of cable is as much a
factor of match- ing the cable to the entire audio system, especially the amplifier, as well as matching your desired
sound quality. Please consult your Dynaudio dealer for information about recommended loudspeaker cables that
will suit both your electronics and the Dynaudio Evidence Platinum.
Choosing the right music
The Evidence Platinum was designed to reproduce the music faithfully and authentically to the original, and as
good as the source, amplifier and cables allow. There is no limit and no focus on any particular kind of music.
Getting the best sound from your room
No HiFi equipment, no matter how advanced or expensive, will sound better than the room allows it to. Every
room has its own room acoustics and a certain sound character and will impose it on the sound from your
loudspeaker. An excellent room can make a mediocre system sound great, but a poor room can make a state of
the art system sound mediocre. Make sure to make the most of you room to achieve optimum performance. Here
are some general guidelines of how to improve the sound of your room significantly. As no two rooms are room
identical, be sure to consult your Dynaudio dealer to have a specific take on your particular situation.
Improving your listening room
The sound quality of any loudspeaker is influenced by the furniture, wall materials and other objects in the listening
room. For example, large rooms without much furniture and many clean, hard wall surfaces can often exhibit a
bright and diuse sound with diverse echoing frequencies. A room with thick carpet, curtains and soft furniture
surfaces will usually oer a slightly warmer, darker and less lively sound.
Dynaudio speakers have been developed to deliver the best results in normal living room acoustics. This means
that room is not too damped. Achieving this can range from simply putting a rug between the listening position
and the speakers to using dedicated bass traps and acoustic control devices.
High and mid frequencies
Start out by talking and listen to your voice. Does it sound perfectly normal? Or is there a slight echo to the voice?
20 Evidence User manual
Clap your hands in intervals. Is there echo to the clap? The goal is to have your voice sound perfectly natural and
undistorted. When you clap your hand you should hear a soft decay of the clap.
If you hear that your voice sound distorted and the clap is followed by a hard echo (also called flutter-echo) you
need to address this problem. This flutter echo is caused by untreated parallel surfaces. The clap will echo back
and forth while it rapidly or slowly decays. Imagine how your room would sound with no furniture and carpets.
Only bare walls. Then you will have flutter echo in a very imposing way. This would create a harsh and diuse
sound from your system.
With the clapping of your hand you can locate where the echo occurs. Depending upon where it is, you can put a
carpet/rug on the floor, put up a curtain or add furniture, or move furniture to fill reflective spaces. For example,
even bookshelves filled with books or magazines will absorb and diuse some reflections. Many room acoustics
specialists also oer damping panels and damping pads which can be placed at walls, corners and ceilings. Be
careful not to add too much damping to the room as this may make the room sound dull, un-dynamic and lifeless.
Find the right balance by addressing issues with your room acoustics step-by-step.
Lower frequencies
Thick and boomy bass can not only colour the sound but also be very distracting from the music itself.
Experimenting with loudspeaker placement and the listening position can have a dramatic eect on low frequency
problems.
Try out various side wall and rear wall distances. Small changes may result in audible sound eects. If possible,
avoid the loudspeaker having equal distance to its side and rear walls. If thick and boom-y bass persists even
after careful loudspeaker placement, you may want to consider using dedicated bass-traps. These devices
absorb low frequencies rather than reflecting them back into the room. Consult your Dynaudio dealer for room
acoustic accessories.
Removing the front grille covers
The grille is acoustically optimised, but the highest sound quality levels will be attained without any grille covers in
place during critical listening. To remove the grille, gently pull the grille at all corners straight away from the front. To
fit the grille, line up the tabs with the corresponding front bae inserts and gently push the grille in at all corners.
Better sound quality in your own listening room: DDC
Dynaudio has created a technology that eectively reduces the reflections in your own listening room: DDC,
Dynaudio Directivity Control. The Evidence Platinum is equipped with DDC.
The best recording and mastering studios worldwide are using Dynaudio Professional monitor speakers. Through
years of experience in these studios, it became clear that many recordings are of superb quality, but in the
listening room acoustics at home the potential of these recordings could not be truly experienced. In particular,
reflections from floor and ceiling boundaries interfere with a faithful, realistic sonic reproduction. In many
surroundings not even the best loudspeaker technology could unveil the true sonic potential.
DDC consists of a vertical symmetrical drive unit array and an elaborate crossover topology which leads to a
controlled sound radiation. With two tweeters, two mid-range drivers and four woofers per loudspeaker, each
drive unit complements its counterpart in frequency response and phase relationship in such a way that a carefully
defined sound radiation characteristic is achieved. The energy radiated to the room’s floor and ceiling is reduced
by approximately 75 percent. This makes the Evidence Platinum far less dependent on the room and much less
critical in positioning as compared to any other loudspeaker available.
Improving the Sound Performance 21
Dynaudio Directivity Control
22 Evidence User manual
Care and Maintenance
Dynaudio loudspeakers require no special treatment apart from the kind of careful handling you would normally
apply to any other precious product in your home.
To maintain the aesthetic quality of the loudspeakers for the long term, placing such in very warm, very cold, or
very humid environments should be avoided.
Please note the following care and maintenance tips. By taking care of your loudspeakers, you will preserve the
finish and build quality for many years.
Note
Switch o all components of your system when cleaning any of these components.
CAUTION
AGGRESSIVE CLEANING FLUIDS
All-in-one cleaning materials, silicone-based cleaning fluids or special furniture polishes can contain unknown
aggressive chemical substances which may damage the cabinet surface or other speaker parts.
Cabinet
Clean the cabinet and other plain parts with a soft dry or slightly damp cloth only. Direct sunlight or excessive
brightness can aect the colour of any natural wood veneer (the structural integrity of the cabinet will not be
aected).
Tweeters
Avoid touching the tweeter domes as any change of their shape may have an impact on sound quality. A few dust
particles on the dome will not aect the tweeter’s performance.
Woofers and Midrange drivers
Remove dust on the woofer diaphragms with a fine, soft furniture brush.
Connectors
Make sure the connection between loudspeaker terminal and cable connector is always tight. After some time it
may be useful to clean the contact area with special contact cleaner. Please ask your Dynaudio dealer for
recommended cleaning products.
Grille Covers
Remove dust on the grille cloth covers with a fine furniture brush. The cloth grille is included and can be axed to
the cabinet to help protect the drivers from dust and any other influences. To remove the grille, gently pull the grille
at all corners straight away from the front. To fit the grille, line up the tabs with the corresponding front bae inserts
and gently push the grille in at all corners.
Aluminium front bae
Clean the black aluminium bae with a soft dry or slightly damp cloth only.
Care and Maintenance 23
Contact and Support
Dynaudio oers full support for your Evidence Platinum:
1. Contact your local Dynaudio dealer, whom is typically closest to where you live and can act most immediately.
2. Contact the Dynaudio distributor in your country, as they know the best options for support and service in case your
dealer is not available, and maintain accessories and spare parts for your loudspeakers. Visit www.dynaudio.com to find
your Dynaudio distributor.
24 Evidence User manual
Technical Specifications
Model Evidence Platinum
Sensitivity (2.83 V/1 m) 89 dB
Recommended min. Amp. Power
Listening distance: 3 m: 20 watts (4 ohm)
Listening distance: 5 m: 60 watts (4 ohm)
Listening distance: 7 m: 120 watts (4 ohm)
Listening distance: 10 m: 250 watts (4 ohm)
IEC Long Term Power Handling 550 watts
Impedance nominal 4 ohm
Frequency Range (+/- 3 dB) 28-25000 Hz
Bass Principle Bass-Reflex, rear-ported
Bass Port Resonance frequency 27 Hz
Crossover slope 6 dB/octave
Weight 115 kg
Dimensions (W x H x D) 210 / 390 × 1940 × 510 mm
Connection CE-comp. WBT NextGen, gold-plated pure copper
Recommended placement Floor, free standing
Technical Specifications 25
