FLEXIBLE DUCT
MODEL:OW258/OW130/GC130/GC160/OW208/OW108/OW158
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:OW258/OW130/GC130/GC160/OW208/OW108/OW158
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FLEXIBLE DUCT
- 2 -
NOTES
1. For uninsulated air duct and air connectors, disregard references to
insulation and jacket.
2. Use beaded sheet metal fittings and sleeves .
3. Use tapes listed and labeled in accordance with standard UL 181B
and marked“181B- FX” .
4. Nonmetallic clamps shall be listed and labeled in accordance with
standard UL 181B and marked“181B-C” .
5. Use of nonmetallic clamps shall be limited to 6”w.g.[1500 Pa] positive
pressure.
PRODUCT PAREMETERS
Model
Diameter
Length
R Value
Pipe Clamp
OW258
258mm/10in
7620mm/25ft
R-6.0
2 pcs
OW130
130mm/5in
7620mm/25ft
R-6.0
2 pcs
GC130
130mm/5in
7620mm/25ft
R-4.2
2 pcs
GC160
158mm/6in
7620mm/25ft
R-4.2
2 pcs
OW208
208mm/8in
7620mm/25ft
R-6.0
2 pcs
OW108
108mm/4in
7620mm/25ft
R-6.0
2 pcs
OW158
158mm/6in
7620mm/25ft
R-6.0
2 pcs
CONNECTIONS

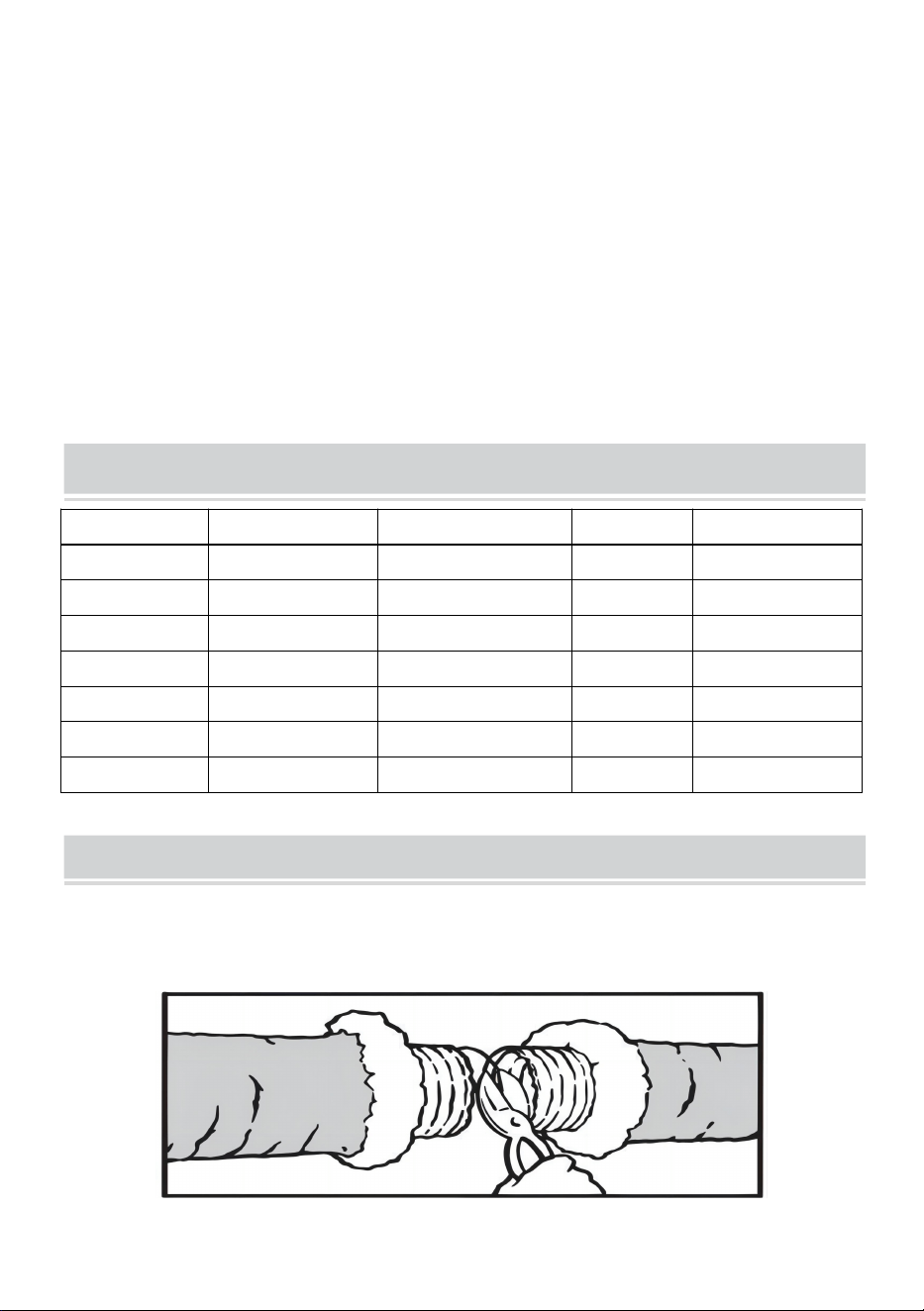

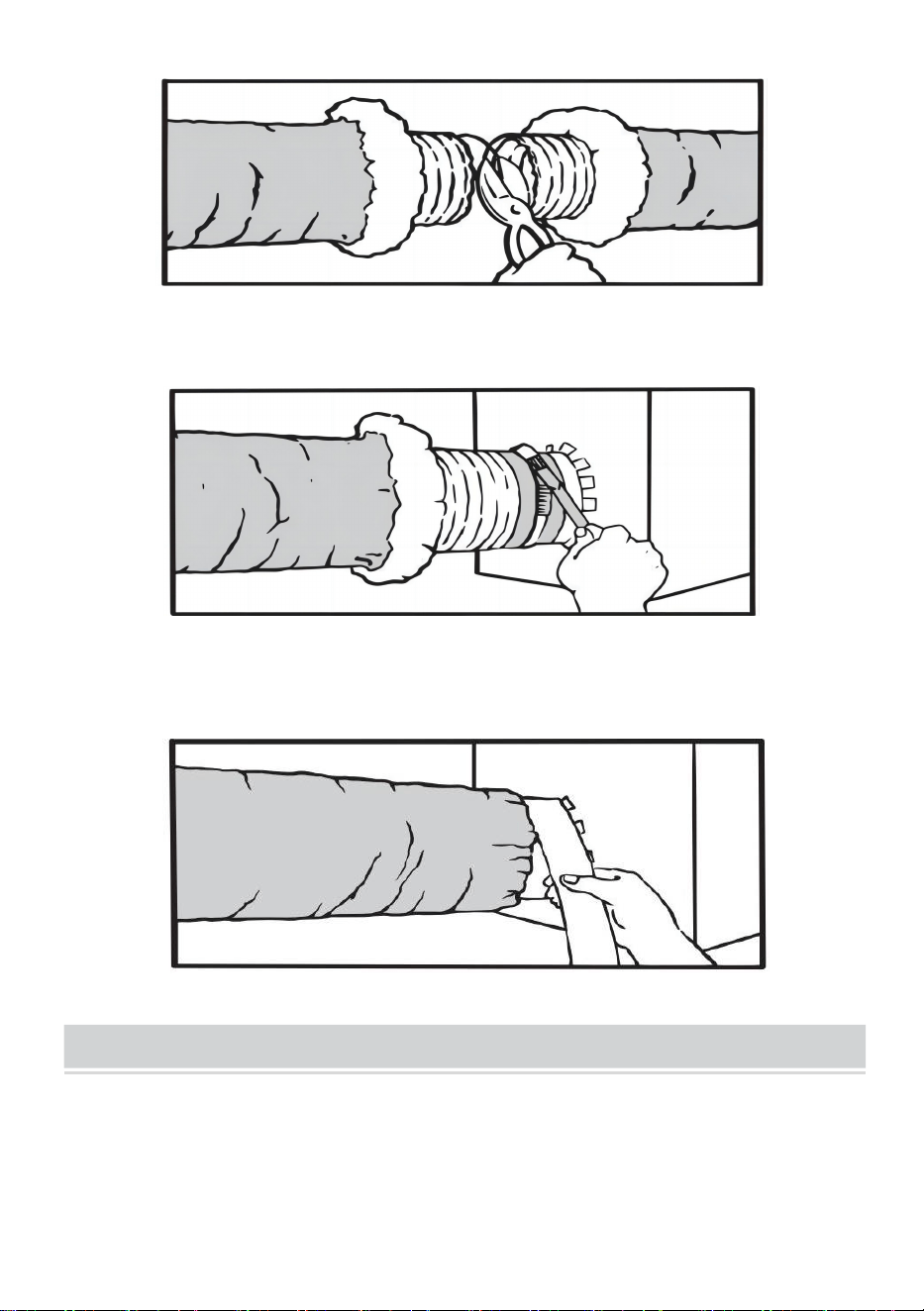

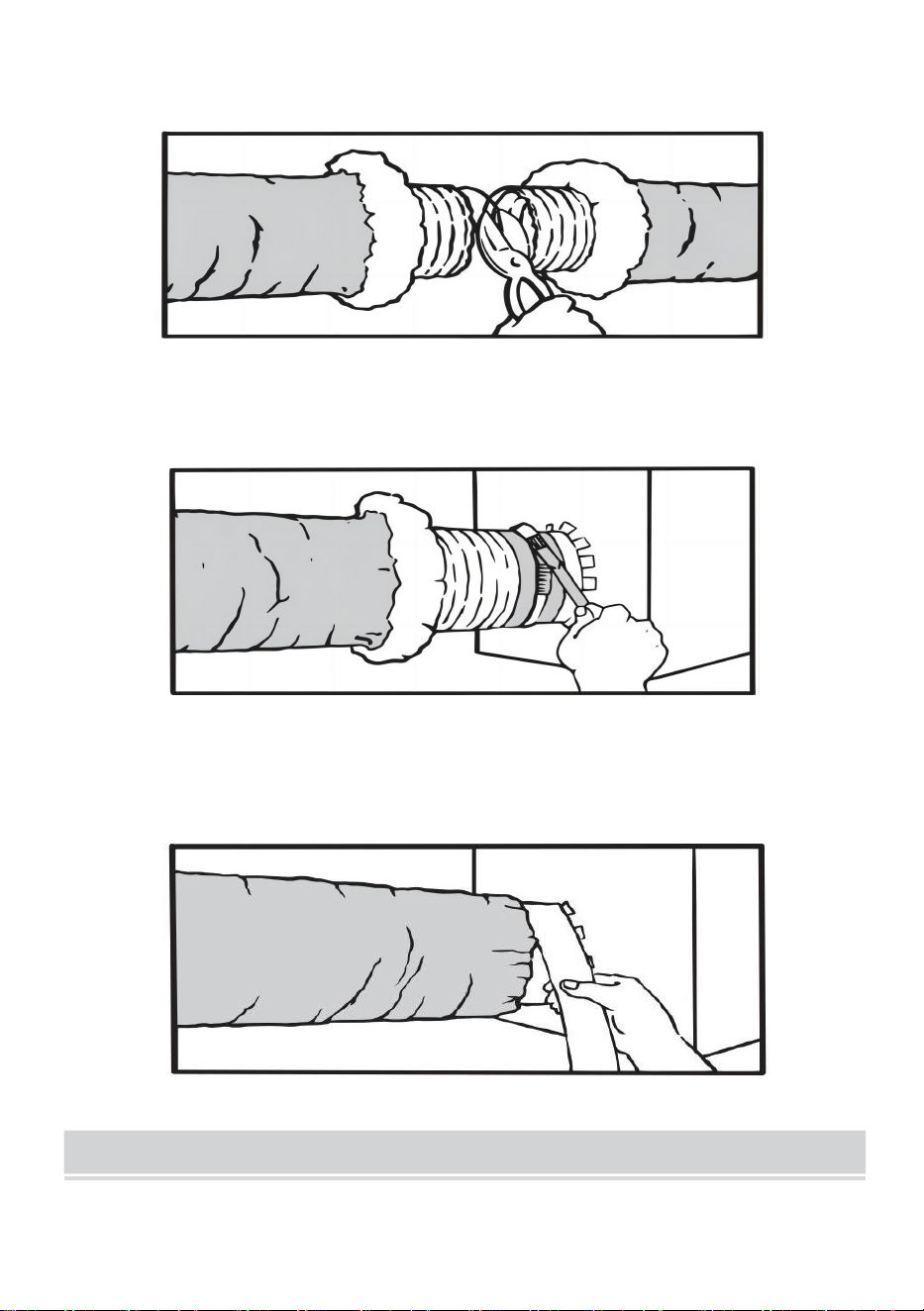

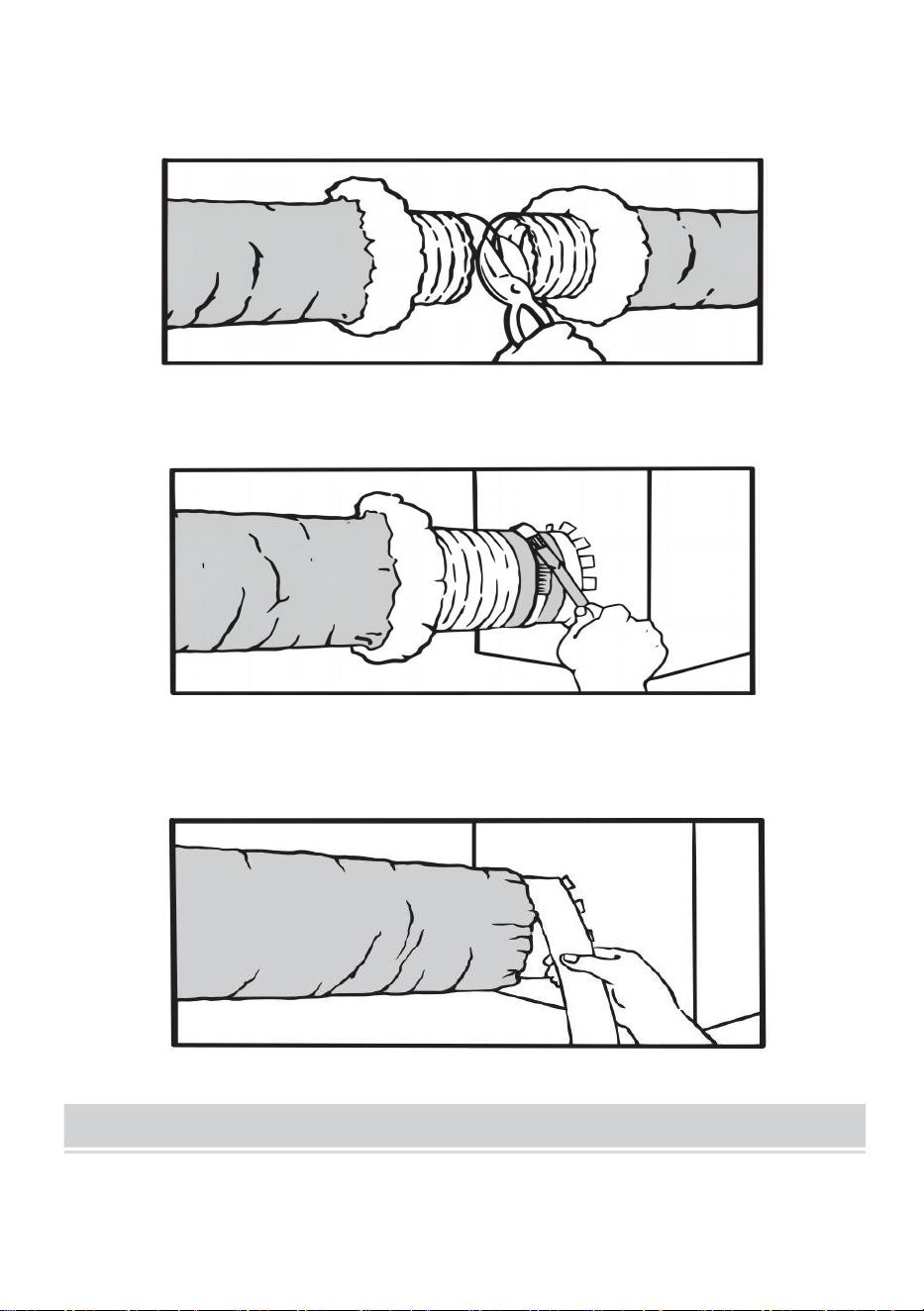

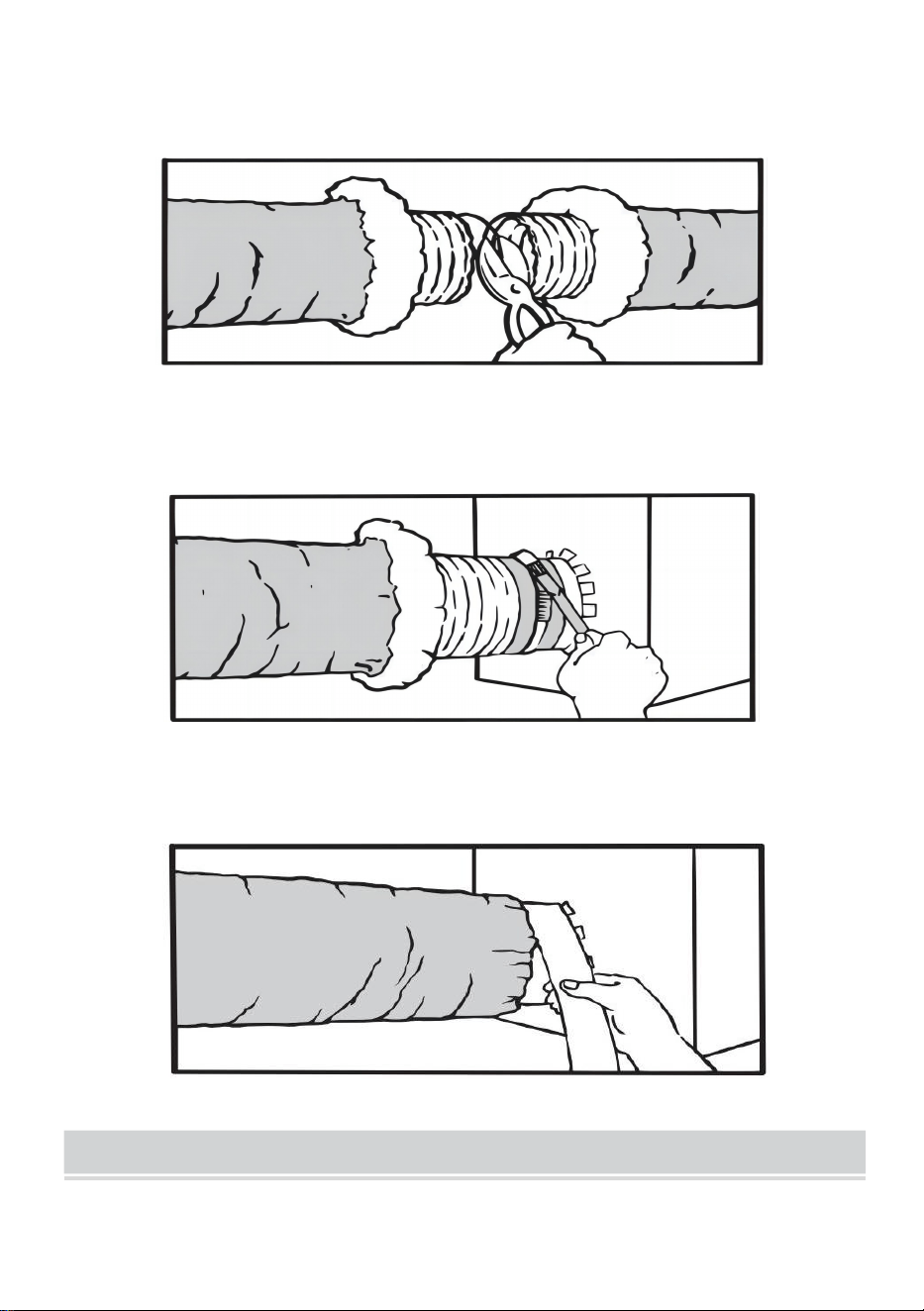

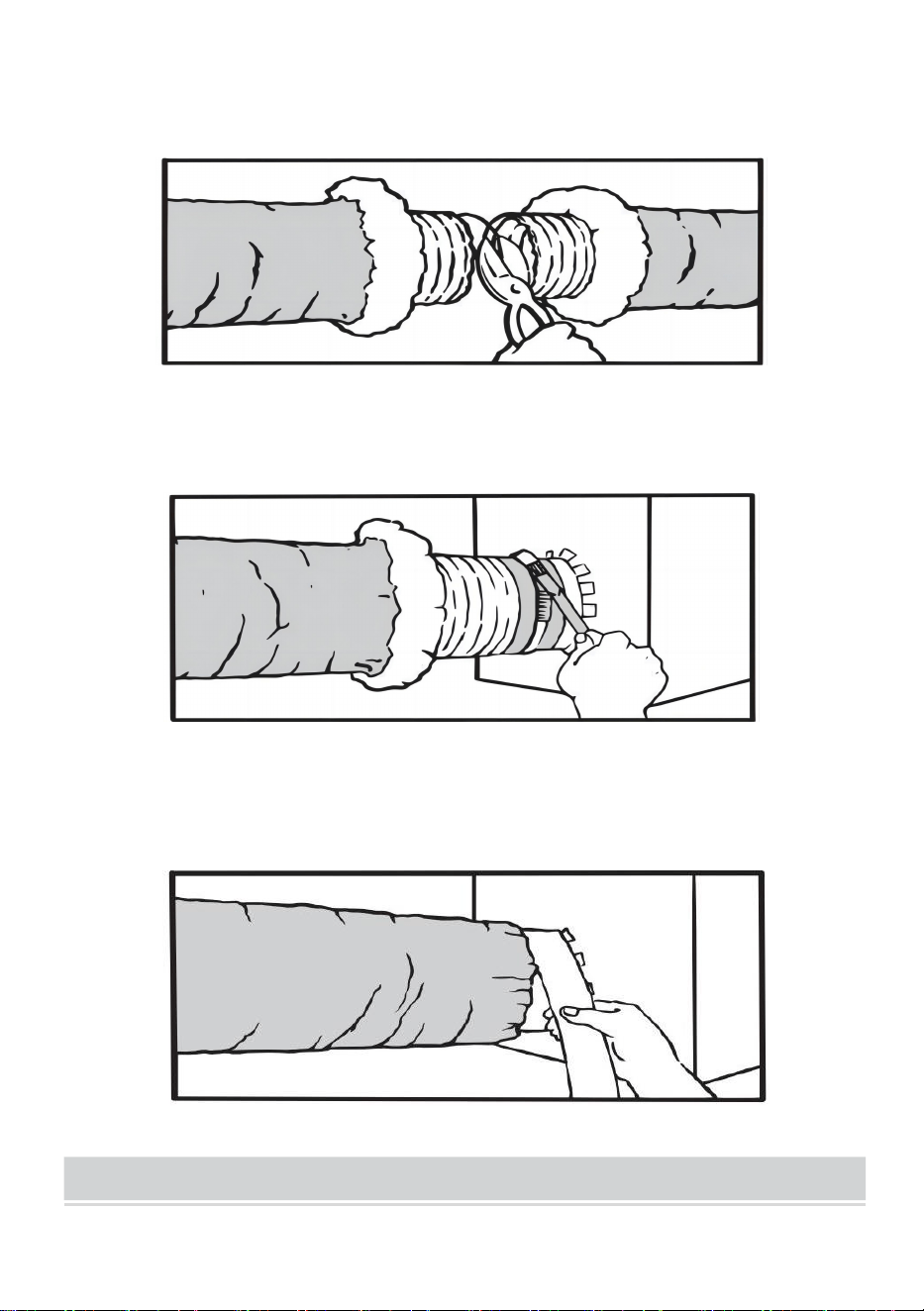

1.After desired length is determined, cut completely around and through
duct with knife or scissors. Cut wire with wire cutters. Fold back jacket and
insulation.
- 3 -

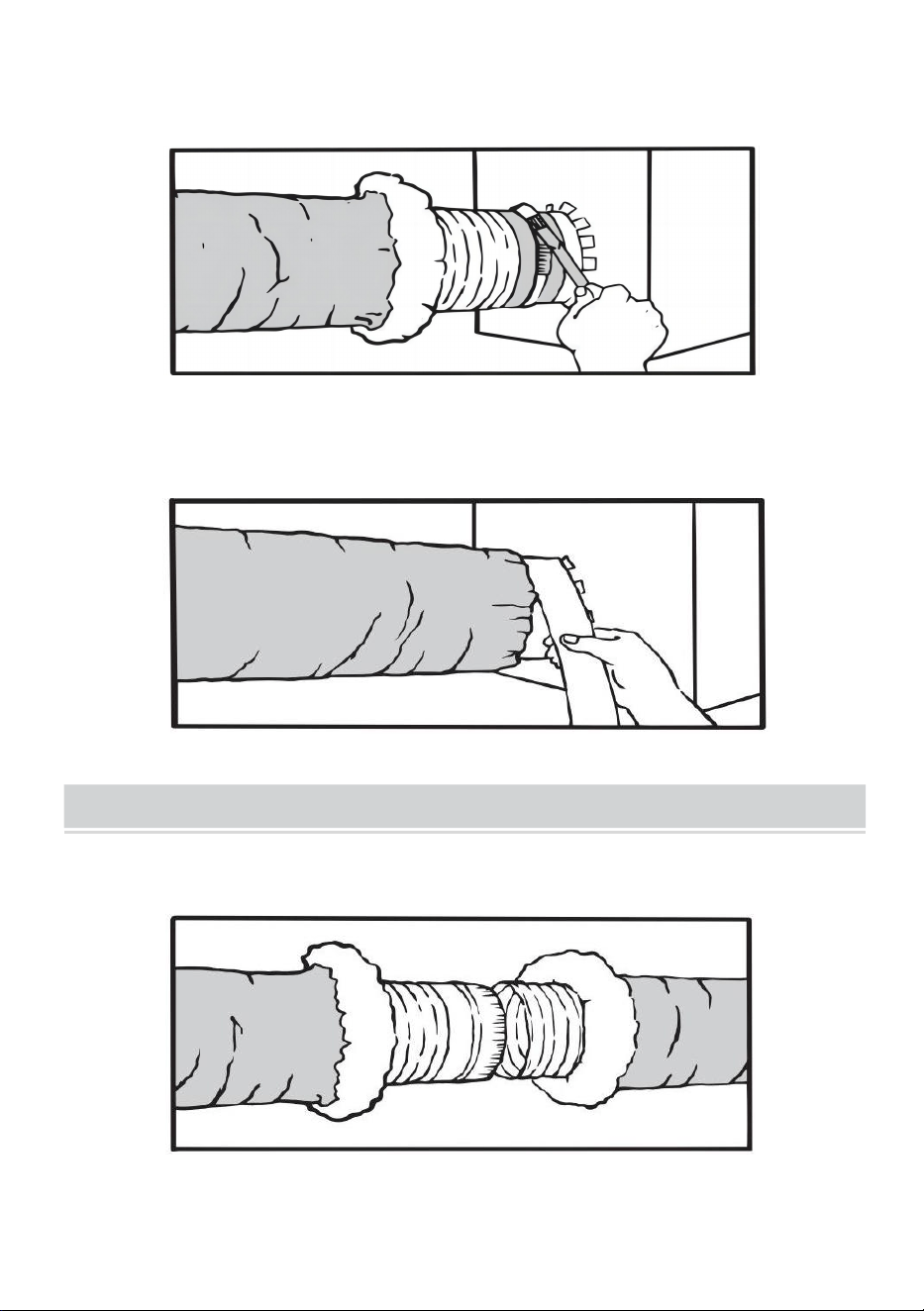

2.Slide at least 1”[25mm]of core over ft ting and past the bead.Seal core to
collar with at least 2 wraps of duct tape.Secure connection with clamp
placed over the core and lape past the bead.
3.Pull jacket and insulation back over core.Tape jacket with at least 2
wraps of duct tape.A clamp may be used in place of or in combination with
the duct tape.
SPLICES

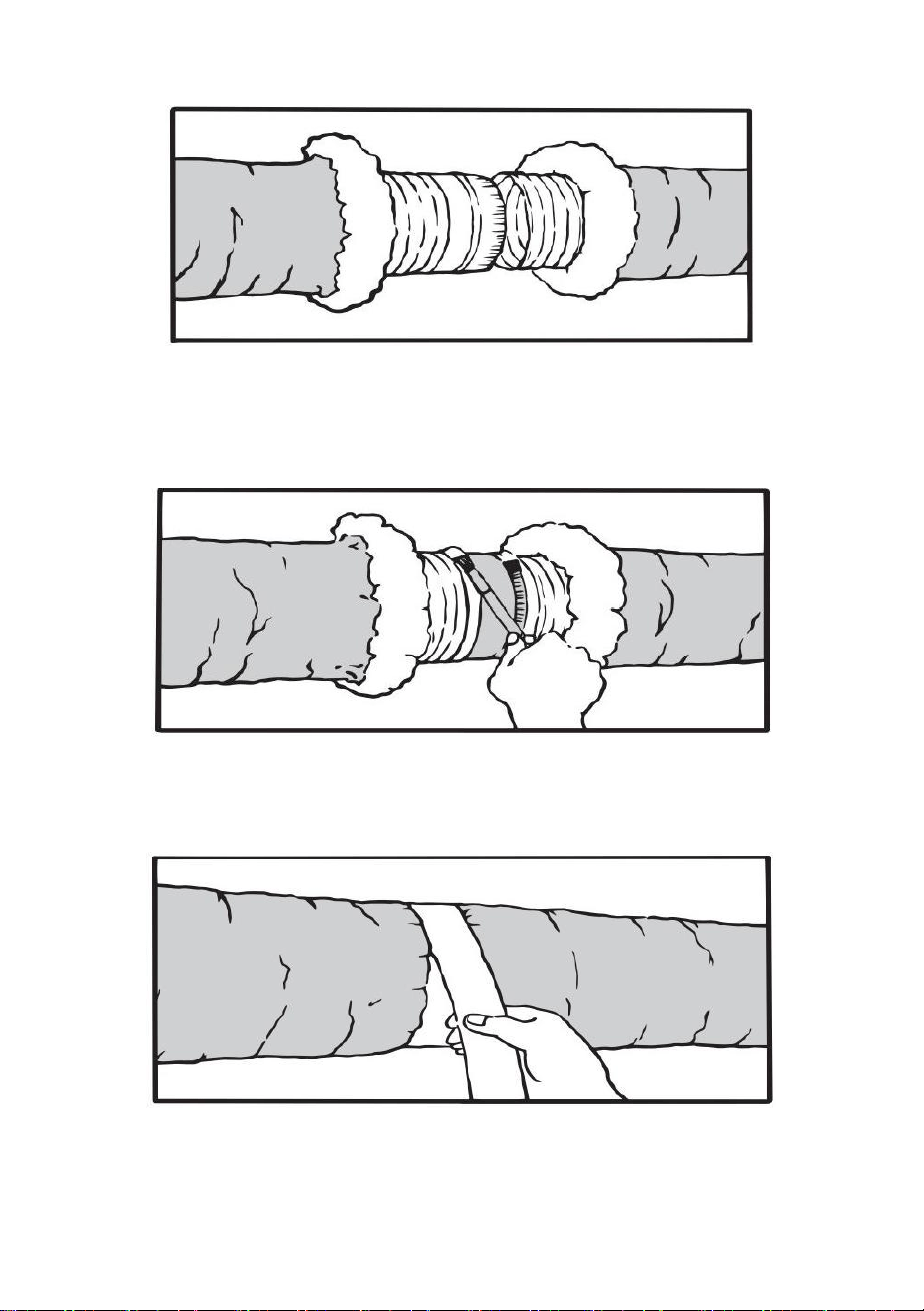

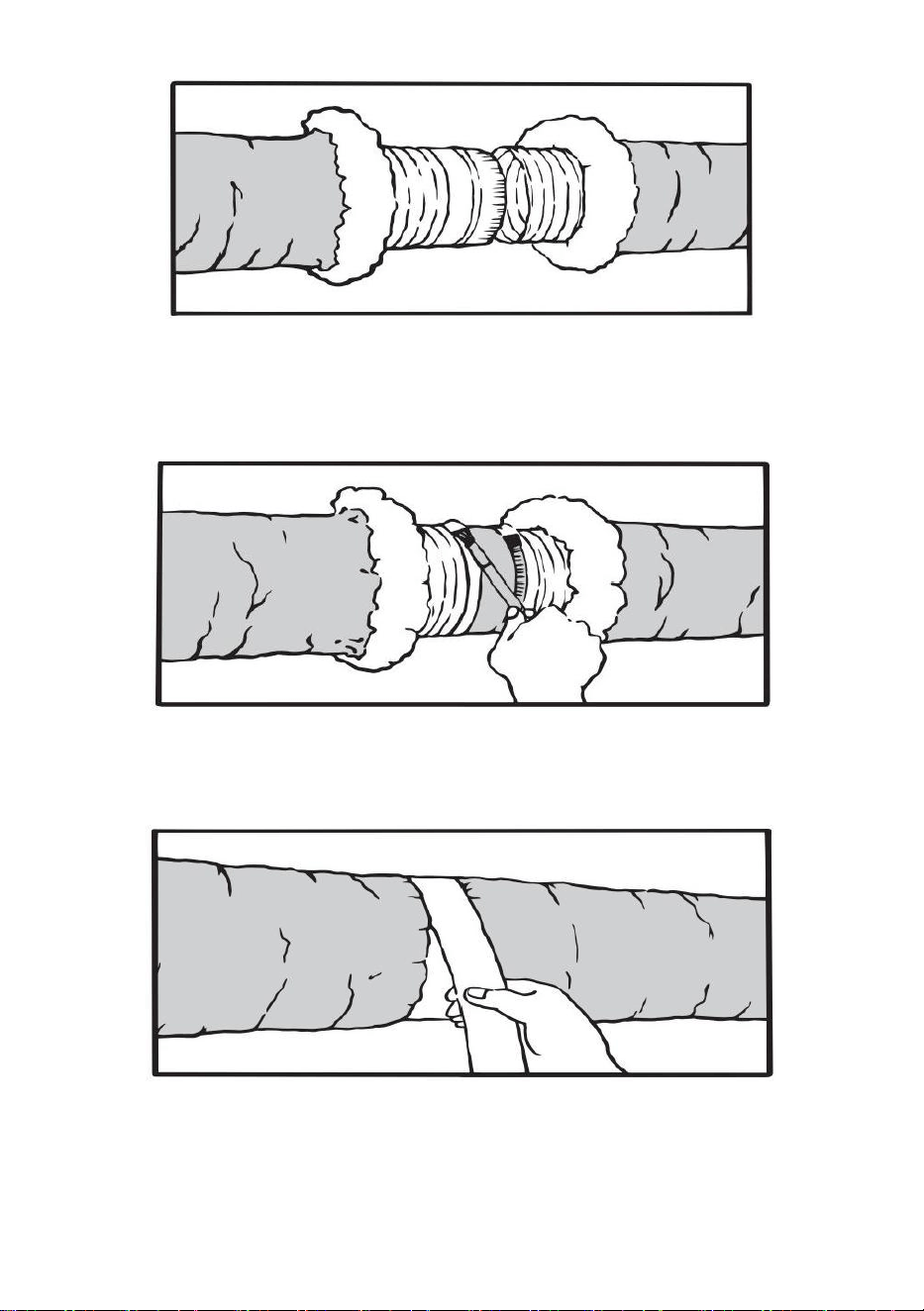

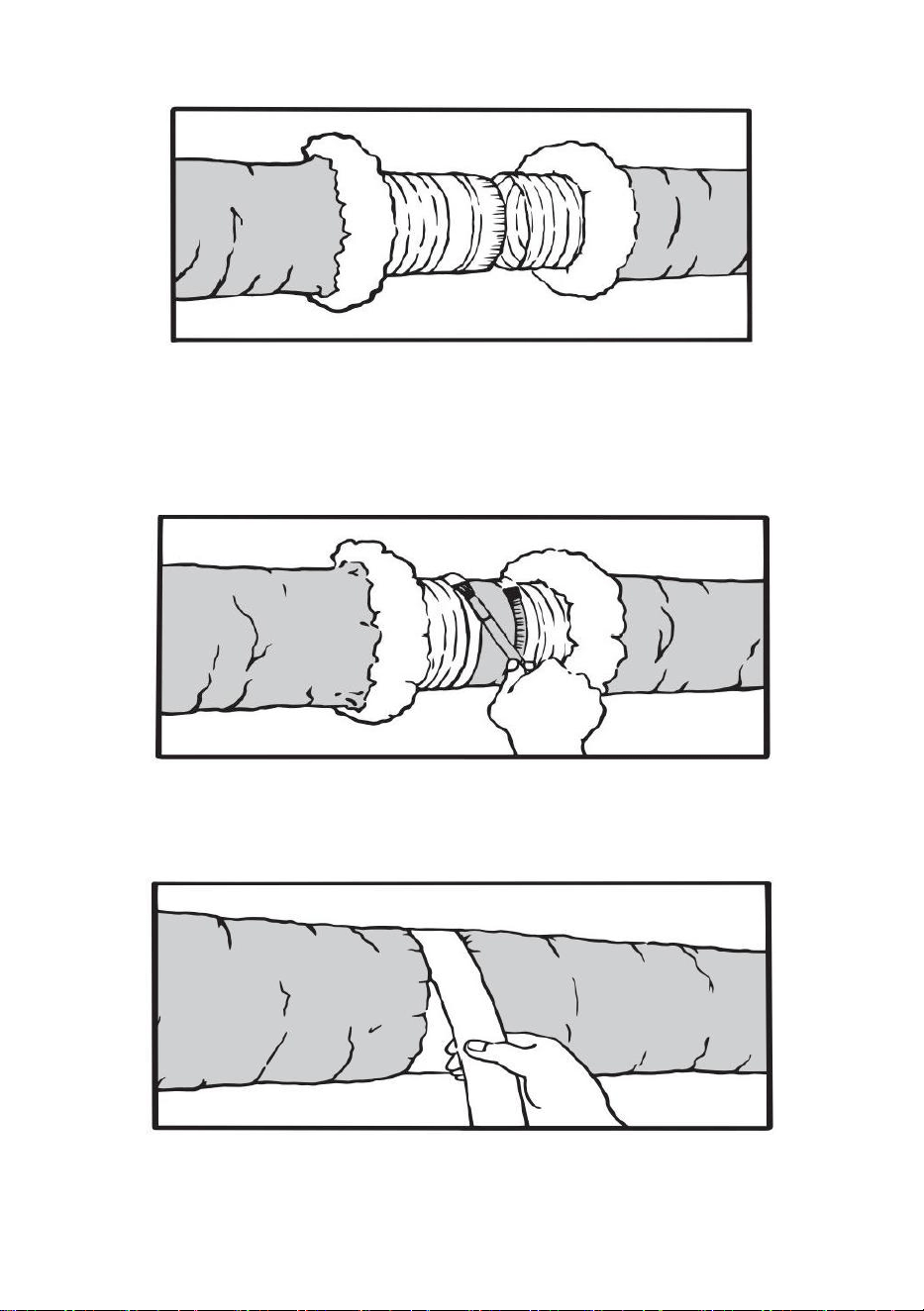

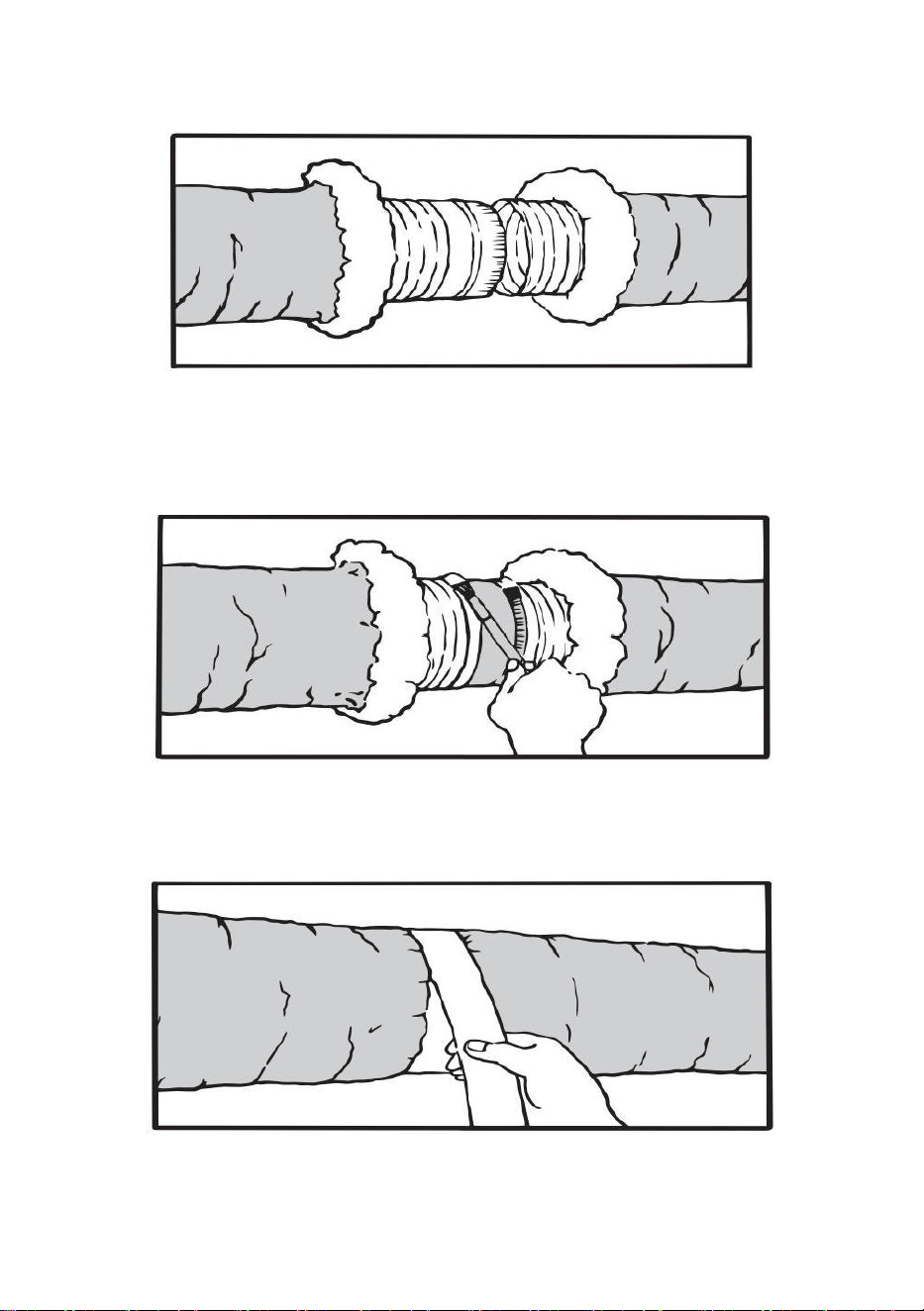

1.Fold back jacket and insulation from core.Butt two cores together on a 4”
length of metal sleeve.
- 4 -
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany

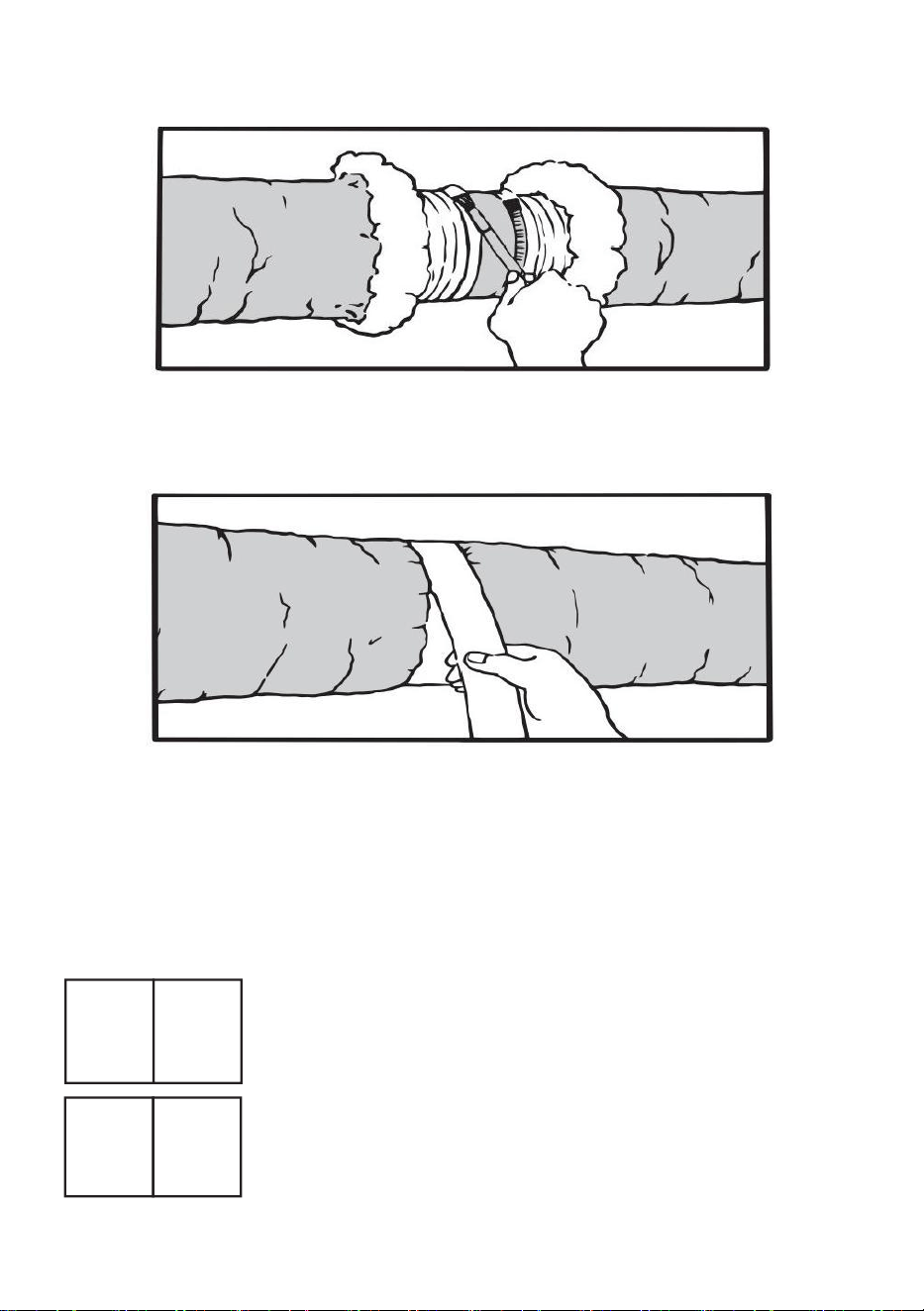

2.Tape cores together with at least 2 wraps of duct tape.Secure connection
with 2 clamps placed over the taped core ends and past the beads.
3.Pull jacket and insulation back over core. Tape jackets together with at
least 2 wraps of duct tape.
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
