P07
P13
P20
20V 7 in. Cordless Brushless Edger
EN
F
ES
WG898 WG898.X
1
2
3
4
5
7
9
10
11
13
14
15
6
17
16
12
8
B
C
D
F
E
A
100%
0%
2
1
1
2
3
4
5
1
2
G2
H
I
K
J
G1
1
2
1
2
1
L
3
2
6
EN
20V 7 in. Cordless Brushless Edger
TABLE OF CONTENT
1. PRODUCT SAFETY
2. COMPONENT LIST
3. TECHNICAL DATA
4. ASSEMBLY & OPERATION
5. MAINTENANCE
1.PRODUCT SAFETY
WARNING: Some dust created by power sanding,
sawing, grinding, drilling and other construction
activities contains chemicals known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemical: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to lter
out microscopic particles.
WARNING: This product can expose you to
chemicals including lead and Di (2-ethylhexyl)
phthalate (DEHP) which are known to the State of
California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Read all safety warnings and
instructions. Failure to follow the warnings
and instructions may result in electric shock, re
and/or serious injury.
FOR ALL PRODUCTS:
1) Avoid Dangerous Environment - Don’t use
products in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept at
a distance from work area.
4) Dress Properly - Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors. Wear
protective hair covering to contain long hair.
5) Use Safety Glasses - Always use face or dust
mask if operation is dusty.
6) Use Right Product - Do not use product for any
job except that for which it is intended.
7) Don’t grasp the exposed cutting blades or cutting
edges when picking up or holding the product.
8) Don’t Force Product - It will do the job better and
with less likelihood of a risk of injury at the rate
for which it was designed.
9) Don’t Overreach - Keep proper footing and
balance at all times.
10) Stay Alert - Watch what you are doing. Use
common sense. Do not operate product when you
are tired.
11)Store Idle Products Indoors - When not in use,
products should be stored indoors in dry, and high
or locked-up place - out of reach of children.
12)Maintain Product With Care - Keep cutting edge
sharp and clean for best performance and to
reduce the risk of injury. Follow instructions for
lubricating and changing accessories. Keep
handles dry, clean, and free from oil and grease.
13)Check Damaged Parts - Before further use of the
product, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other condition that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced
by an authorized service center unless indicated
elsewhere in this manual.
FOR ALL BATTERY – OPERATED GARDENING
ProductS:
1. Prevent unintentional starting. Ensure the trigger
is in the off-position before connecting to battery
pack, picking up or carrying the product. Carrying
the product with your finger on the trigger or
energizing product that have the trigger on invites
accidents.
2. Disconnect the battery pack from the product
before making any adjustments, changing
accessories, or storing product. Such preventive
safety measures reduce the risk of starting the
product accidentally.
3. Recharge only with the charger specified by the
manufacturer .A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
4. Use products only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or a fire.
6. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
7
EN
20V 7 in. Cordless Brushless Edger
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
7. Do not use a battery pack or product that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or product to fire
or excessive temperature. Exposure to fire or
temperature above 130°C may cause explosion.
9. Follow all charging instructions and do not
charge the battery pack or product outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of
the specified range may damage the battery and
increase the risk of fire.
10. Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the product
or the battery pack (as applicable) except as
indicated in the instructions for use and care.
LAWN EDGER SAFETY
WARNINGS
1. Keep guards in place and in good working order.
2. Keep blades sharp.
3. Keep hands and feet away from cutting area.
4. Risk of eye injury. Use safety glasses or similar
eye protection.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or re. Avoid
storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer
where they may short-circuit each other or be
short-circuited by other metal objects. When
battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that
can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or re.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow the
liquid to come in contact with the skin or eyes. If
contact has been made, wash the affected area
with copious amounts of water and seek medical
advice.
f) Do not use any battery pack which is not
designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack
recommended by the device manufacturer for
the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry
cloth if they become dirty.
k) Battery pack needs to be charged before use.
Always use the correct charger and refer to
the manufacturer’s instructions or equipment
manual for proper charging instructions.
l) Do not leave battery pack on prolonged charge
when not in use.
m) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
n) Recharge only with the charger specied
by Worx. Do not use any charger other than
that specically provided for use with the
equipment.
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application for
which it was intended.
q) Remove the battery pack from the equipment
when not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture,
capacity, size or type within a device.
t) Keep the battery away from microwaves and
high pressure.
SAVE THESE INSTRUCTIONS
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Wear ear protection
Li-I on
Li-Ion battery, battery must be
recycled
Make sure the battery is removed
prior to changing accessories.
8
EN
20V 7 in. Cordless Brushless Edger
Do not burn
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any Positec
batteries with the RBRC-call2recycle
seal. For environmental protection,
please do not discard batteries in
the trash. After the batteries’ life
cycle is ended, then please call
1-800-822-8837 for a free service
that will properly dispose of the
battery.
2.COMPONENT LIST
1. REAR HANDLE
2. ON/OFF TRIGGER
3. HANDLE ADJUSTMENT KNOB
4. AUXILIARY HANDLE
5. UPPER SHAFT
6. LOWER SHAFT
7. CUTTING DEPTH ADJUSTMENT KNOB
8. EDGE GUIDE ADJUSTMENT KNOB
9. CUT-LINE INDICATOR
10. FRONT WHEEL
11. REAR WHEEL
12. EDGE GUIDE
13. BLADE
14. WRENCH
15. HEX KEY
16. BATTERY PACK RELEASE BUTTON*
17. BATTERY PACK*
* Not all the accessories illustrated or described are
included in standard delivery.
3.TECHNICAL DATA
WG898 WG898.X**
Maximum output
power
320 W
Rated No-load speed 4000/min
Blade Cutting Depth
1.5” , 1.75”, 2”
(3.81cm , 4.45 cm , 5.08cm)
Blade Diameter 7” (17.78cm)
Machine Weight
(Bare tool)
7.06 lbs (3.2 kg)
**X may be followed by one or two characters. All
models are the same except model number and
trademark. The sux in models may be number
from “1” to “999” or English letter “A” to “Z” or “M1”
to” M9” which means different package or the
various of accessories packed in the package.
SUGGESTED BATTERIES
AND CHARGERS
Category Type Capacity
20V Battery WA3674 4.0 Ah
20V Charger WA3881 2.0 A
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.
4.ASSEMBLY & OPERATION
ACTION FIGURE
ASSEMBLY
Assembling Shaft
Pull the Upper Shaft and lower
Shaft in opposite directions
until the latch locks. Tighten the
screws.
See Fig. A
Assembling the Auxiliary Handle
Pull the auxiliary handle apart and
nestle away from the base.
Adjust to a suitable position.
Insert the bolt and nut and tighten
the nut.
See Fig. B
ADJUSTING
9
EN
20V 7 in. Cordless Brushless Edger
Adjusting cut depth See Fig. C
Raising/lowering Edge Guide See Fig. D
OPERATION
Checking the battery charge-level See Fig. E
Charging the Battery Pack See Fig. F

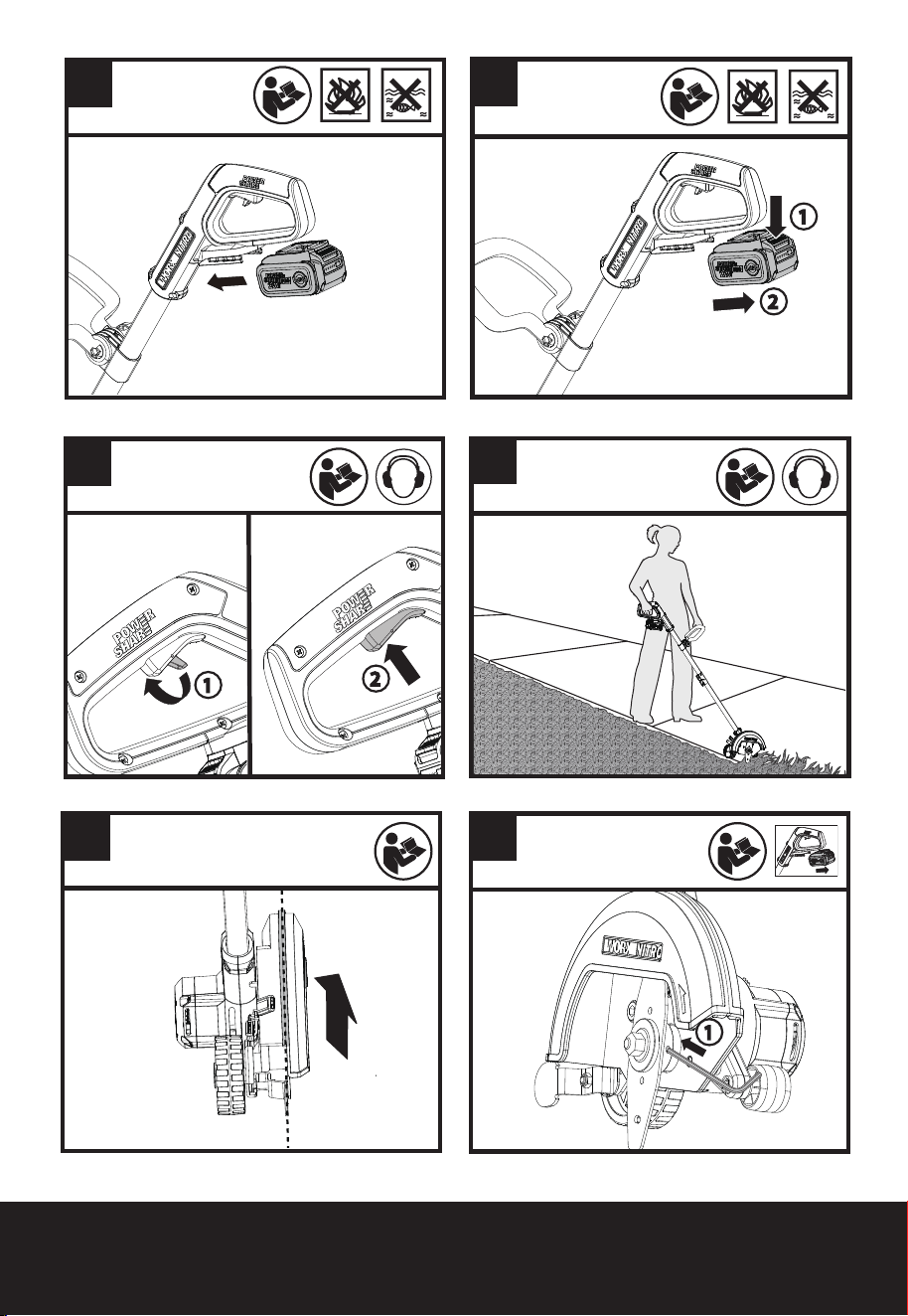

Installing and Removing the
Battery Pack
See Fig. G1,G2
Starting
Press the lock-out switch, then
press and hold the ON/OFF
Trigger to start the machine.
NOTE: The lock-out switch
prevents the tool from
accidentally being turned on.
See Fig. H
Edging See Fig. I
Referencing the cut-line indicator See Fig. J
MAINTENENCE
Replacing the blade See Fig. K,L
OPERATION INSTRUCTION
NOTE: The edger is a major product and should
not be operated simultaneously with other major
products on the same household circuit.
WARNING: Make sure that other persons and
pets are at least 100 feet away.
EDGING
1. Before starting the edger, line up the tool so the
edge guide rests against the edge of the paved
surface. Both rear wheels should be on the
paved surface when edging. (See Fig. I)
2. To avoid kickback of edger, tilt the handle down
so the blade is above the ground.
3. Turn trigger ON and allow blade to spin without
moving tool.
4. Slowly lift the handle to lower the blade, finding
the edge of the paved surface and start edging.
Then move tool forward slowly along edge of
paved surface, keeping the edge guide pressed
lightly against the pavement edge. For the
first edging each season, it is best to move
forward slowly because grass is thickest then.
Subsequent edging will be completed more
rapidly. If the tool slows down, back it up an
inch or two until the blade comes up to normal
speed. During edging some sparks may be
generated from hitting stones. This is normal.
Do not attempt to edge when the grass or soil
is wet or moist—for electrical safety and to
prevent clogging of the blade chamber. If you
must edge under conditions that cause the blade
chamber to become clogged, release trigger, wait
for blade to come to complete stop! REMOVE
BATTERY! And remove clogged material with a
stick. To continue to operate the tool in a clogged
condition will seriously overload the motor.
WARNING: Do not attempt to unclog the blade
chamber by dropping or tapping the tool on
the ground. This can damage the unit. Keep
hands clear of edge guide and blade when cleaning
as these wear to a very sharp point during edging.
TRENCHING AND LANDSCAPING OPERATION
The edger can also be used for trenching. The blade
will leave a small trench for placing
wire underground.
Because of the direction of the blade rotation the
edger can kickback towards the operator if it hits an
obstruction such as thick, matted grass. Keep a firm
grasp on the handle,especially when trenching in
thick, matted material.
The edger can be used in landscaping applications,
including cutting along the edges
of ower and shrubbery beds, around trees, and
cutting in preparation for sod removal.
Before trenching, inspect and ensure there are no
exposed or buried cables, pipes or other objects that
may create a hazard or interfere with operating the
edger.
Set depth to only that required for the job.

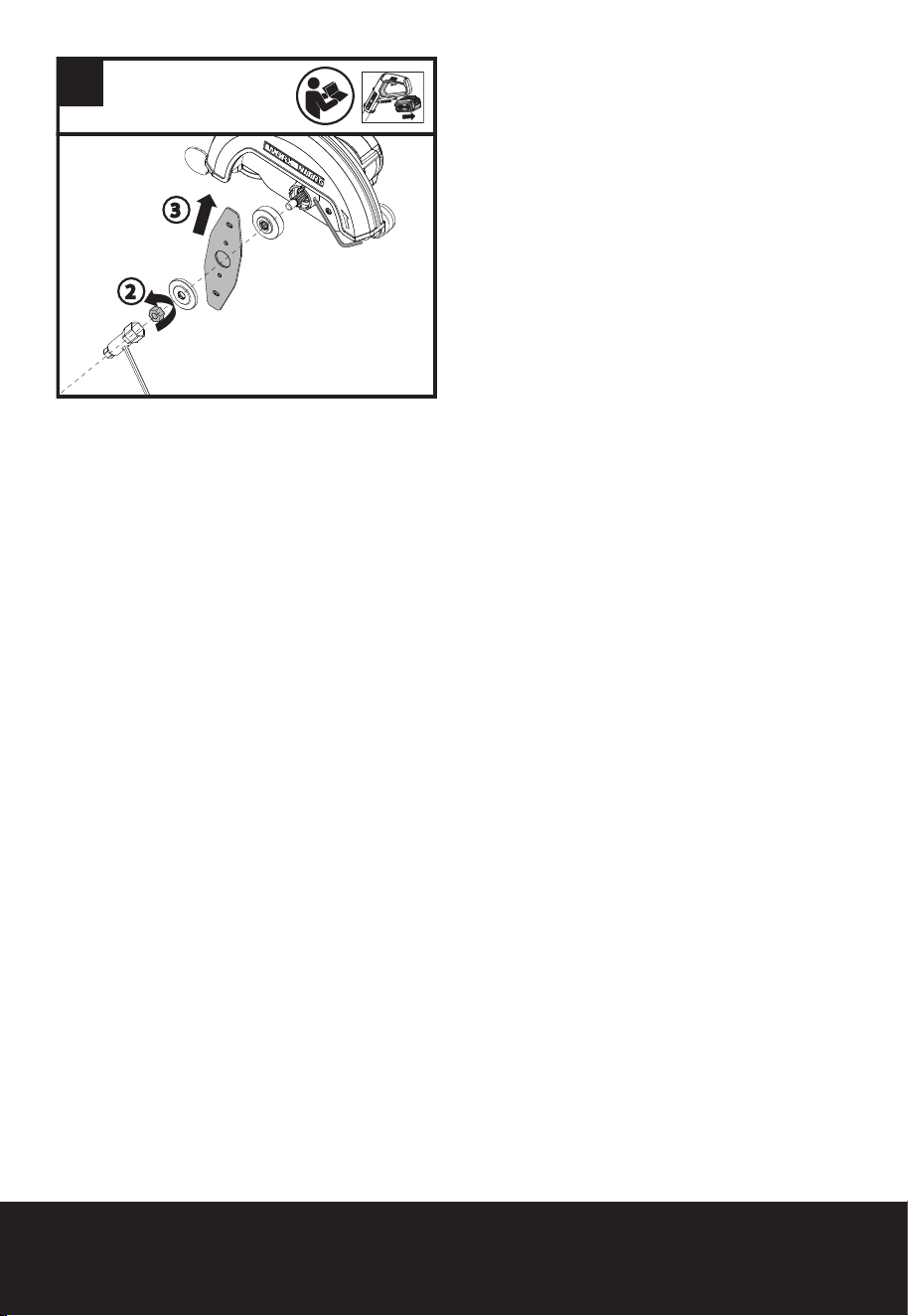

REMOVING AND ATTACHING THE BLADE
Before attempting to remove or install the blade,
locate the shaft-lock hole and insert the hex key to
lock the blade from spinning (See Fig. K).
The blade, two spacers, and hex head nut with
conical washer should be installed/removed in the
order shown (See Fig. L). Check that the blade has
been properly installed before use.
NOTE: The blade has two wear indicators that
indicate replacement - when the blade wears to the
small holes, the blade should be replaced.
5.STORAGE
WARNING! Disconnect the battery from the
tool.Remove and clean any debris from the
outside of the edger and inside of guard before
storage. See MAINTENANCE section. If necessary,
the edger may be stored by hanging on a hook by its
handle.
WARNING: DO NOT HANG EDGER ON THE
Trigger TRIGGER !
NOTE: Do not store the tool on or adjacent to
fertilizers or chemicals. Such storage can cause rapid
corrosion.
10
EN
20V 7 in. Cordless Brushless Edger
5.MAINTENANCE
Use only mild soap and damp cloth to clean the tool.
Never let any liquid get inside the tool; never immerse
any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
should be performed by authorized service centers
or other qualified service organizations. Use only
identical replacement parts. Inspect and thoroughly
clean your edger at the beginning of each edging
season for longer life and better performance.
FOR BATTERY TOOLS
The ambient temperature range for tool and battery
use and storage is 32°F-113°F (0
o
C-45
o
C).
The recommended ambient temperature range
for the charging system during charging is
32°F-104°F(0
o
C-40
o
C).
Copyright © 2023, Positec. All Rights Reserved.
Copyright © 2023, Positec. Tous droits réservés.
© Derechos reservados 2023, Positec. Todos los derechos reservados.
AR
www.worx.com
