Installation/Quick Start Guide:
Shutoff Valve Controller (SC906ZB)

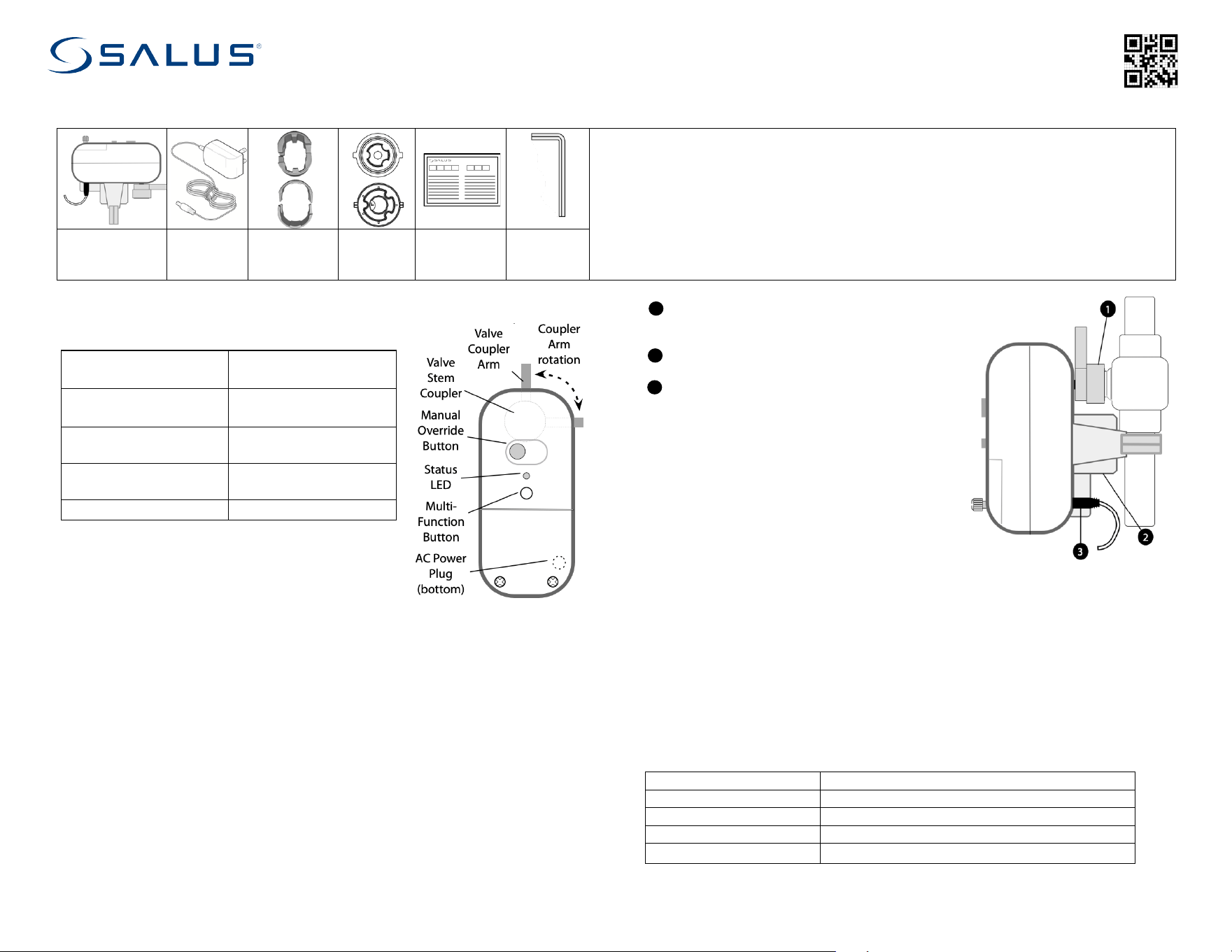

In the Box:
Tools
Needed:
Note:
(Not Included)
Please read these instructions carefully before installing and using the Shutoff Valve Controller.
• Follow all local plumbing and water supplier regulations regarding the installation or replacement of water
valves. An authorized, qualified installer may be required.
• Only use the power supply adapter that came with the device.
• Make sure the area around the device is clear and will not interfere with the movement of the valve handle.
• Maximum torque of the SC906ZB is 65in-lb, torque requirements vary from valve to valve. Some
valves may require torque in excess of 65in-lb and will not operate.
• A radio repeater may be required due to the location of the valve.
• The manufacturer accepts no responsibility for damage caused by not following these instructions.
Shutoff Valve
Controller
Power
Adapter
Pipe Clamp
Adaptor
Valve
Coupler
Installation/
Quick-start
Guide
5/32” Hex
Wrench
CONTROLS AND INDICATORS
Status LED Indications
PAIRING INSTRUCTIONS
• Follow your connected home instructions to prepare
to add devices to the system
• Plug in the power adapter to power up the device
• When the device is detected and added to the system, proceed to device installation
INSTALLATION INSTRUCTION
• Identify the location for the Shutoff Valve Controller (SVC) depending on the desired water
valve to be controlled. Make sure of the following:
o
Location is accessible and allows operation of the valve coupler arm
o
The pivot point of the SVC Coupler must be positioned directly over the pivot point
of the ball valve handle
• Remove the ball valve T-handle
• Insert the appropriate Valve Coupler (¾” or 1”) in the Valve Coupler Arm
• Choose the appropriate pipe clamp adaptor and place around the pipe
• Press the pipe adaptor onto the pipe
• Adjust the alignment of the SVC so it is directly over the ball valve handle
• Tighten the SVC pipe clamp around the pipe adaptor
Position the SCV Valve Stem Coupler directly
over the valve stem and ensure the coupler is
properly engaged
Adjust the pipe clamp height using the hex
bolt on the back of the pipe clamp bracket
Once attached to the pipe, apply power as
follows:
•
Remove waterproof plug from power jack
•
Insert barrel plug from power adapter into
power jack
•
Run power cable to AC outlet, using cable
clips as required
•
Plug the power adaptor into AC outlet
• Open and close the valve via the connected
home system to verify that the radio signals can
be received. A radio repeater may be required if
the signal is weak.
FACTORY RESETTING THE DEVICE
• Press the Multi-Function Button down and power up the device by plugging in the
power adapter.
• Release the button when the Status LED turns solid green. The device will now
respond to pairing requests.
OPENING/CLOSING THE VALVE AT THE DEVICE
When remote control of the valve is not convenient, the valve can be opened or closed at the
valve by pressing the Multi-Function button. Depending on the state of the device, the
following actions will occur
Current Valve state
Device action
Stopped Fully Closed (C)
Start opening valve
Stopped Fully Open (O)
Start closing valve
In motion (either direction)
Stop
Stopped not at C or O
Reverse previous direction
3 short Yellow flashes,
2-sec pause, repeat:
Searching for network, in
Paring Mode
1 short Green flash,
2-sec pause, repeat:
Connected to network
3 short Green flashes,
pause, repeat:
Recommissioning Mode
Solid Green at power up:
Factory Reset Request
detected
Solid Red:
Obstruction encountered
1
2
3

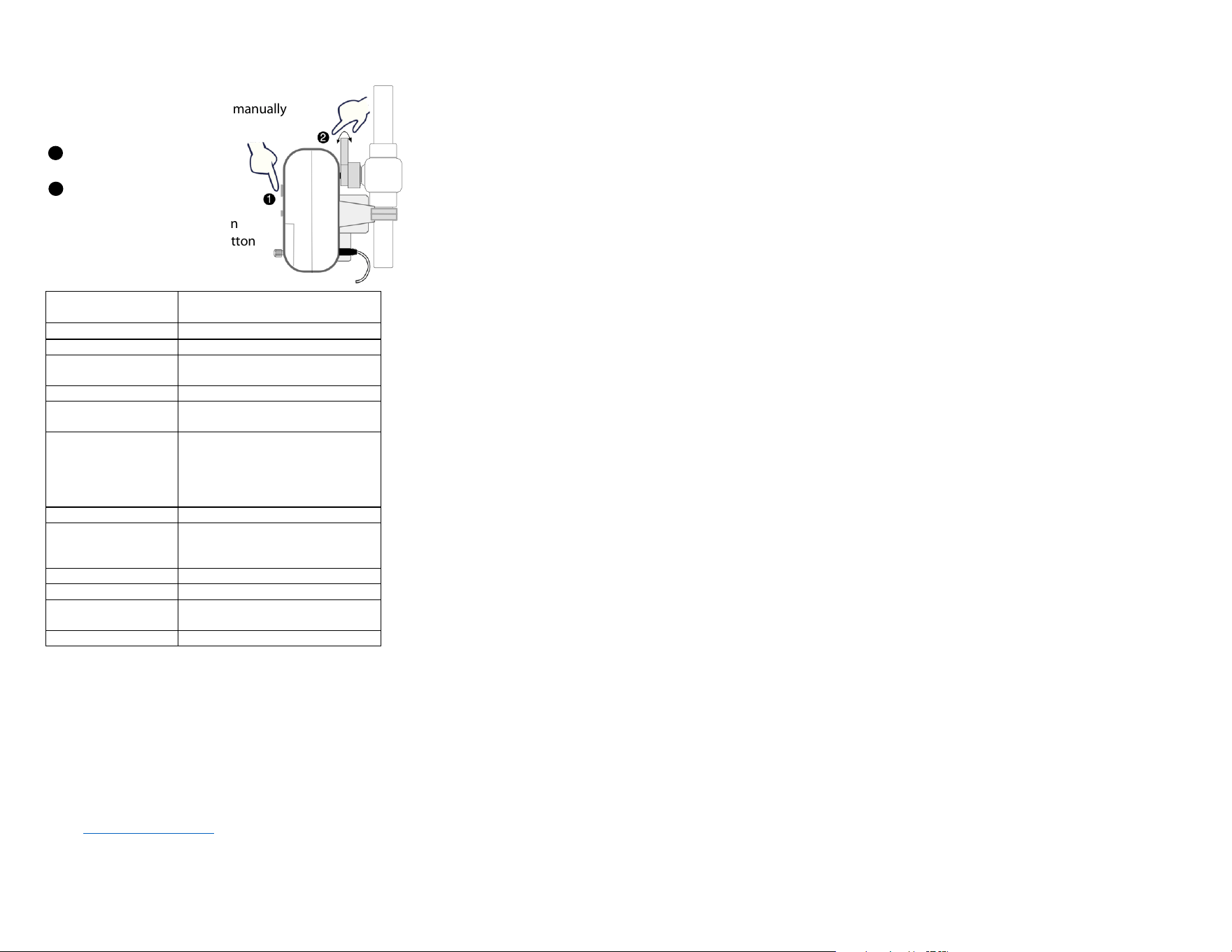

MANUAL OVERRIDE
If power is lost, the valve can be manually
opened and closed as follows:
Press and hold down the
Manual Override Button
Rotate the ball valve handle:
•
clockwise to close
•
counterclockwise to open
Release the Manual Override button
to re-engage the motor
SPECIFICATIONS
Operating Conditions
32-122°F / 0-50°C
< 90% humidity (non-condensing)
Storage
14-140°F / -10-60°C
Fits Pipes
Clamps to ¾” and 1” PVC pipe
Fits Valves
Spears Manufacturing ¼-turn, CTS
ball valves, ¾” & 1”
Maximum torque
65in-lb / 7.34Nm
Protocol supported
802.15.4 radio (2.4GHz) Zigbee
HA1.2
Dimensions
6.89”L x 2.87”W x 5.20”H
(175mm x 73mm x 132mm)
Requires clearance for
unobstructed ball valve handle
rotation
Weight
1.88lb / 853g
Power Adapter
AC wall outlet power supply
In: 100-240 VAC, 50/60Hz, 1A
Out: 4.5 VDC, 3.0A
Power cable length
5’ 1.5m
Ingress Rating
IP 56
Agency Compliance
FCC, Industry Canada
CE: ROHS
Compatible Devices
SG888ZB - Gateway
Note: Specifications are subject to change without notice
For Technical Support:
Phone: 1-855-557-2587
Email: [email protected]
FCC STATEMENTS
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
FCC AND INDUSTRY CANADA
RF Radiation Exposure statement: This equipment complies
with FCC and Industry
Canada RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20
centimeters between the antenna and all persons.
INDUSTRY CANADA
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Copyright © SALUS North America, Inc. 2019
SALUS WARRANTY
SALUS North America, Inc. (“Salus”) warrants that for a period of five (5) years
(“Warranty Period”) from the date of purchase by the consumer (“Customer”), this
device, excluding batteries (“Product”), shall be free of defects in materials and
workmanship under normal use and service in accordance with all supplied
instructions. During the warranty period, Salus shall, at its option, repair or replace
any defective Products, at no charge for the device. Any replacement and/or
repaired devices are warranted for the remainder of the original Warranty Period
or ninety (90) days, whichever is longer.
This warranty does not cover removal or reinstallation costs. This warranty does not
apply to any Product (i) which has been modified, repaired, or altered, except by
Salus or an authorized Salus representative, (ii) which has not been maintained in
accordance with any handling or operating instructions supplied by Salus, or (iii)
which has been subjected to unusual physical or electrical stress, misuses, abuse,
negligence or accidents.
This warranty is the only express warranty Salus makes for the Product. Any implied
warranties, including warranties of merchantability or fitness for a particular
purpose, are limited to the Warranty Period or the shortest period allowed by
law.
SALUS SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND,
INCLUDING ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR
INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY
OTHER FAILURE OF THIS
PRODUCT. Some states and provinces do not allow the exclusion or limitation
of incidental or consequential damages, or limitation on the duration of implied
warranties of merchantability or fitness, so these exclusions or limitations may
not apply to you.
No oral or written information or advice given by Salus or a Salus- authorized
representative shall modify or extend this warranty. If any term is held to be
illegal or unenforceable, the legality or enforceability of the remaining terms
shall not be affected or impaired.
Customer’s sole and exclusive remedy under this limited warranty is product repair
or replacement as provided herein. If a Product under warranty is defective, the
Customer may:
•
contact the party (“Seller”) from which the Customer purchased the Product to
obtain an equivalent replacement product after the Seller has determined that
the Product is defective and the Customer is eligible for a replacement, or
•
contact Salus Service at support@salusinc.com, to determine whether the device
qualifies for a replacement. If a replacement is warranted and is shipped prior to
the return of the device under warranty, a credit card is required and a hold may
be placed on the Customer’s credit card for the value of the replacement until
the returned device is verified as eligible for replacement, in which case, the
Customer’s credit card will not be charged.
This warranty gives you specific legal rights, and you may also have other rights that
vary from jurisdiction to jurisdiction. If you have any questions regarding this
warranty, please write Salus at:
SALUS North America, Inc.
850 Main Street
Redwood City, CA 9
SMC-QSG-SC906ZB-EN 201912v6
