SST-SX1000-LPT photo

SX1000 Platinum manual

This is the main product document for model SST-SX1000-LPT.

The file format is pdf, 16 pages, you can download this manual here .

background
background
SPECIFICATION
SFX-L Form Factor
SST-SX1000-LPT
1000W Switching Power Supply
With Active PFC
80Plus Platinum
01
1.1 AC input requirements:
The input voltage, current, and frequency requirements for continuous operation are stated show in Table 1.
1.2 AC inrush current(cold start):
The power supply must meet inrush requirements for any rated AC voltage, during turn on at any phase.
of AC voltage, during a single cycle AC dropout condition, during repetitive ON/OFF cycling of AC, and
over the specified temperature range .The peak inrush current shall be less than the ratings of its critical
components (including input fuse, bulk rectifiers, and surge limiting device).
This specification defines ATX multiple output switching power supply. The parameters of this supply are
defined in this specification for Family using. This specification defines max continuous output at 1000W
with 100 to 240Vac input, power supply with five outputs; +3.3V, +5V, +12V, -12V and +5VSB. The +5V
standby voltage, remote on/off control, full range line input capability.An IEC connector is provided on the
external face for AC input to the power supply. The power supply contains fans for cooling, while meeting
acoustic requirements.
1. AC input characteristics:
Parameter Min Nom Max Unit
Vin 90
100 --- 240
264 VACrms
Vin Frequency 47
60 --- 50
63 Hz
Iin
12 --- 6.0
A
background
02
2.1 Output voltage regulation Requirements:
The power supply output voltage must stay within the following voltage limits shown
in Table2 when operating at steady state.
2.2 Output Current Requirements:
2.3 Output Transient Response:
The power supply output current following shown in Table3.
Table 4 summarizes the expected output transient step sizes for each output.
The transient load slew rate is = 1.0 A/μs.+12V Min load 1A for 0%~85% load.
Table2
Table3
Table4
2. DC Output characteristics:
Notes:
1.The maximum continuous average DC output power shall not exceed 1000W.
2.Maximum continuous combined load on +3.3V and +5V outputs shall not exceed 125W.
Parameter Range Min Nom. Max Unit
+3.3V ±3% +3.20 +3.30 +3.39 Volts
+5V ±3% +4.85 +5.0 +5.15 Volts
+12V ±3% +11.64 +12.0 +12.36 Volts
-12V ±10% -10.8 -12.0 -13.2 Volts
+5VSb ±5% +4.75 +5.0 +5.25 Volts
Parameter Min Max Peak Unit
+3.3V
0 25 Amps
+5V
0 25 Amps
+12V
0 83.3 Amps
-12V
0 0.3 Amps
+5VSB
0 3 Amps
Parameter
Maximum Step Size
(% of rated output amps)
Maximum Step Size
(A)
+3.3V 30% load
+5V 30% load
+12V 85% load
-12V 0.1A
+5VSB 0.5A
background
03
NOTES:
1. For example, for a rated +5 VDC output of 14A, the transient step would be 30% x 14 A
= 4.2 A.
2.Output voltages should remin within the remain within the regulation limits of Section 2.1,
and the power supply should stable when subjected to load transients per Table 3. from any
steady state load, including any or all of the following conditions:
3. Simultaneous load steps on the +12 VDC, +5 VDC, and +3.3 VDC outputs (all steps
occurring in the same direction)
4.Load-changing repetition rate of 50 Hz to 10 kHz
5.AC input range per Section 1.1 and Capacitive loading per Table 8
6.The +12V min start load is 5Amin at dynamic load response test.
NOTES:
This is measured over a bandwidth of 10Hz to 20MHz at the power supply output connector.
A 10μF electrolytic capacitor in a parallel with a 0.1μF ceramic capacitor is placed at the point
of measurement.

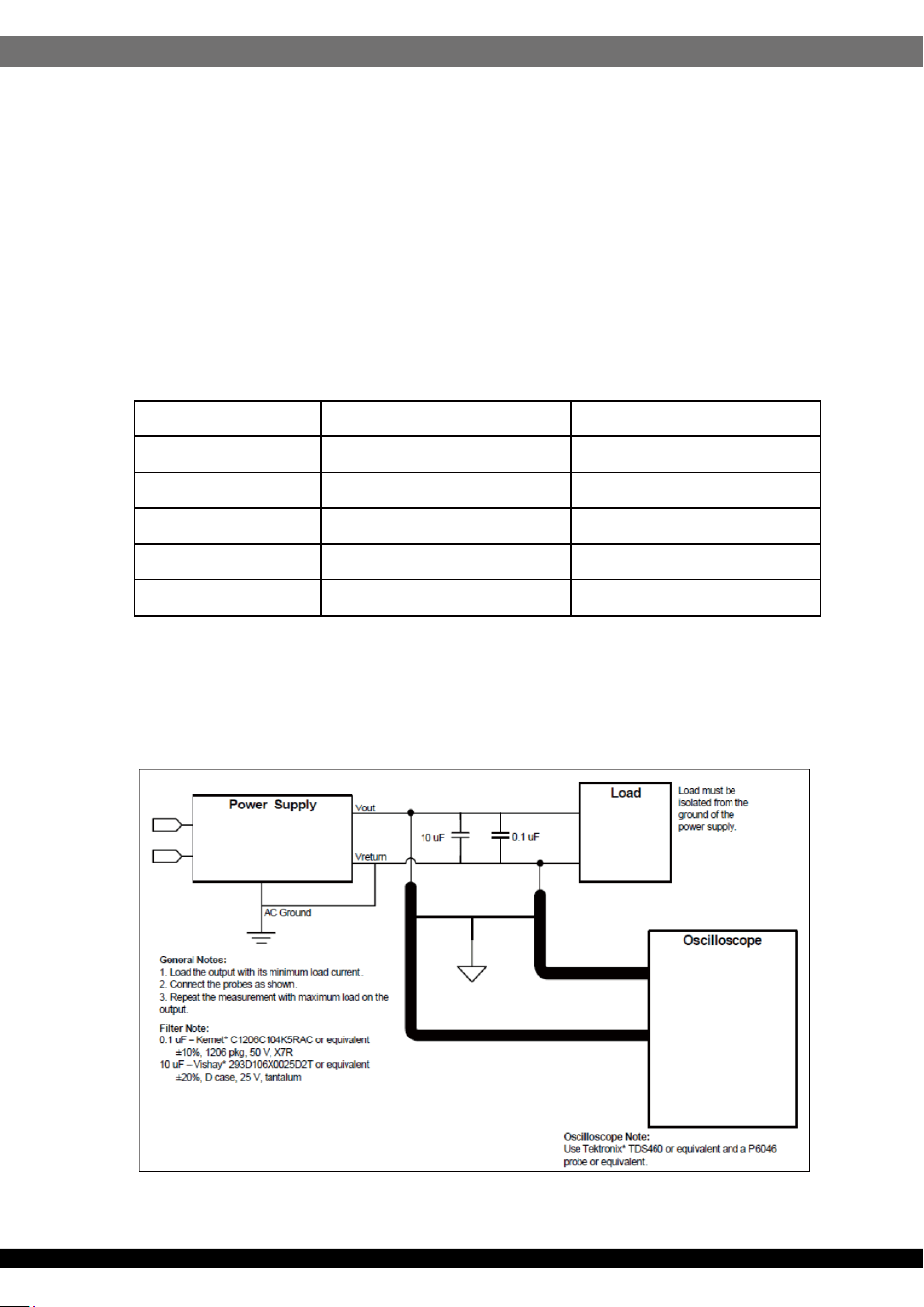

2.4 Output Ripple and Noise:
Table5
Differential noise test setup
Figure 1
Output
Ripple and Noise Unit
+3.3V
50
mVp-p
+5V
50
mVp-p
+12V
120
mVp-p
-12V
120
mVp-p
+5VSB
50
mVp-p
background
04
2.5.1 In the 115Vac/60Hz input voltage the power supply efficiency is more than 94%.
When the logic level "PS-ON" is low, the DC outputs are to be enabled.
When the logic level is high or open collector, the DC outputs are to be disabled.
2.5.2 ERP 5VSB Efficiency
Note: There is a 1% tolerance in mass production
2.5 Efficiency:
2.6 Remote on/off control
The overshoot of the DC output voltage caused by switching AC power or switch PSON# should be
less than 10% of the normal output, and no reverse polarity voltage should be produced.
2.7 Overshoot:
The power supply shall be stable and meet all requirements with the following capacitive loading
ranges.
2.8 Capacitance Loading
Table6
Table7
Table8
Load
Efficiency(%) Power Factor
10% -- --
20% 90 --
50%
92 >0.95
100%
89 --
+5VSB LOAD
Eciency target
(both 110V and 230V input)
3A 75%
1.5A 75%
1A 75%
0.55A 75%
90mA 55%
45mA 45%
Capacitive Loading Conditions
Output
Capacive Load (μF)
+3.3V
3,300
+5V
3,300
+12V
3,300
-12V
3,30
+5VSB
3,300
background
05
3.1 Operation temperature:
3.2 Shipping and Storage:
3.Environment:
Due to overvoltage, over power and short circuit, the protection function of
the power supply circuit is self operated, and the power is self locked. There is no
output at that time. When these reasons are removed, the power is restored to the
normal output state when the power is restarted. (PSON# at least 1 second;
AC shutdown at least 4 seconds).
4.1 Over-power protection.
The power supply will be shutdown and latch off when output power within
110~150% of rated DC output.
Note: Assurance machine can work at low voltage,full load won't damage
machine.
4. Protection:
Table9
Table10
Temperature
0 to 50
Relative Humidity 5% to 90%,on-condensing
Temperature
-4070
Relative Humidity 5% to 95%,non - condensing
3.3 Altitude:
3.4 Cooling mode:
Forced air cooling.
3.5 Random Vibration:
Non-operating 0.01 g²/Hz at 5 Hz, sloping to 0.02 g²/Hz at 20 Hz, and
maintaining 0.02 g²/Hz from 20 Hz to 500 Hz. The area under the PSD curve is
3.13 grams. The duration shall be 10 minutes per axis for all three axes on all
samples.
Table11
Operang 2000m
Storage 3000m
background
4.2 Over voltage protection:
4.3 Short circuit protection:
Table12
Table13
An output short circuit is defined as any output impedance of less than 0.1 ohms.
The power supply shall shut down and latch off for shorting the +3.3 VDC,
+5 VDC,or+12VDC rails to return or any other rail. Shorts between main output
rails and +5VSB shall not cause any damage to the power supply.
The power supply shall either shut down and latch off or fold back for shorting
the negative rails.+5VSB must be capable of being shorted indefinitely,
but when the short is removed,the power supply shall recover automatically or
by cycling PS_ON#.The power supply shall be capable of withstanding a
continuous short-circuit to the output without damage or overstress to the unit
4.4 Over Temperature Protection:
The power supply will be protected against over temperature conditions caused
by loss of fan cooling or excessive ambient temperature.In an OTP condition
the PSU will shutdown. When the power supply temperature drops to within
specifide limits,the power supply shall Lacth mode.
4.5 Over current protection
The power supply shall have current limit to prevent the +3.3 V, +5 V, and +12V
outputs from exceeding the values shown in Table . If the current limits are
exceeded the power supply shall shutdown and latch off. The damaged from
repeated power cycling in this condition. -12V and 5VSB shall be protected
under over current or shorted conditions so that no damage can occur to
the power supply. All outputs shall be protected so that no damage occurs to
the power supply under a shorted output condition.
Output
Output voltage protecƟon point
Unit
Min Nom Max
+3.3V 3.76 4.2 4.3 V
+5V 5.74 6.3 7.0 V
+12V 13.4 15.0 15.6 V
+5vsb 5.74 6.3 7.0 V
Voltage Over Current Limit (Iout limit)
+3.3V 27.5A minimum; 37.5A maximum
+5V 27.5A minimum; 37.5A maximum
+12V 92A minimum; 125A maximum
background
07

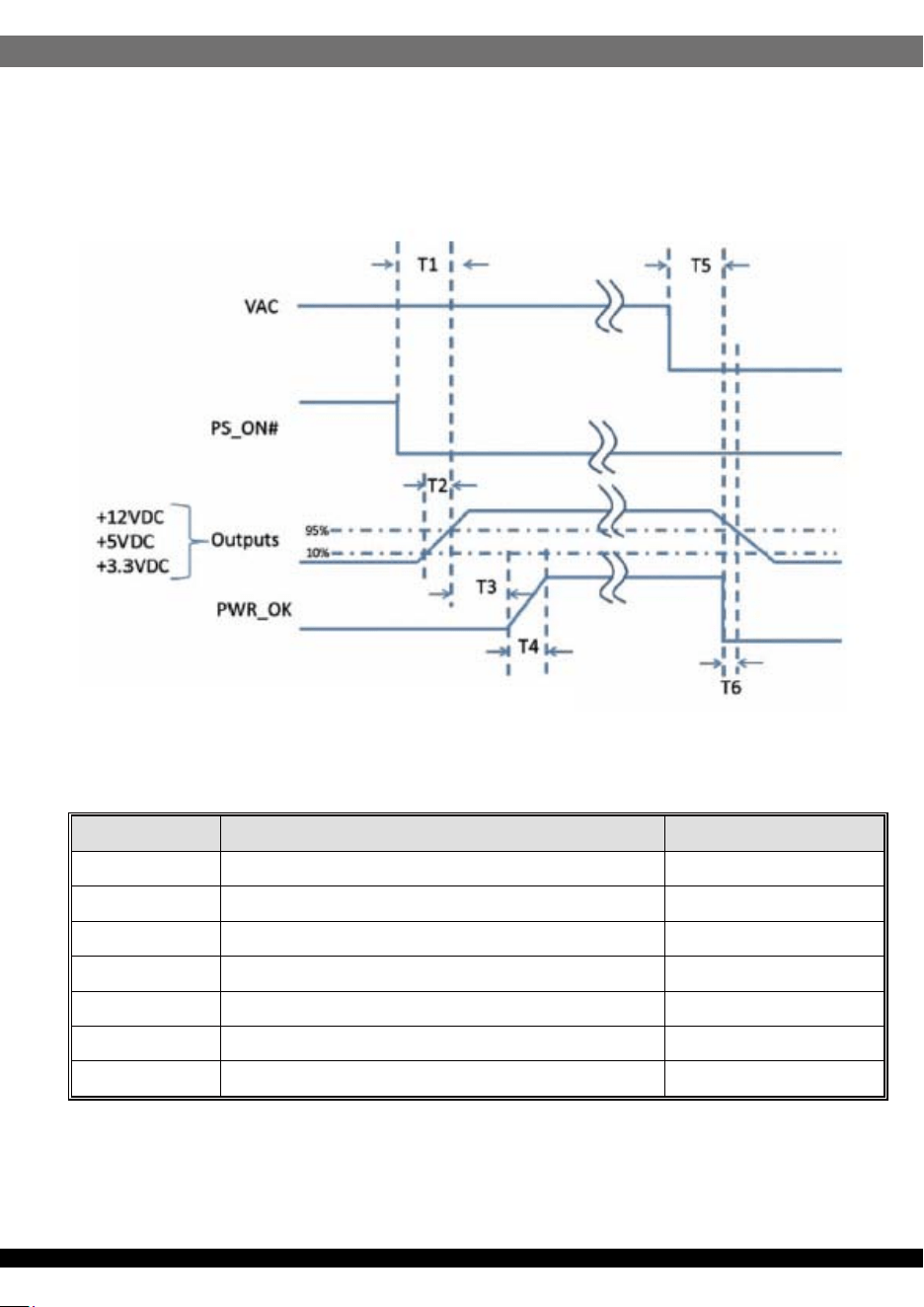

5.1 Signal timing drawing
5. Power Supply Timing
Figure 2 is a reference for signal timing for main power connector signals and rails.
The power supply should maintain output regulations per Table 5 despite a loss of
input power at the low-end nominal range-115 VAC / 47 Hz or 230 VAC / 47 Hz –
at maximum continuous output load as applicable for a minimum of 17ms (T5+T6)
Figure 2
Table14
Parameter Description Required
T0 AC power on time <2s
T1 Power-on time < 200ms
T2 Rise time 0.2 – 20 ms
T3 PWR_OK delay 100 – 150ms
T4 PWR_OK rise time < 10 ms
T5 AC loss to PWR_OK hold-up time > 14 ms
T6 PWR_OK inactive to DC loss delay > 1 ms
background
6.1 Electrical strength:
Gradually increased from 0V to 1500V is applied in the AC line and the casing,
and then keep for 1 minutes, the insulation should not breakdown; if the current
increases rapidly due to the test voltage and gets out of the way, that is to limit
the current insulation, insulation breakdown that has occurred; corona discharge
or flashover is not a single moment that is the breakdown of insulation.
6.2 Ground Resistance:
Ground resistance value less than < 0.1 ohm(40A)
6.3 Touch current:
When the input 250Vac, contact current less than 3.5mA at 25.
6.4 EMC
6.4.1 ELECTROSTATIC DISCHARGE (ESD) – IEC 61000-4-2(EN 61000-4-2).
6.4.2 RADIATED SUSCEPTIBILTY – IEC 61000-4-3(EN 61000-4-3).
6.4.3 ELECTRICAL FAST TRANSIENT / BURST ( EFT/B) – IEC 61000-4 -4
(EN 61000-4-4).
6.4.4 SURGE – IEC 61000-4-5(EN 61000-4-5).
6.4.5 CONDUCTED SUSCEPTIBILTY – IEC 61000-4-6(EN 61000-4-6).
6.4.6 POWER FREQUENCY MAGNETIC FIELD – IEC 61000-4-8(EN 61000-4-8).
6.4.7 VOLTAGE DIPS – IEC 61000-4-11(EN 61000-4-11).
6.4.8 VOLTAGE FLUCTUATIONS – IEC 61000-3-3 (EN 61000-3-3).
6.4.9 HARMONIC CURRENT EMISSION – IEC61000-3-2(EN 61000-3-2).
6.4.10 EN55032:Class B Radio interference (CISPR 32).
6.4.11 ANSI C63.4-2014 / FCC Part 15 Subpart B / ICES-003 lssue 6 Class B
115VAC operation.
08
The power supply designed to meet IEC 62368-1.
6. SAFETY:
The demonstrated MTBF shall be 100,000 hours of continuous operation at 25
and full load and nominal voltage. The MTBF of the power supply shall be
calculated in accordance with MIL-HDBK-217F. The DC FAN is not included.
7. Reliability:
8.1 Physical dimension: L125mm x W130mm x H63.5mm
8. Mechanical:
background
09

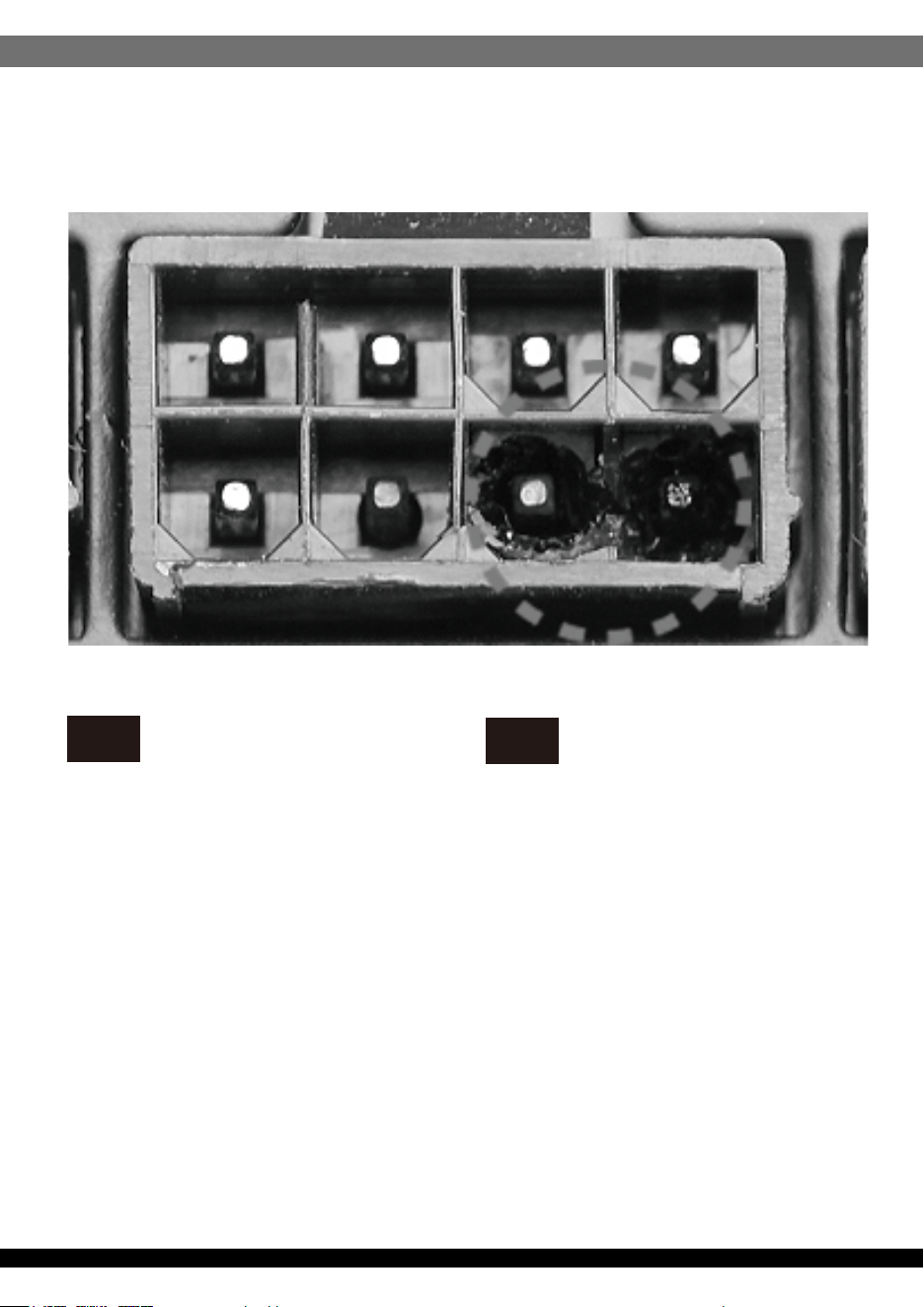

9. POWER SUPPLY CONNECTOR OVERUSE DEFINITION
Power supply connector overuse definition
EN
A single PCIe 8pin cable and connector’s maximum current rating is
12.5A, which is 150W (+12V x 12.5A). So SilverStone’s warranty will not
cover damages or malfunction resulting from the use of a graphics card
or expansion card with a single PCIe 8pin connector that exceeds
standard 225W total power draw (150W from PCIe 8pin connector +
75W from PCIe motherboard slot). Similarly, a graphics card or
expansion card with dual PCIe 8pin connectors that exceed 375W total
power draw (300W from two PCIe 8pin connectors + 75W from PCIe
motherboard slot) will also not be covered under warranty.
Peripheral (molex) or SATA connector’s maximum current rating is 5A,
which is 60W (+12V x 5A) or 25W (+5V x 5A). Please ensure connected
devices are operating under these limits. SilverStone’s warranty will not
cover damages or malfunction resulting from usages exceeding these
connectors and their associated cables.
24pin motherboard connector’s maximum current rating for its dual
+12V metal pins are 5A each, which totals 120W (+12V x 5A x 2).
Please ensure +12V drawing devices connected to the motherboard are
operating under these limits. SilverStone’s warranty will not cover
damages or malfunction resulting from usages exceeding these
connectors and their associated cables.
Definition einer Überlastung des
Netzanschlusses
DE
Die maximale Stromstärke eines einzelnen 8-poligen PCIe-Kabels und
Anschlusses beträgt 12,5 A, was 150 W (+12 V x 12,5 A) entspricht.
Daher deckt die SilverStone-Garantie keine Schäden oder
Fehlfunktionen durch den Einsatz einer Grafikkarte oder Erweiterung-
skarte mit einem einzigen 8-poligen PCIe-Anschluss ab, die die
Standardleistungsaufnahme von insgesamt 225 W übersteigt (150 W
vom 8-poligen PCIe-Anschluss + 75 W vom PCIe-Motherboard-Steck-
platz). Ebenso wird die Verwendung einer Grafikkarte oder
Erweiterungskarte mit zwei 8-poligen PCIe-Anschlüssen, die eine
Leistungsaufnahme von insgesamt 375 übersteigen (300 W von den
beiden 8-poligen PCIe-Anschlüssen + 75 W vom PCIe-Mother-
board-Steckplatz) nicht durch die Garantie abgedeckt.
Der maximale Nennstrom von Peripherie- (Molex) oder SATA-An-
schluss beträgt 5 A, was 60 W (+12 V x 5 A) oder 25 W (+5 V x 5 A)
entspricht. Bitte achten Sie darauf, dass verbundene Geräte unter
diesen Grenzwerten arbeiten. Die Garantie von SilverStone deckt keine
Schäden oder Fehlfunktionen aufgrund einer Nutzung ab, die diese
Anschlüsse und ihre zugehörigen Kabel übersteigt.
Der maximale Nennstrom des 24-poligen Motherboard-Anschlusses für
seine dualen +12-V-Metallkontakte beträgt jeweils 5 A, was insgesamt
120 W (+12 V x 5 A x 2) ergibt. Bitte stellen Sie sicher, dass mit dem
Motherboard verbundene +12-V-Geräte unter diesen Grenzwerten
arbeiten. SilverStones Garantie deckt keine Schäden oder
Fehlfunktionen aufgrund einer Nutzung jenseits der Angaben dieser
Anschlüsse und ihrer zugehörigen Kabel ab.
background
10
Définition de l'utilisation excessive du
connecteur d'alimentation électrique
FR
Le courant nominal maximum d'un périphérique (Molex) ou d'un
connecteur SATA est de 5 A, ce qui correspond à 60 W (+12 V x 5 A)
ou 25 W (+5 V x 5 A). Veuillez vous assurer que les appareils
connectés fonctionnent dans ces limites. La garantie de SilverStone
ne couvre pas les dommages ou les dysfonctionnements résultant
d'utilisations dépassant ces connecteurs et leurs câbles associés.
Le courant nominal maximal des connecteurs 24 broches de la carte
mère pour ses doubles broches métalliques +12 V est de 5 A chacun,
ce qui représente au total 120 W (+12 V x 5 A x 2). Veuillez vous
assurer que les dispositifs de tension +12 V connectés à la carte mère
fonctionnent dans ces limites. La garantie de SilverStone ne couvre
pas les dommages ou les dysfonctionnements résultant d'utilisations
dépassant la capacité de ces connecteurs et de leurs câbles
associés.
Le courant nominal maximum d'un câble et d'un connecteur PCIe 8
broches unique est de 12,5 A, ce qui correspond à 150 W (+12 V x
12,5 A). La garantie de SilverStone ne couvre donc pas les dommages
ou les dysfonctionnements résultant de l'utilisation d'une carte
graphique ou d'une carte d'extension avec un connecteur PCIe 8
broches unique qui dépasse une consommation énergétique totale de
225 W standard (150 W provenant du connecteur PCIe 8 broches + 75
W provenant de l'emplacement de la carte mère PCIe). De même, une
carte graphique ou une carte d'extension avec deux connecteurs PCIe
8 broches qui dépasse une consommation énergétique totale de 375 W
(300 W provenant des deux connecteurs PCIe 8 broches + 75 W
provenant de l'emplacement de la carte mère PCIe) ne sera également
pas couverte dans le cadre de la garantie.
La corrente massima di un singolo cavo PCIe a 8 pin e del connettore
è 12,5 A, corrispondente a 150 W (+12 V x 12,5 A). Pertanto, la
garanzia di SilverStone non copre danni o malfunzionamenti derivanti
dall'utilizzo di una scheda grafica o una scheda di espansione con un
singolo connettore PCIe a 8 pin che supera l'assorbimento totale di
225 W (150 W da connettore PCIe a 8 pin + 75 W da slot PCIe).
Analogamente, la garanzia non copre anche una scheda grafica o
una scheda di espansione con doppi connettori PCIe a 8 pin che
superano l'assorbimento totale di 375 W (300 W da doppi connettori
PCIe a 8 pin + 75 W dalla scheda madre PCIe).
La corrente massima del connettore periferico (molex) o SATA è 5 A,
corrispondente a 60 W (+12 V x 5 A) o 25 W (+5 V x 5 A). Assicurarsi
che i dispositivi collegati funzionino entro questi limiti. La garanzia di
SilverStone non copre danni o malfunzionamenti derivanti da uso
eccessivo di questi connettori e dei relativi cavi.
La corrente massima del connettore a 24 pin per scheda madre per i
suoi due pin di metallo a +12 V è di 5 A ciascuno, per un totale di 120
W (+12 V x 5 A x 2). Assicurarsi che i dispositivi a +12 V collegati alla
scheda madre funzionino con questi limiti. La garanzia di SilverStone
non copre danni o malfunzionamenti derivanti da uso eccessivo di
questi connettori e dei relativi cavi.
Definizione di uso eccessivo del connettore
di alimentazione
IT
La corriente máxima de un solo cable PCIe de 8 pines es 12,5A, lo
que son 150W (+12V x 12,5A). Por tanto, la garantía de SilverStone
no cubrirá daños o fallos provocados por el uso de una tarjeta gráfica
o de expansión con un único conector PCIe de 8 pines que exceda el
total estándar de 225W (150W del conector PCIe de 8 pines + 75W
del zócalo PCIe de la placa base). De igual modo, una tarjeta gráfica
o de expansión con conectores duales PCIe de 8 pines que superen
375W de potencia (300W de los dos conectores PCIe de 8 pines +
75W del zócalo de la placa base) tampoco será cubierta por la
garantía.
Definición de uso excesivo del conector de
la Fuente de alimentación
ES
La corriente máxima del conector de periféricos (molex) o SATA es
5A, que son 60W (+12V x 5A) o 25W (+5V x 5A). Por favor,
asegúrese de que los dispositivos conectados funcionan dentro de
estos límites. La garantía de SilverStone no cubrirá daños o fallos a
resultas de un uso excesivo de estos conectores y sus cables
asociados.
La corriente máxima del conector de 24 pines de la placa base para
sus pines de metal duales de +12V es de 5A cada uno, para un total
de 120W (+12V x 5A x 2). Por favor, asegúrese de que los
dispositivos de +12V conectados a la placa base funcionan dentro de
estos límites. La garantía de SilverStone no cubrirá daños o averías a
resultas de un uso excesivo para estos conectores y sus cables
asociados.
Определение чрезмерной нагрузки на
коннектор блока питания
RU
Один кабель и коннектор PCIe 8pin поддерживает ток 12.5A, что
равно 150Вт (+12В x 12.5A). Таким образом, гарантийные
обязательства SilverStone не будут действовать если вы
используете видеокарту или другую карту расширения с одним
коннектором PCIe 8pin, которые превышает стандартную общую
потребляемую мощность 225Вт (150Вт через коннектор PCIe 8pin
+ 75Вт через слот PCIe материнской платы). Аналогично,
видеокарта или другая карта расширения с
двумя коннекторами
PCIe 8pin, которые превышают общую потребляемую мощность
375Вт (300Вт через коннектор PCIe 8pin + 75Вт через слот PCIe
материнской платы), также не будут покрываться гарантией.
Максимальный номинальный ток периферийного (molex) или
SATA разъёма составляет 5A, что равно 60Вт (+12В x 5A) или 25
Вт (+5В x 5A). Пожалуйста, убедитесь, что подключенные
устройства работают в этих пределах. Гарантия SilverStone не
будет распространяться на
неисправности, возникающие в
результате использования этих коннекторов или подключаемых к
ним кабелей.
Максимальный номинальный ток 24pin коннектора материнской
платы для его двойных металлических контактов +12В
составляет 5A на каждый, что равно 120Вт (+12В x 5A x 2).
Пожалуйста, убедитесь, что устройства, подключенные к линии
+12В, работают в этих пределах. Гарантия SilverStone не будет
распространяться на неисправности, возникающие
в результате
использования этих коннекторов или подключаемых к ним
кабелей.
전원 공급 커넥터 과용 정의
KR
단일한 PCIe 8핀 케이블 및 커넥터의 최대 전류 정격은 12.5A로서
전력으로 환산하면 150W(+12V x 12.5A)입니다. SilverStone의
보증에서는 표준 225W의 총 소비 전력 (PCIe 8핀 커넥터의 150W와
PCIe 메인보드 슬롯의 75W의 합)을 초과하는 단일 PCIe 8핀 커넥터
탑재 그래픽 카드나 확장 카드를 사용하여 발생하는 손상 또는
오작동을 보상하지 않습니다. 이와 마찬가지로 375W의 총 소비
전력(PCIe 8핀 커넥터 2개의 300W와 PCIe 메인보드 슬롯의 75W의
합)을 초과하는 듀얼 PCIe 8핀 커넥터 탑재 그래픽 카드나 확장
카드를 사용해도 보증에서 보상해주지 않습니다.
주변장치(molex) 또는 SATA 커넥터의 최대 전류 정격은 5A로서
전력으로 환산하면 60W(+12V x 5A) 또는 25W(+5V x 5A)입니다.
연결된 장치들은 이러한 제한 하에서만 작동시켜야 합니다.
SilverStone의 보증에서는 이러한 커넥터 및 이와 연결되는 케이블의
정격을 초과하여 사용함으로써 발생하는 손상이나 오작동을 보상하지
않습니다.
듀얼 +12V 금속 핀에 사용되는 24핀 메인보드 커넥터의 정격 전류는
5A 이며, 각각 합계가 120W (+12V x 5A x 2) 입니다. 메인보드에
연결된 +12V 장치가 해당 한계 미만으로 작동되도록 하십시오.
SilverStone은 이 커넥터나 관련 케이블의 한계를 초과해서
사용함으로써 발생하는 손상이나 고장에 대해서 보장하지 않습니다.
background
11
電力供給の使用限度超過に関す説明
JP
単一のPCIe8ピンケブルおよびコネの最大定格電流は12.5A
で150W(+12Vx12.5A)ますそれで定格225W合計電力消費
(PCIe8ピンコネクタからの150W+PCIeマザーボードスから
75W)を超単一PCIe8ピンコネタ装備のスカ
または拡張カード使用にて生じた損傷や故障の場合
SilverStoneの製品保証は適用外ます同様に、375W合計電力
消費(2基のPCIe8ピンコからの300W+PCIeマザーボードス
からの75W)を超る、アルPCIe8ンコネク装備のグラ
スカまたは拡張カド使用にて生じた損傷や故障の場
合も、製品保証適用外ます
周辺用(molex)またはSATAコネの最大定格電流は5Aで60W
(+12Vx5A)または25W(+5Vx5A)ます接続された装置がこ
ら限度以内で動作すを確認ださい。これらコネクタお
び関連ケブルの定格を超る使用法で生た損傷や故障につい
は、SilverStone製品保証対象外とますのでご注意ださい。
24ピンマザーボードコネクタのル+12V金属製ピンに対す
大定格電流はそれぞれ5Aなので合計は120W(+12Vx5Ax2)
ます接続される+12V入力のデバイスが、ら上限以内で動作す
ご確認ださい。コネよび関連ケブルでの限界
を超た使用で生じた損傷または故障は、SilverStoneに製品保
証対象外ます
单条PCIe 8pin电源线与接头的最大额定电流为12.5A,瓦特数150W
(+ 12V x 12.5A)。 因此,银欣的电源保固不包括用于单条PCIe
8pin接头之显卡/扩充卡,在超过标准225W总功耗范围所造成的损坏
或故障(150W 的PCIe 8pin接头+ 75W的主板PCIe插槽)。 以此类
推,若具备双PCIe 8pin接头的显卡/扩充卡,负载一但超过375W总
功耗,视同不属保固范围内(300W来自两个PCIe 8pin接头 + 75W的
主板PCIe插槽)。
大4pin(molex)或SATA接头的最大额定电流为5A,即60W(+ 12V x
5A)或25W(+ 5V x 5A)。 请确保连接的设备皆低于此限制下运行
银欣不保固超出电源供应器接头及其相关线材之使用负载上限所造
成的损坏或故障。
24pin主板接头的双+12V金属针脚最大额定电流为5A,即120W(+
12V x 5A x 2)。请确保连接的+12V设备皆低于此限制下运行。
银欣不保固超出电源供应器接头及其相关线材之使用负载上限所造
成的损坏或故障。
电源供应器接头过度使用定义
CN
電源供應器接頭過度使用定義
TW
單條PCIe 8pin電源線與接頭的最大額定電流為12.5A,瓦特數150W(
+ 12V x 12.5A)。 因此,銀欣的電源保固不包括用於單條PCIe
8pin接頭之顯卡/擴充卡,在超過標準225W總功耗範圍所造成的損壞
或故障(150W 的PCIe 8pin接頭+ 75W的主機板PCIe插槽)。 以此類
推,若具備雙PCIe 8pin接頭的顯卡/擴充卡,負載一但超過375W總功
耗,視同不屬保固範圍內(300W來自兩個PCIe 8pin接頭 + 75W的主
機板PCIe插槽)。
大4pin(molex)或SATA接頭的最大額定電流為5A,即60W(+ 12V x
5A)或25W(+ 5V x 5A)。 請確保連接的設備皆低於此限制下運行
銀欣不保固超出電源供應器接頭及其相關線材之使用負載上限所造成
的損壞或故障。
24pin主機板接頭的雙+12V金屬針腳最大額定電流為5A,即120W(+
12V x 5A x 2)。請確保連接的+12V設備皆低於此限制下運行。
銀欣不保固超出電源供應器接頭及其相關線材之使用負載上限所造成
的損壞或故障。
ขีดจำกัดการรองรับการใช้งานของขั้วต่อจากพาวเวอร์ซัพพลาย
TH
สำหรับขั้วเชื่อมต่อและสายไฟเลี้ยง PCIe 8 พินสามารถรองรับกระแสได้สูงสุด 12.5
แอมป์หรือหมายถึง 150 วัตต์
(+12V x 12.5A) ดังนั้นการรับประกันจากทาง SilverStone
จะไม่ครอบคลุมถึงความเสียหายหรือความผิดปรกติซึ่งเกิดขึ้นกับกราฟิกการ์ดรวมถึงการ์
ดขยายความยาวที่ใช้งานขั้วเชื่อมต่อ PCIe 8 พิน
ซึ่งมันมีการใช้พลังงานรวมทั้งสิ้นเกินกว่ามาตรฐานที่กำหนดคือ 225 วัตต์ (150
วัตต์ จาก PCIe 8 พิน + 75 วัตต์ จากสล๊อต PCIe บนเมนบอร์ด)
อันรวมถึงกราฟิการ์ดหรือการ์ดขยายความยาวที่ใช้ขั้วต่อไฟเลี้ยง PCIe 8 พินจำนวน 2
ชุดซึ่งมีการใช้พลังงานทั้งสิ้น 375 วัตต์ (300 วัตต์ จากขั้ว PCIe 8 พิน 2 ชุด +
75 วัตต์ จากสล๊อต PCIe บนเมนบอร์ด) ซึ่งไม่ครอบคลุมเช่นกัน
ภายใต้การรับประกัน ขั้วเชื่อมต่อ Peripheral หรือ Molex 4 พินและ SATA
มันสามารถรองรับกระแสได้สูงสุด 5 แอมป์หรือหมายถึง 60 วัตต์ (+12V x 5A)
หรือ (+5V + 5A)
กรุณาให้แน่ใจว่าอุปกรณ์ที่ใช้งานมีการใช้พลังงานไม่เกินกว่าขีดจำกัดที่รองรับ
ดังนั
้นการรับประกันจากทาง SilverStone
จะไม่ครอบคลุมถึงความเสียหายหรือความผิดปรกติจากอุปกรณ์ที่เชื่อมต่อใช้งานจากตัวส
ายเชื่อมต่อซึ่งมีการใช้พลังงานเกินกว่าขีดจำกัด
กระแสไฟฟ้าสูงสุดของขั้วต่อเมนบอร์ด 24 พิน สำหรับพินโลหะ +12V คู่แต่ละอันมีค่า
5A ซึ่งรวมทั้งหมดเป็น 120W
(+12V x 5A x 2) โปรดตรวจสอบให้มั่นใจว่าอุปกรณ์ตัวดึงพลังงาน +12V
ที่เชื่อมต่อกับเมนบอร์ดสามารถทำงานภายใต้ขีดจำกัดเหล่านี้ได้ การรับประกันของ
SilverStone ไม่คุ้มครองความเสียหาย
หรืออาการเสียที่เป็นผลจากการใช้เกินขีดจำกัดของขั้วต่อและสายเคเบิลที่ใช้เชื่อมต่อเหล่านี้
background
12

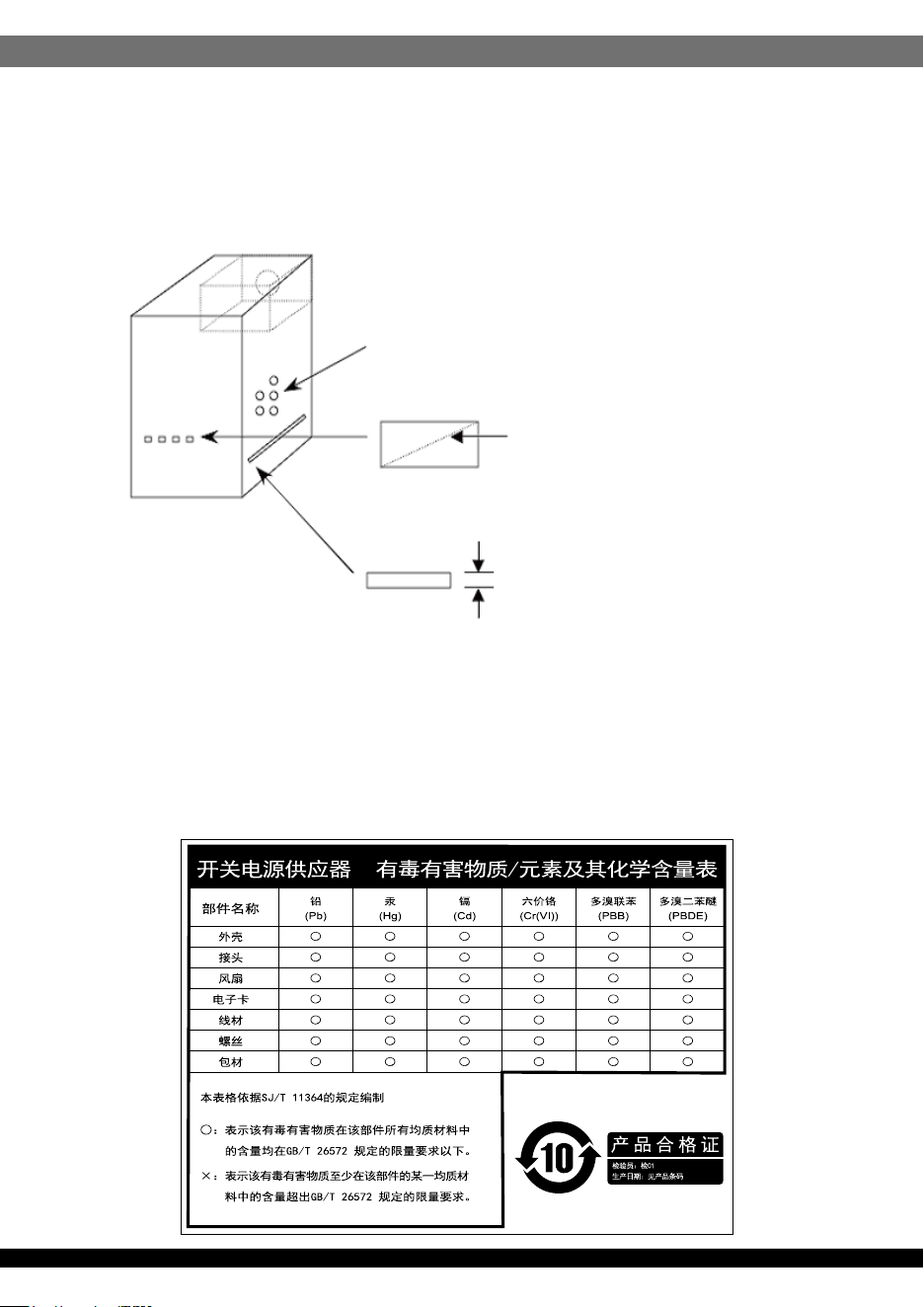

1. 為了保護使用者及防火的目的,安裝此交換式電源供應器時,必須安裝於符合下列各項要求的外殼中,
並且安裝妥善後,才可接上電源。
1-1. 外殼材質須為防火外殼。外壳材质须为防火外壳。
1-2. 外殼的上方及側邊之圓形開孔,最大內徑不可大於5mm。
1-3. 外殼的上方及側邊之長條型開孔,對角線距離不可大於5mm;若寬度小於1mm,則長度不受限制。
1-4. 外殼底部不可有開孔。外壳底部不可有开孔。
直徑不大於5mm
對角線不大於5mm
寬度小於1mm 則長度不限
Openings that do not exceed 1mm in width regardless of length
Openings that do not exceed 5mm in any dimension
2. 本產品輸出含有危險能量,為避免操作時發生危險,須於裝入系統機殼並將所有設備安裝妥當後才可開啟電源。
3. 本產品之電源輸出非屬電力限制型電源,請連接使用具防火外殼之周邊,以避免火災危險發生。
BSMI ROHS 資訊
http://www.silverstonetek.com/downloads/PSU/RSD.pdf
background
13
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Please refer to SilverStone website for latest specifications updates.
※付属の電源コードは当該製品専用です。他の機器に使用しないでください。
background
background

Specifications

Indexed Terms: High-Efficiency

SilverStone SST-SX1000-LPT Questions and Answers
