Parts List
Number: 71238
Issued: 3-9-2005
Revised: 5-20-2021
hoshizakiamerica.com
Ice Bin
Models
B-1150SS
B-1300SS
B-1500SS
B-1650SS
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Bin Assembly ..................................................................................................................... 4
B. Snout Assembly ................................................................................................................. 5
C. Door Assembly .................................................................................................................. 6
D. Accessories & Options ...................................................................................................... 7
3
Auxiliary Codes
B-1150SS
Q-5 August 2005
R-5 December 2005
R-6 September 2006
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
F-5 September 2016
G-5 January 2017
H-5 January 2018
J-5 January 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
B-1300SS
P-5 August 2004
Q-5 March 2005
R-5 December 2005
R-6 September 2006
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
F-5 Novemver 2016
G-5 January 2017
H-5 January 2018
J-5 January 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
B-1500SS
Q-5 August 2005
R-5 December 2005
R-6 September 2006
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
F-5 September 2016
G-5 January 2017
H-5 January 2018
J-5 January 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
B-1650SS
Q-5 August 2005
P-5 August 2004
Q-5 March 2005
R-5 December 2005
R-6 September 2006
S-5 January 2007
T-5 January 2008
U-5 February 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
F-5 January 2016
G-5 January 2017
H-5 January 2018
J-5 January 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
4
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character indicates
the year. Years progress or regress in alphabetical order. The series runs from "A" through
"V" and the letters "I" and "O" are skipped. The second character indicates signicant part
changes within a year. Base is "5" and this number advances for each change. In cases
where there is a letter in parentheses, this designates the month. This is the last character in
the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This
designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
5

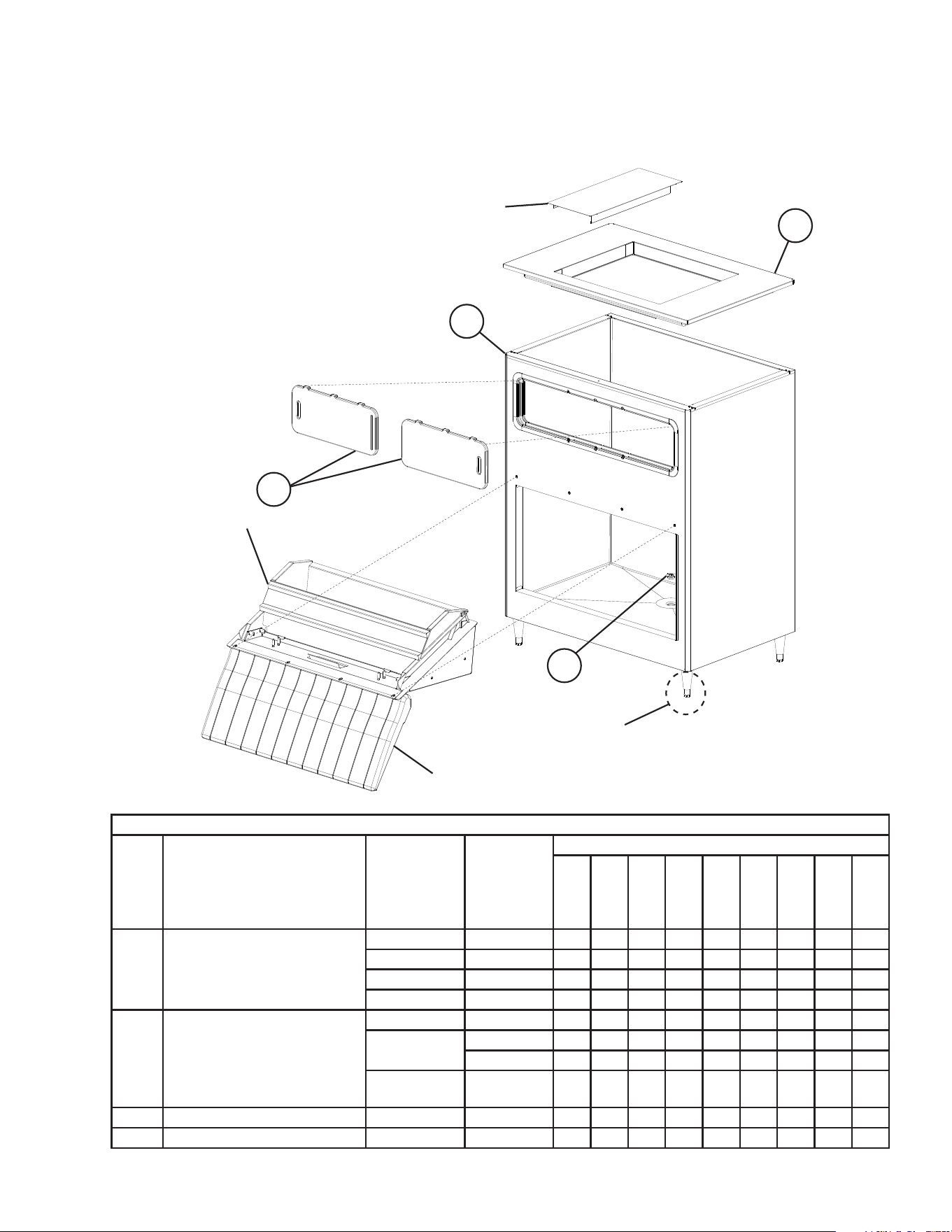

A. Bin Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
P-5 to L-5
1
2
3
4
Title: A. Bin Assembly Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
P-5
to
Q-5
R-5
to
L-5
1 Bin B-1150SS 2A3602G01 1 1
B-1300SS 2A3064G01 1 1
B-1500SS 2A3621G01 1 1
B-1650SS 2A3088G01 1 1
2 Top Kit B-1150SS 2A3424G01 1 1
B-1300SS 2A3070G01 1 -
2A3424G01 1
B-1500SS
B-1650SS
2A3248G01 1 1
3 Sliding Door 2A3079-01 2 2
4 Drain Cap 322015-01 1 1
For Door Assembly, see Section “C.”
For Snout Assembly, see Section “B.”
For Legs, see Section “D.”
For Top Kit Cover, see Section “D.”
6
Title: B. Snout Assembly Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
P-5
to
Q-5 R-5 R-6
S-5
to
U-5
(J)
U-5
(K)
to
L-5
1 Left Snout 1A0923-01 1 1 -
1A1287-01 1 1 1
2 Right Snout 1A0930-01 1 1 -
1A1286-01 1 1 1
3 Truss Head Screw 6×20 SS 4A3454-02 14 14 14 14 14
4 Snout Bottom (A) 1A0925-01 1 1 1 1 1
5 Snout Bottom (B) 1A0931-01 1 1 1 1 1
6 Snout Top Assembly 2A3069G01 1 -
2A3585G01 1 -
2A4024G01 1 -
2A4024G02 1 1
7 Round Vinyl Cap 4A3498-01 8 8 8 8 8
8 Baffle 2A3073-01 1 1 -
2A4030-01 1 1 -
2A5390-01 1
9 Left Side Cover 3A3080-01 1 1 1 1 1
10 Right Side Cover 3A3091-01 1 1 1 1 1

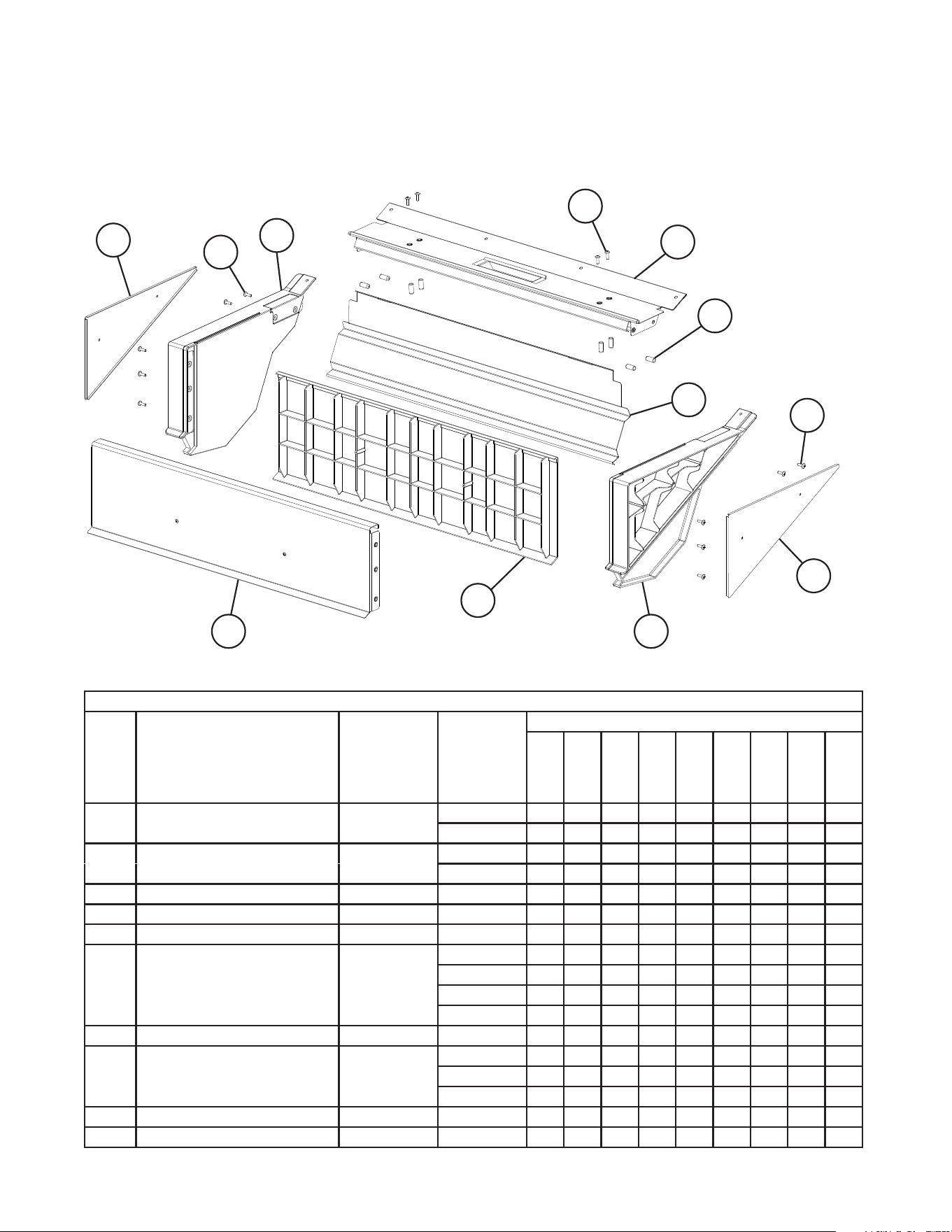

B. Snout Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
P-5 to L-5
1
3
3
2
4
7
3
5
10
6
9
8
7

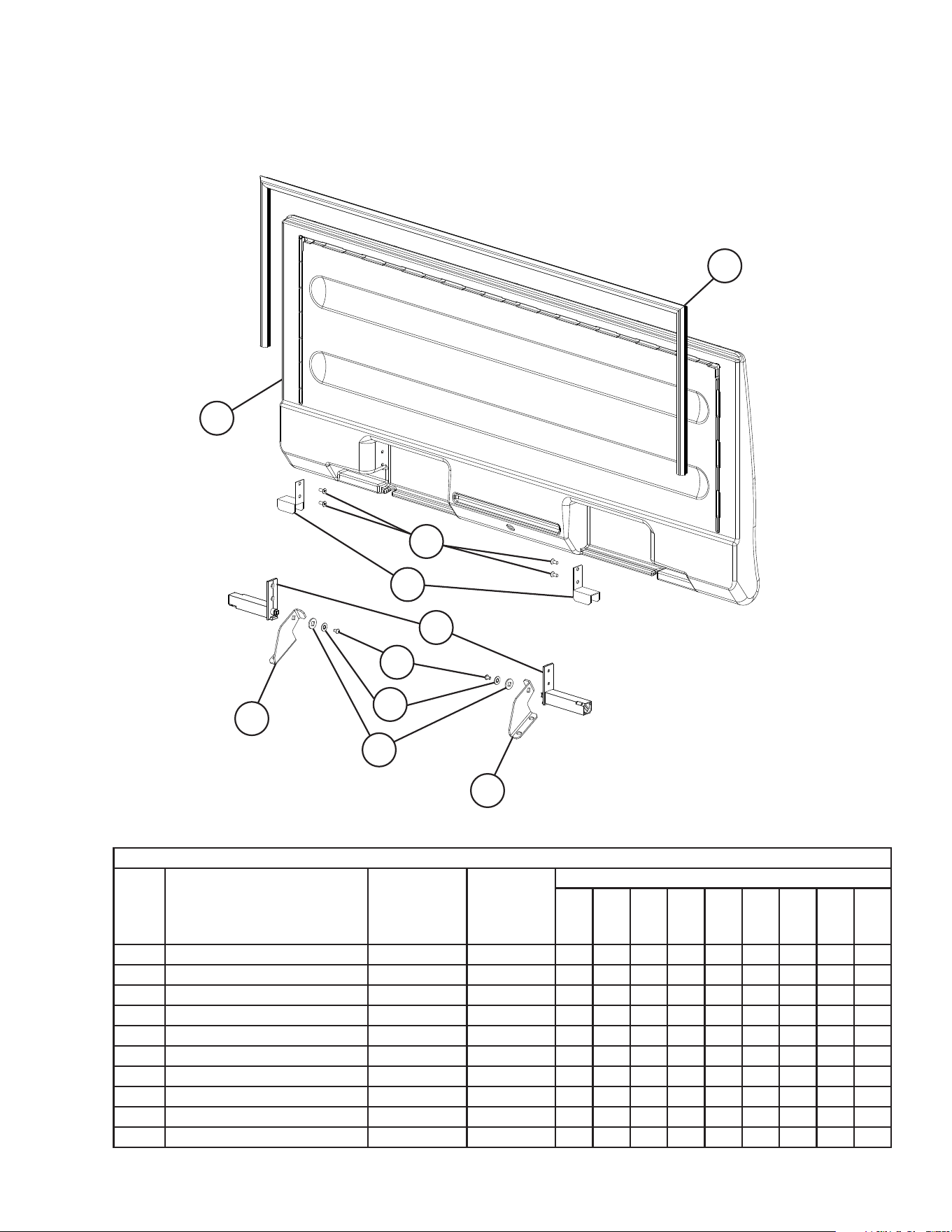

C. Door Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
P-5 to L-5
Title: C. Door Assembly Model: Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
P-5
to
L-5
1 Door 1A0926G01 1
2 Door Gasket 5×12 SS 3A3330-01 1
3 Hinge Support 4A3803-01 2
3a Countersunk Screw 5×12 SS 4A2894-01 4
4 Hinge 4A3360-01 2
4a Truss Head Screw M6 SS 4A3360F02 2
4b Tooth Washer M4 4A3360F03 2
4c Washer 4A3361-01 2
5 Left Hinge Bracket 3A3089-01 1
6 Right Hinge Bracket 3A3090-01 1
1
2
3
3a
4
4a
4b
4c
5
6
8

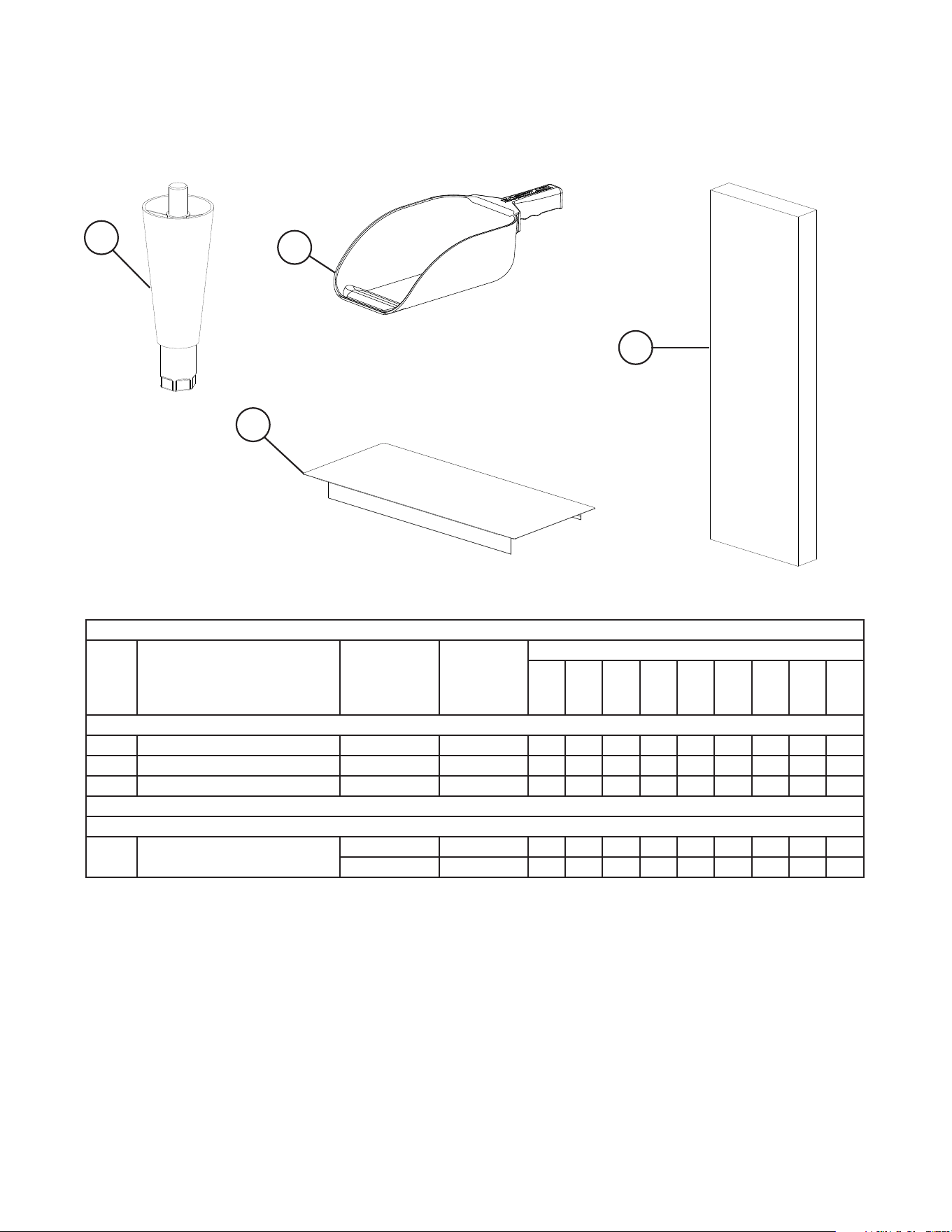

D. Accessories & Options
B-1150SS, B-1300SS, B-1500SS, B-1650SS
P-5 to L-5
Title: D. Accessories & Options Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
P-5
to
Q-5
R-5
to
L-5
Accessories
1 Leg-Box Of 4 4A0930-01 1 1
2 Scoop 4A2246-01 1 1
3 Snout Gasket 4A3474-01 1 1
Options
4 Top Kit Cover 3A3197G01 1 -
HS-2111 4A3908A01 1
1
2
3
4
