使用手册
Instruction Manual
口袋灯
Pocket Flash
01
说明书安全提示
重要安全提示
本产品属于专业摄影设备，需要专业人员操作使用。使用时必须遵守以下基本安全预防措施：
使用前必须拆除产品上的所有运输保护材料和包装。
使用本产品前，请仔细阅读并完全理解产品说明书，严格按照说明书中的安全提示操作。
否则，可能导致死亡、严重伤害、产品损坏或其他财产损失的安全隐患。
闪光灯工作时存在高电压，关机后设备内部电容仍将持续带电一段时间。
本产品为专业灯具，儿童禁止使用。儿童接近时，成人必须密切监督，防止儿童碰撞灯具
或私自使用灯具，造成人身伤害。
本灯具并非普通灯具，不可用于普通照明，任何有过眼部损伤或眼部敏感的人群均应避
免使用本灯具或直视本灯具。
使用时必须小心，严禁接触如闪光管等高温部件，以避免烫伤。
任何情况下均禁止将闪光灯直接对准人眼（特别是婴儿眼睛），否则短时间内可能导致视
力损伤。如感到眼睛不适，应立即关闭灯具，停止使用并及时就医。
闪光管损坏时，应立即停止使用，及时联系制造商、服务代理商或合格维修人员更换，以
防发生事故。
严禁使用损坏的设备或配件，必须等待专业维修人员检查维修并确认设备正常后，才可
继续使用。
更换灯管、保护玻璃或保险丝前，必须断开电源或者拆下电池（如装有电池），确保灯具
与电源完全断开。更换灯管前让其冷却 10 分钟，操作时需戴绝缘 / 或隔热手套。
拔插灯头插头时必须关闭产品电源，插入插头时务必检查是否完全卡入。
使用过程中，如果产品因跌落、挤压或强力冲击导致外壳破裂，应立即停止使用，避免接
触内部电子部件而触电受伤。
部分产品电源线较长，请合理放置，避免接触热源或绊倒他人。建议使用原装电源线。非
原装线造成的损坏不在保修范围内。
进行清洁和维修前，请先从电源插座上拔出设备电源插头。不要拉扯电源线强行拔出，正
确方法是用双手抓住插头端头拔出。
本设备不防水，请保持干燥，不能浸入水或其他液体；应安装在通风干燥位置，避免在雨天、
潮湿、多尘或过热环境中使用。不要在设备上方放置物品，或让液体流入内部，防止发生
危险。
未经授权，请不要自行拆卸本产品。产品若出现故障，必须由本公司或授权维修人员检查
和维修。
存放设备前，请确保设备已完全冷却，拔下电源线，放入设备包内或通风干燥位置。
请勿将设备放置在酒精、汽油等易燃挥发性溶剂或气体如甲烷、乙烷等附近。
本设备禁止在有爆炸危险的环境中使用或存放。
严禁覆盖设备散热口！
请勿使用未经本公司认可的配件，以免造成火灾、触电或人身伤害。
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
02
清洁设备时，请用干燥软布轻轻擦拭，不可使用湿布，否则可能会损坏设备。
部分产品配备保护罩，使用前必须取下。
本使用说明基于严格测试制定，设计和规格变更恕不另行通知。您可登录我们官方网站
查看最新电子版使用说明，了解产品最新资讯。
部分产品内置锂电池，必须使用专用充电器充电，并按正确操作说明，在规定电压和温度
范围内使用。
部分产品使用锂电池供电。这类锂离子电池使用寿命有限，会逐渐失去储电能力，这种能
力下降不可逆。电池老化时，产品续航时间会减少。锂离子电池使用寿命预计 2-3 年。请
定期检查电池情况，如果充电时间明显增加或续航时间明显减少，请考虑更换新电池。
部分产品配备锂电池，其储存建议如下：储存前，将电池充放电至约 50% 电量；至少每 6
个月充电一次，至约 50% 电量；可拆卸电池应单独存放；储存温度在 0° C 至 40° C 范围内。
部分产品使用锂电池供电，请注意以下事项：
处理任何电池前，请确认并遵守当地相关法律法规。
本设备整机的保修期为一年。消耗品如电池、适配器、电源线等配件不在保修范围内。
私自维修将取消保修资格，需支付维修费用。
不当操作导致故障不在保修范围。
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
●
●
●
●
●
●
●
●
不要拆卸、压碎或刺穿电池；
避免使电池触点短路；
不要在火中或水中处理电池；
将电池放在儿童接触不到的位置；
防止电池遭受过度冲击或振动；
不要使用已损坏的电池；
如果电池出现泄漏，请避免接触泄漏液体；
如果眼睛接触电池液体，立即用水冲洗至少 15 分钟，抬起眼睑直到没有液体的迹象后
及时就医。
03
前言
产品特性
警告
部件名称
物料清单
可另购附件
装卸灯管/灯头/电池
开关机
显示屏
电池说明
高速同步
M: 手动闪光
Multi: 频闪闪光
T T L ：自 动 闪 光
无 线 电（ 2 . 4 G ）传 输
神牛 2.4G 无线漏闪原因及解决办法
闪光模式
造型灯
自定义功能
同步插孔触发
快充口
保护功能
规格参数
固件升级
维护保养
04
04
05
06
08
08
09
12
12
13
13
14
16
17
18
21
22
22
23
24
24
24
26
27
27
目录
04
感谢您购买神牛产品！
AD200ProII 是一款无线 TTL 闪光灯，采用内置神牛 2.4G 无线 X 系统，配合神牛 XPro、
XProII、X2T、X3 系列引闪器可远程控制 TTL/M/Multi 模式触发 AD200ProII 闪光；同时它
还可以跟神牛机顶闪光灯、外拍闪光灯、影室闪光灯利用主从属功能组合使用。
全面兼容无线 TTL 系统：内置神牛 2.4G 无线 X 系统，与佳能、尼康、富士、索尼、奥
林巴斯、松下等多种相机的 TTL/M/Multi 模式兼容，实现无线多灯闪光系统从属单元，
简化拍摄流程。
功率与便携性兼备：200Ws 高功率，做到体积小巧便于携带， 0.01 至 1.8s 的极速回电
能力，电池容量大，支持全程高速。
多功能可换灯头：直管灯头和裸管灯头双选择，均配备双色温 LED 造型灯，满足多样拍
摄需求。
直观操作识别：16 色组别灯与彩屏的设计，提高操作直观性。
无线操控：内置 2.4G 无线 X 系统，与神牛 XPro、XProll、X2T、X3 系列引闪器兼容，
支持 TTL 控制，预留 3.5mm 同步插孔，兼容多种触发方式。
精确调光：在 1/512 至 1/1 之间以 0.1 为增量调节功率，实现精细控制。
色温恒定：开启闪光模式中的色温功能后色温全程档位波动在 ±100K 左右，极大确保了
色彩的一致性。
更多功能：支持 1/8000 秒高速同步、高速频闪、高速遥控器同步触发，满足专业需求。
丰富的光效附件：丰富的光效附件系统，适应各种拍摄场景和创意需求。
AD200Proll 口袋灯以其便携性、多功能性和高效性，成为商业摄影师、新闻记者、摄影
爱好者等的理想选择，满足广泛的拍摄和创意需求。
前言
产品特性
1.
2.
3.
4.
5.
6.
7.
8.
9.
05
警告
请保持干燥。
请勿私自拆卸产品，如产品出现故障须由本公司或授权的维修人员进行检查维修。
禁止拆卸、撞击、挤压或投入火中，若出现严重鼓胀，请勿继续使用。
请勿将闪光灯头正对人眼闪光 ( 特别是婴儿的眼睛 )，否则可能会在短时间内造成视力障碍。
请勿在化学品、可燃性气体或其他特殊物质附近使用闪光灯，这些物质在特殊情况下可能
对闪光灯发出的瞬间强光敏感，有可能导致火灾或电磁干扰。在这些场合下，请注意相关
警告标识。
本产品不能防水，在雨天及潮湿环境下请注意防水。
若发生任何故障，请立即关闭闪光灯电源。
本产品最高工作环境温度为 45℃，使用时请注意高温，请勿超出该范围。
本产品可能会发出有害的光辐射。切勿凝视操作灯，可能对眼睛有害。
不要向突然出现的人 / 物体、任何操作重型设备的人或执行任何其他活动的人
触发闪光，因为意外闪光可能会导致伤害或导致受伤。
请注意，闪光灯可以从很远的距离远程触发。
06
直管灯头 H200II
裸管灯头 H200JII

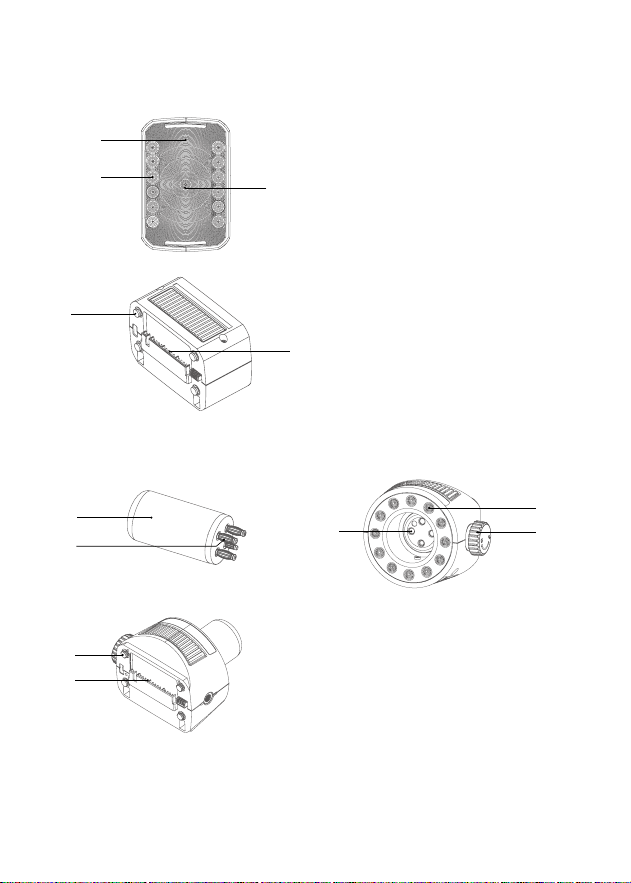

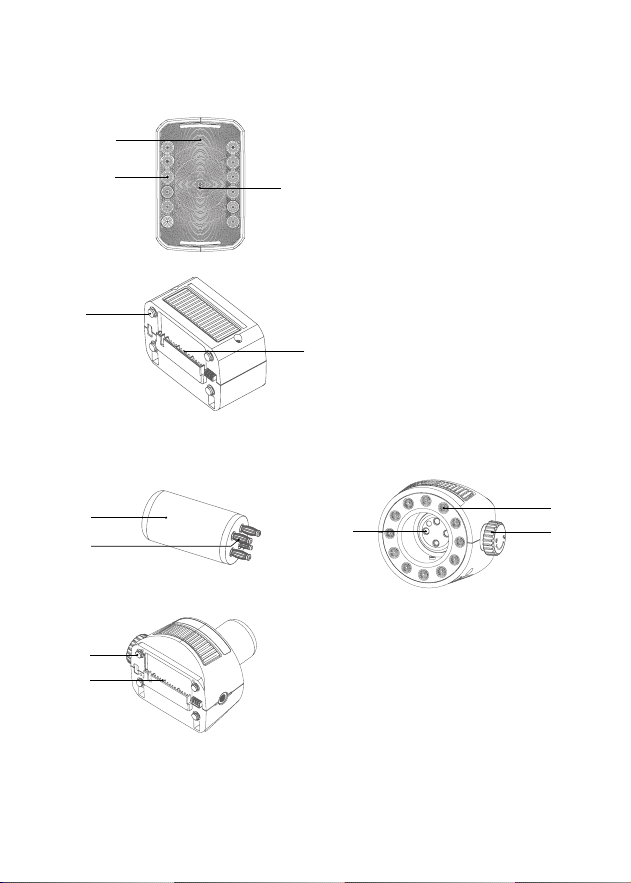

部件名称
1
3
2
5
4
1
6
7
3
4
5
2
1.LED 造型灯
2. 闪光灯管
3. 光学镜片
4. 灯头扣件
5. 灯头卡口公座
1. 灯管
2. 灯管触脚
3. 灯管插座
4.LED 造型灯
5. 卡口固定旋钮
6. 灯头扣件
7. 灯头卡口公座
07

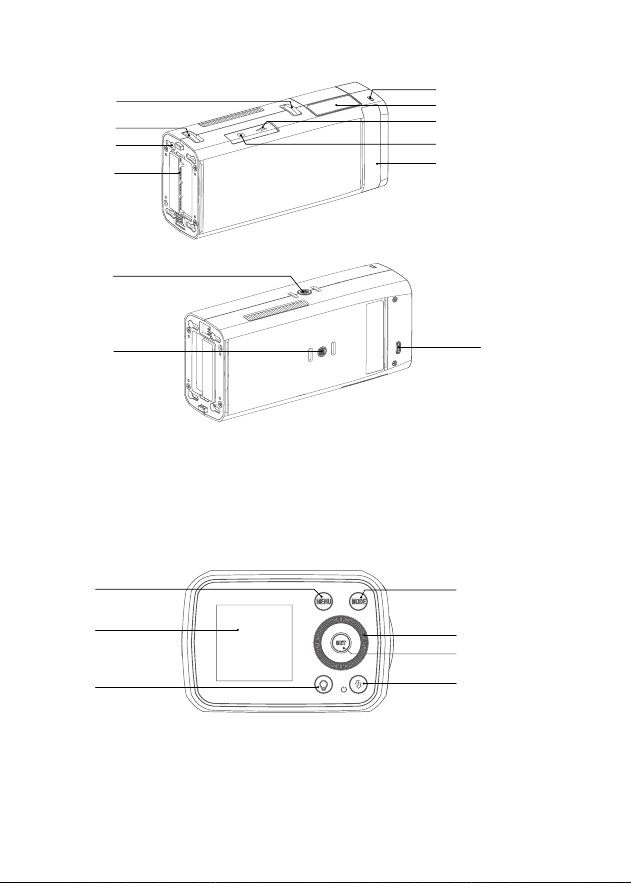

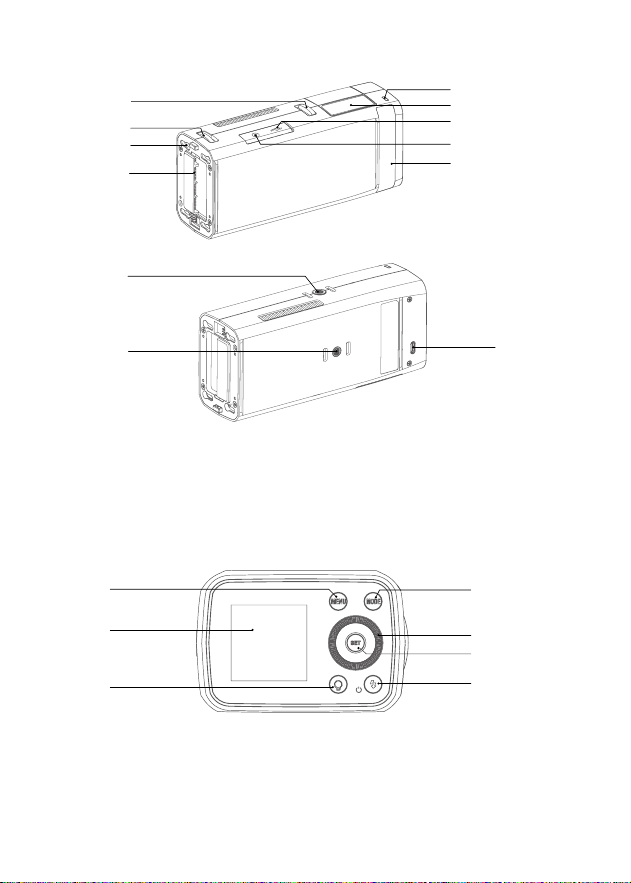

机身
1
5
4
3
7
6
8
2
10
10
11
13 14
12
15
16
18 17
9
1. 灯头扣件孔
2. 灯头卡口母座
3. 灯头装卸推制
4. 3.5mm 同步插孔
5. 外接电源盒接口
6. 电池装卸推制
12. 彩屏
13.MENU 按键
14.MODE 按键
15. 调节拨盘
16.SET 按键
17. 开关 / 试闪按键
18. 造型灯按键
7. 电池
8. 组别指示灯 *2
9. 光控接收器
10.1/4″安装孔
11.USB-C 固件升级口
08

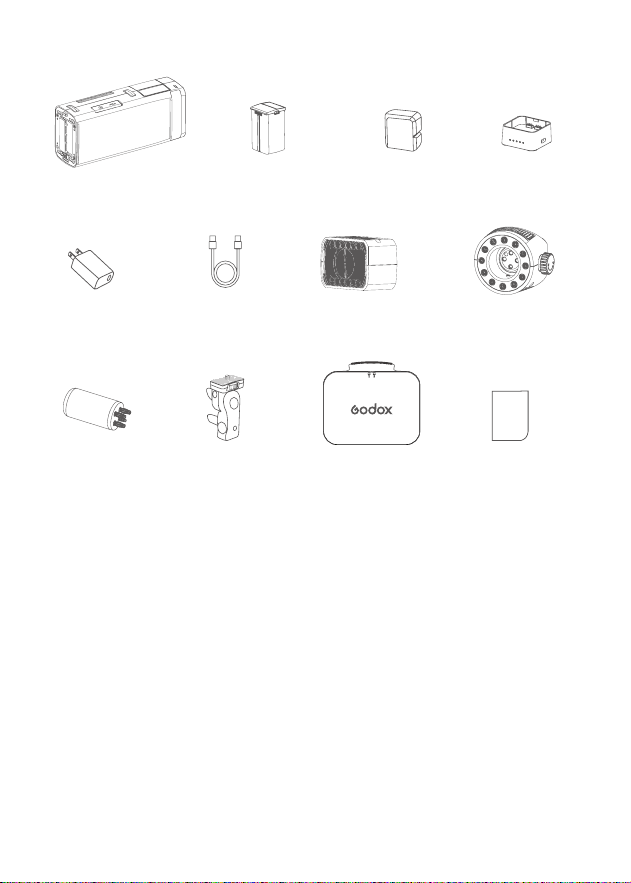

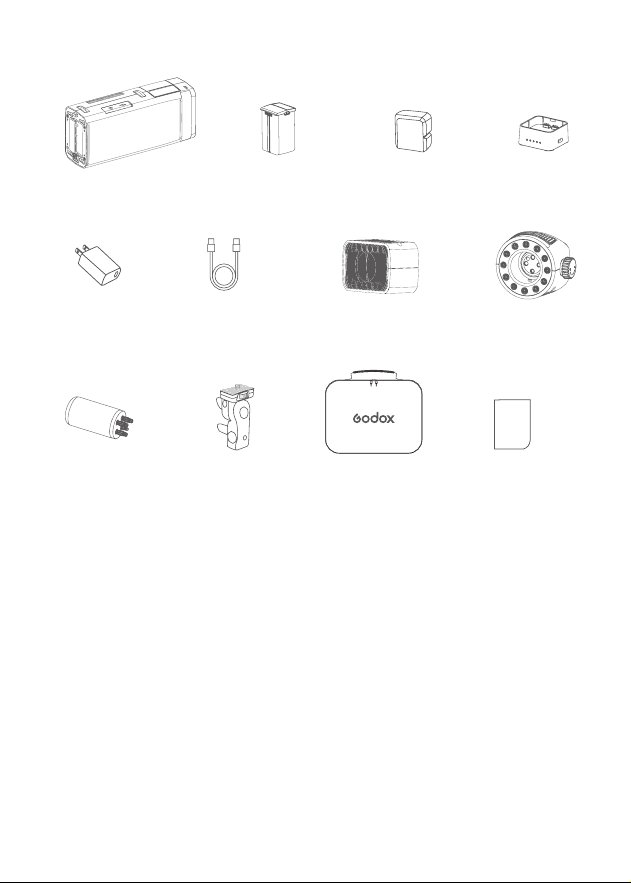

物料清单
可另购附件
灯体 × 1
电池 × 1
电池保护盖 × 1
PD 充电器 × 1
灯管 × 1 支架 AD-E2 × 1 便携包 × 1
说明书 × 1
数据线 × 1 直管灯头 H200II × 1 裸管灯头 H200JII × 1
充电座 × 1
PB960 电源盒
XPro、XProII、X2T、X3 系列引闪器；
H200R 圆形灯头、R200 环形灯头、AD-S200 棒形灯头、AD-B2 双灯灯头、柔光箱、雷达罩、
折叠柔光伞、束光筒、灯架等。
09
装卸灯管 / 灯头 / 电池

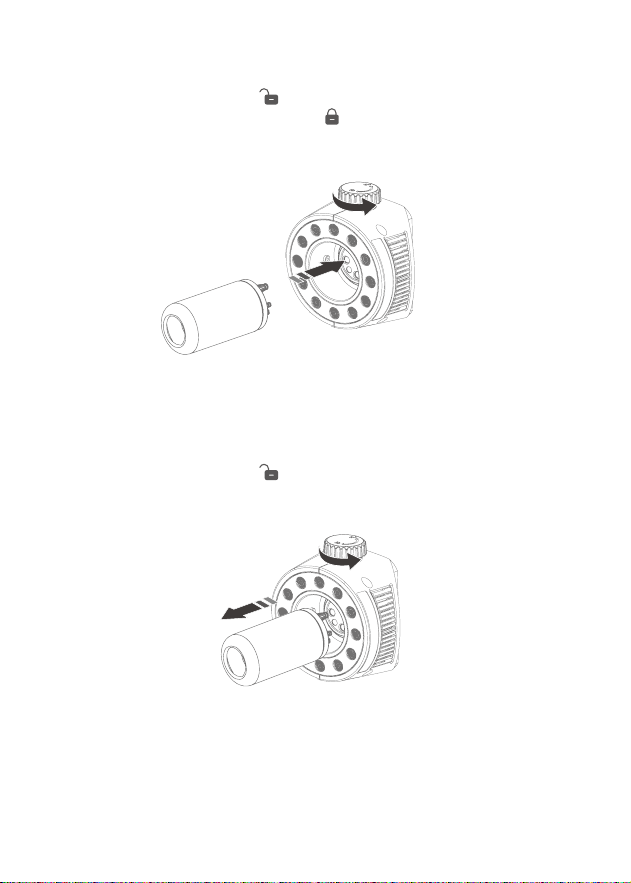

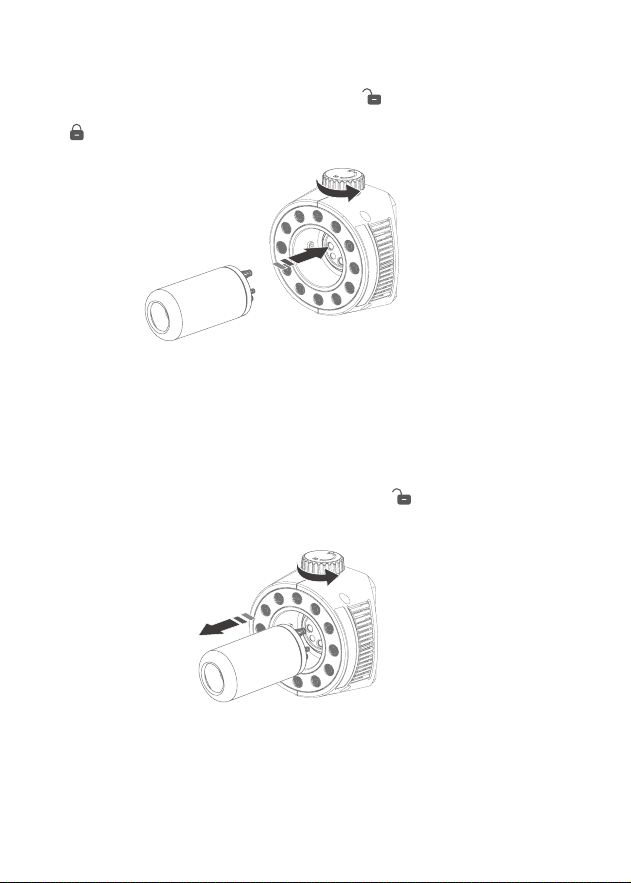

安装灯管：
将卡口固定旋钮顺着（ ）方向旋转，直至旋钮拧到解锁的终点；将灯管触脚
对准插座平行插入，再将卡口固定旋钮顺着（
）方向旋转，直至旋钮拧到锁紧的终点。
拆卸灯管：
将卡口固定旋钮顺着（
）方向旋转，直至旋钮拧到解锁的终点，握住灯管平
行拔出。
注：装卸闪光灯管时，请务必佩戴手套以确保安全。示意图中为灯头与灯管分离式设计的裸管灯头 H200JII，此
装卸方法仅适用于装配裸管灯头 H200JII 时参照，闪光过后请等待闪光灯冷却再进行拆卸。
注 ：灯 管 触 脚 有 三 粗 一 细 ，对 应 的 插 座 孔 也 有 三 大 一 小 ，细 触 脚 务 必 对 准 小 孔 插 座 ，灯 管 才 可 正 确 并 顺 利 插 入 。
10

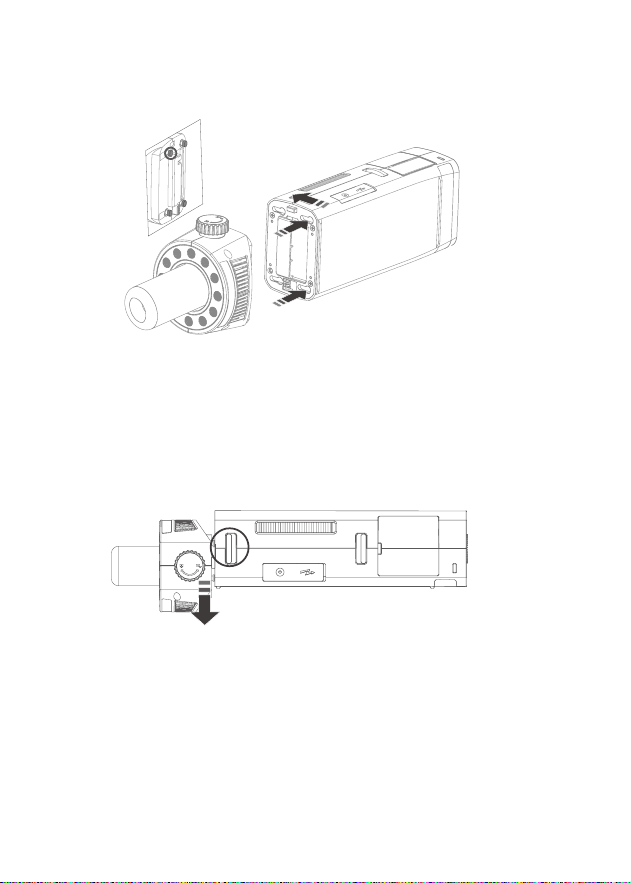

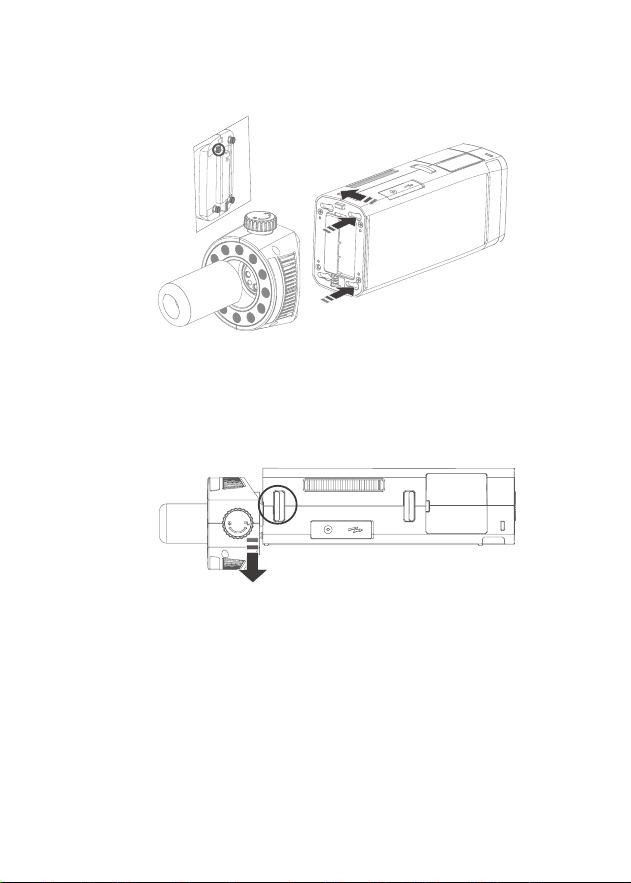

安装灯头：
灯头卡口公座与机身上的灯头卡口母座相贴合，扣件与扣件孔对准，向上推动灯
头，灯头装卸推制将自动锁紧，即安装完成。
拆卸灯头：
按住灯头装卸推制的同时握住灯头向下推动，灯头脱离机身，即拆卸完成。
注：装卸灯头示意图以裸管灯头 H200JII 为例子，装卸方法同样适用于直管灯头 H200II。
11

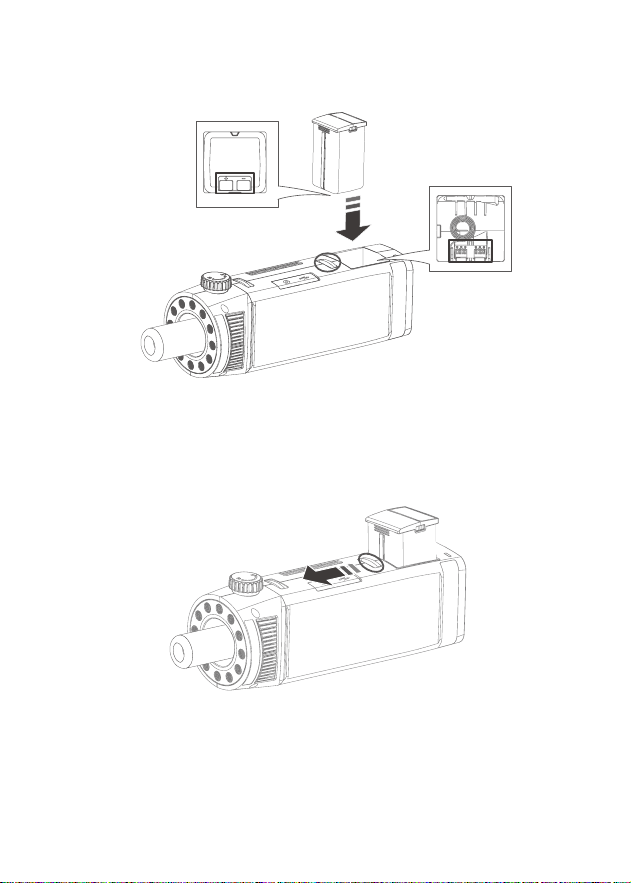

安装电池：

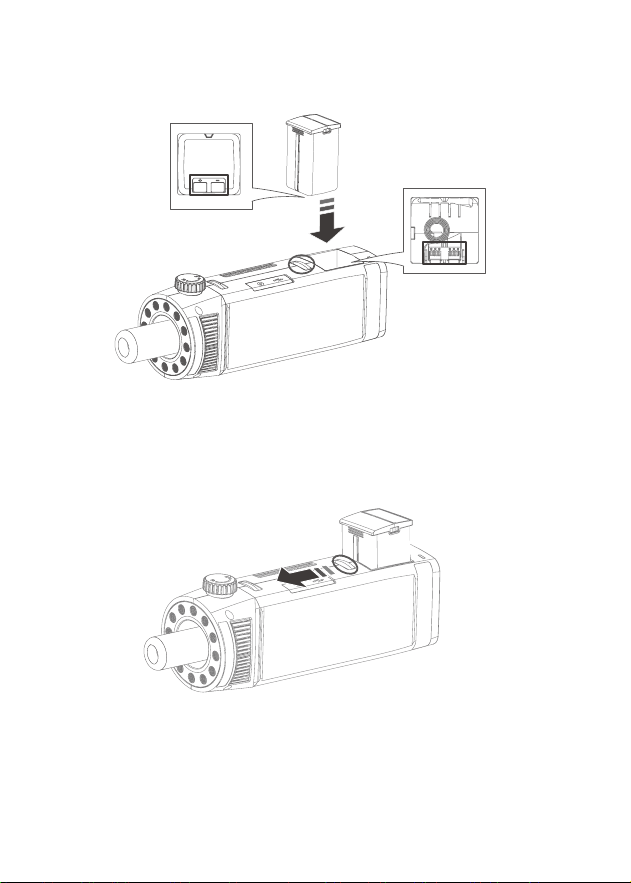

按住电池装卸推制，电池与电池槽中的金属触点对齐装入，往前拨动电池装卸推
制，听到“咔”一声即安装完毕。
拆卸电池 ：
往后拨动电池装卸推制，听到“咔”一声电池将自动弹出，此时可从电池槽中取出电池。
12
开关机
1. 长按开关按键，屏幕出现解锁图标（ ）紧接着顺时针旋转调节拨盘即可开机。
2. 长按开关按键，屏幕熄灭即关机完毕。
注：长时间不使用时请关闭电源，本产品设有电源自动休眠功能，可在菜单栏处找到自动关机功能进行设置。
显示屏
（ 1 ）M 手 动 闪 光
M 手动闪光
手动闪光输出
闪光持续时间
S1/S2
（2）Multi 频闪闪光
闪光频率
闪光次数
Multi 频闪闪光
（ 3 ）T T L 自 动 闪 光
TTL 自动闪光
闪光组
频道
13
电池说明
特性
1. 本品采用锂电池 , 支持反复充放电 500 次 , 使用寿命长。
2. 安全可靠 , 内置电路有过充保护、过放保护、过流保护、短路保护。
3. 使用标配电池充电器，从低电量到满电的充电时长只需 1 个小时左右。
注意事项
避免正负极短路。
电池没有防水功能 , 不要把电池浸泡在雾、水中。
放置于儿童不易接触的地方。
电池充电不要放置超过 24 小时。
电池应放置于凉爽、干燥及通风的地方存储。
电池不要靠近和放置于火中。
电池使用报废后请按当地的规定处理。
如果电池超过 3 个月不使用 , 请对电池进行满电充电。
使用高速同步（FP 闪光），您可以在所有的快门速度下同步使用闪光灯。高速同步模式下，
使用光圈优先对人像进行填充闪光时特别方便。
高速同步
1. 短按 MENU 按键进入菜单，旋转拨盘选中高
速同步，短按 SET 按键并旋转拨盘可选开启或关
闭，设置完毕短按 MENU 按键返回主界面，上
方状态栏可见 (
)。
2. 请使用 XPro、XProII、X2T、X3 系列引闪器
如果设置快门速度等于或慢于相机的最大闪光同步速度 , 取景器中将不显示 <
> 图标。
使用高速同步 , 快门速度越高 , 有效的闪光范围就越小。
要恢复普通闪光，请进入菜单栏将高速同步功能关闭，主界面中 < > 图标会消失。
在高速同步模式下 , 无法设置频闪闪光。
连续高速同步闪光 50 次后 , 闪光灯热保护功能可能会被激活。
●
●
●
●
●
注：
14
M: 手动闪光
您可以在 1/512 功率至 1/1 全功率间以 0.1 档为
增量设置闪光输出。为获得正确的闪光曝光 , 请
使用手持的闪光测光表确定所需的闪光输出。
短按 MODE 按键令屏幕显示 <
>，旋转拨盘
设置闪光输出功率。
拍摄过程中更改闪光输出时 , 下表将清楚地显示光圈值是如何更改的 , 您可以在增加或减少
闪光输出时查看光圈值的更改规律。
顺时针旋转拨盘递增闪光输出，逆时针旋转拨盘递减闪光输出。
显示闪光输出
1/512
1/256
1/128
1/64
1/32
1/16
1/8
1/4
1/2
1/1
1/512（0.1 至 0.9）
1/256（0.1 至 0.9）
1/128（0.1 至 0.9）
1/64（0.1 至 0.9）
1/32（0.1 至 0.9）
1/16（0.1 至 0.9）
1/8（0.1 至 0.9）
1/4（0.1 至 0.9）
1/2（0.1 至 0.9）
（全功率）
短按 MENU 按键进入菜单，旋转拨盘选中光控引闪，短按 SET 按键并旋转拨盘可选关闭 /
S1/S2，设置 S1 后短按 MENU 按键返回主界面。
此时闪光灯可作为副灯使用 , 创造多种照明效果 , 适用于手动闪光环境。它会与主闪光灯的
第一次闪光同步触发闪光，效果与使用无线引闪器一致。
S1 光控单元设置
15
短按 MENU 按键进入菜单，旋转拨盘选中光控引闪，短按 SET 按键并旋转拨盘可选关闭 /
S1/S2，设置 S2 后短按 MENU 按键返回主界面。
此时闪光灯可作为副灯使用，适用于 TTL 闪光环境。具有防预闪功能 , 使用带一次预闪功能
的相机能用光控实现同步拍摄。它会与主闪光灯的第二次闪光同步触发闪光，即 2 次光控
引闪。
注：只有在
M
模式下才支持
S1/S2
光控引闪模式。
S2 光控单元设置
显示闪光持续时间
闪光持续时间是指闪光灯从开始发光到达发光半峰值的时间长度。半峰值的表示为 t=0.5。
为了给摄影师提供更详细的拍摄数值 , 本产品采用 t=0.1。如下图：t=0.5 与 t=0.1 区别。
A
t
50%
10%
t=0.5
t=0.1
注：只有在 M 模式并关闭高速同步时 , 才会显示闪光持续
时间。
16
Multi: 频闪闪光
计算快门速度
使用频闪闪光，可以发出一系列快速的闪光，它可以在一张照片上拍摄移动物体的多个图像。
以下三个步骤依次设置闪光输出、闪光次数和闪光频率 ( 每秒的闪光次数 , 以 Hz 表示 )。
在频闪闪光过程中 , 到闪光停止为止快门应保持开启状态。使用下面的公式计算快门速度 ,
然后用相机进行设置。
闪光次数 / 闪光频率 = 快门速度
例如 , 如果闪光次数是 10, 闪光频率是 5Hz, 快门速度则至少为 2 秒。
1. 短按 MODE 按键令屏幕显示 < >，旋转拨
盘设置闪光输出功率。
2. 短按 SET 按键，旋转拨盘设置闪光次数。
3. 短按 SET 按键，旋转拨盘设置闪光频率。
反光很强的被摄体在暗背景前使用频闪闪光更加有效。
推荐使用三脚架和 TTL 引闪器。
闪光输出为 1/1 和 1/2 时不能设置频闪闪光。
频闪闪光时也可以使用“buLb”。
如果闪光次数显示为 --, 则闪光灯会连续闪光 , 直到快门或电池耗尽。如下表所示 , 闪
光次数将受到限制。
●
●
●
●
●
注：
17
在 TTL 模式下，相机的测光系统会侦查从主体反
射回来的闪光照明，从而自动调节闪光输出量，
使主体和背景得到均衡曝光。
通过短按 MENU 按键进入菜单开启无线功能，将
组别设置为 A 至 E 中的任意一个，设置完毕短按
两次 MENU 按键回到主界面。
短按 MODE 按键令屏幕显示 <TTL>，可以使闪光
灯进入 TTL 模式。
最大频闪闪光次数
TTL：自动闪光
1
7
14
30
60
90
90
1/4
1/8
1/16
1/32
1/64
1/128
1/256
1/512
闪光输出
Hz
2
6
14
30
60
90
90
3
5
12
30
60
90
90
4
4
10
20
50
80
90
5
4
8
20
50
80
90
6-7
3
6
20
40
70
90
8-9
3
5
10
30
60
80
10
2
4
8
20
50
70
60-99
2
4
8
12
20
40
20-50
2
4
8
16
30
40
15-19
2
4
8
18
35
50
12-14
2
4
8
20
40
60
11
2
4
8
20
40
70
18
无线设置
无线电（2.4G）传输
AD200ProII 使用 2.4G 无线 X 系统，可以与本厂其他型号完美结合使用。作为从属单元可兼
容的相机有佳能、尼康、索尼、奥林巴斯、松下、富士、宾得、莱卡等，根据主控单元自动
切换，无需手动设置。
AD200ProII 作为从属单元，可受控带无线发射功能的主控单元，型号如：XPROII 系列 /X3
系列 /X1T 系列 /X2T 系列 /V1Pro 系列 /V1 系列 /V860III 系列等。
短按 MENU 按键进入菜单，旋转拨盘选中无线，
短按 SET 按键并旋转拨盘可选无线开关 / 频道 / 组
别 / 识别号 / 无线同步，短按 SET 按键并旋转拨
盘可对其中一项进行设置，设置完毕短按 MENU
按键返回菜单，再次短按 MENU 按键返回主界面。
19
设置通讯频道
如果在拍摄现场不止一个无线闪光系统 , 您可以通过更改通讯频道或设置识别号来防止信号
干扰，保证主控单元和从属单元设置为相同的频道编号即可。
无线
频道
组别
识别号
无线同步
开/关
1-32
0-9、A-F
关闭、1-99
短按 SET 按键进行无线同步
关闭相机电源，将引闪器放置于相机热靴插座上，打开引闪器电源开关和相机电源。
设置引闪器 X3：从顶端往下滑动屏幕，令屏幕显示 < 设置 >，点击 < 设置 > 进入自定
义菜单，点击无线设置进入频道、识别号设置。从左侧往右滑动屏幕可回到主界面，在
主界面可设置组别的闪光模式或闪光功率档位。
设置闪光灯 AD200ProII：短按 MENU 按键选中无线，进入无线设置开启此功能，将频道、
识别号设置成同引闪器一致。
点击引闪器上的无线同步，闪光灯选中无线同步后短按 SET 按键即可设置双方无线频道、
识别号为一样号码。
按下相机快门即可引闪。
使用方法以 X3 引闪器为例：
1.
2.
3.
4.
5.
20
无线闪光拍摄

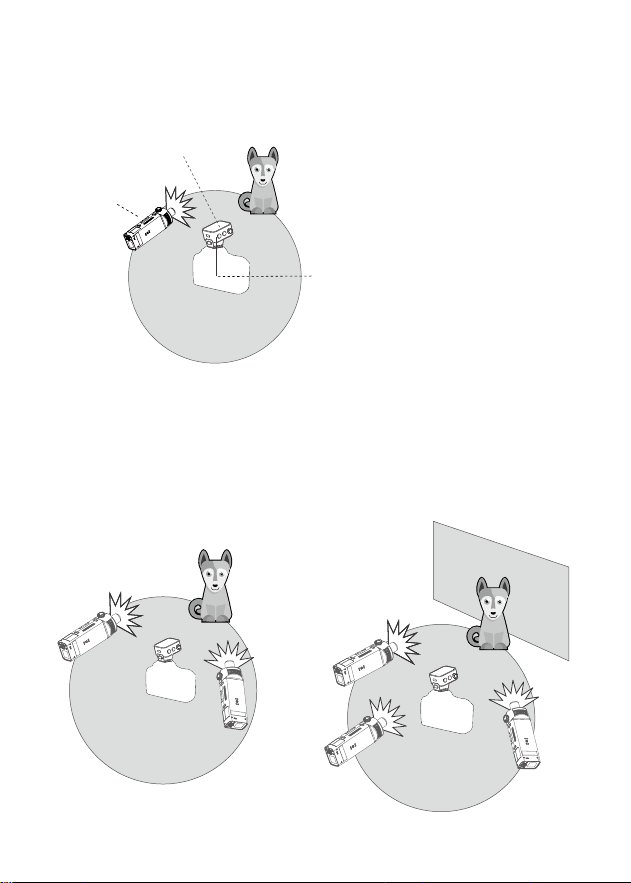

定位和操作范围 ( 无线闪光拍摄的示例 )
使用一个从属单元进行自动闪光拍摄
(主控)
(从属)
传输距离约 100 米
Transmitter
Receiver
注：
1. 使用带无线发射功能的主控单元作为发射端。
2. 开始拍摄前请进行测试闪光和试拍。
3. 受位置、周围环境、天气状况等影响 , 传输距离可
能更短。
●

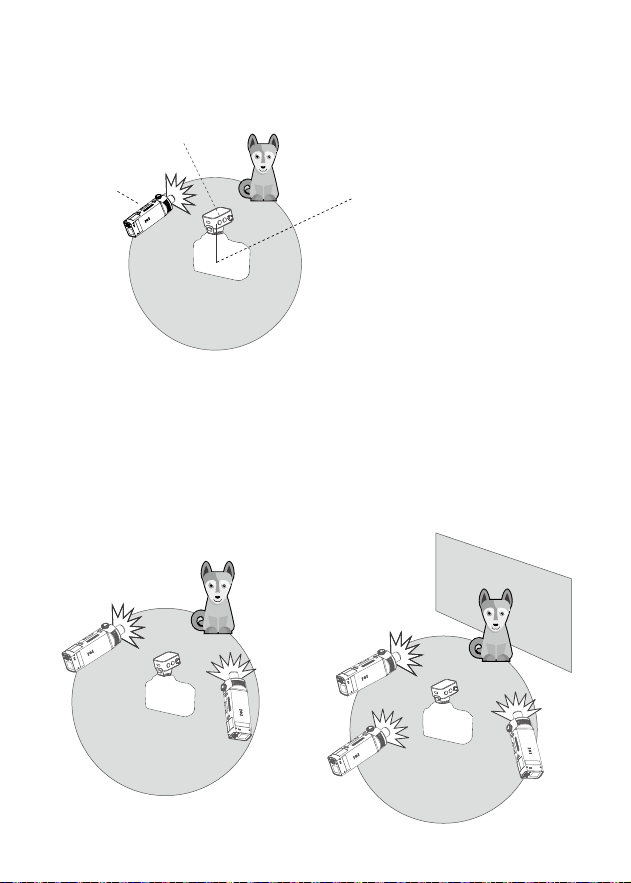

无线多重闪光拍摄
可以将从属单元分割为两个或三个组并在改变闪光光比 ( 倍率 ) 的同时进行 TTL 自动闪光
拍摄。此外 , 可以为各闪光组设定并用不同的闪光模式拍摄。
用两个从属组进行自动闪光拍摄。 用三个从属组进行自动闪光拍摄。
● ●
A
A
C
B
B
21
神牛 2.4G 无线漏闪原因及解决办法
1. 外部环境 2.4G 信号干扰 ( 如无线基站、2.4Gwi 路由、蓝牙设备等 )
→请调节引闪器的频道 CH 设置 ( 建议 +10) 找到无干扰的频道，或者在工作时关闭其他 2.4G
设备。
2. 请确认闪光灯是否已经回电或回电速度是否跟上连拍速度，并且没有处于过热保护或者
其他异常状 态中。
→请下调闪光灯档位，如是 TTL 模式请尝试改为 M 模式 (TTL 模式下需要预闪一次 )。
3. 是否引闪器和闪光灯距离太近（距离 <0.5m）
→请在引闪器上打开“近距离无线模式”
X1 系列：按住引闪按钮不放，然后开机，直至指示灯闪 2 次。
Xpro、X2T 系列：设置 C.Fn-DIST 为 0-30m。
X3 系列：设置引闪距离为 0-30m。
4. 是否引闪器和接收端设备在低电状态
→请更换电池或充电处理，确保引闪器和闪光灯设备电量充足。
22
造型灯
AD200ProII 配置双色温 LED 造型灯，短按造型灯按键进入设置，旋转拨盘可选关闭 / 打开 /
跟随，短按 SET 按键并旋转拨盘可对其中一项进行设置，设置完毕短按造型灯按键返回主界面。
闪光模式
短按 MENU 按键进入菜单，旋转拨盘选中闪光模式，短按 SET 按键并旋转拨盘可选标准 /
色温。
色温恒定开启后主界面出现图标（
），组别指示灯会闪烁，蜂鸣器开启状态下会响一分钟，
此时请按试闪按键放电，即可正常使用。色温恒定仅在 M 模式并关闭高速同步时支持开启，
开启此功能后色温全程档位波动在 ±100K 左右。
选择
标准
色温
闪光模式
标准闪光
色温恒定
说明
主界面无指示
主界面出现图标（
）
关闭
打开
跟随
亮 度（ 以 1 % 为 增 量 ）
10%-100%
亮度跟随闪光功率
色 温（ 以 1 0 0 K 为 增 量 ）
2800K-6000K
2800K-6000K
注：长按造型灯按键可打开
/
关闭造型灯
23
自定义功能
无线
闪光模式
光控引闪
高速同步
造型灯
蜂鸣器
功率显示
屏幕待机
自动关机
屏幕亮度
延时闪光
蒙版
关
开
标准
色温
关
S1
S2
关
开
闪灭
持续
关
开
1/512
1.0
30 秒
1 分钟
2 分钟
3 分钟
关
30 分钟
60 分钟
90 分钟
120 分钟
20%-100%
关
0.01-30.0 秒钟
2 蒙板
3 排序
4 排序
关闭无线设置
设置通讯频道
标准闪光
M 非高速模式下支持开启
关闭光控引闪
M 模式下支持开启
关闭高速同步
M 模式下支持开启
闪光灯回电灭
常亮
蜂鸣器关闭
蜂鸣器开启
非高速模式下机器闪光档位显示为 1/512-1/1
非高速模式下机器闪光档位显示为 1.0-10.0
超过 30 秒无人操作，屏幕进入休眠
超过 1 分钟无人操作，屏幕进入休眠
超过 2 分钟无人操作，屏幕进入休眠
超过 3 分钟无人操作，屏幕进入休眠
关闭自动关机
30 分钟后自动关机
60 分钟后自动关机
90 分钟后自动关机
120 分钟后自动关机
旋转拨盘设置亮度值
关闭延时闪光
以 0.01 秒钟为增量
旋转拨盘设置
功能图标 选项 说明
短按 MENU 按键进入菜单界面，通过旋转拨盘选中菜单中的某一项，短按 SET 按键并旋转
拨盘进行该项设置，设置完毕短按 MENU 按键返回。
24
语言
恢复出厂设置
设备信息
中文
English
是
否
无选项
界面中字体显示简体中文
界面中字体显示 English
恢复出厂设置
取消恢复出厂设置
查看当前机器型号及版本号
同步插孔触发
外接电源盒接口
保护功能
同步插孔规格为 Φ3.5mm，此处可插入同步线或者触发器触发插头对闪光灯进行同步引闪。
在外接电源盒接口接入另购的 PB960 电源盒，将大幅度提高回电速度，但无法给电池充电。
1. 热保护
为防止闪光灯头过热并损坏 , 请勿在 1/1 功率时进行超过 100 次的快速连续闪光。100
次连续闪光后 , 要让闪光灯至少冷却 10 分钟。
如您在进行超过 100 次连续闪光后马上继续进行更多次闪光 , 内部的防过热功能可能会
被激活 , 使回电时间变为 10 秒以上。如果发生这种现象 , 请让闪光灯冷却约 10 分钟 , 闪
光灯便会恢复正常。
热保护启动后 , 显示屏上会显示符号 < >
●
●
●
注：外接电源盒 (PB960) 使用时无法使用色温模式。
25
功率
1/1
1/2(+0.7 ～ +0.9)
1/2(+0.3 ～ +0.6)
1/2(+0.0 ～ +0.2)
1/4(+0.0 ～ +0.9)
1/8(+0.0 ～ +0.9)
1/16(+0.0 ～ +0.9)
1/32(+0.0 ～ +0.9)
1/64(+0.0 ～ +0.9）
1/128(+0.0 ～ +0.9)
1/256(+0.0 ～ +0.9)
1/512(+0.0 ～ +0.9)
次数（直管灯头 H200II）
50
62
75
93
125
250
375
625
1250
2500
3750
次数（裸管灯头 H200JII）
60
80
100
120
150
260
400
750
1500
3000
6000
激活热保护功能的连续闪光次数：
为了保证设备安全的工作 , 系统时刻进行预防保护 , 以下提示符号供您参考：
高速同步模式下, 激活热保护功能的连续闪光次数：
2. 其他保护
功率
1/1
1/2(+0.0 ～ +0.9)
1/4(+0.0 ～ +0.9)
1/8(+0.0 ～ +0.9)
1/16(+0.0 ～ +0.9)
1/32(+0.0 ～ +0.9)
1/64(+0.0 ～ +0.9)
1/128(+0.0 ～ +0.9)
次数（直管灯头 H200II）
40
75
93
125
187
230
次数（裸管灯头 H200JII）
50
80
100
136
200
250
屏幕显示
Error1
Error3
Error9
警示内容
闪光灯回电系统出现问题 , 无法回电引闪 , 请重新开机 , 如无法解决请维修
闪光灯管两端电压过高，请维修
固件升级有误 , 请进行正确固件升级
26
规格参数
型号
无线从属单元模式
闪光模式
闪光指数（1/1 档位）
闪光持续时间 t0.1( 约 )
功率（1/1 档位）
档位
频闪闪光
闪光曝光补偿（FEC）
同步方式
延时引闪
蒙版
风扇
蜂鸣器
显示闪光持续时间
Model 造型灯（LED）
光控引闪
显示
工作环境温度
无线闪光（2.4G 无线功能）
无线功能
可控制从属单元组
传输距离
频道
ID 识别号
电源
电源
全功率闪光次数
回电时间
节能
同步触发方式
闪光管色温
闪光模式（色温）
AD200ProII
无线电模式
( 兼容佳能 E-TTL II、尼康 i-TTL、索尼、奥林巴斯、松下、富士等 )
无线关闭：M/Multi
无线电从属模式：TTL/M/Multi
直管灯头 H200II：GN52(m ISO 100，@35mm)
裸管灯头 H200JII：GN60(m ISO 100，使用 AD-S2 标准反光罩，
@28mm)
直管灯头 H200II：1/272 秒～ 1/23500 秒
裸管灯头 H200JII：1/252 秒～ 1/16200 秒
200Ws
10 级：1/512 ～ 1/1（每个档位下以 0.1 为增量微调）
具备（次数：90 次；频率：99Hz）
在使用的 2.4G 遥控器中调节
高速同步（最高 1/8000 秒），前帘同步，后帘同步
0.01 ～ 30 秒
√
√
√
√
√
S1/S2/OFF
彩屏
最高 45℃
从属单元 / 关闭
16 组：0-9、A-F
约 100 米
32 组：1-32
01-99/OFF
锂电池（14.4V/2980mAh）
500 次
约 0.01 ～ 1.8 秒
可设置闪光灯在无人操作时 30 分钟～ 120 分钟自动关闭电源
3.5mm 同步线
5800±200K
开启色温模式，闪光色温全程档位波动 ±100K
27
尺寸和重量
整机尺寸（裸管灯头 H200JII 含灯管、
电池）
整机净重（裸管灯头 H200JII 含灯管、
电池）
整机尺寸（直管灯头 H200II、电池）
整机净重（直管灯头 H200II、电池）
≈ 260mm*90mm*79mm
≈ 0.99kg
≈ 210mm*78mm*52mm
≈ 0.9kg
固件升级
维护保养
本机通过 USB-C 固件升级接口可进行固件升级，软件最新公告及说明将会发布在官方网
站上。
本品出厂不配 USB 升级线，请另行购买。本产品 USB 接口为 USB-C 接口，请使用
USB-C 线。
产品升级固件需要 Godox G3 程序软件支持，升级固件前请先到神牛官网下载安装“Godox
G3 固件升级软件”再选择相应的固件文件。
由于产品进行固件升级，说明书请以最新电子版为准。
闪光灯在工作时 , 如发现异常 , 应立即关掉电源 , 查明原因。
灯体应避免震动 , 平时注意表面除尘。
灯体稍有发热为正常现象 , 无特别需要时 , 勿连续引闪。
闪光灯的所有维修一概由本厂指定可供原厂配件之维修部负责。
1 年保修 , 消耗品如灯管等不在 1 年保修范围。
经发现 , 擅自检修此闪光灯的 , 将取消闪光灯之一年保修期 , 维修需要收取相关费用。
如果本品出现故障或者被水淋湿 , 在专业人员维修后方可继续使用。
如有技术更改 , 恕不另行通知。
28
Important Safety Instructions
This product is a professional photographic equipment, to be operated by professional personnel
only.
The following basic safety precautions must be followed when using this product:
All transport protective materials and packaging on the product must be removed before use.
Carefully read and fully understand the instruction manual before use and strictly follow the
safety instructions. Failure to do so may result in death, serious injury, damage to the product,
or other property damage.
High voltage exists when the flash is powered on. Internal capacitors will remain charged for
some time after power off.
This product is a professional lighting fi xture, children are prohibited from using it. Children
must be closely supervised by adults when approaching the fi xture, to prevent collisions with
the fi xture or unauthorized use that could cause personal injury.
This is not an ordinary lighting fi xture and must not be used for general illumination. Anyone
with a history of eye damage or sensitivity should avoid using this fi xture or looking directly at it.
Extreme caution must be exercised when using it, do not touch high-temperature parts such as
flash tubes to avoid burns.
Do not point the flash directly at the eyes (especially baby's eyes) under any circumstances, as
this could impair vision in a short time. Turn off immediately if discomfort occurs, stop using,
and seek medical attention promptly.
If the flash tube is damaged, stop using it immediately and contact the manufacturer, service
agent, or qualifi ed repair personnel for a replacement to prevent accidents.
Dot not use damaged equipment or accessories. Allow professional repair technicians to
inspect and confi rm normal operation before continuing use after repairs.
Disconnect power source or remove batteries (if it has one) before replacing flash tube,
protective glass, or fuses. Allowing 10 minutes to cool before replacing flash tube, and wear
insulated or heat resistant gloves when operating.
Turn off power before connecting or disconnecting plugs from outlets. Ensure plugs are fully
inserted when connecting.
Stop using immediately if the product shell is cracked due to falling, squeezing, or strong
impact, to avoid touching the internal electronic components and getting an electric shock.
Some products have long power cords, please place them properly to avoid contact with heat
sources or tripping others. It is recommended to use the original power cord. Damage caused
by non-original cords is not covered by the warranty.
Unplug the equipment power plug from the power socket before cleaning or maintenance. Do
not pull the power cord forcibly, use both hands to hold the plug end and pull it out.
This device is not waterproof. Keep it dry and avoid immersing it in water or other liquids. It
should be installed in a ventilated and dry location and avoid using in rainy, humid, dusty, or
overheated environments. Do not place items above the device or allow liquids to flow into it to
prevent danger.
Do not disassemble without authorization. If the product malfunctions, it must be inspected and
repaired by our company or authorized repair personnel.
Before storing the device, ensure it has completely cooled down and the power cord is
unplugged, then put it in the protective case or a ventilated dry location.
Do not place the device near alcohol, gasoline, or other flammable volatile solvents or gases
such as methane and ethane.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
29
Do not use or store this device in potentially explosive environments.
During and after operation, the distance between the flash head and the user and other
personnel, as well as between thermal or combustible materials, must be maintained at least 1
meter.
Do not cover the heat dissipation port!
Do not use accessories not been approved by our company, as this may cause fi re, electric
shock or personal injury.
Clean gently with a dry cloth. Do not use a wet cloth as it may damage the device.
This instruction manual is based on rigorous testing. Changes in design and specifi cations
are subject to change without notice. Check offi cial website for latest instruction manual and
product updates.
Use only specifi ed charger and follow proper usage instructions for certain products with built-
in lithium batteries, within the rated voltage and temperature range.
Some products are powered by lithium batteries, who have limited lifespans and will gradually
lose their charging capacities, which is irreversible. As the battery ages, the product's battery
life will decrease. The lifespan of lithium battery is estimated to be 2 to 3 years. Please regularly
check the battery, and if the charging time signifi cantly increases or the battery life signifi cantly
decreases, consider replacing the battery.
Some products are equipped with lithium batteries. The following are the storage
recommendations: Charge the battery to about 50% before storage. Charge it to about 50%
at least every six months. Removable batteries should be stored separately. The storage
temperature should be between 0°C and 40°C.
For products powered by lithium batteries. Please note:
Confi rm and comply with all relevant local laws and regulations when handling any batteries.
The warranty period for this device as a whole is one year. Consumables (such as batteries),
adapters, power cords, and other accessories are not covered by the warranty.
Unauthorized repairs will void the warranty and will incur charges.
Failures from improper operation is not covered under warranty.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
•
•
•
•
•
•
•
•
Do not disassemble, crush, or puncture the battery;
Avoid short-circuiting the battery contacts;
Do not expose the battery to fi re or water;
Keep out of reach of children;
Protect the battery from excessive shock or vibration;
Do not use a damaged battery;
If the battery leaks, avoid contact with the leaking fluid;
If the battery fluid comes into contact with your eyes, immediately rinse with water for
at least 15 minutes. Lift your eyelids until there are no signs of fluid and seek medical
attention promptly.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service
agent or a similar qualifi ed person.
30
Foreword
Main Features
Warning
Name of Parts
What’s Inside
Separately Sold Accessories
Installing and Disassembling Flash Head/Flash Tube/Battery
Power Switch
Screen
Battery
High-Speed Sync
M: Manual Flash
Multi: Stroboscopic Flash
TTL Auto Flash
Wireless (2.4G) Transmission
Wireless Settings
The Reason & Solution of Not Triggering in Godox 2.4G Wireless
Flash Mode
Modeling Lamp
C.Fn: Setting Custom Functions
Sync Triggering
Quick Charging Port
Protection Function
Technical Data
Firmware Upgrade
Maintenance
Content
31
31
32
33
35
35
36
39
39
40
41
41
44
45
46
46
49
50
51
51
52
52
52
54
55
55
31
Foreword
Thank you for purchasing
!
With built-in Godox 2.4G wireless X system, this TTL flash AD200ProII can be triggered by XPro/
XProII/X2T/X3 series flash triggers in TTL /M/Multi mode. With transmitter & receiver functions,
AD200ProII can also use in combination with Godox camera flashes, outdoor flashes, studio
flashes, etc. It is an ideal light source for freelance commercial photographers, journalists,
photography enthusiasts, wedding documentary photographers, etc.
Main Features
Wireless TTL Compatibility: Built-in Godox 2.4G wireless X system fully supports TTL/M/Multi
flash systems of Canon, Nikon, Fujifi lm, Sony, Olympus, Panasonic, etc., also workable as a
receiver unit in a wireless flash group.
Strong Power and Portability: 200Ws strong power, 0.01~1.8s quick recycle time, large capacity
battery supports full-time HSS, pocket-size portable.
Optional Detachable Flash Heads: Both speedlite and bare bulb flash heads are equipped with bi-
color LED modeling lamp to cater for different shooting requirements.
Distinct Indicators and Operations: 16 groups with unique colors together with color screen make
it possible to quickly identify and operate.
2.4G Wireless Control: Compatible with Godox XPro, XProll, X2T and X3 series flash triggers, 3.5mm
sync port also provides another triggering option.
Precise Power Adjustment: Power adjustable from 1/512 to full power 1/1 with 0.1 increment
each step.
Stable Color Temperature: Shift around ±100K over the entire power range in stable color
temperature mode.
Abundant Practical Functions: Support 1/8000s HSS, multi (stroboscopic) flash, remote control
triggering and etc.
More Optical Accessories: Power box PB960, round flash head H200R, barndoor kit, softbox,
beauty dish, umbrella diffuser, snoot, light stand, etc.
1.
2.
3.
4.
5.
6.
7.
8.
9.
32
Warning - electrical shock -high voltage
Bright light hazard
UV light hazard
IR light hazard
Warning, hot surface!
Do not stare into beam!
Turn off the lamp before opening!
Use eye protection during servicing!
Turn off the UV lamp before opening!
Use UV radiation eye and skin protection during servicing!
Warning
Always keep this product dry.
Do not disassemble. Should repairs become necessary, this product must be sent to an
authorized maintenance center.
Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric
shock may occur if you touch the electronic parts inside it.
Do not fi re the flash directly into the eyes (especially those of babies) within short distances.
Otherwise visual impairment may occur.
Do not use the flash unit in the presence of flammable gases, chemicals and other similar
materials. In certain circumstances, these materials may be sensitive to the strong light emitting
from this flash unit and fi re or electromagnetic interference may result.
This product is not waterproof, do not use in rain or in damp conditions.
Please remove the flash head protection cover before using.
The maximum working environment temperature of this product is 45°C, please pay
attention to the high temperature in using and do not exceed the range.
33
Speedlite Flash Head H200II
Bare Bulb Flash Head H200JII
Name of Parts
1
3
2
5
4
1
6
7
3
4
5
2
1. LED Modeling Lamp
2. Flash Tube
3. Lens
4. Flash Head Mounting Shoe
5. Flash Head Male Socket
1. Flash Tube
2. Flash Tube Mounting Shoe
3. Flash Tube Socket
4. LED Modeling Lamp
5. Fixing Knob
6. Flash Head Mounting Shoe
7. Flash Head Male Socket
34
Flash Body
1
5
4
3
7
6
8
2
10
10
11
13 14
12
15
16
18 17
9
1. Flash Head Mounting Hole
2. Flash Head Female Socket
3. Flash Head Locking Pusher
4. 3.5mm Sync Port
5. External Power Box Port
6. Battery Locking Pusher
12. Color Screen
13. MENU Button
14. MODE Button
15. Select Dial
16. SET Button
17. Power Switch/Test Button
18. Modeling Lamp Button
7. Battery
8. Group Indicator *2
9. Photocell Receiver
10. 1/4″ Hole
11. USB-C Port
35
What’s Inside
Separately Sold Accessories
Flash Body ×1 Battery ×1
Battery Protection
Cover × 1
PD Adapter ×1
Flash Tube ×1 Holder AD-E2 ×1 Carry Bag ×1 Instruction Manual × 1
Data Cable ×1 Speedlite Flash
Head H200II ×1
Bare Bulb Flash
Head H200JII ×1
Charging Case × 1
Power Box PB960, XPro/XProII/X2T/X3 Series Flash Triggers, Round Flash Head H200R, Ring Flash
Head R200, Stick Flash Head AD-S200, AD-B2 double flash head, Softbox, Beauty Dish, Umbrella
Diffuser, Snoot, Light Stand, etc.
36
Installing and Disassembling Flash Tube/Flash Head/Battery
Note: Please wear gloves for the above operations. Installing and disassembling flash tube are instructed with
and only applicable to bare bulb flash head H200JII. Please wait for the flash tube to cool down after flashing
before disassembling it.
Note: There are three thick and one thin flash tube mounting shoes, and the corresponding sockets also have
three big and one small, the thin shoe must be aligned with the small socket so that the flash tube can be
inserted correctly and smoothly.
Installing Flash Tube: Rotate the fixing knob towards the < > until it stops to unlock, align
the flash tube mounting shoe at the flash tube socket and insert in, then rotate fixing knob towards
the <
> until it stops to lock.
Disassembling Flash Tube: Rotate the fixing knob towards the <
> until it stops to unlock, then
pull out the flash tube.
37
Installing Flash Head
:
Align the flash head male socket at the flash head female socket, flash head
mounting hole at the flash head mounting shoe, then push the flash head in and the flash head
locking pusher will automatically lock up.
Disassembling Flash Head
:
Press and hold the flash head locking pusher, then pull out the flash
head.
Note: Installing and disassembling flash head are instructed with bare bulb flash head H200JII, which is also
applicable to speedlite flash head H200II.
38
Installing Battery
:
Press and hold the battery locking pusher, align the contacts on the battery at
the contacts inside the compartment and insert in, a “click” sound means the battery is properly
installed.
Disassembling Battery
:
Press and hold the battery locking pusher, the battery will eject
automatically.
39
Power Switch
1. Long press the power switch button until the unlock icon < > is displayed on the screen, then
rotate the select dial clockwise to turn on the device.
2. Long press the power switch button until the screen blacks out to turn off the device.
Note: Turn off the device if it will not be used for an extended period. This device is designed with an automatic
power off function, which can be set in menu settings.
Screen
（
1
）
M (Manual) Flash
M: Manual Flash
Manual Flash Output
Flash Duration
S1/S2
（
2
）
Multi Flash
Flash Frequency
Number of Flashes
Multi:Stroboscopic Flash
（3)
TTL Auto Flash
TTL Auto Flash
Flash Group
Channel
40
Battery
Features
This flash unit uses lithium battery which has long runtime. The available charge-and-discharge
times are 500.
It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent, and short
circuit.
It takes only 1 hour to fully charge the battery by using the standard battery charger.
1.
2.
3.
Do not short circuit.
Do not expose to rain or immerse into water. This battery is not water proof.
Keep out of reach of children.
No over 24 hours' continuous charging.
Store in dry, cool, ventilated places.
Do not put aside or into fi re.
Dead batteries should be disposed according to local regulations.
If the battery had ceased using for over 3 months, please make a full recharge.
Cautions
41
M: Manual Flash
The flash output is adjustable from 1/1 full power
to 1/512 power with 0.1 step increment. To obtain a
correct flash exposure, use a hand-held flash meter
to determine the required flash output.
Press MODE button so that <
> is displayed. Turn
the select dial to choose a desired flash output
amount.
High speed sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is
convenient when you want to use aperture priority for fi ll-flash portraits.
1. Press the MENU button to enter menu interface,
turn the select dial and press the SET button to enter
high speed sync and turn on it. Then press MENU
button to return to the main interface, the HSS icon
<
> can be seen on the screen.
High-Speed Sync
2. Please use XPro /XProII /X2T/X3 series flash triggers.
If you set a shutter speed that is the same as or slower than the camera's maximum flash sync
speed, <
> will not be displayed in the viewfi nder.
With high-speed sync, the faster the shutter speed, the shorter the effective flash range.
To return to normal flash, turn off the high-speed sync function in menu settings. Then <
>
will disappear.
Multi flash mode cannot be set in high-speed sync mode.
Over-temperature protection may be activated after 50 consecutive high-speed sync flashes.
●
●
●
●
●
Note:
42
The following table makes it easier to see how the step changes in terms of aperture value when
you increase or decrease the flash output.
Turn the select dial clockwise to increase the flash output, while turn it anticlockwise to decrease
the flash output.
Flash Output Range
1/512
1/256
1/128
1/64
1/32
1/16
1/8
1/4
1/2
1/1
1/512
(
0.1 to 0.9
)
1/256
(
0.1 to 0.9
)
1/128
(
0.1 to 0.9
)
1/64
(
0.1 to 0.9
)
1/32
(
0.1 to 0.9
)
1/16
(
0.1 to 0.9
)
1/8
(
0.1 to 0.9
)
1/4
(
0.1 to 0.9
）
1/2
(
0.1 to 0.9
)
(full power)
Press MENU button to enter photocell and choose S1 function, so that this flash can function as
an optical S1 secondary flash with optical sensor in M manual flash mode. Then press then MENU
button to return to the main interface. With this function, the flash will fi re synchronously when the
main flash fi res, the same effect as that by the use of wireless triggers. This helps create multiple
lighting effects.
Press MENU button to enter photocell and choose S2 function, so that this flash can also function
as an optical S2 secondary flash with optical sensor in TTL flash mode. Then press then MENU
button to return to the main interface. This is useful when cameras have pre-flash function.
With this function, the flash will ignore a single “preflash” from the main flash and will only fi re in
response to the second, actual flash from the main unit.
Optical S1 Secondary Unit Setting
Optical S2 Secondary Unit Setting
Note: S1 and S2 optical triggering is only available in M manual flash mode.
43
Display Flash Duration
Flash duration refers to the length of time that from flash’s fi ring to reach the half peak at maximum.
The half peak at maximum is usually expressed as t=0.5. In order to provide the photographer with
more concrete data, this product adopts t=0.1. The difference between t=0.5 and t=0.1 is shown in
the following picture.
A
t
50%
10%
t=0.5
t=0.1
Note: Turn off the high speed sync function in M mode, the flash
duration will then be displayed.
44
Multi: Stroboscopic Flash
Calculating the Shutter Speed
With stroboscopic flash, a rapid series of flashes is fi red. It can be used to capture multiple images
of a moving subject in a single photograph. You can set the flash output, number of flashes, and
flash frequency (number of flashes per sec. expressed as Hz).
During stroboscopic flash, the shutter remains open until the fi ring stops. Use the formula below to
calculate the shutter speed and set it with the camera.
Number of Flashes / Flash Frequency = Shutter Speed
For example, if the number of flashes is 10 and the fi ring frequency is 5 Hz, the shutter speed should
be at least 2 seconds.
1. Press the MODE button so that < >
is displayed, turn the select dial to choose a
desired ash output.
2. Press the SET button and turn the select dial
to set the number of ashes.
3. Press the SET button and turn the select dial
to set the ash frequency.
45
Stroboscopic flash is most effective with a highly reflective subject against a dark backgbare
bulb.
Using a tripod and a TTL flash trigger is recommended.
A flash output of 1/1 and 1/2 cannot be set for stroboscopic flash.
Stroboscopic flash can be used with “bulb”.
If the number of flashes is displayed as “--”, the fi ring will continue until the shutter closes
or the battery is exhausted. The number of flashes will be limited as shown by the following
table.
●
●
●
●
●
Maximum Stroboscopic Flashes:
1
7
14
30
60
90
90
1/4
1/8
1/16
1/32
1/64
1/128
1/256
1/512
Flash Output
Hz
2
6
14
30
60
90
90
3
5
12
30
60
90
90
4
4
10
20
50
80
90
5
4
8
20
50
80
90
6-7
3
6
20
40
70
90
8-9
3
5
10
30
60
80
10
2
4
8
20
50
70
60-99
2
4
8
12
20
40
20-50
2
4
8
16
30
40
15-19
2
4
8
18
35
50
12-14
2
4
8
20
40
60
11
2
4
8
20
40
70
Note:
In TTL mode, the camera's metering system
detects the flash reflected from the subject and
automatically adjusts the flash output so that the
subject and backgbare bulb are evenly exposed.
Press the MENU button to enter menu interface,
turn the select dial and press the SET button to
enter wireless and turn on it, set the group among
A to E. Press the MENU button to return to the main
interface
Press MODE button to enter TTL mode, the screen
will display <TTL>.
TTL Auto Flash
46
Wireless Settings
Wireless (2.4G) Transmission
AD200ProII adopts 2.4G wireless X system, which has good compatibility with other Godox
products. It can automatically switch to receiver unit according to the transmitter unit instead of
setting manually. The compatible cameras include Canon, Nikon, Sony, Olympus, Panasonic, Fujifi lm,
Pentax, Leica, etc. As a receiver unit, AD200ProII can be controlled by the following transmitter units:
XPROII series/X3 series /X1T series /X2T series /V1Pro series /V1 series /V860III series.
Press the MENU button to enter menu interface, turn
the select dial and press the SET button to choose
among wireless/channel/group/ID/wireless sync,
then turn the select dial and press the SET button
to adjust the parameters. Press the MENU button to
return to the previous menu, press again to return to
the main interface.
47
Setting the Communication Channel
If there are other wireless flash systems nearby, you can change the channel to prevent signal
interference. The channels of the transmitter unit and the receiver unit(s) must be set to the same.
Wireless
Channel
Group
ID
Wireless Sync
On/Off
1-32
0-9, A-F
Off, 1-99
Press the SET button
Turn off the camera and mount the flash trigger on camera hot shoe. Then, power on the flash
trigger and the camera.
Slide the screen of X3 down from the top to display <Setting>, press <Setting> to enter C.Fn.
menu, then press <Wireless> to set CH and ID. Slide the screen from the left to the right to
return to the main interface, on which you can set the flash mode and output power level of
groups.
Press the MENU button of AD200ProII to select wireless and turn it on, then set the CH and ID
the same to the flash trigger.
Press the wireless sync on the trigger and flash, then press the SET button on the flash can set
their CH and ID to the same.
Press the camera shutter to trigger.
Take X3 flash trigger as an example:
1.
2.
3.
4.
5.
48
Wireless Flash Shooting
Positioning and Operation Range (Example of wireless flash shooting)
Auto flash shooting with one receiver unit
Transmitter
Receiver
Note:
1. Please use the transmitter unit with wireless
transmission function.
2. Before shooting, perform a test flash and
test shooting.
3. The transmission distance might be
shorter depending on the conditions such
as positioning of receiver units, the surbare
bulbing environment and weather conditions.
●
Wireless Multiple Flash Shooting
You can divide the receiver units into two or three groups and perform TTL auto flash while
changing the flash ratio (factor). In addition, you can set and shoot with a different flash mode for
each fi ring group.
Auto flash shooting with two receiver units
Auto flash shooting with three receiver units
● ●
A
A
C
B
B
Transmission distance is about 100m
49
The Reason & Solution of Not Triggering in Godox 2.4G Wireless
1. Disturbed by the 2.4G signal in outer environment (e.g. wireless base station, 2.4G wifi router,
Bluetooth, etc.)
→
To adjust the channel CH setting on the flash trigger (add 10+ channels) and use the channel
which is not disturbed. Or turn off the other 2.4G equipment in working.
2. Please make sure that whether the flash has fi nished its recycle or caught up with the
continuous shooting speed or not (the flash ready indicator is lightened) and the flash is not
under the state of over-heat protection or other abnormal situation.
→
Please downgrade the flash power output. If the flash is in TTL mode, please try to change it to M
mode.
3. Whether the distance between the flash trigger and the flash is too close or not (
＜
0.5m).
→ Please turn on "sho distance wireless mode" of the ash trigger.
→
X1 Series
:
Press and hold the triggering button then turn on the device, until the indicator blinks
twice.
→
XPro and X2T Series
:
Please set the C.Fn-DIST to 0-30m.
→
X3 Series: Please set the triggering distance to 0-30m.
4. Whether the flash is in the low battery states or not.
→
Please charge or replace the battery in time, and ensure both devices have enough battery power.
50
Flash Mode
Press the MENU button to enter menu interface, turn the select dial and press the SET button to
enter flash mode, in which you can choose between normal and color.
Option
Normal
Color
Flash Mode
Normal flash mode
Stable color temperature mode
Note
No indication on the main interface
<
> on the main interface
The group indicator will blink and the beeper will beep for 1min if stable color temperature has been
turned on, please press the test button to resume to normal use. The stable color temperature
function is only available in non-HSS M mode, and value of which will shift abare bulb ±100K over
the entire power range.
Modeling Lamp
AD200ProII is equipped with bi-color LED modeling lamp. Press the modeling lamp button to enter
modeling lamp settings, turn the select dial to choose among off/free/prop, then turn the select dial
and press the SET button to adjust the parameters. Press the modeling lamp button to return to the
main interface.
OFF
FREE
PROP
Brightness(in 1% increment)
10%-100%
Brightness follows flash power
CCT(in 100K increment)
2800K-6000K
2800K-6000K
O
F
F
FREE
PR
OP
L
am
p
12 %
5600
Note: Long press the modeling lamp button can turn on/off the modeling lamp.
51
C.Fn: Setting Custom Functions
Press the MENU button to enter menu interface, turn the select dial and press the SET button to
choose among the following functions, then turn the select dial and press the SET button to adjust
its parameters. Press the MENU button to return to the previous interface, press again to return to
the main interface.
Wireless
Flash Mode
Photocell
HSS
Model
Beep
Type
Standby
Auto Off
Brightness
Delay
Mask
Off
On
Normal
Color
Off
S1
S2
Off
On
Inter
Cont
Off
On
1/512
1.0
30sec
1min
2min
3min
Off
30min
60min
90min
120min
20%-100%
Off
0.01s-30.0s
2Mask
3Alt
4Alt
Turn off wireless function
Set channel, group and ID
Normal flash mode
Available in non-HSS M mode
Turn off photocell
Turn on photocell in M mode
Turn off high speed sync
Turn on high speed sync in M mode
Modeling lamp off in triggering
Modeling lamp constant on
Beep is off
Beep is on
Flash step displays as 1/512 -1/1 in non-HSS mode
Flash step displays as 1.0 -10.0 in non-HSS mode
Screen blacks out in 30sec of idle use
Screen blacks out in 1min of idle use
Screen blacks out in 2min of idle use
Screen blacks out in 3min of idle use
Turn off auto off function
Auto off in 30min
Auto off in 60min
Auto off in 90min
Auto off in 120min
Turn the select dial to adjust
Turn off delay flash
Turn the select dial to adjust in 0.01s increment
Turn the select dial to adjust
FunctionsIcons Options Notes
52
Language
Reset
Device Info
Chinese
English
Yes
No
Simplifi ed Chinese operating system
English operating system
Factory reset
Cancel factory reset
Display the current model and version
Sync Triggering
External Power Box Port
Protection Function
The sync cord jack is a Φ3.5mm plug. Insert a trigger plug in and the flash will be fired
synchronously with the camera shutter.
Connect to power box PB960 (sold separately) through the external power box port, the recycle time
will be signifi cantly reduced . Please note that the power box can not charge the battery.
1. Over-Temperature Protection
To avoid overheating and deteriorating the flash head, do not fi re more than 100 continuous
flashes in fast succession at 1/1 full power. After 100 continuous flashes, allow a rest time of at
least 10 minutes.
If you fi re more than 100 continuous flashes and then fi re more flashes in short intervals, the
inner over-temperature protection function may be activated and make the recycling time over
10 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will then
return to normal.
When the over-temperature protection is started, <
> is shown on the screen.
●
●
●
Note: CCT mode is unavailable when using power box PB960.
53
The system provides real-time protection to secure the device and your safety. The following lists
prompts for your reference:
Number of flashes that will activate over-temperature protection in high-speed sync triggering
mode:
2. Other Protections
Display
Error1
Error3
Error9
Meaning
A failure occurs on the recycling system so that the flash cannot fi re. Please restart the flash
unit. If the problem still exists, please send this product to a maintenance center.
The voltage on two outlets of the flash tube is too high. Please send this product to a
maintenance center.
There are some errors occurred during the upgrading process. Please using the correct
fi rmware upgrade method.
Power Output Level
1/1
1/2(+0.0 ～ +0.9)
1/4(+0.0 ～ +0.9)
1/8(+0.0 ～ +0.9)
1/16(+0.0 ～ +0.9)
1/32(+0.0 ～ +0.9)
1/64(+0.0 ～ +0.9)
1/128(+0.0 ～ +0.9)
Number of Flashes
(Speedlite Flash Head H200II)
40
75
93
125
187
230
Number of Flashes
(Bare bulb Flash Head H200JII)
50
80
100
136
200
250
Number of flashes that will activate over-temperature protection:
Power Output Level
1/1
1/2(+0.7 ～ +0.9)
1/2(+0.3 ～ +0.6)
1/2(+0.0 ～ +0.2)
1/4(+0.0 ～ +0.9)
1/8(+0.0 ～ +0.9)
1/16(+0.0 ～ +0.9)
1/32(+0.0 ～ +0.9)
1/64(+0.0 ～ +0.9）
1/128(+0.0 ～ +0.9)
1/256(+0.0 ～ +0.9)
1/512(+0.0 ～ +0.9)
Number of Flashes
(Speedlite Flash Head H200II)
50
62
75
93
125
250
375
625
1250
2500
3750
Number of Flashes
(Bare bulb Flash Head H200JII)
60
80
100
120
150
260
400
750
1500
3000
6000
54
Technical Data
AD200ProII
Wireless Mode(compatible with Canon E-TTL II, Nikon i-TTL, Sony, Olympus,
Panasonic, Fujifi lm, etc)
Wireless off:M/Multi
Wireless receiver mode:TTL/M/Multi
Speedlite Flash Head H200II:GN52(m ISO 100
，
@35mm)
Bare Bulb Flash Head H200JII:GN60(m ISO 100,with reflector AD-S2,@28mm)
Speedlite Flash Head H200II:1/272s~1/23500s
Bare Bulb Flash Head H200JII:1/252s~1/16200s
200Ws
10 steps:1/512~1/1
(
with 0.1 increment each step)
Provided (up to 90 times, 99Hz)
Adjustable in 2.4G remote controller
High-speed sync (up to 1/8000 seconds), fi rst-curtain sync, and second-curtain
sync
0.01
～
30s
√
√
√
√
√
S1/S2/OFF
Color screen
Max. 45
℃
Receiver, Off
16:0-9, A-F
Approx. 100m
32:1-32
01-99/OFF
Lithium battery(14.4V/2980mAh)
500
Approx.0.01
～
1.8s
Auto off function is available in menu settings (30min to 120min of idle use)
3.5mm sync cord
5800±200K
Shift abare bulb ±100K in stable color temperature mode
Model
Wireless Receiver Unit Mode
Flash Mode
Guide No. (1/1 step)
Flash Duration t0.1 (approx.)
Power (1/1 step)
Power Output
Stroboscopic Flash
FEC
Sync Mode
Delay Flash
Mask
Fan
Beep
Flash Duration Indication
Modeling Lamp (LED)
Photocell
Display
Working Environment Temperature
Wireless Function
Controllable Receiver Groups
Transmission Range
Channels
ID
Power Supply
Full Power Flashes
Recycle Time
Power Saving
Sync Triggering Mode
Flash Tube Color Temperature
Flash Mode
(
CCT)
Wireless Flash (2.4G transmission)
Power Supply
55
≈10.24 "*3.54"*3.11"
≈0.99kg
≈8.27"*3.07"*2.05"
≈0.9kg
Dimensions
Dimension (with battery, flash
tube and bare bulb flash head
H200JII)
Net Weight (with battery, flash
tube and bare bulb flash head
H200JII)
Dimension (with battery, flash
tube and speedlite flash head
H200II)
Net Weight (with battery, flash
tube and speedlite flash head
H200II)
Firmware Upgrade
Maintenance
This flash supports fi rmware upgrade through the USB-C port. Update information will be
released on our offi cial website.
Please use an USB-C cable (sold separately) for fi rmware upgrade.
As the fi rmware upgrade needs the support of Godox G3 software, please download and install
the "Godox G3 fi rmware upgrade software" from Godox offi cial website before upgrading. Then,
choose the related fi rmware fi le.
Please refer to the latest electronic version of the instruction manual.
Shut down the device immediately should abnormal operation be detected.
Avoid sudden impacts and the product should be dedusted regularly.
It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.
Maintenance of the flash must be performed by our authorized maintenance department which
can provide original accessories.
This product, except consumables e.g. flash tube, is supported with a one-year warranty.
Unauthorized service will void the warranty.
If the product had failures or was wetted, do not use it until it is repaired by professionals.
Changes made to the specifi cations or designs may not be reflected in this manual.
Specifi cations and data may subject to changes without notice.
56
FCC Statement
Warning
Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifi cations not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipm..ent generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Operating frequency:2412.99MHz – 2464.49MHz (only receive)
GODOX Photo Equipment Co.,Ltd. hereby declares that this equipment are in compliance with the
essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with
Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.For more
information of DoC, Please click this web link:
https://www.godox.com/eu-declaration-of-conformity/
The device complies with RF specifi cations when the device used at 0mm from your body.
57
产品保修
尊敬的用户，本保修卡是申请保修服务的重要凭证，请您配合销售商填写并妥善保管，谢谢！
产品信息
用户信息
销售商信息
备注
型号
姓名
通信地址
名称
联系电话
通信地址
销售日期
产品条码
联系电话
注：此表应由销售商盖章确认。
本文件适用于相关《产品保修信息》( 见后面说明 ) 所列产品，其他非属此范围的产品或部件 ( 如促
销品、赠品及其他出厂后附加的部件等 ) 不在此保修承诺内。
适用产品
产品及部件的相应保修期按相关的《产品保修信息》执行。保修期自产品首次购买日起算， 购 买
日以购买产品时保修卡登记日期为准。
保修期
您可直接与产品销售商或授权服务机构联系，也可拨打神牛产品售后服务电话，与我们联 系，由我
们的服务人员为您安排服务。申请保修时， 您应提供有效的保修卡作为保修凭证， 方 可获得保修。
如您不能提供有效的保修卡，则在我们确认产品或部件属于保修范围的情况 下，也可以为您提供保修,
但这不作为我们的义务。
如何获得保修服务
58
如产品存在下列情况，本文件项下的保证和服务将不适用 ①产品或部件超过相应保修期； ②错误或
不适当使用、维护或 保管导致的故障或损坏， 如：不当搬运；非按产品合理预期用 途使用；不当
插拨外接设备；跌落或外力挤压；接触或暴露于不适当温度、溶剂、酸碱、水 浸或潮湿环境； ③由
非神牛授权机构或人员安装、修理、更改、添加或拆卸造成的故障或损 坏；④产品或部件原有识别
信息被修改变更或除去；⑤无有效保修卡；⑥使用非合法授权、 非标准或非公开发行的软件造成的
故障或损坏；⑦因不可抗力或意外事件造成的故障或损 坏；⑧其他非因产品本身质量问题导致的故
障或损坏。遇上述情况，您应向相关责任方寻求 解决， 神牛对此不承担任何责任。因非在保修期
或保修范围内的部件、附件或软件导致产品 不能正常使用的， 不是保修范围内的故障。产品使用过
程中正常的脱色， 磨损和消耗， 不是保 修范围内的故障。
产品类别
部件
其他
选件名称
电路板
电池
充电器等带电性能的部件。
如电源线、同步线、外壳、闪光管、
造型灯泡、外壳、 保护罩、锁紧
装置、包装等。
保修期（月）
12
3
12
无
神牛产品售后服务电话 0755-29609320-8062
不适用保修情況
产品保修和服务支持信息
产品的保修期和服务类型按以下《产品保修信息》执行：
保修服务类型
客户送修
客户送修
客户送修
无保修
59
Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance
service, please fi ll in the following form in coordination with the seller and safe-keep it. Thank you!
If maintenance service is needed, you can directly contact the product distributor or authorized
service institutions. You can also contact the Godox after-sale service call and we will offer you
service. When applying for maintenance service, you should provide valid warranty card. If you
cannot provide valid warranty card, we may offer you maintenance service once confi rmed that the
product or accessory is involved in the maintenance scope, but that shall not be considered as our
obligation.
How to Get the Maintenance Se ice
Applicable ProductsThe document applies to the products listed on the Product Maintenance
lnformation (see below for further information). Other products or accessories (e.g. promotional
items,giveaways and additional accessories attached,etc.) are not included in this warranty scope.
Applicable Products
The warranty period of products and accessories isimplemented according to the relevant Product
Maintenance Information. The warranty period is calculated from the day(purchase date) when the
product is bought for the fi rst time,And the purchase date is considered as the date registered onthe
warranty card when buying the product.
Warranty Period
Product
Information
Customer
Information
Seller
Information
Note
Model
Name
Address
Name
Contact Number
Address
Date of Sale
Product Code Number
Contact Number
60
The guarantee and service offered by this document are not applicable in the following cases:
①
The product or accessory has expired its warranty period;
②
Breakage or damage caused by
inappropriate usage, maintenance or preservation, such as improper packing, improper usage,
improper plugging in/out external equipment, falling off or squeezing by external force, contacting
or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc;
③
Breakage or damage caused by non-authorized institution or staff in the process of installation,
maintenance, alternation, addition and detachment;
④
The original identifying information of
product or accessory is modifi ed, alternated, or removed;
⑤
No valid warranty card;
⑥
Breakage
or damage caused by using illegally authorized, nonstandard or non-public released software;
⑦
Breakage or damage caused by force majeure or accident;
⑧
Breakage or damage that could not
be attributed to the product itself. Once met these situations above, you should seek solutions
from the related responsible parties and Godox assumes no responsibility. The damage caused
by parts, accessories and software that beyond the warranty period or scope is not included in our
maintenance scope. The normal discoloration, abrasion and consumption are not the breakage
within the maintenance scope.
Inapplicable Cases
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product
Maintenance Information:
Godox After-sale Service Call 0755-29609320-8062
Product
Type
Parts
Other
Items
Power cord, Sync cord, ash tube,
modeling lamp, shell, lamp cover, locking
device, package, etc.
Electrical pa s e.g.batte charger, etc.
B a t t e
Circuit board
Name
Maintenance
Period(month)
3
12
3
No
Customer sends the
product to
designated site
Customer sends the
product to
designated site
Customer sends the
product to
designated site
Without warranty
Warranty
Service Type
