• Slide tab notch onto rod.
• Push tab up and onto bottom of
shelf truss.
rod
tab
shelf
truss
ASSEMBLY INSTRUCTIONS
Rods & Tabs
EG10071 Revised 09/23

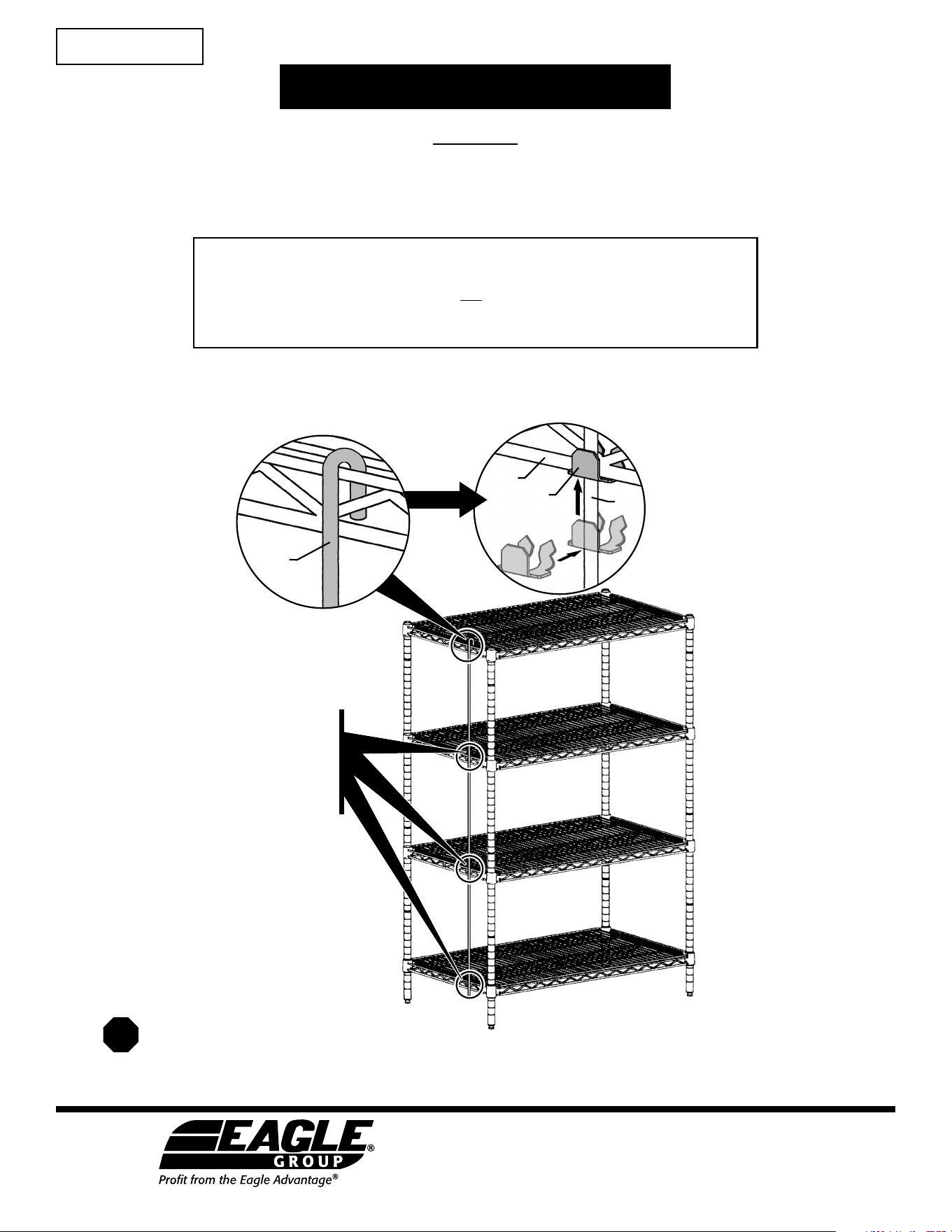

Step 1 - Attach rod to desired location.
• Hook rod onto outside
of top wire shelf.
• Make sure rod
is parellel with
posts of
shelf unit.
Step 2 - Attach tab to rod and shelf.
To install more rods & tabs,
repeat Steps 1 through 3.
Please note:
• Please read instructions BEFORE assembly.
• These instructions cite installation of one rod at a time.
• These instructions cite installation of rods & tabs onto outside of wire shelves.
Rods & tabs can be installed along middle area of wire shelves as well.
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
rod
Step 3 - Attach remaining
tabs onto rod.
Repeat Step 2, attaching tabs where
rod intersects with adjacent wire
shelves remaining.
INSTRUCTION SHEET
#A222008
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
(
End
)
Assembly is complete.
