User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Safety information and warnings......................... 3
1.1 Intended use................................................................. 3
1.2 Climate classes............................................................ 3
1.3 User group..................................................................... 3
1.4 Installation and commissioning................................ 3
1.5 Safe handling of the appliance.................................. 3
1.6 Cleaning......................................................................... 4
1.7 Faults, damage and repairs........................................ 4
1.8 Disposal......................................................................... 4
1.9 Conformity..................................................................... 4
1.10 SVHC substances in accordance with the REACH
Regulation..................................................................... 4
1.11 EPREL database........................................................... 4
1.12 Open source licences.................................................. 4
1.13 Spare parts.................................................................... 4
1.14 Symbols on the appliance.......................................... 4
1.15 Warning levels.............................................................. 5
2 Appliance at a glance............................................ 5
2.1 Scope of delivery.......................................................... 5
2.2 Overview of the appliance and equipment.............. 5
2.3 Appliance range of use............................................... 5
2.4 Conformity..................................................................... 5
2.5 SVHC substances according to REACH regulation. 6
2.6 EPREL database........................................................... 6
2.7 Spare parts.................................................................... 6
3 Setting up and connecting.................................... 6
3.1 Installation requirements........................................... 6
3.2 Insert under worktop................................................... 6
3.3 Installation dimensions............................................... 6
3.4 Ventilation requirements............................................ 7
3.5 Connection dimensions for the power supply........ 7
3.6 Transporting the appliance........................................ 7
3.7 Unpacking the appliance............................................ 7
3.8 Removable table top.................................................... 7
3.9 Swapping the door hinge side................................... 8
3.10 Mounting wall spacers................................................ 11
3.11 Setting up the appliance............................................ 11
3.12 After setting up............................................................ 11
3.13 Installing multiple appliances.................................... 11
3.14 Sliding the appliance under a worktop.................... 12
3.15 Disposing of packaging............................................... 12
3.16 Connecting the appliance to the power supply...... 13
4 Functionality of the display.................................. 13
4.1 Navigation by touchbutton and symbol
explanation................................................................... 13
4.2 Menus............................................................................. 13
5 Putting into operation........................................... 15
5.1 Switching on device (first use).................................. 15
6 Storage.................................................................. 15
6.1 Information regarding storage................................... 15
6.2 Fridge compartment.................................................... 15
6.3 ****-freezer compartment*........................................ 15
6.4 Storage times............................................................... 16
7 Saving energy........................................................ 16
8 Controls................................................................. 16
8.1 Operating controls and display elements................ 16
8.1.1 Temperature display/Status indicator.................. 16
8.1.2 LED behaviour............................................................ 17
8.1.3 Audible signals...........................................................17
8.2 Appliance functions..................................................... 17
8.2.1 Notes on the appliance functions.......................... 17
Switching the appliance off and on...................... 17
Temperature.............................................................. 17
SuperCool..................................................................18
SabbathMode........................................................... 18
Input lock...................................................................19
Demo mode............................................................... 19
Resetting to factory settings................................. 19
8.3 Messages...................................................................... 20
8.3.1 Ending messages..................................................... 20
9 Features................................................................. 20
9.1 4-star freezer compartment*..................................... 20
9.2 Door rack....................................................................... 20
9.3 Shelves.......................................................................... 21
9.4 Dividing shelf*.............................................................. 21
9.5 Drawers.......................................................................... 21
9.6 Butter dish.................................................................... 22
9.7 Egg rack*....................................................................... 22
9.8 Bottle holder................................................................. 22
10 Maintenance.......................................................... 23
10.1 Removing the bottle holder........................................ 23
10.2 Inserting the bottle holder......................................... 23
10.3 Dismantling the door rack.......................................... 23
10.4 Assembling the door rack........................................... 23
10.5 Disassembling / assembling pull-out systems...... 23
10.6 Defrosting the appliance............................................ 24
10.7 Defrosting the freezer compartment manually*.... 24
10.8 Cleaning the appliance............................................... 24
11 Customer help....................................................... 25
11.1 Technical specifications............................................. 25
11.2 Operating noises.......................................................... 25
11.3 Technical fault.............................................................. 25
11.4 Customer Service......................................................... 26
11.5 Model plate................................................................... 26
12 Shutting down....................................................... 27
13 Disposal................................................................. 27
13.1 Preparing the appliance for disposal........................ 27
13.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 27
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

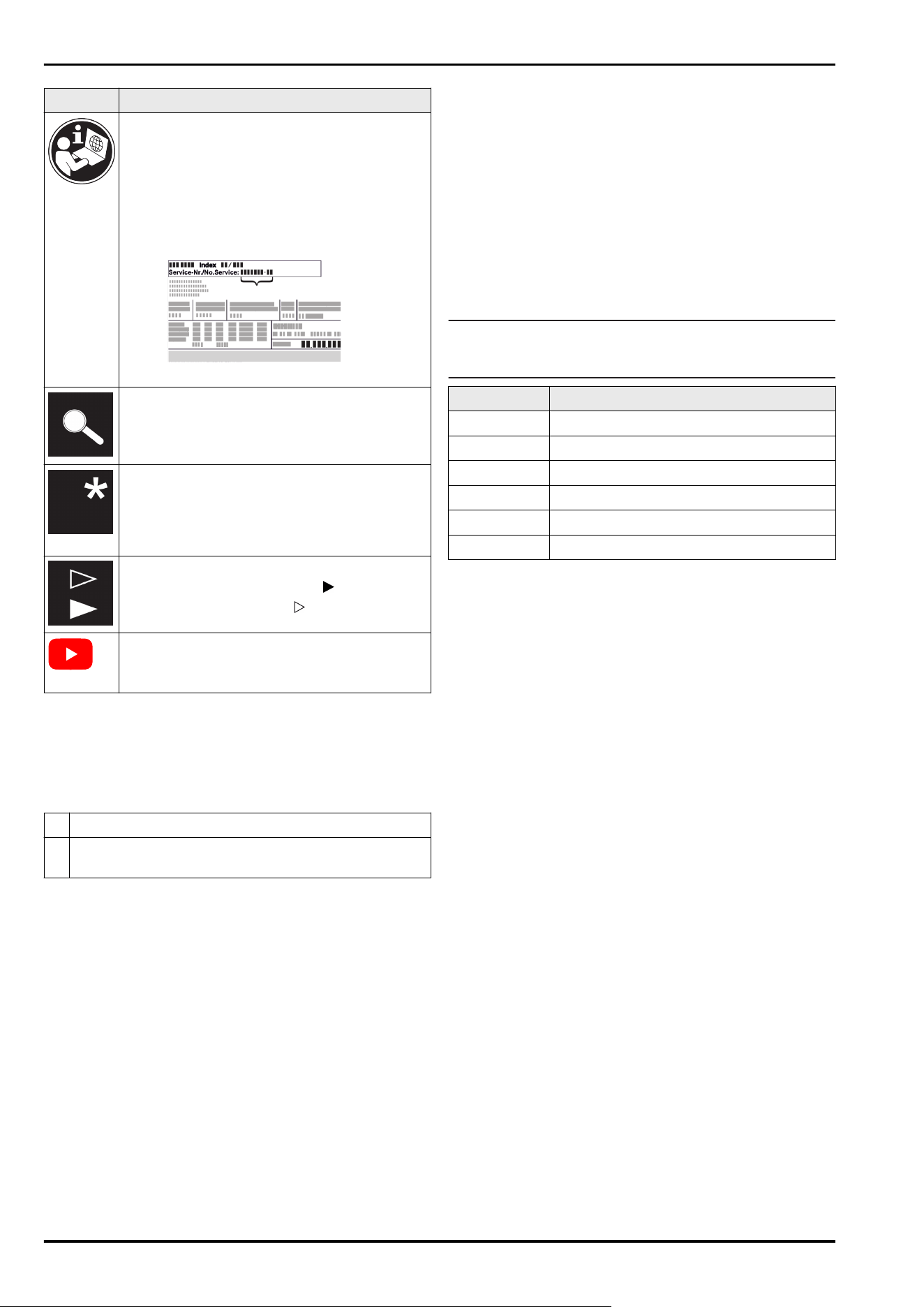

Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
2 * Depending on model and options
Symbol Explanation
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
R..
10.. / 12.. / 14..
TK 12Ve00 / 12Ve01 / 14Ve00 / 14Ve01 / 14Vd00 /
14Vd01 / 14Vddg01 / 14Vddg00
1 Safety information and warnings
Keep this user information in a safe place so that you can
refer to it at any time.
If you pass on the appliance, pass this user information on
to subsequent owners.
To use the appliance properly and safely, read this user
information carefully before installation and use. Always
follow the instructions, safety instructions and warnings
contained therein. They are important so that you can install
and operate the appliance safely and properly.
1.1 Intended use
This appliance is intended for household use and similar
applications such as:
-
in staff kitchen areas in shops, offices and other work
areas
-
in agricultural environments and by guests in hotels,
motels and other accommodation
-
in bed and breakfasts
-
in catering and similar wholesale operations
Further uses:
-
This appliance is not suitable for freezing food.*
All other types of application are impermissible.
1.2 Climate classes
Depending on its climate class, the appliance is designed
for operation within certain ambient temperature limits. The
climate class for your appliance is printed on the type plate.
Note
► In order to guarantee fault-free operation comply with
the specified ambient temperatures.
Climate class for ambient temperatures from
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.3 User group
-
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowl‐
edge if they have been given supervision or instruction
concerning use of the appliance in a safe way and under‐
stand the hazards involved.
-
Children must not play with the appliance.
-
Children must not carry out cleaning and user mainte‐
nance without supervision.
-
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
1.4 Installation and commissioning
-
Only set up and connect the appliance in accordance
with the instructions in the user information.
-
Do not close the ventilation openings in the appliance
housing or in the installation housing.
-
Do not damage the mains cable. The appliance must not
be operated with a defective mains cable.
-
Do not place portable multiple sockets or power supply
units at the rear of the appliance.
-
It must be easy to access the socket so that the appli‐
ance can be quickly disconnected from the power supply
in case of an emergency. It must not be behind the appli‐
ance.
Appliances with anti-tip protection:
-
Secure the appliance with an anti-tip device in accord‐
ance with the instructions in the user information to
prevent the appliance from tipping over.
1.5 Safe handling of the appliance
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. These types of aerosol can be identified by the
list of contents printed on it, or by a flame symbol. Any
leaking gas may ignite due to electrical parts.
Safety information and warnings
* Depending on model and options 3
-
Keep burning candles, lamps and other objects with
naked flames away from the appliance, so that these do
not set fire to the appliance.
-
Alcoholic beverages and other containers bearing alcohol
must be sealed tight for storage. Any leaking alcohol may
ignite due to electrical parts.
-
Avoid prolonged skin contact with cold surfaces or with
cold/frozen food. Use gloves for protection, for example.
-
The refrigerant contained (information on the type plate)
is environmentally friendly but flammable. Leaking refrig‐
erant may ignite.
•
Do not damage the refrigeration circuit.
•
Do not use any ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer service.
-
Only open the door for a short time. This prevents the
temperature inside the appliance from rising.
-
Do not reach between the door and the appliance when
opening and closing. Fingers may become trapped.
-
The temperature in the warmest part of the appliance
may be higher than the set temperature.
1.6 Cleaning
-
Regularly clean surfaces that come into contact with
food.
-
Clean the defrost water drain regularly.
-
Do not use an electric heater or steam cleaner, naked
flames or defrost spray to speed up the defrosting
process.
-
Do not remove the ice with sharp objects.
1.7 Faults, damage and repairs
-
If the mains connection cable of the appliance is
damaged, replace the mains connection cable.
-
Repairs and interventions on the appliance may only be
carried out by the customer service or by other qualified
personnel trained for this purpose.
-
In the event of malfunctions and appliance faults, pull
out the mains plug or switch off the fuse. Always hold
the plug when pulling out the mains plug. Never tug on
the cable.
1.8 Disposal
-
The appliance contains valuable materials and is marked
with the appropriate symbol. (see 1.14 Symbols on the
appliance)
•
Do not dispose of the appliance in the household
waste.
•
Dispose of the appliance free of charge at your
local recycling centre using the Class 1 collection
containers.
•
When purchasing a new appliance, return the old
appliance to the retailer free of charge.
•
Provide information about return options.
-
The appliance contains refrigerant (information on the
type plate) and oil. The refrigerant inside the appliance
is environmentally friendly, but flammable. The oil it
contains is also flammable. Escaping refrigerant and oil
can ignite in high concentrations and in contact with an
external heat source.
•
Do not damage the refrigeration circuit.
•
Only dispose of the appliance in accordance with the
instructions in the user information.
1.9 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations and
directives.
The full text of the EU Declaration of Conformity is available
at the following web address: www.liebherr.com
1.10 SVHC substances in accordance
with the REACH Regulation
You can use the following link to check whether your appli‐
ance contains SVHC substances in accordance with the
REACH Regulation:
home.liebherr.com/en/en/liebherr-experience/sustaina‐
bility/environment/scip/scip.html
1.11 EPREL database
From 1 March 2021, the information on energy labelling and
eco-design requirements will be available in the European
product database (EPREL). The product database can be
accessed via the following link https://eprel.ec.europa.eu/.
Here, you are asked to enter the model identifier. You will
find the model identifier on the type plate.
1.12 Open source licences
The appliance contains software components that use open
source licences. Information on the open source licences
used can be found here:
home.liebherr.com/open-source-licences
1.13 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.

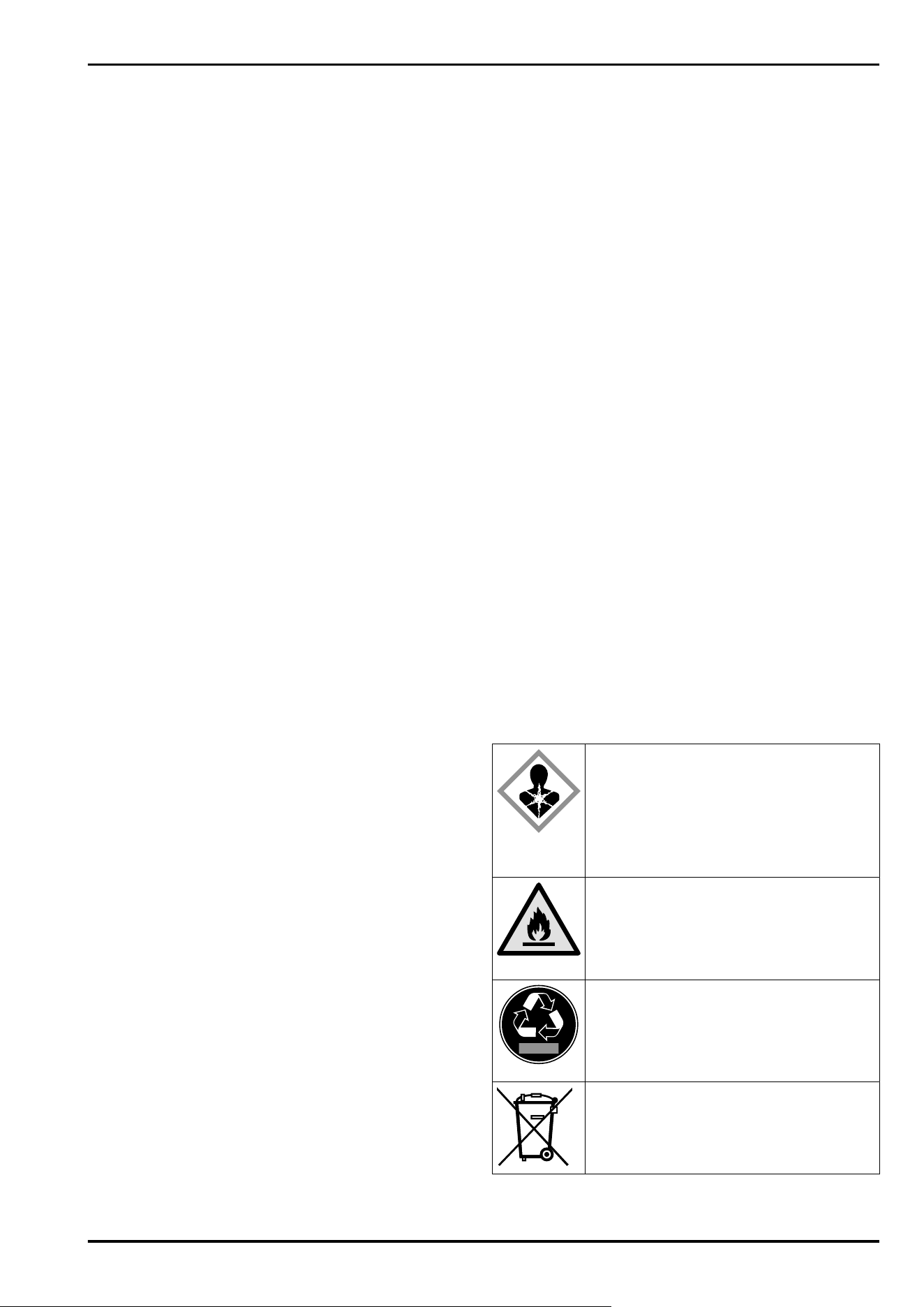

1.14 Symbols on the appliance
This symbol may be found on the
compressor. It pertains to the oil in the
compressor and indicates the following
danger: Can be fatal if swallowed or with
penetration of the respiratory tract. This
information is only significant for recycling.
No risk exists with normal use. Do not
remove this symbol.
Warning: Fire hazard due to flammable
substances. This symbol is located on the
compressor and can also be found in other
places on the appliance. This symbol warns
of flammable substances. Do not remove
this symbol.
This or a similar symbol may be on the rear
of the appliance. It indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
information is only significant for recycling.
Do not remove this symbol.
This symbol is located on the type plate.
It indicates that the appliance contains
valuable materials and that you must not
dispose of it with household waste.
(see1.8Disposal)
Safety information and warnings
4 * Depending on model and options
1.15 Warning levels
DANGER
Identifies an immediately
dangerous situation that will
result in death or serious bodily
injuries if it is not prevented.
WARNING
Identifies a dangerous situation
that could result in death or
serious bodily injury if it is not
prevented.
CAUTION
Identifies an immediately
dangerous situation that could
result in slight or moderate injuries
if it is not prevented.
ATTENTION Identifies a hazardous situation
that could result in property
damage if it is not prevented.
Note Identifies useful information and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see11.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”*
-
Service Brochure
2.2 Overview of the appliance and
equipment

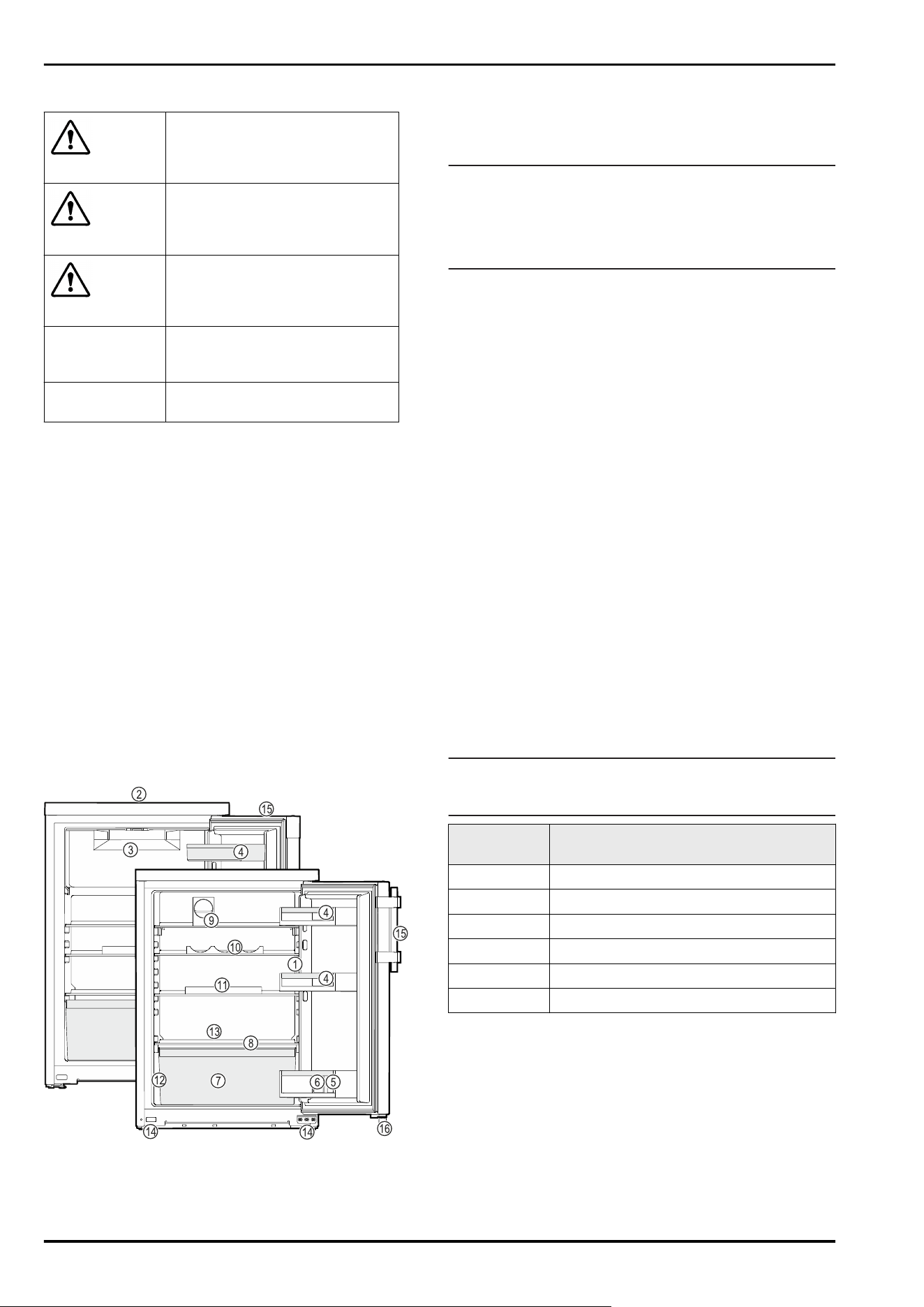

Fig. 1 Example illustration
(1)
Controls, lighting (9) FlexCube*
(2) Ventilation slot (10) Tripple Flex
(3) Freezer compartment* (11) Egg tray*
(4) Tin shelf (12) Type plate
(5) Bottle shelf (13) Defrost water drain
(6) Bottle holder (14) Adjustable feet (front)
(7) Vegetable bins/Easy‐
Fresh-Safe*
(15) Lever grip/recessed
handle*
(8) EasyFresh-Safe lid* (16) Spacer*
Note
► Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
2.3 Appliance range of use
Intended use
The appliance is only suitable for cooling food products in
a domestic or household-like environment. This includes, for
example, use:
-
in staff kitchens, bed and breakfast establishments,
-
by guests in country houses, hotels, motels and other
accommodation,
-
for catering and similar services in the wholesale trade.
The appliance is not suitable for freezing food;*
The appliance is not suitable as a built-in unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly forbidden:
-
Storing and refrigerating medicines, blood plasma, labo‐
ratory preparations or similar substances and products
based on the Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage to the goods
stored or they may spoil.
Climate classifications
Depending on the climate classification the appliance is
designed to operate in restricted ambient temperatures. The
climate classification applying to your appliance is printed
on the rating plate.
Note
► Keep to the specified ambient temperatures in order to
guarantee that the appliance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
2.4 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
Appliance at a glance
* Depending on model and options 5
2.5 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.6 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2.7 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
3 Setting up and connecting
3.1 Installation requirements
The installation conditions are crucial to ensure that you
can operate your appliance safely, efficiently and without
problems.
-
Observe all safety instructions.
-
Consider the location and position in the room.
WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
► Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
► Stand the appliance so that it is not touched by connec‐
tors or main cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
► The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.

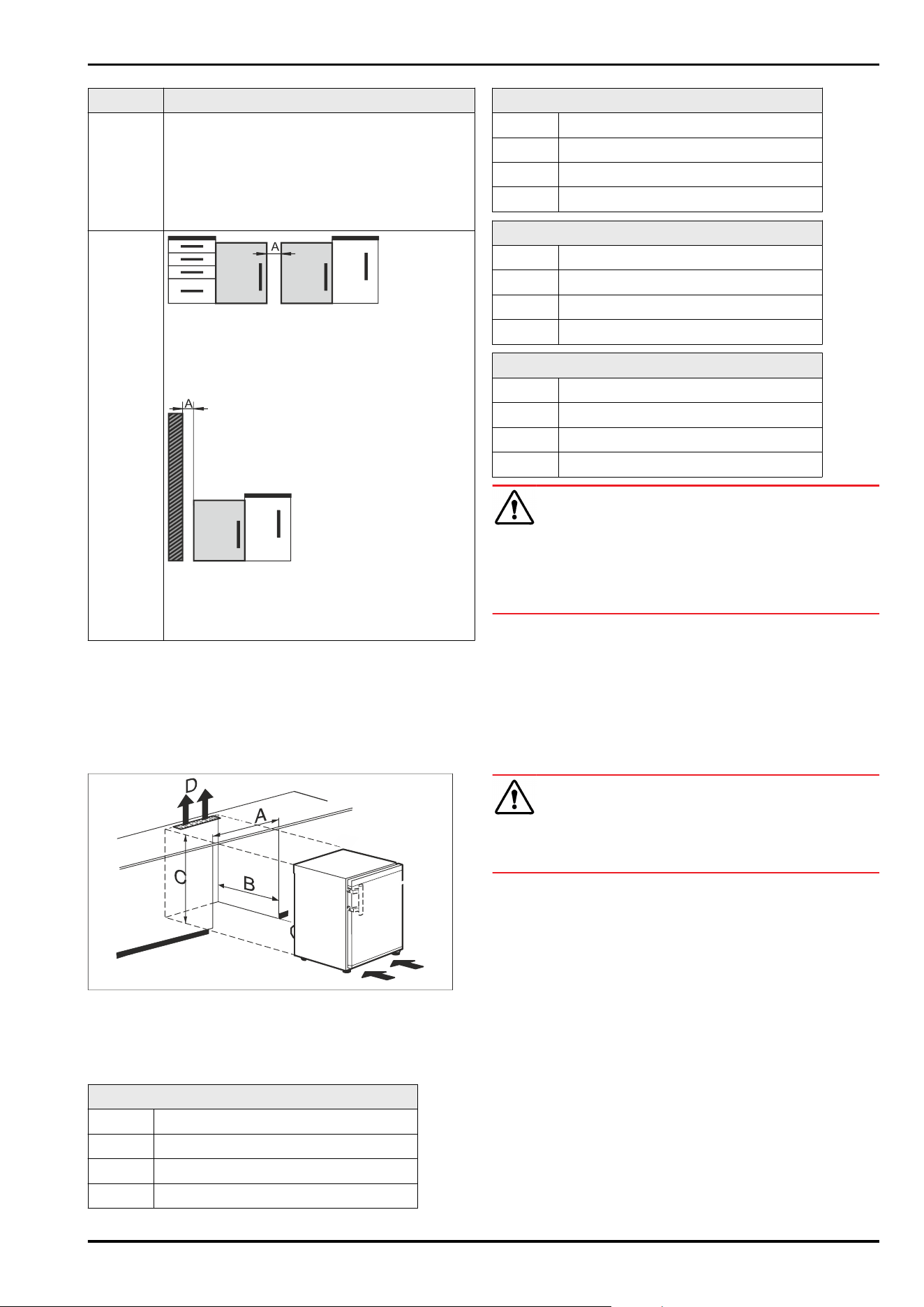

3.1.1 Installation site
-
Only set up and use the appliance in enclosed spaces.
-
A dry and well-ventilated room is an optimum installation
location.
-
If the appliance is installed in a very damp environment,
condensation may form on the appliance exterior.
Always make sure there is good ventilation and aeration
at the installation site.
-
The more refrigerant there is in the appliance, the larger
than room must be in which it is located. In rooms that
are too small, a leak can product a flammable gas/air
mixture. For every 8g of refrigerant, the installation room
must be at least 1 m
3
in size. Information on the refrig‐
erant contained is given on the type plate inside the
appliance.
-
The floor on which the appliance stands must be hori‐
zontal and level.
3.1.2 Position in space
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
You can place the appliance directly next to an oven.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Always position the appliance with the rear directly
against the wall, or with wall spacer brackets attached
(see below) then with these directly against the wall.
-
Use in hazardous areas is not permitted.
3.2 Insert under worktop
-
You can slide the appliance under a worktop.

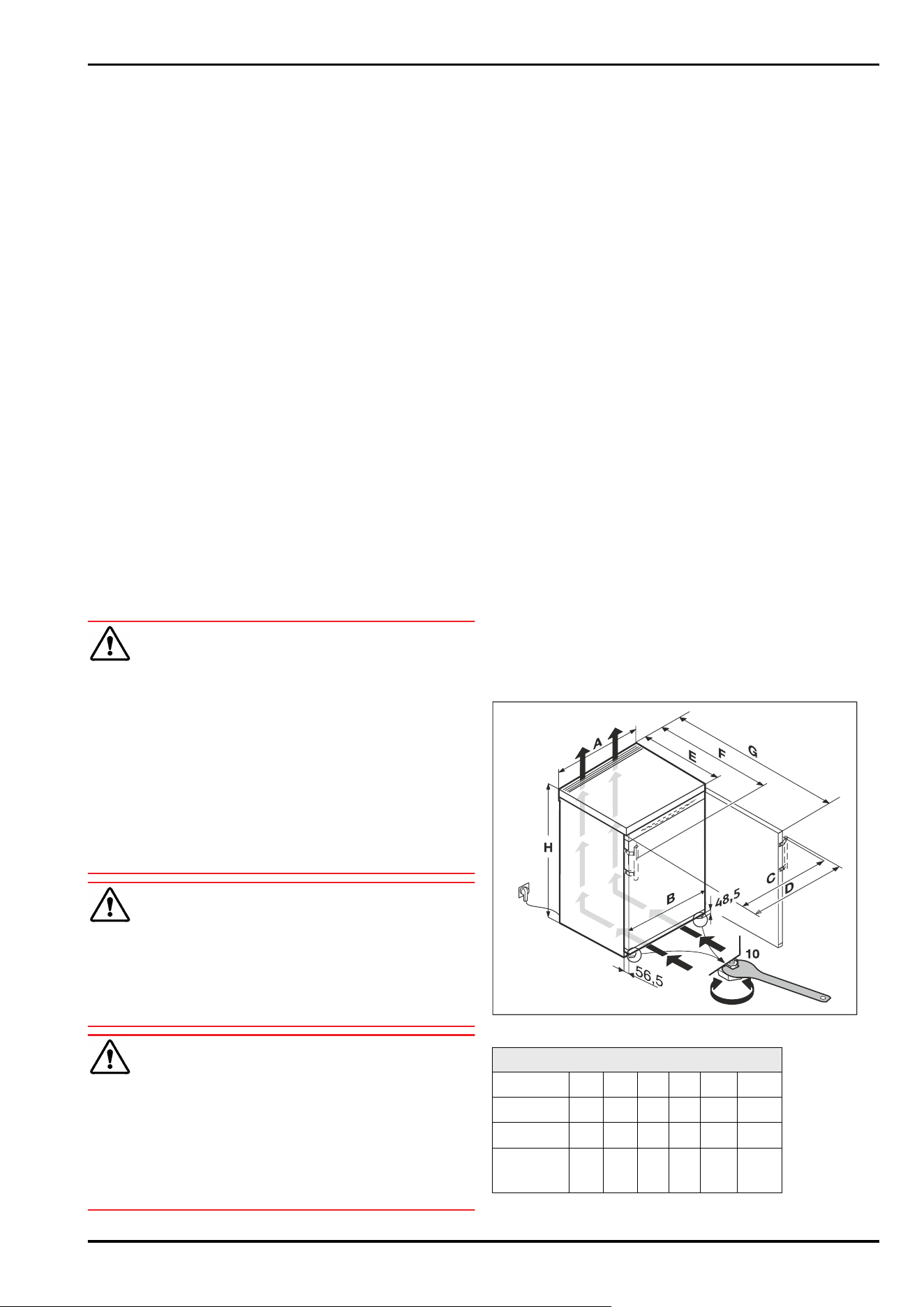

3.3 Installation dimensions
Fig.2
Dimensions without lever handle (mm):*
H A B C E G
R..10.. 680 550 547 547
607
x
1106
x
R..12.. 850 500 497 497
607
x
1056
x
TK 12Ve00
TK 12Ve01
850 500 497 497
607
x
1056
x
Setting up and connecting
6 * Depending on model and options
Dimensions without lever handle (mm):*
R..14.. 850 550 547 547
607
x
1106
x
TK 14Ve00
TK 14Ve01
TK 14Vd01
TK 14Vd00
850 550 547 547
607
x
1106
x
Dimensions with lever handle (mm):*
H A B C D E F G
R..14.. 850 550 547 545 589
607
x
648
x
1112
x
TK 14Vddg00
TK 14Vddg01
850 550 547 545 589
607
x
648
x
1112
x
x
This dimension increases by 35 mm on appliances with
attached wall spacer brackets. (see 3.10 Mounting wall
spacers)
3.4 Ventilation requirements
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
► Take care to ensure adequate air ventilation.
► Observe the ventilation requirements.
If the appliance is integrated into a kitchen unit, the
following ventilation requirements must be observed:
-
As a general rule: the larger the ventilation cross section,
the more energy the appliance will be able to save.
3.5 Connection dimensions for the
power supply
The connection to the power supply is on the rear of the
appliance. To connect your appliance safely, ensure that the
following requirements are met:
❑
Dimensions for the connection to the power supply are
known and are adhered to. See table below.
❑
Connection to the power supply according to the instruc‐
tions. (see 3.16 Connecting the appliance to the power
supply)
3.6 Transporting the appliance
3.6.1 Transporting the appliance for initial use
Ensure that the following requirements are met:
❑
The appliance is packaged.
❑
The appliance is upright.
► Transport the appliance with the help of two people.
► Unpacking the appliance. (see 3.7 Unpacking the appli‐
ance)
3.6.2 Transporting the appliance after initial
use
Observe the following instructions if you wish to transport
or move the appliance again after initial use.
Ensure that the following requirements are met:
❑
The appliance is emptied.
❑
The appliance is upright.
❑
Appliance with door(s): Door is secured against acci‐
dental opening.
❑
Appliance with telescopic unit: The telescopic unit is
secured against accidental opening.
❑
Appliance with adjustable feet: Adjustable feet are
screwed in.
► Transport the appliance with the help of two people.
After transport:
► Unscrew the adjustable feet on the appliance.
► Align the appliance.
3.7 Unpacking the appliance
Before you connect the appliance, report any damage imme‐
diately to the delivery company.
► Check the appliance and the packaging for damage
during transport. Contact the supplier immediately if you
suspect any level of damage.
► Remove all materials from the back or the side walls
of the appliance that may prevent proper installation or
ventilation.
► Remove all protective films from the appliance. Do not
use sharp or pointed objects for this.
3.8 Removable table top
The appliance's tabletop is removable. If you want to slide
the table-top appliance under a worktop, you will need to
remove the table top. (see 3.14Sliding the appliance under a
worktop)

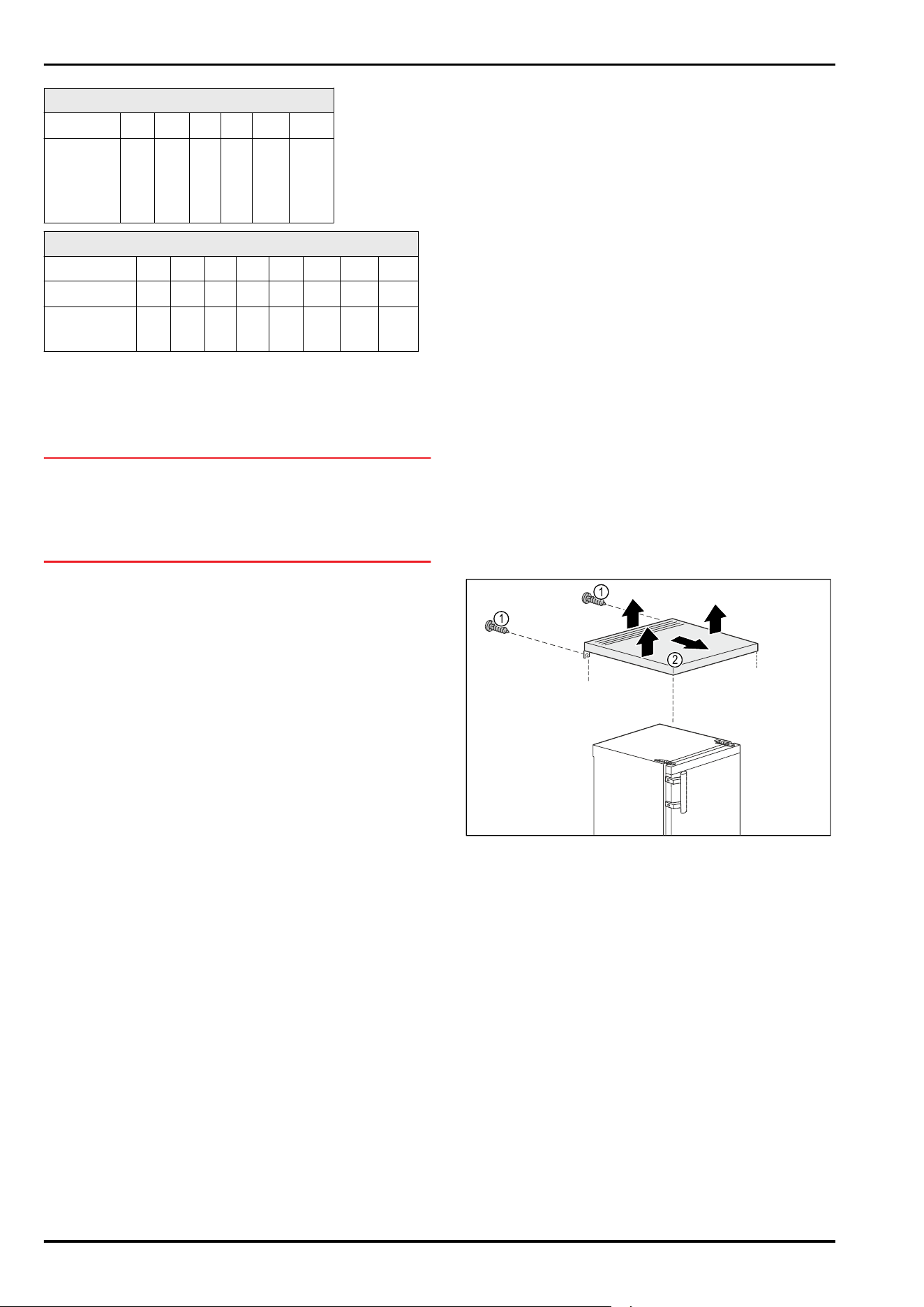

3.8.1 Removing the table top
1
1
2
Fig.3
► Remove the screws Fig.3(1) on the rear end.
► Raise the table top Fig.3(2) at the back.
► Push the table top Fig.3(2) forwards.
► Remove the table top Fig.3(2) upwards.
▷ The table top Fig.3(2) has been removed.
Setting up and connecting
* Depending on model and options 7

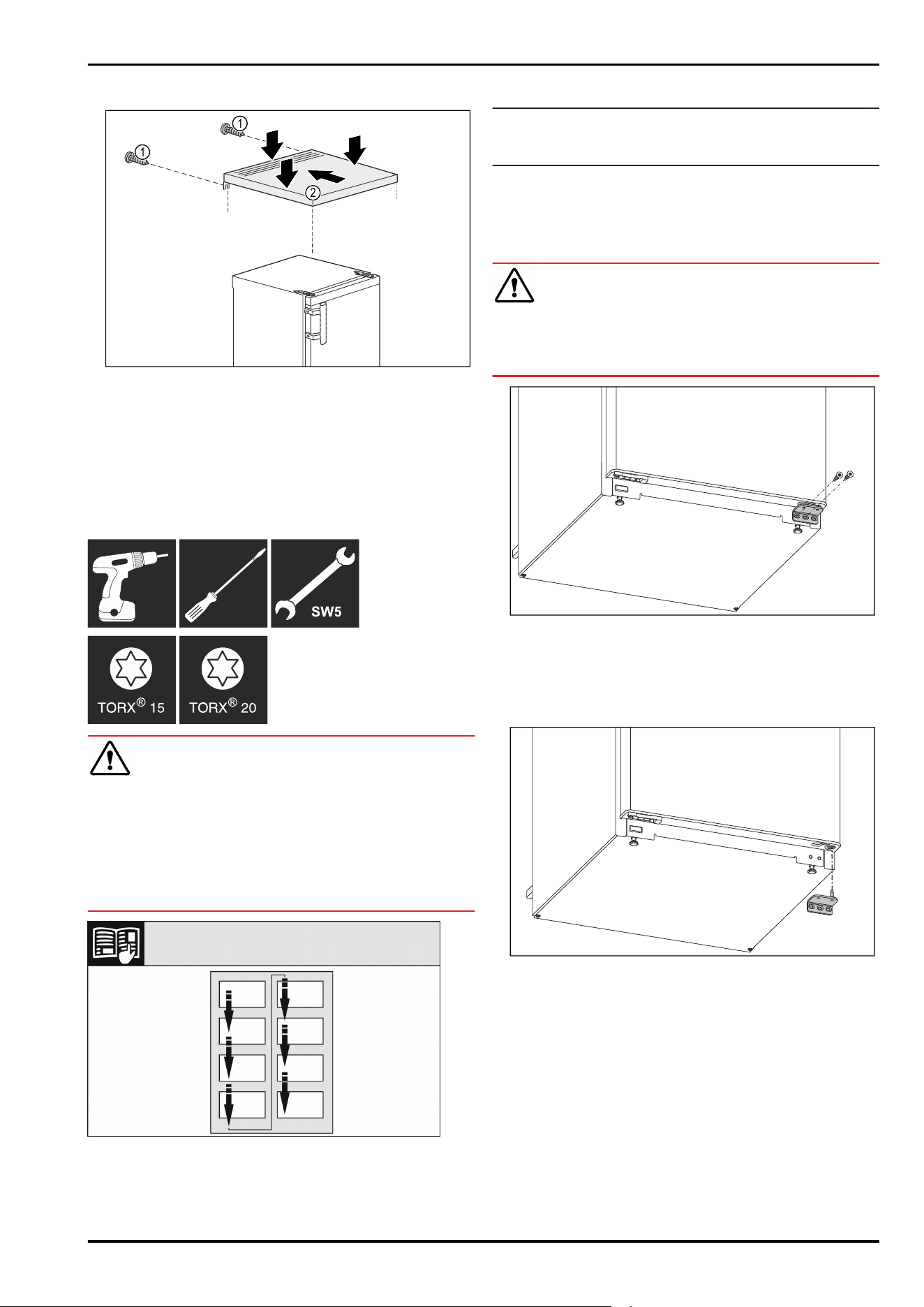

3.8.2 Fitting the table top
1
1
2
Fig.4
► Place the table top Fig.4(2) on the appliance.
► Push the table top Fig.4(2) backwards.
► Press the table top Fig.4(2) down at the back.
► Tighten the screws Fig.4(1) on the rear end.
▷ The table top Fig.4(2) has been fitted.
3.9 Swapping the door hinge side
Tool
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw on the bearing brackets/bearing pins tightly with
4Nm.
► Check all screws and retighten them if necessary.
Fig.5
Note the direction of reading.
3.9.1 Preparation
Note
► Remove any food from the door racks before removing
the door, so that no food falls out.
► Tilt the device backwards with two persons.
► Remove the spacer (13) from under the left-hand side of
the door.*
3.9.2 Loosen the lower bearing components
CAUTION
Danger of injury due to door tipping out!
If you remove the bolt on the door completely, the door may
tilt out and you may injure yourself.
► Hold the door firmly before removing the bolt.
Fig.6
► Unscrew the middle screw on the lower swap bearing
block with a Torx 20 screwdriver. Fig.6()
► Unscrew the inner screw on the lower swap bearing
block with a Torx 20 screwdriver. Fig.6()
► Put the screws aside.
Fig.7
► Remove the swap bearing block downwards. (see Fig.7)
► Set the swap bearing block aside.
Setting up and connecting
8 * Depending on model and options

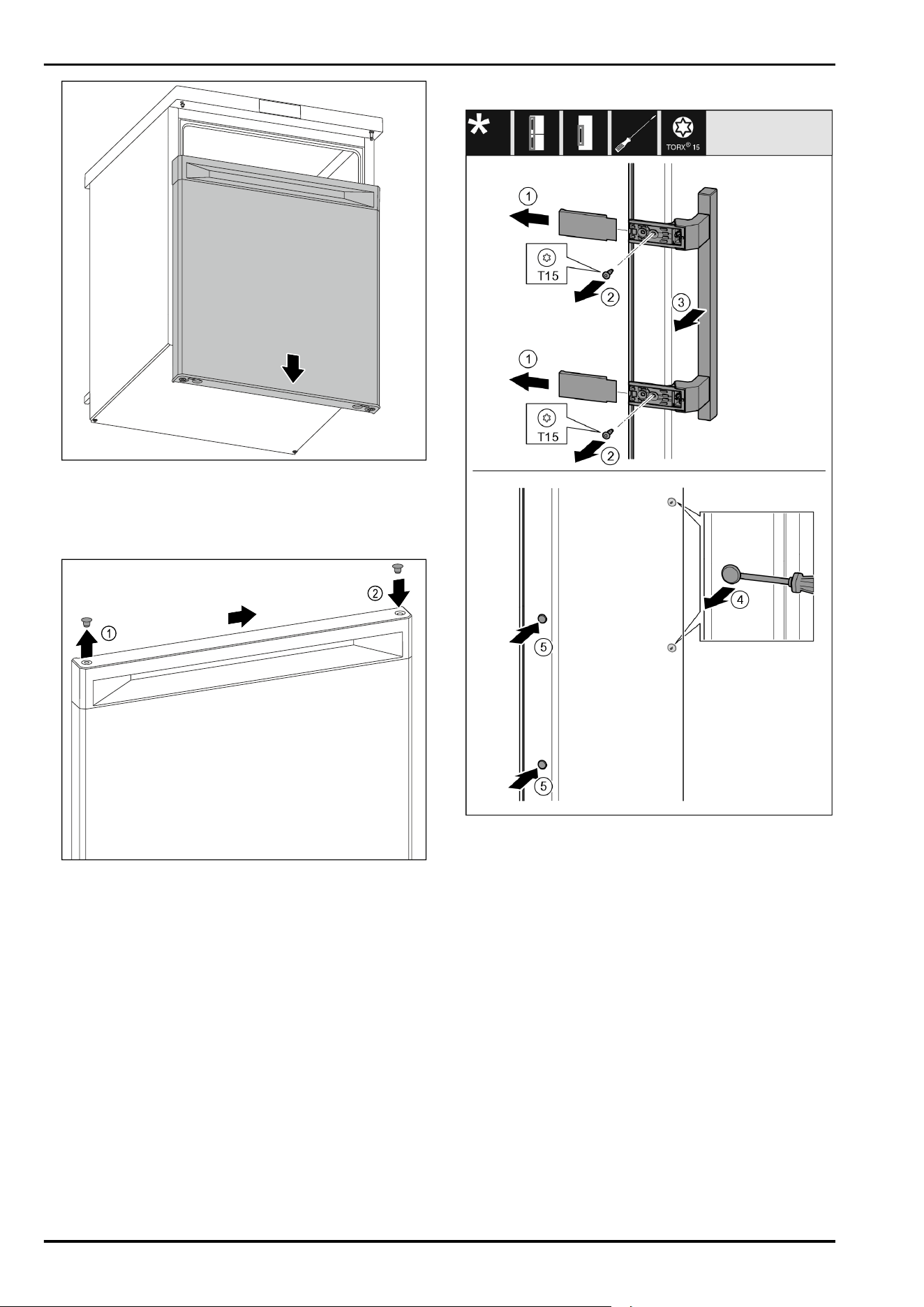

Fig.8
► Remove the door downwards. (see Fig.8)
► Set down the door.
3.9.3 Preparing the door
Fig.9
► Carefully lift the cover plug on the top of the door
Fig.9(1) with a slotted screwdriver.
► Insert the cover plug on the opposite side. Fig.9(2)
3.9.4 Re-locating the handle*
Fig. 10
► Pull off the cover. Fig. 10(1)
► Unscrew the screws with a Torx 15 screwdriver. Fig. 10(2)
► Take off the handle. Fig. 10(3)
► Carefully lift the side plug with a slotted screwdriver and
pull it out. Fig. 10(4)
► Replace the plug on the other side. Fig. 10(5)
Setting up and connecting
* Depending on model and options 9

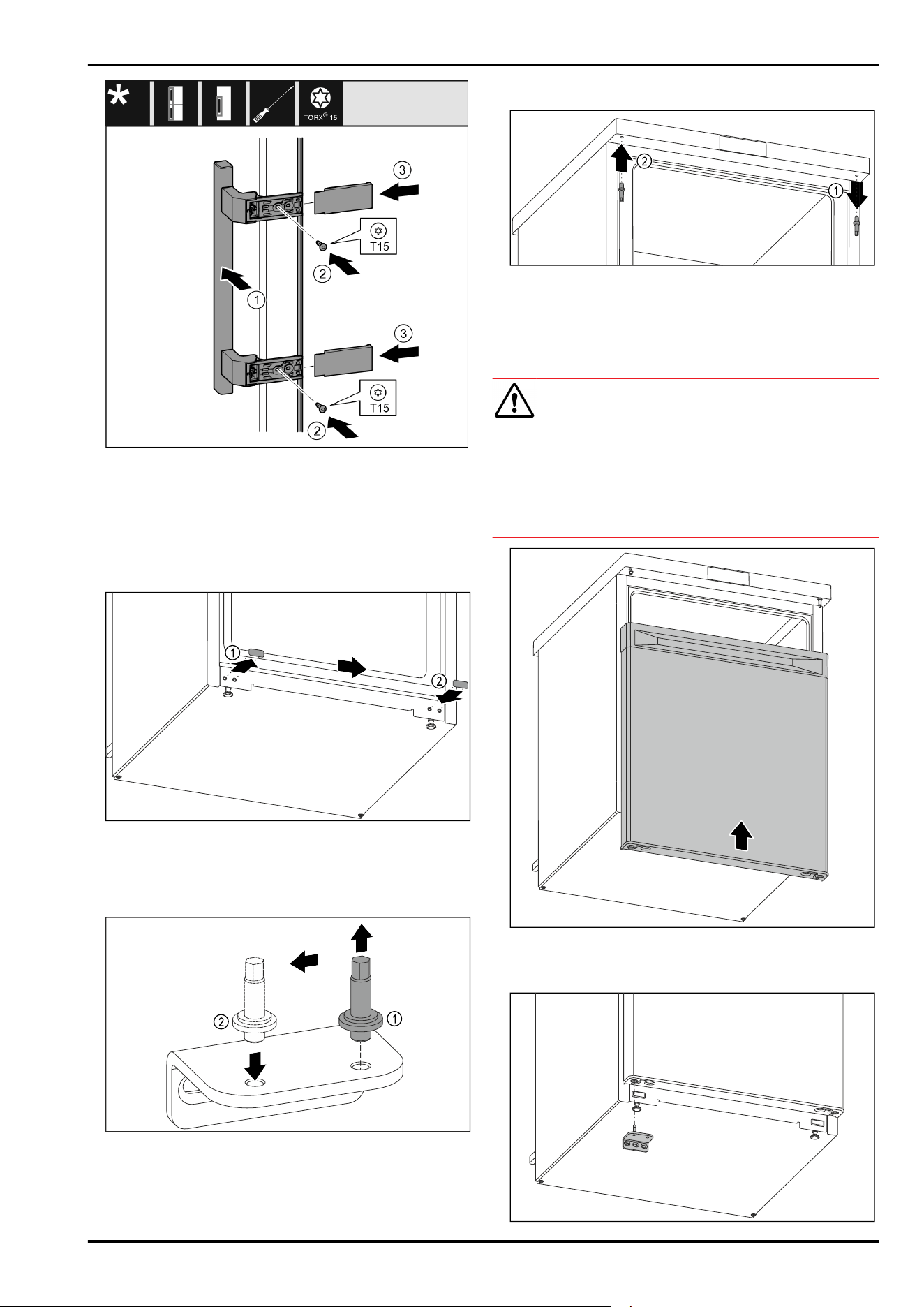

Fig.11
► Attach the handle on the opposite side. Fig.11(1)
▷ The screw holes must be exactly on top of each other.
► Tighten screws with screwdriver T15. Fig.11(2)
► Place the covers on the side and push them on. Fig.11(3)
▷ Ensure that they latch into place.
3.9.5 Relocating the bearing components
Fig.12
► Carefully lift the cover plug at the bottom of the device
with a slotted screwdriver.
► Pull out the cover plug. Fig.12(1)
► Insert the cover plug on the opposite side. Fig.12(2)
Fig.13
► Unscrew the bolt of the lower swap bearing block with an
Allen key AF5. Fig.13(1)
► Insert the bolt on the opposite side. Fig.13(2)
► Tighten the bolt with an Allen key AF5.
3.9.6 Relocating the upper bearing components
Fig. 14
► Unscrew the upper bolt with an Allen key. Fig. 14(1)
► Tighten the bolt on the opposite side with an Allen key.
Fig. 14(2)
3.9.7 Fitting the door
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw the bearing brackets on firmly with 4Nm.
► Check all screws and retighten them if necessary.
Fig. 15
► Slide the door onto the upper bolt in closed status. (see
Fig. 15)
Setting up and connecting
10 * Depending on model and options

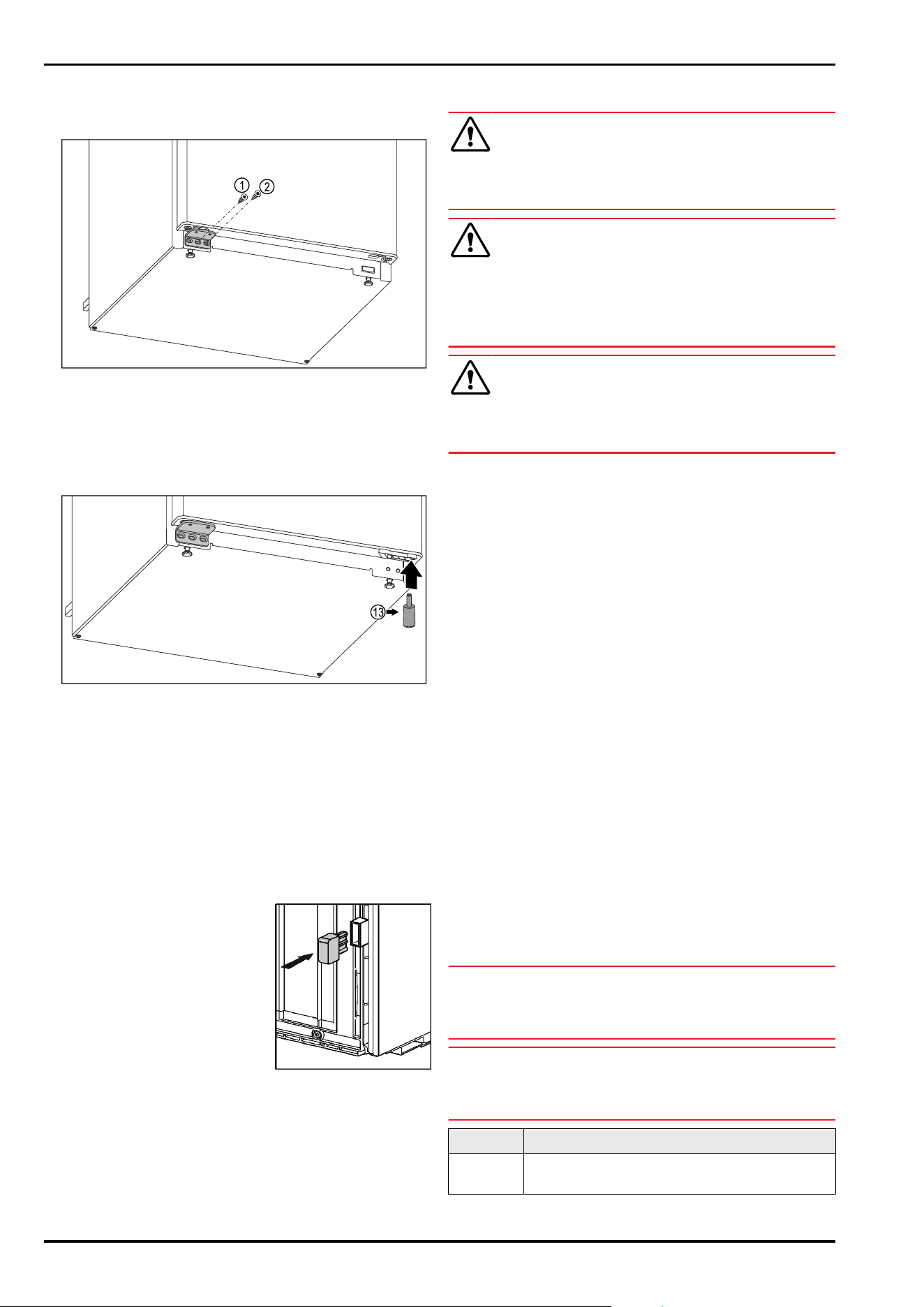

Fig. 16
► Insert the lower swap bearing block on the opposite side.
(see Fig.16)
Fig.17
► Tighten the middle screw of the swap bearing block
Fig.17(1) with a Torx 20 screwdriver.
► Tighten the inner screw of the swap bearing block
Fig.17(2) with a Torx 20 screwdriver.
► Check the door.
▷ The door hinge has been changed.
Fig. 18*
► Insert the spacer Fig. 18 (13) back under the right-hand
side of the door, as it is important for the stability of the
appliance.*
3.10 Mounting wall spacers
With wall spacers, your device achieves the declared energy
consumption and no condensation forms in high ambient
humidity. The device is fully functional without the spacer
brackets, but its energy consumption will be slightly higher.
If you insert the wall spacers, then the device depth
increases by approx.35mm.
► Appliance with enclosed wall spacers: Insert the wall
spacers on the rear of the appliance at the bottom left
and right.
3.11 Setting up the appliance
CAUTION
Risk of injury due to heavy appliance!
► Have two people transport the appliance to its installa‐
tion site.
WARNING
Risk of fire due to short circuit!
► When you set the appliance up: do not kink, jam or
damage the mains cable.
► The appliance must not be operated with a defective
mains cable.
WARNING
Fire hazard and danger of damage!
► Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Ensure that the following conditions are met:
❑
Only move the device when it is not loaded.
❑
Only install the appliance with help.
► Remove the mains cable from the package.
► Plug the mains cable’s IEC socket completely into the
appliance plug on the back of the appliance. Ensure that
the IEC socket is tight.
► Use a cord to lay the mains plug to a freely accessible
socket if required.
3.12 After setting up
► Remove all transport safety components.
► Take off the protective film from the exterior of the appli‐
ance.
► Take off the protective film from the trim panels.*
► Clean the device. (see 10.8Cleaning the appliance)
► Note the type (model, number), appliance designation,
appliance/serial number, purchase date and dealer’s
address.
3.13 Installing multiple appliances
The appliances have been developed for different installa‐
tion methods. If you wish to install several appliances next
to each other or on top of each other, ensure that the
following requirements are met:
❑
Only install appliances next to or on top of each other if
they have been developed for this.
❑
Observe notices and the following table.
NOTICE
Risk of damage due to condensate!
► Do not place the appliance directly next to another
cooling/refrigeration unit.
NOTICE
Risk of damage due to condensation!
► Do not place the appliance directly on top of another
cooling/refrigeration unit.
Model Installation method
All
models
Standalone
Setting up and connecting
* Depending on model and options 11
Model Installation method
Models
with a
model
designa‐
tion
starting
with S....
Side-by-Side (SBS)
Models
without
side wall
heating
Next to each other: Install with gap A of
100mm between the appliances.
If you do not comply with this gap, condensa‐
tion will form on the side walls between the
appliances.
On an exterior wall: Install with gap A as with
installation next to each other.
If you do not comply with this gap, condensa‐
tion may form on the appliance’s side wall.
Models and their installation method
3.14 Sliding the appliance under a
worktop
You can slide tabletop appliances with a maximum height of
850mm under a continuous worktop.
Fig. 19
(A)
Width of appliance
without table top
(C) Niche height
(B) Niche depth (D) Ventilation cross-section
in the workplate
R..10..
A 549mm
B at least 600mm
C 652mm
D at least 200cm²
R..12..
A 499mm
B at least 600mm
C 822mm
D at least 200cm²
R..14..
A 549mm
B at least 600mm
C 822mm
D at least 200cm²
R..16..
A 599mm
B at least 600mm
C 822mm
D at least 200cm²
WARNING
Risk of fire due to short circuit!
► When you set the appliance up: do not kink, jam or
damage the mains cable.
► The appliance must not be operated with a defective
mains cable.
Ensure that the following requirements are met:
❑
The table top has been removed. (see 3.8 Removable
table top)
❑
The socket is easily accessible and is not behind the
appliance.
► Slide the appliance under the worktop.
3.15 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
► Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
► Take the packaging material to an official collecting
point.
Setting up and connecting
12 * Depending on model and options
3.16 Connecting the appliance to the
power supply
WARNING
Danger of electric shock and injury due to damaged appli‐
ance or damaged mains cable!
Danger of cuts and fatal injuries. If the appliance or the
mains cable is damaged during transport, you may be elec‐
trocuted. You could also cut yourself on damaged parts of
the appliance housing.
► Check the appliance and the mains cable for damage
after transport.
► Never put the appliance into operation if the appliance or
the mains cable are damaged.
► Contact Customer Service.
You can connect your appliance to the mains using the
power cable supplied separately. The mains power cable
has an appliance coupler at one end and a mains plug at the
other end.
Make sure that the following requirements are fulfilled:
-
The appliance and power cable are undamaged.
-
The appliance is set up in accordance with the regula‐
tions. (see 3.10 Mounting wall spacers)
-
Requirements for the electrical connection are met.
(see 3.1 Installation requirements)
-
Dimensions for connection in accordance with regula‐
tions are known and observed. (see 3.5 Connection
dimensions for the power supply)
-
Mains voltage and frequency correspond to the specifica‐
tions on the type plate.
-
The socket is earthed according to the regulations and
fused.
-
The fuse tripping current is between 10A and 16A.
-
The socket is easily accessible and is not behind the
appliance. (see 3.5 Connection dimensions for the power
supply)
NOTICE
Danger of damage to incorrect operation!
Damage to the electrical components of the appliance.
► Only use the supplied mains cable.
WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
► Do not use an extension cable.
► Do not use distributor blocks.
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
► Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
► Connect the mains cable plug to the power supply.
Ensure that the plug is tightly in the socket.
▷
The appliance is connected. For information regarding
first use, see the following section or the operating
instructions.

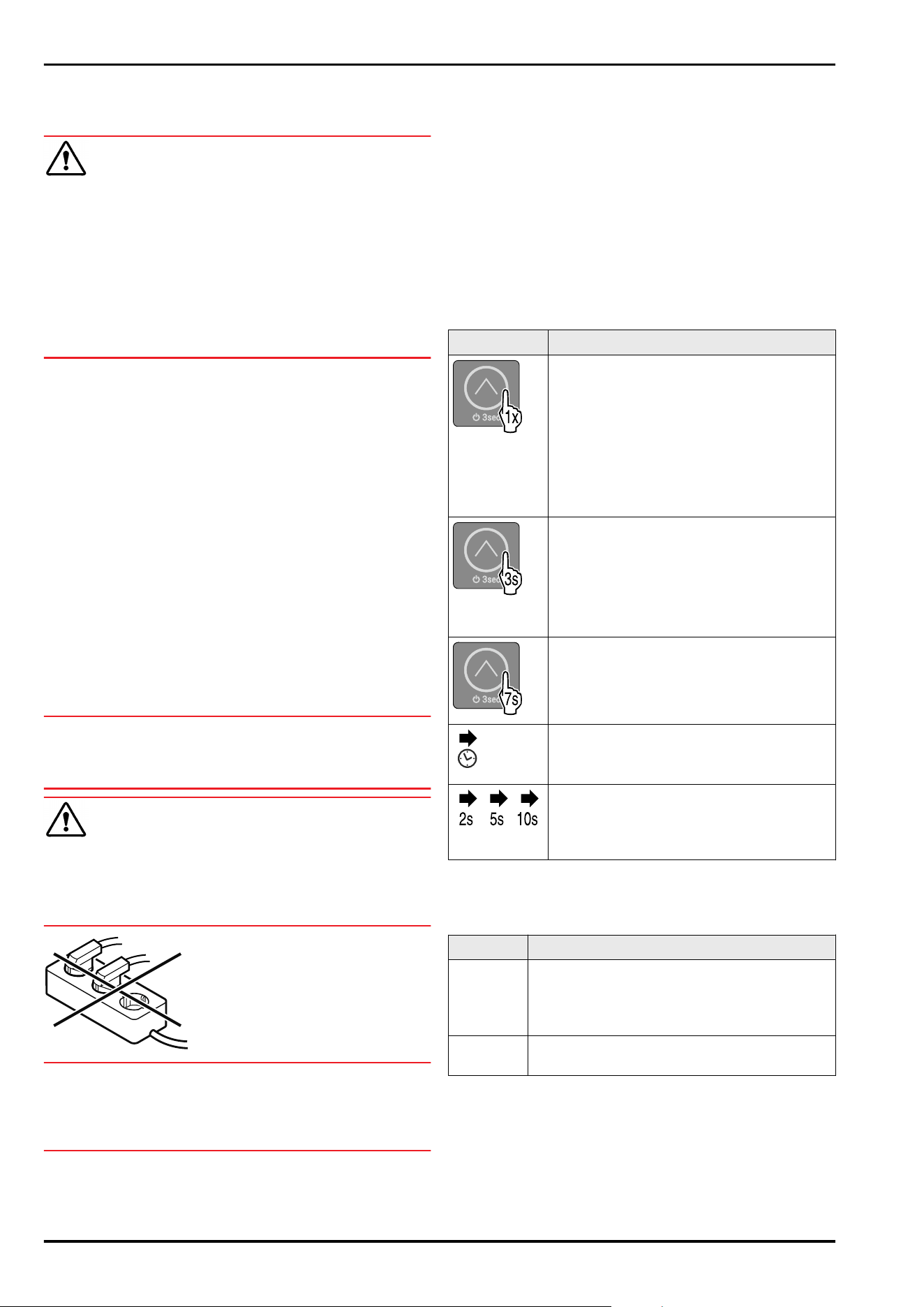

4 Functionality of the display
You operate your device with the touchbutton.
4.1 Navigation by touchbutton and
symbol explanation
In the illustrations, different symbols are used to navigate
the display by touchbutton. The following table describes
these symbols.
Symbol
Description
Touch the touchbutton with your finger
briefly:
Navigate through main menu and
submenu.
If a number is shown on the hand:
The number tells you how many times
you have to touch the touchbutton briefly
in succession to navigate to a particular
function.
Touch the touchbutton with your finger
for 3seconds:
Switch on the device.
In the main menu: Switch off the device.
In the submenu: Switch to the main menu.
Deactivate active function of the submenu.
Touch the touchbutton with your finger
for 7seconds:
In the main menu: Open the submenu.
Arrow with clock:
It takes more than 10 seconds for the
following message to appear in the display.
Arrow with a time indication:
It takes the specified amount of time
until the following message appears in the
display.
4.2 Menus
The device functions can be found in various menus.
Menu
Description
Main menu When you switch the device on, you are auto‐
matically in the main menu.
From here, navigate to device functions and
the submenu.
Submenu The submenu contains additional device func‐
tions for setting up your device.
4.2.1 Main menu
In the main menu, it is possible to activate/deactivate the
following functions:
Functionality of the display
* Depending on model and options 13

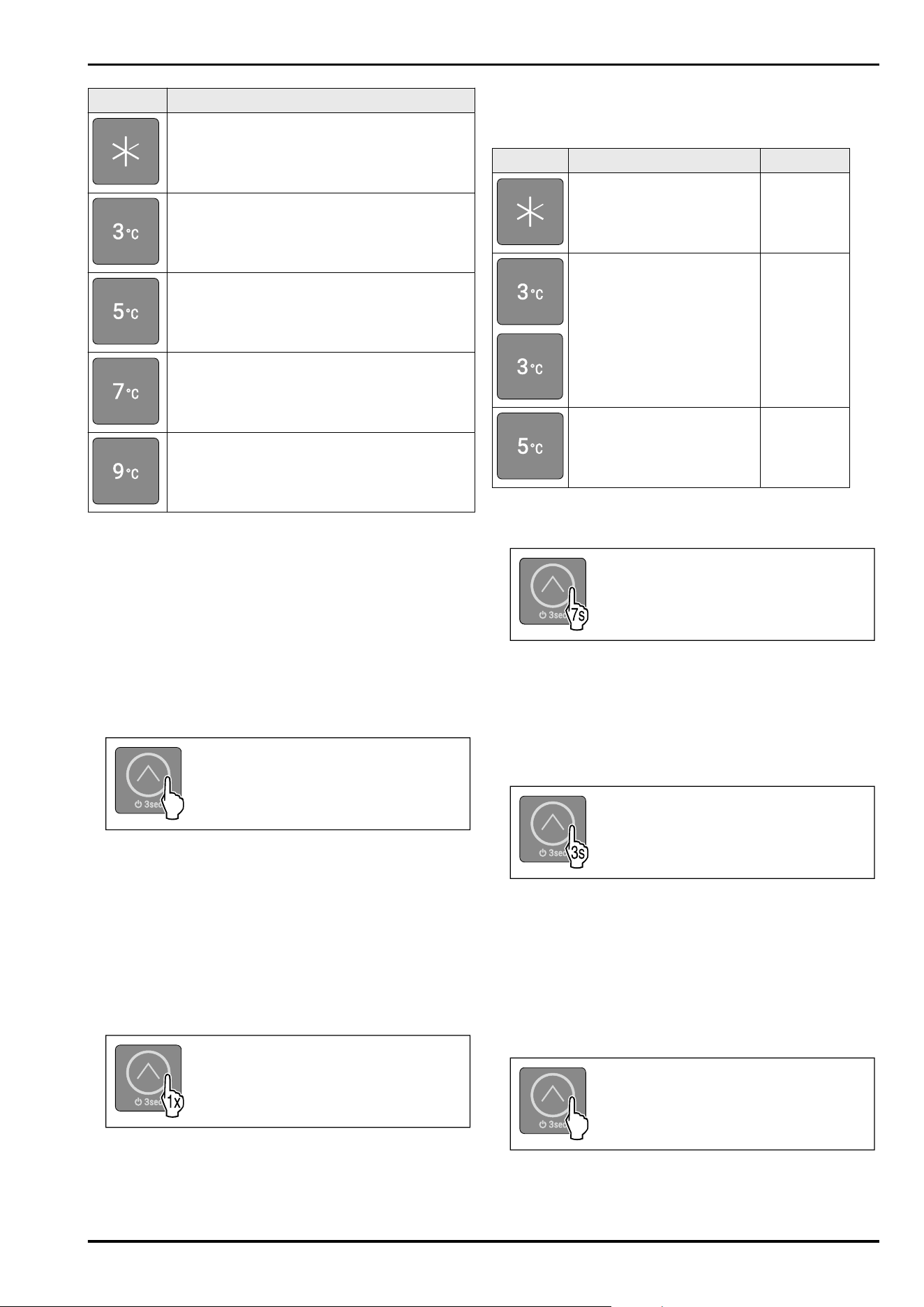

LED Description
SuperCool
Temperature 3°C
Temperature 5°C
Temperature 7°C
Temperature 9°C
Meaning of the LEDs in the main menu
4.2.1 Opening the submenu
When you switch the device on, you are automatically in the
main menu.
If you are in the submenu and want to switch to the main
menu:
► Carry out action steps (see4.2.2Exiting the submenu) .
4.2.1 Navigating in the main menu
If you navigate in the main menu, LED 5 is followed by LED 1
again.
Fig.20
► Touch the touchbutton briefly until the LED of the desired
function lights up.
▷ Function is activated.
4.2.1 Sleep mode of the display
If you do not touch the touchbutton in the main menu for
10 seconds, the display switches to sleep mode. Sleep mode
prevents you from adjusting the temperature by accidentally
touching the touchbutton.
Ending sleep mode:
Fig.21
► Briefly touch the touchbutton.
▷ Confirmation tone sounds.
▷ Set temperature flashes once.
▷ Sleep mode is ended.
4.2.2 Submenu
In the submenu, the following functions can be acti‐
vated/deactivated:
LED Description LED position
Input lock LED 1
SabbathMode
Presentation light
LED 2
Resetting to factory settings LED 3
Meaning of the LEDs in the submenu
4.2.2 Opening submenu
Fig.22
► Carry out the steps as shown in the illustration until you
hear a double confirmation tone after 7seconds.
▷ LEDs 1-5 light up: You are in the submenu.
▷ If you do not perform any action on the display for
5 seconds, the display returns to the main menu.
4.2.2 Exiting the submenu
Fig.23
► Carry out action steps according to the illustration.
-or-
► Do not touch the touchbutton for 5seconds.
▷ You are in the main menu.
4.2.2 Navigating in the submenu
If you navigate in the submenu, LED 1 follows the LED of the
last function in the submenu.
Fig. 24
► Touch the touchbutton briefly until the LED of the desired
function lights up.
Functionality of the display
14 * Depending on model and options
▷ After 5 seconds without interaction, selected function is
automatically activated.
5 Putting into operation
5.1 Switching on device (first use)
Make sure that the following requirements are fulfilled:
❑
The device has been installed and connected in accord‐
ance with the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the
device.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the display.
(see4 Functionality of the display)

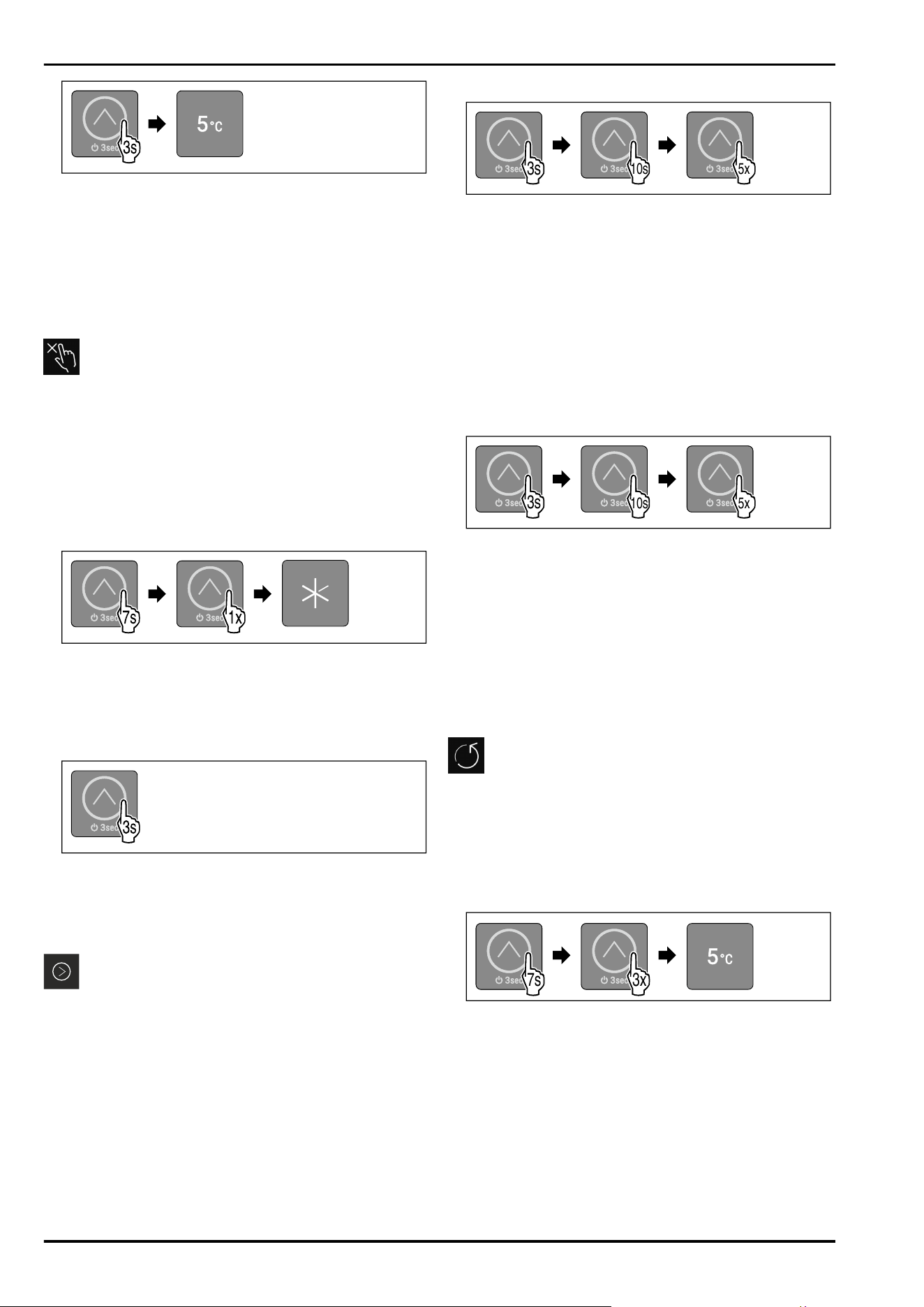

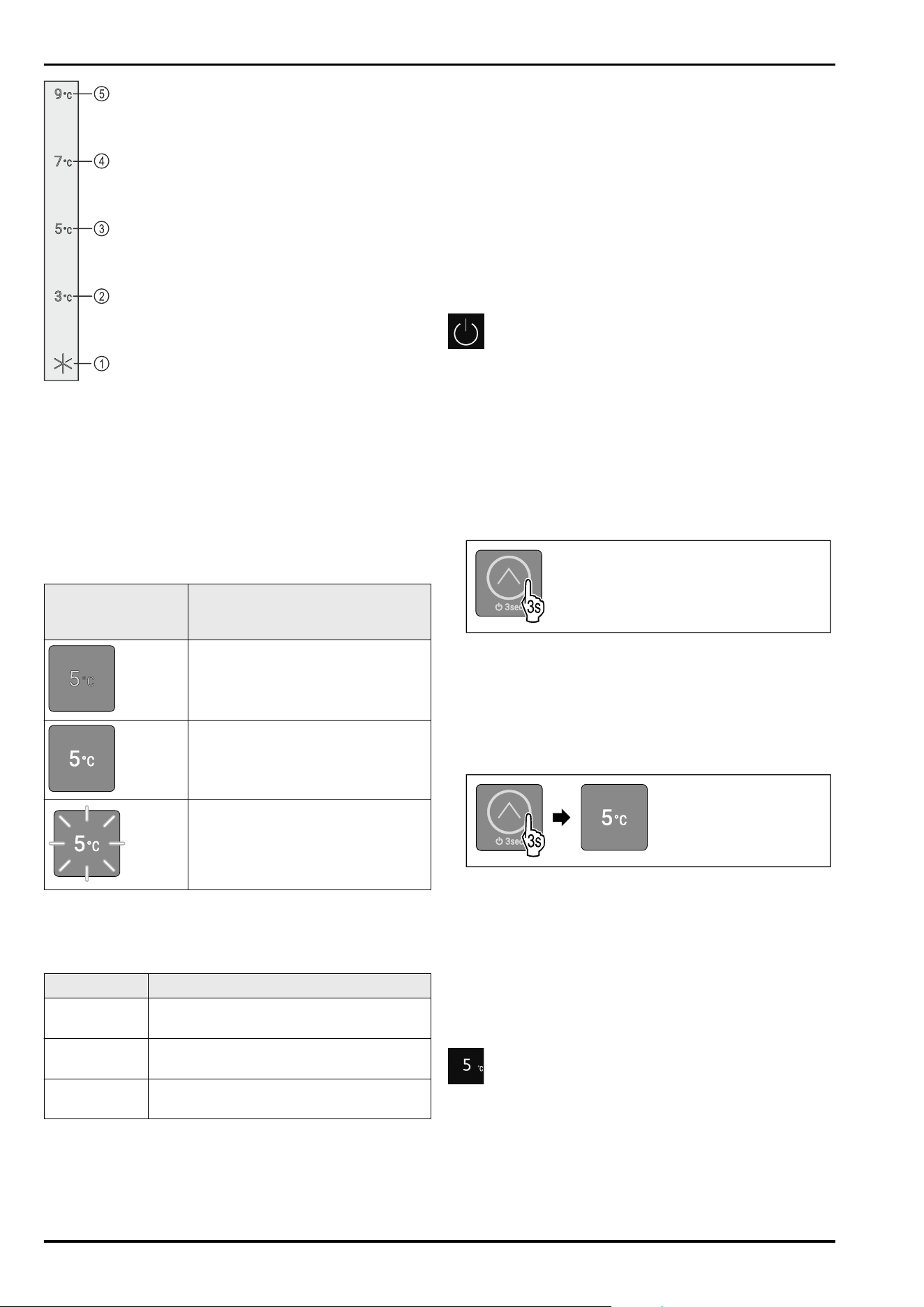

Switching on the device:
Fig.25
► Touch the touchbutton as shown in the illustration for
3 seconds until you hear the confirmation tone.
▷ The device is switched on.
▷ Interior lighting is activated.
▷ LED 3 lights up: Temperature is set to 5°C at the factory.
▷ The device cools to the target temperature set at the
factory.
Device starts in demo mode:
When the device starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
Display switches to sleep mode:
When the display switches to sleep mode:
► Briefly touch the touchbutton. (see 4.2.1 Sleep mode of
the display)
Note
The manufacturer recommends:
► Stock with food: Wait for around 6 hours until the set
temperature is reached.
► Store frozen foods at -18°C or colder.*
► Observe the notes on storing food. (see 6.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
6 Storage
6.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
In the freezer compartment: Package food properly.*
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
6.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview. (see 2.2 Overview of
the appliance and equipment)
6.2.1 Arranging your food properly
► Upper area and door: Store butter, cheese, tinned food
and tubes.
6.3 ****-freezer compartment*
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
The air temperature in the freezer compartment, measured
with a thermometer or other measuring device, may fluc‐
tuate. Temperature fluctuations are greater in a half-full
or empty freezer and it is possible to attain temperatures
warmer than -18°C.
6.3.1 Freezing food
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 11.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Arranging your food properly
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
► Do not freeze bottles and cans containing drinks!
► Place packaged food in the middle of the freezer
compartment.
Putting into operation
* Depending on model and options 15
Defrosting food
WARNING
Risk of food poisoning!
► Do not re-freeze thawed food.
► Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In the fridge compartment
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
► Take out only as much food as necessary.
6.4 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
6.4.1 Fridge section
Always follow the best-before date stated on the packaging.
6.4.2 Freezer compartment*
Recommended shelf-lives for various types of food
Ice cream at -18°C 2 to 6 months
Cold cuts, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
7 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 2.3 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
Thaw frozen food in the refrigerator.*
-
If there is a thick layer of frost in the appliance: defrost
the appliance.*
-
If you intend to be on holiday for a long time empty the
refrigerator and switch it off.
Dust deposits increase energy consump‐
tion:
-
For refrigerators with heat exchangers
dust the metal grid on the back of the
appliance once a year.
8 Controls
8.1 Operating controls and display
elements
The display provides a quick overview of the current status
of the appliance, the temperature setting, the status of
functions and messages.
You operate your appliance with the touchbutton.

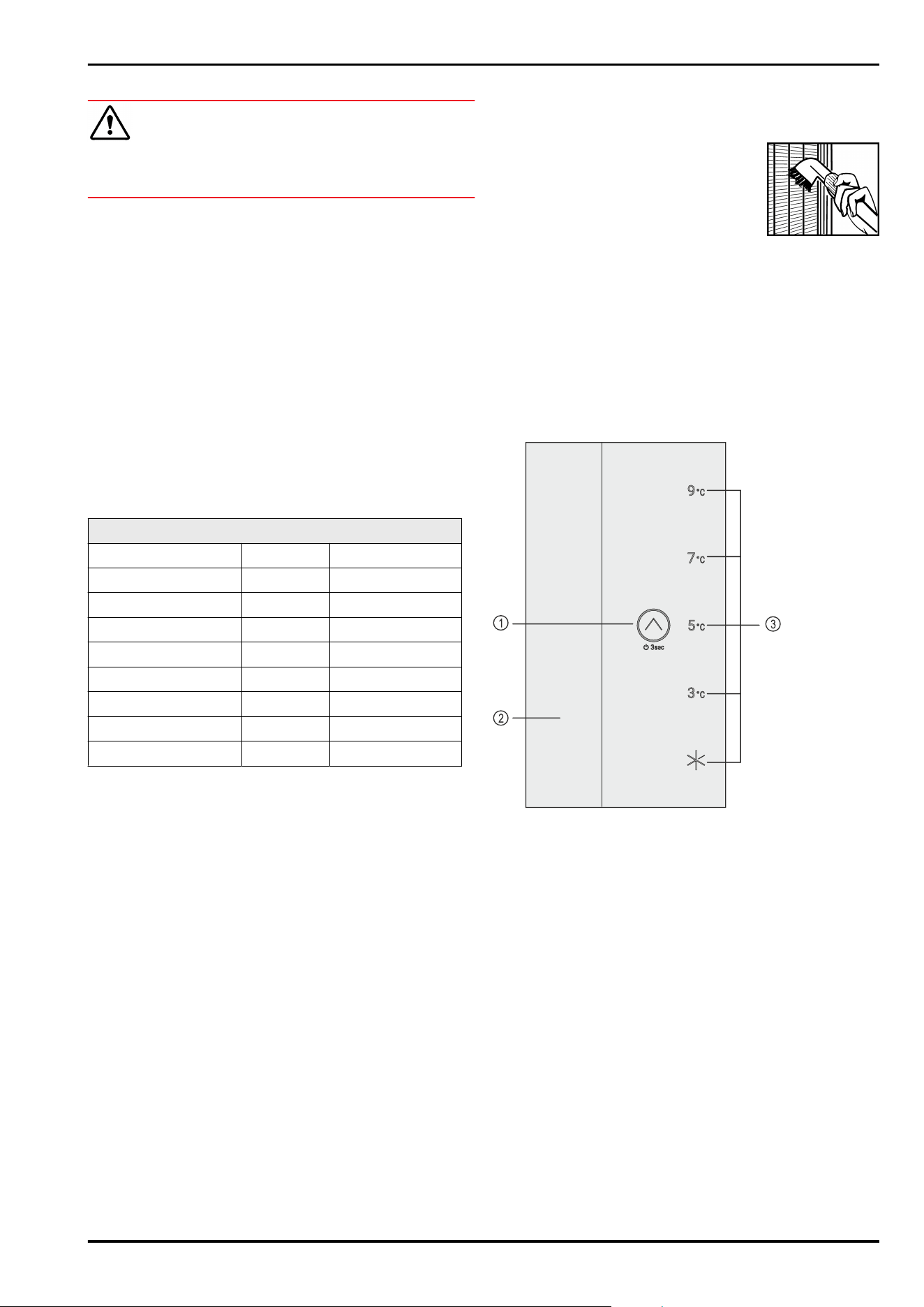

Fig. 26 Example illustration: Display
(1)
Touchbutton (oper‐
ating control)
(3) Temperature display/
Status indicator
(2) Interior lighting
8.1.1 Temperature display/Status indicator
The temperature display/status indicator consists of five
LEDs:
(1)
LED1 (4) LED4
(2) LED2 (5) LED5
(3) LED3
Saving energy
16 * Depending on model and options
Fig. 28 Example illustration
(1)
LED1 (4) LED4
(2) LED2 (5) LED5
(3) LED3
The LEDs indicate temperature settings (see 4.2.1 Main
menu) in the main menu and functions in the submenu
(see4.2.2Submenu) .
8.1.2 LED behaviour
You can recognise the status of the device by the light up or
flashing of the LEDs:
LED behaviour
(example illustra‐
tion)
Description
LED does not light up:
LED is not selected. Function is not
active.
LED lights up:
LED is selected or function is active.
Several LEDs flash simultaneously:
An error has occurred.
(see 8.3Messages)
LED behaviour
8.1.3 Audible signals
An audible signal sounds in the following cases:
Audible signal
Description
Confirmation
tone
Sounds when the touchbutton is touched.
Alarm tone Sounds when an error occurs.
(see 8.3Messages)
Error tone Sounds when the touchbutton is touched,
but the interaction is not possible.
8.2 Appliance functions
8.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see4 Functionality of the display)
❑
You have familiarised yourself with the operating and
display elements of your appliance. (see 8.1 Operating
controls and display elements)
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the device
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 12 Shutting down) are carried
out.
❑
You are in the main menu. (see 4.2.2 Exiting the
submenu)
Fig.29
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ LEDs of the display no longer light up.
▷ Interior lighting is deactivated.
▷ Device is switched off.
Switching on the device
Fig. 33 Example illustration: On appliances without a
SmartModule
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ The device is switched on.
▷ Interior lighting is activated.
▷ During first use: The appliance cools to the target
temperature set at the factory.
▷ If the device has been in operation before: The appliance
cools to the target temperature set previously.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Controls
* Depending on model and options 17
Recommended setting: 4°C
Setting the temperature
The function is located in the main menu on the positions of
LEDs 2-5.

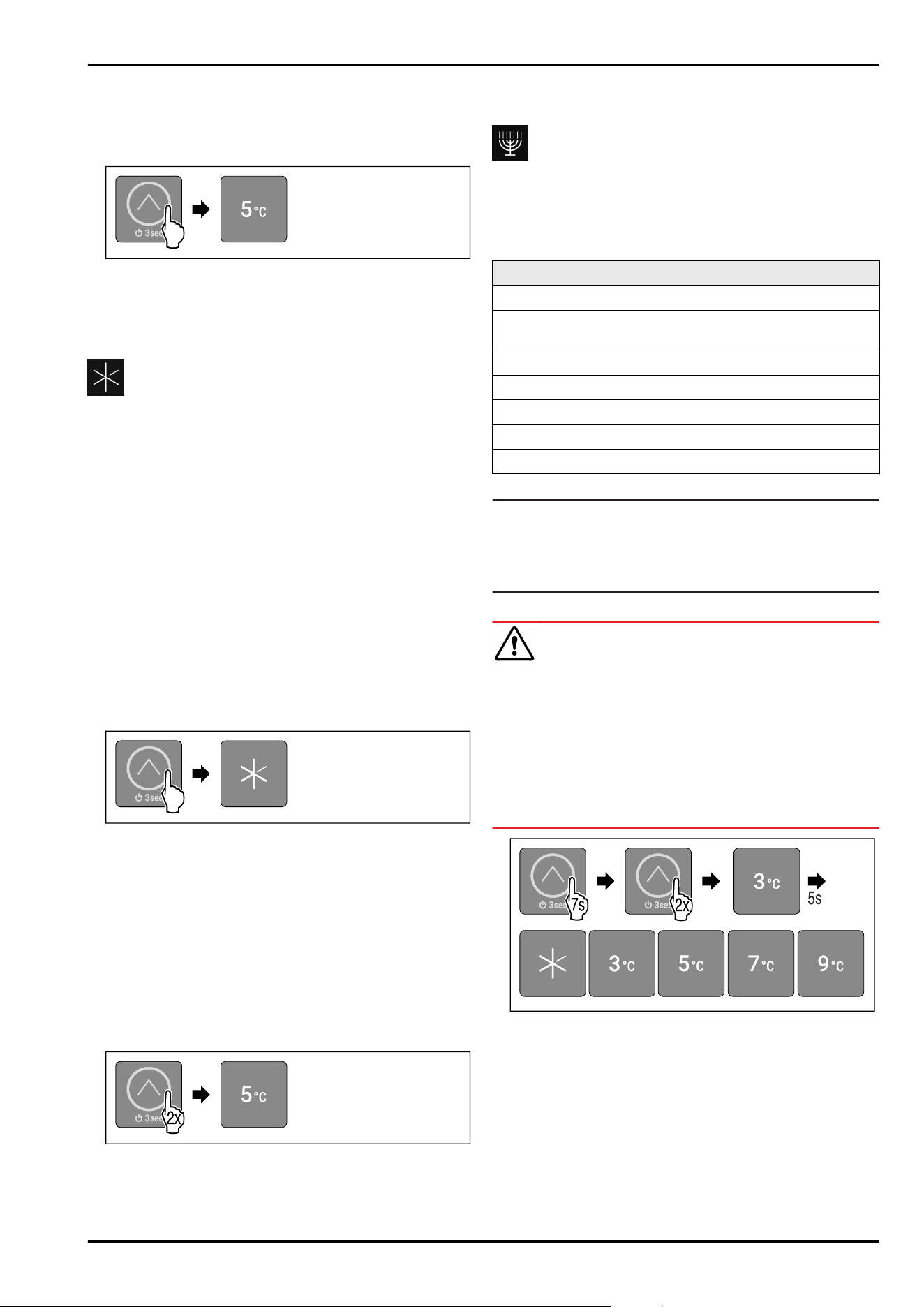

Fig. 35 Example illustration
► Briefly touch the touchbutton as shown until the desired
temperature lights up.
▷ Temperature is set.
▷ The device cools to the target temperature set.
SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
If SuperCool is activated, then lower temperatures are
reached in the **** freezer compartment. You can activate
SuperCool when you would like to freeze food in the ****
freezer compartment.*
Activating SuperCool
The function is located in the main menu at the position of
LED1.
Time for activation of the function:
-
When you would like to store fresh food in the fridge
section: Activate the function when inserting food.
-
When you would like to store fresh food in the
**** freezer compartment: Activate the function when
inserting food.*
Fig.36
► Briefly touch the touchbutton as shown until LED 1 lights
up.
▷ LED 1 lights up: SuperCool is activated.
▷ The device cools to the target temperature.
Deactivating SuperCool
For appliances with **** freezer compartment: SuperCool is
automatically deactivated after 56 to 72 hours.*
For appliances without **** freezer compartment: Super‐
Cool is deactivated automatically after 18 hours.*
However, you can also deactivate SuperCool manually at
any time by setting a temperature:
Fig. 37 Example illustration
► Briefly touch the touchbutton as shown until the desired
temperature lights up.
▷ Temperature is set and SuperCool is deactivated.
▷
The appliance continues to run in normal mode.
▷ The device cools to the target temperature set.
SabbathMode
With this function you activate or deactivate the
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
LEDs 1-5 light up.
All functions in the display are locked except for the Deac‐
tivating SabbathMode function.
Active functions remain active.
The interior lighting is deactivated.
Messages are not displayed.
There is no door alarm.
After a power failure, the device returns to SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig.38
► Carry out action steps according to the illustration.
▷ LED 2 lights up.
▷ After 5 seconds without interaction, SabbathMode is
activated. LEDs 1-5 light up.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Controls
18 * Depending on model and options
Fig. 39 Example illustration depending on the previously
set temperature
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ SabbathMode is deactivated.
▷ Interior lighting is activated.
▷ The device continues to run in normal mode. LED of the
previously set temperature lights up.
▷ You are in the main menu.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e. g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
Fig.40
► Carry out action steps according to the illustration.
▷ LED 1 lights up.
▷ After 5 seconds without interaction, input lock is auto‐
matically activated.
Deactivating the input lock
Fig. 41
► Carry out the action steps according to the illustration
until you hear the confirmation tone.
▷ Input lock is deactivated.
▷ You are in the main menu.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate device features. If you activate demo mode, all
refrigeration functions are deactivated and you cannot open
the submenu.
If you activate and then deactivate demo mode, the device
will be reset to factory defaults. (see Resetting to factory
settings)
Activating demo mode
3s3s
3s
10s
3s
5x
Fig. 42
► Touch the touchbutton as shown in the illustration for
3 seconds until you hear the confirmation tone.
▷ Device is switched off.
► Touch the touchbutton as shown in the illustration for
10 seconds until you hear the confirmation tone after
10seconds.
► Briefly touch the touchbutton five times.
▷ All temperature LEDs light up twice for a short time:
Demo mode is activated.
▷ Device is switched off.
► Switch on the device. (see Switching on the device)
▷ The device is in demo mode.
Deactivating demo mode
3s3s
3s
10s
3s
5x
Fig.43
► Touch the touchbutton as shown in the illustration for
3 seconds until you hear the confirmation tone.
▷ Device is switched off.
► Touch the touchbutton as shown in the illustration for
10 seconds until you hear the confirmation tone after
10seconds.
► Briefly touch the touchbutton five times.
▷ All temperature LEDs light up briefly four times: Demo
mode is deactivated.
▷ Device is switched off.
► Switch on the device. (see Switching on the device)
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Application:
-
Reset device
Performing a reset
3s3x3s7s
Fig. 44 Example illustration
► Carry out action steps according to the illustration.
▷ LED 3 lights up.
▷ After 5 seconds without interaction, the appliance is
reset.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on device
(first use))
Controls
* Depending on model and options 19
8.3 Messages
Messages are indicated audibly by an alarm tone and visu‐
ally by the LEDs flashing in the display. Different LEDs flash
depending on the type of message.
You can end the following messages yourself. For all
other messages, you must contact the customer service.
(see11.4 Customer Service)
Message Cause Exit the
message
The alarm tone
sounds at an ever-
increasing volume.
Interior lighting
pulses.
Door alarm
The message
appears if the door
is open for more
than 60seconds.
Carry out
action steps
(see Door
alarm) .
Overview of messages
8.3.1 Ending messages
Door alarm

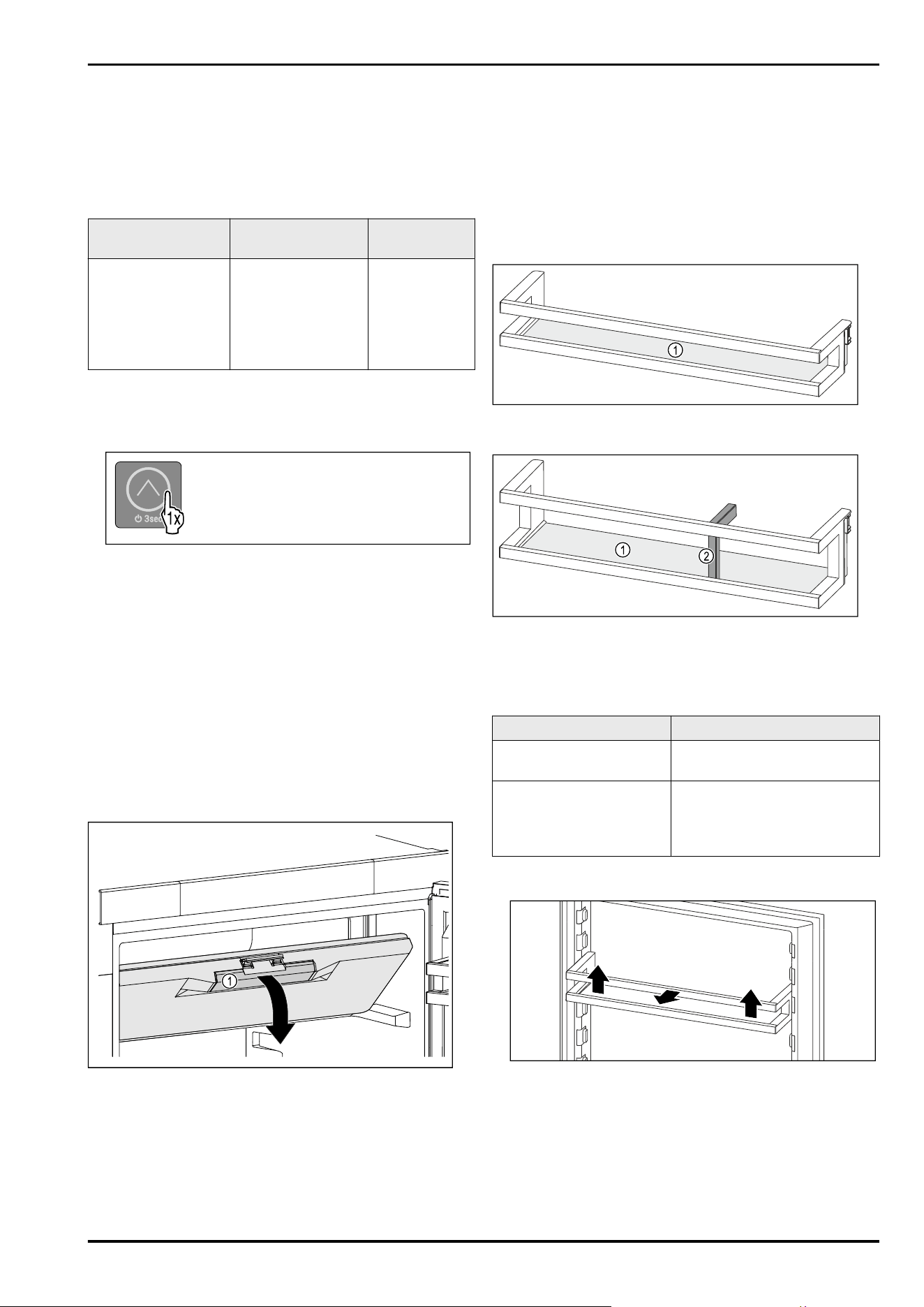

Fig.45
► End alarm: Carry out action steps according to the
illustration.
-or-
► Close the door.
▷ Alarm has ended.
▷ If the door is not closed: Message appears again after
3 minutes.
9 Features
9.1 4-star freezer compartment*
9.1.1 Opening the 4-star freezer compartment
Fig.46
► Hold the freezer compartment door by the recessed
handle Fig.46(1).
► Pull the freezer compartment door down and forward.
▷ Freezer door is open.
9.1.2 Closing the 4-star freezer compartment
► Close the freezer compartment door.
►
Press on the freezer compartment door at the front until
it engages.
▷ Freezer compartment door is closed.
9.2 Door rack
Door racks are suitable for storing drinks and food. You can
move door racks for your own individual use and take them
apart for cleaning. However, Liebherr recommends using the
door racks in the position in the door as delivered from the
factory.
Fig. 47 Example illustration, Door rack
(1)
Shelf
Fig. 48 Example illustration, Door rack with bottle holder
(1)
Shelf (2) Bottle holder
The following table shows examples of what can be stored
in each door rack. Do not exceed the maximum loading
weight of the door.
Door rack
Food
Door rack (see Fig. 47) Butter, cheese, tinned food,
tubes
Door rack with bottle
holder (see Fig.48)
Bottles
The sliding bottle holder
secures the bottles in the door
rack.
9.2.1 Removing the door rack
Fig. 49 Example illustration
► Push the door rack upwards.
► Pull the door rack forward.
Features
20 * Depending on model and options
9.2.2 Inserting the door rack

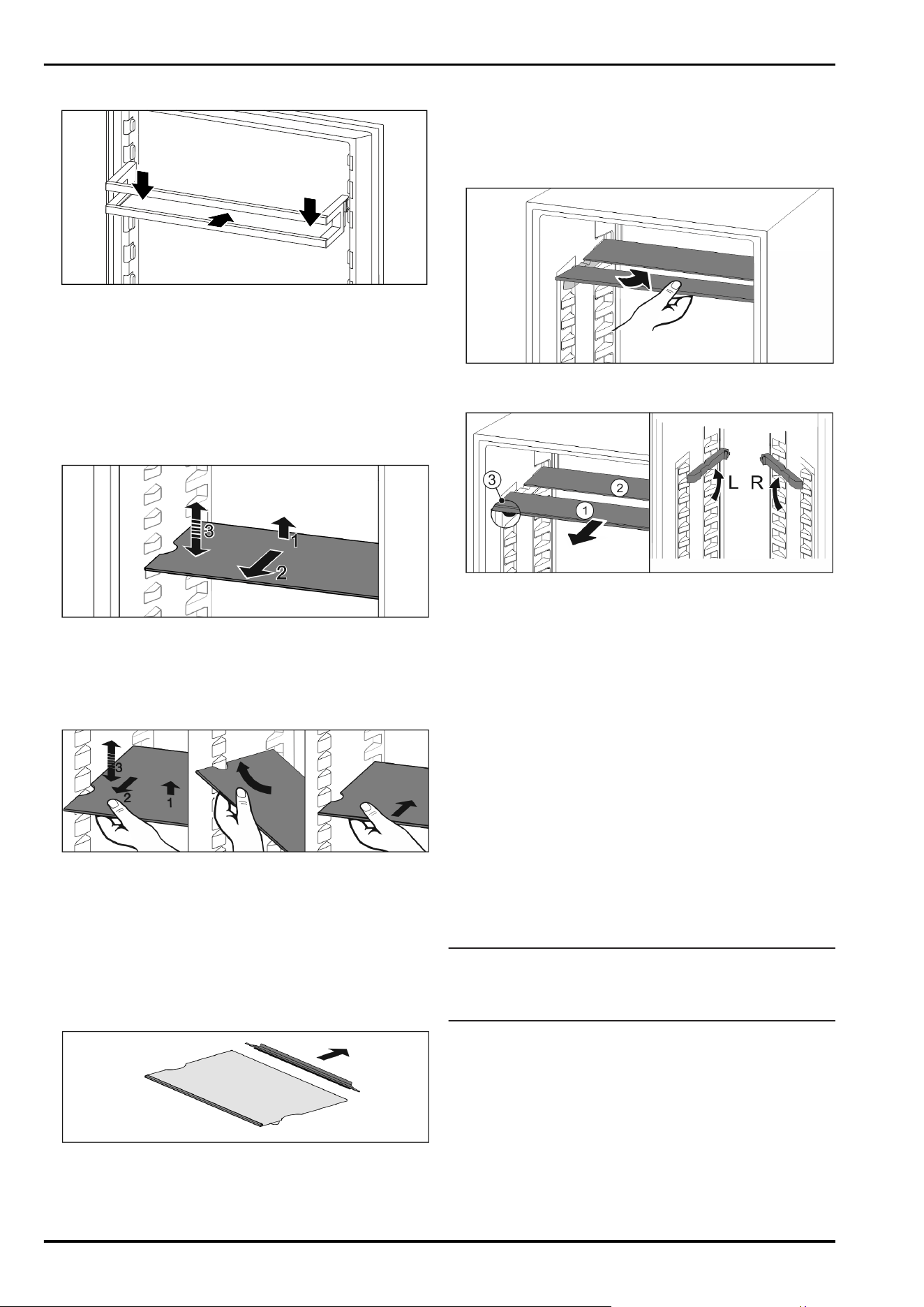

Fig. 50 Example illustration
► Slide in the door rack.
► Press the door rack down.
9.3 Shelves
9.3.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.51
► Lift the shelf and pull forward.
▷ Line up the side runner.
► Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
-or-
Fig.52
► Remove the shelf completely: Pull it out to the front.
► Easier removal: Set the shelf at an angle.
► Insert the shelf again: Slide it in all the way.
▷ The pull-out stoppers point downwards.
▷ The pull-out stoppers are behind the front support.
9.3.2 Dismantling the shelves
The shelves can be dismantled for cleaning.
Fig.53
► Dismantling the shelf.
9.4 Dividing shelf*
9.4.1 Using the dividing shelf
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.54
► Push the dividing shelf underneath as shown.
Fig.55
Adjusting the height:
► Pull the glass panels out Fig. 55 (1) from the front, one at
a time.
► Release the support rails and click in at the height you
want.
► Slide in the glass panels one at a time.
▷ Flat pull-out stoppers at the front, right behind the
support rails.
▷ High pull-out stoppers at the back.
Using both shelves:
► Hold the glass panel with one hand and pull it to the
front.
▷ The glass panel Fig.55(1) and trim strip are at the front.
▷ The stops Fig.55(3) point down.
9.5 Drawers
You can remove the drawers for cleaning.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep the inside vents at the rear wall clear.
9.5.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
Features
* Depending on model and options 21
Removing drawer

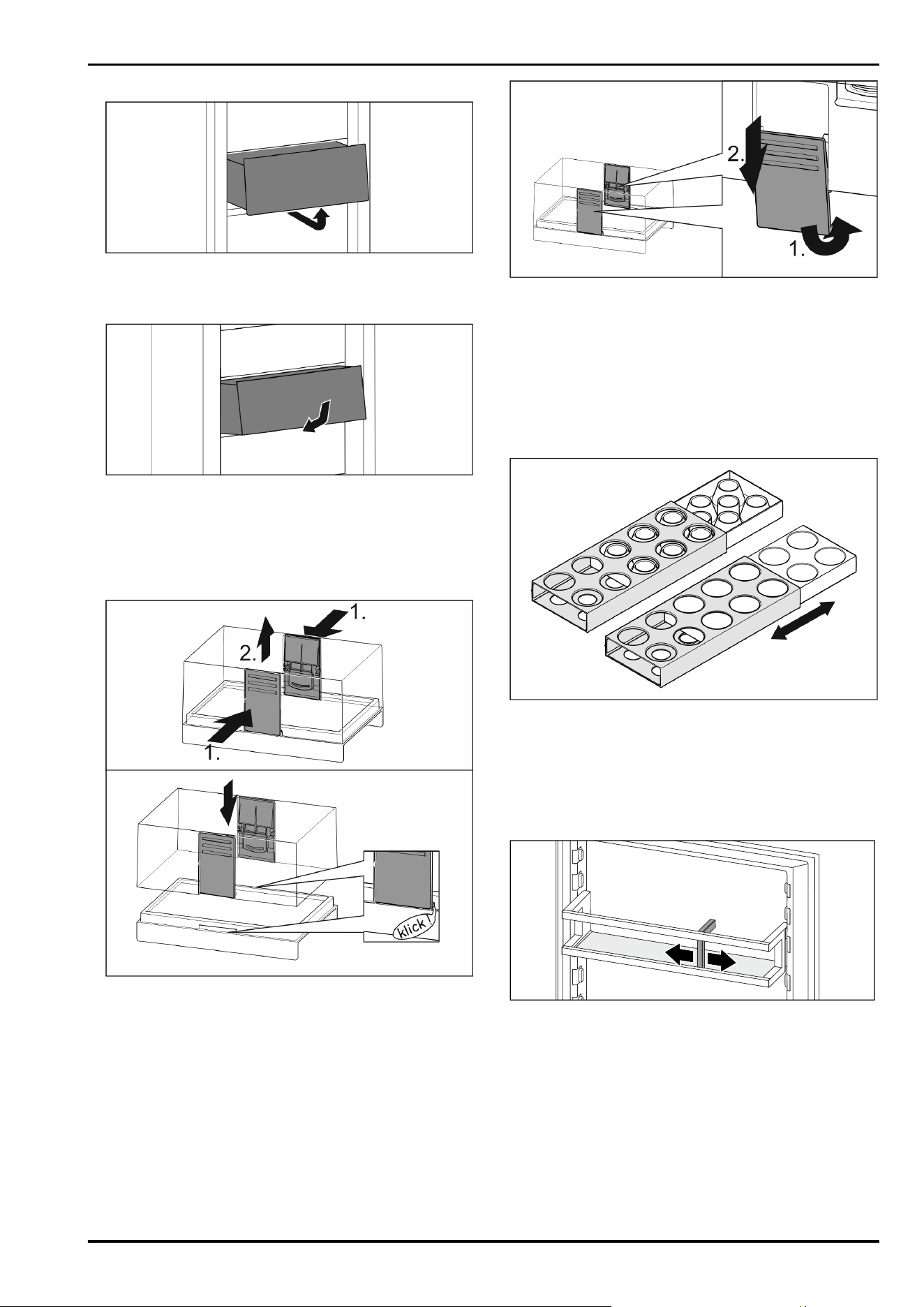

Fig.56
► Remove drawer as shown in the illustration.
Inserting drawer
Fig.57
► Insert drawer as shown in the illustration.
9.6 Butter dish
9.6.1 Opening/closing the butter dish
Fig.58
9.6.2 Dismantling the butter dish
You can take the butter dish apart for cleaning.
Fig. 59
► Disassembling the butter dish.
9.7 Egg rack*
You can pull out and turn the egg rack. You can use both
sides of the egg rack so you can label specifics like the
purchase date.
9.7.1 Using the egg rack
Fig.60
► Top layer: for storing hen eggs.
► Bottom layer: for storing quail eggs.
9.8 Bottle holder
9.8.1 Using the bottle holder
Fig.61
► Push the bottle holder onto the bottles.
▷ The bottles are prevented from falling over.
Features
22 * Depending on model and options
10 Maintenance
10.1 Removing the bottle holder

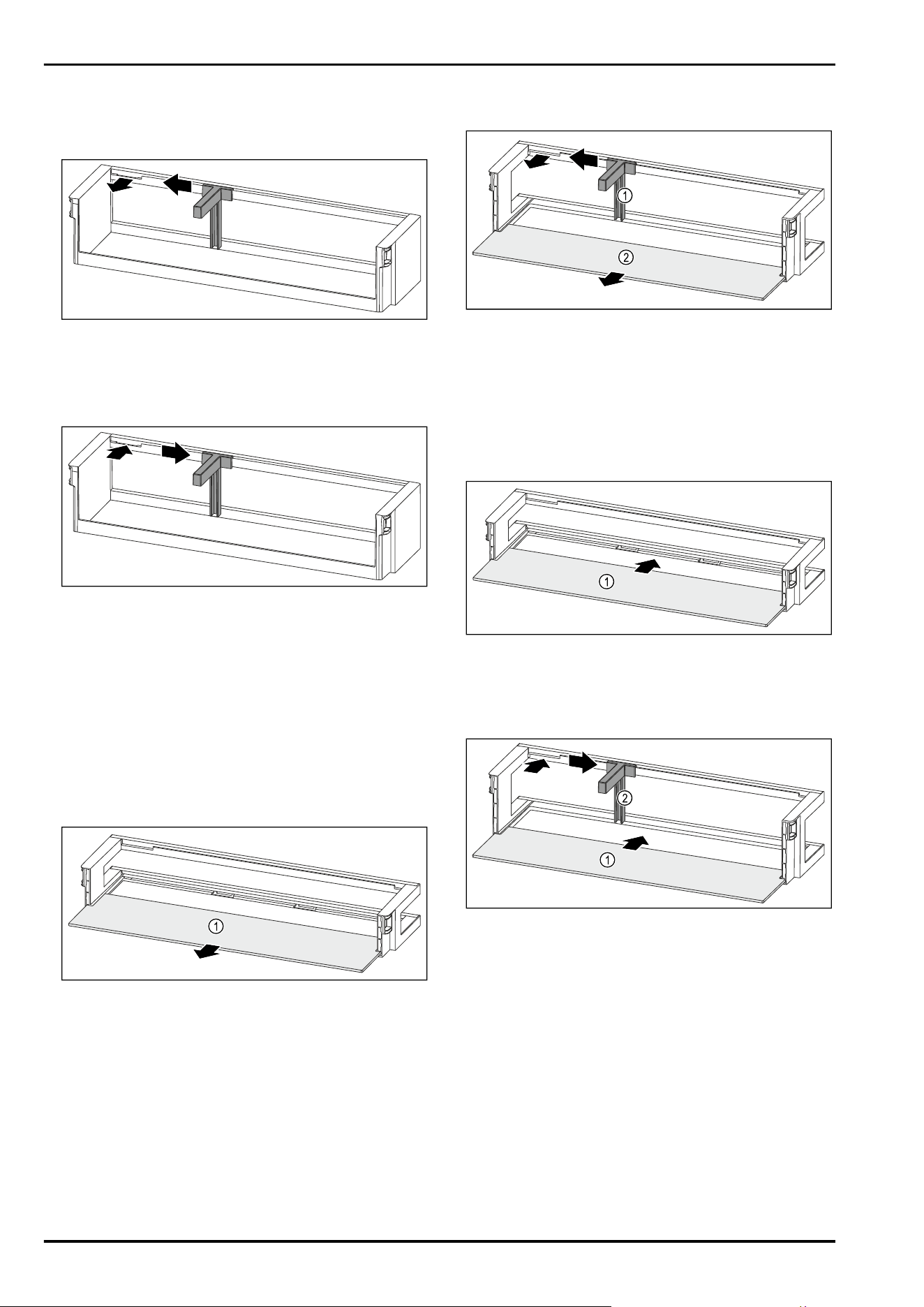

Fig. 62
► Slide the bottle holder to the side as far as the recess.
► Remove the bottle holder forwards.
10.2 Inserting the bottle holder
Fig.63
► Insert the bottle holder in the recess.
► Push the bottle holder to the desired position to the side.
10.3 Dismantling the door rack
It is possible to dismantle some of the door racks if you
want to clean them or install or remove spare parts.
10.3.1 Dismantling the door rack
Ensure that the following requirements are met:
❑
Door rack has been removed. (see 9.2.1 Removing the
door rack)
Fig. 64 Door rack with shelf
► Remove the shelf Fig.64(1).
10.3.2 Dismantling the door rack with bottle
holder
Fig. 65 Door rack with bottle holder and shelf
► Slide the bottle holder Fig. 65 (1) to the side as far as the
recess.
► Remove the bottle holder Fig.65(1).
► Remove the shelf Fig.65(2).
10.4 Assembling the door rack
10.4.1 Assembling the door rack
Fig. 66 Door rack with shelf
► Push the shelf Fig.66(1) into the side recesses.
10.4.2 Assembling the door rack with bottle
holder
Fig. 67 Door rack with shelf
► Push the shelf Fig. 67(1) into the side recesses.
► Insert the bottle holder Fig. 67(2) in the recess.
► Push the bottle holder Fig. 67 (2) to the desired position
to the side.
10.5 Disassembling / assembling pull-
out systems
10.5.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Maintenance
* Depending on model and options 23
Pull-out system can be disassembled/
cannot be disassembled
Drawer on appliance base or
glass shelf
cannot be disassembled
10.6 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
A layer of frost or ice can from briefly due to the energy-
optimised control of the device.
► Clean the drain opening at regular intervals.
(see 10.8Cleaning the appliance)
10.7 Defrosting the freezer compart‐
ment manually*
A layer of frost or ice forms after prolonged use.
The following factors promote the formation of frost or ice:
- The appliance is opened frequently.
- Hot food is put in.
► Switch the appliance off.
► Pull the mains plug out of the socket or switch the fuse
off.
► Wrap the frozen food in newspaper or blankets and store
in a cool place.
► Place a saucepan of hot but not boiling water in the
freezer compartment.
▷ This speeds up the defrosting process.
► Leave the compartment and appliance door open during
defrosting.
► Remove loosened pieces of ice.
► Soak up the melted ice water with a sponge or cloth
several times as necessary.
► Clean the appliance. (see 10.8Cleaning the appliance)
10.8 Cleaning the appliance
10.8.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
10.8.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
10.8.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove deposits using a thin item (for
example a cotton bud).
10.8.4 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Door rack
- Shelf
- Dividing shelf*
- Drawer
Wash in the dishwasher up to 60°C:
- Door rack
- Bottle rack
- Holder of the dividing shelf*
Maintenance
24 * Depending on model and options
- Egg rack*
- Butter dish
► To disassemble components: see the relevant section.
► Clean the components.
10.8.5 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
The temperature is cold enough:
► Place the food inside.
► Repeat cleaning regularly.
11 Customer help
11.1 Technical specifications
Temperature range
Cooling
Maximum ice cube quantity / 24 hours
Freezer compart‐
ment*
see type plate under “Freezing
capacity …/ 24 h” *
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
11.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see8.2Appliance functions)
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
11.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
11.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
► Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.*
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
Customer help
* Depending on model and options 25

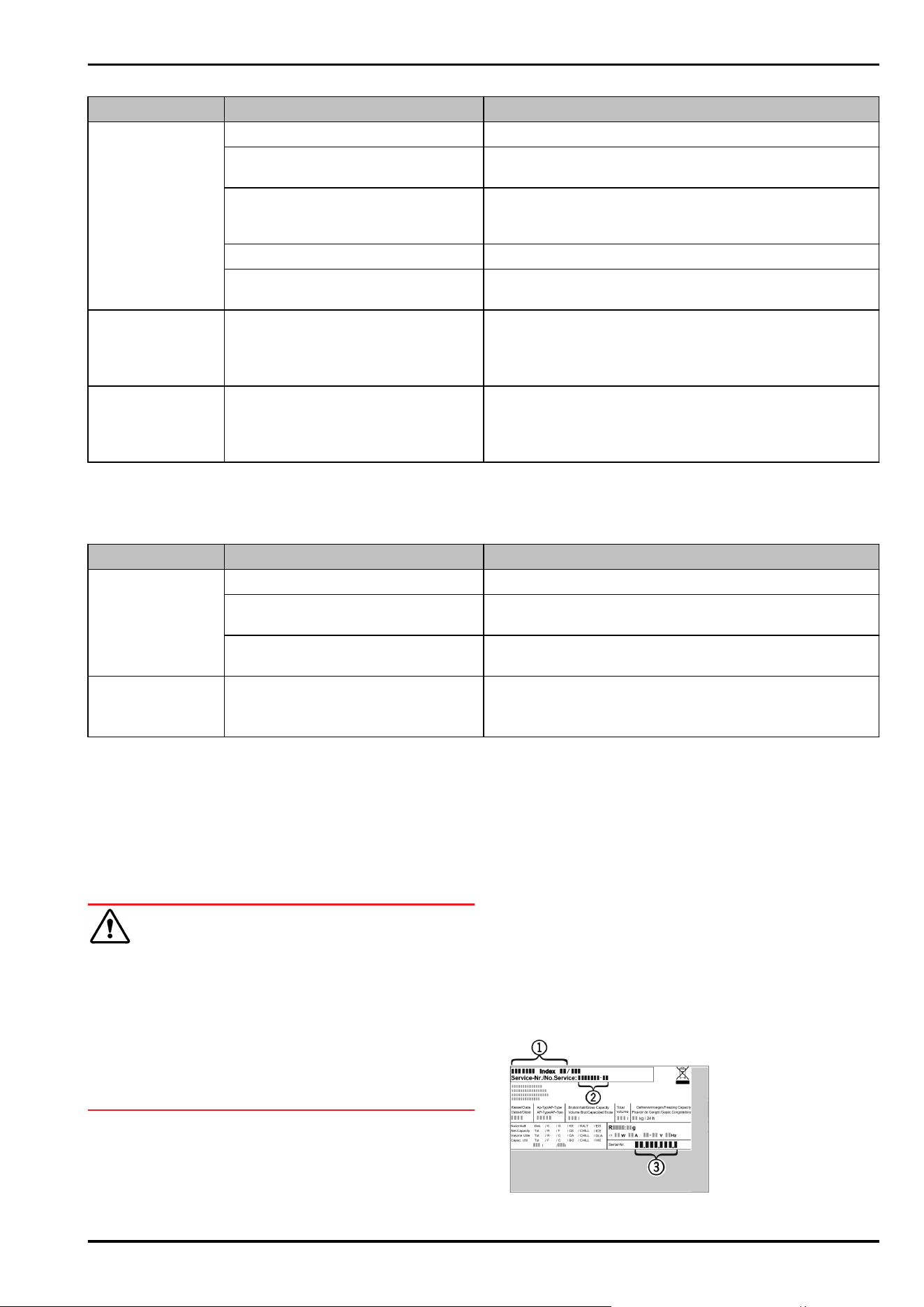

Defect Cause Remedy
→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Problem solution: (see 2.3 Appliance range of use)
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 11.4 Customer
Service)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see11.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
11.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see11.4 Customer Service)
The freezer
compartment
cannot be closed.*
→ The lock is on when the door is
open.
► Use the handle again.
11.4 Customer Service
First check whether you can rectify the fault yourself
(see 11 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 10 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
11.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Refer to the type plate for device information.
(see 11.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
11.5 Model plate
The type plate is located on the bottom left of the inside of
the appliance.
Customer help
26 * Depending on model and options

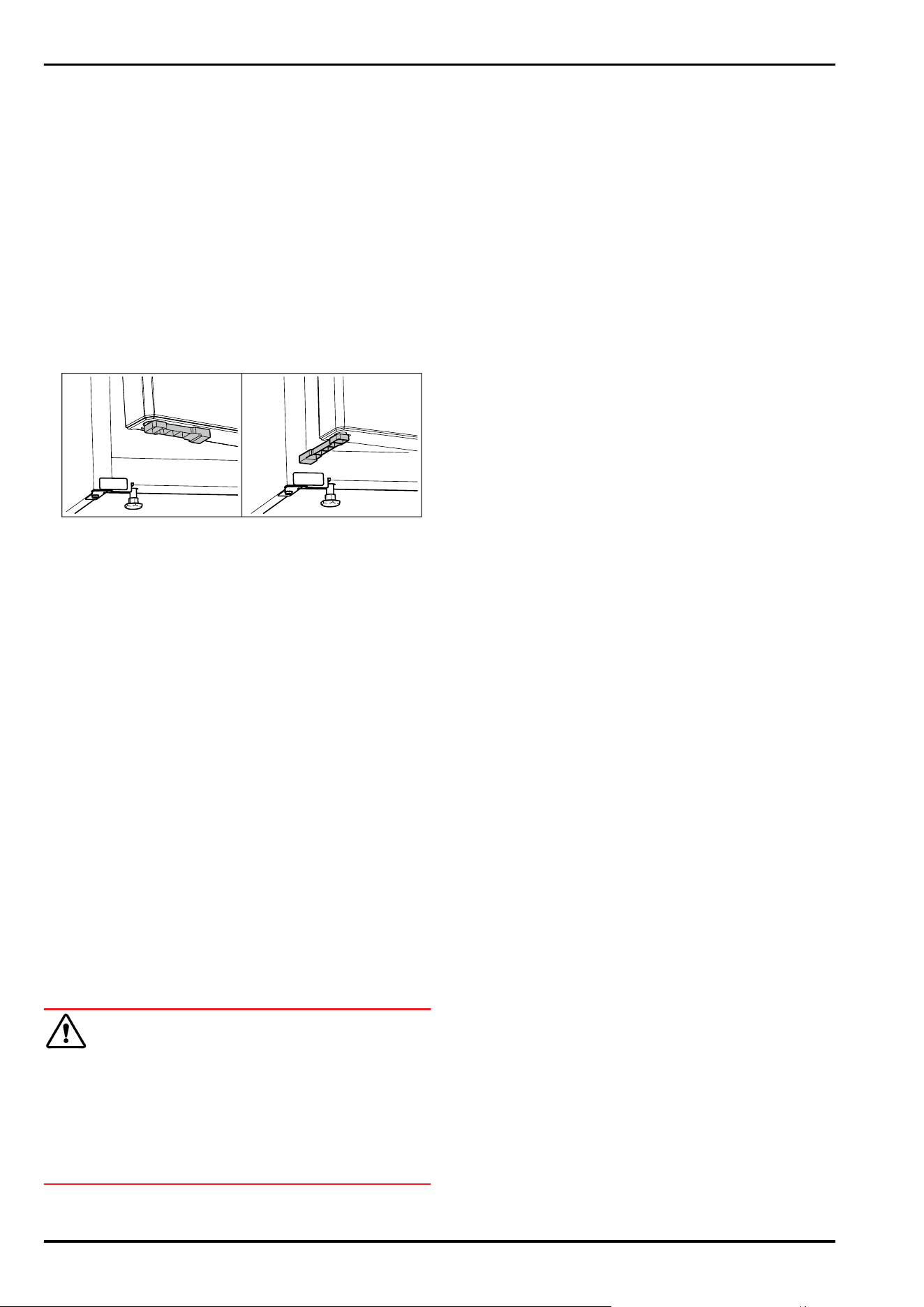

Fig.68
(1) Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
12 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 10.8Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
On devices without a freezer compartment: *
Fig. 69*
► Fit the door spacer from the accessory pack to the
bottom of the door.*
► Turn door spacer by 90°. (see Fig. 69) *
► Closing the appliance door: Lean the appliance door
against the door spacer.*
▷ Device door remains open.*
On devices with a freezer compartment: *
► Open the freezer compartment door.*
► Closing the device door: Lean the device door against the
freezer compartment door.*
▷ Device door remains open.*
13 Disposal
Ensure that the following requirements are met:
❑
Meaning of the symbols on the appliance: are familiar.
(see 1.14Symbols on the appliance)
❑
Notes on disposal are familiar. (see1.8Disposal)
13.1 Preparing the appliance for
disposal
► Shutting your appliance down. (see12Shutting down)
13.2 Disposing of the appliance in an
environmentally friendly manner
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
(see 3.6 Transporting the appliance)
►
Remove the appliance without damaging it.
► Dispose of appliance according to specifications.
Shutting down
* Depending on model and options 27
home.liebherr.com/fridge-manuals
countertop fridge
ORIGINAL OPERATOR'S MANUAL
Issue date:20251211
Part number index: 7086751-00
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
