User Manual
2x4 LED High Output
Dual Selectable
Ceiling Panel
Ceiling Panel
Tape Measure
Pliers
Drill
Pencil
Phillips Screwdriver
Ladder
Leveler
1
Hammer
Let there be light!
(literally)

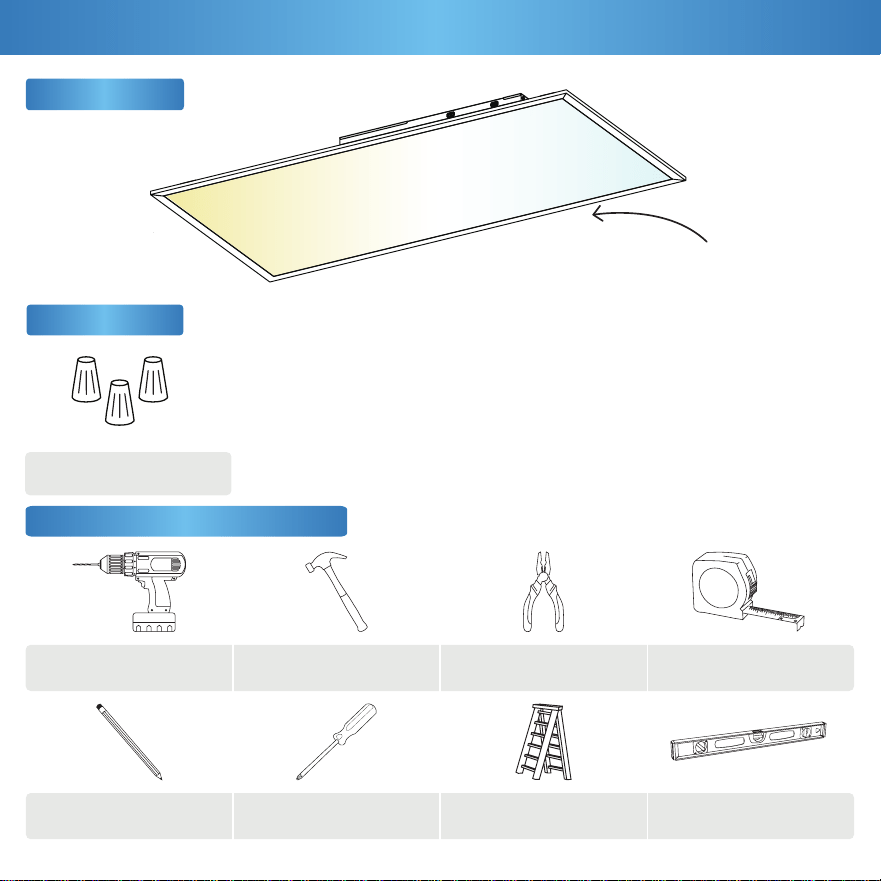

What’s in the Box?
Get Your Gear (Not Included)
Accessories
Wire Nuts x5
A
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference that may
cause undesired operation. Please review all
instructions carefully prior to installation.
• Turn o circuit breaker before installing this xture.
• Suitable for use in wet environments at temperatures
ranging from 32°F to 113°F.
• Not for use where directly exposed to water.
• Not intended for use with emergency xtures.
• Not compatible with photo controls.
• Not compatible with occupancy sensors.
• Not compatible with third party sensors.
• Not compatible with all dimmers. For more dimming
information, please visit www.sunco.com.
• Not compatible with timing devices.
• All electrical connections must be in accordance with
local and National Electric Code (N.E.C.) standards.
To reduce the risk of fire, electric shock, or physical injury:
2
Safety Information

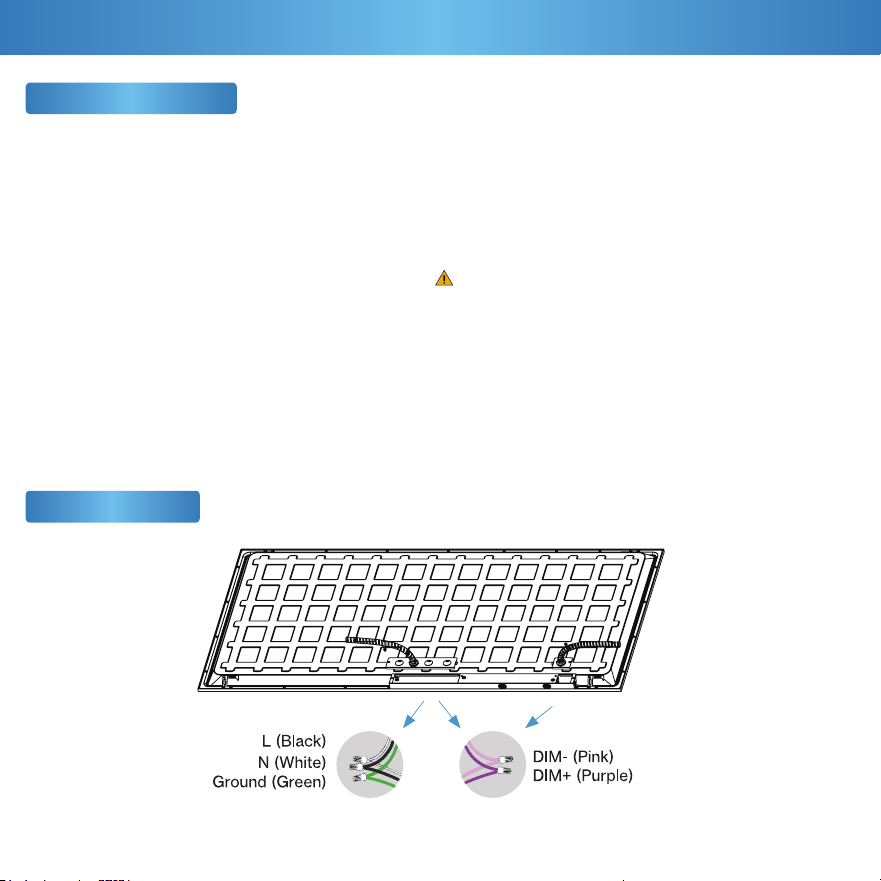

Wiring Diagram
2
Before You Start
WARNING:
Cancer & Reproductive Harm- www.P65Warnings.ca.gov
• Please review installation manual carefully
before proceeding. Consult a qualied electrician
if you are unfamiliar with proper electrical wiring
connections.
a. Connect the wire conduit to each knockout,
then feed the wires through.
3
Installation Guide (Recessed Mount)
STEP 2
a. Turn off circuit breaker before installation.
b. Place ceiling panel face down on a flat surface.
c. Unscrew the driver cover and set aside screws.
Then, pop out desired knockouts (choice of 5).
Optional: If using dimming wires, pop out an additional
knockout from the three available knockouts.
STEP 1
4
Installation Guide (Recessed Mount)
STEP 4
CCT
Switc
h
Power Switch

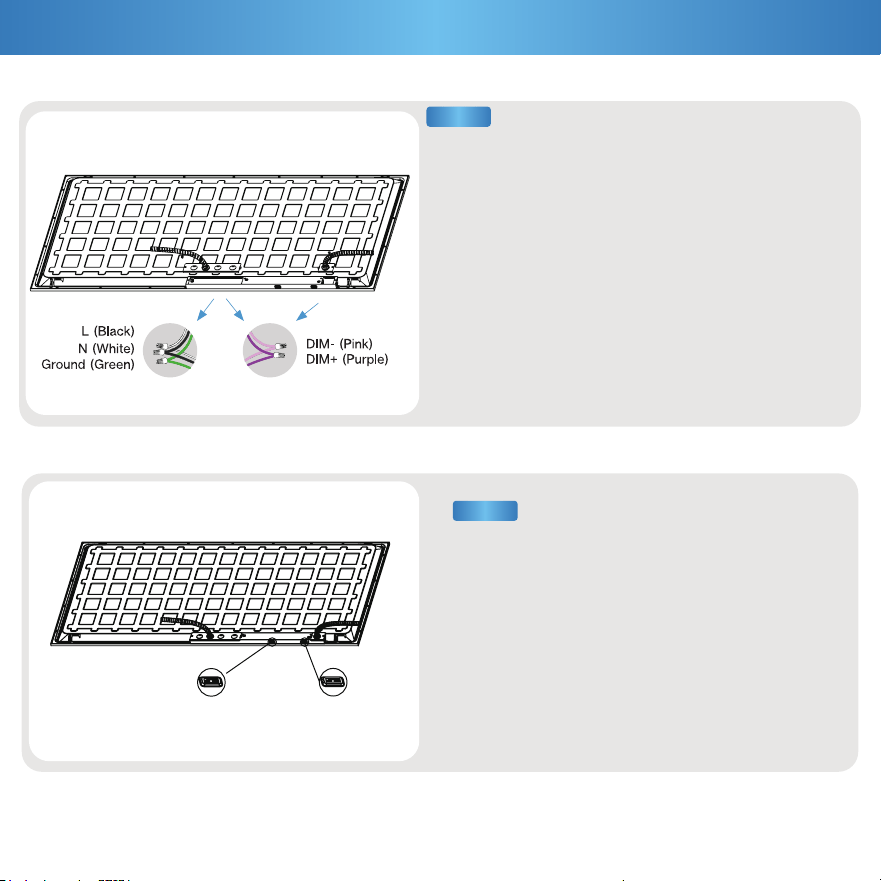

a. Connect supply wires with luminaire wires using included
wire nuts (A):
• Black to Black (Live) • White to White (Neutral)
• Green to Bare Copper (Ground)
b. For wire connections with multiple hot wires (240/277V):
• Black to Red (HOT1) • White to Red (HOT2)
• Green to Bare Copper (Ground)
c. Optional: Connect compatible device for dimming
features. Otherwise, cap wires if the dimmer is not
being used.
• Pink to Pink (DIM-) • Purple to Purple (DIM+)
STEP 3
a. Use the switches on the back of the Ceiling Panel
to select desired wattage and color temperature.
b. Replace the driver covers, then tighten the screws.
STEP 6
STEP 7

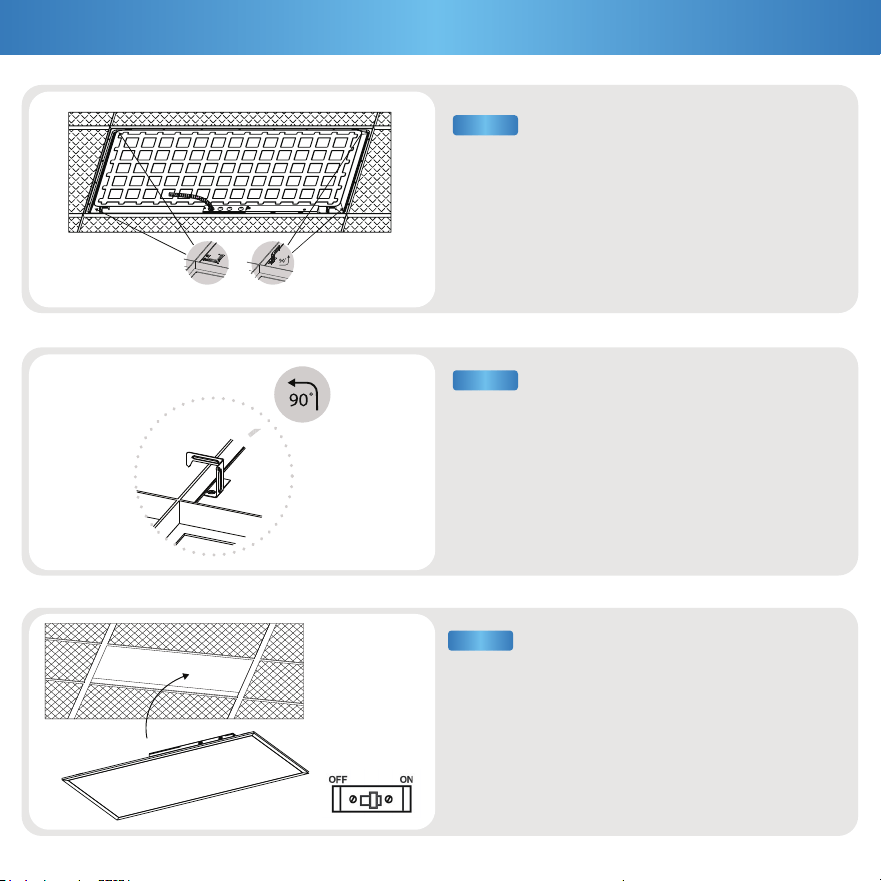

a. Turn the brackets 90
o
. The hook should face the
outside edge of the Ceiling Panel.
a. Install the ceiling panel into the ceiling.
b. Turn on the circuit breaker and test light.
5
Installation Guide (Cont.)
STEP 5

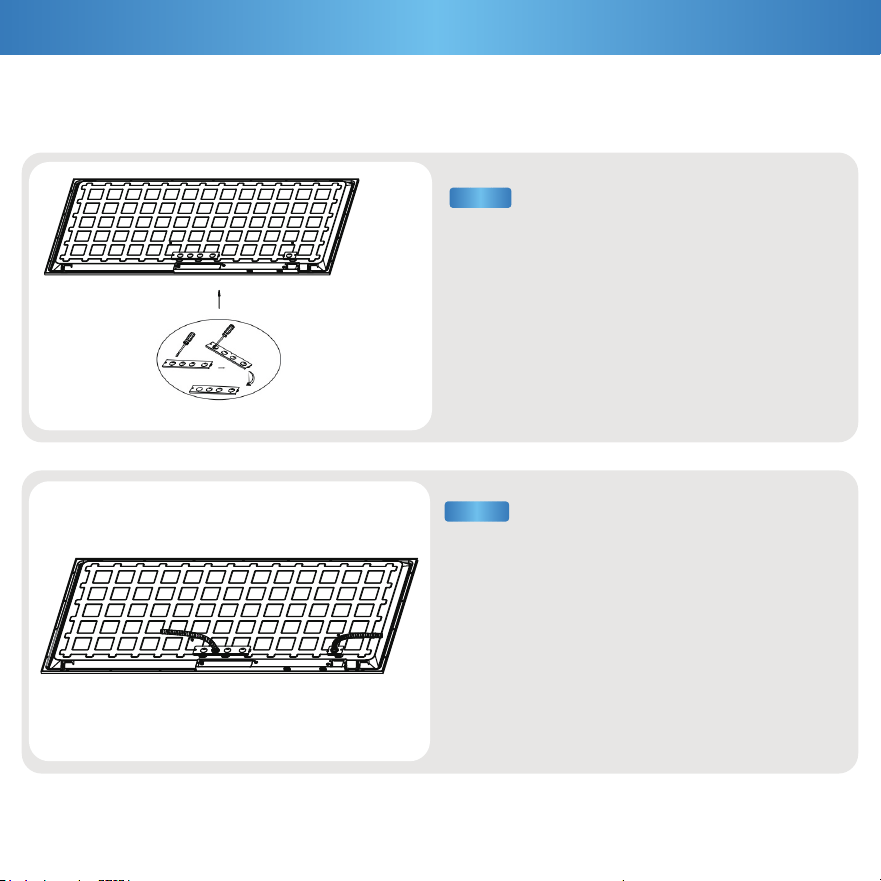

a. Bend the 4 protective brackets located
on the back of Ceiling Panel up 90°.

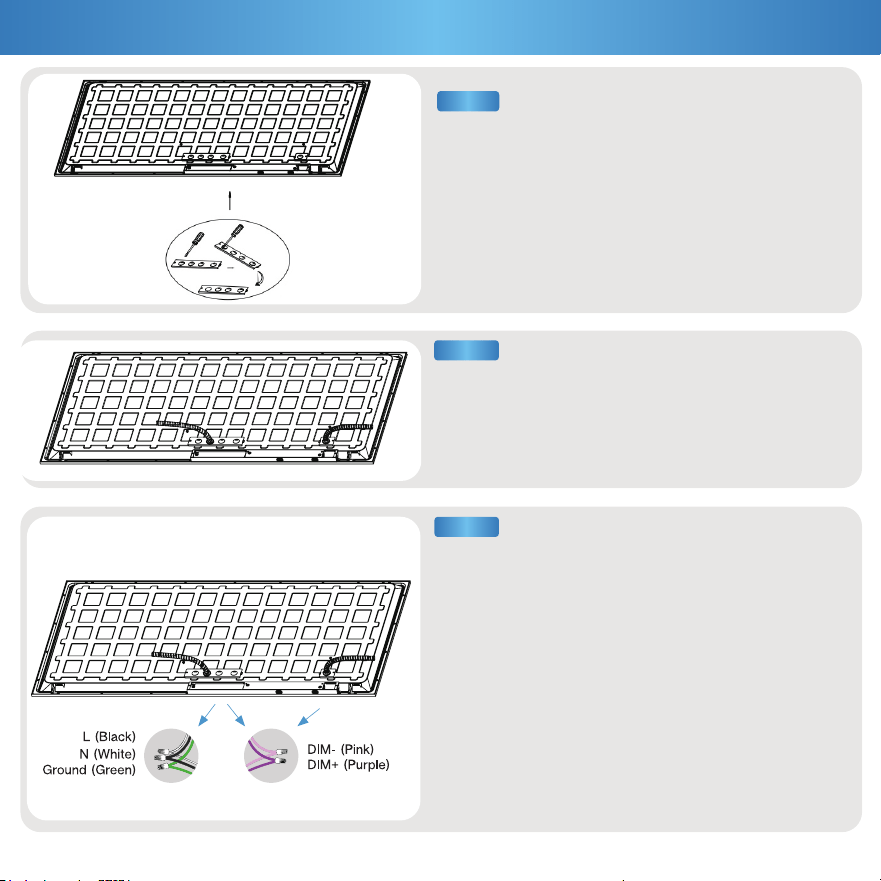

a. Turn off circuit breaker before installation.
b. Place the ceiling panel face down on a flat surface.
c. Unscrew driver cover and set aside screws. Then,
pop out desired knockouts (choice of 5).
Optional: If using dimming wires, pop out an additional
knockout from the three available knockouts.
6
Installation Guide (Suspension Mount, Not Included)
STEP 2
STEP 1
a. Connect the wire conduit to each knockout,
then feed the wires through.
a. Connect supply wires with luminaire wires using
included wire nuts (A):
• Black to Black (Live) • White to White (Neutral)
• Green to Bare Copper (Ground)
b. For wire connections with multiple hot wires (240/277V):
• Black to Red (HOT1) • White to Red (HOT2)
• Green to Bare Copper (Ground)
c. Optional: Connect compatible device for dimming
features. Otherwise, cap wires if the dimmer is not
being used.
• Pink to Pink (DIM-) • Purple to Purple (DIM+)
STEP 3
STEP 5
STEP 4
STEP 6
a. Use the switches on the back of the Ceiling Panel
to select desired wattage and color temperature.
b. Replace the driver covers, then tighten the screws.

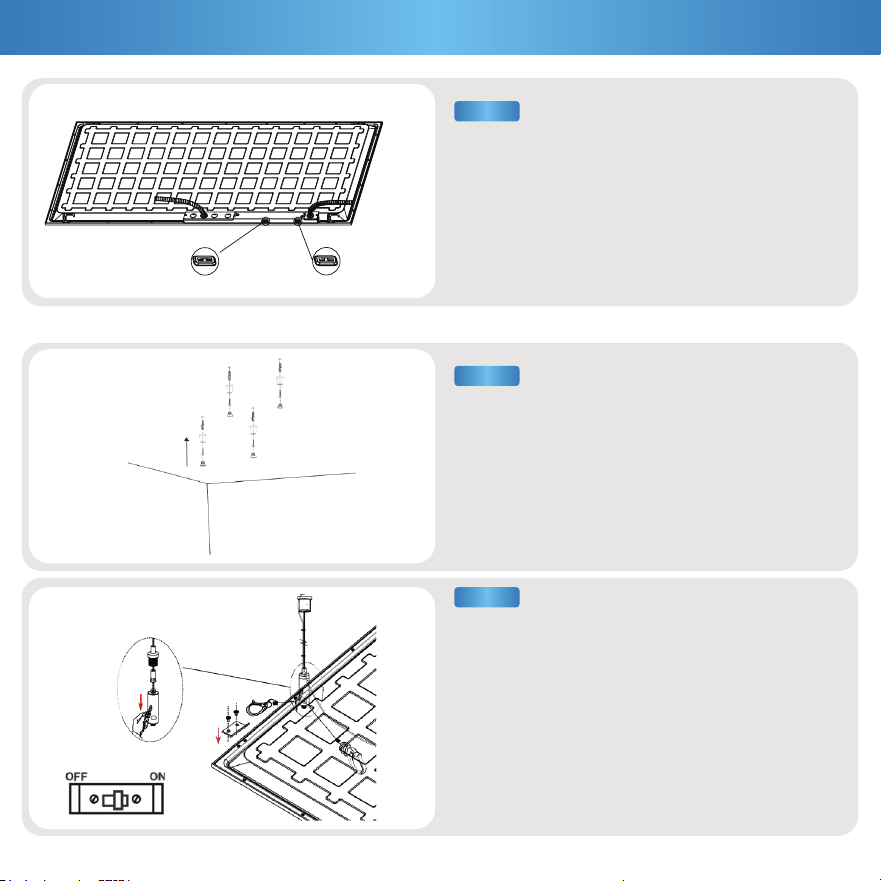

a. Drill 4 holes into desired area of the ceiling.
b. Insert plastic anchors (not included) into screw
holes, insert wire rope (not included) and
mounting screws (not included).
Note: Refer to suspension kit install manual
(not included) for complete details.
a. Adjust suspension wire to ensure the ceiling
panel hangs horizontally and evenly.
b. Adjust light to ceiling, then secure using
protective brackets.
c. Once the ceiling panel is installed, turn on the
circuit breaker to test the light.
7
Installation Guide (Cont.)
CCT
Switc
h
Power Switch
Voltage
Selectable Wattage
Beam Angle
Efficacy
Power Factor
Housing Material
Dimmable
120 to 277V
40W/50W/60W
120°
134 lm/w
>0.9
SPCC
0-10V Dimming
50,000 Hours
AC Power
Damp Rated
80+
IP20
Indoor
7 Years
Average Lifetime
Power Souce
Moisture Rating
CRI
IP Rating
Usage
Warranty
Brand
Model
LUTRON
DVSTV
DVTV
AWSMT-7DW
DD710-BDZ
DS710-10Z
WS4FBL3PTC
RH4FBL3PTC
LEVITON
LEVITON
LEGRAND
LEGRAND
NTSTV-DV
Recommended Dimmers
Specifications
Selectable Lumens
8
Product Details
LUTRON
LUTRON
LEVITON
Scan for the full
compatible
dimmer list!
PN24_HO-5065K
PN24_HO-2750K
5000/6500/7700LM 5000/6500/7700LM5000/6500/7700LM5000/6500/7700 lm
PN24_HO-4060KPN24_HO-3050K
Feeling in the dark about an issue with your product? No
worries! Our troubleshooting section is here to shed some light
and provide you with easy-to-follow solutions for any problem.
Light isn’t bright enough.
Light not dimming to lowest setting.
Fixture buzzing with appliances or electronic devices.
Fixture buzzing when dimmed.
Look for nearby interferences that can cause buzzing.
Such as televisions, radios, computers, etc.
Light not dimming smoothly.
Light ickering with other lights on the same circuit.
Check that the lights on the same circuit are not
overloading the circuit.
Light ickering when turned on.
Light ickering when dimmed.
Verify dimmer switch compatibility.
Double check if xture is properly connected
and circuit breaker hasn’t been tripped.
Check light-dimmer compatibility. Consider purchasing a
compatible switch if necessary.
Verify dimmer compatibility with xture.
Light isn’t turning on.
Light not compatible with dimmer switch.
Fixture buzzing with power outages. Verify light is connected to surge protector securely.
Verify dimmer switch compatibility.
Verify xture compatibility and that it is grounded.
Light is ickering when turning on.
Check that xture wiring connections are secure.
Check proper wattage and for unobstructed xture.
Ensure minimum dimmer load requirement is met.
If you still need some assistance, please feel free to contact
us with any questions. Our team of lighting experts are
happy to help brighten your day.
Installation
9
Common Troubleshooting
Dimming
Flickering
Buzzing
UNIT:cd
AVERAGE BEAM ANGLE (50%): 113.6 DEG

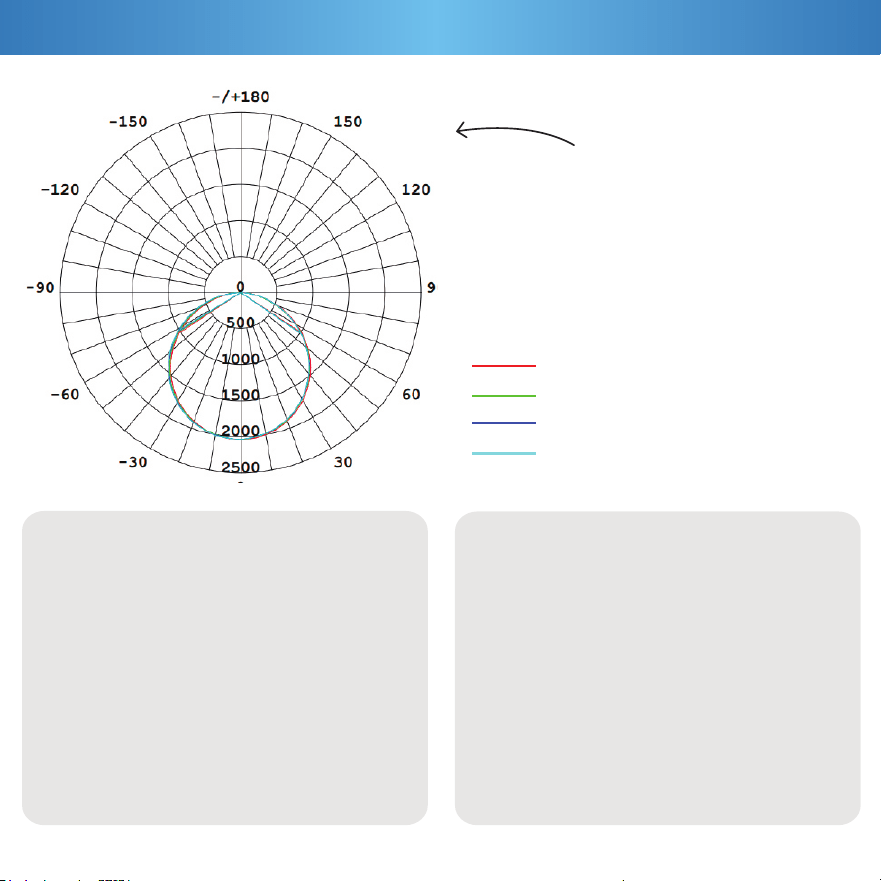

Luminous Intensity Distribution 1
C0/180
C30/210
C60/240
C90/270
113.0°
113.3°
113.9°
114.1°
Lighting distribution angle refers to the spread of light
emitted from a light source. It is an important factor to
consider when selecting a xture or bulb, as it aects the
way it will illuminate an area. There are two main types of
lighting distribution angles:
A symmetric lighting distribution emits light evenly
in all directions, creating a cone-shaped pattern that
provides a pool of light. This type of lighting is ideal for
general lighting and illuminating large areas. Common
applications for symmetric lighting include general area
illumination, security lighting, and perimeter
lighting. Symmetric lighting is also used to a certain
degree in up-lighting.
An asymmetric lighting distribution angle, also known
as beam angle, creates a pattern that focuses light in a
specic direction. This type of lighting is ideal for task
lighting as it reduces glare and light spill in other areas.
Common applications include task lighting in spaces such
as landscape settings, retail stores, museums,
and much more.
It is important to note that the lighting distribution angle
can also be aected by other factors such as the
reector design of the light source, the type of lens used,
and the distance between the light source and the surface
being illuminated.
N a lighting nerd?
No worries, you can skip this page
10
Light Distribution Angle
