Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 21
Catalog Number 026
Golf Satellite Controller

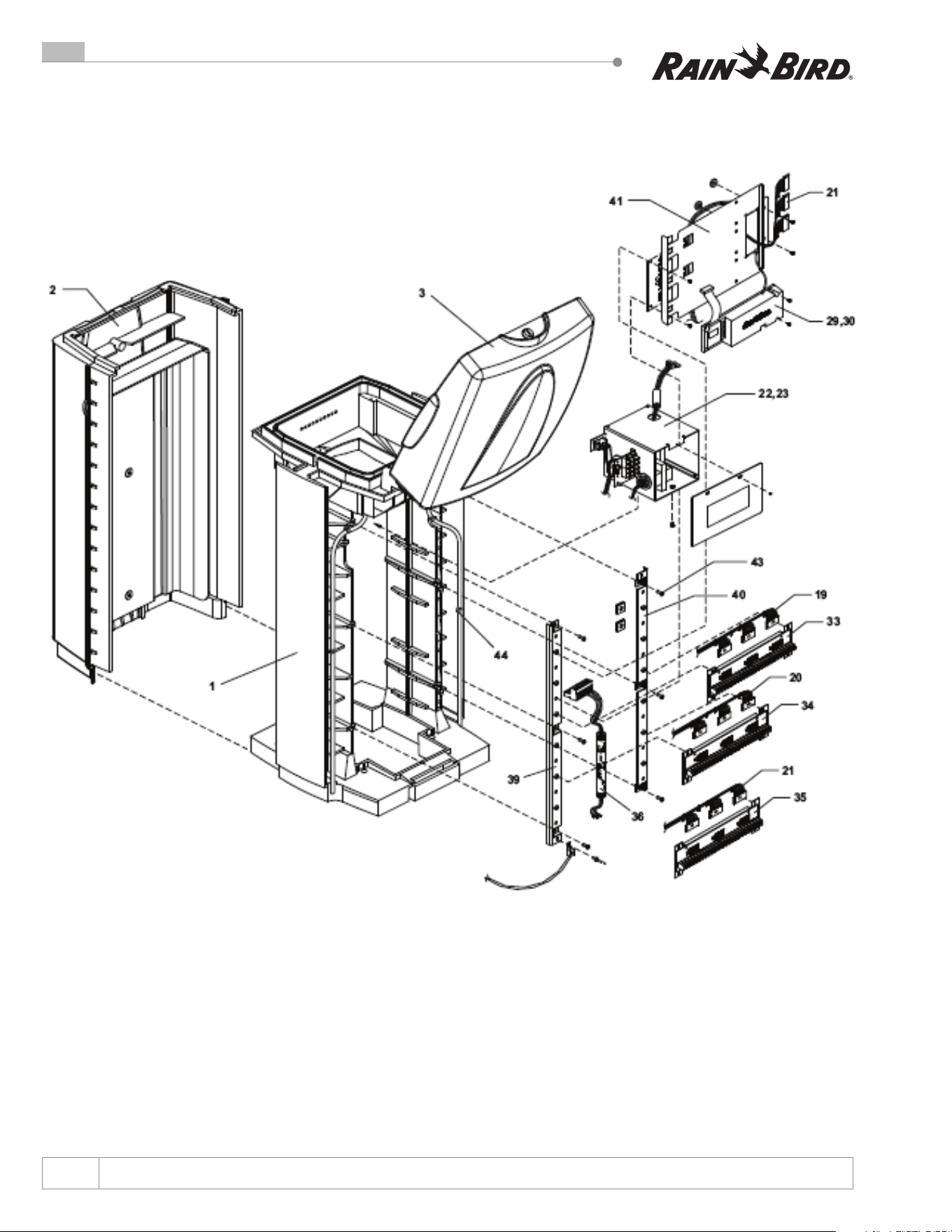

CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
1 PLASTIC PEDESTAL SUB-ASSY, RP GRAY 1 H44011
2 Door RP Sub-Assy RP 2 (63671902)
3 LID RP Sub-Assy 1 (63671802)
4 Lock, Notched Cam 1 636709S
5 Plate, Lock, SST 1 (636743)
6 Bracket, Hinge, SST. Left 1 (63547001)
7 Bracket, Hinge, SST. Right 1 (63547002)
8 PEDESTAL MOUNTING KIT 1 635780
9 Bag, Poly 6 X 8 1 (601846)
10 Bag, Poly 15 X 24 1 (63230801)
11 Mounting Template 1 (635233)
12 Anchor Bolt 4 (63525802)
13 Label, Bolt. PPED, Template 1 (635824)
14 Washer 5/16 Lock-Spring 4 (65002907)
15 Nut, Hex 5/16 8 (65003307)
16 Washer Flat 5/16 Type B 4 (652181)
17 MANUAL, INSTALLATION PAR+ES 1 (635778)
18 MANUAL, OPERATION PAR+ES 1 (635777)

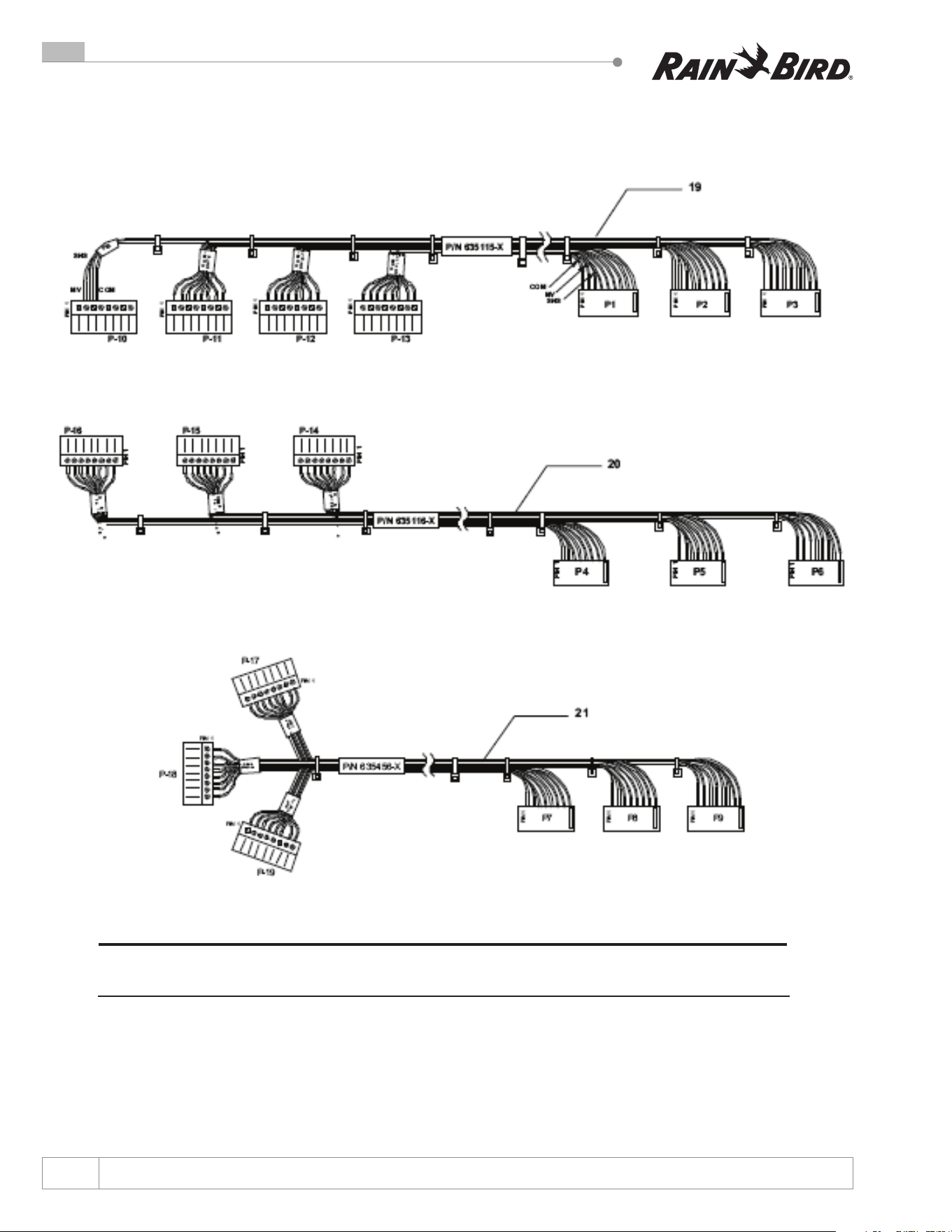

19 HARNESS ASSY TERMINAL BOARD STA 1-24 1 (H60331)
20 HARNESS ASSY TERMINAL BOARD STA 25-48 1 (H60341)
21 HARNESS ASSY TERMINAL BOARD STA 49-72 1 (H60351)
22 POWER SUPPLY SUBASSY, PAR+/MSC+ 1 63522401
23 POWER SUPPLY SUBASSY, PAR+/MSC+ LINK 1 (63522402)
24 Label, Instruction PART+ES 1 635704S
25 CONTROL MODULE ASSY, PAR+ 1 63571102
26 IFX Two-wire Board* H44510
27 IFX Link (Radio) Board** H44560
28 INTERCONNECT/PWR SUP SUB-ASSY 1 63322603
29 ASSY, OSM PAR/MSC+ 2 - 9 (HA0100)
30 ASSY, OSM PAR/MSC+ /W SW 2 - 9 HA0200
31 Plate, OSM Sub-Assy (A) 1 (63522502)
32 Bezel Plastic Sub-Assy 1 (635229)
33 BRACKET-BOARD ASSY, STA 1-24 1 H60311
34 BRACKET-BOARD ASSY, STA 25-48 1 H60321
35 BRACKET-BOARD ASSY, STA 49-72 1 H60361

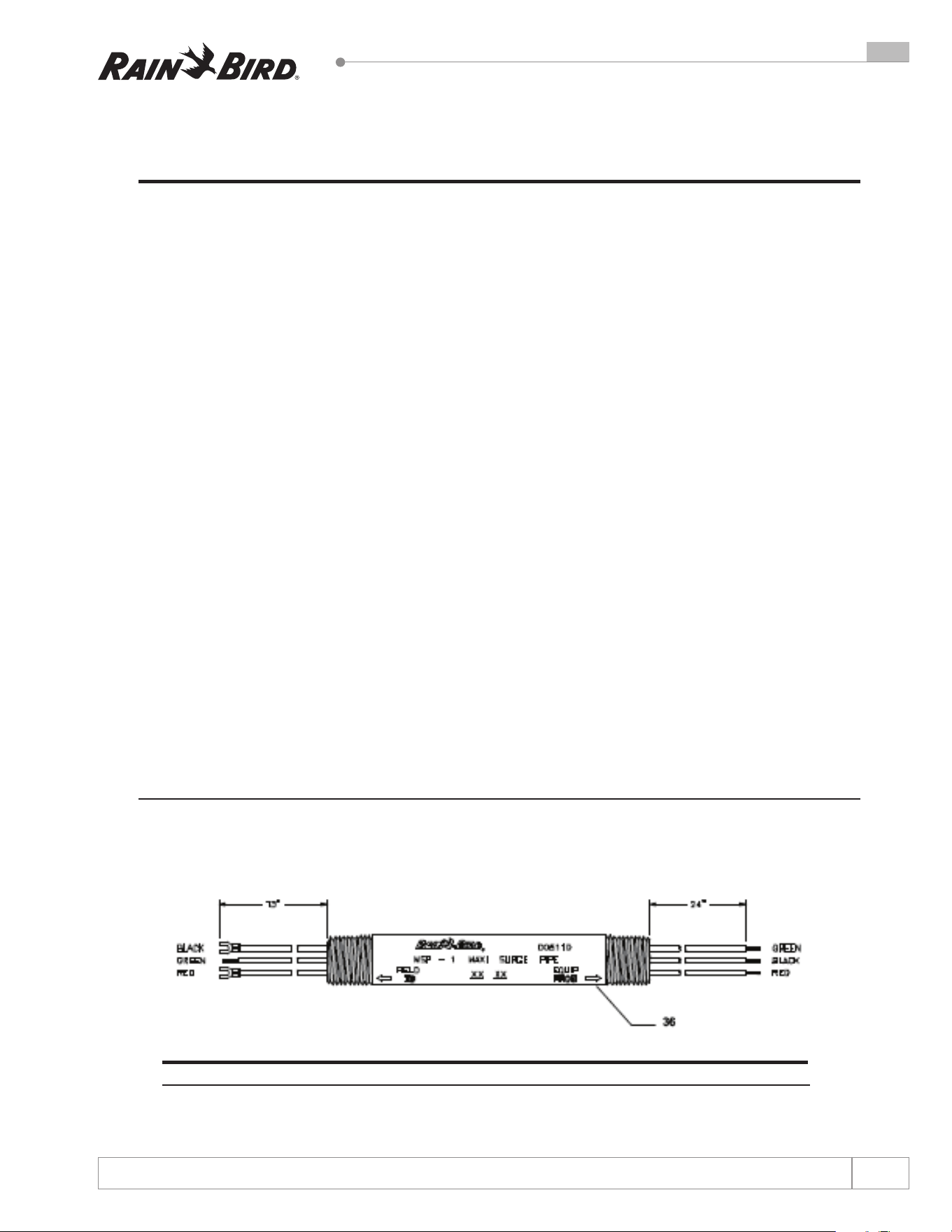

36 TWO-WIRE PIPE SUB-ASSY 1 (D02110)
37 ANTENNA PANEL ASSY 1 (H41006)
38 ANTENNA 450-470MHz 1 H60140
39 Rail Mounting Left Steel (A) 1 (635540S)
40 Rail Mounting Right Steel (A) 1 (635541S)
41 PAR+ES UPGRADE KIT 1 HP5050
42 Screw #10-16PN HD 4 (65218820)
43 Screw, Phillips PNH 14 (65218848)
44 Twist Lock 2 (651567)
45 Tubing, Rubber 5/8" 2 (63664701)
46 Terminal Block Two-Wire (A) 1 (651501S)

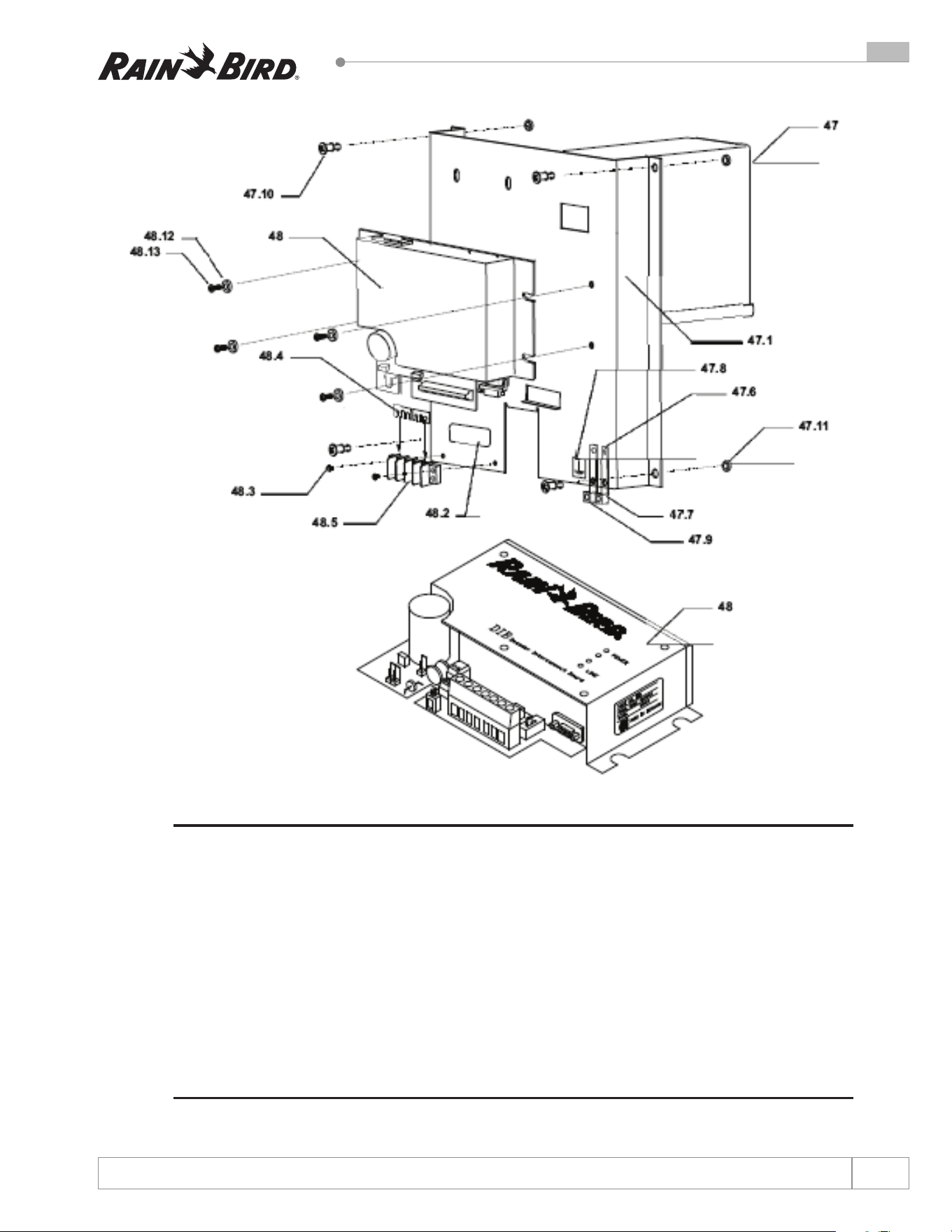

47 DIB BRACKET ASSY 1 (635867)
48 DECODER INTERFACE BOARD (DIB) 1 636104S
* Compatible with all MSC+, PAR+ and PAR+ES Satellites.
** Compatible with all PAR+ES Link Satellites
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Ref. Part Description Qty. PAR+ES
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
3 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)

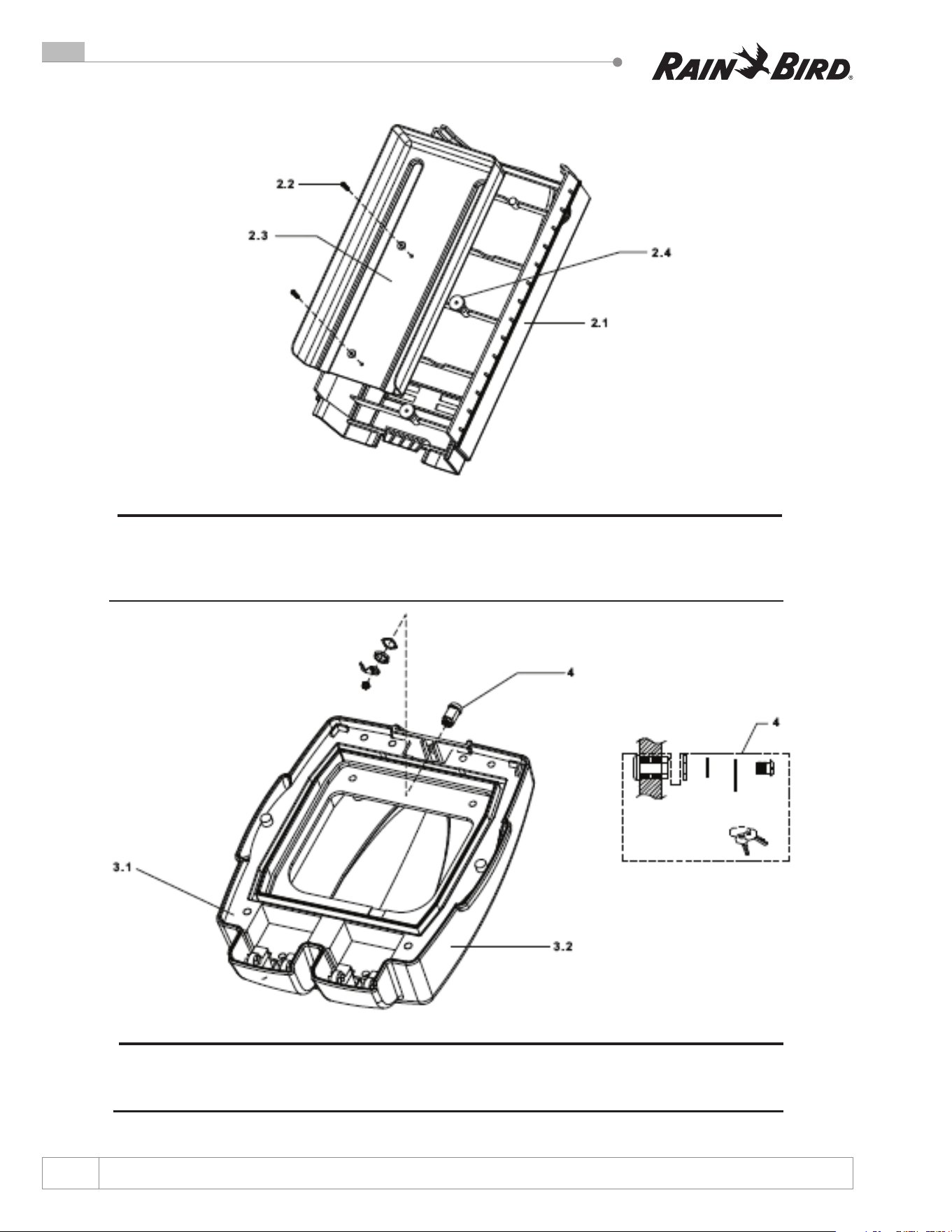

Ref. Part Description Qty. PAR+ES
2 DOOR RP SUB-ASSY RP (636719)
2.1 Door, Plastic Pedestal 1 (63671902)
2.2 Screw 2 (652281010)
2.3 Inner Door Shield (636939010)
2.4 Inner Door Spacer (636940010)
Ref. Part Description Qty. PAR+ES
3 LID RP SUB-ASSY
3.1 Lid, Inner, Plastic Pedestal 1 (63671702)
3.2 Lid, Outer, Plastic Pedestal 1 (63671802)
4 Lock, Notched Cam 1 636709S
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
4 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)

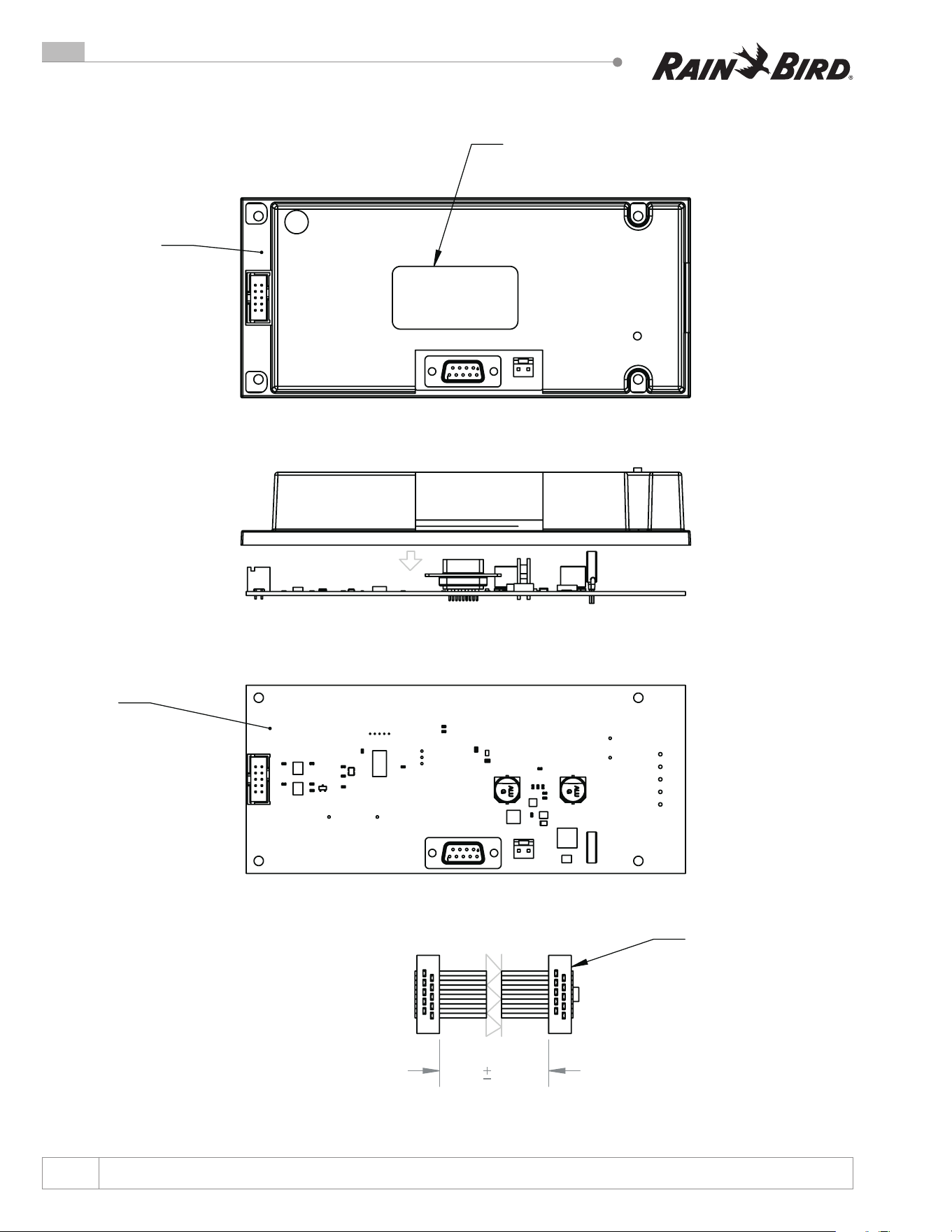

Ref. Part Description Qty. PAR+ES

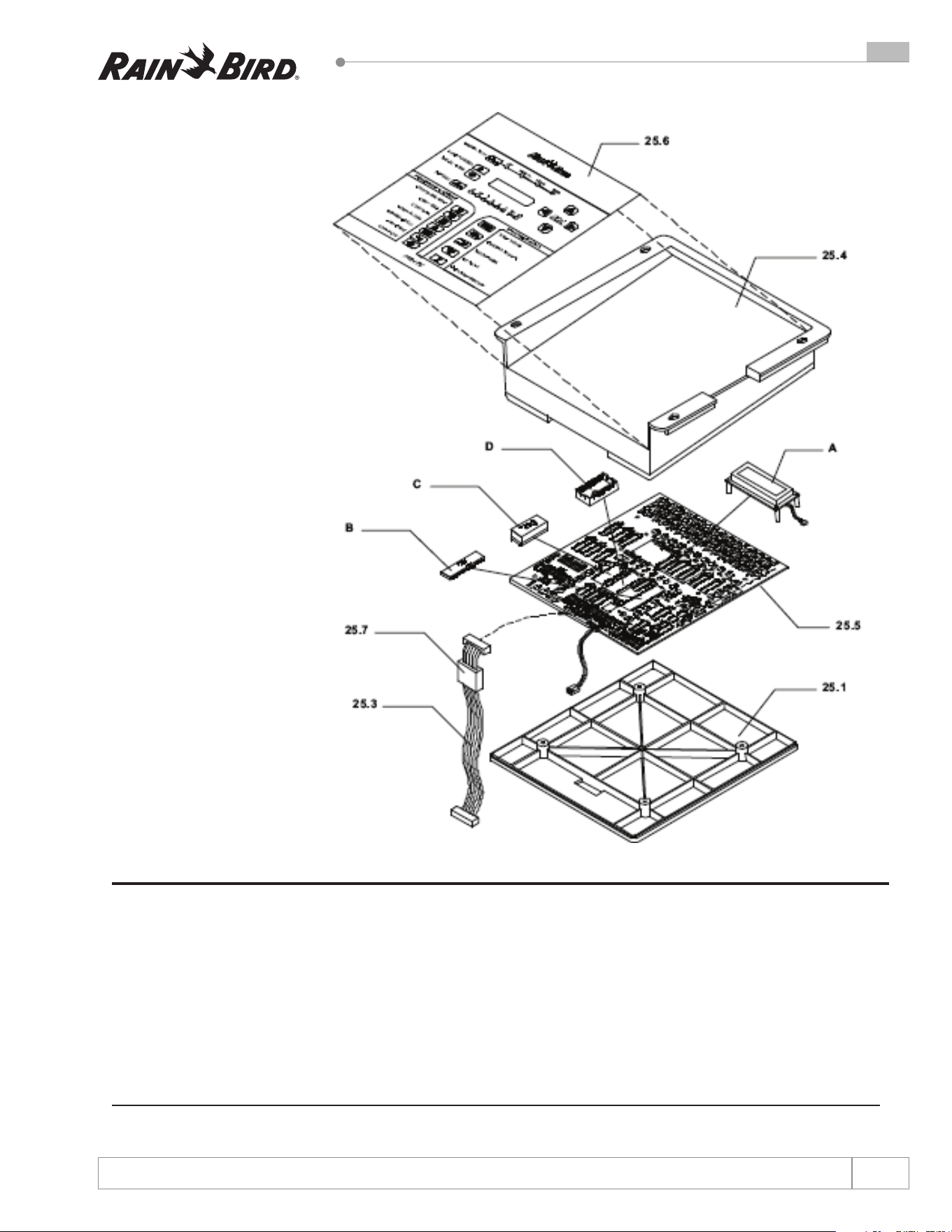

25 CONTROL MODULE ASSY, PAR+ES 63571101
25.1 Assy, Cont. Mod cover PAR+/MSC+ 1 (63488803)
25.2 Screw 7-19X1/2 Hilo RC-7 4 (622922)
25.3 Harness Assy, Cable-PAR/MSC+ 1 633176
25.4 Panel, Front-PAR/MSC+ 1 (633201)
25.5 PAR+ES PWB Assy Main Logic Board 1 63495505
A LCD Backlight Assy PAR+/PAR+ES 1 635308
B IC, Microcontroller, 80C32 1 (651031)
C IC, Clock and 64K Ram, DS1243Y 1 650718
D Soket IC Carrier 2 28PIN 1 (65062210)
25.6 Overlay, Membrane Switch, PAR+ES 1 635706
25.7 Ferrite, Flat Cable Snap-It 1 (651612)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
5 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
6 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES

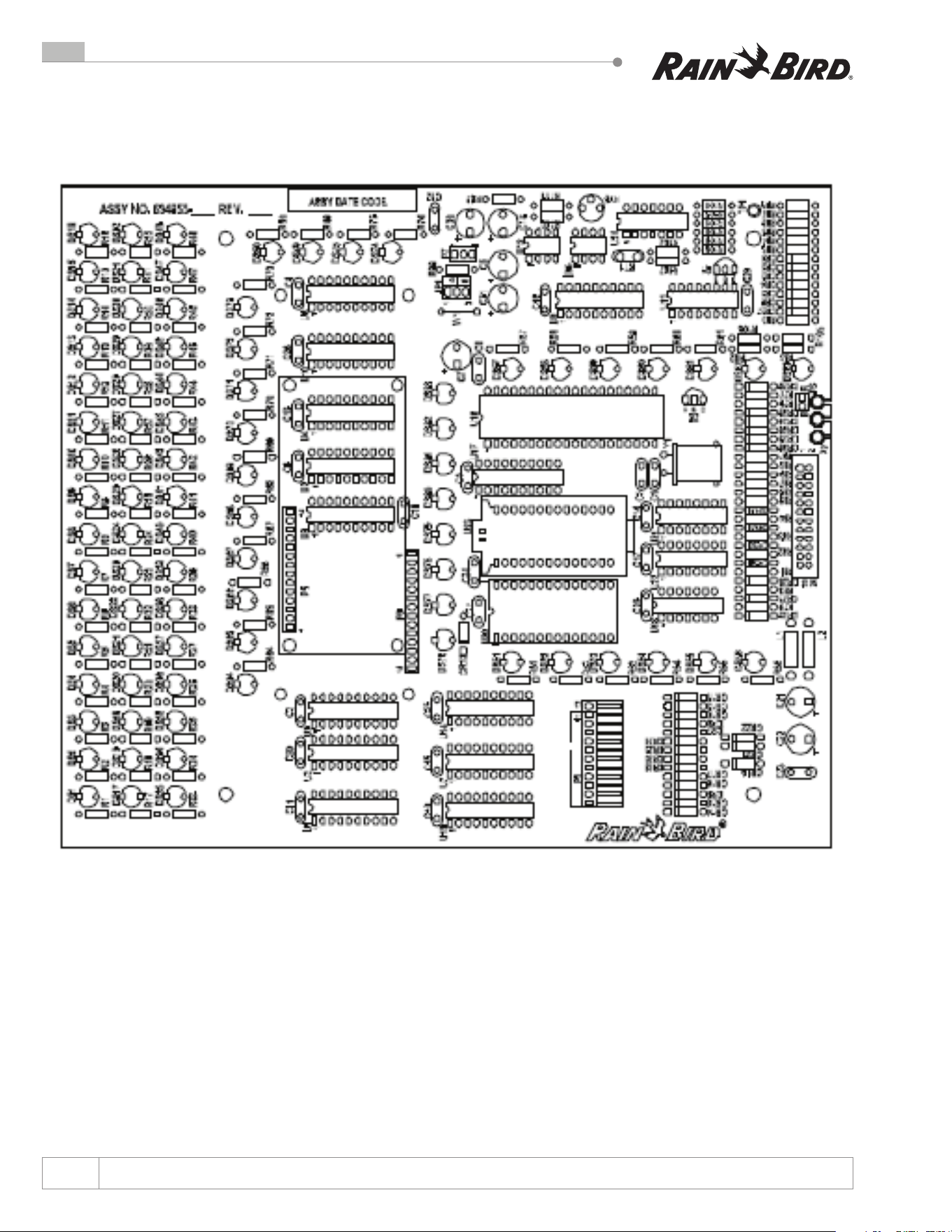

25.5 MAIN LOGIC PWB ASSEMBLY PAR+ES 63495505
P3 Harness Assy Plug F/P Light 1 (635152)
(P5) LCD Backlight Assy, PAR+ 1 635308
U23 S/W M/Assy, M/L BRD V10 1 (635708)
C1, C2 Capacitor CER Disc, 50V (MIN)1PFTO8200 2 (65001215)
C25-29, 12, 29, 23, 24 Capacitor CER 0.1MF 50V 14 65001345
CR7-13 Diode IN4148 7 65003701
CR14-38, CR1-6 Diode Zener 1N5231B 5.1V 31 (65003870)
R92 Resistor 1/4W 10% 4.7 OHM 1 (65007917)
R108 Resistor 1/4W 10% 100 OHM 1 (65007949)
R109 Resistor 1/4W 10% 220 OHM 1 (65007957)
R93-98, R78-84, R86-91 Resistor 1/4W 10% 330 OHM 19 (65007961)
R64-75 Resistor 1/4W 10% 560 OHM 12 (65007967)
R77, R85 Resistor 1/4W 10% 2.7 K 2 (65007983)
R99 Resistor 1/4W 10% 4.7 K 1 (65007989)
R105 Resistor 1/4W 10% 5.6 K 1 (65007991)
R100-104 Resistor 1/4W 10% 10 K 5 (65007997)
R106 Resistor 1/4W 10% 22 K 1 65008006
R107 Resistor 1/4W 10% 39 K 1 (65008012)
R110, 111 Resistor 1/4W 10% 100 K 2 (65008022)
Q2 Transistor, NPN 600MW PN2222 1 (650084)
L1, L2 Inductor Ferrite 2 (65030005)
TP1 Terminal Test PT .067-078 1 (65033601)
U24 IC, Quad OP AMP LM324 1 (650358)
Q1 Transistor PNP 625 MW 1 (650369)
P7 Header, 3 Position 1" 1 (65045403)
(U23) Socket IC Carrier 28PI 1 (65051802)
P1 Header, .100CTRS, 11CKT, FL RTANG 1 (65053001)
C7, C22 Capacitor 2.2UFD 25V Tantalum 2 (65058303)
C6, 13, 30, 31 Capacitor 22UFD 25V Tantalum 4 (65058309)
C21 Capacitor 47.0 UF, 25V, Tantalum 1 (65058311)
U19 IC Micropower Monitor & WDT 1 (650585)
U9, 10, 14, 15, 17 IC, 3 State OCT Latch 74HC373 5 (650611)
U18 IC, Nand 2-IN Quad 74HCOO 1 (650612)
U21, 22 IC, Decoder 1-of-8 74HC238 2 (650613)
U20 Socket, DIP, 28POS, Ultra Low Prole 1 (65062210)
W1, (Y1) Wire, A.I. 4 (65062503)
U11 IC. Decoder 3 to 8 Line DIP16 74HC138 1 (650699)
U20 IC. Clock and 64K Ram DS1243Y 1 650718
Y1 Crystal, 11.0592 MHZ 1 (650721)
R76 POT, 100K OHM 1/4" Single Turn 1 (65073914)
P2 Header, Low Prole 24 POS. 1 (65087224)
DS76, -83, 65, 67, 69, 71 LED, Clear Red Super Bright 12 (650910)
P5, P6 Socket, ELEV Term Strip, 14 CKTS 1 (65102914)
U16 IC, Microcontroller, 80C32 1 (651031)
RT1 Thermistor, 5%, 6.8K, 3980 1 (65114906)
U2 IC, Converter DC/DC Volt (LT 1026) 1 (651455)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
7 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)

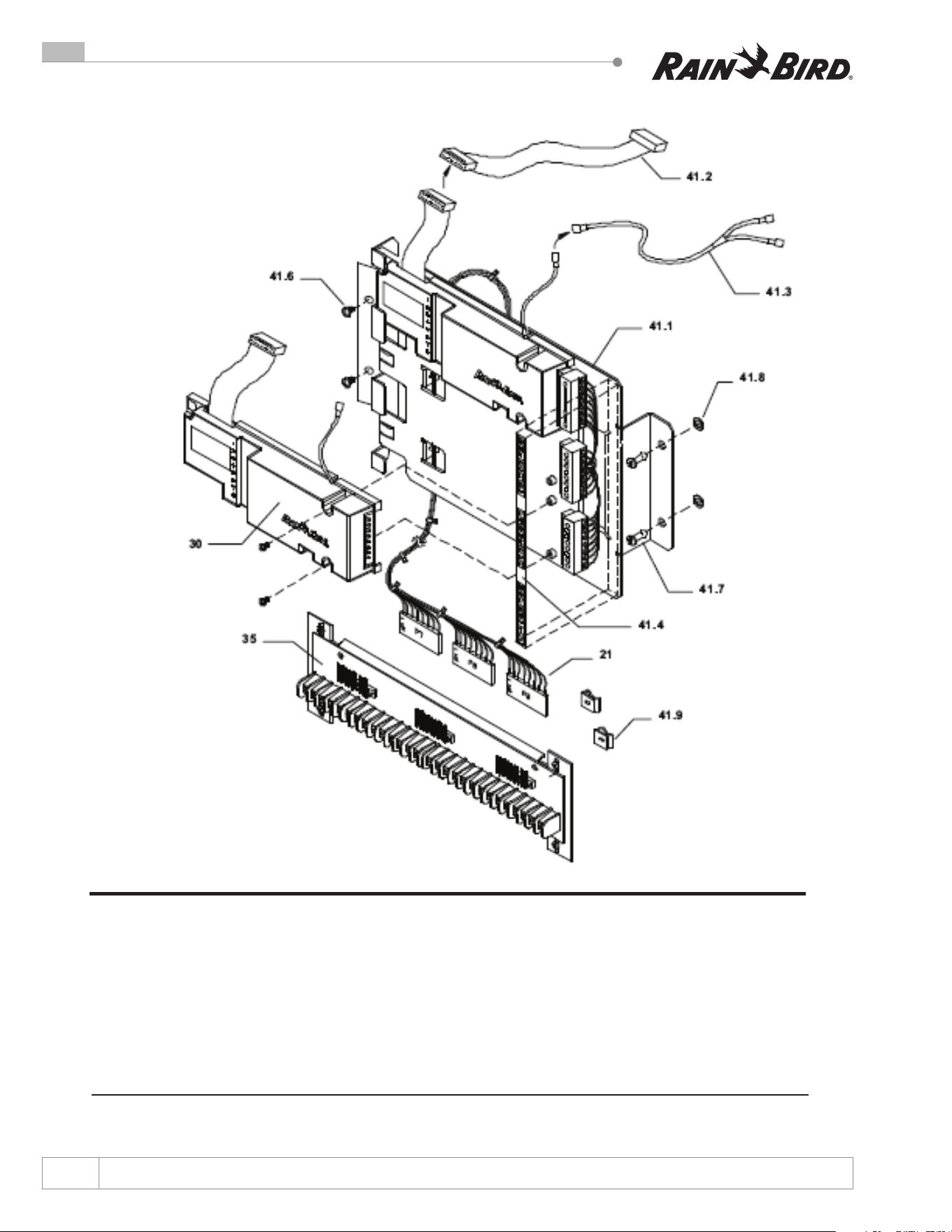

Ref. Part Description Qty. PAR+ES
41 PAR+ES UPGRADE KIT HP5050
41.1 Bracket, Mounting Steel, 72 STA (A) 1 (635542)
41.2 Cable Harness Assy 1 635569
41.3 Cable Assembly, Y 1 (635599)
41.4 Label, ST I.D., 72 STA 1 (635638)
41.5 Cable Tie, Nylon 7/8 Bundle 2 (650131)
41.6 Screw, Pan HD, #10 X 1/4" 2 (65075457)
41.7 Stud Phillips, Oval Steel 2 (651511)
41.8 Retainer, Black Nylon 2 (651512)
41.9 Receptacle, 1/4 Turn Steel 2 (651597)
21 HARNESS ASSY TERMINAL BRD STA 49-72 1 H60351
35 BRACKET-BOARD ASSY STA 49-72 1 H60361
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
8 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)

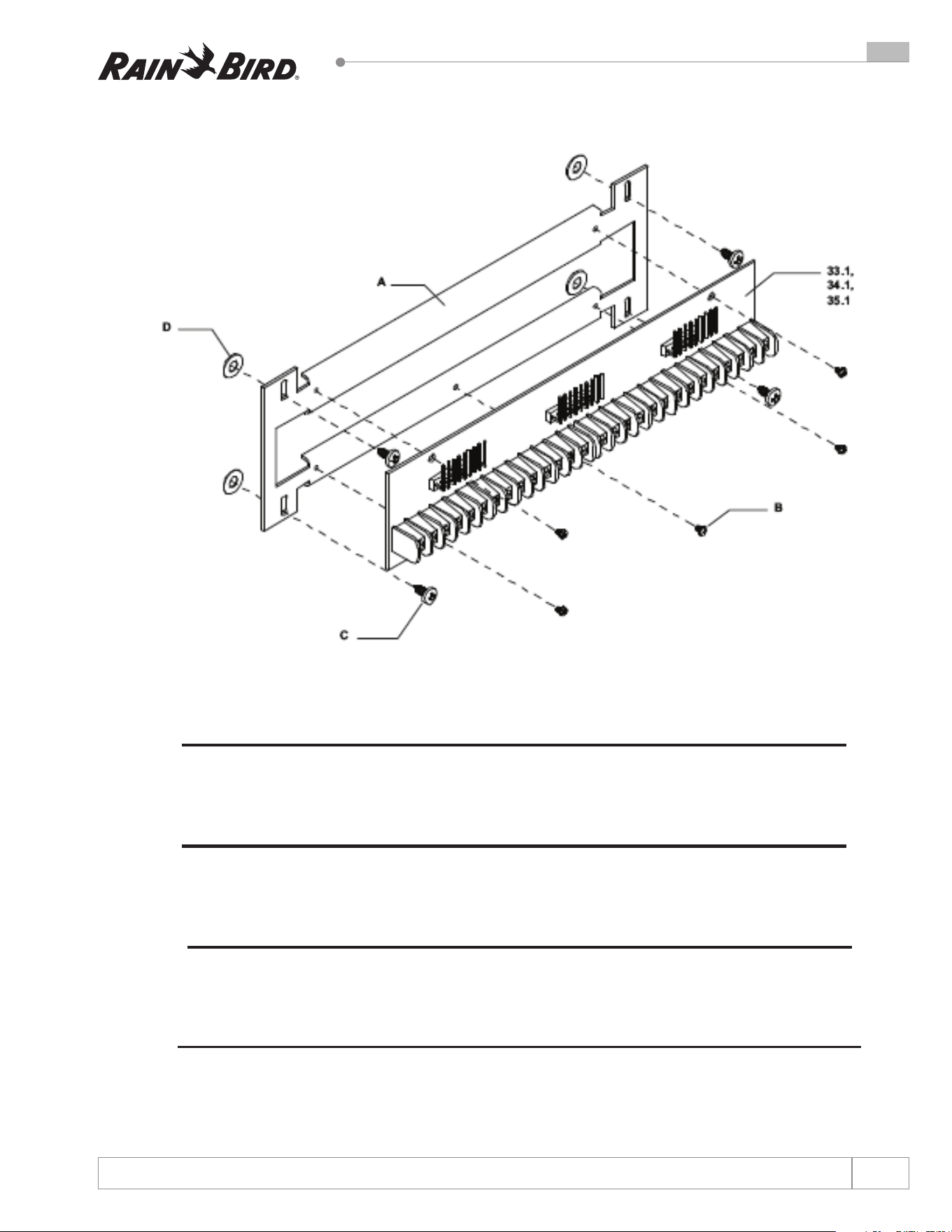

Ref. Part Description Qty. PAR+ES
33 TERMINAL BOARD ASSEMBLY STA 1-24 H60311
33.1 PWB Assy PAR+ Term BRD 1-24 (A) 1 (635121)
A Plate, Terminal Strip, STE 1 (635217)
B Screw 6-32 X 3/8 5 (65010528)
C Screw, Captive Panel PAN 4 (65151706)
D Washer, Panel Screw Retainer 4 (65151806)
34 TERMINAL BOARD ASSEMBLY STA 25-48 H60321
34.1 PWB Assy PAR+ Term BRD 25-48 (A) 1 (635124)
A Plate, Terminal Strip, STE 1 (635217)
B Screw 6-32 X 3/8 5 (65010528)
C Screw, Captive Panel PAN 4 (65151706)
D Washer, Panel Screw Retainer 4 (65151806)
35 TERMINAL BOARD ASSEMBLY STA 49-72 H60361
35.1 PWB Assy PAR+ Term Brd 49-72 (A) 1 (635560)
A Plate, Terminal Strip, STE 1 (635217)
B Screw 6-32 X 3/8 5 (65010528)
C Screw, Captive Panel PAN 4 (65151706)
D Washer, Panel Screw Retainer 4 (65151806)
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
9 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES
19 HARNESS ASSY TERMINAL BOARD STA 1-24 1 (H60331)
20 HARNESS ASSY TERMINAL BOARD STA 25-48 1 (H60341)
21 HARNESS ASSY TERMINAL BOARD STA 49-72 1 (H60351)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
10 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)

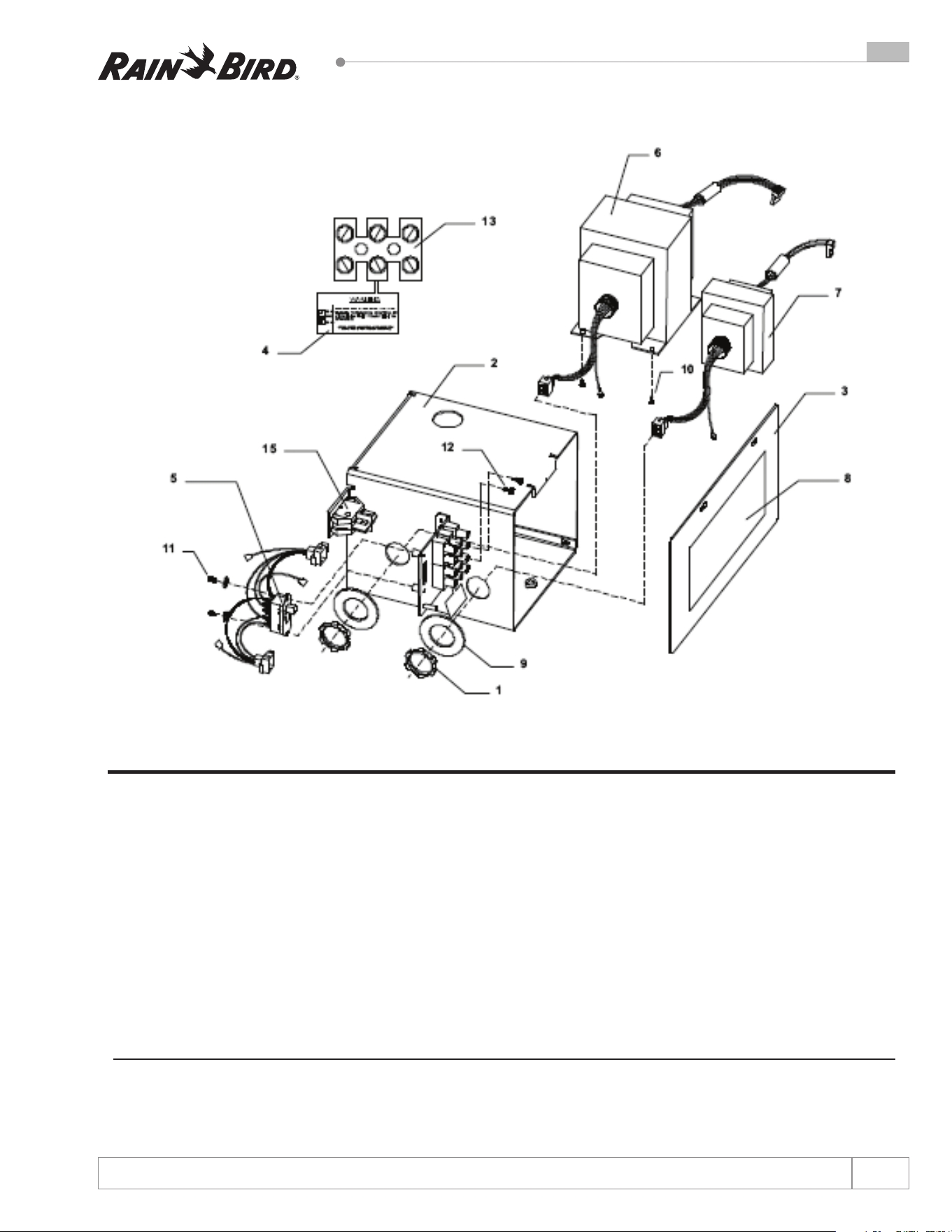

Ref. Part Description Qty. PAR+ES PAR+ES (LINK)
22 POWER SUPPLY PAR+/MSC+ 63522401
23 POWER SUPPLY PAR+/MSC+ LINK (63522402)
1 Locknut Conduit 1(2) (628013) (628013)
2 Box, XFMR, Steel 1 (635113) (635113S)
3 Cover, XFRM Steel 1 (635114) (635114S)
4 Label, PWR Supp. 1 (635154) (635154)
5 Switch, Voltage Selector 1 (633204) (635204S)
6 TRANSFORMER CONNECTOR ASSY 1 633252 633252
7 TRANSFORMER CONNECTOR ASSY LINK 0(1) 633254
8 Label, Cover Steel XFMR 1 (635226) (635226S)
9 Washer, Flat 7/8" .090 1(2) (65002343) (65002343)
10 Screw, SCFTPG, PNH, #8-18.375L 4 (65010441) (65010441)
11 Screw 4-40 3/8L PN HD 2 (65010515) (65010515)
12 Screw 8-32 2 (65010548) (65010548)
13 Terminal Block Double Row 1 (65149503) (65149503)
14 Terminal Block Double Row Male 1 (65149603) (65149603)
15 Switch, DPST, Rocker With (A) 1 (651503) (651503)
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
11 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
12 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES

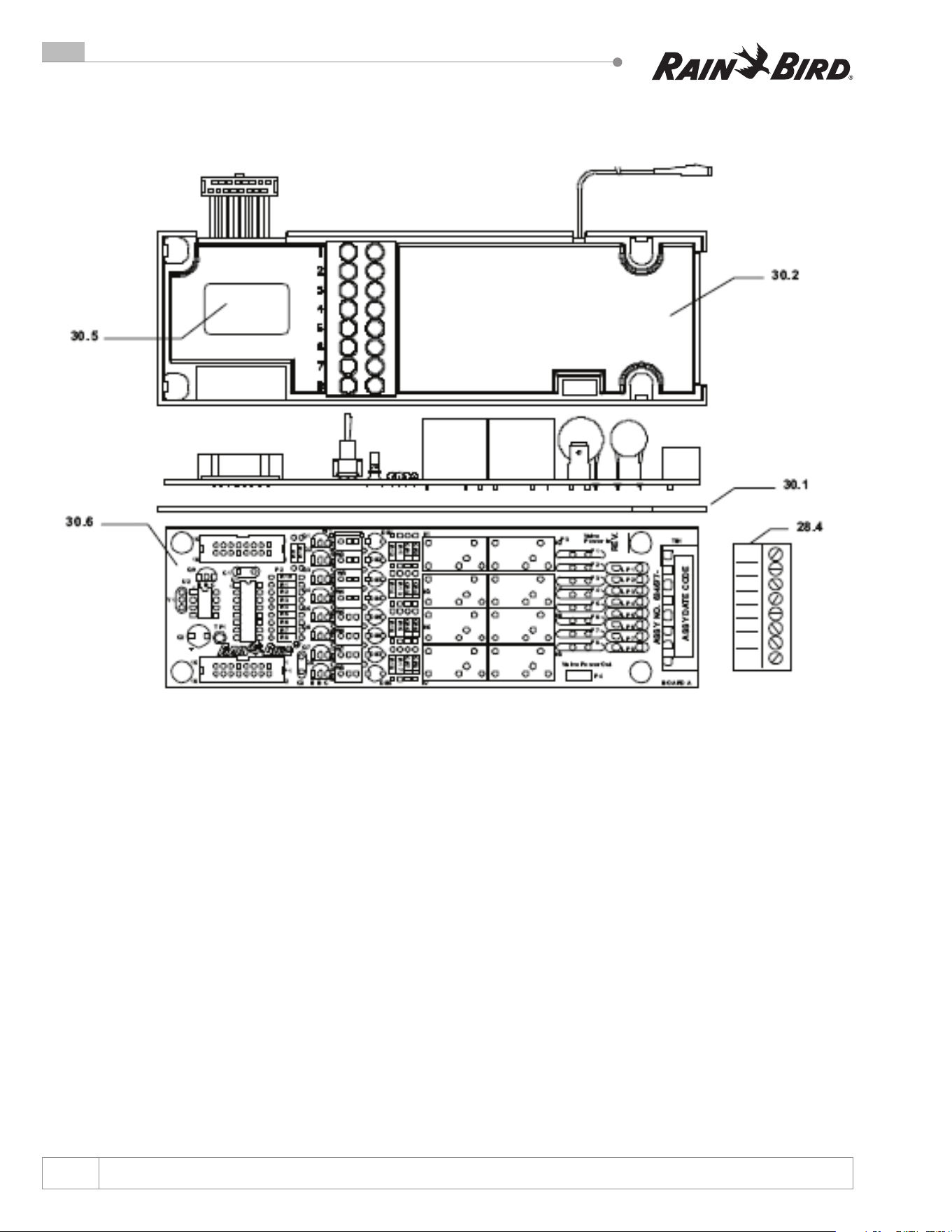

30 OUTPUT STATION MODULE /W SW HA0200
30.1 Shield, Insul., U.L.94V0, OSM PWB 1 633852
30.2 Cover, Output Station Module 1 (63464402)
30.3 Screw, MACH PNH #6-32 2 (65048012)
30.4 Connector, Terminal Block 1 (65103408)
30.5 Label, Switch Positon 1 (634680)
30.6 PWB Assy Output ST MOD (OSM) (A) 1 (63467701)
P2 Ribbon Cable Assy PAR/MSC+ 1 633245
P3 Cable, Value Power-PAR/MSC+ 1 (633247)
U2 SW Assy, OSM V01 1 634672
C1, C3 Capacitor Ceramic Disc 0.1MF 50V 2 (65001345)
CR-1-CR8 Diode IN4148 8 (65003701)
R11-R18 Resistor 1/4W 10% 2.2K 8 (65007981)
R19 Resistor 1/4W 10% 3.3K 1 (65007985)
R1-R8 Resistor 1/4W 10% 4.7K 8 (65007989)
R10 Resistor 1.4W 10% 5.6K 1 (65007991)
R9 Resistor 1/4W 10% 22K 1 65008006
Q1-Q8 Transistor, NPN 600MW PN2222 8 (650084)
P4 Terminal Q.Disk Male 1 (650138)
TP1 Terminal Test PT .067-078 1 (65033601)
Q9 Transistor PNP 625 MW 1 (650369)
C2 Capacitor Tantalum 22UFD 25V 1 (65058309)
SW1-SW8 Sub-Miniature Toggle SWI 8 (651414)
K1-K8 Relay, SPDT, Small 5A 9V 8 (65072503)
P1 Header .100 CTR 16 CKT 1 (65087216)
U1 IC 8 BIT Latch ADDR 74HC259 8 BIT 1 (650889)
TB1 Socket, Horizontal 8 CRKT 1 (65090008)
DS1-DS8 LED, Clear Red Super Bright 8 (650910)
F1-F8 Fuse, Self Resetting, 1.85AMPS 8 (65112405)
Y1 Resonator, Ceramic 10MHZ 1 (651445)
LP1-LP8 MOV, 47 V, 1000A 8 (651467)
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
13 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
26.3
26.1
26.4
26.5
19"
0.50"
26.2
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
14 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES

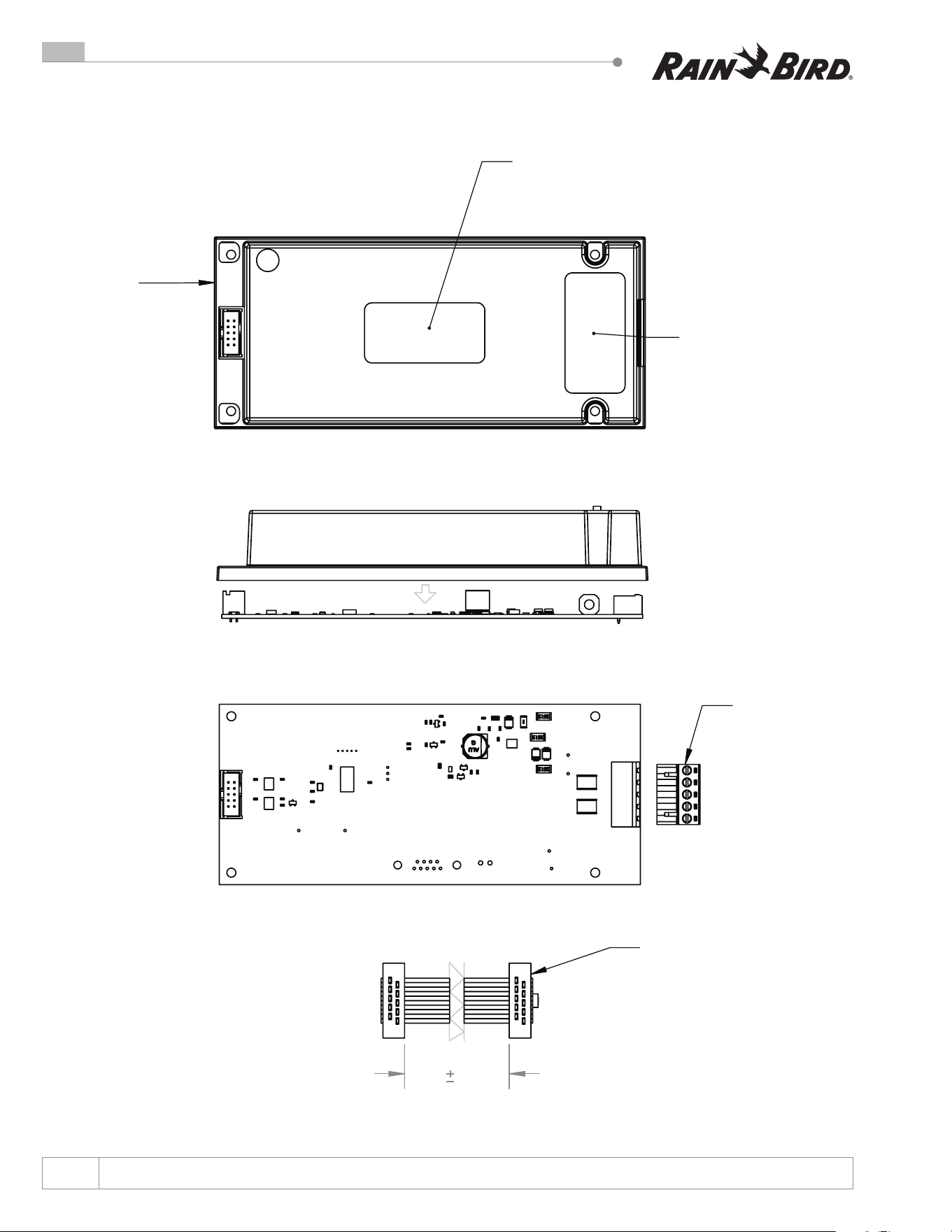

26 IFX Two-Wire Board* H44510
26.1 Cover, Interface TWB 1 (633207)
26.2 Cable, Harness Assy 1 634875
26.3 Connector, Terminal Block 1 (65103405)
26.4 Label, IFX 2-wire 1 (633668)
26.5 Label, IFX Connected 4 (639798)
26.6 PCB IFX 2W (A) 1 (639645)
26.7 Screw, #4-40 X 1/4" PH 4 (65048001)
* Compatible with all MSC+, PAR+ and PAR+ES Satellites.
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
15 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
27.6
27.4
27.3
19"
0.50"
27.5
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
16 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES
27 IFX Link (Radio) Board* H44560
27.1 Assy, IFX Link Board 1 (634935)
27.2 Screw, #4-40 X 1.4" PH 4 (65048001)
27.3 Label, IFX Link 1 (639799)
27.4 Cover, PCB+ Link 1 (633231)
27.5 Cable Harness Assy 1 634875
27.6 PCB IFX Wireless (A) 1 (639648)
* Compatible with all MSC+, PAR+ and PAR+ES Satellites.
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
17 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
18 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES
36 TWO WIRE PIPE SURGE PROTECTOR (MSP-1) D05110
Ref. Part Description Qty. PAR+ES

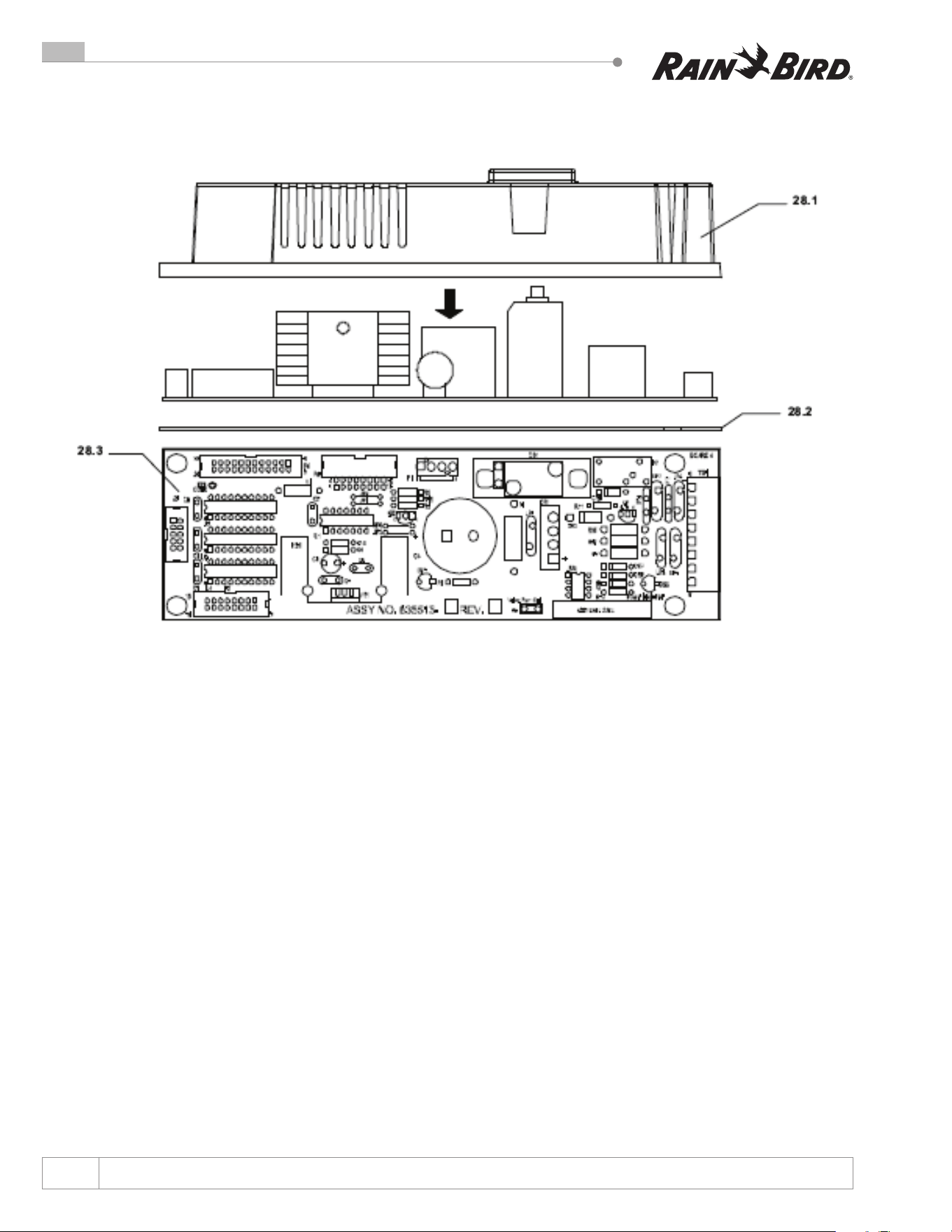

28 INTERCONNECT/PWR SUP SUB-ASSY PAR+ES 63322603
28.1 Cover, Intcon PWB-PAR/MSC+ 1 (633208)
28.2 Shield, Insul, U.L.94-V0, P/I-PWB (A) 1 (633851)
28.3 PWB Power Interface Assy (A) 1 (63551301)
C1, 2, 5, 7, 8 Capacitor CER 0.1MF 50V 6 (65001345)
LP1 MOV 33Volts 500AMPS 1 (650015)
(VR1) Washer, Flat #5 .010 1 (65002303)
CR3, 6, 7, 8 Diode IN4148 4 (65003701)
R1 Resistor 1/4W 10% 560 OHM 1 (65007967)
R11, 12 Resistor 1/4W 10% 4.7K 2 (65007989)
R4, 14, 15 Resistor 1/4W 10% 5.6K 4 (65007991)
Q1 Transistor, NPN 600MW PN2222 1 (650084)
R3 Resistor, 10K-5%, 1/4W, C Film 1 (65013597)
P5 Terminal Q.Disk Male 1 (650138)
(VR1) Rivet Blind 1/8 X .328 1 (65013905)
R2, 10, 13 Resistor 1.2W 10% 2K 3 (65020280)
U2 IC OPTO-Coupler MCT6 1 (650253)
L1 Inductor Ferrite 1 (65030005)
Q2 Transistor PNP 625 MW 1 (650369)
U1 IC, Inverter 74HC14 1 (650540)
CR1 Bridge Rectier, 50V 4AMP SIP 1 (65058101)
C2 Capacitor 22UFD 25V Tantalum 1 (65058309)
CR2 Transient Suppressor 18V 1 (65059522)
U4 IC, 3 State OCT Latch, 74HC373 2 (650611)
J1, 2, 3, 4 Wire, A.I. 4 (65062503)
K1 Relay, SPDT, Small 5A 9V 1 (65072503)
VR1 IC LM2940-5.0 1 (650733)
P3 Header .100CTR, 10CKT, LO Prol 1 (65087210)
P2 Header .100 CTR 16 CKT 1 (65087216)
P4 Header, Low Prole 24 POS. 1 (65087224)
LP2, 3, 4, 5 Mov, 47 Volts 1000 AMPS 4 (650875)
P1 Header, St. SQ PIN 4 POS. 1 (65089304)
TB1 Socket, Horizontal 8 CRKT 1 (65090008)
F1 Fuse, Slow Blow, 250V, 2.50A, 2AG 1 (65090510)
DSI, DS2 Led, Clear Red Super Bright 2 (650910)
C4 Capacitor, Low Prole 1 (650950)
HS1 Heatsink, Platic, High Perform 1 (651019)
CB1 Circuit Breaker, 6.00 AMPS 1 (65103222)
P6 Header, Low Prole R Angle 1 (65105005)
PT1, PT2 Fuse, Self Resetting, 1.85AMPS 2 (65112405)
U5 IC Buer 74HC244 1 (651590)
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
19 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Par t Description Q ty. PAR+ES

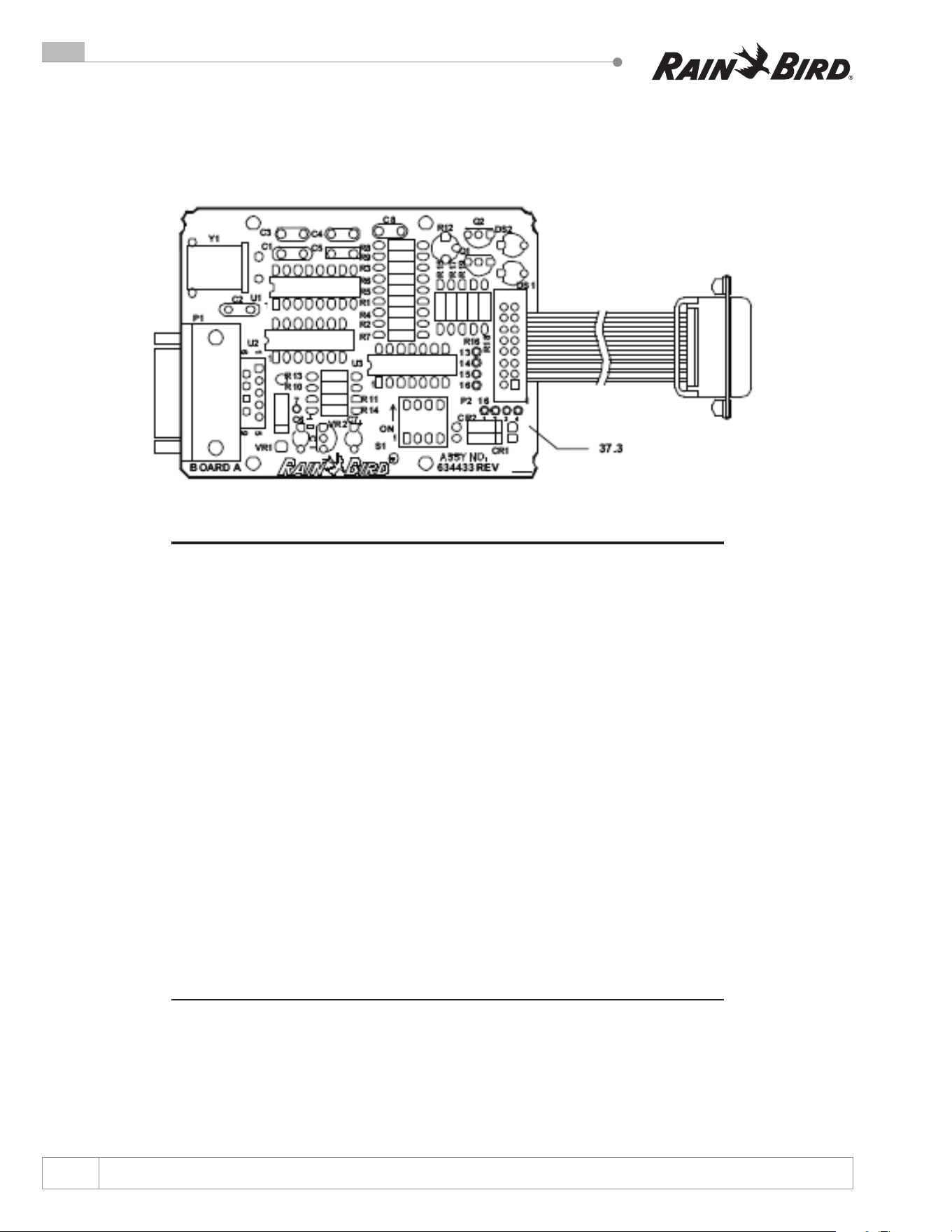

37.3 ASSY WIRELESS MODEM 634433
C5 Cap RAD .33MFD 50V 1 (626408)
P2 Cable Assy. Combox 1 (632367)
C1, 3 Capacitor CER Disc, 50V(MIN) 1PFTO8200 2 (65001210)
C2, 4, 8 Capacitor CER 0.1MF 50V 3 (65001345)
CR1 Diode 1N4002 1 (65007702)
R15, 16 Resistor 1/4W 10% 470 OHM 2 (65007965)
R17, 18 Resistor 1/4W 10% 4.7 K 2 (65007989)
R5 Resistor 1/4W 10% 10 K 1 (65007997)
R3 Resistor 1/4W 10% 20 K 1 (65008005)
R1,2,7,10,11,13,14,19 Resistor 1/4W 10% 47 K 8 (65008014)
R6 Resistor 1/4W 10% 56 K 1 (65008016)
R4 Resistor 1/4W 10% 100 K 1 (65008022)
(U1) Socket, Dip, Low Prole 16 Pins 1 (65008103)
Q1, Q2 Transistor, NPN 600MW PN2222 2 (650084)
U2 IC, Inverter 74HC14 1 (650540)
C7 Capacitor 2.2UFD 25V Tantalum 1 (65058303)
C6 Capacitor 22UFD 25V Tantalum 1 65058309
VR1 Transient Suppressor 18V 1 65059522
(CR2) Wire, A.I. 1 (65062503)
R12 POT, 10K OHM 1/4" Single Turn 1 (65073910)
Y1 Crystal, 3.579545 MHZ 1 (650759)
DS1, 2 Led, Clear Red Super Bright 2 (650910)
U3 IC Quad 2-input EX-OR 1 (650937)
VR2 Voltage Regulator 1 650938
P1 Connector Plug Right Angle PC 1 (65113002)
U1 IC, M X 614 1200 BPS 1 651141
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
20 of 21
026 Catalog Number
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
Ref. Part Description Qty. PAR+ES(LINK) PAR+ES(TWO WIRE)

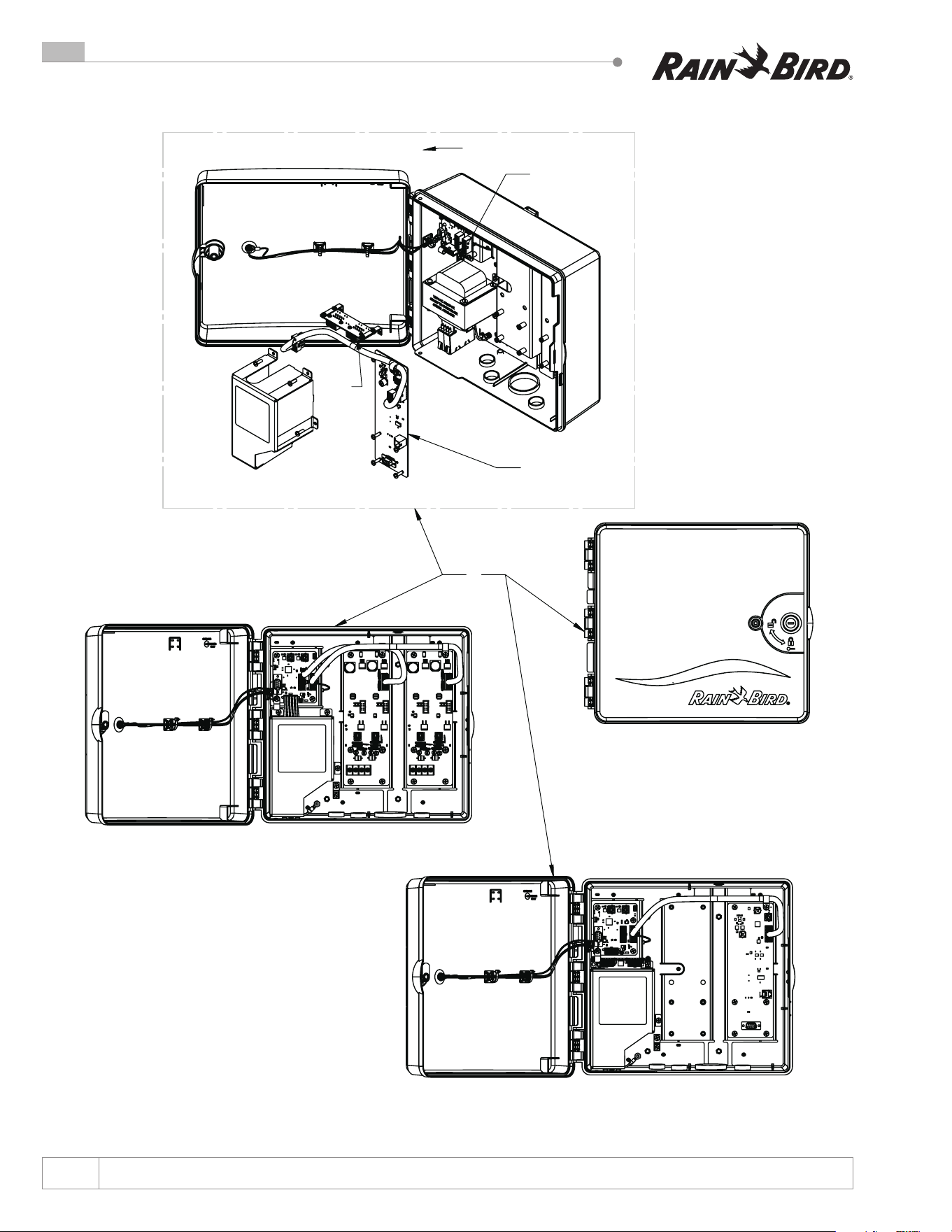

47 DIB BRACKET ASSY 1 (63586701)
47 DIB BRACKET ASSY 1 (63586702)
47.1 Plate, DIB Mount, Steel 1 (636078) (636078)
47.2 Label, Two Wire Terminal Block (0)1 (635228)
47.3 Screw 6-32 X 3/8 2 (65010528)
47.4 Jumper 2 Position 2 (651516)
47.5 Terminal Block (4 Circu) 1 (651501S)
47.6 Rivet Blink 4 (65042213) (65042213)
47.7 Lug, Single Barrel, Coper, Two HL 1 (650892) (650892)
47.8 Label, Ground Symbol (IEC-509) 1 (651037) (651037)
47.9 Lug, Single Barrel, Copper Two 1 (65135002) (65135002)
47.10 Stud Phillips, Oval Steel 4 (651511) (651511)
47.11 Retainer, Black Nylon 4 (651512) (651512)
47.12 Washer, Flat #10 .032 4 (65002313) (65002313)
47.13 Screw, #8-32 X 3/8" PHIL 4 (65048027) (65048027)
48 DECODER INTERFACE BOARD (DIB) 1 636104 636104S
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
21 of 21
Catalog Number 026
Golf Satellite Controller
CONTROLLER ASSEMBLY WITH PEDESTAL (PAR+ES)
3
2
4
5
1
ICI+ LINK CONFIGURATION WITH ONE LINK OUTPUT BOARD
ICI+ CONFIGURATION WITH TWO ICI+ (ONLY) DRIVER BOARDS
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
027 Catalog Number
Field Interfaces
INTEGRATED CONTROL INTERFACE PLUS (ICI+) AND ICI+ LINK
3
2
4
3
2
4
2
Ref. Par t Description Qty. P/N

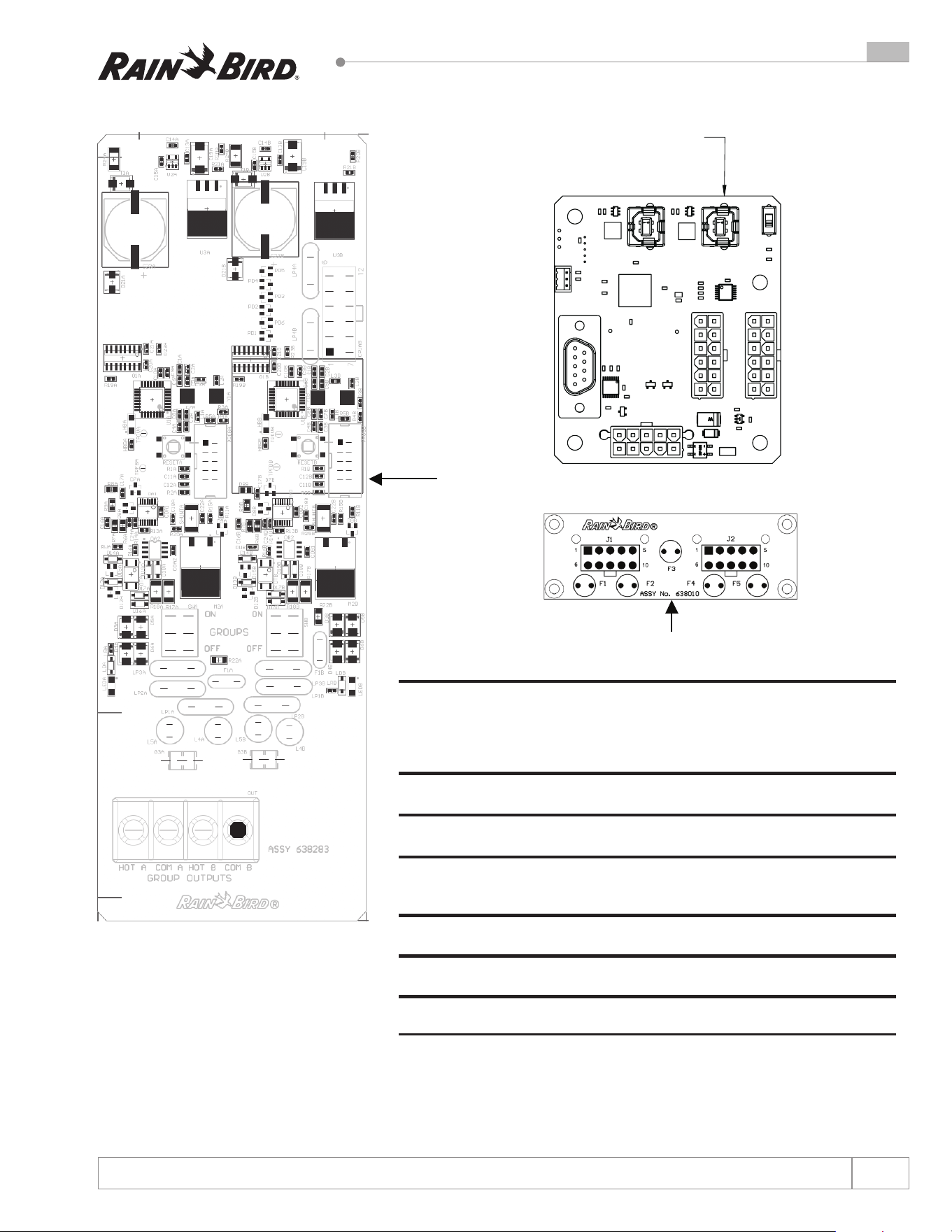

INTEGRATED CONTROL INTERFACE PLUS (ICI+)
1 ICI+ 120 VAC 1 HS6020
1 ICI+ 230 VAC 1 HS6085
1 ICI+ 100 VAC 1 HS6090
1 ICI+ LINK 1 HS6099
CPU BOARDS - ICI+
*
2 ICI+ CPU BOARD (A) 1 214112
CPU BOARDS - ICI
*
2 ICI CPU BOARD (A) 1 213045
DRIVER BOARDS - ICI+
*
3 ICI+ DRIVER BOARD 2WP 1 214111
3 ICI+ LINK OUTPUT BOARD (A) 1 214110
DRIVER BOARDS - ICI
*
3 ICI DRIVER BOARD 2WP 1 213046S
FUSE BOARD
4 ICI FUSE BOARD (All) 1 -638010
KEYS
5 ICI KEY (No. CH751) 2 -
(A) Product is available through the Production & Service Center (gsplabrequests@rainbird.com).
* Boards are specific to ICI or ICI+ and are not interchangeable
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
Catalog Number 027
Field Interfaces
INTEGRATED CONTROL INTERFACE PLUS (ICI+)
Ref. Par t Description Qty. P/N

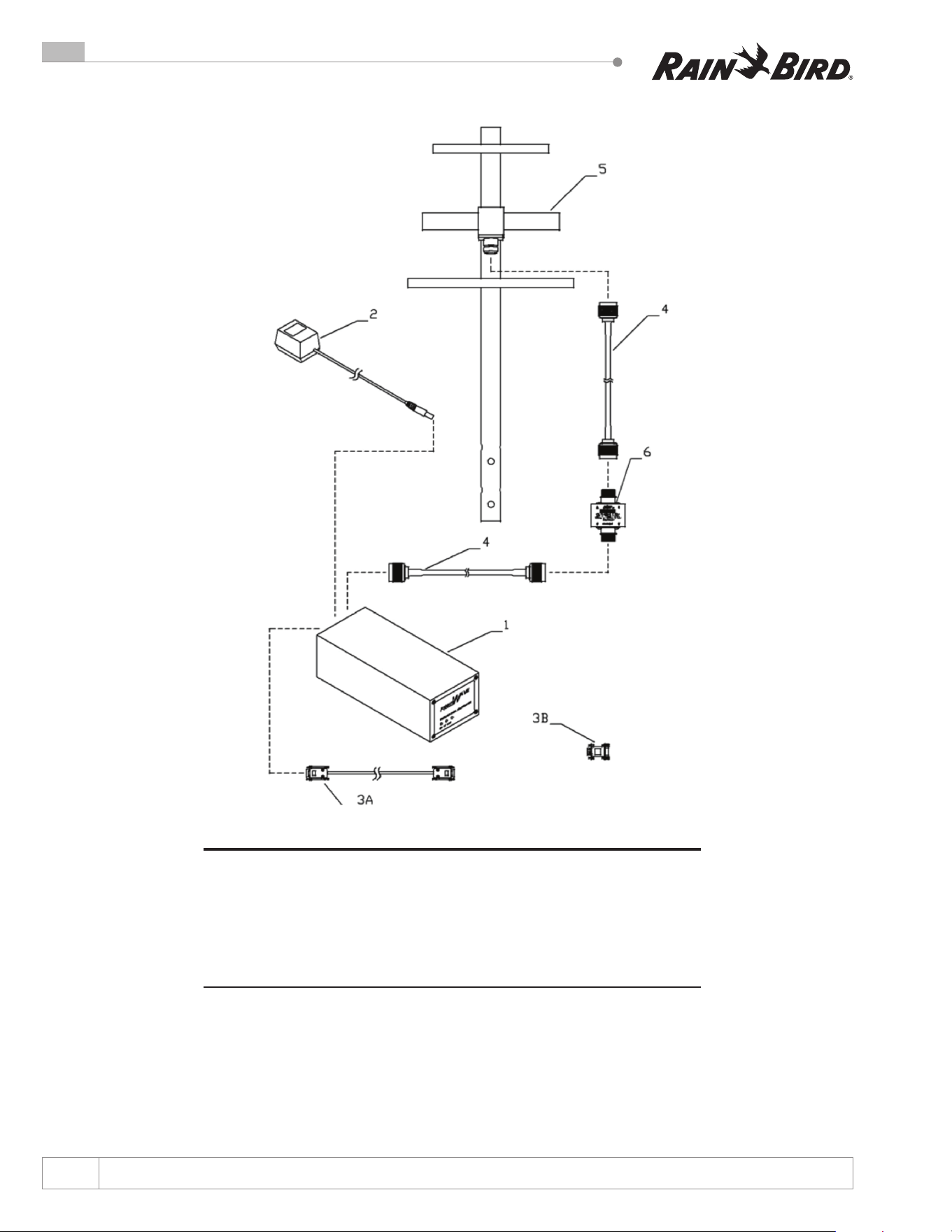

MAXI REMOTE LOCATION KIT HA1000
1 SPREAD SPECTRUM RADIO 2 HA1100
2 TRANSFORMER 2 -
3B NULL MODEM 1 -
3A RS232 INTERFACE CABLE 2 -
4 COAXIAL CABLE 4 -635089
5 YAGI DIRECTIONAL ANTENNA 2 (635090-01)
6 POLY PHASER 2 -635088
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 1
028 Catalog Number
Golf Controller
MAXI REMOTE LOCATION KIT
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 029
Golf Controller

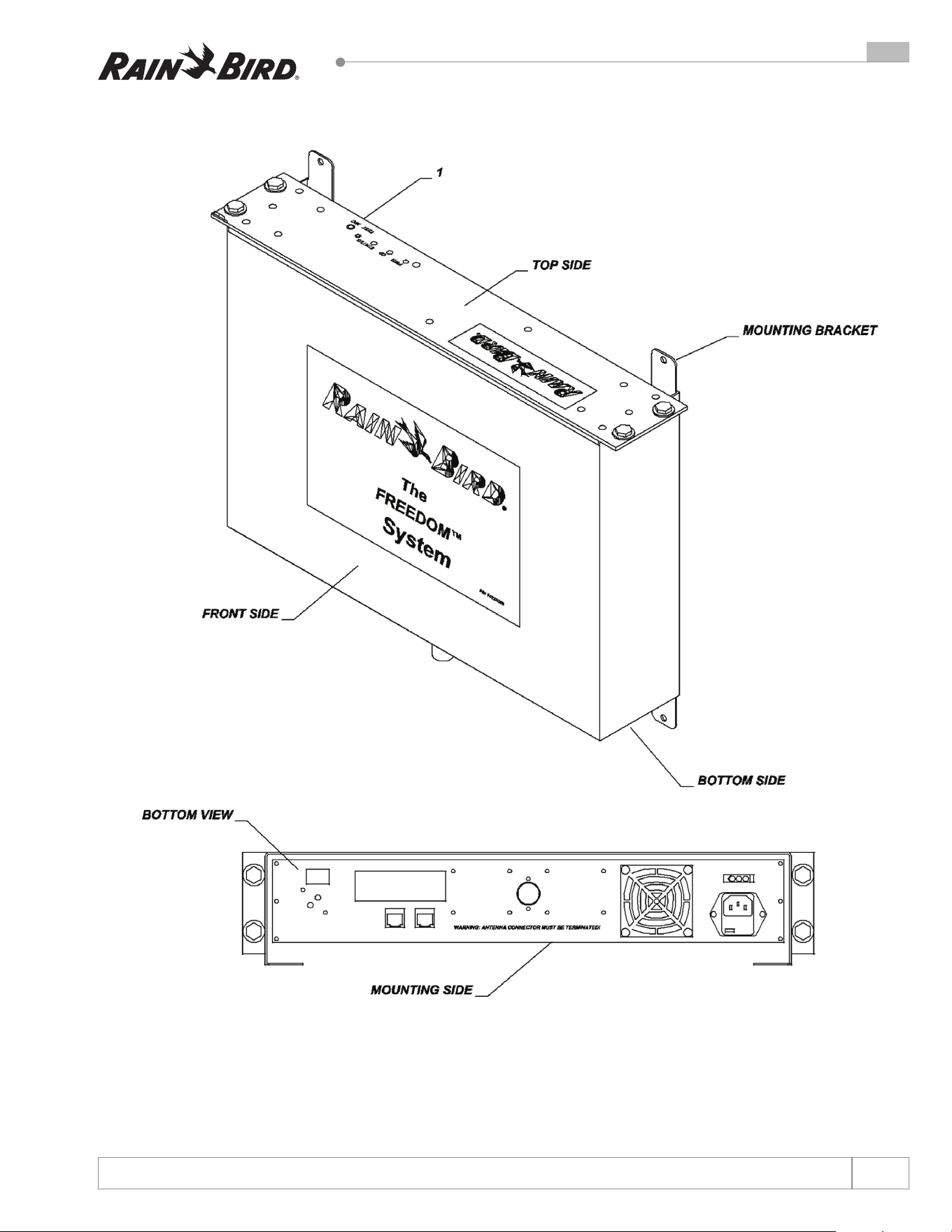

THE FREEDOM SYSTEM™
Ref. Par t Description Qty. P/N

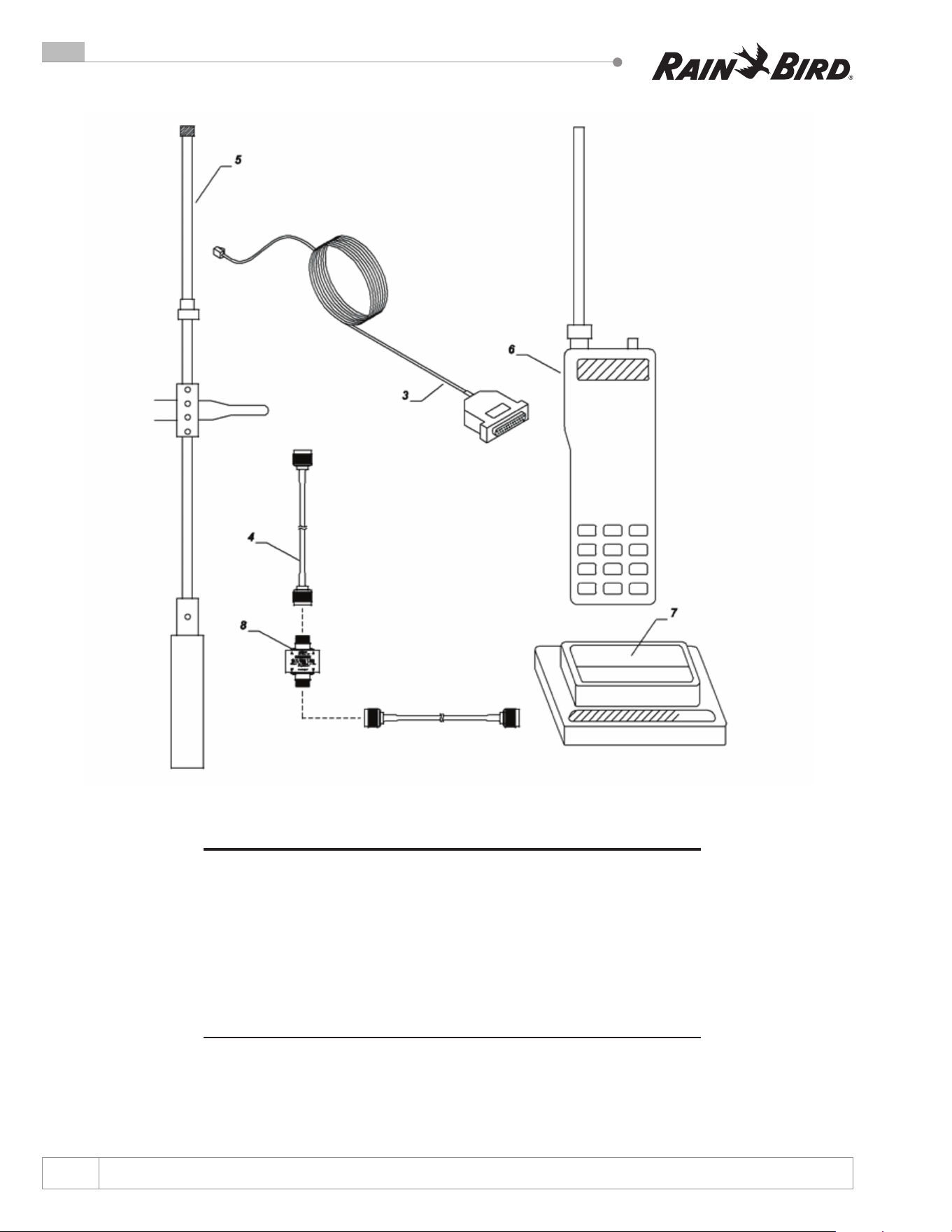

The FREEDOM SYSTEM™ STANDARD FREQUENCY HA1000
Tx: 452.1875 Rx: 457.1875
- SPECIAL FREQUENCY (450 – 470 MHz) – CANADA ONLY - H59504
1 NARROWBAND SYNTHESIZED REPEATER 1 FRX-452
2 AUTOPATCH 1 RP-200
3 COMPUTER CABLE 1 FP-2PC
4 RG-8/N COAXIAL CABLE 2 RAC-02NN
5 2.5 DB ANTENNA 1 ROA-SS
6 HANDHELD WITH DTMF* 1 FTX-454
7 QUICK-RATE CHARGER* 1 FCP-FS
8 POLYPHASER SURGE PROTECTOR 1 HA1100
Note: Requires complete Site Survey and FCC License or Notice of Coordination before
shipping. Distributor wil l be responsible for FCC l icense fees for FREEDOM system.
* Not included with Canadian version of the FREEDOM system.
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
029 Catalog Number
Golf Controller
THE FREEDOM SYSTEM™
