PASTEURIZATION MACHINE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
CORRECT DISPOSAL
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed
through indicates that the product requires separate refuse
collection in the European Union. This applies to the product
and all accessories marked with this symbol. Products marked
as such may not be discarded with normal domestic waste,
but must be taken to a collection point for recycling electrical
and electronic devices
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should be
followed, including the following.
1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking off parts,
and before cleaning.
3. Please check that the specified supply voltage in the product is
consistent with the supply voltage(AC only).
4. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
5. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
6. To protect against electrical hazards, do not put the Drink Mixer in water
or other liquids
7. Avoid contact with moving parts.
8. Do not operate any other electrical equipment with a damaged cord or
- 3 -
plug, or after the unit malfunctions or is dropped or damaged in any
manner. Return it to the nearest authorized service facility for examination,
repair, or adjustment.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter or touch
hot surfaces.
11. Put this instruction manual in a safe place. Do not discard.
12. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
13. Electric Shock Danger! Non-professional personnel are forbidden to
repair the products, otherwise it may result in electrical shock. When
failures happen, it should be repaired by a qualified maintenance
personnel.
14. WARNING! It is strictly prohibited to put the main body of the machine
and the power cord into any liquid. The machine must be fully cool before
cleaning.
15. Do not place the product directly on the fire or near the source of fire,
otherwise the product will be damaged or even result in danger. Once part
of the product is on fire, do not directly use water to extinguish the fire. Use
a wet cloth to cover the fire site.
16. When the plug is plugged into the socket, it must be plugged to the end,
otherwise it will cause the components overheating and burning due to
poor contact.
17. Do not leave the product to work with no one watching. If the machine
is overheating, please stop working immediately and unplug the power.
SAVE THESE INSTRUCTIONS
- 4 -

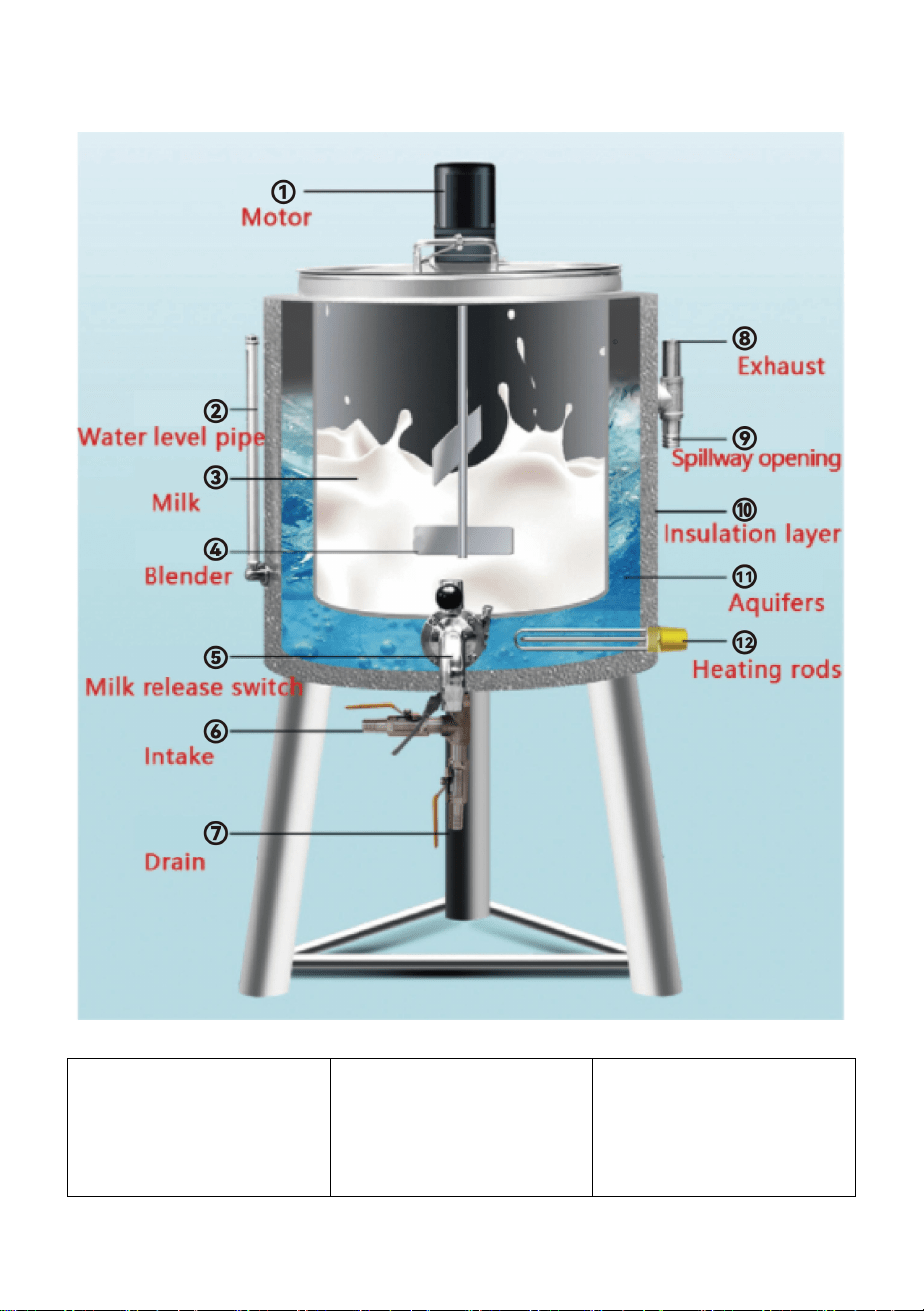

SCHEMATIC OF THE MACHINE
① Motor
② Water level pipe
③ Milk
④Blender
⑤Milk release switch
⑥Intake
⑦Drain
⑧Exhaust
⑨Spillway opening
⑩Insulation layer
⑪Aquifers
⑫Heating rods
- 5 -

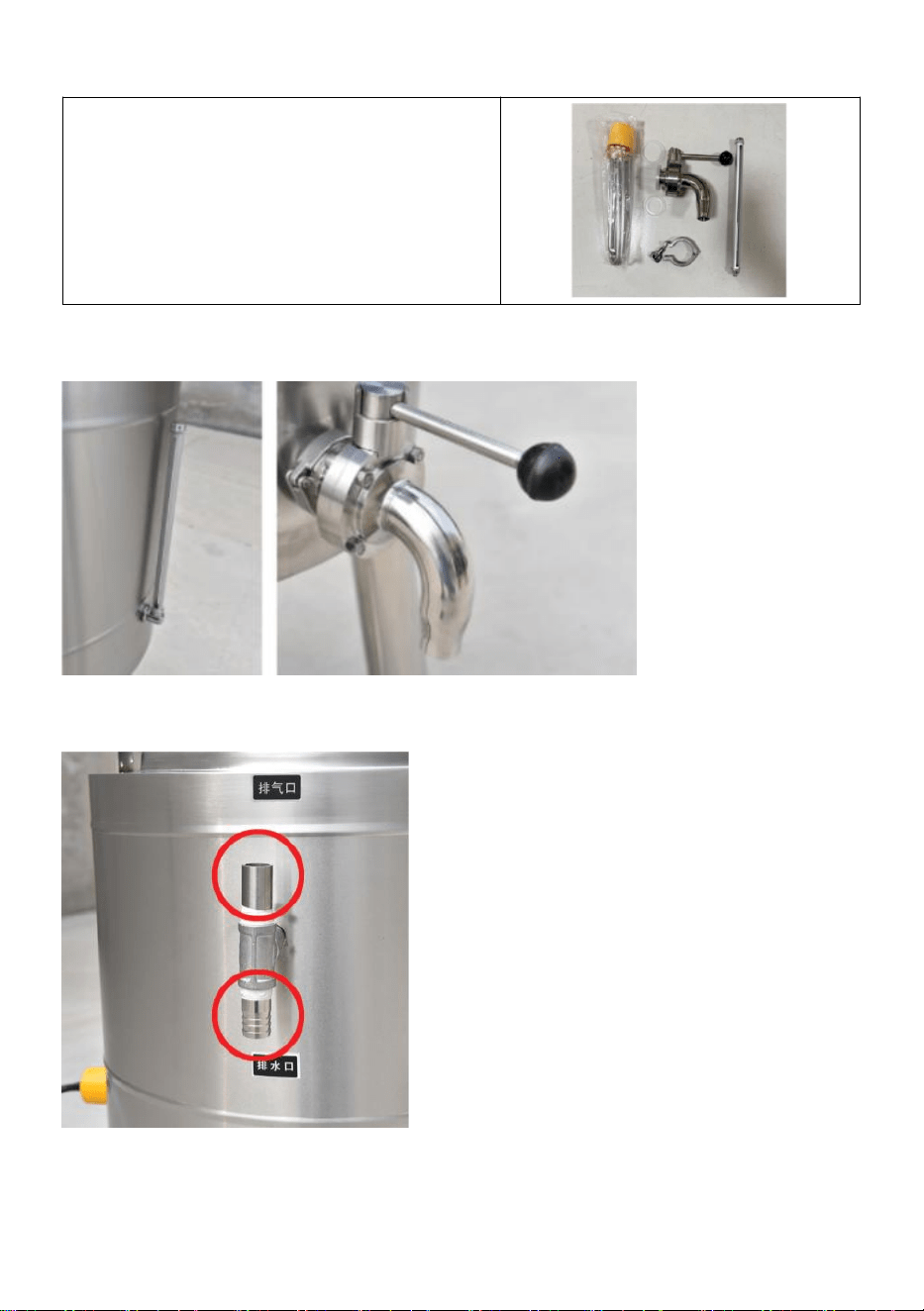

Machine parts
Butterfly valve outlet
Gel pad for milk outlet
Water level pipe
Spare heating tube
Spare heating tube rubber pad
Installation schematic
Water level pipe installation Butterfly valve outlet installation
The side outlet is connected to the 6cmoutlet of the drainage pipe to keep
the outletunobstructed
- 6 -

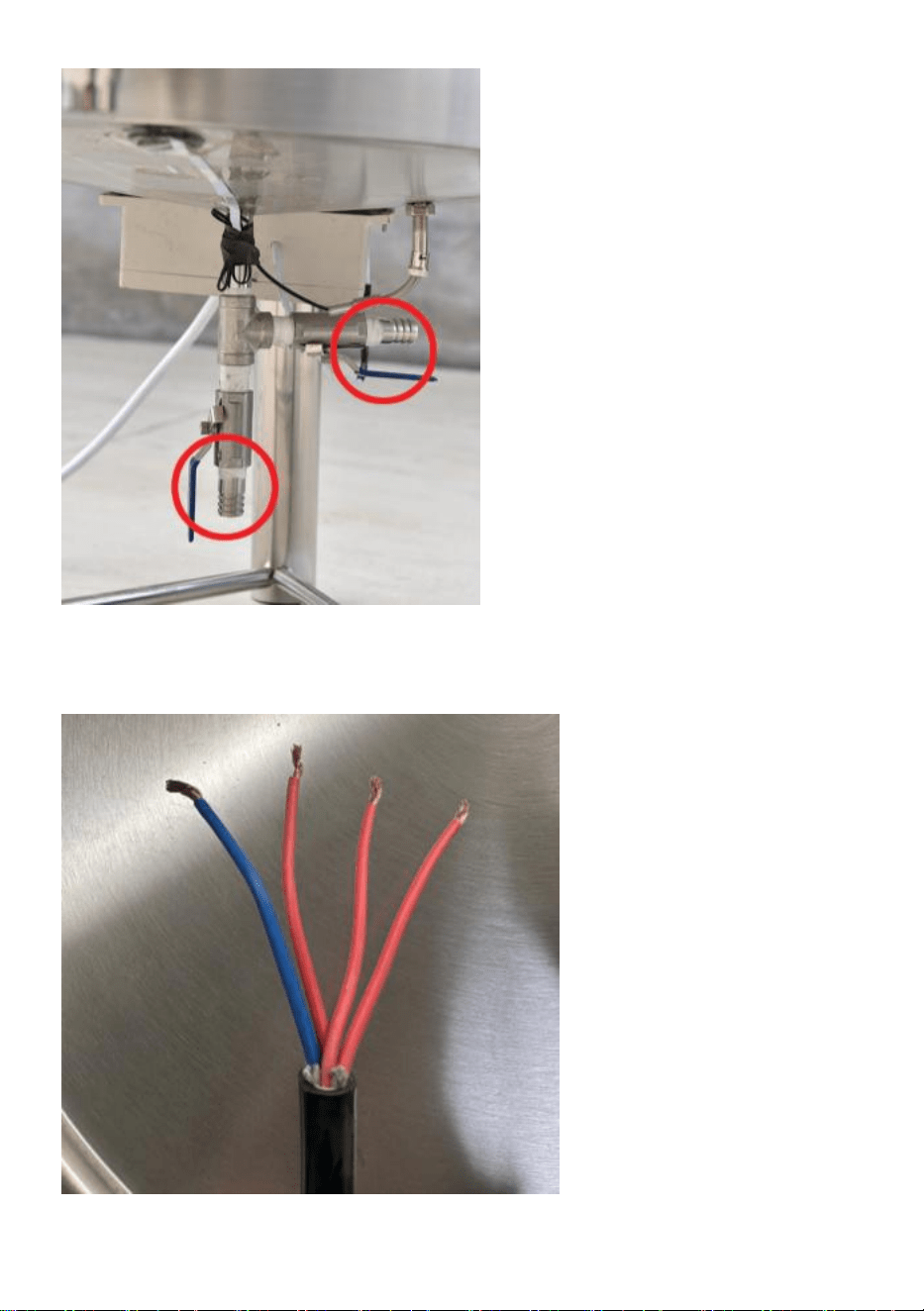

The bottom is transversely connected with a 4cminlet pipe and the bottom
is downward connected with a 4cm drain pipe
- 7 -
The power cord needs to be connected to the air switch three red wires are
the firewire blue is the zero wire

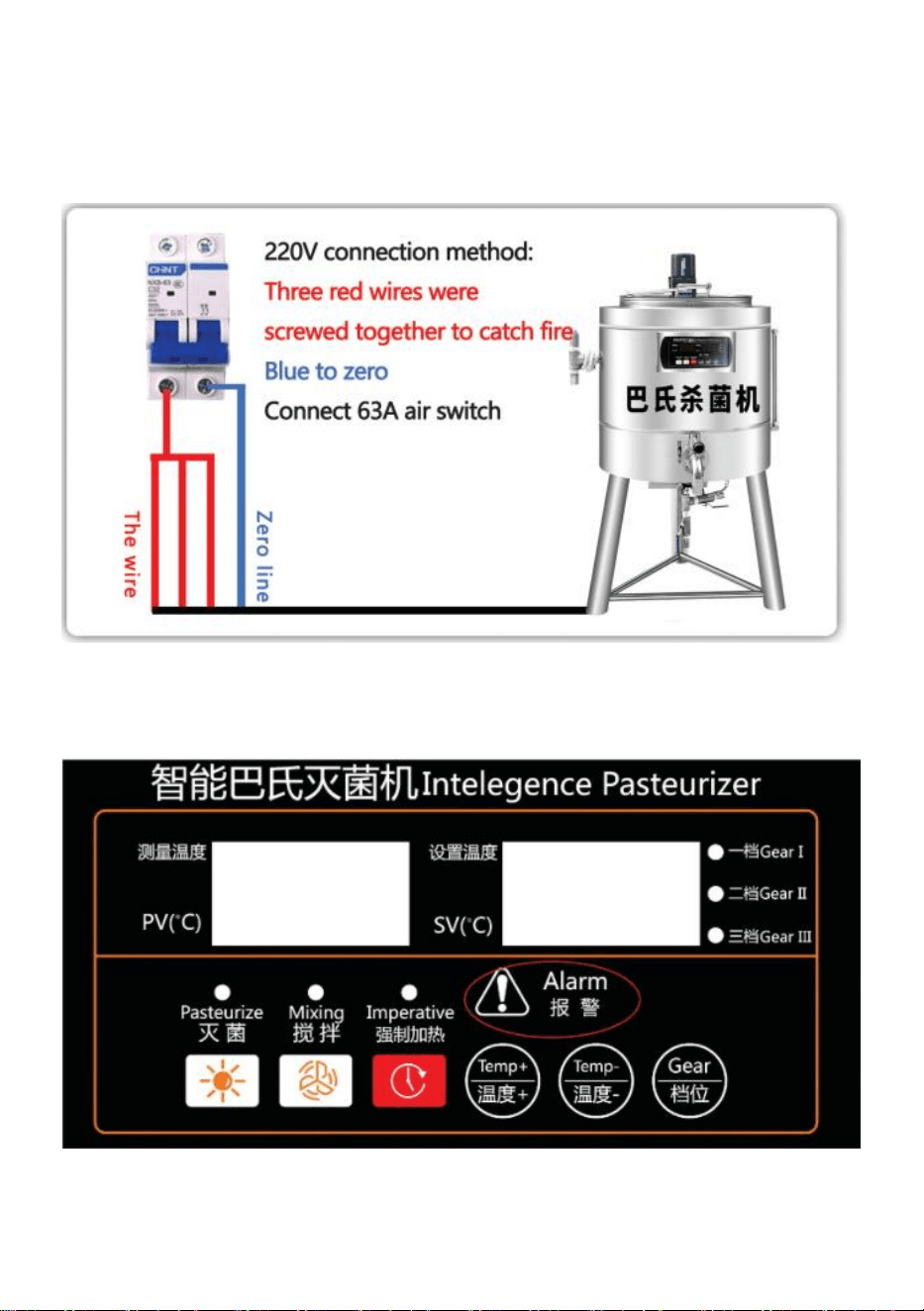

Schematic diagram of power connection
Eintroduction of panel function
- 8 -
Function Key: sterilization (control machine heating switch)agitation
(control machine mixing motor working switch)forced heating (according to
forced heating machine heating to 100 degrees when measuring
temperature fault)temperature + and temperature-(set sterilization
temperature)shift (set sterilization shift, the higher the shift, the faster the
heating)
Display: measure temperature display barrel real-time temperature setting
temperature display set sterilization temperature measurement
temperature display E-01represents temperature fault can be forced
heating sterilization
Operation Flow
Step 1: Add Water to the tank to half of the water level tube
step 2: add milk to the bucket
Step 3:Turn On the power switch, set sterilization temperature
step 4: turn on the sterilization, the indicator light is on,the machine starts
to heat and turns on the agitation(the agitation is to allow the milk to heat
evenly, if the amount is small, you can not turn on the agitation).After
reaching the temperature, the machine will be kept at constant temperature
Points to note
The machine can't be dry without water! !!! Observe the water level pipe
must have water to open sterilization otherwise it will burn heating pipe
drainage must be closed sterilization !! The water in the tank must be
changed regularly, otherwise it will cause scale and affect the service life of
the heating pipe
