WIFI01

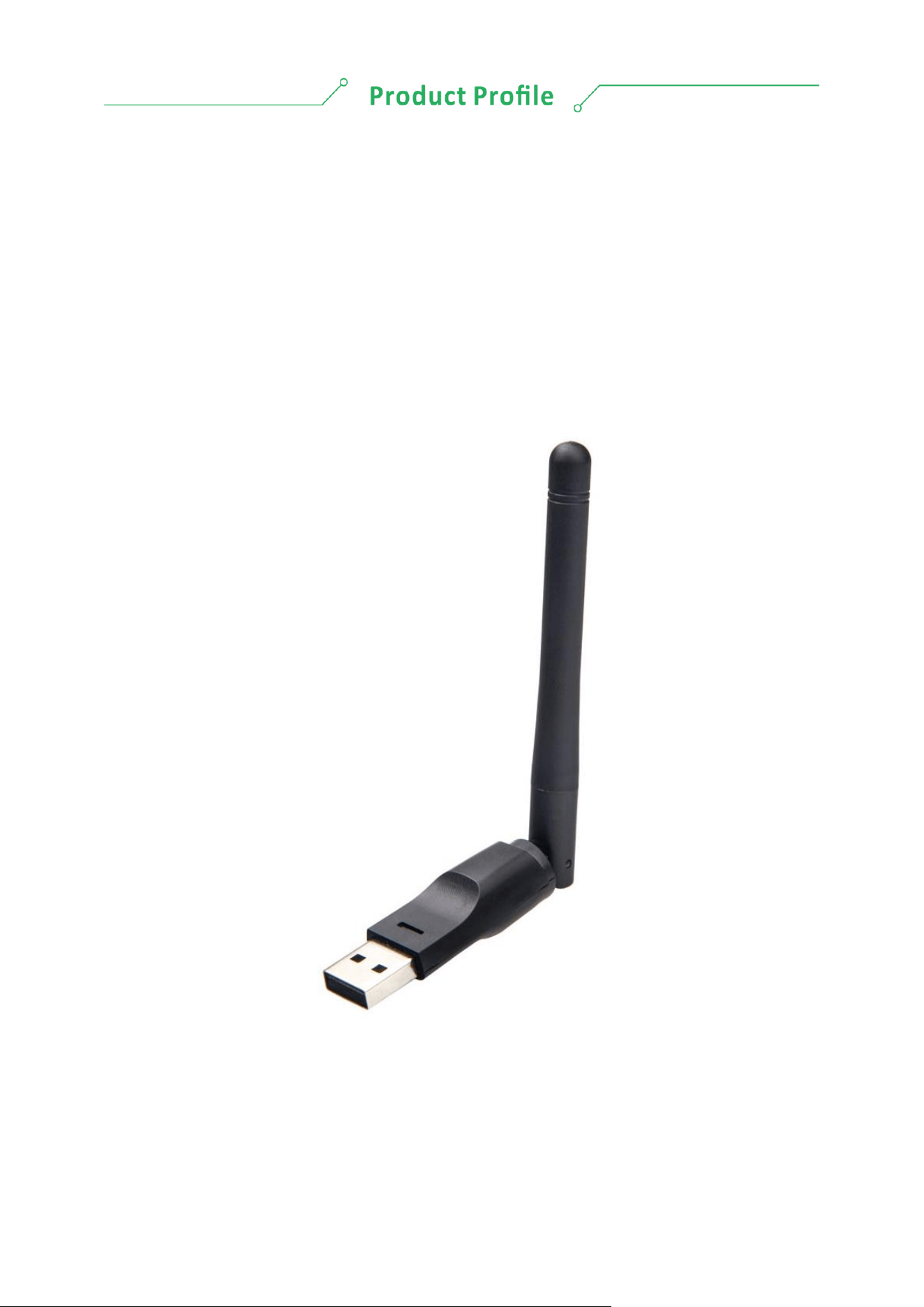

150Mbps Wireless USB Adapter
Version：V1.0
Date: 2018-10-6
HL-WA102-T 11N is designed to provide a high-speed and unrivaled wireless performance for your
computer. With a faster wireless connection, you can get a better Internet experience, such as
downloading, gaming, video streaming and so on.
Wireless-N USB 2.0 Adapter allows you to connect your laptop or desktop to any Wireless-N networks in
your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to upgrade
older computers to be able to access the internet over a Wireless-N network.
At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed
data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you
access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and
easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time.
➢ 150Mbps wireless transmission rate
➢ Provides two methods of operation: Infrastructure and Ad-Hoc
➢ Quick Secure Setup, complies with WPS for worry free wireless security
➢ Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion,
Shared Key Authentication, IEEE 802.1X
➢ Supports Sony PSP for online game
➢ Supports Windows XP/Vista/win7/win8/Mac OS
➢ Seamlessly compatible with 802.11b/g/n devices
➢ Equipped with an elegant and stylish USB Cradle for flexible deployment
Standard
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Chipset
MT7601
Interface
1* USB2.0
Antenna Type
Fixed 2dBi Antenna
Wireless Speed
150Mbps
Frequency Range
2.4-2.4835GHz
Wireless Transmit Power
20dBm(MAX EIRP)
Modulation Type
OFDM/CCK/16-QAM/64-QAM
Wireless Speed
11n: Up to 150Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
Frequency Range
2.4-2.4835GHz
Wireless Transmit Power
20dBm(MAX EIRP)
Modulation Type
OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity
(without Standards antenna)
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Work Mode
Ad-Hoc
Infrastructure
Wireless Security
64/128 bits WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System
Windows XP/Vista/Linux/ Win 7/Win 8/Win 10 / Mac OS
Operating Temperature
0°C~40°C (32°F~104°F)
Storage Temperature
-40°C~70°C (-40°F~158°F)
Relative Humidity
10% ~ 90%, non-condensation
Storage Humidity
5%~95% non-condensing
FCC Warning:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
Any
changes
or
modifications
to
this
device
not
explicitly
approved
by
manufacturer
could void your authority to operate this equipment.
This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)This
device
may
not
cause
harmful
interference,
and
(2)
this
device
must
accept
any
interference received, including interference that may cause undesired operation.
This
equipment
complies
with
FCC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
operated
with
minimum
distance
0cm
between the radiator and your body.
