SCM 2501GY
EN

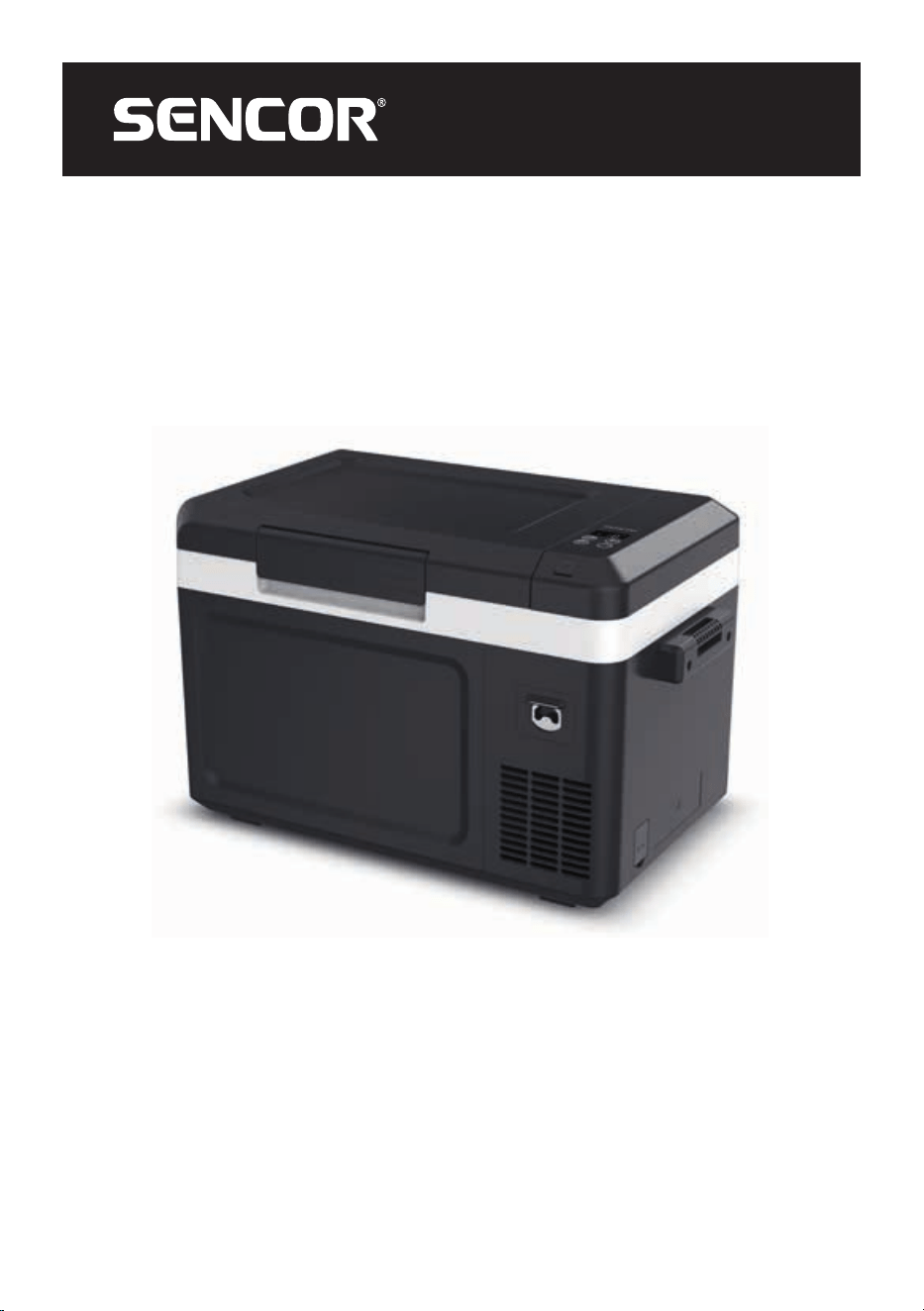

PORTABLE CAR REFRIGERATOR 25 L
Translation of the original manual
SCM 2501GY
A
1
7
8
6
4
3
2
9
5
B
1
2
3
4
5
- 1 -
01/2026
2026, .
EN
Portable car refrigerator 25 l
User Manual
Important Safety Instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
• This appliance may be only used by children aged 8 years
and older and by persons with physical, sensory or mental
impairments or lack of experience and knowledge, if they
are supervised or have been instructed on the safe use of
the appliance and understand the potential hazards.
• Children between the ages of 3 and 8 can load andunload
food fromrefrigeration appliances.
• Children must not play with the appliance. Cleaning and
maintenance must not be performed by children without
supervision.
• If the mains cable is damaged, have it replaced in a
professional service centre in order to prevent a dangerous
situation. Never use the appliance if the power cable is
damaged.
• WARNING: The ventilation openings inthe cover of the
appliance or inits construction must be kept clear.
• WARNING: Do not use mechanical devices or means
other than those recommended by the manufacturer to
accelerate the defrosting process.
• WARNING: Do not damage the cooling circuit.
???
- 2 -
01/2026
2026, .
• WARNING: Do not use electrical appliances in the space
for storing food unless they are the types recommended
by the manufacturer.
• WARNING: When placing the appliance, make sure that
the power supply cord is not trapped or damaged.
• WARNING: Do not place multiple portable sockets or
portable extension cords on the rear of the appliance.
• Do not store explosive substances, such as sprays with
flammable propellant, in this appliance.
• This appliance is intended for household use. The
appliance is also designed for personal non-commercial
use in spaces such as:
– kitchenettes in shops, offices and other workplaces;
– hotels, motels, andother residential environments where
guests may use it;
– bed and breakfast establishments;
– catering and similar non-retail environments.
• This appliance is intended to be free standing. It is not
intended to be built into a cabinet or inserted into one.
• To prevent food contamination, please follow these
recommendations:
– Keeping the lid open for a long time may cause a
significant increase in the temperature inside the
appliance.
– Regularly clean surfaces that may come into contact
withfood andaccessible drainage systems, if the
appliance is equipped with them.
- 3 -
01/2026
2026, .
– Store raw meat andfish in the appliance in suitable
packaging in the appliance to prevent contact with other
foods or dripping onto them.
• This appliance is not suitable forfreezing food in general.
It is intended only for short-term storage of refrigerated or
already frozen food.
• If the appliance is left empty for a long time, turn it off,
defrost, clean, dry andleave the lid open to prevent mould
forming inside the appliance.
A2L
Warning:
Fire Hazard / Flammable Materials
• The appliance is designed for use in households, cars, caravans, boats or when camping. However, it must not be exposed to rain.
• The appliance may only be powered using a safe low voltage corresponding to the designation on the rating label of the appliance.
• The appliance can be connected tomore than one power source. The power cord of this appliance can only be connected to a 12 V socket of
the corresponding shape (e.g. car cigarette lighter), to a 220–240 V mains socket only through the supplied cable. However, never connect the
appliance tomultiple power sources. This may lead to irreversible damage.
• Keep all cables andtheir connectors clean. Do not use metal or otherwise conductive tools for cleaning.
• In vehicles that allow devices to be powered from a 12 V power socket without the engine running, it is important to check the battery status to
prevent full discharging.
Caution:
Before you connect the appliance to a 220–240 V power socket on a boat, make sure that the socket is equipped with a residual
current device. Otherwise there is a risk of injury.
• Do not use the appliance in rooms with high dust or humidity, e.g., laundry rooms, bathrooms, spaces storing chemicals, or industrial environments.
• Keep the appliance away from open flames or heat sources.
• Avoid direct sunlight exposure.
• Place the appliance on a stable and flat surface.
• Make sure that the appliance does not tip over. Ensure the appliance is not tilted. Do not tilt it beyond 30°.
• If the appliance is overturned, return it to the operating position, turn it off anddisconnect it from the power supply. Allow the refrigerant circuit to
stabilise for about 2 hours before turning the appliance back on.
• Do not fill the device with ice or pour liquids into it.
• Do not place cans (e.g. canned beverages) or carbonated beverages in the appliance when using the heating or freezing function, as it poses an
explosion risk.
• Do not immerse the appliance, power cord or its connectors in water or any other liquid.
• Do not leave the appliance unattended when connected to the power source.
• Always disconnect the appliance from the power source when not in use, before moving or cleaning.
• Do not handle the plug / power cord connector withwet hands.
• Do not disconnect the appliance from the power source by pulling the cable. This could damagethe cable or the socket/connector. Disconnect the
cable by gently pulling the plug / power cord connector.
• Ensure the power cord does not touch hot surfaces, is not tangled, bent, or otherwise damaged.
• Do not turn on the appliance in short intervals. Wait approximately 5 minutes before turning it on again. Otherwise there is a risk of damage to the
compressor.
• Do not insert any objects into the appliance ventilation openings to avoid short circuits and irreversible damage.
• Warning: Danger of suffocation. Store in a well-ventilated place out of reach of children and pets. Ensure that the lid cannot be closed or have the lid
removed before handing over the appliance forecological disposal.
• Do not use the appliance if it is not working correctly, if it has been damaged or has been submerged in water. Have all repairs or adjustments of the
appliance performed at an authorised service centre. Tampering with the appliance during the warranty period may void the warranty.
• The manufacturer is not responsible for any damages or injuries caused by improper use or handling of this appliance.
- 4 -
01/2026
2026, .
Refrigerant Safety Instructions
• The refrigerant (R1234yf) contained in the refrigeration system of the appliance is a natural gas witha low environmental impact. Follow the basic
safety measures even though it is a slightly flammable refrigerant.
• Never damage the cooling circuit.
• Ensure that the appliance does not fall, objects do not fall on it, do not expose it to shocks, etc.
• Avoid using or storing the appliance in environments with flammable, volatile, or explosive substances.
• Do not use or manipulate open flames or other ignition sources near the appliance.
• If the cooling circuit is damaged, open a window or door and ventilate properly. Contact an authorised service centre. Never attempt to close or repair
the cooling circuit. Thecooling circuit andrefrigerant may only be handled by a person withrelevant expertise. Never smoke or use an open flame or
other ignition source when the cooling circuit is damaged.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXPLANATION OF SYMBOLS PLACED ON THE PRODUCT OR INTHE ACCOMPANYING DOCUMENTATION
The product meets all the basic requirements of the applicable EU directives.
This symbol on products or accompanying documents means that used electric or electronic products must not be added to ordinary
municipal waste.
Safety Class for Electric Shock Protection:
Class II – Electric shock protection is provided by double or heavy-duty insulation.
The product is intended for household use only. The product is not intended for outdoor use.
This symbol indicates that the appliance must not be used if the power plug is damaged.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- 5 -
01/2026
2026, .
• Thank you for purchasing our SENCOR product; we hope it will serve
to your satisfaction.
• Prior to using this appliance, please read the user manual thoroughly,
even in cases when you are already familiar with the use of similar
types of appliances. Use the appliance only as described in this
user manual. Keep the manual for future reference. If you pass the
appliance on to another person, ensure that this user manual is
included.
• Carefully unpack the appliance and make sure not to discard any part
of the packaging material until you have removed all its components.
It is recommended that you keep the original packaging, packing
material, receipt and confirmation of the extent of the seller's liability
or warranty certificate at least for the duration of the legal right to file a
defect claim or the quality warranty. When transporting the appliance,
we recommend repackaging it in the original box provided by the
manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE CAR FRIDGE
A1 Lid
A2 Fridge body
A3 Bottle opener
A4 Air outflow
A5 Control panel with display
A6 USB-A port
A7 Handles (located on both
sides)
A8 Jack for power cord connector
A9 Strap shoulder
Not shown: power adapter
(100–240 V~), car socket
adapter (12/24 V )
DESCRIPTION OF THE CONTROL PANEL
B1 Display
B2 button to turn the car fridge
on/off
B3
button for selecting
cooling/freezing mode
B4 + button to increase
temperature
B5 − button to decrease
temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Before first use, remove the fridge and its components form the
packaging and remove all promotional labels and tags. Check that
neither the appliance nor any of its components is damaged.
• Release the lid lock, open the lid, and wipe the interior with a soft
sponge slightly moistened with warm water. Wipe with a dry cloth.
Clean the external surface with a soft sponge slightly dampened in
warm water with a bit of dishwashing liquid. Wipe with a dry cloth.
• Clean the control panel with a dry cloth.
WARNING:
If the refrigerator tips over, turn it off anddisconnect
it from the power source. Place it in the operating
position and allow it to stand idle for at least 2 hours.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POWER SUPPLY
• Before connecting the fridge to the power source, ensure the voltage
on the fridge's label matches the power source.
• The fridge is supplied with two adapters:
• power adapter (100–240 V~) for connection to a properly grounded
power outlet; car socket adapter (12/24 V
).
• Depending on the intended use, insert the power cord connector into
the socket on the side of the fridge and insert the adapter either into
the mains socket (using the mains adapter) or into the socket of your
car (using the car socket adapter).
• After connecting the car fridge to the power source, a short beep will
sound.
Warning:
Never plug the power adapter into a car socket or
the car socket adapter into a power socket. There is
a risk of electric shock and irreversible damage to
the product.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USING THE CAR FRIDGE
• Press the button to turn the fridge on.
• Repeatedly press the
button to directly select the cooling/freezing
temperature in thefollowing order: 20°C, 10°C, 5°C, 0°C, −5°C, −10°C,
−18°C.
• Adjust the +/− buttons to the desired temperature insteps of 1°C. The
display shows the set temperature.
• Wait approximately 3 seconds for the settings to be saved in the
memory and for the car fridge to start cooling/freezing the interior to
the set temperature. The current temperature inside will be displayed
on the screen.
• Once the temperature inside reaches the set temperature, the car
fridge will maintain this temperature.
• If the temperature increases (in cooling mode) or decreases (in heating
mode) by approximately 2 °C, the fridge will restart.
• If not using the fridge, press the button
to turn it off.
Quick Temperature Setting
• When the car fridge is turned on, press and hold the + or − button.
• The temperature will increase or decrease by 2°C.
Strap Shoulder
• The fridge is equipped with a practical shoulder strap, thanks to which
you will be able to carry it easily. The strap is attached directly to
thehandles.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOOD INSERTION
• Place food inside the internal space in its original packaging or in
suitable plastic or glass containers. Ensure that the lids are properly
closed.
• When removing or inserting food, it is advisable to open the lid at an
angle of approximately 100°. The lid hinge is equipped with a limiter
that prevents the lid from opening to a greater angle.
• The lid hinge is equipped with a mechanism that ensures that the lid
stops in themaximum open position. When closing, it is necessary to
push slightly to overcome the resistance of the hinge.
• Always ensure that the lid of the fridge is properly closed. If the lid
cannot be closed properly, rearrange the food inside. Ifnecessary,
wipe the edge of the internal space with a clean cloth to remove any
impurities that could hinder the lid's tightness.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MEMORY FUNCTION
• The fridge is equipped with an internal memory andthe last settings
will remain stored inmemory if turned off only by the button . Upon
restarting, it will operate in the last mode and temperature.
EN
Portable car refrigerator 25 l
User Manual
- 6 -
01/2026
2026, .
• The fridge can automatically switch off when the voltage drops below
11.5 V (for 12 V power supply) or 23.5 V (for 24 V power supply).
• The fridge can automatically switch on in the last setting when the
voltage reaches 13 V (for 12 V power supply) or 25 V (for 24 V power
supply) for at least 2 minutes.
• The fridge can still be turned on manually even when the voltage is
between 11.5 V and 13 V (for 12 V power supply) or 23.5 and 25 V (for
24 V power supply).
PROTECTIVE FEATURES
• The fridge is equipped with several features to protect it from damage.
– Tip-over protection: if the tilt angle in any direction is greater than
30°, the compressor will shut down, beep 3 times and the display
will start with error message E0. After the equalization, the current
internal temperature will be restored on the display. After 3 minutes
of alignment, the compressor will start again.
– Overcurrent protection: When the output current is too high,
overvoltage protection is activated, and the power is cut off.
– Vehicle input protection: When the vehicle's input voltage is lower
than 11.5 V (for 12 V power supply) or lower than 21.5 V (for 24 V
power supply), protection is activated and error message E3 is
displayed on the screen. The message will be displayed for 12
seconds, after which the power will be cut off.
– Overvoltage protection: When the input voltage exceeds 17 V (for
12 V power supply) or 30 V (for 24 V power supply), overvoltage
protection is activated and the message E4 appears on the display.
The message will be displayed for 12 seconds, after which the power
will be cut off.
– Short circuit protection: Inthe event of a short circuit, the short
circuit protection is activated and the power is cut off.
– Temperature sensor short circuit: In case of an abnormal
temperature sensor short circuit, error message E1 is displayed on
the screen, and the power is cut off.
– Temperature sensor disconnection: Incase of abnormal temperature
sensor disconnection, error message E2 is displayed on the screen,
and the power is cut off.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
• Before cleaning, disconnect the car fridge from the power source.
• Release the lock and open the lid to allow the temperature inside to
equalize to room temperature.
• Do not use abrasive cleaning agents, solvents, etc. to clean any parts
of the appliance, as these could damage the surface. None of the
components of this appliance are dishwasher safe.
Warning:
To prevent the risk of electric shock, do not submerge
the appliance, cable, or adapters in water or any
other liquid.
Interior
• Clean the internal space of the fridge after each use.
• Wipe the internal space with a soft sponge slightly dampened in warm
water. Wipe with a dry cloth.
• To eliminate any unpleasant odour inside, you can add a bit of apple
cider vinegar to the warm water.
Outer surface
• Clean the external surface with a soft sponge slightly dampened in
warm water with a bit of dishwashing liquid. Wipe with a dry cloth.
• Clean the lid seal with a soft sponge slightly dampened in warm water.
Keep the lid seal clean.
• Clean the control panel with a dry cloth.
• Regularly remove dust and dirt from the air outlet grill. Ifnecessary,
use a vacuum cleaner to remove the dirt.
Storage
• If you will not be using the appliance for an extended period,
disconnect the car fridge from the power source and clean it according
to the instructions in the CLEANING AND MAINTENANCE chapter.
• Before storing, ensure that the appliance and all accessories are
thoroughly clean and dry.
• Store the appliance in a dry, clean, and well-ventilated place away
from extreme temperatures and out of the reach of children or pets.
ERROR MESSAGES
Error
Message
Description Meaning Solution
E1
Temperature
sensor short
circuit
Abnormal short
circuit of the
temperature
sensor.
Contact an
authorised
service centre
for replacement.
E2
Temperature
sensor
disconnection
Abnormal
disconnection of
the temperature
sensor.
Contact an
authorised
service centre
for replacement.
E3
Vehicle input
protection
Vehicle input
voltage is lower
than 11.5 V (for 12
V power supply)
or lower than 21
V (at 24 V power
supply).
Check the
vehicle input
voltage
andthen
reconnect the
car fridge.
E4
Overvoltage
protection
Vehicle input
voltage is higher
than 17 V (for 12
V power supply)
or 30V (for 24 V
power supply).
Check the
vehicle input
voltage
andthen
reconnect the
car fridge.
E5
Compressor
overvoltage
protection
Voltage exceeded
the set range of
the compressor
overvoltage
protection.
Disconnect the
fridge from the
power source.
Reconnect after
a while.
E6
Fan
overcurrent
protection
External fan peak
current is greater
than 1 A.
Contact an
authorised
service centre.
E7
Compressor
startup error
Compressor
motor stopped or
the pressure in
therefrigeration
system is too high.
Turn off the
fridge and
disconnect
from the power
source. Let it
stand freely for
approximately
30 minutes.
Then reconnect.
E8
Minimum
speed error
The cooling
system is
overloaded andthe
motor cannot
maintain the
minimum speed
1850 rpm.
Turn off the
fridge and
disconnect
from the power
source. Let it
stand freely for
approximately
30 minutes.
Then reconnect.
E9
Thermal
protection
Refrigeration
system is
overloaded,
or ambient
temperature is too
high.
Turn off the
fridge and
disconnect
from the power
source. Let it
stand freely for
approximately
30 minutes.
Then reconnect.
- 7 -
01/2026
2026, .
E0
Tip-over
protection
The tilt angle is
higher than 30°.
Return the
car fridge to
its operating
position.
If an error message persists, stop using the car fridge andcontact an
authorised service centre.
TECHNICAL SPECIFICATIONS
Car Fridge
Power supply ............................................................Power adapter 100–240 V~
Car socket adapter 12/24 V
Cooling power .......................................................................................................70 W
Internal volume ............................................................... 25 l (usable volume 24 l)
Adjustable cooling/freezing range ...............................................−18 °C to 20 °C
Insulation ....................................................................................Cyclopentane C
5
H
10
Cooling medium .................................................................................R1234yf / 27 g
Noise ....................................................≤40 dB(A) (background noise ≤25 dB(A))
Dimensions ............................... 33 × 35.9 × 56.9 cm (width × height × depth)
Weight .................................................................................................................. 10.5 kg
Power Adapter
Input .........................................................................100–240 V~, 50–60 Hz, 2.5 A
Output ................................................................................... 13.8 V 6.5 A, 89.7 W
The declared noise emission level of the appliance is 40 dB(A),
representing the A-weighted sound power level relative to the reference
sound power level of 1 pW. We reserve the right to change the text and
technical specifications.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION ON DISPOSAL
OF USED PACKAGING MATERIAL
Dispose of used packaging material at the designated municipal waste
disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC
EQUIPMENT
To enable the proper disposal, renewal and recycling of these products,
deliver them to the designated collection points. Alternatively, in some
European Union states or other European countries the products can be
returned to the local retailer when buying an equivalent new product. By
disposing of this product correctly, you help to conserve valuable natural
resources and prevent any potential adverse impact on the environment
and human health that could result from improper waste disposal. For
more details, contact your local authority or nearest collection point. Fines
may be imposed for the improper disposal of this type of waste as per
national regulations.
For business entities in European Union States
If you wish to dispose of electrical and electronic equipment, please
request the necessary information from your retailer or supplier.
Disposal in other countries outside the European
Union
To dispose of this product elsewhere, request the necessary information
on the correct disposal method from local authorities or your retailer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changes to text and technical parameters are reserved.
