Instruction Manual
AcuRite Iris
™
(5-in-1) Weather Sensor
(Single Solar Panel)
model 06004
Package Contents
1. AcuRite Iris Sensor
2. Mounting Hardware
3. Sensor Mounting Bracket
4. Instruction Manual
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Questions? Visit www.acurite.com/support
PRODUCT REGISTRATION
Register online to receive 1-year warranty protection
www.acurite.com/product-registration
IMPORTANT
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
2

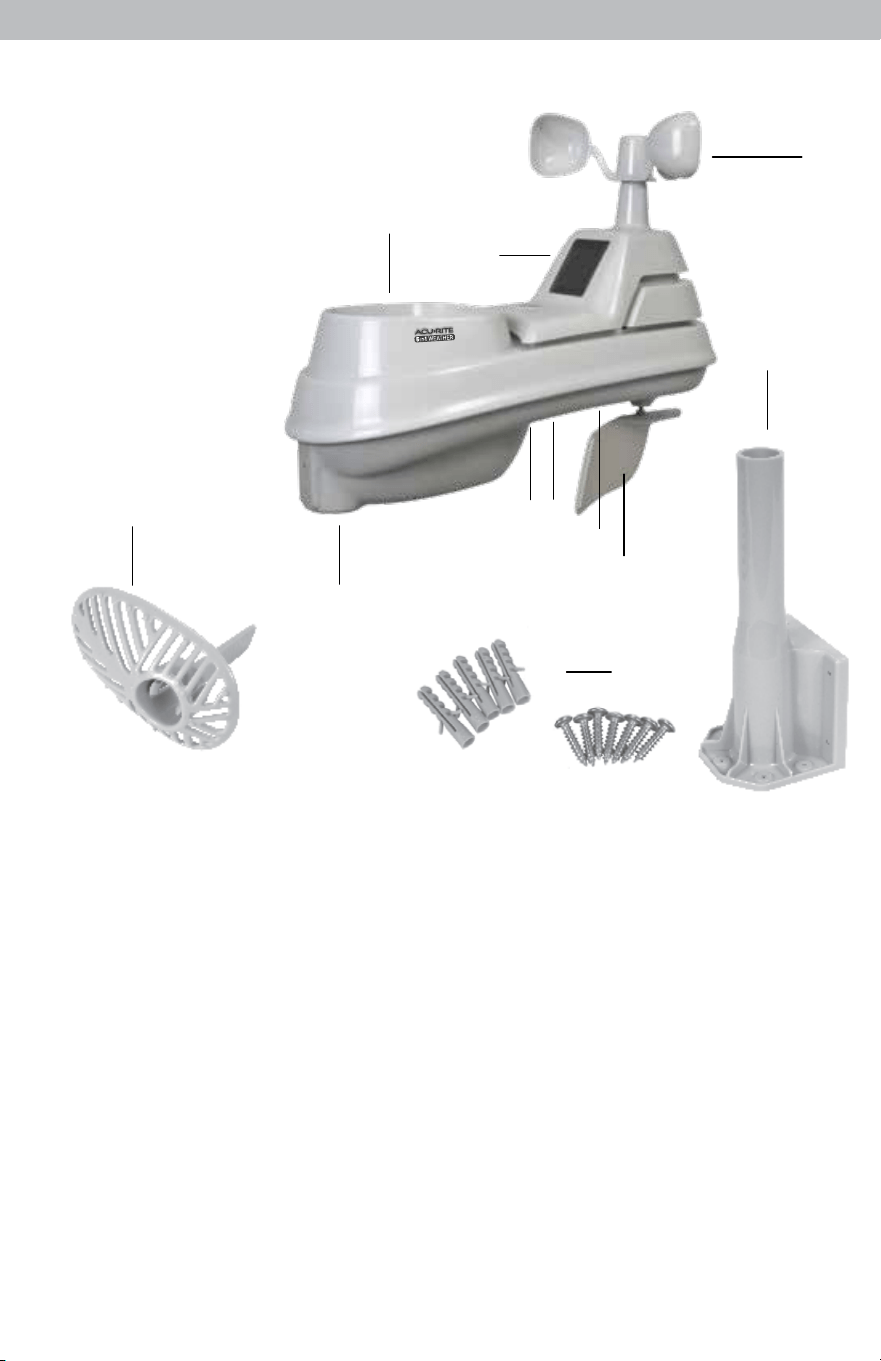

Features & Benets
9
10
11
7
2
1
8
5
6
4
3
AcuRite Iris SENSOR
1. Rainfall Collector Funnel
2. Solar Cell Panel
Converts sunlight into power to run
internal aspirating fan.
Internal Aspirating Fan
(not shown)
Draws ambient air into
sensor to reduce solar radiation
heating, resulting in more accurate
temperature measurement.
3. A-B-C Switch
ID code that must match display’s
A-B-C switch to ensure units
synchronize.
4. Battery Compartment
5. Temperature & Humidity Sensors
(internal)
6. Mounting Point
7. Wind Speed Anemometer
8. Wind Direction Vane
9. Mounting Bracket
10. Mounting Hardware
Includes 5 anchors & the following screws:
Qty Diameter Length
5 #4 3/4”
1 #4 1/2”
1 #6 1/2”
11. Debris Filter
Pre-installed to prevent debris from
entering the rain gauge.
3
A B C

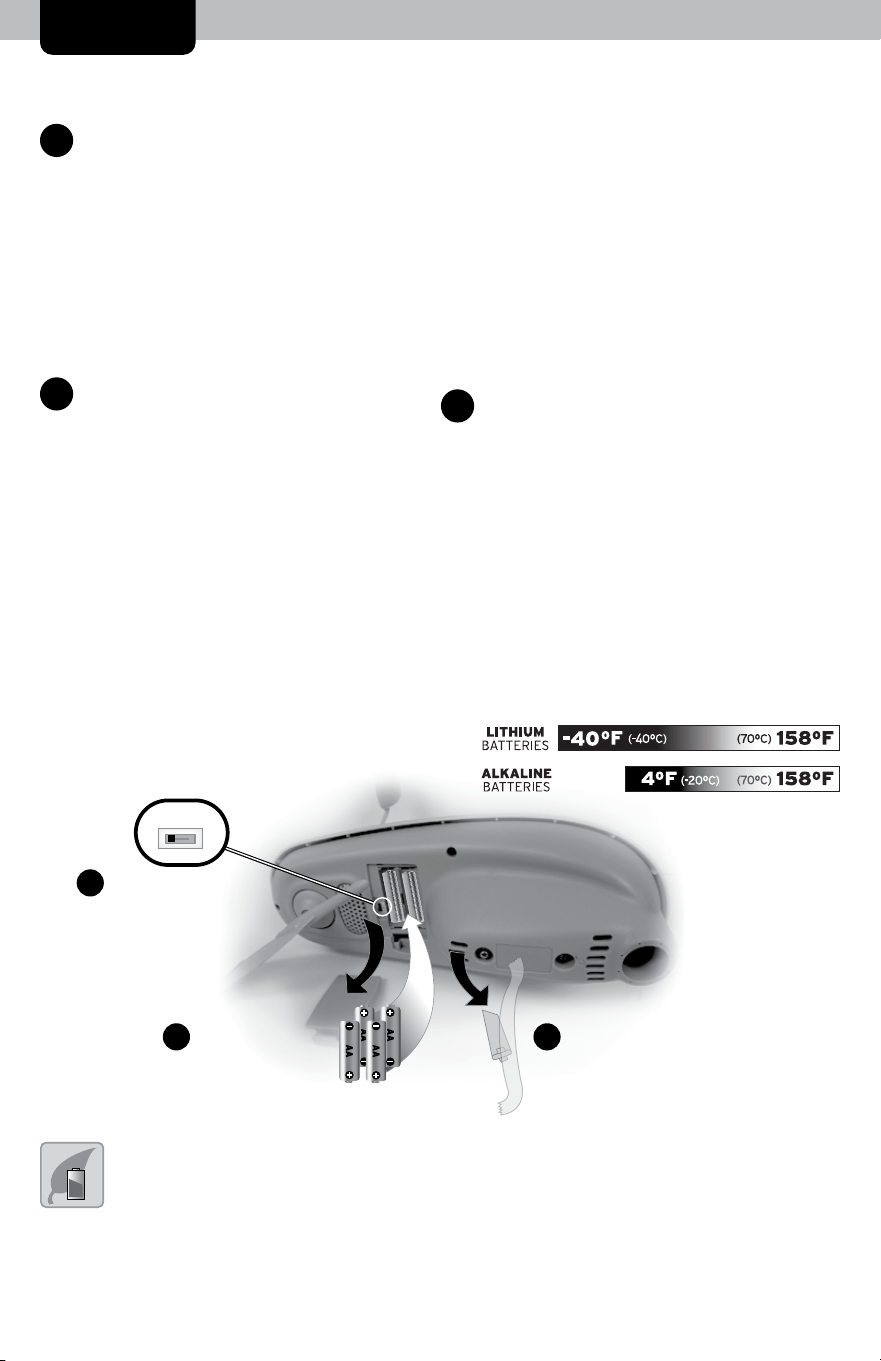

SETUP
AcuRite Iris Sensor Setup
1
A-B-C Switch
2
Install Batteries
4 AA Batteries
3
Rain Gauge Stabilizer
Remove and discard
Set the A-B-C Switch
Locate the A-B-C switch inside the
battery compartment. Set the A-B-C
switch to A, B or C. You must select the
same letter choice for both the sensor
and the companion unit (not included) in
order for the units to synchronize.
Install or Replace Batteries
Batteries MUST be installed for this
product to operate. AcuRite recommends
high quality alkaline or lithium batteries
for the best product performance. Heavy
duty or rechargeable batteries are not
recommended.
The AcuRite Iris sensor requires lithium
batteries in low temperature conditions.
Cold temperatures can cause alkaline
batteries to function improperly. Use
lithium batteries in the AcuRite Iris sensor
for temperatures below -4ºF / -20ºC.
Remove Rain Gauge Stabilizer
Locate and remove the rain gauge
stabilizer (plastic tab) taped into the
bottom of the sensor. The rain gauge will
not function until this is removed.
2
3
1
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment that will not be used for an
extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only
batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak.
DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit
the supply terminals.
4
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of
the sensor is critical to the accuracy and performance of this product.
AcuRite Iris Sensor Placement
The AcuRite Iris sensor is designed to remain outdoors all year long.
Choose an open location with no obstructions above or around the sensor
for the most accurate measurements.
Important Placement Guidelines
Sensor must be within 330 feet (100 m) of companion unit (not included).
MAXIMIZE WIRELESS RANGE
Place sensor away from large metallic items, thick walls, metal surfaces, or other objects
that may limit wireless communication.
LOCATE AWAY FROM HEAT SOURCES
Position sensor away from heaters, air conditioners, chimneys, exhaust vents, asphalt and
concrete (surfaces that radiate heat).
LOCATE AWAY FROM HUMIDITY SOURCES
Avoid installing the sensor near pools, spas, or other bodies of water. Water sources may
impact humidity accuracy.
LOCATE AWAY FROM SPRINKLER HEADS
DO NOT install the sensor where it will be sprayed by a sprinkler system. This may force
water inside the sensor.
LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS
DO NOT mount the sensor with obstructions around it. Consider a location that is a wide
open area, with few structures around to ensure accurate wind measurement.
5
AcuRite Iris Sensor Installation Guidelines
INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the ground
in an open area. Higher is better for wind measurement- the National Weather Service
recommends 33 feet (10 meters) high!
MOUNTING OPTIONS The included mounting bracket is designed to screw directly
onto wooden posts or surfaces that are 2”x 4” or larger. The sensor can also be mounted
directly to 3/4” steel pipe (available at hardware stores and home centers).
LEVEL INSTALLATION Use the bubble level on the top of the sensor to ensure level
installation for accurate wind and rain
measurement.
SOLAR CELL INSTALLATION Install the sensor
with the solar cell facing SOUTH. This ensures
the cell receives as much sun as possible and
orients wind direction.

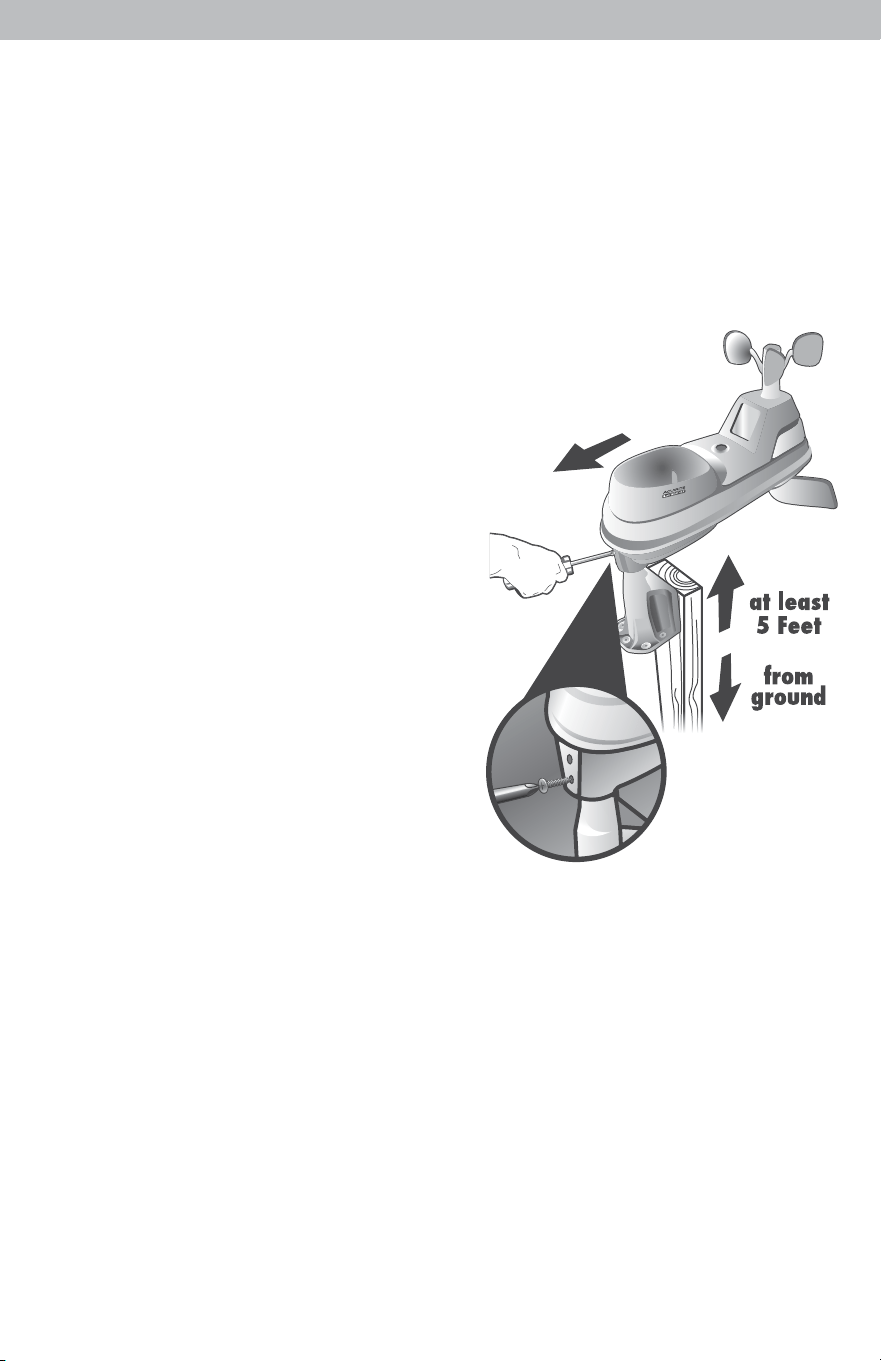

AcuRite Iris Sensor Installation
1. Fasten mounting base (included) to a post or pole
(not included) using the 4 longer screws included
in the hardware bag.
2. Insert the mounting base into the hole on the
bottom of the sensor.
3. Make sure the arrows on the top of the sensor
are pointed in the proper direction and the
bubble level is centered. The solar cell should
be facing south to properly orient the wind
direction.
4. Fasten the sensor into the mounting base using
the 2 shorter screws included in the hardware
bag.
The AcuRite Iris sensor is now ready to use.
Basic Setup is Complete
The AcuRite Iris sensor will now synchronize with the companion unit. It may take a few
minutes for synchronization to complete.
SOUTH
(1.5 meters)
NO OBSTRUCTIONS
ABOVE OR AROUND
6
Calibrate the Rain Gauge
The rain gauge on the AcuRite Iris sensor can be calibrated to improve accuracy.
Items Needed: AcuRite Iris sensor, companion unit, plastic cup, pin, screw driver
1. First, ensure AcuRite Iris sensor is perfectly level using built-in bubble level.
2. Use compatible companion unit or AcuRite software to monitor during calibration.
3. Make a pin hole in the bottom of a plastic cup. Hold the cup over the rain gauge and fill it with
exactly 1 cup (8oz) of water, allowing the water to drip into the rain gauge. You should hear the internal
buckets tip and see water drain through the rain gauge.
4. A few seconds after each bucket tip, the companion unit displays rainfall in approximately 0.01” or
more increments.
5. The cup of water should take more than 20 minutes to empty; a quicker period will result in inaccurate
calibration. Try to simulate a normal steady rainfall. When cup is empty of water, companion unit
should register 1.06”
Tips
• There should be nearly an equal number of water drops (about 25 water drops) between bucket tips.
If not, adjust the calibration screws on the bottom of the AcuRite Iris sensor until an equal number of
water drops are tipping the buckets.
Adjustment
If the rain gauge doesn’t register close to 1.06”, make an EQUAL adjustment to the two calibration screws
on the bottom of the AcuRite Iris sensor. Turning screws clockwise increases rainfall; counter clockwise
decreases rainfall.
• To adjust the rainfall reading by 2% turn both screws 1/8 of a turn.
• To adjust the rainfall reading by 4% turn both screws 1/4 of a turn.
• To adjust the rainfall reading by 8% turn both screws 1/2 of a turn.
Specications
TEMPERATURE RANGE
Outdoor: -40ºF to 158ºF; -40ºC to 70ºC
HUMIDITY RANGE
Outdoor: 1% to 99%
WIND SPEED
0 to 99 mph; 0 to 159 kph; 0 to 86 knots
WIND DIRECTION INDICATORS
16 points
RAINFALL
0.01 inches (0.25 mm) and up
WIRELESS RANGE
330 ft / 100 m depending on home construction materials
OPERATING FREQUENCY
433 MHz
POWER
4 x AA alkaline or lithium batteries
DATA REPORTING
Wind Speed: 18 second updates; Direction: 36 second updates
Outdoor temperature & humidity: 36 second updates
7
