Service and Installation Manual
COMMERCIAL REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
Our product instructions will be uploaded on our company official website.

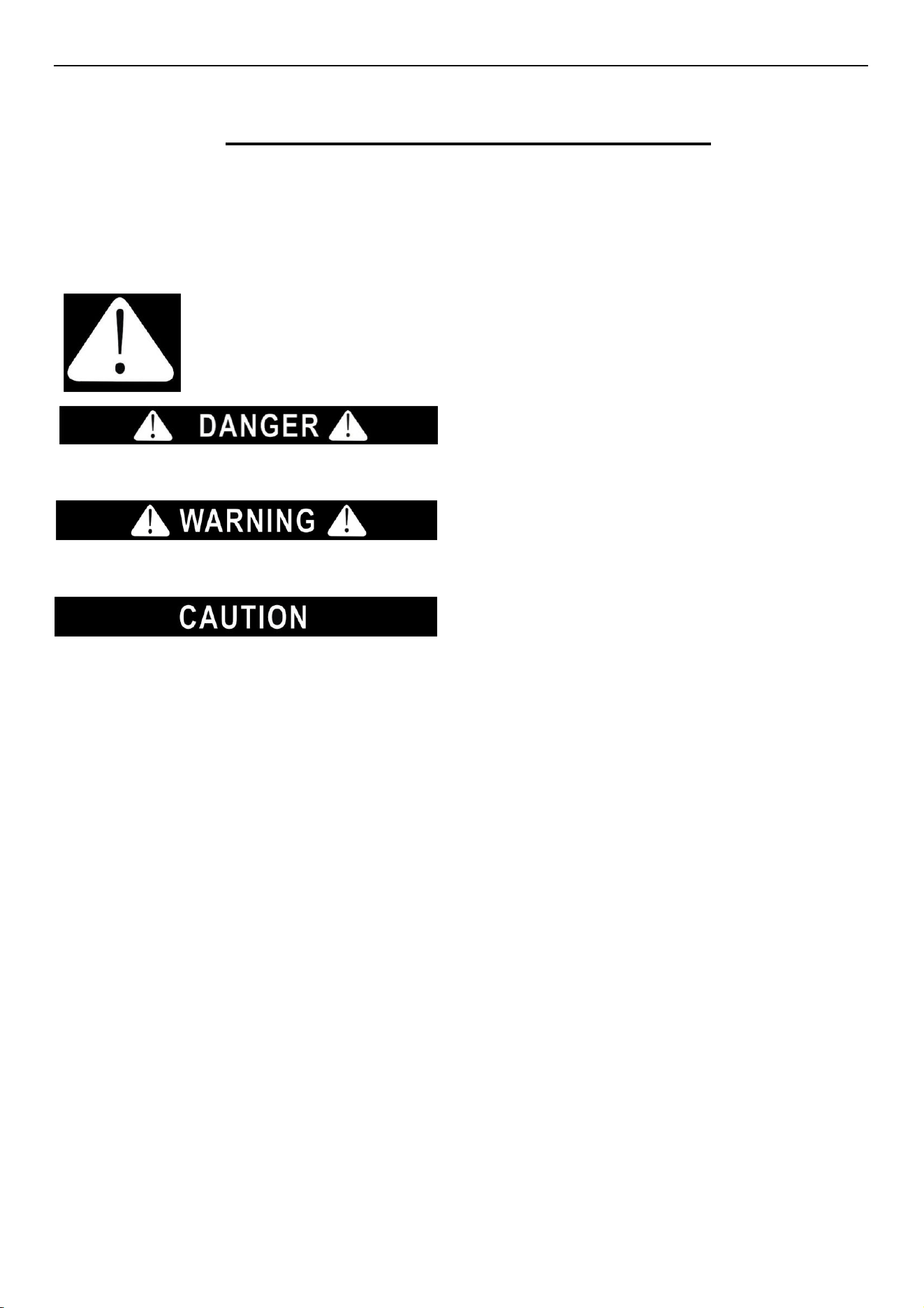

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can
kill or injure you and others. All safety messages will follow the Safety Alert Symbol
and either the words” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this safety
statement may result in severe personal injury or
death.
Warning means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
Caution means that failure to heed this safety
statement may result in minor or moderate personal
injury, or property or equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Keep the appliance and its cord out of reach of children less than 8 years.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The max. loading of shelve is 10kg.
This appliance is intended to be used in house hold and similar applications in this appliance.
--staff kitchen areas in shops, offices and other working environment;
--farm houses and by clients in hotels, motels and other residential type environment;
--bed and breakfast type environment;
--catering and similar non-retail applications.
1
Service and Installation Manual

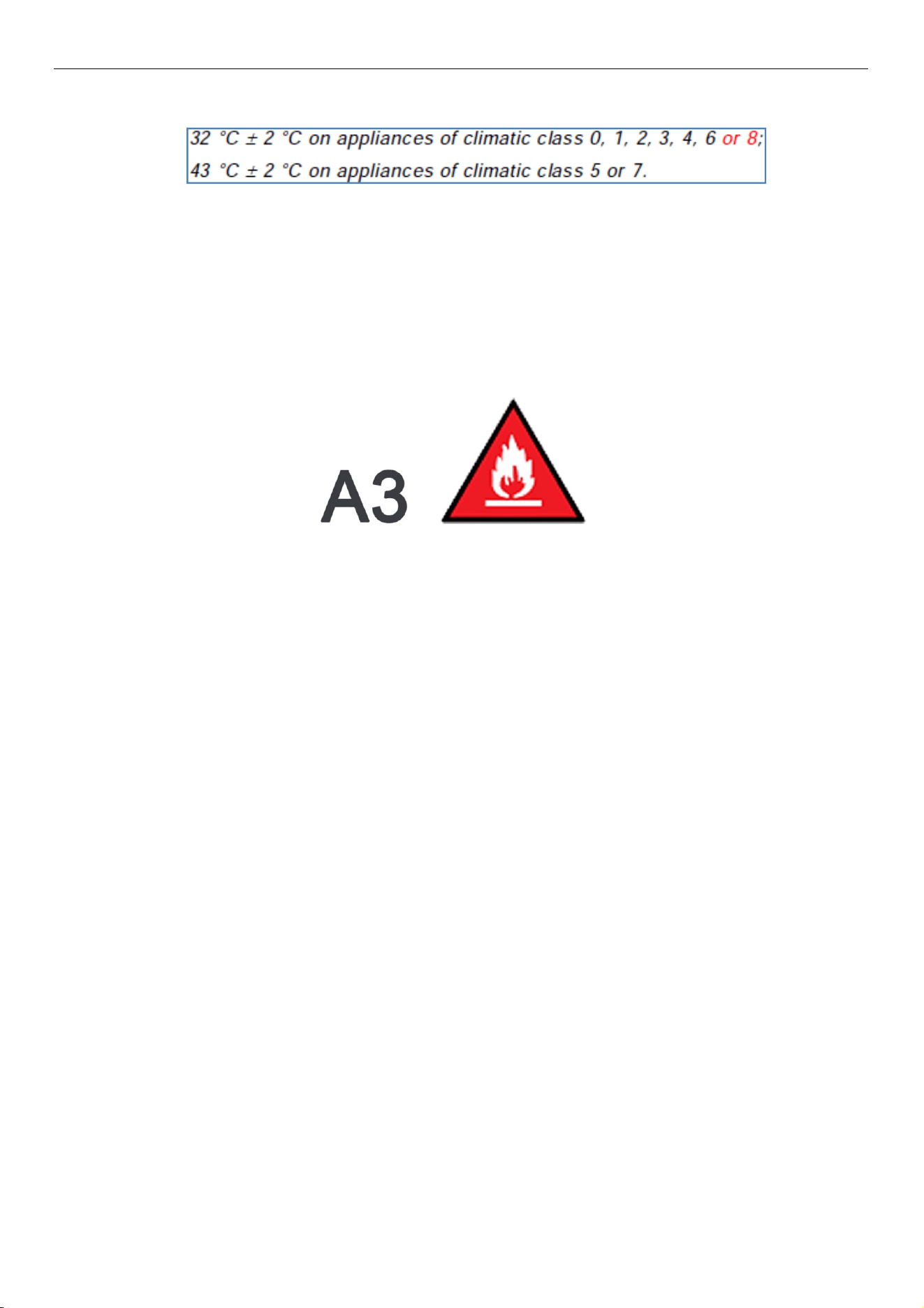

The appliance shall be used at an ambient temperature listed according to it’s climate class:
The appliance use flammable insulation blowing gas C5H10, disposal of the appliance shall in accordance with
the regulations of local authorities.
The appliance provided with double-capped fluorescent lamps, the lamp has to be replaced by identical lamps
only.
The key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard.
When positioning the appliance socket-outlets or portable power supplies at the rear of the appliance.
Based on business order(s) to EU market, give true EU authorized representative information on the label with
full business name and full EU address in the marking plate.
If the appliance use flammable refrigerant, such as R600a, R290:
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
Handling, moving, and use of the refrigerator or freezer to avoid either damaging the refrigerant tubing, or
increasing the risk of a leak
L’opération, le mouvement et l’utilisation du réfrigérant ou le congélateur doivent éviter les dommages du tuyau
réfrigérant ou le rique de la fuite.
Caution – Risk of Fire or Explosion due to Flammable Refrigerant Used. Follow Handling
Instructions Carefully in Compliance with U.S. Government Regulations
Component parts shall be replaced with like components and that servicing shall be done by factory authorized
service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.
Les pièces de rechange doivent être remplacées par les components relatifs et les opérations doivent être
faites par les professionnels afin de minimaliser le risque d’allumage à cause des parts incorrects ou des
opérations impropres.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions
Carefully. Flammable Refrigerant Used
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
Take off the doors
Leave the shelves in place so that children may not easily climb inside
The instructions shall contain information regarding the maximum loading of each type of shelf.
For appliances which use FLAMMABLE REFRIGERANTS, the instructions shall include information pertaining
to the handing, servicing and disposal of the appliance.
2
Service and Installation Manual
An explanation shall be given of the meaning of the alpha-numeric characters, indicating the climatic class of
the appliance, that are marked on the appliance.
The installation and operating instructions for appliances that use a flammable refrigerant shall indicate that
component parts shall be replaced with like components so as to minimize the risk of possible ignition due to
incorrect parts.
The installation instructions for appliances that use a flammable refrigerant shall indicate the appliance is to
be installed in accordance with the Safety Standard for Refrigeration Systems, ANSl/ASHRAE 15.
Apply the requirements of Annex 101. DVS to appliances using flammable refrigerants: self-contained
appliance., All services shall be done by the accredited persons by the manufacturer according to local
regulation. Services related to breaking into the refrigerating circuit, opening of sealed components are not
allowed to be done in the user condition, must be taken to the designed location WARNING
Do not use means to accelerate the defrosting process or to clean, other than those recommended by the
manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources (for example: open
flames, an operating gas appliance or an operating electric heater.
Do not pierce or burn.
Be aware that refrigerants may not contain an odour. and MISE EN GARDE
Ne pas utiliser de moyens autres que ceux recornrnandés par Ie fabricant pour accélérer Ie processus de
dégivrage ou pour nettoyer l'apparail.
L'appareil doit etre entreposé dans un local ne contenant pas de sources d'inflammation permanentes
(flammes nues, appareil à gaz ou dispositif de chauffage électrique en fonctionnement, par exemple).
Ne pas percer ou brǖler.
Attention, les f1uides frigorigènes peuvent ne pas dégager d'odeur.
- WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for
building-in.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manuFacturer.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
For appliances which use flammable insulation blowing gases, the instructions shall include information
regarding disposal of the appliance.
The height of the triangle in the symboI " Caution: risk of fire" shall be at least 15 mm.
The height of the letters used for the marking of the type of flammable insulation blowing gas shall be at least
40 mm.
3
Service and Installation Manual
WARNING
D
o not use means to accelerate the defrosting process or to clean, other than those recommended by
the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources.
(for exampIe: open flames an operating gas appliance or an operating electric heater.
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
MISE EN GARDE
Ne pas utiliser de moyens autres que ceux recommendés par le fabrrcant pour accélérer Ie processus
de degivrage ou pour nettoyer I'appareil.
L'appareil doit être entreposé dans un local ne eontenant pas de sources d'inflammation permanerrtes
(flammes nues, appareil à gaz ou dispositif de chauffage electrique en fonctionnernent, par exemple).
Ne pas percer ou brùler.
Attention, les fluides frigorigènes peuvent ne pas dégager d'odeur.
Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or detection of
refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
The following leak detection methods are deemed acceptable for all refrigerant systems.
Electronic Ieak detectors may be used to detect refrigerant Ieaks but, in the case of FLAMMABLE
REFRIGERANTS, the sensitivity might not be adequate. or might need recalibration. (Detection
equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not apotential
source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a
percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed, and the
appropriate percentage of gas (25 % maximum) is confirmed.
Leak detection fluids are also suitable for use with most refrigerants but the use of detergents
containing chlorine shall be avoided as the chlorine can react with the refrigerant and corrode the
copper pipe-work.
If a leak is suspected, all naked flames shall be removed/extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from
the system. or isolated (by means of shut off valves) in a part of the system remote from the leak.
All services shall be done by the accredited persons by the manufacturer according to local regulation.
Services related to breaking into the refrigerating circuit, opening of sealed components are not allowed
to be done in the user condition, must be taken to the designed location.
Sealed electrical components shall be replaced.
Intrinsically safe components must be replaced.
4
Service and Installation Manual
Item a) DANGER - Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To
Defrost Refrigerator. Do Not Puncture Refrigerant Tubing. and
DANGER-Risque d'incendie ou d'explosion. Fluide frigorigène inflammable utilisé. Ne pas utiliser des moyens
rnécanlques pour déconqeler Ie refrigerateur. Ne pas perforer la conduite de fluide frigorigène.
Item b) DANGER - Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained
Service Personnel. Do Not Puncture Refrigerant Tubing. And
DANGER-Risque d'incendie ou d'axplosion. Fluide frigorigène inflammable utilisé. Dolt uniquement être réparé
par un technicien de service formé. Ne pas perforer la conduite de fluide frigoriqène.
Item c) CAUION - Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair ManuaI/Owner's
Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed. and
ATTENTION-Risque d'incendie ou d'explosion. Fluide frigorigène inflammable utilisé. Consulter Ie guide du
proprietairé ou Ie manuel de réparation avant d'essayer d'installer ou de réparer ce produit. Toutes les
précautions de securite doivent être prises.
Item d) CAUTION-Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used. and
ATTENTION - Risque d'incendie ou d'explosion. Mettre au rebut contorrnérnent aux règlements fédéraux ou
locaux. Fluide friqorigène inflammable utilisé.
Item e) CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable Refrigerant Used. and
AENION - Risque d'incendie ou d'explosion en cas deperforation d'une canalisation de fluide frigorigène; suivze
attentivement les instructions de manutention. Fluide frigorigène inflammable utilisé.
Item f) DANGER-Risk of Fire or Explosion due to Flammable Refrigerant Used. Follow Handling Instructions
Carefully in Compliance. with National Regulations. and
DANGER-Risque d'incendie ou d'explosion dǖ à l'utilisation d'un fluide frigorigène. Suivez attentivement les
instructions demanutention contorrnérnent aux règlements nationaux.
Note:
a) The marking specified in Item (a) shall be provided on or near any evaporators that can be contacted by the
user.
b) The markings specified in Items (b) and (c) shall be provided near the machine compartment.
c) The marking specified in Item (d) shall be provided on the exterior of the refrigerator.
d) The marking specified in Item (e) shall be provided near any and all exposed refrigerant tubing.
e) The marking specified in Item (f) shall be provided on appliance packaging if factory charqed.
f) All the markings shall be in letters no less than 6.4mm (1/4in) high.
The marking in Item b) shall also contain the symbol "Cauuon, risk of fire" (Fire in a triangle): The color and
format of this sign shall be as shown in Symbol W021 in ISO 7010. The perpendicular height of the triangle
containing the "Caution, risk of fire" sign shall be at least 15 mm (9/16in).
g) Refrigeration tubing or other devices through which the refrigerant is intended to be serviced shall be painted,
colored red. This color shall be present at all places where service puncturing or otherwise creating an opening
in the refrigerant circuit might be expected. In the case of a process tube on a compressor, the color mark shall
extend at least 2.5cm(1 inch) from the compressor.
5
Service and Installation Manual
6
CONTENTS
RECEIVING & INSPECTING EQUIPMENTJJJJJJJJJJJJJJJ..JJJ...............J6
SPECIFICATIONSJJJJJJJJJJJJJJJJJJJJ.JJJJJJJJJ.JJ.......J7
INSTALLATIONJJJJJJJJJJJJJJJJJJJJJJJJJJJJ.JJJJ............8
OPERATIONJJJ..JJJJJJJJJJJJJJJJJJJJJJJJJJ..JJJJ..........9
MAINTENANCEJJJJJJJJJJJJJJJJJJJJJJJJJJJ.JJJJJ..........11

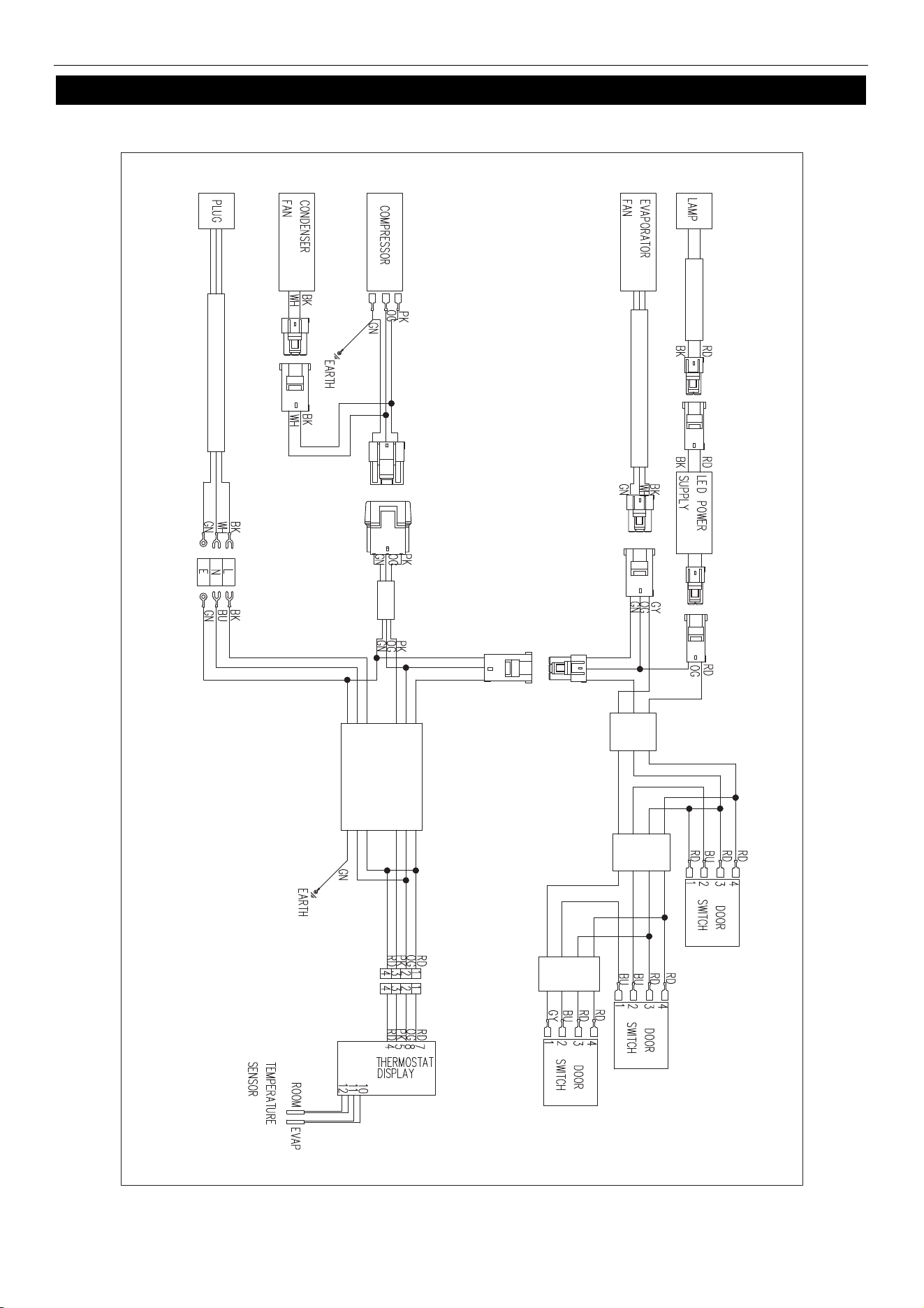

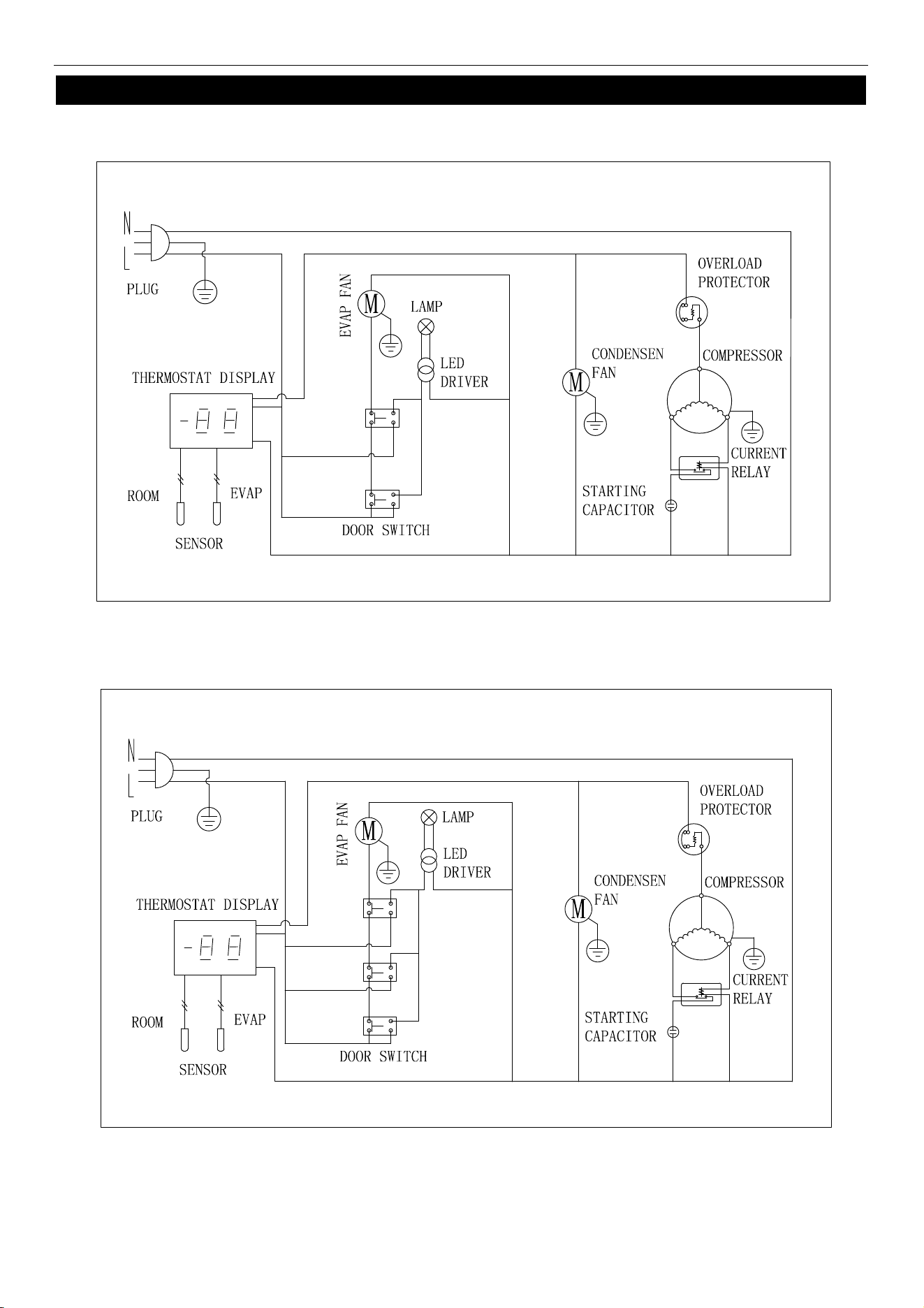

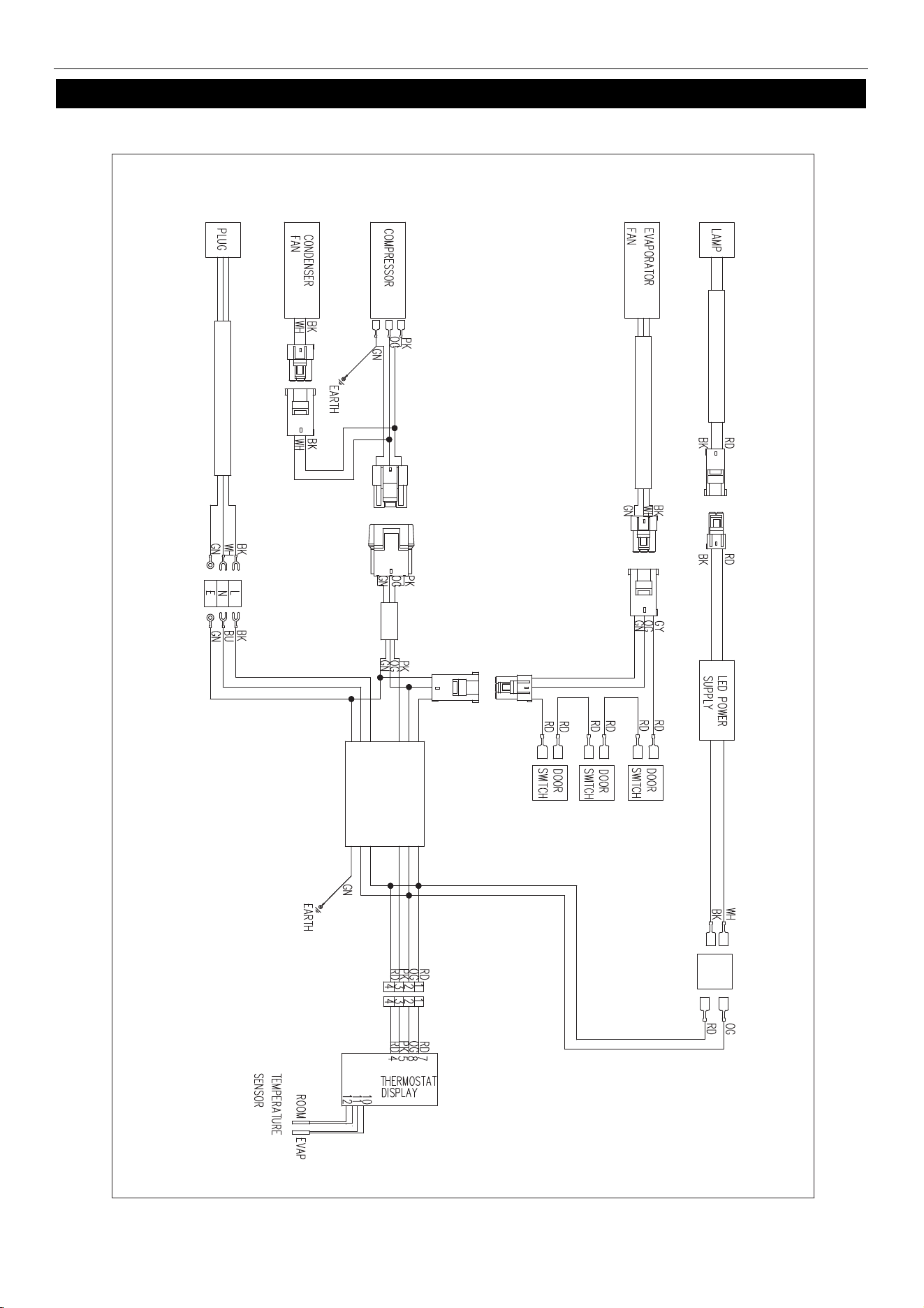

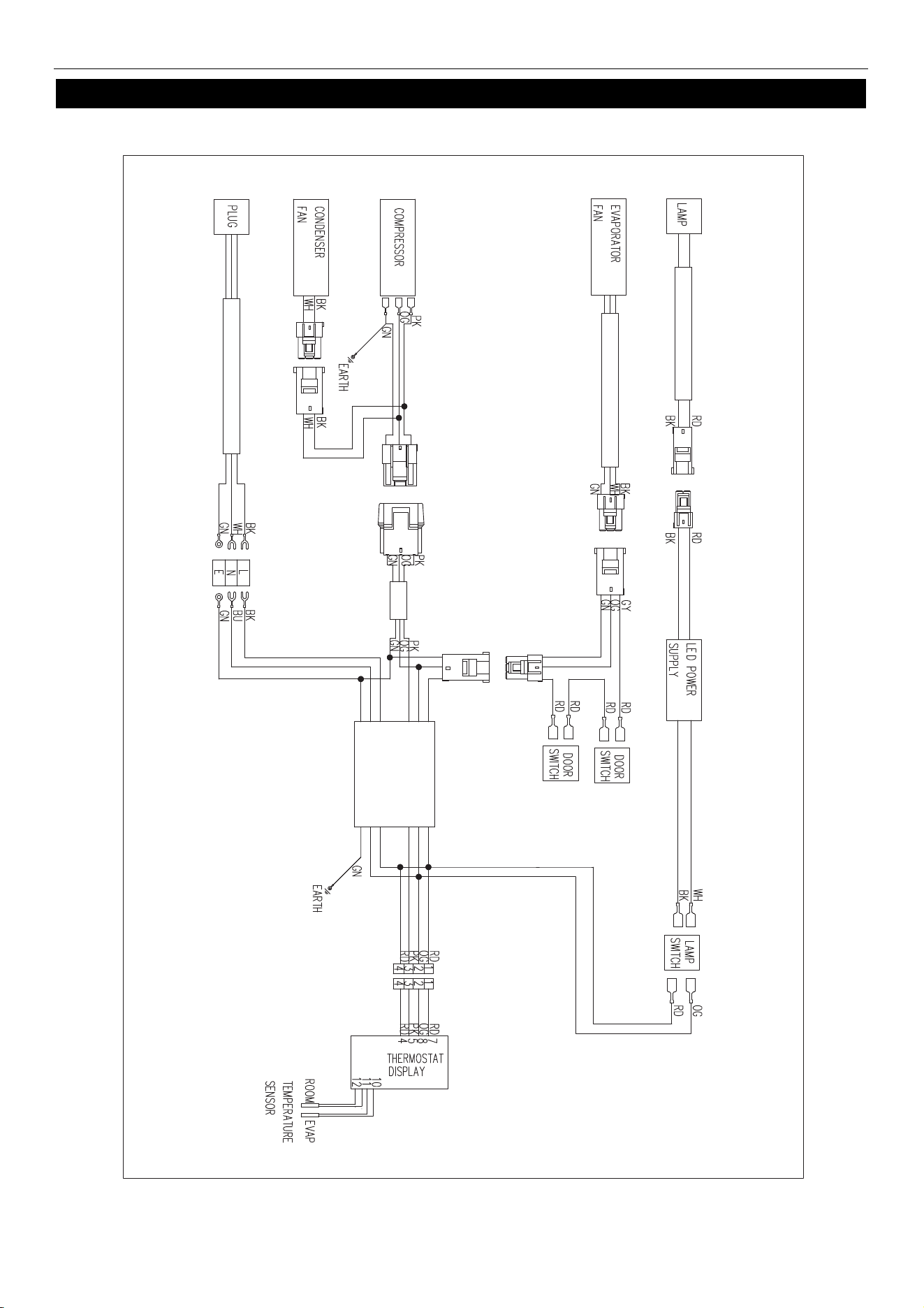

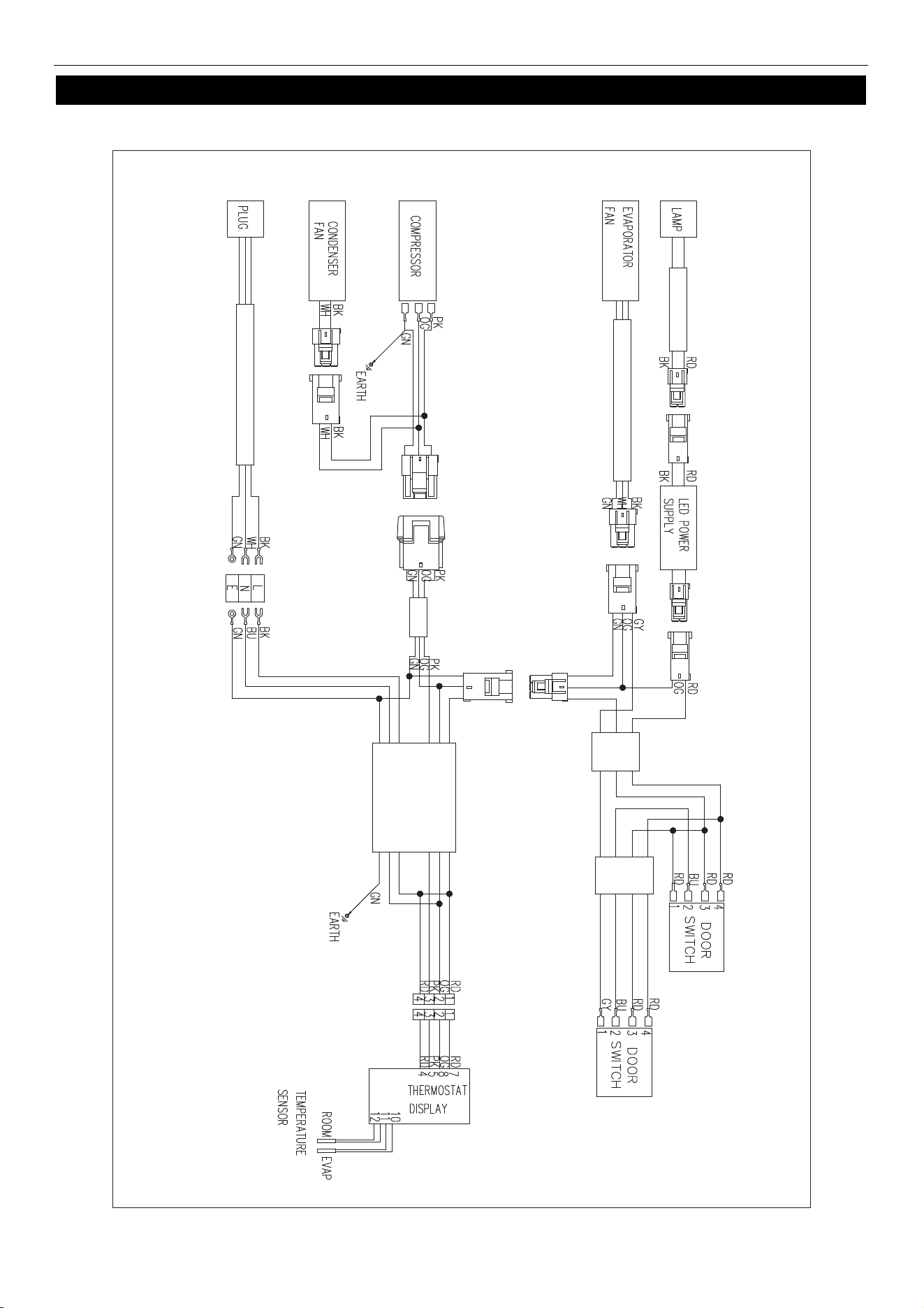

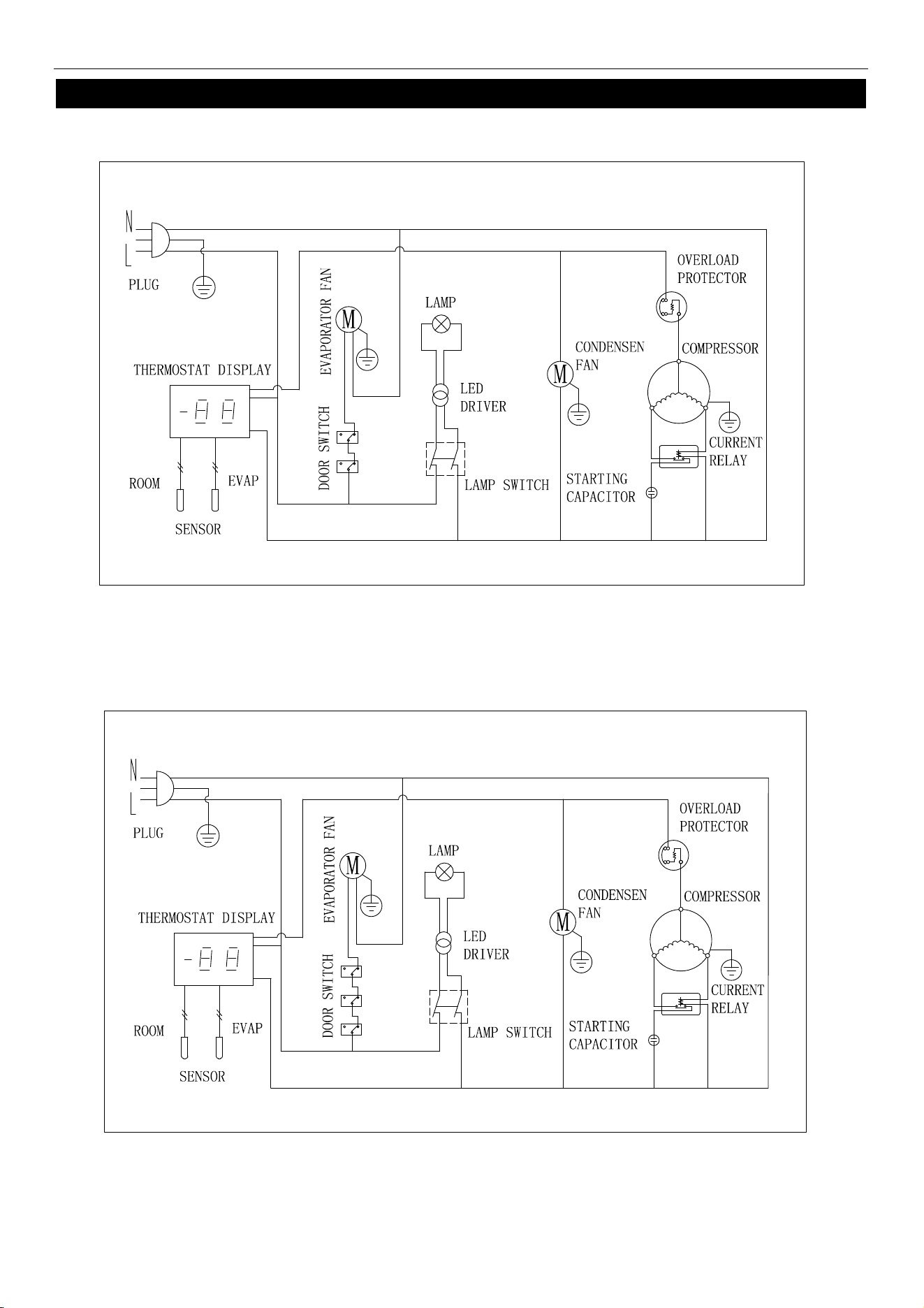

WIRING DIAGRAMJJJJJJJJJJJJJJJJJJJJJJJJJJJJJ.............J14
All rights reserved. Reproduction without written permission is prohibited.
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators is located inside the unit on the left hand side near the
top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipment is shipped crated, care should be taken during unloading so the equipment is
not damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and
reported to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the
equipment notify the carrier. Notification should be made verbally as well as in written form.
4. Request an inspection by the shipping company of the damaged equipment. This should be done within
10 days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually inspect the refrigeration package.
Be sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.
Service and Installation Manual
7
SPECIFICATION
BACK BAR BOTTLE COOLER
MODEL# V/Hz/Ph
AMPS
STORAG
E
CAPACIT
Y
HP
BTU
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
BLBB59-2B-HC -2 115/60/1
3.0
16.2
1/3 3200
3.88
332
5
-
15P
BLBB69-3B-HC
115/60/1
3.0
20.4
1/3 3200
3.88
376
5
-
15P
BLBB90-4B-HC
115/60/1
3.0
29.1
1/3 5800
4.59
486
5
-
15P
BLBB59-2BG-HC
115/60/1
3.0
16.2
1/3
3200
3.88
332
5
-
15P
BLBB69-3BG-HC
115/60/1
3.0
20.4
1/3
3200
3.88
376
5
-
15P
115/60/1
3.0
29.1
1/3
5800
4.59
486
5
-
15P
BLBB90-4BG-HC
BLBB59-2S-HC -2 115/60/1
3.0
16.2
1/3
3200
3.88
339
5
-
15P
BLBB69-3S-HC 115/60/1
3.0
20.4
1/3
3200
3.88
387
5
-
15P
BLBB90-4S-HC
115/60/1
3.0
29.1
1/3
5800
4.59
501
5
-
15P
BLBB59-2SG-HC
115/60/1
3.0
16.2
1/3
3200
3.88
339
5
-
15P
BLBB69-3SG-HC
115/60/1
3.0
20.4
1/3
3200
3.88
387
5
-
15P
115/60/1
3.0
29.1
1/3
5800
4.59
501
5
-
15P
BLBB90-4SG-HC
Service and Installation Manual
8
INSTALLATION
Location
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much
as 1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient
refrigeration, be sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack refrigerator so full that air cannot circulate. The refrigerated air is discharged at the top rear of
the unit. It is important to allow for proper air flow from the top rear to the bottom of the unit. Obstructions to
this air flow can cause evaporator coil freeze ups and loss of temperature or overflow of water from the
evaporator drain pan. The shelves have a rear turn up on them to prevent this. However, bags and other
items can still be located to the far rear of the cabinet. Air is brought into the evaporator coil with fans
mounted to the front of the coil. Prevent obstruction by locating large boxes and tall stacks of product to the
bottom of the cabinet.
Outside cabinet:
Be sure that the unit has access to ample air. Avoid hot corners and locations near stoves and ovens.
It is recommended that the unit be installed no closer than 2" from any wall with at least 12" of clear space
above the unit. Should it become necessary to lay the unit on its side or back for any reason, allow at least
24 hours before start-up so as to allow compressor oil to flow back to the sump. Failure to meet this
requirement can cause compressor failure and unit damage.
Leveling
A level cabinet looks better and will perform better because the doors will line up with the frames properly,
the cabinet will not be subject to undue strain and the contents of the cabinet will not move around on the
shelves. Use a level to make sure the unit is level from front to back and side to side. Units supplied with
legs will have adjustable bullet feet to make the necessary adjustments. If the unit is supplied with casters,
no adjustments are available. Ensure the floor where the unit is to be located is level.
Stabilizing
Models are supplied on casters for your convenience, ease of cleaning underneath and for mobility. It is very
important, however, that the cabinet be installed in a stable condition with the front wheels locked while in
use.
Standard warranties will be voided due to improper installation procedures.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be
sure the unit is connected to the proper power source. A protected circuit of the correct voltage and
amperage must be run for connection of the line cord, or permanent connection to the unit.
The ON/OFF switch must be turned to OFF and the unit disconnected from the power source
whenever performing service, maintenance functions or cleaning the refrigerated area.
NOTE
DANGER
Service and Installation Manual
9
OPERATION
Do not throw items into the storage area. Failure to heed these recommendations
could result in damage to the interior of the cabinet.
Refrigerators: The factory setting for temperature range is 34 °F - 38 °F.
Light Switch:
An light switch is located next to on/off switch on the front of the bottom shroud.

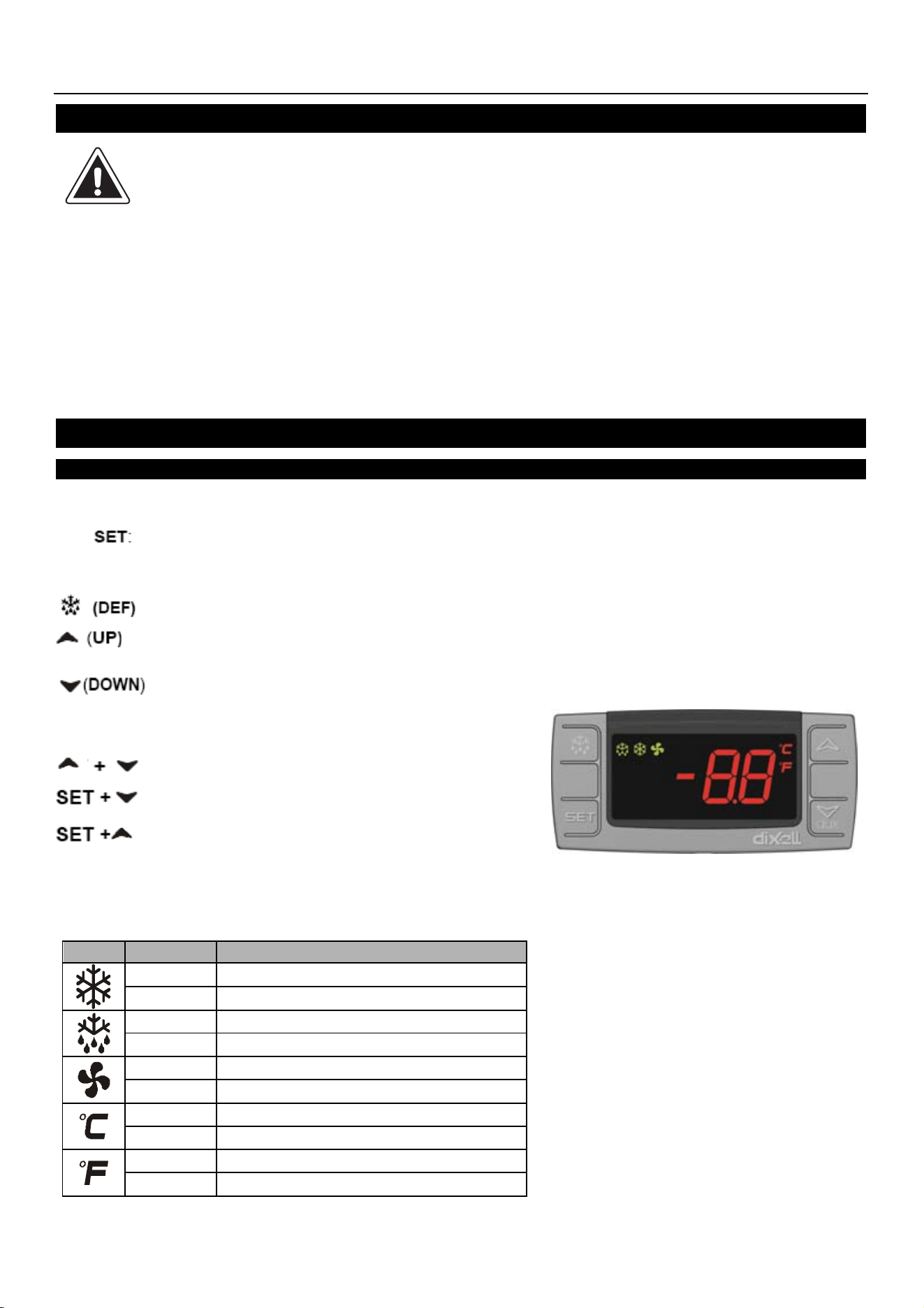

SOLID-STATE THERMOSTAT DESCRIPTIONS
1. FRONT PANEL COMMANDS
1.1 KEY FUNCTION
To display target set point; in programming mode it selects a parameter or confirm an
operation.
To start a manual defrost
To see the last temperature alarm happened; in programming mode it browses the parameter
codes or increases the display value
To see the last temperature alarm happened; in programming mode it browses the parameter
codes or decreases the display value
KEY COMBINATION
To lock & unlock the keyboard
To enter in programming mode
To return to the room temperature display
1.2 Function of LEDS
CAUTION
LED MODE SIGNIFICATO
On Compressor enabled
Flashing Anti-short cycle delay enabled (AC parameter)
On Defrost in progress
Flashing Dripping in progress
On Fans output enabled
Flashing Fans delay after defrost
On Measurement unit
Flashing Programming mode
On Measurement unit
Flashing Programming mode
Service and Installation Manual
10
2. MAIN FUNCTIONS
2.1 HOW TO SEE THE SETPOINT
1. Push and immediately release the SET key: the display will show the set point value;
2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
2.2 HOW TO CHANGE THE SETPOINT
1. Push the SET key for more than 2 seconds to change the set point value;
2. The value of the set point will be displayed and the LED starts blinking;
3. To change the set value push the or key within 10s;
4. To memory the new set point value and push the SET key again or wait 10s.
2.3 HOW TO START A MANUAL DEFFROST
Push the key for more than 2 seconds and a manual defrost will start
2.4 HOW TO LOCK THE KEYBOARD
1. Keep pressed the and keys for more than 3s;
2. The “POF” message will be displayed and the keyboard will be locked. At this point, it will be possible only
to see the set point or the MAX or Min temperature stored;
3. If a key is pressed more than 3s the ”POF” message will be displayed.
2.5 HOW TO UNLOCK THE KEYBOARD
Keep pressed the and keys together for more than 3s, till the “Pon” message display.

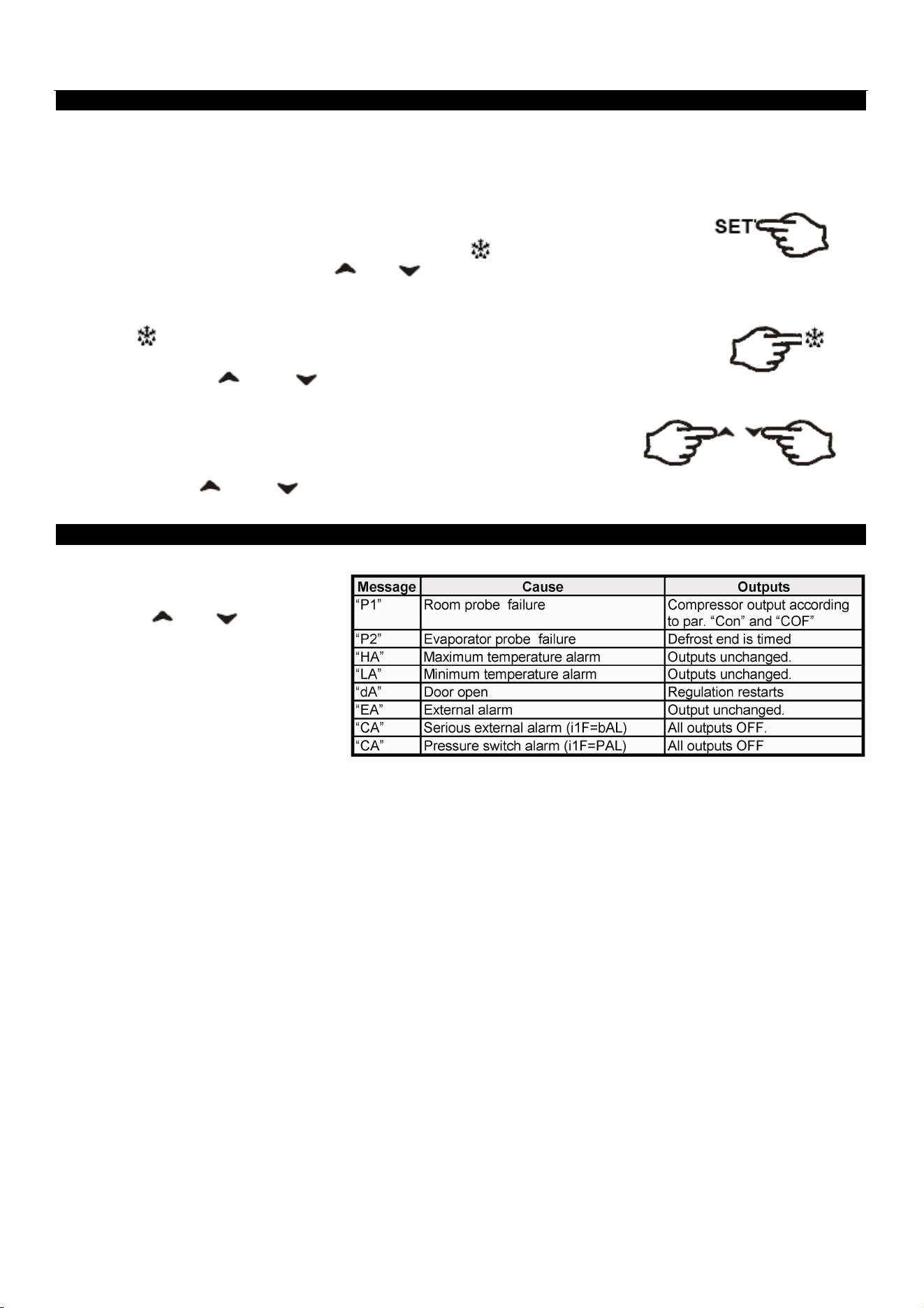

3. ALARM SIGNALS
HOW TO SEE THE ALARM AND
RESET THE RECORDED ALARM
1. Push the or key, the
alarm signals are displayed;
2. When the signal is displayed, hold
the SET key until the “rst” message
is displayed, and push the SET key
again, the “rst” message start
blinking and the normal temperature
will be displayed again.
Service and Installation Manual
11
MAINTENANCE
The power switch must be turned to OFF and the unit disconnected from the power
source whenever performing service, maintenance functions or cleaning the
refrigerated area.
The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and
water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless
steel to avoid marring the finish.
Do not use an abrasive cleaner because it will scratch the stainless steel and plastic and can damage the
breaker strips and gaskets.
Cleaning the Condenser Coil
The condenser coil requires regular cleaning, recommended is every 90 days. In some instances, you may
find that there is a large amount of debris and dust or grease accumulated prior to the 90 day time frame. In
these cases the condenser coil should be cleaned every 30 days.
If the build up on the coil consists of only light dust and debris the condenser coil can be cleaned with a
simple brush, heavier dust build up may require a vacuum or even compressed air to blow through the
condenser coil.
If heavy grease is present, there are de-greasing agents available for refrigeration use and specifically for
the condenser coils. The condenser coil may require a spray with the de-greasing agent and then blown
through with compressed air.
Failure to maintain a clean condenser coil can initially cause high temperatures and excessive run times,
continuous operation with dirty or clogged condenser coils can result in compressor failures. Neglecting the
condenser coil cleaning procedures will void any warranties associated with the compressor or cost to
replace the compressor.
Never use a high pressure water wash for this cleaning procedure as water can damage
the electrical components located near or at the condenser coil.
In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and
grease regularly. It is recommended that this be done at least every three months. If conditions are such that
the condenser is totally blocked in three months, the frequency of cleaning should be increased. Clean the
condenser with a vacuum cleaner or stiff brush. If extremely dirty, a commercially available condenser
cleaner may be required.
Stainless Steel Care and Cleaning
To prevent discoloration of rust on stainless steel several important steps need to be taken. First, we need to
understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also
contains 12-30% chromium which forms an invisible passive film over the steels surface which acts as a
shield against corrosion. As long as the protective layer is intact, the metal is still stainless. If the film is
broken or contaminated, outside elements can begin to breakdown the steel and begin to form rust of
discoloration. Proper cleaning of stainless steel requires soft cloths or plastic scouring pads,
NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!
DANGER
DANGER
DANGER
Service and Installation Manual
12
MAINTENANCE
Cleaning solutions need to be alkaline based or non-chloride cleaners. Any cleaner containing chlorides
will damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts,
and household and industrial cleaners. If cleaners containing chlorides are used be sure to rinse repeatedly
and dry thoroughly upon completion.
Routine cleaning of stainless steel can be done with soap and water. Extreme stains or grease should be
cleaned with a non-abrasive cleaner and plastic scrub pad. It is always good to rub with the grain of the steel.
There are also stainless steel cleaners available which can restore and preserve the finish of the steels
protective layer.
Early signs of stainless steel breakdown can consist of small pits and cracks. If this has begun, clean
thoroughly and start to apply stainless steel cleaners in attempt to restore the passivity of the steel.
Never use an acid based cleaning solution！
！！
！Many food products have an acidic content
which can deteriorate the finish. Be sure to clean the stainless steel surfaces of ALL
food products. Common items include, tomatoes, peppers and other vegetables.
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew build up and also to keep the elasticity of
the gasket. Gasket cleaning can be done with the use of warm soapy water. Avoid full strength
cleaning products on gaskets as this can cause them to become brittle and prevent proper seals. Also,
never use sharp tools or knives to scrape or clean the gasket which could possibly tear the gasket and
rip the bellows.
Gaskets can easily be replaced and don’t require the use of tools or authorized service persons. The
gaskets are "Dart" style and can be pulled out of the grove in the door and new gaskets can be "pressed"
back into place.
Doors/Hinges
Over time and with heavy use doors the hinges may become loose. If it is noticed that the door is
beginning to sag, it may become necessary to tighten the screws that mount the hinge brackets to the
frame of the unit. If the doors are loose or sagging this can cause the hinge to pull out of the frame which
may damage both the doors and the door hinges. In some cases this can require qualified service
agents or maintenance personnel.
Drain Maintenance
Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and
evaporates it at an external condensate evaporator pan. Each drain can become loose or disconnected from
moving or bumping the drain. If you notice excessive water accumulation on the inside of the unit, be sure
the drain tube is connected from the evaporator housing to the condensate evaporator drain pan. If water is
collected underneath the unit you may want to check the condensate evaporator drain tube to be sure it is
still located inside the drain pan. The leveling of the unit is important as the units are designed to drain
properly when on a level surface, if your floor is not level this can also cause drain problems. Be sure all
drain lines are free of obstructions typically food product is found blocking drain lines causing water to back
up and overflow the drain pans.
CAUTION
Service and Installation Manual
13
MAINTENANCE
Swing Door Replacement and Adjustment
1. Open the bottom shroud and hold the door, then loose bottom hinge’s screws and take off the old door;
2. Prepare new door, insert top pin into top hinge, get one bottom hinge to hold the door by the bottom pin ,
then fasten bottom hinge securely to the door frame with three screws;
3. Allow the door to freely swing, make sure it swing close by itself with no restriction;
4. Plug the unit in and make sure the lock work well;
5. If not, adjust the door height by adding the plastic spacer/washer provided to the bottom hinge pin.
Sliding Door Replacement and Adjustment
1. Take off the hook of counterweight of door from top of the door;
2. H
old the door up until it’s bottom edge over the channel a little, move the door out across the channel, lay
the door down;
3. Prepare new door, hold the door insert into top channel until bottom edge over bottom channel, move
bottom of door across the channel wall and lay it down to the channel.
Service and Installation Manual
14
WIRING DIAGRAM
Model: BLBB59-2B-HC / BLBB69-3B-HC / BLBB59-2S-HC / BLBB69-3S-HC
Model: BLBB90-4B-HC / BLBB90-4S-HC
Service and Installation Manual
15
WIRING DIAGRAM
Model: BLBB59-2BG-HC / BLBB69-3BG-HC / BLBB59-2SG-HC / BLBB69-3SG-HC
Model: BLBB90-4BG-HC / BLBB90-4SG-HC
Service and Installation Manual
16
WIRING DIAGRAM
Model: BLBB59-2B-HC / BLBB69-3B-HC / BLBB59-2S-HC / BLBB69-3S-HC
Service and Installation Manual
17
WIRING DIAGRAM
Model:BLBB59-2BG-HC / BLBB69-3BG-HC / BLBB59-2SG-HC / BLBB69-3SG-HC
Service and Installation Manual
18
WIRING DIAGRAM
Model: BLBB90-4B-HC / BLBB90-4S-HC
Service and Installation Manual
19
WIRING DIAGRAM
Model: BLBB90-4BG-HC / BLBB90-4SG-HC
