Using This Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional equipment that are not included in your
system.
The following conventions are used.
Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Tap OK.
Notes
A NOTE provides helpful information such as additional explanations, tips, and comments.
Example:
Note: Remember to remove the VCI connector from the vehicle’s DLC after use.
Warning
Warning indicates a hazardous situation which, if not avoided, could result in minor or moderate injury to the operator or
to bystanders.
Example:
Warning: Retrieving and using DTCs for troubleshooting vehicle operation is only one part of an overall diagnostic strategy.
Never replace a part based only on the DTC definition. Each DTC has a set of testing procedures, instructions and flow charts that
must be followed to confirm the location of the problem. This information can be found in the vehicle’s service manual.
Danger
Danger indicates an imminently or potentially hazardous situation which, if not avoided, could result in death or serious
injury to the operator or to bystanders.
Example:
Danger: If you must drive the vehicle in order to perform a troubleshooting procedure, always have a second person help you.
Trying to drive and operate the diagnostic tool at the same time is dangerous, and could cause a serious traffic accident.
LAUNCH
ii
Illustrations
Illustrations used in this manual are samples, the actual testing screen may vary for each vehicle being tested. Observe
the menu titles and on-screen instructions to make correct option selection.
Important Safety Precautions
To avoid personal injury, property damage, or accidental damage to the product, read all of the information in this
section before using the product.
DANGER
• When an engine is operating, keep the service area well-ventilated or attach a building exhaust removal system to
the engine exhaust system. Engines produce various poisonous compounds (hydrocarbon, carbon monoxide,
nitrogen oxides, etc.) that cause slower reaction time and result in death or serious personal injury.
• Please use the included battery and power adaptor. Risk of explosion if the battery is replaced with an incorrect type.
• If you must drive the vehicle in order to perform a troubleshooting procedure, always have a second person help you.
Trying to drive and operate the diagnostic tool at the same time is dangerous, and could cause a serious traffic
accident.
WARNING
Always perform automotive testing in a safe environment.
Do not connect or disconnect any test equipment while the ignition is on or the engine is running.
Before starting the engine, put the gear lever in the Neutral position (for manual transmission) or in the Park (for
automatic transmission) position to avoid injury.
NEVER smoke or allow a spark or flame in vicinity of battery or engine. Do not operate the tool in explosive
atmospheres, such as in the presence of flammable liquids, gases, or heavy dust.
Keep a fire extinguisher suitable for gasoline/chemical/electrical fires nearby.
Wear an ANSI-approved eye shield when testing or repairing vehicles.
Put blocks in front of the drive wheels and never leave the vehicle unattended while testing.
Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark plugs. These
components create hazardous voltage when the engine is running.
To avoid damaging the tool or generating false data, please make sure the vehicle battery is fully charged and the
connection to the vehicle DLC (Data Link Connector) is clear and secure.
Retrieving and using DTCs for troubleshooting vehicle operation is only one part of an overall diagnostic strategy.
Never replace a part based only on the DTC definition. Each DTC has a set of testing procedures, instructions and
flow charts that must be followed to confirm the location of the problem. This information can be found in the vehicle’s
service manual.
Automotive batteries contain sulfuric acid that is harmful to skin. In operation, direct contact with the automotive
batteries should be avoided. Keep the ignition sources away from the battery at all times.
Keep the tool dry, clean, free from oil, water or grease. Use a mild detergent on a clean cloth to clear the outside of
the equipment when necessary.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.
Store the tool and accessories in a locked area out of the reach of children.
Do not use the tool while standing in water.
Do not expose the tool or power adapter to rain or wet conditions. Water entering the tool or power adaptor increases
the risk of electric shock.
This tool is a sealed unit. There are no end-user serviceable parts inside. All internal repairs must be done by an
authorized repair facility or qualified technician. If there is any inquiry, please contact the dealer.
Keep the tool far away from magnetic devices because its radiations can damage the screen and erase the data
stored on the tool.
LAUNCH
iii
Do not attempt to replace the internal rechargeable lithium battery. Contact the dealer for factory replacement.
Do not disconnect battery or any wiring cables in the vehicle when the ignition switch is on, as this could avoid
damage to the sensors or the ECU.
Do not place any magnetic objects near the ECU. Disconnect the power supply to the ECU before performing any
welding operations on the vehicle.
Use extreme caution when performing any operations near the ECU or sensors. Ground yourself when you
disassemble PROM, otherwise ECU and sensors can be damaged by static electricity.
When reconnecting the ECU harness connector, be sure it is attached firmly, otherwise electronic elements, such as
ICs inside the ECU, can be damaged.
Compliance Information
Model: OADD-PD1005A
FCC ID: XUJOADDPD1005A
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Innovation, Science and Economic Development Canada’s licence-exempt RSSs and part 15
of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference; and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme aux RSSs exempts de licence d’ Innovation, Sciences et Développement économique
Canada et à la partie 15 des règles de la FCC. Le fonctionnement est soumis aux deux conditions suivantes:
(1) Cet appareil ne doit pas causer d’interférences nuisibles; et
(2) Cet appareil doit accepter toute interférence reçue, y compris les interférences susceptibles de provoquer un
fonctionnement indésirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The device for operation in the band 5150-5250MHz is only for indoor use.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information
This product meets the government's requirements for exposure to radio waves. The guidelines are based on standards
that were developed by independent scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of
age or health.
RF Exposure Information and Statement
The SAR limit is 1.6 W/kg averaged over one gram of tissue. This device has also been tested against this SAR limit.
This device was tested for typical body-worn operations 0mm from the body. To maintain compliance with RF exposure
requirements, use accessories that maintain a 0mm separation distance between the user's body.
LAUNCH
iv
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum
separation distance of 0mm must be maintained between the user’s body, including the antenna. Third-party belt-clips,
holsters, and similar accessories used by this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF exposure requirements and should be
avoided. Use only the supplied or an approved antenna.
Cet appareil a été testé pour des opérations typiques portées sur le corps, pour satisfaire aux exigences relatives à
l’exposition RF, une distance minimale de séparation de 0mm doit être maintenue entre le corps de l’utilisateur, y
compris l’antenne. Les clips de ceinture, les étuis et les accessoires similaires de tiers utilisés par cet appareil ne
doivent pas contenir de composants métalliques. Les accessoires portés sur le corps qui ne répondent pas à ces
exigences ne peuvent pas être conformes aux exigences relatives à l’exposition RF et doivent être évités. Utilisez
uniquement l’antenne fournie ou une antenne approuvée.
This device is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive
2014/53/EU. The RF frequencies can be used in Europe without restriction.
LAUNCH
v
TABLE OF CONTENTS
1 Introduction .................................................................................................................................................................. 1
1.1 Packing List ............................................................................................................................................................. 1
1.2 Components & Controls .......................................................................................................................................... 2
1.2.1 Scan Tool.......................................................................................................................................................... 2
1.2.2 SmartLink C Device ......................................................................................................................................... 3
1.3 Technical Specifications .......................................................................................................................................... 5
2 Getting Started ............................................................................................................................................................. 6
2.1 Charging & Powering On ........................................................................................................................................ 6
2.2 Screen Layout ......................................................................................................................................................... 6
2.3 Language Setup ...................................................................................................................................................... 6
2.4 Network Setup ......................................................................................................................................................... 6
2.5 Registration & Update ............................................................................................................................................. 7
2.6 Job Menu ................................................................................................................................................................ 8
3 Connection & Communication Setup ....................................................................................................................... 10
3.1 Connection ............................................................................................................................................................ 10
3.2 Communication Setup ........................................................................................................................................... 10
LAUNCH
1
1 Introduction
1.1 Packing List
Common accessories are same, but for different destinations, the accessories may vary. For detailed accessory items,
please consult from the seller or check the packing list supplied with this tool together.
1. Scan tool (model: OADD-PD1005A) x 1
2. SmartLink C device (model: S4006) x 1
3. Diagnostic cable x 1
4. Power adaptors x 2
5. Data cable x 1
6. Password envelope x 1
7. Crossover cable x 1
8. Quick start guide x 1
9. Non-16pin adaptor kit for passenger cars (Optional)
LAUNCH
2
1.2 Components & Controls
There are two main components to the diagnostic system: Scan Tool and SmartLink C Device.
1.2.1 Scan Tool
The scan tool acts as the central processing system, which is used to receive and analyze the live vehicle data from the
SmartLink C device and then output the test result.
LAUNCH
3

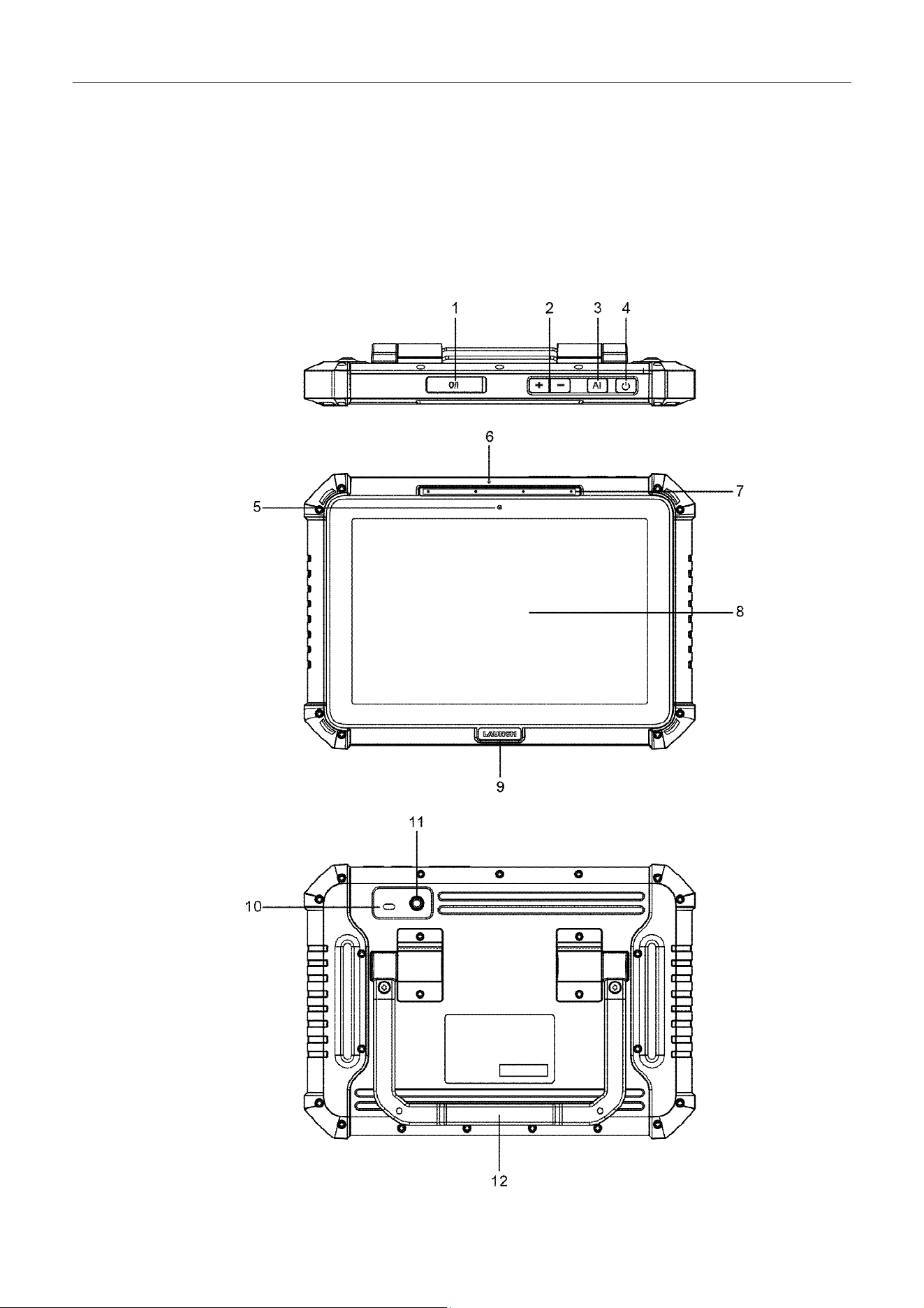

1. Data I/O Port
1). Type-A Port
• Connect it to the SmartLink C device to perform vehicle diagnosis.
• Connect it to the add-on module to extend the functions of the scan tool.
2). Type-C Port
• Charge the scan tool via the power adaptor.
2. Volume Buttons
Adjust the volume.
Note: Press and hold [POWER] and [VOL -] key to capture the current screenshot.
3. AI Function Button
Press it to activate the AI (Artificial Intelligence) function.
4. Power/Screen Lock Button
To turn the scan tool on/off with long press, or lock the screen with short press.
5. Front Camera
Snapshot the view ahead the screen.
6. Microphone (For system apps)
Convert voice into an electrical signal.
7. Microphone (Only for AI function)
Convert voice into an electrical signal.
8. Touch Screen
Indicate the test results.
9. Breathing LED
It illuminates and flashes red while the scan tool is charging. Once charging is finished, it will illuminate solid green.
10. Rear Camera
Snapshot the view in front of the scan tool.
11. Camera Flash
Produce a flash of artificial light.
12. Adjustable Kickstand
Flip out it to any angle and work comfortable at your desk, or hang it on automotive part.
1.2.2 SmartLink C Device

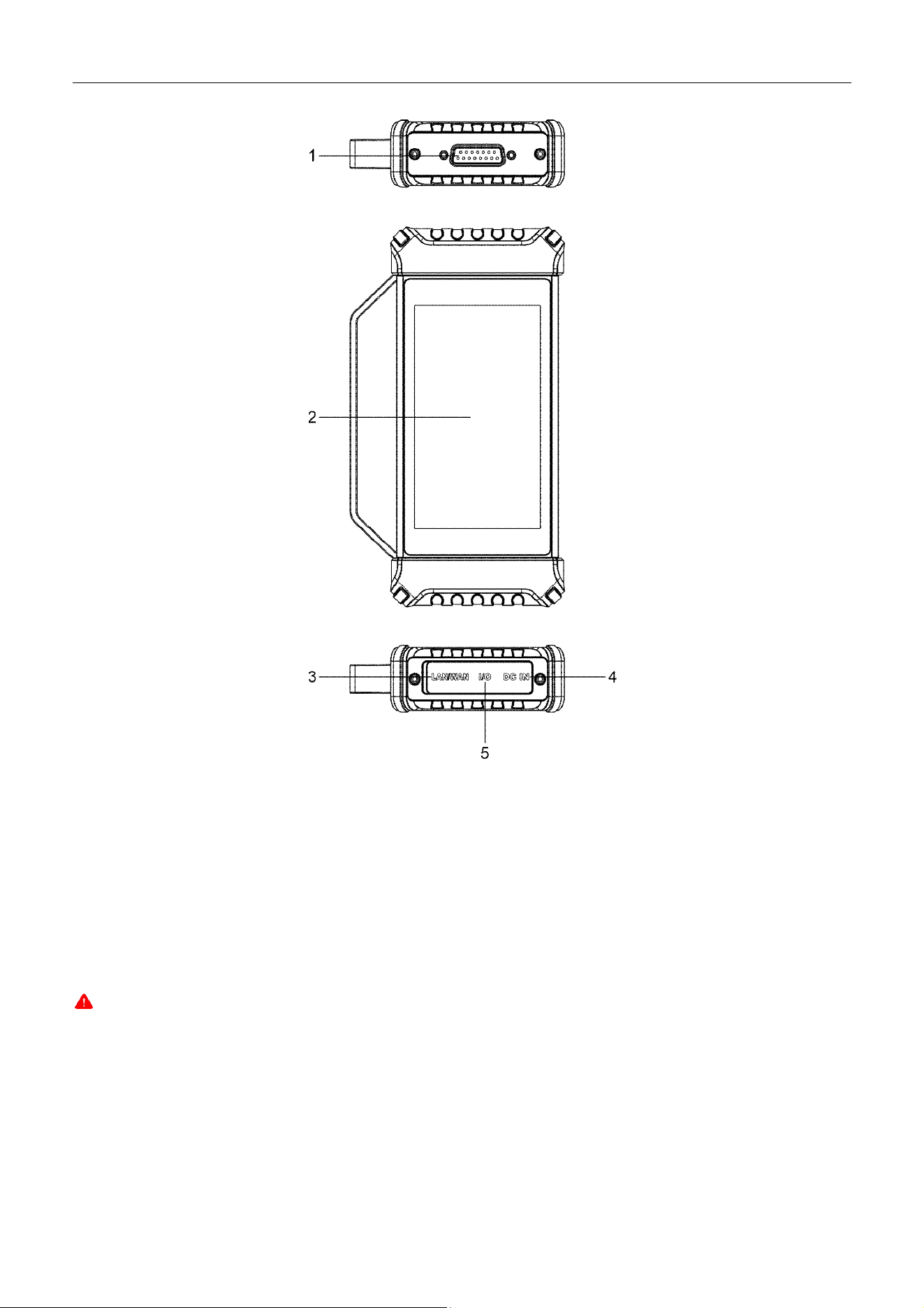

The SmartLink C device features powerful functions and it can be applied in the following situations:
1). When as a VCI (Vehicle Communication Interface), it needs to work in conjunction with the Diagnose module of the
scan tool, which is used to obtain vehicle data, and then send it to the scan tool for analysis wirelessly or via data
cable.
2). When as a SmartLink C (Customer) dongle, it does not communicate with the scan tool, but it needs to work
together with the SmartLink module of the scan tool. The scan tool is mainly used to issue remote diagnostic
requests, and the SmartLink C dongle is networked to receive and execute commands from the remote SmartLink
B (Business).
3). When as a local J2534 PassThru device, it can be used in conjunction with the PC installed with OEM diagnostic
software.
LAUNCH
4
1. DB-15 diagnostic connector
Connect the SmartLink C device to the vehicle’s DLC (Data Link Connector) port via the diagnostic cable.
2. Touch screen
3. LAN/WAN port
Connect the SmartLink C device to the Internet via the crossover cable. It only applies to the SmartLink Super Remote
Diagnostics.
4. DC-IN power jack
It can obtain power via connecting the diagnostic cable to the vehicle’s DLC port or connecting to an external DC power
supply.
Warning: It is prohibited to connect this power jack to an external DC power supply when the SmartLink C device is properly
connected to the vehicle’s DLC port.
No responsibility can be assumed for any damage or loss caused as a result of not strictly following the warning.
5. Data I/O port
• Connect it to the scan tool to perform vehicle diagnosis.
• Connect it to the PC to perform J2534 reprogramming when as a J2534 PassThru device.
LAUNCH
5
1.3 Technical Specifications
1. Scan tool
Operating System: Andriod
TM
15
CPU: 8-core Processor, 2.0GHz
Display: 10.1 inch touch screen with a resolution of 1920 x 1200
Memory: 8GB
Hard disk: 256GB
Connectivity:
• Dual Wi-Fi (One supports 802.11a/b/g/n/ac and the other supports 802.11a/b/g/n/ac/ax)
• Universal serial BUS ports (1 x Type-C + 1 x Type-A)
Camera: 8MP front-facing camera + 13MP rear-facing camera
Dimension: 287.2mm x 202.2mm x 45.6mm
Supported Protocols: CAN2.0/CANFD/DOIP/J2534/RP1210/D-PDU
Operating temperature: 0℃~ 50℃(32°F to 122°F)
Storage temperature: -20℃~ 70℃(-4°F ~158°F)
2. SmartLink C device
Dimension: 187.6mm x 106mm x32.8mm
Working voltage: DC 9~36V
Power consumption: ≤ 6W
Communication: wireless and wired
Working temperature: 0℃ ~ 50℃
LAUNCH
6
2 Getting Started
2.1 Charging & Powering On
Notes:
•
Only use the included power adaptor or docking station to recharge the tool. Use of any other adaptor or docking station will
damage the tool. We assume no responsibility for damage or loss resulting from using other similar adaptors or docking station
other than the specified one.
•
Always charge on a non-flammable surface in a well-ventilated area.
To check the battery power level, press and hold the Power button about 3 seconds to turn on the tool. Power level is
indicated as a percentage in the upper right corner of the screen. If the power level drops below 10% while the tool is on,
a prompt message will appear on the screen. Follow the steps below to charge the scan tool:
1. Connect one end of the power adaptor to the Type-C port of the tool, and the other end to the AC outlet.
2. The breathing LED illuminates and flashes red and the charging symbol will appear on the screen.
3. Once it illuminates solid green, it indicates that the battery is fully charged. Disconnect the power adaptor from the
AC outlet.
4. Press and hold the POWER button for about 3 seconds to turn on the tool. The system starts initializing and then
enters the home screen.
To turn the tool off, press and hold the POWER button until an option menu appears. Tap Power Off.
2.2 Screen Layout
On-screen keys and status bar on the bottom of the screen are as follows:
Tap
to return to the previous screen or exit the application.
Tap to jump to the home screen.
Tap to display a list of applications that are currently running or recently used.
Tap
to capture the current screen and all captured screenshots are stored in the Screenshots folder.
shows whether the VCI is connected properly or not.
Tap to visit the official website.
2.3 Language Setup
The scan tool supports multiple languages. To change the language of the tool, please do the following:
1. On the home screen, tap Settings -> System -> Language & input -> Languages.
2. Tap the desired language from the list and the system will change to the chosen language.
2.4 Network Setup
The scan tool has dual built-in Wi-Fi communication modules. One is used to communicate with the SmartLink C device,
and the other allows the tool to get online. Once you’re online, you can register your tool, update diagnostic software &
APK, browse the Internet and send email on your network.
Note: Once WLAN is set as ON, the tool will consume more power. While WLAN keeps unused, please turn it off to conserve
battery power.
1. On the home screen, tap Settings -> Network & internet -> Internet -> Wi-Fi.
2. Tap or slide the Wi-Fi switch to ON, the tool starts searching for all available wireless LANs.
3. Choose the desired Wi-Fi access point / network,
LAUNCH
7
If the network you chose is open, you can connect directly.
If the selected network is encrypted, you have to enter the right security key (network password).
When this tool is in range, it will connect to the previously linked network automatically.
2.5 Registration & Update
For new users, you will need to experience a user registration process before getting started.
Tap the application icon on the home screen, and then tap Login on the upper right corner of the screen. The following
popup will appear.
There are two methods available for users to login: Password login and Email login.

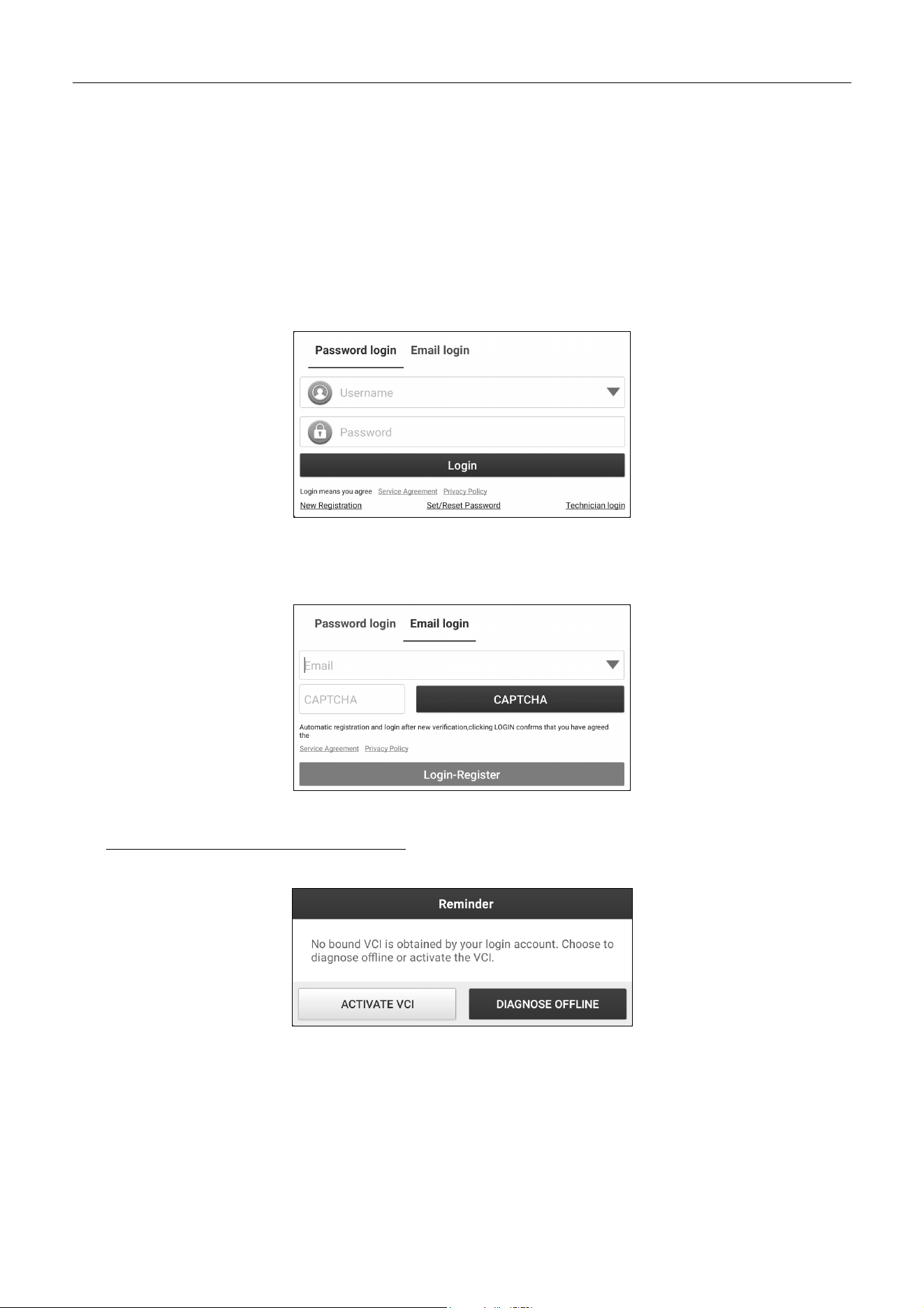

1. If you have not registered any authorized account of LAUNCH scan tool, please use Email login. Tap New
Registration, the following screen will appear.
Input the Email address, tap CAPTCHA and enter the received verification code. Tap Login-Register to continue.
A. If no scan tools are bound to this Email before, follow the steps below to proceed:
1). After the following popup appears, tap ACTIVATE VCI to go to the next step.

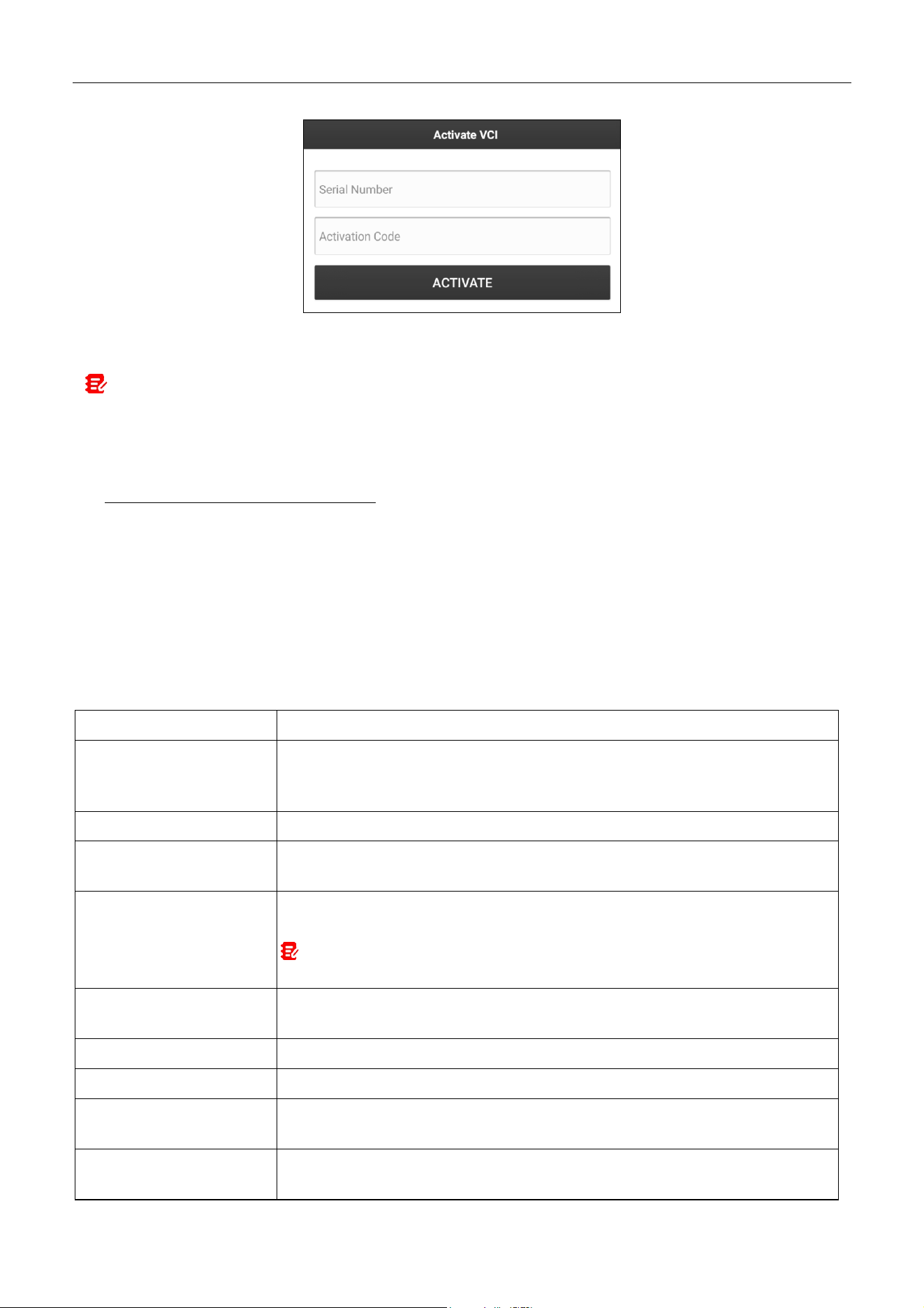

2). Input the 12-digit Product Serial Number and 8-digit Activation Code (can be obtained from the password
envelope), and then tap ACTIVATE.
LAUNCH
8
3). After the VCI device is successfully activated, the system automatically enter the update center. Tap Update to
update all available software.
Note: All software is updated periodically. It is recommended to check regularly for updates and install the latest software
version for the best service, functions and experience.
It is strongly recommended to set a new password by tapping the Set/Reset Password on the “Password login”
screen immediately after the registration is completed. So you can also use the email and password to log in the
diagnostic system in the future.
B. If there are scan tools bound to this Email, a list of the bound VCIs will pop up on the screen. In this case,
1). Tap Activate. Input the Product Serial Number and Activation Code, and then tap Activate.
2). Go to Software Update to update all available software.
2. If you have an authorized account of LAUNCH scan tool, please use Password login. Input the username and
password (If you forgot the password, tap Set/Reset Password to set a new one), and tap Login to login the
diagnostic system.
2.6 Job Menu
It mainly includes the following items:
Name
Description
Intelligent Diagnose
•
Obtain vehicle data from the cloud server to perform quick test via reading VIN, to
avoid various defects resulting from step-by-step menu selection.
•
Check the historical repair records online.
Local
Diagno
se
Diagnose a vehicle manually.
Remote Diagnose
There are two remote diagnosis platforms available: SmartLink Super remote
diagnosis and X431 Remote diagnosis.
EV
To diagnose the electronic control systems, detect battery pack and perform some
service functions of new-energy vehicles.
Note: This function needs to work with New Energy Vehicle Diagnosis Add-on Kit
(optional), which can be purchased from the authorized dealer.
Special Function
It offers coding, reset, relearn and more service functions, to help vehicles get back to
functional status after repair or replacement.
Toolbox
Provides some additional add-on tools to extend the functions of the scan tool.
Software Update
Update vehicle diagnostic software and APK.
X-431 Diagnostic Kit
Includes vehicle coverage, CANBUS pin detection, CANScope, and Fix connector
firmware/system etc.
Feedback
Feedback the recent 20 diagnostic logs to us when you encounter any unsolved
problems.
LAUNCH
9
Know Your Customer
Assist merchants in conducting business opportunity analysis, customer
management, and diagnostic statistics.
Mall
An online diagnostic software store. This module enables you to subscribe some
extra software or service functions that are not integrated in the tool online.
LAUNCH Academy
Include abundant repair case, operation skills and training videos for quick reference.
Repair Info
Check repair information and ask for support via Facebook or from after-sales team.
User Info
Manage VCI, diagnostic reports & records, change password, order and logout / login
etc.
Other Modules
Include Settings and About.
LAUNCH
10
3 Connection & Communication Setup
3.1 Connection
1. Make sure that the vehicle battery voltage range is 9-14V (for passenger cars) or 18-30V (for commercial vehicles)
and the vehicle ignition is turned off.
2. Find the vehicle’s DLC location.
For passenger cars, the DLC is usually located 12 inches from the center of the instrument panel, under or around the driver’s
side for most vehicles. For some vehicles with special designs, the DLC location may vary.
If the DLC cannot be found, refer to the vehicle’s service manual for the location.
For commercial vehicles, the DLC is always located in driver’s cab.
3. Refer to the following illustrations to make connection.
The method used to connect the VCI device to a vehicle’s DLC depends on the vehicle’s configuration as follows:
For OBD II vehicles, use the included diagnostic cable (DB15F to HD15F data cable and HD15M to OBD16 adaptor)
to connect the VCI to the vehicle’s DLC port.
For non-OBDII vehicles, refer to the above figure to make connection.
1. Select the appropriate adaptor according to the vehicle’s DLC port type.
2. Loosen the captive screws of the DB15F to HD15F data cable and disconnect the HD15M to OBD16 adaptor
from the data cable.
3. Connect the data cable with the target adaptor (optional) and tighten the screws. Other steps shall also apply.
If you choose to perform vehicle diagnosis via data cable, connect one end of the data cable into the VCI, and the other
end into the data I/O port of the tool.
3.2 Communication Setup
There are two kinds of ways available for the tool to communicate with the VCI device: wireless and wired (USB).
After the user registration is successfully finished, the wireless communication between the tool and the VCI device is
automatically established and user has no need to configure it again.
The USB connection is a simple & quick way to establish communication between the tool and the VCI. After properly
connecting the data cable from the tool to the VCI, the VCI navigation button at the bottom of the screen will be enabled
indicating the USB connection is successful.
Note: The USB connection provides the most stable and fastest communication. When all communication methods are applied
at the same time, the tool will use the wired communication as the default priority.
