Installation
MANUAL
Insulated Jacket
For Outdoor Products
VIJ5 301
VIJ5 361
VIJ5421
VIJ5541
VIJSB2
VIJPB
LIJ27
LIJ30
LIJ36
LIJ42
LIJ54
LIJSB2
LIJPB
2

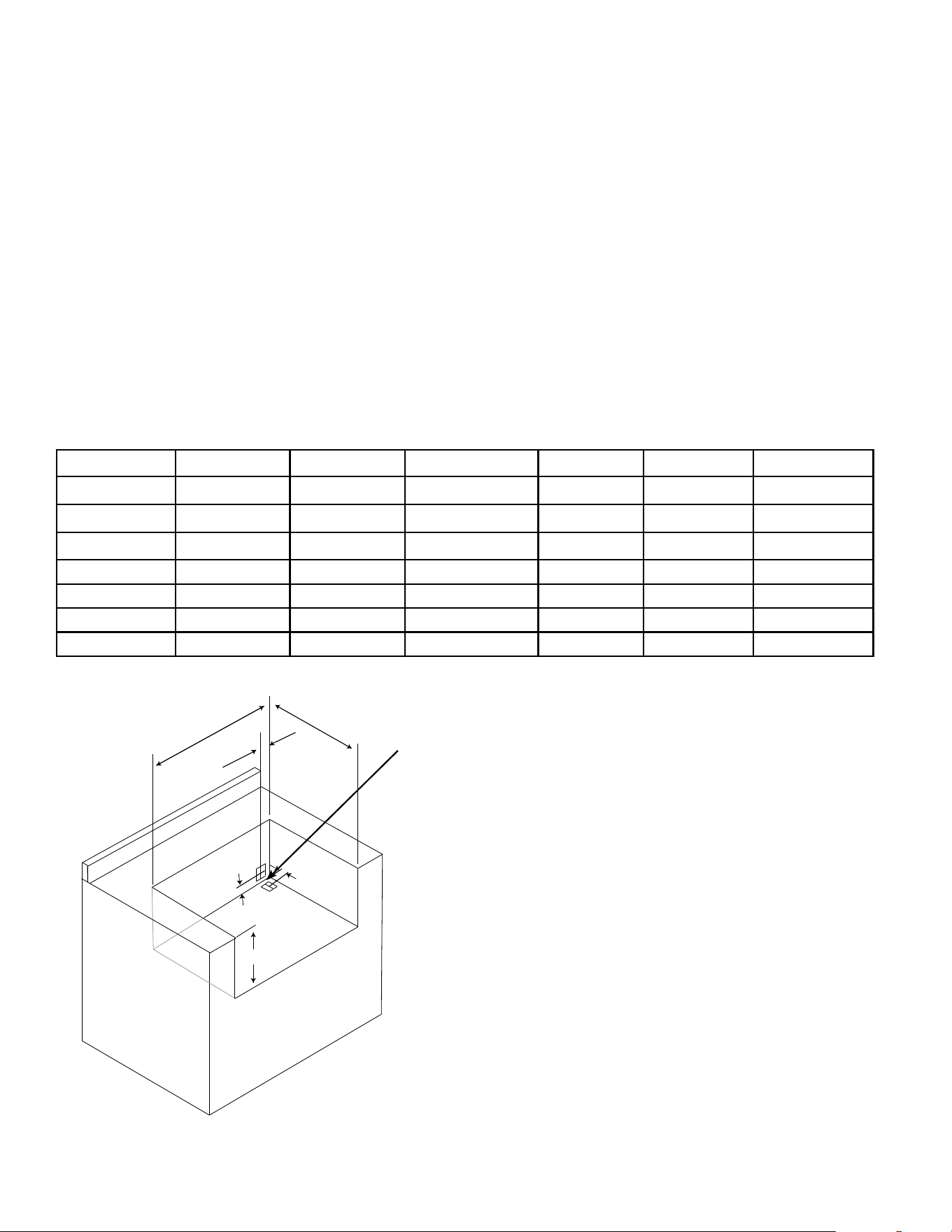

Cutout Dimensions
IMPORTANT: Before you build the frame, you must take into consideration the total weight of the liner, grill and any nishing
materials.
Refer to the cutout dimension table for the proper framing dimensions for the insulation jacket. Determine the entry
point for both the gas inlet and electrical connections. Make the 4” square holes for gas and electrical connections
(rear or bottom access) based on your requirements.
Note: that the electrical connections are located on the left side and the gas connections are located on the right side.
A Carpenter’s “spirit level” should be used to assure that the framing is level, both front to back and side to side. Note:
Never under any circumstance should you install the transformer or run a quick disconnect hose inbetween the grill
and the inside of the insulating jacket.
A
C
B
F
D
E
4” square holes for gas and electrical
connections (rear or bottom access).
Make these holes in the frame based
on your requirements
Liner Installation
Position the liner into the frame. No part of the combustible enclosure can protrude above the top surface
or in front of the face surface of the liner. Shim the liner if necessary.
Model A B C D E F
LIJ27 33” (83.8 cm) 5” (12.7 cm) 23 ¾“ (60.3 cm) 4 ½” (11.4 cm) 3” (7.6 cm) 11 5/8” (29.5 cm)
VIJ5301 / LIJ30 36” (91.4 cm) 5” (12.7 cm) 26 ½” (67.3 cm) 4 ½” (11.4 cm) 3” (7.6 cm) 11 5/8” (29.5 cm)
VIJ5361 / LIJ36 42” (106.7 cm) 5” (12.7 cm) 23 ¾” (60.3 cm) 4 ½” (11.4 cm) 3” (7.6 cm) 11 5/8” (29.5 cm)
VIJ5421 / LIJ42 48” (121.9 cm) 5” (12.7 cm) 26 ½” (67.3 cm) 4 ½” (11.4 cm) 3” (7.6 cm) 11 5/8” (29.5 cm)
VIJ5541 / LIJ54 60” (152.4 cm) 5” (12.7 cm) 26 ½” (67.3 cm) 4 ½” (11.4 cm) 3” (7.6 cm) 11 5/8” (29.5 cm)
VIJSB2 / LIJSB2 15 ½” (39.4 cm) 3 ½” (8.9 cm) 26 ½” (67.3 cm) 4 ¾“ (12.1 cm) 3 1/8” (8.0 cm) 11 5/8” (29.5 cm)
VIJPB / LIJPB 26 ¼” (68.0 cm) 5 3/8” (13.7 cm) 23 7/8” (62.7 cm) 4 ¾“ (12.1 cm) 3 1/8” (8.0 cm) 11 5/8” (29.5 cm)
3

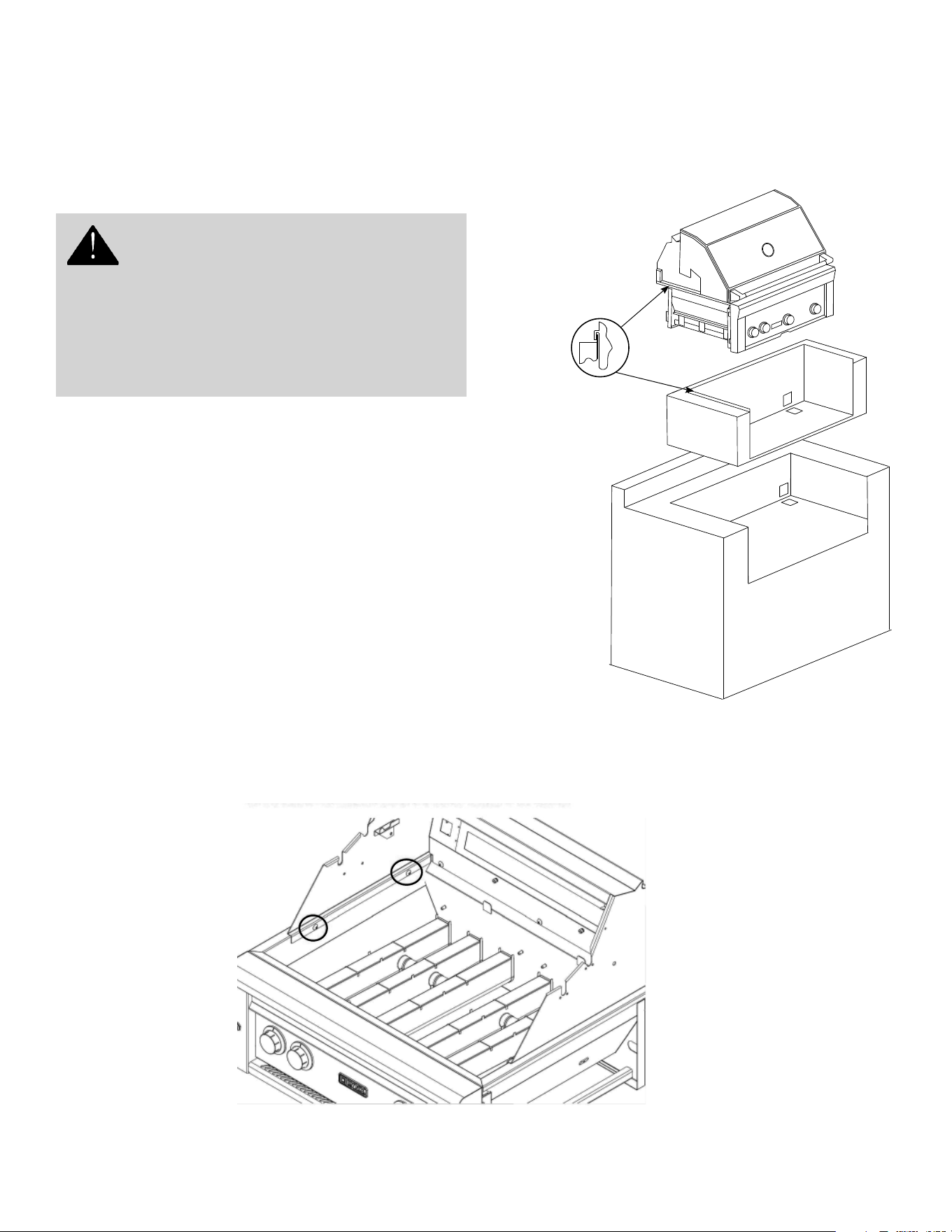

Use the proper equipment to support the grill. Place the grill into the liner and engage it over the liner lip across the back and
sides. The liner is designed to support the grill without additional fasteners.
Grill Installation
If desired any gap remaining between the liner and the combustible enclosure may be lled with a non-combustible
sealant or caulk.
The regulator to be installed outside the insulating jacket.
It can be positioned anywhere in the gas supply line
between the grill and the shuto valve.
Gas tubing should never be installed within the insulated
jacket.
WARNING
After installing grill to the insulated jacket, replace the 2 screws on both side of
the grill with the included 1” screws, one screw at a time. This is to straighten out
the sides of the insulated jacket and reduce the gap to the cabinet.
4

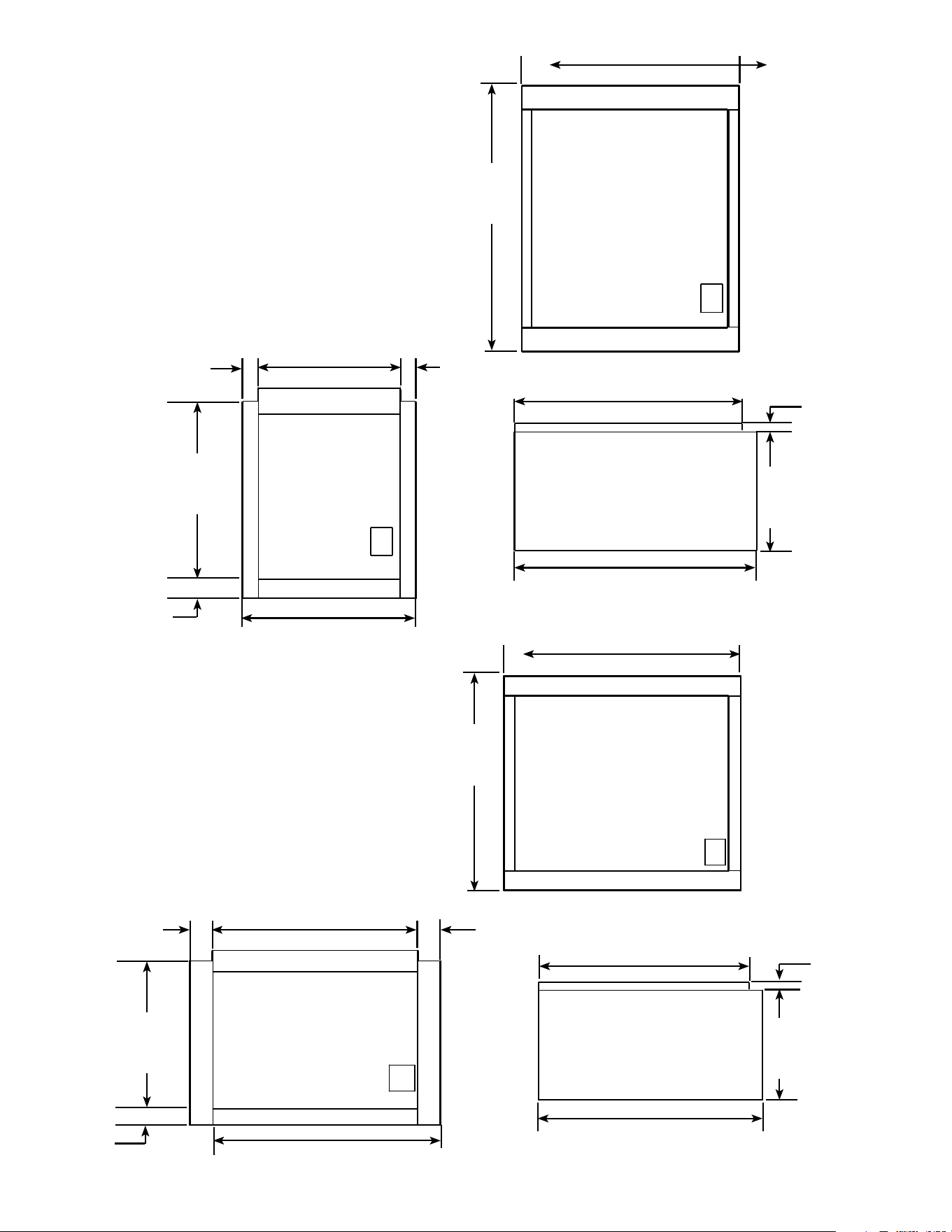

VIJ5301 / LIJ30
Insulated Jacket Dimensions
TOP VIEW
FRONT VIEW
SIDEVIEW
29-1/4”
(74.3 cm)
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
35-3/4”
(90.8 cm)
26-3/8”
(67.0 cm)
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
29-1/4” (74.3 cm)
35-3/4” (90.8 cm)
11-5/8”
(29.5 cm)
11-5/8”
(29.5 cm)
25” (63.5 cm)
26-3/8” (67.0 cm)
1-3/8”
(3.5 cm)
13/16”
(2.1 cm)
TOP VIEW
FRONT VIEW
SIDEVIEW
26-1/4”
(66.7 cm)
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
32-3/4”
(83.2 cm)
26-3/8”
(67.0 cm)
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
26-1/4” (66.7 cm)
32-3/4” (83.2 cm)
11-5/8”
(29.5 cm)
11-5/8”
(29.5 cm)
25” (63.5 cm)
26-3/8” (67.0 cm)
1-3/8”
(3.5 cm)
13/16”
(2.1 cm)
LIJ27
5
VIJ5361 / LIJ36
41-3/4” (106.0 cm)
23-5/8” (60.0 cm)
1-3/8”
(3.5 cm)
TOP VIEW
FRONT VIEW SIDEVIEW
35-1/4”
(89.5 cm)
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
41-3/4”
(106.0 cm)
23-5/8”
(60.0 cm)
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
35-1/4” (89.5 cm)
11-5/8”
(29.5 cm)
11-5/8”
(29.5 cm)
22-1/4” (56.5 cm)
13/16”
(2.1 cm)
3-1/4”
(8.3 cm)
47-3/4”
(121.3 cm)
26-3/8”
(67.0 cm)
3-1/4”
(8.3 cm)
41-1/4”
(104.8 cm)
TOP VIEW
FRONT VIEW
SIDEVIEW
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
47-3/4” (121.3 cm)
41-1/4” (104.8 cm)
11-5/8”
(29.5 cm)
25” (63.5 cm)
1-3/8”
(3.5 cm)
13/16”
(2.1 cm)
26-3/8” (67.0 cm)
11-5/8”
(29.5 cm)
VIJ5421 / LIJ42
6
VIJ5541 / LIJ54
3-1/4”
(8.3 cm)
59-3/4”
(151.89 cm)
26-3/8”
(67.0 cm)
3-1/4”
(8.3 cm)
53-1/4”
(135.3 cm)
TOP VIEW
FRONT VIEW
SIDEVIEW
3-1/4”
(8.3 cm)
3-1/4”
(8.3 cm)
59-3/4” (151.89 cm)
53-1/4” (135.3 cm)
11-5/8”
(29.5 cm)
25” (63.5 cm)
1-3/8”
(3.5 cm)
13/16”
(2.1 cm)
26-3/8” (67.0 cm)
11-5/8”
(29.5 cm)
7
VIJSB2 / LIJSB2
VIJPB / LIJPB
TOP VIEW
FRONT VIEW
SIDEVIEW
TOP VIEW
FRONT VIEW
15-1/4”
(38.7 cm)
12-3/4”
(32.4 cm)
11-1/4”
(28.6 cm)
11-5/8”
(29.5 cm)
25-1/8”
(63.8 cm)
26-3/8”
(67.0 cm)
13/16”
(2.1 cm)
15-1/4”
(38.7 cm)
26-3/8”
(67.0 cm)
1-1/4”
(3.2 cm)
1-1/4”
(3.2 cm)
SIDEVIEW
11-5/8”
(29.5 cm)
22-1/2”
(57.2 cm)
23-3/4”
(60.3 cm)
13/16”
(2.1 cm)
26”
(66.0 cm)
23-3/4”
(60.3 cm)
19-1/2”
(49.5 cm)
11-1/4”
(28.6 cm)
3-1/4”
(8.3 cm)
1-1/8”
(2.9 cm)
1-1/8”
(2.9 cm)
19-1/2” (49.5 cm)
3-1/4”
(8.3 cm)
