BRANO
Range hoods
INSTALLATION GUIDE
AND USERS MANUAL
Model Name: SL22S
Available Sizes: 36"
THANK YOU FOR YOUR PURCHASE
2
CONTACT US
3
11
12
13
15
20
21
22
24
27
29
30
31
32
14
28
4
23

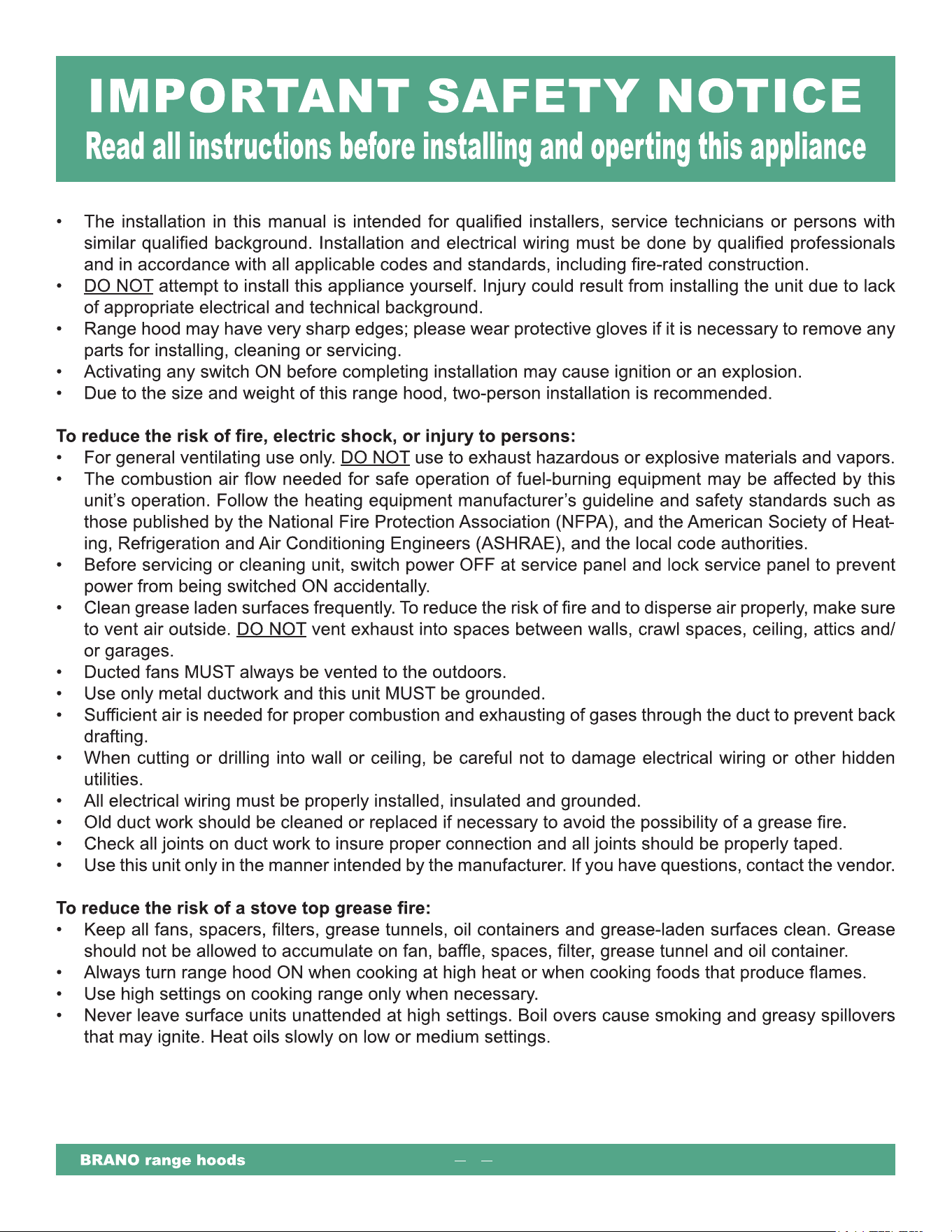

4

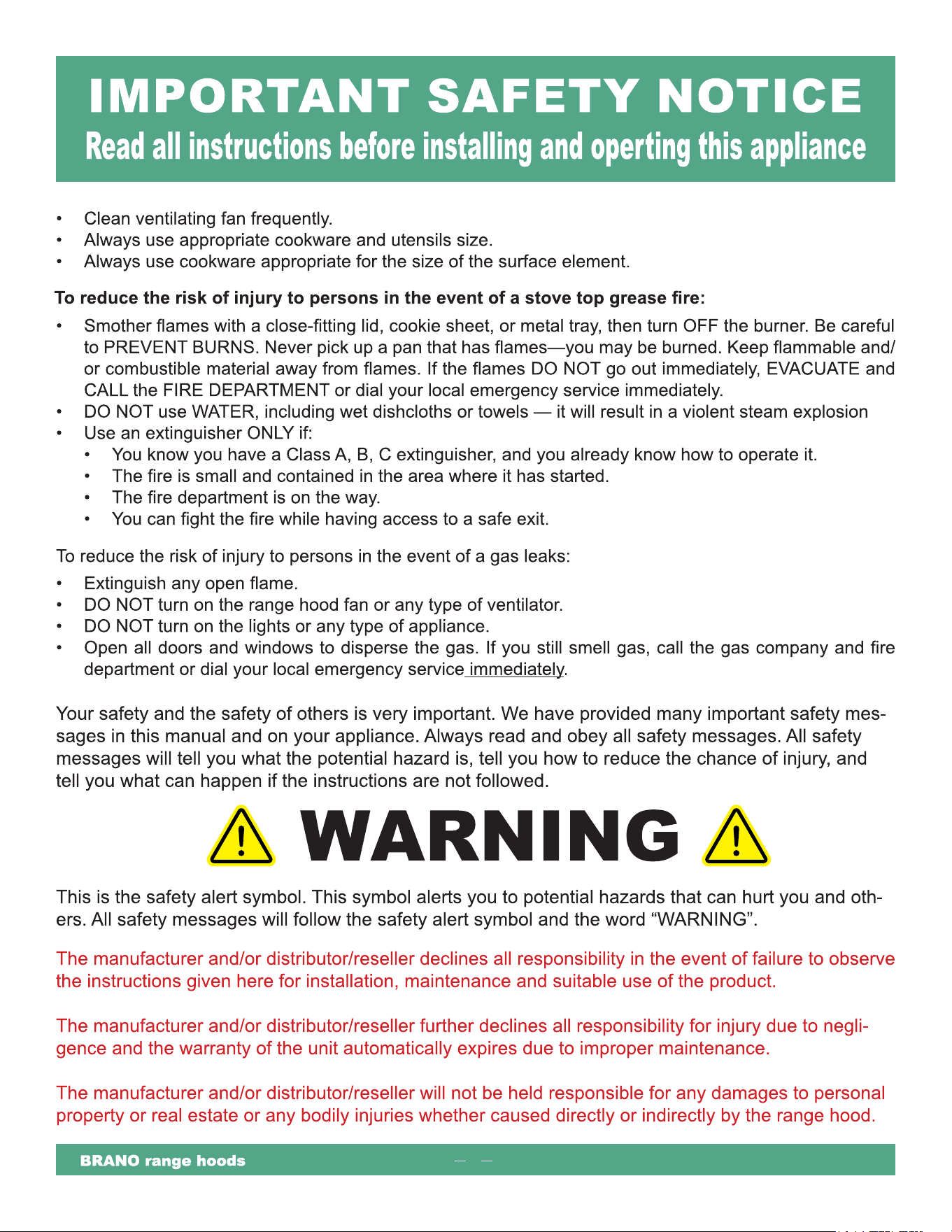

5

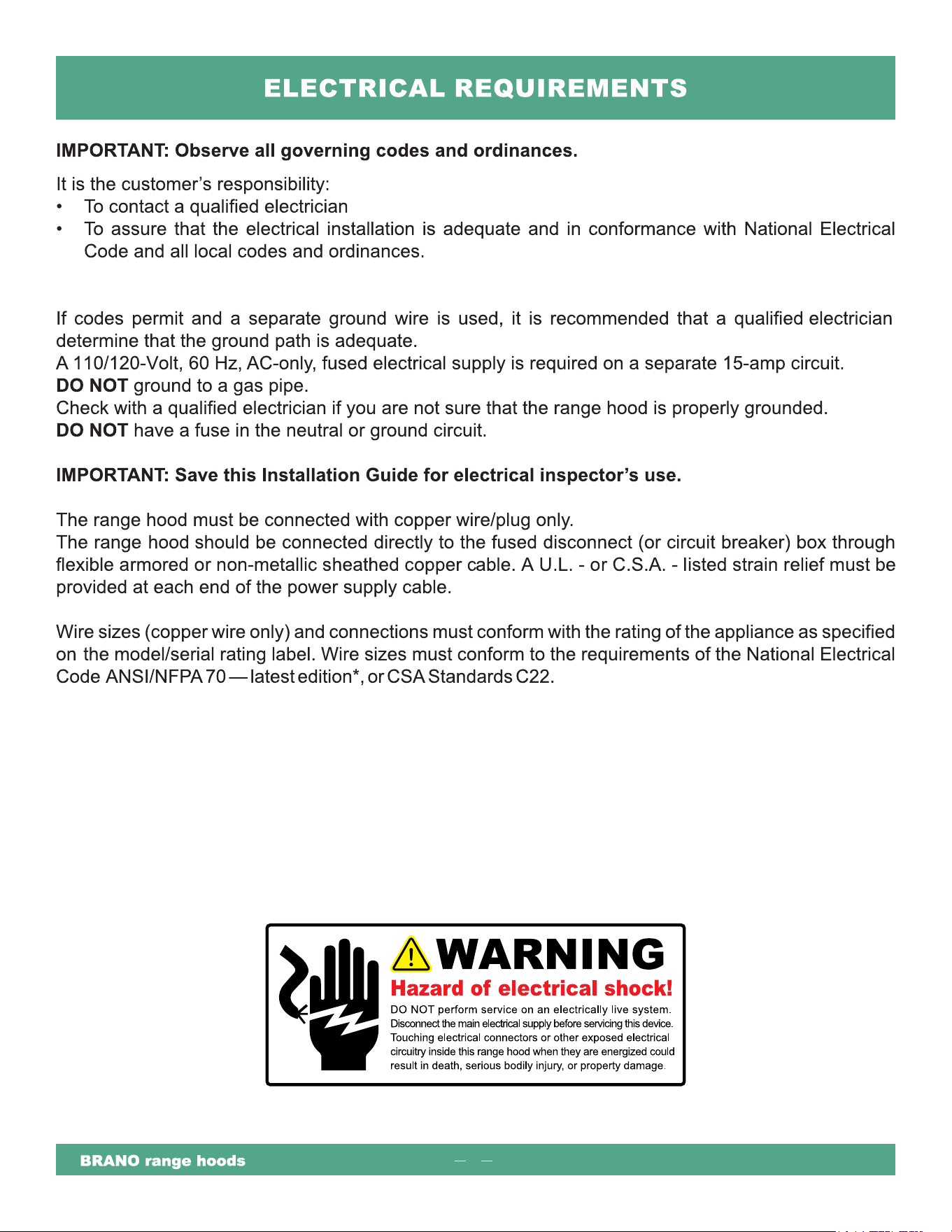

6

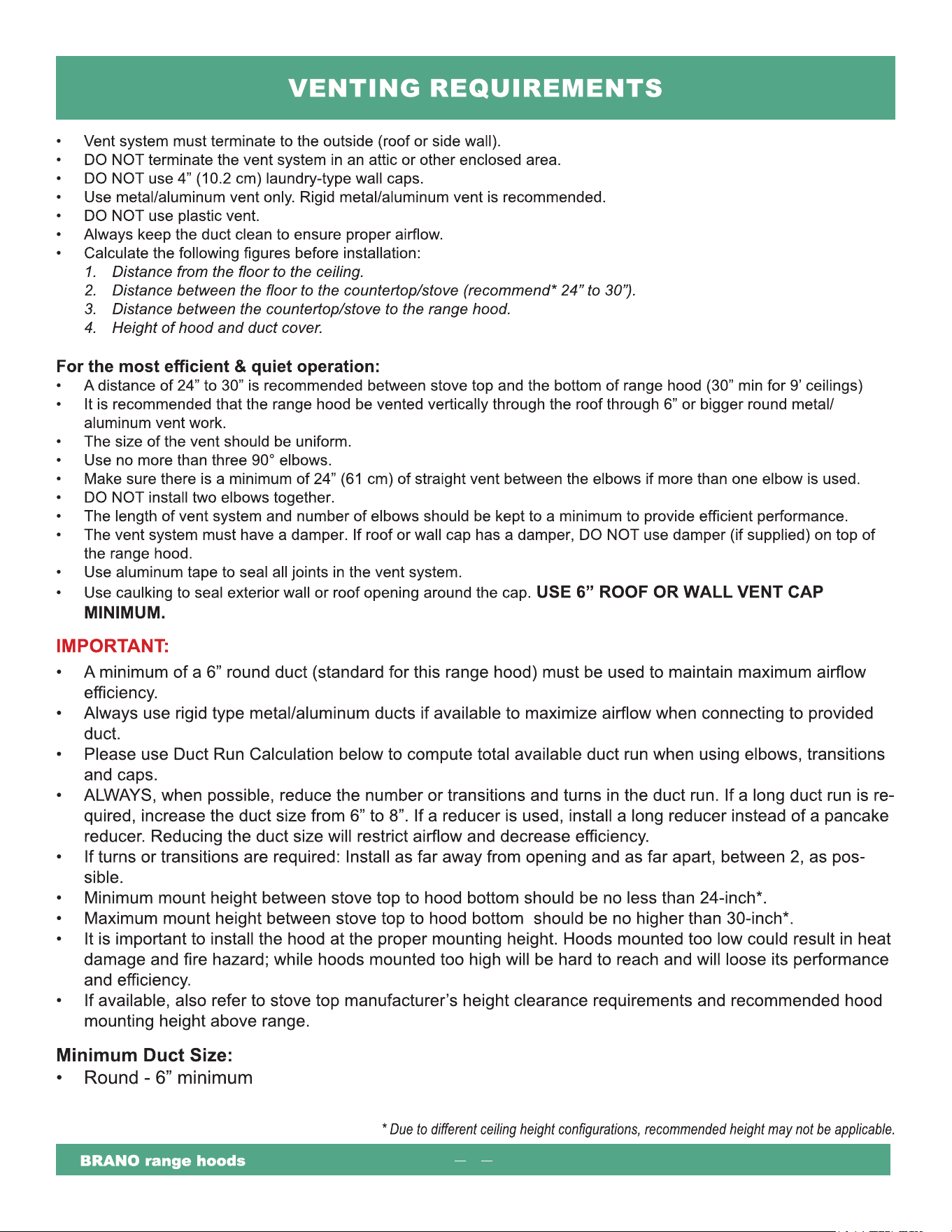

7
8

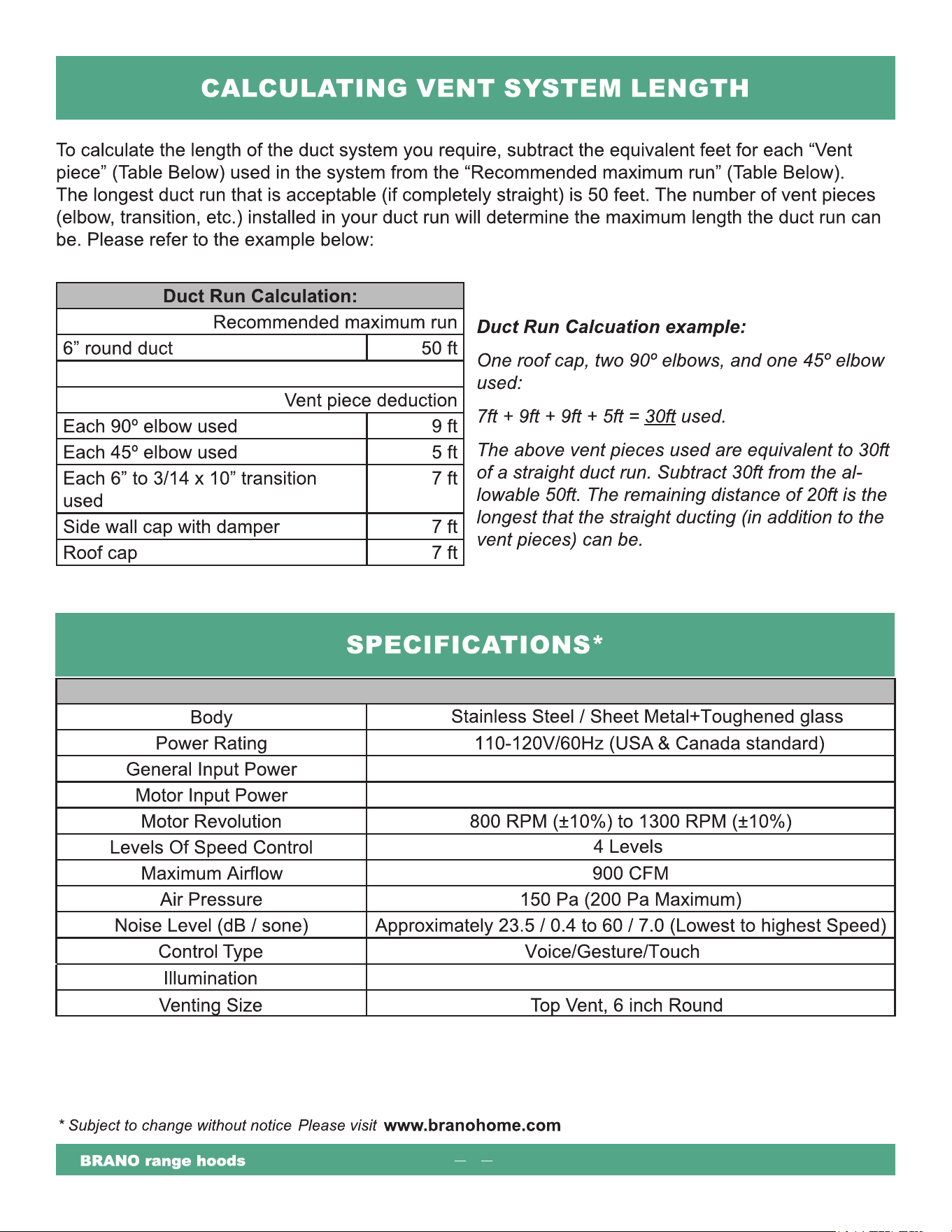

180W
LED 3W 12V
186W+# of Light x Votage of Light

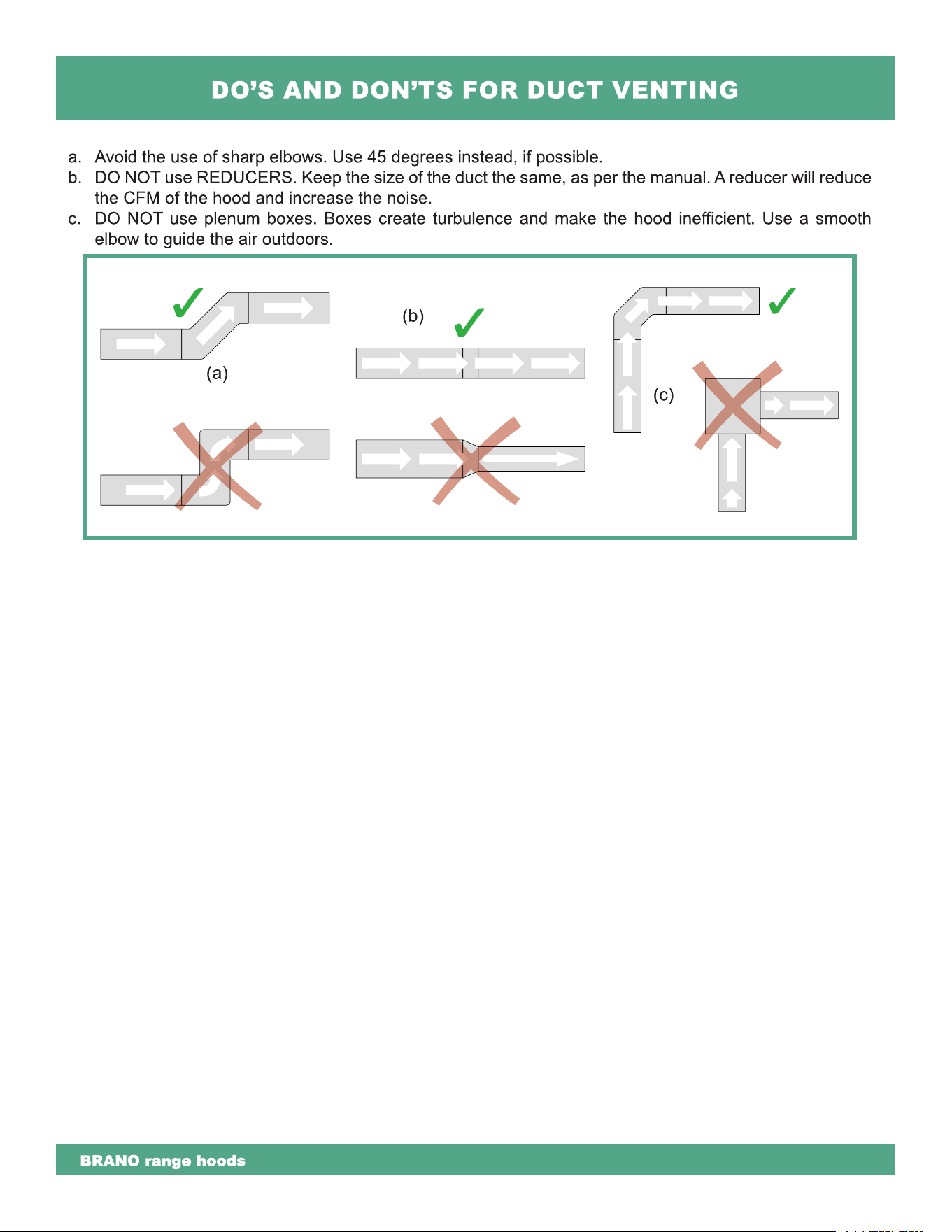

9

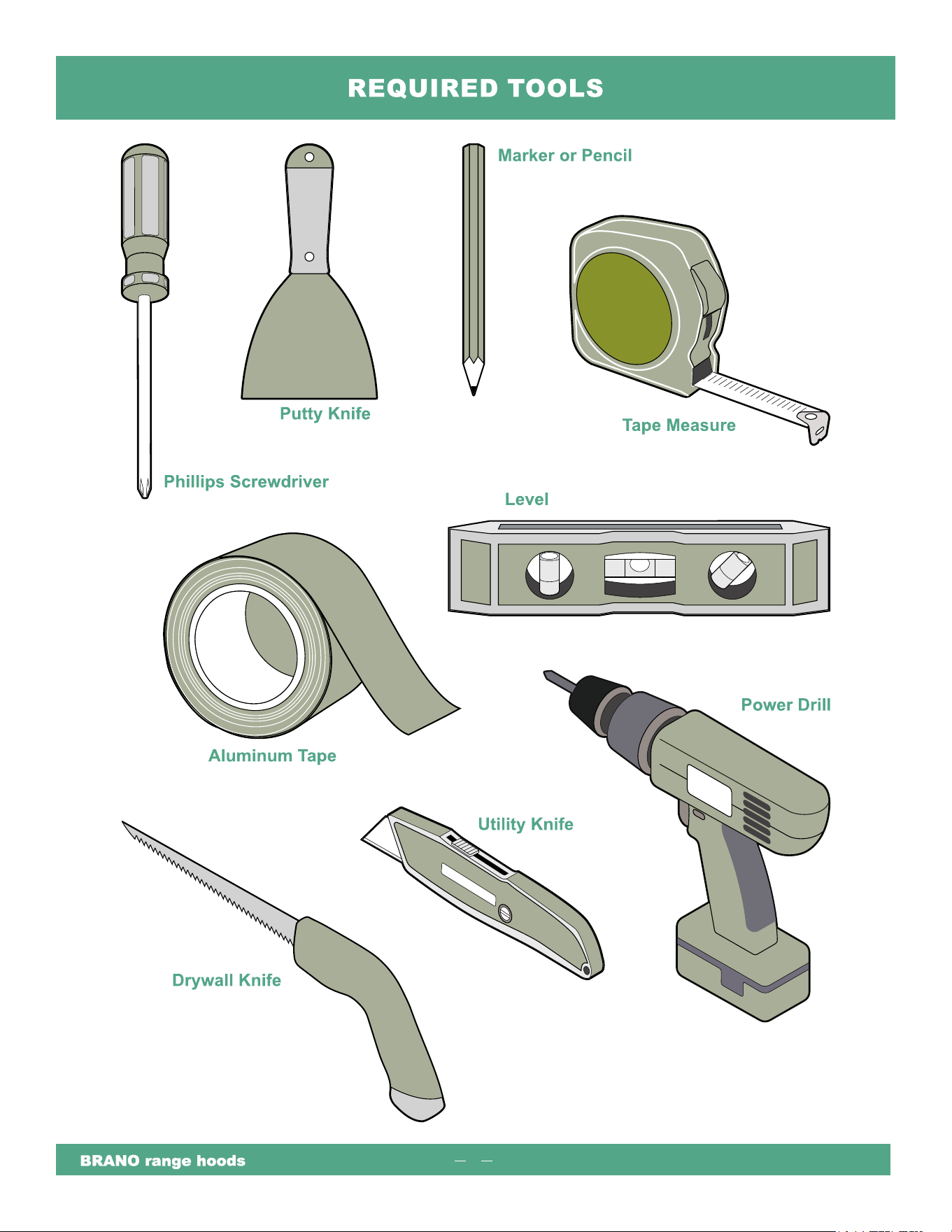

10

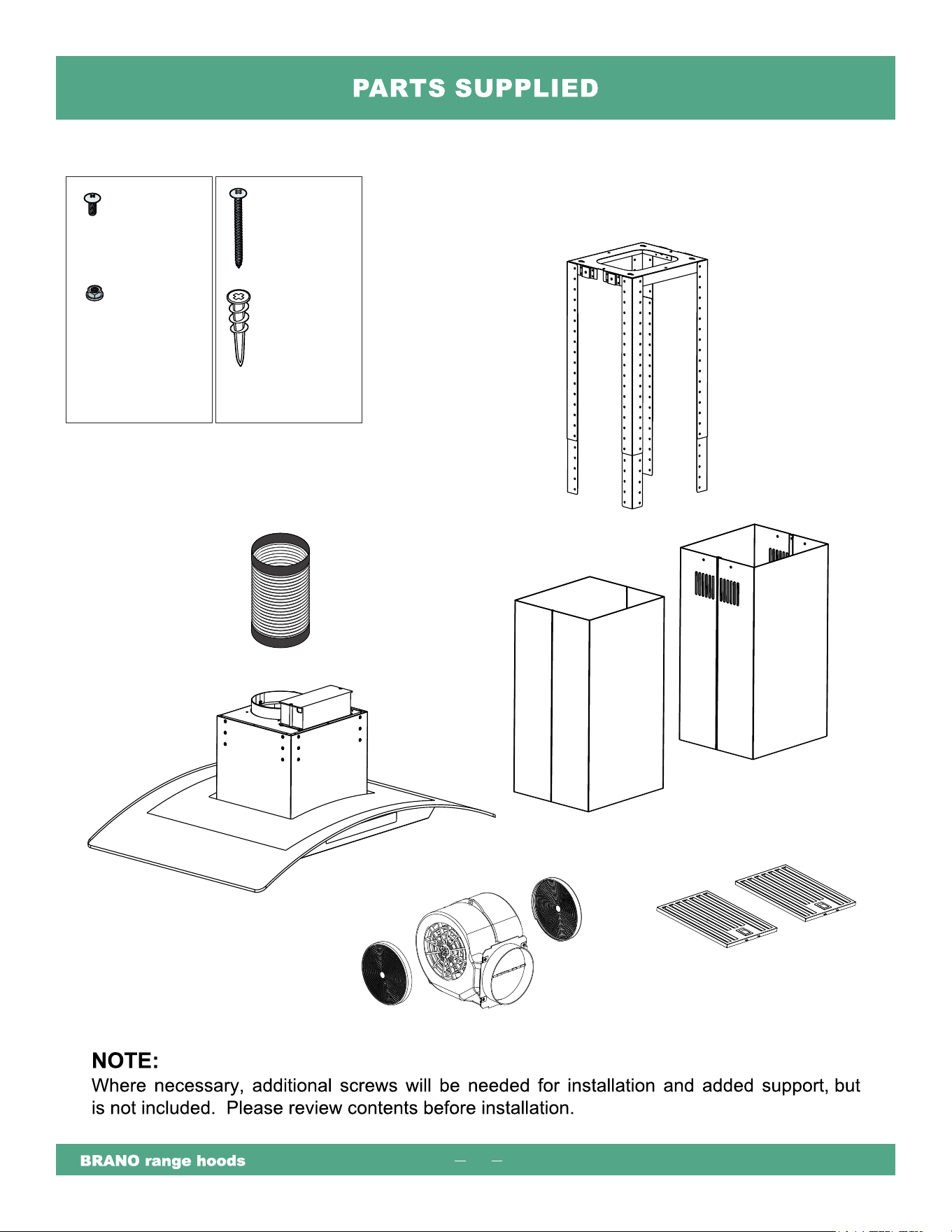

Baffle Filters (x2)
blower Motor System
Frame Support
(with extensions)
Vent Pipe
Lower
Chimney
Upper
Chimney
Charcoal Filter(x2)
Anchor Screw
M4-35mm (x18)
（use x16 spare x2 total x18）
M4-35mm (x18)
Self-Drilling Plastic
Drywall Anchor
（use x16 spare x2 total x18）
Note：Self-Drilling Plastic Drywall
Anchor Selected according to the
actual situation.
Note: Used to attach the Chimney
to Cover the installed bracket.
（use x60 spare x2 total x62）
M4-6mm (x62)
M4-6mm
Self-Locking Nut
(x30)
（use x24 spare x6 total x30）

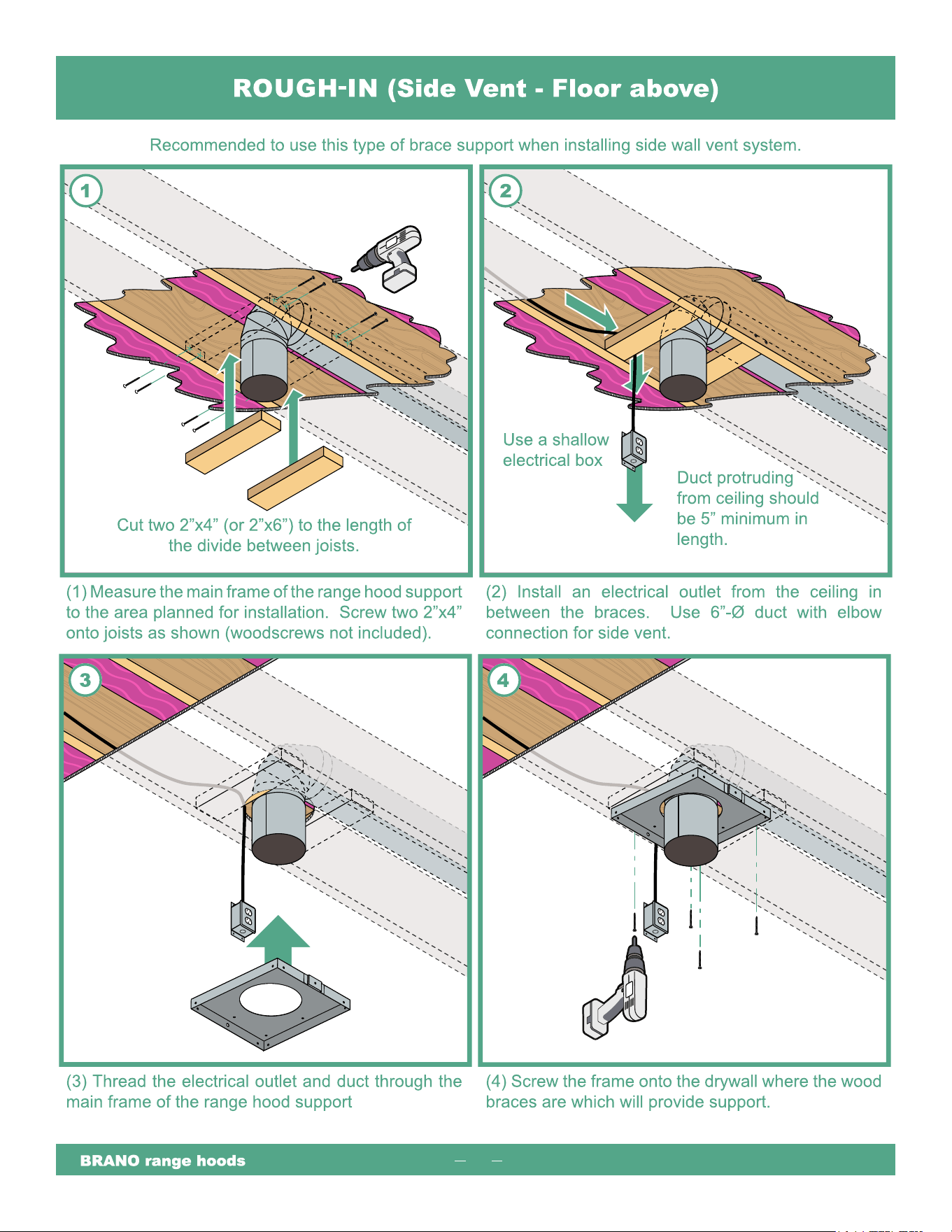

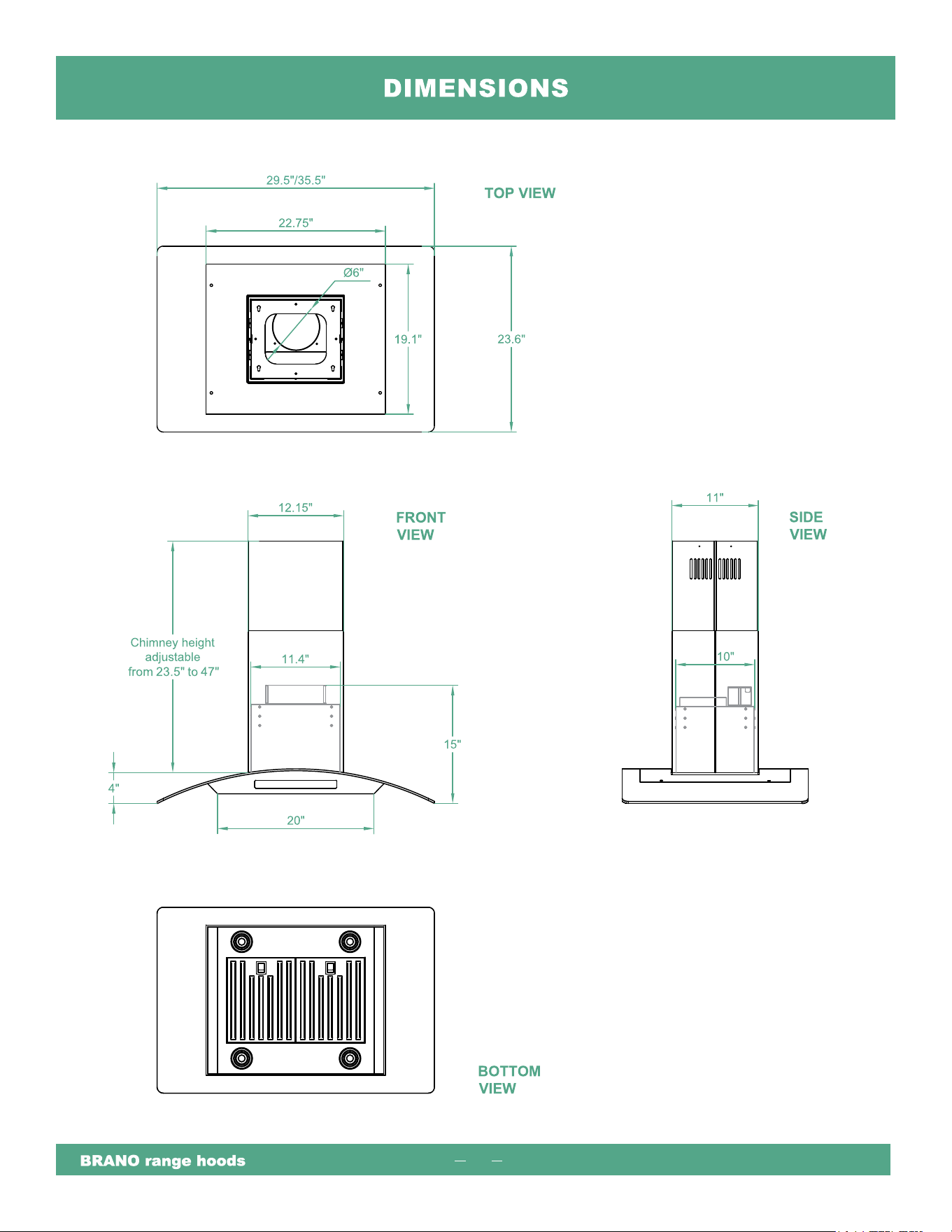

11

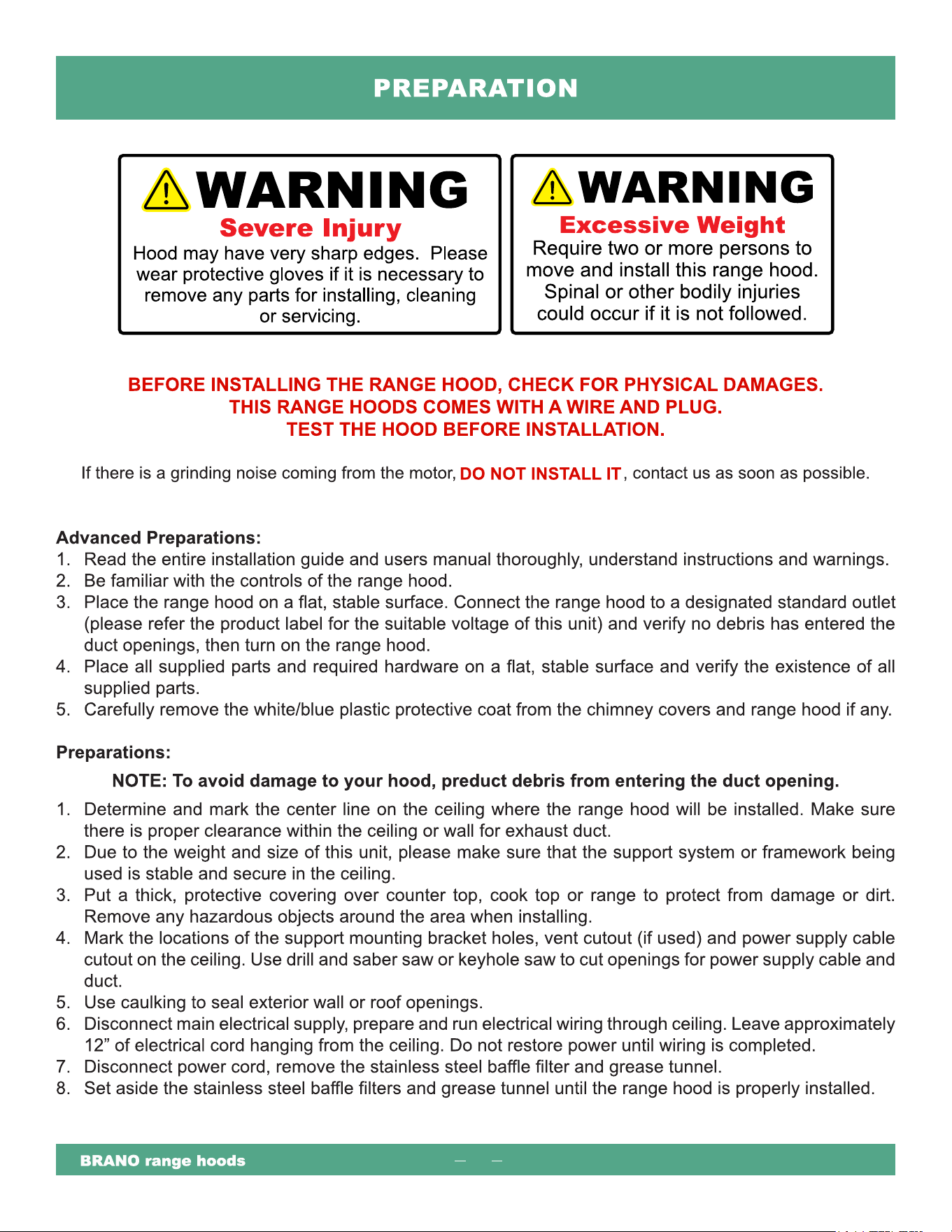

12
13

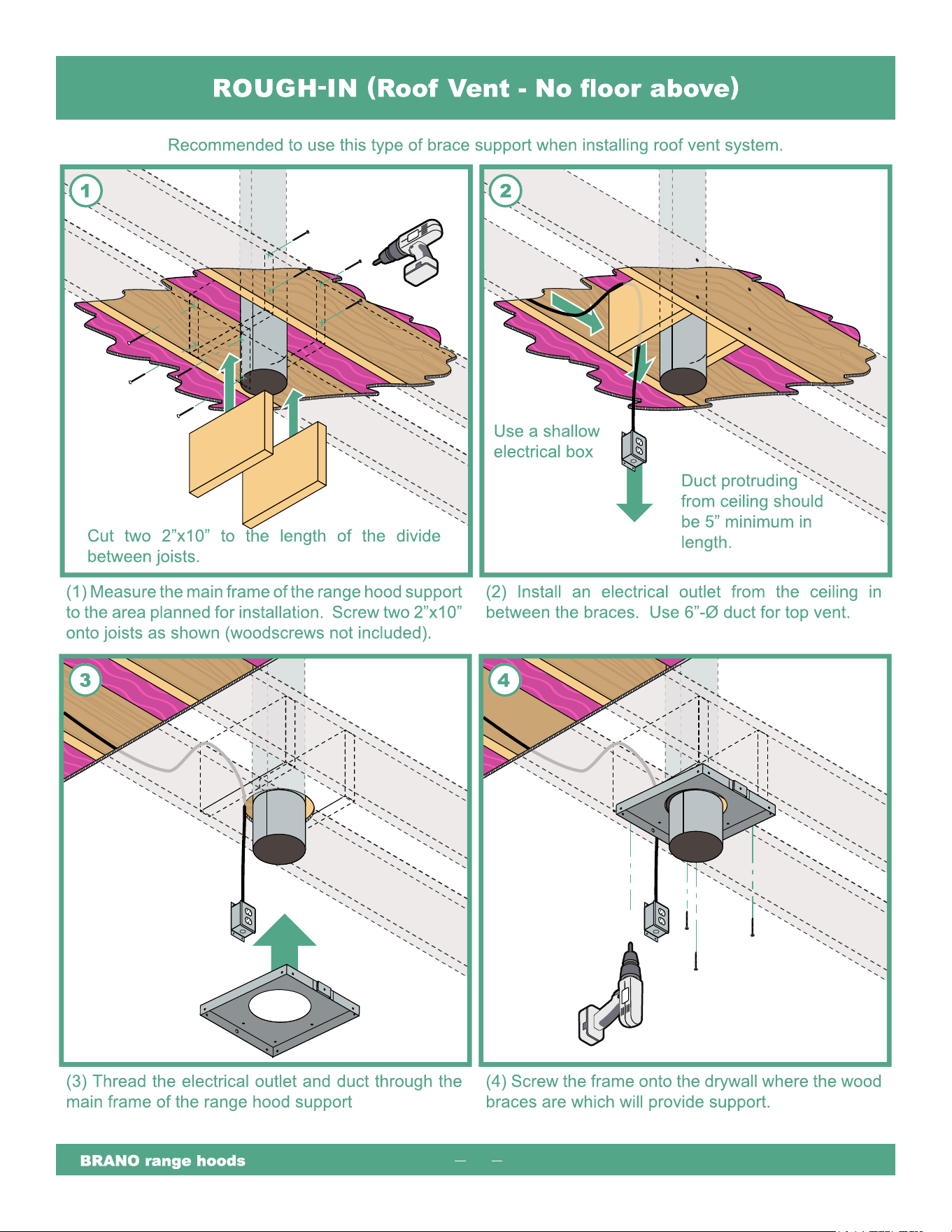

14

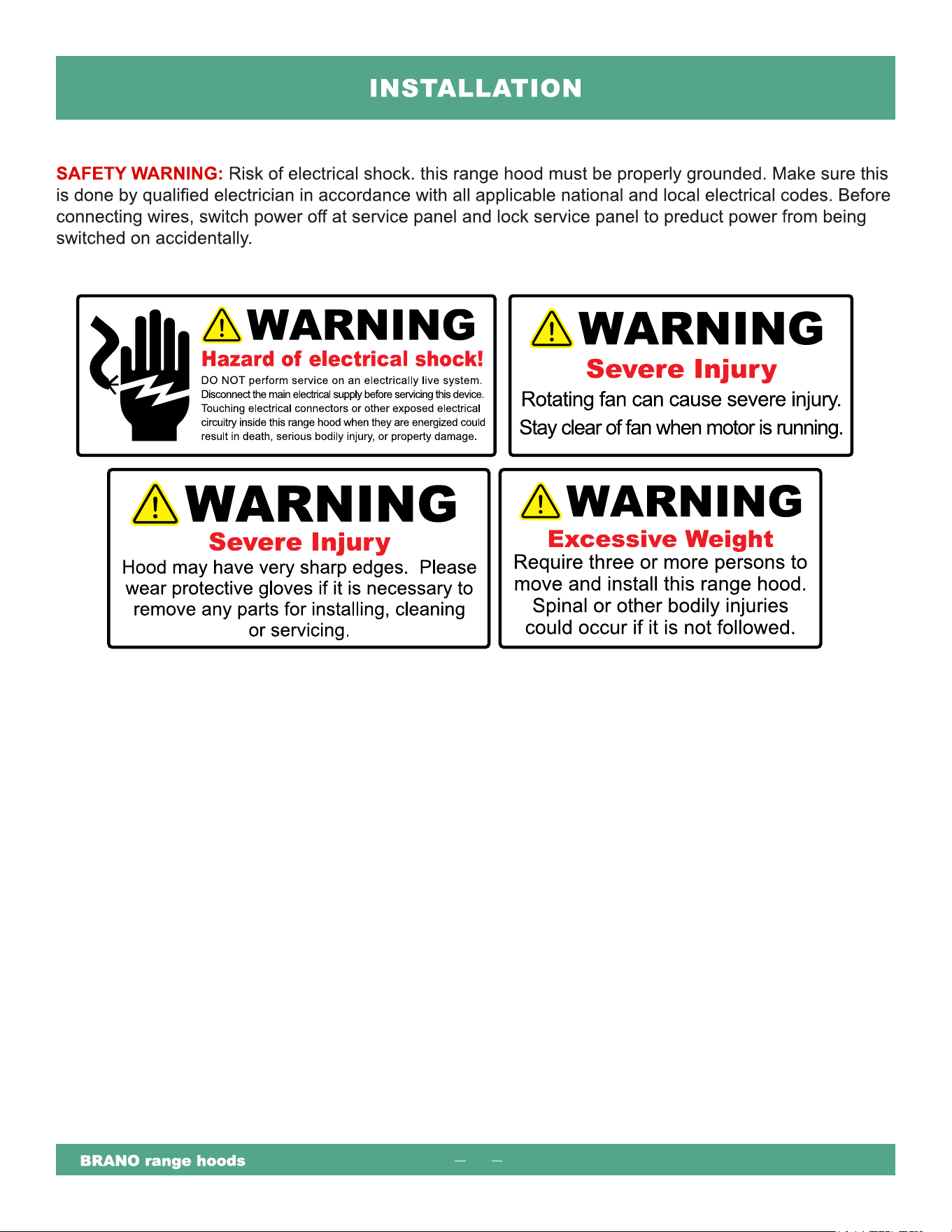

15

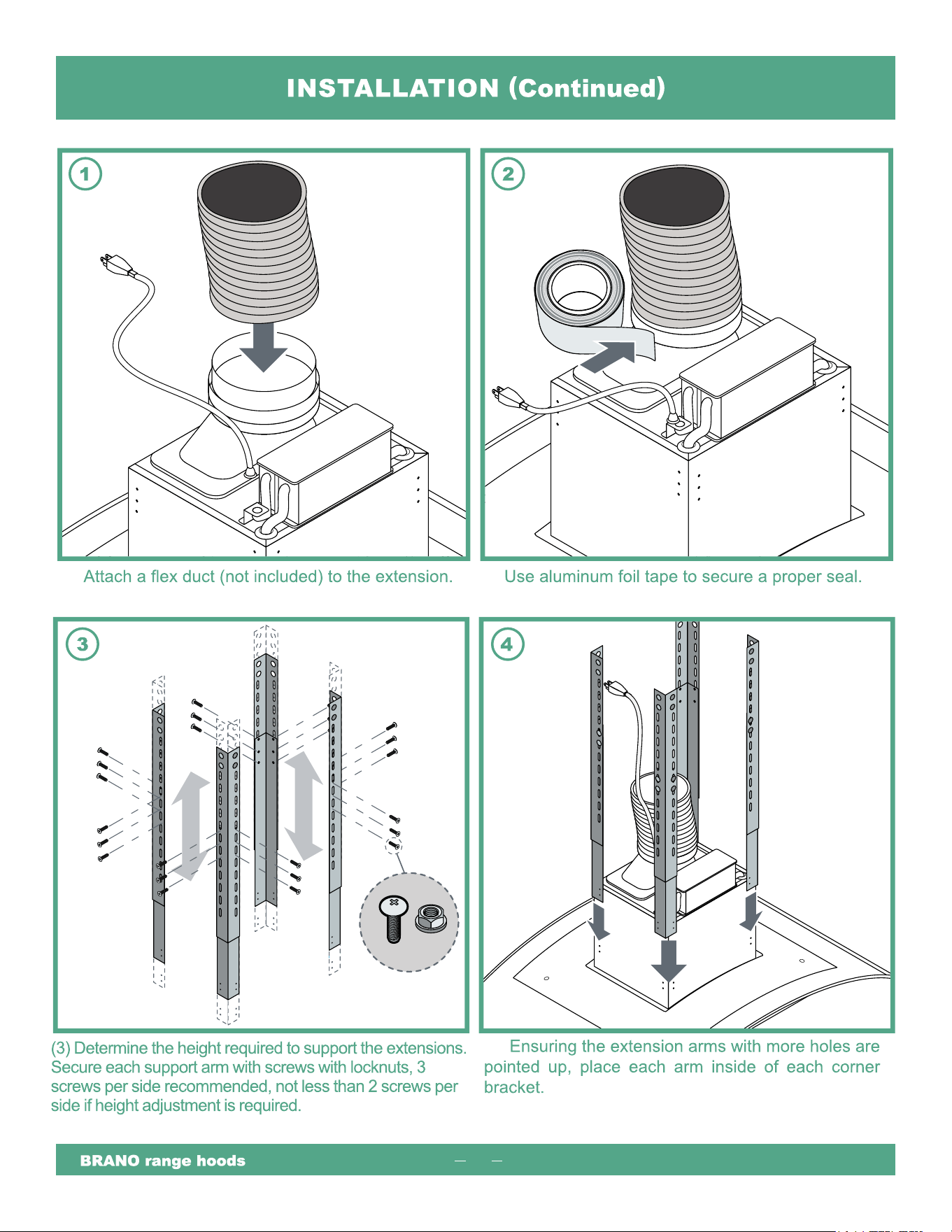

16
M4-6mm(x24)
(1)
(2)
(4)

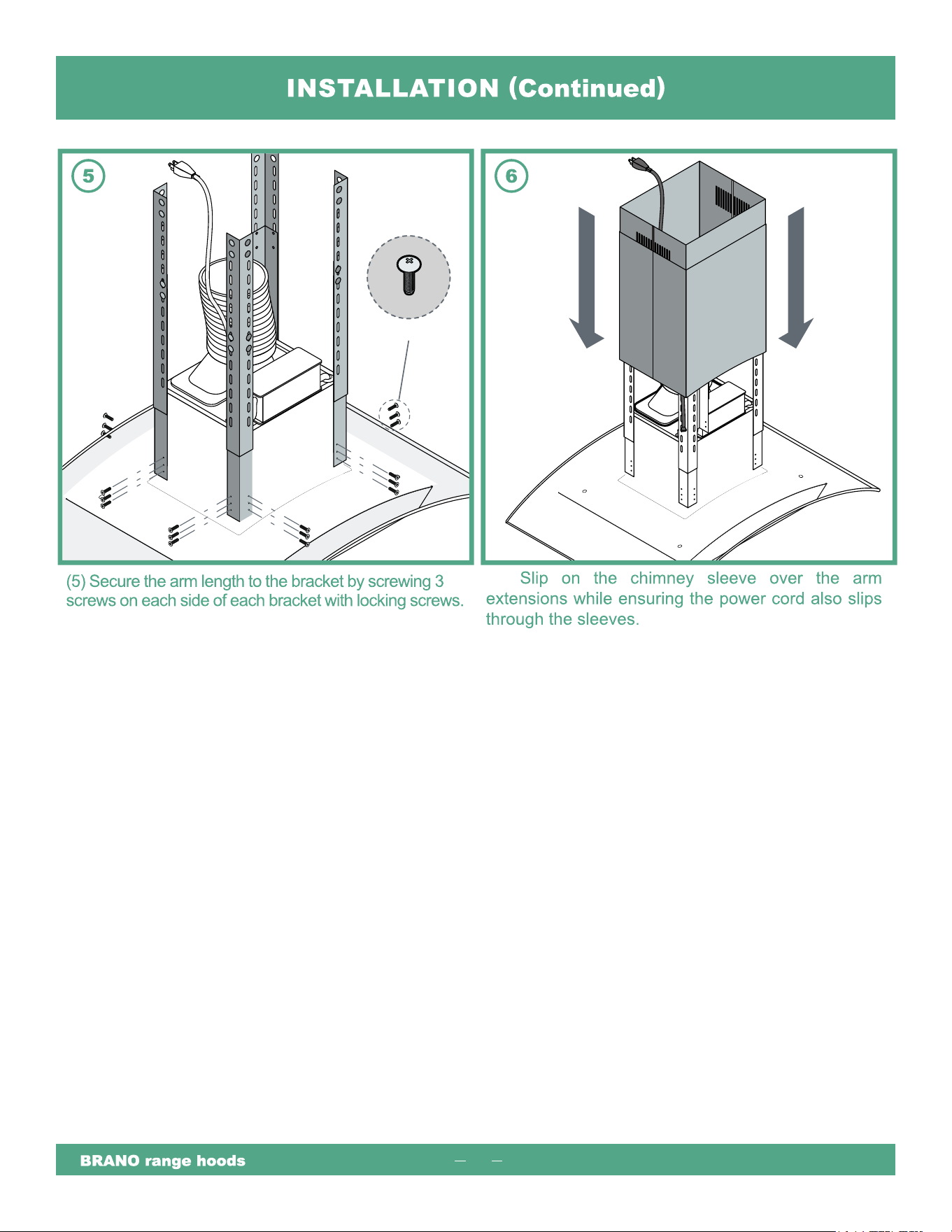

17
(6)
M4-6mm(x24)
18

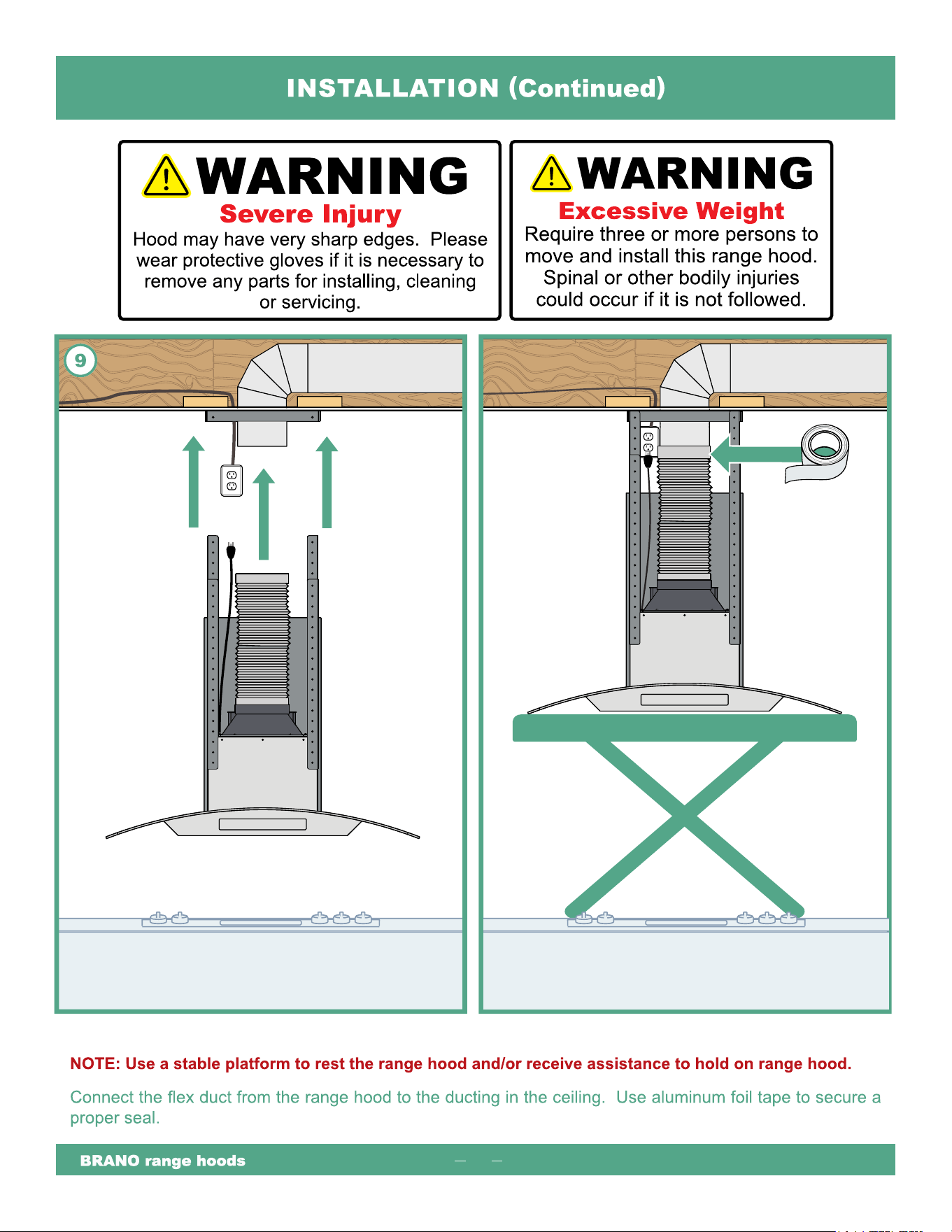

(9) Lift range hood and place arm extensions to the main frame attached to the ceiling.

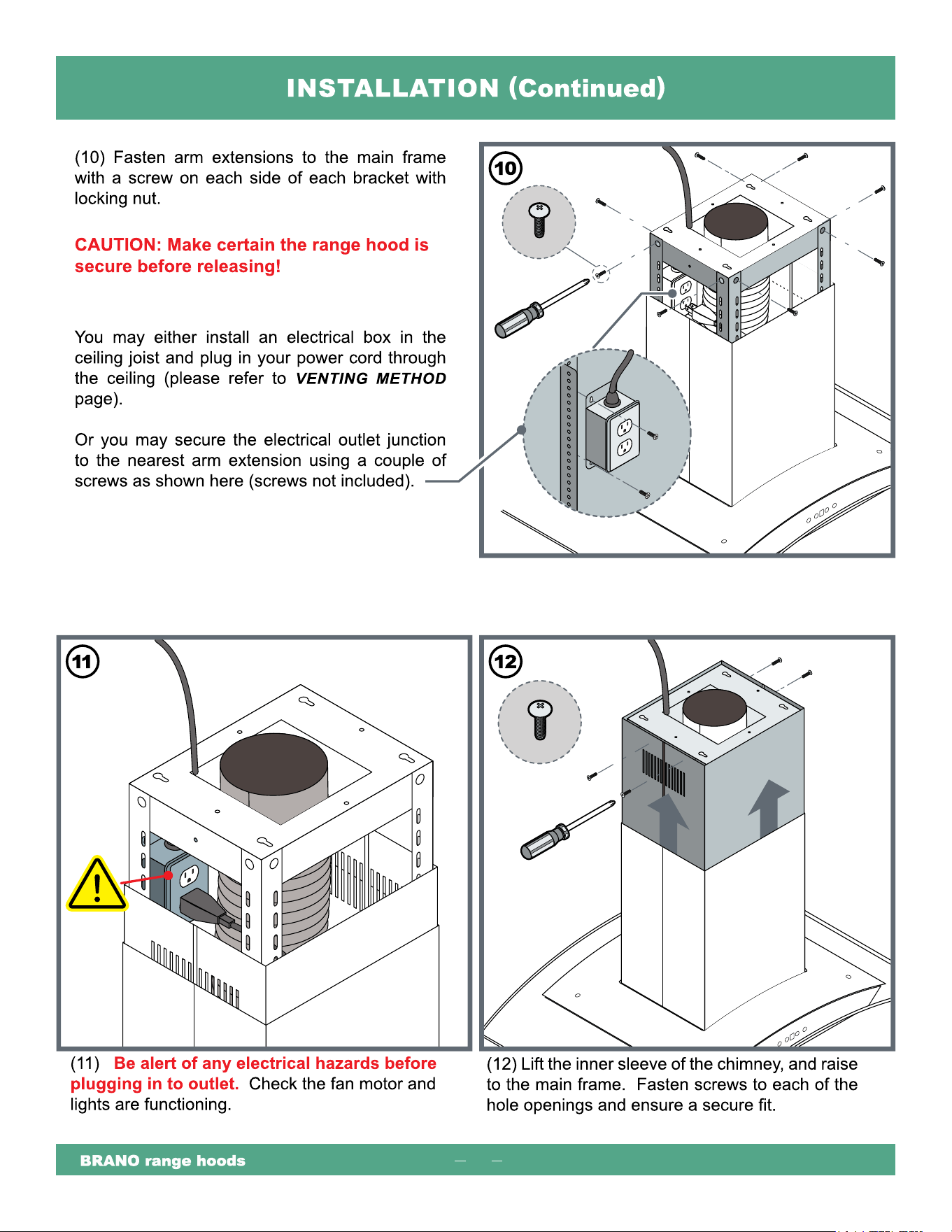

19
M4-6mm(x8)
M4-6mm(x4)

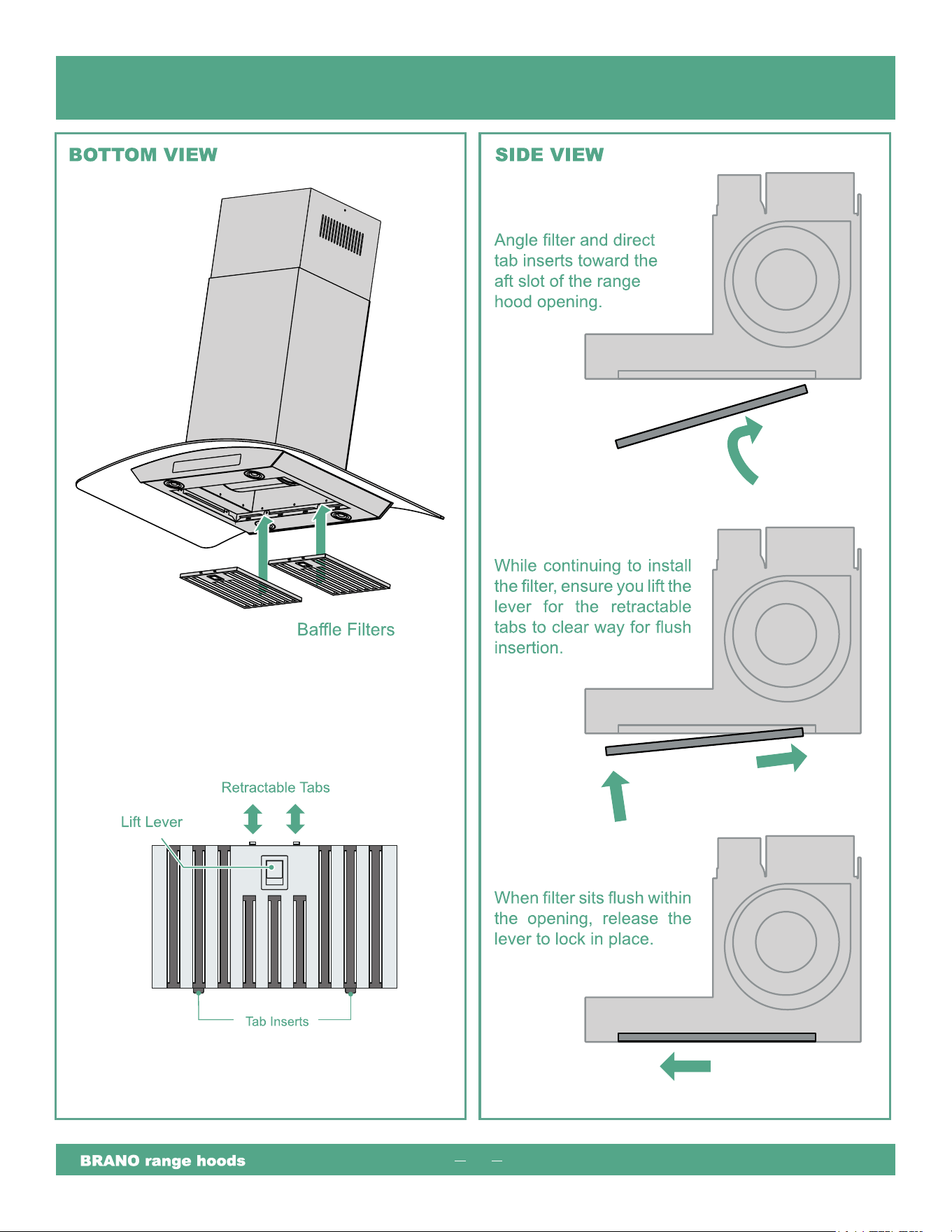

INSTALLATION (Filters)
20

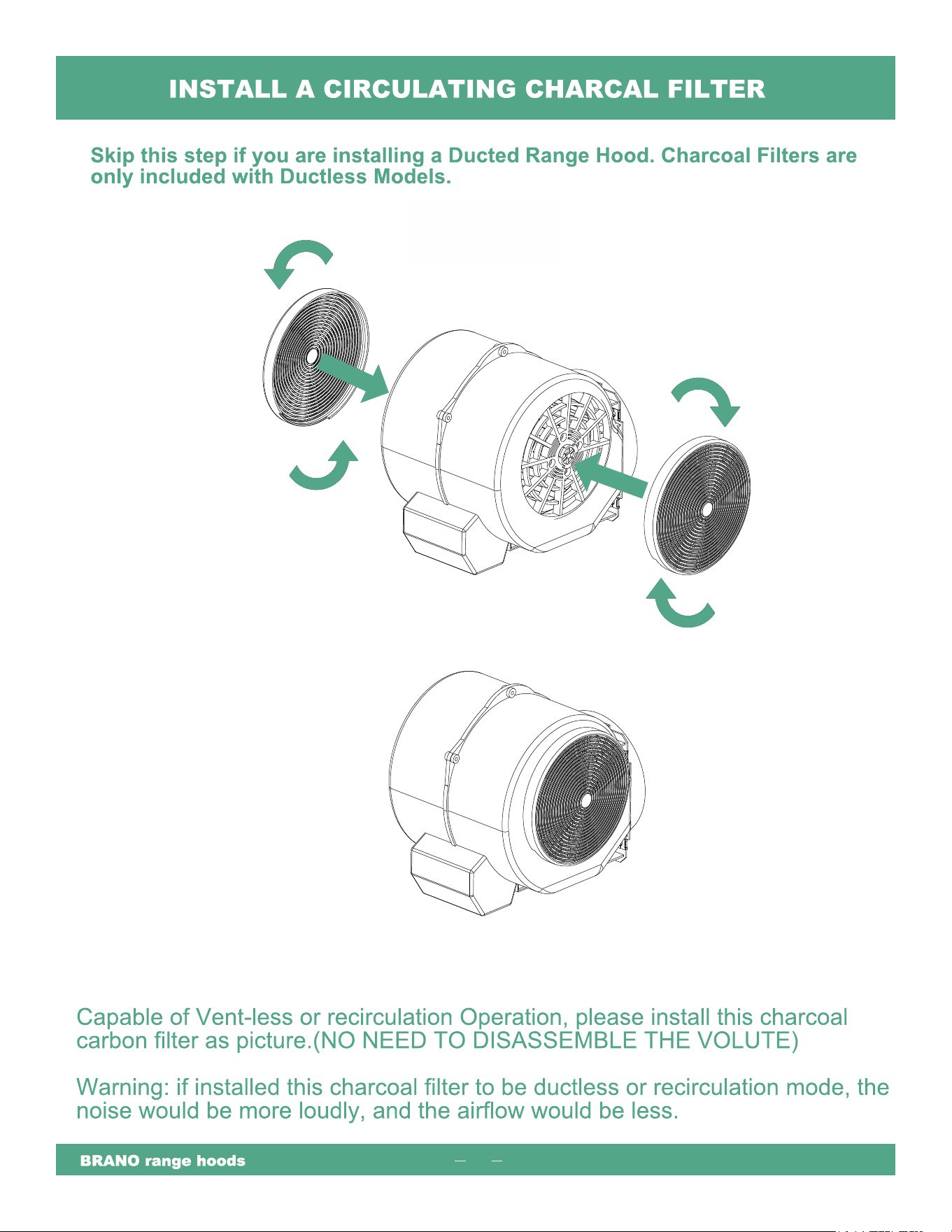

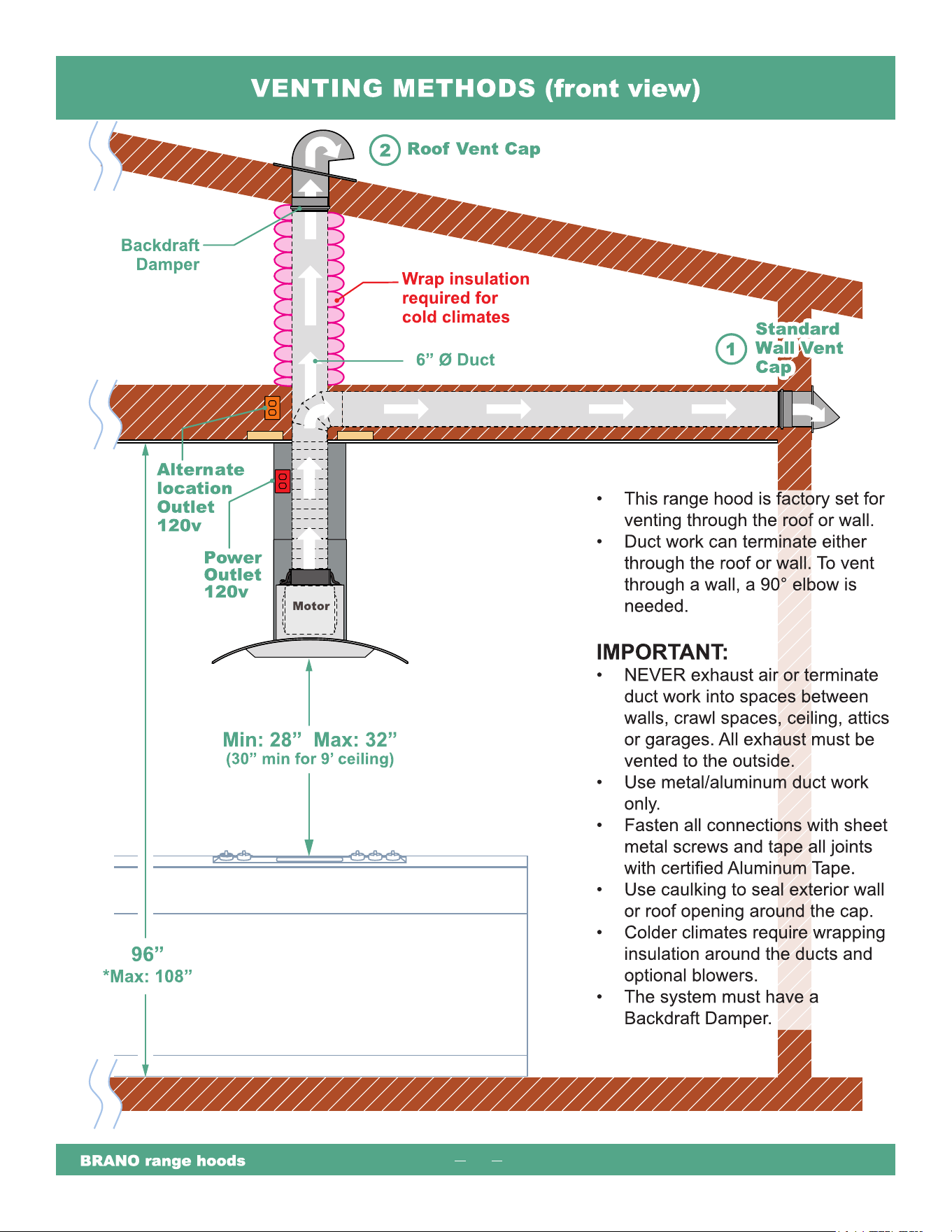

21
*If ceiling height exceeds 108”, additional
extension for the frame support is available
upon request.
22

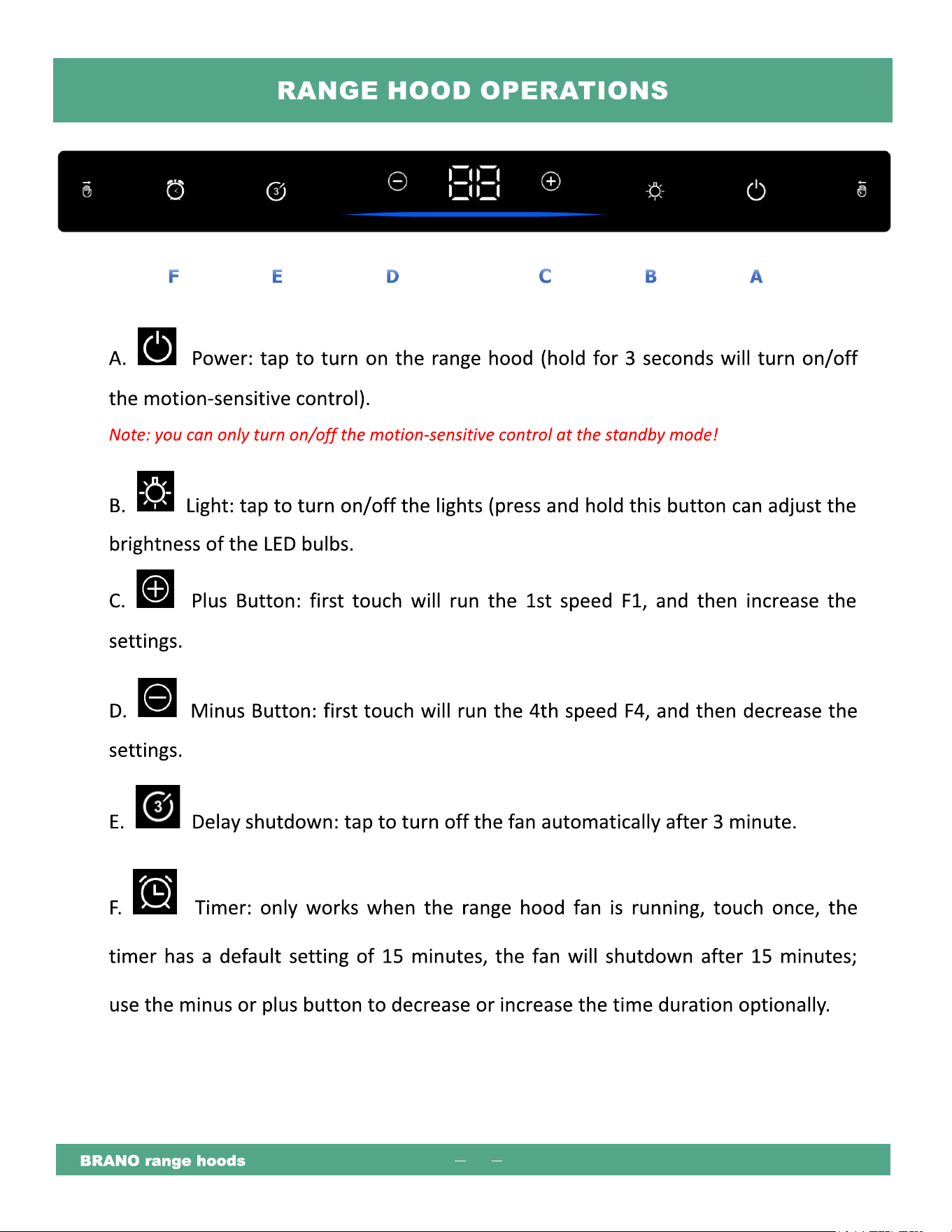

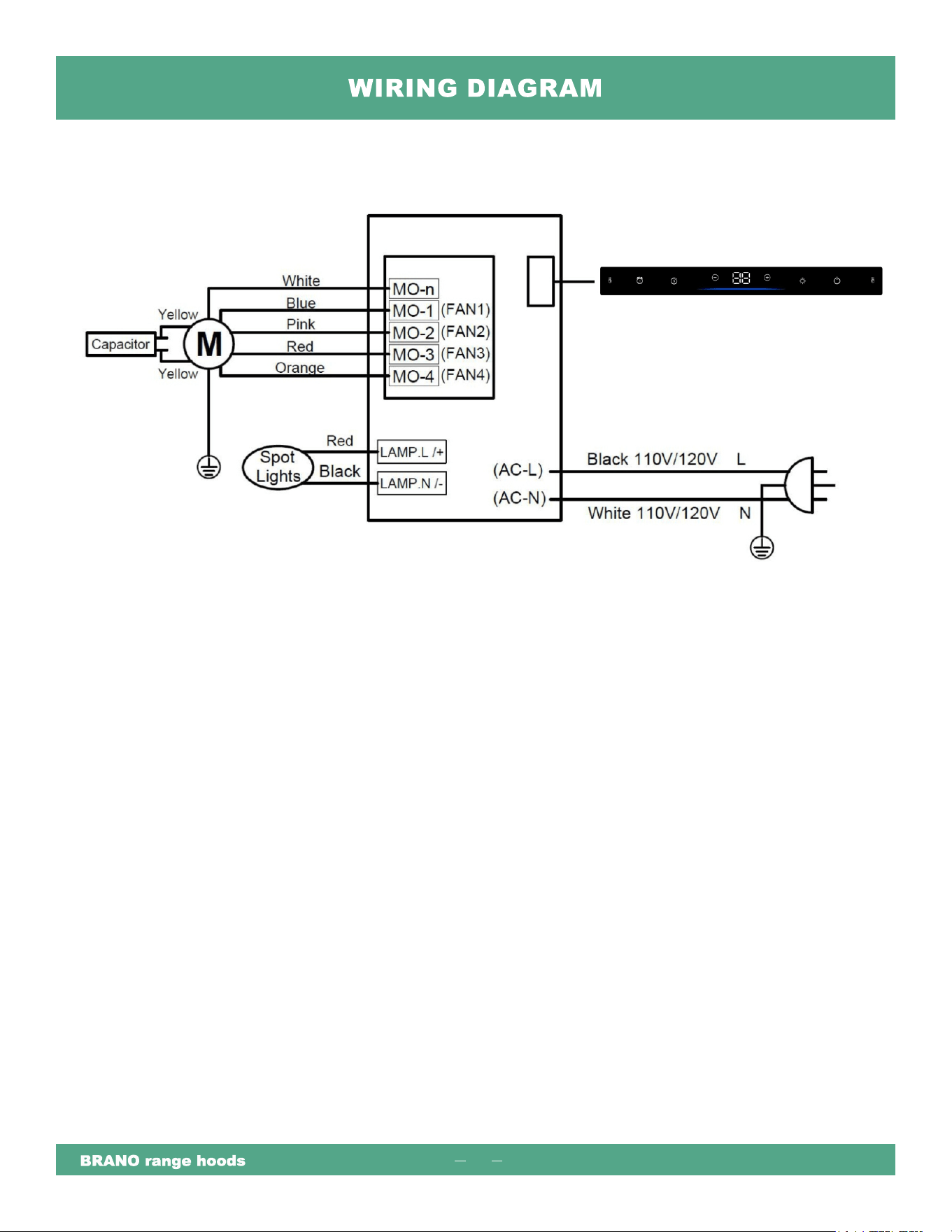

23
24

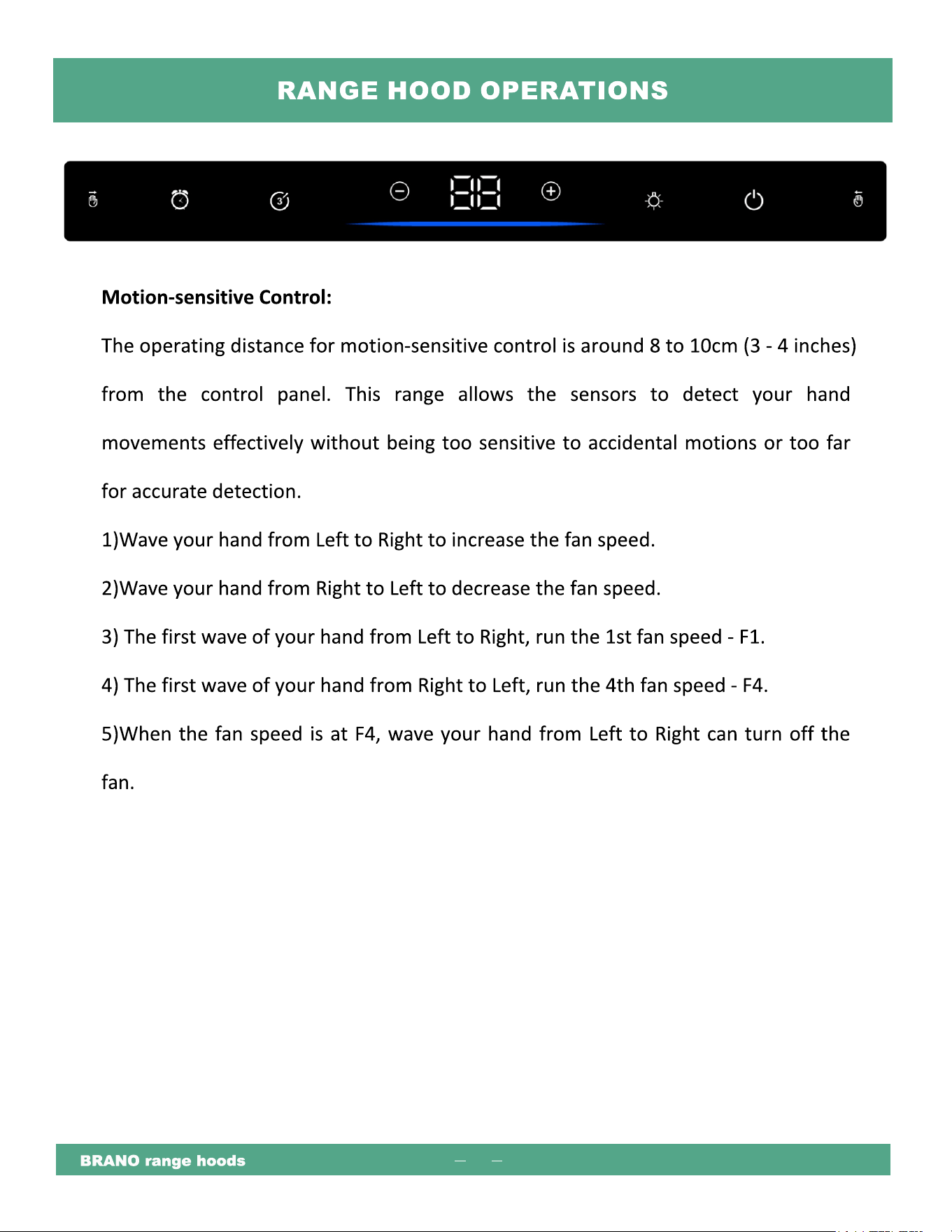

25

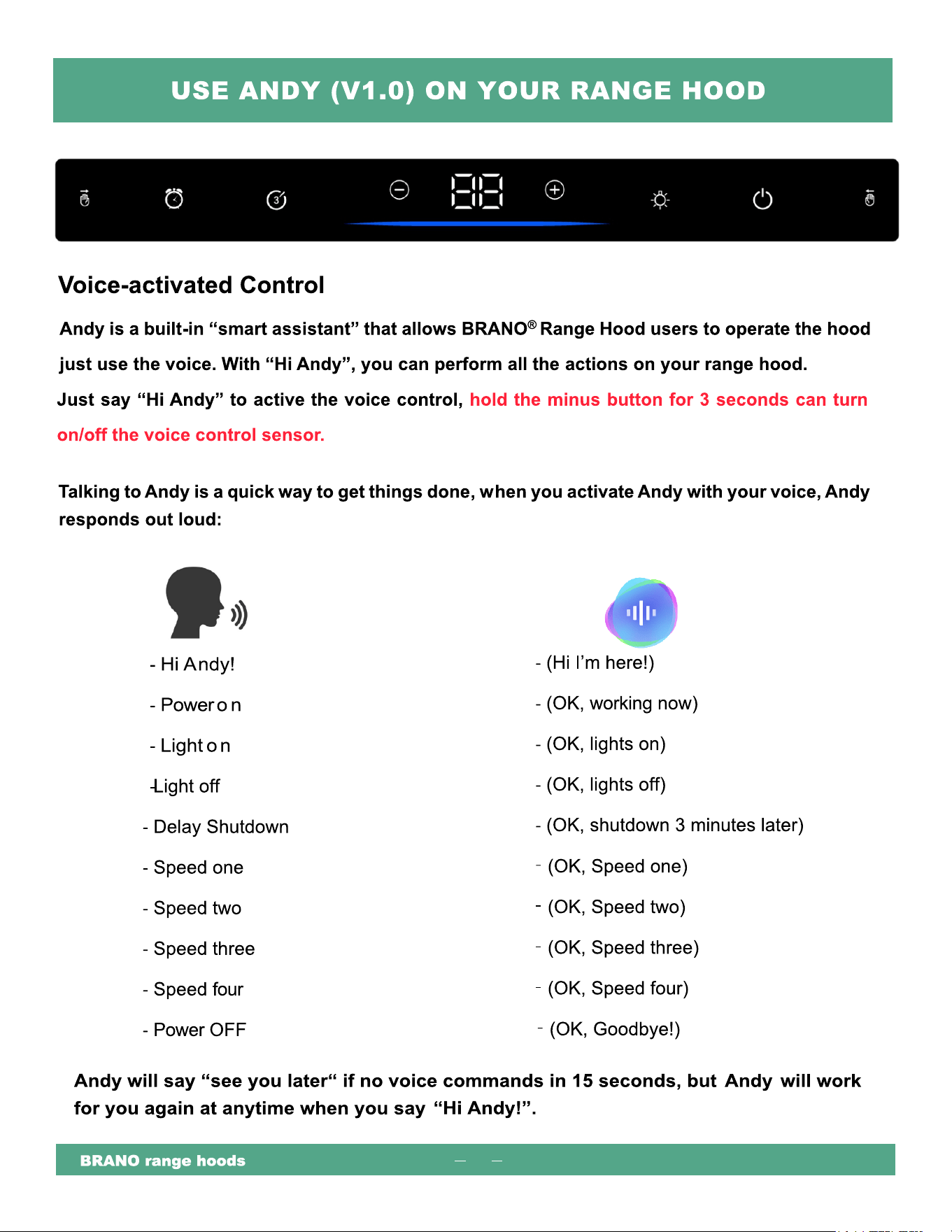

26

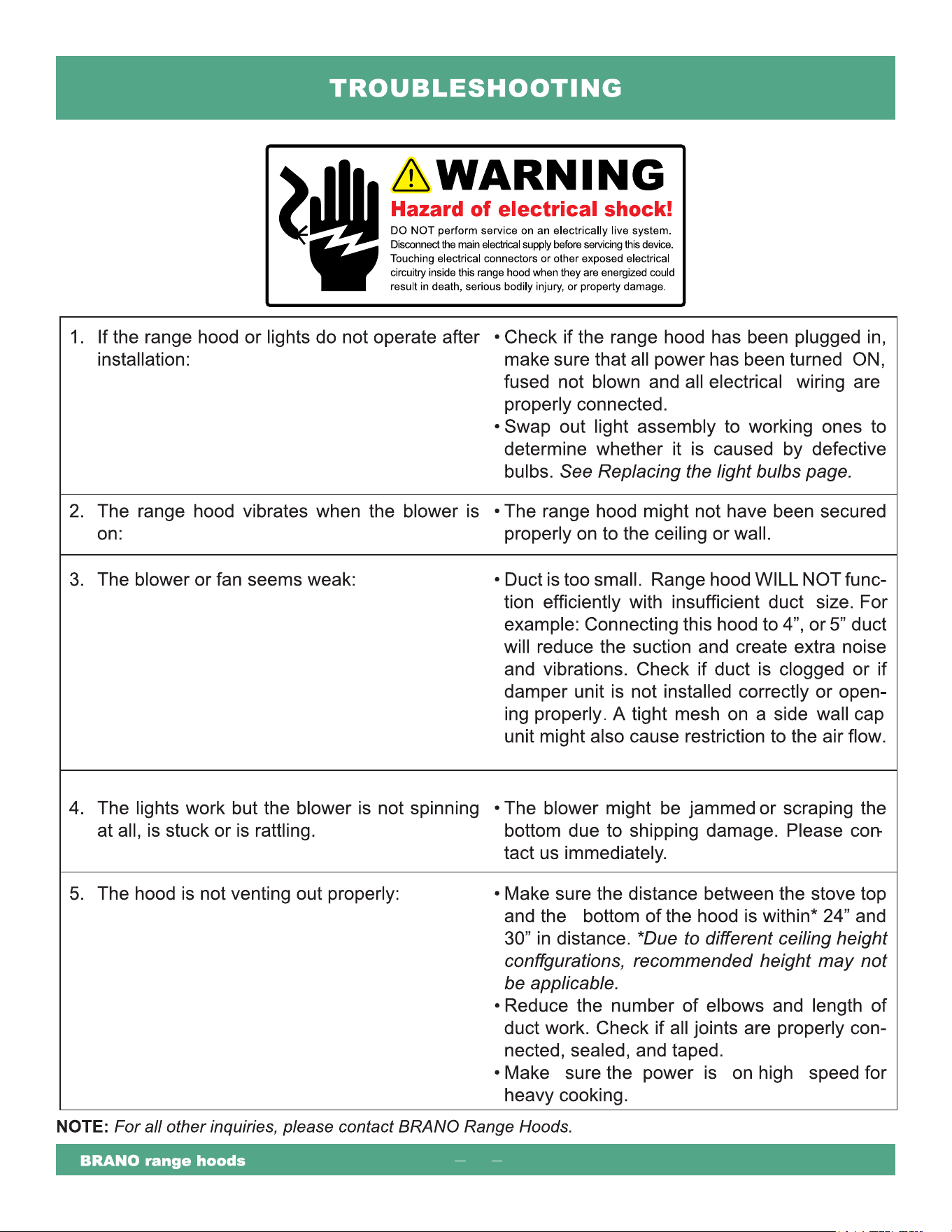

27
28

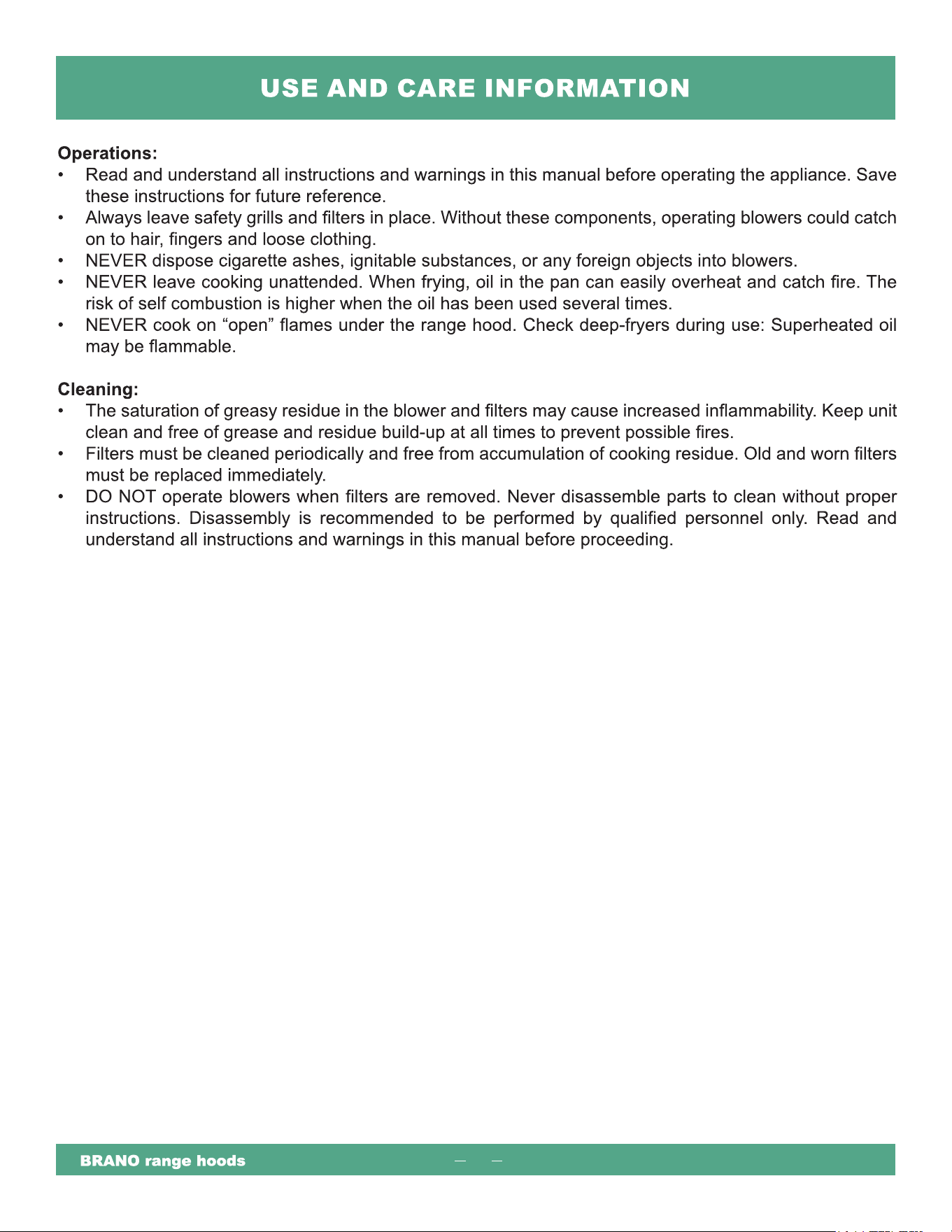

29

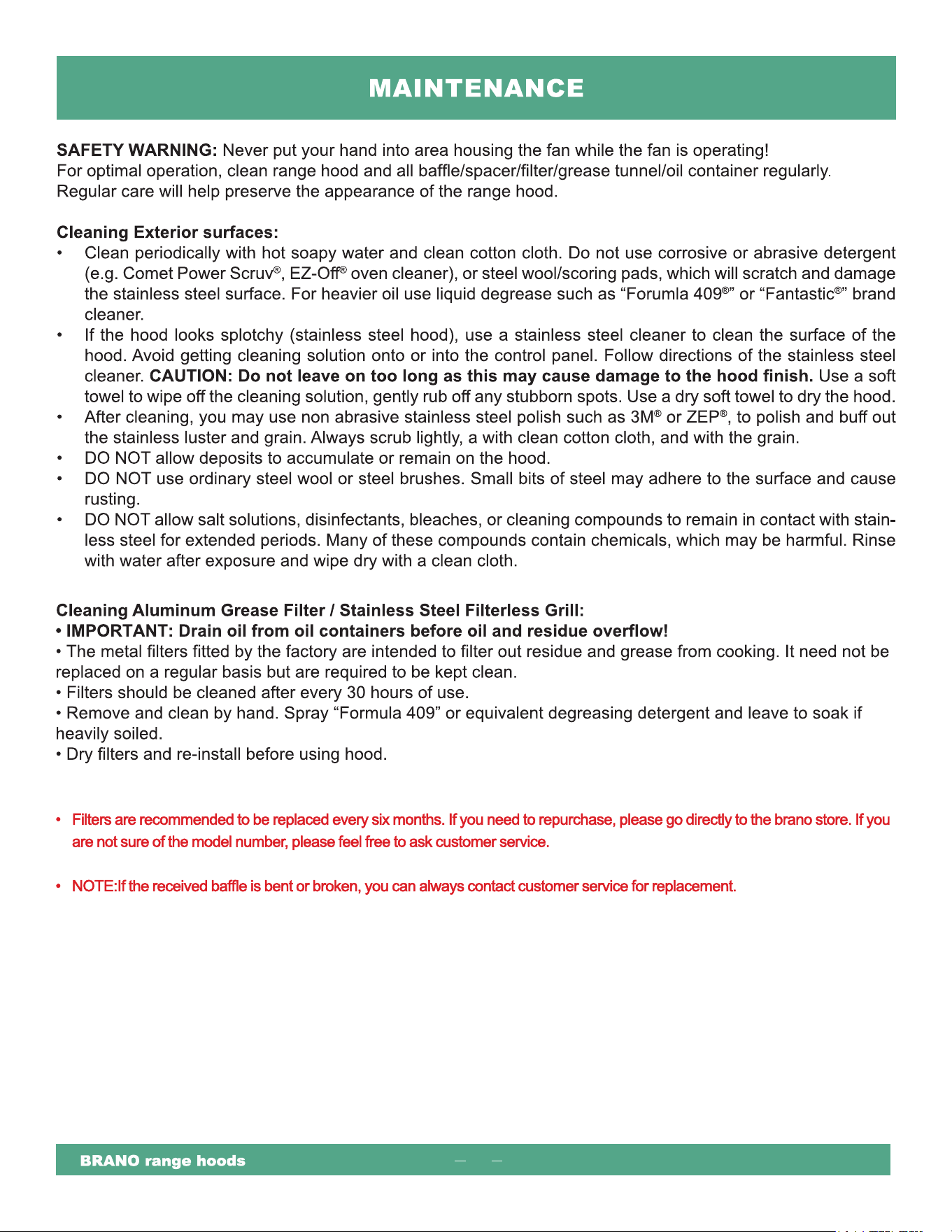

30
31

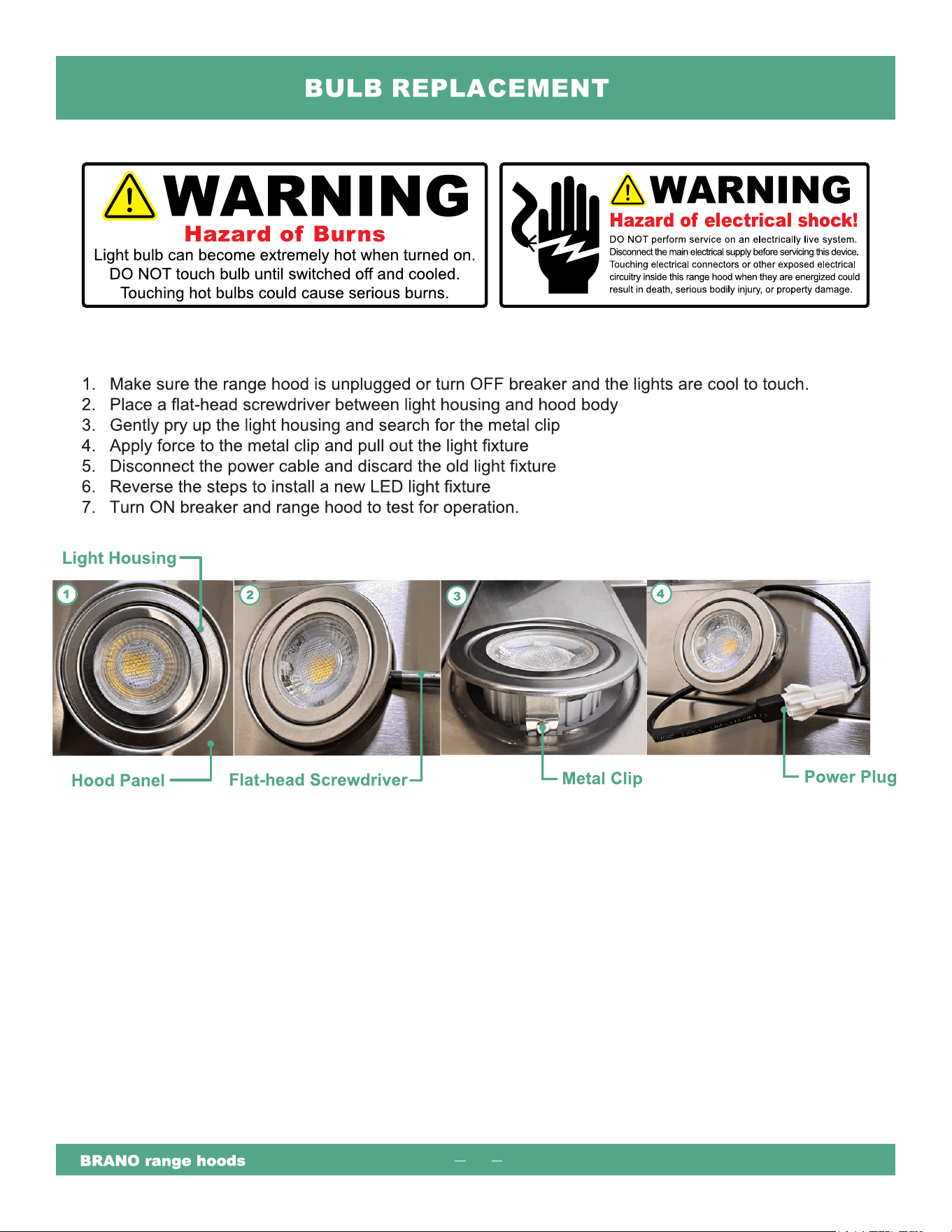

Replacing LED 3W 12V Light Fixture:
32
