Tapware is to be installed by a Licensed
Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa.
Maximum water temperature is 65 deg.c.
sussextaps.com.au
Tapware is to be installed by a Licensed
Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa.
Maximum water temperature is 65 deg.c.
INSTALLATION GUIDE
Voda Sink Mixer Pull Out
Product code: VSMPO
PLUMBER NOTE
҃ On-site testing using higher water pressures must be
conducted with the Mixer in the closed position. (STATIC
TEST)
҃ Under no circumstances is the Mixer to be opened when
exceeding the maximum stated water pressure.
҃ At the completion of testing, do not relieve any high water
pressure by opening the Mixer.
҃ Exposing the internals of the Mixer Cartridge to higher
than specified water pressures will void the manufacturers
warranty
INSTALLATION GUIDELINES
҃ Ensure adequate cupboard space has been provided to allow
the Pull-out hose to move freely.
҃ Prior to installing the mixer, remove the Clamp and Fixing Nut
from the assemblyMounting surface must be flat and level.
҃ Remove the Weights from Hose.
҃ Ensure a 35 - 38mm clearance hole is provided through the
mounting surface.
҃ Pass the Pull-out Hose through the hole and lower the Mixer
onto the mounting surface.
҃ Working from underneath, fit the Clamp and Fixing Nut.
҃ Gently bend the Flexible Tail Extensions away from the
Thread Bar and Pull-out Hose.
҃ Use the provided Tube Spanner to tighten and secure the
Mixer to the mounting surface.
҃ Attach the DCV Assembly to the Thread Bar (note the arrow
direction).
҃ DCV has an O-ring seals. No need for thread tape.
҃ Connect the Pull-out Hose to the DCV Assembly and
tighten well.
NOTE: Do not remove the Hose adapter fitting from the
Pull-out Hose.
҃ Attach the Weights (2) to the Hose, ensure the Rubber stop is
between the Clamp and the Weights.
҃ The maximum recommended length of Nozzle pull-out is
approximately 400mm.
҃ Connect the provided Hot and Cold Flexible tails to
the Mixer.
҃ Connect the Hot and Cold Flexible tails to the corresponding
1/2”BSP water feed lines.
҃ The 1/2” connection of the Flexible tails have a conical seal,
ensure the mating threads are cut square and burr free.
҃ Isolating stop valves are recommended with all installations.
(Not supplied).
҃ Ensure all fittings and connections are watertight.
҃ Check Mixer functions correctly with a smooth action.
҃ Ensure the Pull-out Hose operates freely with minimal
contact to other parts.

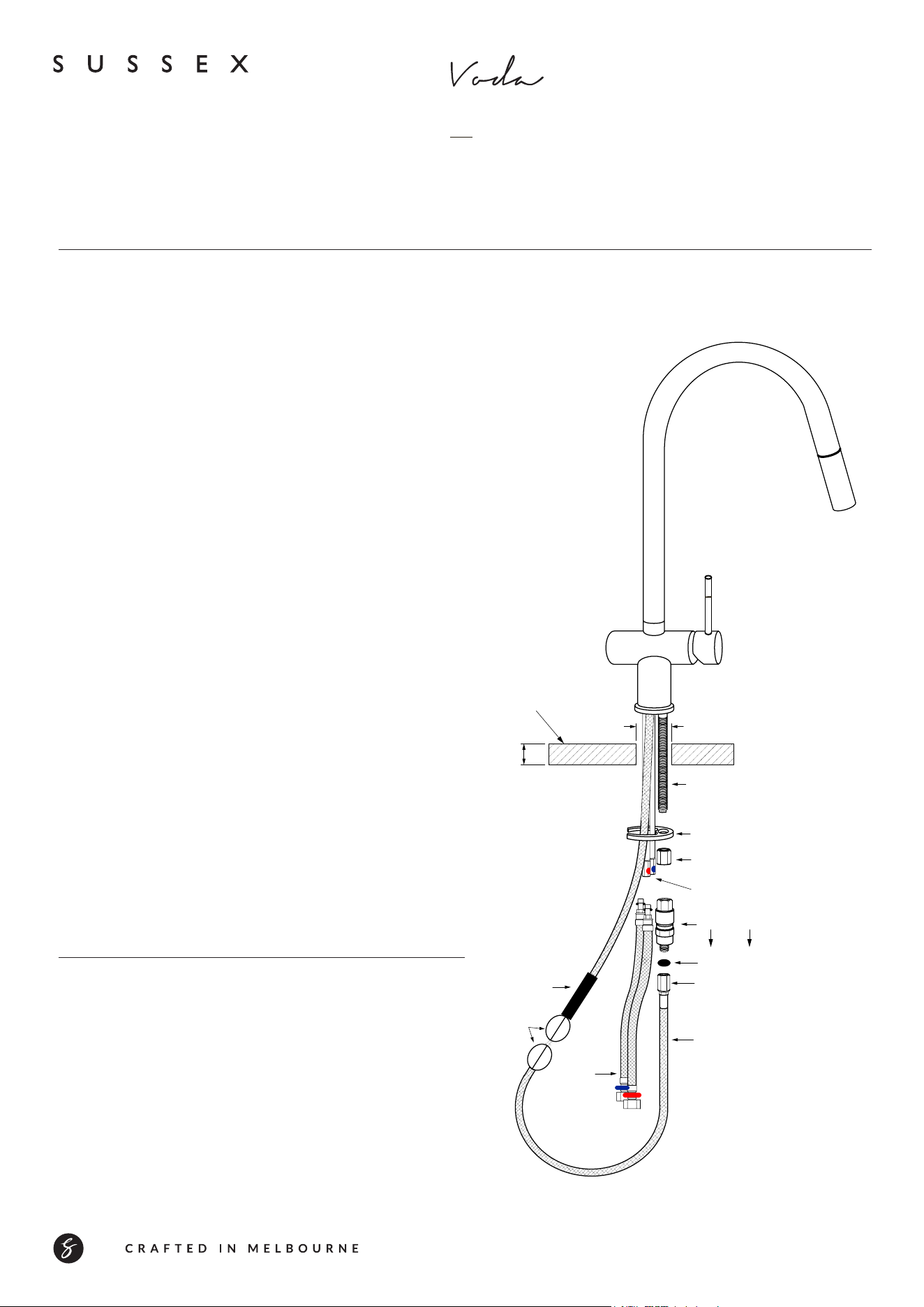

35 - 38mm
32mm
Max
FIXING NUT
CLAMP
THREAD BAR
FLEXIBLE TAIL
EXTENSION
DCV
ASSEMBLY
FLEXIBLE
TAILS
PULL OUT
HOSE
WEIGHTS
RUBBER
STOP
180° OUTLET SWIVEL
FLOW
MOUNTING SURFACE
(FLAT/LEVEL)
HOSE ADAPTER
FITTING
O RING
