AIR FORCE BRACKET (AFBR-1)
MOUNTING INSTRUCTIONS
PLEASE FOLLOW THE DIRECTIONS CAREFULLY TO MOUNT THE BRACKET PROPERLY.

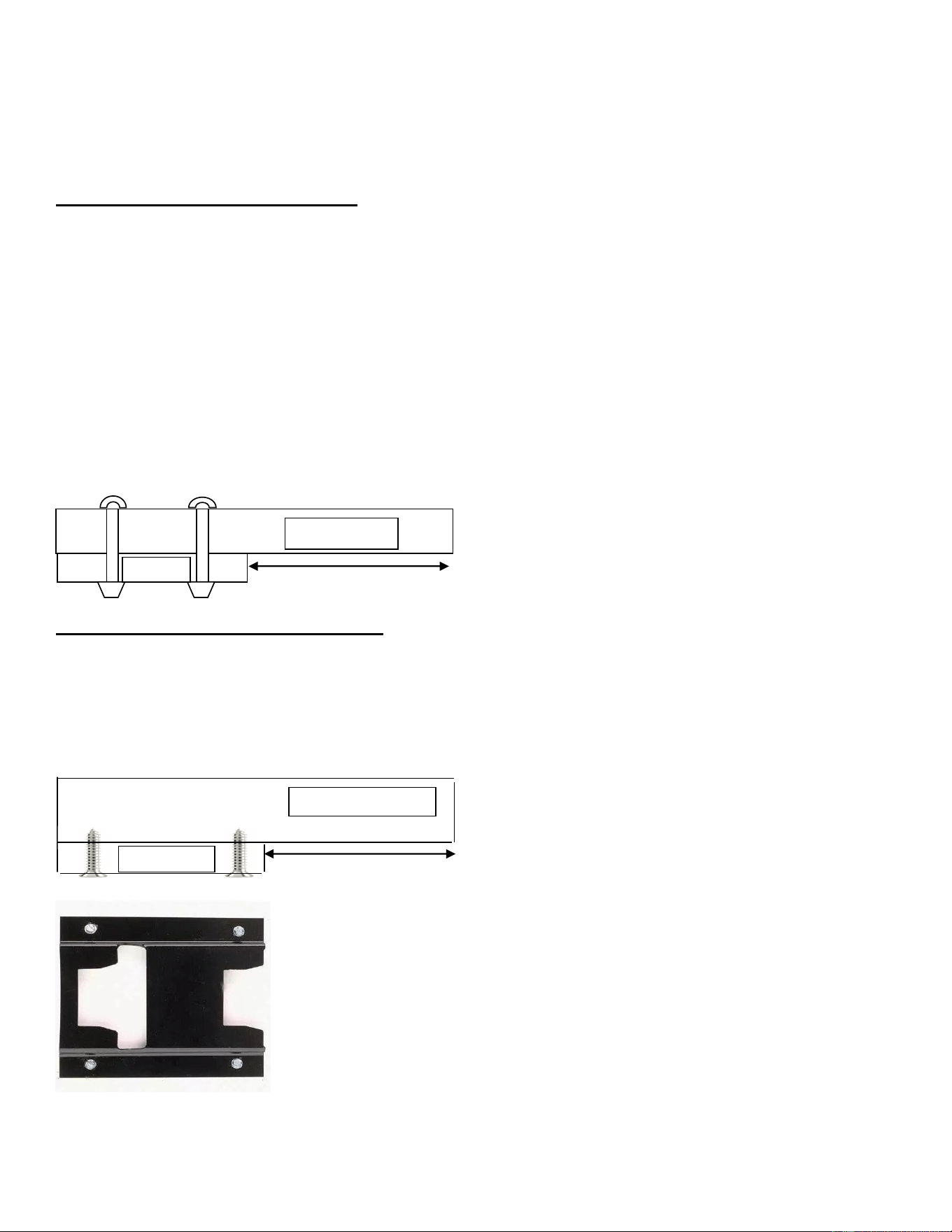

FOR STEEL GROOMING TABLES:
1) PLACE BRACKET 11” FROM END OF THE TABLE AND ½” FROM THE FRONT OF THE
TABLE.
2) MARK 4 HOLES WHERE INDICATED.
3) WITH A ¼” DRILL BIT AND ELECTRIC DRILL CREATE ¼” HOLES.
4) MOUNT BRACKET WITH THE SCREWS AND NUTS SUPPLIED FOR STEEL GROOMING
TABLES.
5) AFTER THE MOUNTING PLATE HAS BEEN SECURED AND TIGHTENED, PLACE BLOWER
ON MOUNTING PLATE AND SLIDE DRYER (SEE ILLUSTRATION) UNTIL LEGS LOCK INTO
PLACE.
6) AFTER DRYER IS LOCKED INTO PLACE, SCREW INTO THREADED HOLE ON SIDE OF THE
BRACKET TO AVOID MOVEMENT OF THE DRYER AS A RESULT OF VIBRATION.
SIDE VIEW
11”
FOR WOODEN GROOMING TABLES:
7) PLACE BRACKET 11” FROM END OF THE TABLE AND ½” FROM THE FRONT OF THE
TABLE.
8) MARK 4 HOLES WHERE INDICATED.
9) ATTACH BRACKET WITH 4 SELF TAPPING WOOD SCREWS
10) FOLLOW STEPS 5 & 6 AS DESCRIBED ABOVE.
SIDE VIEW
11”
BOTTOM VIEW
STEEL TABLE
WOODEN TABLE
BRACKET
BRACKET
F:\INSTRUCTION MANUALS\AFBR-1 Air Force Bracket Mounting Instructions.doc MVC-769-A

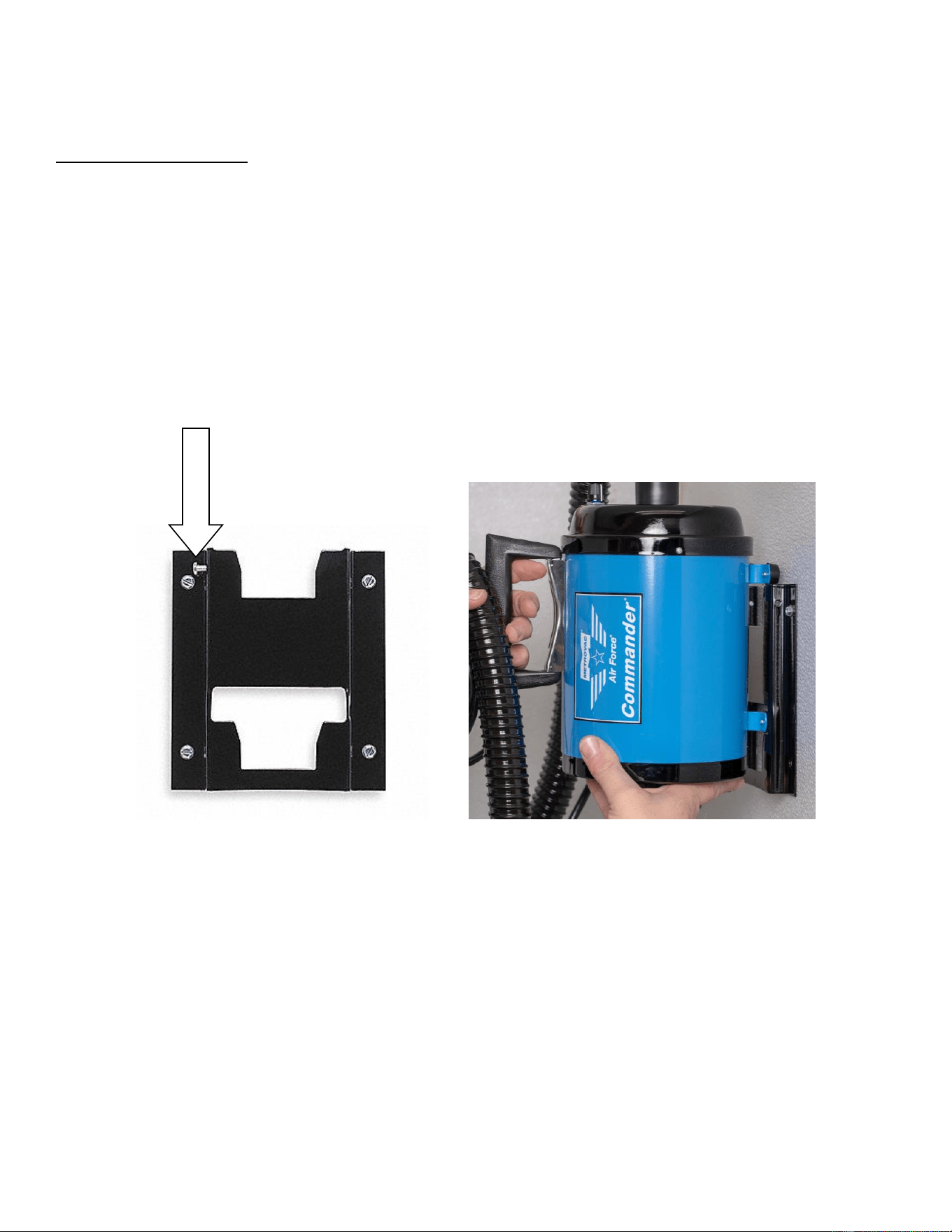

TO MOUNT ON WALL
1) PLACE AIR FORCE MOUNTING BRACKET ON THE WALL WHERE DESIRED WITH OPEN
PORTION OF BRACKET IN UPRIGHT POSITION
2) WITH BRACKET AS TEMPLATE, MARK 4 HOLES WHERE INDICATED
3) WITH PHILLIPS HEAD SCREWDRIVER OR “PUNCH” CREATE HOLES IN SHEETROCK
4) ATTACH BRACKET WITH 4 SELF TAPPING WOOD SCREWS AND MOLLIES (SUPPLIED)
5) AFTER THE MOUNTING PLATE HAS BEEN SECURED AND TIGHTENED, PLACE BLOWER
ON MOUNTING PLATE AND SLIDE DRYER (SEE ILLUSTRATION) UNTIL LEGS LOCK INTO
PLACE.
6) WHEN THE DRYER IS LOCKED INTO PLACE SCREW INTO THREADED HOLE ON SIDE OF
THE BRACKET TO AVOID MOVEMENT OF THE DRYER AS A RESULT OF VIBRATION.
IT IS VERY IMPORTANT TO MAKE SURE THAT THE MOUNTING
BRACKET IS SECURE AND CAN HANDLE THE WEIGHT AND PULLING
THAT MIGHT OCCUR DURING THE NORMAL USAGE OF THIS
PRODUCT. METRO WILL NOT BE RESPONSIBLE FOR DRYERS THAT
ARE DAMAGED AS A RESULT OF IMPROPER BRACKET MOUNTING.
