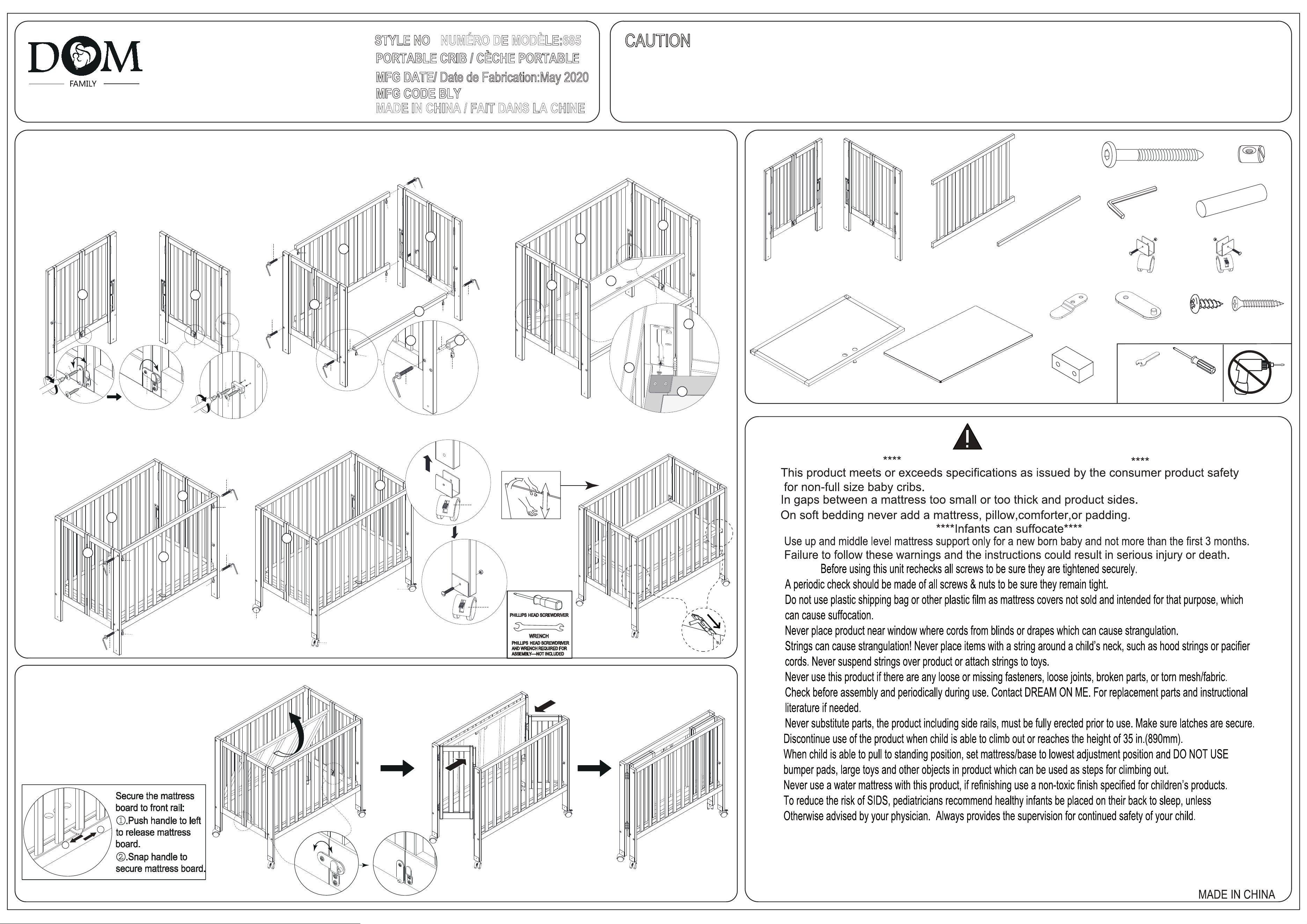

A: Left head board (1PC)
B: Right head board (1PC)
C: Rail (2Pcs)
E: Mattress board (1PC)
D: Stabilizer bar (1PC)
F: Mattress (1PC)
a: 2-1/8” Allen head bolt
(10 pcs)
d: 1-1/2” Wood dowel (2 pcs)
b:Barrel nuts (10 pcs)
c:
2” Allen wrench (1 pc)
e:
Castors (2 pcs)
f: Castors (2 pcs)
Follow bellow to fold the crib:
1.take out the mattress (F)
2.take out the mattress board (E)
3.unlock the latch on the headboard
4.fold the crib
Assemble latch (i & j) to the headboard (A & B)
by using 5/8” screw (k).Then assemble plastic
block(n) horizontal to the headboard (A&B) by using
3/4”screw (m).Tighten screws using phillips head
screwdriver.Make sure that the latch on the bottom
of each headboard (A&B) are locked.
THEN FULLY tighten all the bolts.
STEP 1
STEP 4
STEP 5 STEP6
Connect rail (C) and stabilizer bar (D)to the headboard ( A & B)
by screws (a) and nuts (b),wood dowel (d), washer (g), washer (h).
DO NOT fully tighten the bolts.
Connect rail (C) to the headboard (A & B) by screws
(a), nuts (b), washer (g) and washer (h).
STEP 2
STEP 3
Slot in the metal pin into the notch of left and right
headboard side corner post.then move up and down
o highest level.
Assemble castors (e&f ) to the leg bottoms on the leg
on headboard (A&B).2 castors (e) with brake are in
the front.THEN add the mattress(F).
Select the desire level,and use both hand to lift up the mattress
base,then adjust the level to your require height of the 2 level.
Slide in the bolt underneath the mattress board (E) to keep the
mattress support fixed.
CAUTION:ANY MATTRESS USED IN
THIS CRIB MUST BE
AT LEAST 23-5/8”(600MM) BY 37-3/4”
(959MM) WITH A THICKNESS NOT EXCEEDING 2” (51MM)
. THE CRIB CONFORMS TO
APPLICABLE REGULATIONS PROMULGATED BY
THE CONSUMER PRODUCTS SAFETY
COMMISSION.
i: Latch 1 (2 pcs)
n: Plastic block (2 pcs)
j: Latch 2 (2 pcs)
m: 3/4”screw
(4 pcs)
k: 5/8” screw
(6 pcs)
PHILLIPS HEAD SCREWDRIVER
WRENCH
PHILLIPS HEAD SCREWDRIVER
AND WRENCH REQUIRED FOR
ASSEMBLY----NOT INCLUDED
KEEP INSTRUCTIONS FOR FUTURE USE
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
WARNING
Please note that the warning sticker is placed on the cribs to keep parents and caregivers informed it is a
requirement by law under CPSC and ASTM. We do apologize for any inconvenience this may cause you.
Follow warnings on all products in a crib.
.
WRENCH AND
PHILLIPS--HEAD SCREWDRIVER
REQUIRED FOR ASSEMBLY
----NOT INCLUDE
STYLE NO / NUMÉRO DE MODÈLE:685
PORTABLE CRIB / CÈCHE PORTABLE
MFG DATE/ Date de Fabrication:May 2020
MADE IN CHINA / FAIT DANS LA CHINE
MFG CODE BLY
Child can become entrapped and die when improvised netting or covers are placed on top of product.
Never add such items to confine child in product.
Dream On Me Inc.
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
Email: [email protected]
www.dreamonme.com
Replace teething rail if damaged,cracked,or loose.
Caution:
①
②
1
2
B
B
B
k
k
l
l
l
l
j
j
nx
2
mx
4
m
n
a
a
a
a
a
b
b
b
b
b
b
b
b
d
a
b
b
d
d
n
A
B
A
B
C
D
A
D
A
C
B
E
a
a
a
a
A
B
C
C
A
B
e
f
f
e
e
B
C
E
LIMITED WARRANTY
