  3. Axis 03420-001 User Manual

Axis 03420-001 TP3208-E Recessed Mount

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
03420-001 photo

Axis TP3208-E Installation Guide

This is the main product document for model 03420-001.

The file format is pdf, 14 pages, you can download this manual here .

background

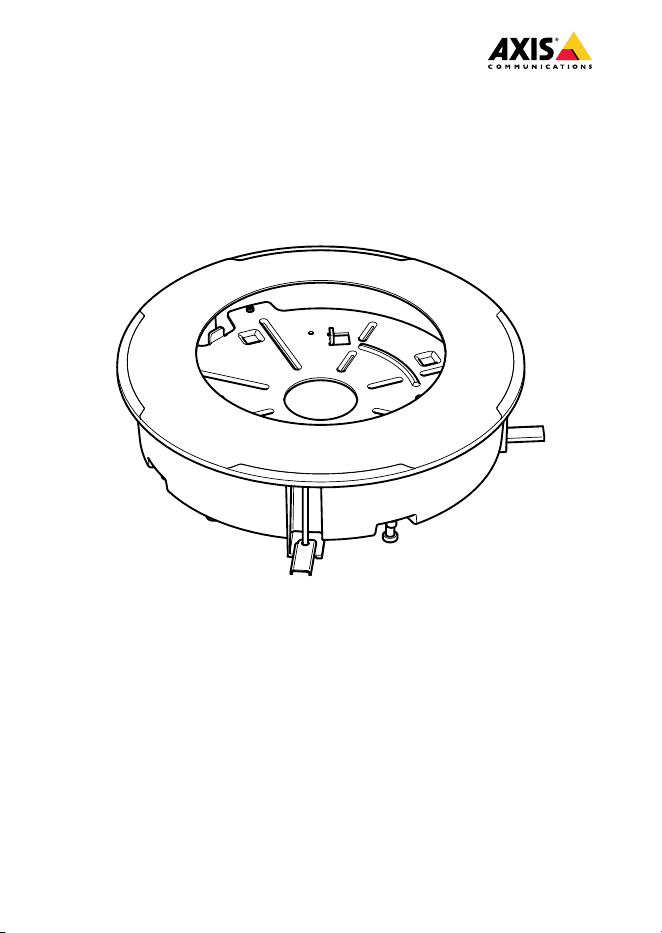

AXISTP3208-E
AXIS TP3208-E
Installation guide
Guide d’installation
Installationsanleitung
Guida all’installazione
Guía de instalación
イインンスストトーールルガガイイドド
Guia de instalação
Руководство по установке
설치가이드
安安装装指指南南
Panduan instalasi
Kurulum kılavuzu
background
2

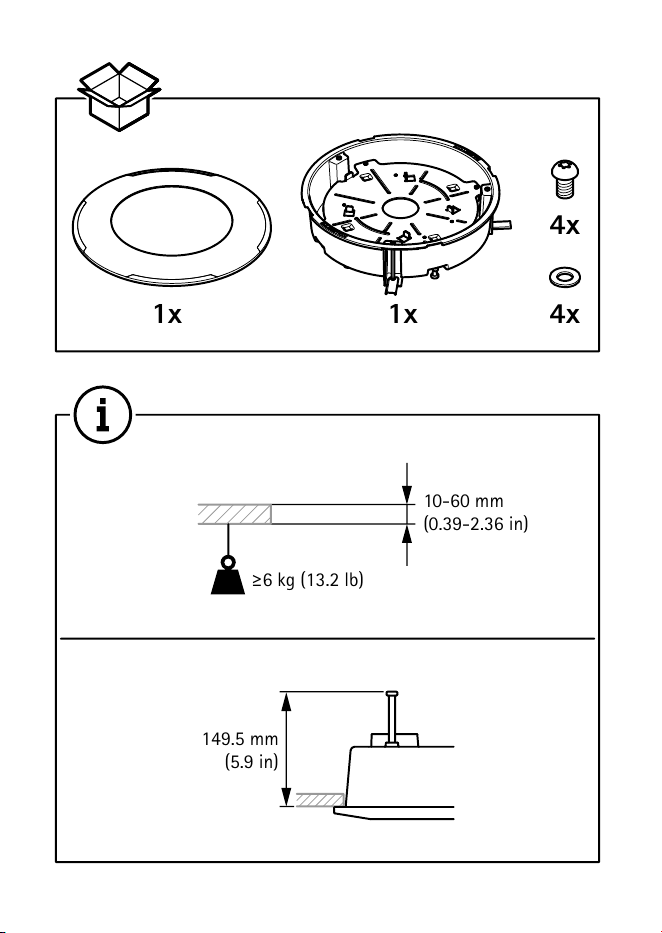

1x 1x 4x
4x
≥6 kg (13.2 lb)
10-60 mm
(0.39-2.36 in)
149.5 mm
(5.9 in)
background
3
ø370 ± 3 mm
(ø14.57 ± 0.12 in)

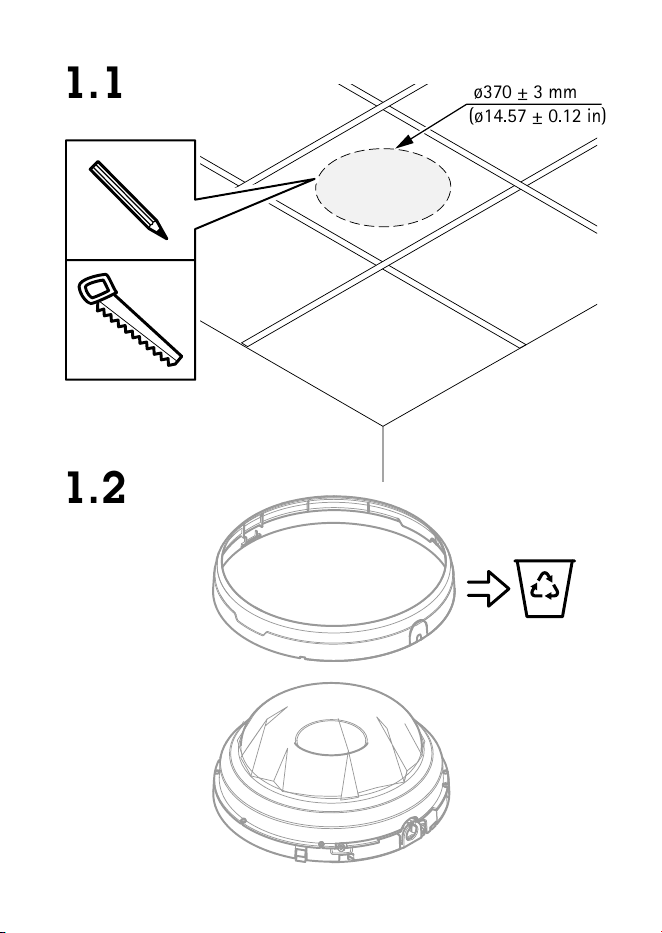

1.1
1.2
background
4
6x
2x

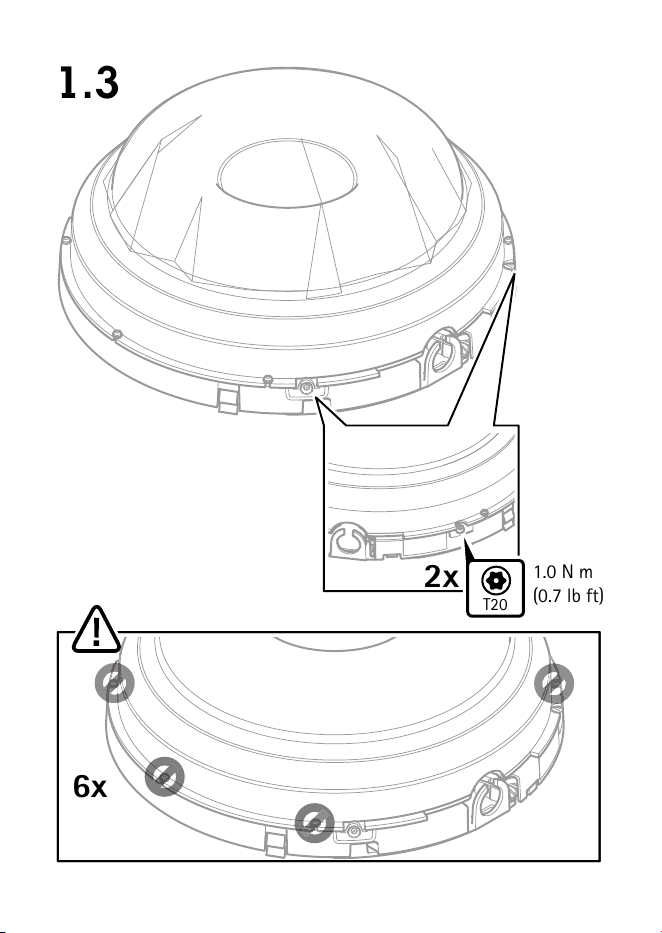

T20
1.0 N m
(0.7 lb ft)
1.3
background
5

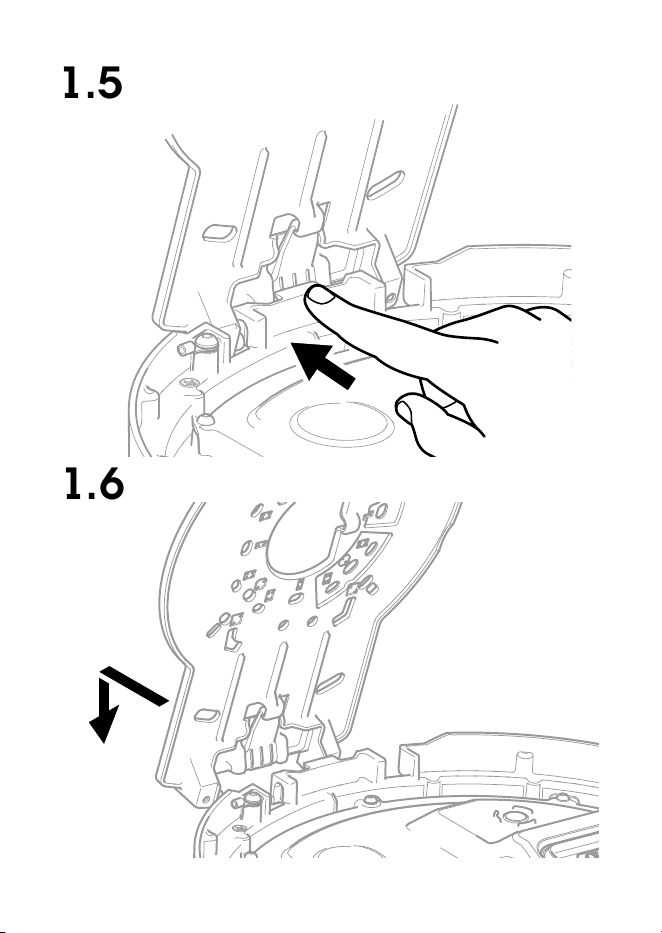

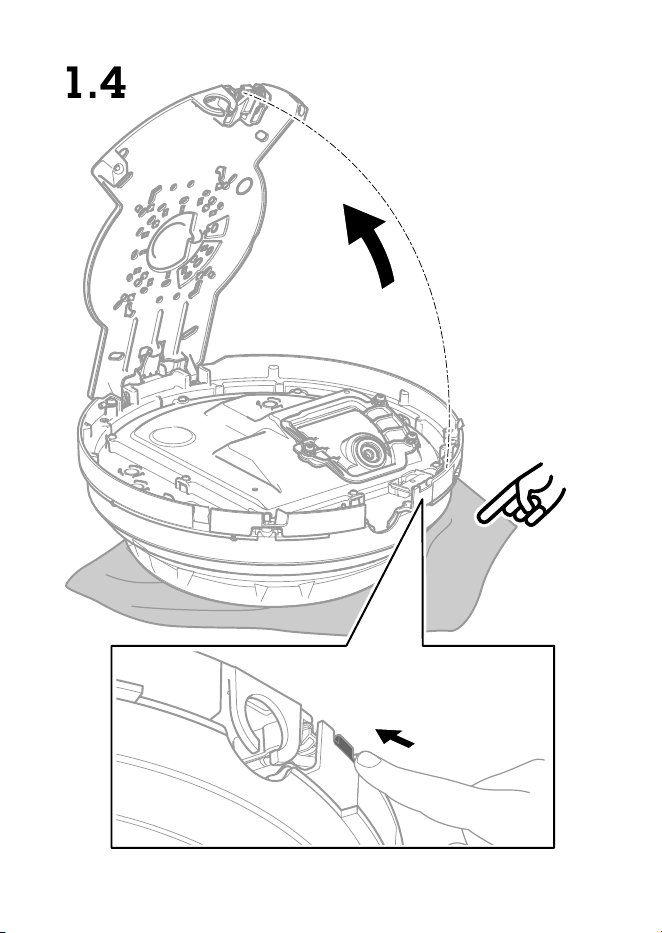

1.4
background
6
1.5
1.6
background
7

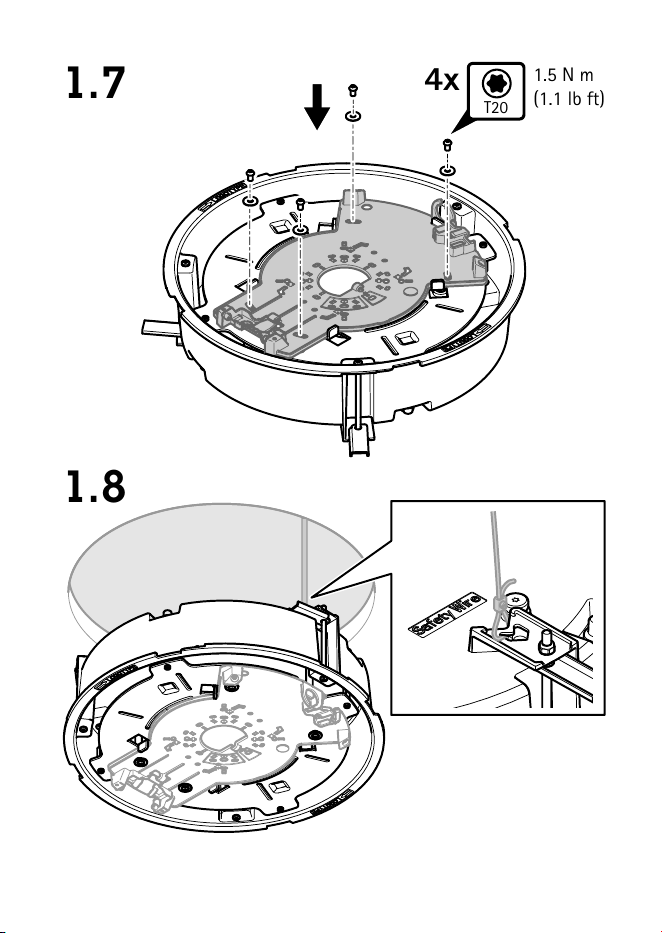

1.7
4x
T20
1.5 N m
(1.1 lb ft)
1.8
background
8
3
x
PoE
STP
ø5-9 mm
(ø0.2-0.35 in)

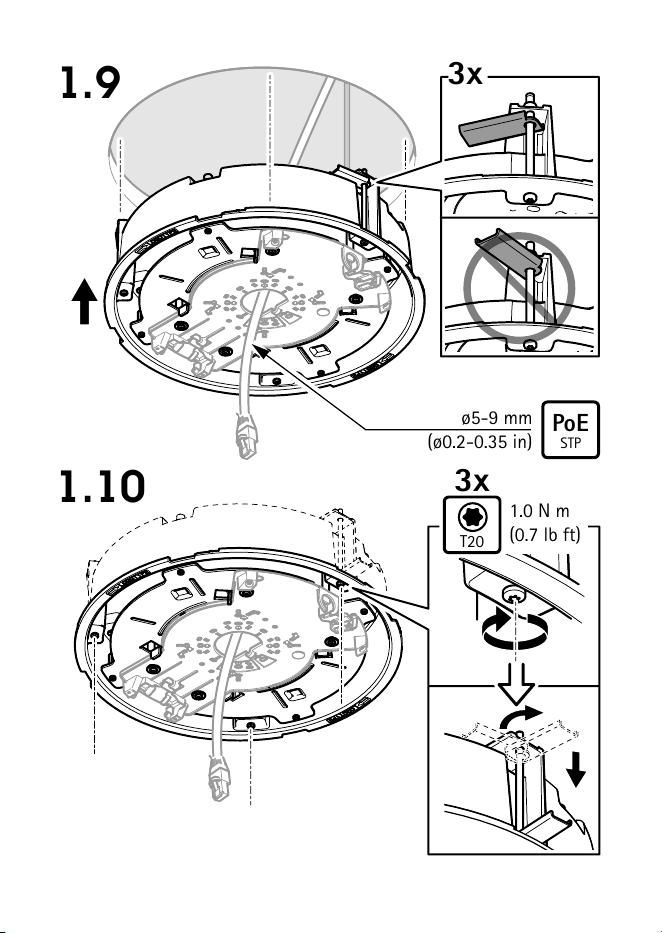

1.10
1.9
3x
T20
1.0 N m
(0.7 lb ft)
background
9
AXIS P37
Installation guide

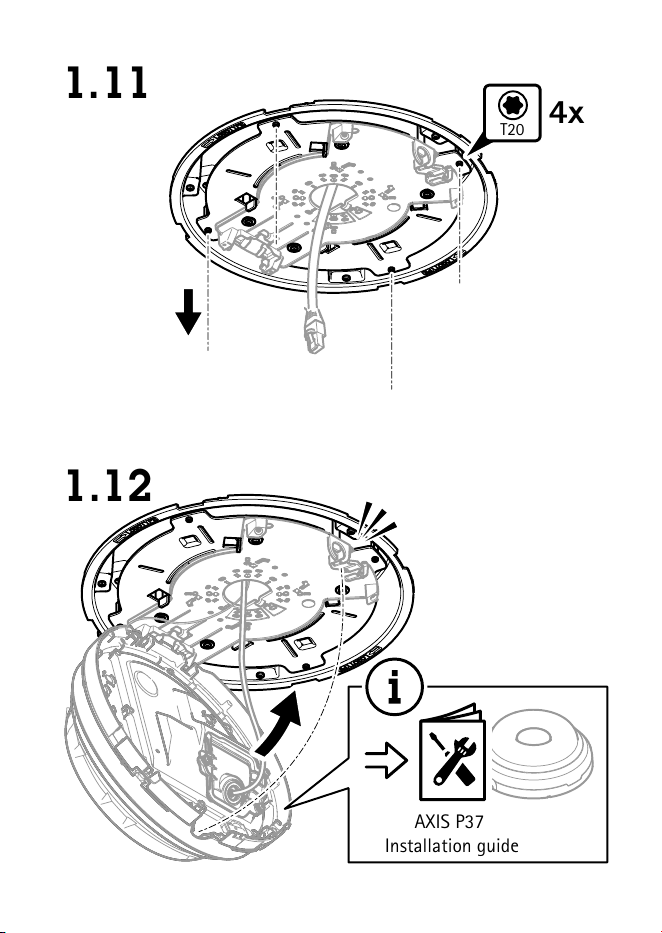

1.12
1.11
4x
T20
background
10
6x
2x
T20
1.0 N m
(0.7 lb ft)

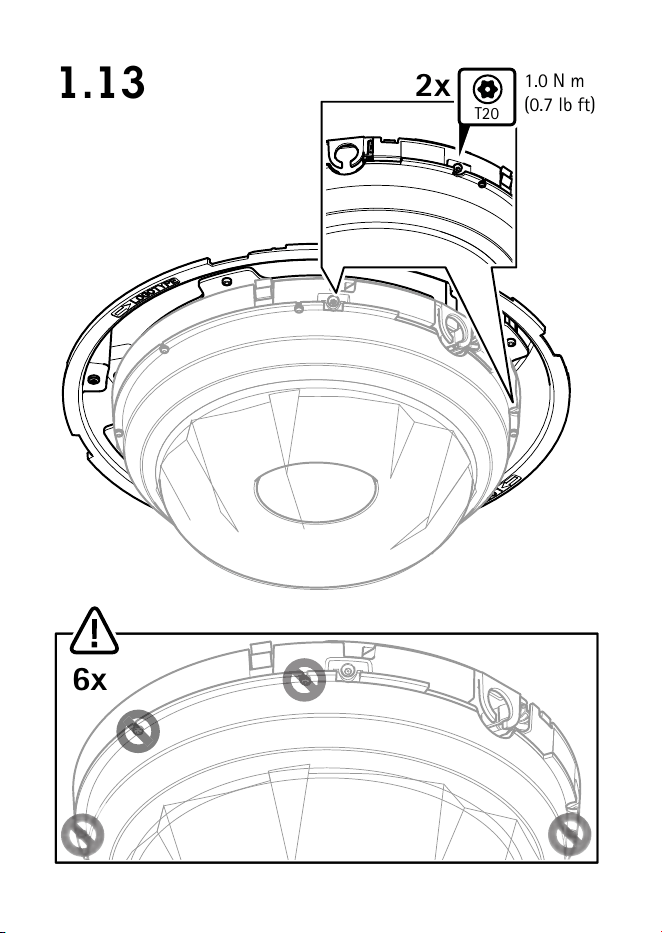

1.13
background
11

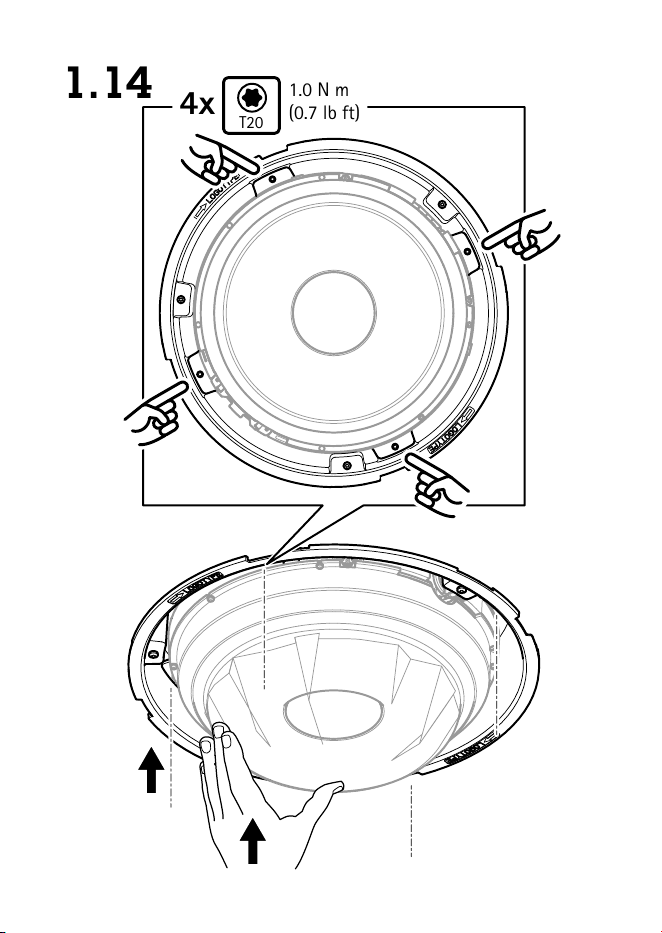

1.14
4x
T20
1.0 N m
(0.7 lb ft)
background
12

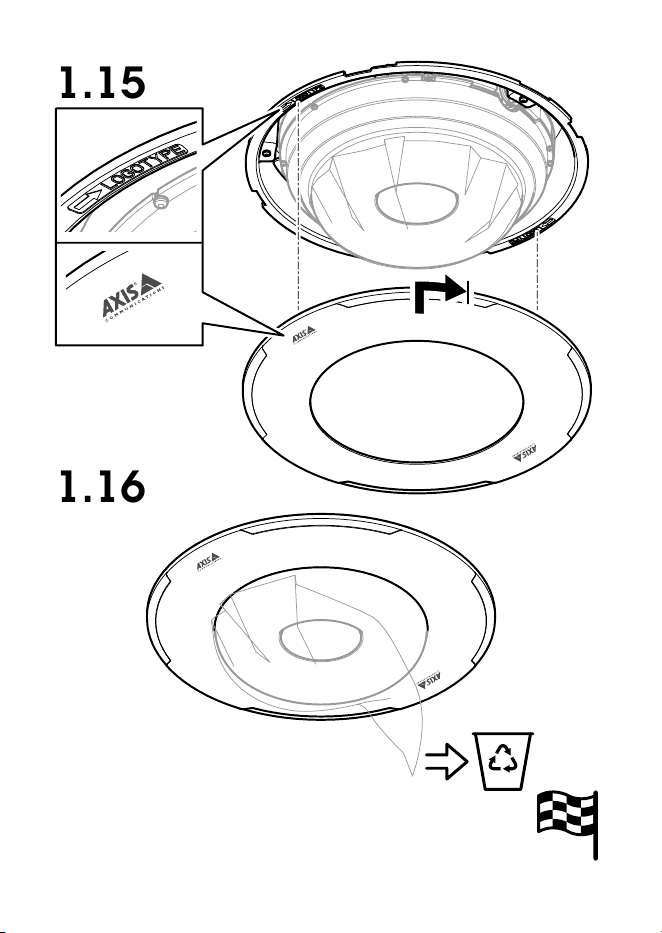

1.15
1.16
background
13

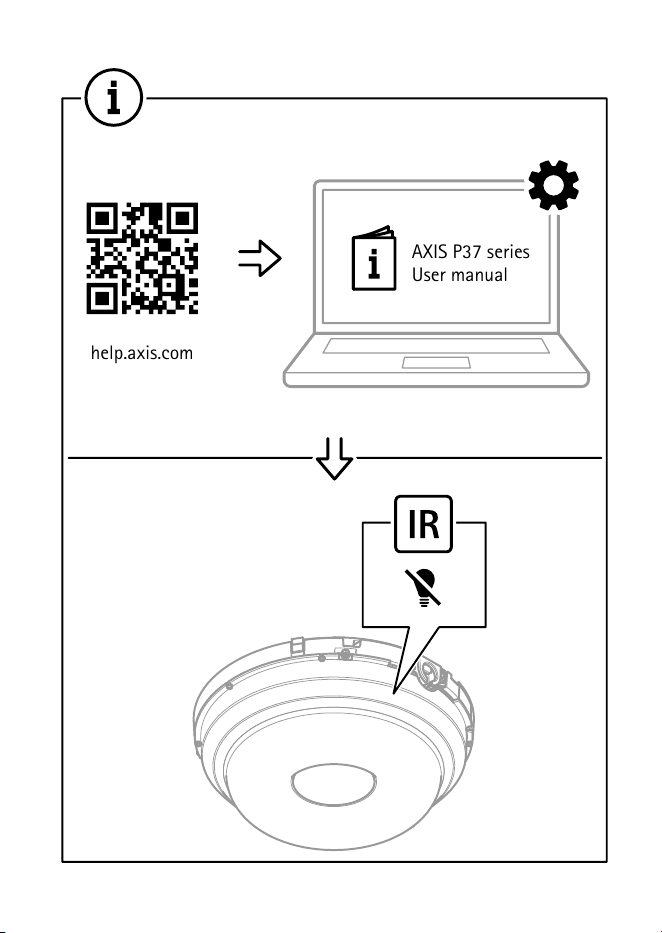

help.axis.com
AXIS P37 series
User manual
background
.
3424216
2025-12 (M2.2)
© 2025 Axis Communications AB
