USER MANUAL
Dishwasher
EN
HDFS143B.S.AU
HDFS143B.BS.AU
3Your dishwasher ........................................
4Safety instructions .....................................
5Installation ....................................................
5Overflow guard ............................................
5Packaging ....................................................
6Disposal .......................................................
6Symbols on the appliance ...........................
7Before washing for the first time ..............
71. Water hardness .......................................
72. Basic settings .........................................
7Top up with rinse aid ...................................
8Greener dishwashing ................................
8Save energy and water ................................
9Loading the dishwasher ............................
9Fragile dishes ..............................................
9Loading affects the results ..........................
9The dishwasher's baskets ...........................
10Top cutlery tray ............................................
10Upper basket ...............................................
12Lower basket ...............................................
12Cutlery basket ..............................................
14Using the dishwasher ................................
14Add detergent ..............................................
15On/Standby mode ........................................
15Select program ............................................
16Select option ................................................
17Start/Stop .....................................................
18Status light ...................................................
18If you want to load more dishes ...................
18Power failure ................................................
18Once the program has finished ...................
18For the best drying results ...........................
18Unloading the dishwasher ...........................
19Program chart ............................................
20Settings .......................................................
22Care and cleaning ......................................
22Top up with rinse aid ...................................
22Clean the filter ..............................................
23Cleaning the spray arms ..............................
24Clean the outside of the dishwasher ...........
24CLn - Run the Self-clean program ..............
24Remove blockages ......................................
25Winter storage/transport ..............................
26Troubleshooting .........................................
32Installation ..................................................
32Safety instructions ........................................
32Placing the dishwasher ................................
33
Adjust the height and slide the dishwasher
into place .....................................................
33Drainage connection ...................................
34Connection to water supply .........................
35Electrical connection ...................................
35Remove dishwasher worktop .......................
36Service ........................................................
36Spare parts ..................................................
36Number of program cycles ..........................
37Technical information ................................
37Information on energy labelling ...................
37Technical data .............................................
37Information for test institute ..........................
Contents
Welcome to our growing ASKO family!
We are proud of our appliances. We hope that this appliance will be an appreciated and dependable
aid for many years to come.
Please read the operating instructions before use. They include general tips, information about the
settings and adjustments you can make, and the best way to take care of your appliance.
To install the dishwasher see the chapter, Installation. Then open the door and press .
The first time the dishwasher is switched on, it is important that you choose the right settings to
ensure good dishwashing results. See the chapter Before washing for the first time.
Display
Start/StopOn/Standby mode
Special programOptionsProgram
Self-cleanDelayed startAuto
Anti-odourSpeed washEco
Autom. door opening
Quick
Intensive
Glass
Hygiene
Night
Information on the display
See the chapter Care and cleaning.
Top up with rinse aid
CLn Run the Self-clean program
NOTE!
The control panel only reacts to use when the door is open.
3
Your dishwasher
• Read the user manual and keep it in a safe place!
• Number of place settings: 14
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• The door should not be left in the open position since this could
present a tripping hazard. Push the baskets in to avoid the risk
of the dishwasher tipping over.
• Use only dishwasher detergent!
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Any damaged cords must only be replaced by the manufacturer's
service centre or someone with similar professional qualifications.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
• Never place dishes with solvent residues in the dishwasher due
to the risk of explosion. Nor may dishes that contain ash, wax or
lubricants be washed in the dishwasher.
4
Safety instructions
• Children should be supervised to ensure that they do not play
with the appliance.
• Children must be watched. Do not allow children to use or play
with the dishwasher. Be especially vigilant when the door is open.
Some detergent may remain inside! After adding detergent, always
start the dishwasher immediately.
WARNING!
Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
WARNING!
Dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with skin and
eyes and keep children away from the dishwasher when the door
is open. Seek medical attention if swallowed.
Check that the detergent compartment is empty after completion
of the wash cycle.
Installation
See the chapter Installation.
Overflow guard
The overflow guard starts pumping water out of the water and turns the water supply off if the water
level in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling
water) appears on the display. Turn the water tap off and contact your nearest service centre. (To
avoid water leaking outside the dishwasher, do not remove the plug from the wall socket until the
water tap to the supply line has been turned off!)
Packaging
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling centre. The packaging
is comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
5
Safety instructions
Disposal
The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the
end of its service life and is to be disposed of, it should immediately be made unusable. Pull the
power cable out and cut it to the shortest length possible.
Contact your local authority for information about where and how your dishwasher should be correctly
recycled.
Symbols on the appliance
Read the User Manual.
NOTE!
Follow the instructions carefully to avoid injury to people and damage to property, and to maintain
the warranty.
6
Safety instructions
1. Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Contact the local water utility to check the water hardness in your area. This is important with regard
to how much detergent and rinse aid to use.
2. Basic settings
The first time the dishwasher is switched on, it is important that you choose the right settings to
ensure good dishwashing results. See page 20.
Set up:
• Rinse aid
• TAB (All-in-one detergent)
3. Top up with rinse aid
By using rinse aid you will improve your drying
result. You will also achieve a better
dishwashing result with glassware and dishes.

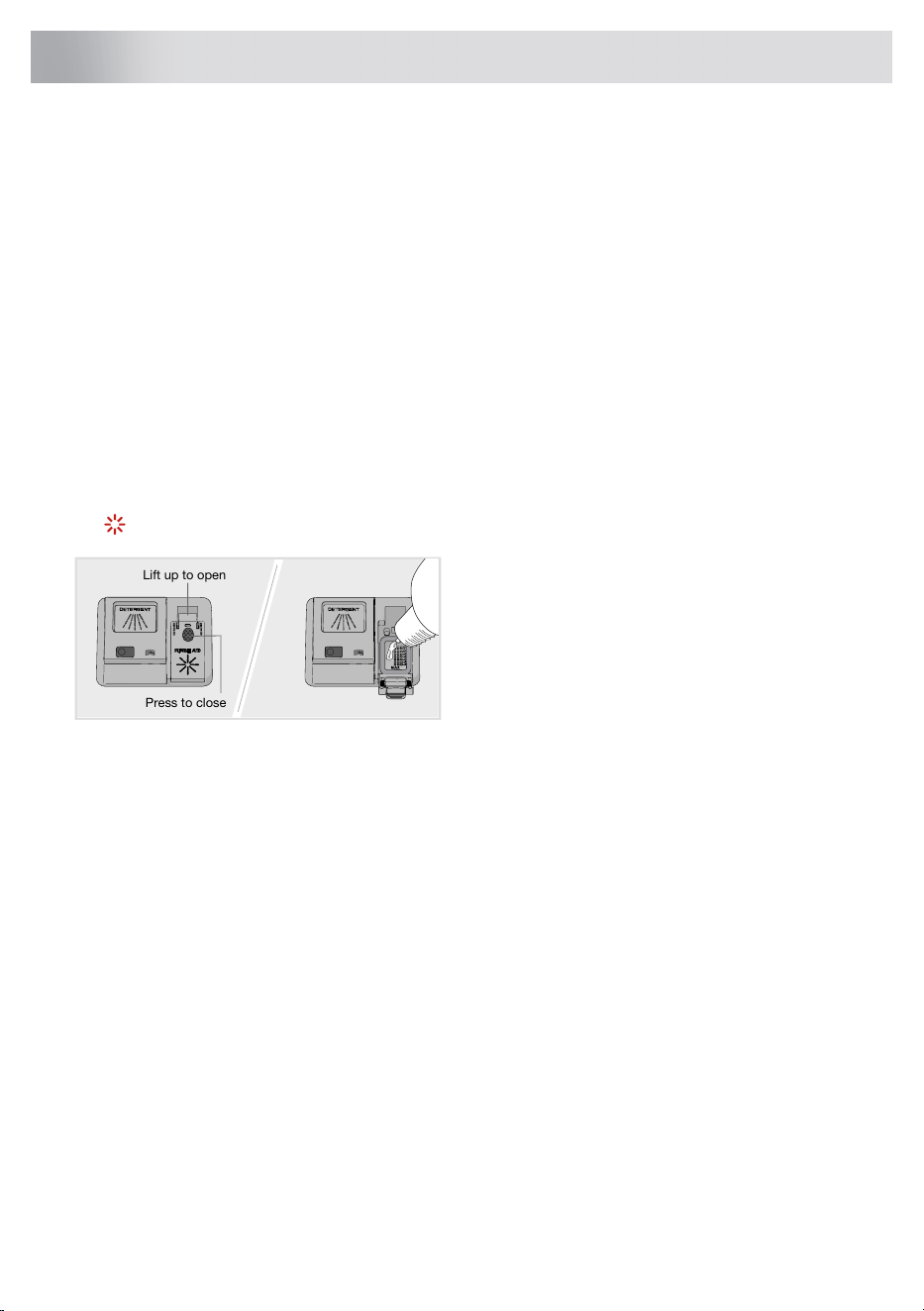

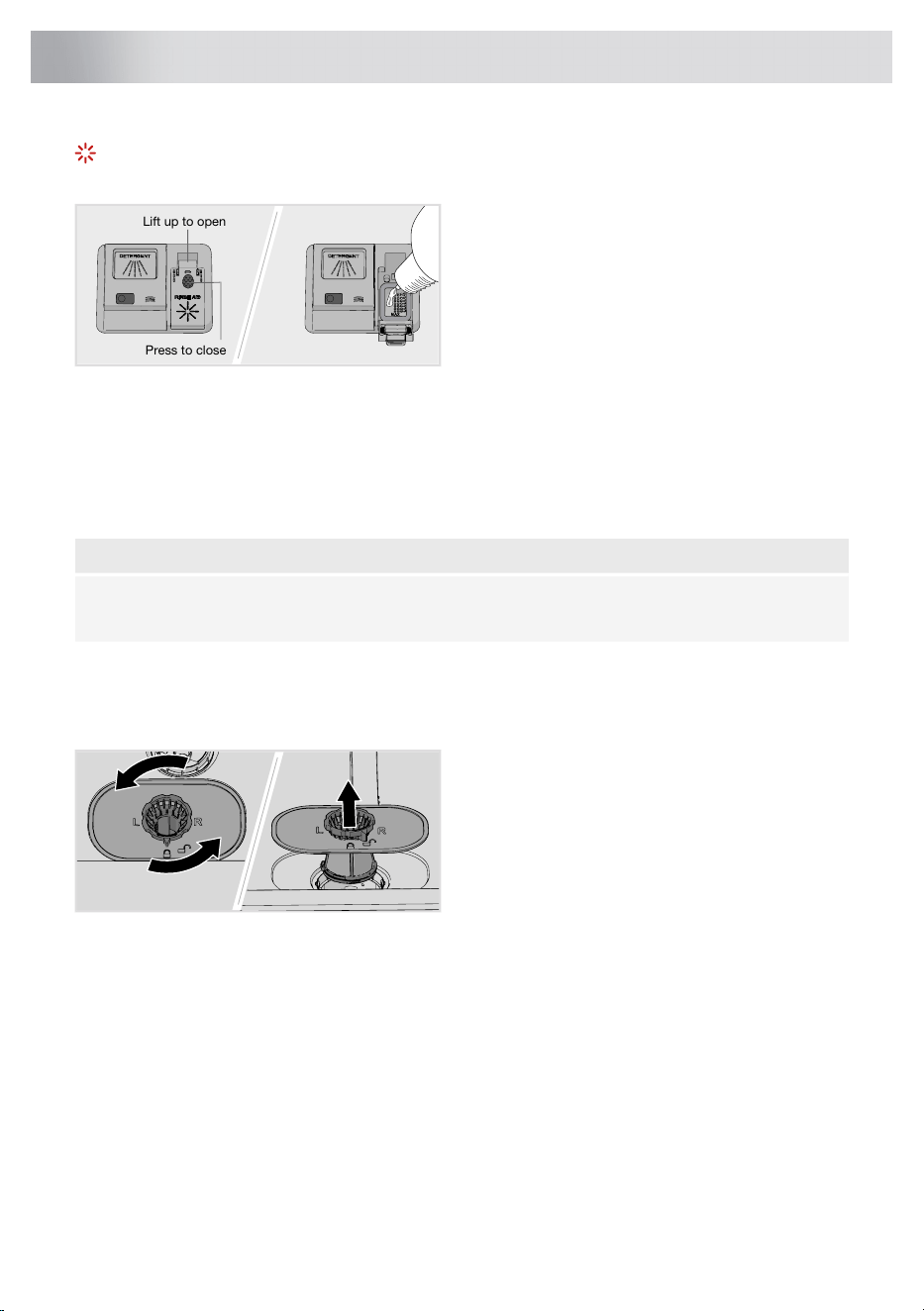

Top up the rinse aid compartment with rinse
aid if you have selected Rinse aid 3:01 - 3:05.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top the rinse aid up to the marked level MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known
as acid rinse aid).
When the rinse aid needs topping up, the symbol lights on the display.
7
Before washing for the first time
Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water
consumption. Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent and rinse aid can result in less effective dishwashing and also entail greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the
Quick program with the Speed wash rinse option if there are any unpleasant odours.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low temperature.
Select dishwashing program – Eco
Use when you want to save water and energy. For normally soiled load, such as plates, serving
dishes, cups, glasses and so on.
This dishwashing program is designed for an effective wash using as little energy and water as
possible. The program washes at a low temperature for a long time.
Select option – Automatic door opening
A shorter dishwashing program and better drying results are achieved if you use the Automatic
door opening option, which automatically opens the dishwasher door. Wait until the dishwasher
indicates that the program has ended and the dishes have cooled before unloading the dishwasher.
8
Greener dishwashing
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high heat, others can be damaged by dishwasher detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver,
copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible
energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces,
as well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery
tray.
The dishwasher's baskets
The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket.
The appearance of the baskets may differ depending on the dishwasher setup.
WARNING!
Be careful with fully loaded dishwasher baskets. Push the baskets in to avoid risking the dishwasher
tipping over.
9
Loading the dishwasher
Top cutlery tray

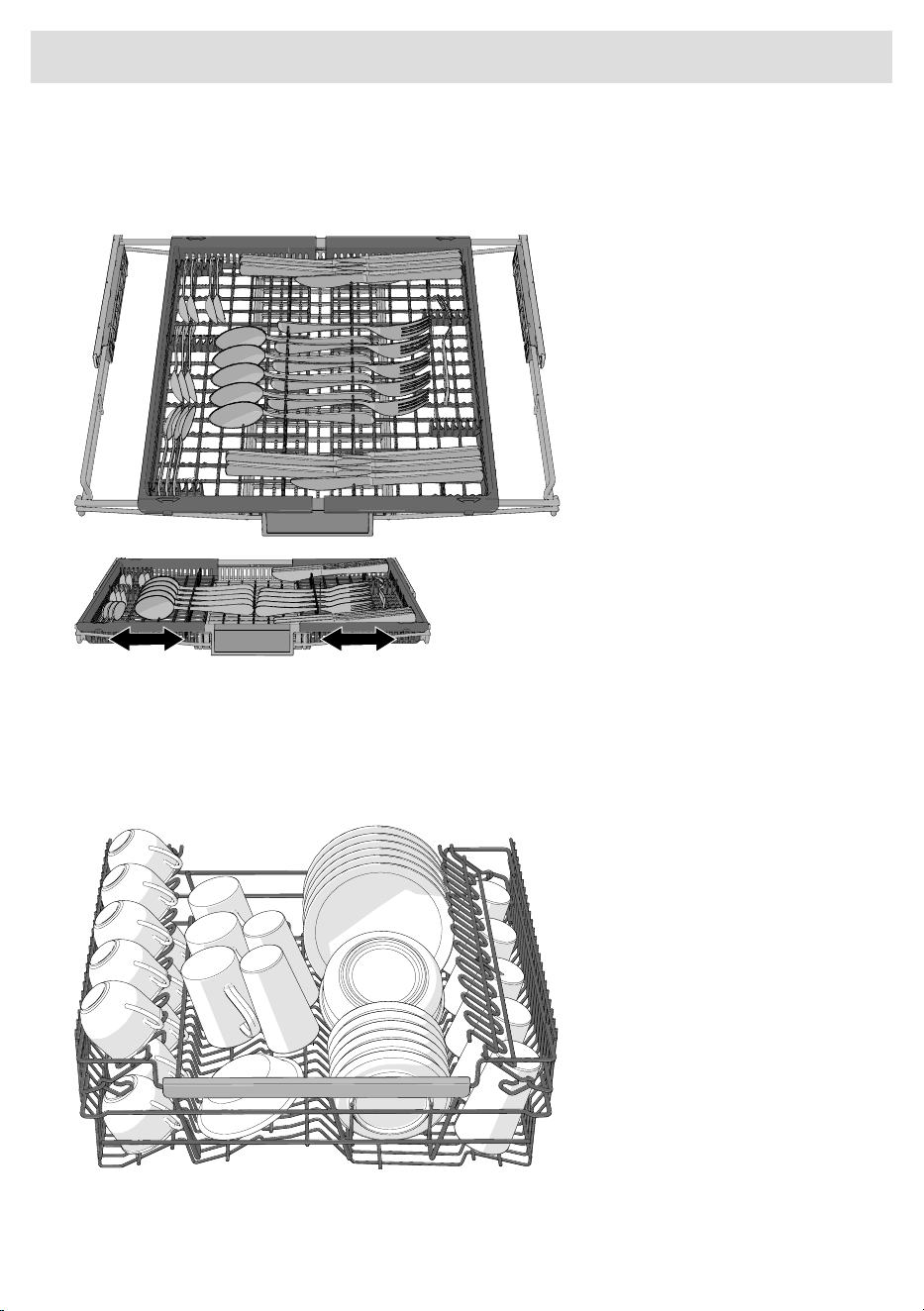

The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items.
Avoid placing tall objects in the top cutlery tray. They can block the top spray arm.
The two top cutlery tray inserts can be moved
sideways to make space for taller dishes on
the cup shelf.
Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should
face inwards and downwards! Place wine glasses on the wine glass shelf and knives in the knife
stand on the right.
10
Loading the dishwasher

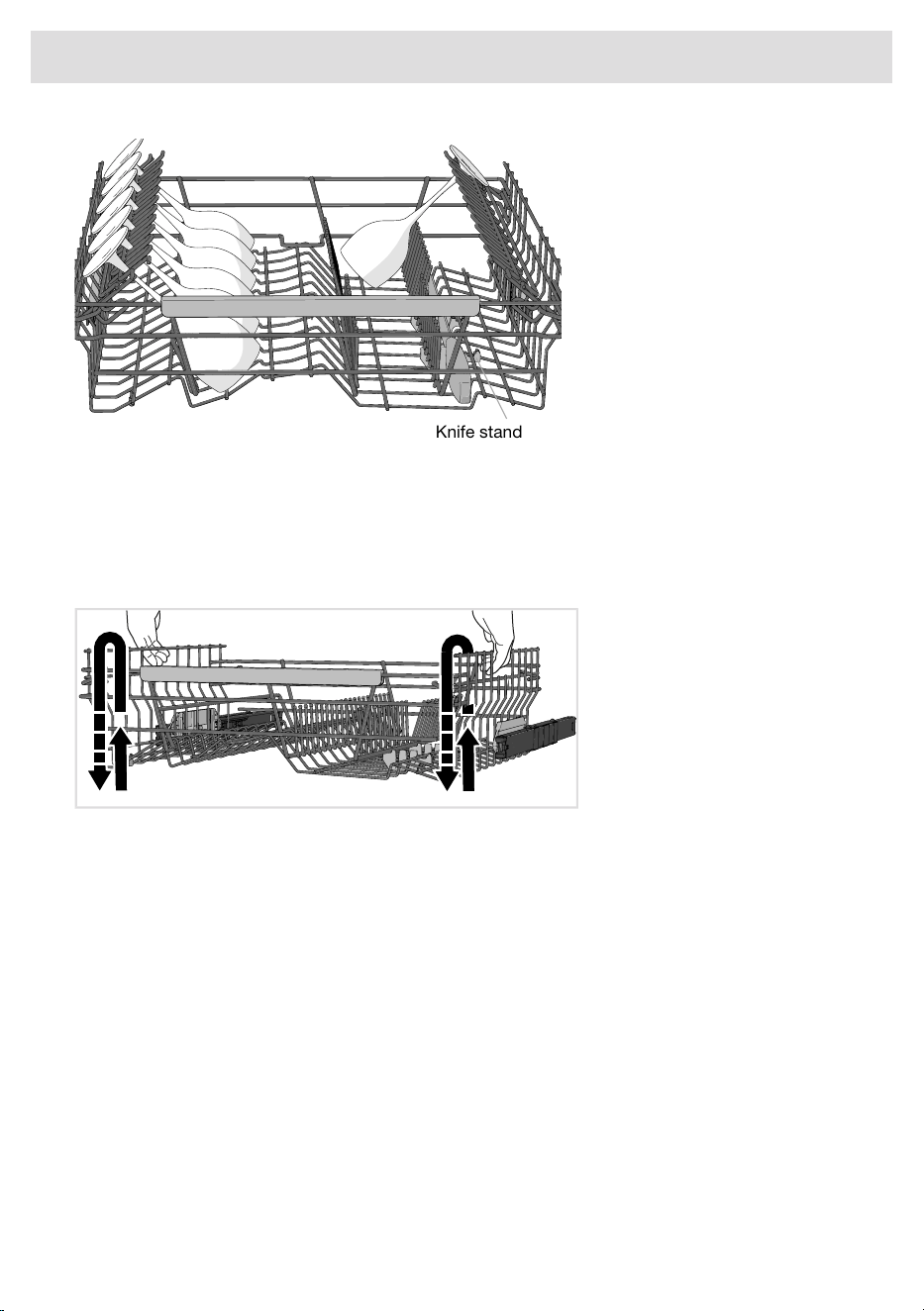

Knife stand
Raising and lowering the upper basket
1. Pull out the upper basket.
2. Use both hands to lift the side handles.
3. In the upper position, use both hands to lift the side handles and carefully lower the basket.
Note that both sides of the basket must always be set to the same height.
11
Loading the dishwasher
Lower basket

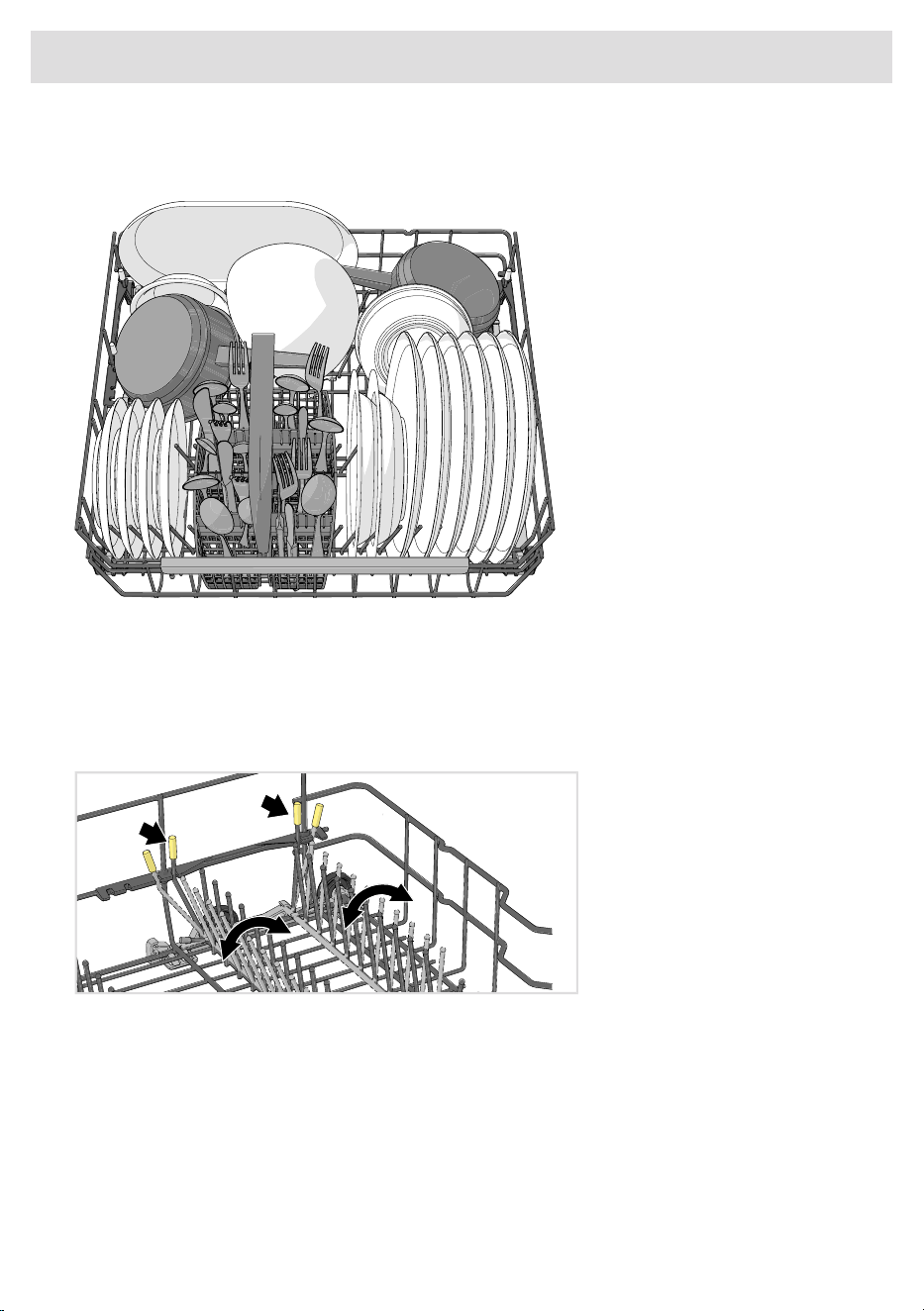

Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.
Place pots and pans in the rear of the lower basket to best utilise dishwashing performance from
the two spray nozzles.
Adjustable plate supports
The adjustable plate supports can be adjusted to suit the dishes. Release the plate supports by
pushing them inwards before repositioning them. The plate supports can also be folded down to
make it easier to load pots and bowls.
Washing large plates
You can adjust the lower basket for plates with a diameter of 25-30 cm by moving the adjustable
plate supports and their fixtures to increase the distance between the tine rows.
Cutlery basket
Place cutlery with the handles facing down, except for knives, and spread them out as much as
possible. Ensure that spoons do not stack inside each other.
Place the cutlery basket in the lower basket.
12
Loading the dishwasher
WARNING!

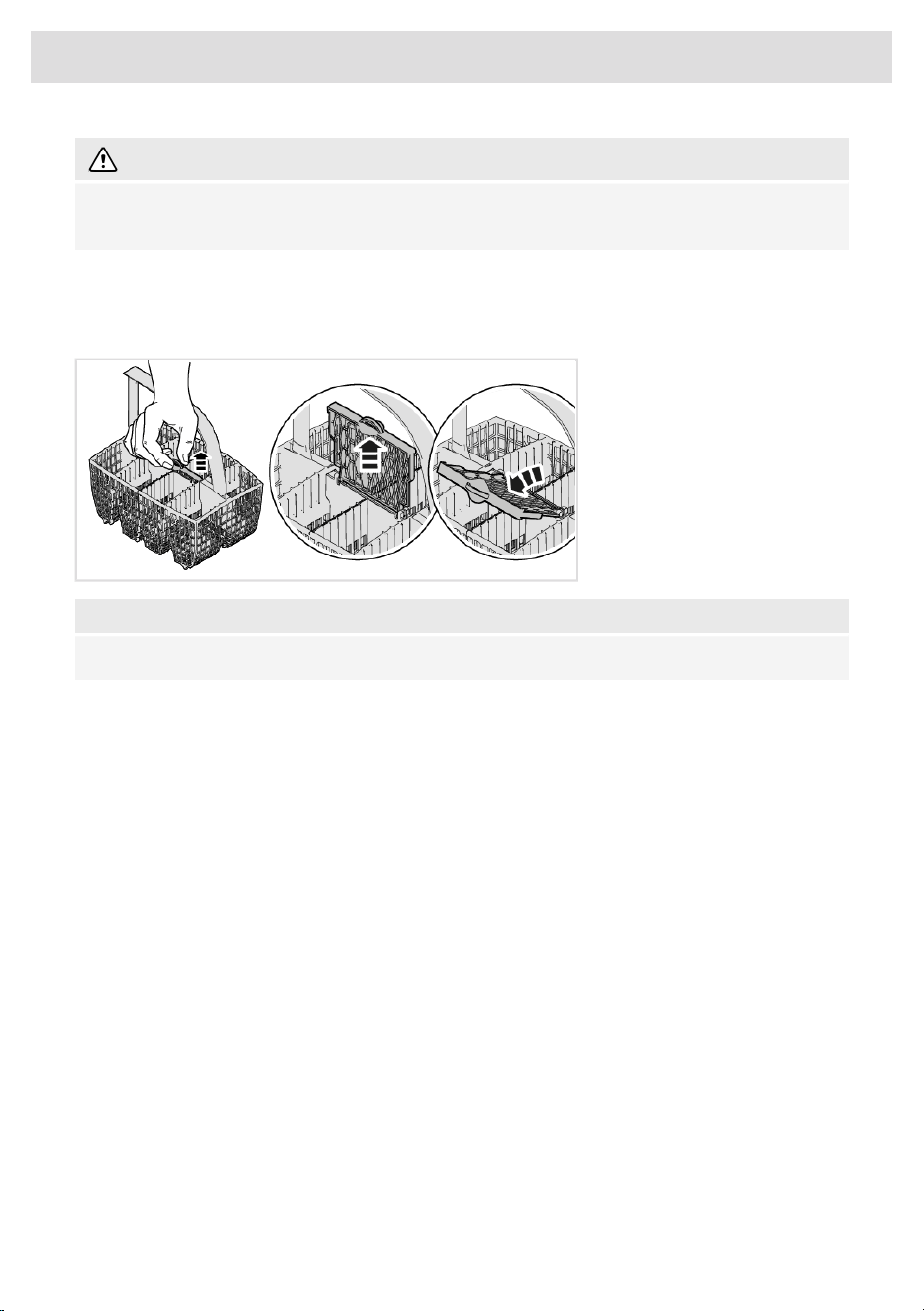

Knives and other sharp must be placed horizontally in the dishwasher’s special cutlery baskets
to prevent damage to the dishwasher tub and risk of cut type injuries.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small items or small shafts (such as
electric whisk attachments).
NOTE!

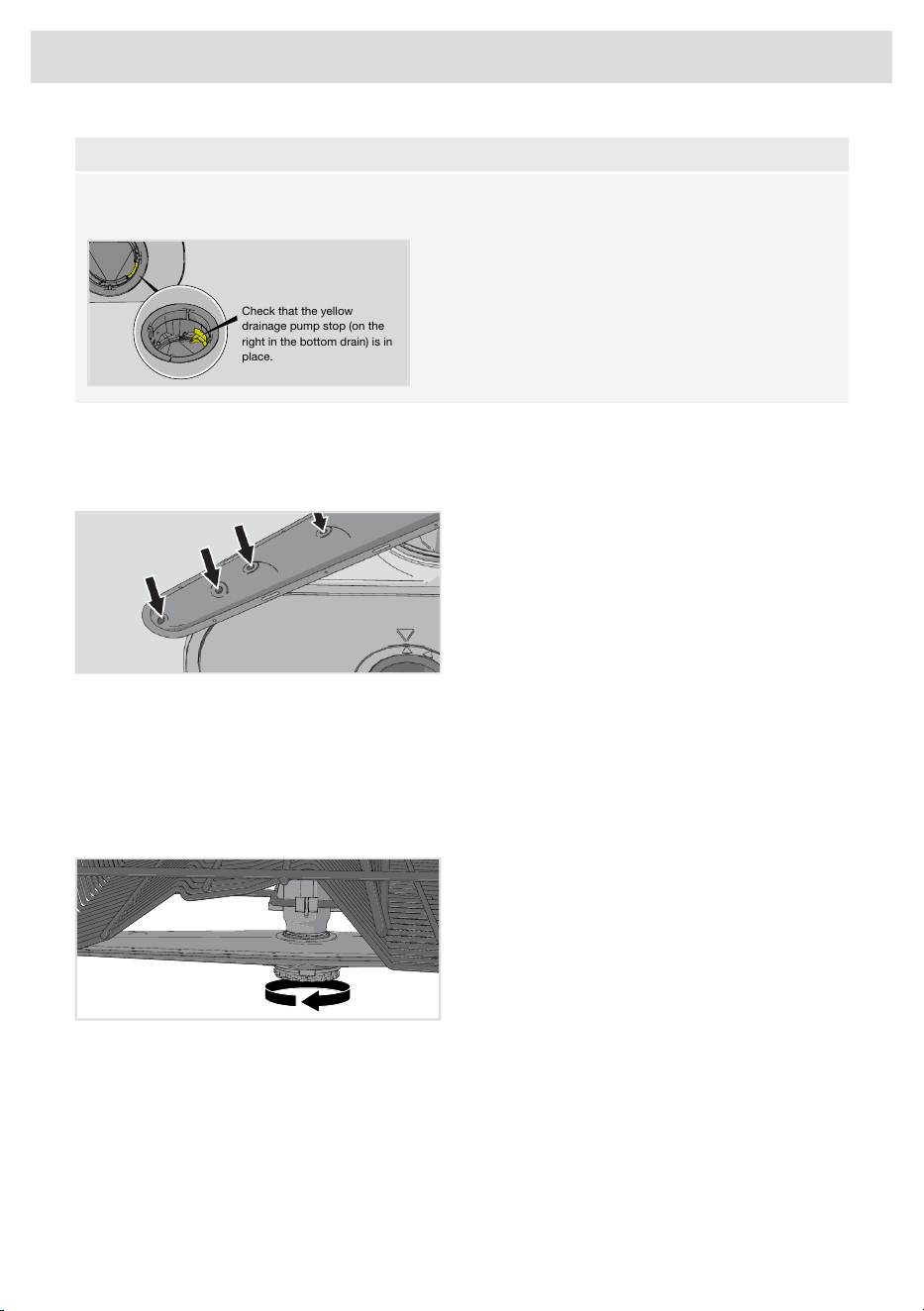

Check that the spray arms can rotate freely.
13
Loading the dishwasher
Add detergent
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective
dishwashing and also entails greater
environmental impact.

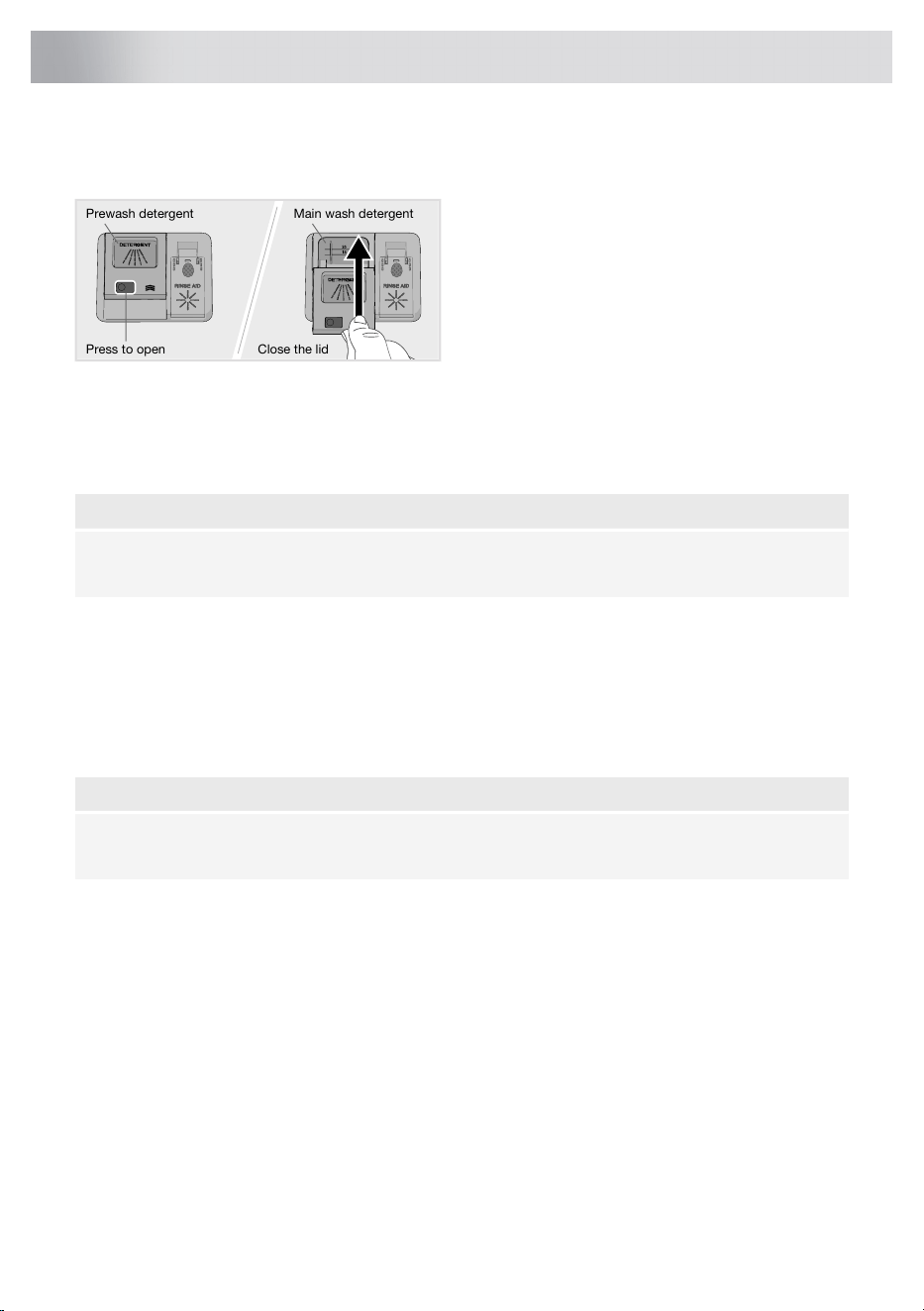

Press to open Close the lid
Prewash detergent
Main wash detergent
The detergent compartment must be dry when adding detergent. There is one compartment for the
prewash and one for the main wash. If dishwasher detergent powder or dishwasher detergent gel
is used, you can add a small amount of the detergent to the prewash compartment. If you have
questions about the detergent, contact the detergent manufacturer.
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms
prevents the dishwasher from operating effectively.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read the directions for these products
carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid.
Dishwasher tablets are not recommended for programs lasting less than 75 minutes. Use dishwasher
detergent powder or dishwasher detergent gel instead.
NOTE!
Optimum washing and drying results are achieved by using dishwasher detergent together with
separately dispensed rinse aid.
14
Using the dishwasher
Display
Start/StopOn/Standby mode
On/Standby mode
Open the door and press . Also turn the water tap on if it is turned off.
NOTE!
The control panel only reacts to use when the door is open.
Select program
Select a program to suit the type of dishes and how dirty they are.
Press the desired program until it is activated, which is indicated by an indicator light.
Auto
The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature
accordingly. When newly installed, the program needs to be run five times before it is fully adapted
and can provide the best results.
Eco
Use when you want to save water and energy. For normally soiled load, such as plates, serving
dishes, cups, glasses and so on.
You can read more about greener dishwashing in the chapter Greener dishwashing.
Quick
A fast and effective program for slightly dried leftovers. (This program is not intended for burnt food
such as on oven dishes.)
The Automatic door opening option is important for ensuring the best drying results.
Intensive
A program with a high temperature for dissolving grease on very dirty dishes such as pans, casserole
dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates
and other dishes.
Glass
Use a gentle dishwashing program with a low temperature for washing fragile items made of
crystal/glass. Remember to use a small amount of detergent and to place items so that they do not
touch each other during the wash. See also Fragile dishes in the chapter, Loading the dishwasher.
Porcelain that has just been used without dried leftovers can also be washed using this program.
15
Using the dishwasher
Hygiene
This program is designed to meet strict hygiene demands.
Night
A quieter dishwashing program, suitable for running at night. The program time is extended.
Self-clean
Self-cleaning program for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.
This program should be run (with no dishes in the machine) using dishwasher detergent or citric
acid. Special dishwasher cleaners are also available on the market. For the removal of limescale
deposits, see Dishwasher tub in the chapter Care and cleaning.
NOTE!
CLn The dishwasher will indicate at regular intervals that Self-clean needs to be run.
Anti-odour
Prevents bad odours from dirty dishes left in the dishwasher. Once the dishwasher door is closed,
the fan is activated at regular intervals for 72 hours. (Only the dishwasher's fan is activated.)
Press to activate the program, which is indicated by an indicator light.
Select option
Press the options to activate them. (The available options vary between programs.)
Delayed start
When you select Delayed start, the dishwasher will start in 1-24 hours after you have pressed the
button and closed the door.
1.
Press once to activate Delayed start. Press several times, or hold it in, to set the desired
number of hours. The time for Delayed start is shown on the display.
2.
Press . Close the door. The timer counts down and the dishwasher starts after the selected
delay.
If you want to cancel the Delayed start option, open the door then press and hold for three
seconds.
Not available for: Self-clean
Speed wash
This option shortens the program time, but uses more energy and water.
Press to activate the option. The program time is updated on the display.
Not available for: Auto , Glass , Hygiene, Night , Self-clean
16
Using the dishwasher
Automatic door opening
The dishwasher door opens during the drying phase, which shortens the program time and improves
the drying results. Wait until the dishwasher indicates that the program has ended and the dishes
have cooled before unloading the dishwasher.
The drying time for the Automatic door opening option varies (from 5 to 90 minutes) depending on
the model, program and temperature of the final rinse.
Press to activate the option, which is indicated by an indicator light.
NOTE!
For the best drying results, do not close the door before the drying phase has finished and the
machine has automatically switched off.
WARNING!
The dishwasher door must not be blocked or closed when opened automatically. Doing so may
damage the door lock mechanism. Wait at least 5 minutes before closing the door.
Anti-odour
Prevents bad odours from dirty dishes left in the dishwasher. Once the dishwasher door is closed,
the fan is activated at regular intervals for 72 hours. (Only the dishwasher's fan is activated.)
Press to activate the program, which is indicated by an indicator light.
Start/Stop
Press . The display will start to flash, indicating that the dishwasher is ready to start. Close the
door properly, otherwise the dishwasher will not start.
Stopping or changing a program
Open the door. If you want to interrupt or change the program after starting the dishwasher, press
and hold for three seconds.
Top up with new detergent if the lid of the detergent dispenser has opened. Then select a new
program, press and close the door.
Time remaining
Once you have chosen a program and options, the time the program took when last used is displayed.
17
Using the dishwasher
Status light
The status light indicates that a program has started.
Flashing light
A flashing light indicates that the door has been opened while a program is in progress. If it flashes
when the door is closed, an error has occurred. See the chapter Troubleshooting.
Status light
If you want to load more dishes
1)
Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a
while, the dishwasher continues the program.
Power failure
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
program continues when power is restored. If the power is cut during drying, the program is
interrupted.
If you open the door for more than 2 minutes during drying, the program will be interrupted.
Once the program has finished
Once the program has finished, "End" appears on the display. The end of the program is also indicated
by one short signal sounding and the status light turning off.
The dishwasher automatically enters standby mode after the program has finished. Shut off the water
tap after each use (if required by your insurance company).
For the best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Top up with rinse aid or increase the rinse aid dose setting.
•
Activate the Automatic door opening option.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
1)
You should not load more dishes if the lid of the detergent dispenser has been opened.
18
Using the dishwasher
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of prewashes
OptionsDetergent (ml)Program
Water cons.
(liter)
Energy
(approx. kWh)
Dishwashing
time
(approx.
hrs:min)
11.5-19.00.9-1.42:10-3:1065 °C2-345-65 °C1-2
3)
25Auto
11.30.513:1537 °C243 °C1
3)
25Eco
2)
15.01.10:5965 °C365 °C
3)
25Quick
16.01.62:4570 °C270 °C2
3)
25Intensive
10.00.71:3050 °C245 °C
3)
20Glass
11.01.31:1570 °C270 °C
3)
25Hygiene
14.01.45:2565 °C255 °C1
3)
25Night
1)
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2)
The energy label performance figures are based on this program, which is recommended for a normally soiled load at its rated capacity (Option: Automatic door opening).
3)
Automatic door opening
19
Program chart
1. Open the door and press .
2.

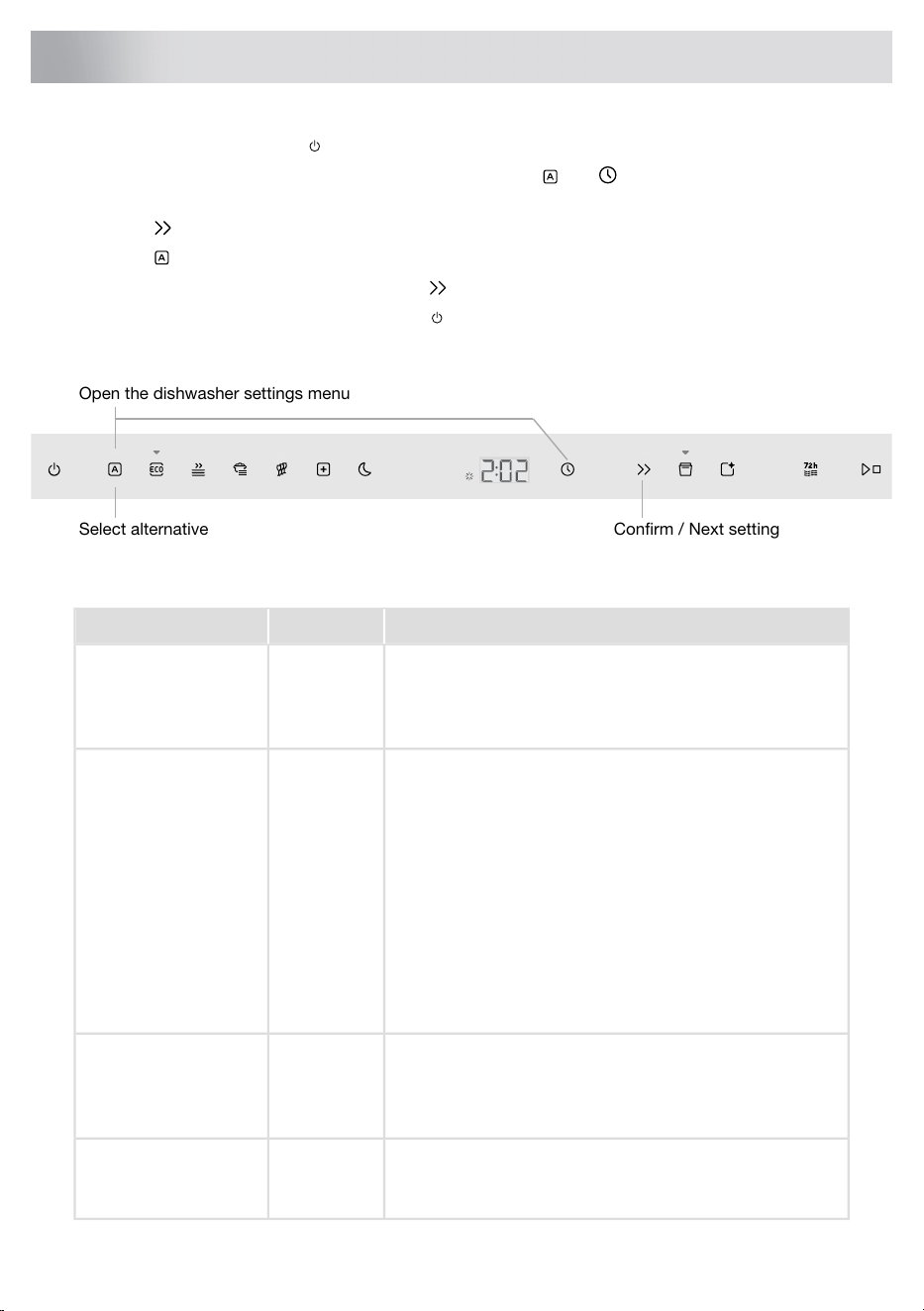

To open the dishwasher settings menu, press and hold and until SEt is shown on the
display.
3.
Press to move through the settings menu.
4.
Press to move through the alternatives.
5.
Confirm the selected setting by pressing .
6. To exit the menu, skip through it or press .
Confirm / Next settingSelect alternative
Open the dishwasher settings menu
AlternativesSettings
A beep confirms that the display has been pressed.2:00 - 2:03Sounds
The buzzer indicates when a dishwashing program has
ended.
(2:00 Off)
Error messages are always indicated by a loud buzzer.
Setting for rinse aid dosage. The rinse aid dispenser can
be adjusted between 3:00 (Off) and 3:05 (High dosage).
3:00 - 3:05
(3:00 Off)
Rinse aid
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse
aid can be diluted 50:50 with water.
Pre-selected at factory: 3:04
Activate this setting when using an all-in-one detergent that
contains rinse aid.
5:00 (Off)
5:01 (On)
TAB
(All-in-one detergent)
This setting reduces the rinse aid dose.
Pre-selected at factory: 5:00
Any error messages.F--Error readout
When contacting the service department, you may be asked
to provide the most recent error messages.
20
Settings
AlternativesSettings
Restores all settings to the factory defaults.rStRestore factory defaults
Select rSt and confirm by pressing .
To exit the dishwasher settings menu, select End and press
.
EndExit
(The menu closes automatically after three seconds.)
21
Settings
Top up with rinse aid
When the rinse aid needs topping up, the above symbol lights on the display.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top the rinse aid up to the marked level MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
After topping up, it may take a while before the symbol goes out.
NOTE!
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid
(known as acid rinse aid).
Clean the filter
The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when
necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.
1. Turn the locking ring anticlockwise and lift the filter straight up.
2. Empty and clean the filter.
3. Refit the filter and turn the locking ring clockwise to its stop position. Check that the edges seal
properly.
22
Care and cleaning
NOTE!
Dishwashing results may be affected if the filter is incorrectly fitted. The dishwasher must not be
used without the filter in place!
Check that the yellow
drainage pump stop (on the
right in the bottom drain) is in
place.
Cleaning the spray arms
Holes and bearings can sometimes become blocked. Remove any debris using a pin or something
similar. The spray arms also have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place
after cleaning.
Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper
basket.
23
Care and cleaning
Lower spray arm
• Pull the lower spray arm straight up to release it.
Clean the outside of the dishwasher
Door and door seal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Display
Keep the control panel clean. Use a dry or slightly damp cloth and, if necessary, a little washing up
liquid. Avoid strong or abrasive cleaners – they may damage the surface.
CLn - Run the Self-clean program
Dishwasher tub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self-clean program with two tablespoons of citric acid in the detergent compartment (with no dishes
in the machine). Special dishwasher cleaners are also available on the market.
Remove blockages
Unblocking the drainage pump
If the dishwasher still contains water after the program has finished, something may be blocking the
drainage pump, which results in the error message Water outlet fault or BLDC drain pump fault.
1. Turn the machine off using and remove the plug from the wall socket.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.
4. In order to inspect the drainage pump, remove the yellow drainage pump stop on the right in
the bottom drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any
items.
6. Refit the drainage pump stop along with the fine and coarse filters.
7. Plug the machine in again.
24
Care and cleaning
Drainage pump

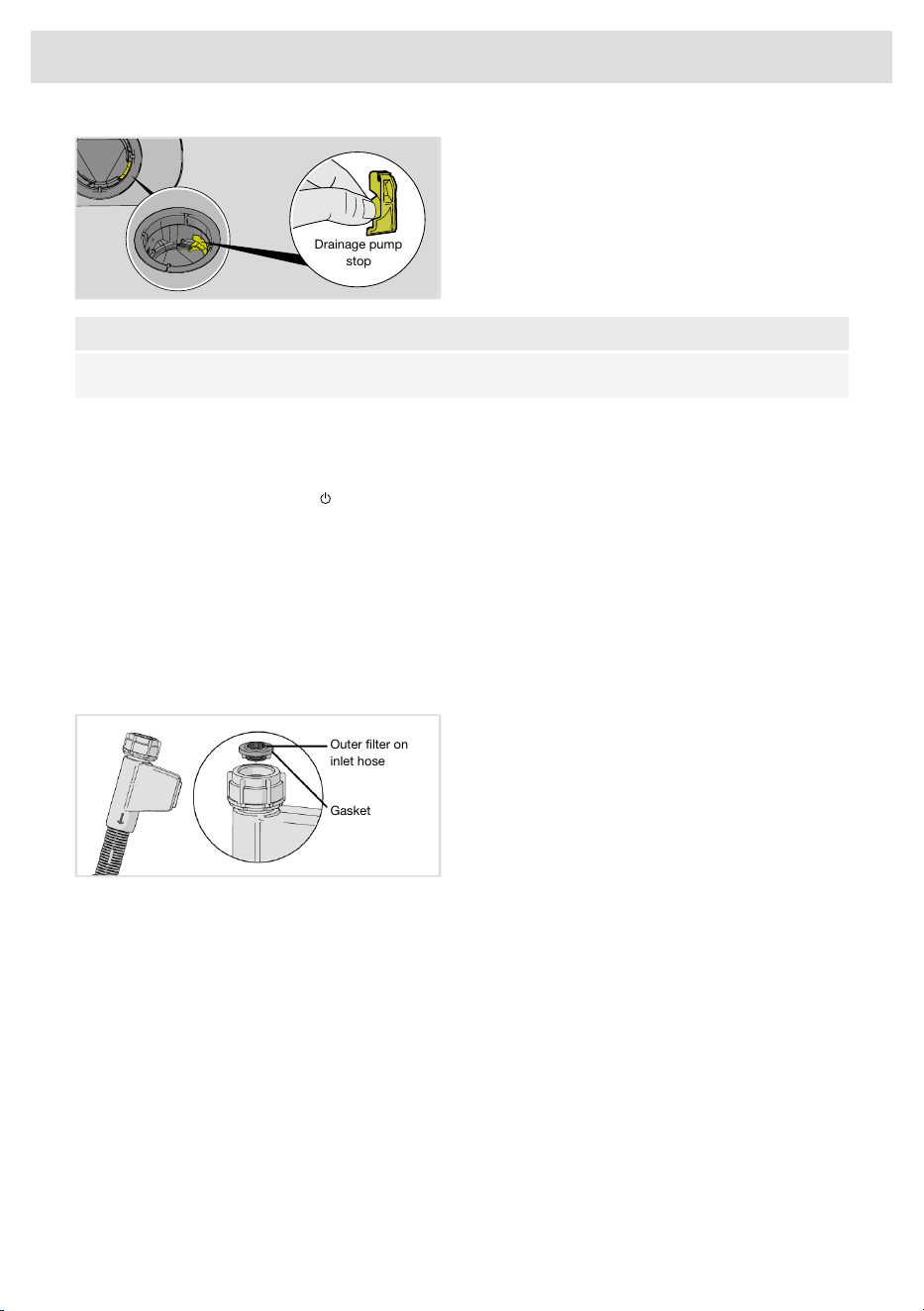

stop
NOTE!
Do not forget to refit the drainage pump stop.
Unblocking the inlet hose filter
If the water supply contains small particles, the outer filter on the inlet hose may become blocked,
which results in the Water inlet fault error message.
1. Turn the machine off using and remove the plug from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for
a while and check that the connection is watertight.
Outer filter on
inlet hose
Gasket
Winter storage/transport
Store the dishwasher above freezing temperature and avoid long transport distances in very cold
weather. Transport the dishwasher upright or laying on its back.
Water must be removed from the machine before the dishwasher is transported anywhere or before
being stored for long periods.
25
Care and cleaning
ActionError messages
Unblocking the drainage pump. See the chapter, Care and
cleaning. If the problem persists, contact your nearest service
centre.
Overfilling waterF10
See "Water remains in the dishwasher" under "Problem" in the
table below. If the problem persists, contact your nearest service
centre.
Water outlet faultF11
Check whether dishwasher inlet hose is connected to a pressure
limiting valve (some pressure limiting valves may restrict the supply
of water to the dishwasher).
Water inlet faultF12
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter, Care and cleaning. If the problem persists, contact
your nearest service centre.
Turn the water tap off and contact your nearest service centre.Inlet valve leakageF40
Turn the water tap off. Remove the plug from the wall socket and
contact your nearest service centre.
Heater fault 1F41
Run any dishwashing program. If the problem persists, contact
your nearest service centre.
Diverter faultF45
Clean the coarse and fine filters. Check that the outer filter on the
inlet hose is not blocked. If the problem persists, contact your
nearest service centre.
Water level faultF52
Turn the water tap off and contact your nearest service centre.Overfilling waterF54
To avoid water leaking outside the dishwasher, do not remove the
plug from the wall socket until the water tap on the supply line has
been turned off!
Run any dishwashing program. If the problem persists, contact
your nearest service centre.
Circulation pump faultF56
Check whether dishwasher inlet hose is connected to a pressure
limiting valve (some pressure limiting valves may restrict the supply
of water to the dishwasher).
Water inlet faultF67
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter, Care and cleaning. If the problem persists, contact
your nearest service centre.
See "Water remains in the dishwasher" under "Problem" in the
table below. If the problem persists, contact your nearest service
centre.
BLDC drain pump faultF68
Press any button to clear the error message.
26
Troubleshooting
ActionPossible causesProblem
Wait a moment then try again.You have pressed the display
too soon after opening the door.
The display does not react when
pressed.
Open the door. The display only
reacts to use when the door is
open.
The door is closed.
Clean with a dry or slightly damp
cloth and, if necessary, a little
washing up liquid. Avoid strong
or abrasive cleaners – they may
damage the surface.
Dirt on the display.
Turn off the water tap. Unplug
from the powerpoint and wait for
60 seconds. Then plug the
appliance back into the
powerpoint and turn on the
water tap.
The control panel needs
calibration.
Check that the baskets are
correctly positioned horizontally.
The baskets are not correctly
positioned.
Cannot close door.
Check that the dishes are not
blocking the baskets from
sliding properly into place.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock does not click into
place and lock.
Press and hold Automatic
door opening until the display
starts counting down. Wait until
the countdown ends (60
seconds). Close the door.
Check that the door lock clicks
into place and locks.
27
Troubleshooting
ActionPossible causesProblem
Press . The display starts
counting down.
has not been pressed.
The dishwasher does not start.
Check.The door is not properly closed.
Close the door and wait. After a
while, the dishwasher continues
the program.
The dishwasher has been
opened while a program is in
progress.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock has not clicked
into place and locked.
Press and hold Automatic
door opening until the display
starts counting down. Wait until
the countdown ends (60
seconds). Close the door.
Check that the door lock clicks
into place and locks.
Press and hold for three
seconds if you want to cancel
the Delayed start option.
Check that the Delayed start
option has been selected.
Check.The plug is not plugged into the
wall socket.
Check.A fuse/circuit breaker has been
tripped.
28
Troubleshooting
ActionPossible causesProblem
Check that the dishes are not
blocking the spray arms.
The spray arms are not rotating
freely.
The dishes are not clean.
Clean the spray arms. See
Chapter Care and cleaning.
Spray arm holes or bearings
blocked.
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as
Intensive .
Unsuitable dishwashing
program.
Dose according to water
hardness. Far too much or far
too little detergent results in
poorer dishwashing results.
Incorrect detergent dosage.
Avoid large packages.Old detergent. Detergent is a
perishable product.
Do not cover porcelain with
large bowls or similar. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter, Loading the
dishwasher.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled
over during the program.
Clean the coarse and fine filters.The filters are clogged.
Check that the filters are fitted
correctly. See the chapter, Care
and cleaning.
The filters are not fitted correctly.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter, Care and cleaning.
Drainage pump stop missing.
Rinse off these types of
foodstuffs if not starting the
dishwasher immediately.
Consider using Quick with the
Speed wash option.
Some foodstuffs, such as
mustard, mayonnaise, lemon,
vinegar, salt and dressings, can
cause spots on stainless steel if
left for too long.
Spots on stainless steel or silver.
In order to avoid marks and
tarnishing, separate dishes
made from different metals,
such as silver, stainless steel
and aluminium.
All stainless steel can cause
spots on silver if they come into
contact during dishwashing.
Aluminium can also cause spots
on dishes.
29
Troubleshooting
ActionPossible causesProblem
See the chapter Settings.Incorrect rinse aid dosage
setting.
Spots or films on the dishes.
Change all-in-one detergents or
deactivate the TAB setting and
top up with separate rinse aid.
See Rinse aid in the chapter,
Settings.
The setting TAB is activated and
all-in-one detergent with
insufficient drying effect is being
used.
Wash crystal at a low
temperature using a small
amount of detergent. If you have
questions about the detergent,
contact the detergent
manufacturer.
Too high temperature and/or too
much detergent can cause
etching on crystal.
Unfortunately, this cannot be
repaired, only prevented.
Reduce the dosage. See the
chapter Settings. If you have
very soft water, you may want to
dilute the rinse aid 50:50 with
water.
Rinse aid dosage setting too
high.
The dishes have a sticky
white/blue film.
Use a detergent with a
bleaching agent.
Lipstick and tea/coffee stains
can be difficult to remove.
Spots left after washing.
The detergent compartment
must be dry when adding
detergent.
The detergent compartment was
damp when adding detergent.
Detergent residue in the
detergent compartment after
dishwashing.
Check that the dishes are not
preventing the detergent
compartment from opening.
The detergent compartment is
blocked.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can
rotate.
The dishes are not correctly
placed or the spray arms are not
rotating freely.
Rattling sound when
dishwashing.
30
Troubleshooting
ActionPossible causesProblem
Clean the coarse and fine filters.The filters are clogged.Water remains in the
dishwasher.
Check that the filters are fitted
correctly. See the chapter, Care
and cleaning.
The filters are not fitted correctly.
Clean the drainage pump. See
the chapter Care and cleaning.
Debris in the drainage pump.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter, Care and cleaning.
Drainage pump stop missing.
Check that the hose is free from
kinks and sharp bends.
Kink in drainage hose.
Disconnect the drainage hose
where it connects to the sink
unit's water trap. Check that no
debris has fastened and that the
connection has an inner
diameter of at least 14 mm.
Blocked drainage hose.
Clean with washing-up brush
and low foaming cleaner.
Dirt around the seals and in
corners.
Bad odour in dishwasher.
Run a program with a high
temperature once or twice a
month. Or run a self-cleaning
program. See Self-clean in the
chapter Using the dishwasher.
Low temperature programs have
been selected for a prolonged
period.
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as
Intensive . Or run a self-cleaning
program. See Self-clean in the
chapter Using the dishwasher.
Low temperature programs have
been selected for a prolonged
period.
Grease deposits in the
dishwasher.
Activate the Automatic door
opening option.
The Automatic door opening
option is not activated.
The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully
loaded.
Top up with rinse aid or increase
the rinse aid dose setting.
Rinse aid needs topping up or
dosage is set too low.
Change all-in-one detergents or
deactivate the TAB setting and
top up with separate rinse aid.
See Rinse aid in the chapter,
Settings.
The setting TAB is activated and
all-in-one detergent with
insufficient drying effect is being
used.
31
Troubleshooting

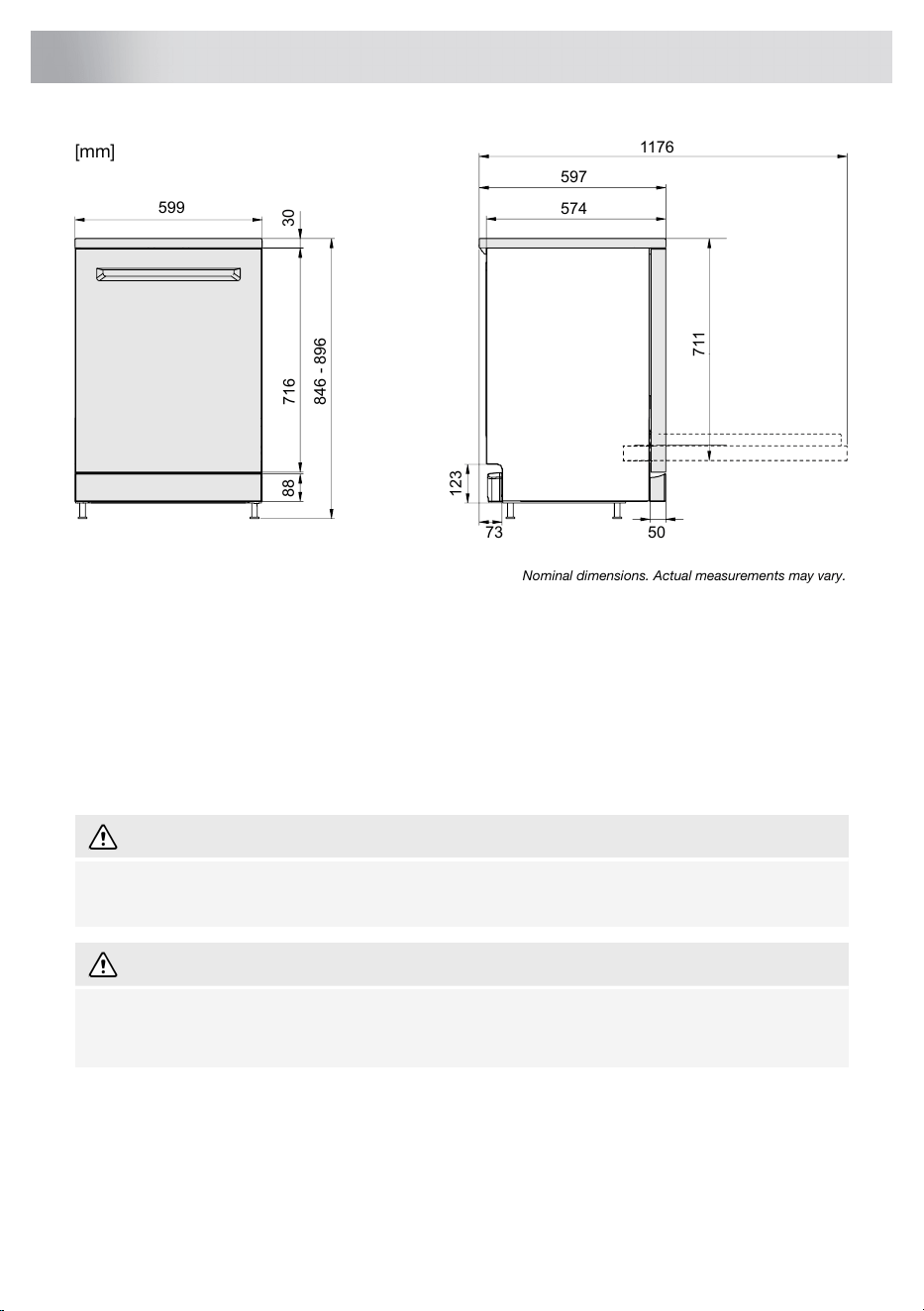

846 - 896
716
599
123
73
711
574
1176
50
3088
597
[mm]
Nominal dimensions. Actual measurements may vary.
Safety instructions
• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Before fastening the dishwasher, test the dishwasher by running the Quick program with the
Speed wash option. Check that the dishwasher fills with water and drains. Check also that none
of the connections leak.
WARNING!
The ventilation opening in the lower part of the door must not be blocked by a rug, carpet or
similar furnishing.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!
Placing the dishwasher
The dishwasher can be installed under a worktop or freestanding. Make sure the area on which the
dishwasher is to be installed is firm.
32
Installation
Adjust the height and slide the dishwasher into place
24mm
Freestanding

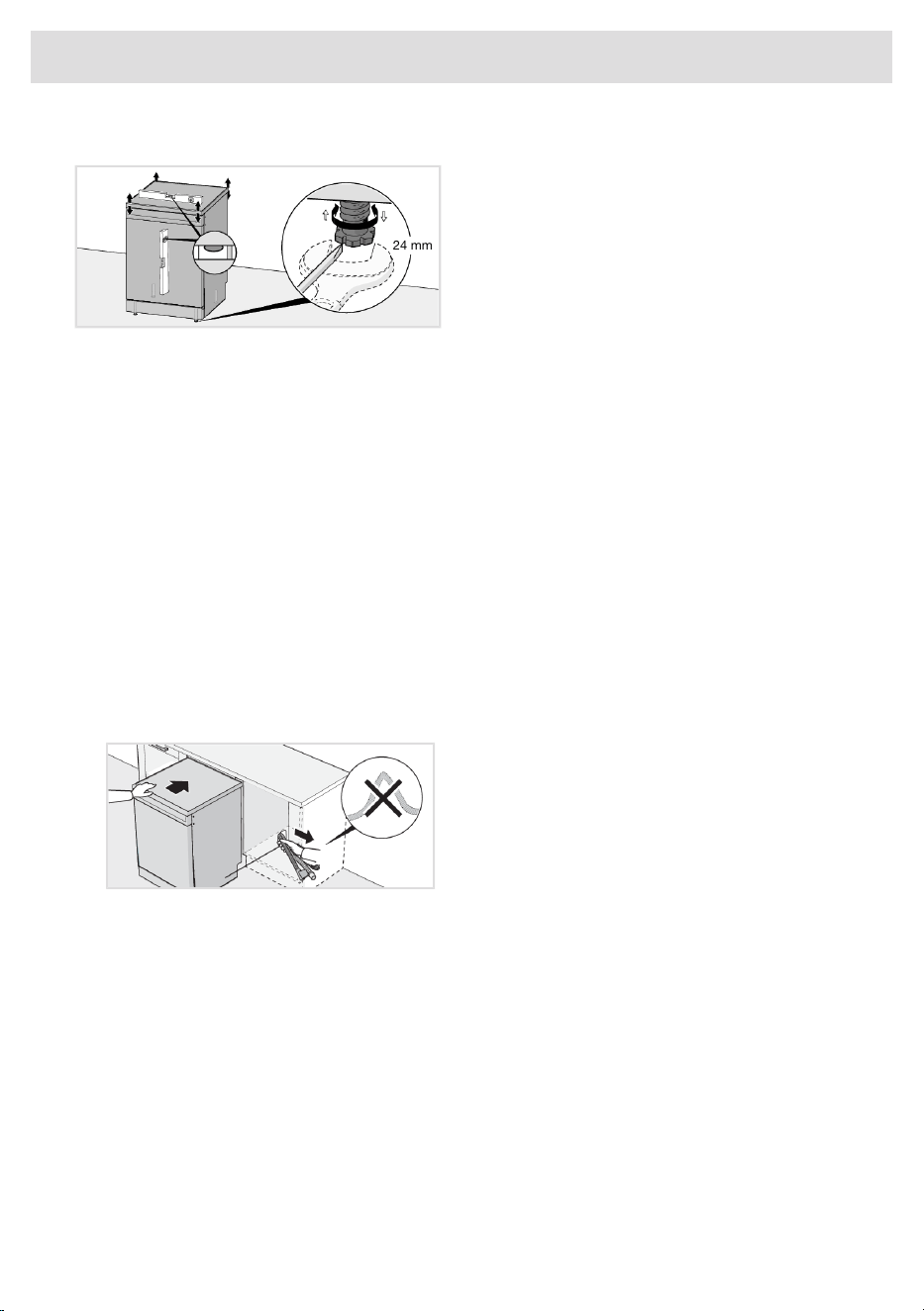

• Make sure the area on which the dishwasher is to be installed is firm. Adjust the dishwasher's
height using the four feet so that the dishwasher is level. Also, check that the dishwasher door
can be opened freely and is centred in the tub opening.
Built-in
1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Adjust the dishwasher's feet by turning them clockwise to raise or anticlockwise to lower the
machine.
4. Check that there is an air gap of at least 3 mm between the underside of the worktop and the
top edge of the dishwasher.
5. Slide the dishwasher into place.
• Pull the inlet and drainage hoses and the power cable when the dishwasher is slid into place.
• Check that the drainage hose has no kinks or sharp bends. Also check that there is nothing
that can damage the hoses.
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
6. Make any final adjustments to the front feet.
The dishwasher can also be installed in a recess without its worktop. See Remove dishwasher
worktop.
Drainage connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drainage hose runs to a lower level than
the bottom of the dishwasher, such as by routing it directly to a floor drain.
33
Installation
min.
14mm
Max. 950mm

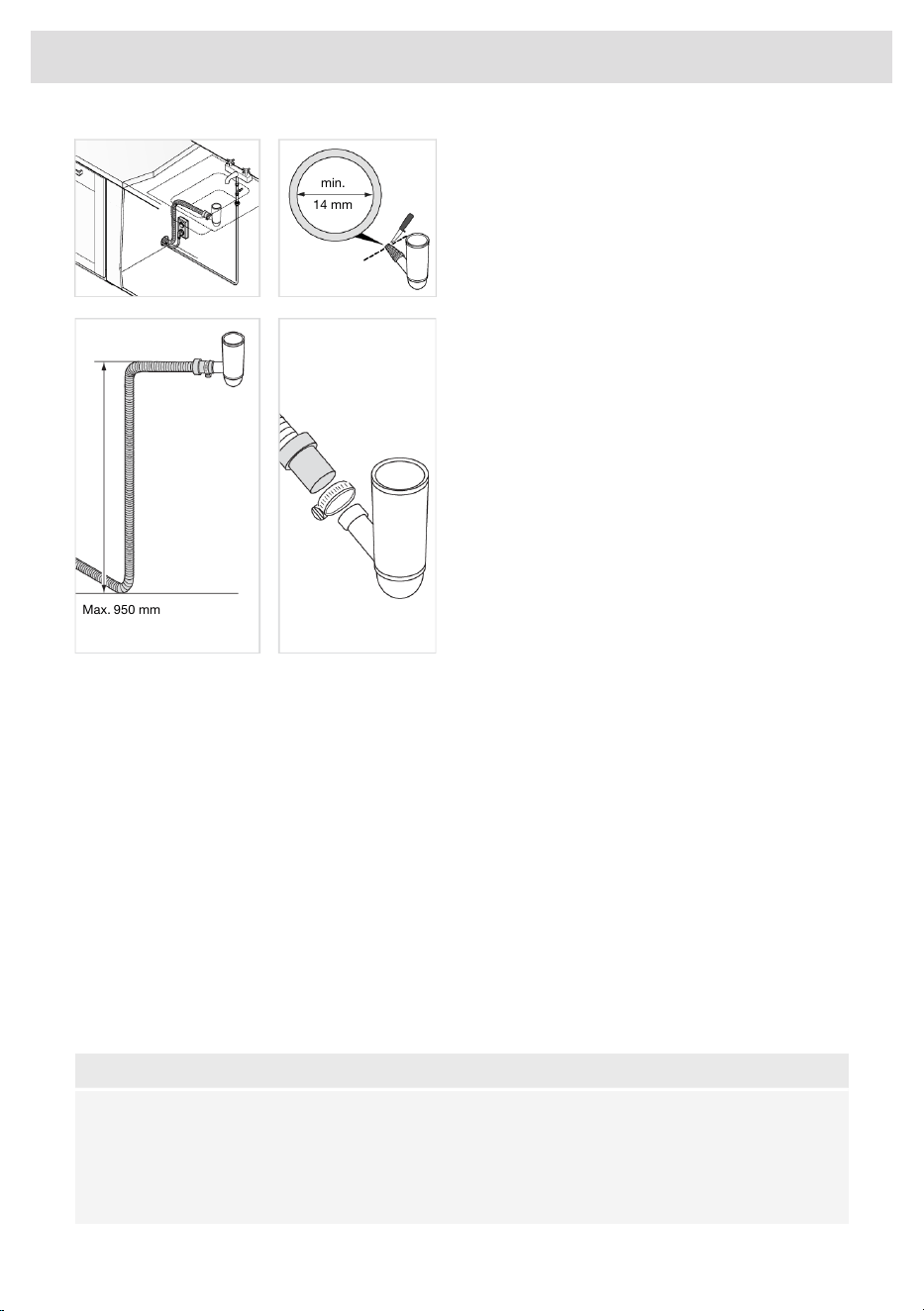

The drainage hose can also be connected to a cone-shaped connection pipe on the sink unit's water
trap. The connection pipe must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose
must not exceed 4.5 m). Any joints and connecting pipes must have an internal diameter of at least
14 mm.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible,
so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while.
Check that all connections are watertight.
NOTE!
The water pressure must be between 0.03 and 1.0 MPa.
Connecting a dishwasher to the water supply via certain types of pressure limiting valves may
restrict the water supply! This may cause the error message “Water inlet fault” to be displayed.
If the water pressure is higher than 1.0 MPa a pressure limiting valve must be fitted.
34
Installation
Electrical connection
Information about the electrical connection can be found on the compliance plate. This specification
must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after
installing the dishwasher. Do not use an extension cord!
Remove dishwasher worktop
The dishwasher can be installed in a recess
without its worktop. If the dishwasher's worktop
is removed, the dishwasher must be installed
so that it is enclosed on both sides and is
under a separate worktop. If the dishwasher
is installed so that one of its sides is visible, a
brace must be fitted to the rear edge of the
dishwasher. Accessories can be purchased
where you purchased your dishwasher.
35
Installation
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a
problem that you cannot resolve, please contact your nearest service centre for professional help.
When making contact, provide the details on the serial number plate. Include the article number (1)
and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
1
2
Spare parts
The following spare parts are available for at least seven years after the model is no longer
manufactured: Motor, circulation and drainage pump, heating element, pipes and hoses, valves,
filters and aquastops, door attachment components, circuit boards, electronic display, pressure
sensor, thermostats and sensors, software including restore programs.
The following spare parts are available for at least ten years after the model is no longer manufactured:
Door hinges and seals, other seals, spray arms, drain filters, wire baskets and plastic accessories
such as baskets and lids.
Number of program cycles
Press and hold and for 3 seconds to show Number of program cycles on the display.
(If the dishwasher has completed more than 999 cycles, the number of thousands is displayed
followed by the number of cycles up to 999. For example: 1234 cycles is displayed as 001 followed
by 234.)
36
Service
Information on energy labelling
AS/NZS 2007Australian standard:
14Number of place settings:
Eco
1)
, Automatic door openingDishwashing programs:
3:15 hours:minutesProgram time:
Cold water 20 °CConnection:
IEC 60704-2-3Test method for noise measurement:
1)
This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It
is intended for washing a normally soiled load at its rated capacity and is the most effective program in terms
of combined energy and water consumption.
Technical data
846-896 mmHeight:
599 mmWidth:
597 mmDepth:
40 kg
1)
Weight:
0.03-1.0 MPaWater pressure:
See compliance plateElectrical connection:
See compliance plateRated power:
1)
Weight can vary due to different specifications.
Information for test institute
The request should include the details on the product’s serial number plate. Include the article
number (1) and the serial number (2).
1
2
37
Technical information
38
Your notes
39
Your notes
960196
WWW.ASKO.COM
We reserve the right to make changes.
-a3
