54-49-8404
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
PACKOUT™ Coolers
Sept. 2022
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
48-22-8460 PACKOUT™ Compact Cooler Page 1
48-22-8462 PACKOUT™ 40QT XL Cooler Page 2
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 44-20-8422 Latch Assembly
(1)
5 31-01-8460 Tray (1)
6 43-44-8460 Gasket
(1)

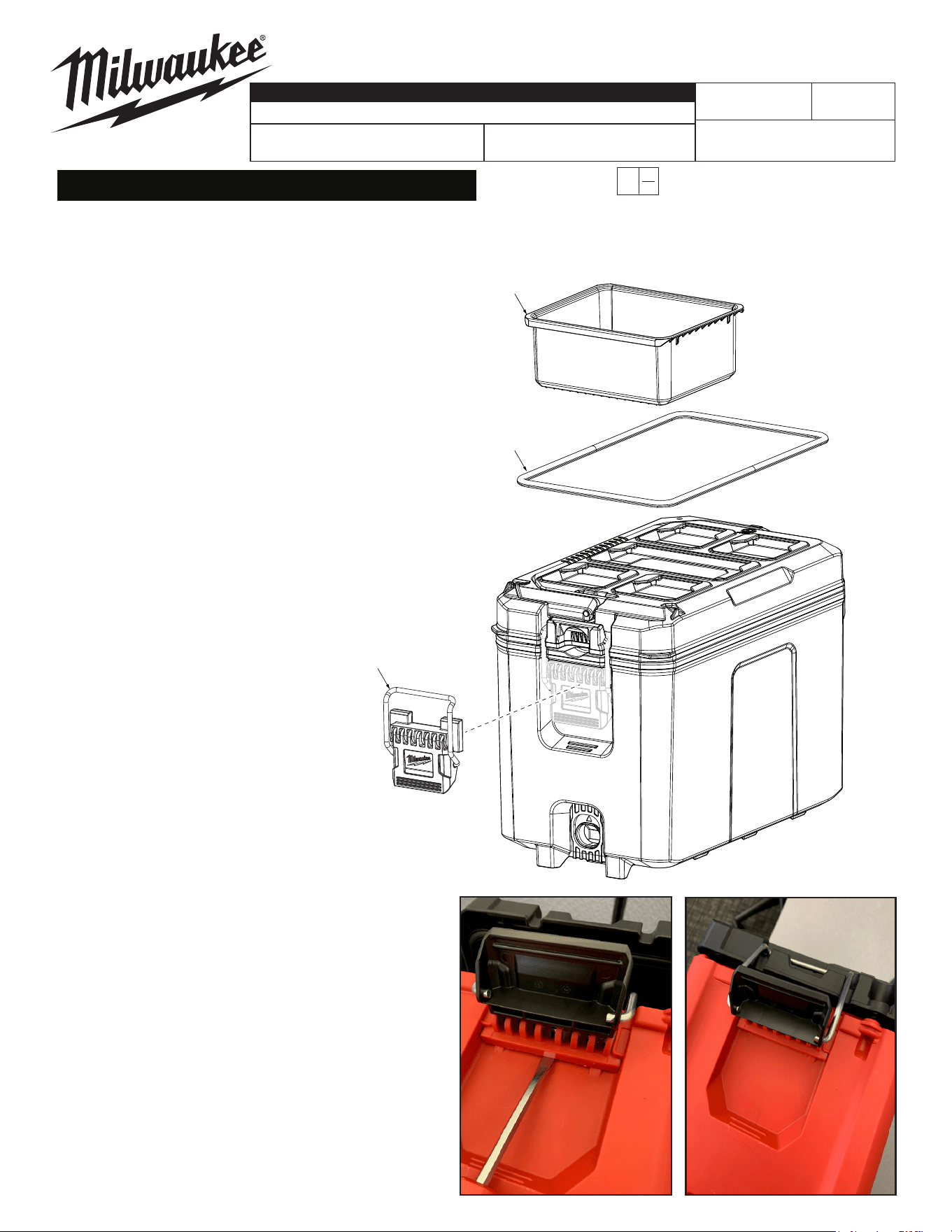

48-22-8460 PACKOUT™ Compact Cooler
Note: Tray, Dividers and Gasket
illustrated outside of PACKOUT, is to
be assembled on the inside.
6
5
1
Fig.1
Fig. 2
Note:
Procedure for removal and installation of the 44-20-8422 Latch (1).
Removal:
1. Undo latch from PACKOUT lid.
2. Insert a athead screwdriver in-between latch assembly and
PACKOUT base to pry over the tabs. (Fig.1)
3. Pull metal latch down to remove.
Installation:
1. Insert Latch Assembly into channel.
2. Attach the metal latch to the lid. (Fig.2)
3. Close latch to secure Latch Assembly in place inside the channel.
Latch Removal and Installation
2

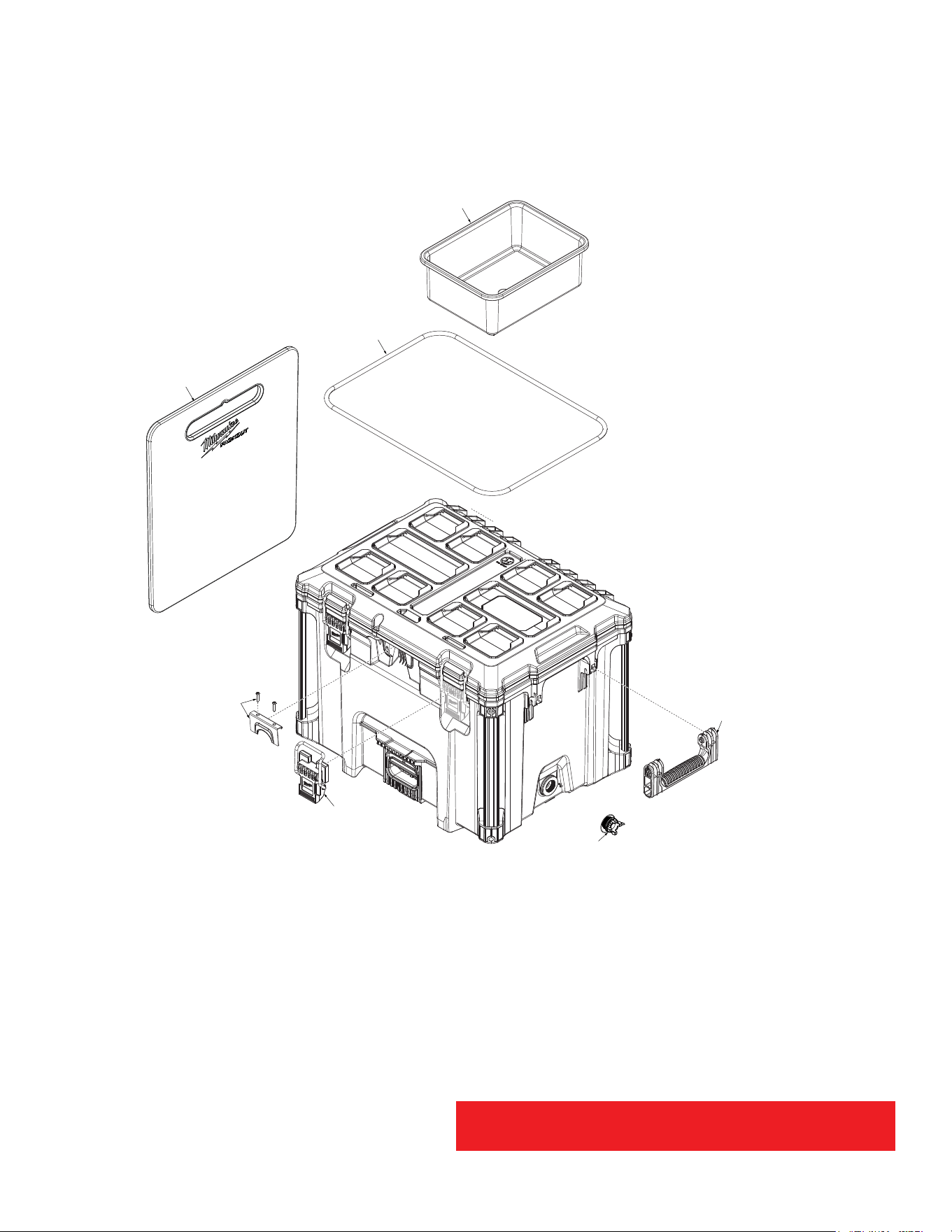

48-22-8462 PACKOUT™ 40QT XL Cooler
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 31-44-8462 Tray (1)
2 43-44-8462 Gasket (1)
3 44-48-8462 Bottle Opener Service Kit (1)
4 44-20-8400 Latch Service Kit (2 Latches) (1)
5 43-62-8424 Handle Service Kit (2 Handles) (1)
6 31-01-8462 Drain Plug Service Kit (1)
7 48-22-8041 Cooler-Divider (1)
Note: Tray, Dividers and Gasket
illustrated outside of PACKOUT, is to
be assembled on the inside.
1
2
3
5
6
4
7
SEE PAGE 1 FOR LATCH REMOVAL
AND INSTALLATION INSTRUCTIONS
